I have created an adaptive
online tutor
for general astronomy, one that allows
students to learn about astronomy and to hone their problem-solving skills.
This 12,000+ question self-review library has been used successfully in the
classroom since 2006, and in distance education mode since 2011. A recent
in-class cohort of 80 students took over 26,000 5-question quizzes. This
corresponds to an average of 325 quizzes (or over 1,600 questions) per student
(versus the five hand-graded quizzes per student which were offered in the
past). Students cite the immediate feedback (24/7), with worked solutions
for all math problems, the ability to focus repeatedly on a single difficult
concept, and the wide breadth of topics covered as extremely helpful aspects
of the tutor.
Questions are designed to give experience in a variety of problem-solving
modes. There is an emphasis on quantification and on extrapolation, and drawing
on physical evidence and theory to deduce logical properties and patterns
found in the physical universe. Question types include the following:
Extrapolation:
How can our knowledge of the biodiversity found on Earth enable us to estimate the probability of finding life in the oceans of Europa?
Scaling:
If different galaxy components have different spectral energy distributions (emitted flux as a function of wavelength), how should optical and infrared images of the bulge or disk of a spiral galaxy like the Milky Way differ from each other?
Visualization:
Given a physical model of the Sun–Earth–Moon system, what is the observed phase of the Moon at a certain position in the sky at a certain time of day?
Figure analysis:
What is the frequency of a displayed light wave?
Computation:
If the Sun burns its reservoir of hydrogen at a certain rate, how long can it exist in the hydrogen-burning phase?
Algebra:
If the Hertzsprung-Russell diagram shows us the specific relationship between the luminosity, temperature, and radius of a star, how can one calculate one quantity from the other two variables?
Students work to complete sets of five questions at a time. Each such quiz
contains links within each question to a hint (?) and to a relevant lecture
page (i), as well as to an audio recording of the lecture. Students can thus
refresh the connection between the question and general topics, or receive
guidance on how to set up or think about the problem. A sample quiz is
offered below.
Try Quiz
Sample Quiz
#1.

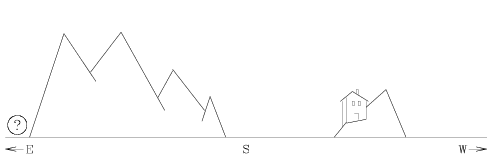

This figure shows the location of the Moon in the sky as we look from our
position in the northern hemisphere toward the southern sky, with the horizon
stretching from east (on the left) to west (on the right). If the figure
shows the location of the Moon in the evening (9 pm), what phase must it exhibit?
full
new
waning gibbous
waxing crescent
third quarter
first quarter
waning crescent
waxing gibbous
#2.
Which piece of evidence suggests that the Earth and the Moon formed at similar
locations in the solar system?
The Moon's density is 3.3 grams per cubic centimeter (versus 5.5 grams per cubic centimeter for Earth).
They are approximately the same size.
The oxygen detected in each object exhibits the same isotopic ratios.
#3.

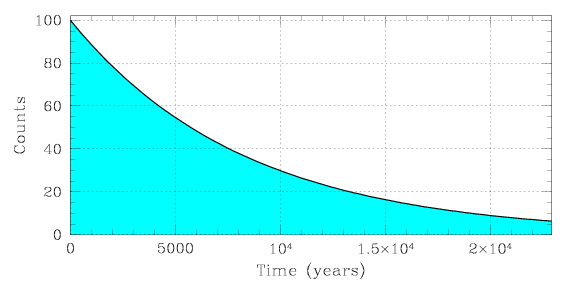

The plot drawn below shows the decay of a radioactive sample of a certain
element with time. Which of the following statements about it are true?
The amount of the original element which remains in the sample, as
a function of time.
[1] The half-life of this element is between 5,000 and 7,000 years.
[2] Twice as many atoms decay during the first half-life than during the second shown.
[1] and [2] are both true.
[1] and [2] are both false.
#4.
If a star has a temperature of 6810 K (recall that the temperature of the
Sun is 5800 K), and is 109 times as large as the Sun, how bright is it? The
luminosity, in solar units, is:
Write your answer in the box, using a standard format for numbers. For
example, if the luminosity is one hundred and twenty five times brighter than
that of the Sun type "125" or "1.25e2". If the luminosity is eight times
fainter than that of the Sun type "0.125" or "1.25e-1".
#5.
Because of the finite speed of light, when we observe the most distant
galaxies we see them
.
as they were in the distant past
as they are today
as they will be in the future
at higher resolution than nearby galaxies
Once students have submitted their answers, they are given a solution set with worked
answers to all of the questions. A sample solution set is shown below.
Sample Quiz Solution
Summary of results:
Your score was
#1. If the figure drawn below shows the location of the Moon in the evening
(9 pm), what phase must it exhibit?
#2. Which piece of evidence suggests that the Earth and the Moon formed at
similar locations in the solar system?
#3. The plot drawn below shows the decay of a radioactive sample of a certain
element with time. Which of the following statements about it are true?
#4. If a star has a temperature of 6810 K and is 109 times as large as the
Sun, how bright is it?
#5. Because of the finite speed of light, when we observe the most distant
galaxies we see them ...
Elapsed Time: minutes
#1.

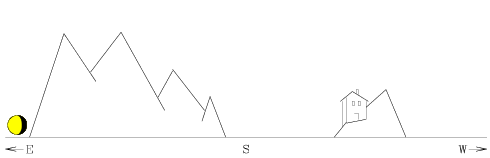

This figure shows the location of the Moon in the sky as we look from our
position in the northern hemisphere toward the southern sky, with the horizon
stretching from east (on the left) to west (on the right). If the figure
shows the location of the Moon in the evening (9 pm), what phase must it exhibit?
full
new
waning gibbous
waxing crescent
third quarter
first quarter
waning crescent
waxing gibbous
If the Moon is rising on the eastern horizon around 9 pm, it must be in the
waning gibbous phase. The waning gibbous Moon rises around 9 pm, transits six
hours later in the early morning (around 3 am), and sets six hours later, in the
west, around 9 am. We can observe it on the eastern horizon around 9 pm.
#2.
Which piece of evidence suggests that the Earth and the Moon formed at similar
locations in the solar system?
The Moon's density is 3.3 grams per cubic centimeter (versus 5.5 grams per cubic centimeter for Earth).
They are approximately the same size.
The oxygen detected in each object exhibits the same isotopic ratios.
The ratios between different isotopes of oxygen found in the Earth and Moon
are identical. Since these ratios are determined by the environmental
richness, temperature, pressure, and such (conditions that are determined by
location in the solar system), the Earth and the Moon must have formed at the
same place.
#3.
The plot drawn below shows the decay of a radioactive sample of a certain
element with time. Which of the following statements about it are true?
The amount of the original element which remains in the sample, as
a function of time.
[1] The half-life of this element is between 5,000 and 7,000 years.
[2] Twice as many atoms decay during the first half-life than during the second shown.
[1] and [2] are both true.
[1] and [2] are both false.

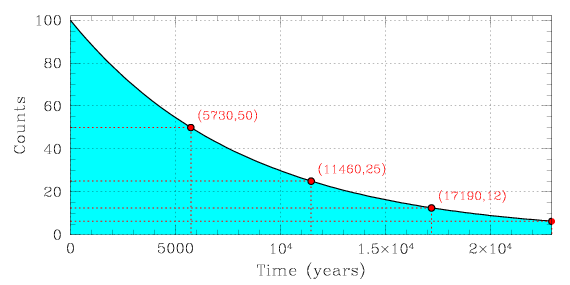

Our sample begins with 100 counts, and we know that over the course of each
half-life 50% of the remaining atoms of the radioactive element will decay.
Over the course of one half-life, the first 100 counts drop to 50 counts.
Measuring on the plot, we see that the time (measured along the x-axis) over
which the amount of the original sample (measured along the y-axis) drops from
a level of 100 to 50 is a bit less than 6,000 years.
We know that in each half-life, 50% of the remaining atoms of the radioactive
element will decay. Over the first half-life, we begin with 100 counts and
decay to 50 (losing 50). Over the second, we begin with 50 counts and decay
to 25 (losing 25). Twice as many atoms do indeed decay during the first
half-life as the second, because the sample is so much larger when it starts.
#4.
If a star has a temperature of 6810 K (recall that the temperature of the
Sun is 5800 K), and is 109 times as large as the Sun, how bright is it? The
luminosity, in solar units, is:
22600
We can use Stefan's Law to relate the luminosity L, temperature T, and radius R
of the star. Because we know the values of R and T, we will express the
relation in terms of L as a function of R and T.
The radius R is 109 times that of the Sun, and the temperature T is 6810 K.
We need to rewrite T in terms of the temperature of the Sun (which has a
temperature of 5800 K).
We now insert the values of R and T (in solar units) into the equation to
find the value of L.
To check our numerical answer, we can estimate the location of the star on the
Hertzsprung-Russell diagram shown in the lecture slide linked to below (i). At
the intersection of a temperature of 6810 (roughly 6800) on the x-axis and a
diagonal line representing a radius of 109 (roughly 100), we can draw a
horizontal line to the left over to the y-axis to find that stars located here
should have a luminosity of roughly 20,000 in solar units.
Our answer has been verified!
What kind of stars inhabit this region of the Hertzsprung-Russell diagram?
With a roughly solar temperature and a radius 100 times that of the Sun,
we are in the regime of the giant stars (far above the Main Sequence where
the Sun is found).
#5.
Because of the finite speed of light, when we observe the most distant
galaxies we see them
.
as they were in the distant past
as they are today
as they will be in the future
at higher resolution than nearby galaxies
Light takes a finite amount of time to travel through space, and so light from
the most distant objects takes the most time to reach us. When we observe the
most distant galaxies, we see them not as they are today, but as they were in
the distant past (billions and billions of years ago, when the Universe was
young).
Please don't hesitate to contact me if you would like to explore the other 12,401
questions in the library, by yourself or with a group of your students.
Project GEAS would love to hear from you!
I also offer topical tutorials, such as
this one
focused on the lunar phases.
