What kind of stars are found here?

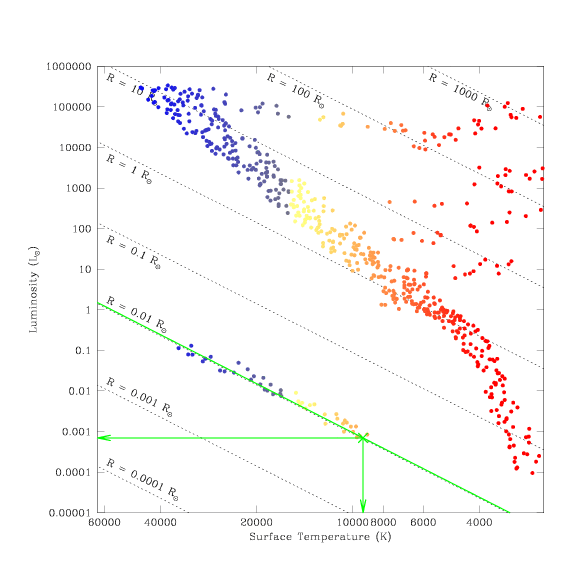

A star in this region of the Hertzsprung-Russell diagram has a temperature of roughly 9,000 Kelvin (9,000 K), a luminosity 1400 times less than that of the Sun (0.0007 × L), and a radius one hundred times smaller than the Sun (R = 0.01 × R). This star lies along the narrow band in size, where white dwarf stars are found. The low temperature indicates that this star is the end-product of a nova of a low-mass star that took place quite some time in the past (a younger star would not have had time to cool, and to move down the white dwarf sequence to such extremely low luminosities and cool temperatures).

Try to read the values of L, T, and R for yourself from the diagram. Do you estimate values for the luminosity, temperature, and size of the star similar to those listed above?

How much fainter has this white dwarf become since its formation?

We can use the Stephan-Boltzmann Law to relate the temperature (T), size (R), and luminosity (L) of a star to each other, and so determine how much this white has faded over time. Measuring L, R, and T in solar units, we say that:

Solving for R squared, we see that

Examining the distribution of white dwarfs in the diagram, we observe that there is very little scatter in their sizes – they are uniformly one-hundredth the size of the Sun, no matter how hot or cold they are, no matter how bright or faint they are. We can use this fact to relate the luminosity and temperature of white dwarfs at each end of the temperature sequence.

Imagine one white dwarf, called A, has just entered the white dwarf phase, while another, B, has been cooling and fading for billions of years. As all white dwarfs share the same radius,

We want to find out how much fainter the cooled white dwarf is, so we solve for the ratio of the luminosities. By examining the white dwarf sequence on the Hertzsprung-Russell diagram, we can estimate the hottest and coolest temperatures as 29,000K and 9,000K.

The white dwarf has become one hundred times fainter as it cooled, ending up one-thousandth as bright as the Sun. Imagine how difficult it would be to find it in a telescope image!
