• Project Assignment

• C Snippet (passing an element of an array of structures to a function)

• A second and third C snippet (using command line arguments)

• A fourth C snippet (a recursive function)

• Input Datafiles

  • Datafile #A

  • Datafile #B

  • Datafile #C

  • Datafile #D



  • Datafile #E

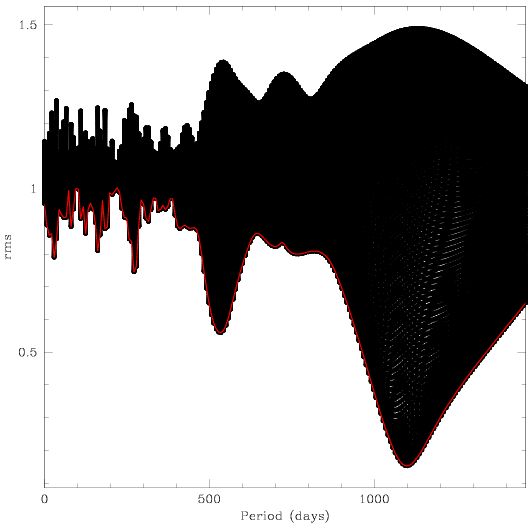

(Left) Plot of rms as a function of period; the spread in rms for each period value is caused by varying the phase from 0 to 2 radians. The red points are the lowest rms values for each period value.

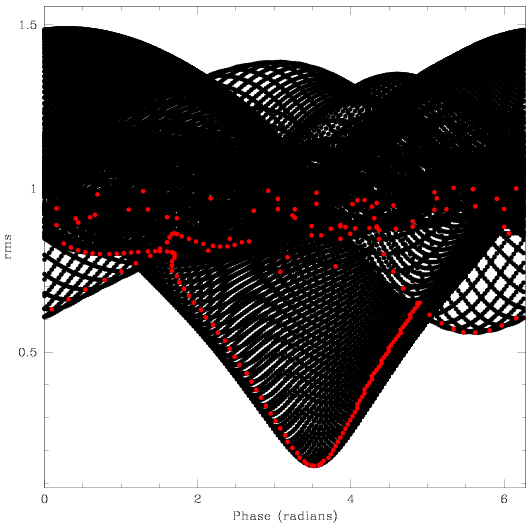

(Right) Plot of rms as a function of phase; the spread in rms for each phase value is caused by varying the period from 0 to 1460 days. The red points are still the lowest rms values for each period (not phase) value.

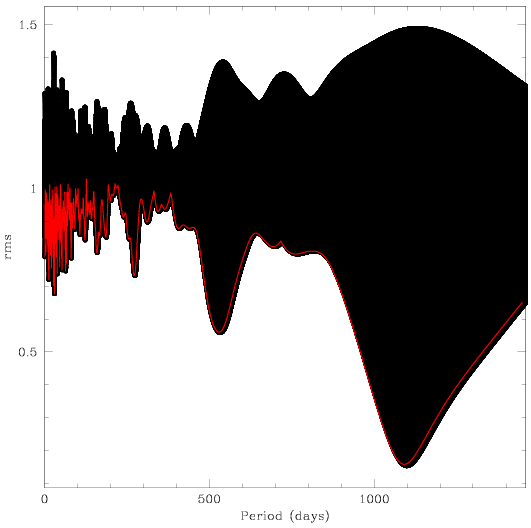

(Left) As above, with a factor of 25 finer sampling in period.

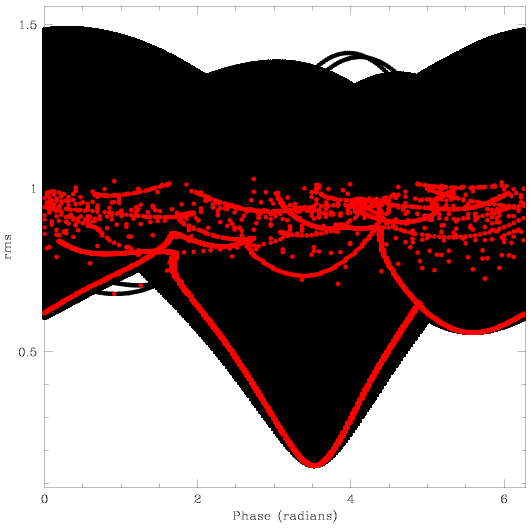

(Right) As above, with a factor of 25 finer sampling in period.

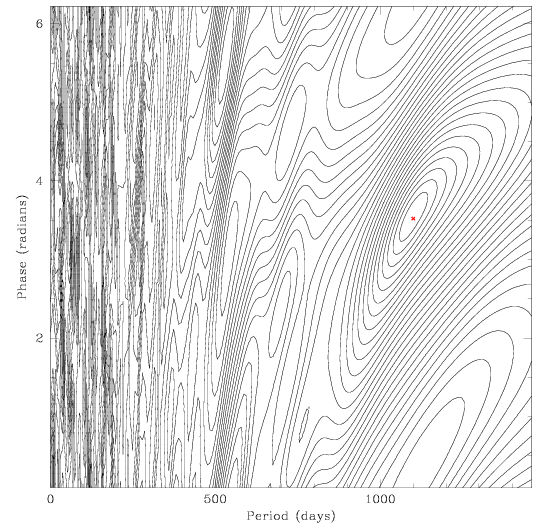

(Left) Contour plot showing the distribution of rms values in period and phase.

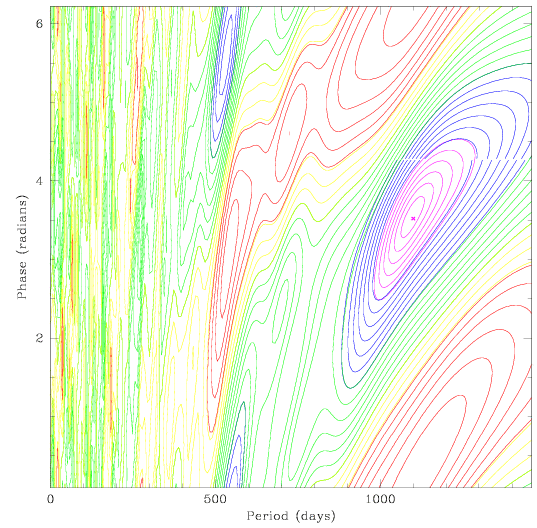

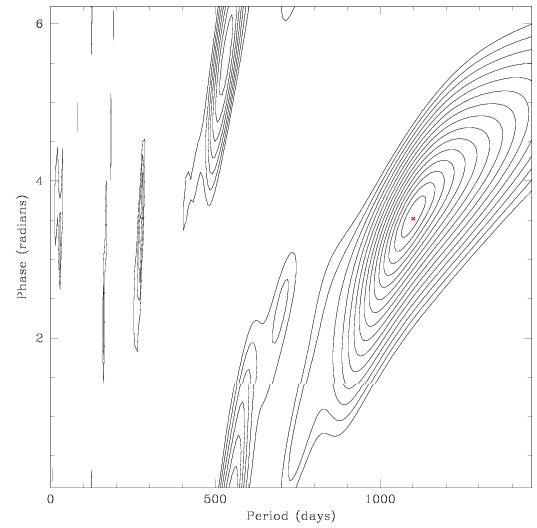

(Right) Same contour plot, showing only the valleys (low rms values).

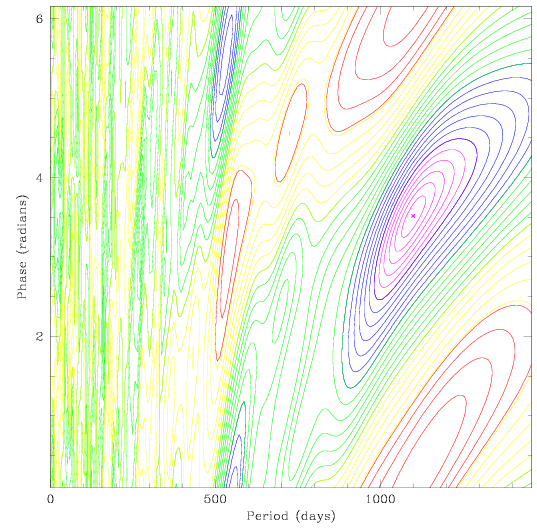

Same contour plot, using RGB colors to indicate high to low rms values.

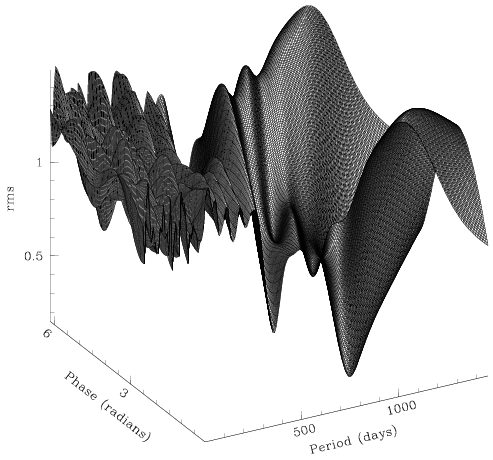

(Left) Surface plot showing the distribution of rms values in period and phase.

(Right) Same surface plot, from different viewpoint.

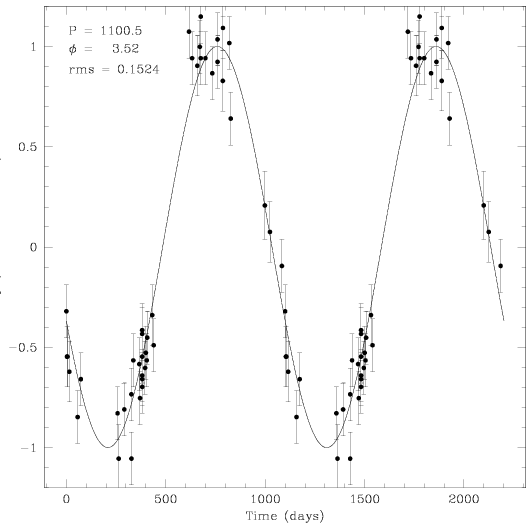

(Left) Overplot of time and velocity data on top of best-fit sine wave.

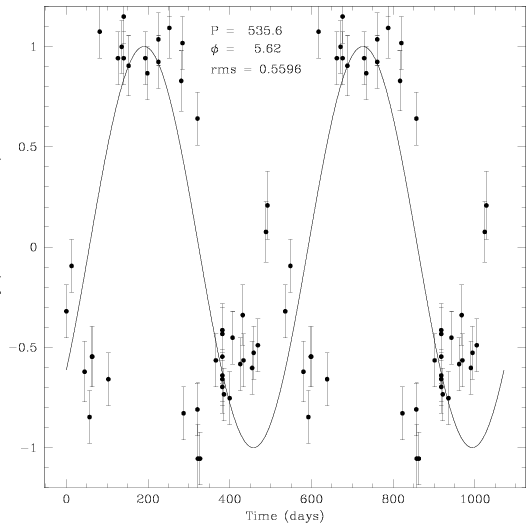

(Right) Overplot of time and velocity data on top of second best-fit sine wave.

One good reason to care about good coding practice ...

• Supermongo Macro File (creating surface and contour plots, reading in fgs_f.dat, fgs_f.fit, and fgs_f.out)

Radial Velocity Planet Search Results
	#1	#2	#3	#4	#5	#6	#7
	Candace	Kenza	Diane	Michael	Jacob	Sean	Meredith
	34	7	4	19	17	74	120
FGS - A
Period	3.416	3.416	3.417	3.416	3.417	3.416	1.231
Phase	5.227	5.173	5.207	5.181	5.258	5.194	1.966
RMS	0.160	0.161	0.167	0.162	0.161	1.587	0.470
FGS - B
Period	63.326	63.379	63.451	63.349	63.341	63.325	113.315
Phase	3.811	3.879	4.002	3.808	3.857	3.817	0.025
RMS	0.222	0.223	0.232	0.223	0.178	1.944	0.811
FGS - C
Period	2.986	2.986	2.986	2.985	2.986	2.986	1.504
Phase	3.872	3.898	4.205	3.731	4.027	3.789	1.322
RMS	0.172	0.176	0.214	0.179	0.165	1.750	0.594
FGS - D
Period	4.231	4.230	4.231	0.807	4.233	4.235	732.330
Phase	0.006	5.993	0.011	0.167	0.779	0.613	0.0378
RMS	0.204	0.226	0.203	0.372	0.466	6.185	0.761
FGS - F
Period	1099.312	1099.163	1114.043	1099.476	1097.103	1100.007	560.664
Phase	3.523	3.523	3.639	3.511	3.503	3.526	6.044
RMS	0.152	0.152	0.160	0.152	0.116	1.111	0.615
FGS - G
Period	4.695	4.693	4.694	4.694	4.694	4.694	1431.810
Phase	1.951	1.550	1.838	1.888	1.794	1.779	6.213
RMS	0.338	0.346	0.337	0.337	0.300	5.225	0.623
FGS - H
Period	24.348	24.352	24.335	24.346	24.352	24.347	0.958
Phase	4.046	4.089	3.916	4.046	4.097	4.020	5.403
RMS	0.226	0.227	0.233	0.227	0.206	2.072	0.363
