Photometry Diagnostics for smc_u65c06

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u65c0601r	F555W	400.00	0.00	0.00	0.00	0.00	0.00	0.00
u65c0602r	F555W	160.00	11.01	5.83	10.98	5.49	0.03	0.34
u65c0603r	F555W	160.00	16.62	16.85	16.47	16.48	0.15	0.37
u65c0604r	F555W	160.00	5.53	11.10	5.49	10.99	0.04	0.11
u65c0605r	F814W	160.00	0.14	0.21	0.00	0.00	0.14	0.21
u65c0606r	F814W	40.00	0.12	0.13	0.00	0.00	0.12	0.13
u65c0607r	F814W	500.00	0.15	0.07	0.00	0.00	0.15	0.07

Mosaic images

F555W	F814W

HSTPHOT command log

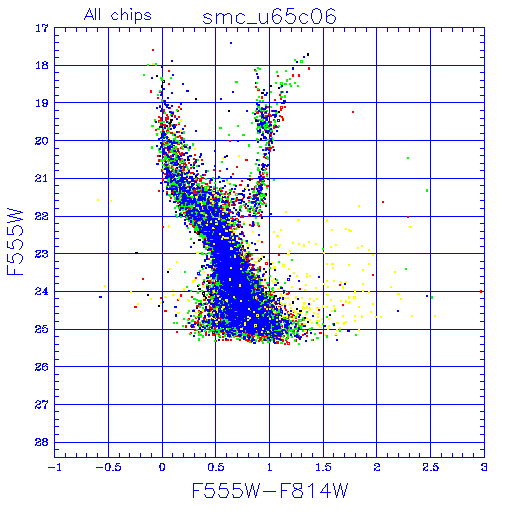

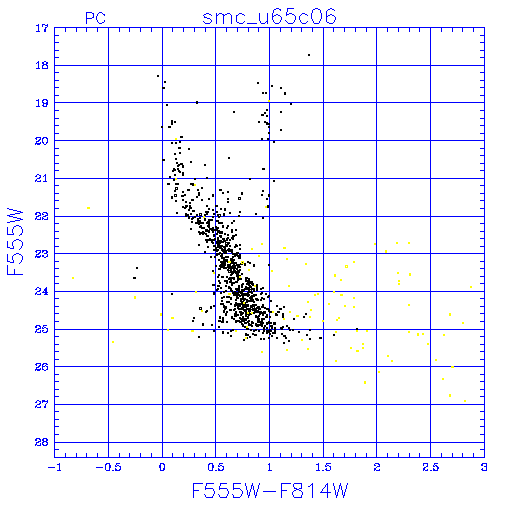

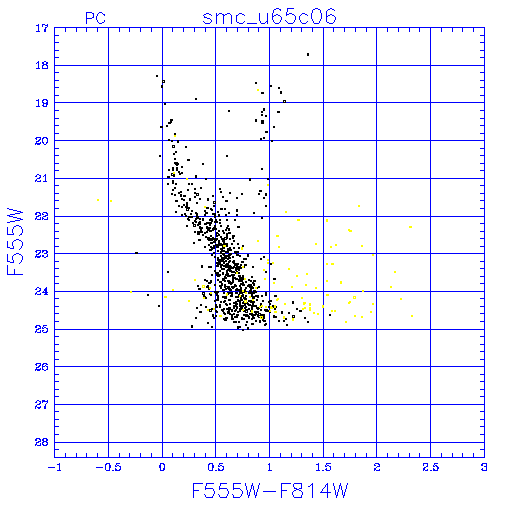

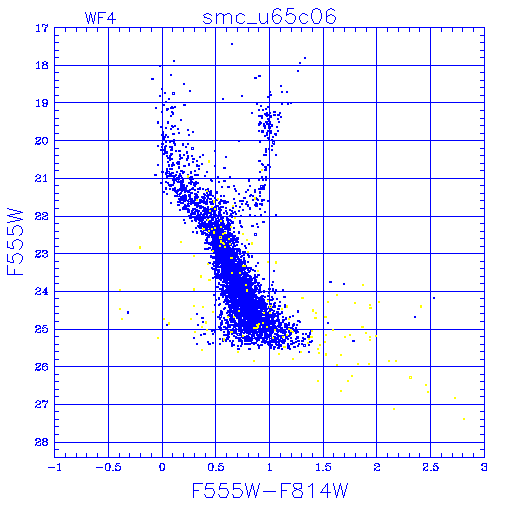

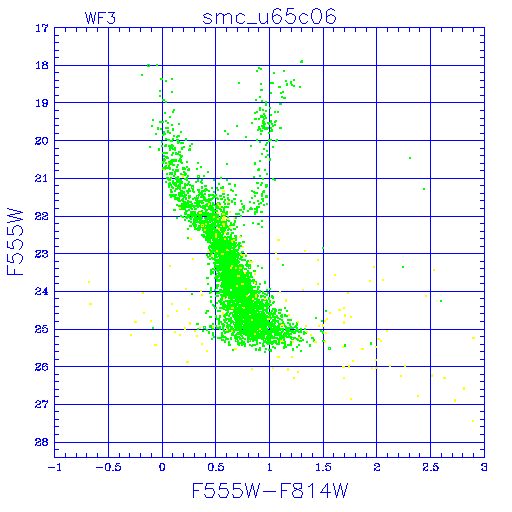

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

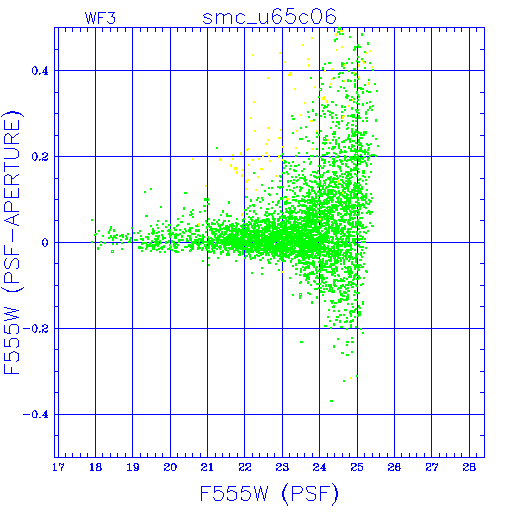

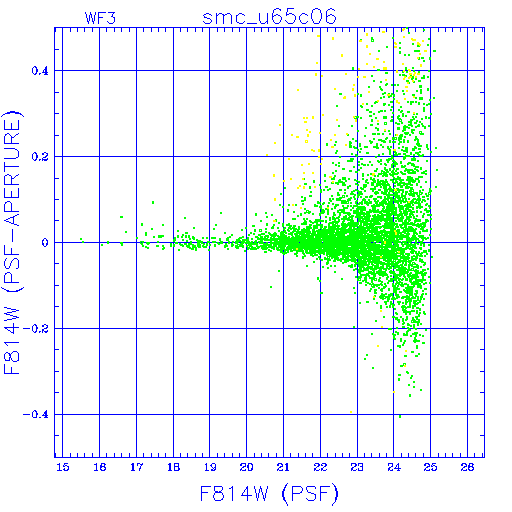

PSF

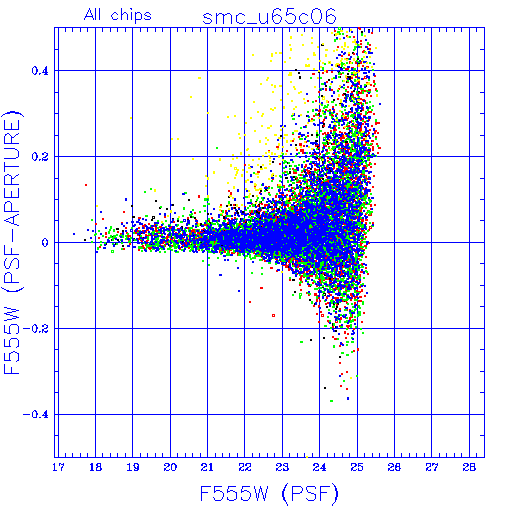

Aperture

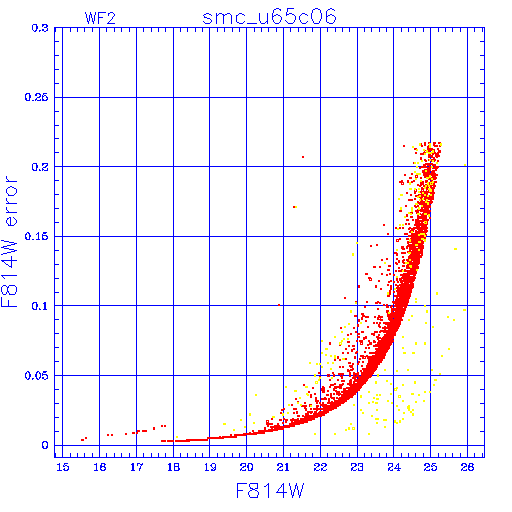

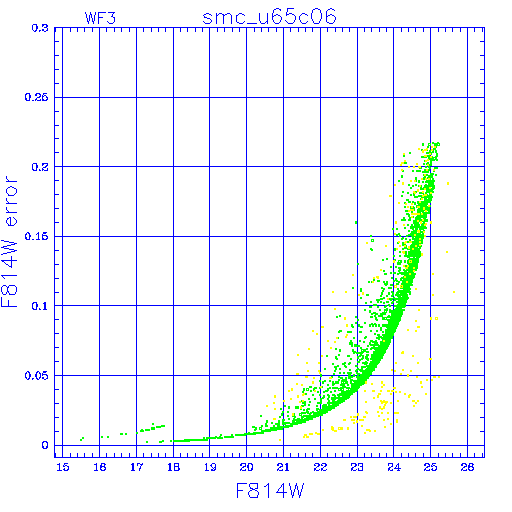

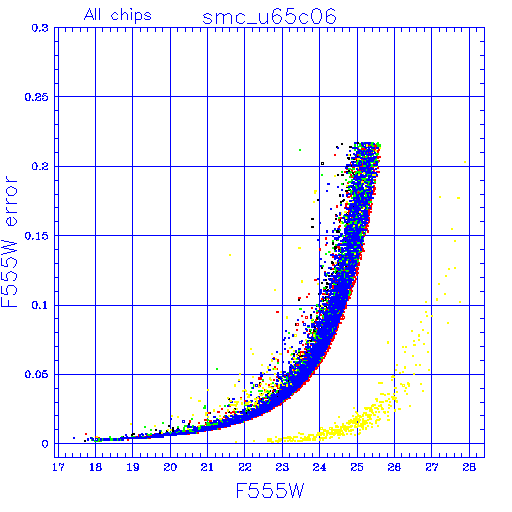

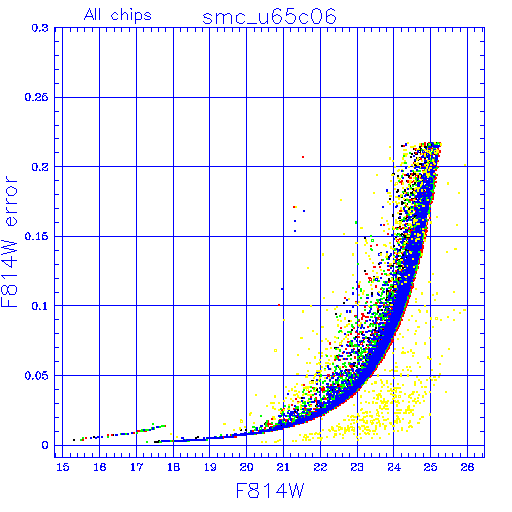

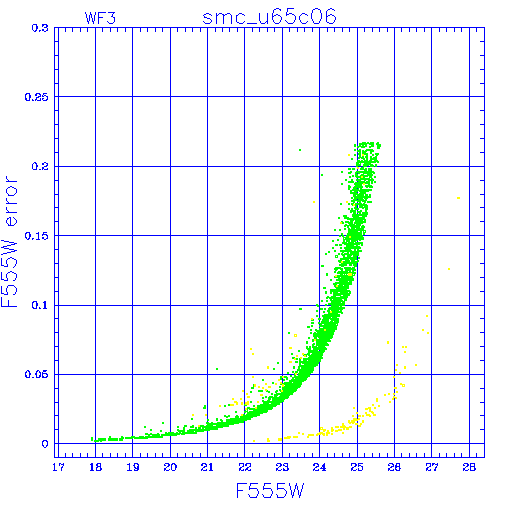

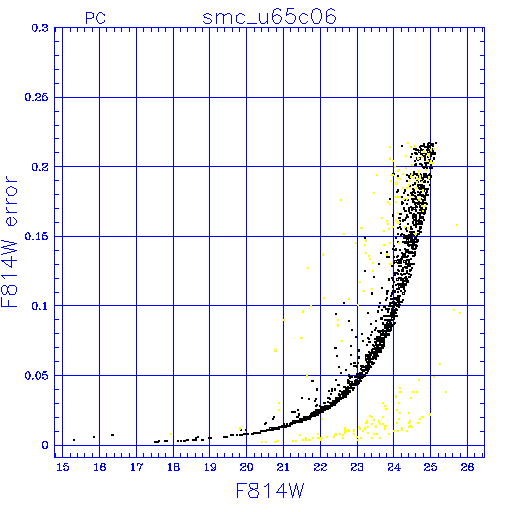

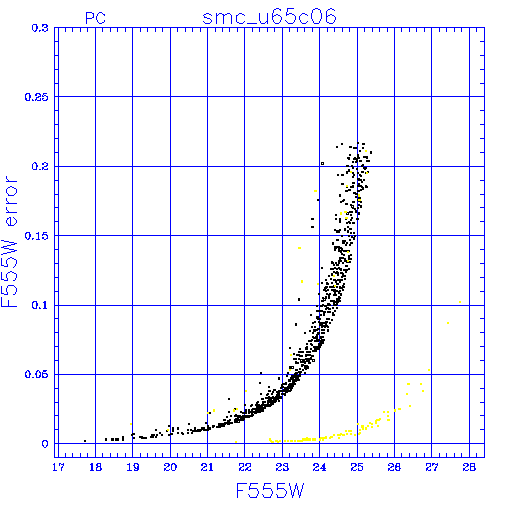

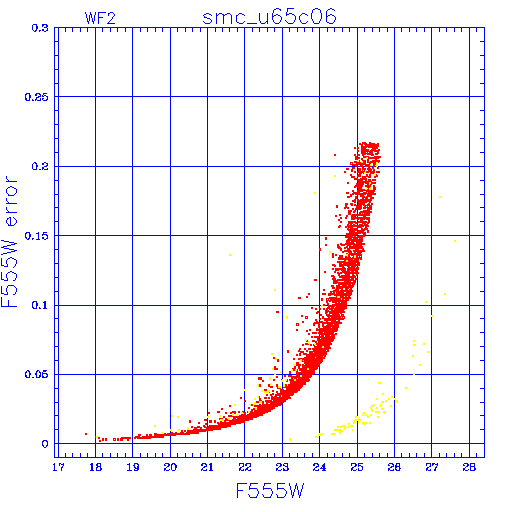

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

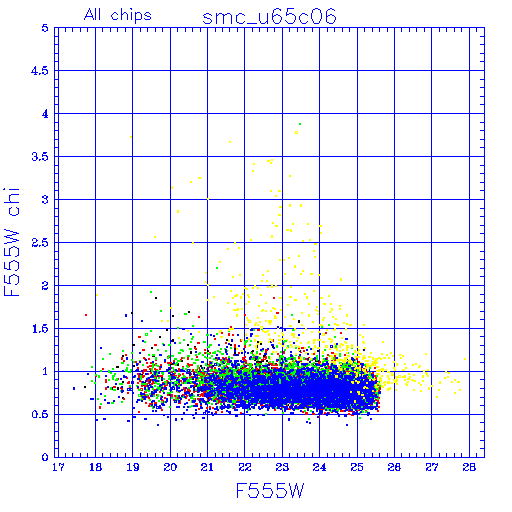

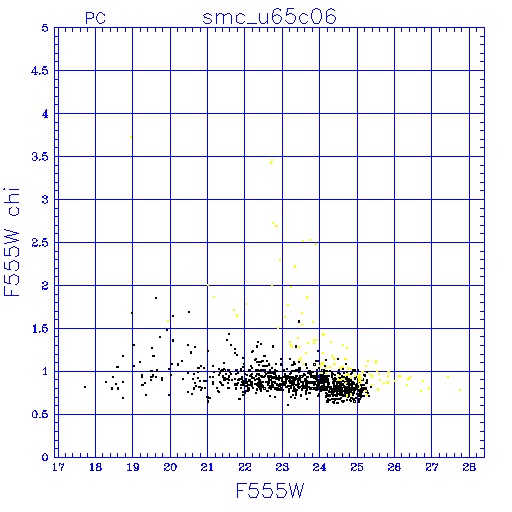

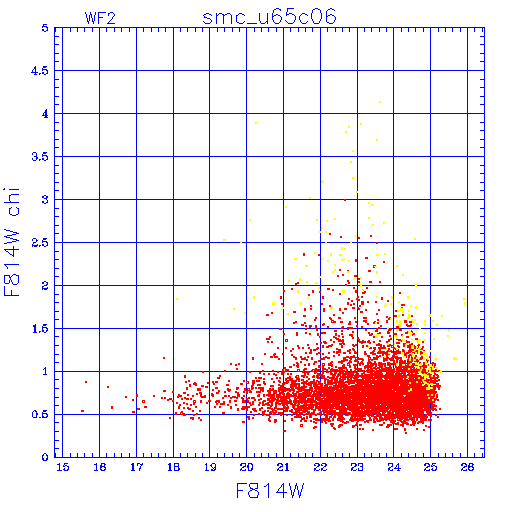

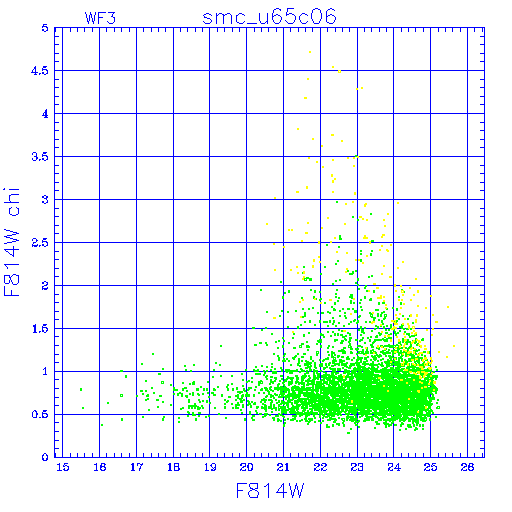

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

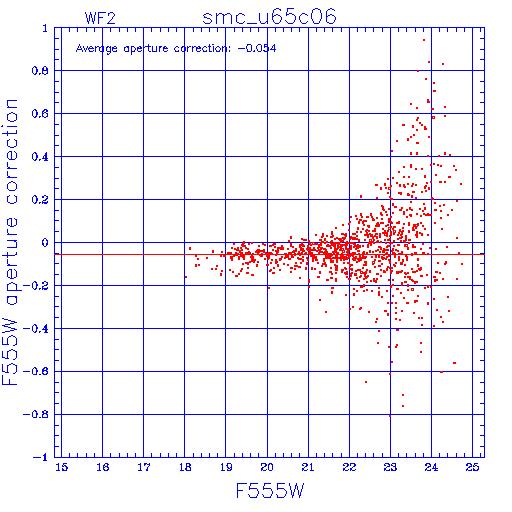

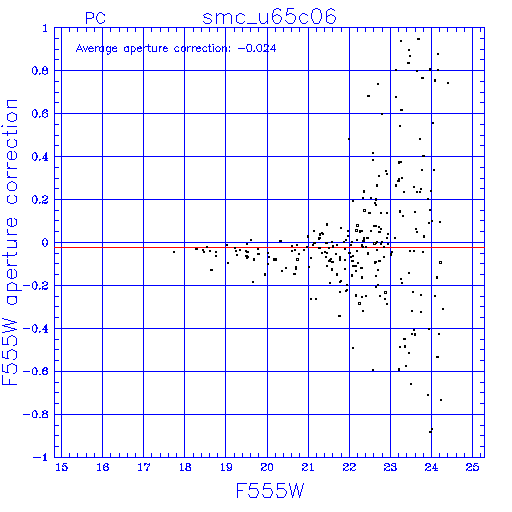

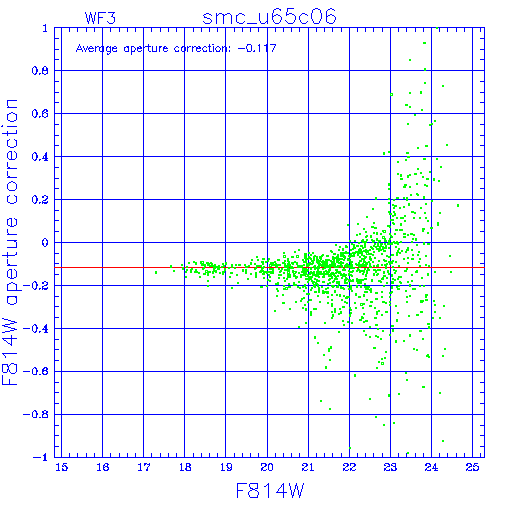

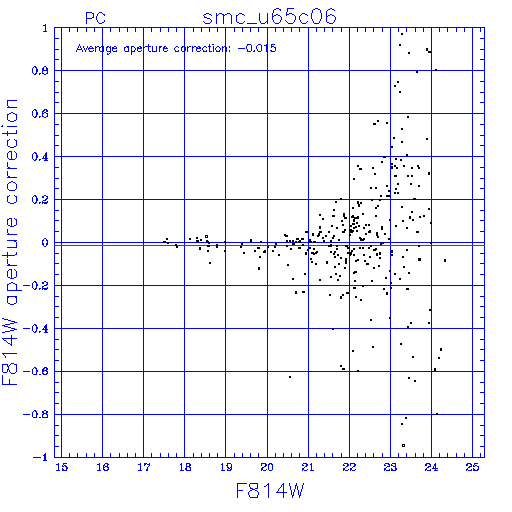

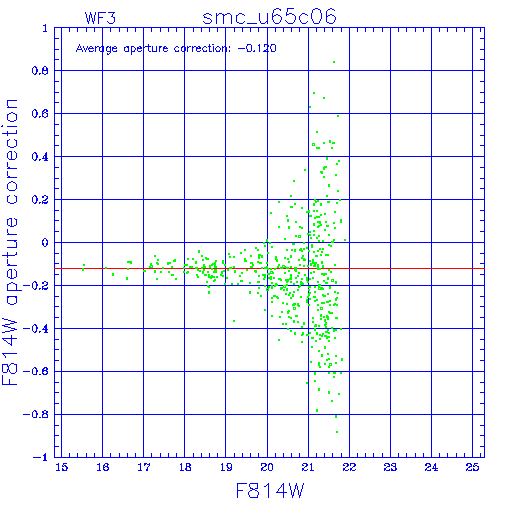

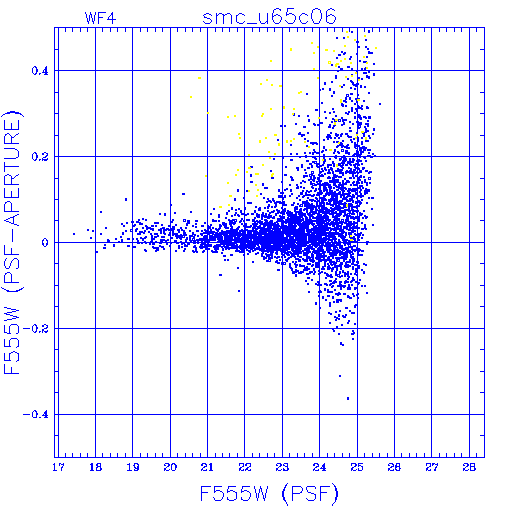

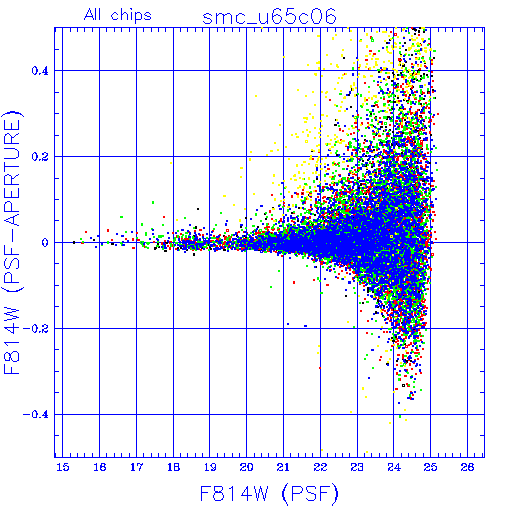

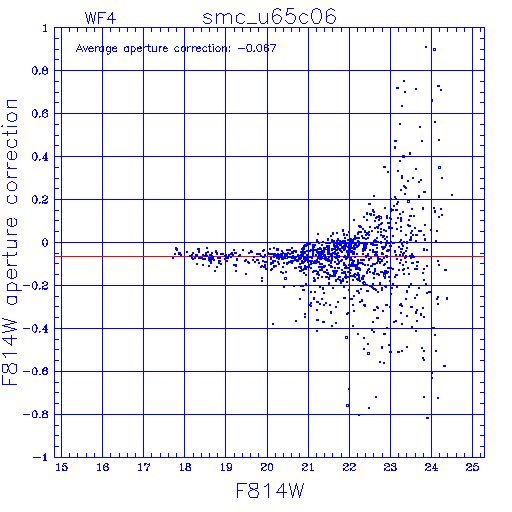

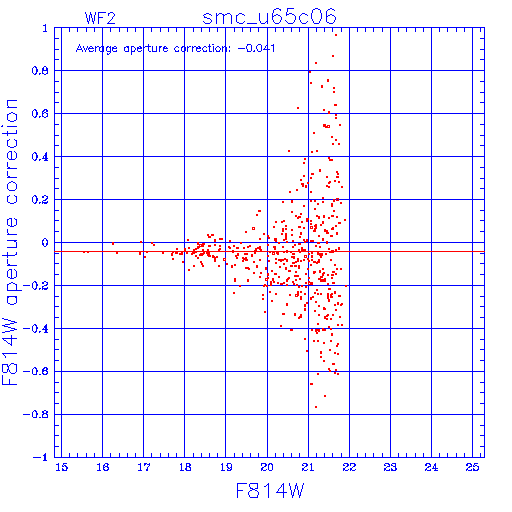

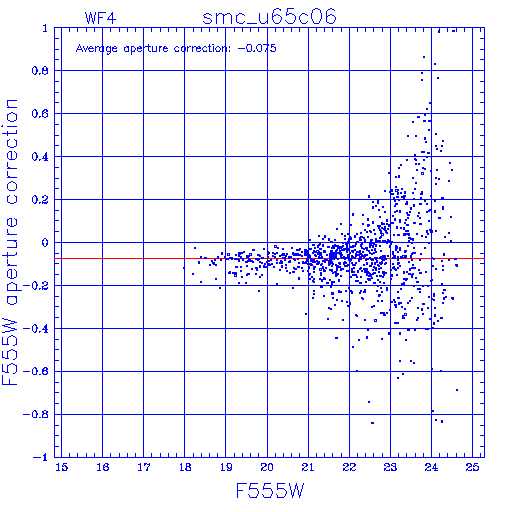

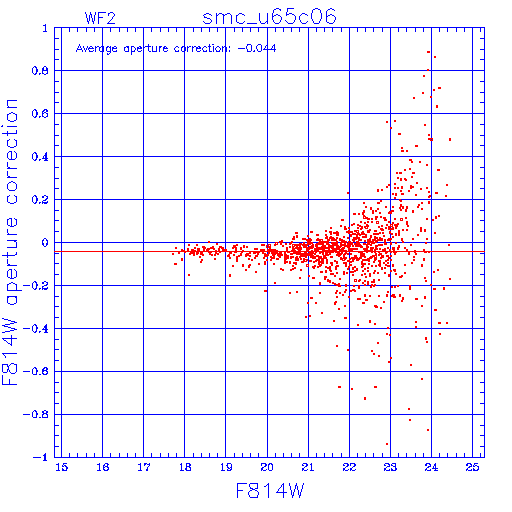

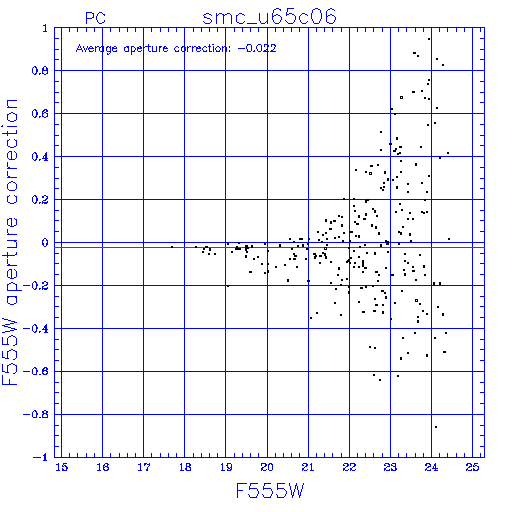

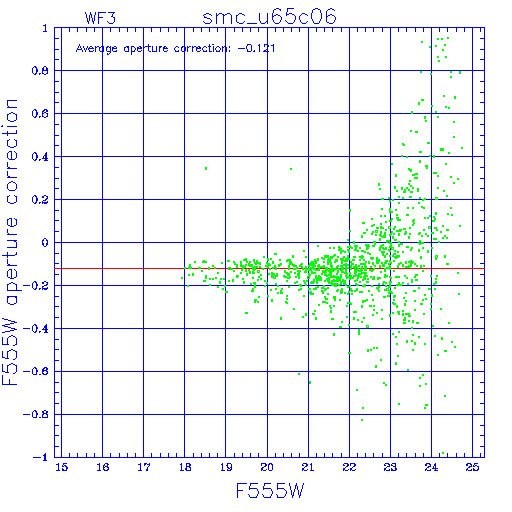

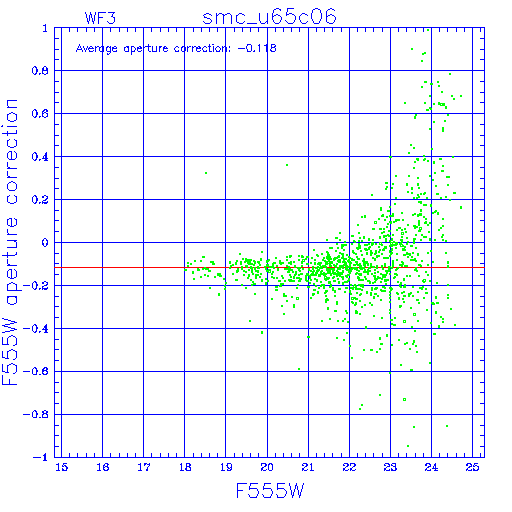

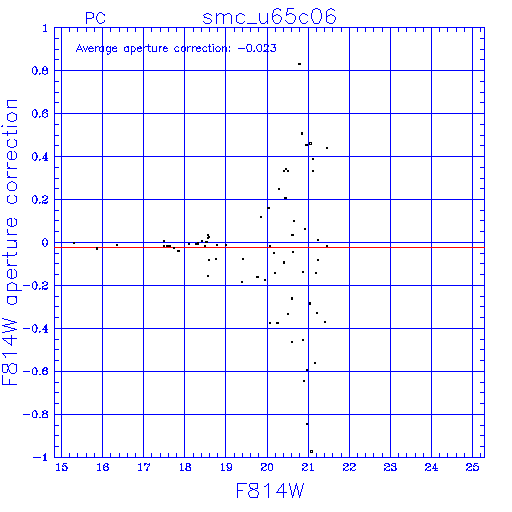

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
