Photometry Diagnostics for smc_u5ay10

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u5ay1001r	F555W	350.00	0.00	0.00	0.00	0.00	0.00	0.00
u5ay1002r	F555W	350.00	0.00	0.03	0.00	0.00	0.00	0.03
u5ay1003r	F555W	350.00	-0.01	0.09	0.00	0.00	-0.01	0.09
u5ay1009r	F555W	10.00	5.50	5.48	5.49	5.49	0.01	-0.01
u5ay100ar	F555W	350.00	5.46	5.52	5.49	5.49	-0.03	0.03
u5ay1004r	F814W	350.00	0.03	0.08	0.00	0.00	0.03	0.08
u5ay1005r	F814W	350.00	0.01	0.06	0.00	0.00	0.01	0.06
u5ay1006r	F814W	350.00	0.04	0.04	0.00	0.00	0.04	0.04
u5ay1007r	F814W	10.00	5.67	5.54	5.49	5.49	0.18	0.05
u5ay1008r	F814W	350.00	5.69	5.47	5.49	5.49	0.20	-0.02

Mosaic images

F555W	F814W

HSTPHOT command log

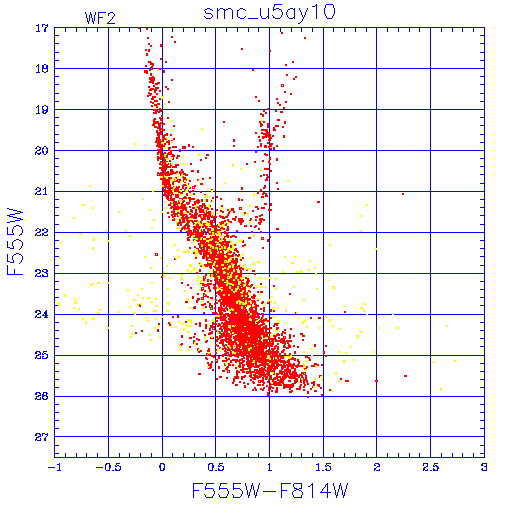

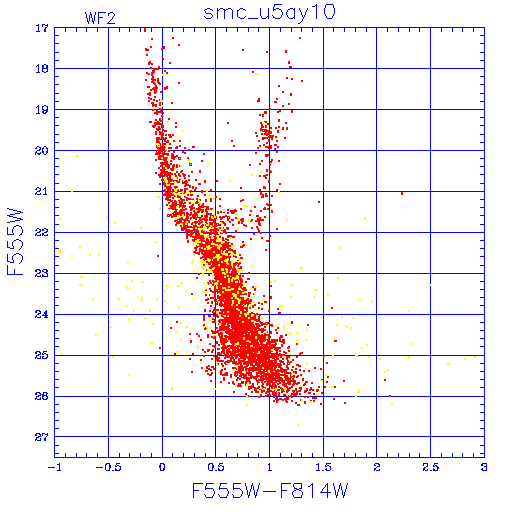

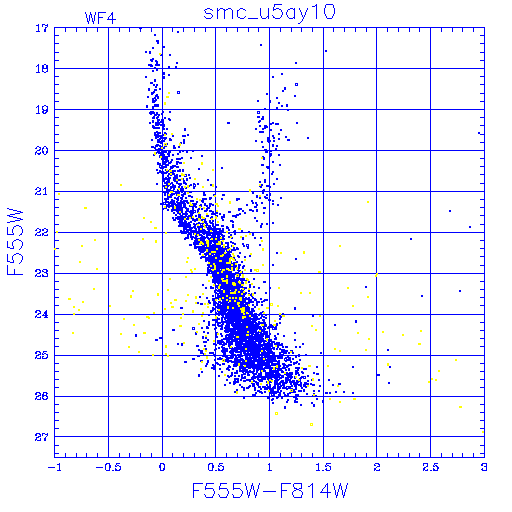

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

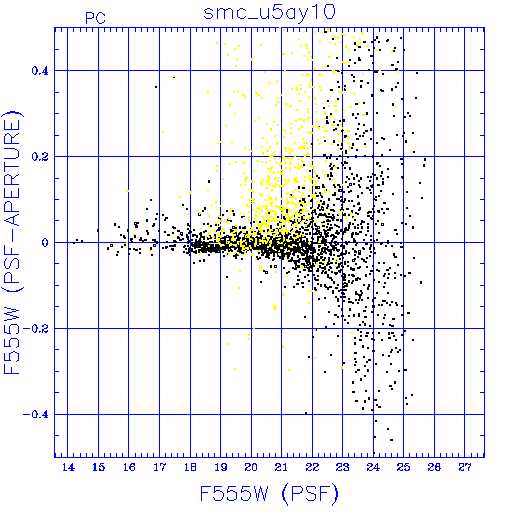

PSF
Aperture

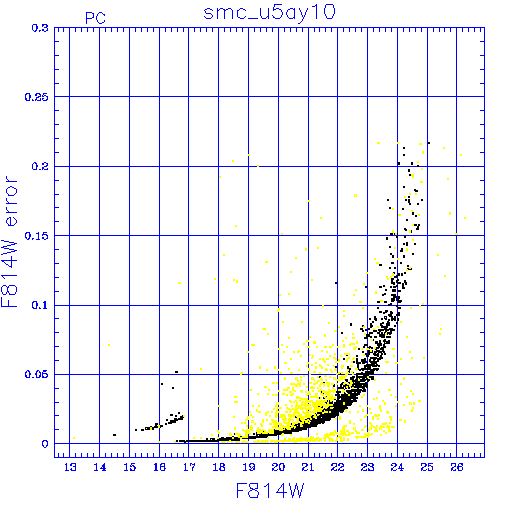

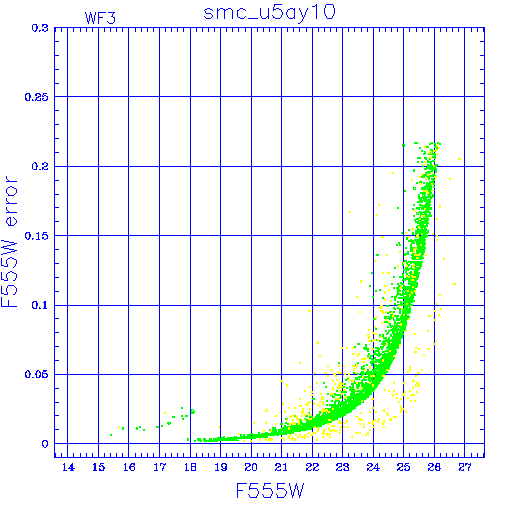

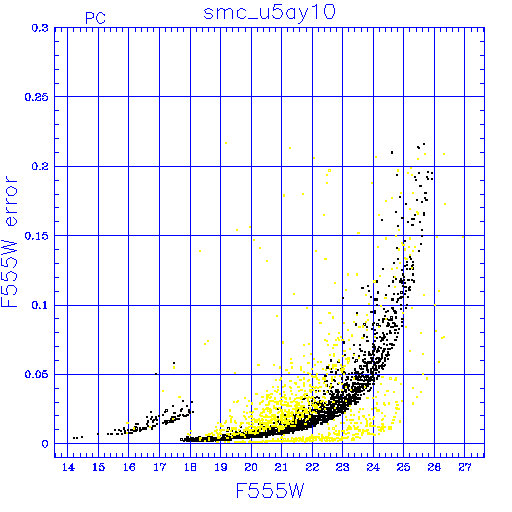

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

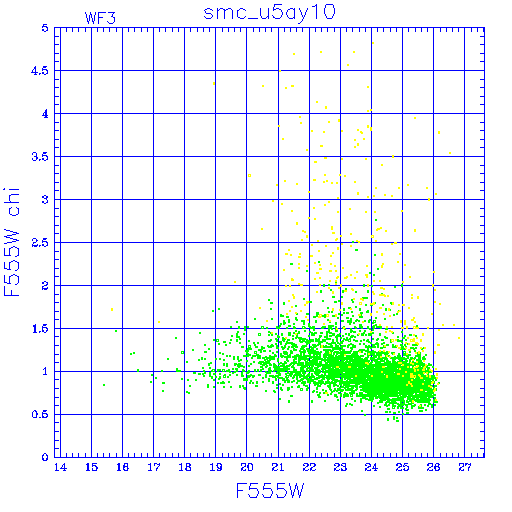

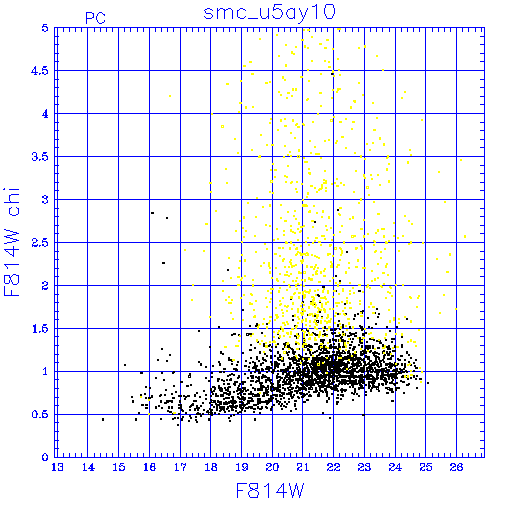

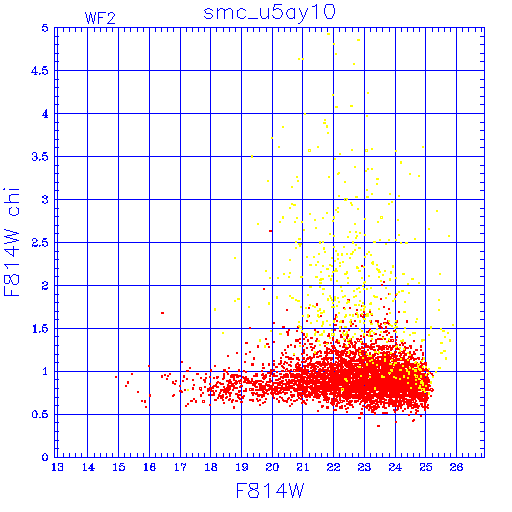

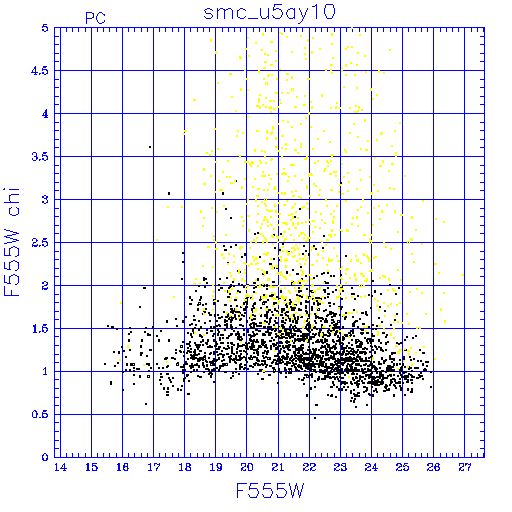

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

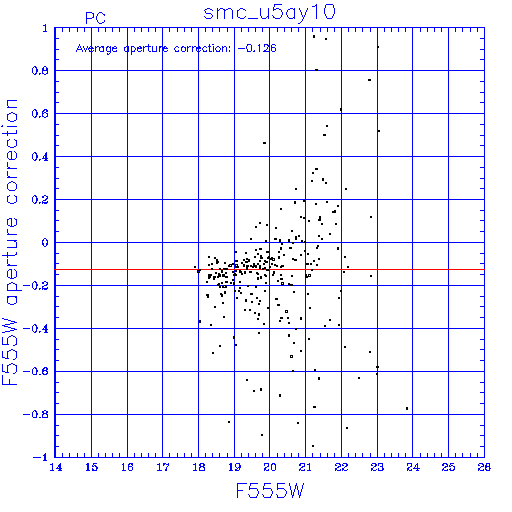

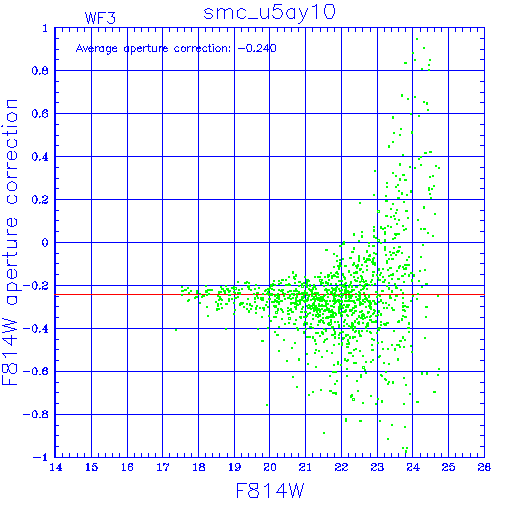

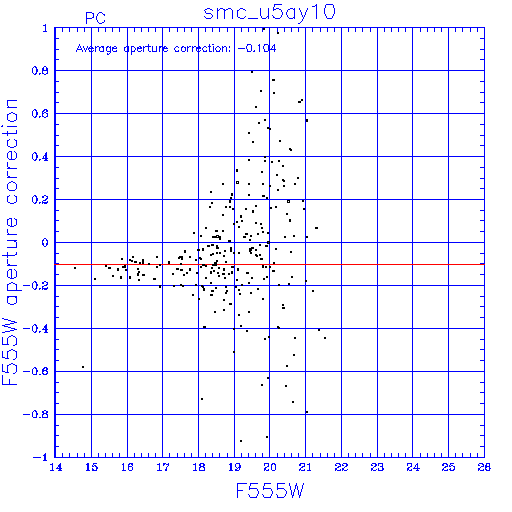

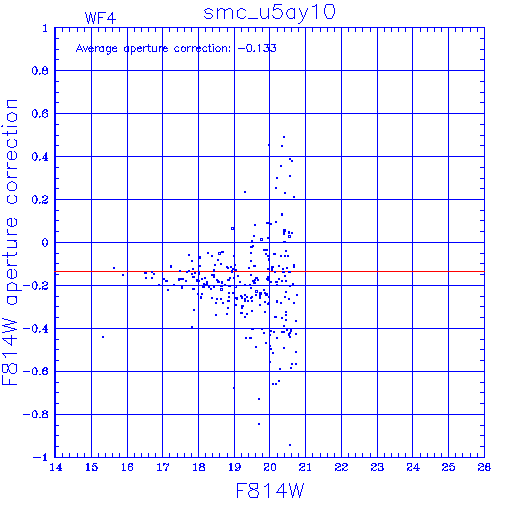

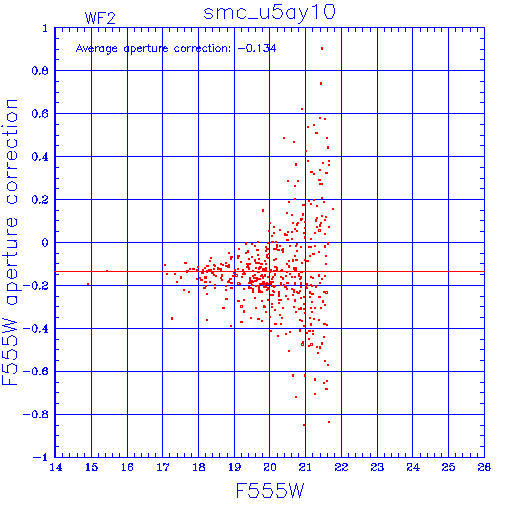

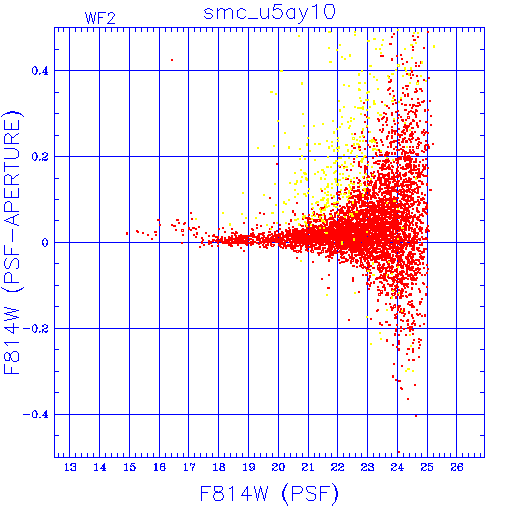

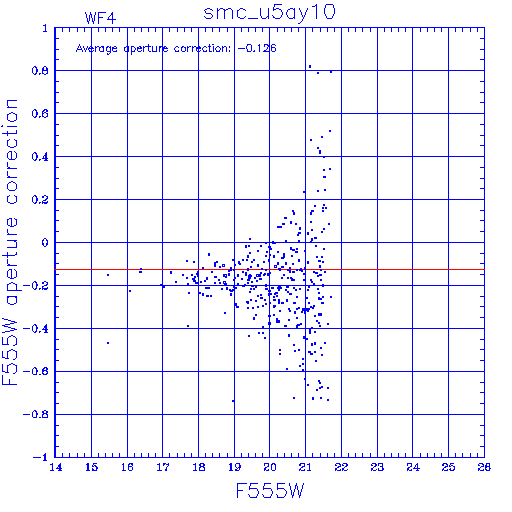

Aperture corrections

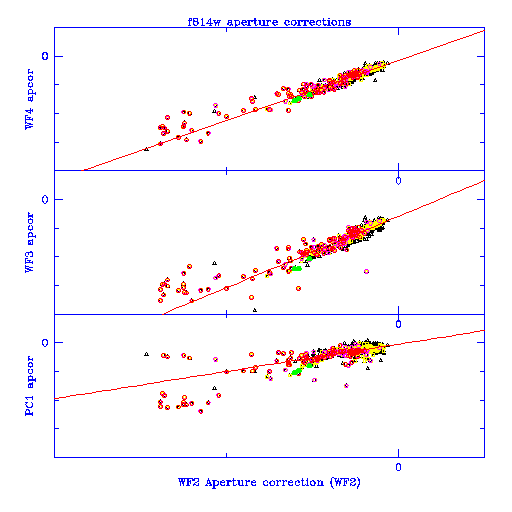

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
