Photometry Diagnostics for smc_u37705

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u3770501r	F555W	20.00	0.00	0.00	0.00	0.00	0.00	0.00
u3770502r	F555W	400.00	0.00	0.00	0.00	0.00	0.00	0.00
u3770503r	F555W	400.00	-0.13	-0.36	0.00	0.00	-0.13	-0.36
u3770504r	F555W	400.00	-0.13	-0.35	0.00	0.00	-0.13	-0.35
u3770505r	F555W	400.00	-0.11	-0.23	0.00	0.00	-0.11	-0.23
u3770506r	F555W	40.00	-0.01	-0.10	0.00	0.00	-0.01	-0.10
u3770507r	F555W	40.00	-0.03	-0.07	0.00	0.00	-0.03	-0.07
u3770508r	F555W	40.00	0.01	0.13	0.00	0.00	0.01	0.13
u3770509r	F555W	40.00	-0.04	0.03	0.00	0.00	-0.04	0.03
u377050ar	F555W	40.00	0.00	-0.03	0.00	0.00	0.00	-0.03
u377050bm	F814W	40.00	2.00	-2.07	0.00	0.00	2.00	-2.07
u377050cr	F814W	500.00	2.00	-2.08	0.00	0.00	2.00	-2.08
u377050dm	F814W	500.00	2.00	-2.08	0.00	0.00	2.00	-2.08
u377050er	F814W	500.00	1.99	-1.17	0.00	0.00	1.99	-1.17
u377050fr	F814W	500.00	2.01	-1.15	0.00	0.00	2.01	-1.15
u377050gr	F814W	20.00	2.36	-1.85	0.00	0.00	2.36	-1.85
u377050hr	F814W	20.00	2.33	-1.83	0.00	0.00	2.33	-1.83
u377050ir	F814W	20.00	2.05	-1.16	0.00	0.00	2.05	-1.16

Mosaic images

F555W	F814W

HSTPHOT command log

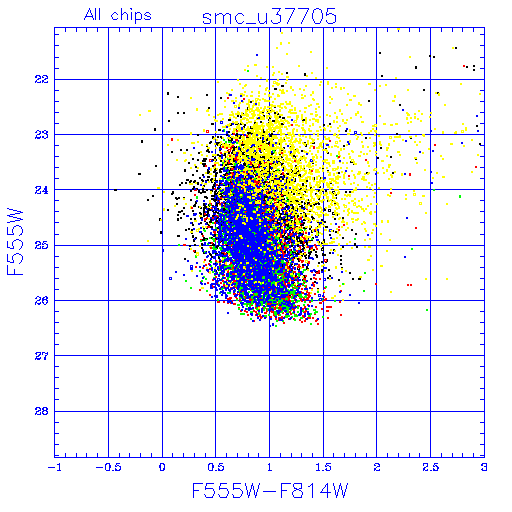

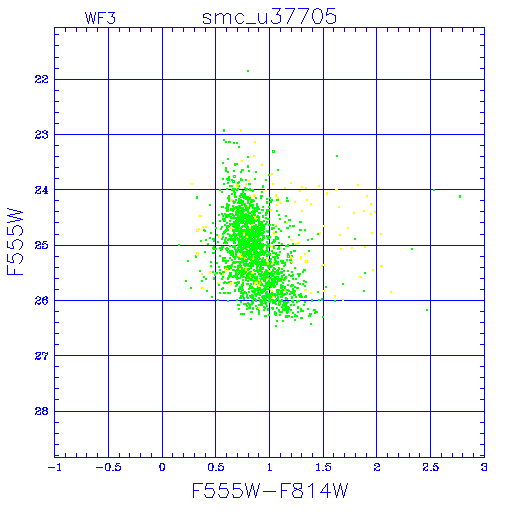

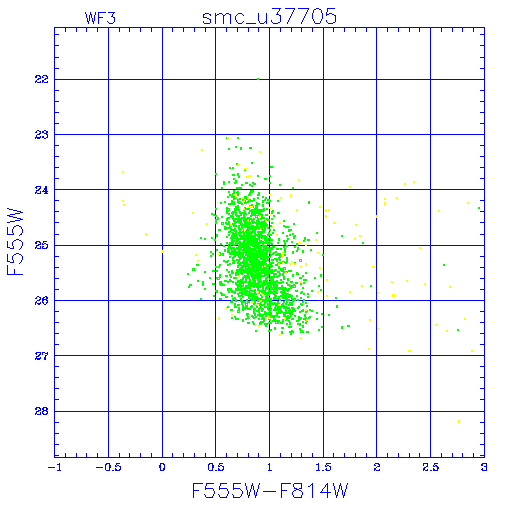

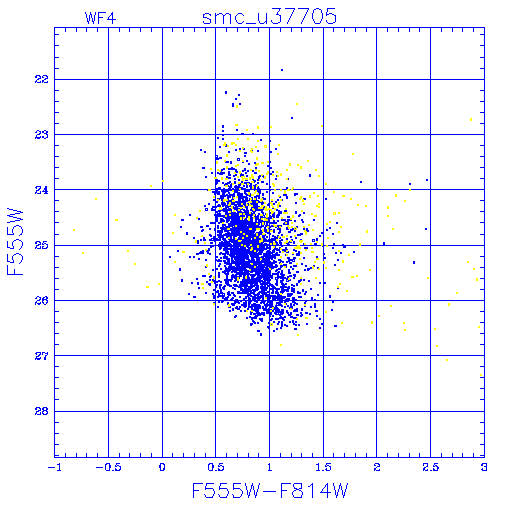

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

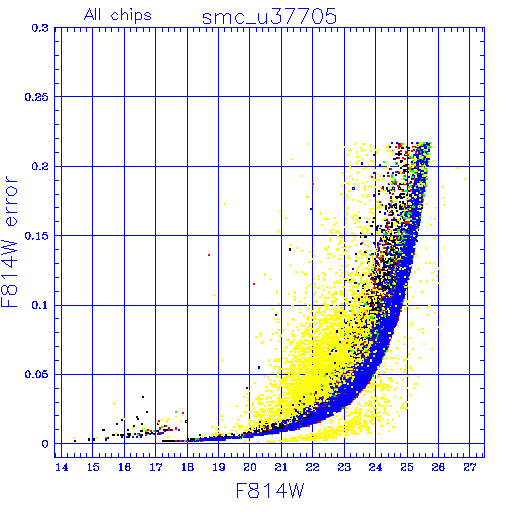

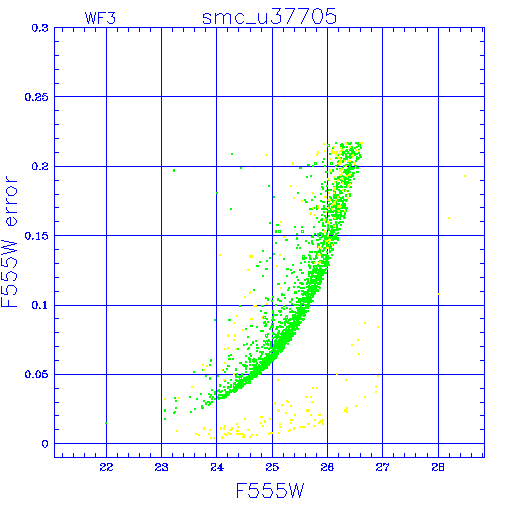

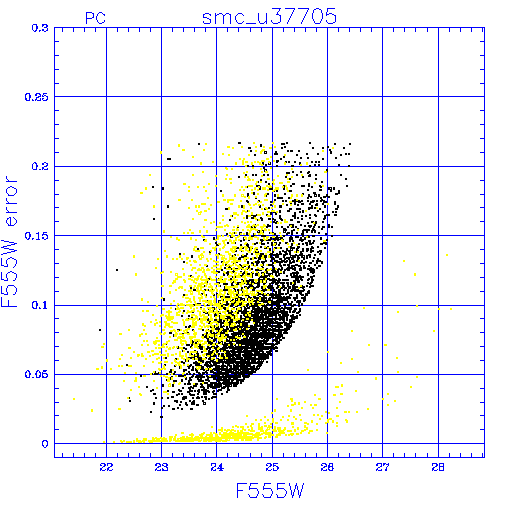

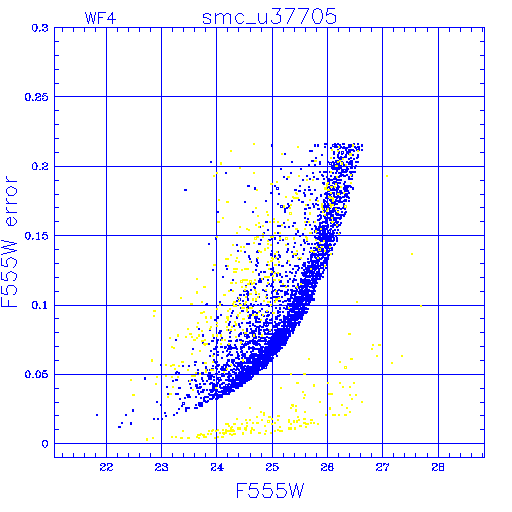

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

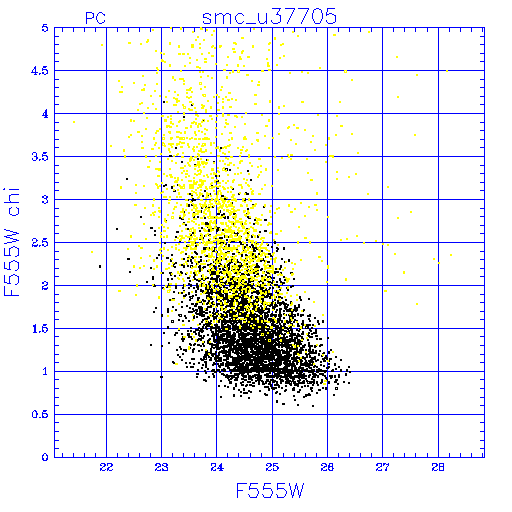

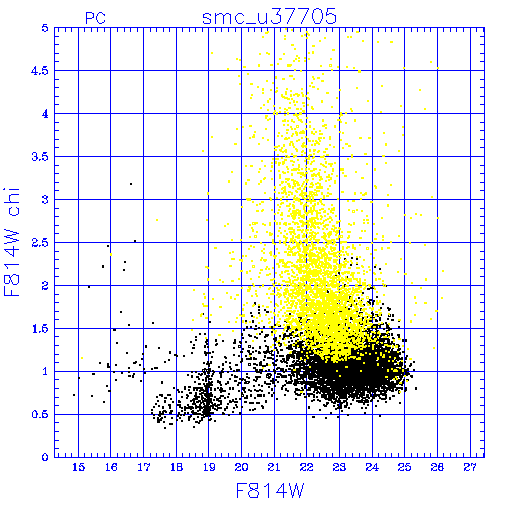

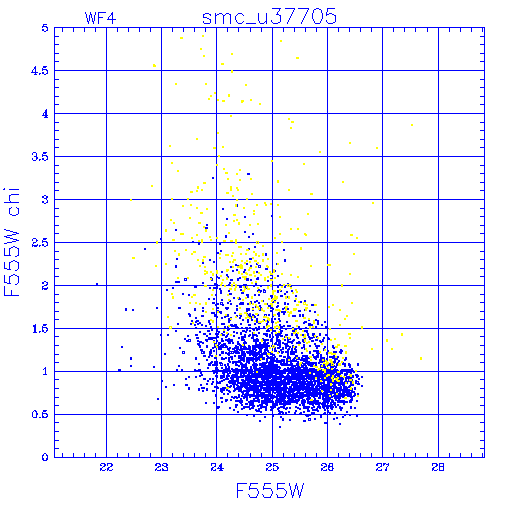

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

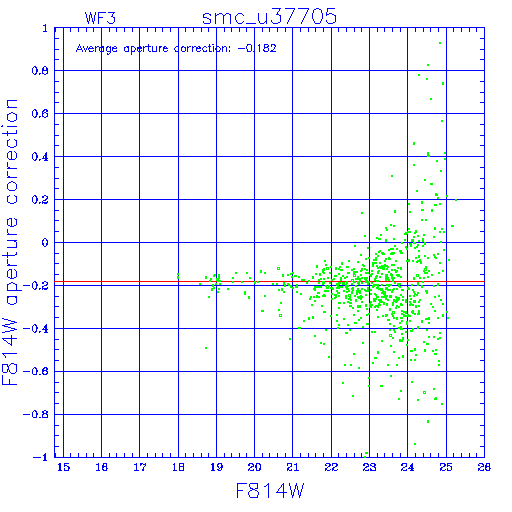

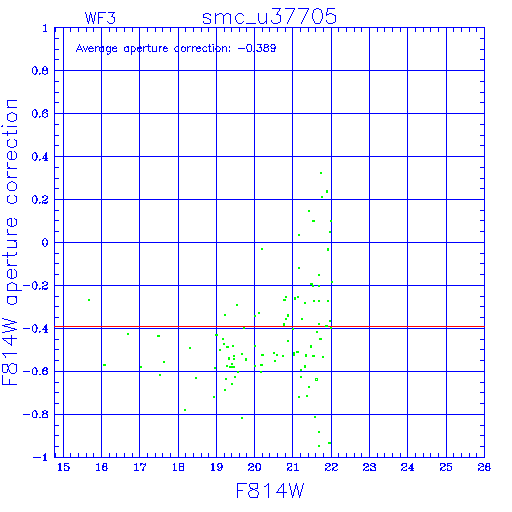

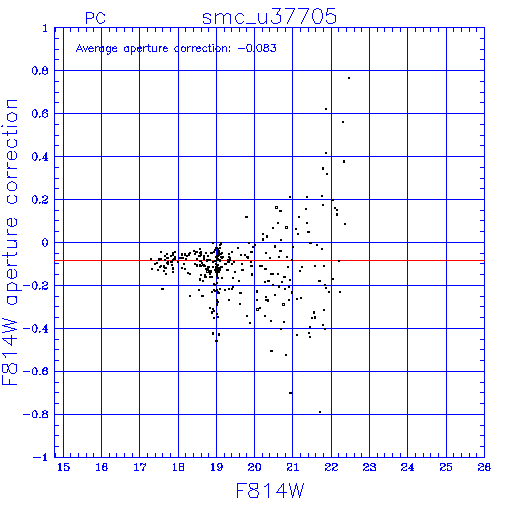

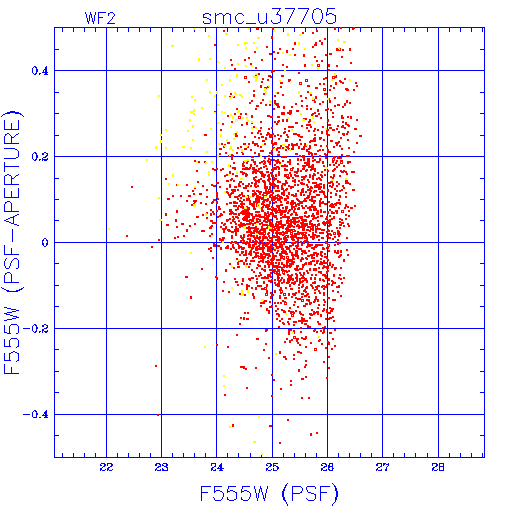

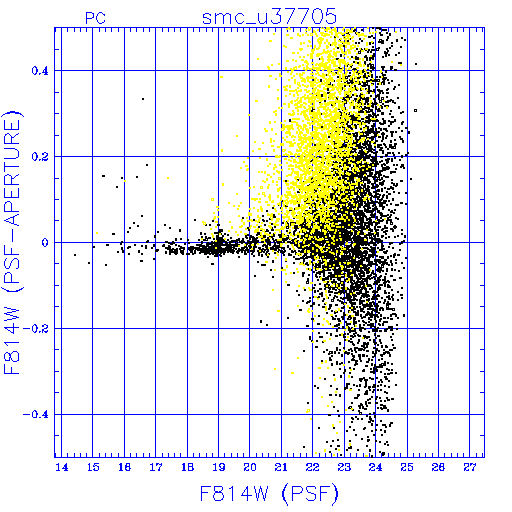

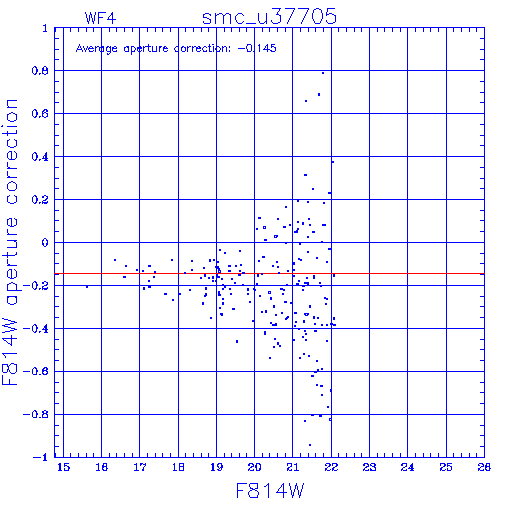

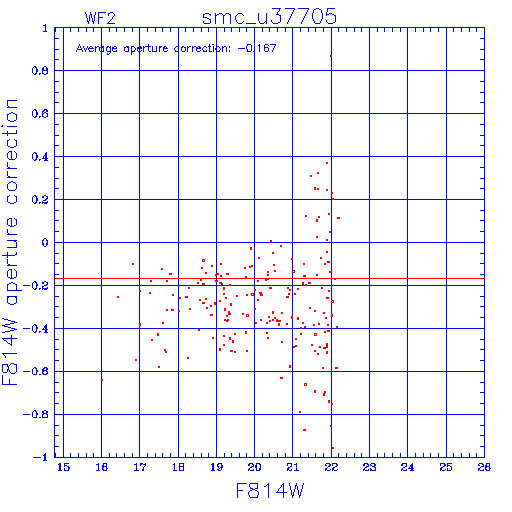

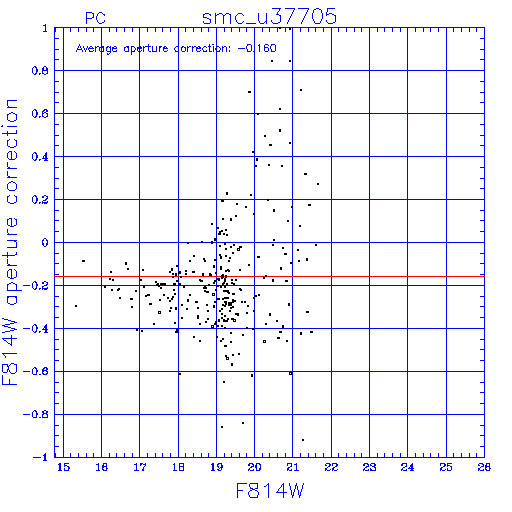

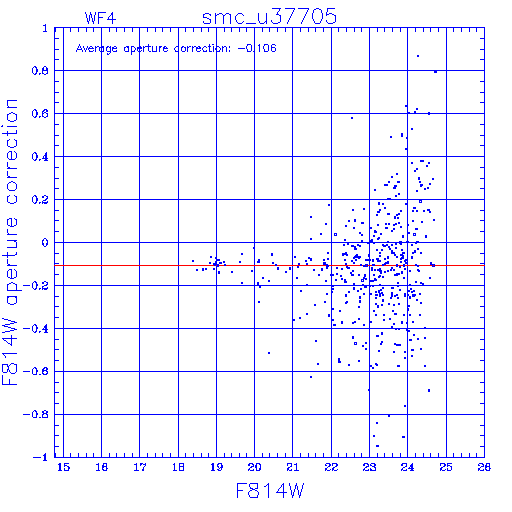

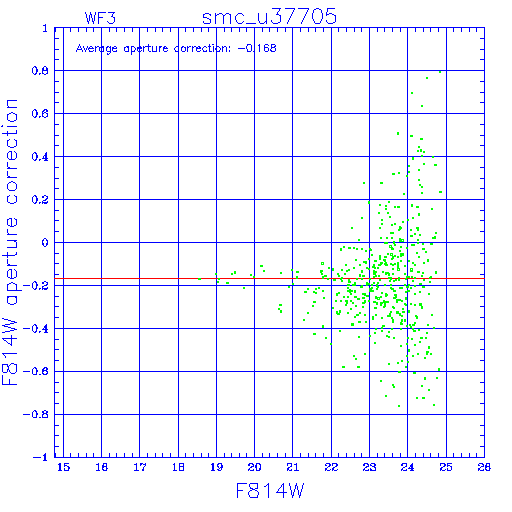

Aperture corrections

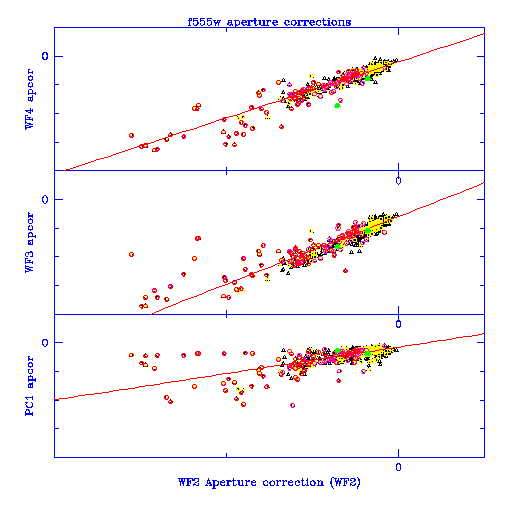

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
