Photometry Diagnostics for sex_b_u67204


Frame list, with derived and commanded shifts
dataset filter exptime derived dx derived dy header dx header dy delta dx delta dy
u6720401r F606W 600.00 0.00 0.00 0.00 0.00 0.00 0.00
u6720402r F814W 600.00 0.00 0.30 0.00 0.00 0.00 0.30

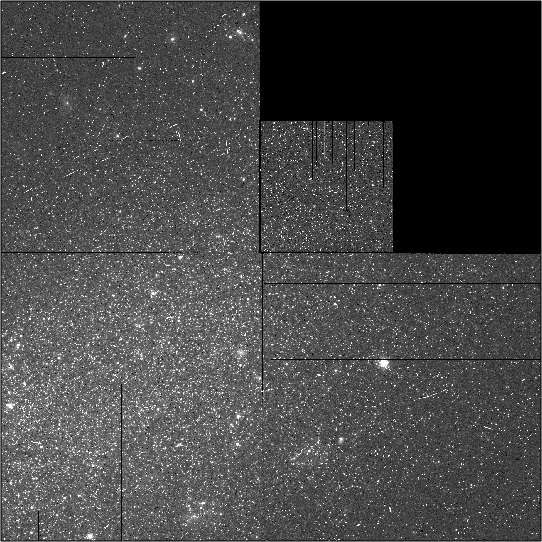

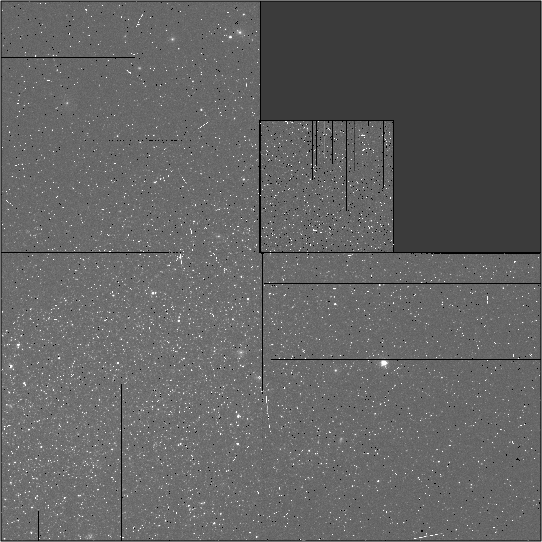

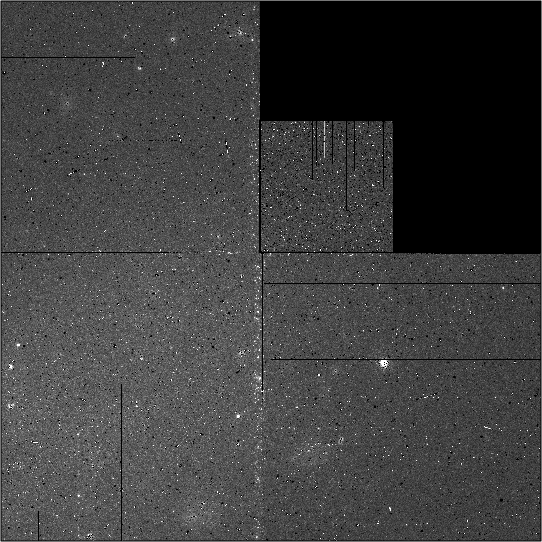

Mosaic images

F606W F814W

HSTPHOT command log

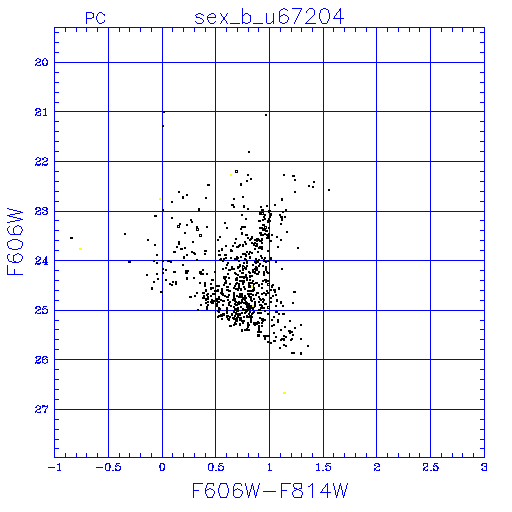

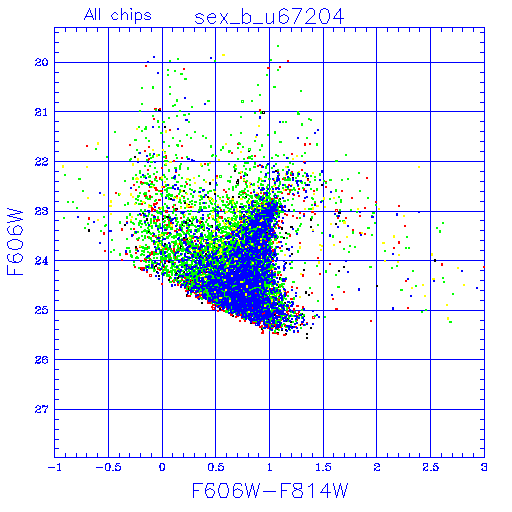

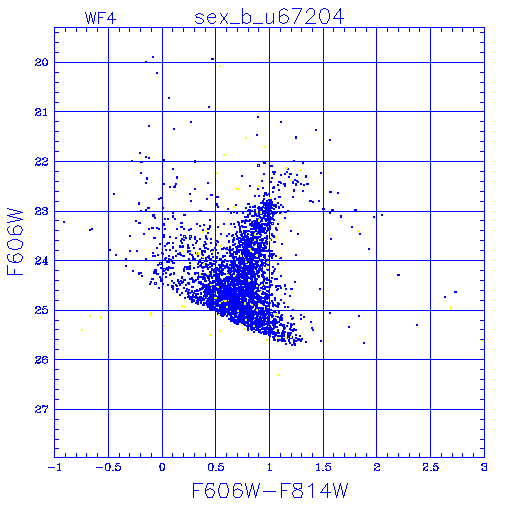

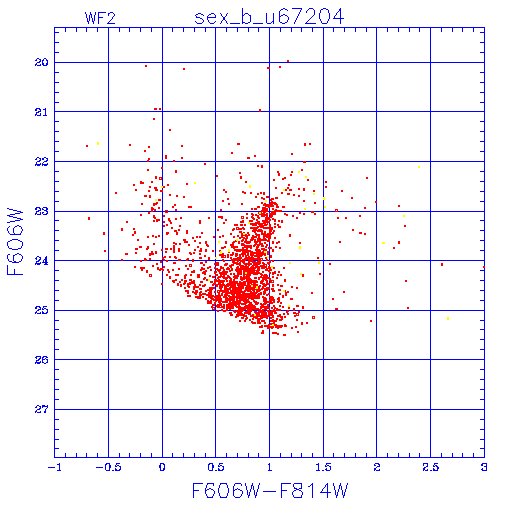

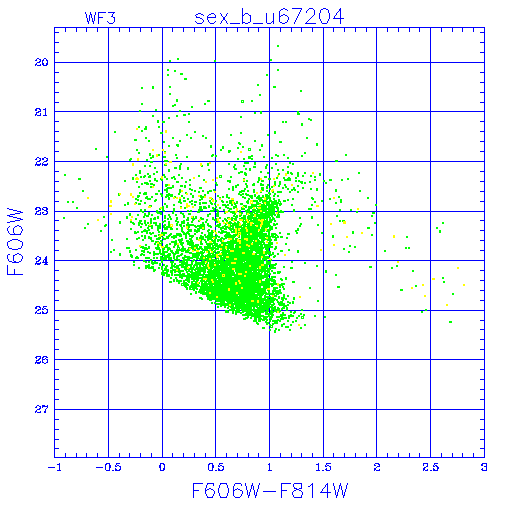

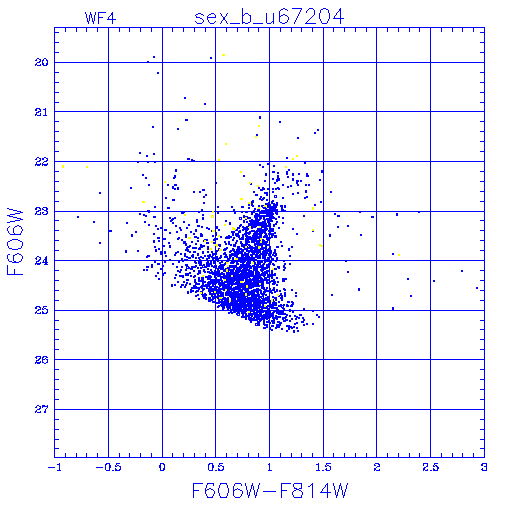

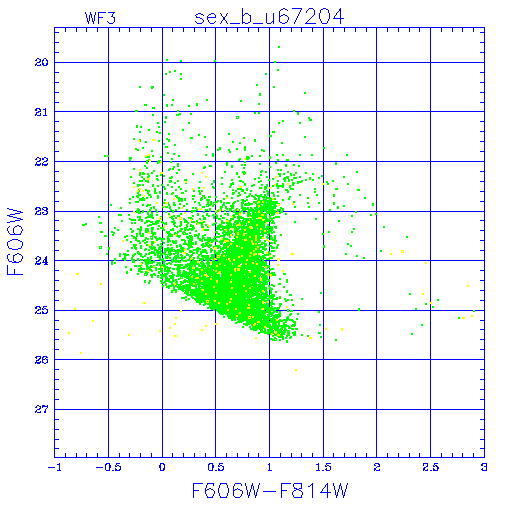

Color magnitude diagrams

All chips
PC
WF2
WF3
WF4
PSF
Aperture

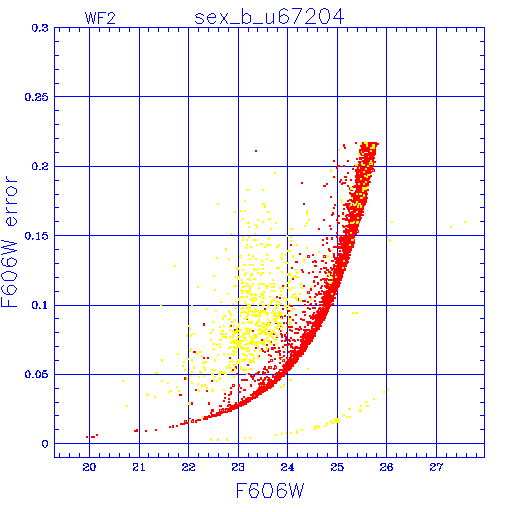

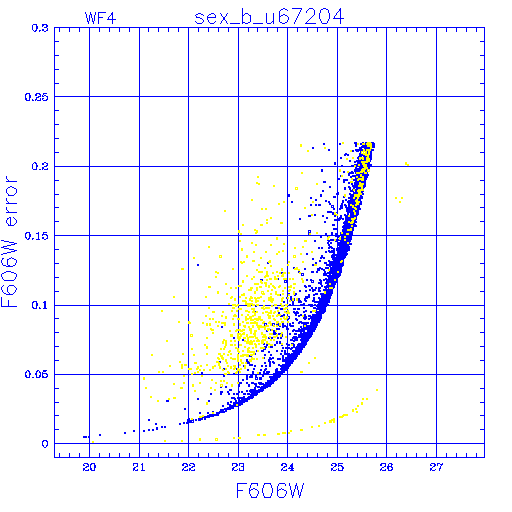

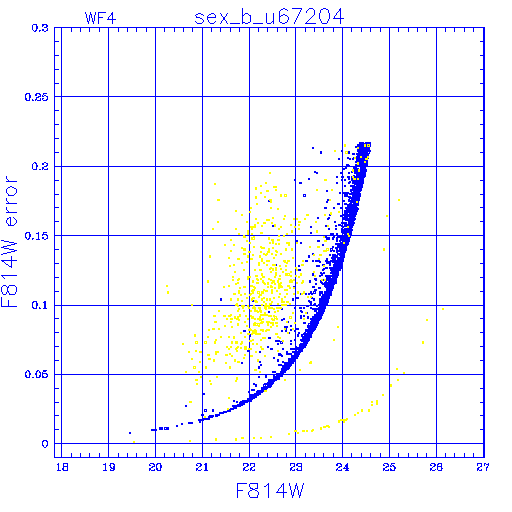

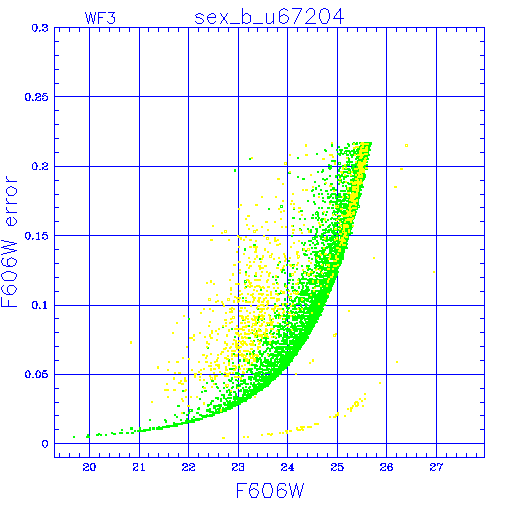

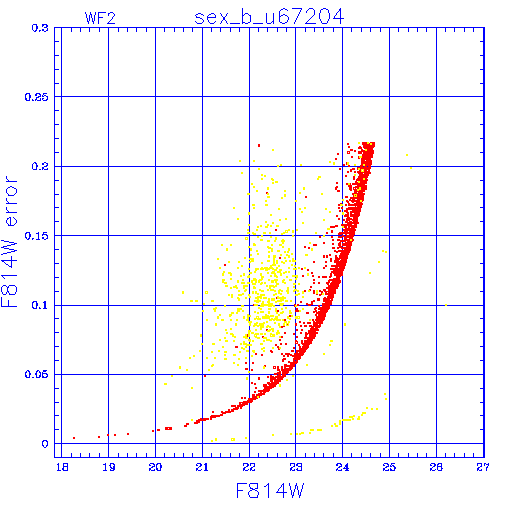

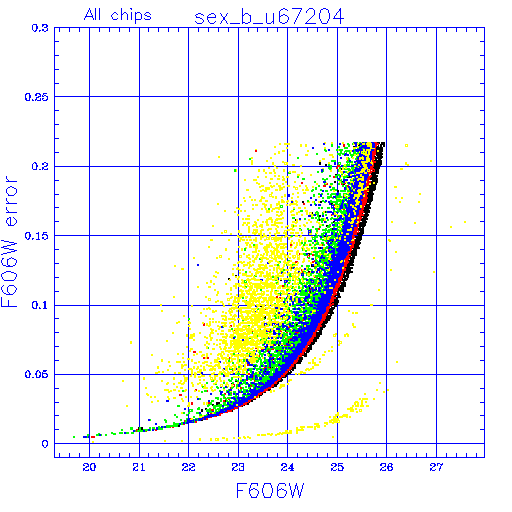

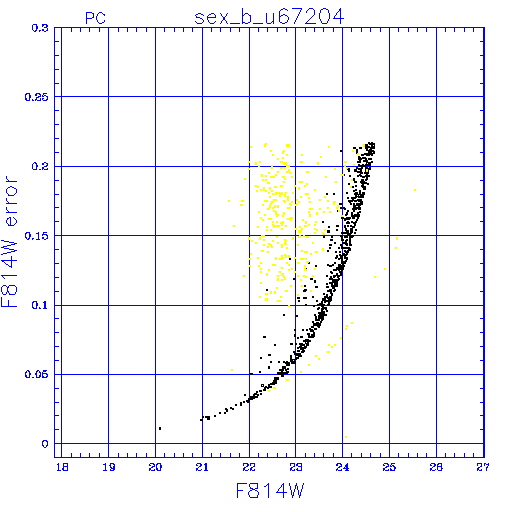

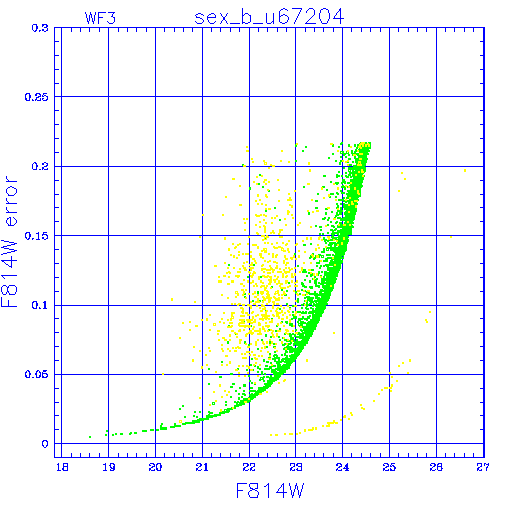

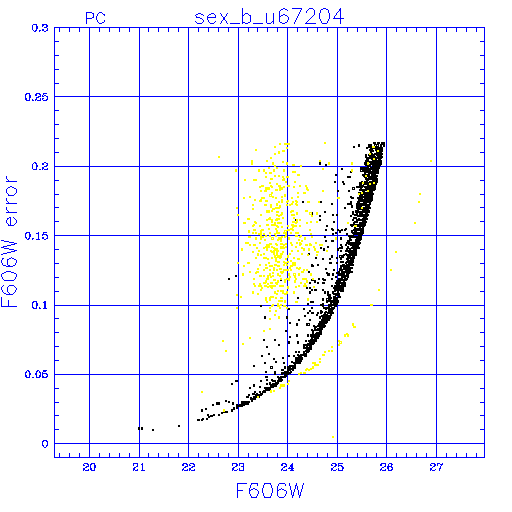

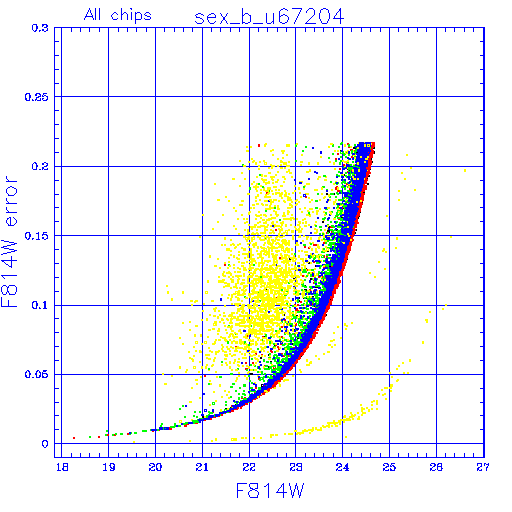

Error vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f606w
f814w

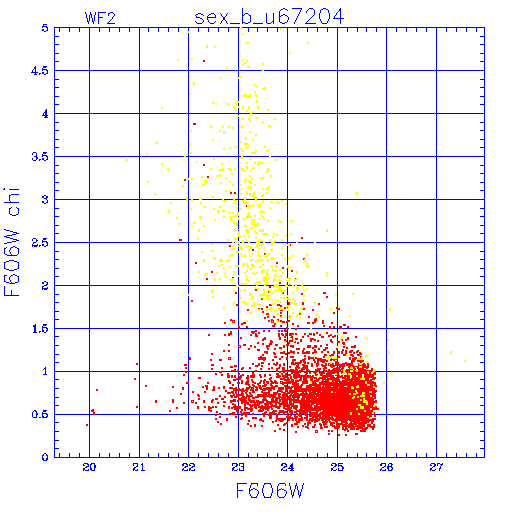

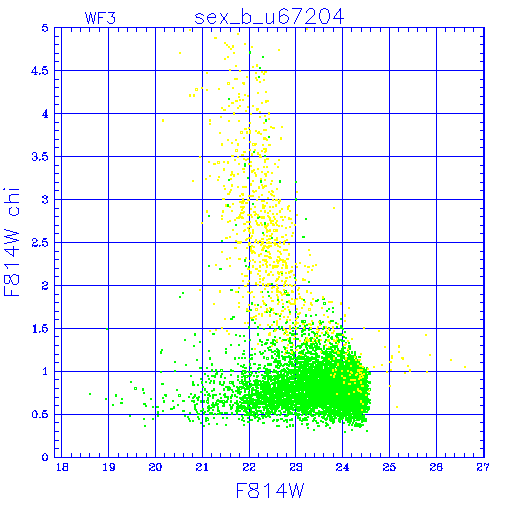

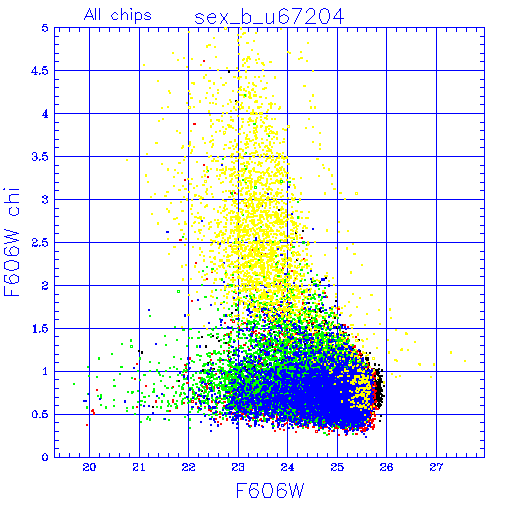

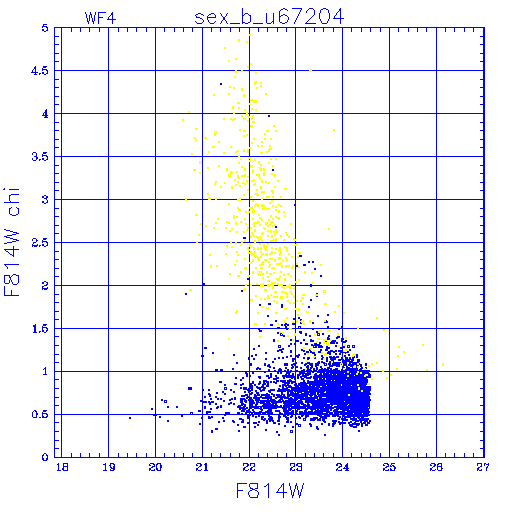

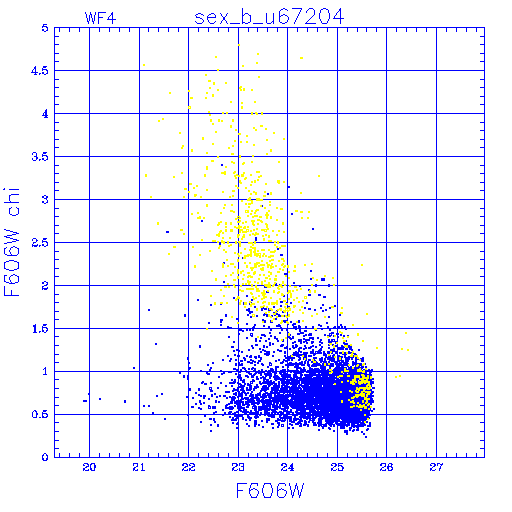

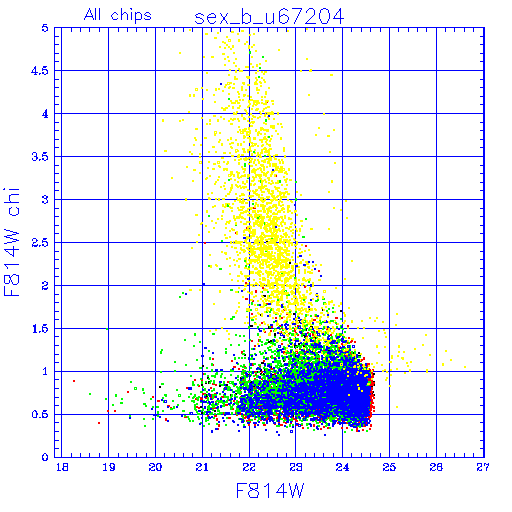

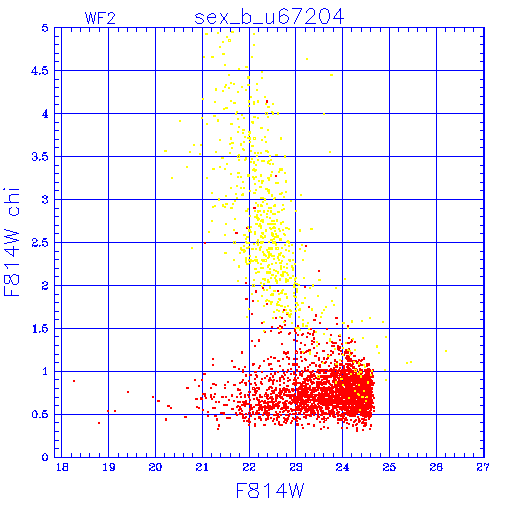

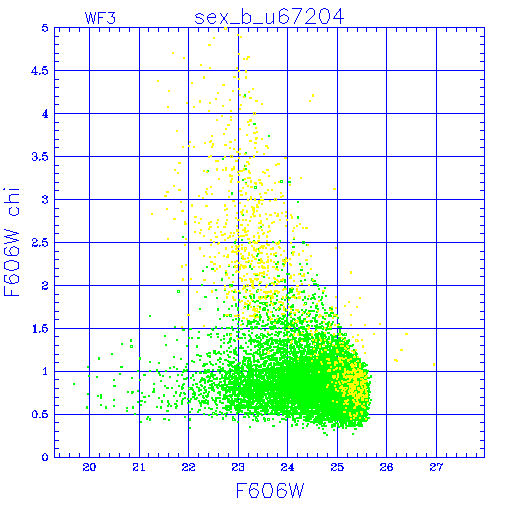

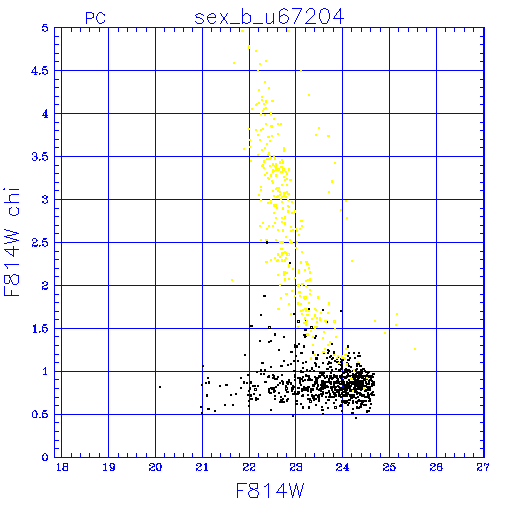

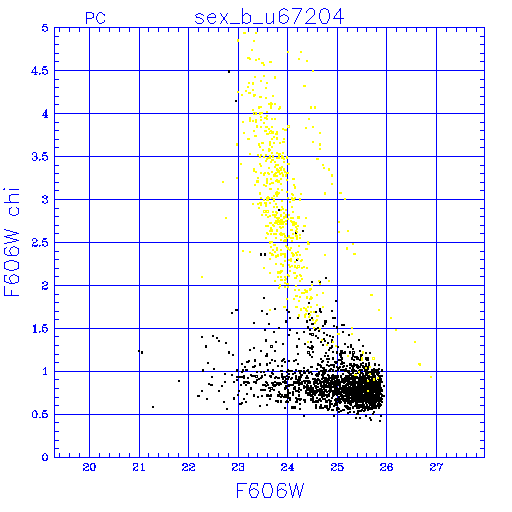

CHI vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f606w
f814w

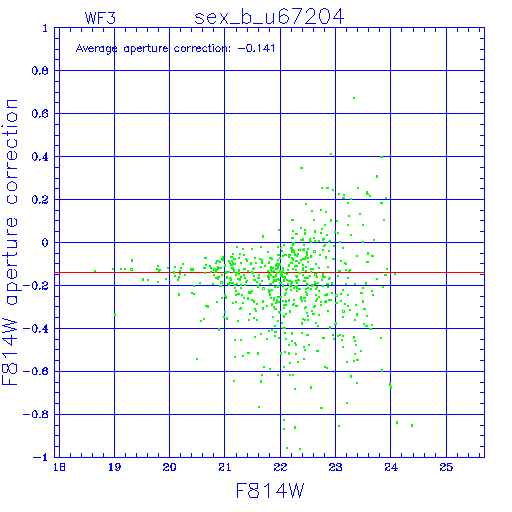

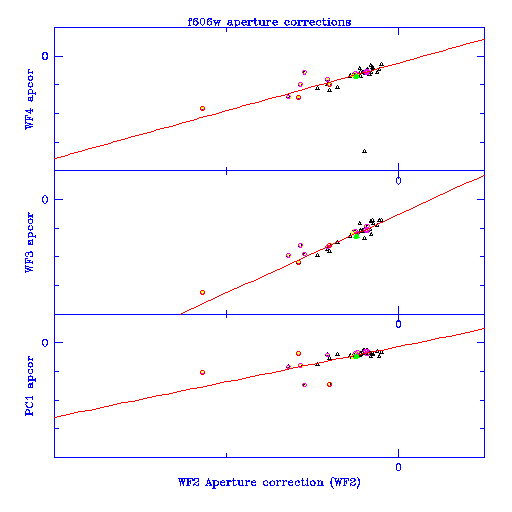

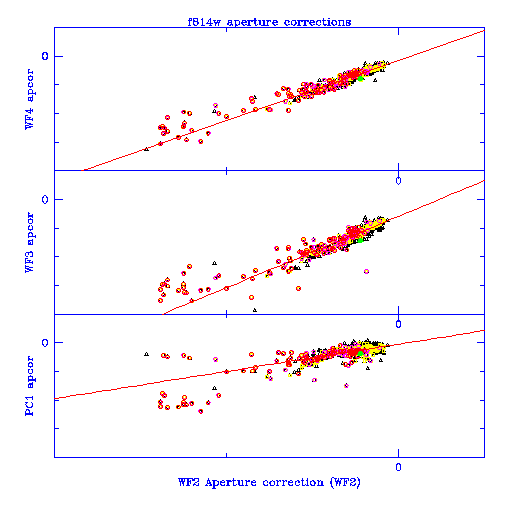

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
F606W F814W

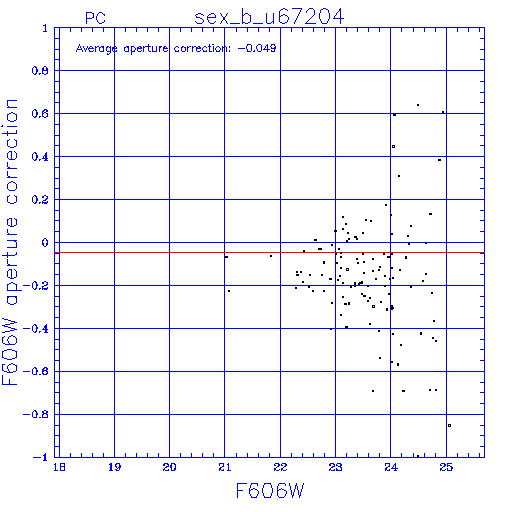

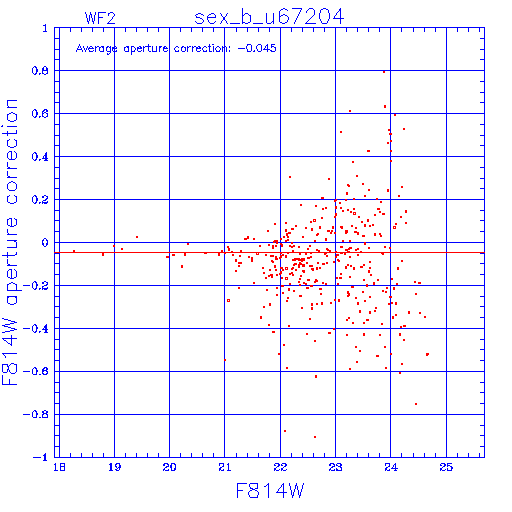

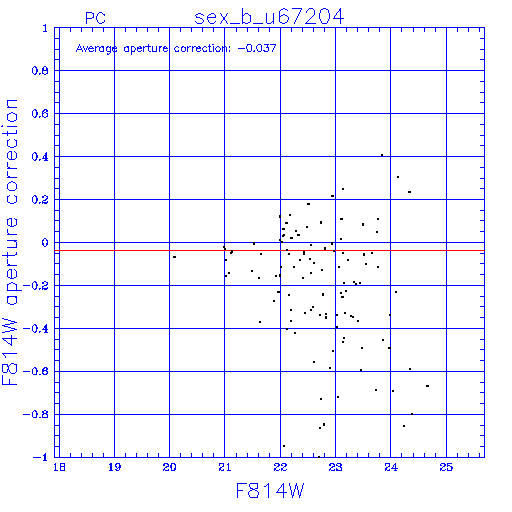

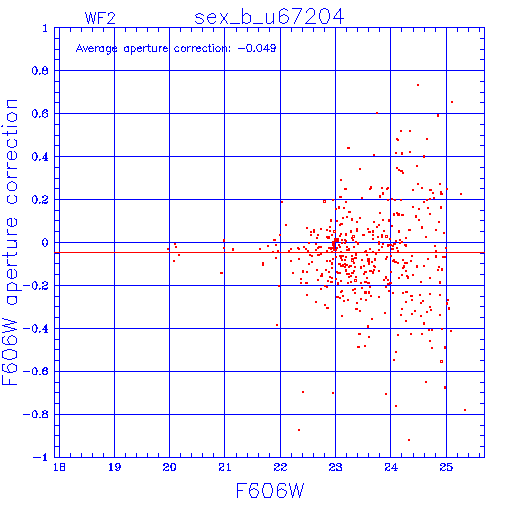

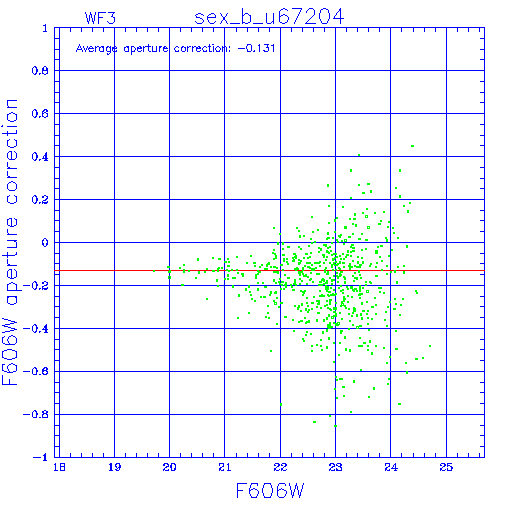

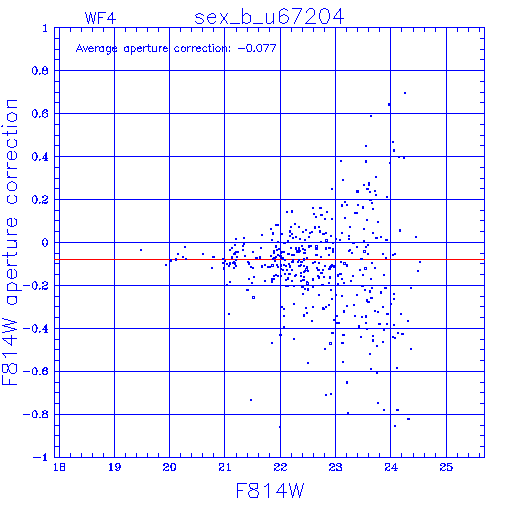

Aperture correction for each frame/chip, showing individual stars
All chips
PC
WF2
WF3
WF4
f606w
f814w

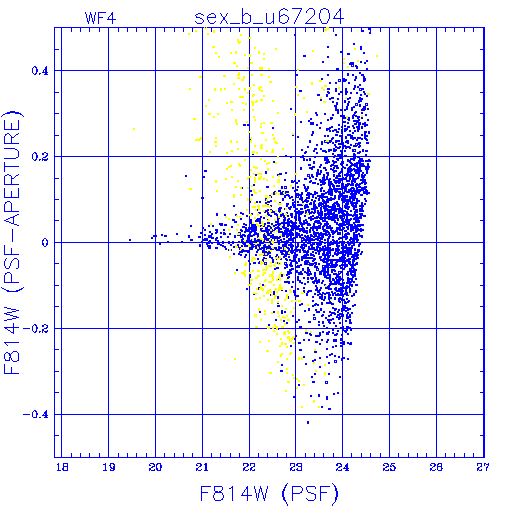

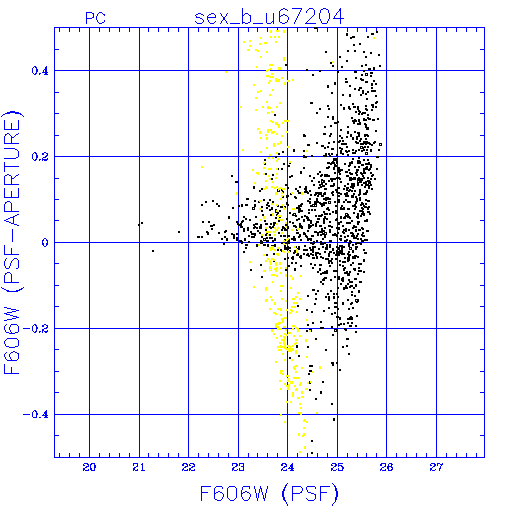

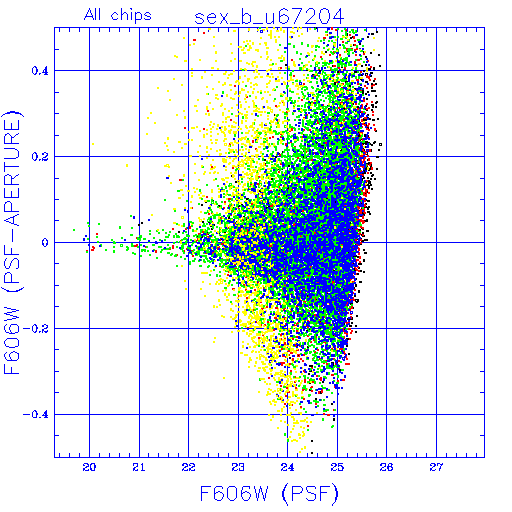

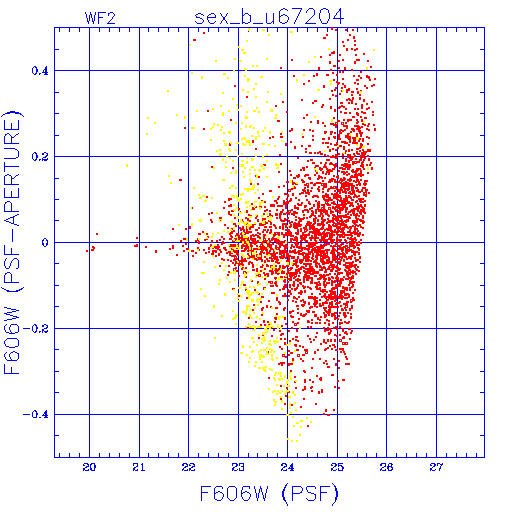

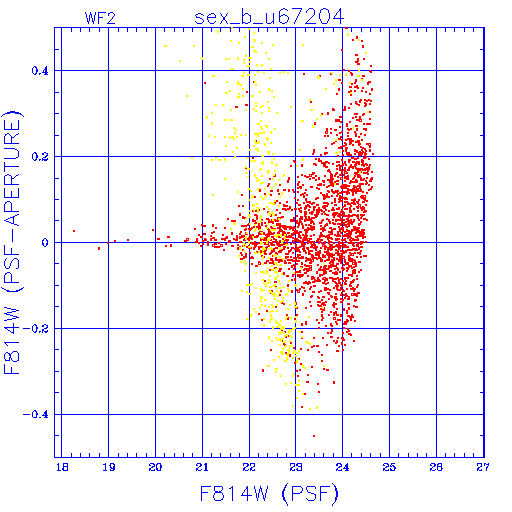

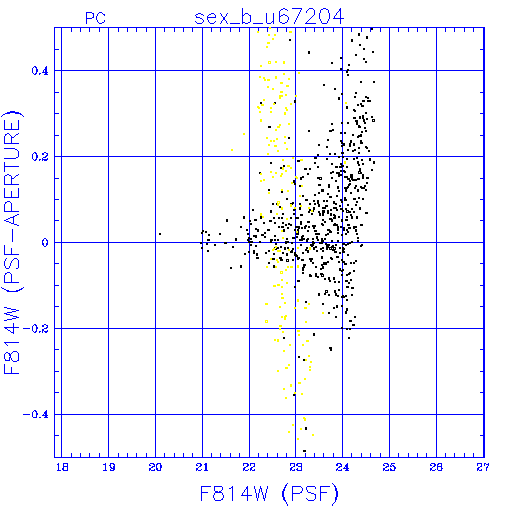

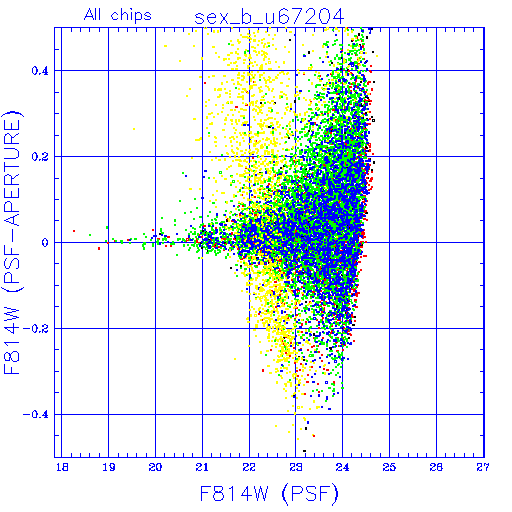

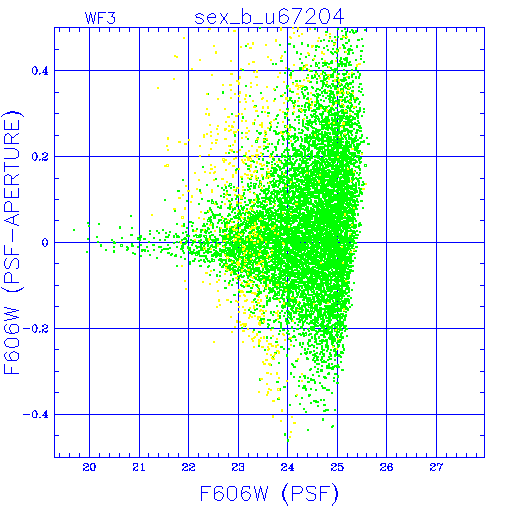

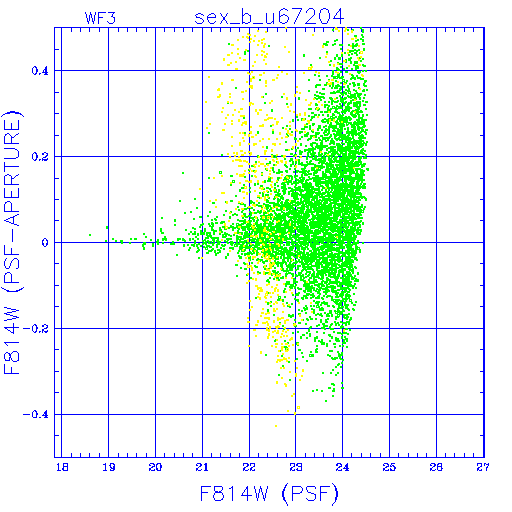

PSF vs. aperture photometry

All chips
PC
WF2
WF3
WF4
f606w
f814w

Artificial star diagrams


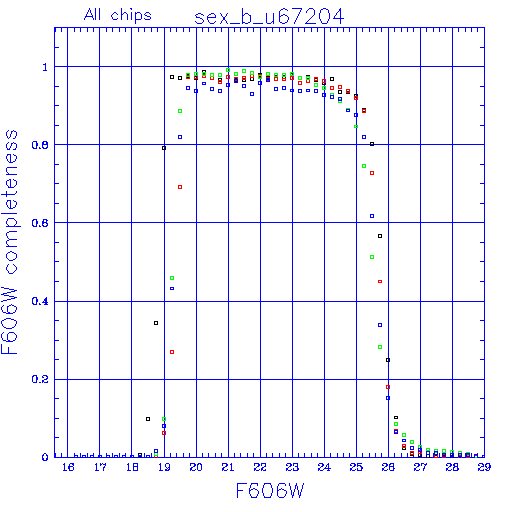

Completeness as a function of input magnitude
PSF photometry Aperture photometry

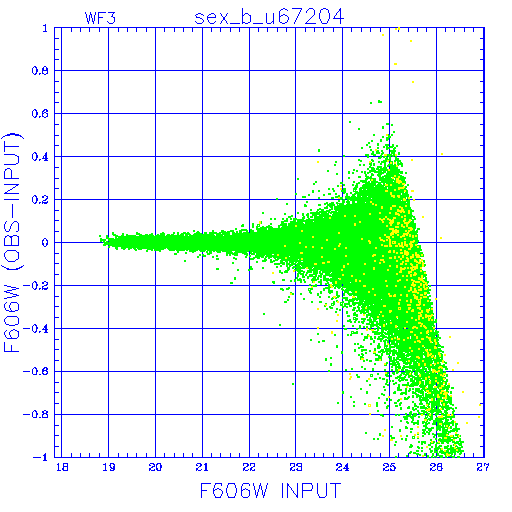

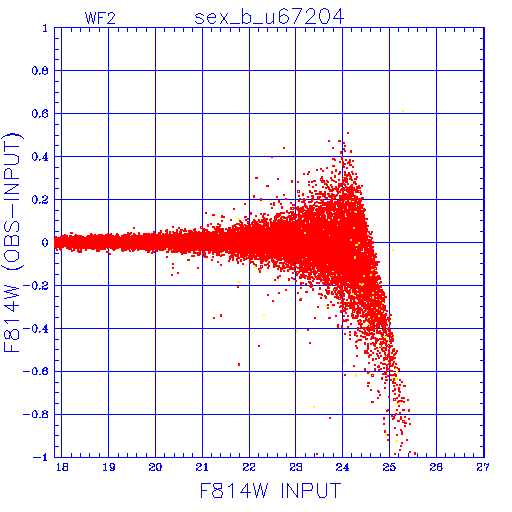

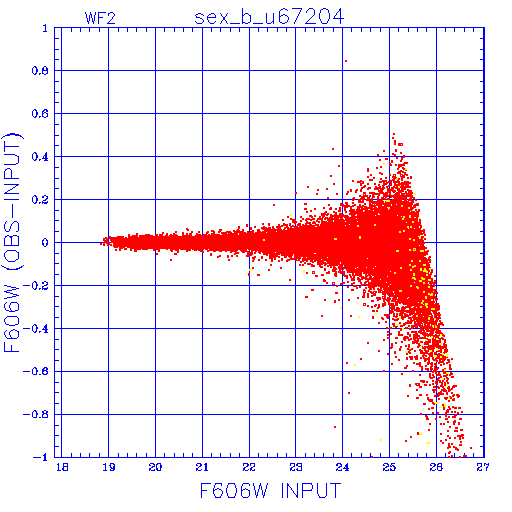

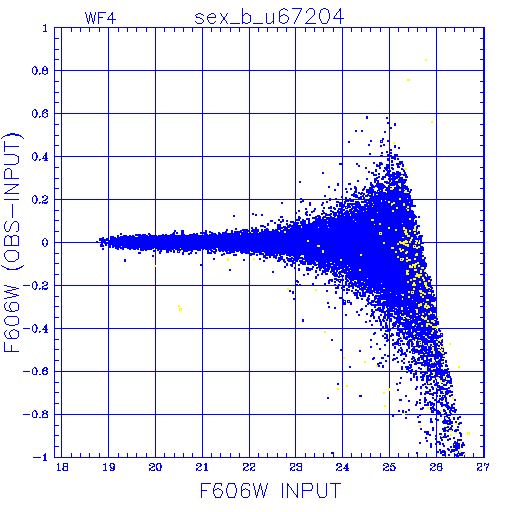

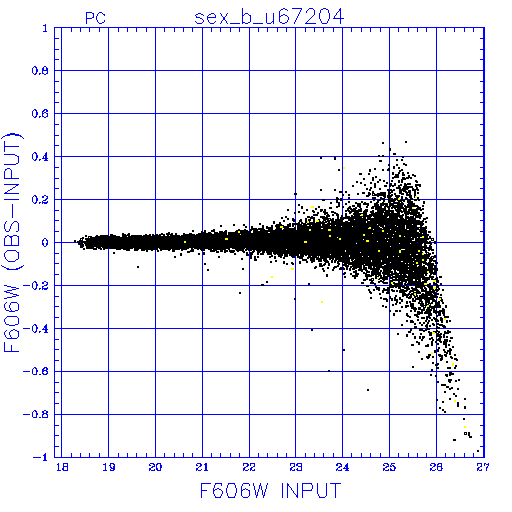

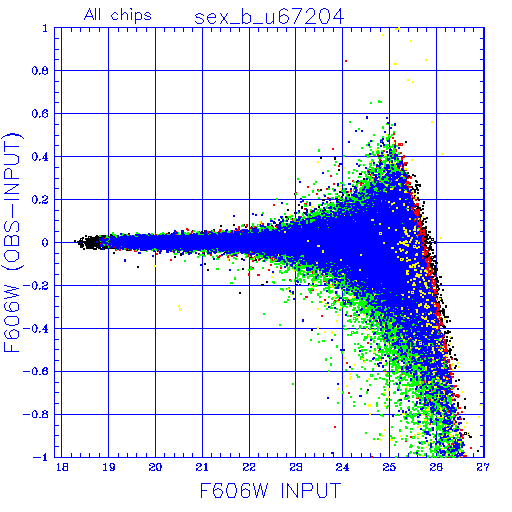

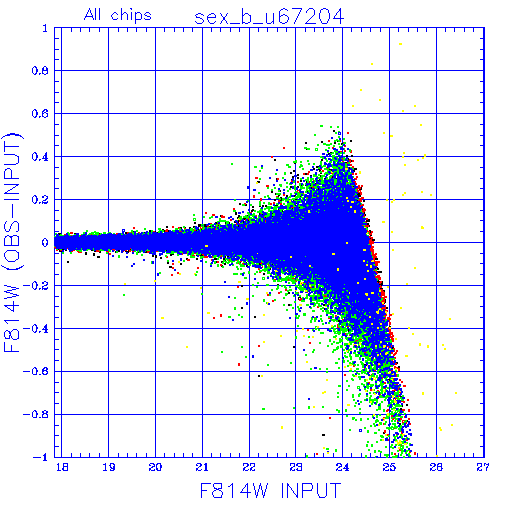

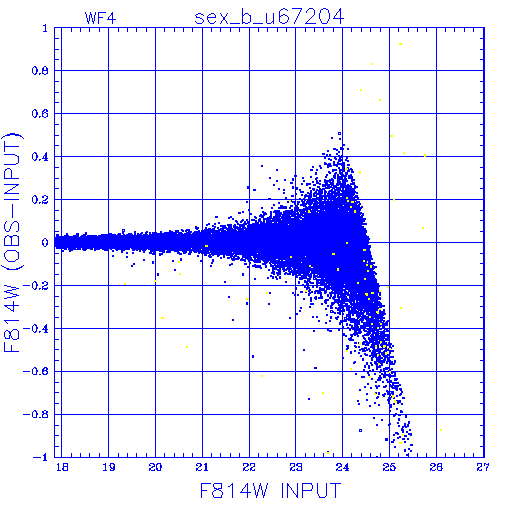

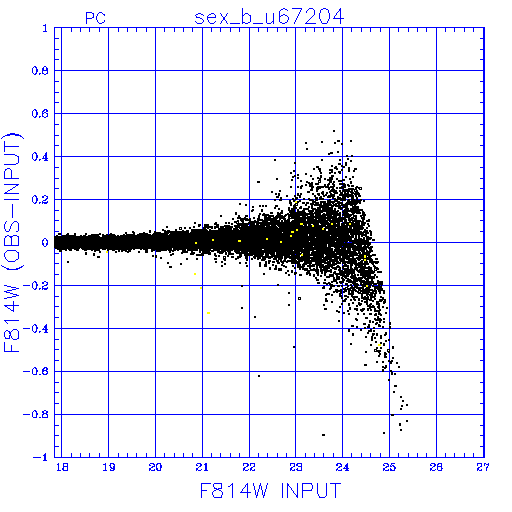

Recovered mag-input mag as a function of input mag (PSF photometry)
All chips
PC
WF2
WF3
WF4
f606w
f814w

Average recovered magnitude as function of location in CMD (PSF photometry)
All chips
PC
WF2
WF3
WF4
