Photometry Diagnostics for sagittarius_u37ga4

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u37ga407r	F555W	350.00	0.00	0.00	0.00	0.00	0.00	0.00
u37ga408r	F555W	300.00	0.04	-0.09	0.00	0.00	0.04	-0.09
u37ga409r	F555W	300.00	0.03	-0.06	0.00	0.00	0.03	-0.06
u37ga40ar	F555W	300.00	-0.02	-0.01	0.00	0.00	-0.02	-0.01
u37ga40br	F555W	300.00	-0.02	0.03	0.00	0.00	-0.02	0.03
u37ga40cr	F555W	300.00	0.00	-0.05	0.00	0.00	0.00	-0.05
u37ga401r	F814W	350.00	0.00	-0.02	0.00	0.00	0.00	-0.02
u37ga402m	F814W	300.00	0.06	-0.14	0.00	0.00	0.06	-0.14
u37ga403r	F814W	300.00	0.08	-0.15	0.00	0.00	0.08	-0.15
u37ga404r	F814W	300.00	0.07	-0.12	0.00	0.00	0.07	-0.12
u37ga405r	F814W	300.00	0.02	-0.12	0.00	0.00	0.02	-0.12
u37ga406r	F814W	300.00	0.03	-0.08	0.00	0.00	0.03	-0.08

Mosaic images

F555W	F814W

HSTPHOT command log

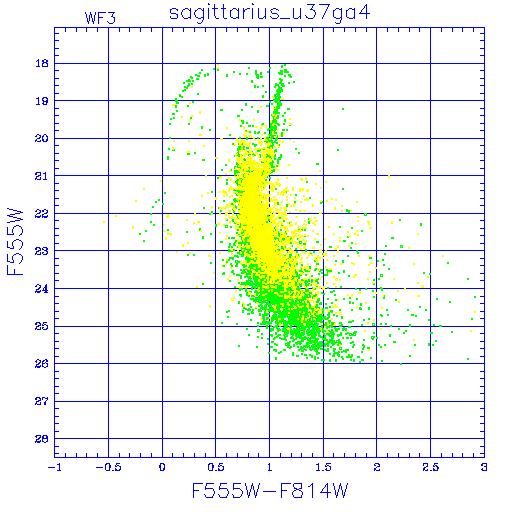

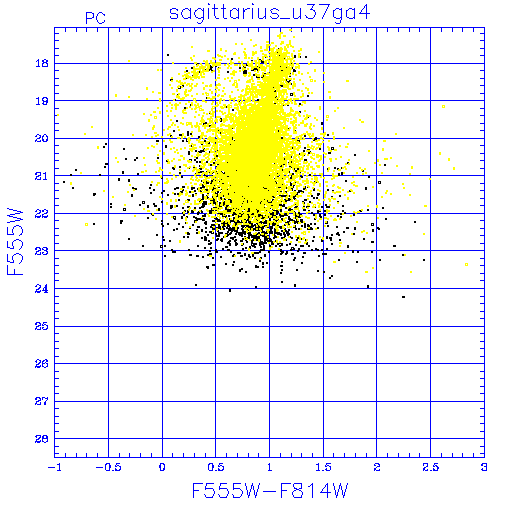

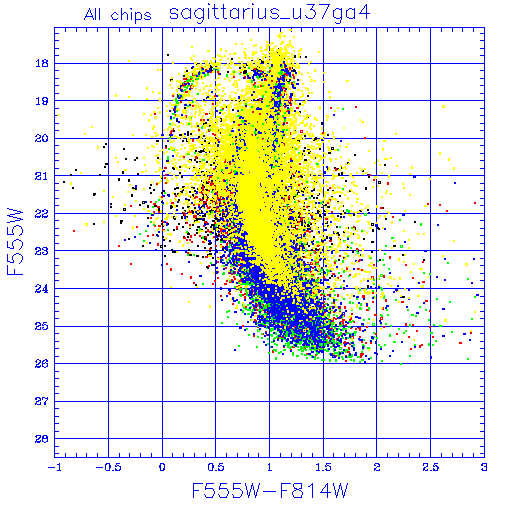

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

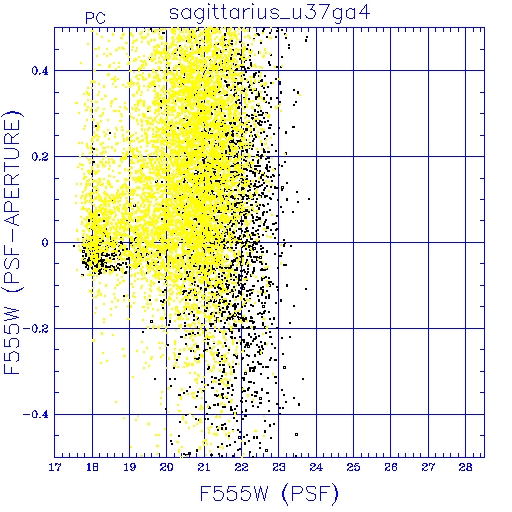

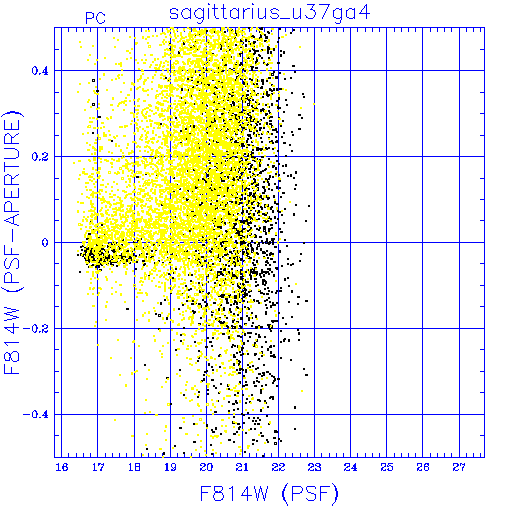

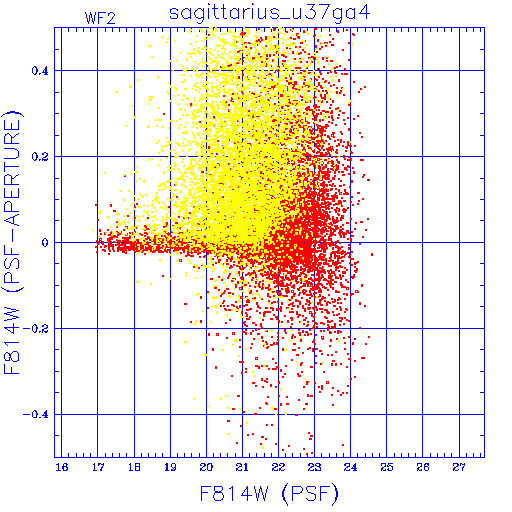

PSF
Aperture

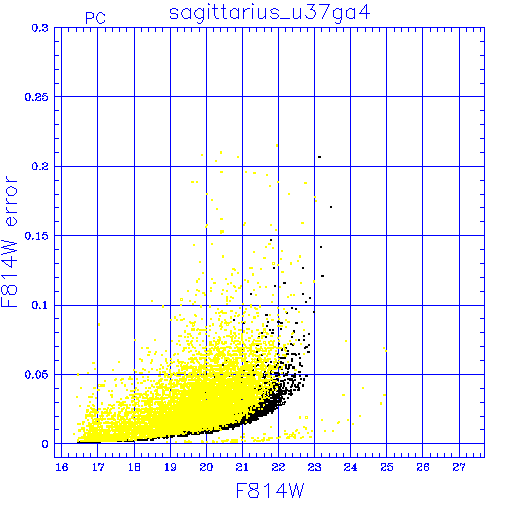

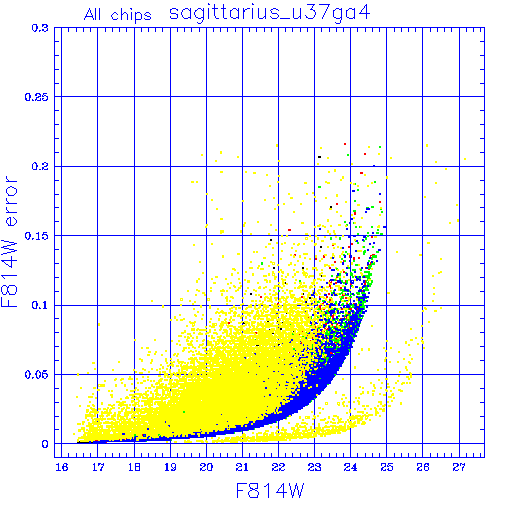

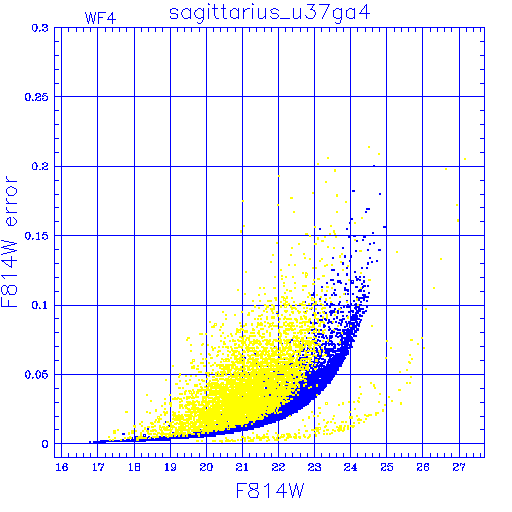

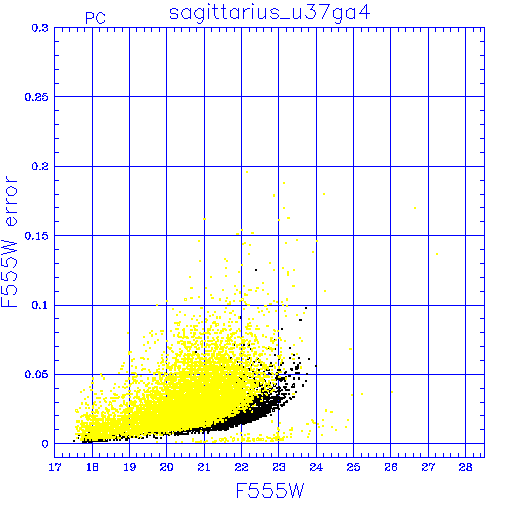

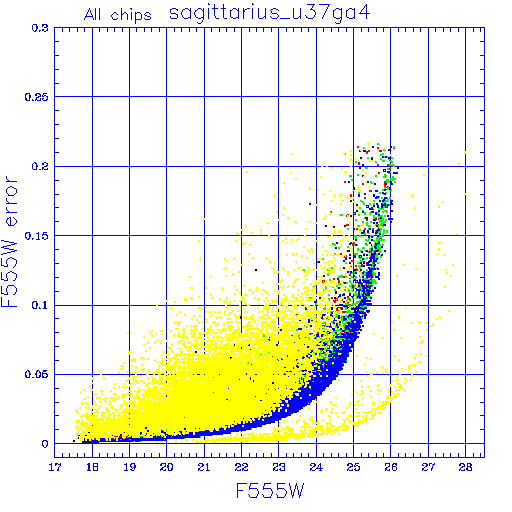

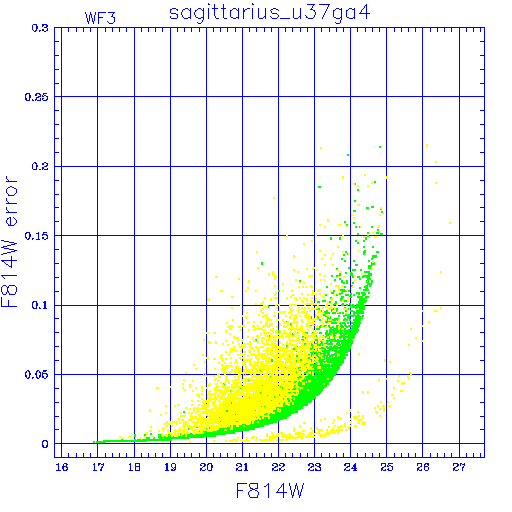

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

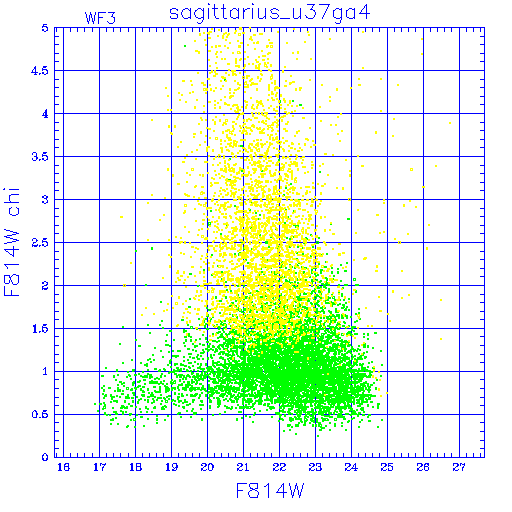

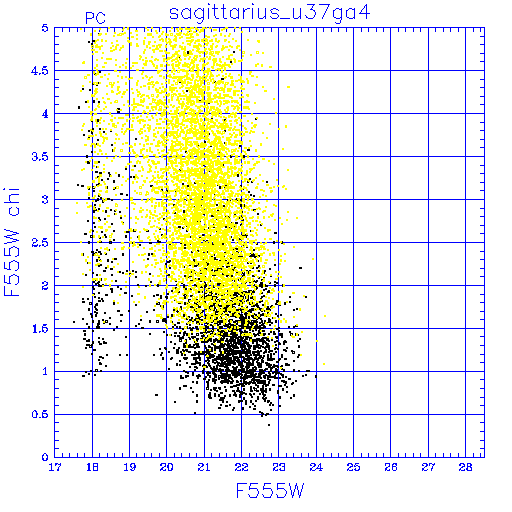

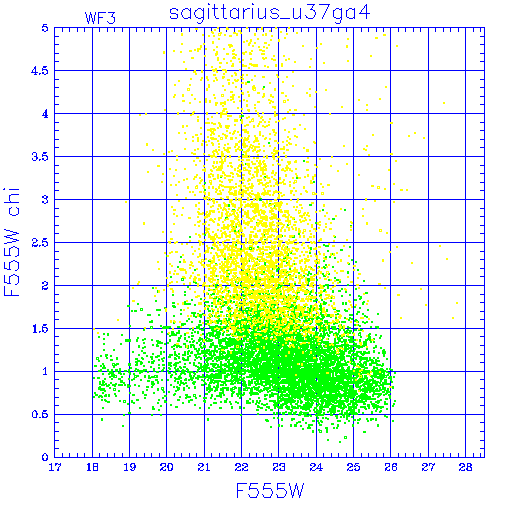

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

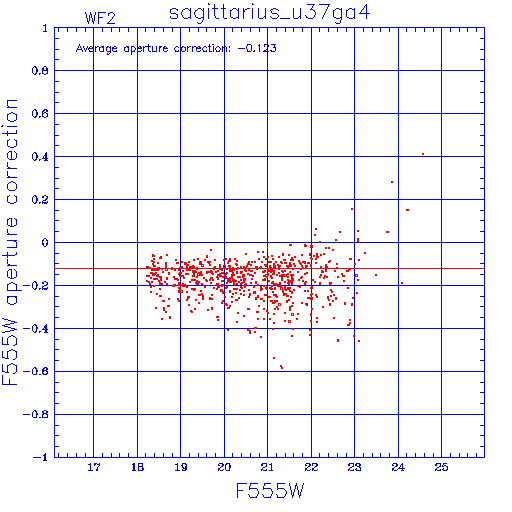

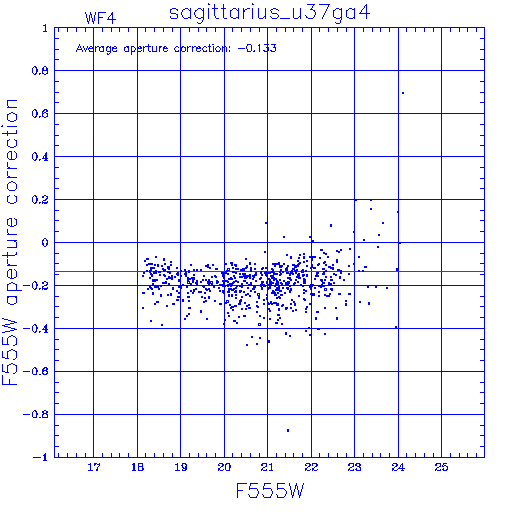

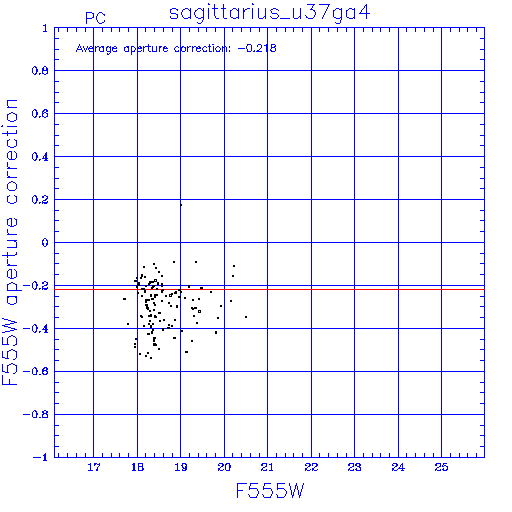

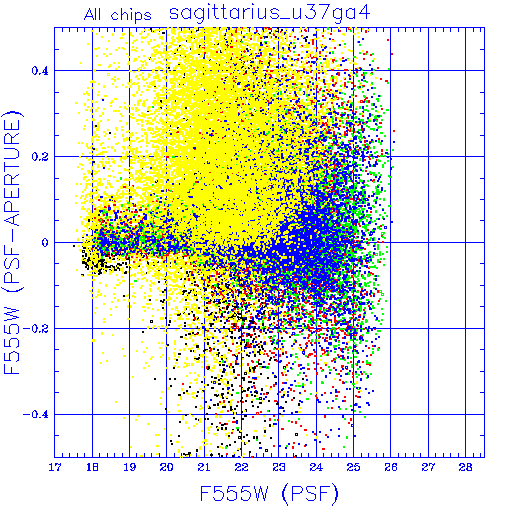

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
