Photometry Diagnostics for sagittarius_u37505

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u3750501t	F555W	500.00	0.00	0.00	0.00	0.00	0.00	0.00
u3750502t	F555W	160.00	-0.02	0.02	0.00	0.00	-0.02	0.02
u3750503t	F555W	160.00	-0.03	0.04	0.00	0.00	-0.03	0.04
u3750504t	F555W	160.00	-0.04	0.05	0.00	0.00	-0.04	0.05
u3750505t	F555W	160.00	-0.04	0.06	0.00	0.00	-0.04	0.06
u3750506t	F555W	160.00	-0.04	0.07	0.00	0.00	-0.04	0.07
u375050ct	F555W	160.00	0.06	0.00	0.00	0.00	0.06	0.00
u375050dt	F555W	600.00	0.05	0.01	0.00	0.00	0.05	0.01
u3750507t	F814W	600.00	0.07	0.11	0.00	0.00	0.07	0.11
u3750508t	F814W	160.00	0.07	0.13	0.00	0.00	0.07	0.13
u3750509t	F814W	160.00	0.09	0.12	0.00	0.00	0.09	0.12
u375050at	F814W	160.00	0.08	0.13	0.00	0.00	0.08	0.13
u375050bt	F814W	160.00	0.07	0.15	0.00	0.00	0.07	0.15
u375050et	F814W	160.00	0.13	0.04	0.00	0.00	0.13	0.04
u375050ft	F814W	500.00	0.13	0.05	0.00	0.00	0.13	0.05

Mosaic images

F555W	F814W

HSTPHOT command log

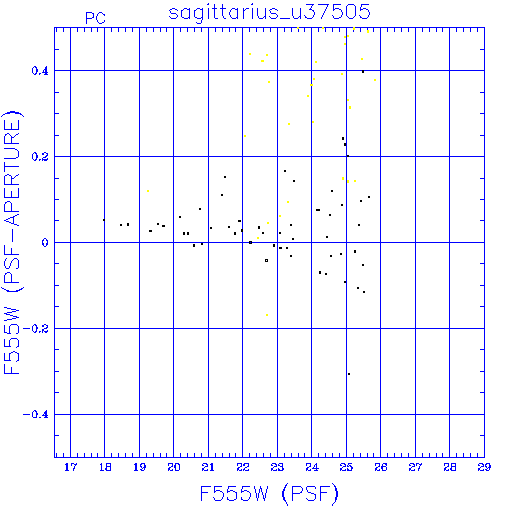

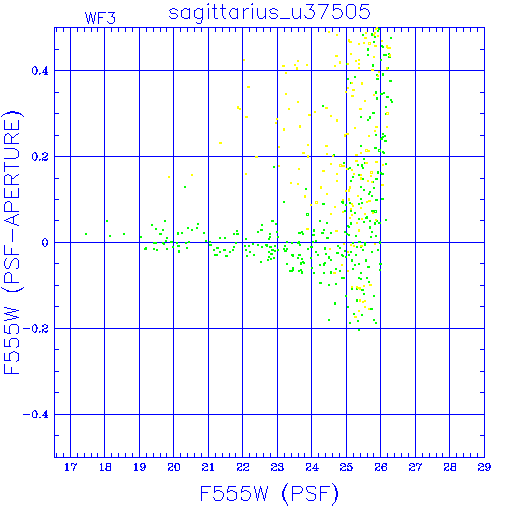

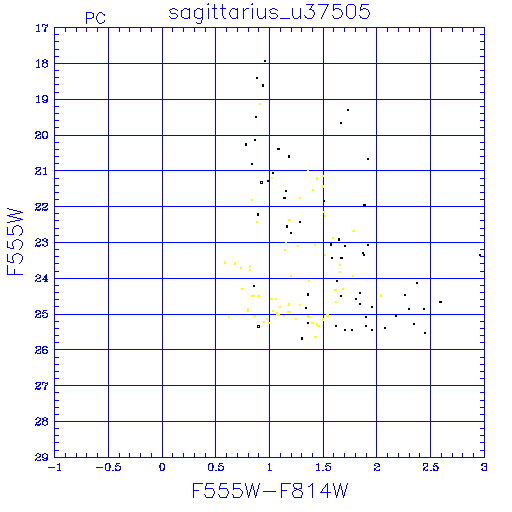

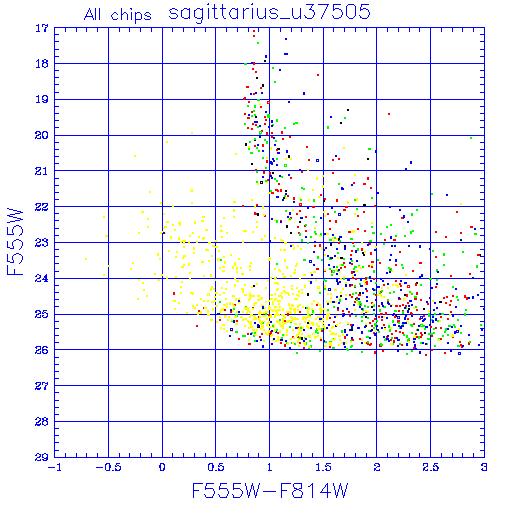

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

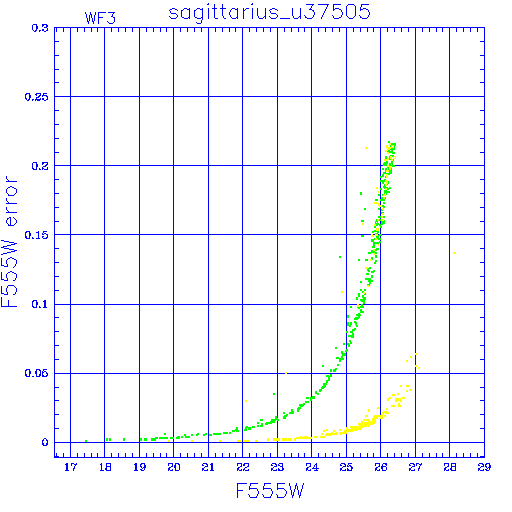

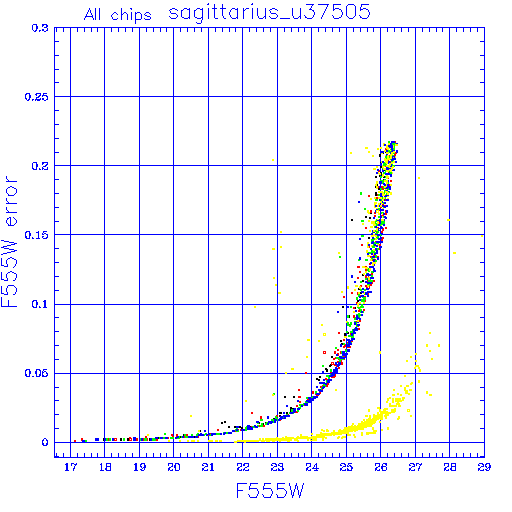

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

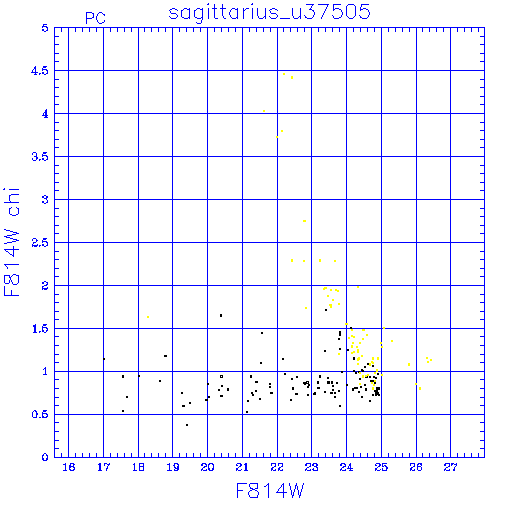

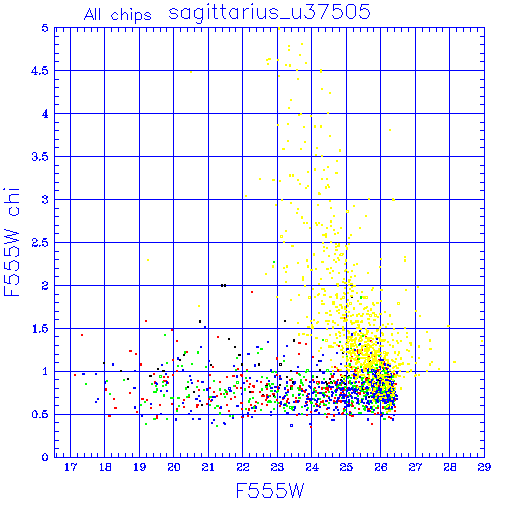

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

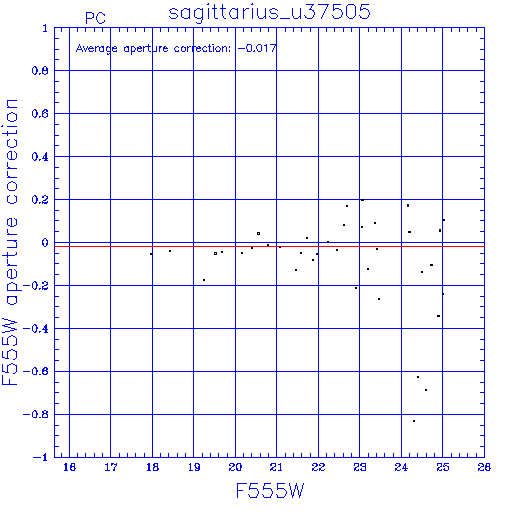

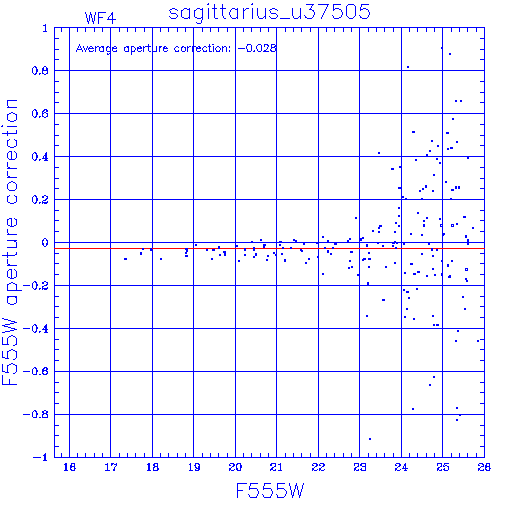

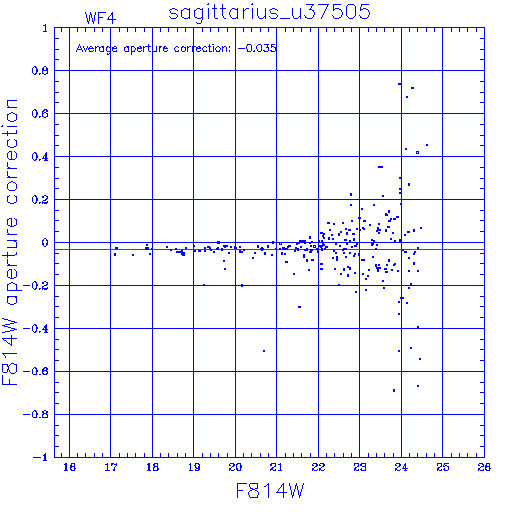

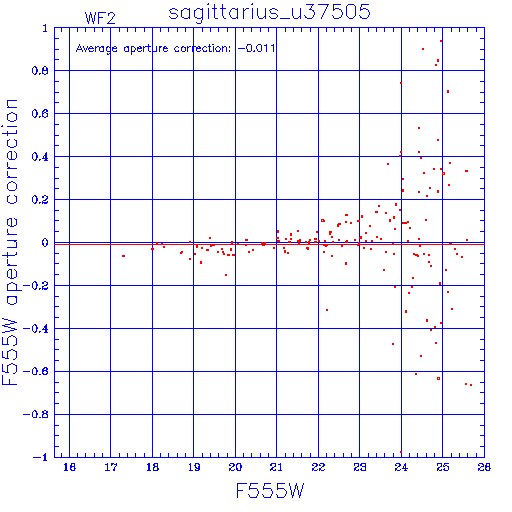

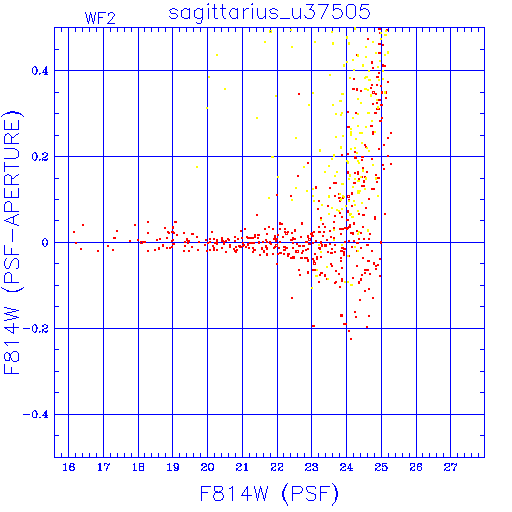

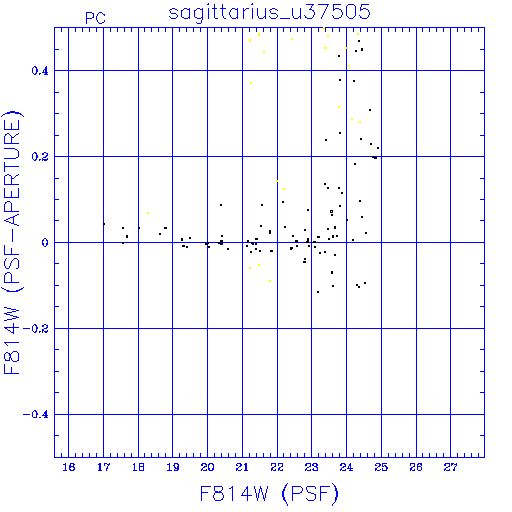

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
