Photometry Diagnostics for sagittarius_u37502

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u3750201t	F555W	500.00	0.00	0.00	0.00	0.00	0.00	0.00
u3750202t	F555W	160.00	-0.01	-0.02	0.00	0.00	-0.01	-0.02
u3750203t	F555W	160.00	-0.03	-0.02	0.00	0.00	-0.03	-0.02
u3750204t	F555W	160.00	-0.02	-0.01	0.00	0.00	-0.02	-0.01
u3750205t	F555W	160.00	-0.03	-0.01	0.00	0.00	-0.03	-0.01
u3750206t	F555W	160.00	-0.03	0.00	0.00	0.00	-0.03	0.00
u375020ct	F555W	160.00	-0.08	-0.01	0.00	0.00	-0.08	-0.01
u375020dt	F555W	600.00	-0.10	0.03	0.00	0.00	-0.10	0.03
u3750207t	F814W	600.00	0.04	0.03	0.00	0.00	0.04	0.03
u3750208t	F814W	160.00	0.05	0.03	0.00	0.00	0.05	0.03
u3750209t	F814W	160.00	0.05	0.01	0.00	0.00	0.05	0.01
u375020at	F814W	160.00	0.07	-0.01	0.00	0.00	0.07	-0.01
u375020bt	F814W	160.00	0.08	-0.02	0.00	0.00	0.08	-0.02
u375020et	F814W	160.00	0.00	0.09	0.00	0.00	0.00	0.09
u375020ft	F814W	500.00	0.04	0.05	0.00	0.00	0.04	0.05

Mosaic images

F555W	F814W

HSTPHOT command log

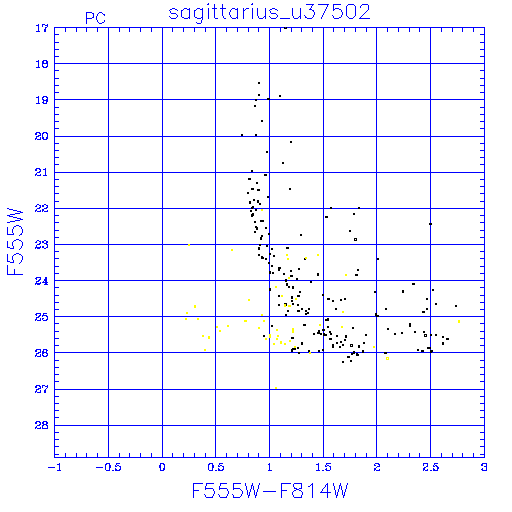

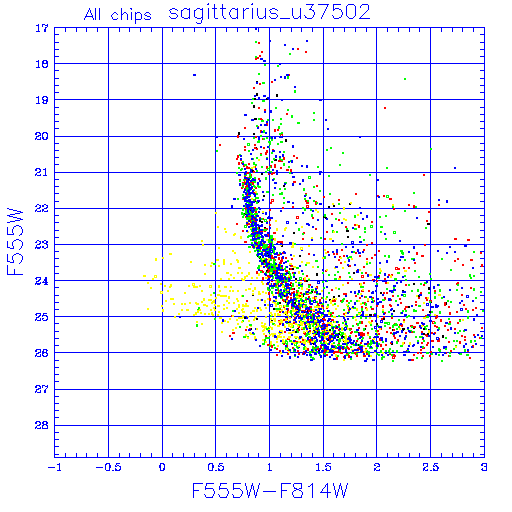

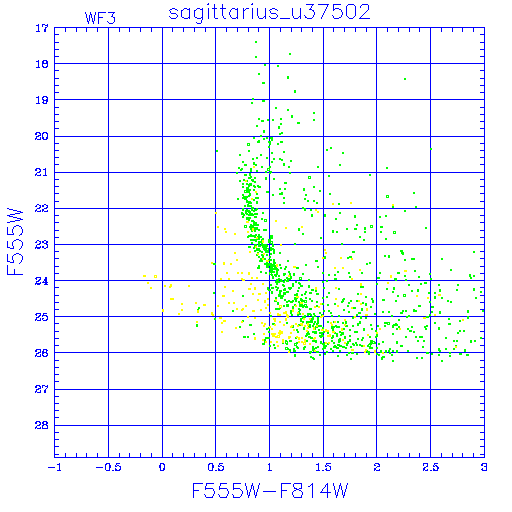

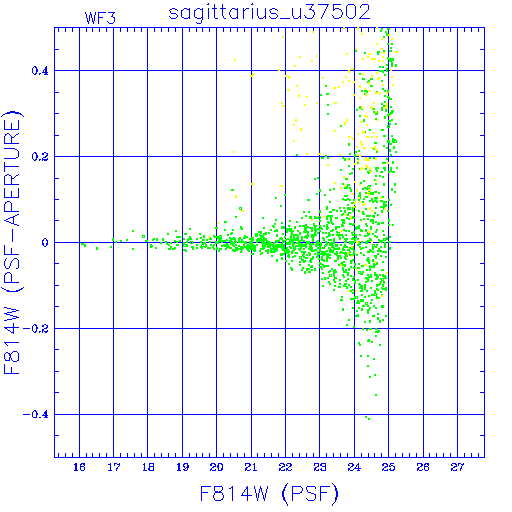

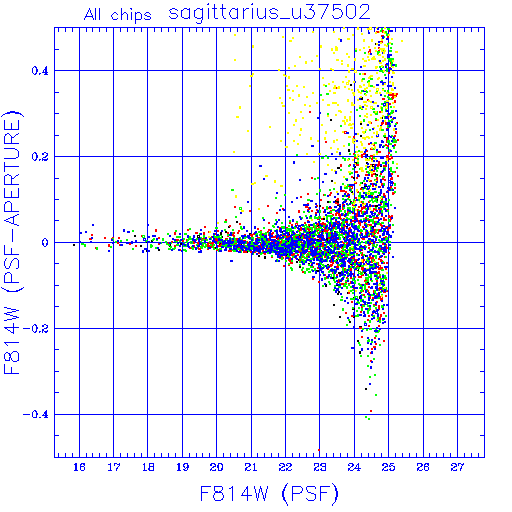

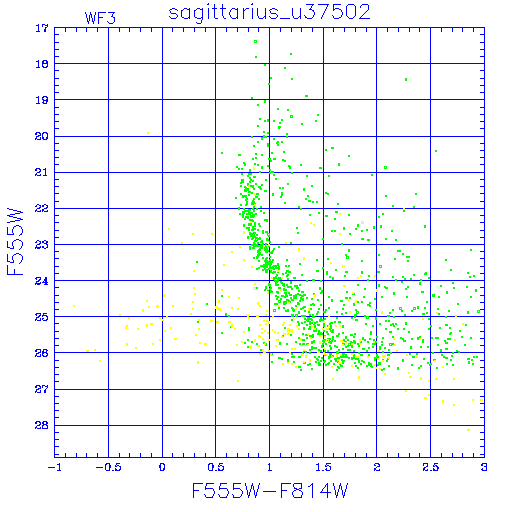

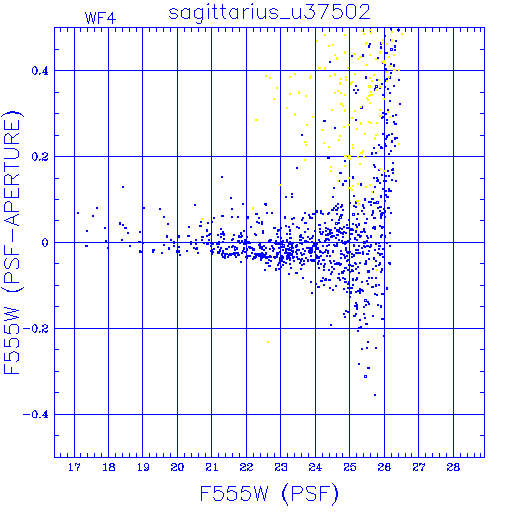

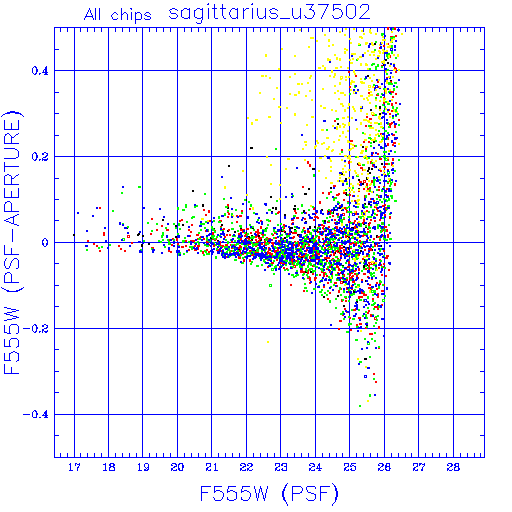

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF

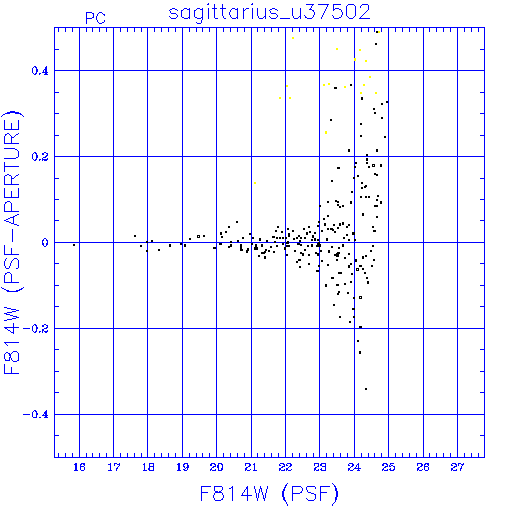

Aperture

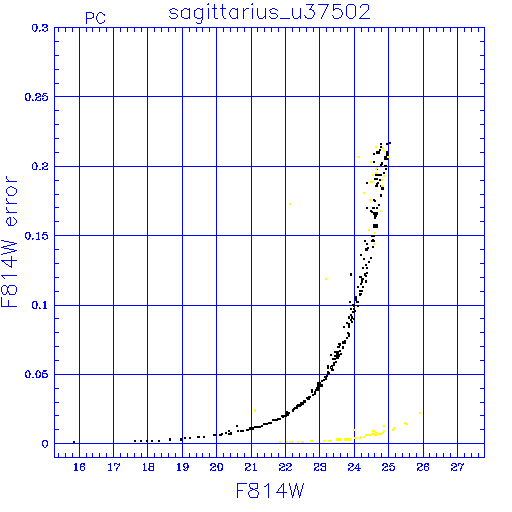

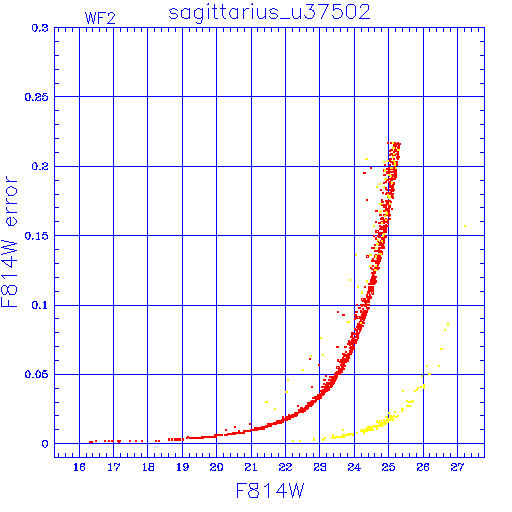

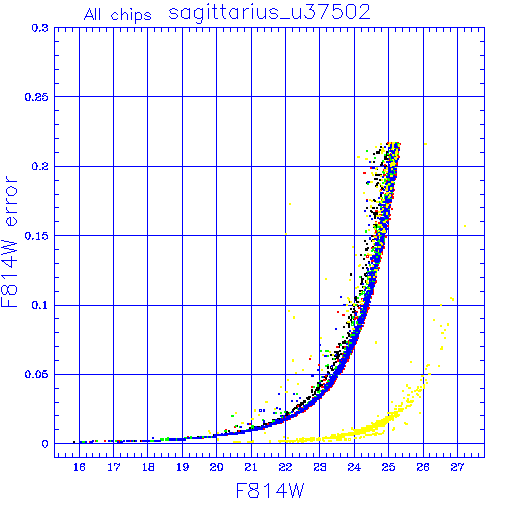

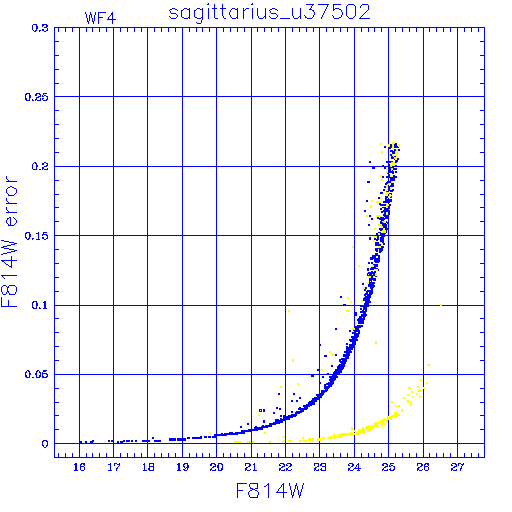

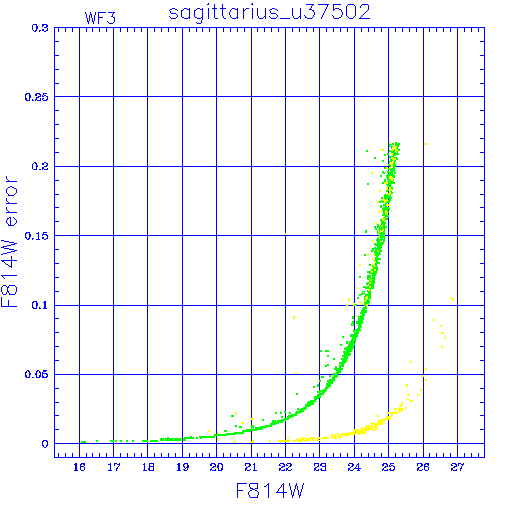

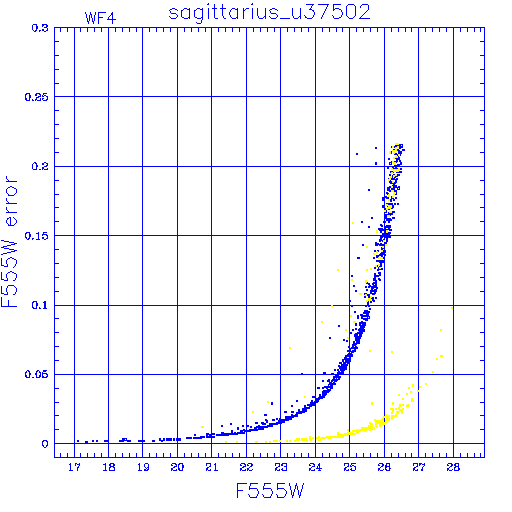

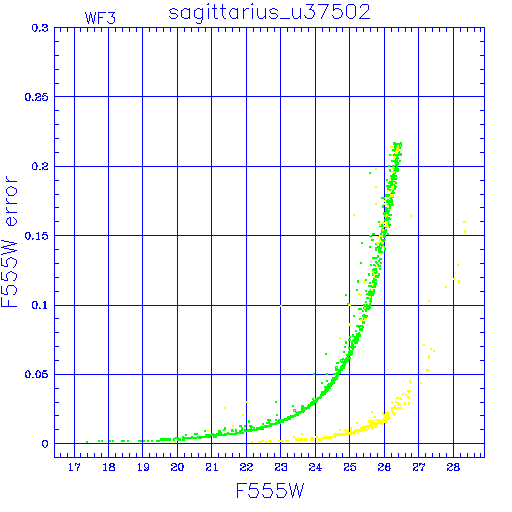

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

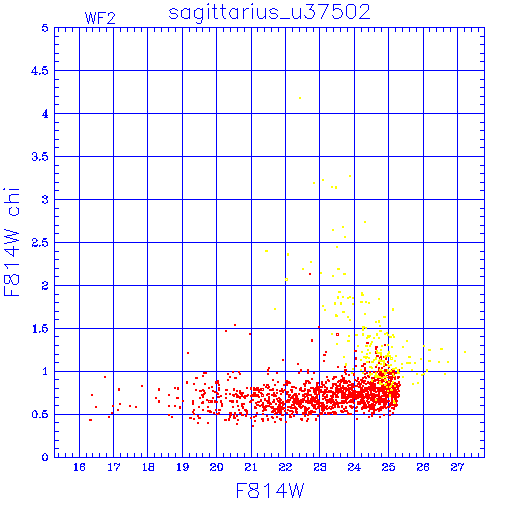

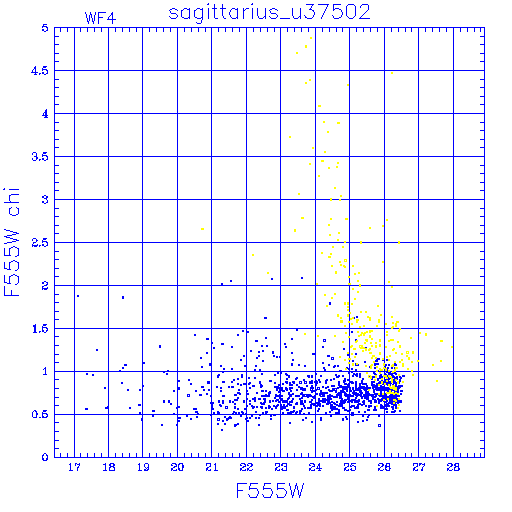

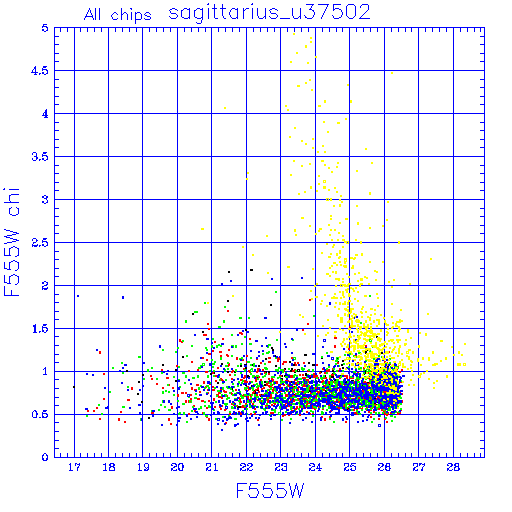

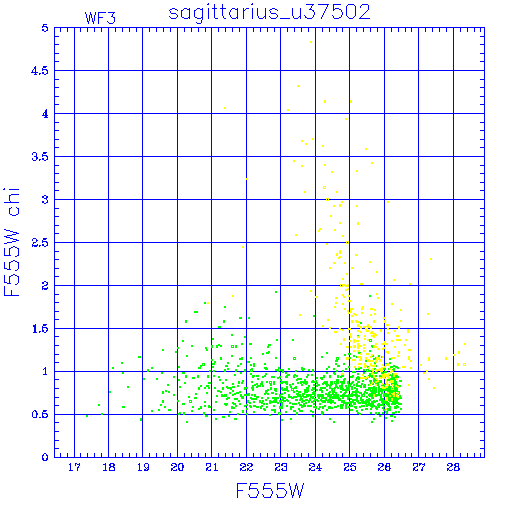

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

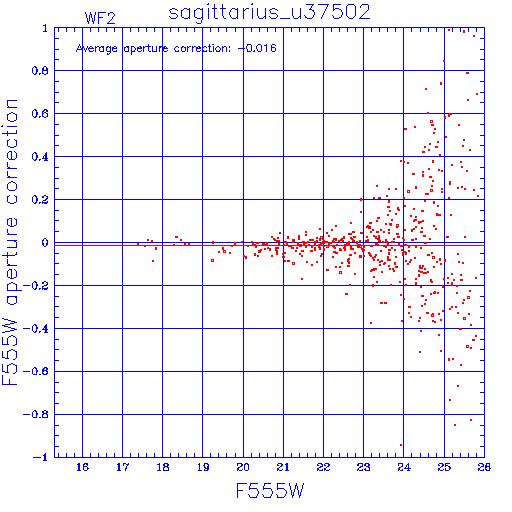

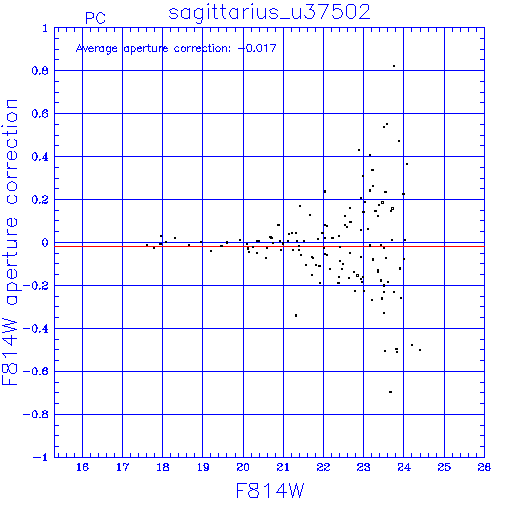

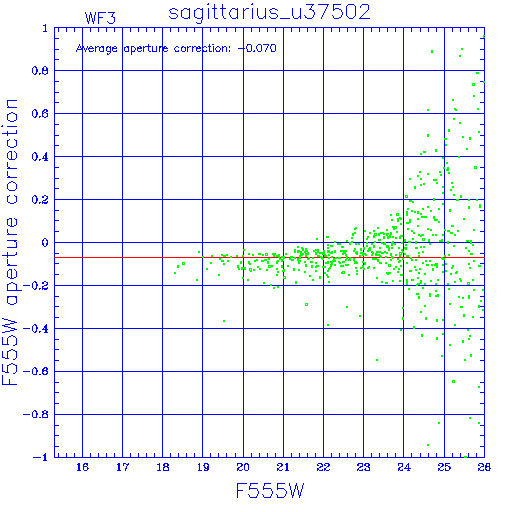

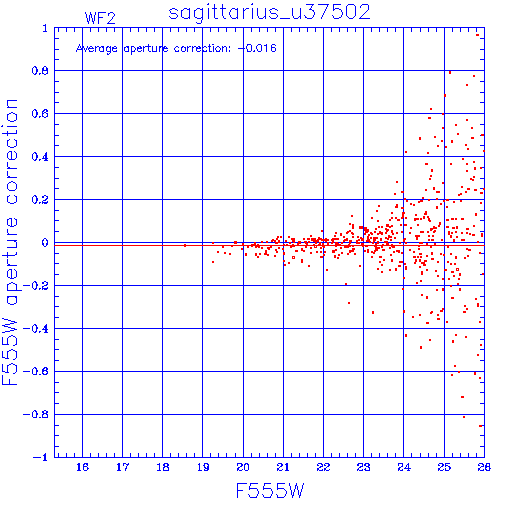

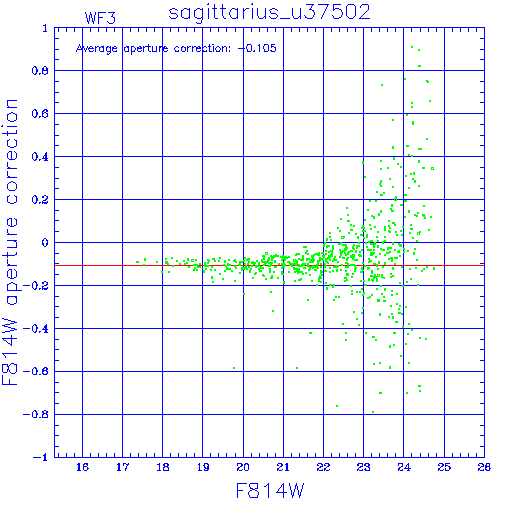

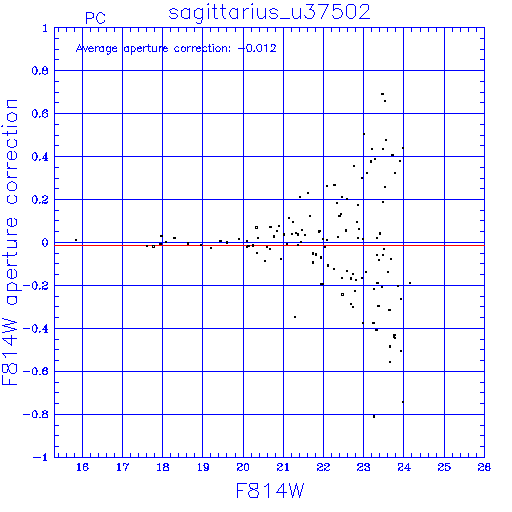

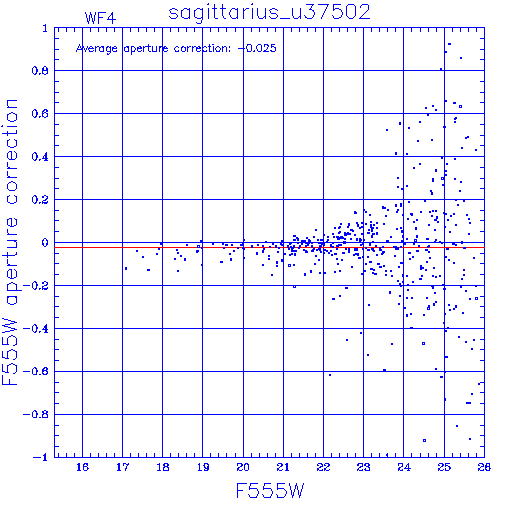

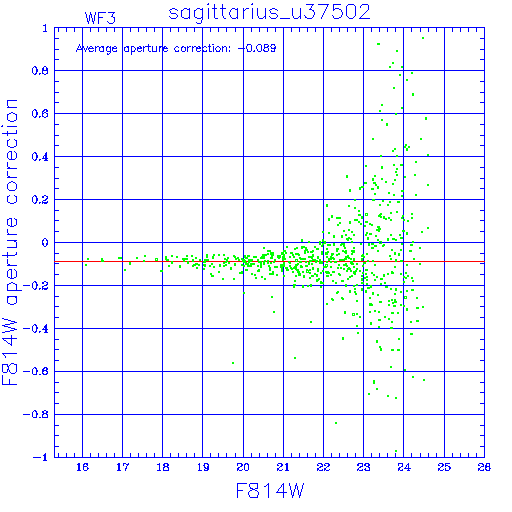

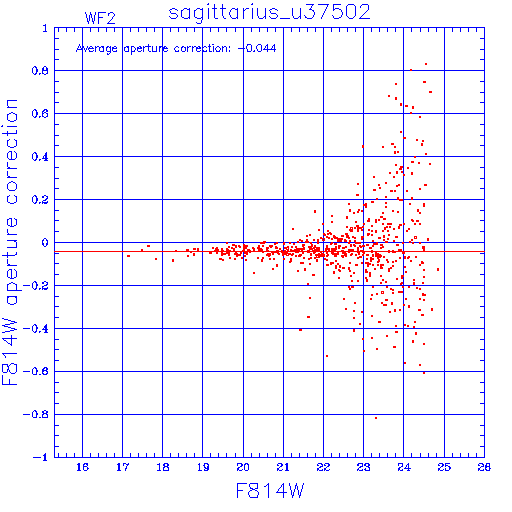

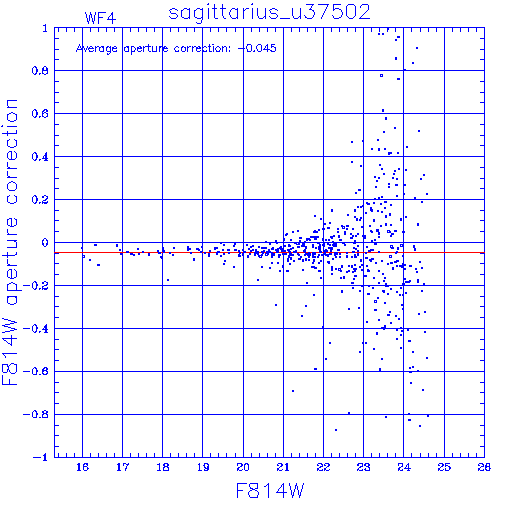

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
