Photometry Diagnostics for phoenix_u64j01



Frame list, with derived and commanded shifts
dataset filter exptime derived dx derived dy header dx header dy delta dx delta dy
u64j0101r F555W 1200.00 0.00 0.00 0.00 0.00 0.00 0.00
u64j0102r F555W 1200.00 0.01 0.04 0.00 0.00 0.01 0.04
u64j0103r F555W 1200.00 0.06 0.01 0.00 0.00 0.06 0.01
u64j0104r F555W 1200.00 5.79 5.32 5.51 5.47 0.28 -0.15
u64j0105r F555W 1200.00 11.06 11.07 11.02 10.95 0.04 0.12
u64j0106r F555W 1200.00 16.87 16.88 16.53 16.42 0.34 0.46
u64j0201r F814W 1200.00 -0.47 0.06 0.00 0.00 -0.47 0.06
u64j0202r F814W 1200.00 5.25 5.25 5.51 5.47 -0.26 -0.22
u64j0203r F814W 1200.00 10.56 11.09 11.02 10.95 -0.46 0.14
u64j0204r F814W 1200.00 16.22 16.93 16.53 16.42 -0.31 0.51
u64j0205m F814W 1200.00 -0.47 0.06 0.00 0.00 -0.47 0.06
u64j0206r F814W 1200.00 5.26 5.28 5.51 5.47 -0.25 -0.19
u64j0207r F814W 1200.00 10.58 11.04 11.02 10.95 -0.44 0.09
u64j0208r F814W 1200.00 16.33 16.86 16.53 16.42 -0.20 0.44

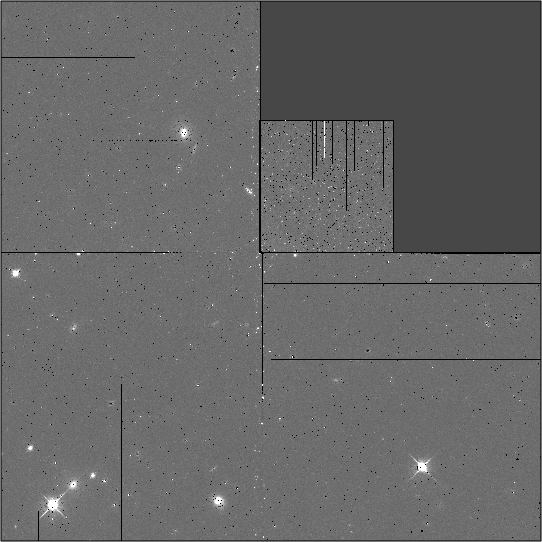

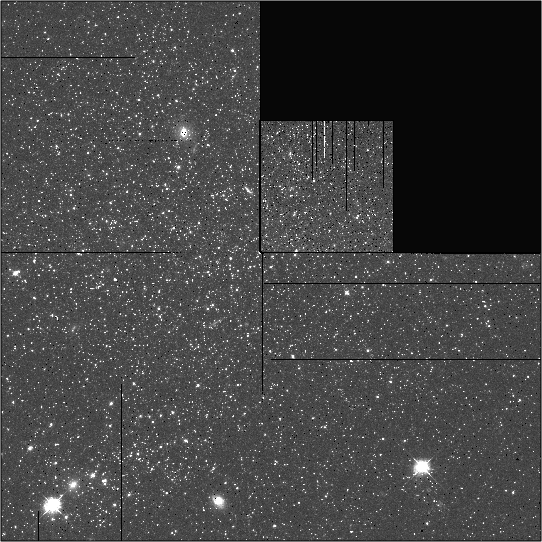

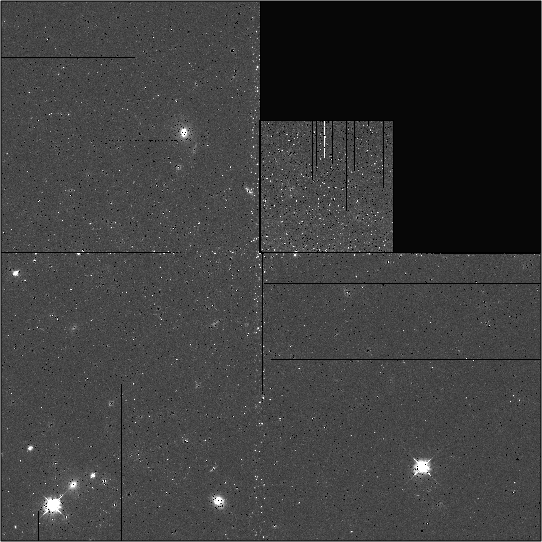

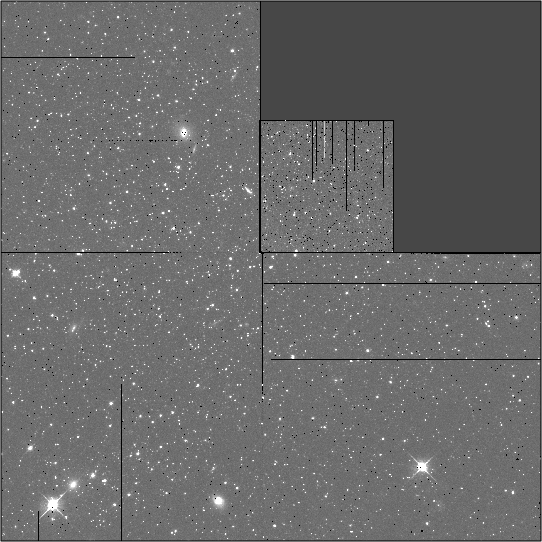

Mosaic images

F555W F814W


HSTPHOT command log

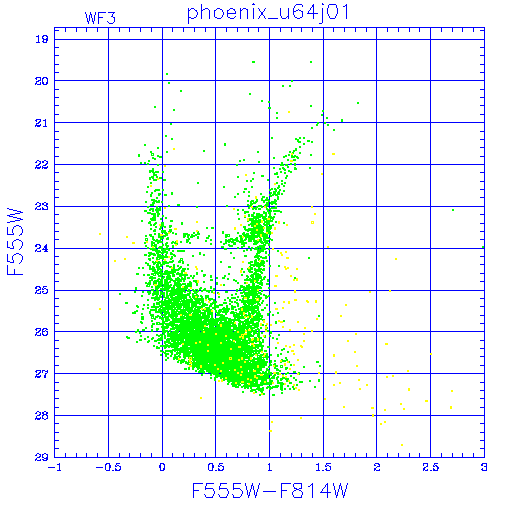

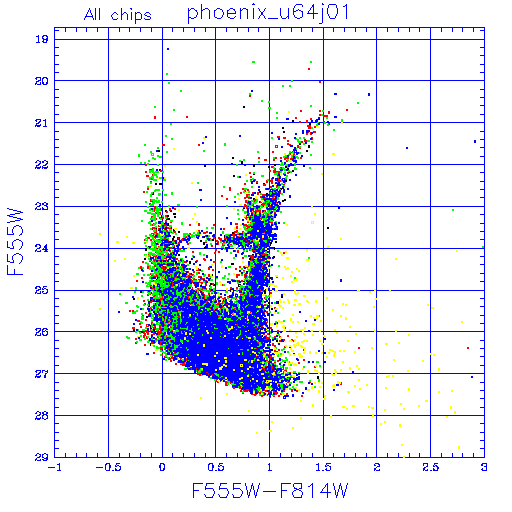

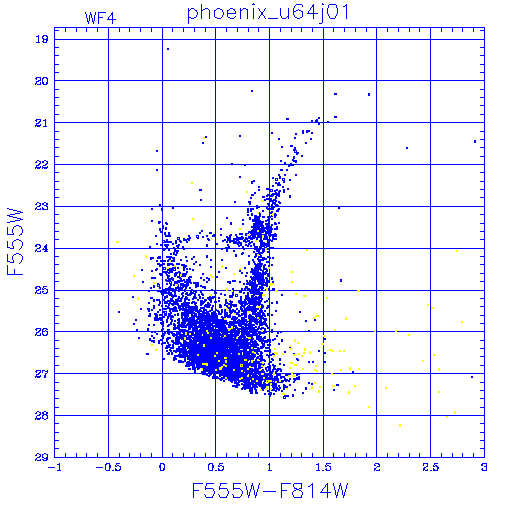

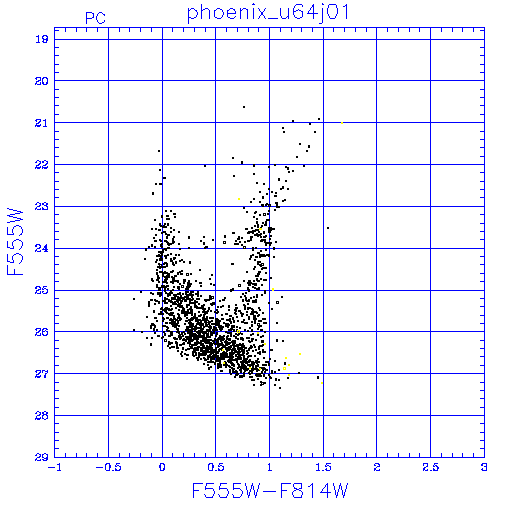

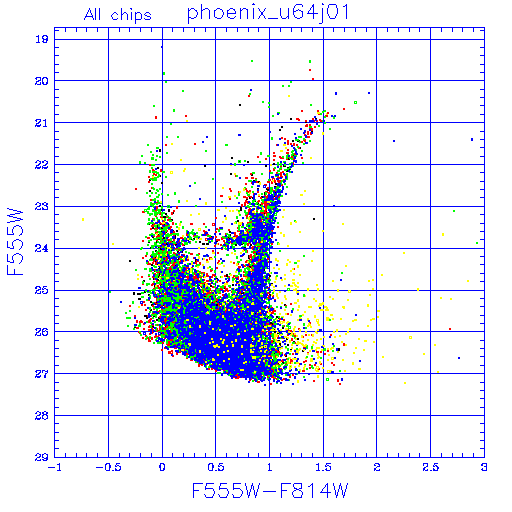

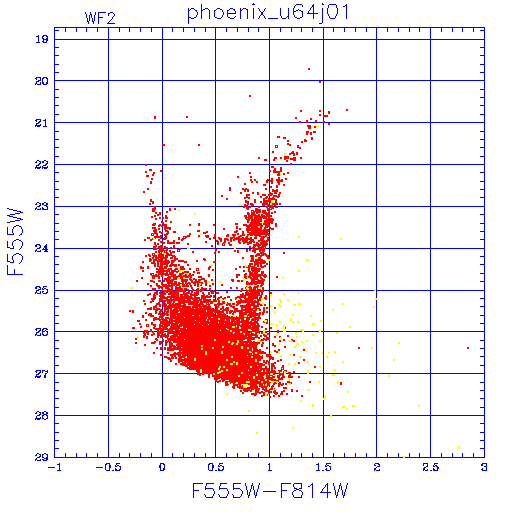

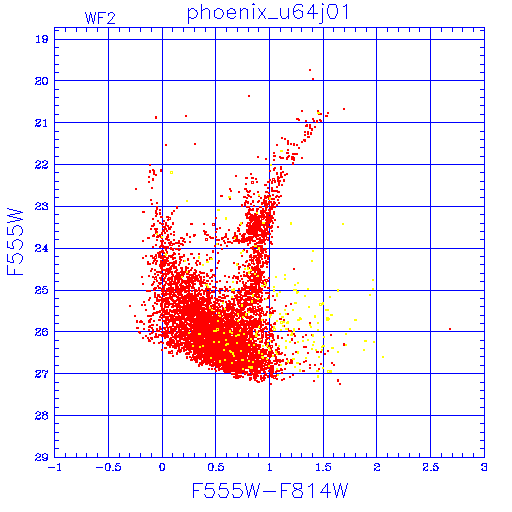

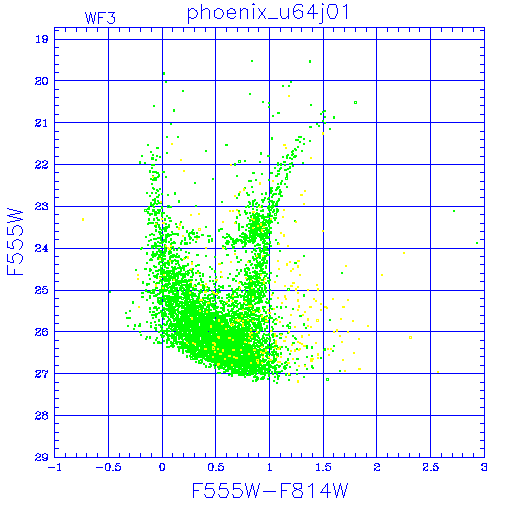

Color magnitude diagrams

All chips
PC
WF2
WF3
WF4
PSF
Aperture

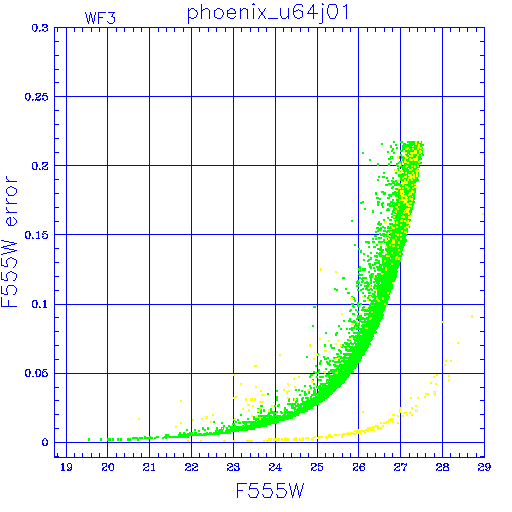

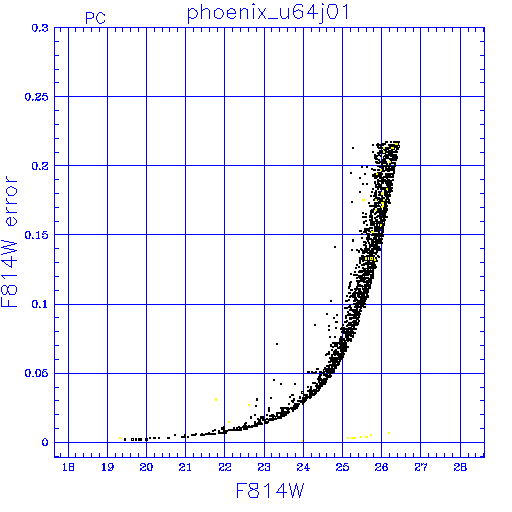

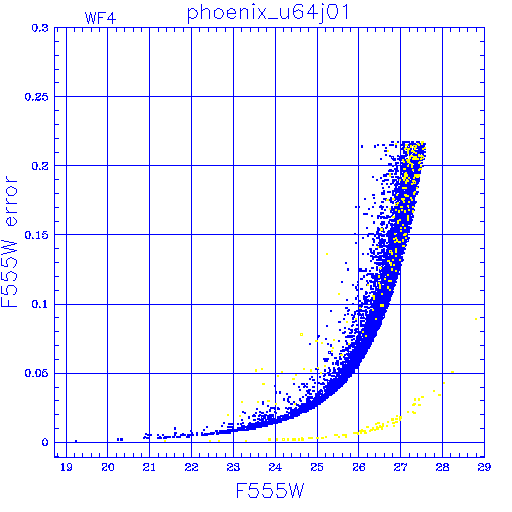

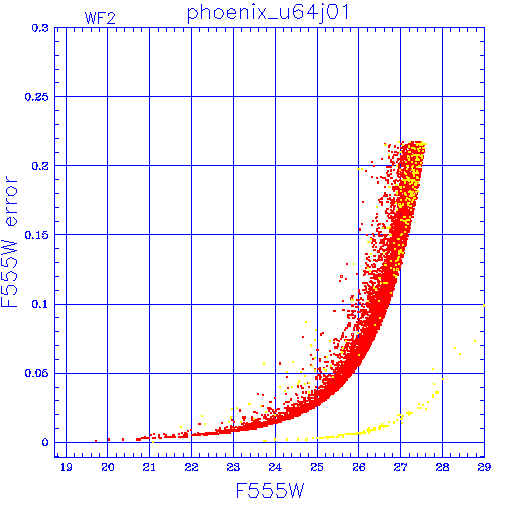

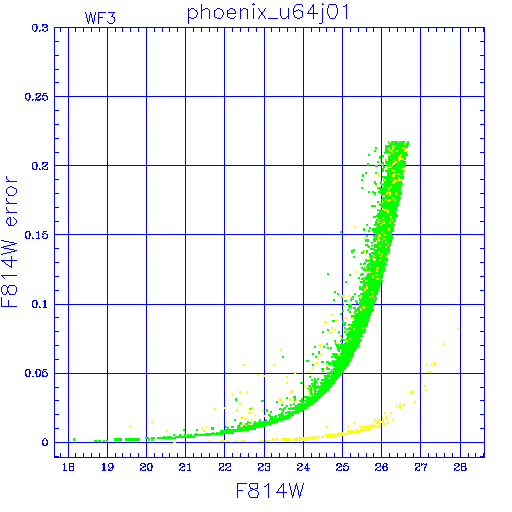

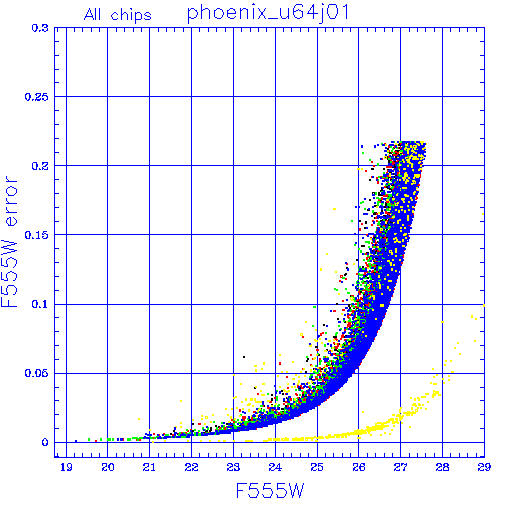

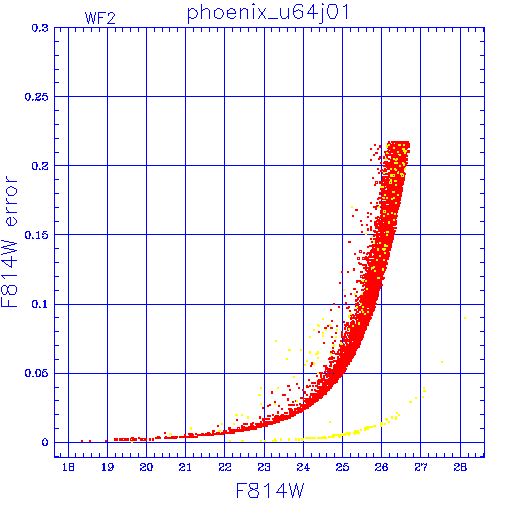

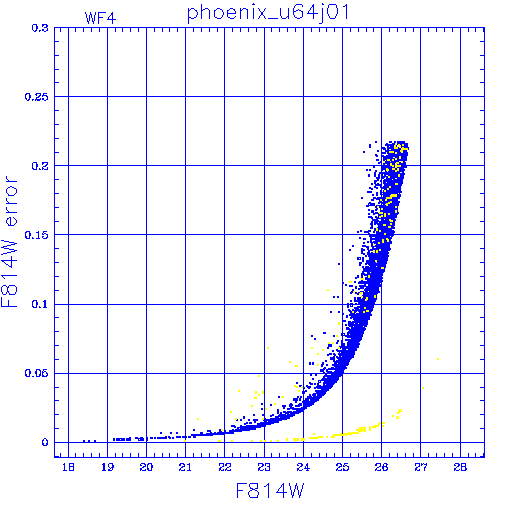

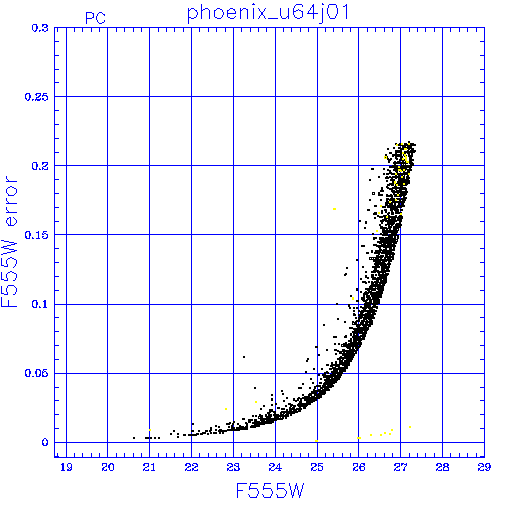

Error vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w

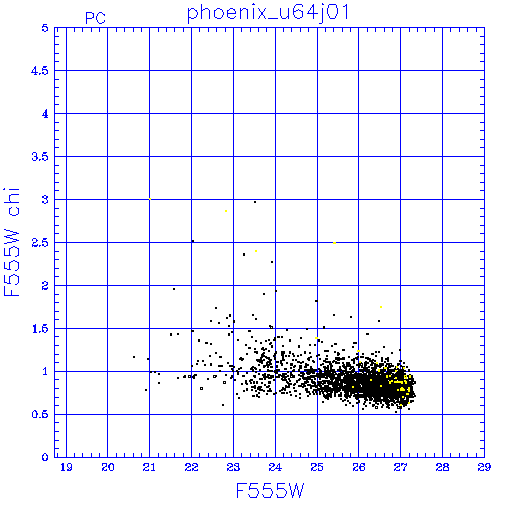

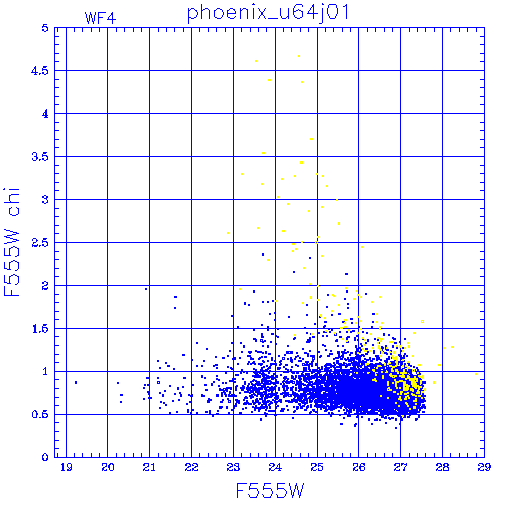

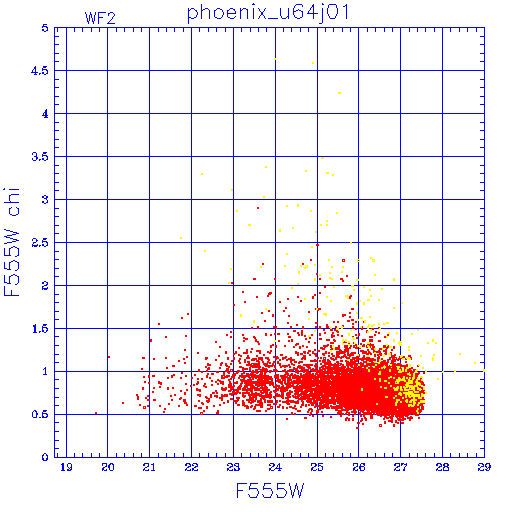

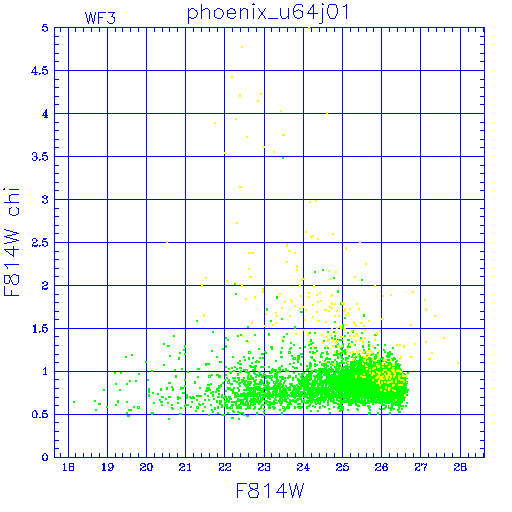

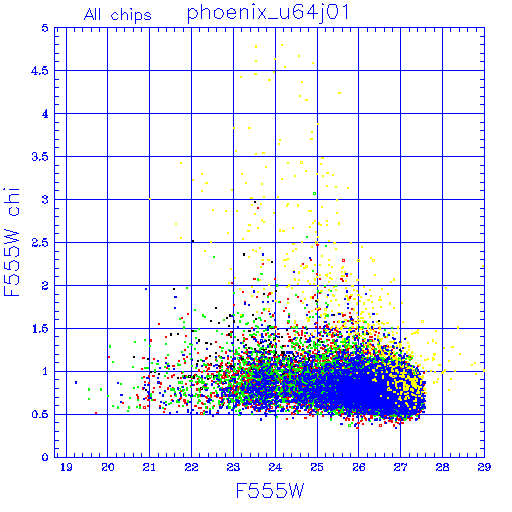

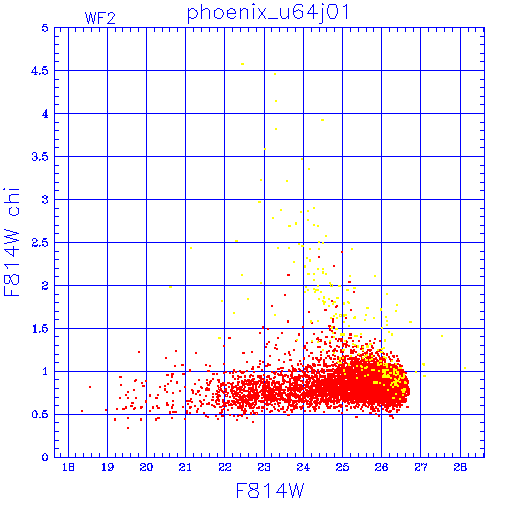

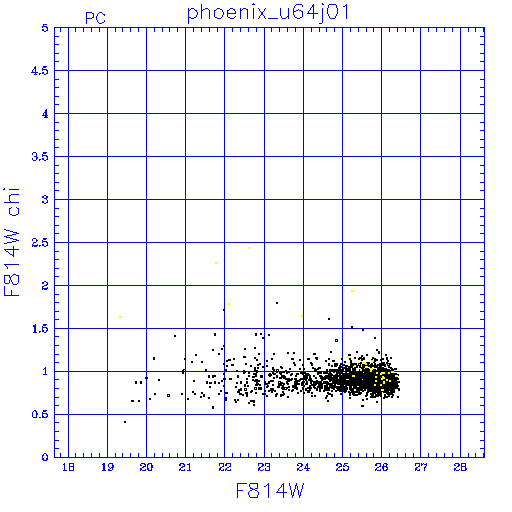

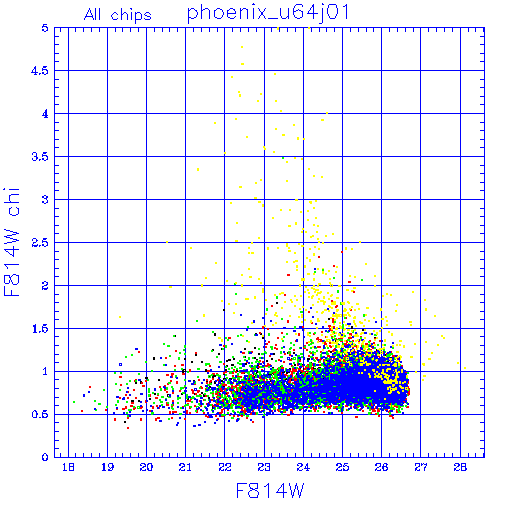

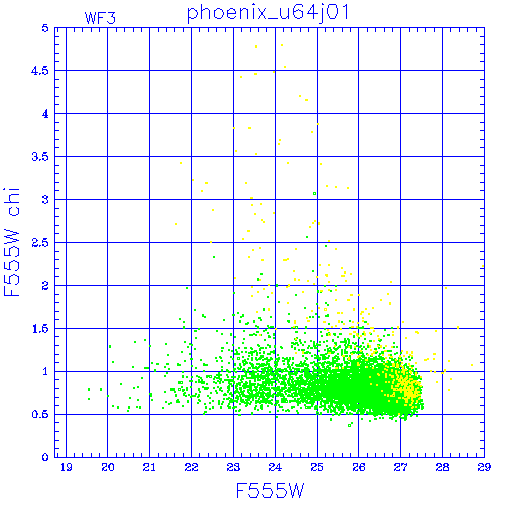

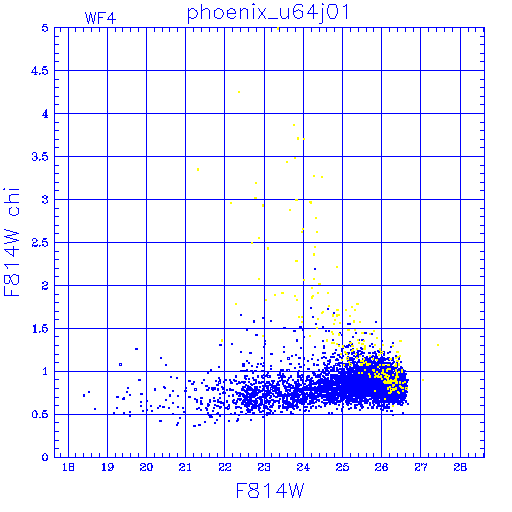

CHI vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w


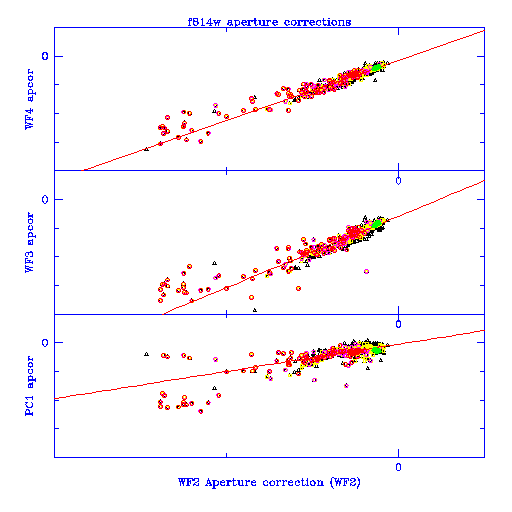

Aperture corrections

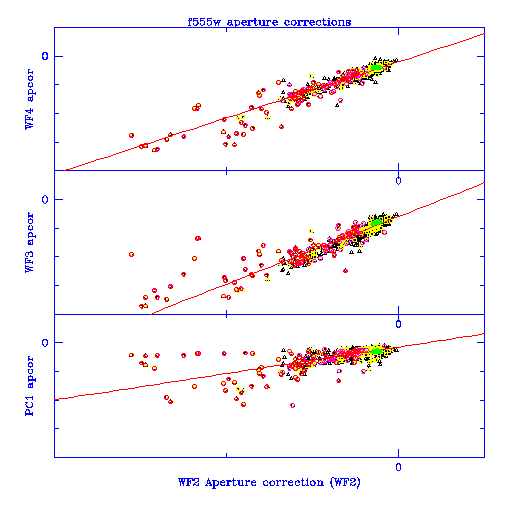

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
F555W F814W

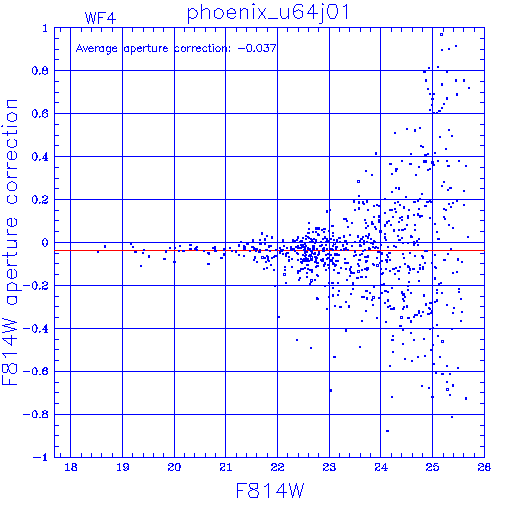

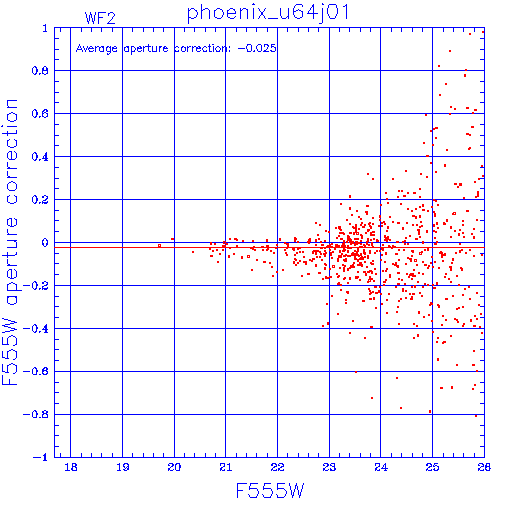

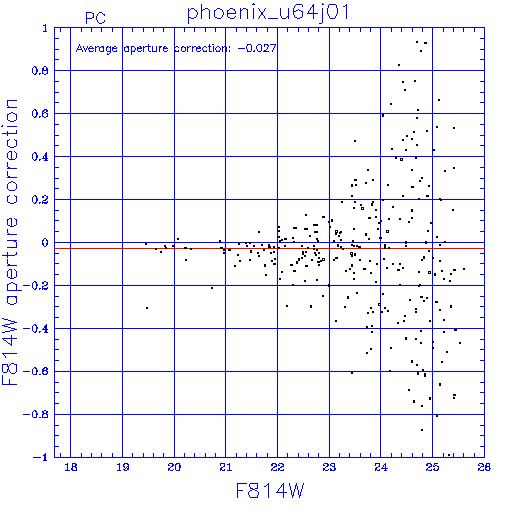

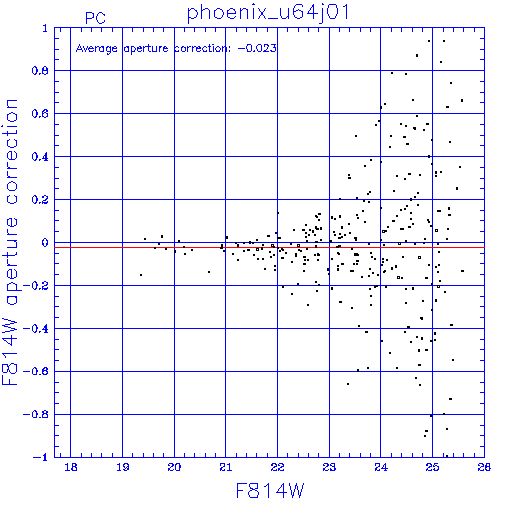

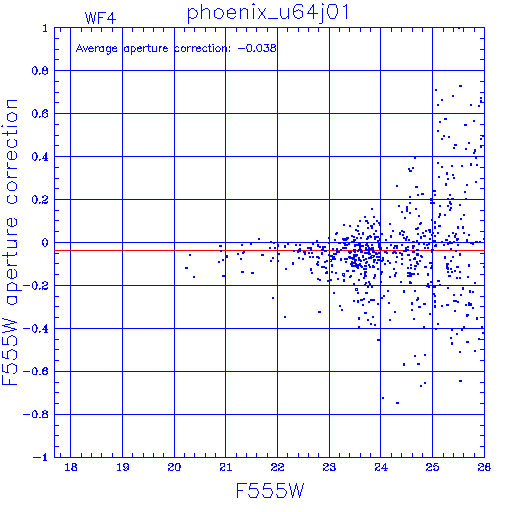

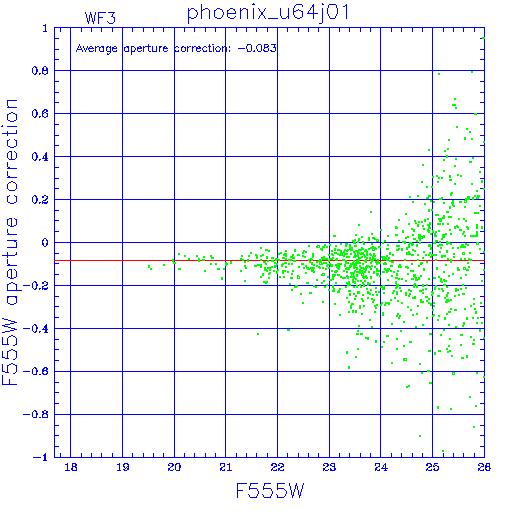

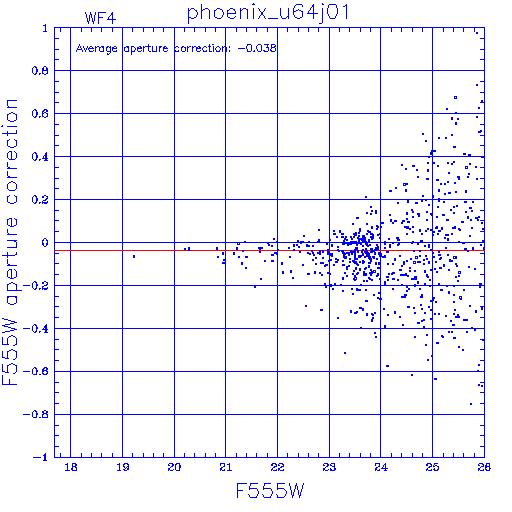

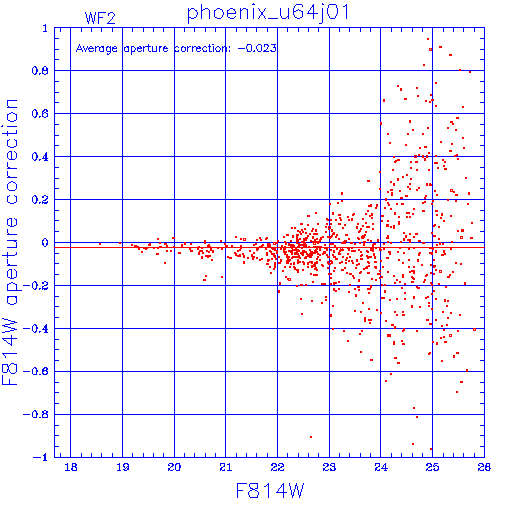

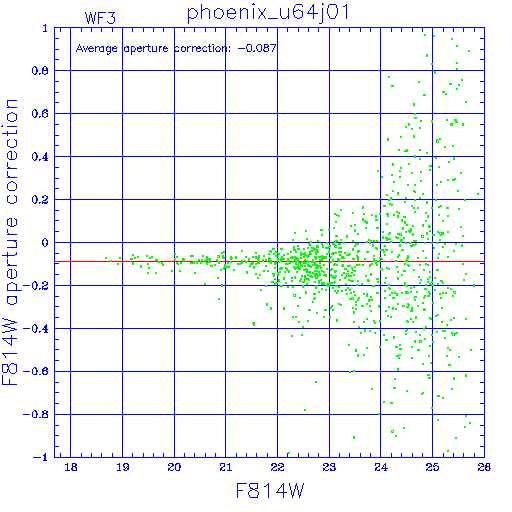

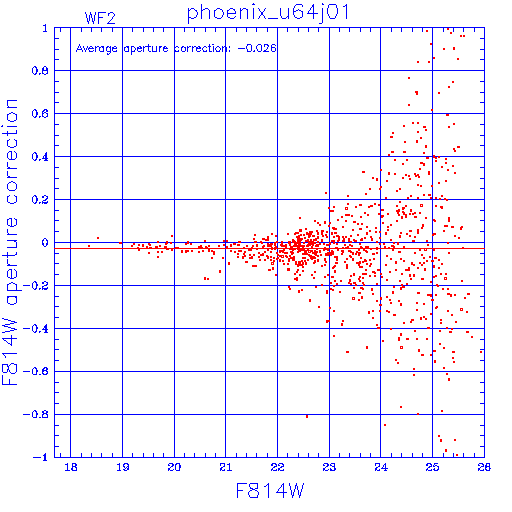

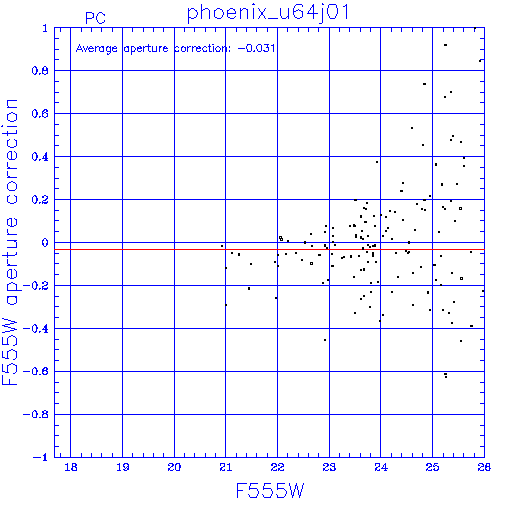

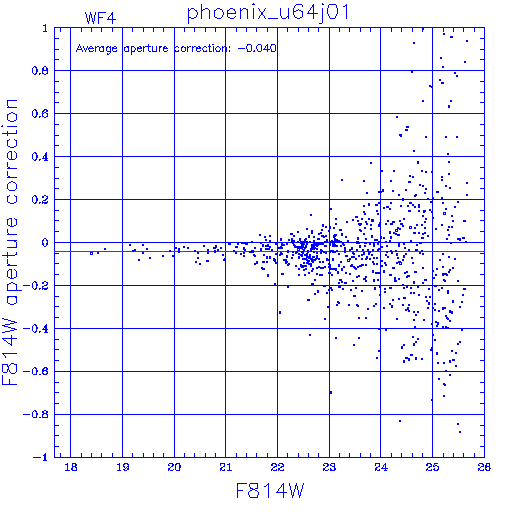

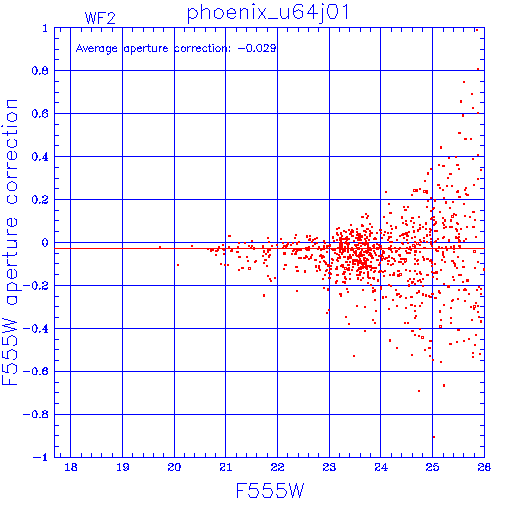

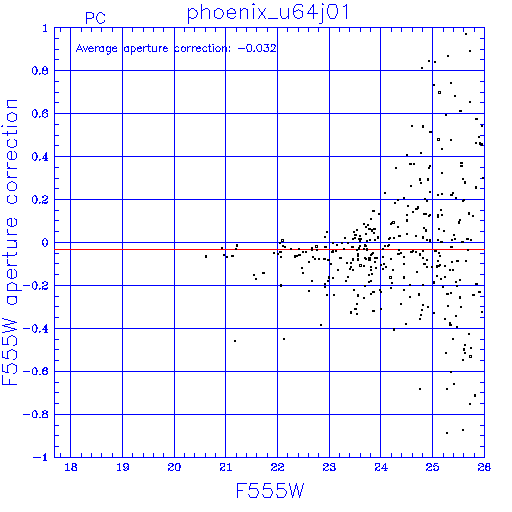

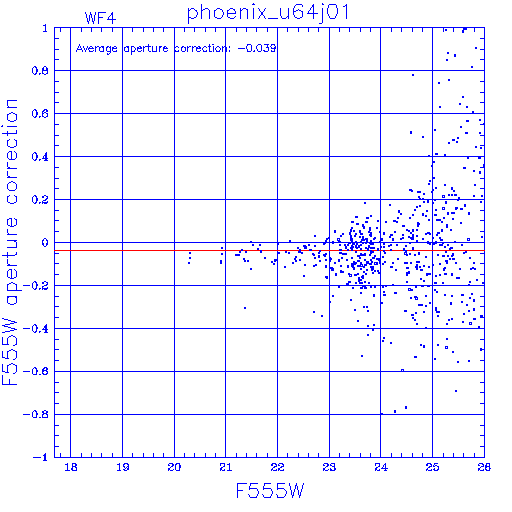

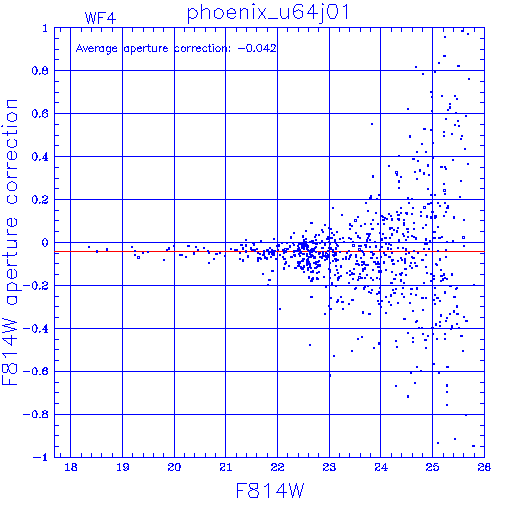

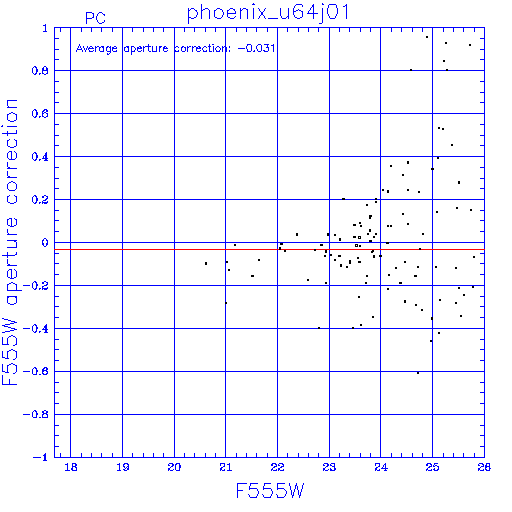

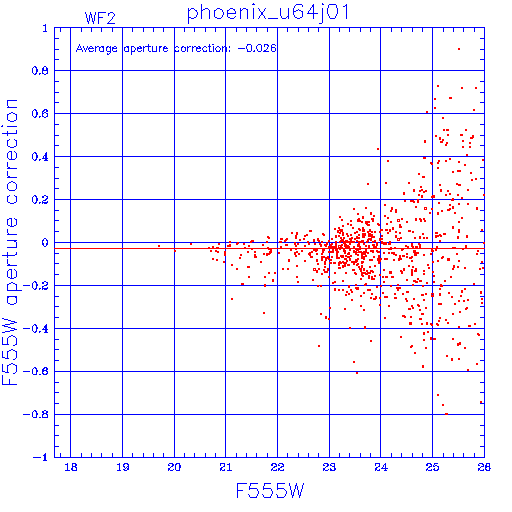

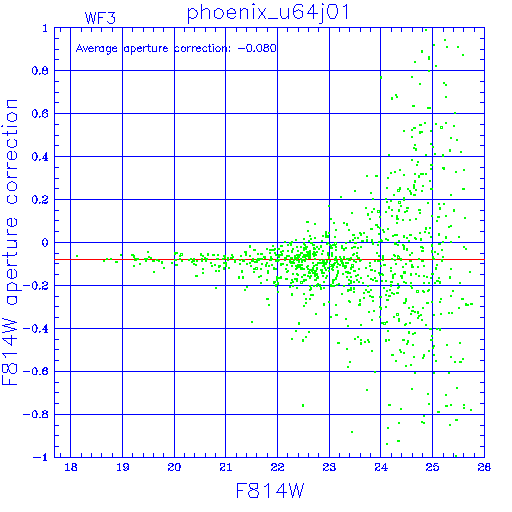

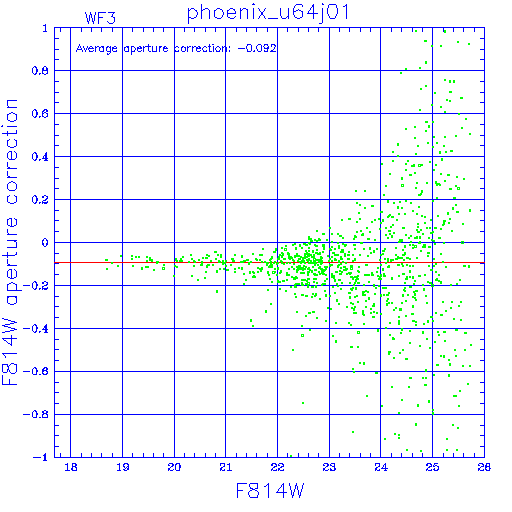

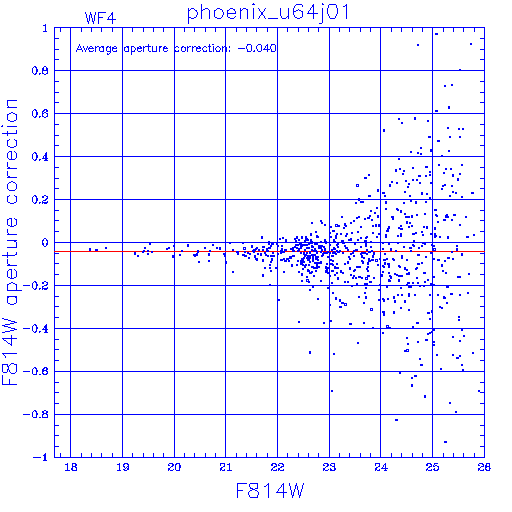

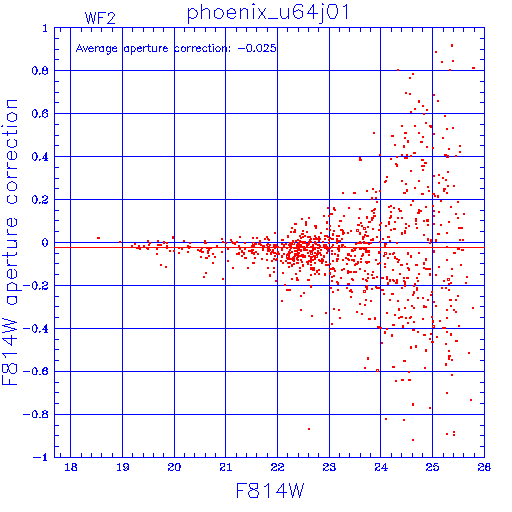

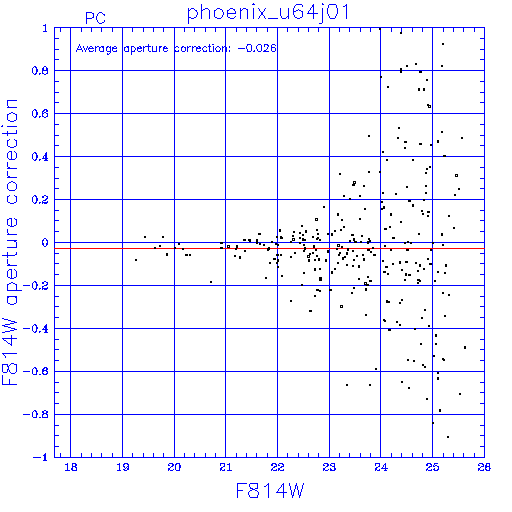

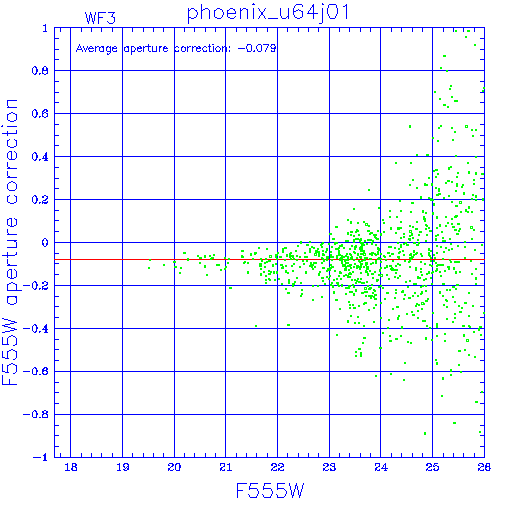

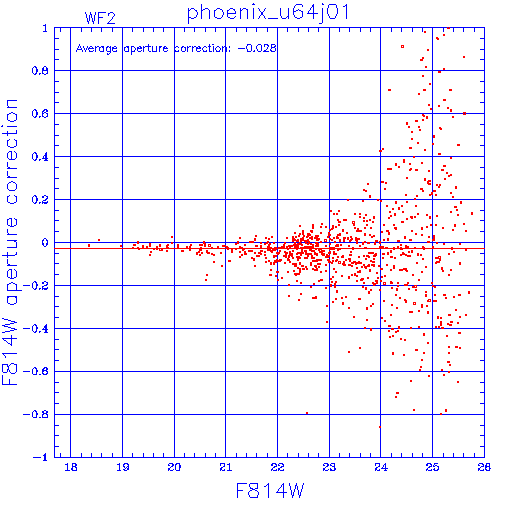

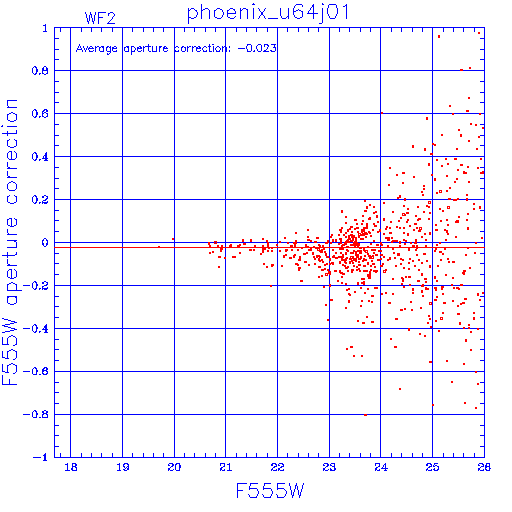

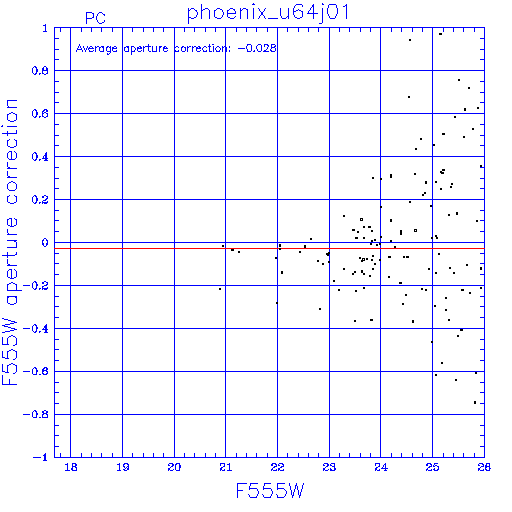

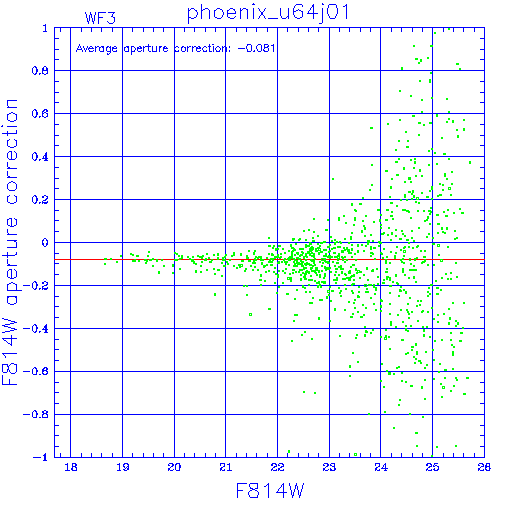

Aperture correction for each frame/chip, showing individual stars
All chips
PC
WF2
WF3
WF4
f555w
f555w
f555w
f555w
f814w
f814w
f814w
f814w

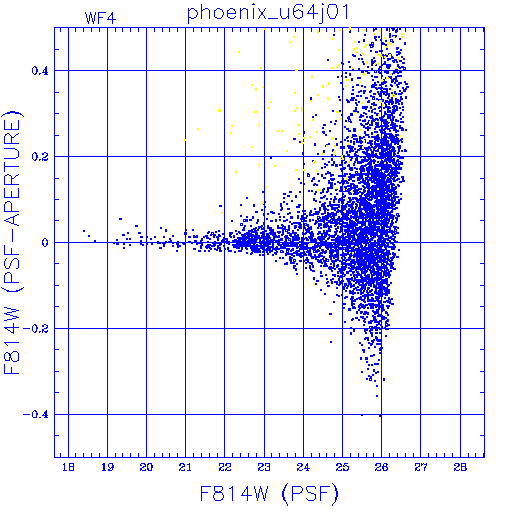

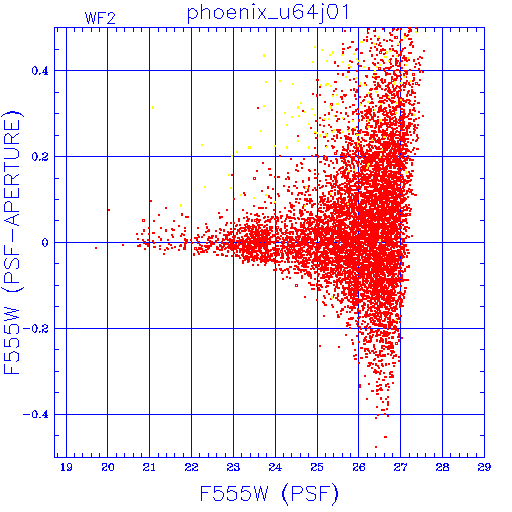

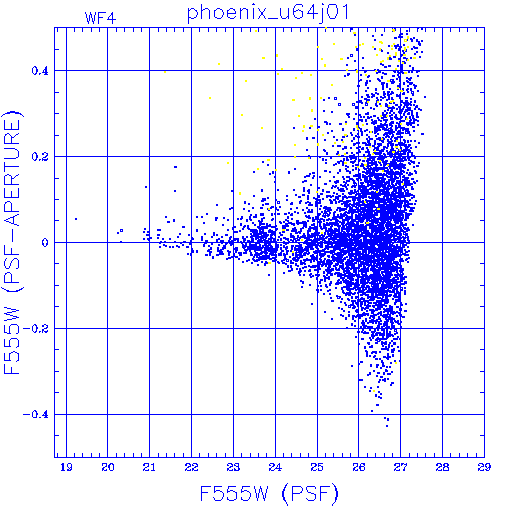

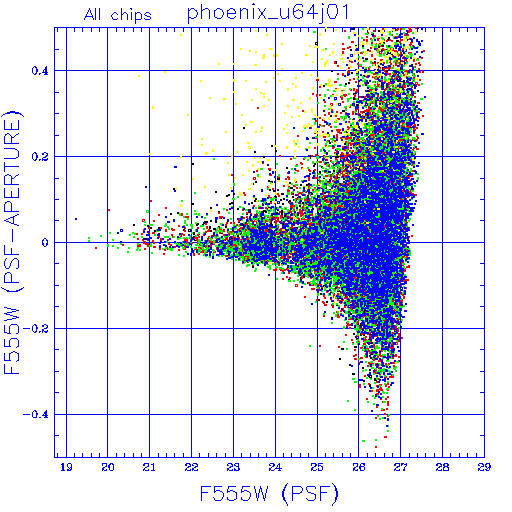

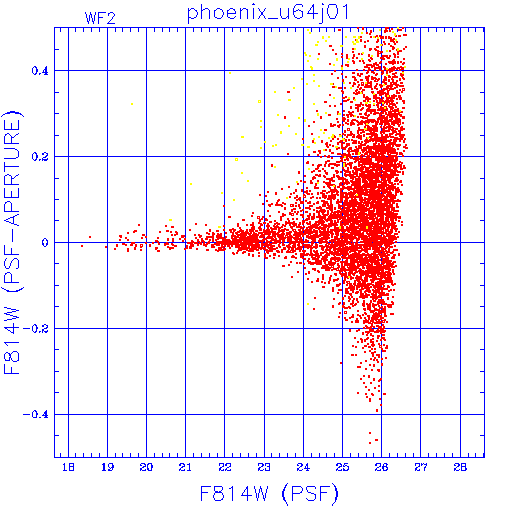

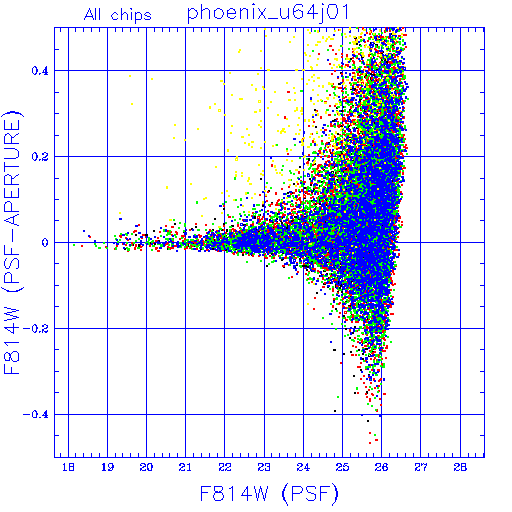

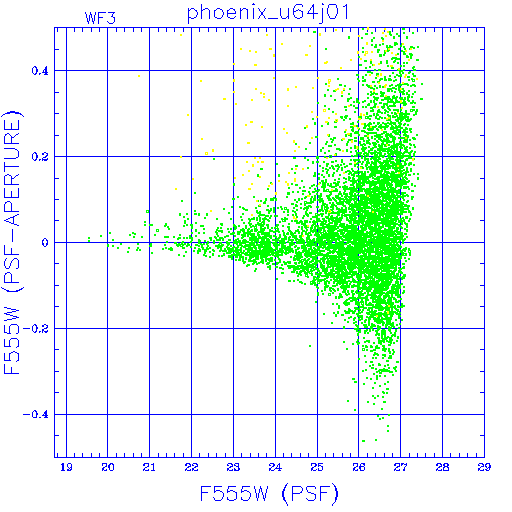

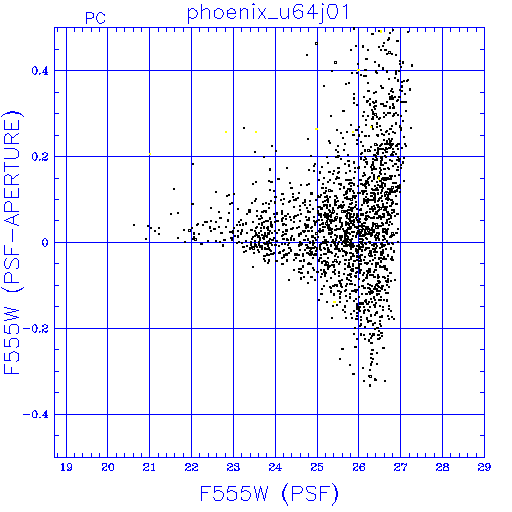

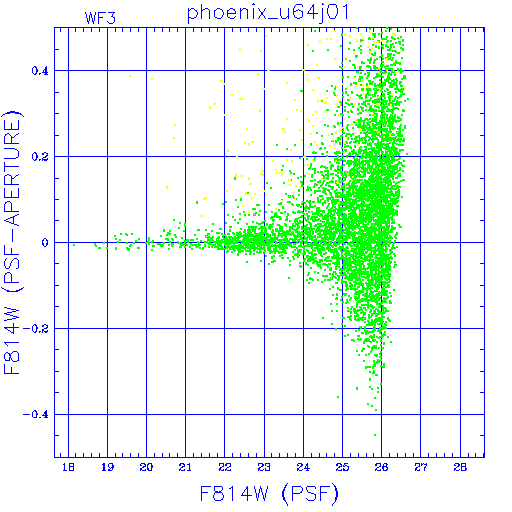

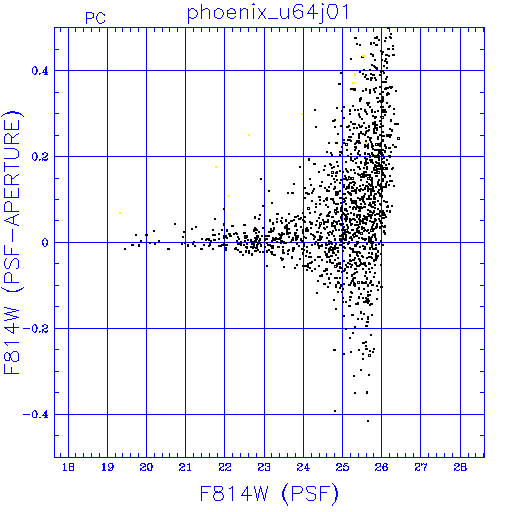

PSF vs. aperture photometry

All chips
PC
WF2
WF3
WF4
f555w
f814w


Artificial star diagrams

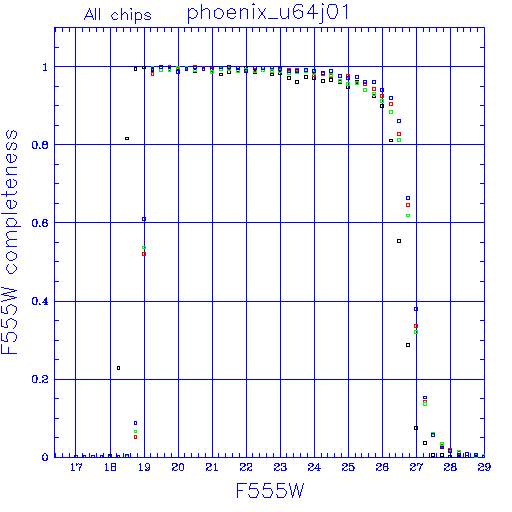

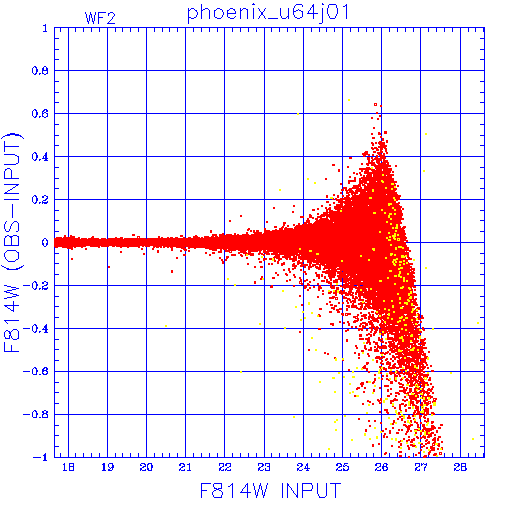

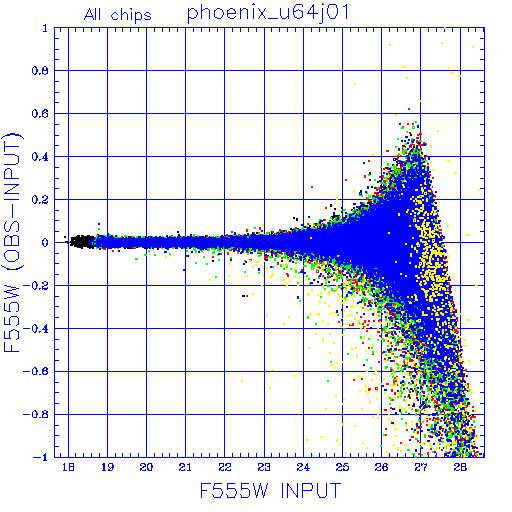

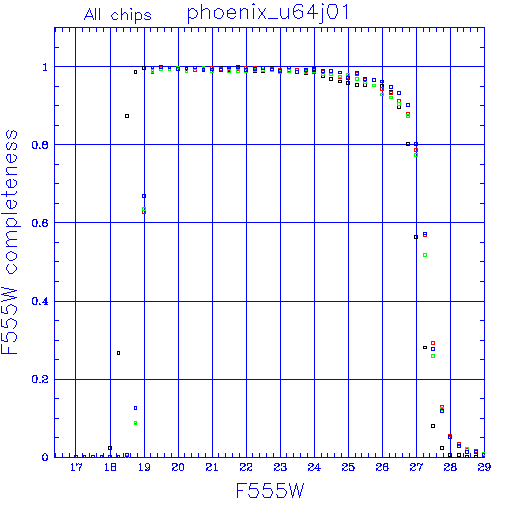

Completeness as a function of input magnitude
PSF photometry Aperture photometry

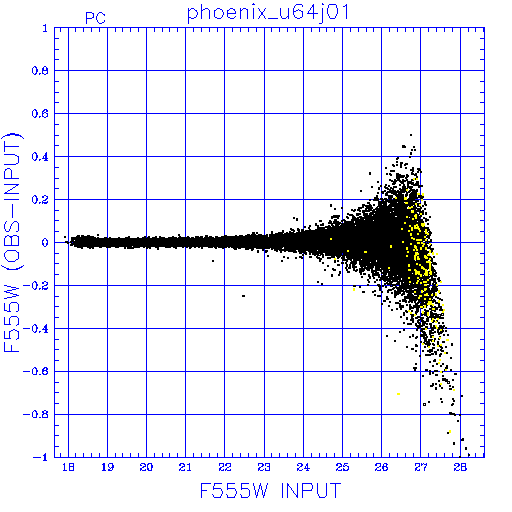

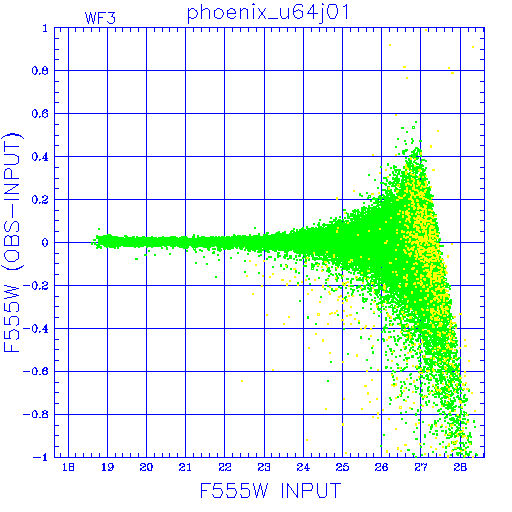

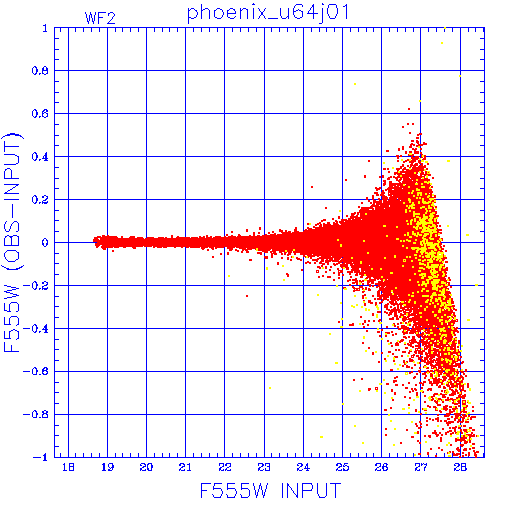

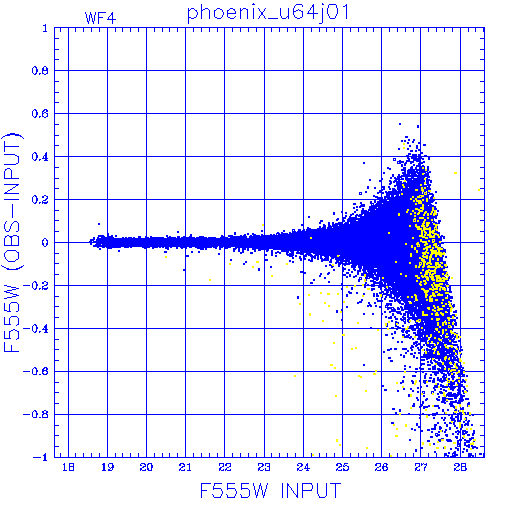

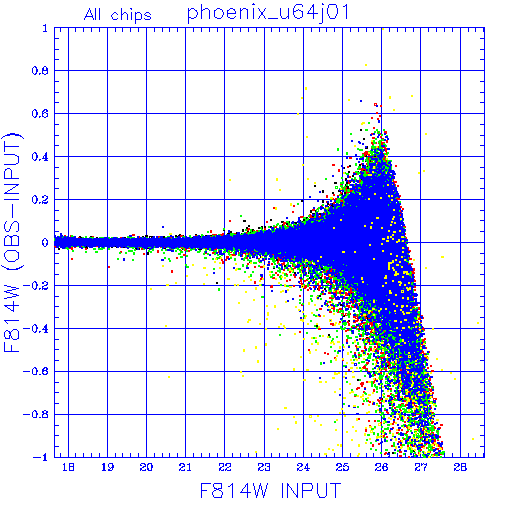

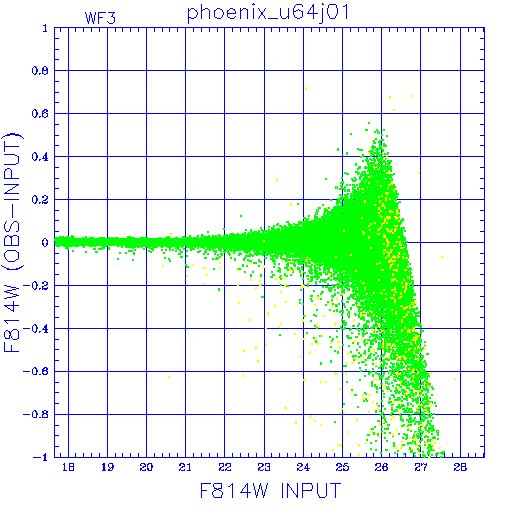

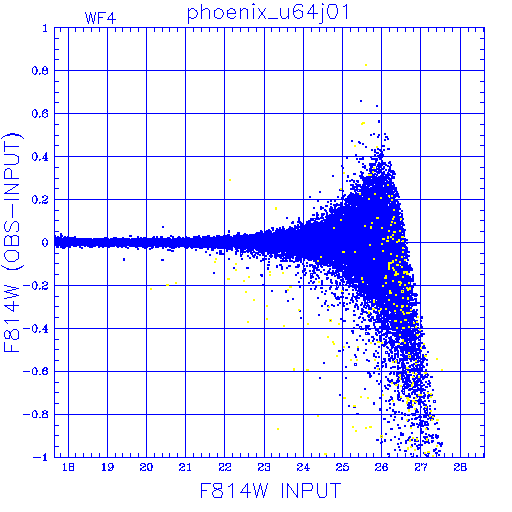

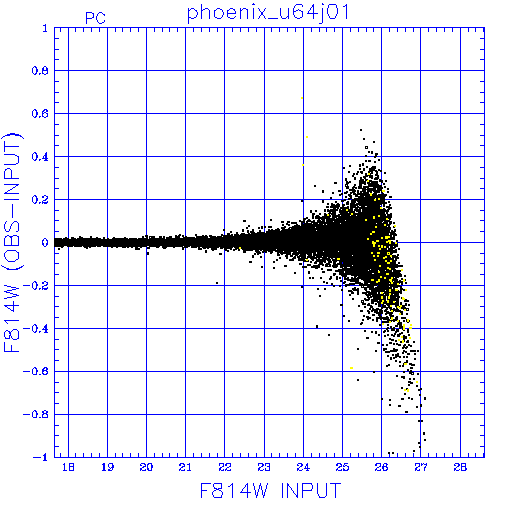

Recovered mag-input mag as a function of input mag (PSF photometry)
All chips
PC
WF2
WF3
WF4
f555w
f814w

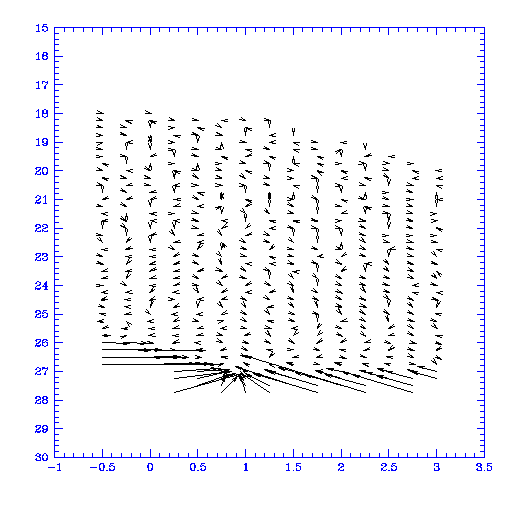

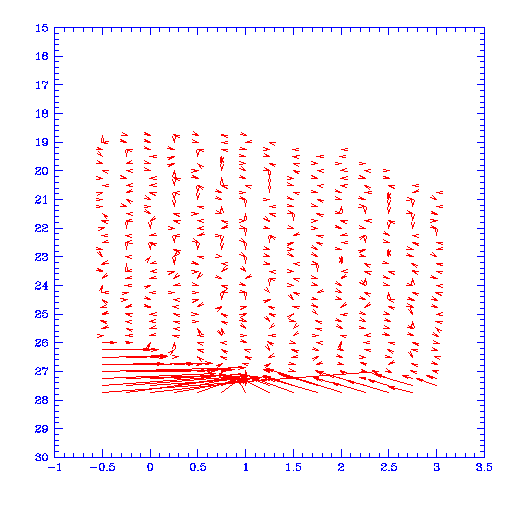

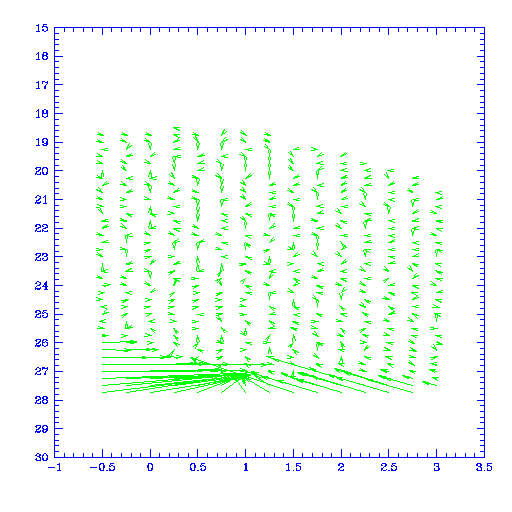

Average recovered magnitude as function of location in CMD (PSF photometry)
All chips
PC
WF2
WF3
WF4
