Photometry Diagnostics for ngc6822_u5ch02

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u5ch0203r	F555W	600.00	0.00	0.00	0.00	0.00	0.00	0.00
u5ch0204r	F555W	800.00	0.01	-0.04	0.00	0.00	0.01	-0.04
u5ch0205r	F814W	400.00	0.10	-0.03	0.00	0.00	0.10	-0.03
u5ch0206r	F814W	600.00	0.07	-0.05	0.00	0.00	0.07	-0.05
u5ch0201r	F439W	600.00	-0.20	-0.31	0.00	0.00	-0.20	-0.31
u5ch0202r	F439W	700.00	-0.23	-0.34	0.00	0.00	-0.23	-0.34

Mosaic images

F555W	F814W	F439W

HSTPHOT command log

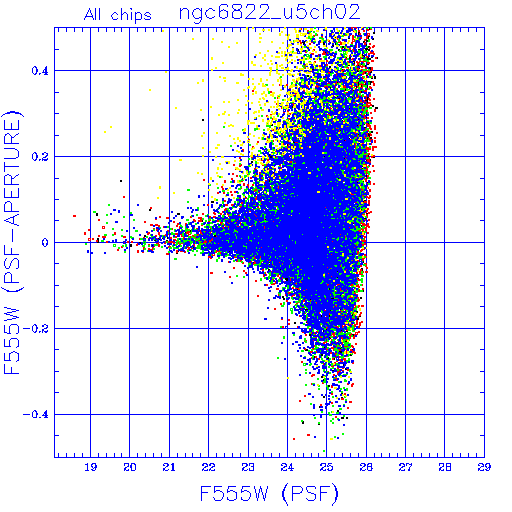

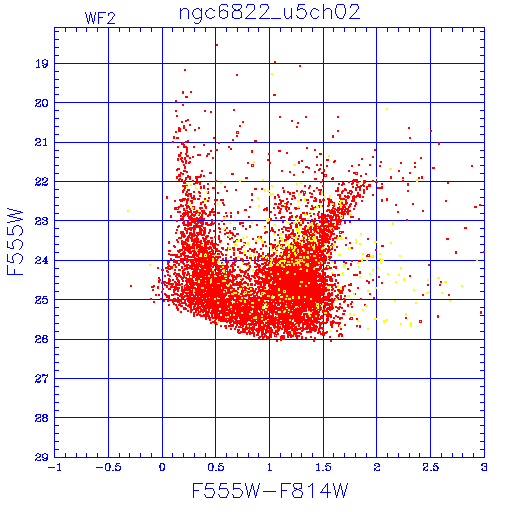

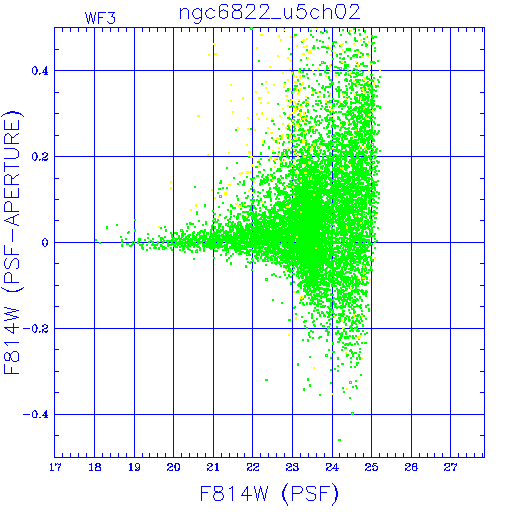

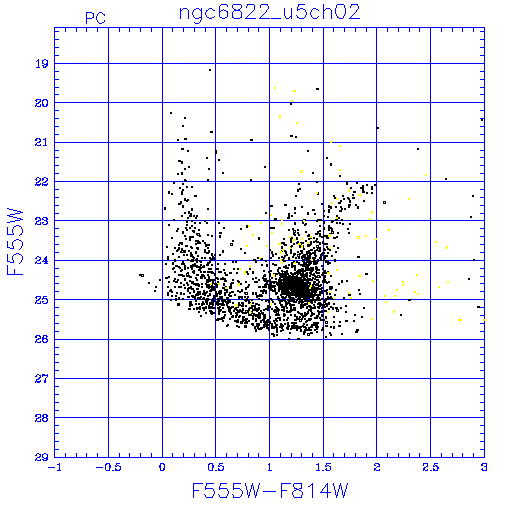

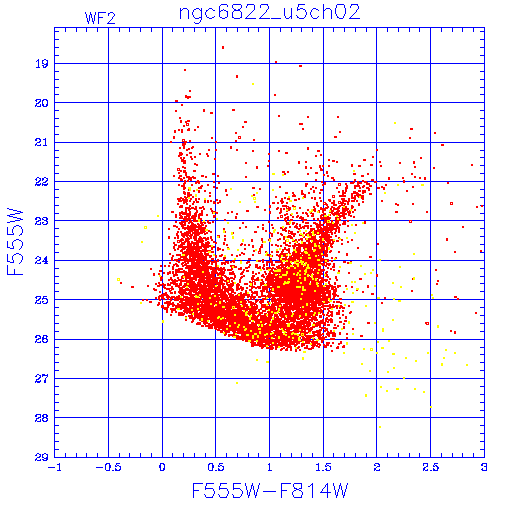

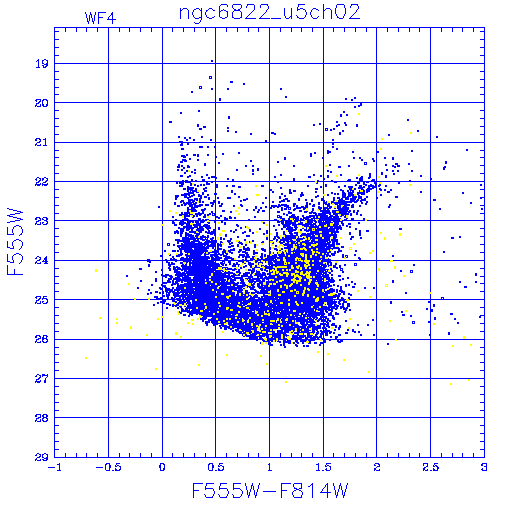

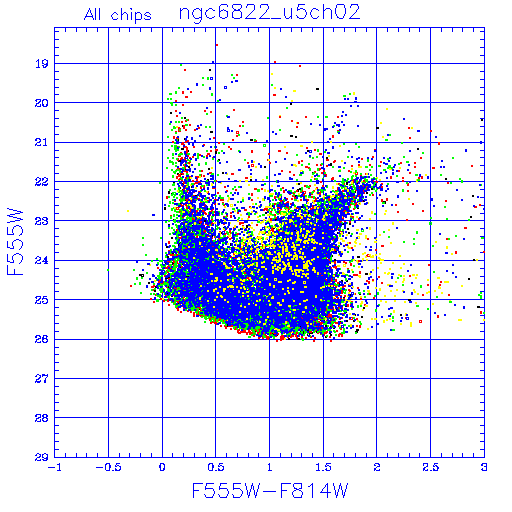

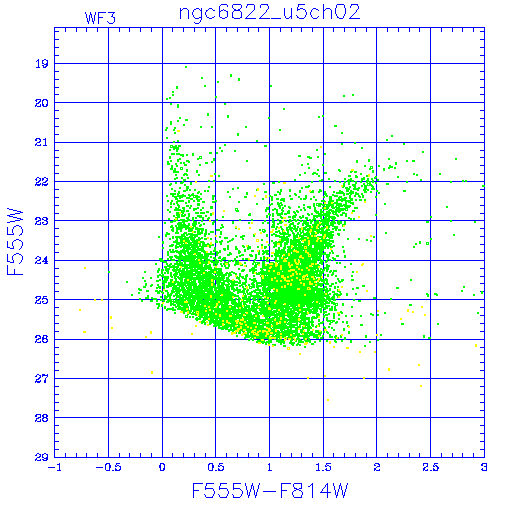

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF

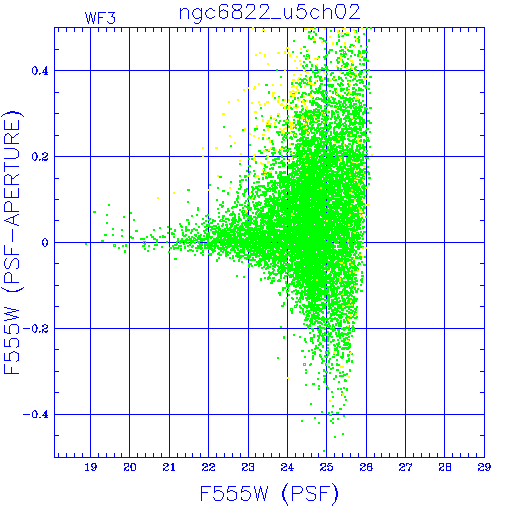

Aperture

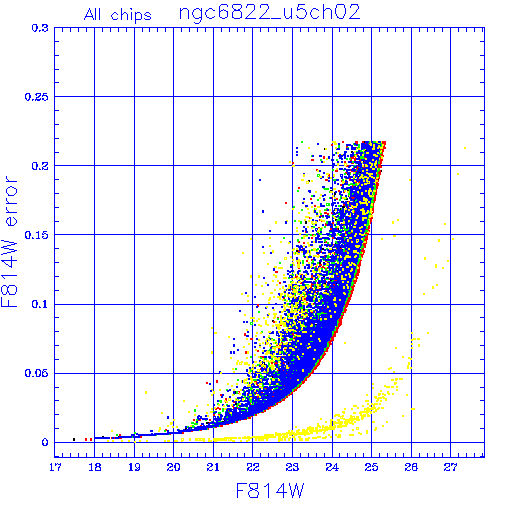

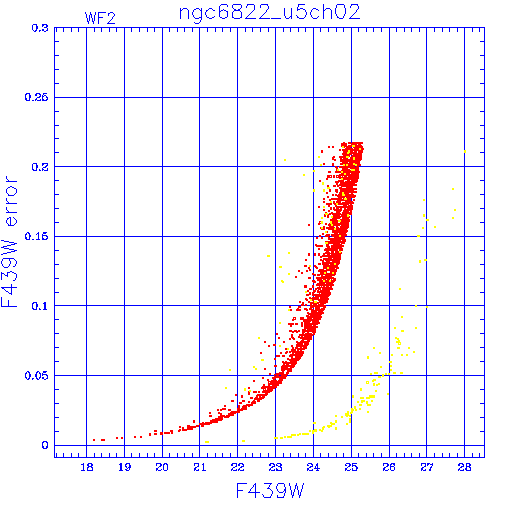

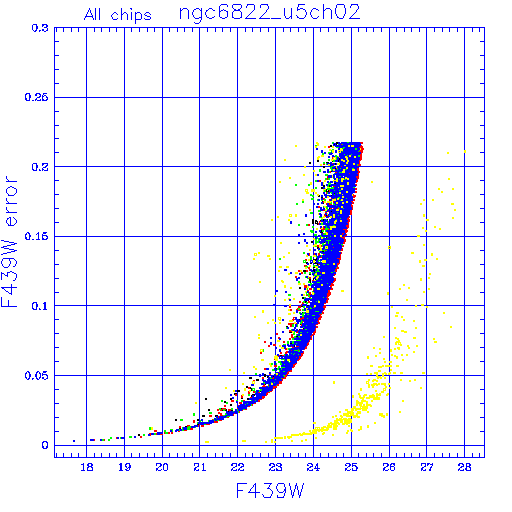

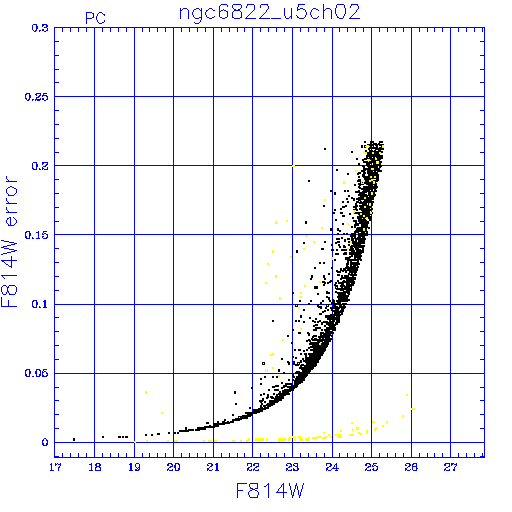

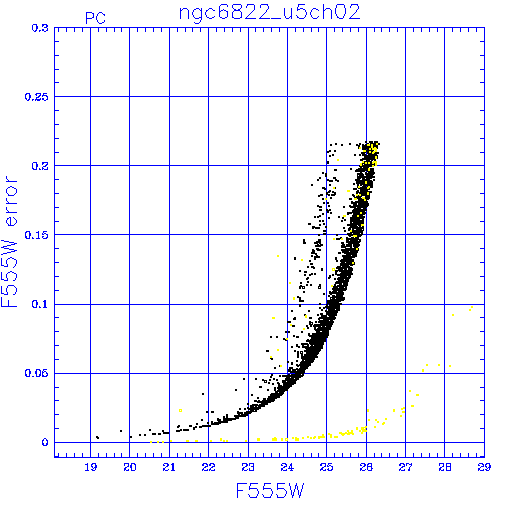

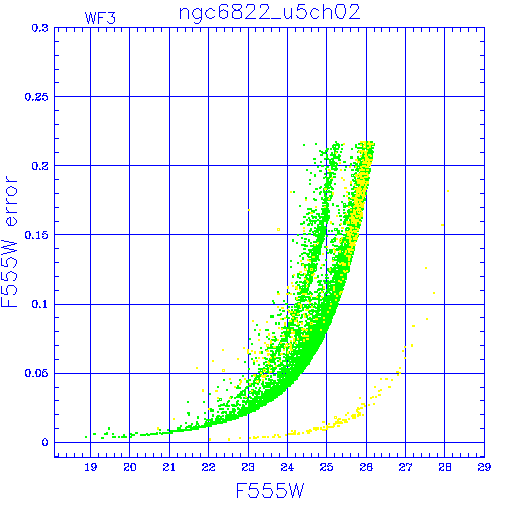

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f439w

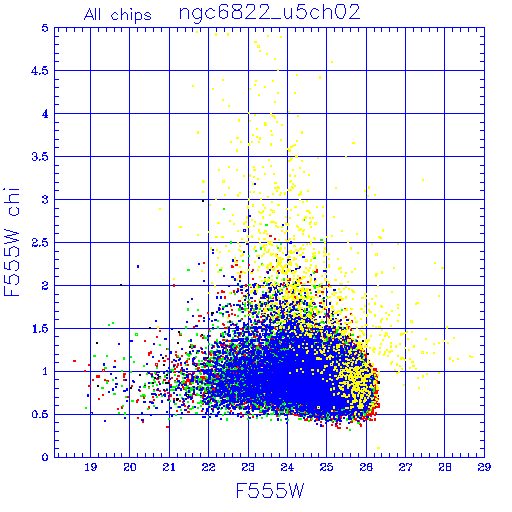

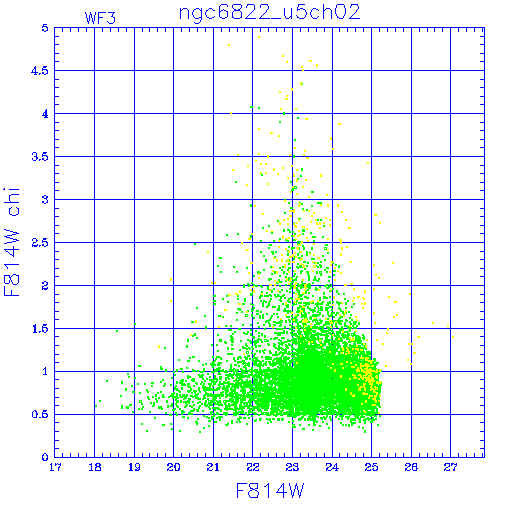

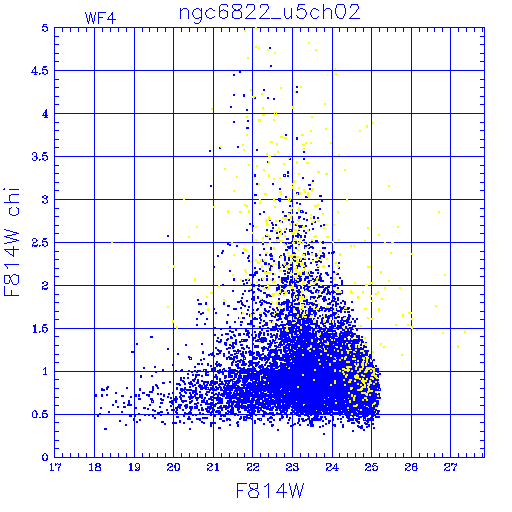

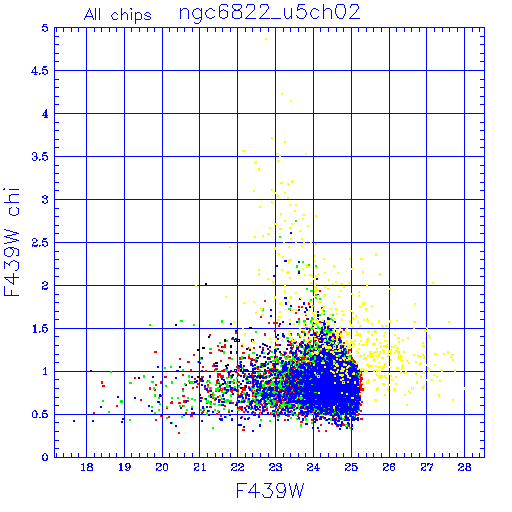

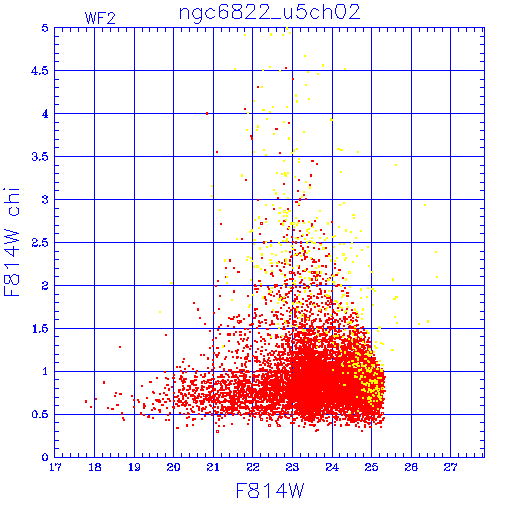

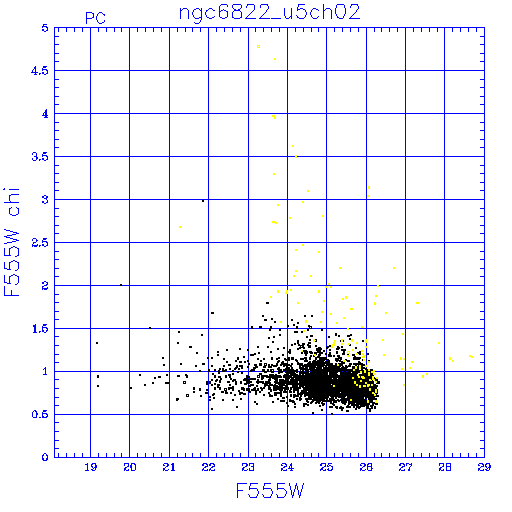

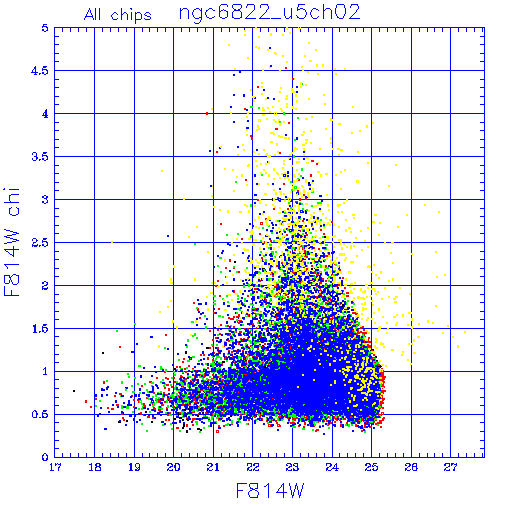

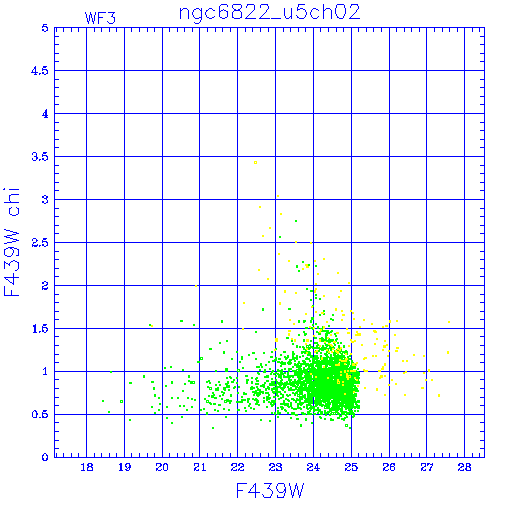

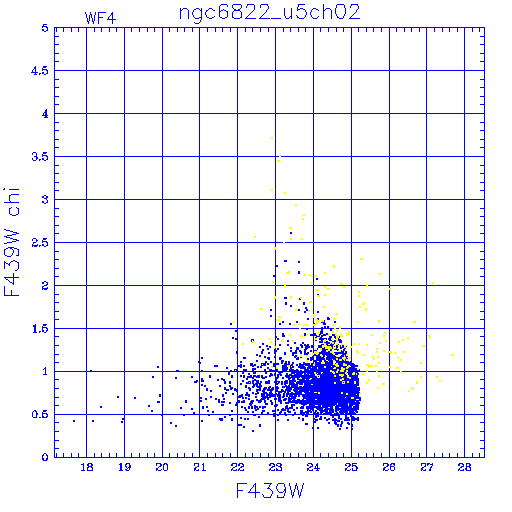

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f439w

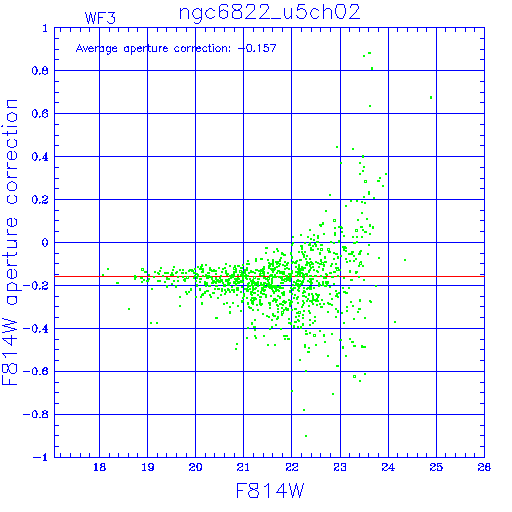

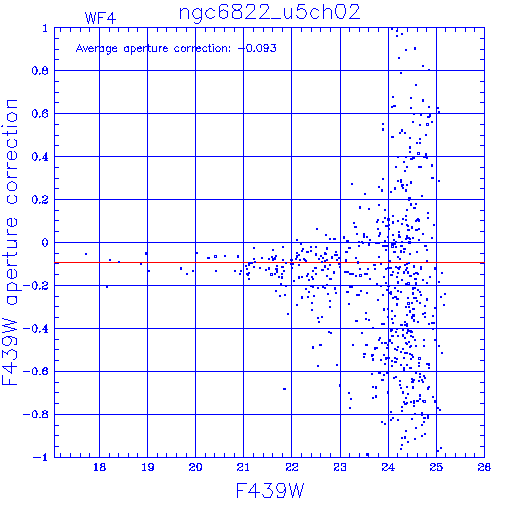

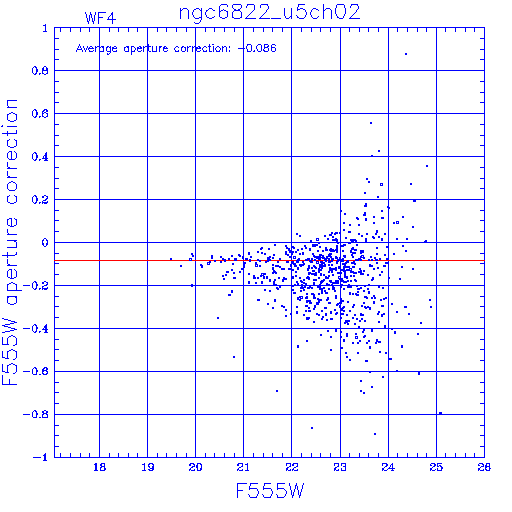

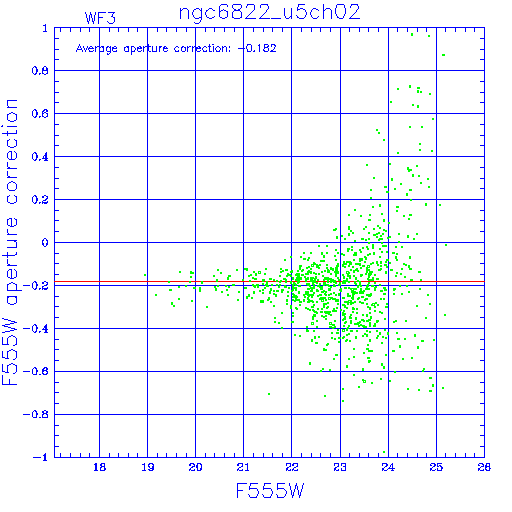

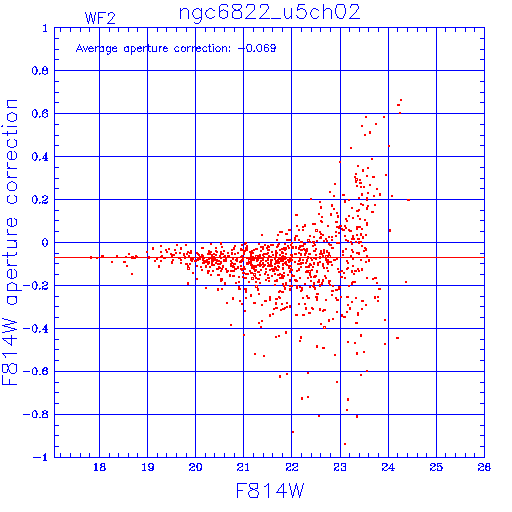

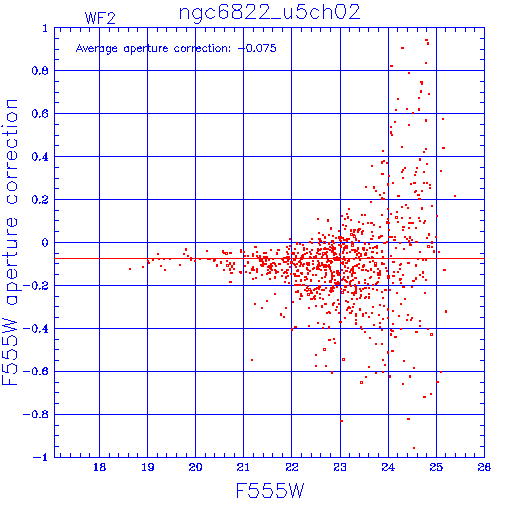

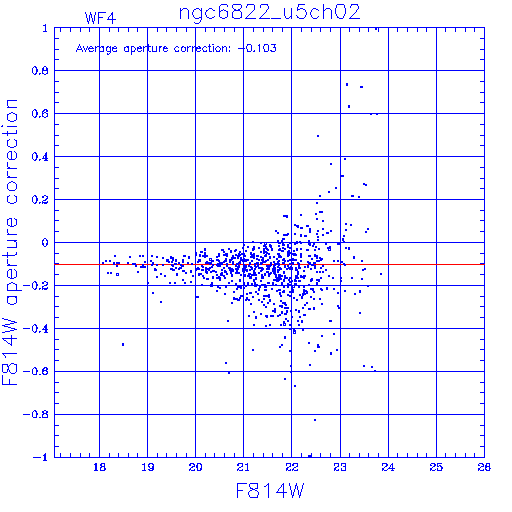

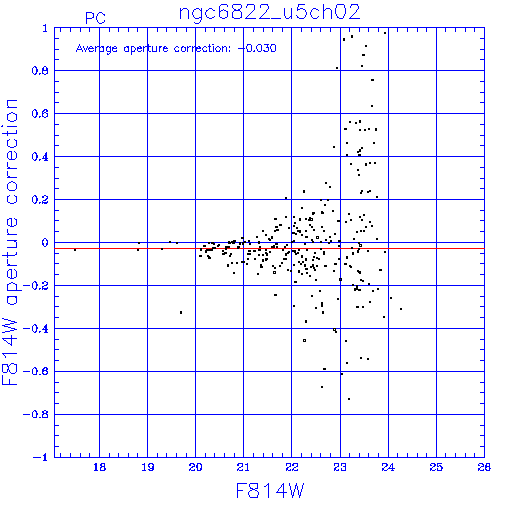

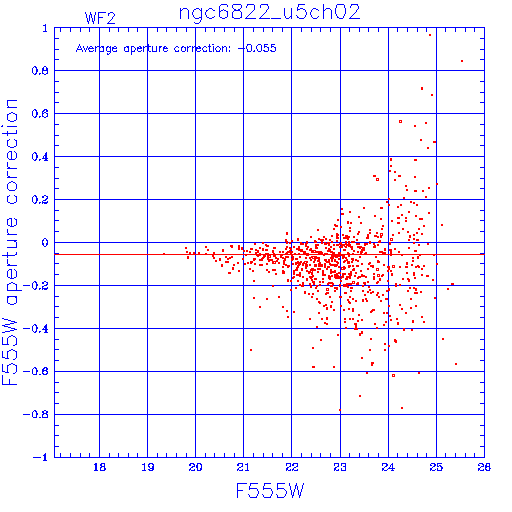

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
