Photometry Diagnostics for ngc205_u3kl08


Frame list, with derived and commanded shifts
dataset filter exptime derived dx derived dy header dx header dy delta dx delta dy
u3kl0804r F555W 1300.00 0.00 0.00 0.00 0.00 0.00 0.00
u3kl0805r F555W 1300.00 0.04 0.01 0.00 0.00 0.04 0.01
u3kl0801r F814W 1300.00 0.20 -0.01 0.00 0.00 0.20 -0.01
u3kl0802r F814W 2700.00 0.24 -0.02 0.00 0.00 0.24 -0.02
u3kl0803r F814W 2700.00 0.17 -0.02 0.00 0.00 0.17 -0.02

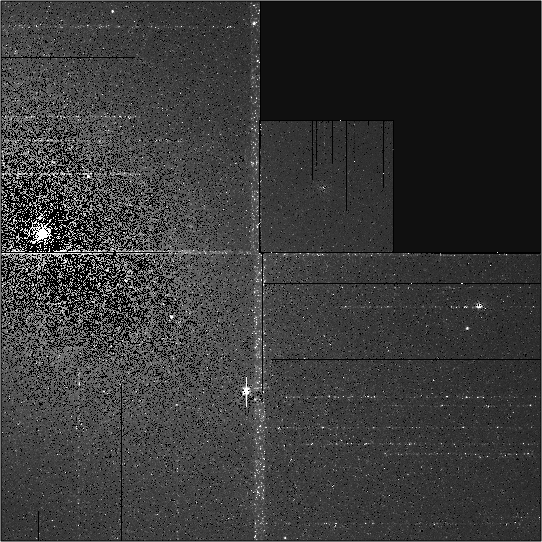

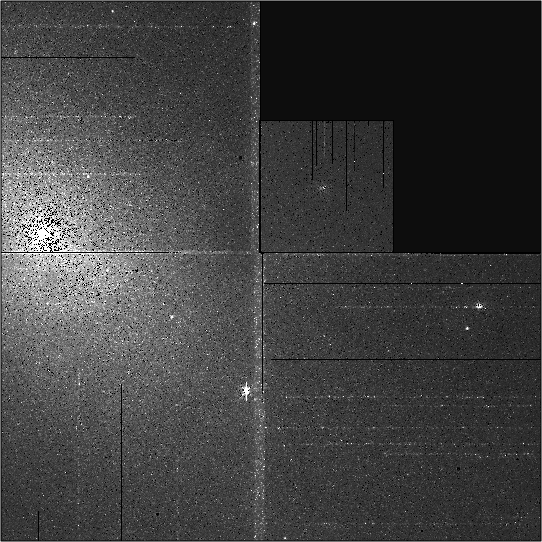

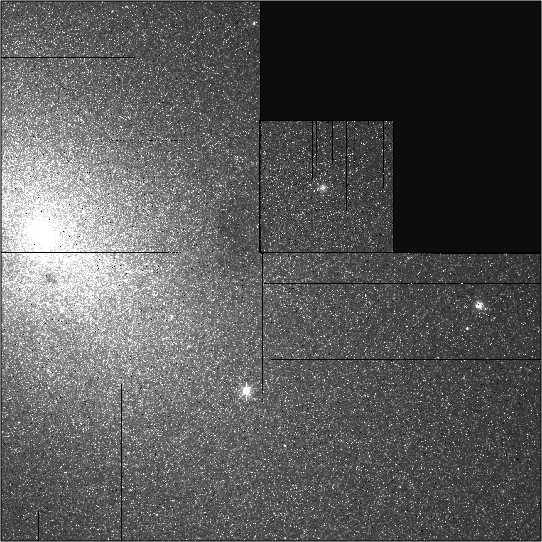

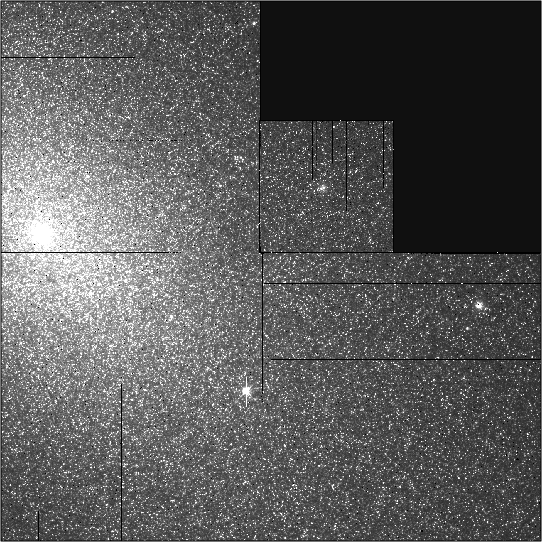

Mosaic images

F555W F814W

HSTPHOT command log

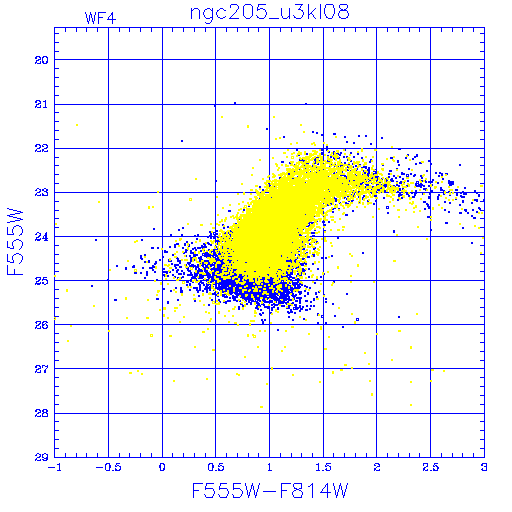

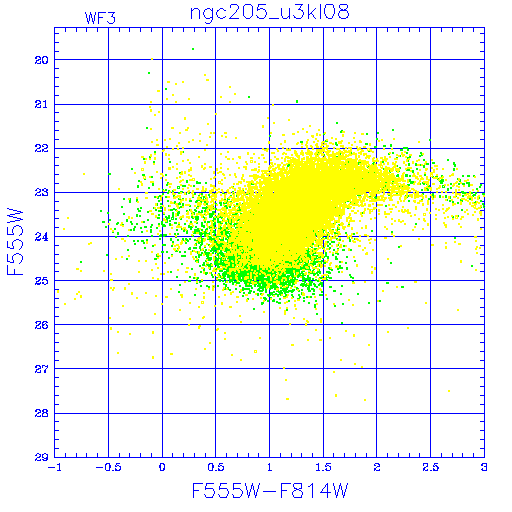

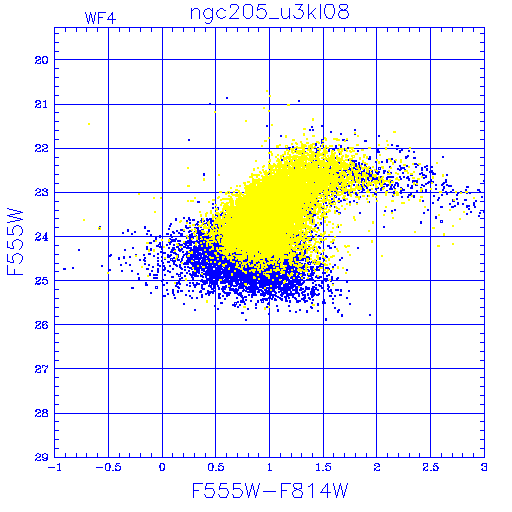

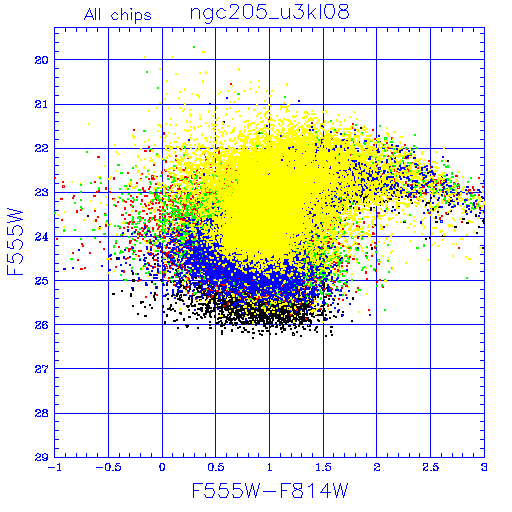

Color magnitude diagrams

All chips

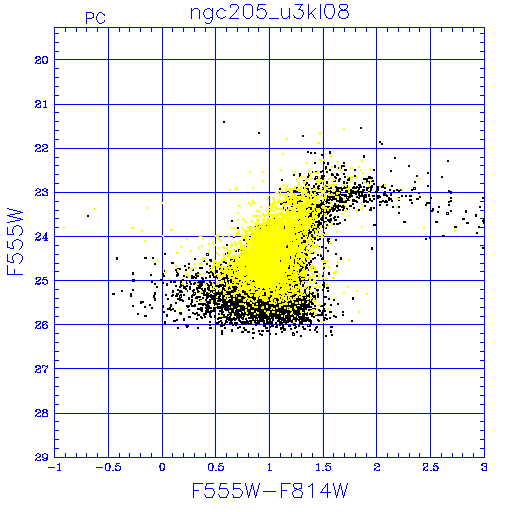

PC
WF2

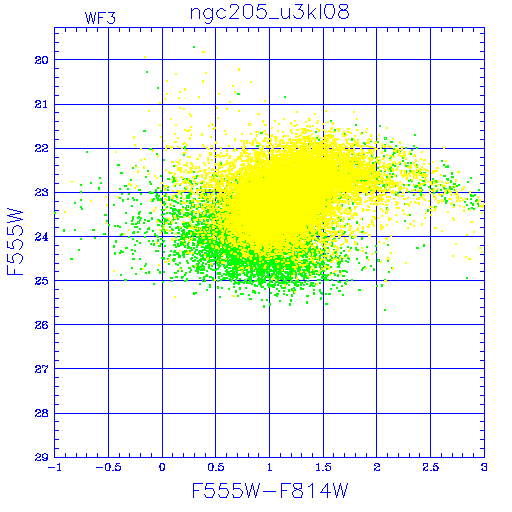

WF3
WF4

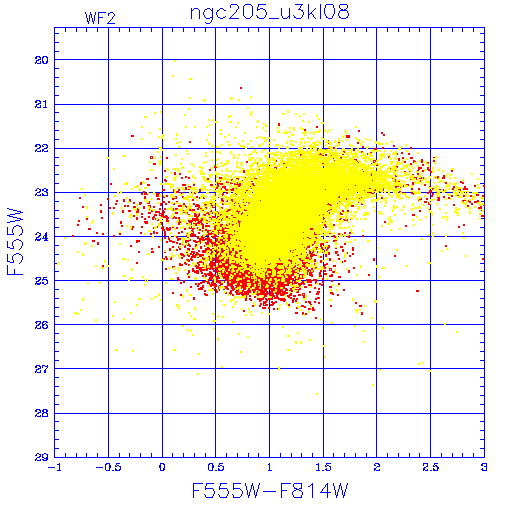

PSF

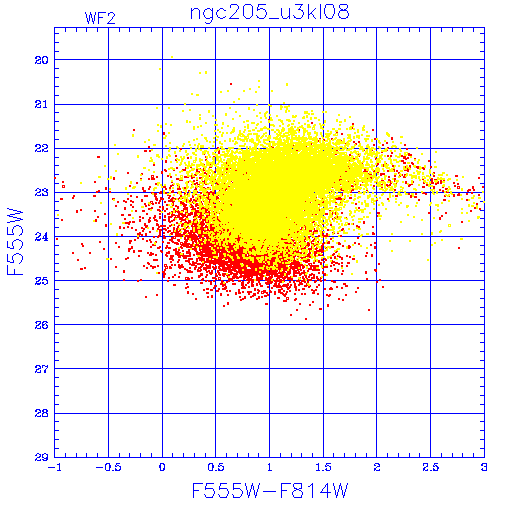

Aperture

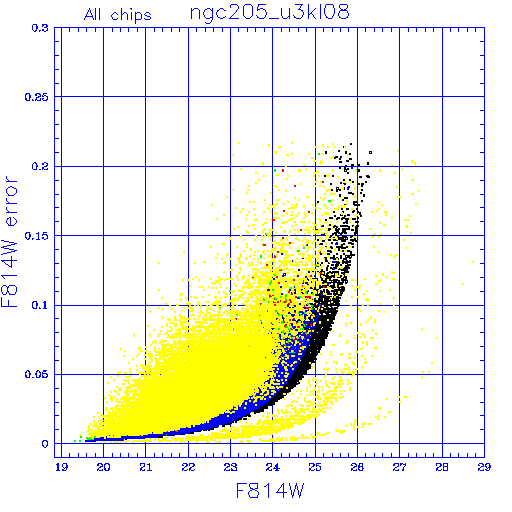

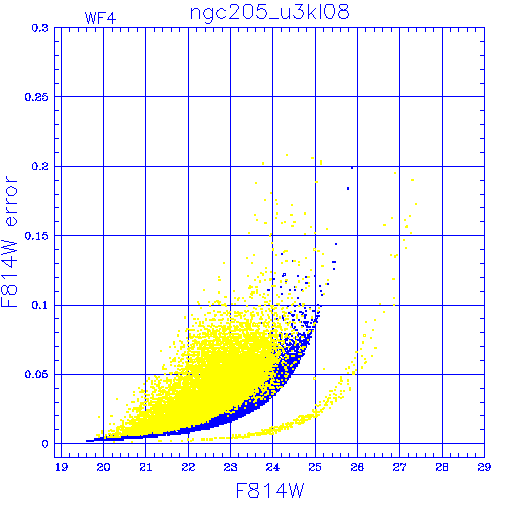

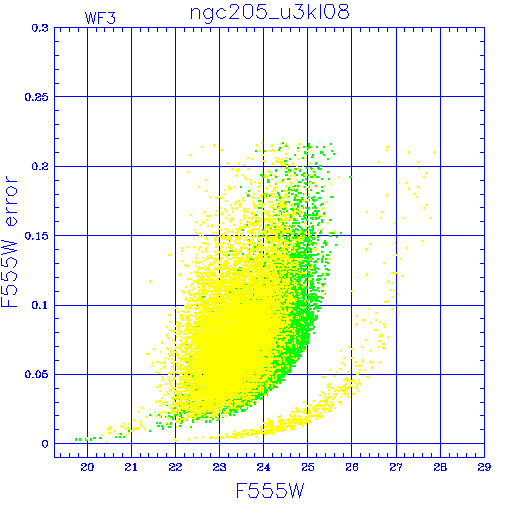

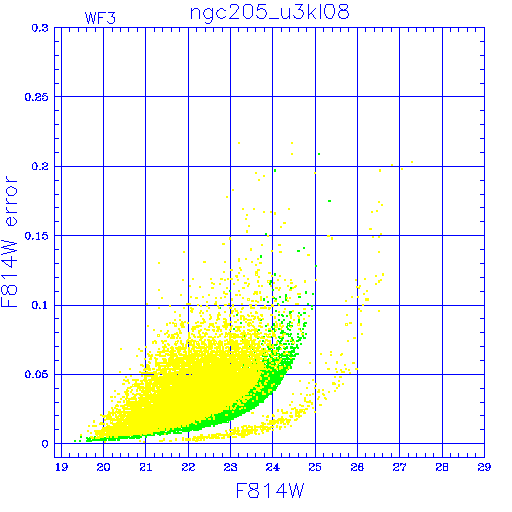

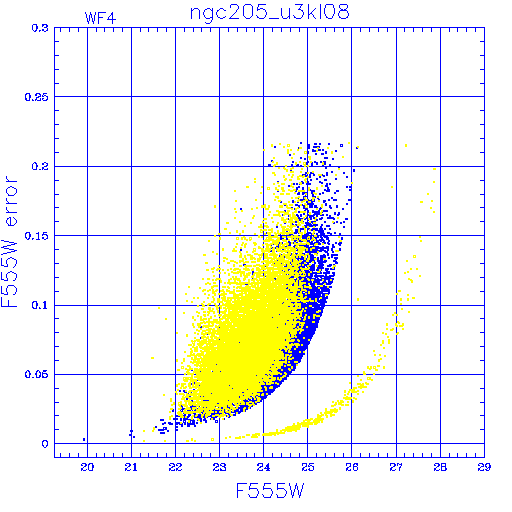

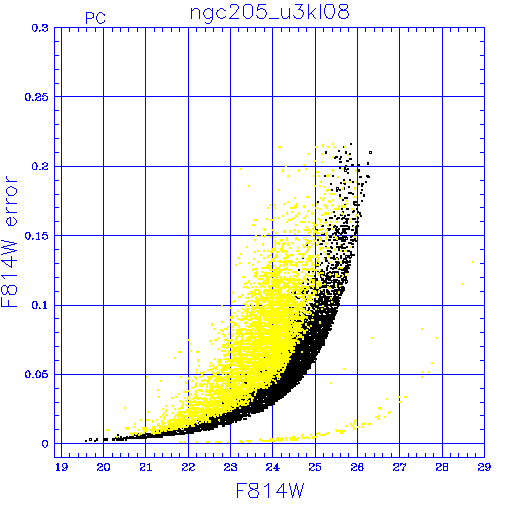

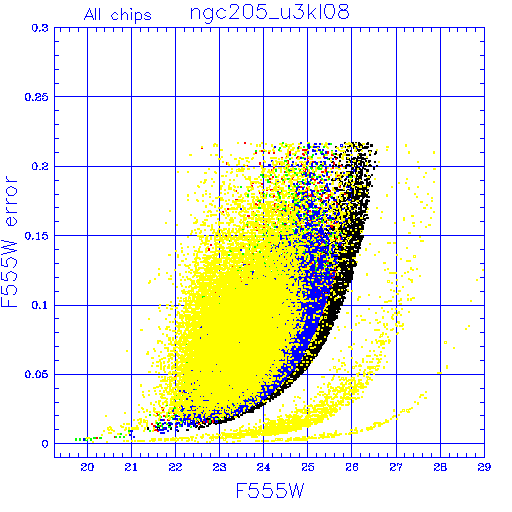

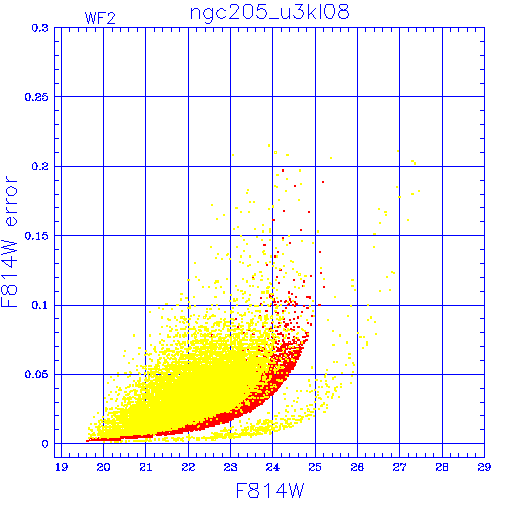

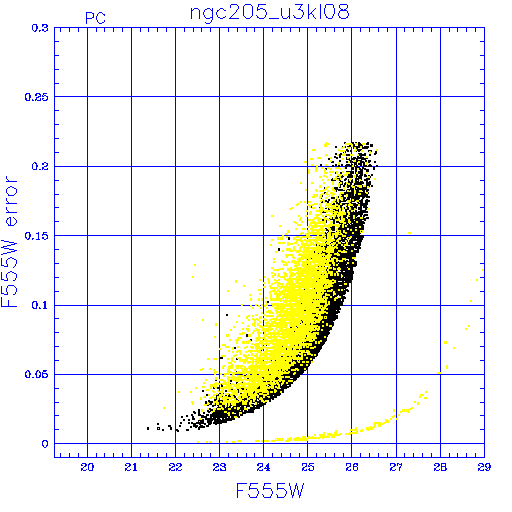

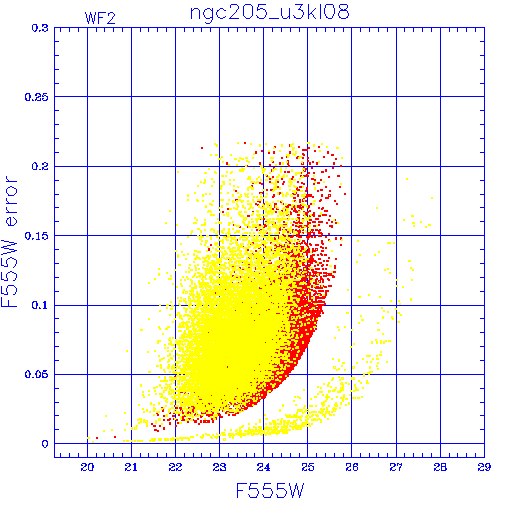

Error vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w

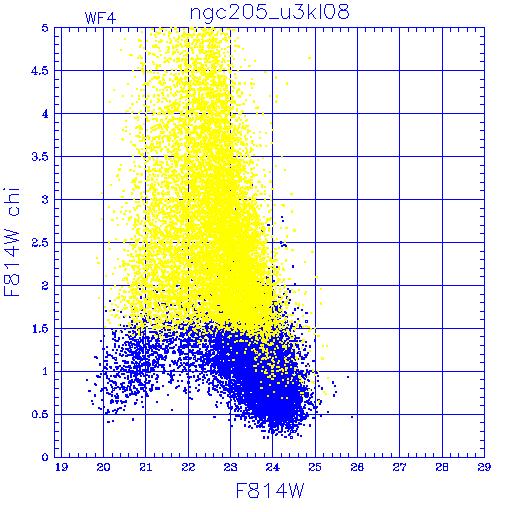

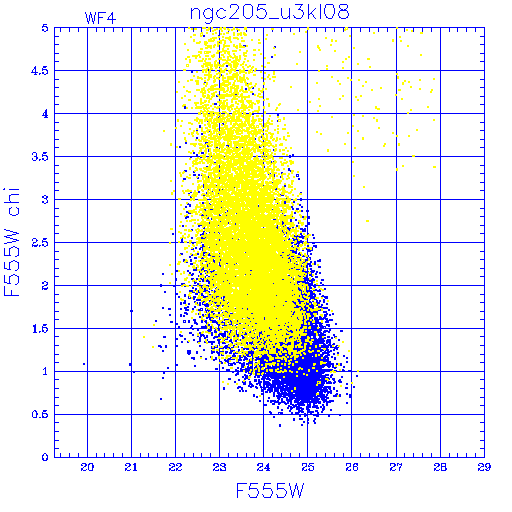

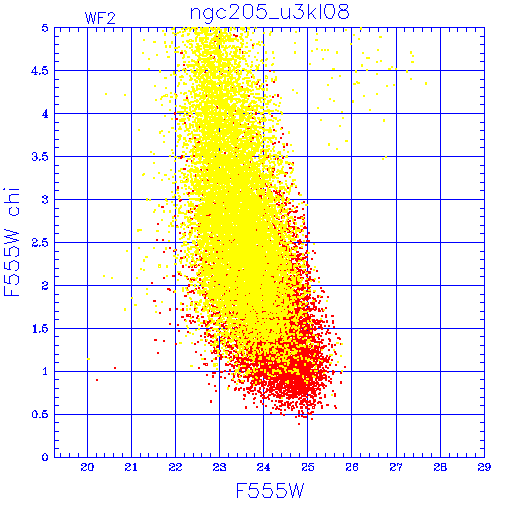

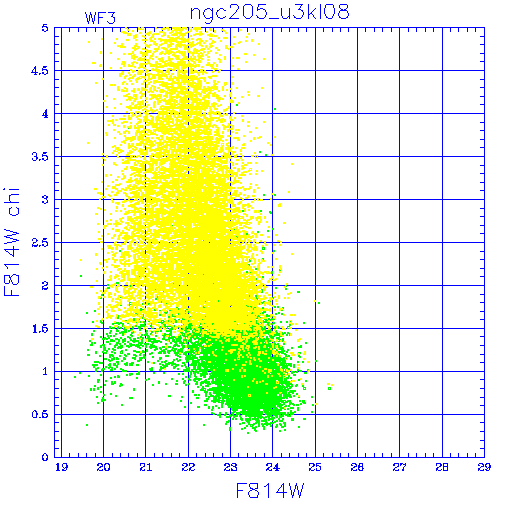

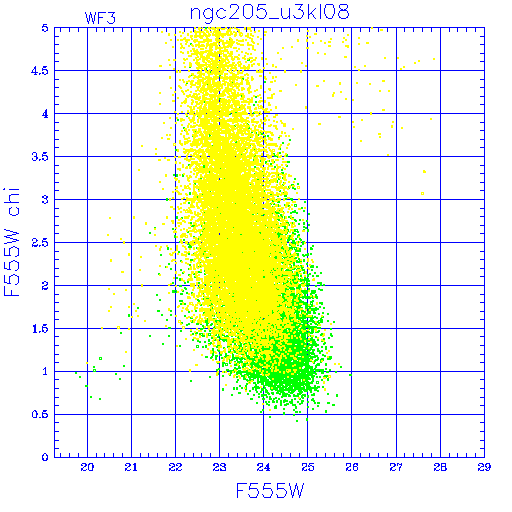

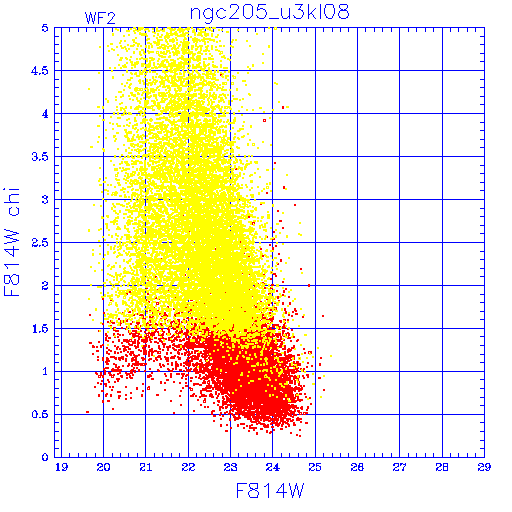

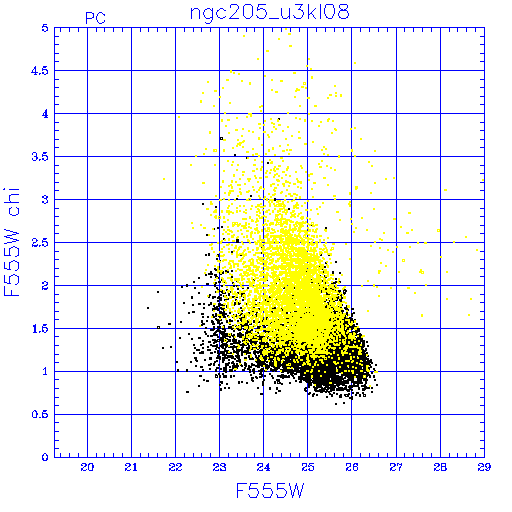

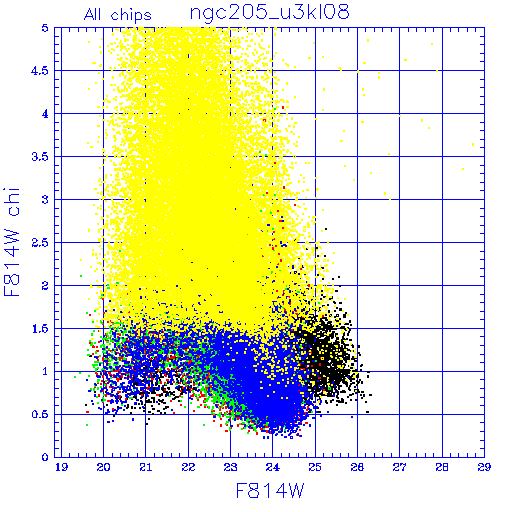

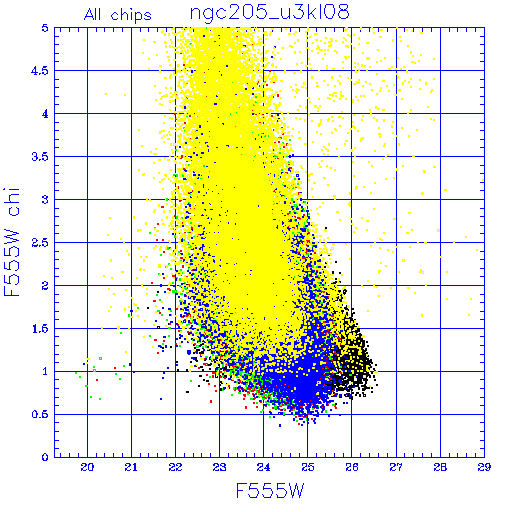

CHI vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w

Aperture corrections

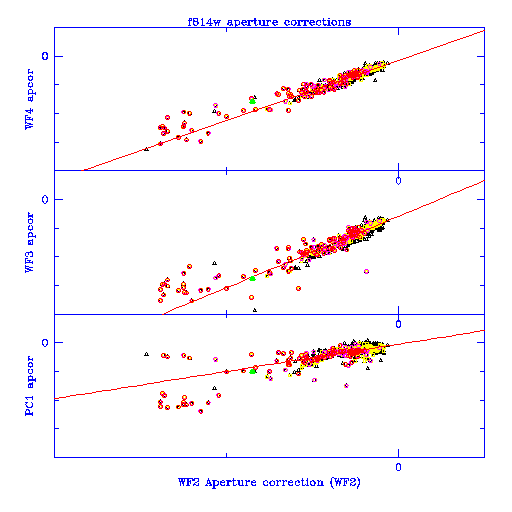

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
F555W F814W

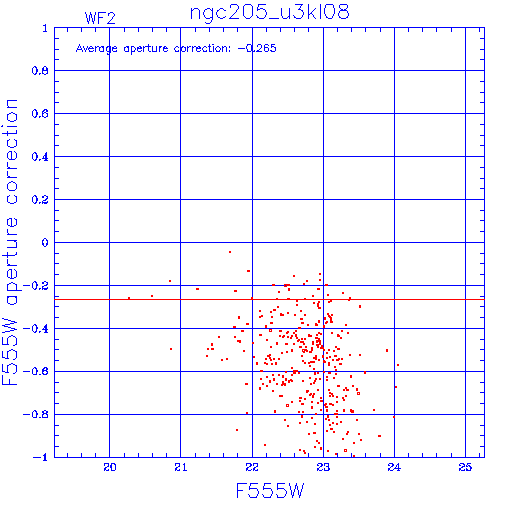

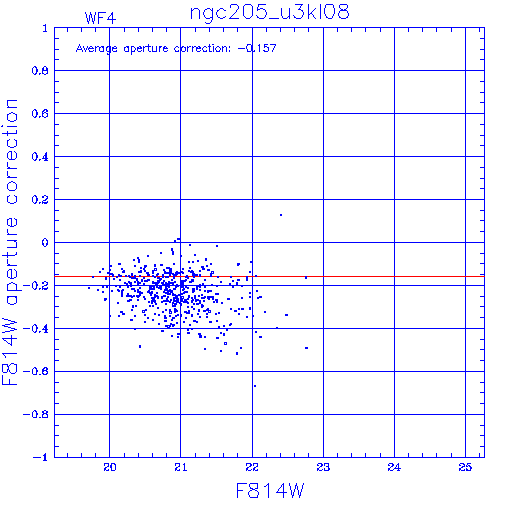

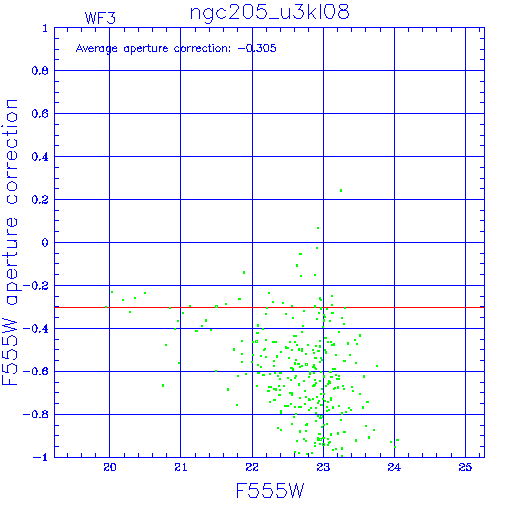

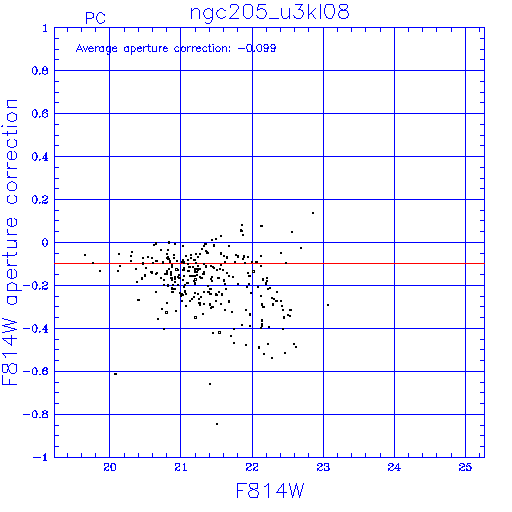

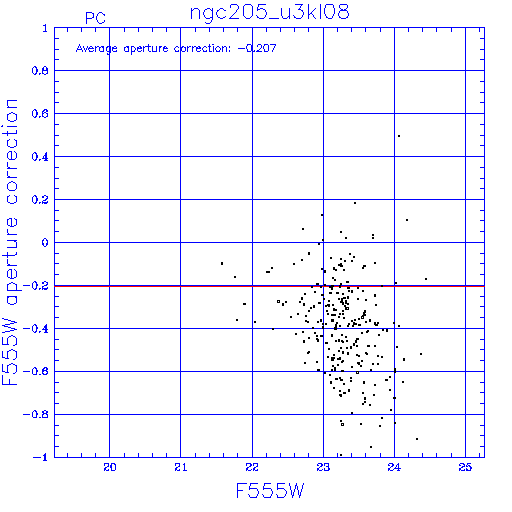

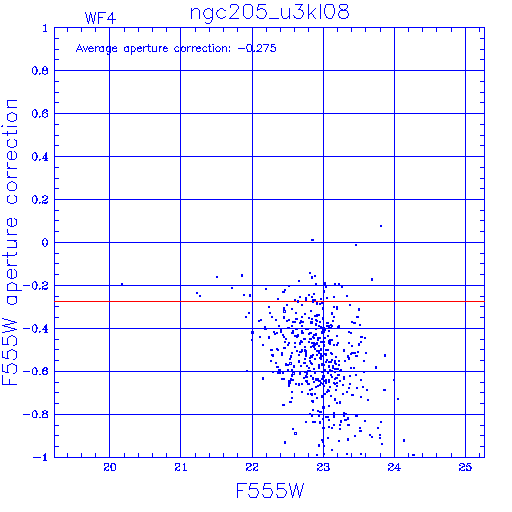

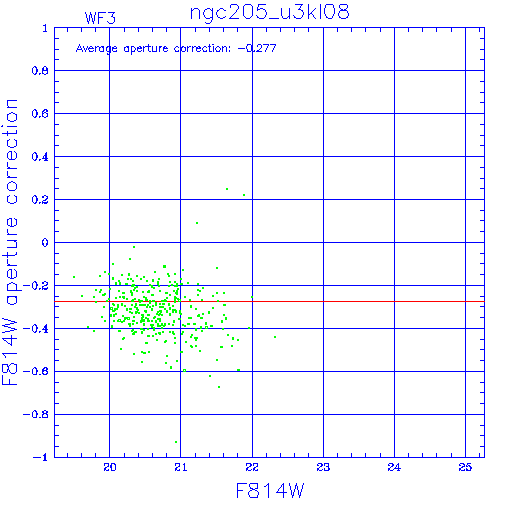

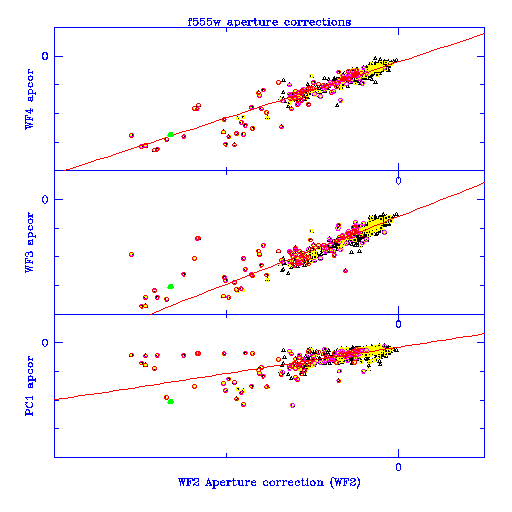

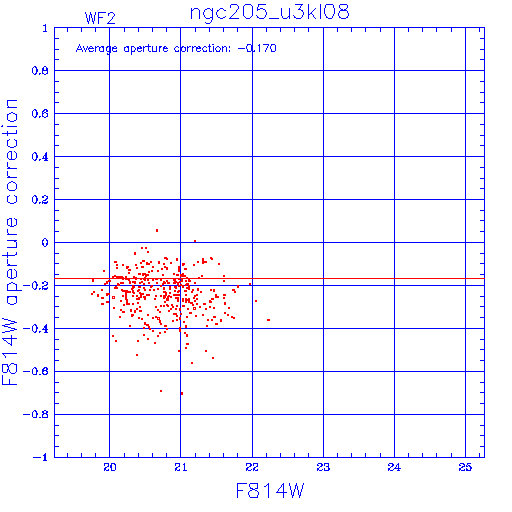

Aperture correction for each frame/chip, showing individual stars
All chips
PC
WF2
WF3
WF4
f555w
f814w

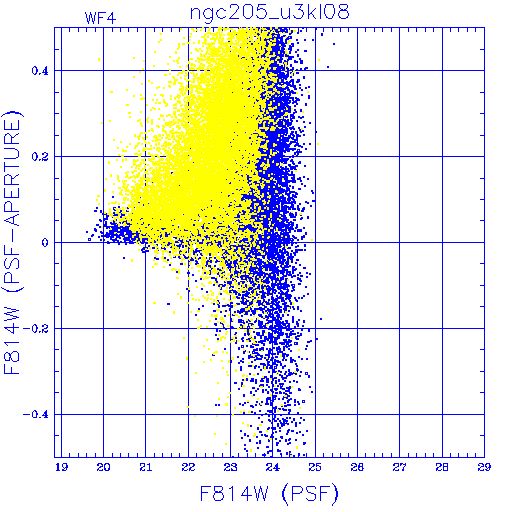

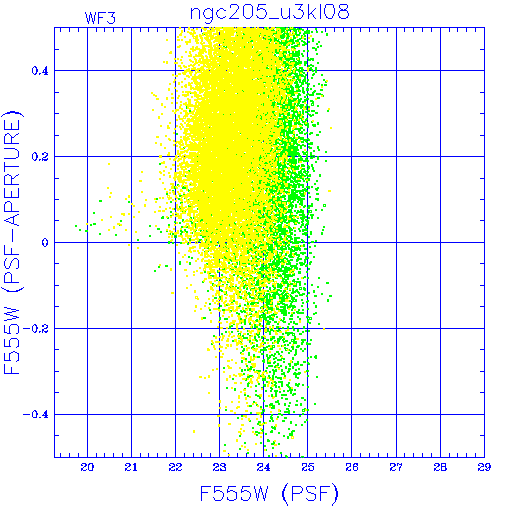

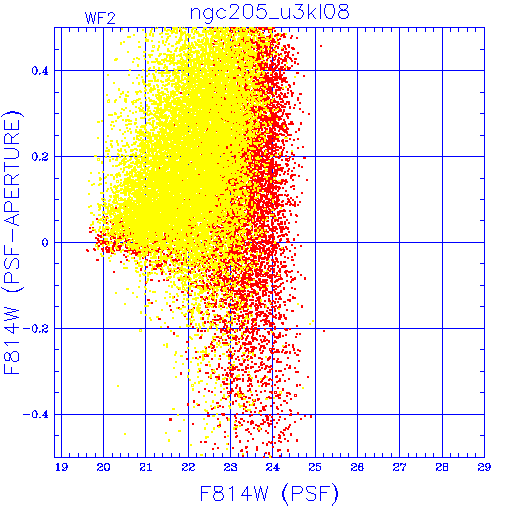

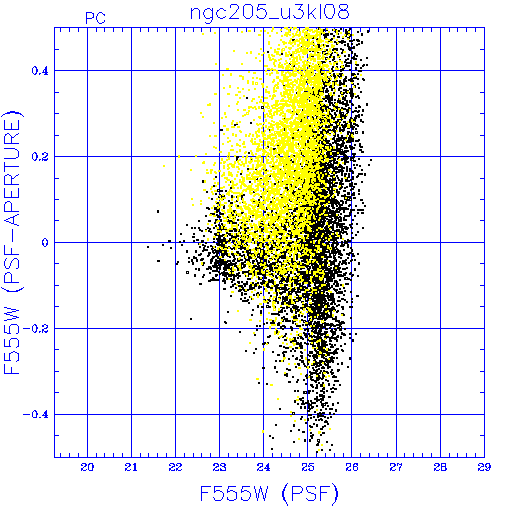

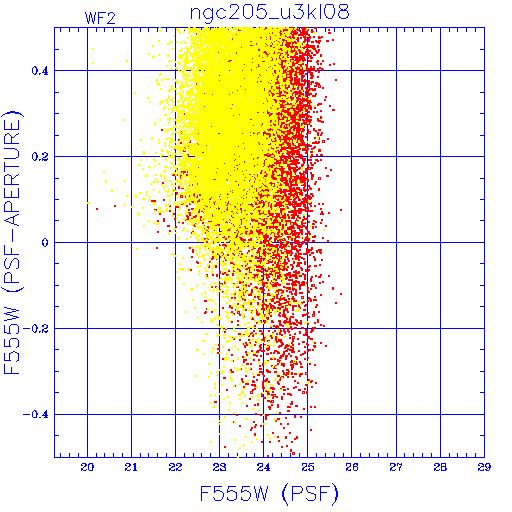

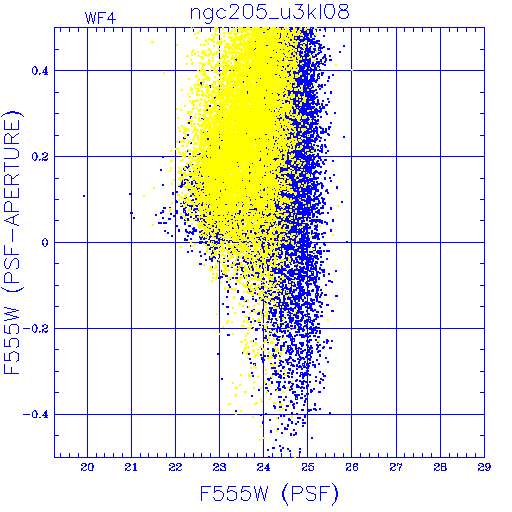

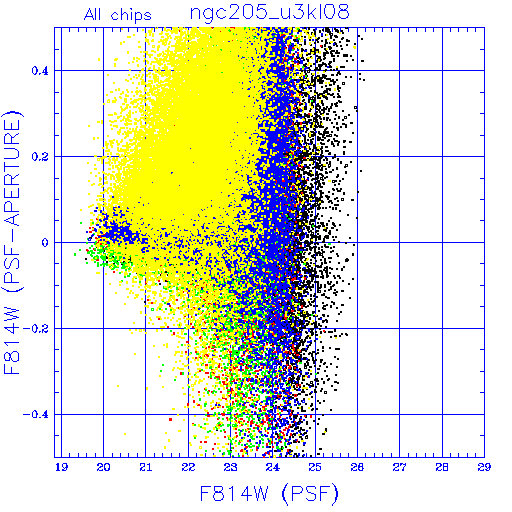

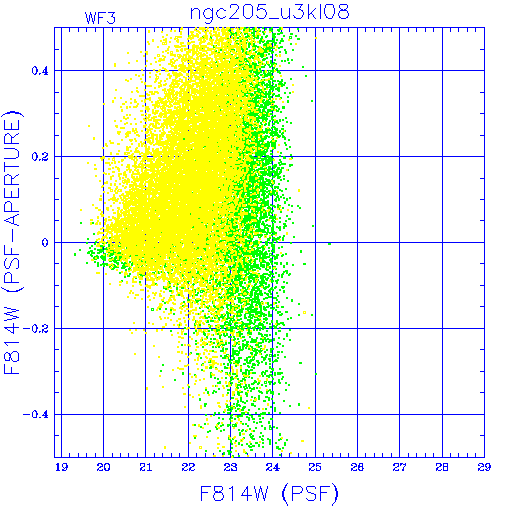

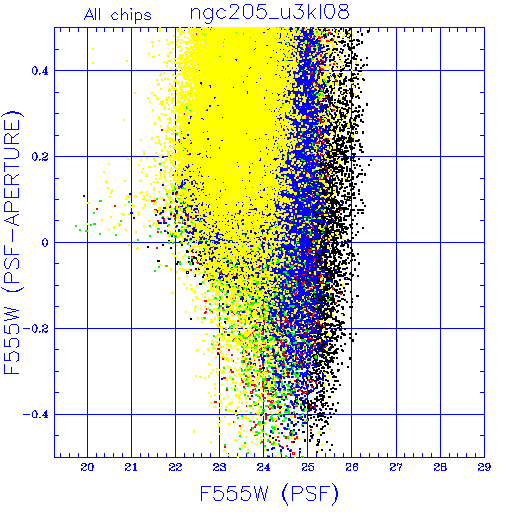

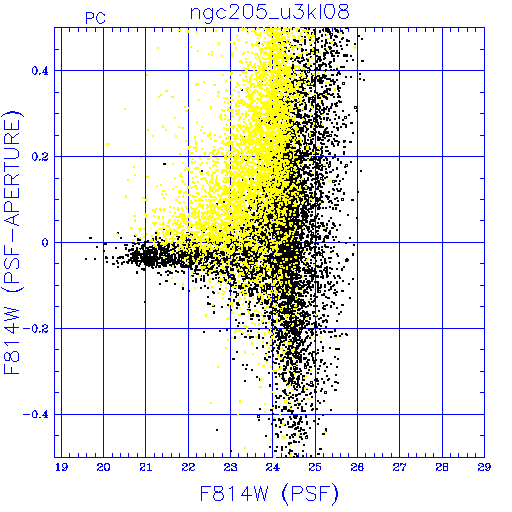

PSF vs. aperture photometry

All chips
PC
WF2
WF3
WF4
f555w
f814w

Artificial star diagrams

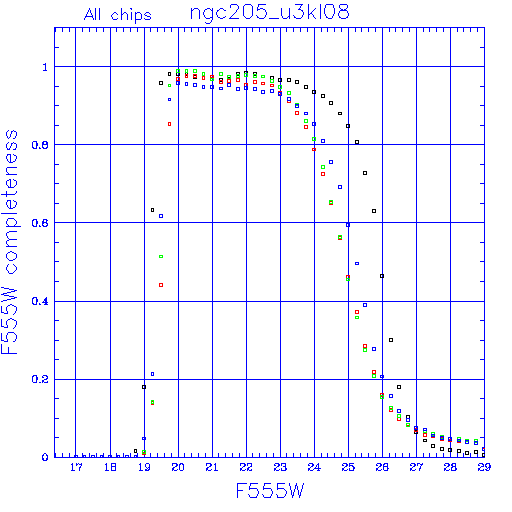

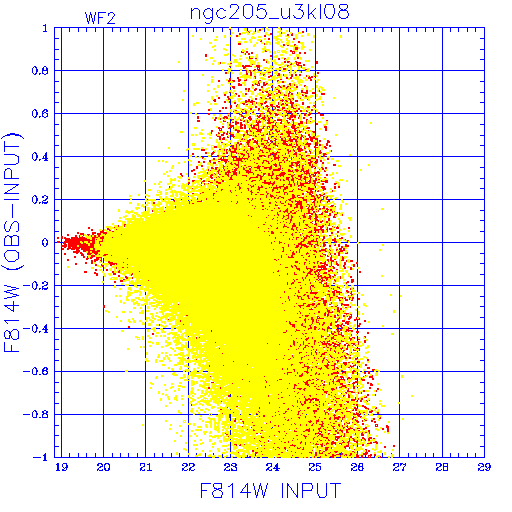

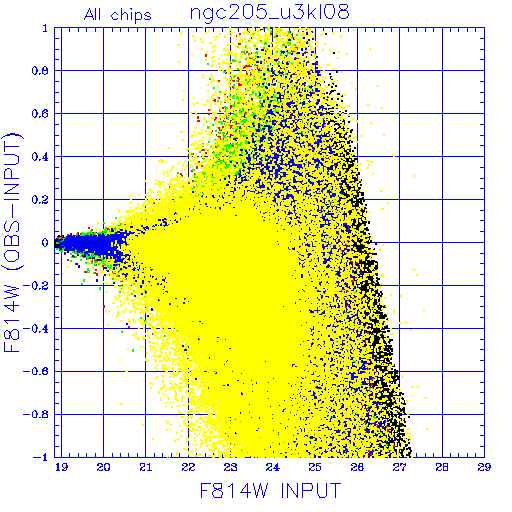

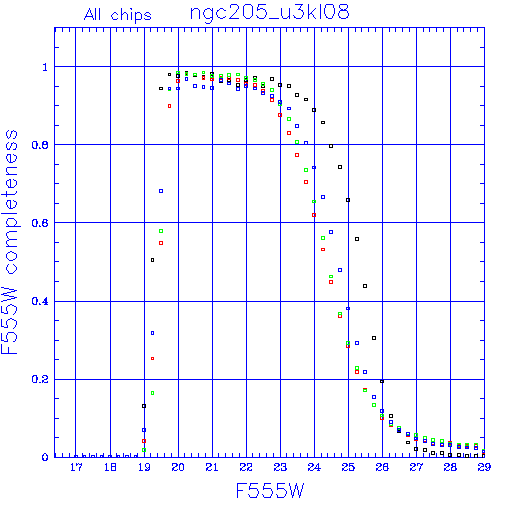

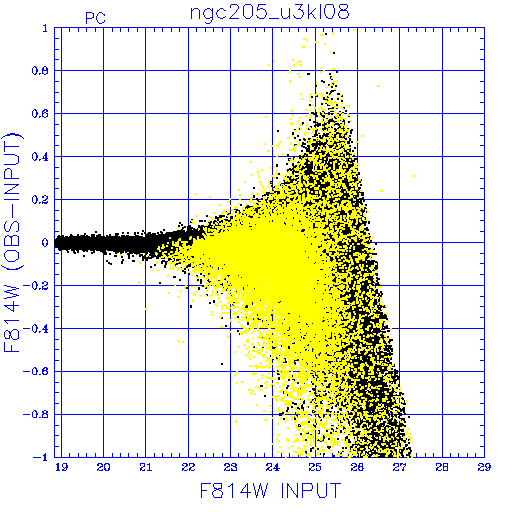

Completeness as a function of input magnitude
PSF photometry Aperture photometry

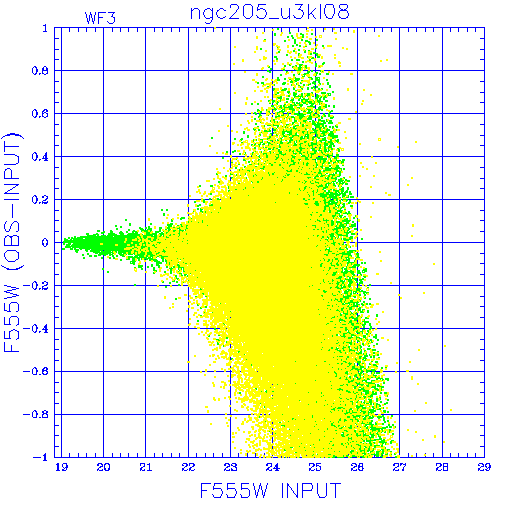

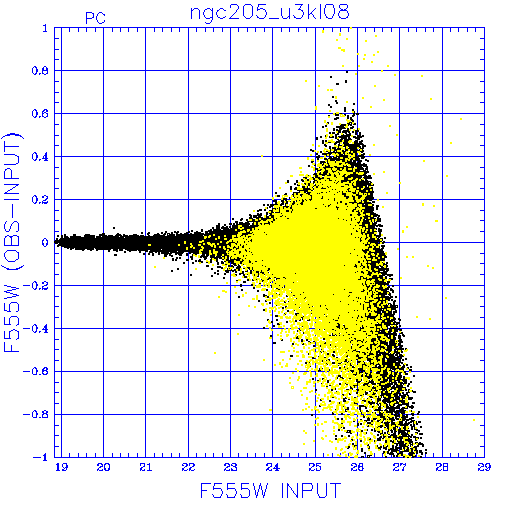

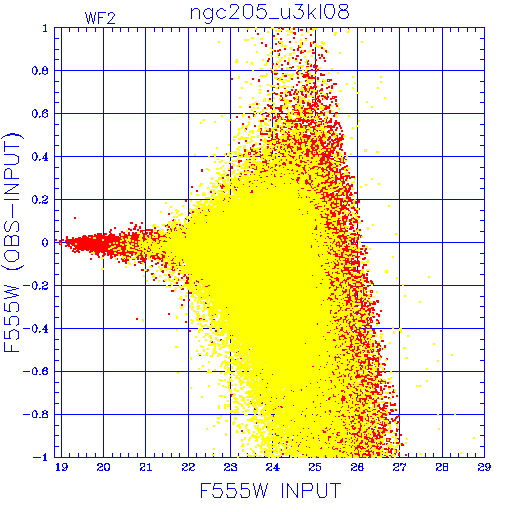

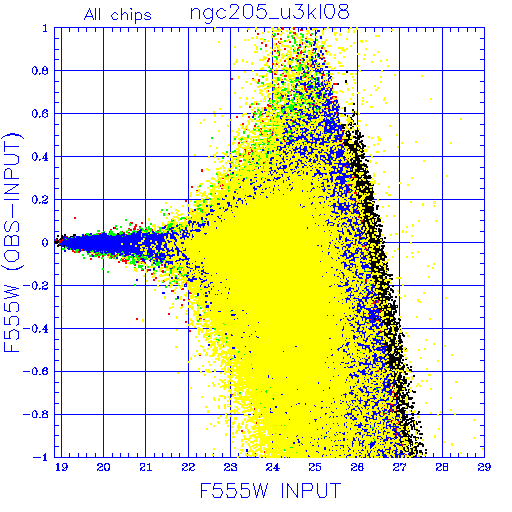

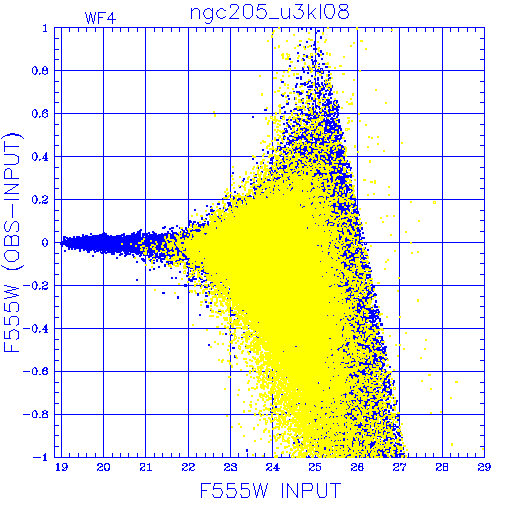

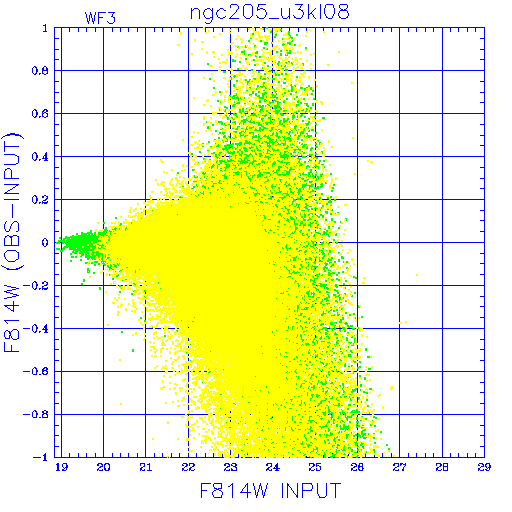

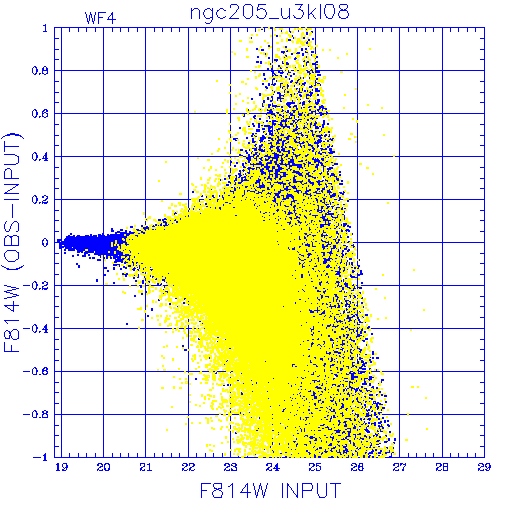

Recovered mag-input mag as a function of input mag (PSF photometry)
All chips
PC
WF2
WF3
WF4
f555w
f814w

Average recovered magnitude as function of location in CMD (PSF photometry)
All chips
PC
WF2
WF3
WF4
