Photometry Diagnostics for mw_bulge_u66h01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u66h0101r	F555W	200.00	0.00	0.00	0.00	0.00	0.00	0.00
u66h0102r	F555W	5.00	0.02	0.05	0.00	0.00	0.02	0.05
u66h0103r	F555W	40.00	0.00	0.09	0.00	0.00	0.00	0.09
u66h0104r	F555W	400.00	11.00	5.57	11.00	5.45	0.00	0.12
u66h0105r	F555W	5.00	10.93	5.49	11.00	5.45	-0.07	0.04
u66h0106r	F555W	40.00	10.93	5.48	11.00	5.45	-0.07	0.03
u66h0107r	F555W	400.00	16.52	16.67	16.53	16.42	-0.01	0.25
u66h0108r	F555W	5.00	16.60	16.79	16.53	16.42	0.07	0.37
u66h0109r	F555W	40.00	16.65	16.81	16.53	16.42	0.12	0.39
u66h010ar	F555W	400.00	5.57	11.14	5.53	10.97	0.04	0.17
u66h010br	F555W	5.00	5.62	11.18	5.53	10.97	0.09	0.21
u66h010cr	F555W	40.00	5.66	11.21	5.53	10.97	0.13	0.24
u66h010qm	F555W	400.00	5.44	11.29	5.53	10.97	-0.09	0.32
u66h010dr	F814W	200.00	0.03	0.18	0.00	0.00	0.03	0.18
u66h010er	F814W	5.00	0.03	0.22	0.00	0.00	0.03	0.22
u66h010fr	F814W	40.00	0.02	0.26	0.00	0.00	0.02	0.26
u66h010gr	F814W	400.00	10.98	5.87	11.00	5.45	-0.02	0.42
u66h010hr	F814W	5.00	10.94	5.82	11.00	5.45	-0.06	0.37
u66h010ir	F814W	40.00	10.94	5.82	11.00	5.45	-0.06	0.37
u66h010jr	F814W	400.00	16.81	16.88	16.53	16.42	0.28	0.46
u66h010kr	F814W	5.00	16.86	16.96	16.53	16.42	0.33	0.54
u66h010lr	F814W	40.00	16.88	17.01	16.53	16.42	0.35	0.59
u66h010mr	F814W	400.00	5.74	11.24	5.53	10.97	0.21	0.27
u66h010nr	F814W	5.00	5.69	11.27	5.53	10.97	0.16	0.30
u66h010or	F814W	40.00	5.67	11.32	5.53	10.97	0.14	0.35
u66h010pr	F814W	400.00	5.59	11.36	5.53	10.97	0.06	0.39

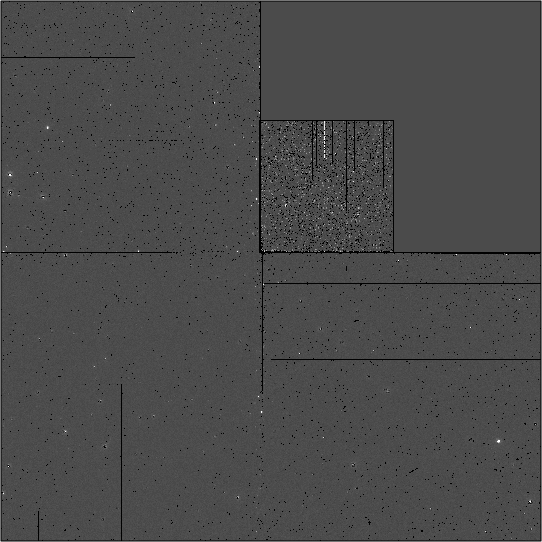

Mosaic images

F555W	F814W

HSTPHOT command log

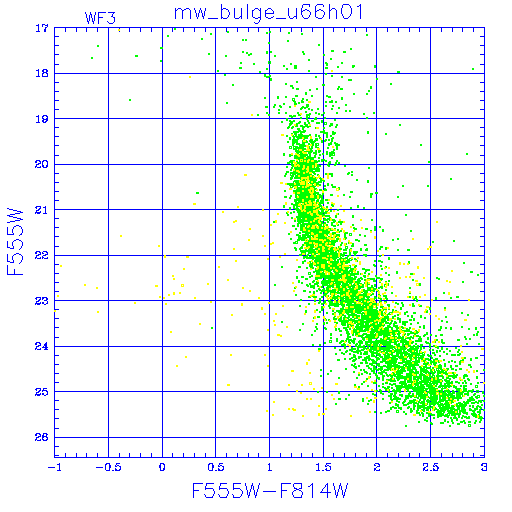

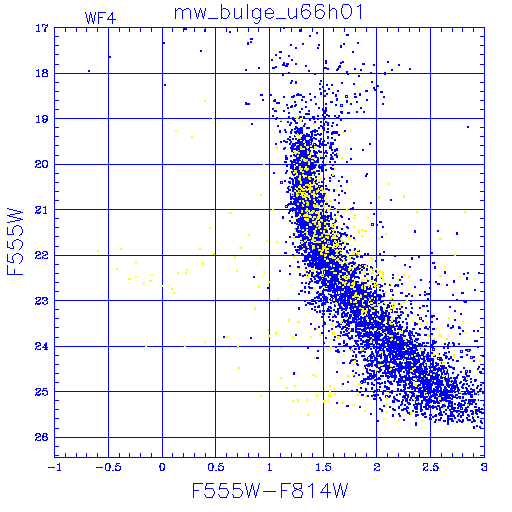

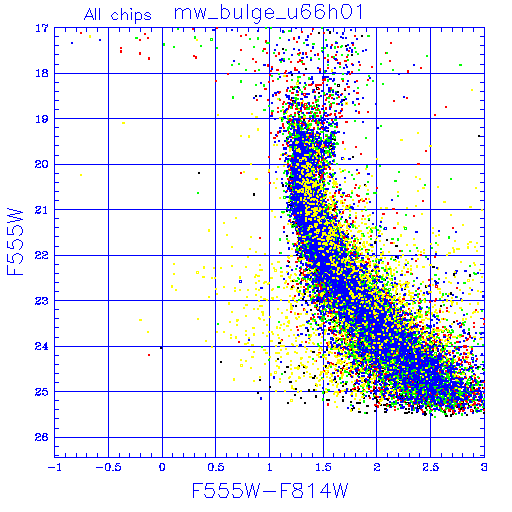

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

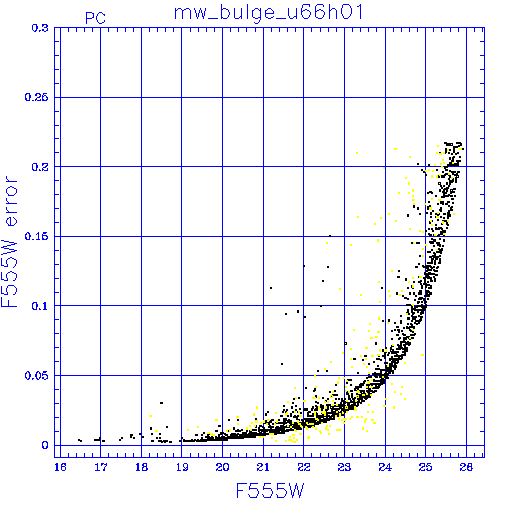

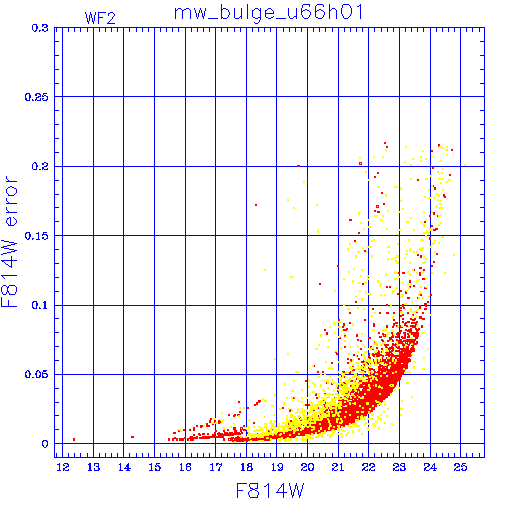

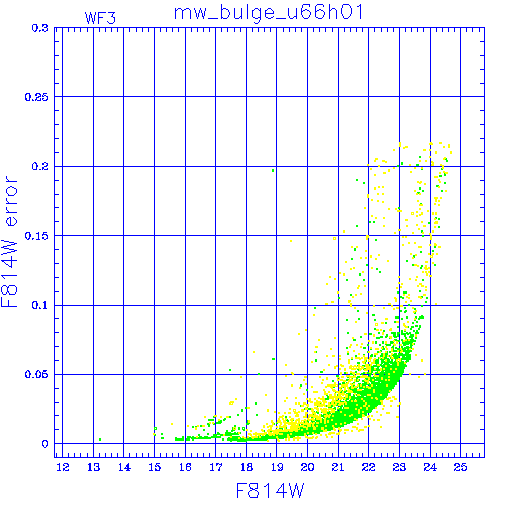

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

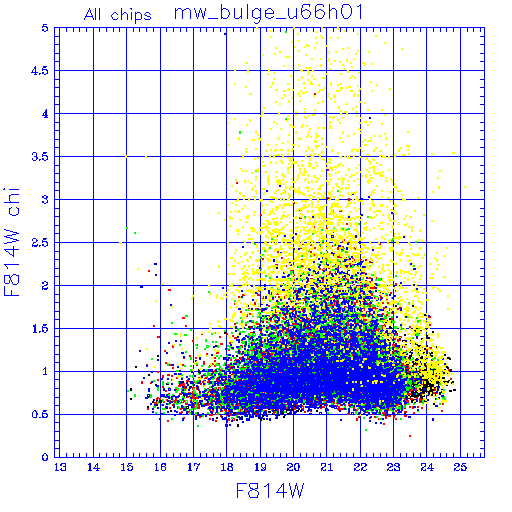

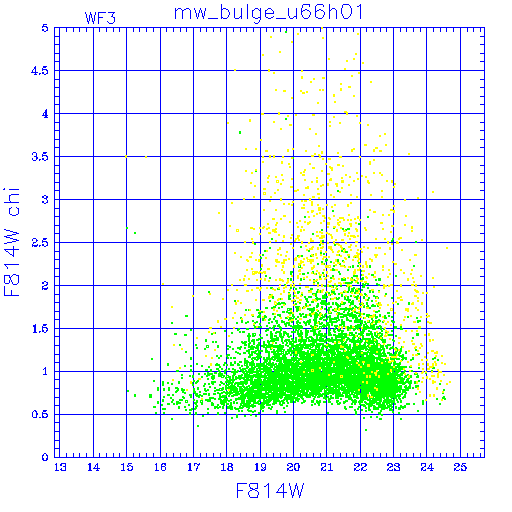

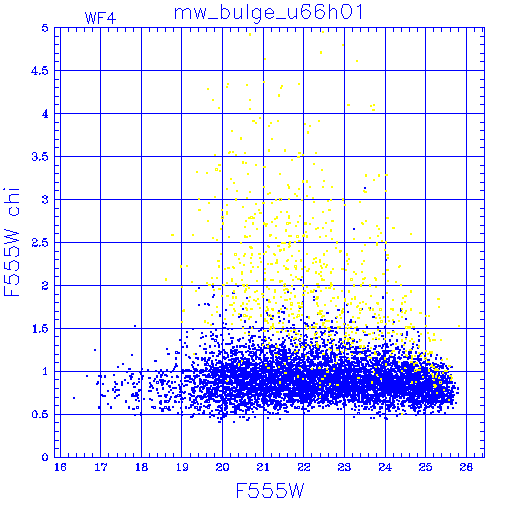

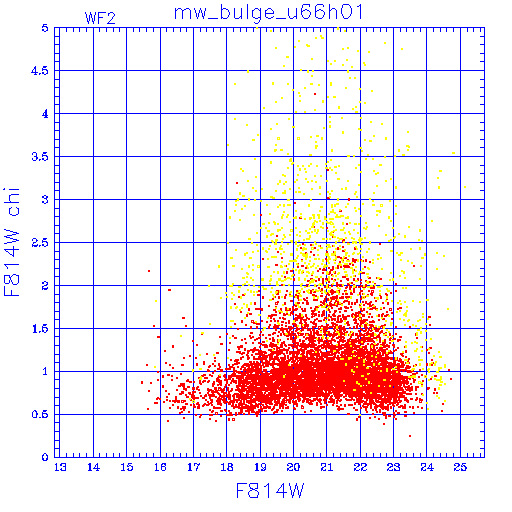

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

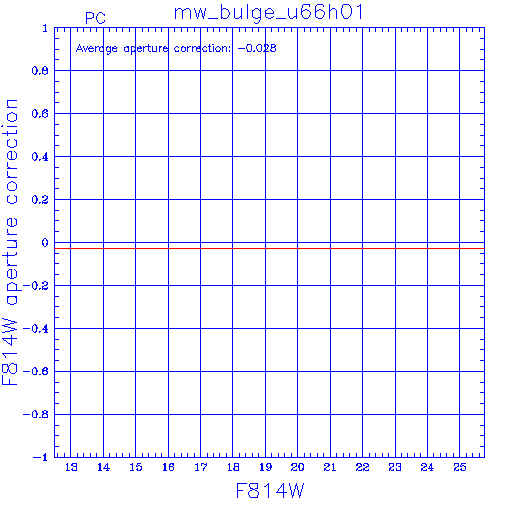

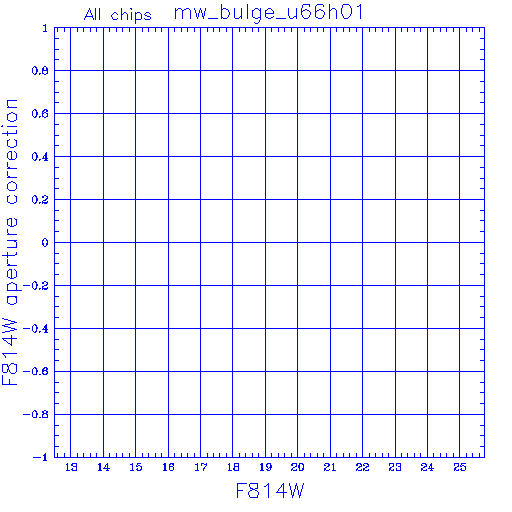

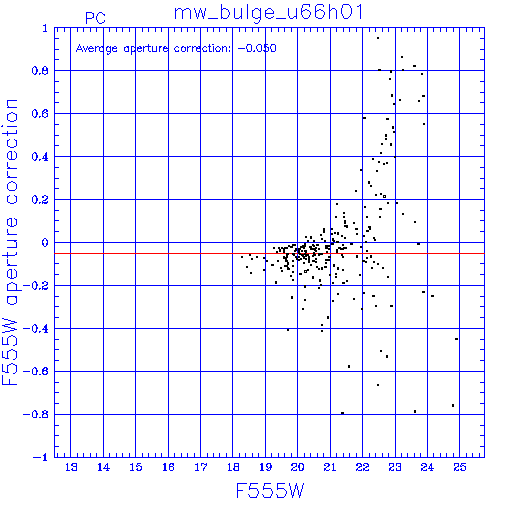

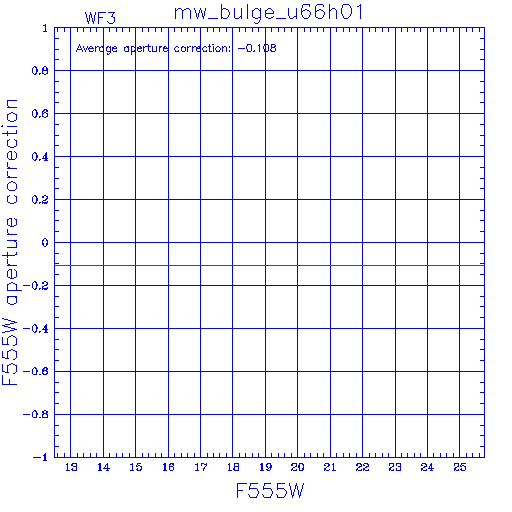

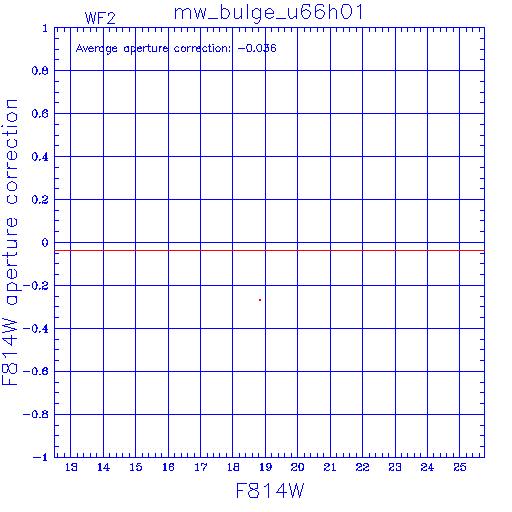

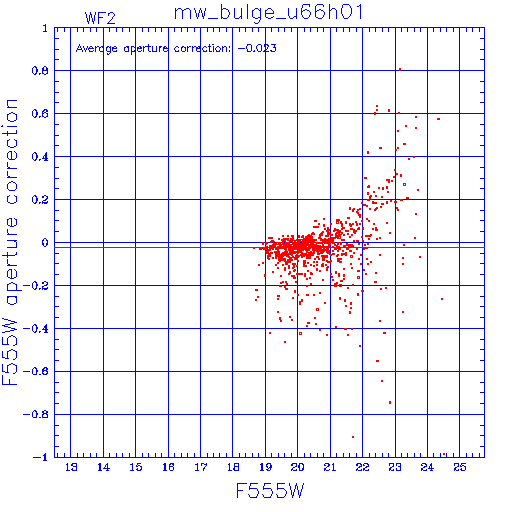

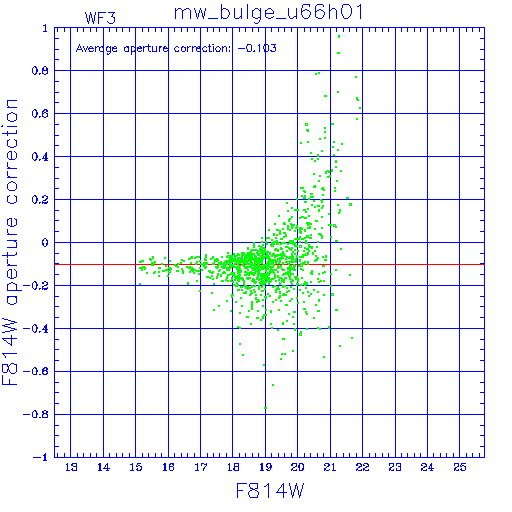

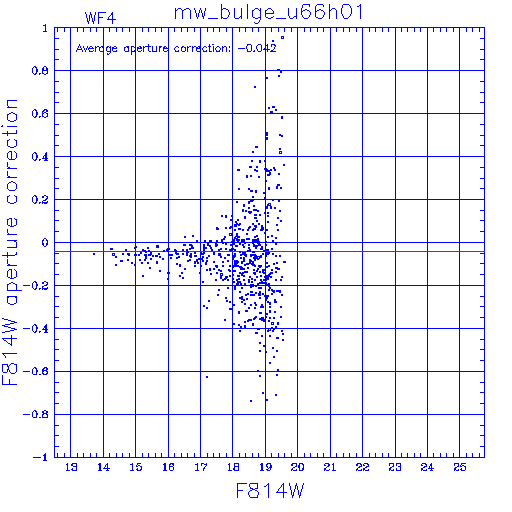

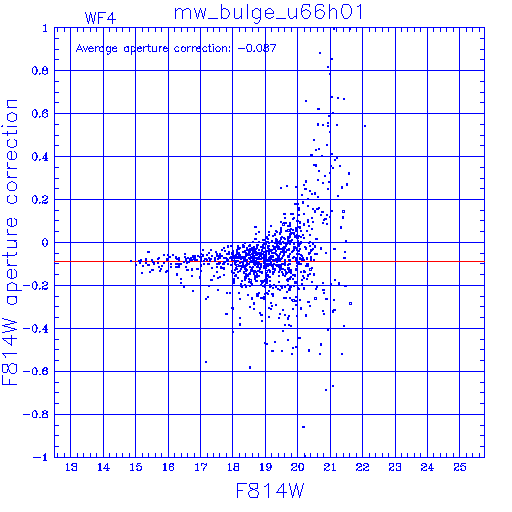

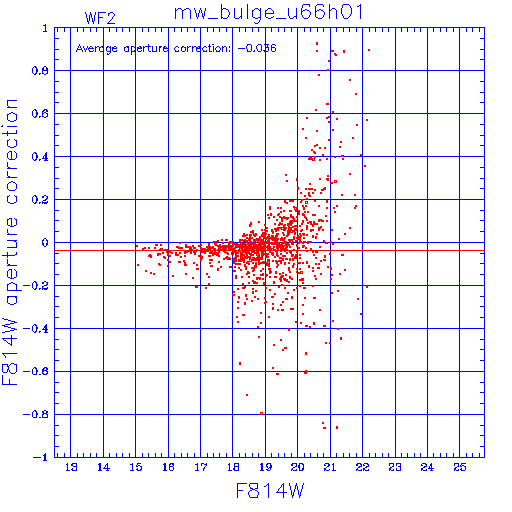

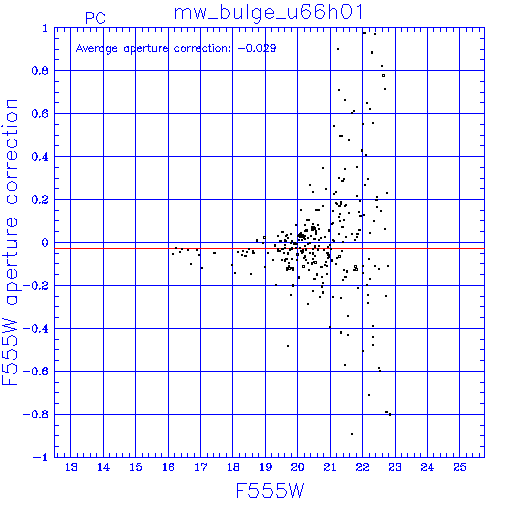

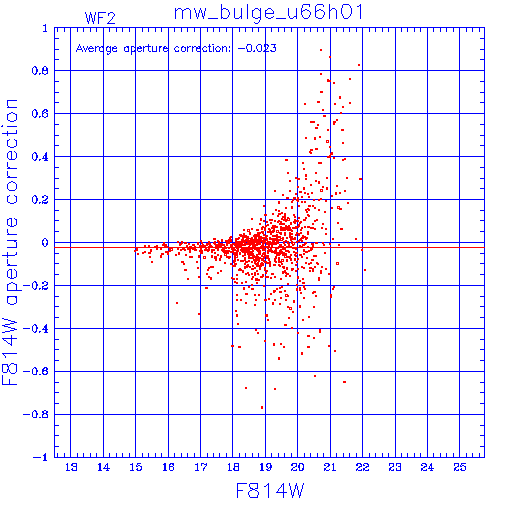

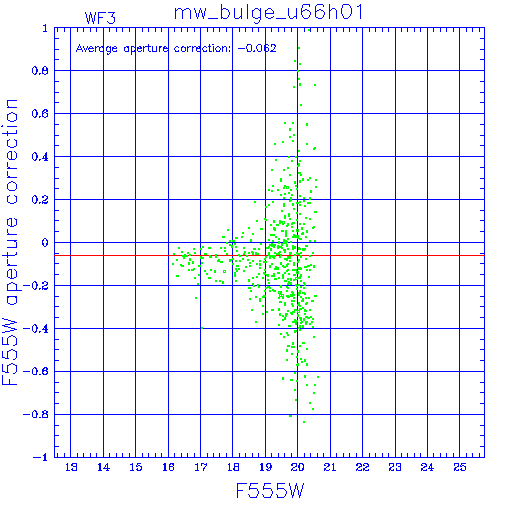

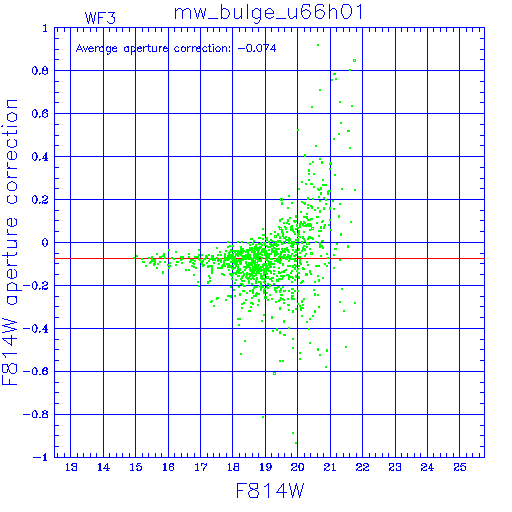

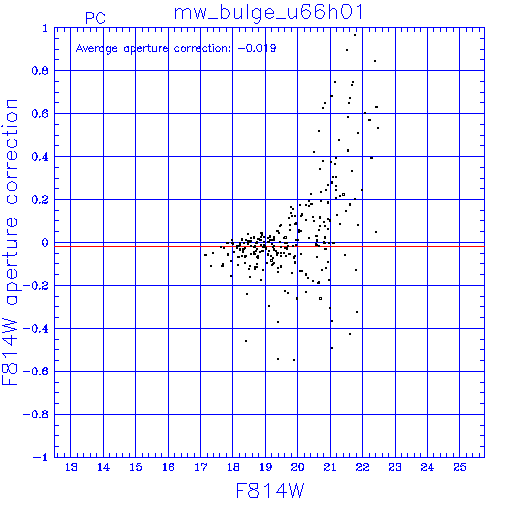

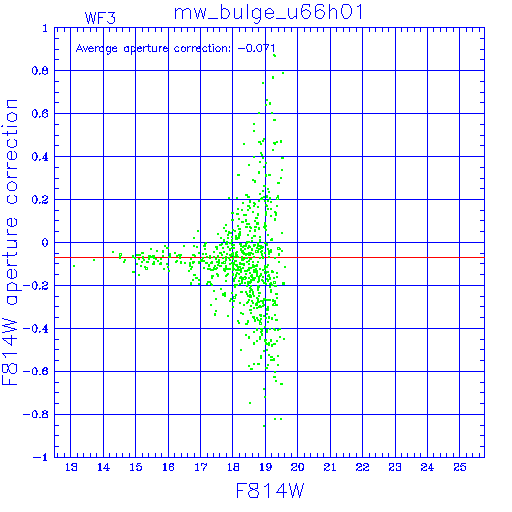

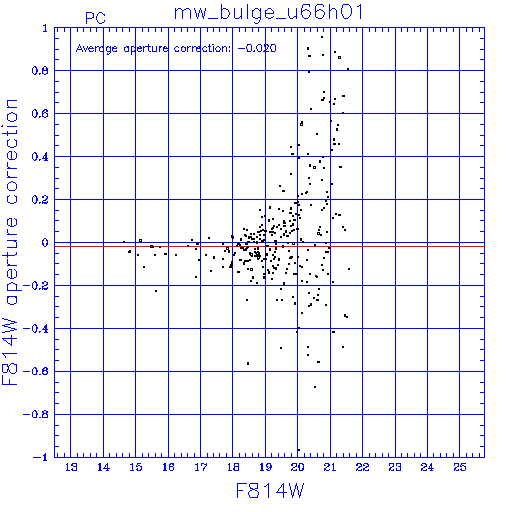

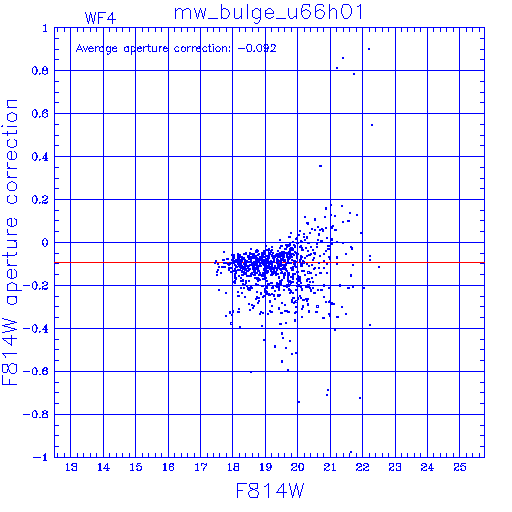

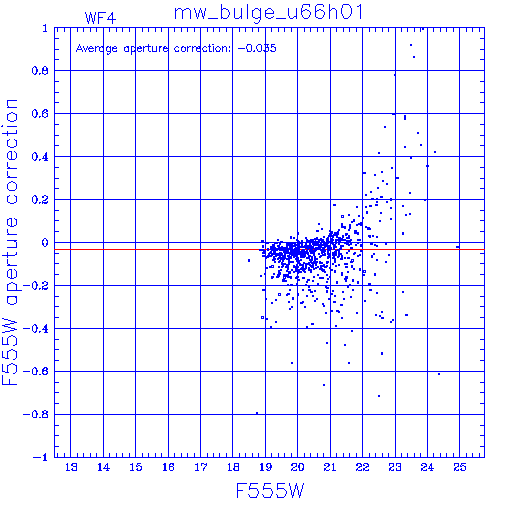

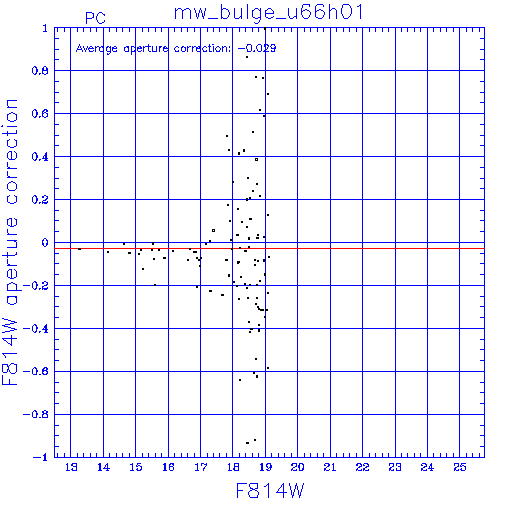

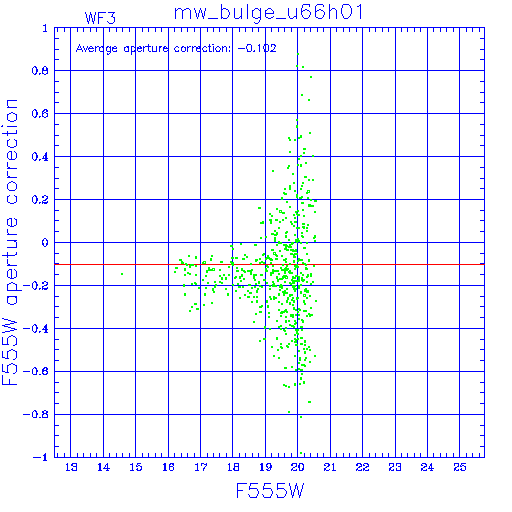

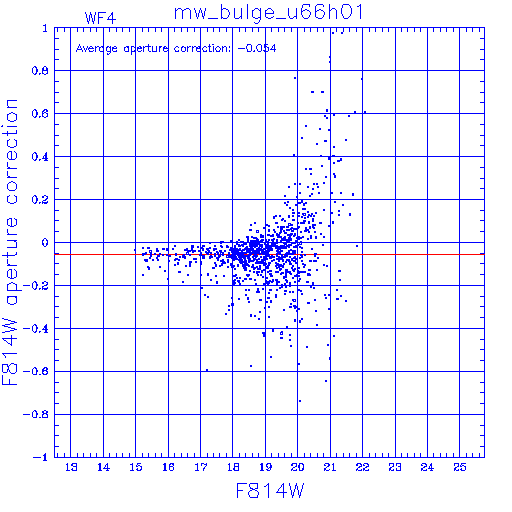

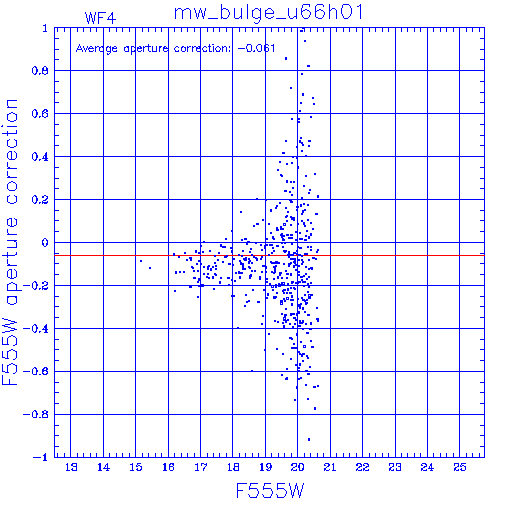

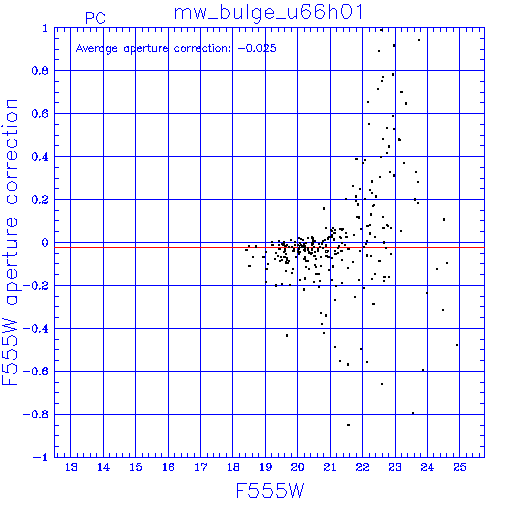

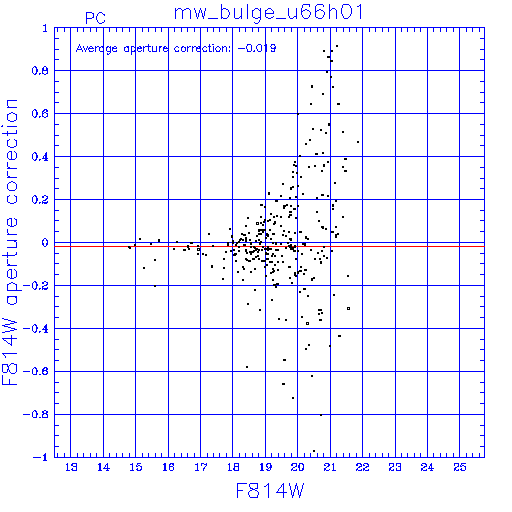

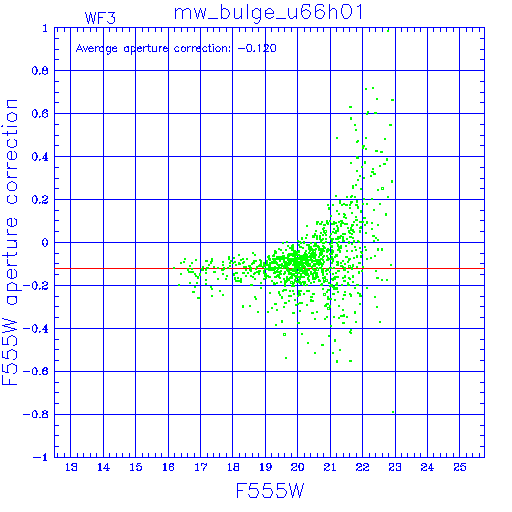

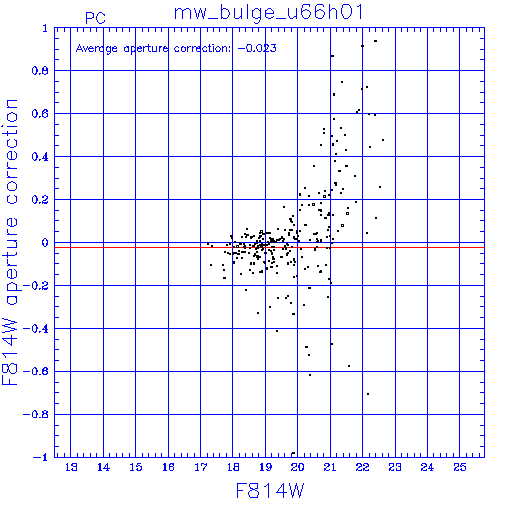

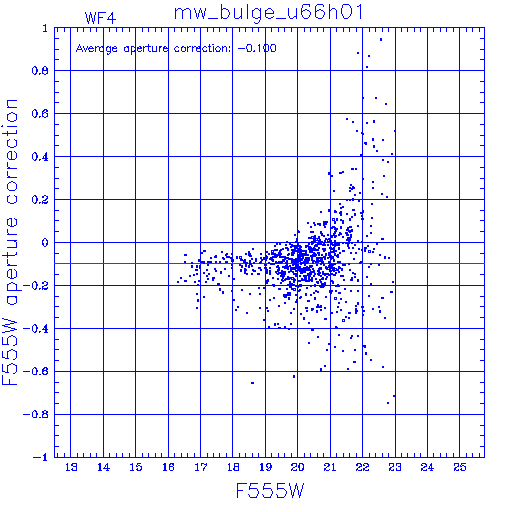

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
