Photometry Diagnostics for mw_bulge_u2oq03

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2oq0401p	F606W	1300.00	0.00	0.00	0.00	0.00	0.00	0.00
u2oq0402p	F606W	1300.00	0.04	-0.04	0.00	0.00	0.04	-0.04
u2oq0601t	F606W	1300.00	-0.22	0.32	0.00	0.00	-0.22	0.32
u2oq0602t	F606W	1200.00	-0.17	0.32	0.00	0.00	-0.17	0.32
u2oq0301p	F814W	1300.00	0.23	0.67	0.00	0.00	0.23	0.67
u2oq0302t	F814W	1300.00	0.13	0.62	0.00	0.00	0.13	0.62
u2oq0501t	F814W	1300.00	-0.05	2.24	0.00	0.00	-0.05	2.24
u2oq0502p	F814W	1100.00	0.00	2.32	0.00	0.00	0.00	2.32

Mosaic images

F606W	F814W

HSTPHOT command log

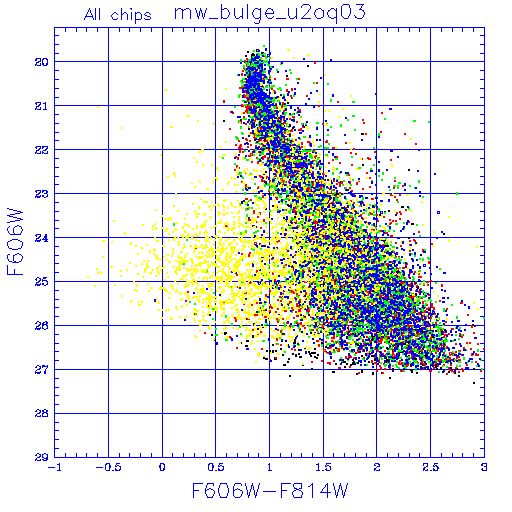

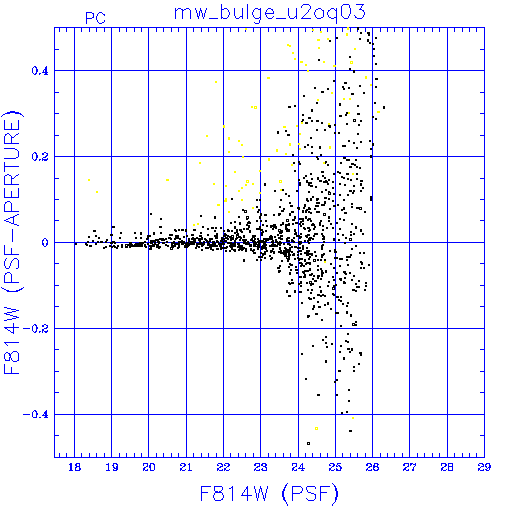

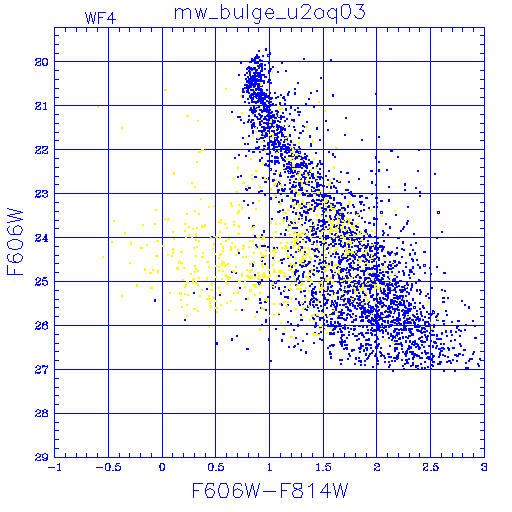

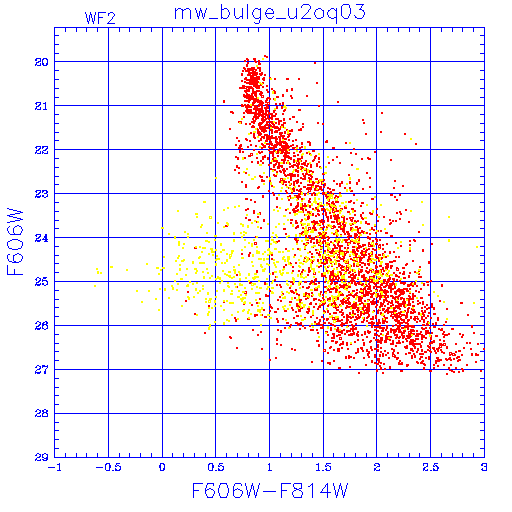

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

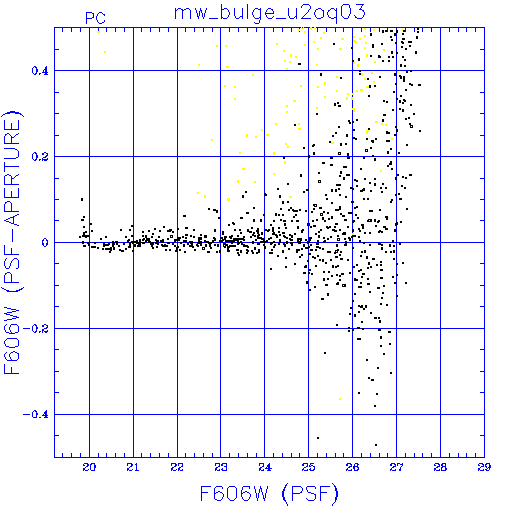

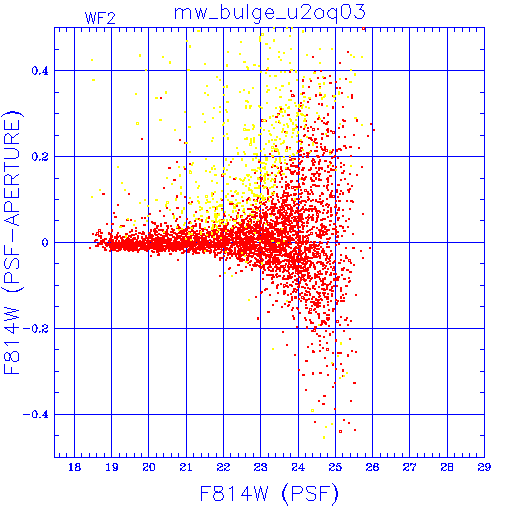

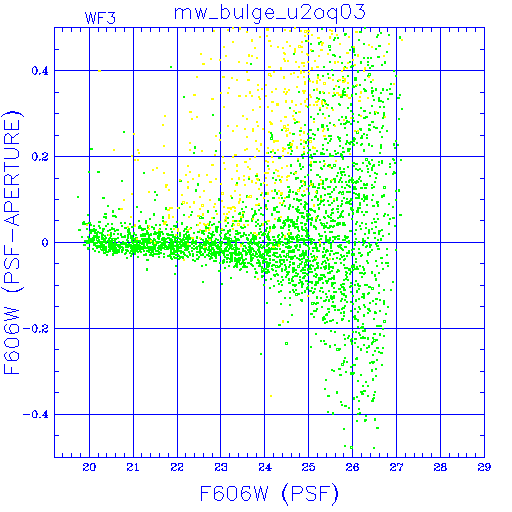

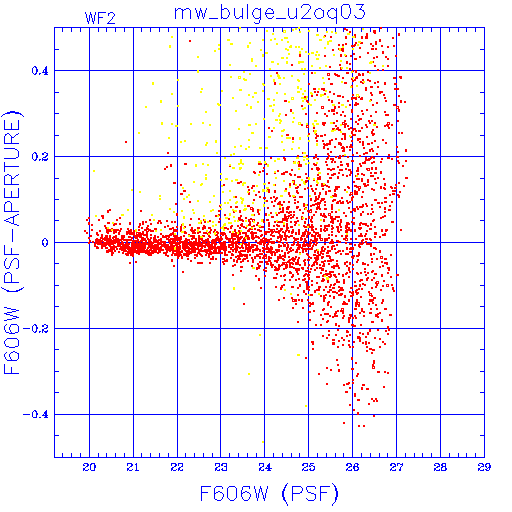

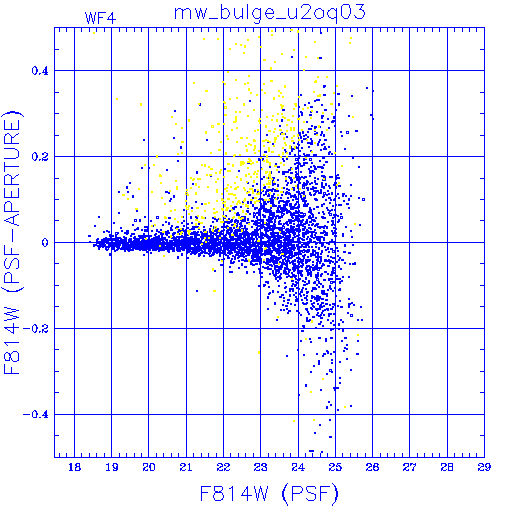

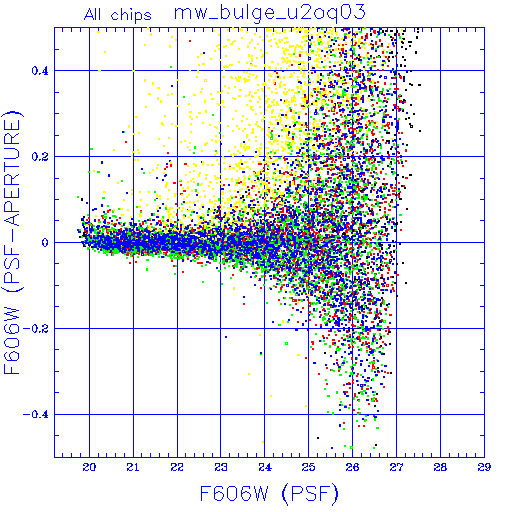

PSF
Aperture

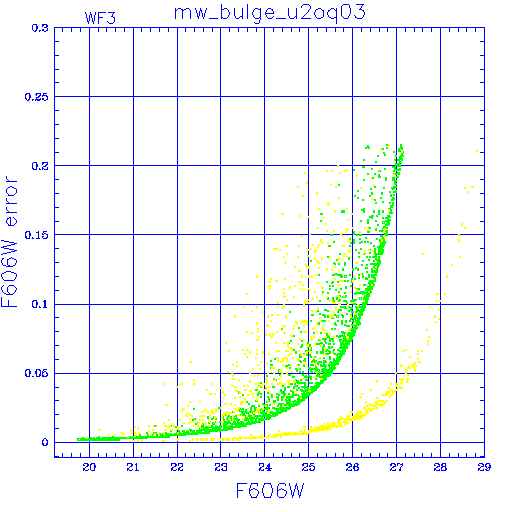

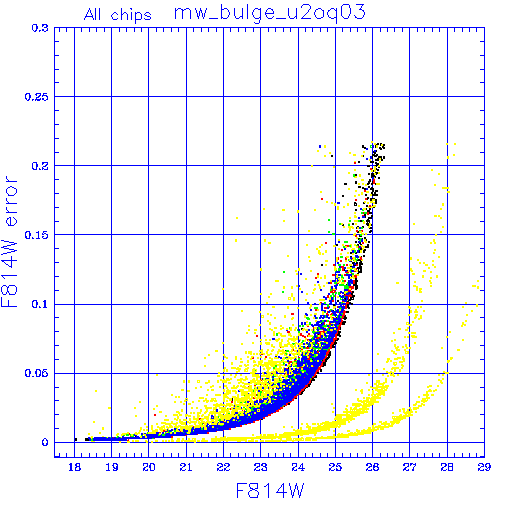

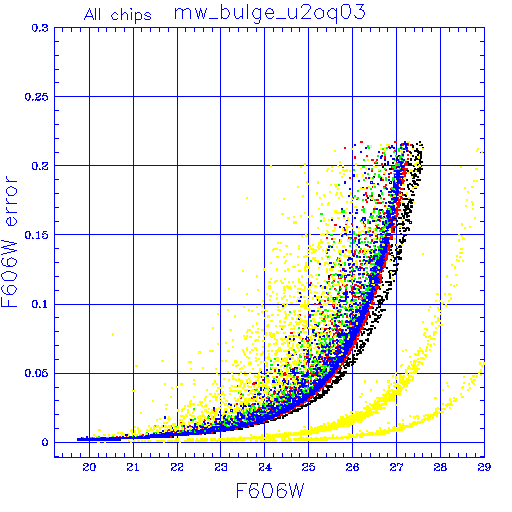

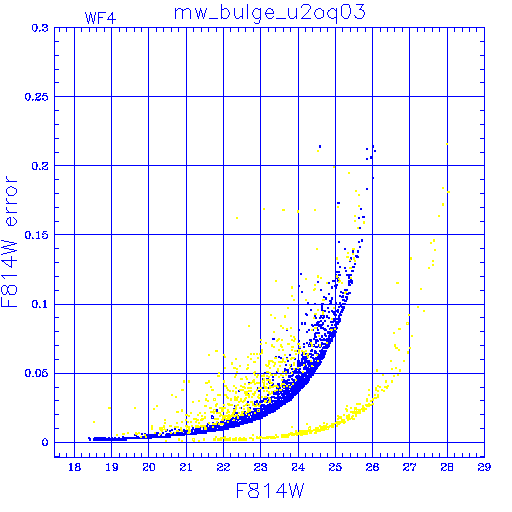

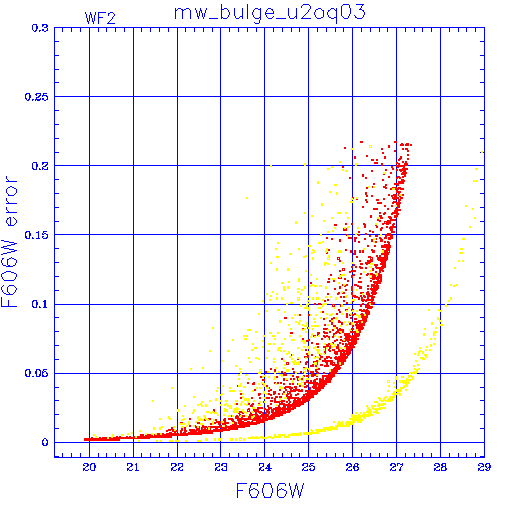

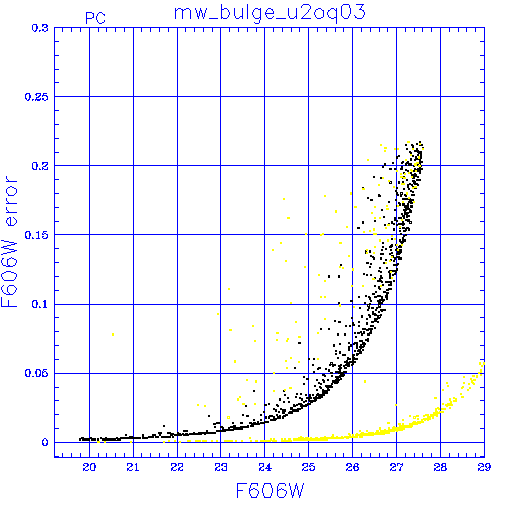

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

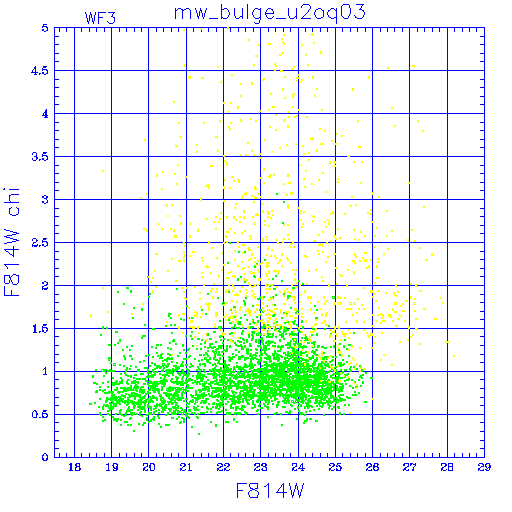

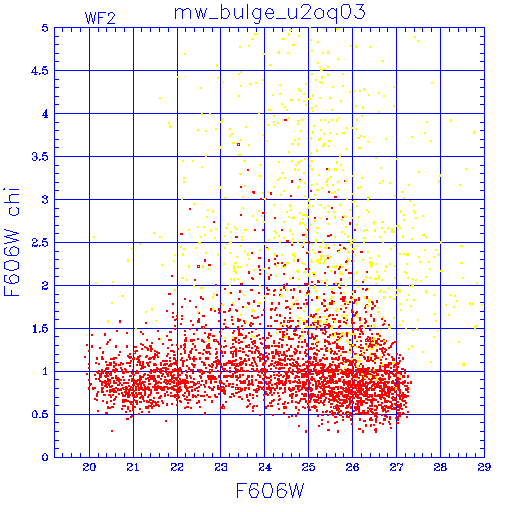

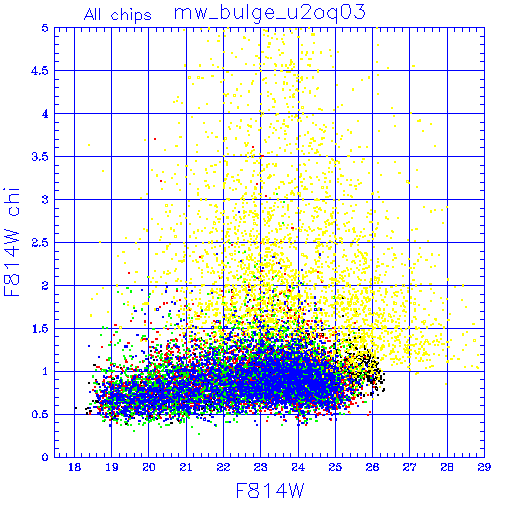

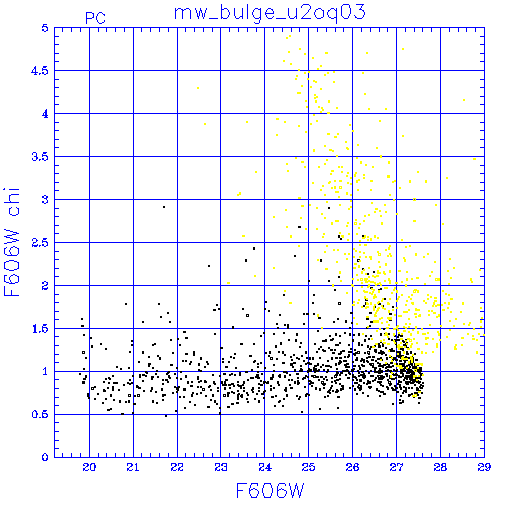

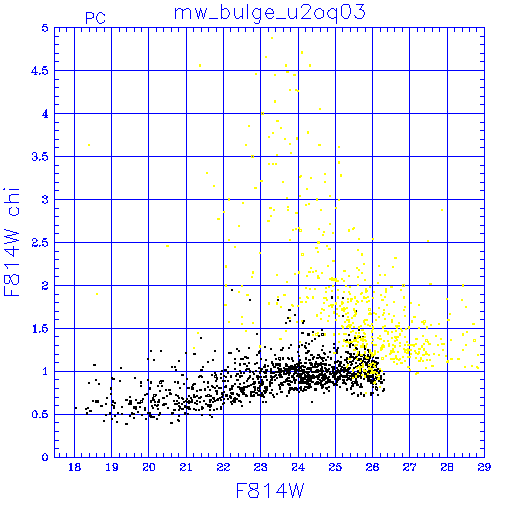

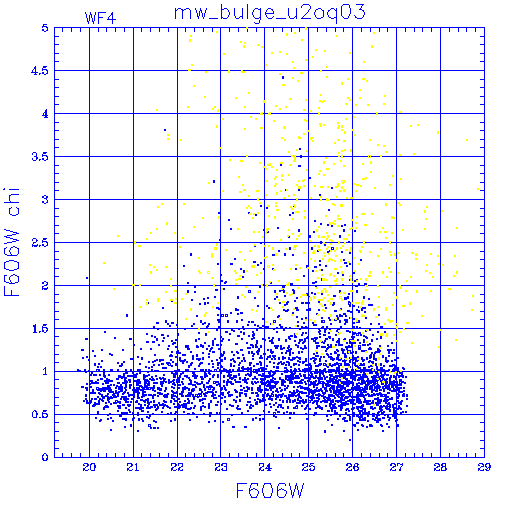

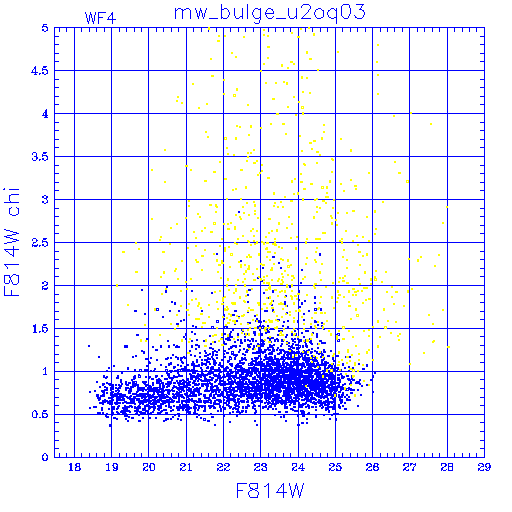

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

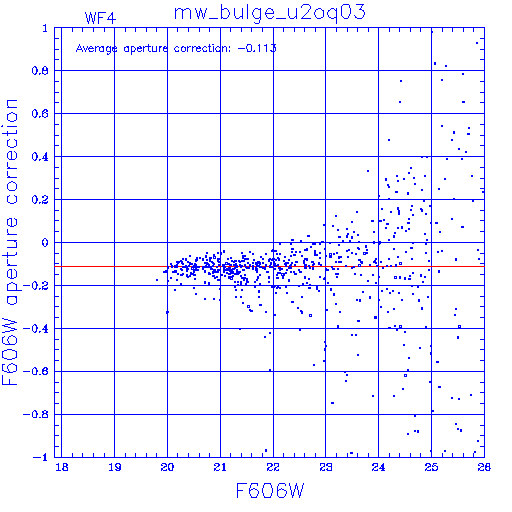

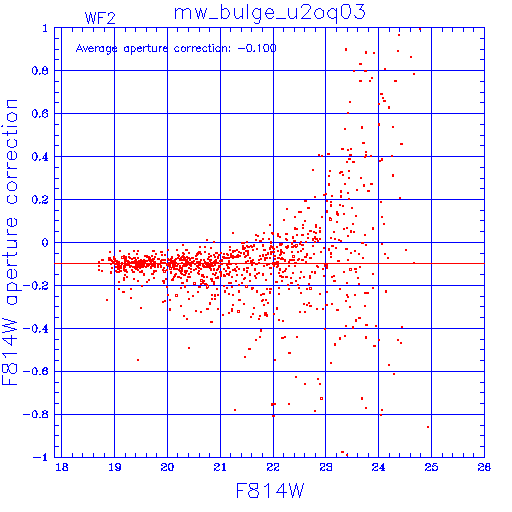

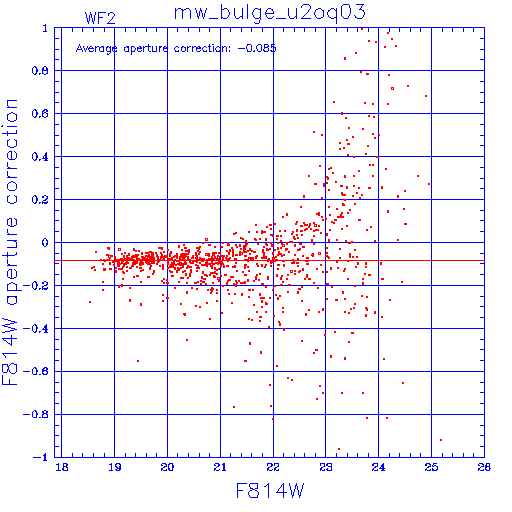

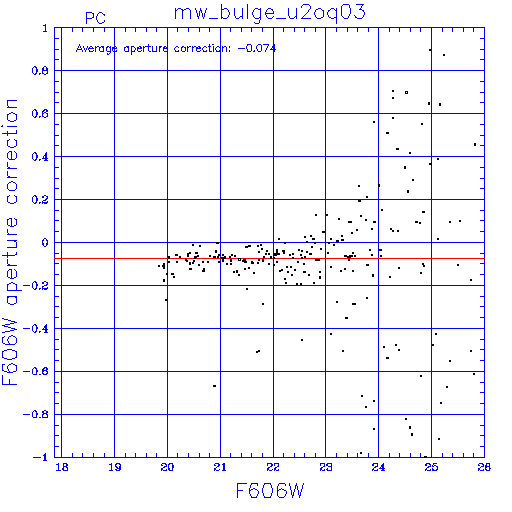

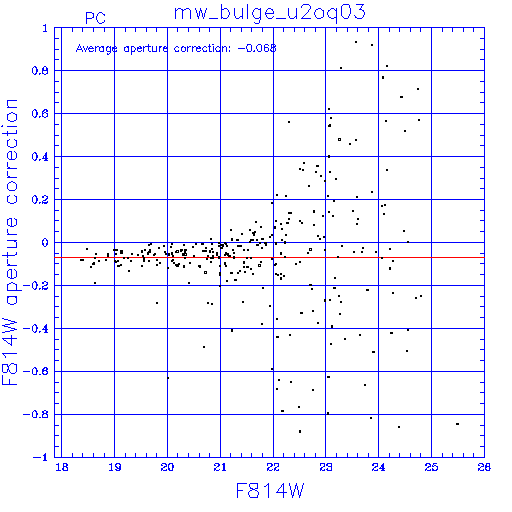

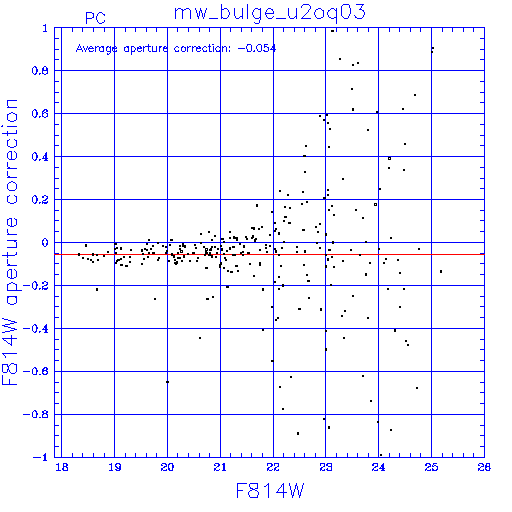

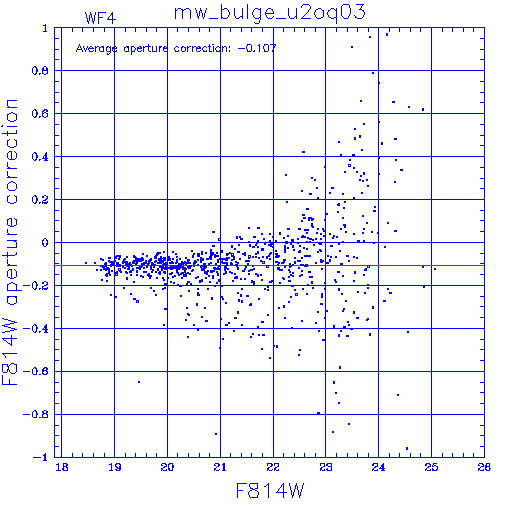

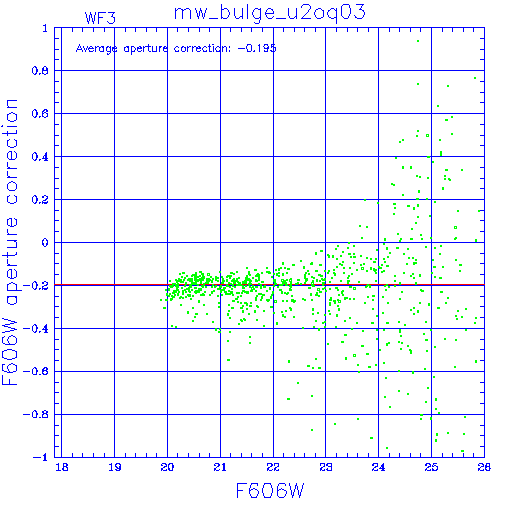

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
