Photometry Diagnostics for mw_bulge_u2cl02

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2cl0201t	F555W	1000.00	0.00	0.00	0.00	0.00	0.00	0.00
u2cl0202t	F555W	20.00	0.01	0.01	0.00	0.00	0.01	0.01
u2cl0203t	F555W	200.00	0.01	0.02	0.00	0.00	0.01	0.02
u2cl0204t	F555W	200.00	0.06	0.04	0.00	0.00	0.06	0.04
u2cl0205t	F555W	1000.00	0.11	-0.07	0.00	0.00	0.11	-0.07
u2cl0206t	F814W	1000.00	0.16	-0.01	0.00	0.00	0.16	-0.01
u2cl0207t	F814W	20.00	0.17	-0.01	0.00	0.00	0.17	-0.01
u2cl0208t	F814W	200.00	0.20	-0.01	0.00	0.00	0.20	-0.01
u2cl0209t	F814W	200.00	0.21	-0.03	0.00	0.00	0.21	-0.03
u2cl020at	F814W	1000.00	0.20	0.01	0.00	0.00	0.20	0.01

Mosaic images

F555W	F814W

HSTPHOT command log

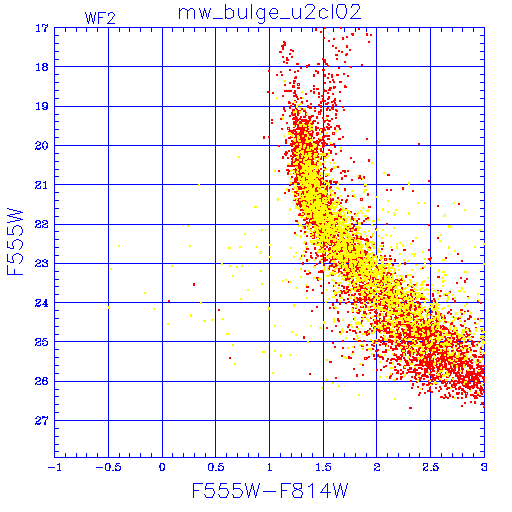

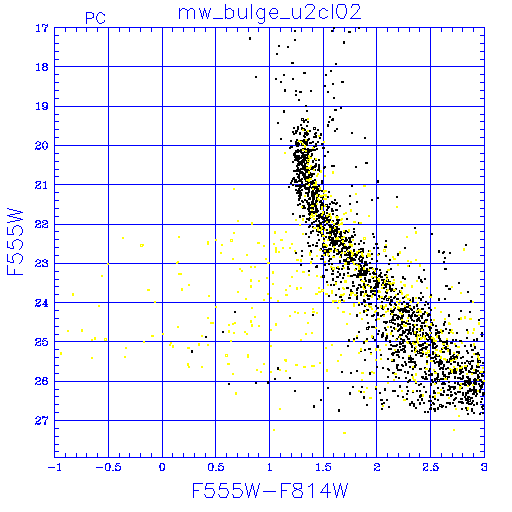

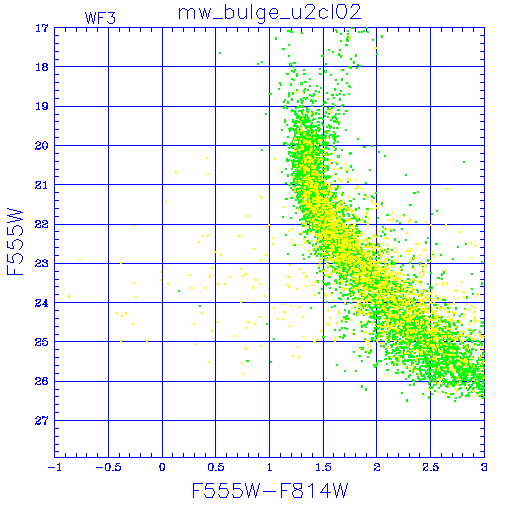

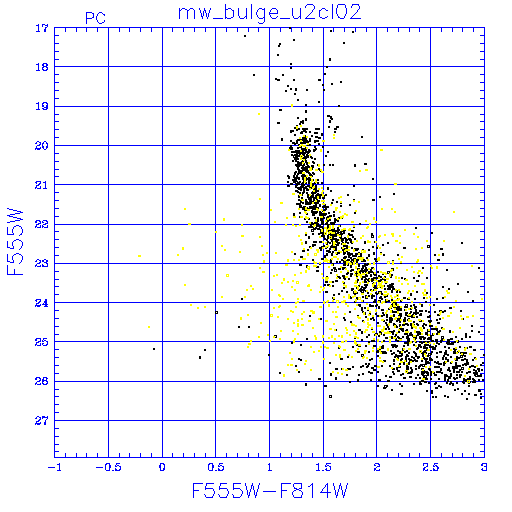

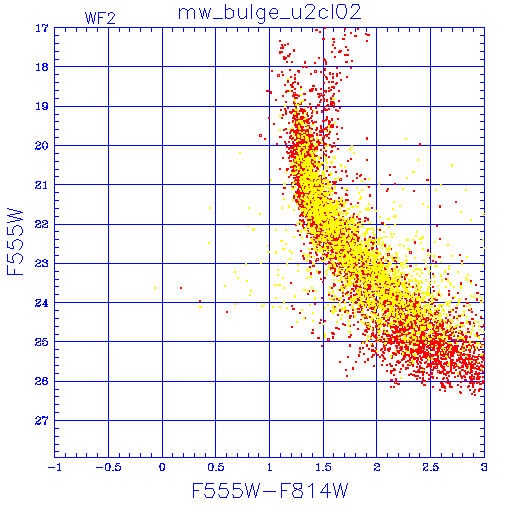

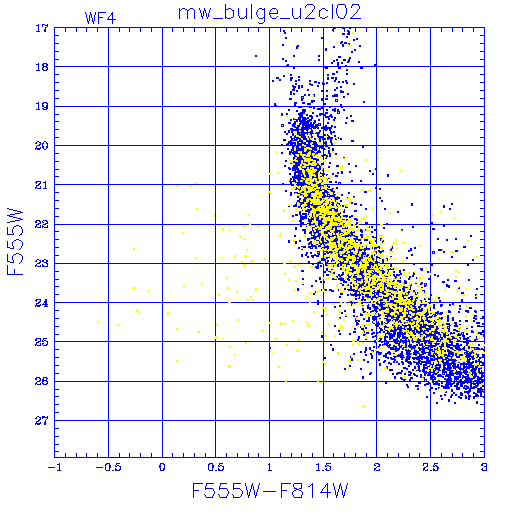

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

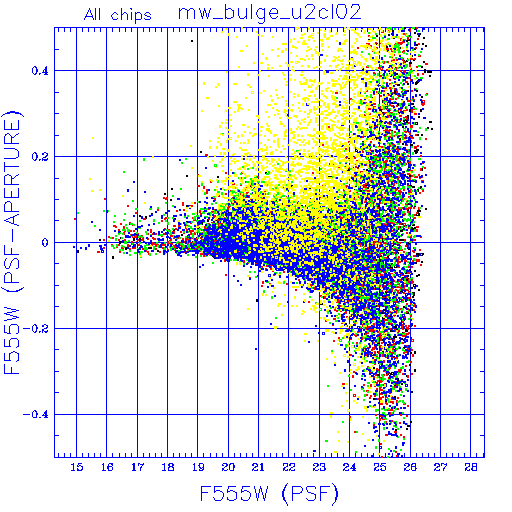

PSF
Aperture

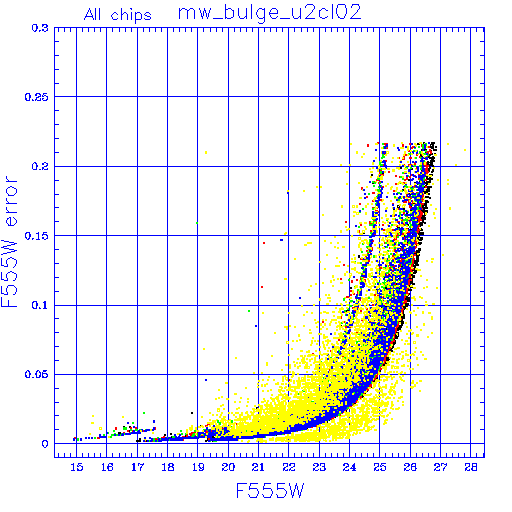

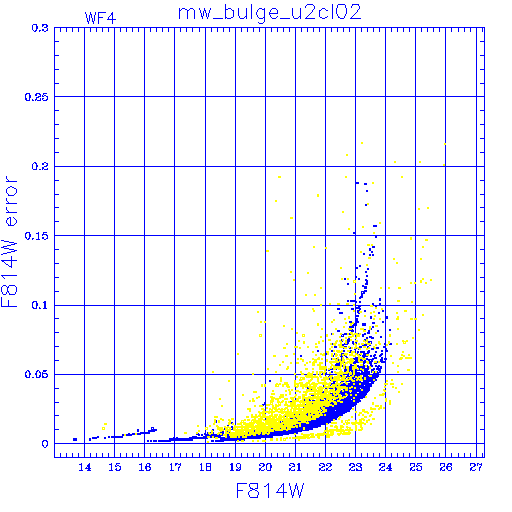

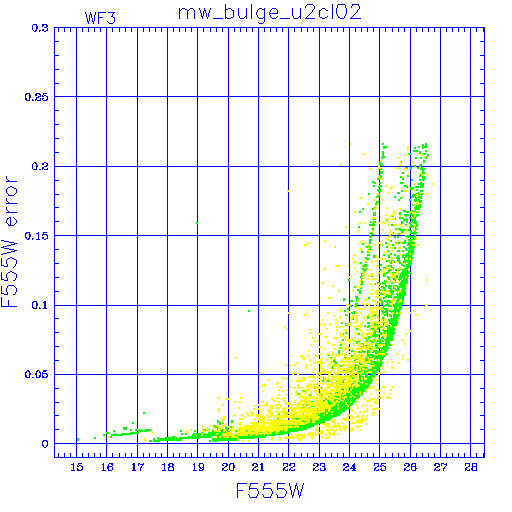

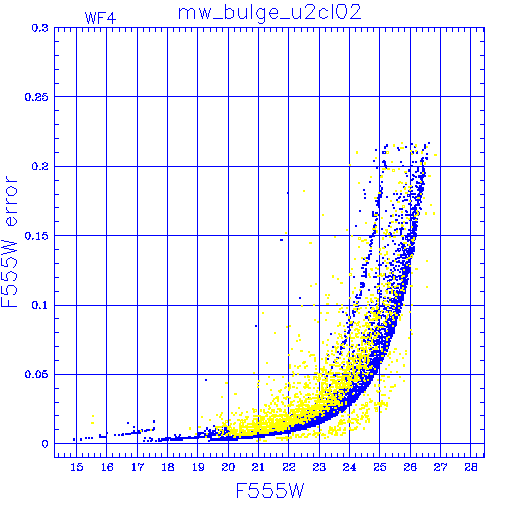

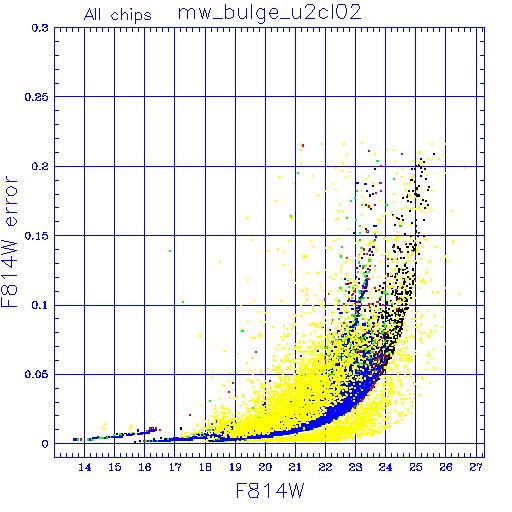

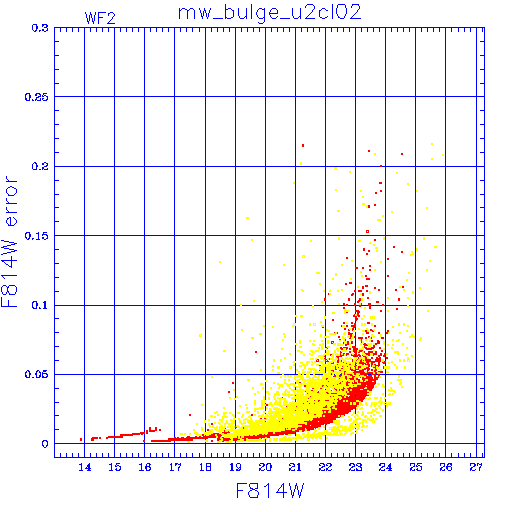

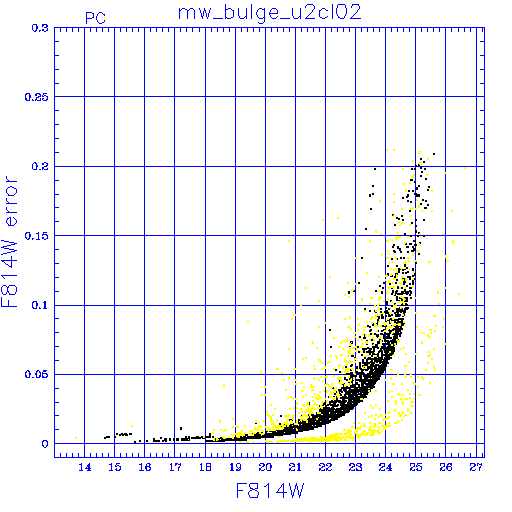

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

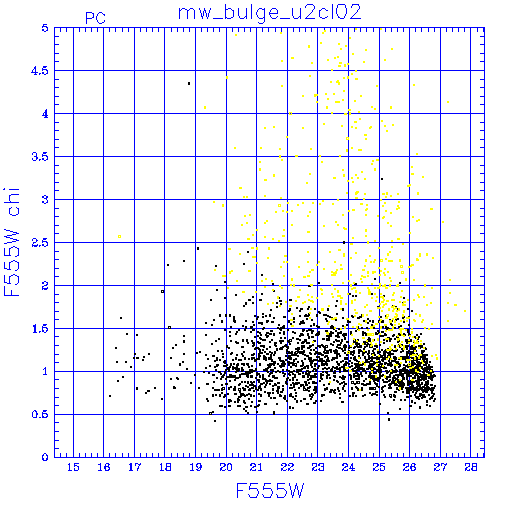

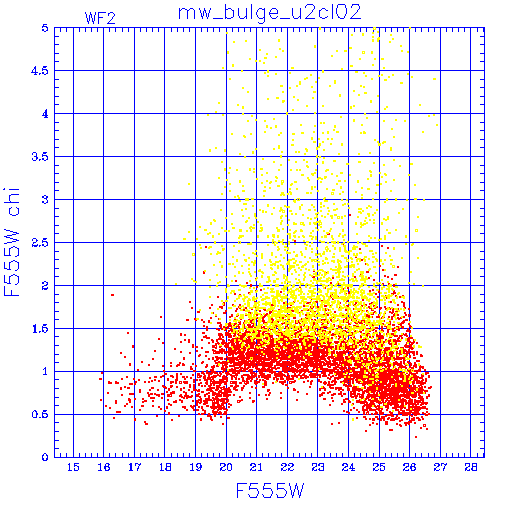

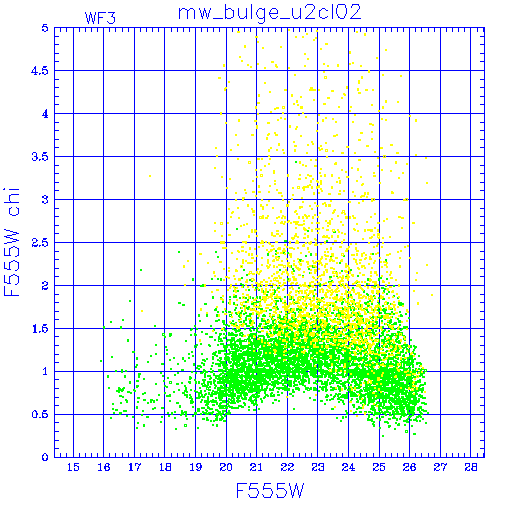

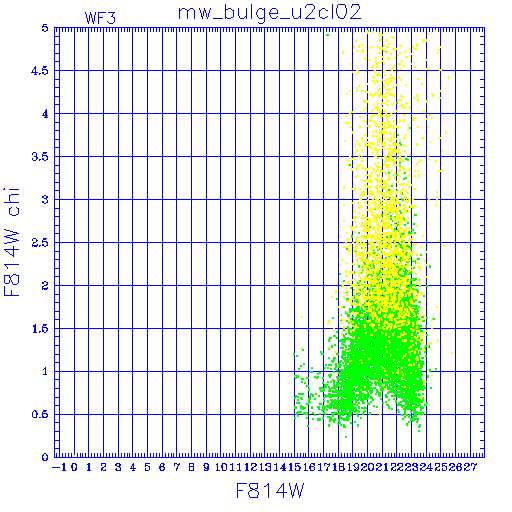

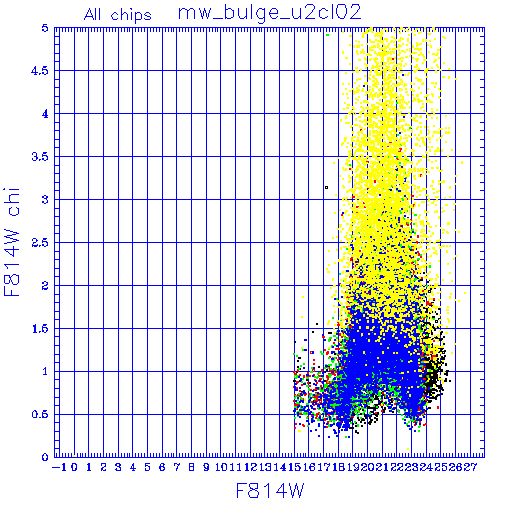

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

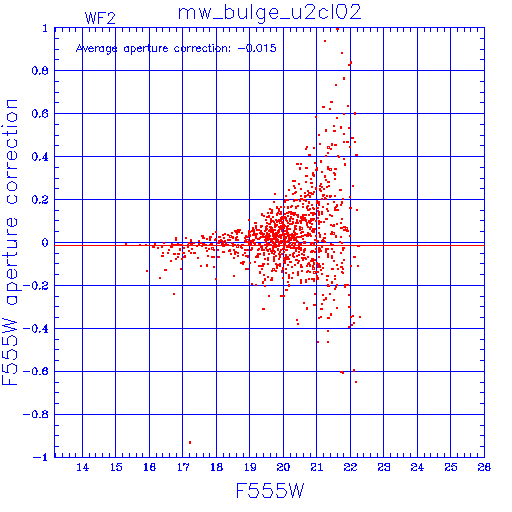

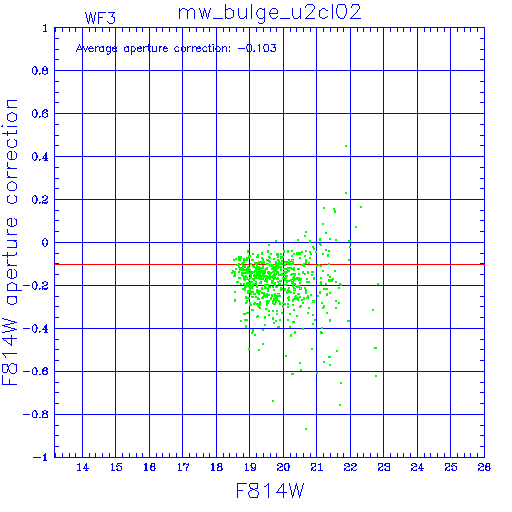

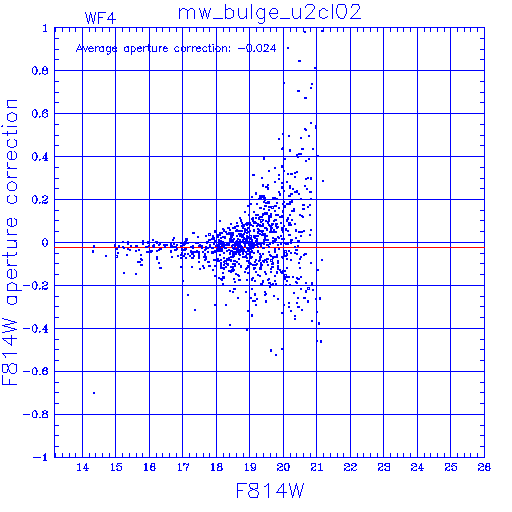

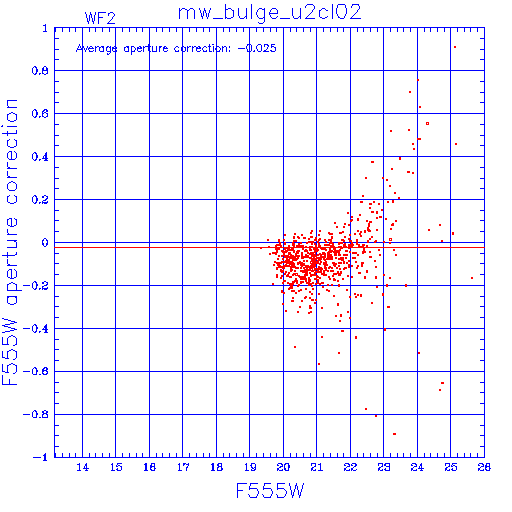

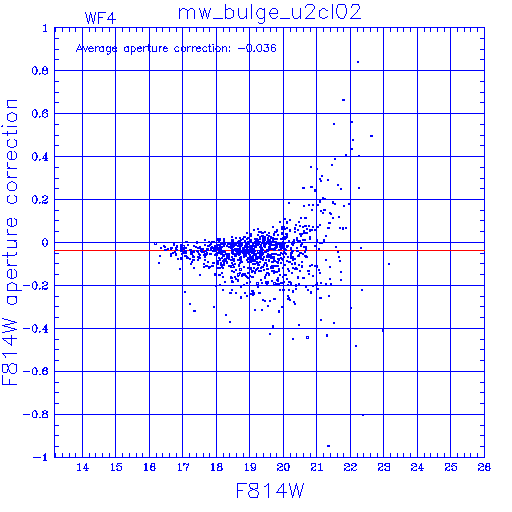

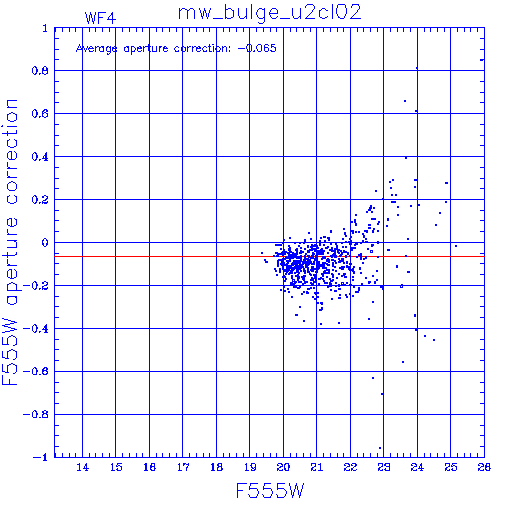

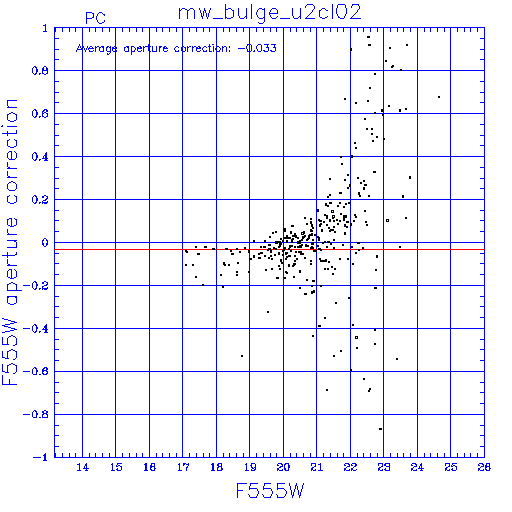

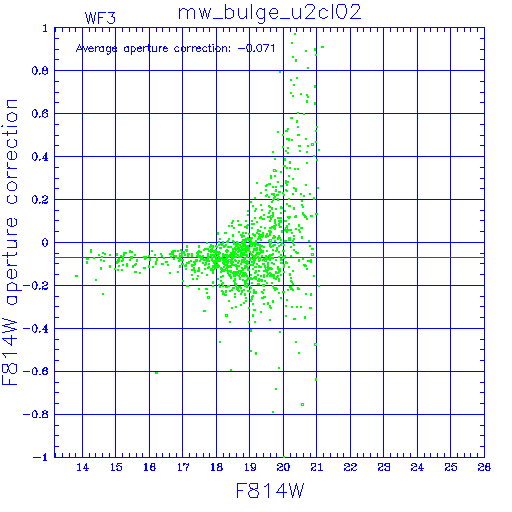

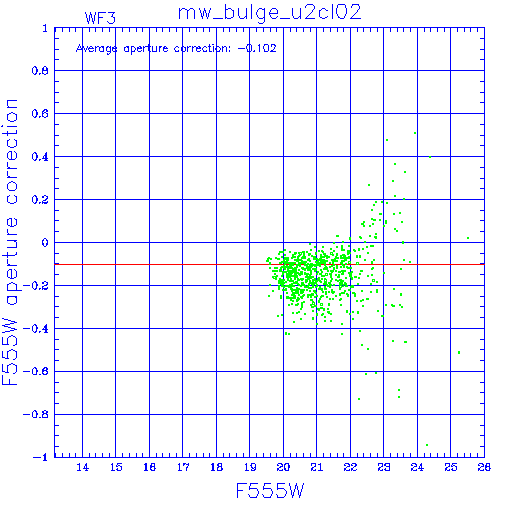

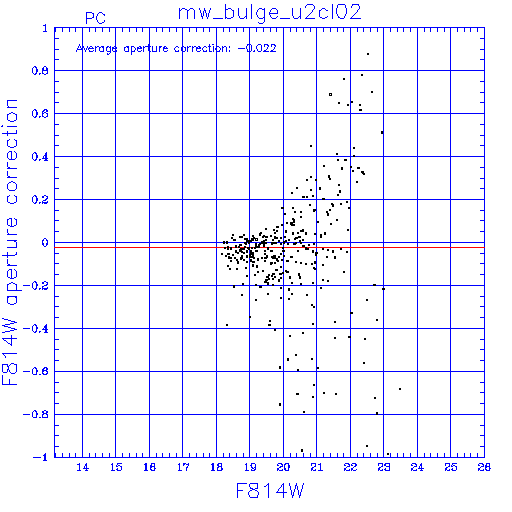

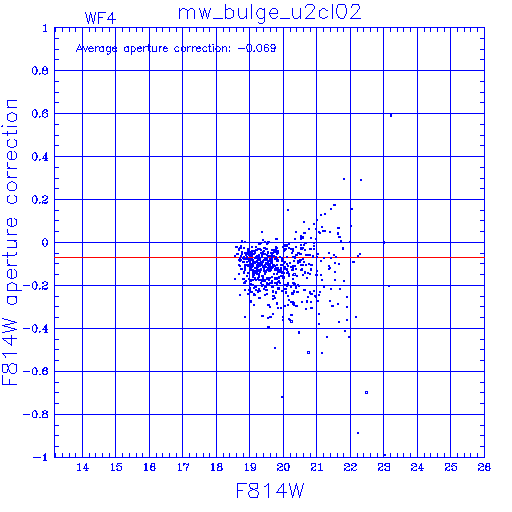

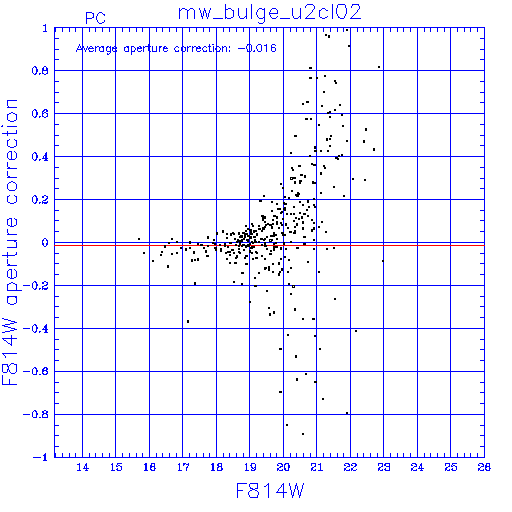

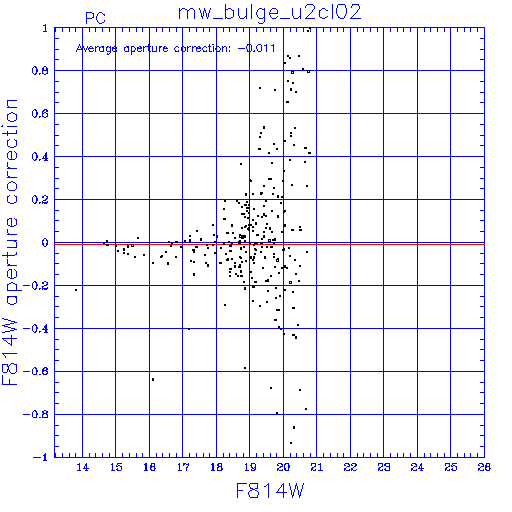

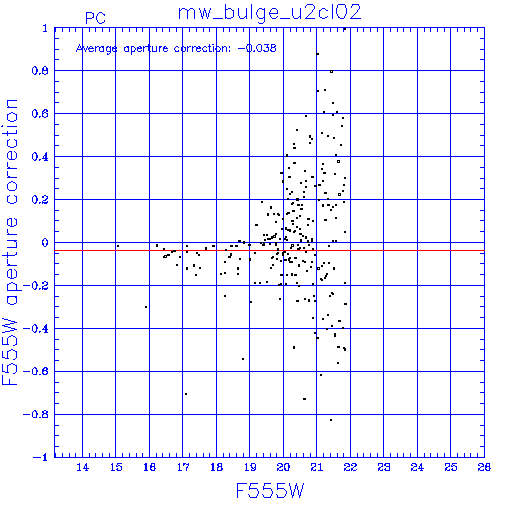

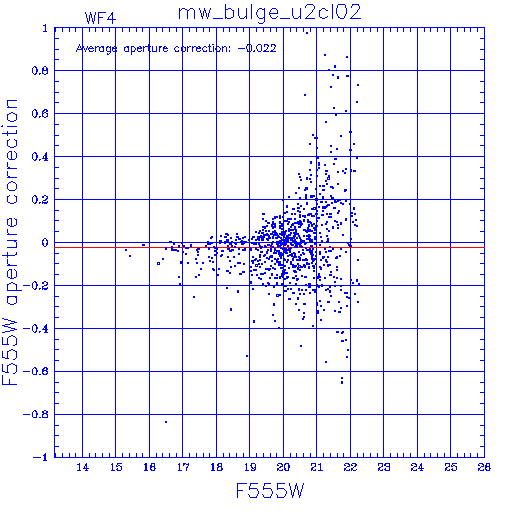

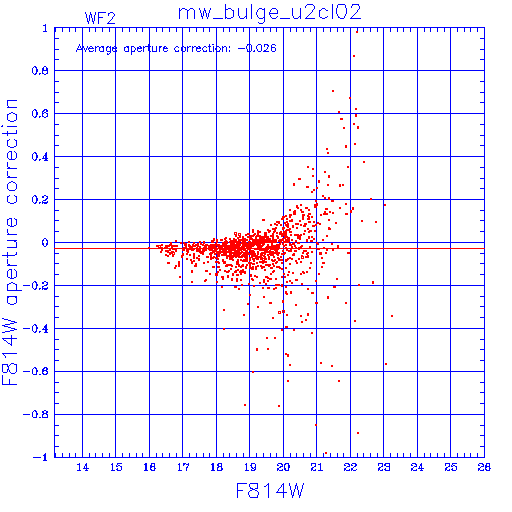

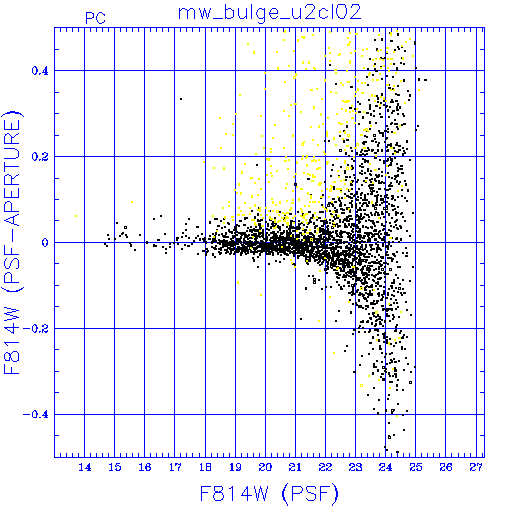

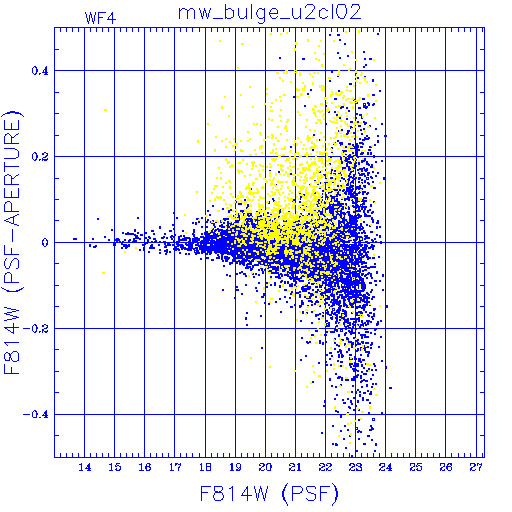

Aperture corrections

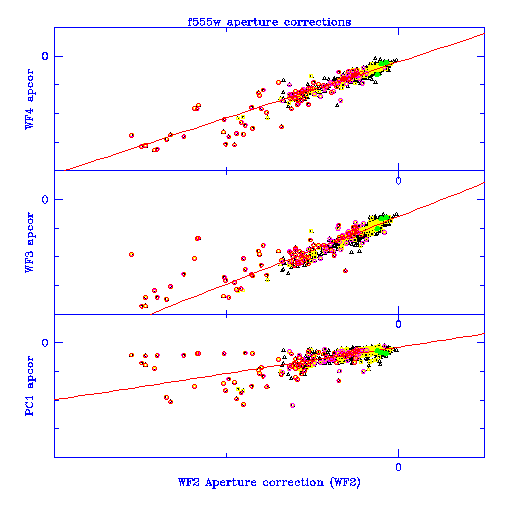

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
