Photometry Diagnostics for m33_u8re04

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u8re0501m	F606W	1100.00	0.00	0.00	0.00	0.00	0.00	0.00
u8re0502m	F606W	1100.00	-0.06	0.09	0.00	0.00	-0.06	0.09
u8re0503m	F606W	1100.00	4.64	-2.74	4.92	-2.94	-0.28	0.20
u8re0504m	F606W	1100.00	4.58	-2.62	4.92	-2.94	-0.34	0.32
u8re0505m	F606W	1100.00	5.39	1.59	5.50	1.31	-0.11	0.28
u8re0506m	F606W	1100.00	5.12	1.86	5.50	1.31	-0.38	0.55
u8re0507m	F606W	1100.00	0.09	4.34	0.58	4.25	-0.49	0.09
u8re0508m	F606W	1100.00	0.03	4.49	0.58	4.25	-0.55	0.24
u8re0401m	F814W	1100.00	-1.30	0.68	0.00	0.00	-1.30	0.68
u8re0402m	F814W	1100.00	-1.26	0.98	0.00	0.00	-1.26	0.98
u8re0403m	F814W	1100.00	3.76	-2.21	4.92	-2.94	-1.16	0.73
u8re0404m	F814W	1100.00	3.78	-2.09	4.92	-2.94	-1.14	0.85
u8re0405m	F814W	1100.00	4.35	2.10	5.50	1.31	-1.15	0.79
u8re0406m	F814W	1100.00	4.36	2.21	5.50	1.31	-1.14	0.90
u8re0407m	F814W	1100.00	-0.43	4.77	0.58	4.25	-1.01	0.52
u8re0408m	F814W	1100.00	-0.46	4.97	0.58	4.25	-1.04	0.72
u8re0601m	F814W	1100.00	-2.05	0.74	0.00	0.00	-2.05	0.74
u8re0602m	F814W	1100.00	-2.07	0.99	0.00	0.00	-2.07	0.99
u8re0603m	F814W	1100.00	2.76	-2.11	4.92	-2.94	-2.16	0.83
u8re0604m	F814W	1100.00	2.79	-1.97	4.92	-2.94	-2.13	0.97
u8re0605m	F814W	1100.00	3.93	2.27	5.50	1.31	-1.57	0.96
u8re0606m	F814W	1100.00	3.86	2.40	5.50	1.31	-1.64	1.09
u8re0607m	F814W	1100.00	-1.41	4.97	0.58	4.25	-1.99	0.72
u8re0608m	F814W	1100.00	-1.41	5.17	0.58	4.25	-1.99	0.92

Mosaic images

F606W	F814W

HSTPHOT command log

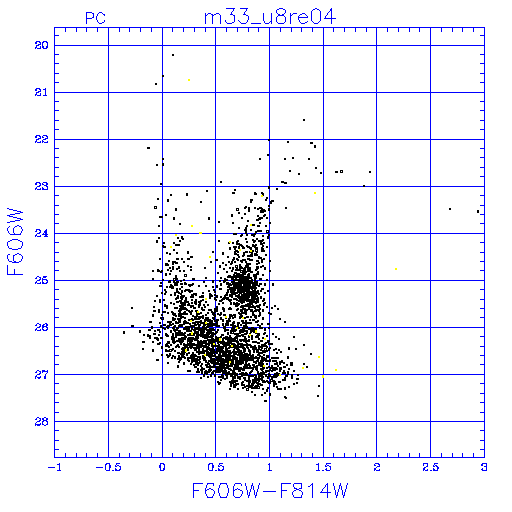

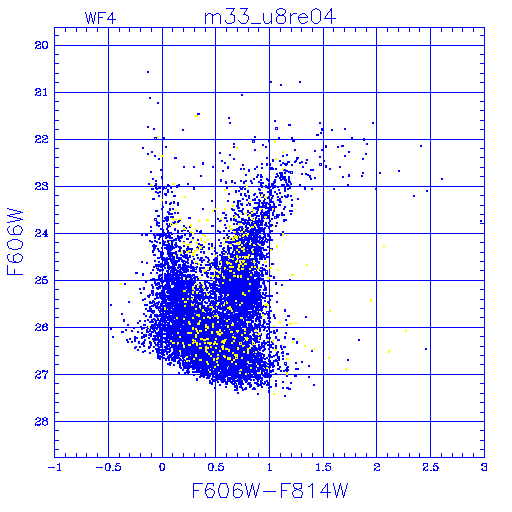

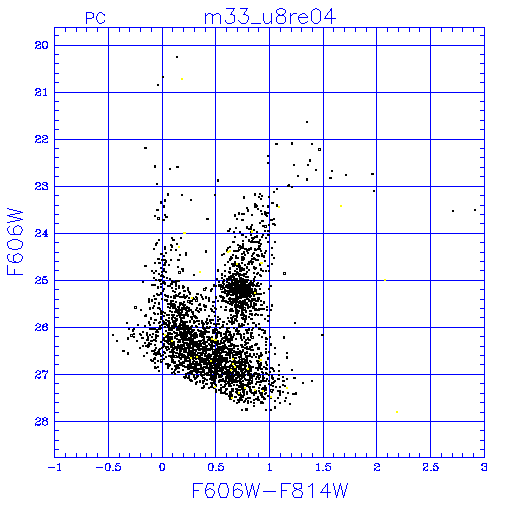

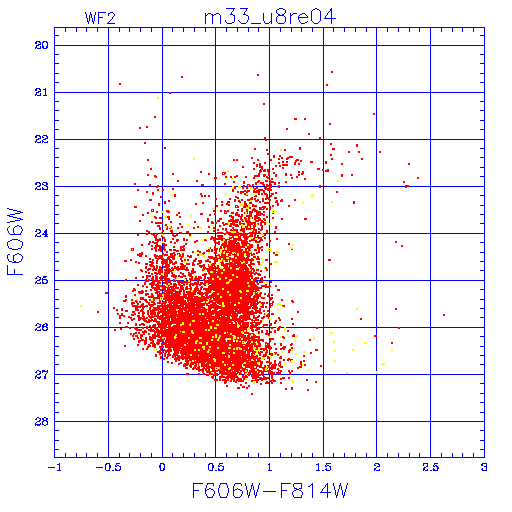

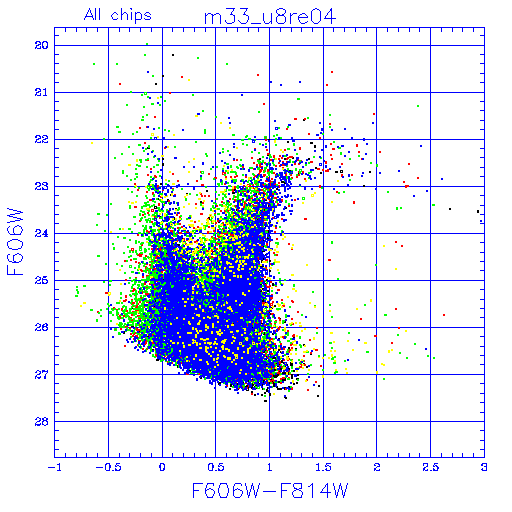

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

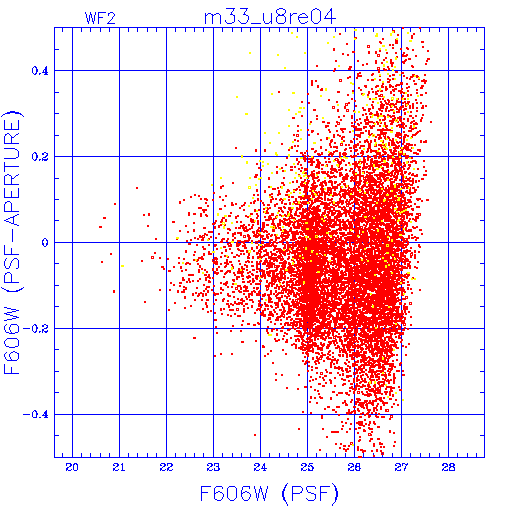

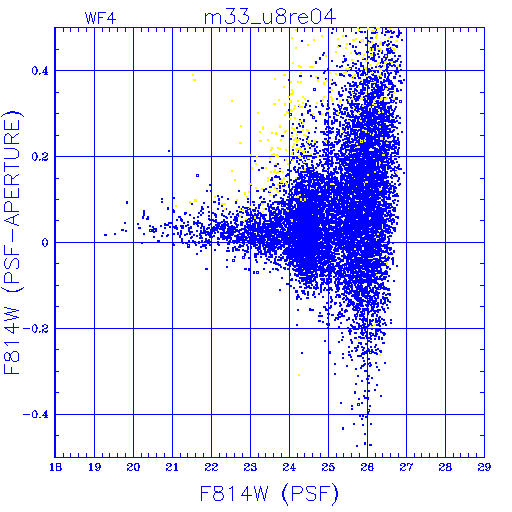

PSF
Aperture

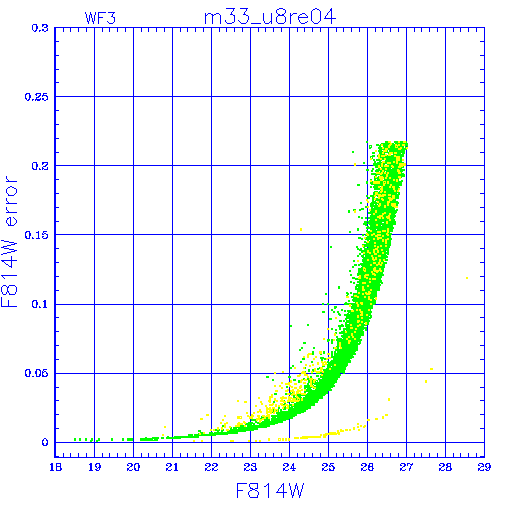

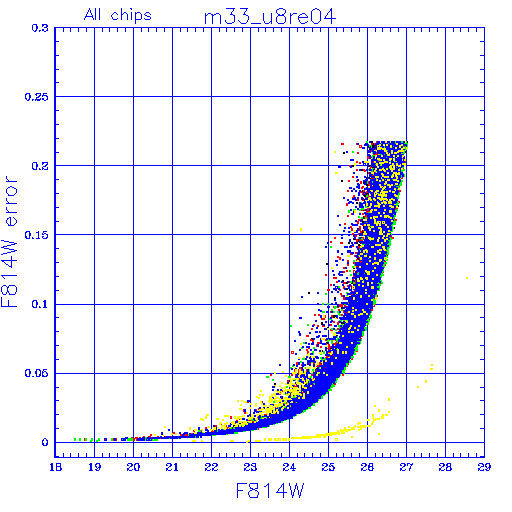

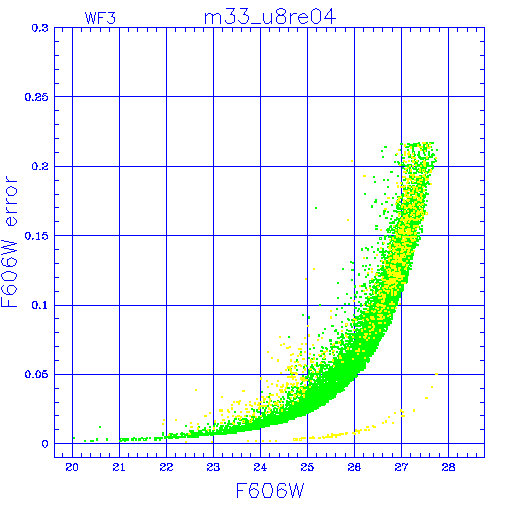

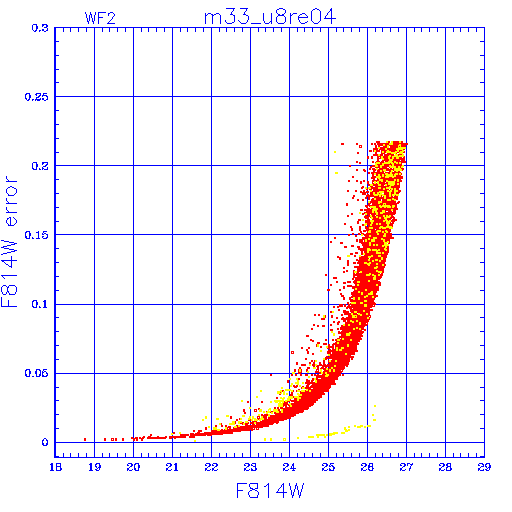

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

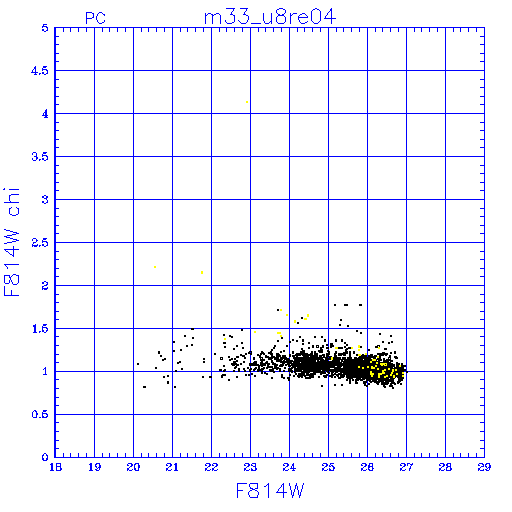

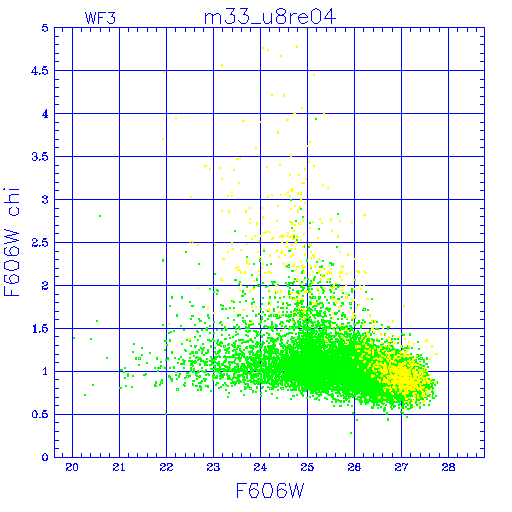

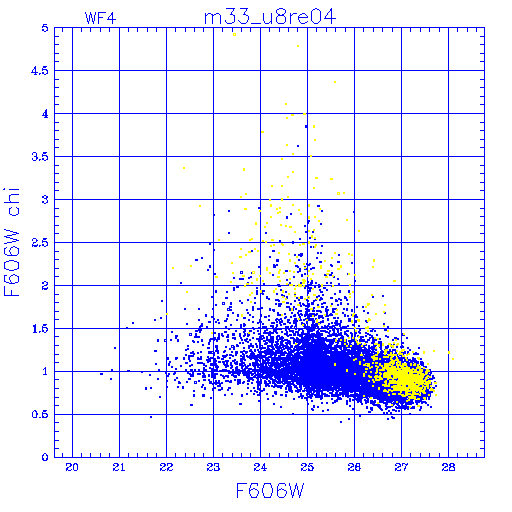

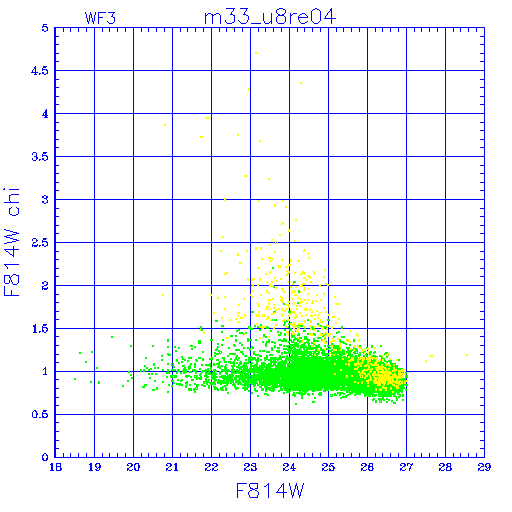

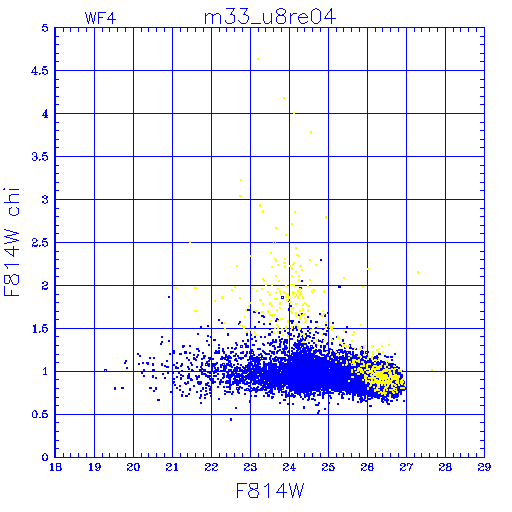

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

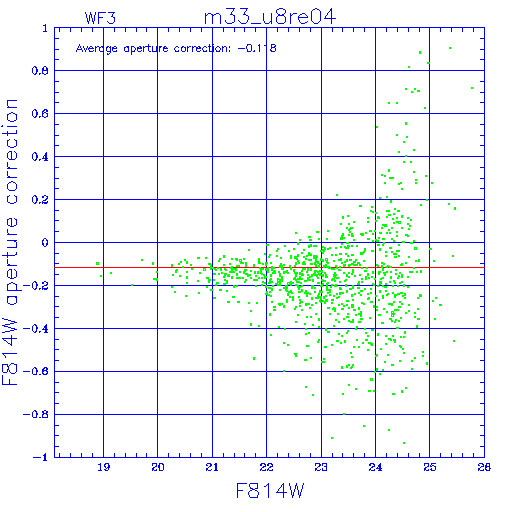

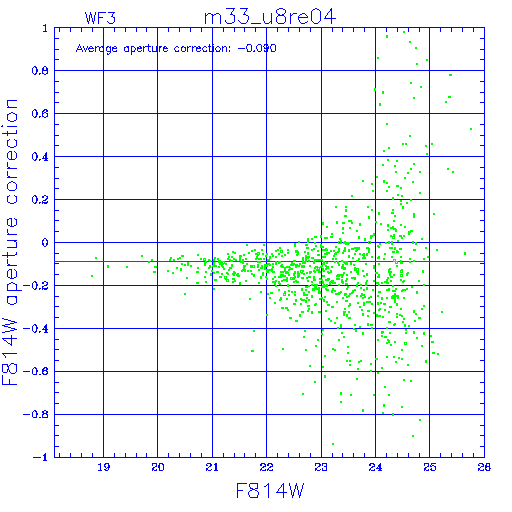

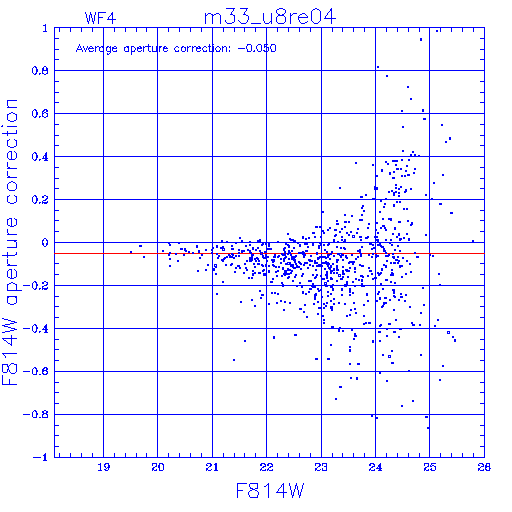

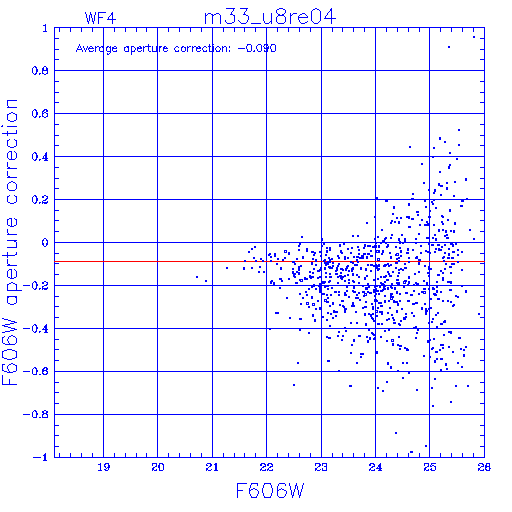

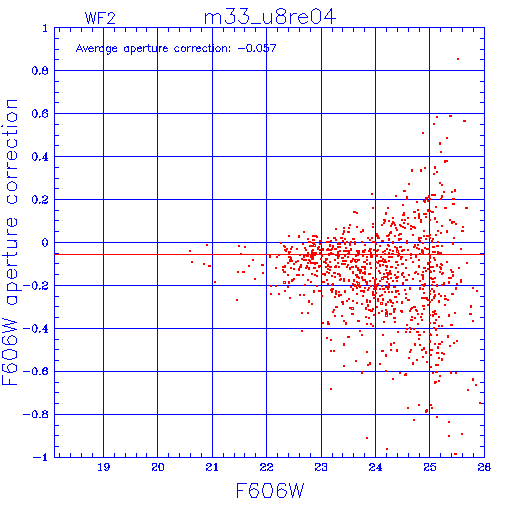

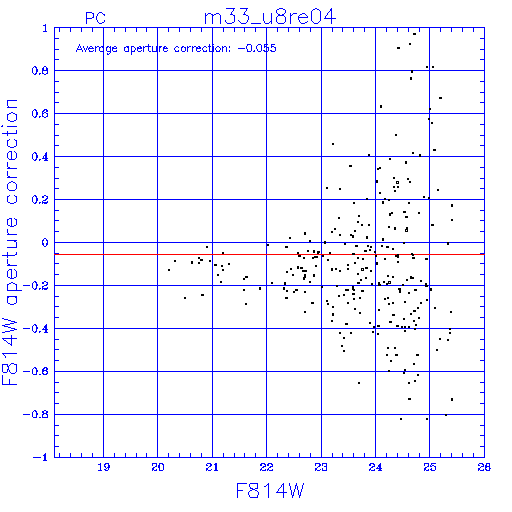

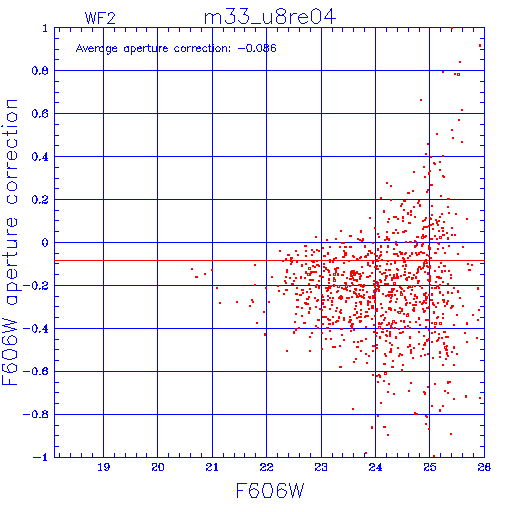

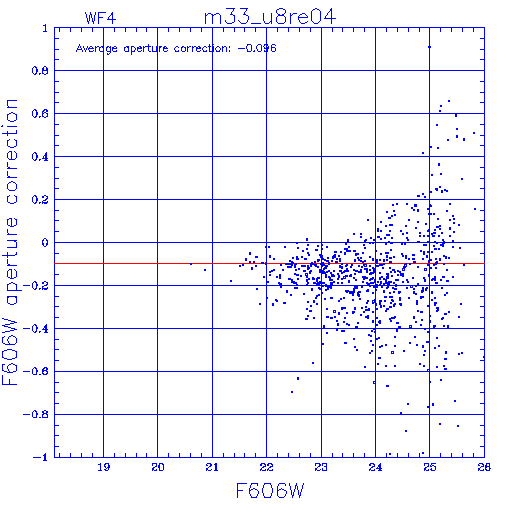

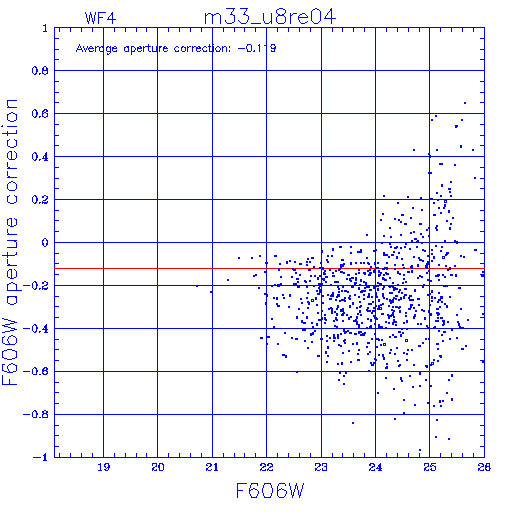

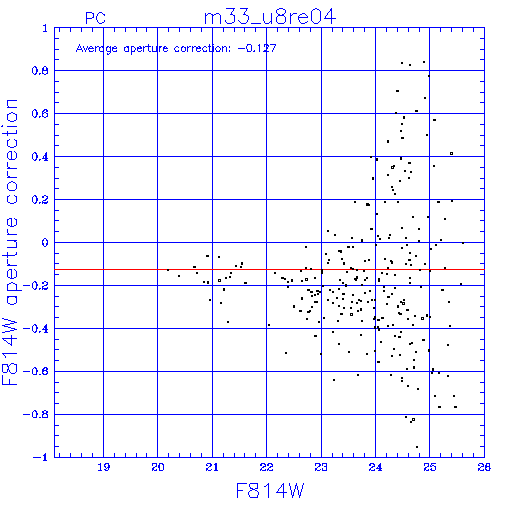

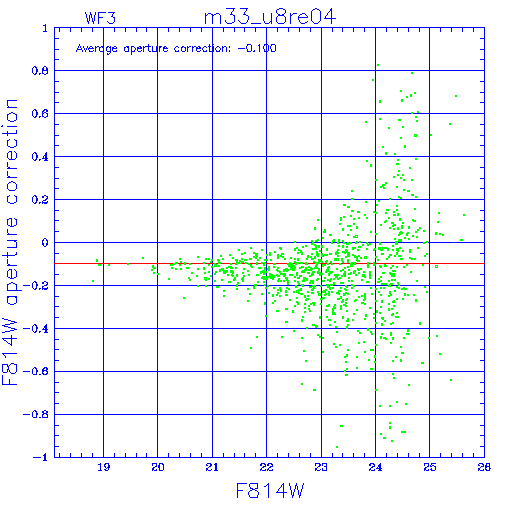

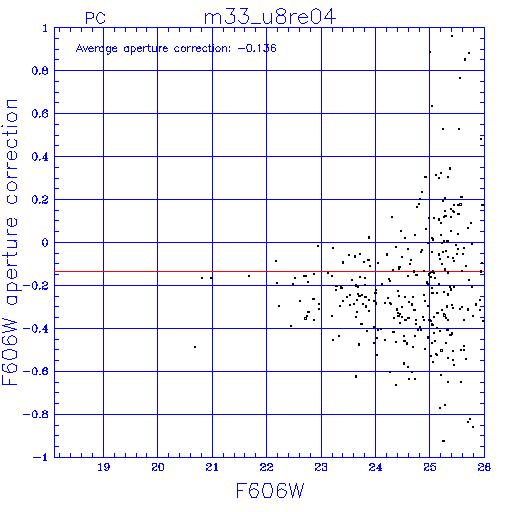

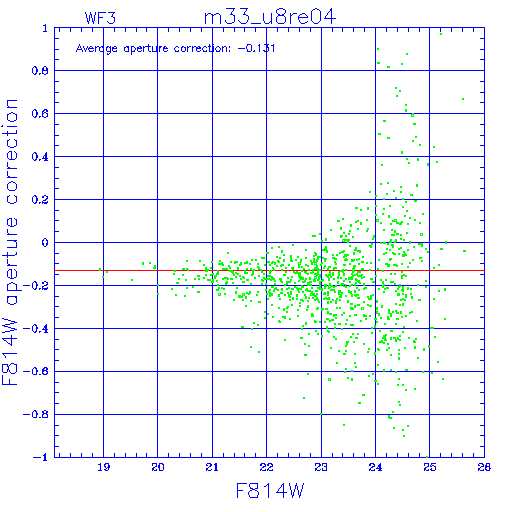

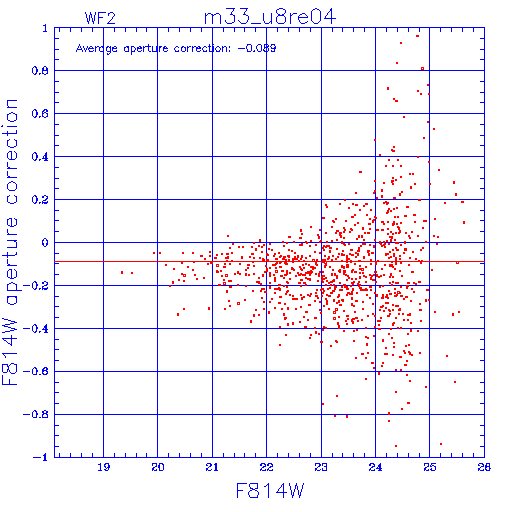

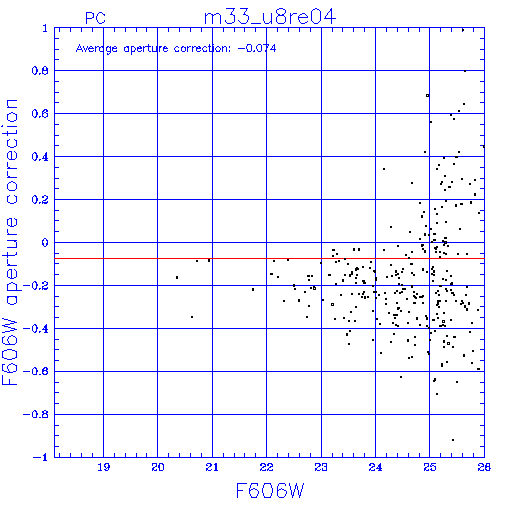

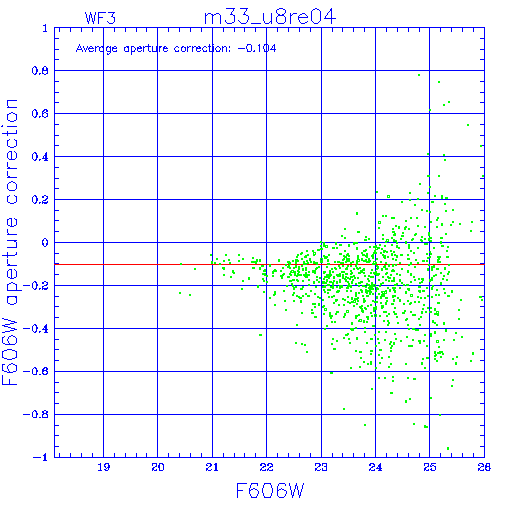

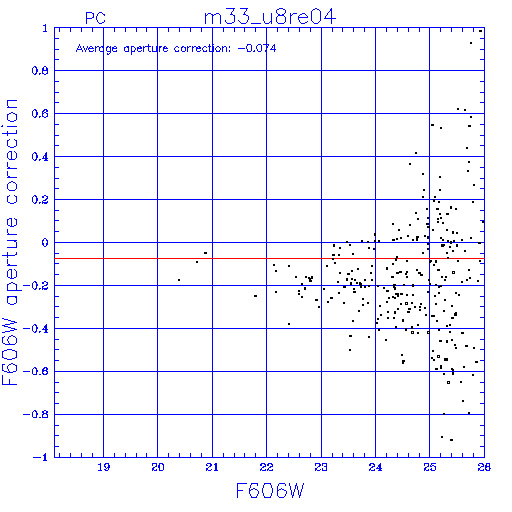

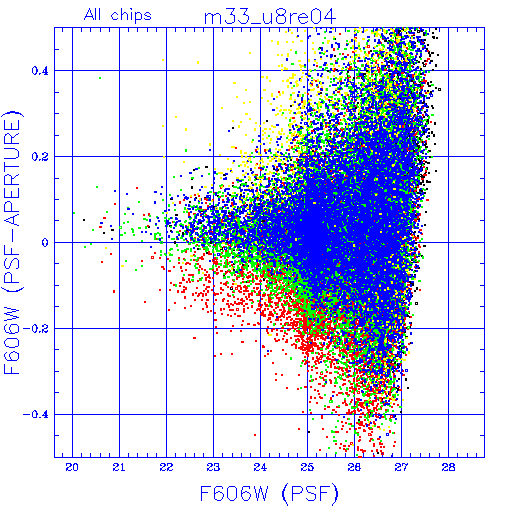

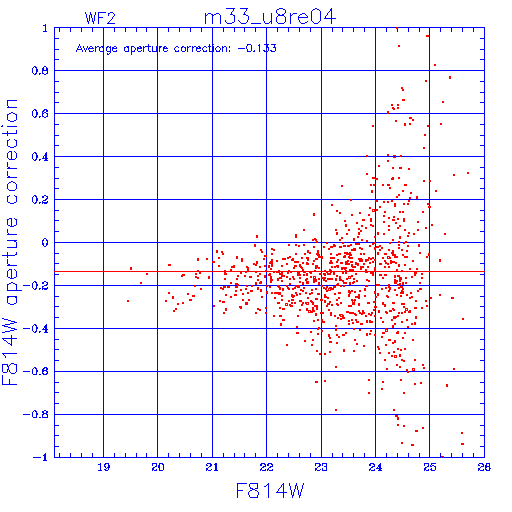

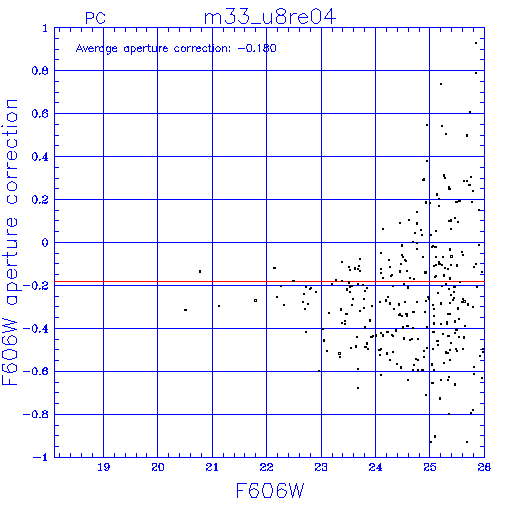

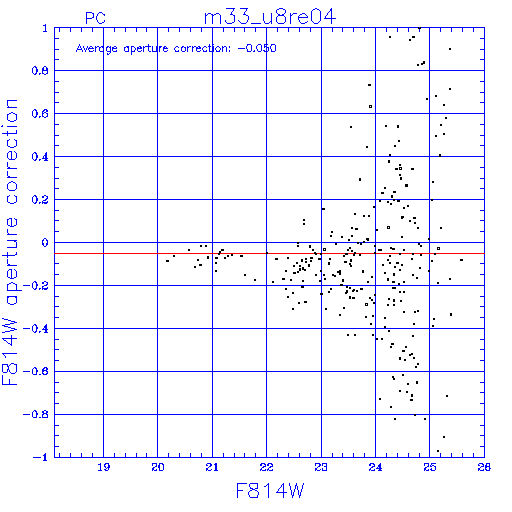

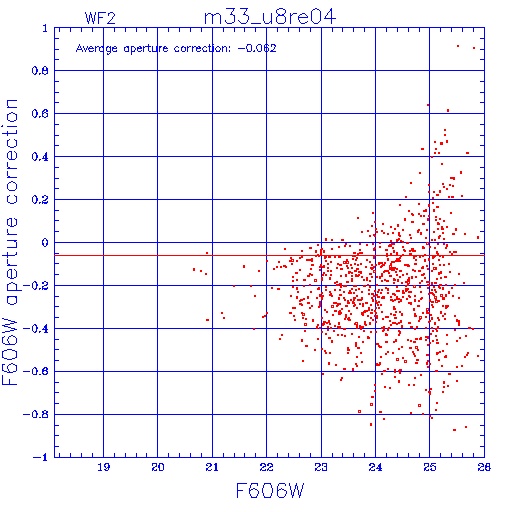

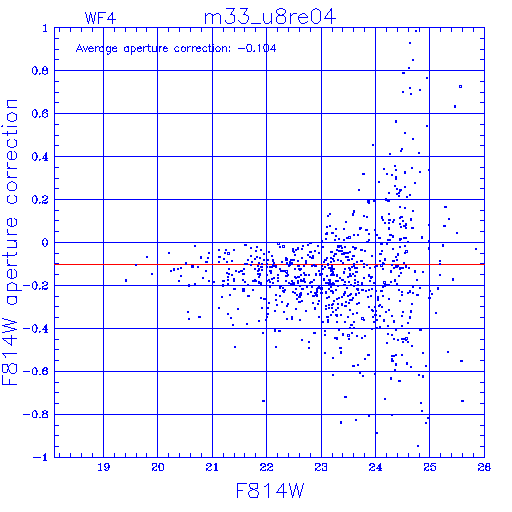

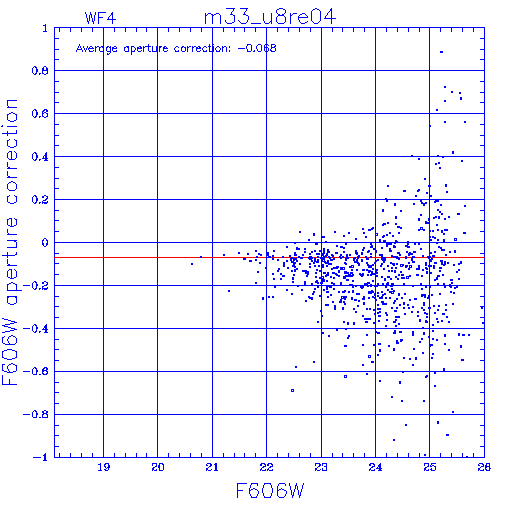

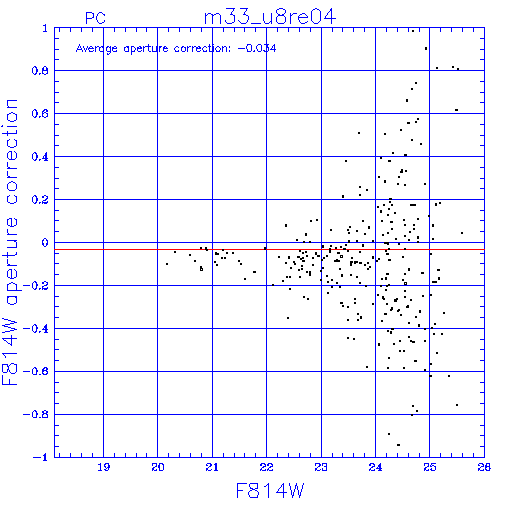

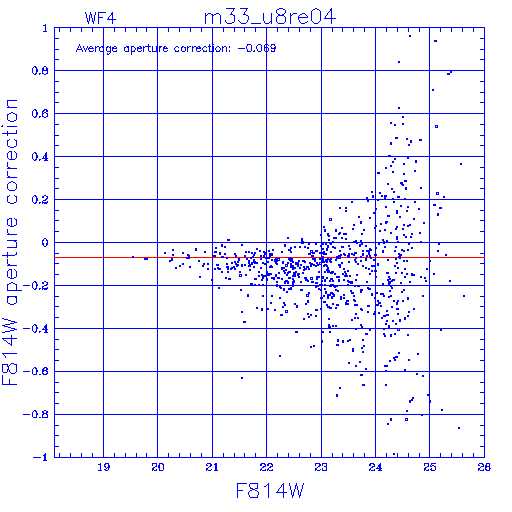

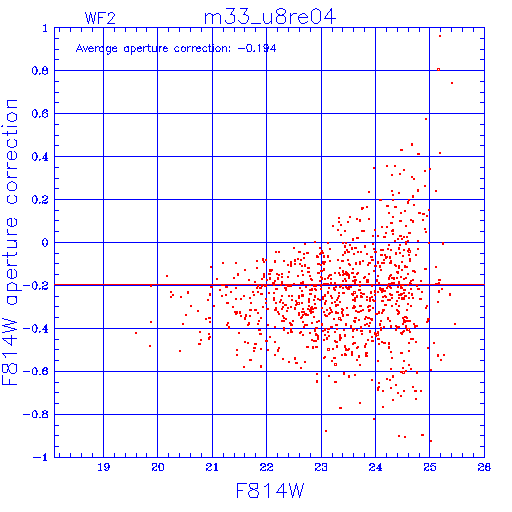

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
