Photometry Diagnostics for m33_u8re01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u8re0201m	F606W	1100.00	0.00	0.00	0.00	0.00	0.00	0.00
u8re0202m	F606W	1100.00	-0.03	0.15	0.00	0.00	-0.03	0.15
u8re0203m	F606W	1100.00	4.85	-2.87	4.92	-2.94	-0.07	0.07
u8re0204m	F606W	1100.00	4.89	-2.76	4.92	-2.94	-0.03	0.18
u8re0205m	F606W	1100.00	5.79	1.51	5.50	1.31	0.29	0.20
u8re0206m	F606W	1100.00	5.51	1.50	5.50	1.31	0.01	0.19
u8re0207m	F606W	1100.00	0.39	4.22	0.58	4.25	-0.19	-0.03
u8re0208m	F606W	1100.00	0.41	4.39	0.58	4.25	-0.17	0.14
u8re0101m	F814W	1100.00	-0.08	0.24	0.00	0.00	-0.08	0.24
u8re0102m	F814W	1100.00	-0.13	0.43	0.00	0.00	-0.13	0.43
u8re0103m	F814W	1100.00	4.71	-2.47	4.92	-2.94	-0.21	0.47
u8re0104m	F814W	1100.00	4.75	-2.32	4.92	-2.94	-0.17	0.62
u8re0105m	F814W	1100.00	5.68	1.78	5.50	1.31	0.18	0.47
u8re0106m	F814W	1100.00	5.51	1.90	5.50	1.31	0.01	0.59
u8re0107m	F814W	1100.00	0.30	4.49	0.58	4.25	-0.28	0.24
u8re0108m	F814W	1100.00	0.30	4.67	0.58	4.25	-0.28	0.42
u8re0301m	F814W	1100.00	-0.10	0.21	0.00	0.00	-0.10	0.21
u8re0302m	F814W	1100.00	-0.14	0.40	0.00	0.00	-0.14	0.40
u8re0303m	F814W	1100.00	4.71	-2.50	4.92	-2.94	-0.21	0.44
u8re0304m	F814W	1100.00	4.75	-2.36	4.92	-2.94	-0.17	0.58
u8re0305m	F814W	1100.00	5.65	1.76	5.50	1.31	0.15	0.45
u8re0306m	F814W	1100.00	5.48	1.89	5.50	1.31	-0.02	0.58
u8re0307m	F814W	1100.00	0.31	4.47	0.58	4.25	-0.27	0.22
u8re0308m	F814W	1100.00	0.31	4.65	0.58	4.25	-0.27	0.40

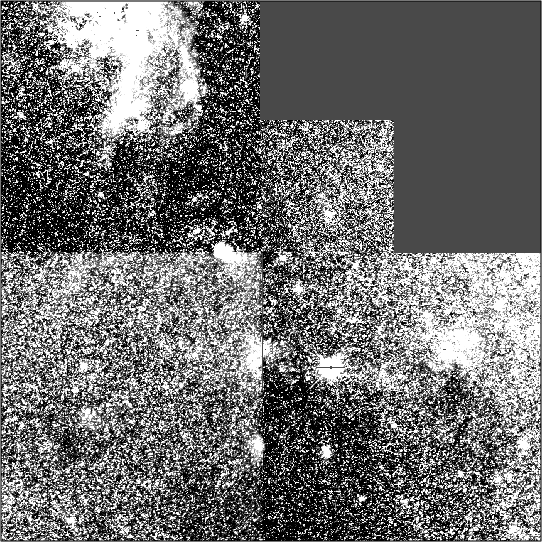

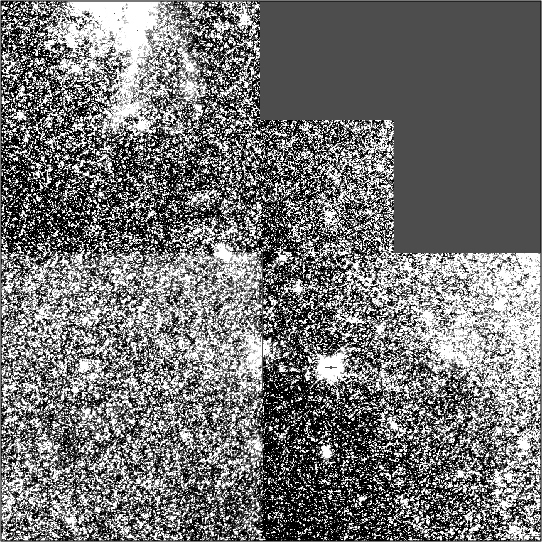

Mosaic images

F606W	F814W

HSTPHOT command log

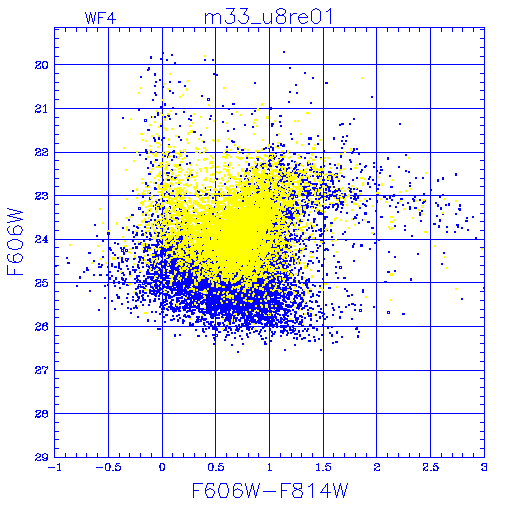

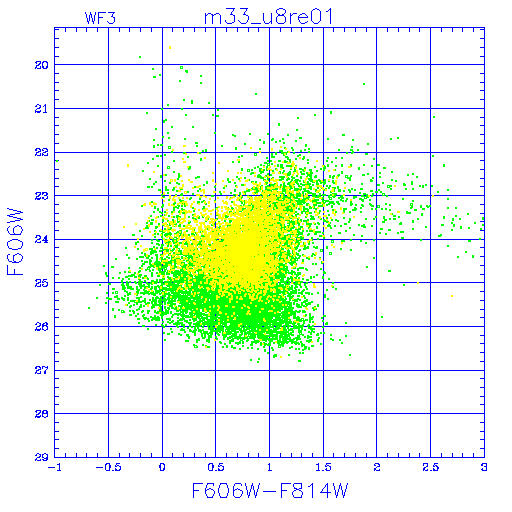

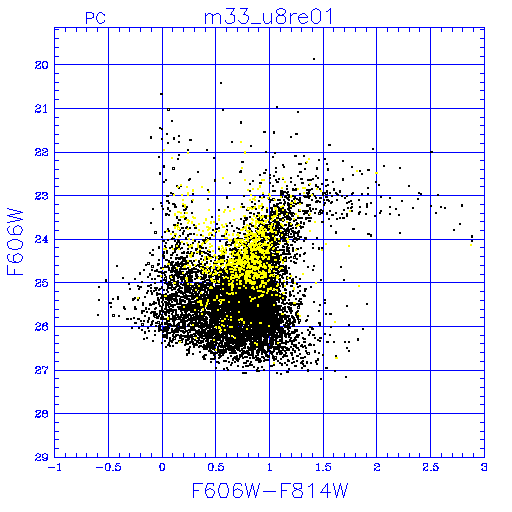

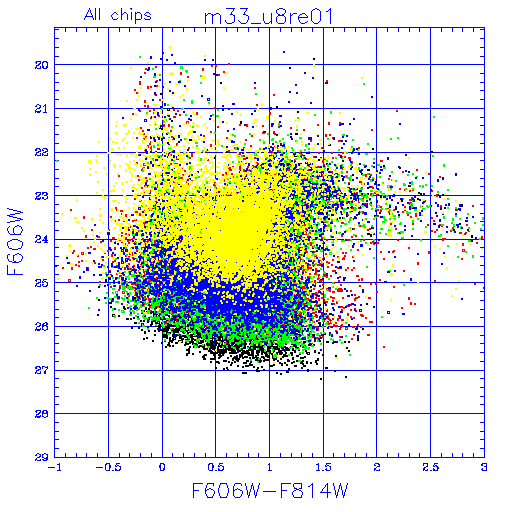

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

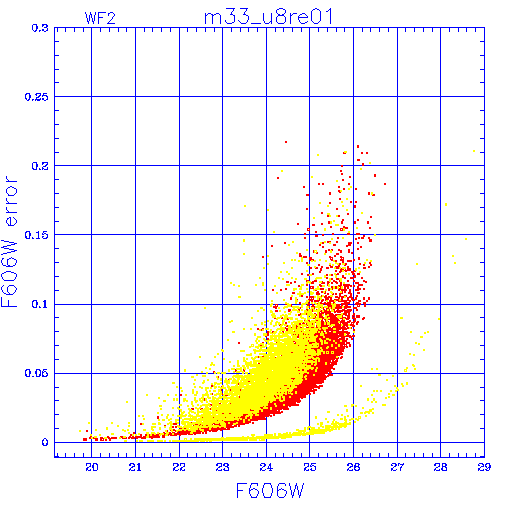

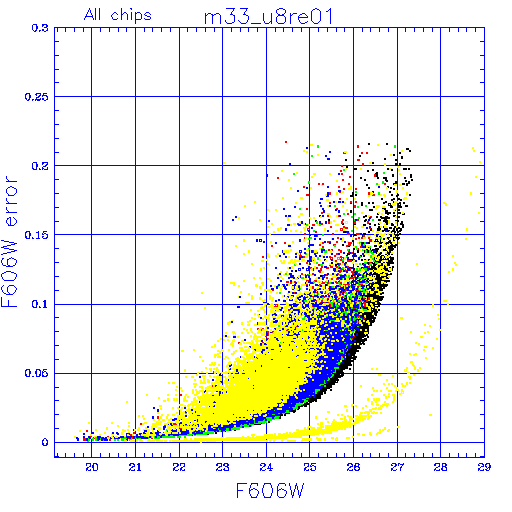

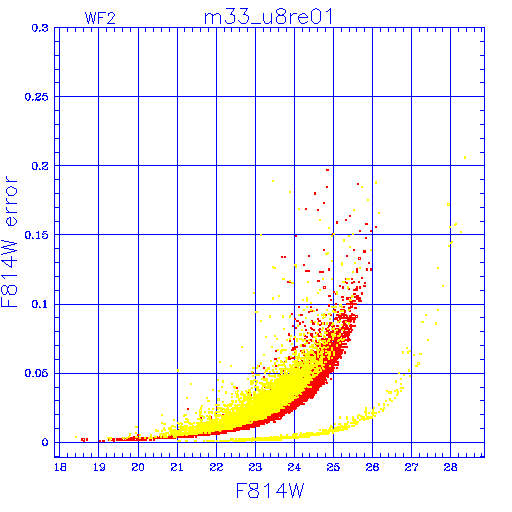

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

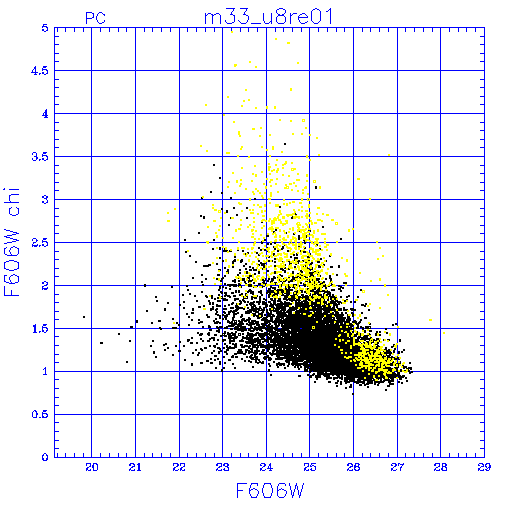

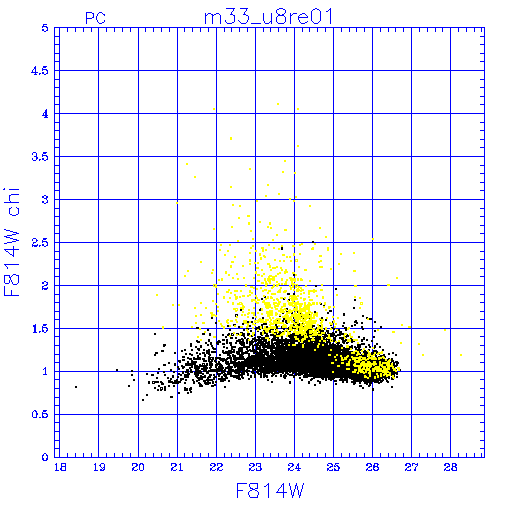

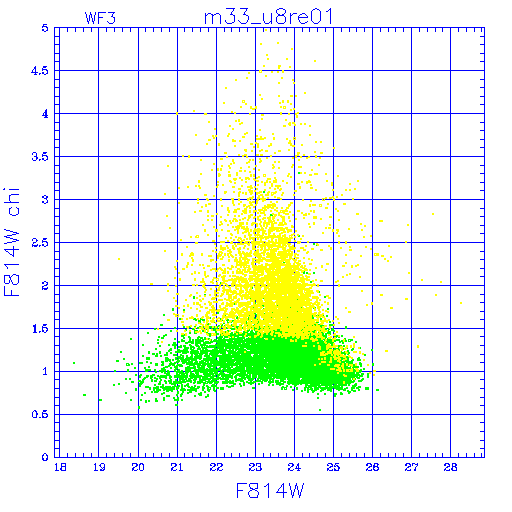

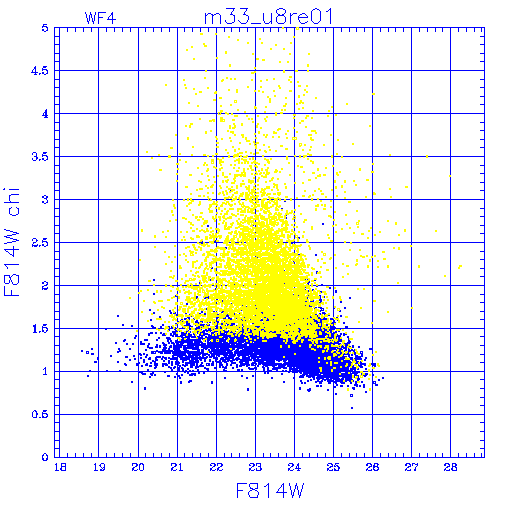

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w

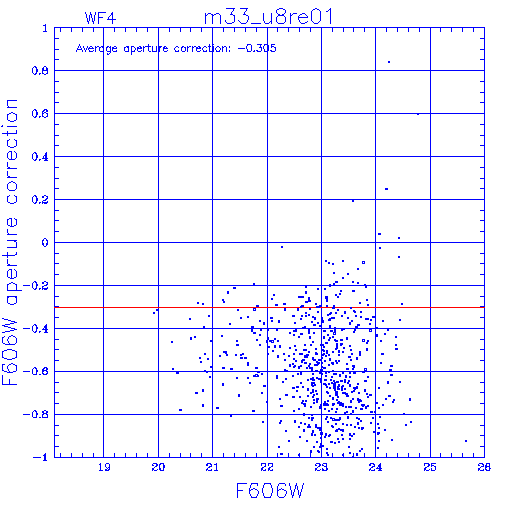

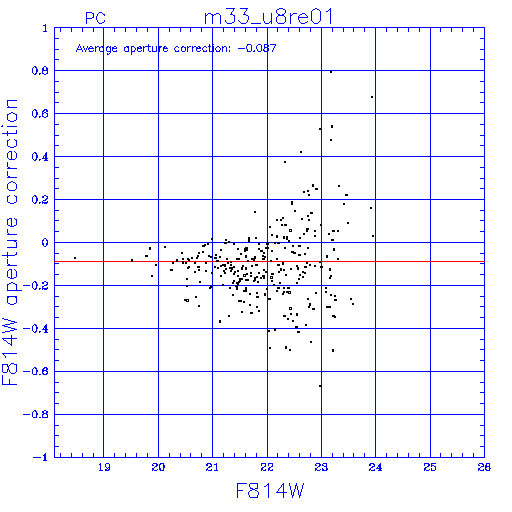

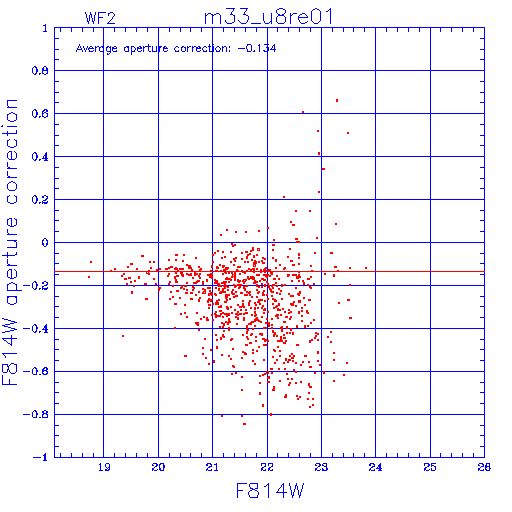

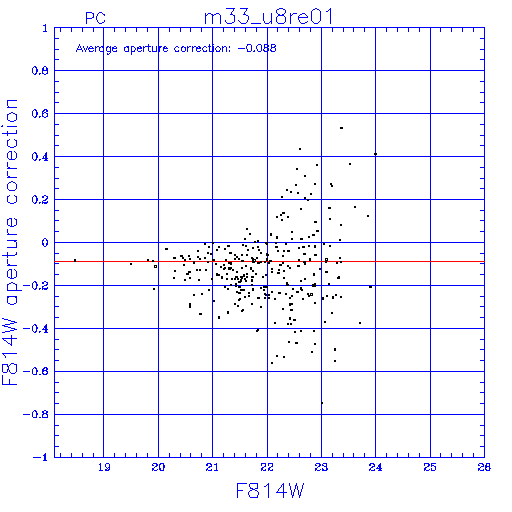

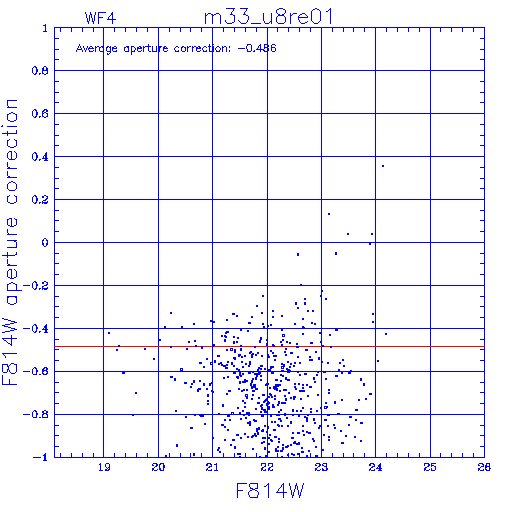

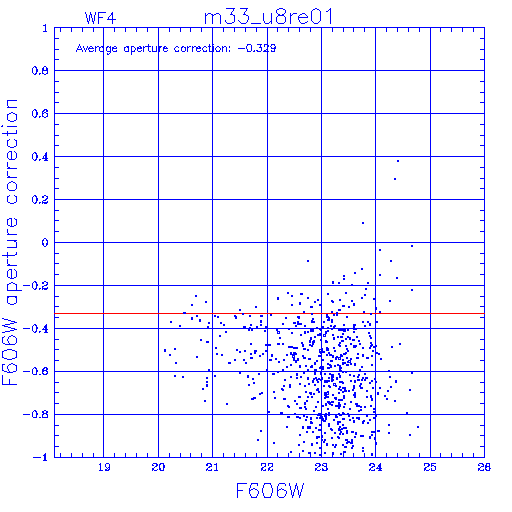

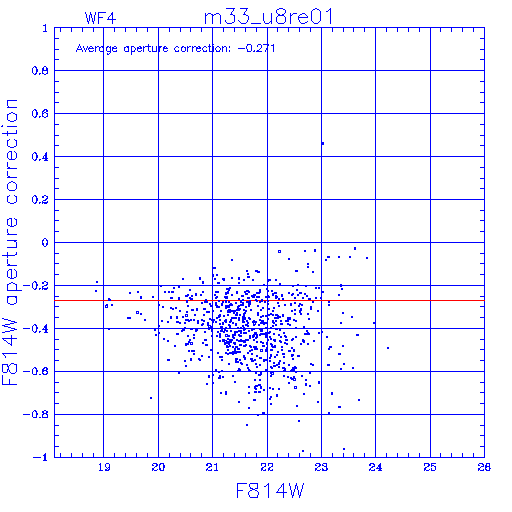

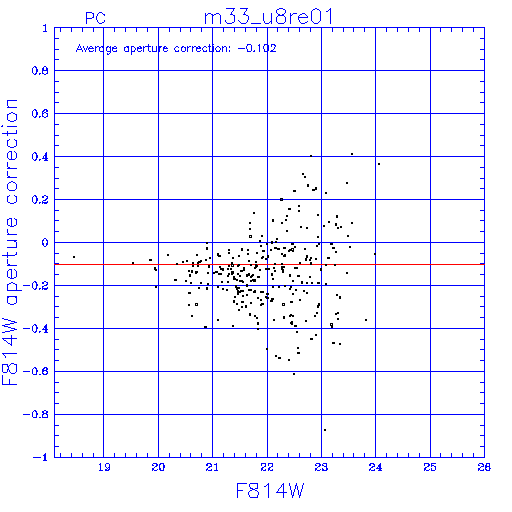

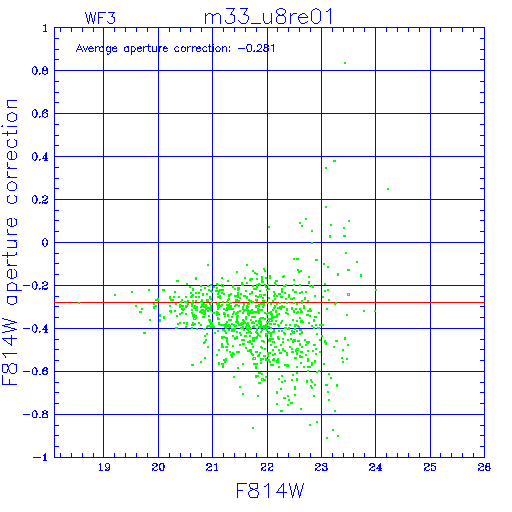

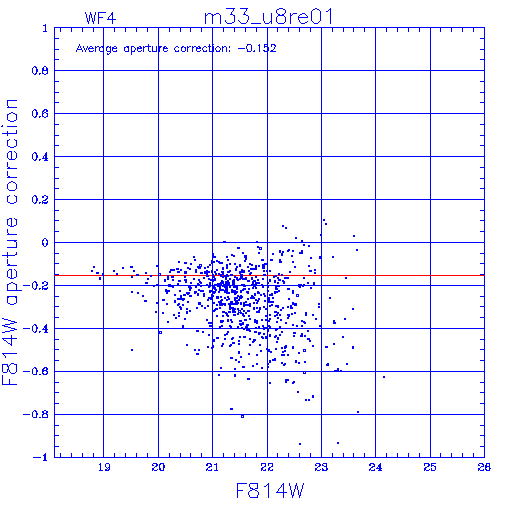

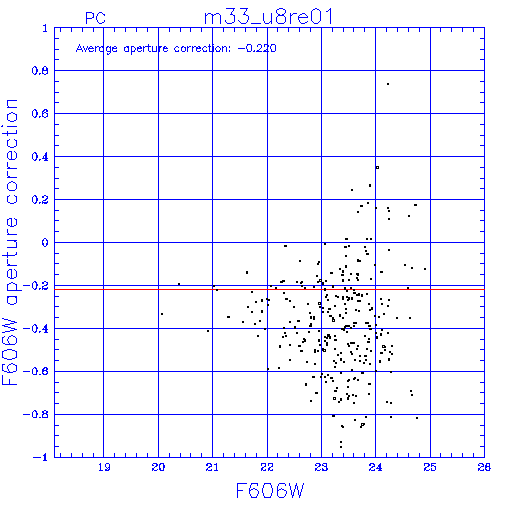

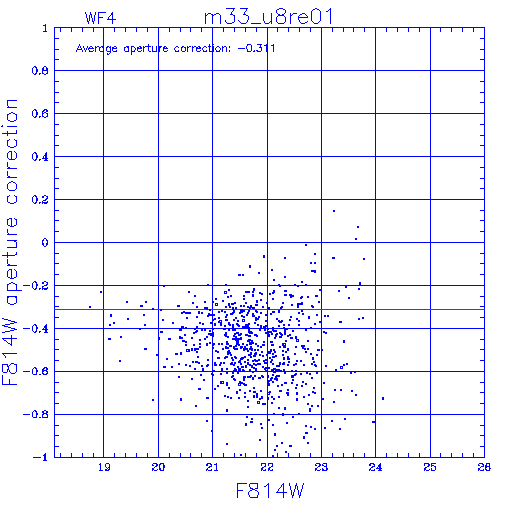

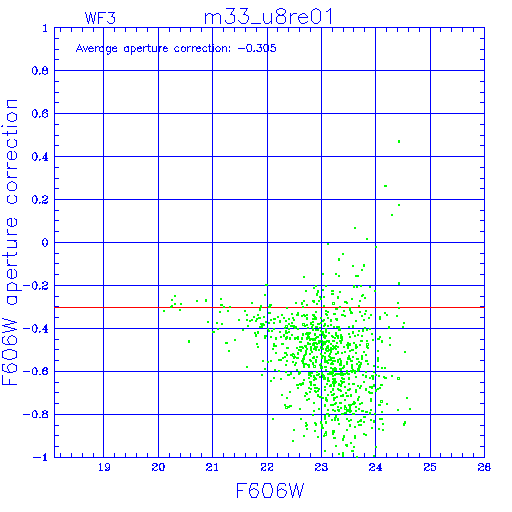

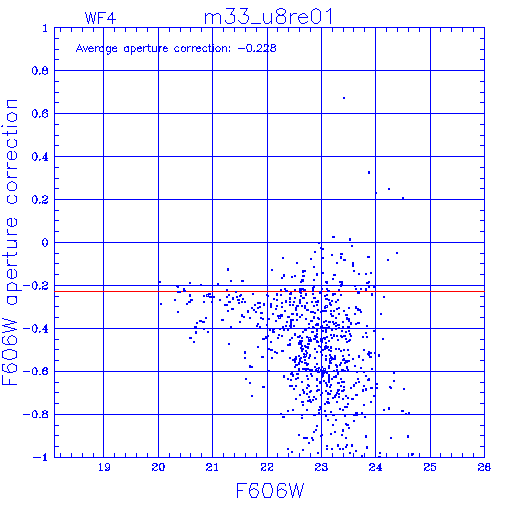

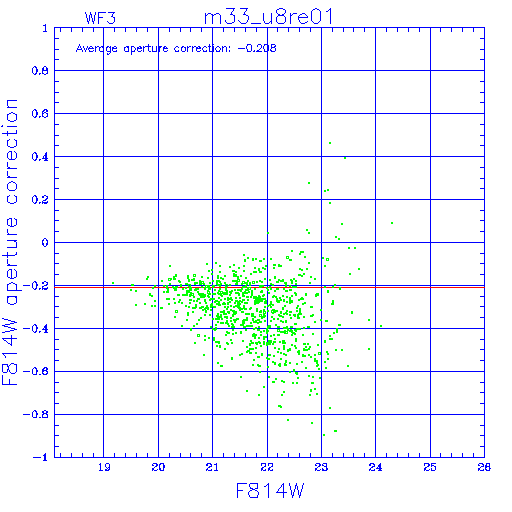

Aperture corrections

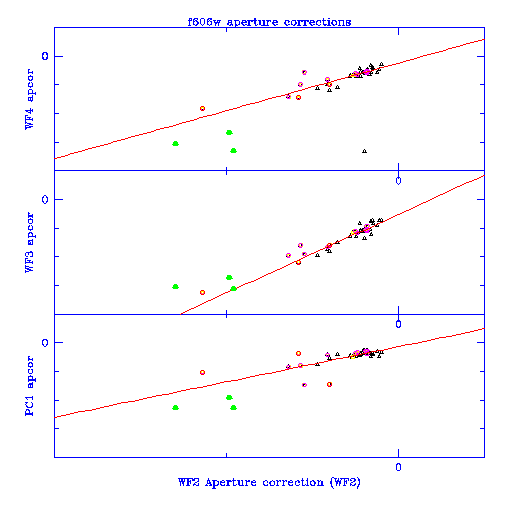

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
