Photometry Diagnostics for m33_u3vn01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u3vn0107m	F555W	160.00	0.00	0.00	0.00	0.00	0.00	0.00
u3vn0108m	F555W	800.00	-0.06	0.05	0.00	0.00	-0.06	0.05
u3vn0109m	F555W	800.00	-0.09	0.08	0.00	0.00	-0.09	0.08
u3vn010am	F555W	160.00	-0.10	0.09	0.00	0.00	-0.10	0.09
u3vn010bm	F555W	160.00	-0.11	0.08	0.00	0.00	-0.11	0.08
u3vn010cm	F555W	160.00	-0.10	0.06	0.00	0.00	-0.10	0.06
u3vn0102m	F814W	160.00	-1.82	2.06	0.00	0.00	-1.82	2.06
u3vn0103m	F814W	800.00	-1.86	2.06	0.00	0.00	-1.86	2.06
u3vn0104m	F814W	160.00	-1.86	2.05	0.00	0.00	-1.86	2.05
u3vn0105m	F814W	160.00	-1.84	2.02	0.00	0.00	-1.84	2.02
u3vn0106m	F814W	160.00	-1.82	1.99	0.00	0.00	-1.82	1.99

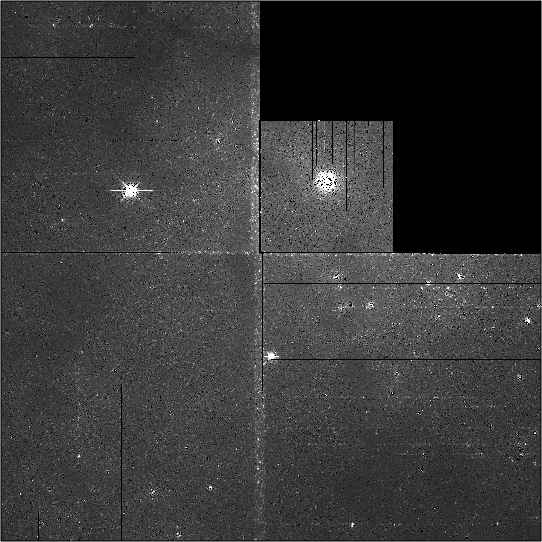

Mosaic images

F555W	F814W

HSTPHOT command log

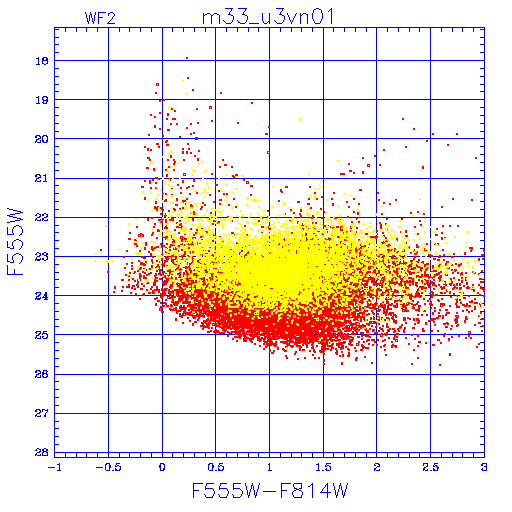

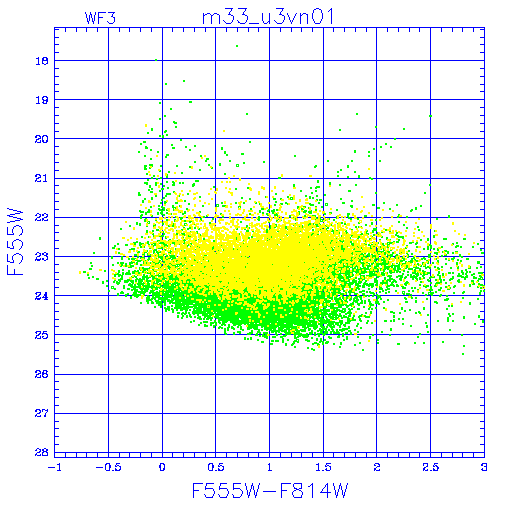

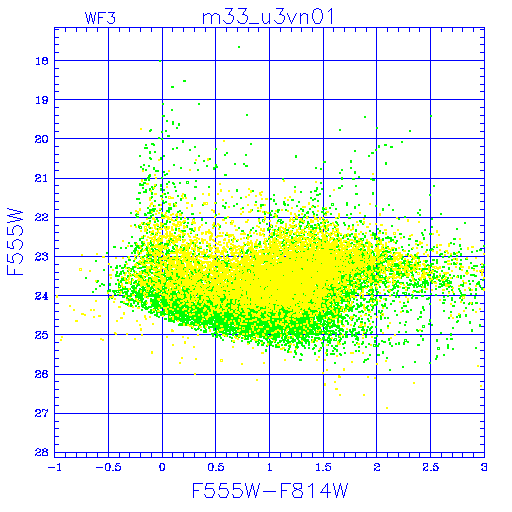

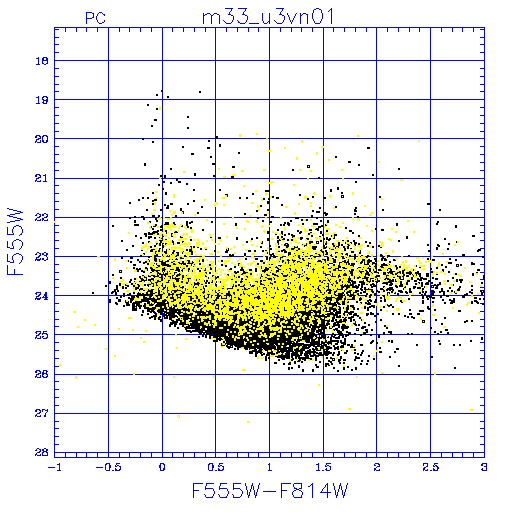

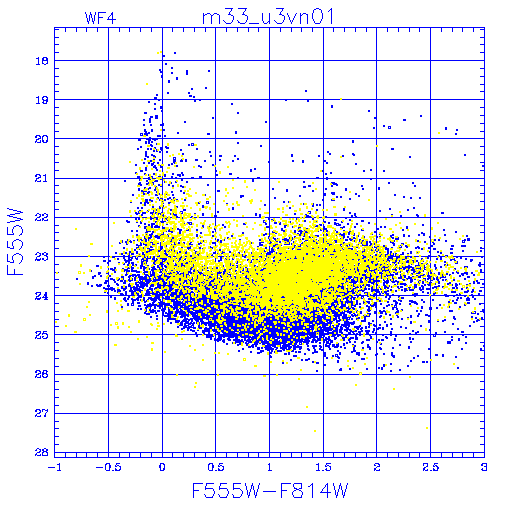

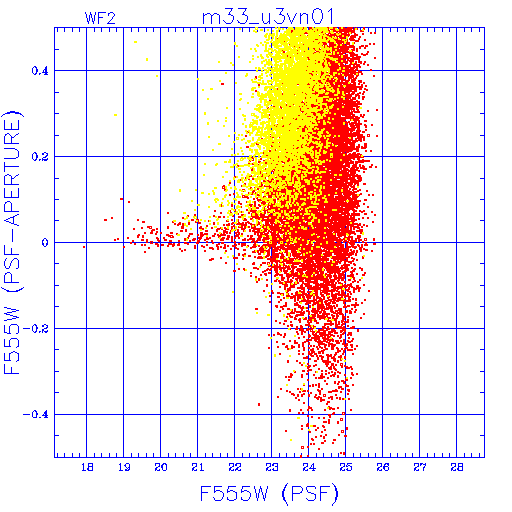

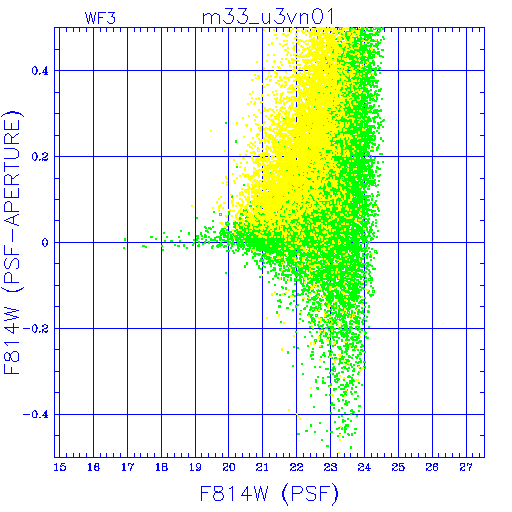

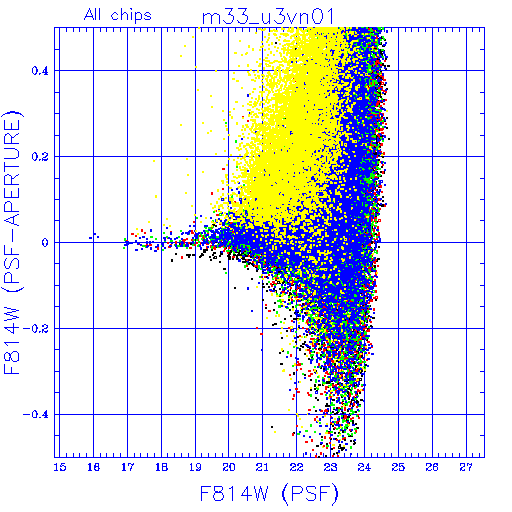

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

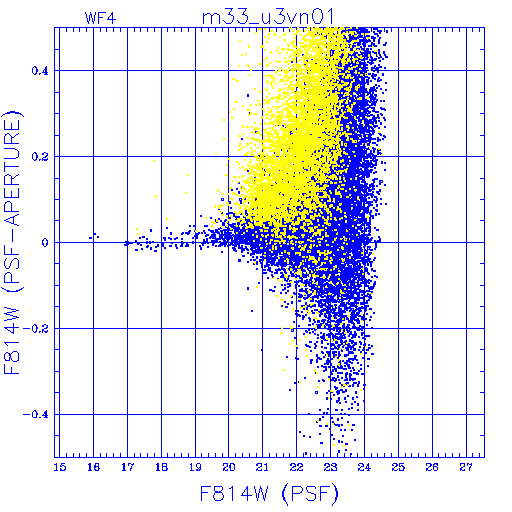

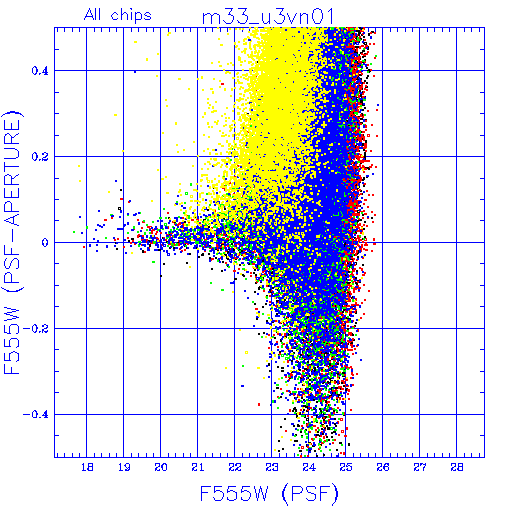

PSF
Aperture

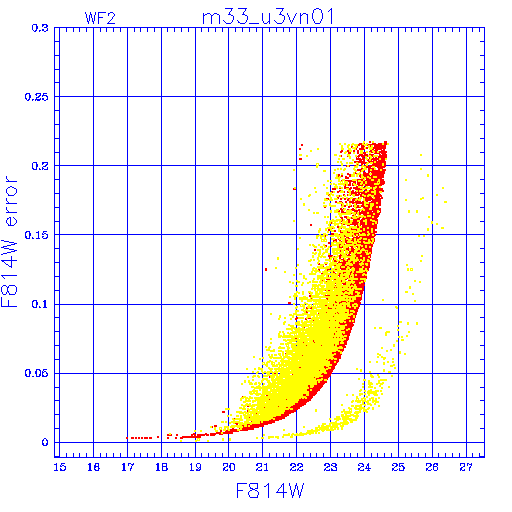

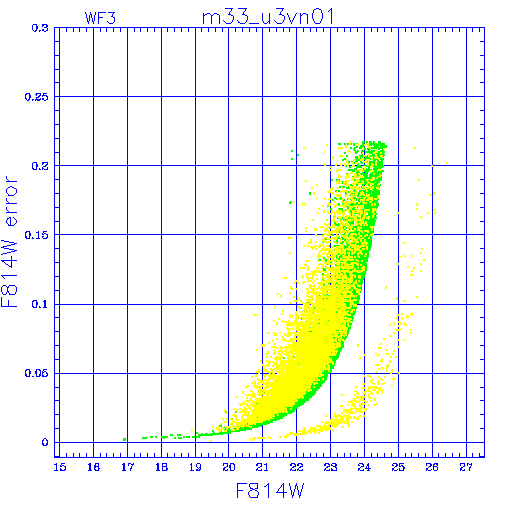

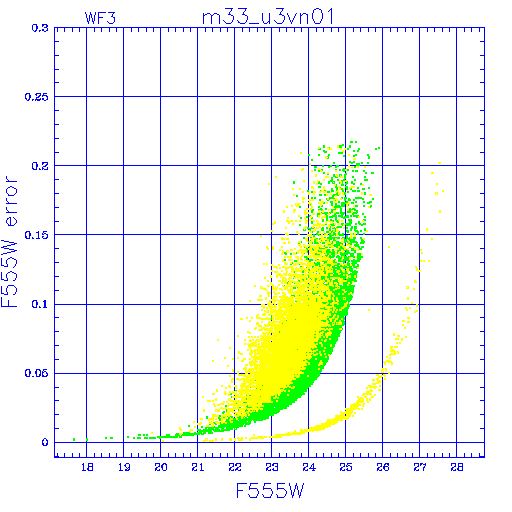

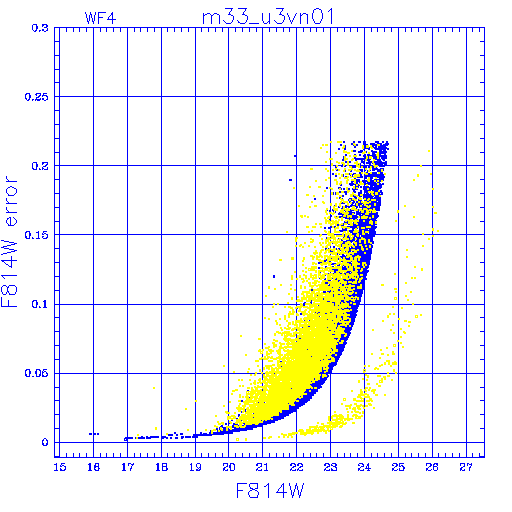

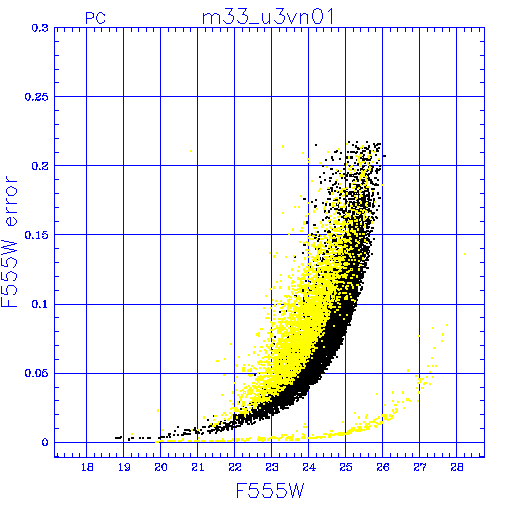

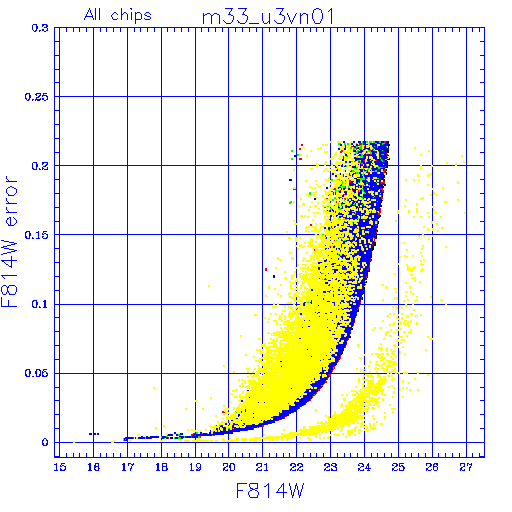

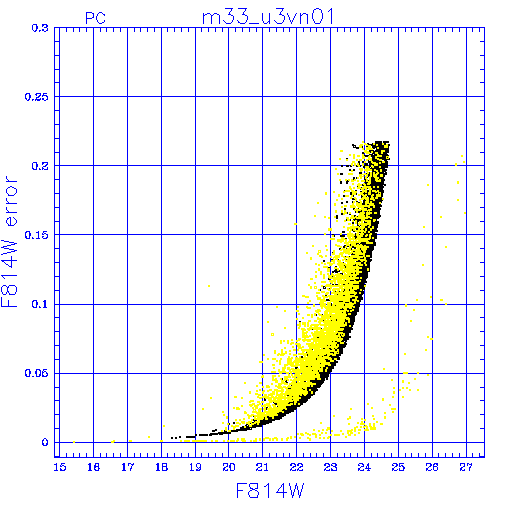

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

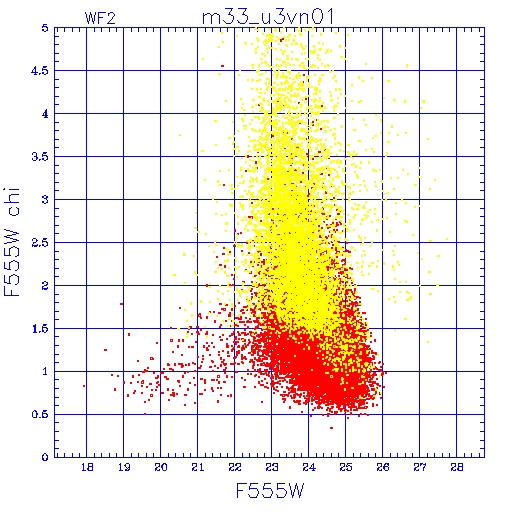

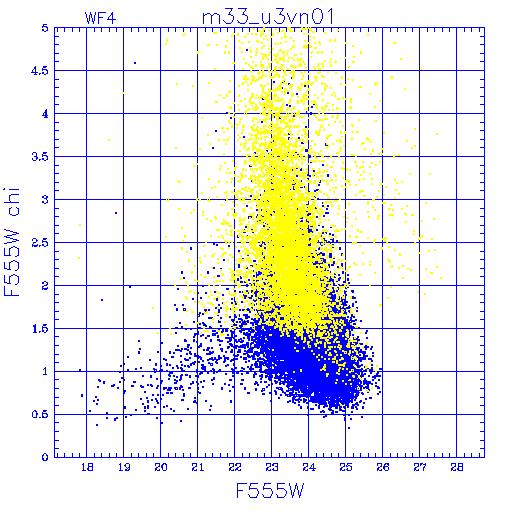

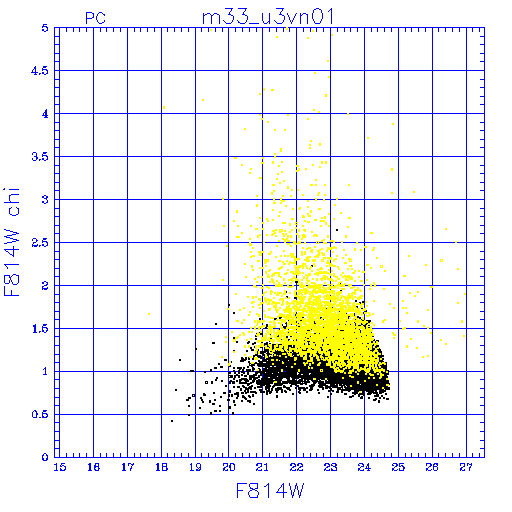

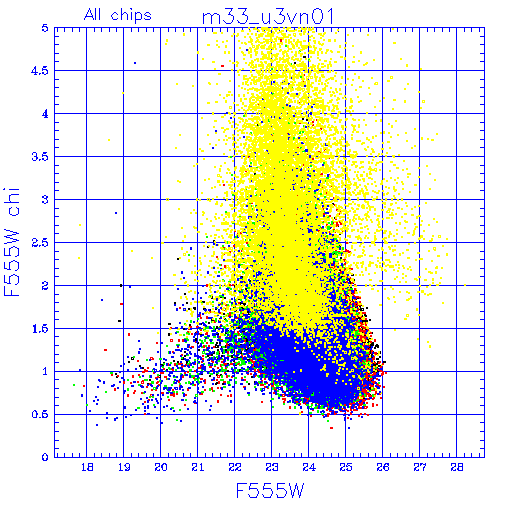

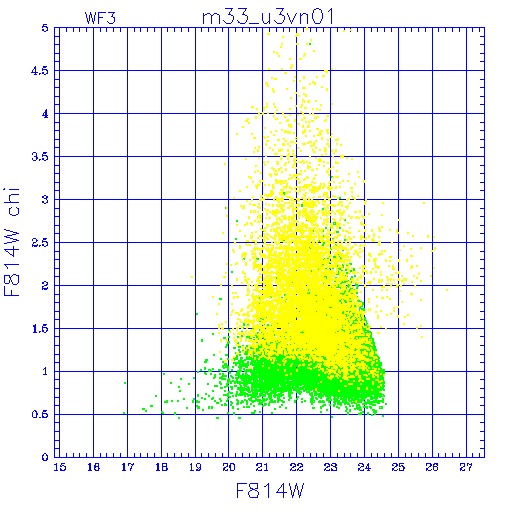

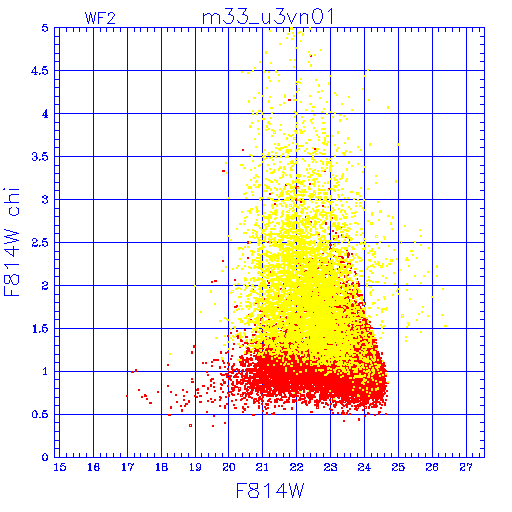

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

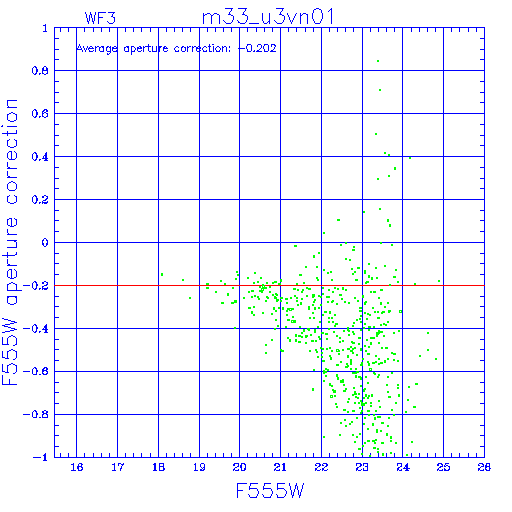

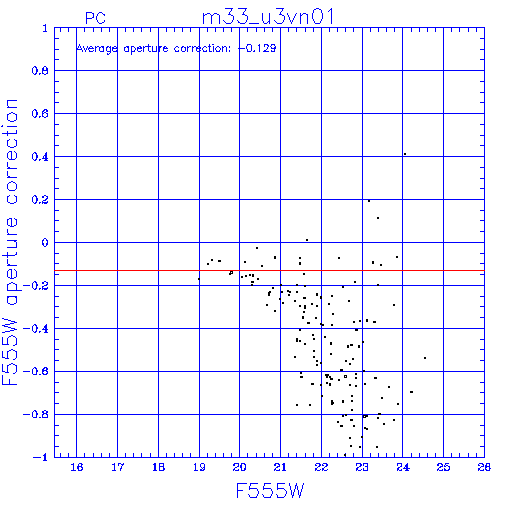

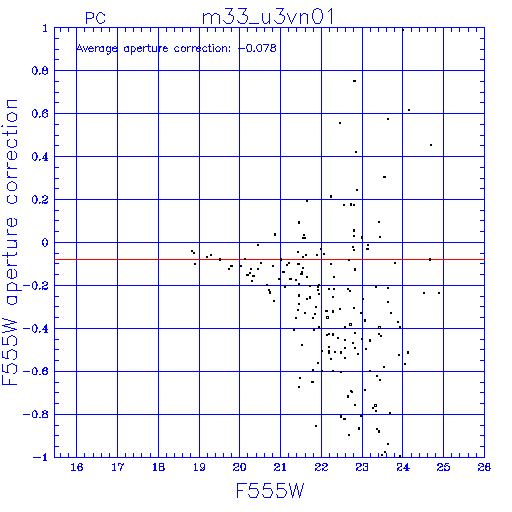

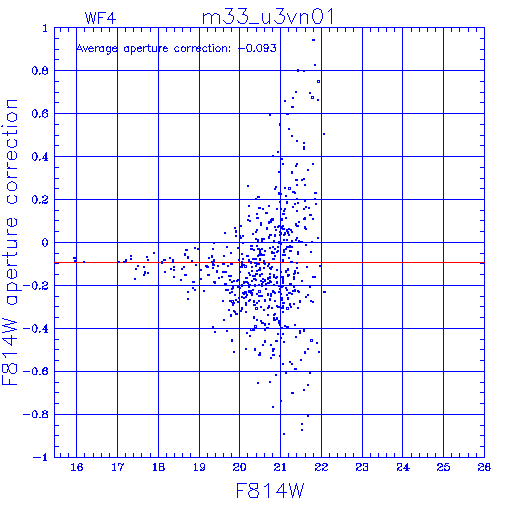

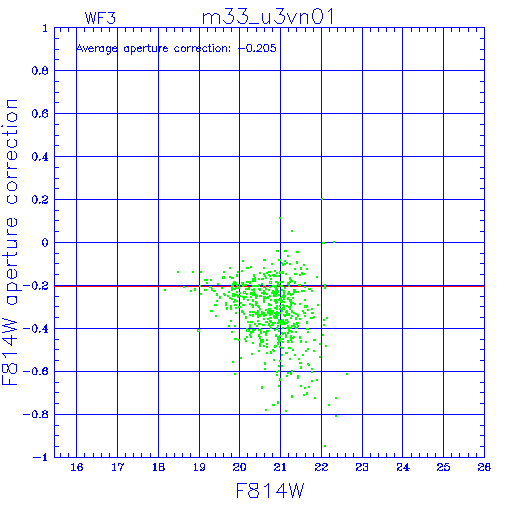

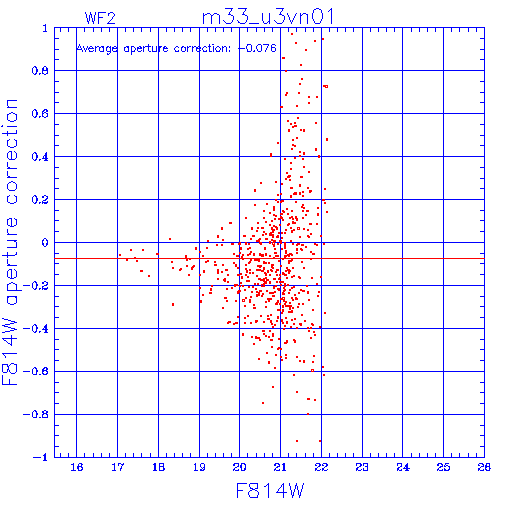

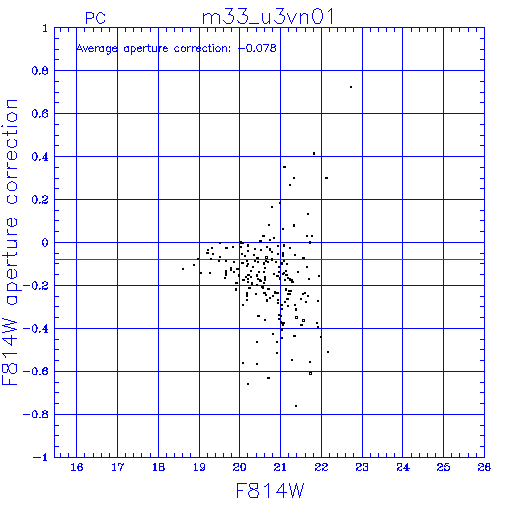

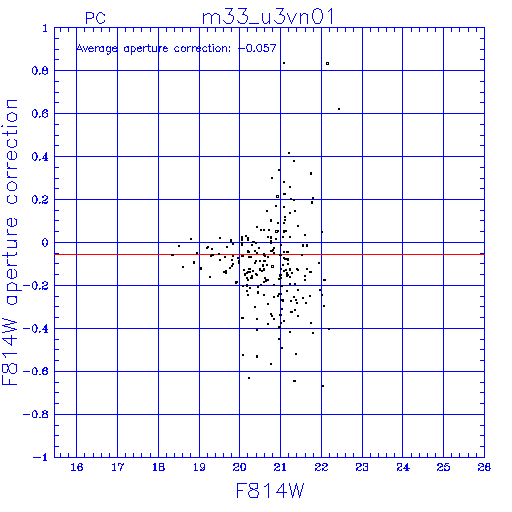

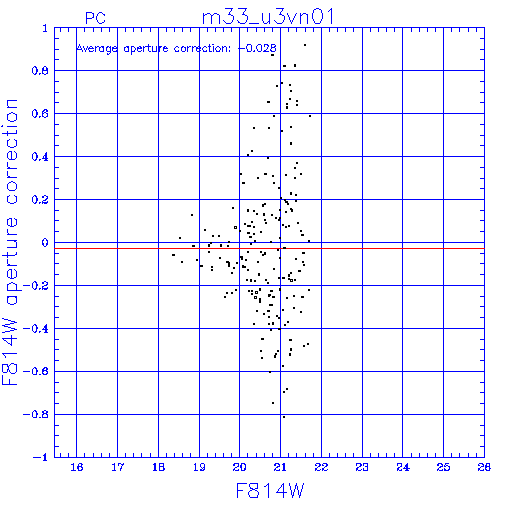

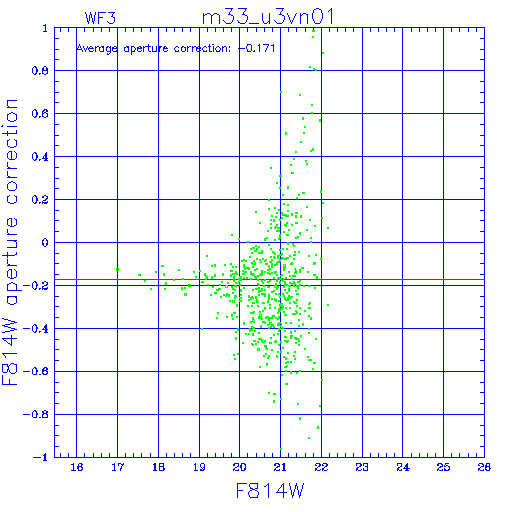

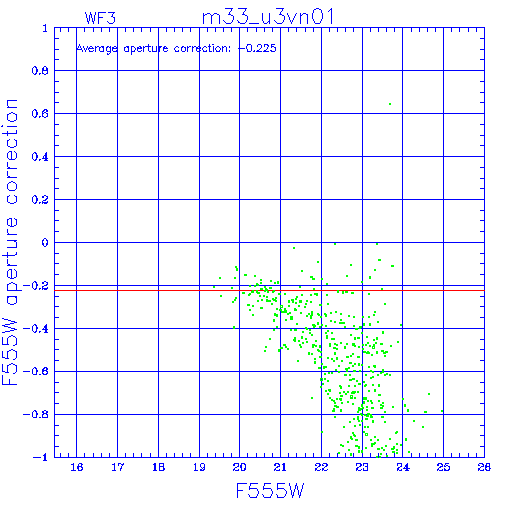

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
