Photometry Diagnostics for m33_u2xr09

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2xr0901t	F555W	1300.00	0.00	0.00	0.00	0.00	0.00	0.00
u2xr0902t	F555W	1100.00	-0.09	0.03	0.00	0.00	-0.09	0.03
u2xr0903t	F555W	1100.00	4.76	0.06	4.90	0.00	-0.14	0.06
u2xr0904t	F555W	1300.00	4.74	0.06	4.90	0.00	-0.16	0.06
u2xr0905t	F814W	1300.00	0.01	4.89	0.00	4.90	0.01	-0.01
u2xr0906t	F814W	1300.00	-0.09	4.99	0.00	4.90	-0.09	0.09
u2xr0907t	F814W	1300.00	-5.07	0.14	-4.90	0.00	-0.17	0.14
u2xr0908t	F814W	1300.00	-5.11	0.18	-4.90	0.00	-0.21	0.18

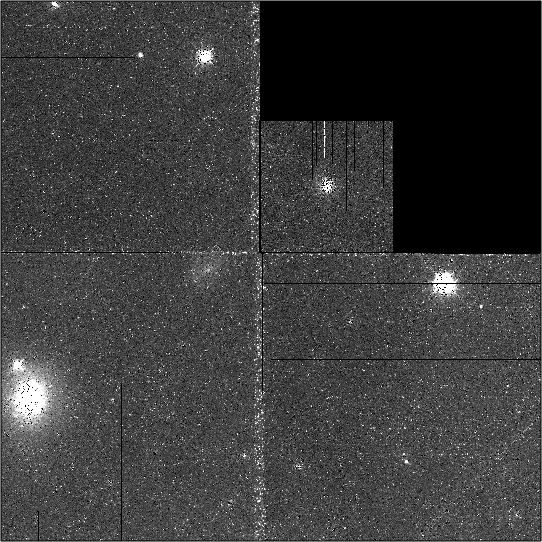

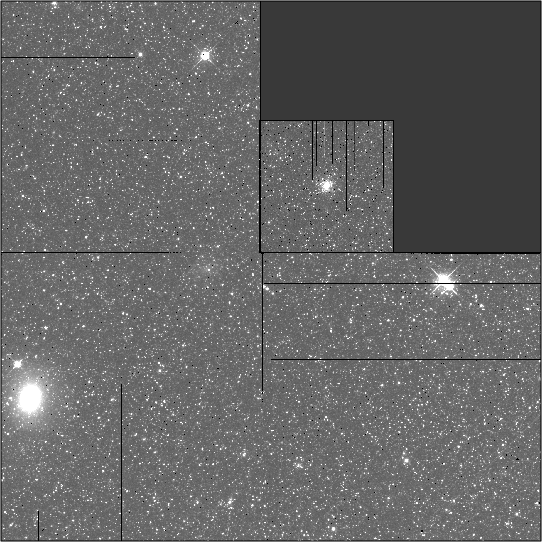

Mosaic images

F555W	F814W

HSTPHOT command log

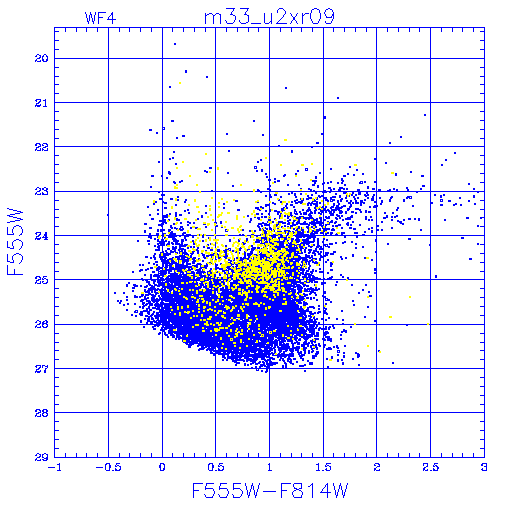

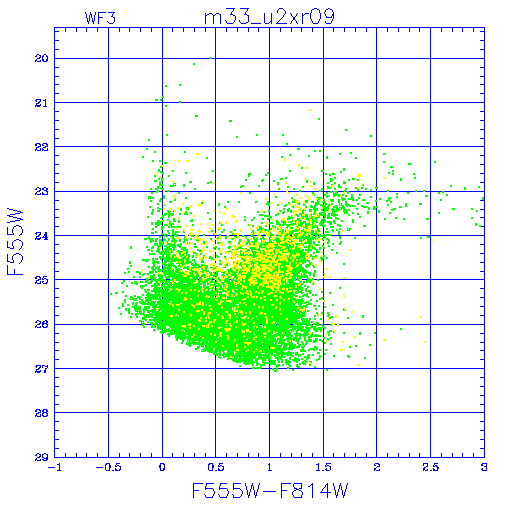

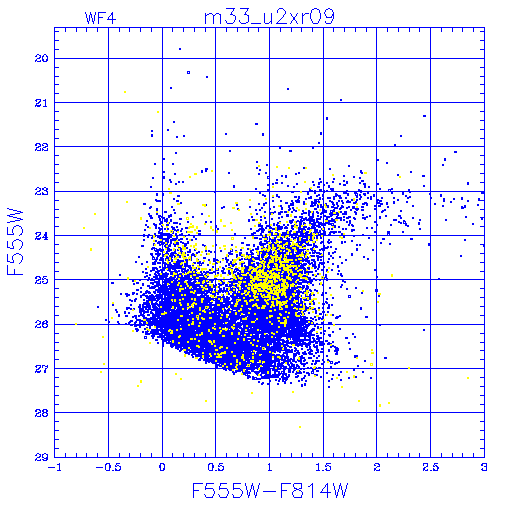

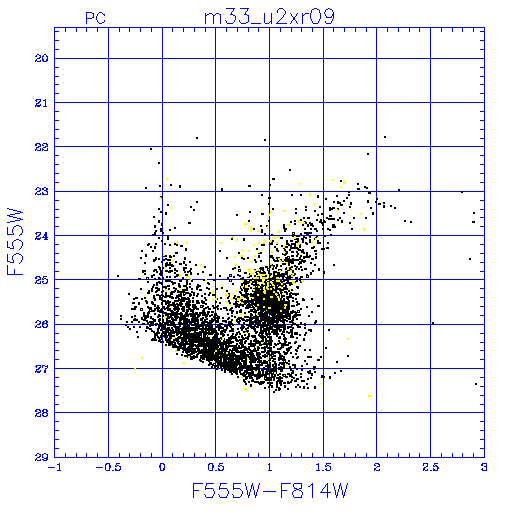

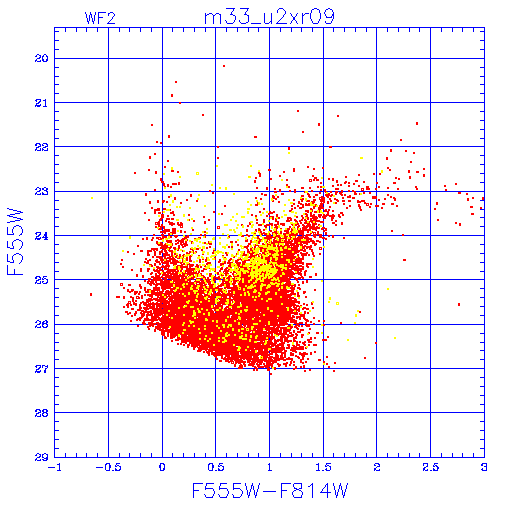

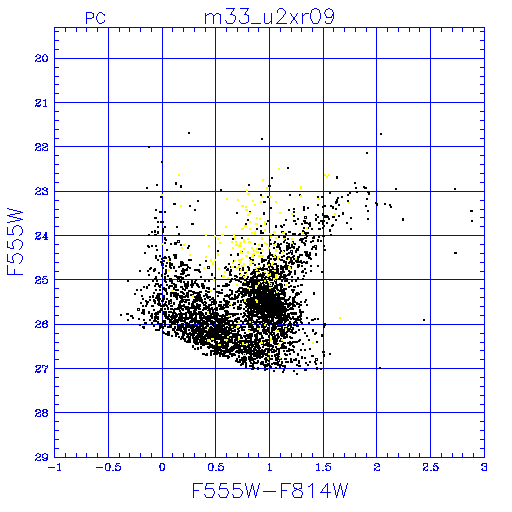

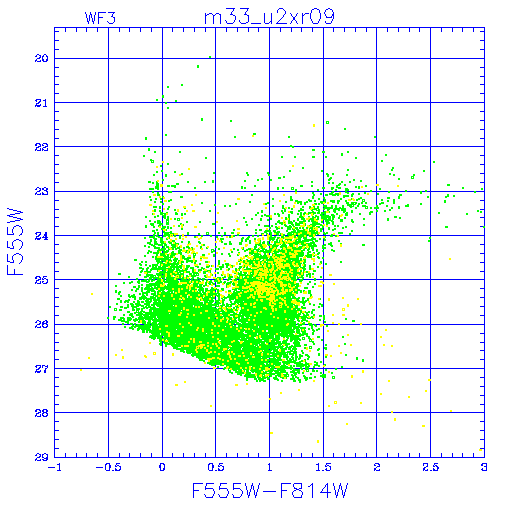

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

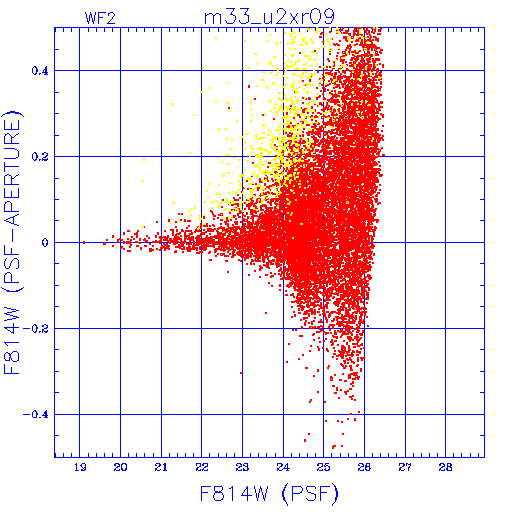

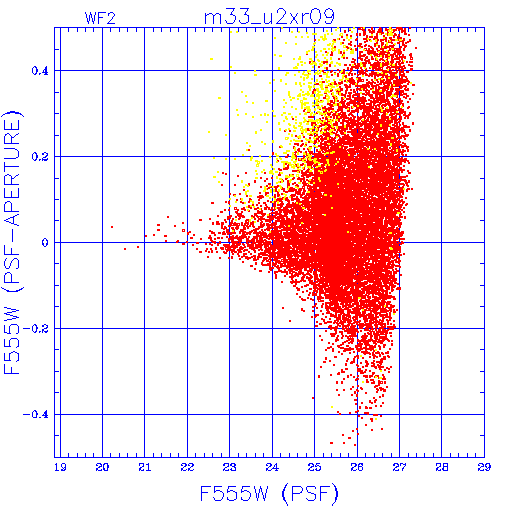

PSF
Aperture

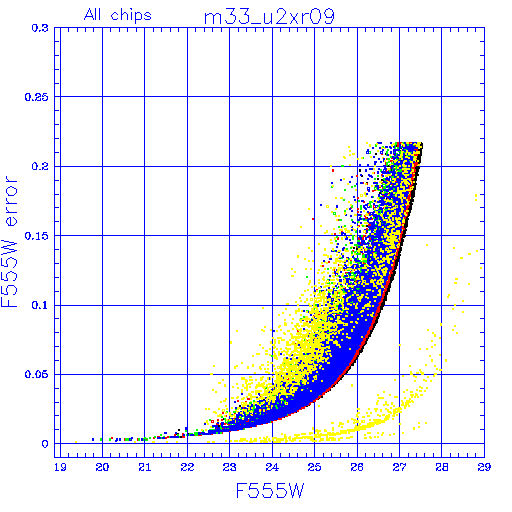

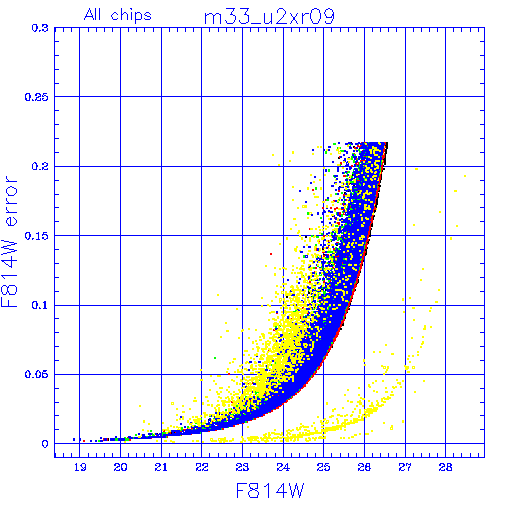

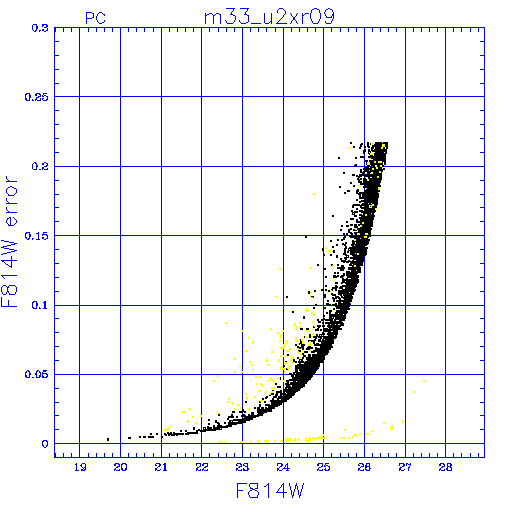

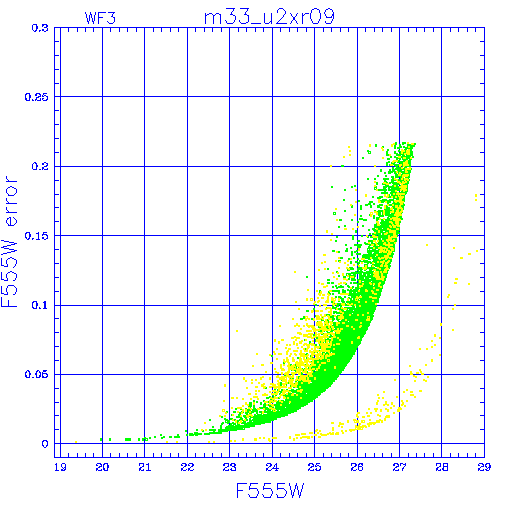

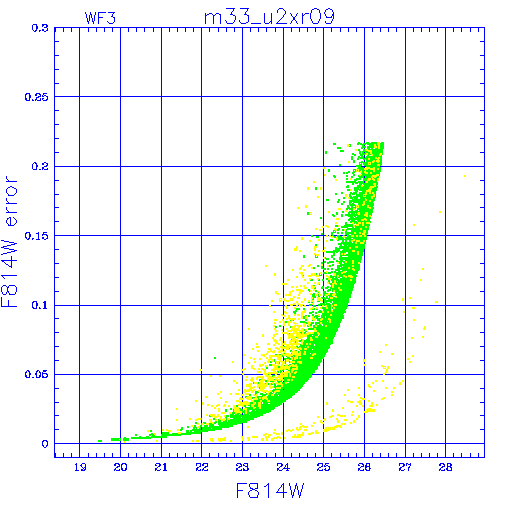

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

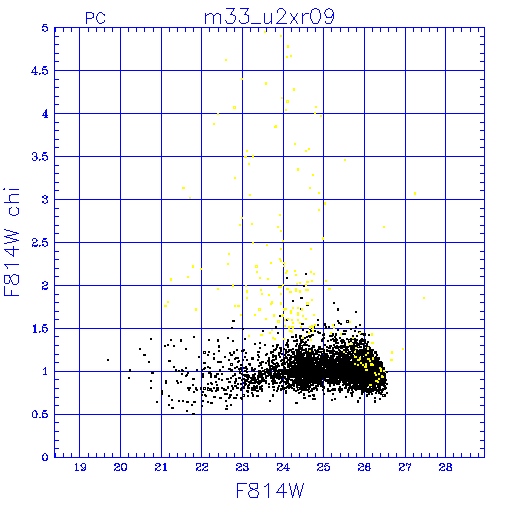

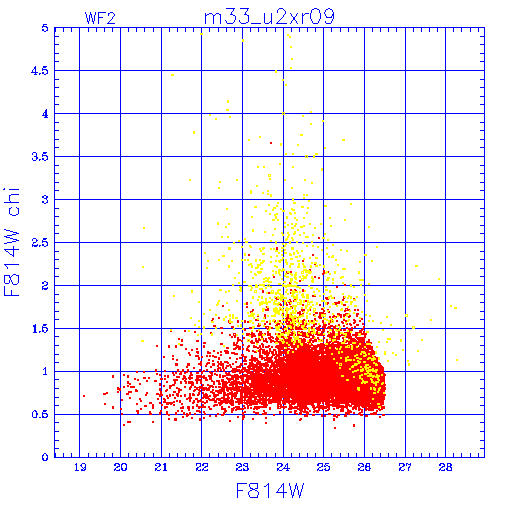

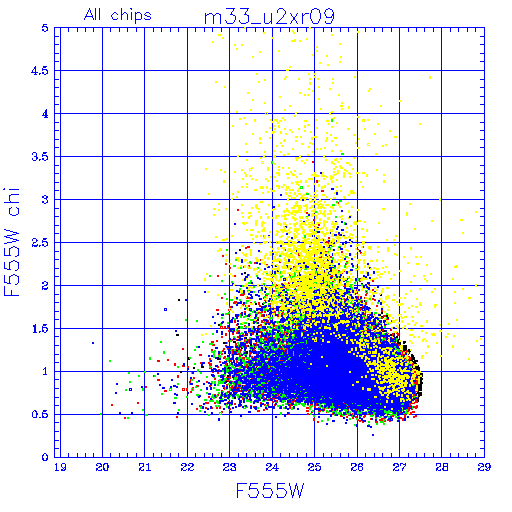

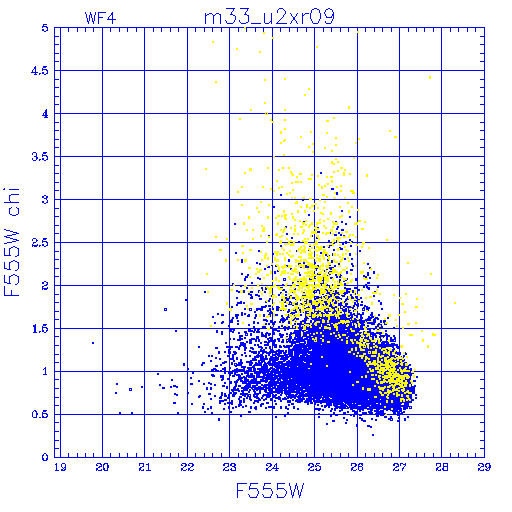

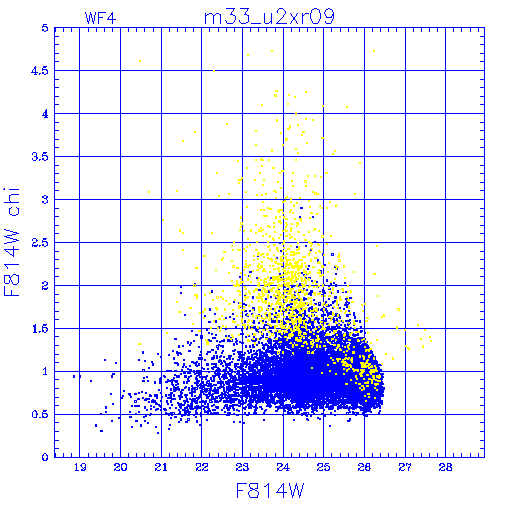

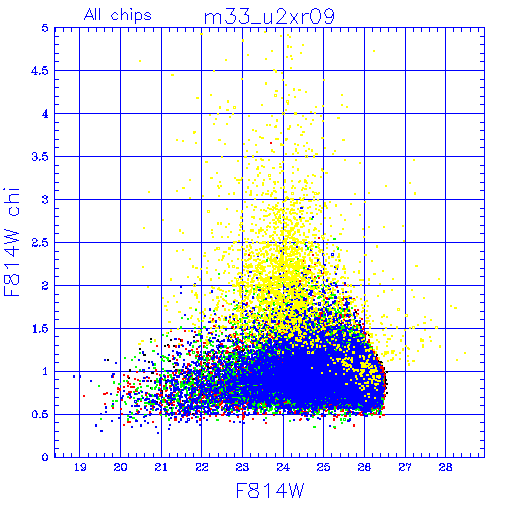

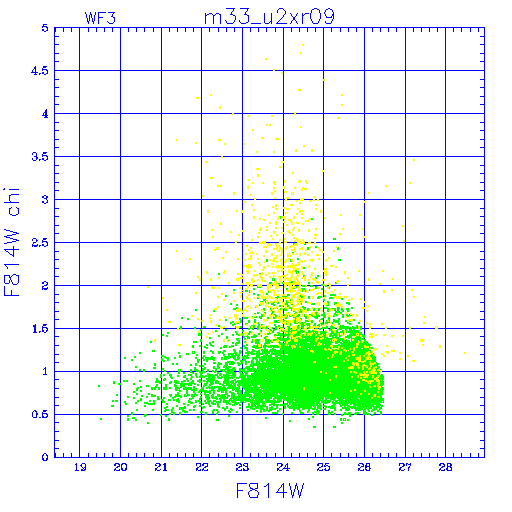

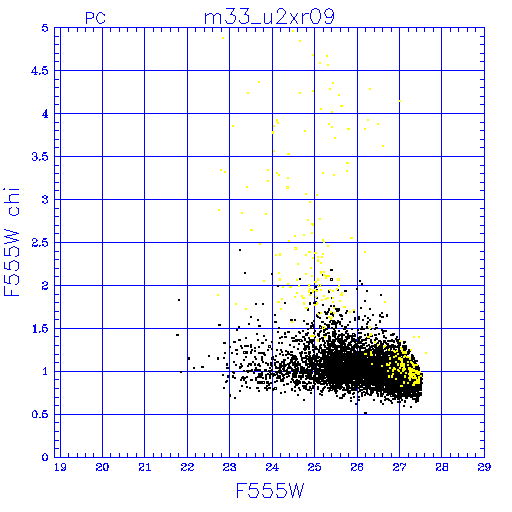

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

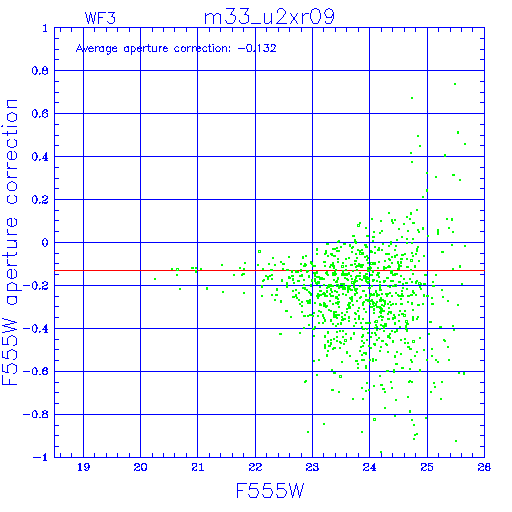

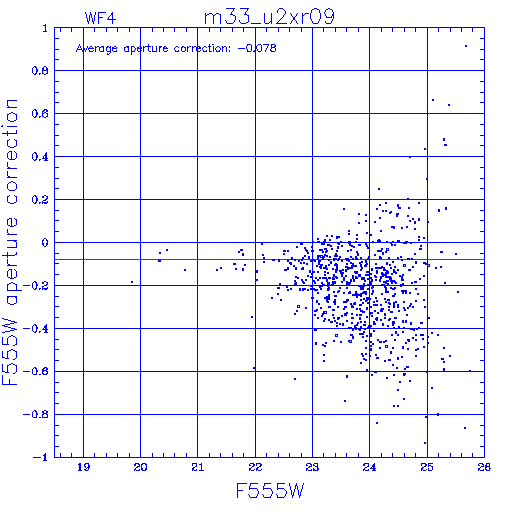

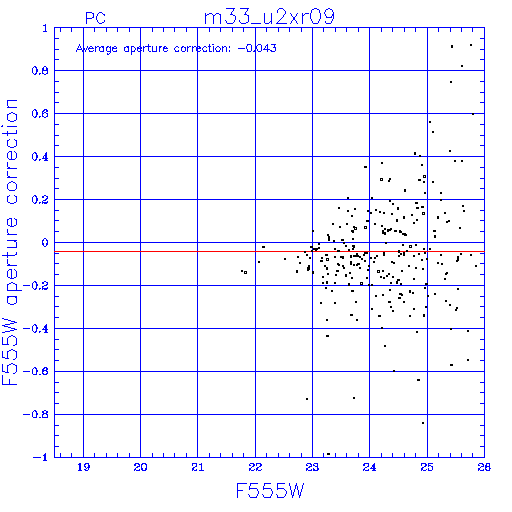

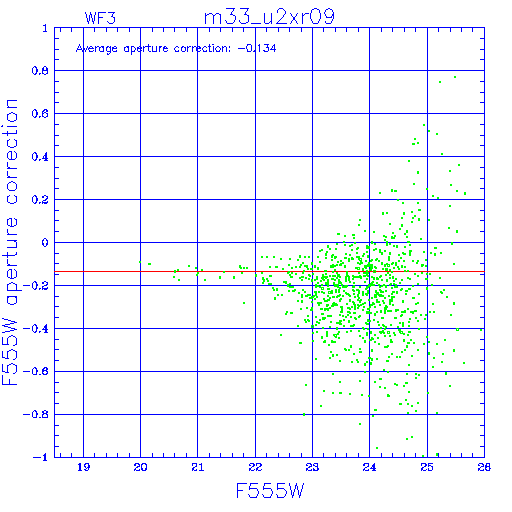

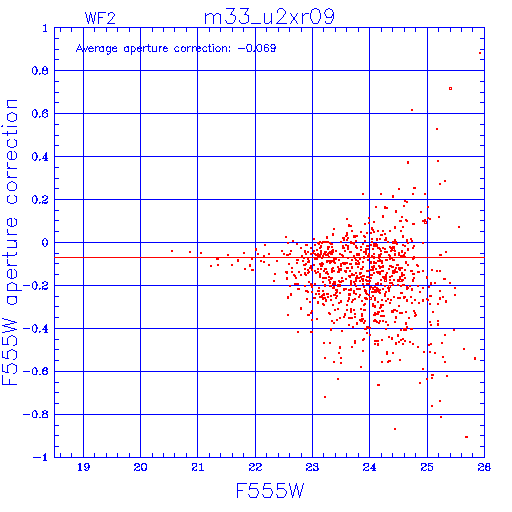

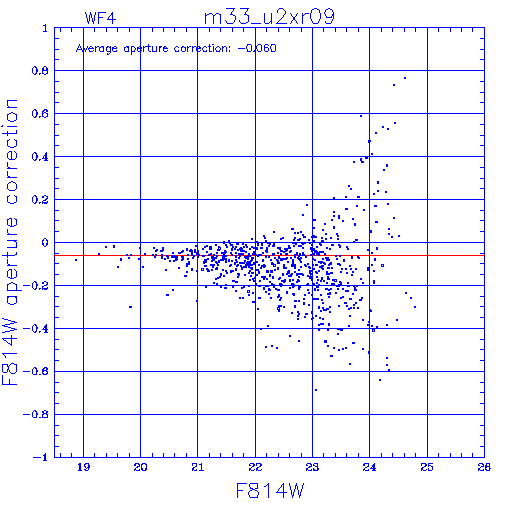

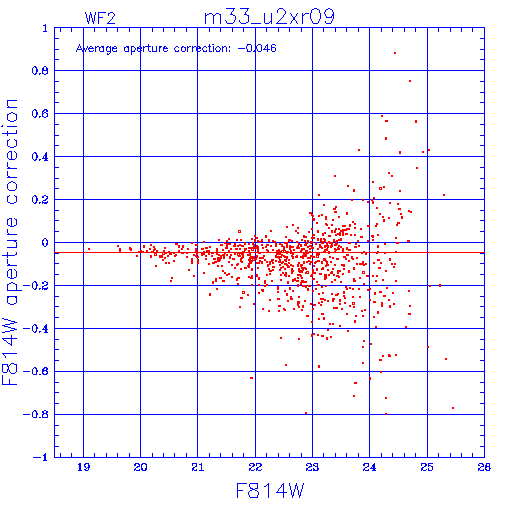

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
