Photometry Diagnostics for m33_u2xr04

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2xr0401t	F555W	1300.00	0.00	0.00	0.00	0.00	0.00	0.00
u2xr0402t	F555W	1100.00	0.03	-0.03	0.00	0.00	0.03	-0.03
u2xr0403t	F555W	1100.00	4.98	-0.02	4.90	0.00	0.08	-0.02
u2xr0404t	F555W	1300.00	4.91	0.00	4.90	0.00	0.01	0.00
u2xr0405t	F814W	1300.00	0.17	5.09	0.00	4.90	0.17	0.19
u2xr0406t	F814W	1300.00	0.14	5.10	0.00	4.90	0.14	0.20
u2xr0407t	F814W	1300.00	-4.88	0.23	-4.90	0.00	0.02	0.23
u2xr0408t	F814W	1300.00	-5.03	0.30	-4.90	0.00	-0.13	0.30

Mosaic images

F555W	F814W

HSTPHOT command log

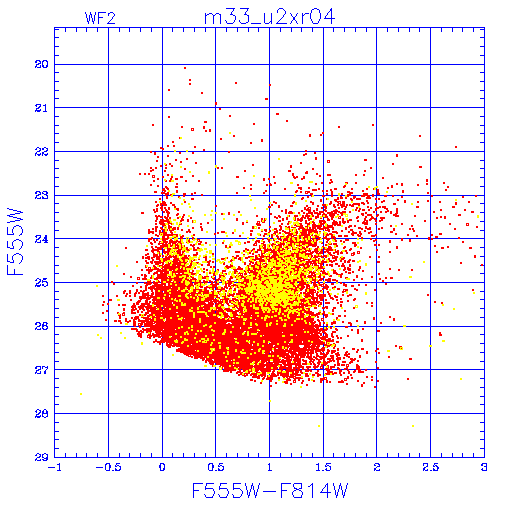

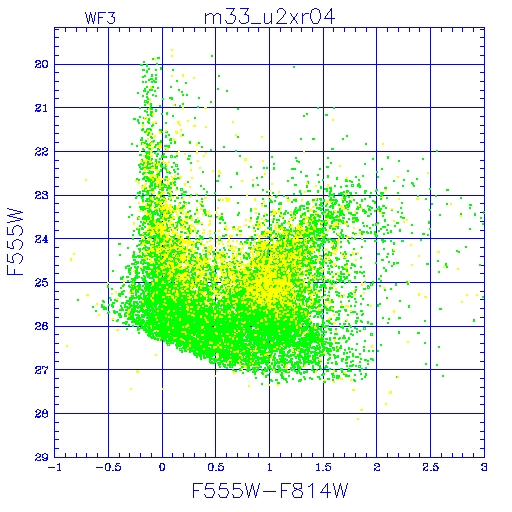

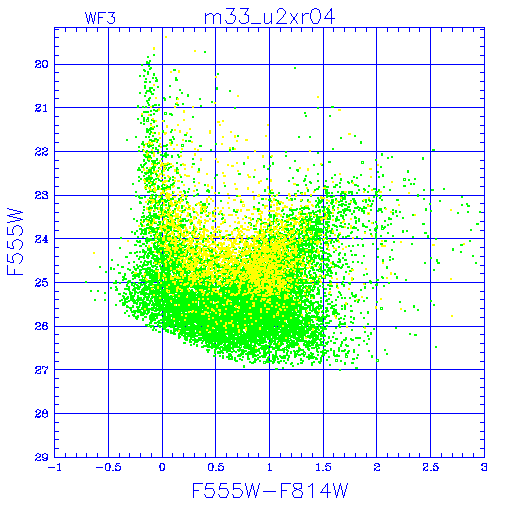

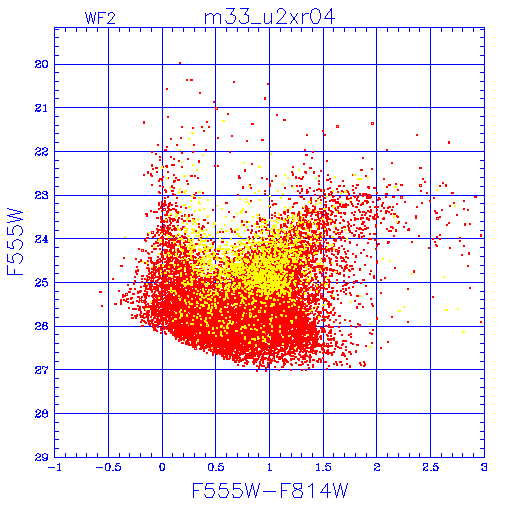

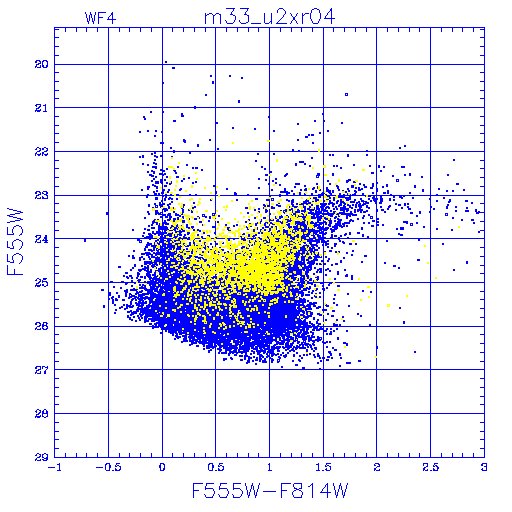

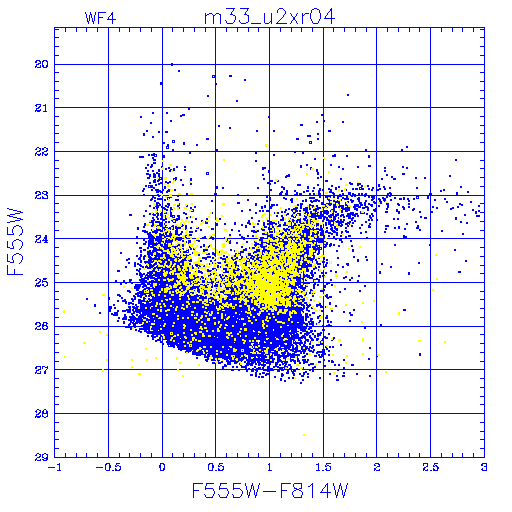

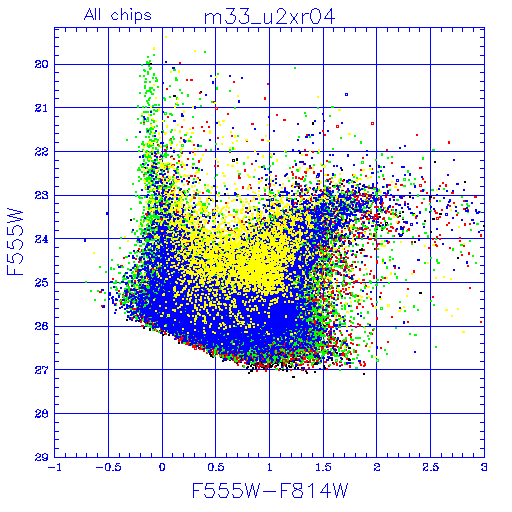

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

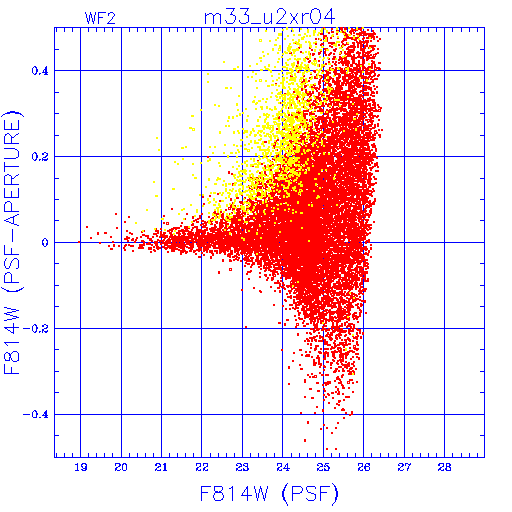

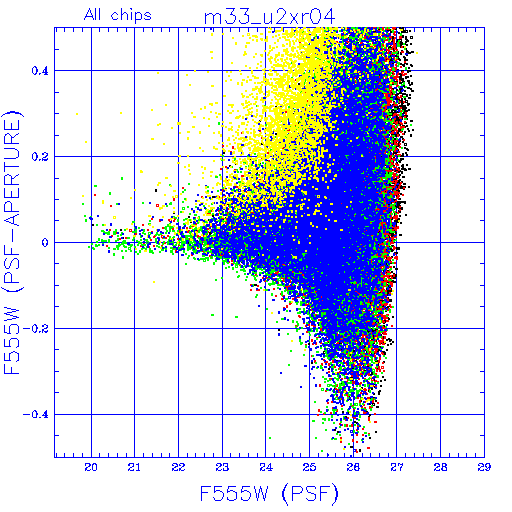

PSF
Aperture

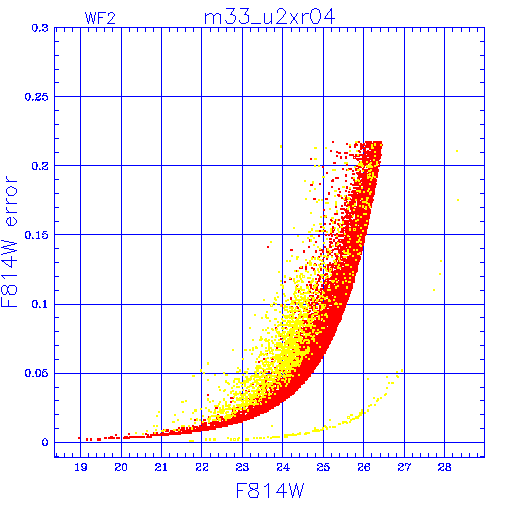

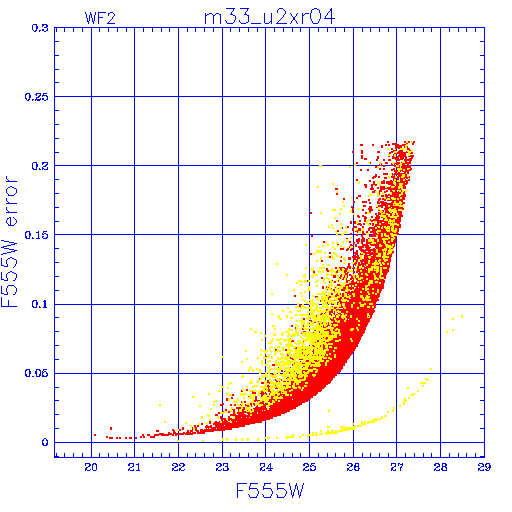

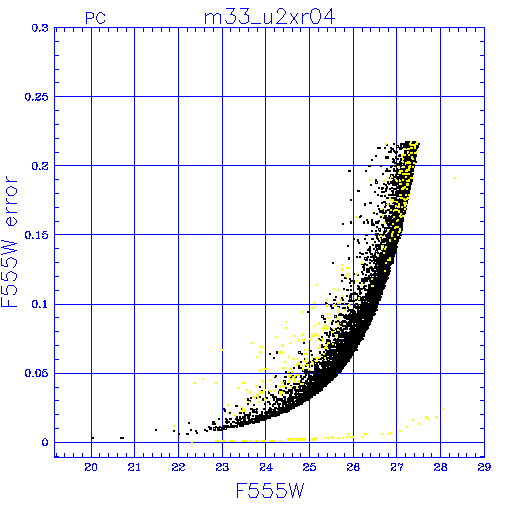

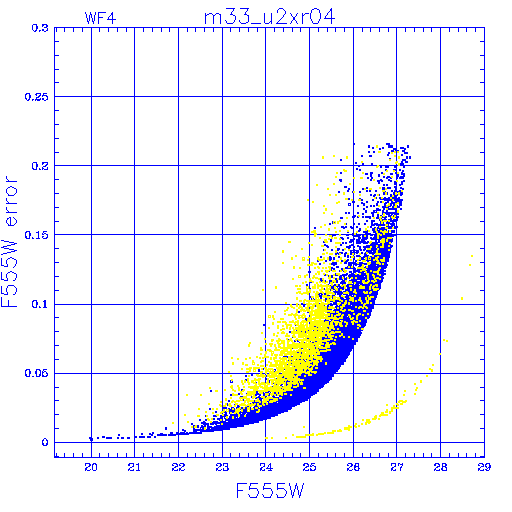

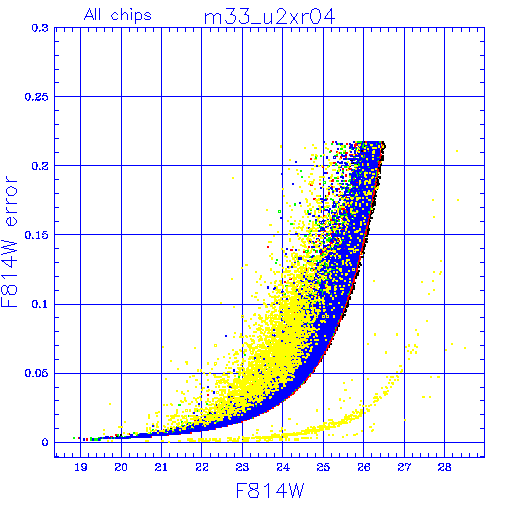

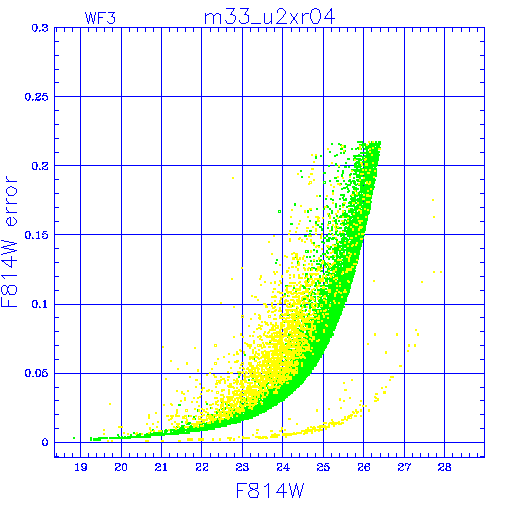

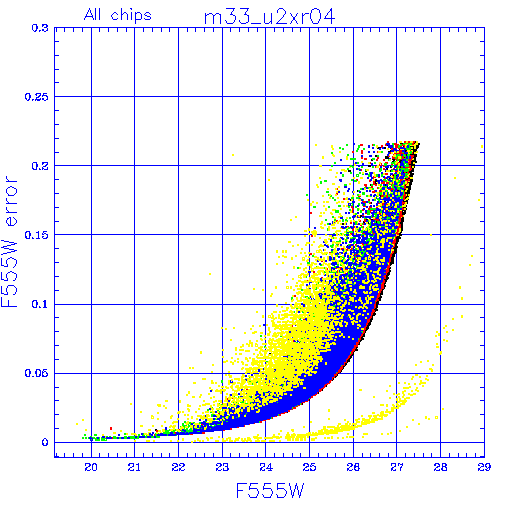

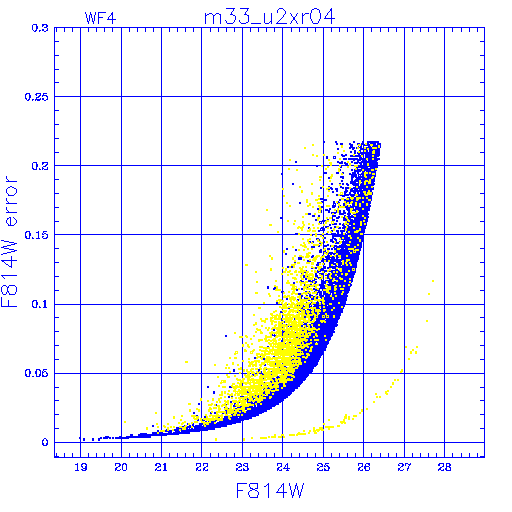

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

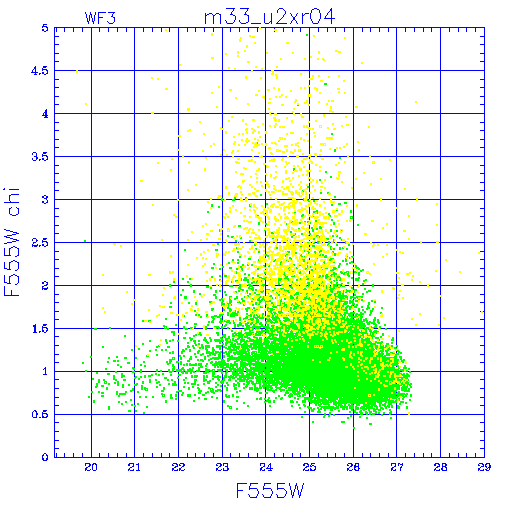

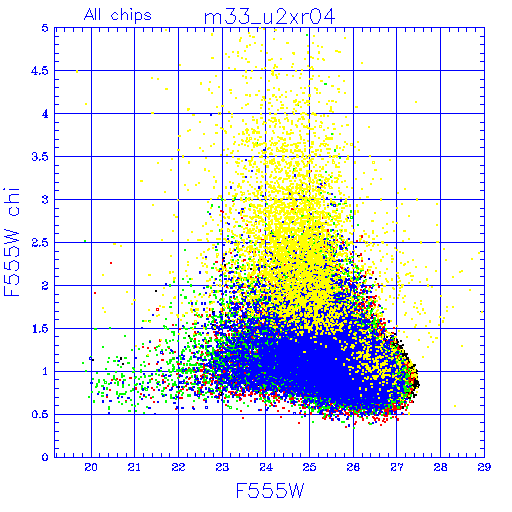

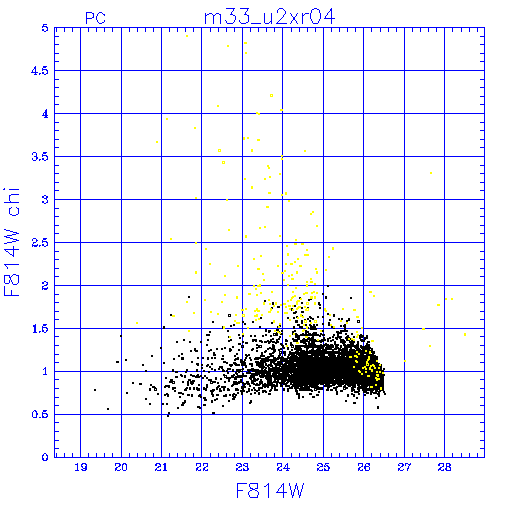

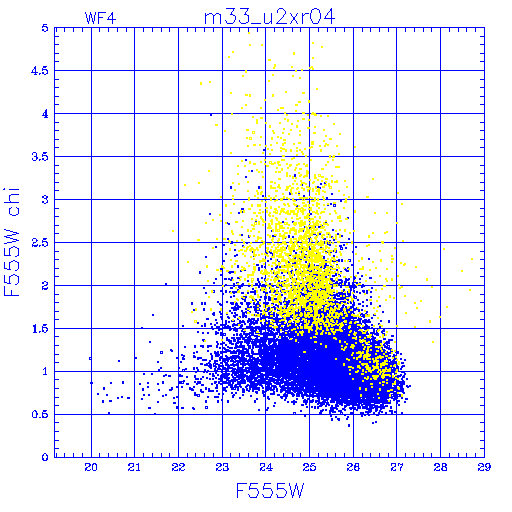

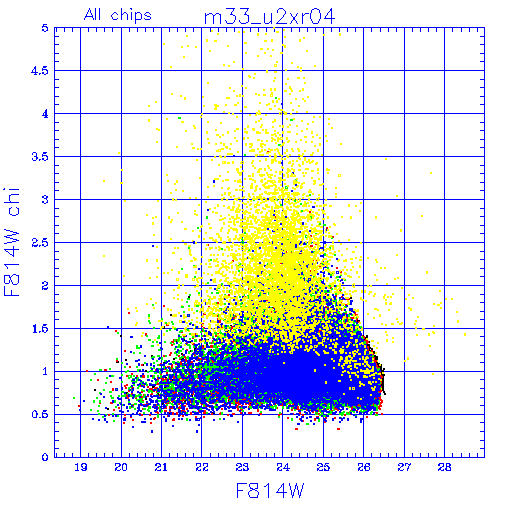

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

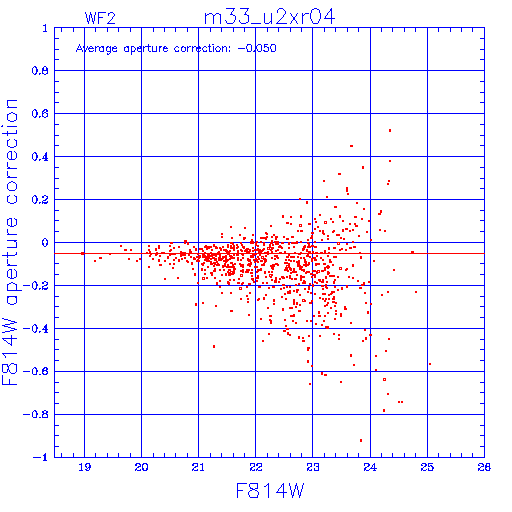

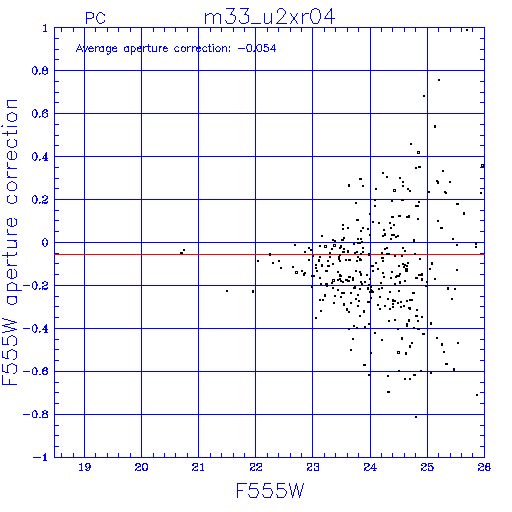

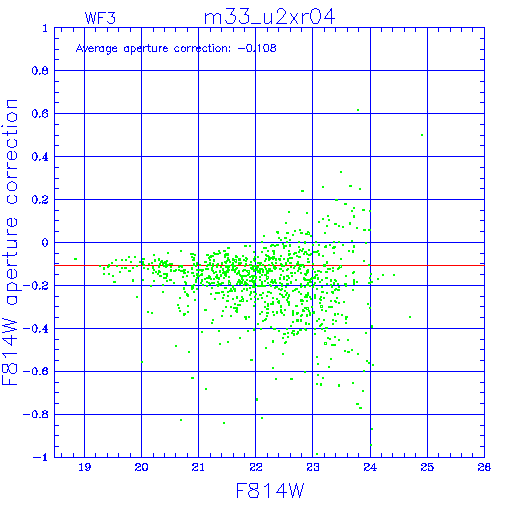

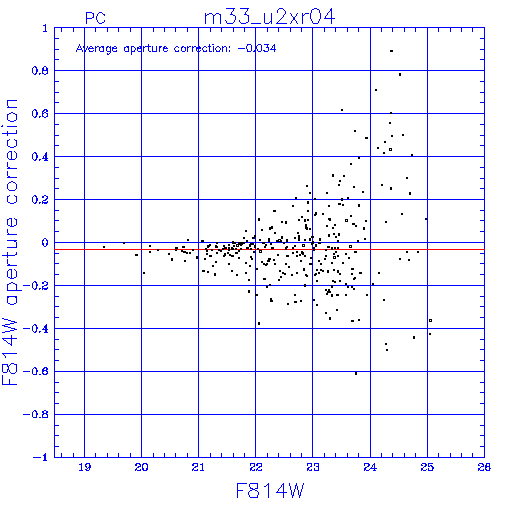

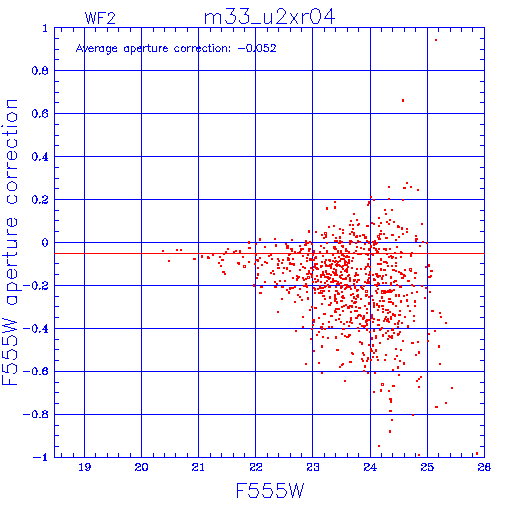

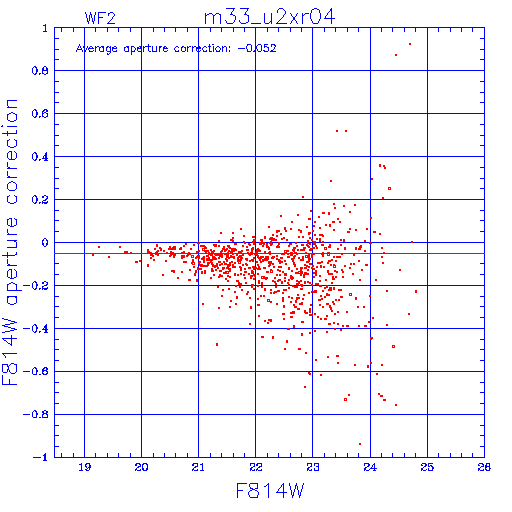

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
