Photometry Diagnostics for m33_u2xr01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2xr0101m	F555W	1300.00	0.00	0.00	0.00	0.00	0.00	0.00
u2xr0102m	F555W	1100.00	0.01	0.02	0.00	0.00	0.01	0.02
u2xr0103m	F555W	1100.00	4.86	-0.06	4.90	0.00	-0.04	-0.06
u2xr0104m	F555W	1300.00	4.89	-0.03	4.90	0.00	-0.01	-0.03
u2xr0105m	F814W	1300.00	0.09	4.88	0.00	4.90	0.09	-0.02
u2xr0106m	F814W	1300.00	0.17	4.99	0.00	4.90	0.17	0.09
u2xr0107m	F814W	1300.00	-4.63	-0.01	-4.90	0.00	0.27	-0.01
u2xr0108m	F814W	1300.00	-4.70	0.09	-4.90	0.00	0.20	0.09

Mosaic images

F555W	F814W

HSTPHOT command log

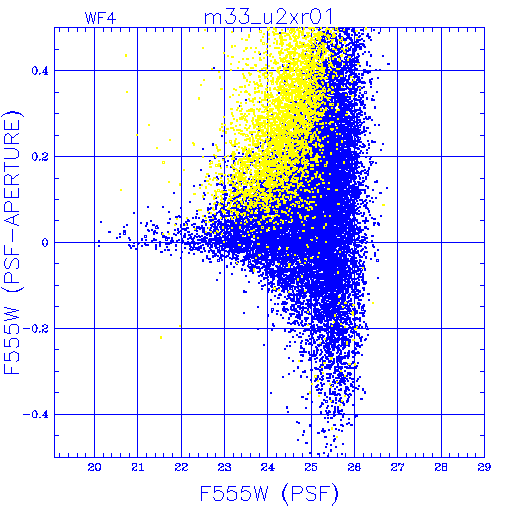

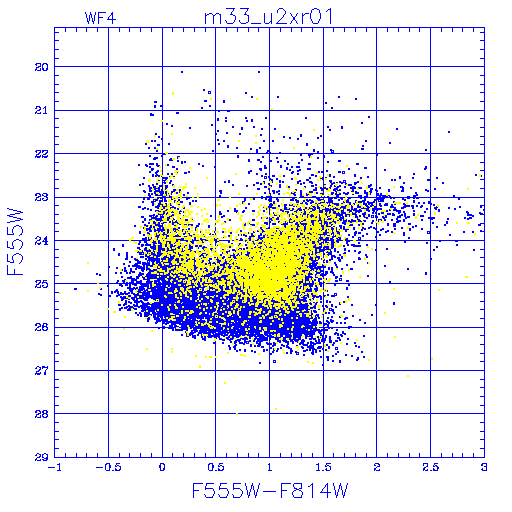

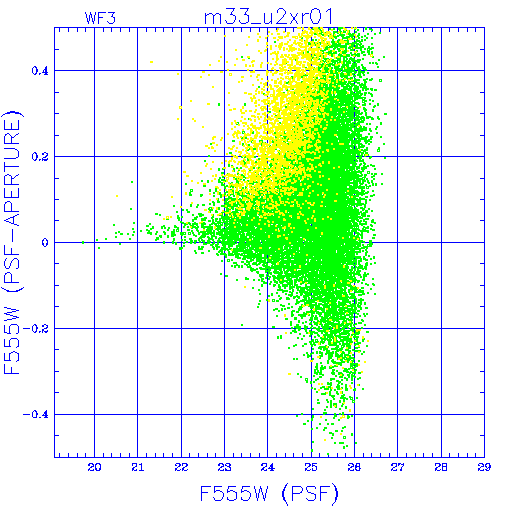

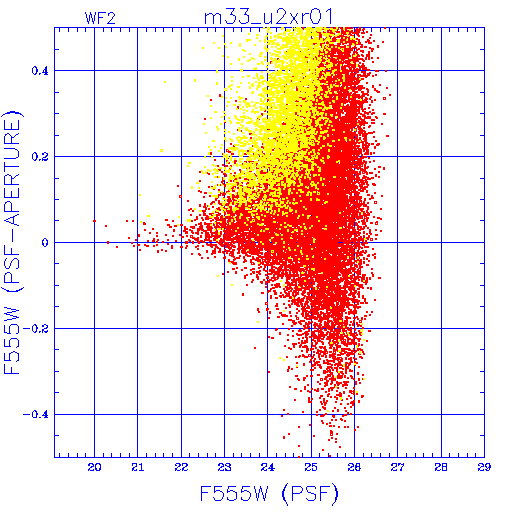

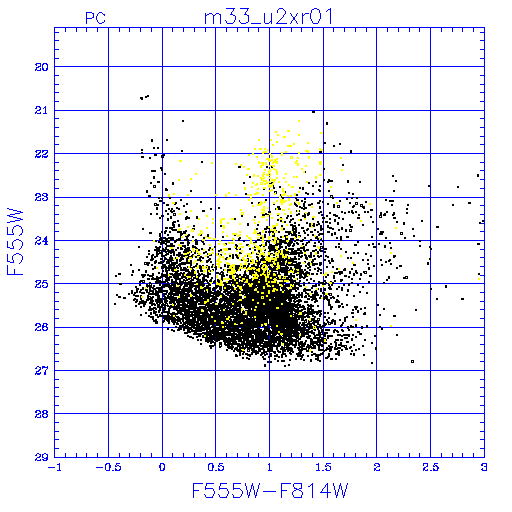

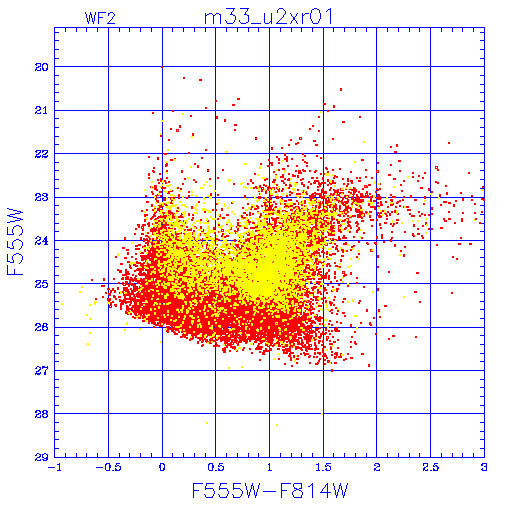

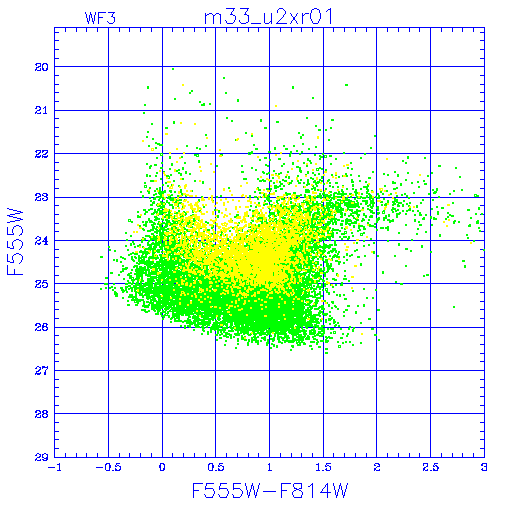

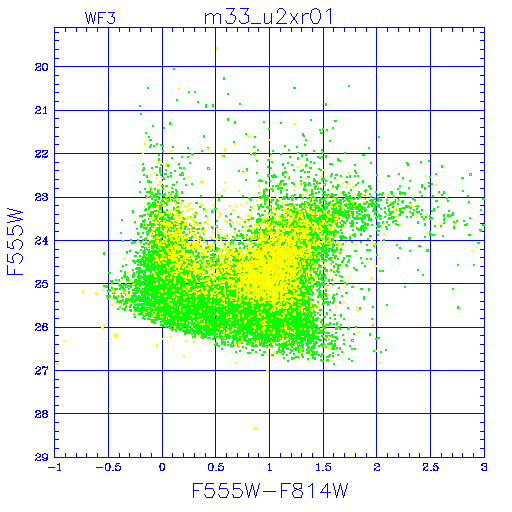

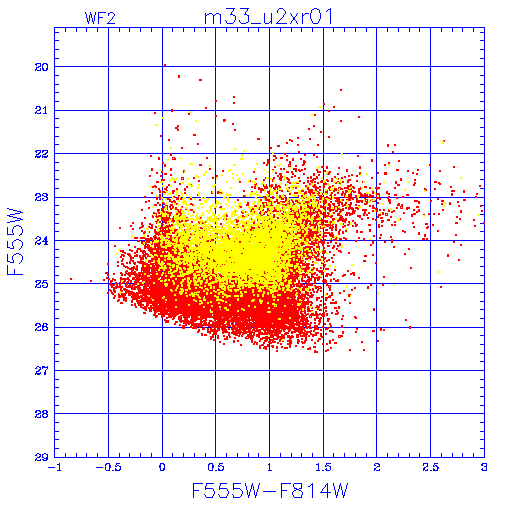

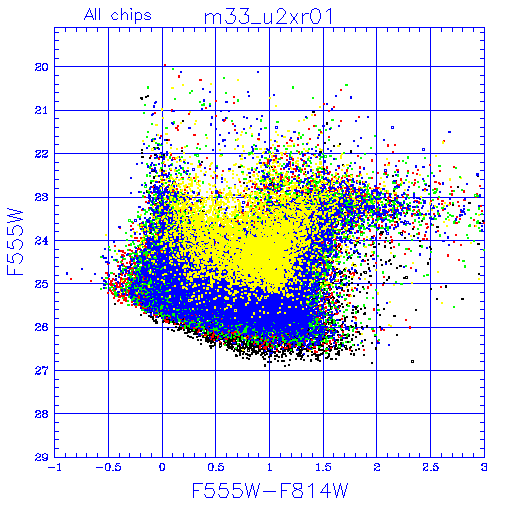

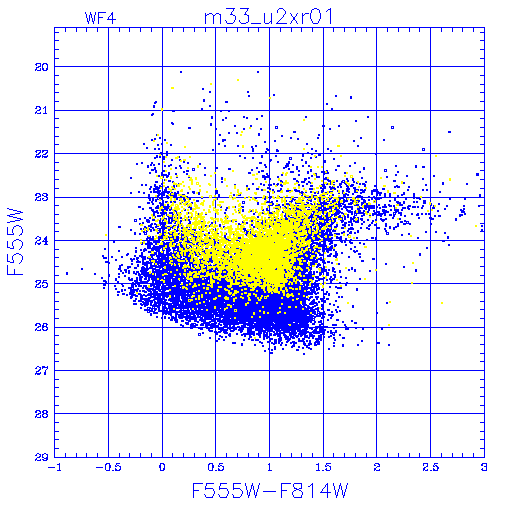

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

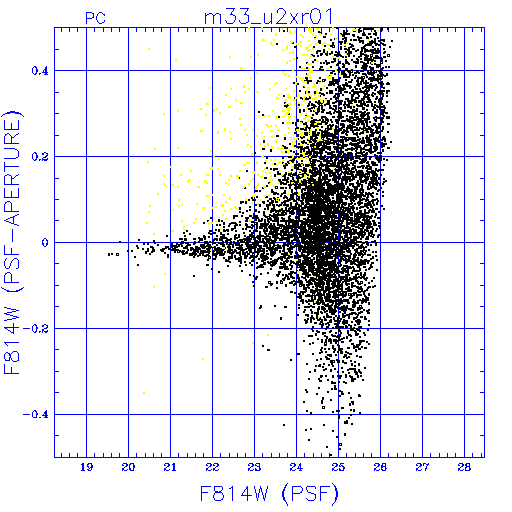

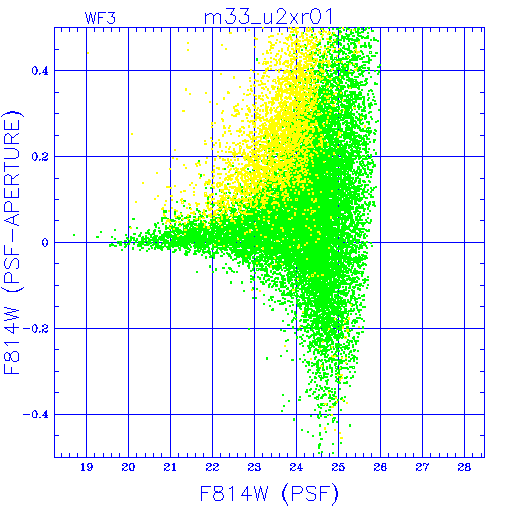

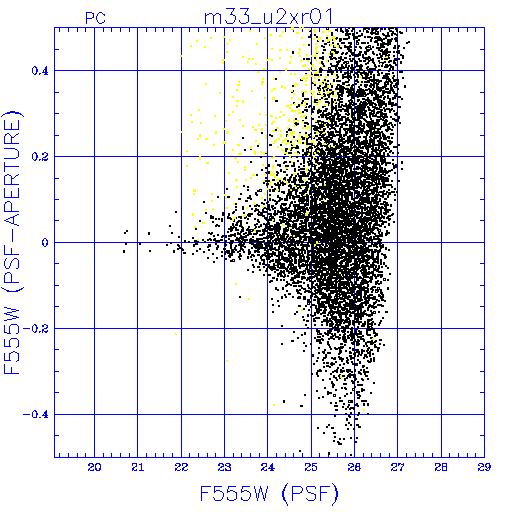

PSF
Aperture

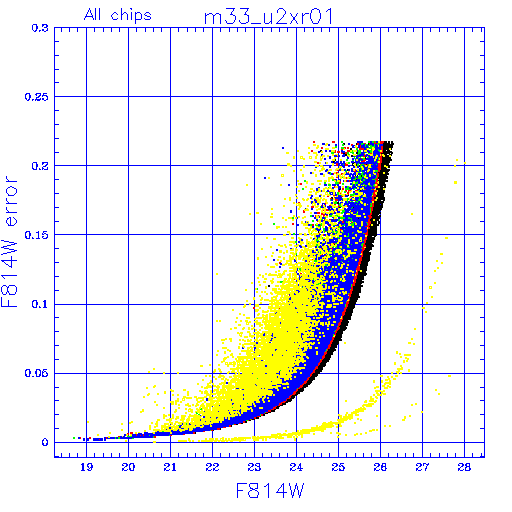

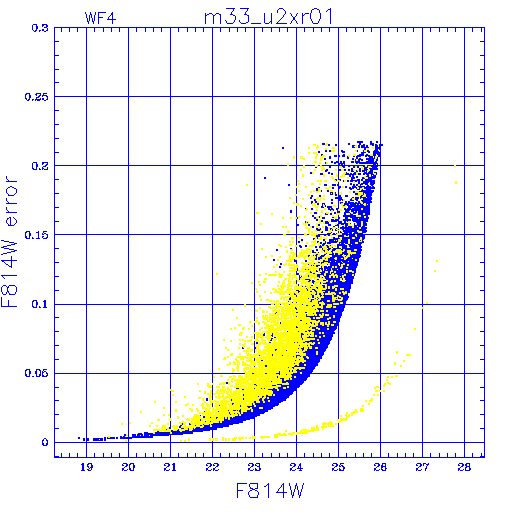

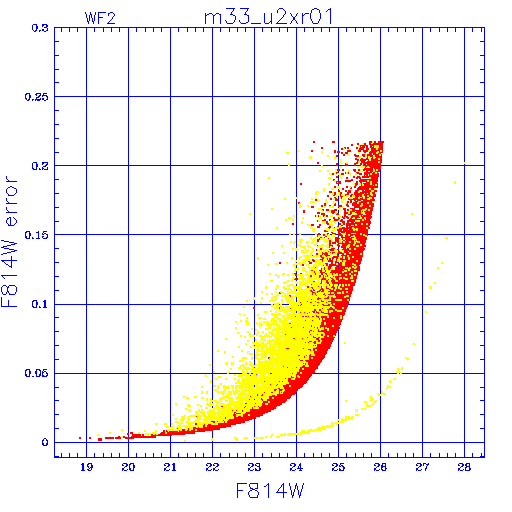

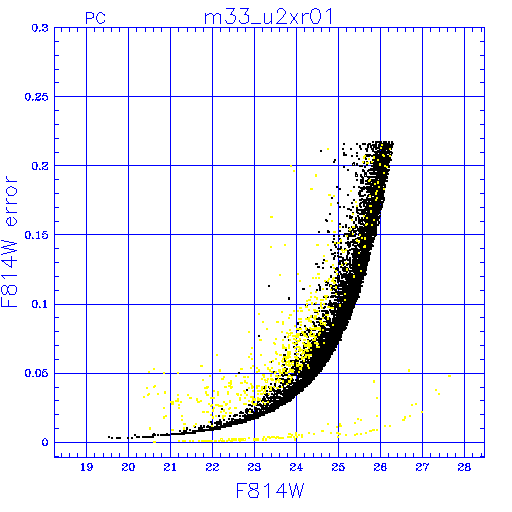

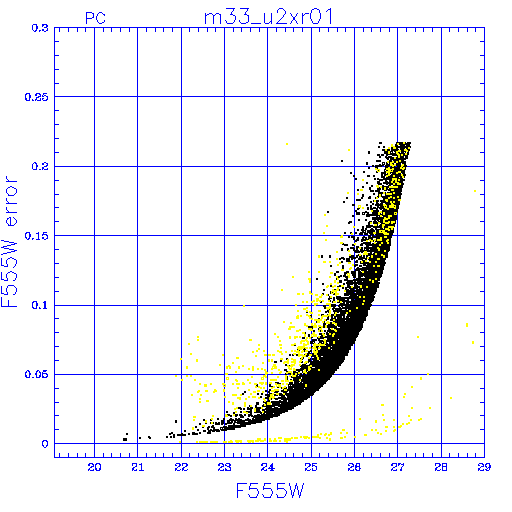

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

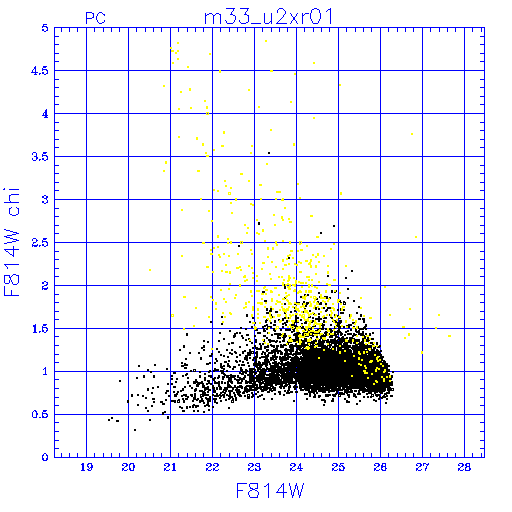

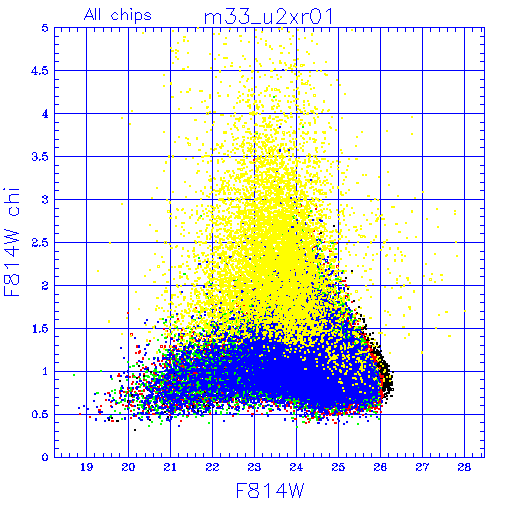

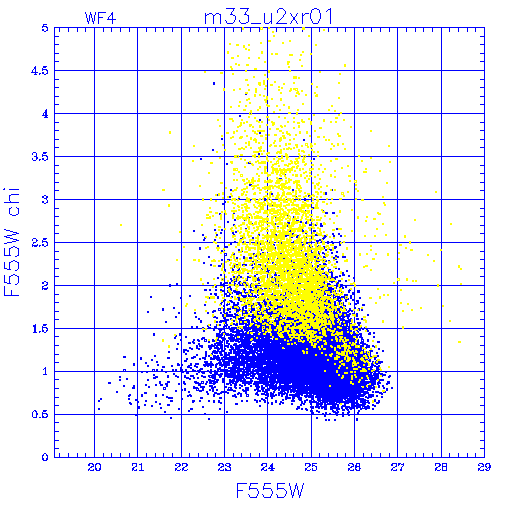

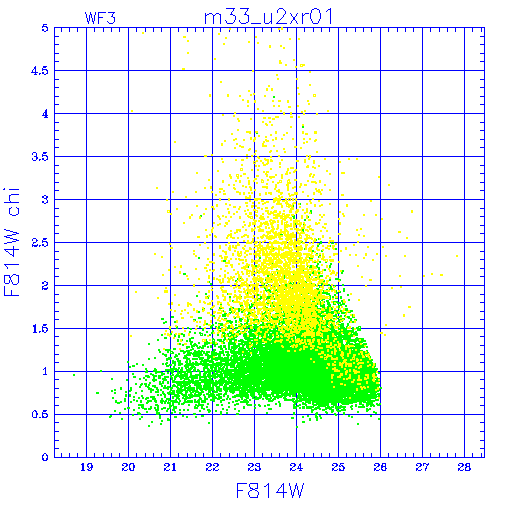

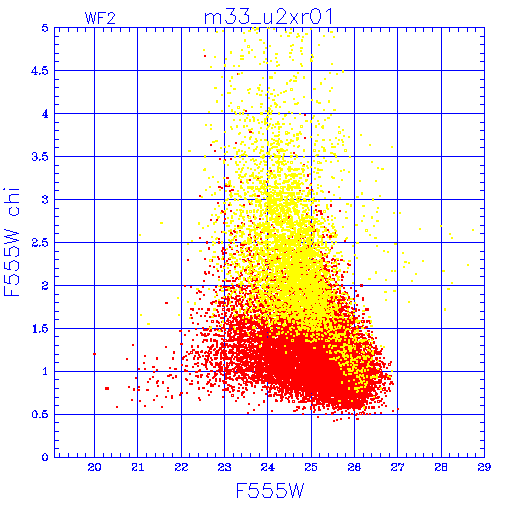

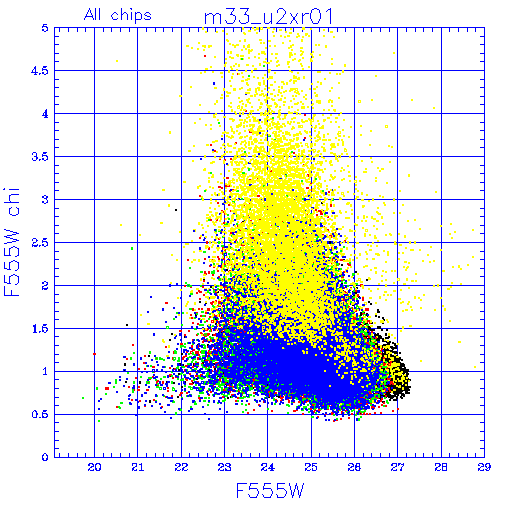

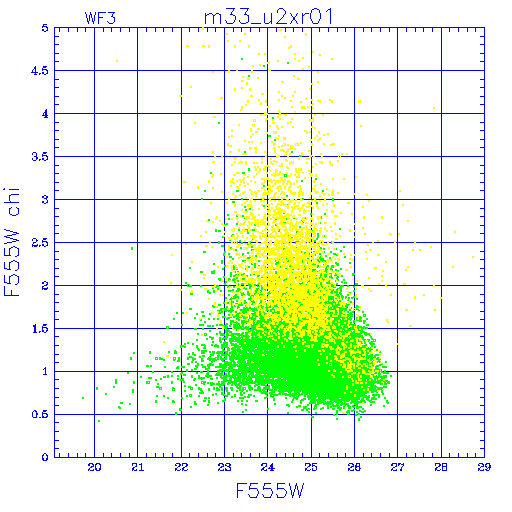

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

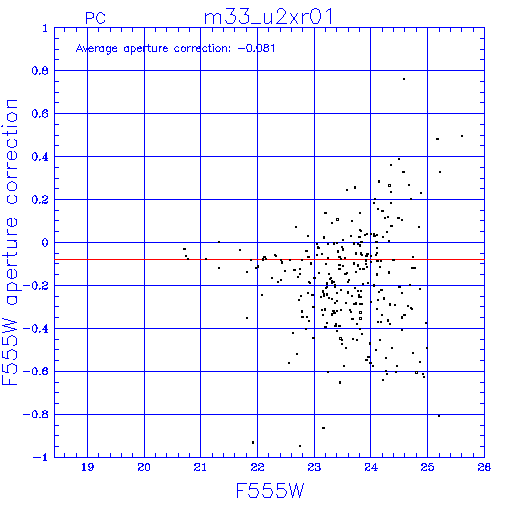

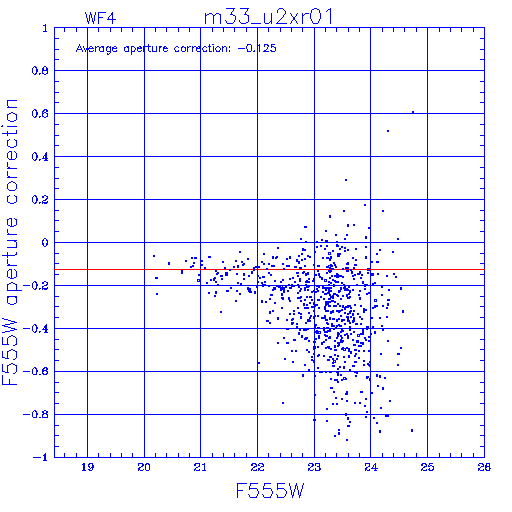

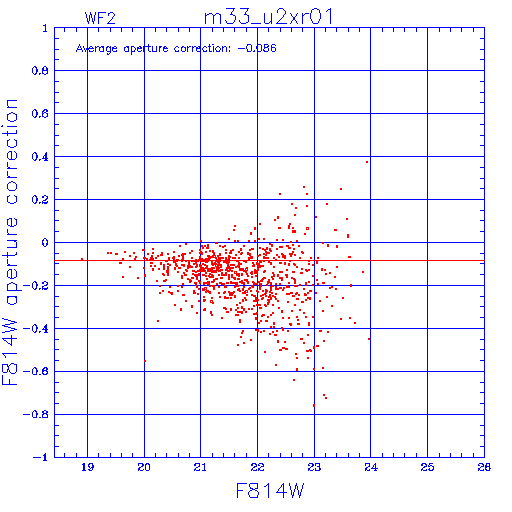

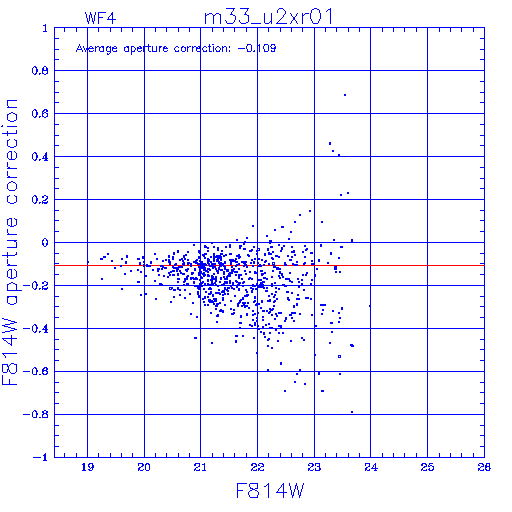

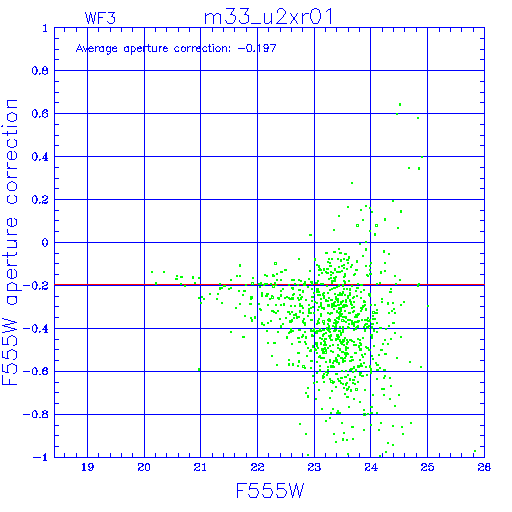

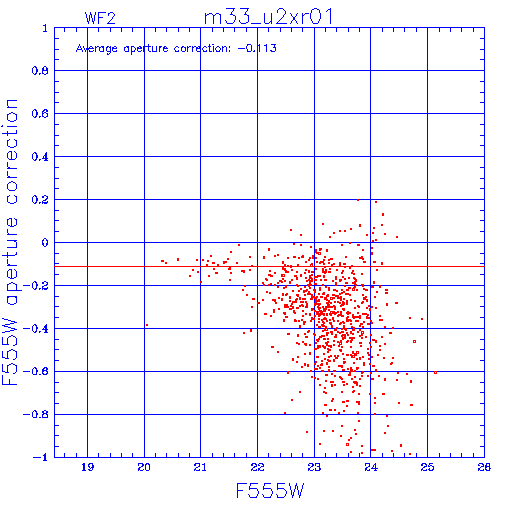

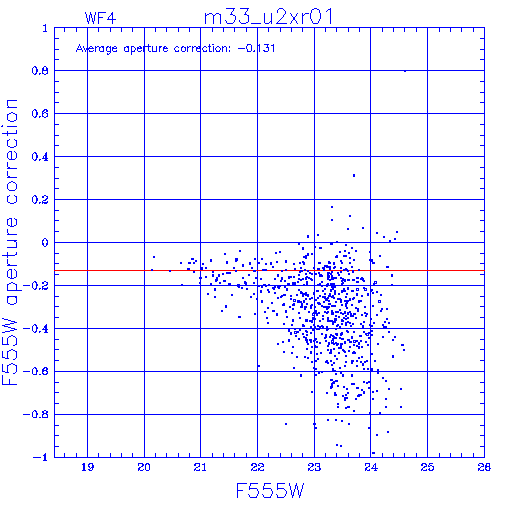

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
