Photometry Diagnostics for m31_u4wofi

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u4wofi01r	F606W	1000.00	0.00	0.00	0.00	0.00	0.00	0.00
u4wofi02r	F606W	10.00	0.03	-0.02	0.00	0.00	0.03	-0.02
u4wofi03r	F606W	40.00	0.05	-0.04	0.00	0.00	0.05	-0.04
u4wofi04r	F606W	200.00	0.04	-0.07	0.00	0.00	0.04	-0.07
u4wofi09r	F814W	500.00	0.02	0.14	0.00	0.00	0.02	0.14
u4wofi0ar	F814W	20.00	0.00	0.34	0.00	0.00	0.00	0.34
u4wofi0br	F814W	100.00	0.02	0.35	0.00	0.00	0.02	0.35
u4wofi0cr	F814W	500.00	0.04	0.27	0.00	0.00	0.04	0.27
u4wofi0dr	F300W	700.00	-0.32	-0.63	0.00	0.00	-0.32	-0.63
u4wofi0er	F300W	60.00	-0.01	0.05	0.00	0.00	-0.01	0.05
u4wofi0fr	F300W	300.00	0.02	0.16	0.00	0.00	0.02	0.16
u4wofi05r	F450W	1000.00	-0.72	0.21	0.00	0.00	-0.72	0.21
u4wofi06r	F450W	10.00	-0.42	0.30	0.00	0.00	-0.42	0.30
u4wofi07r	F450W	60.00	-0.36	0.16	0.00	0.00	-0.36	0.16
u4wofi08r	F450W	600.00	-0.40	0.10	0.00	0.00	-0.40	0.10
u4wofi0gr	F656N	160.00	0.04	0.65	0.00	0.00	0.04	0.65
u4wofi0hr	F656N	1000.00	0.06	0.62	0.00	0.00	0.06	0.62
u4wofi0ir	F656N	1000.00	0.05	0.51	0.00	0.00	0.05	0.51

Mosaic images

F606W	F814W	F300W	F450W	F656N

HSTPHOT command log

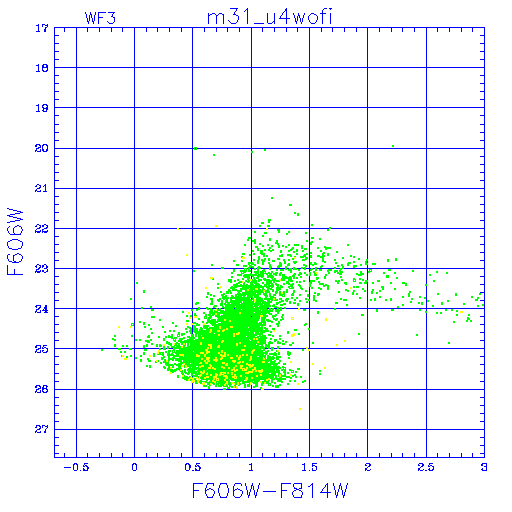

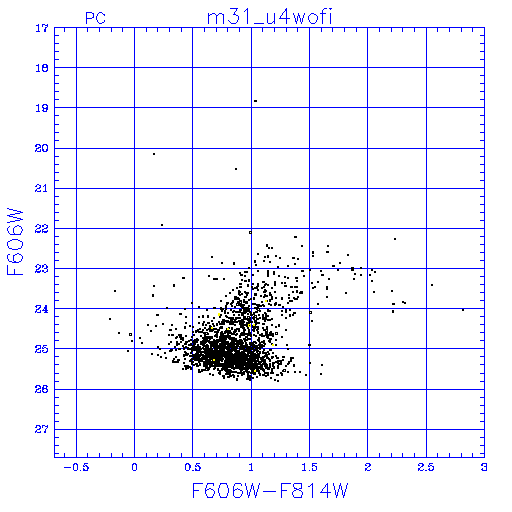

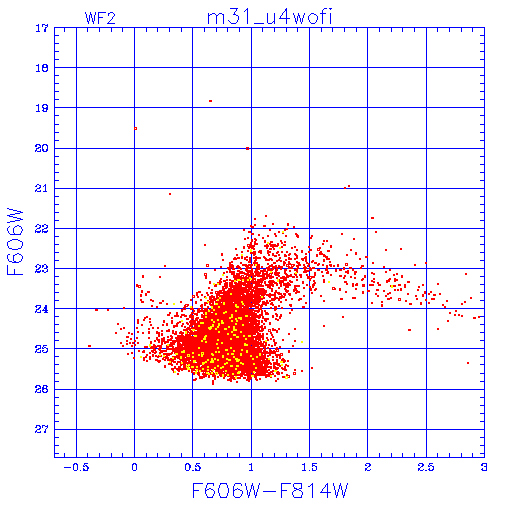

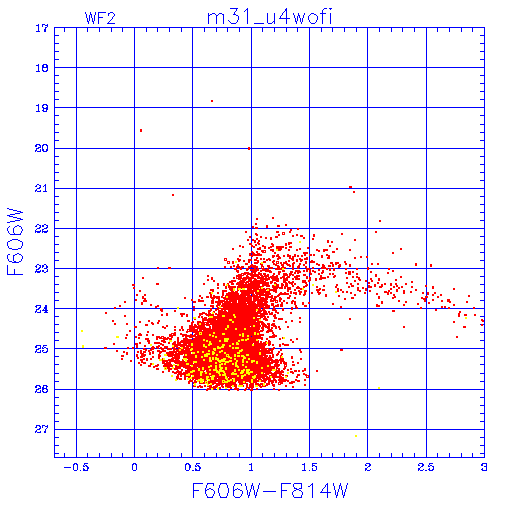

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

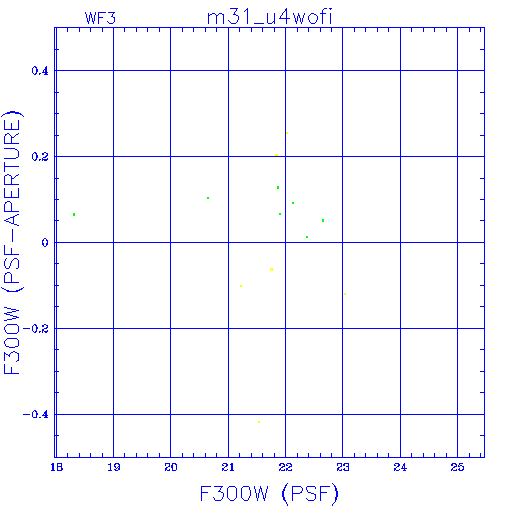

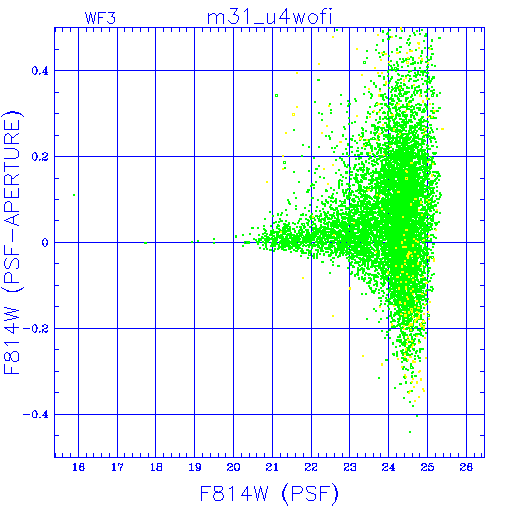

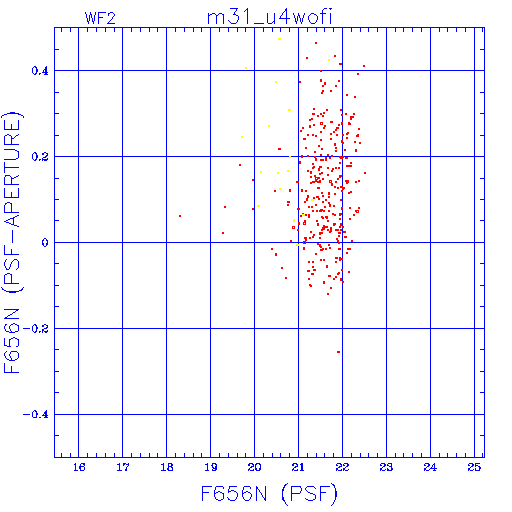

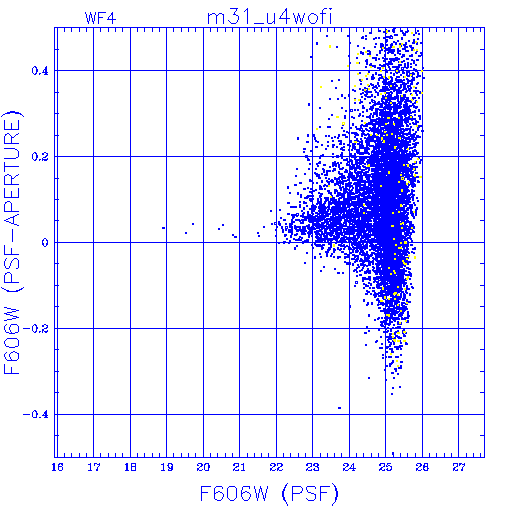

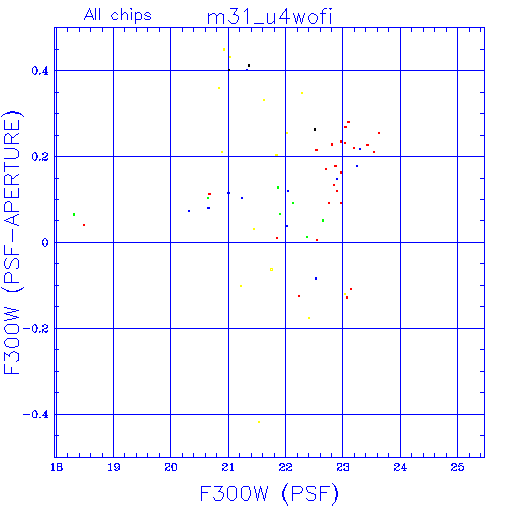

PSF
Aperture

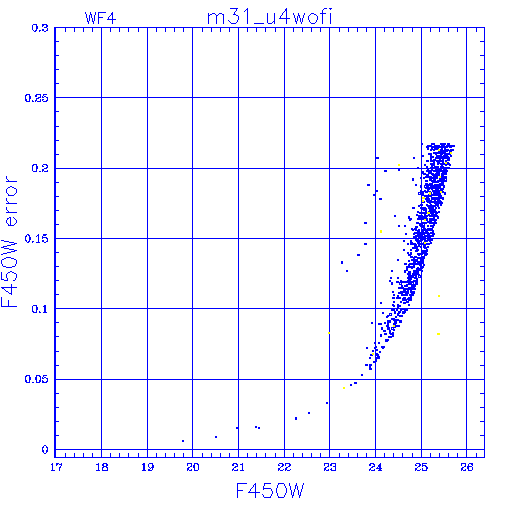

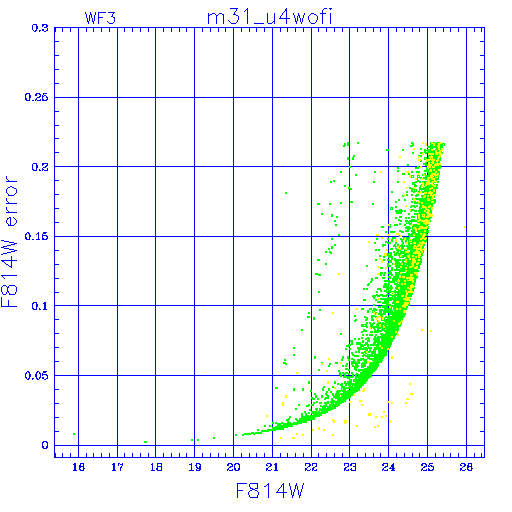

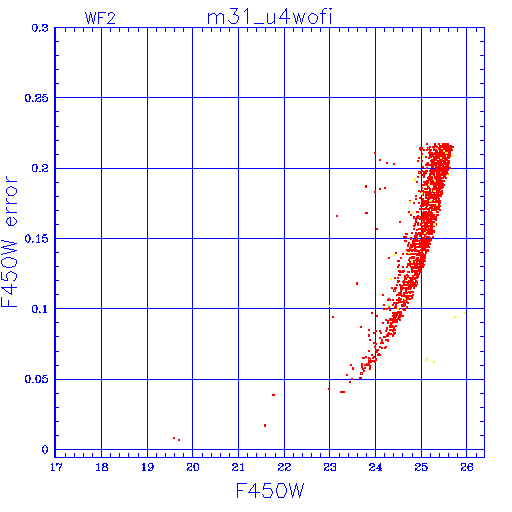

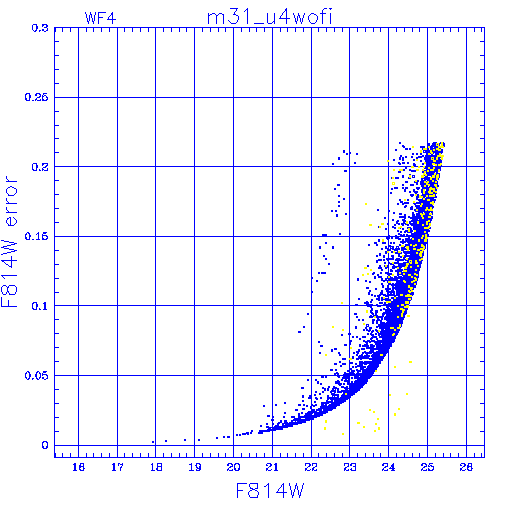

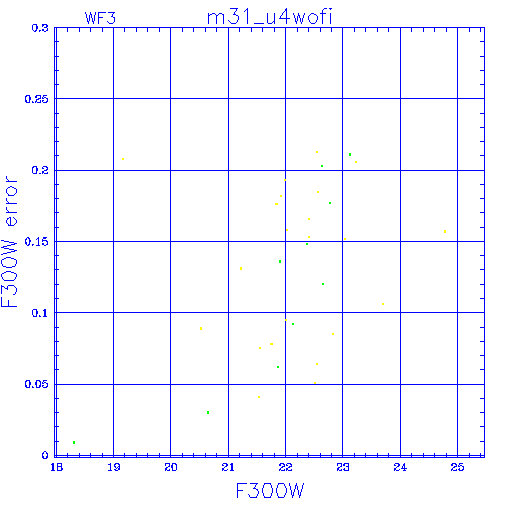

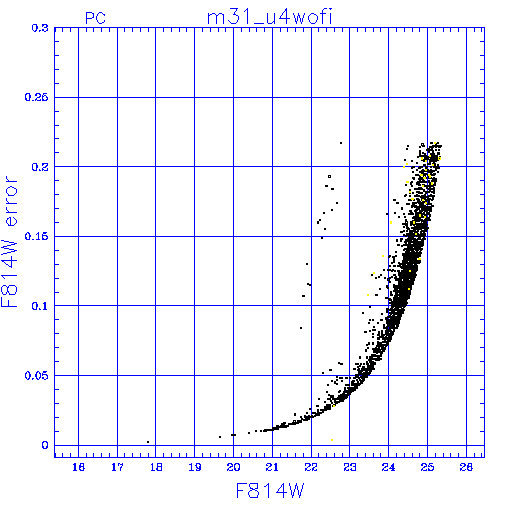

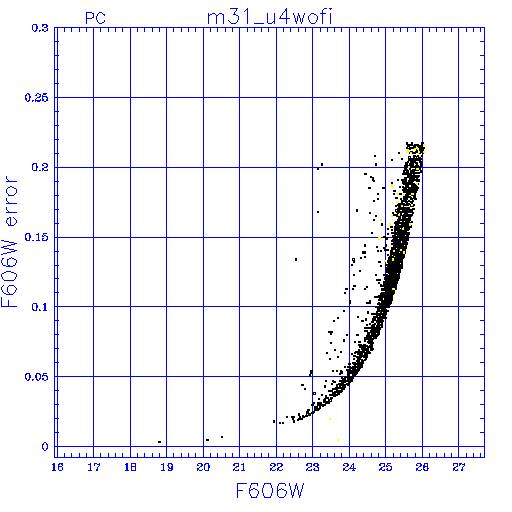

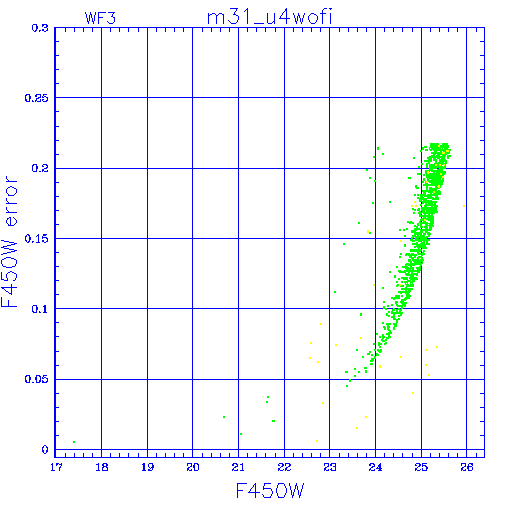

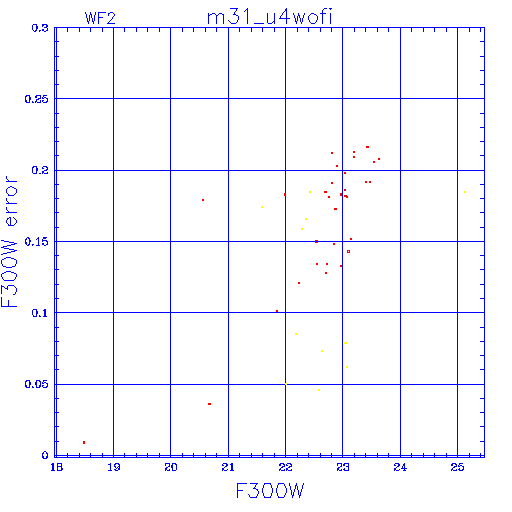

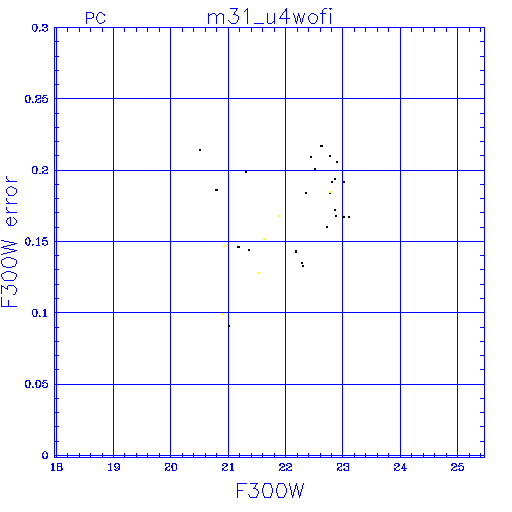

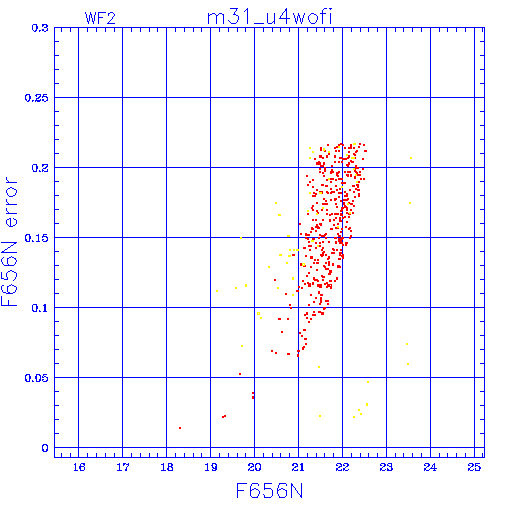

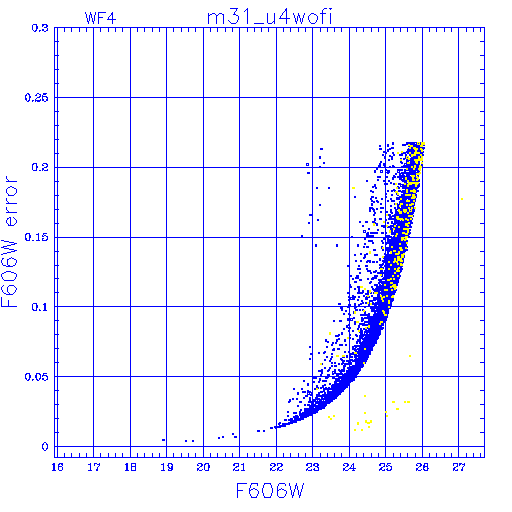

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w
f300w
f450w
f656n

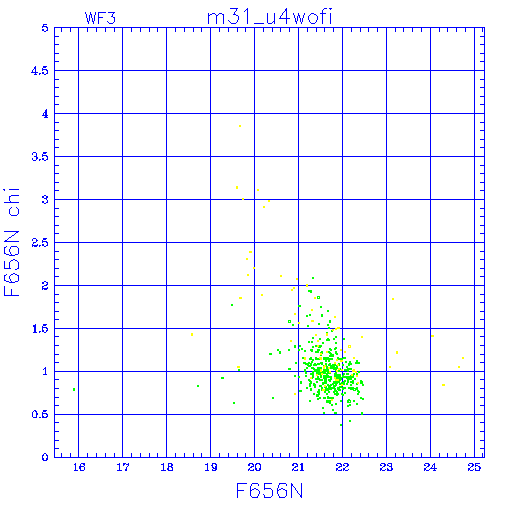

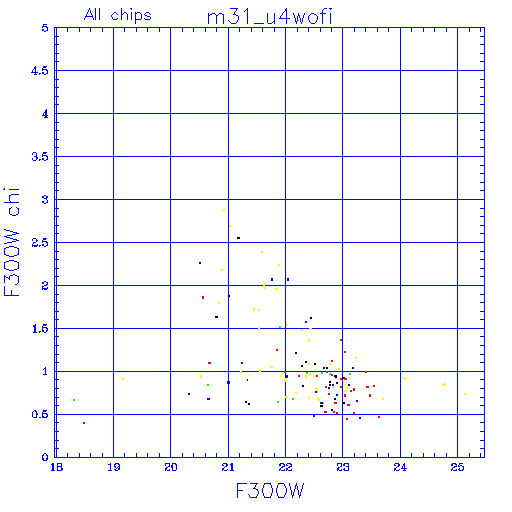

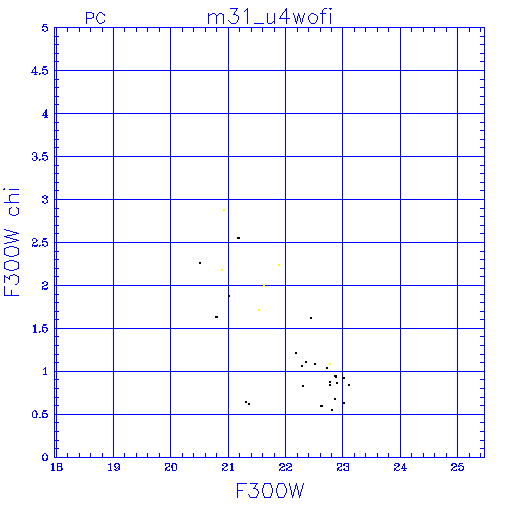

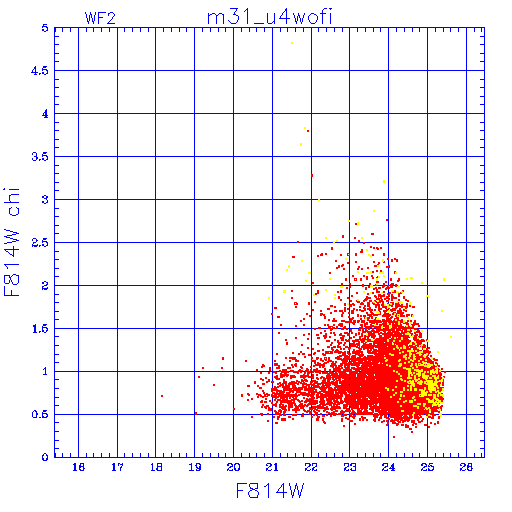

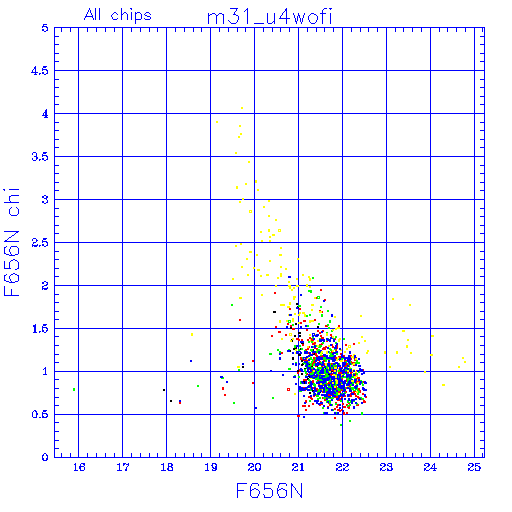

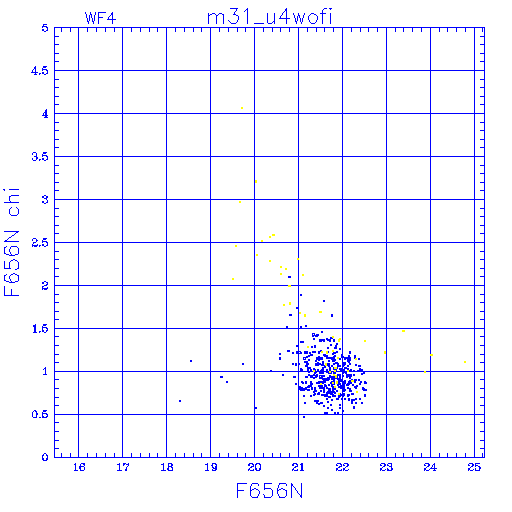

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f606w
f814w
f300w
f450w
f656n

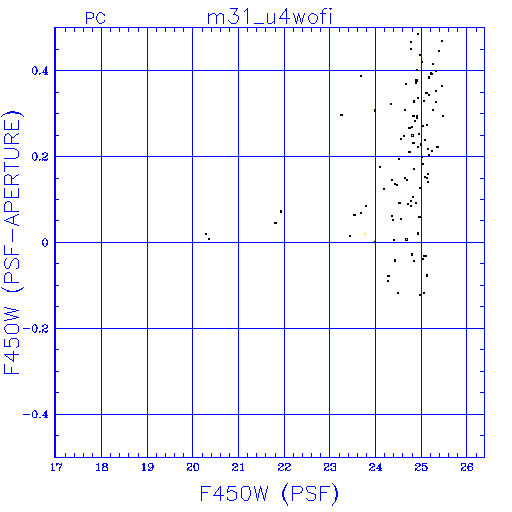

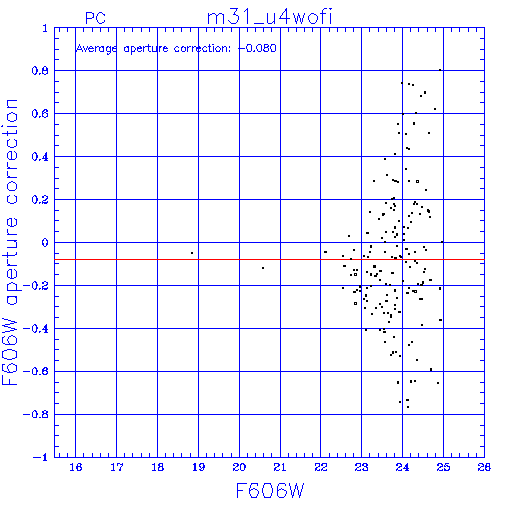

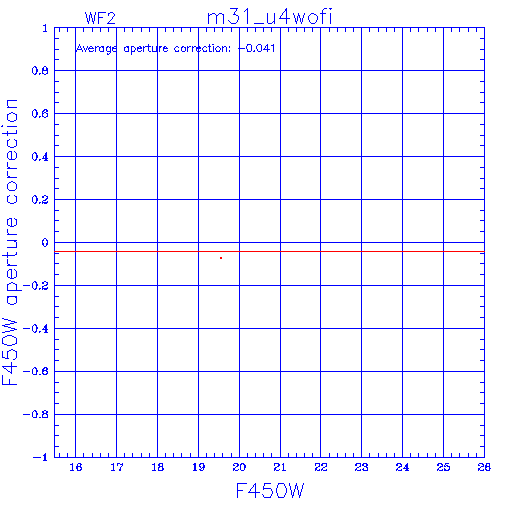

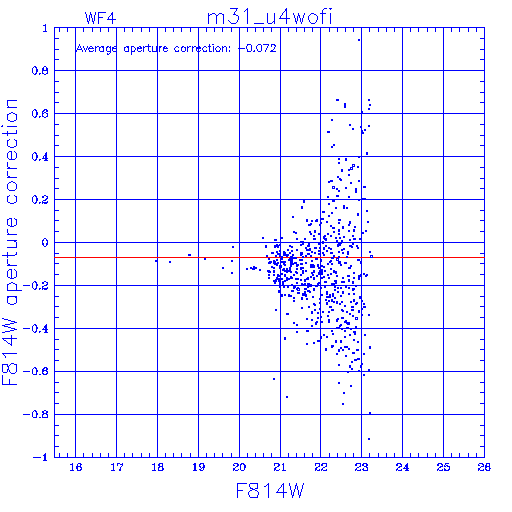

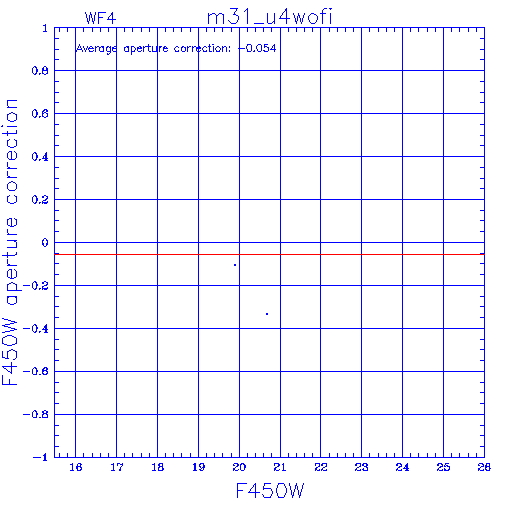

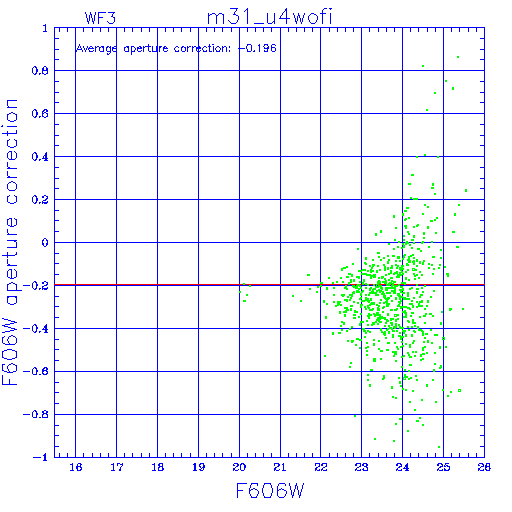

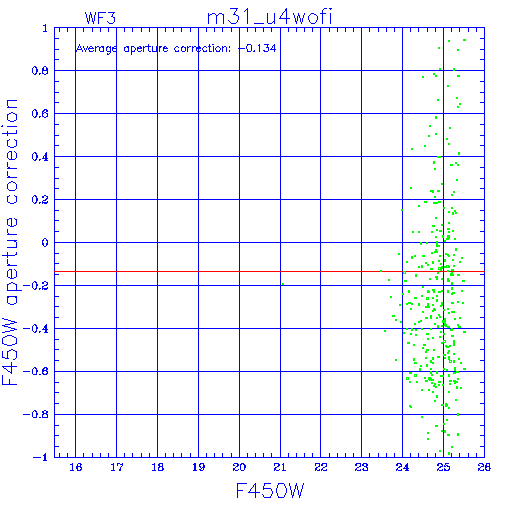

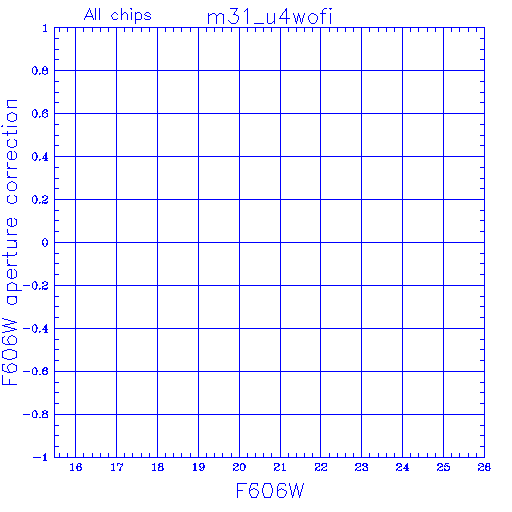

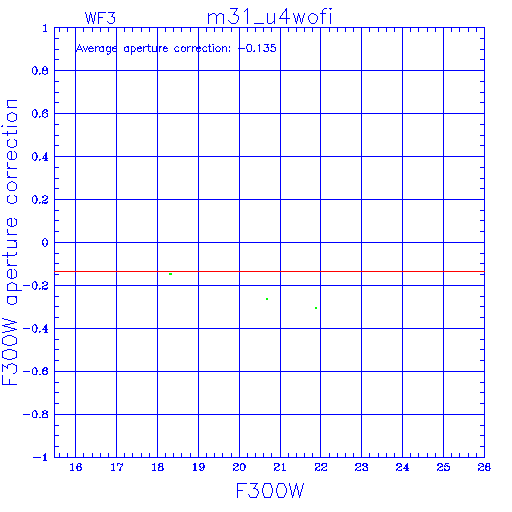

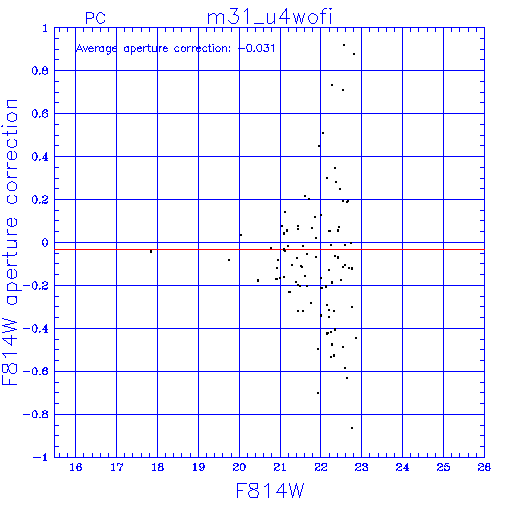

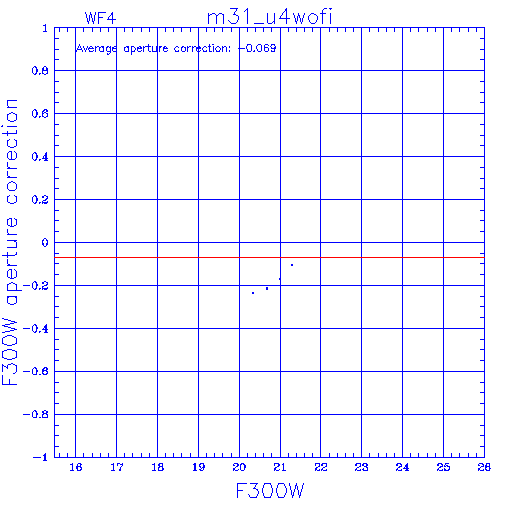

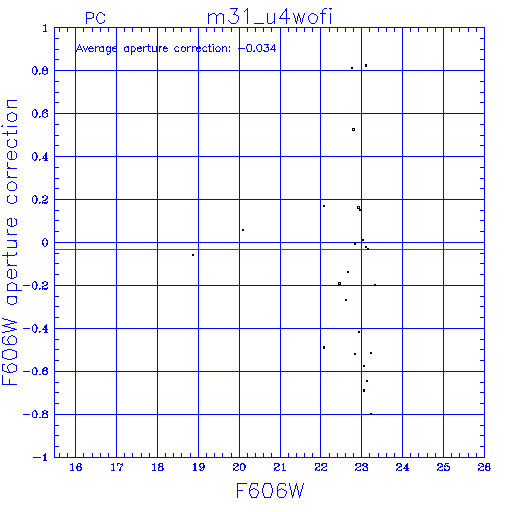

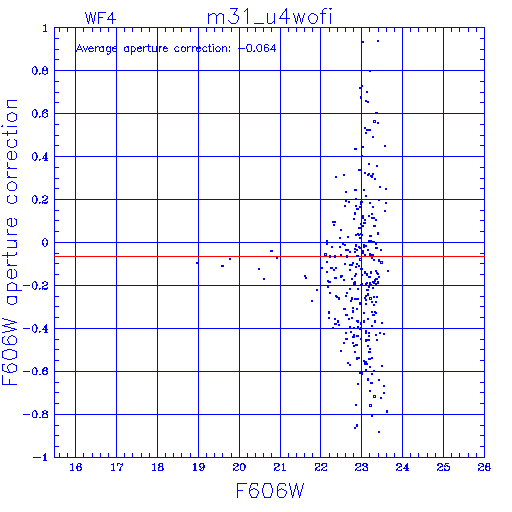

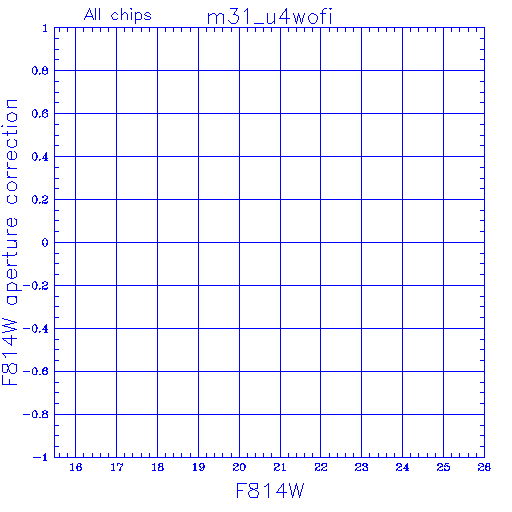

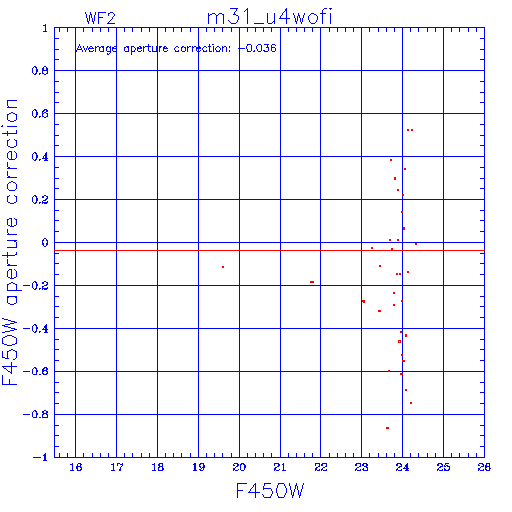

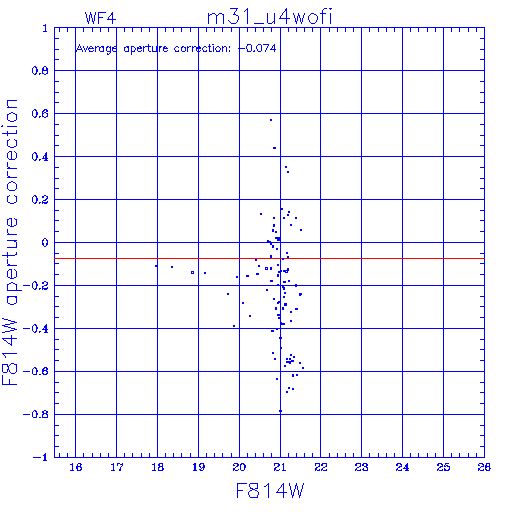

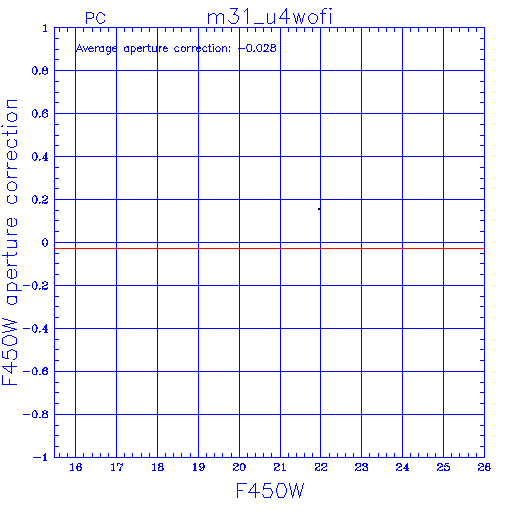

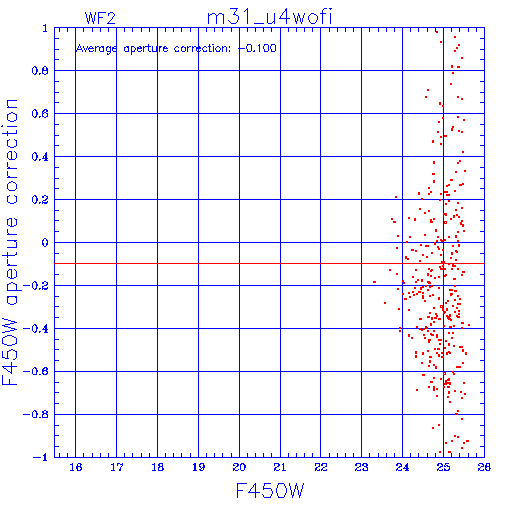

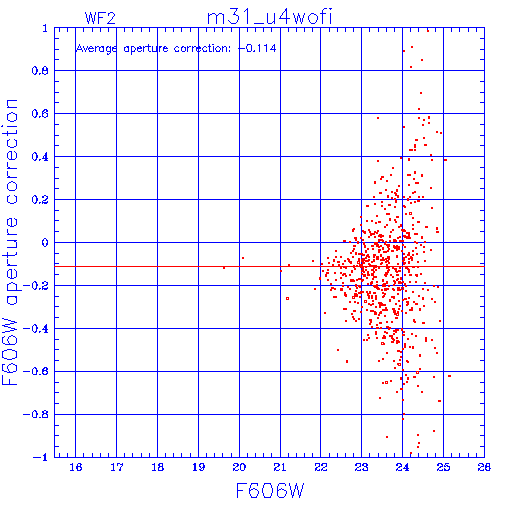

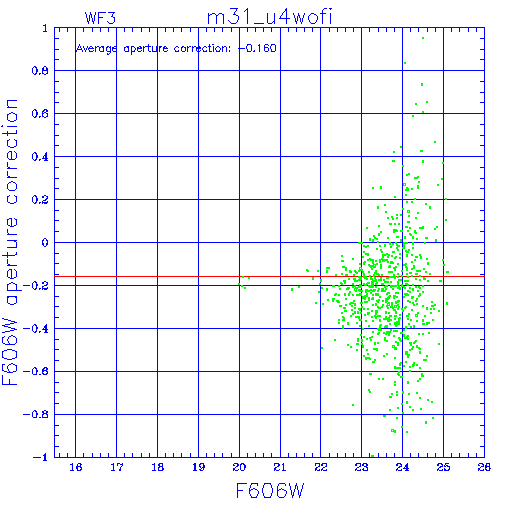

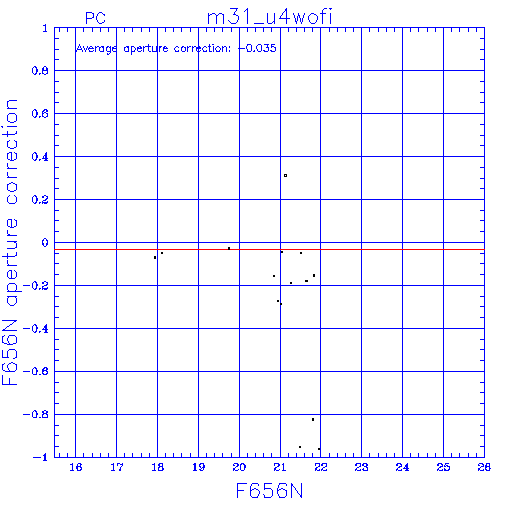

Aperture corrections

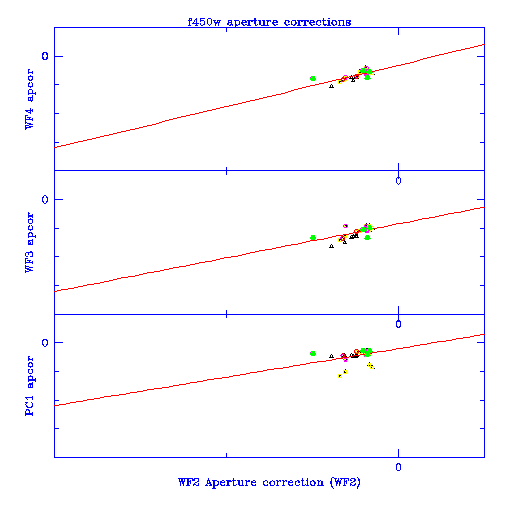

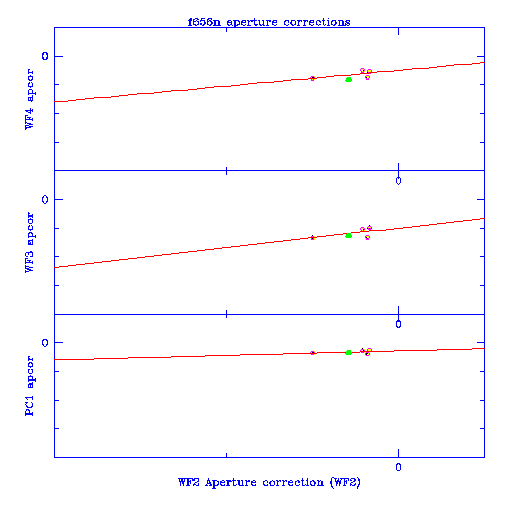

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
