Photometry Diagnostics for m31_u4wobc



Frame list, with derived and commanded shifts
dataset filter exptime derived dx derived dy header dx header dy delta dx delta dy
u4wobc01r F606W 800.00 0.00 0.00 0.00 0.00 0.00 0.00
u4wobc02r F606W 40.00 -0.04 -0.01 0.00 0.00 -0.04 -0.01
u4wobc05r F814W 200.00 -0.13 0.28 0.00 0.00 -0.13 0.28
u4wobc06r F814W 100.00 -0.13 0.23 0.00 0.00 -0.13 0.23
u4wobc07r F300W 600.00 53.46 -125.96 0.00 0.00 53.46 -125.96
u4wobc08r F300W 40.00 -0.55 0.10 0.00 0.00 -0.55 0.10
u4wobc09r F300W 600.00 -0.67 0.33 0.00 0.00 -0.67 0.33
u4wobc03m F450W 1000.00 -0.71 0.17 0.00 0.00 -0.71 0.17
u4wobc04r F450W 40.00 -0.68 0.18 0.00 0.00 -0.68 0.18
u4wobc0ar F656N 300.00 -0.24 0.59 0.00 0.00 -0.24 0.59
u4wobc0br F656N 700.00 -0.19 0.57 0.00 0.00 -0.19 0.57

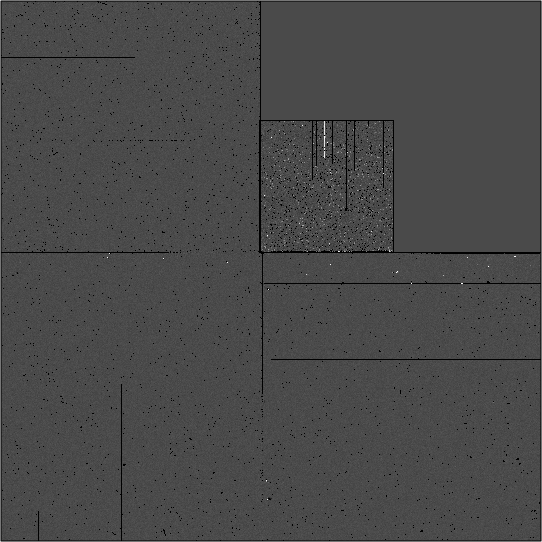

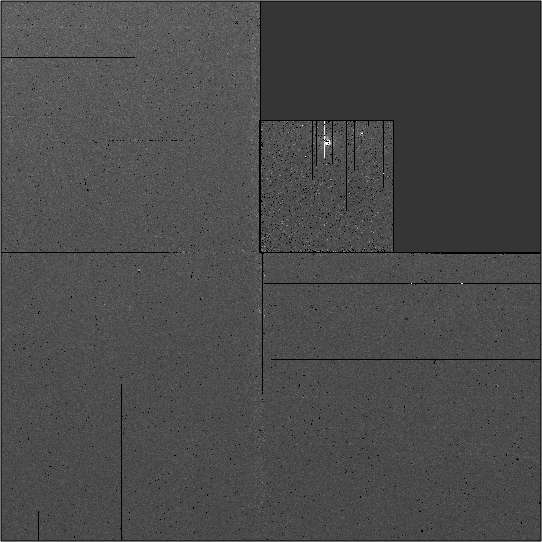

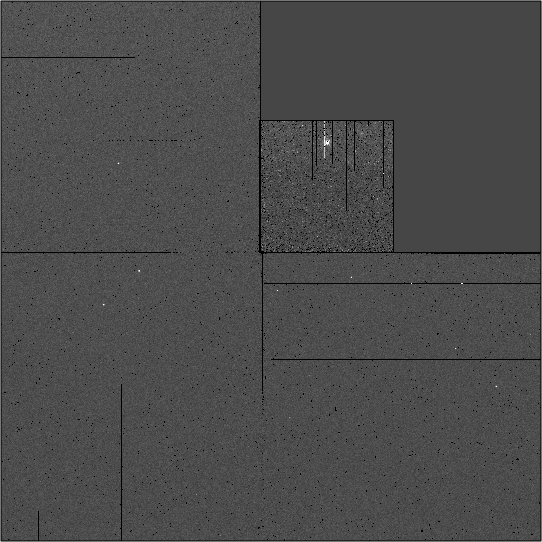

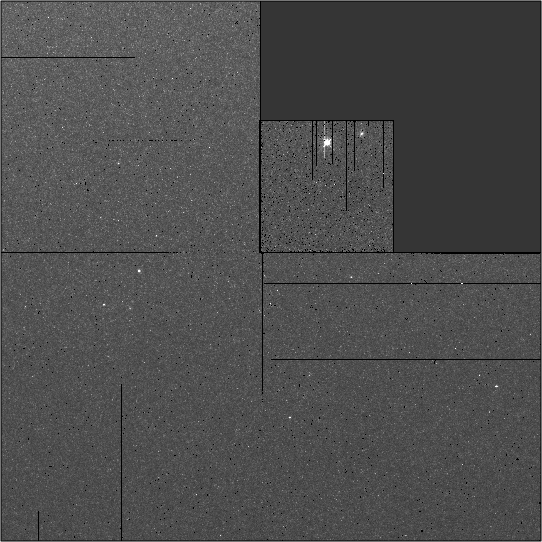

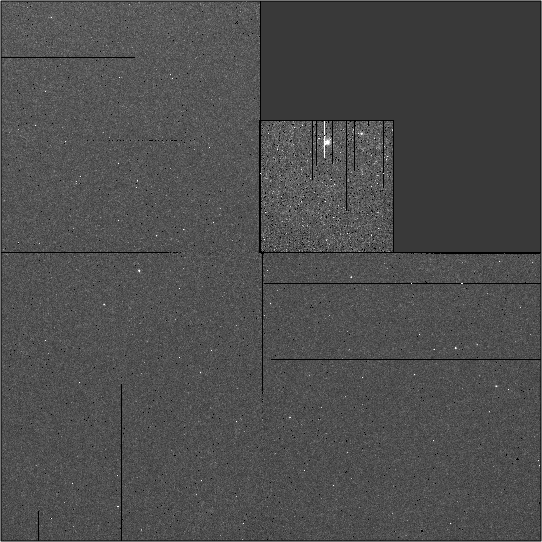

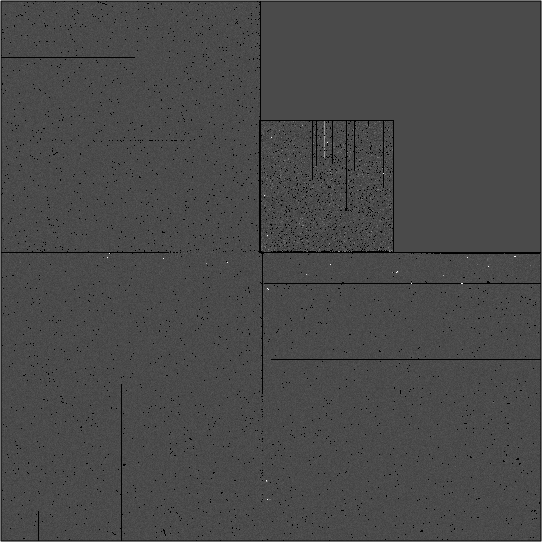

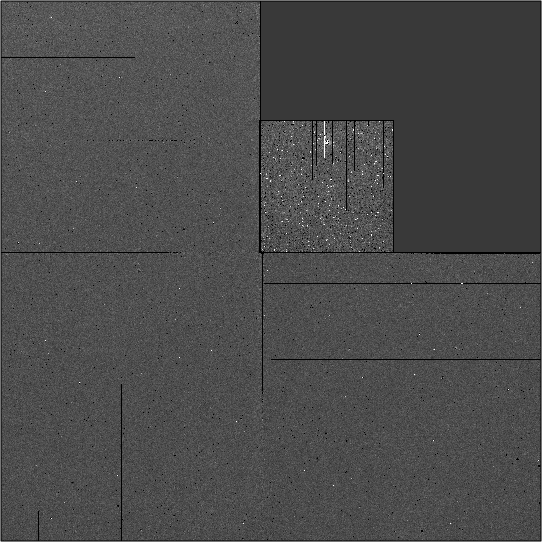

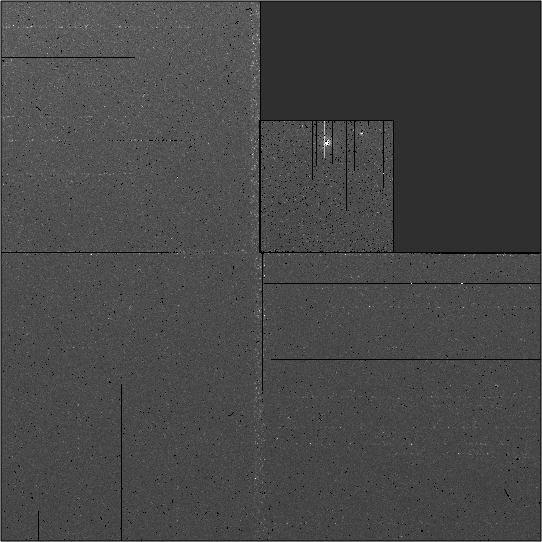

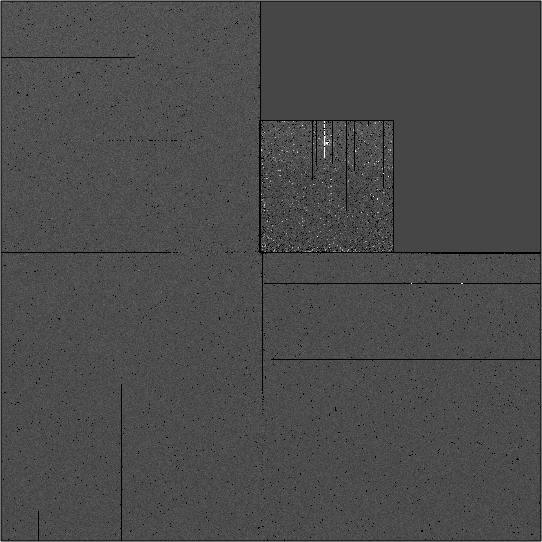

Mosaic images

F606W F814W F300W F450W F656N


HSTPHOT command log

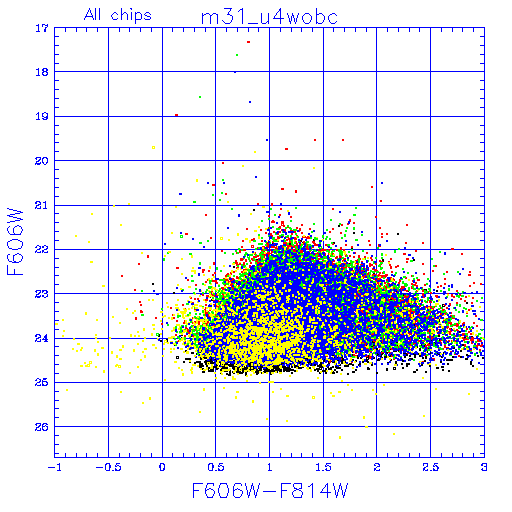

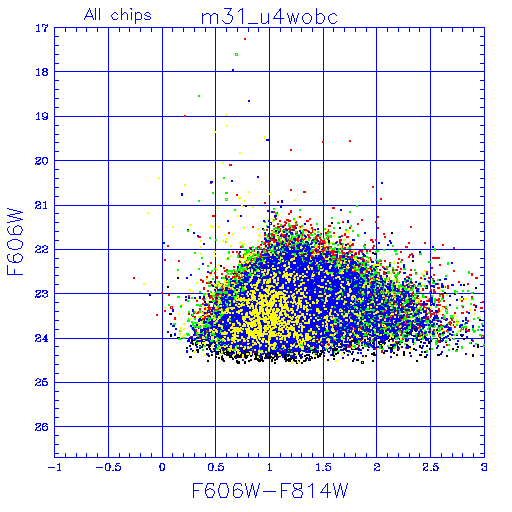

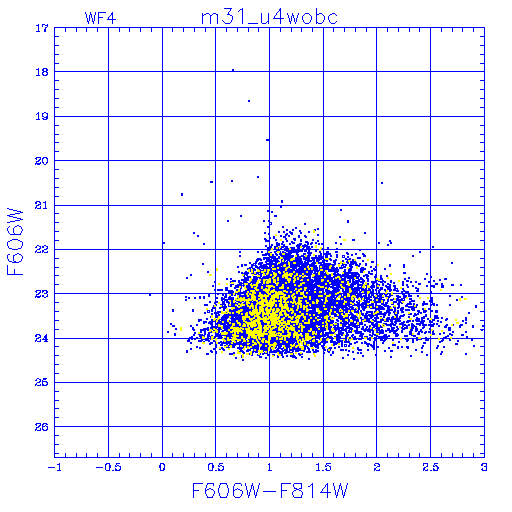

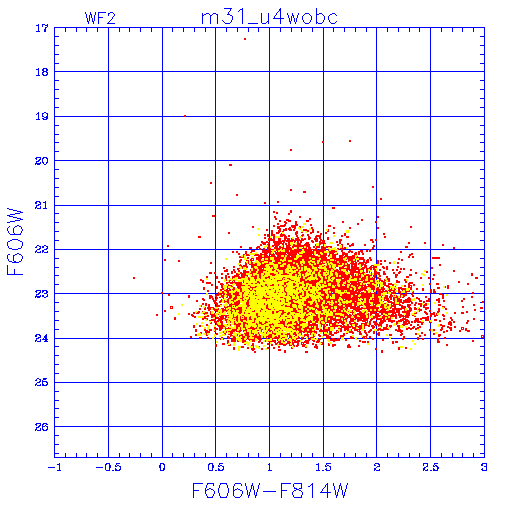

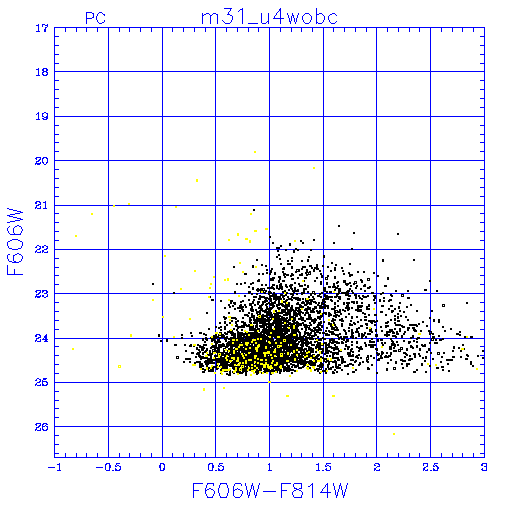

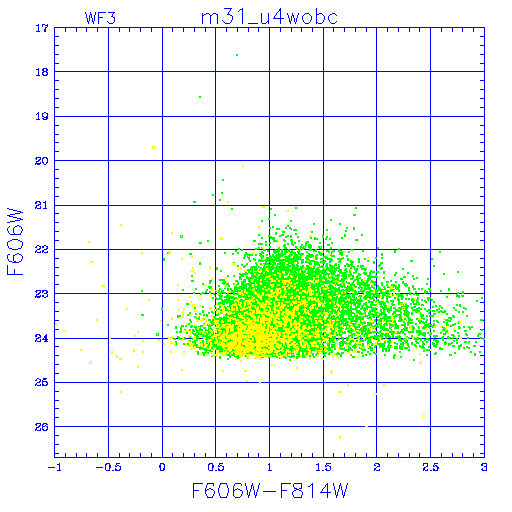

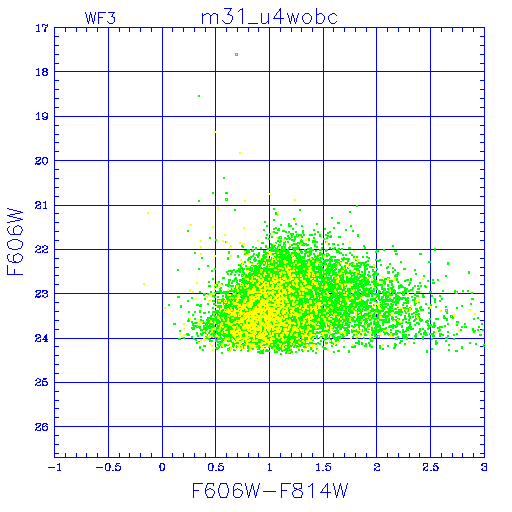

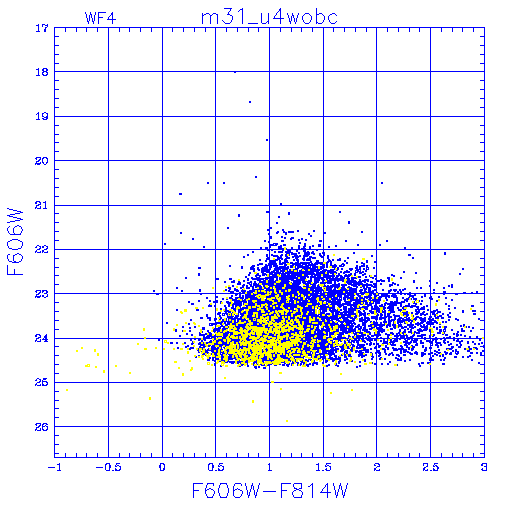

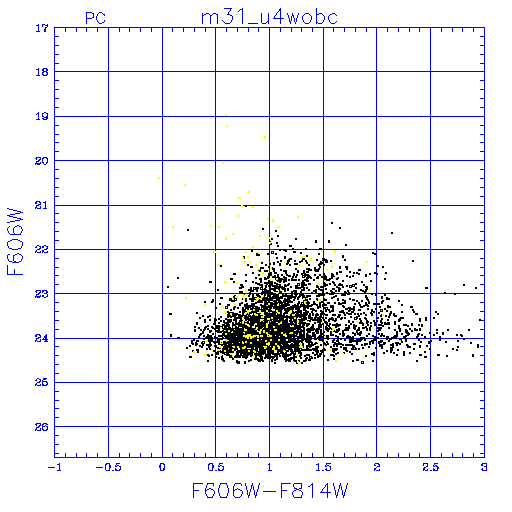

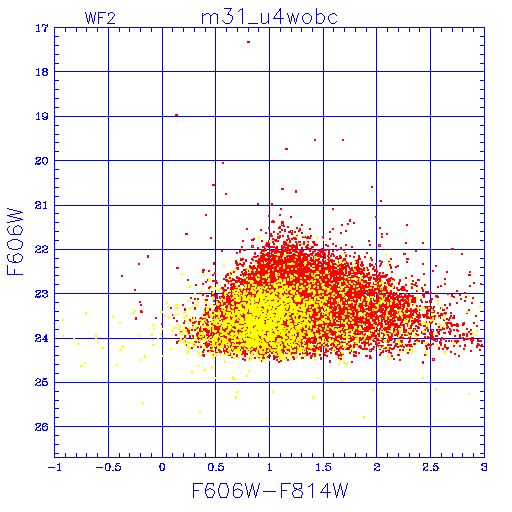

Color magnitude diagrams

All chips
PC
WF2
WF3
WF4
PSF
Aperture

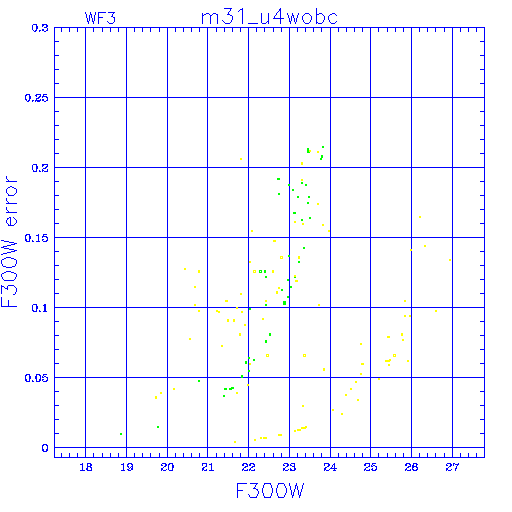

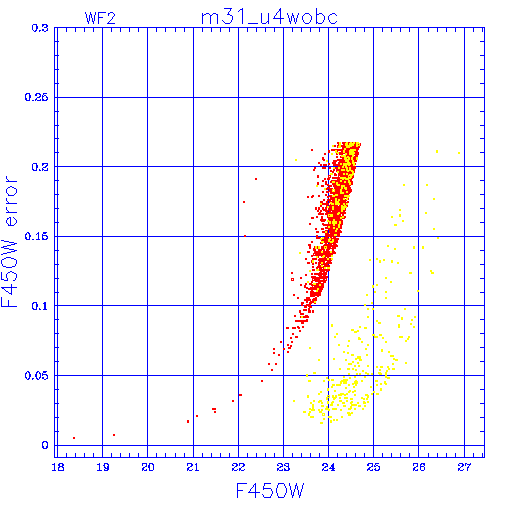

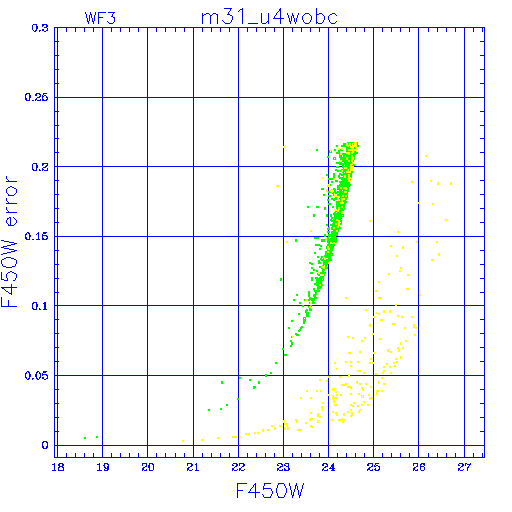

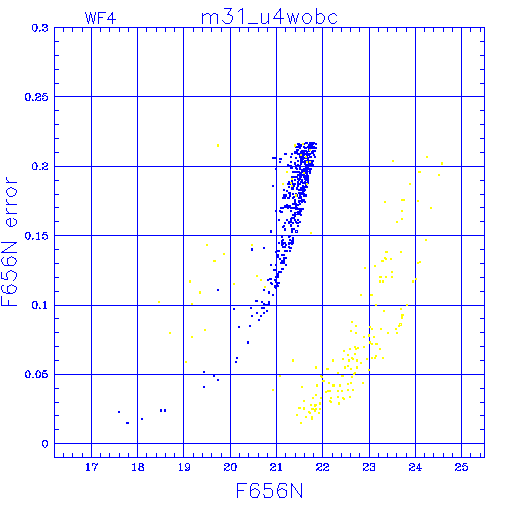

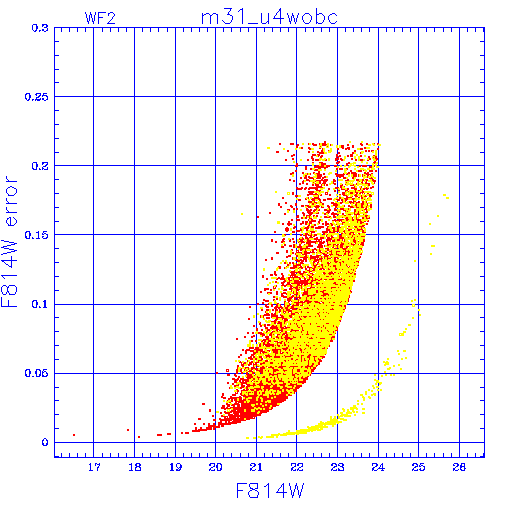

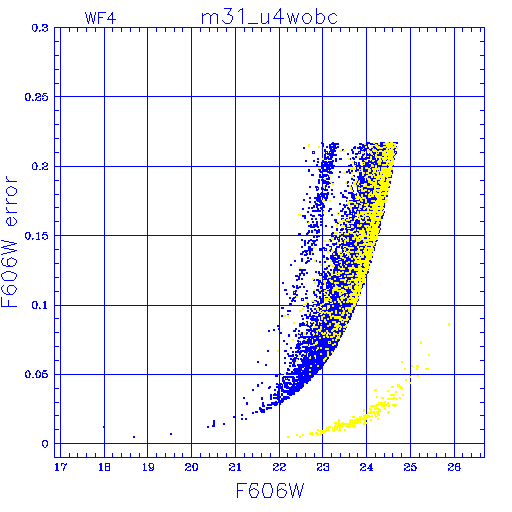

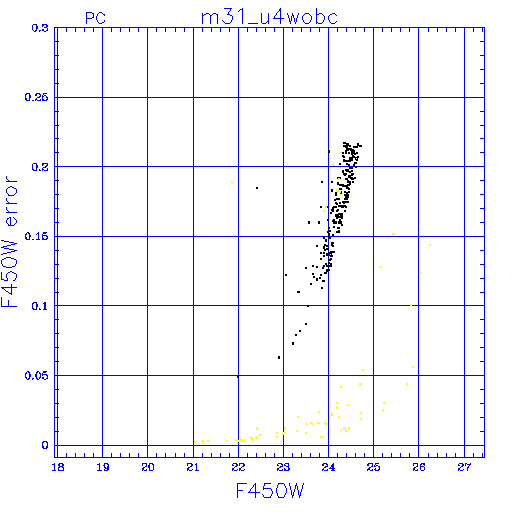

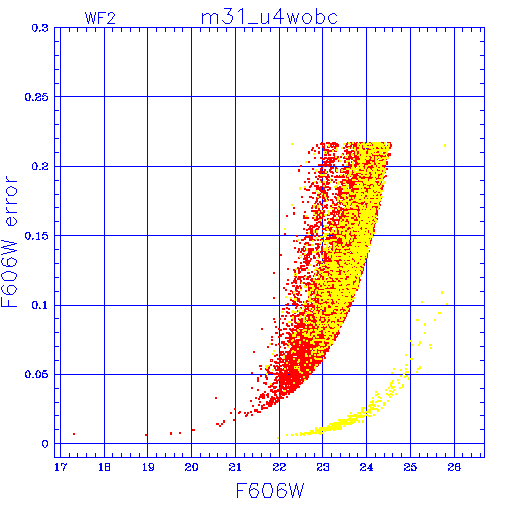

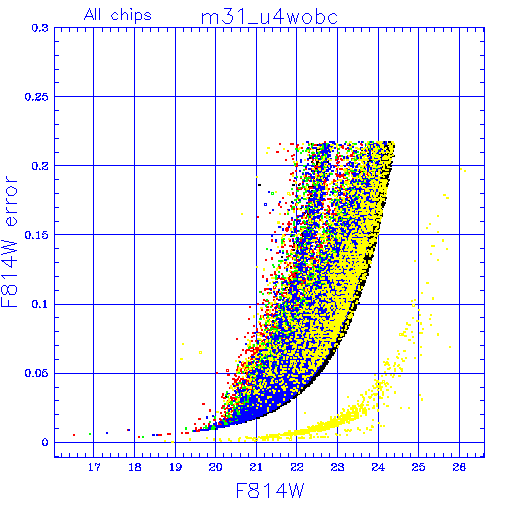

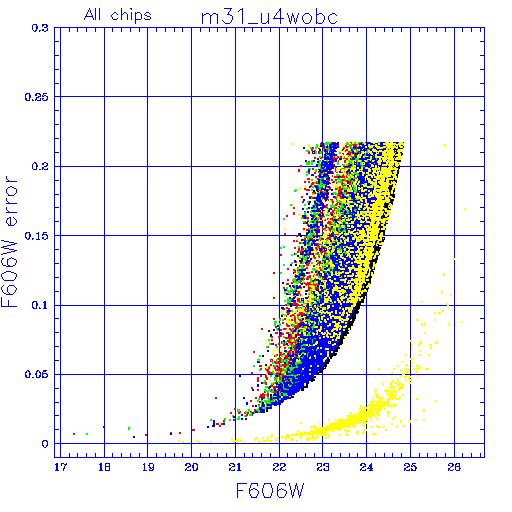

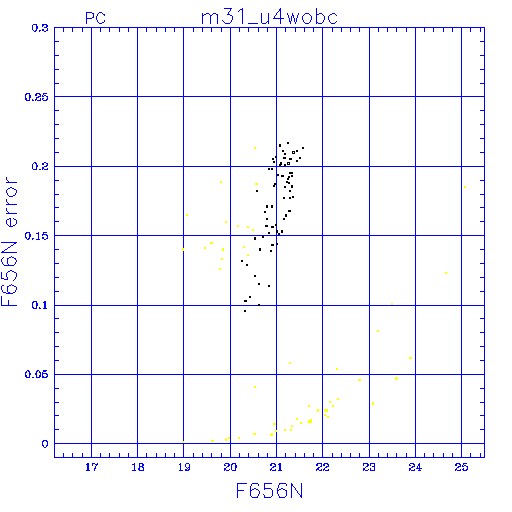

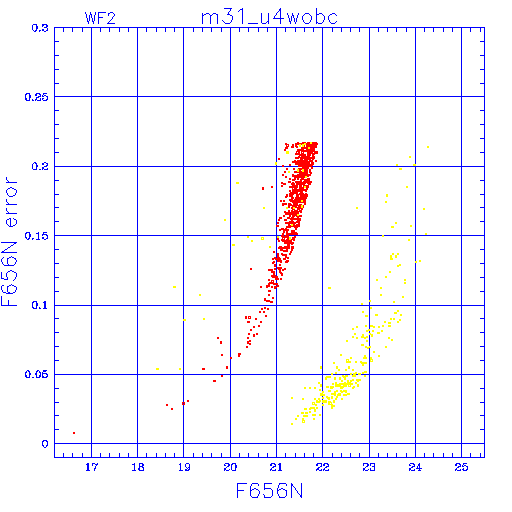

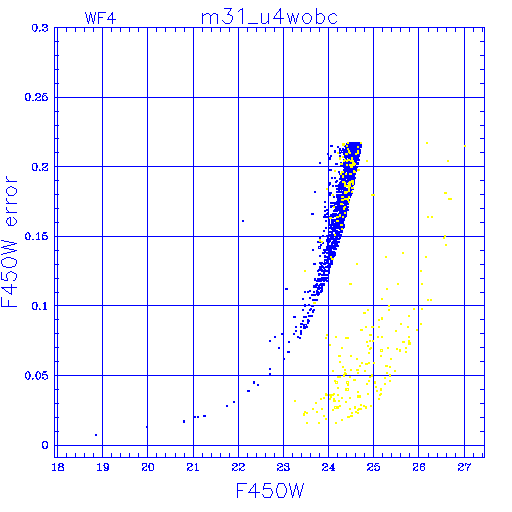

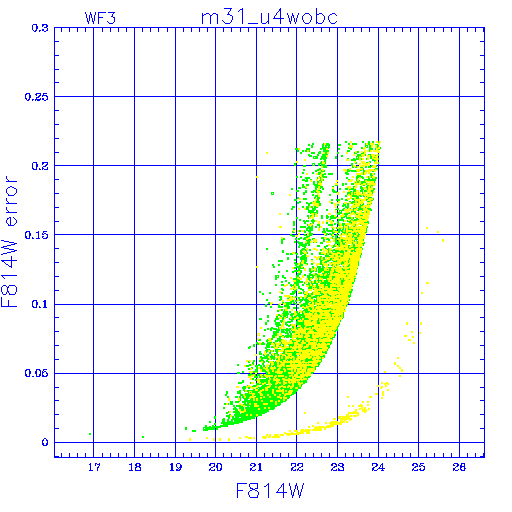

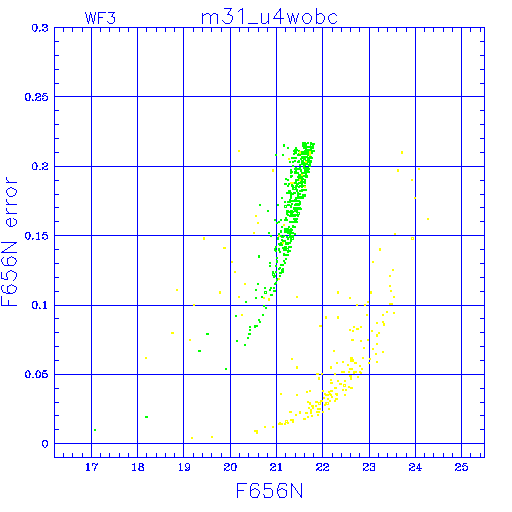

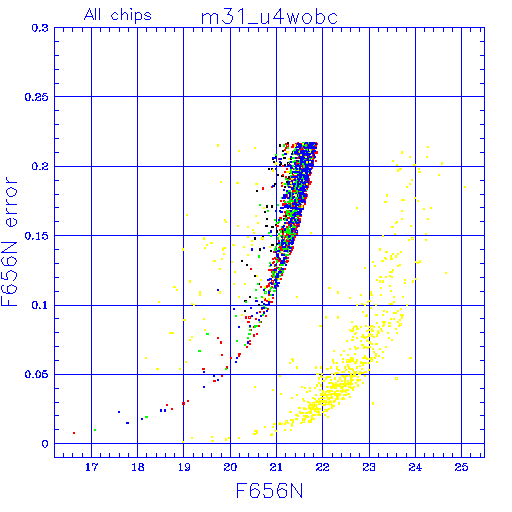

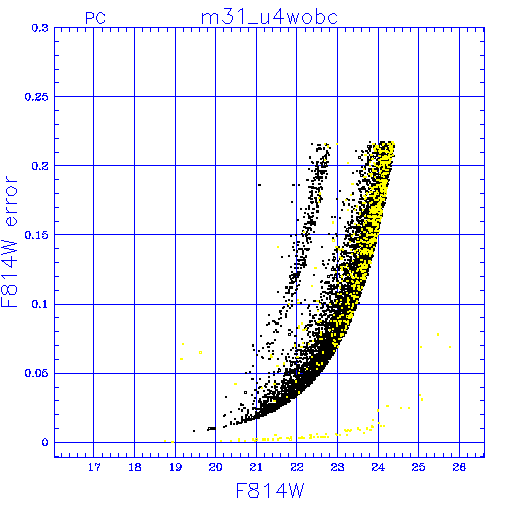

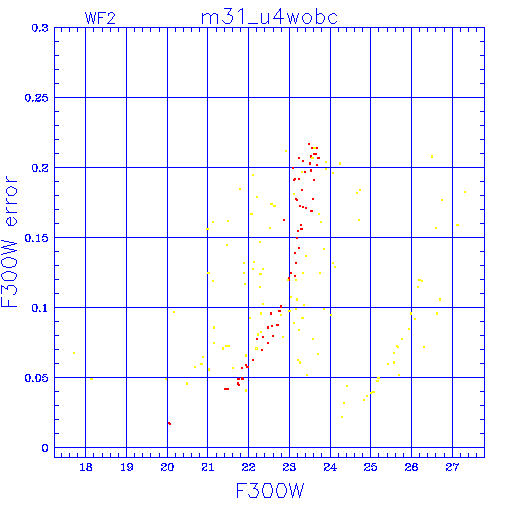

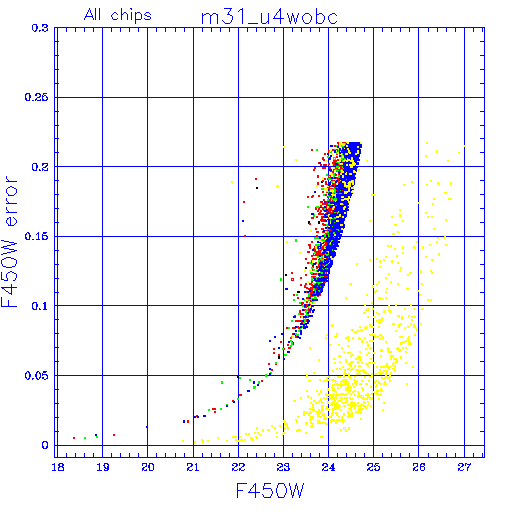

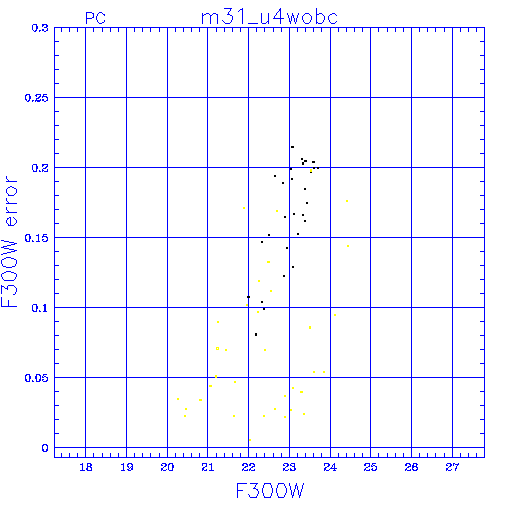

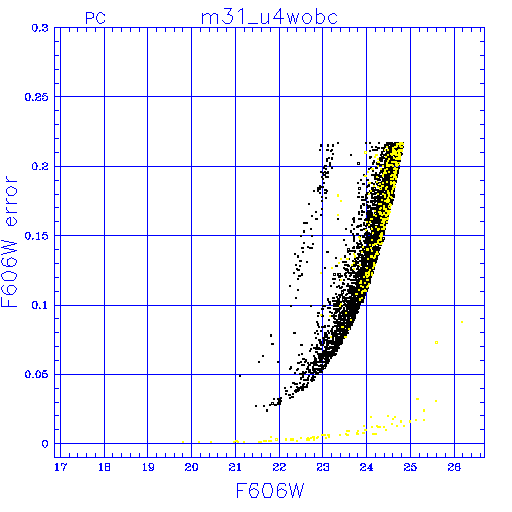

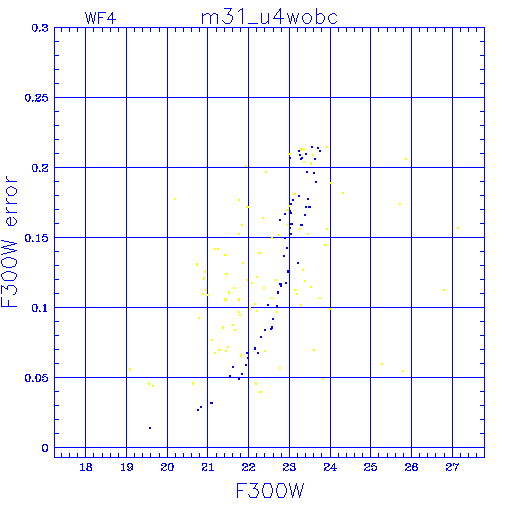

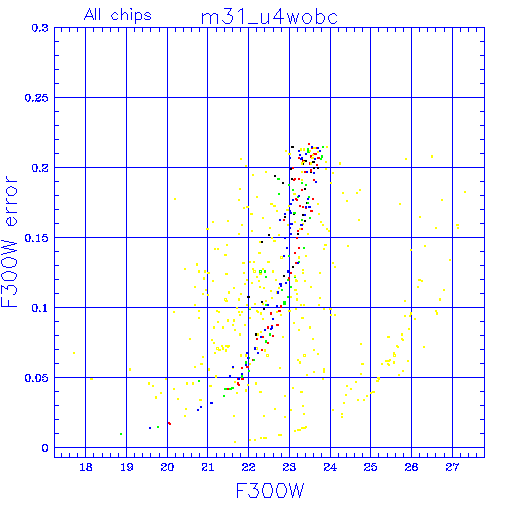

Error vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f606w
f814w
f300w
f450w
f656n

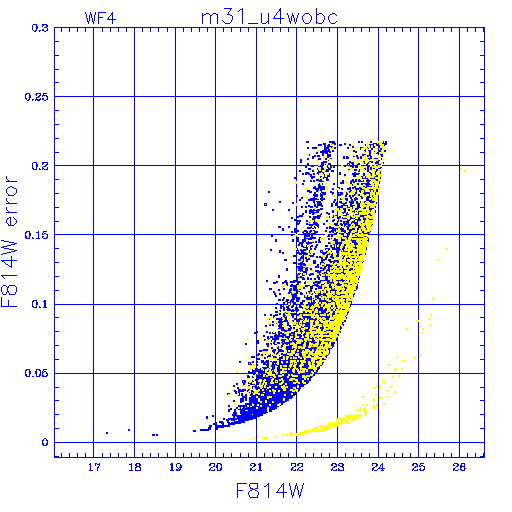

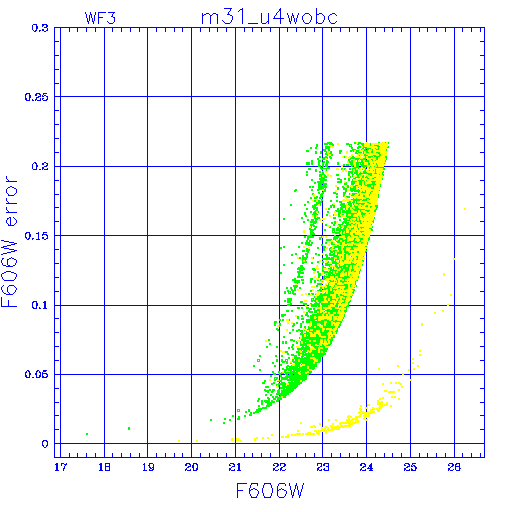

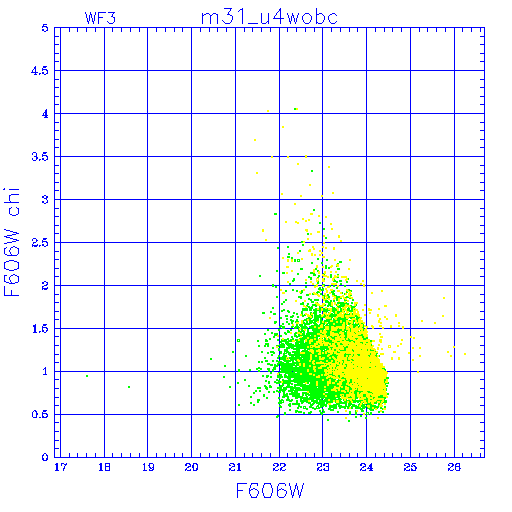

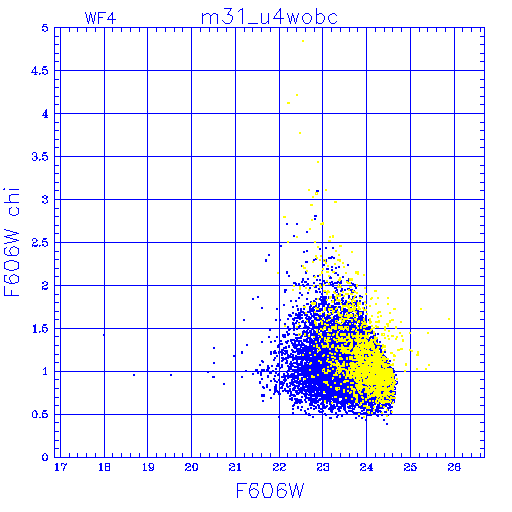

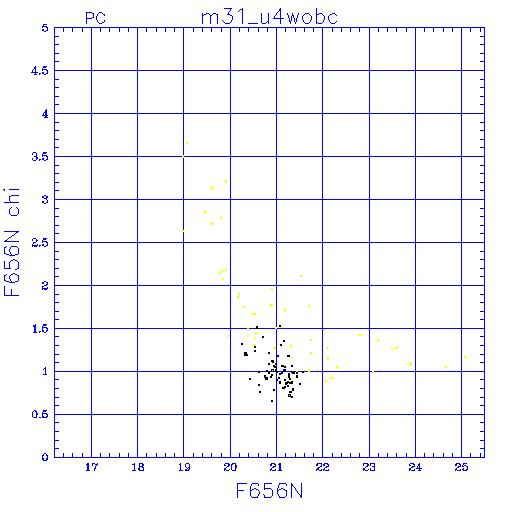

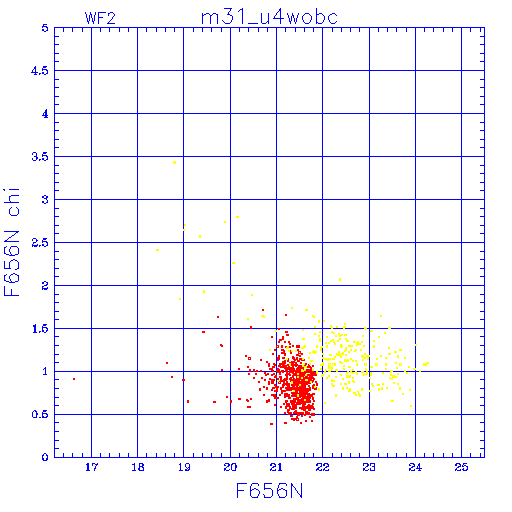

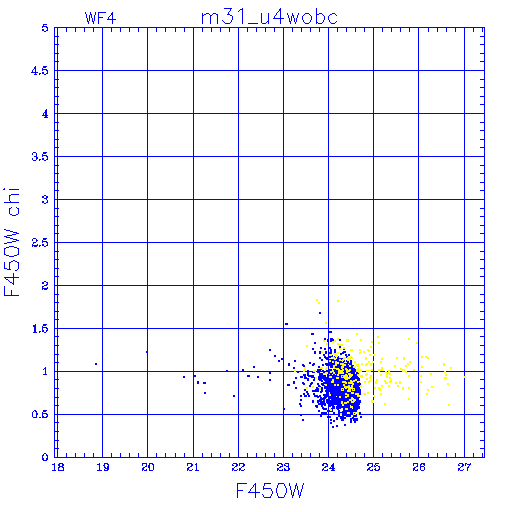

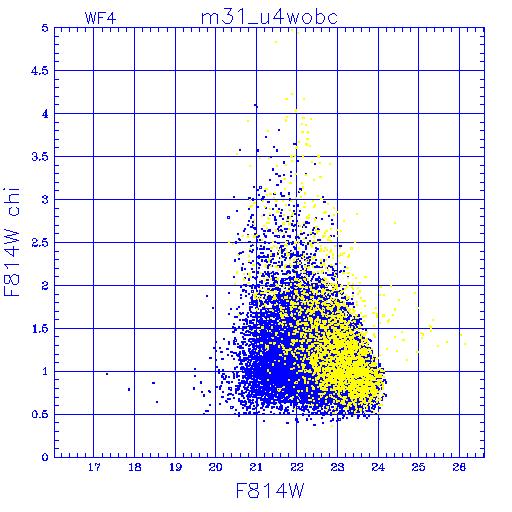

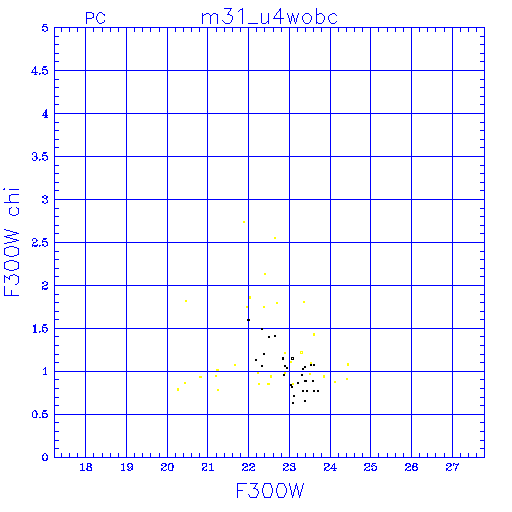

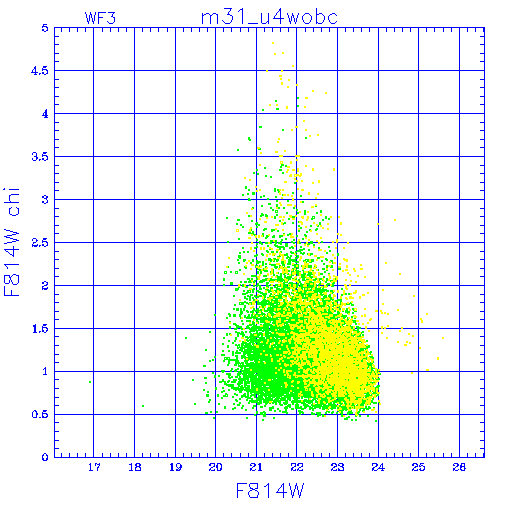

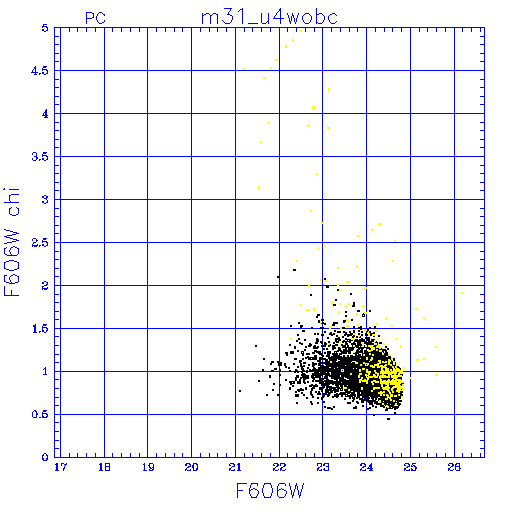

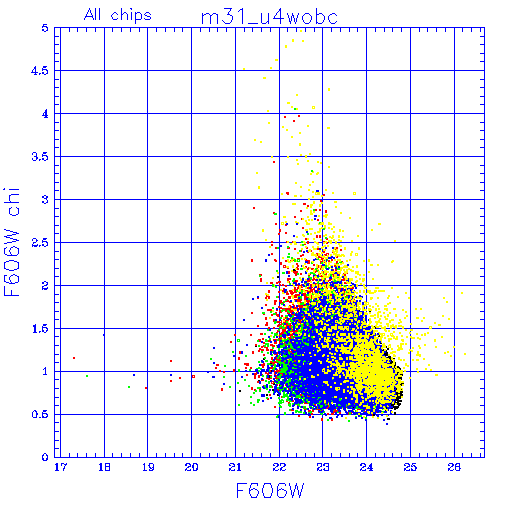

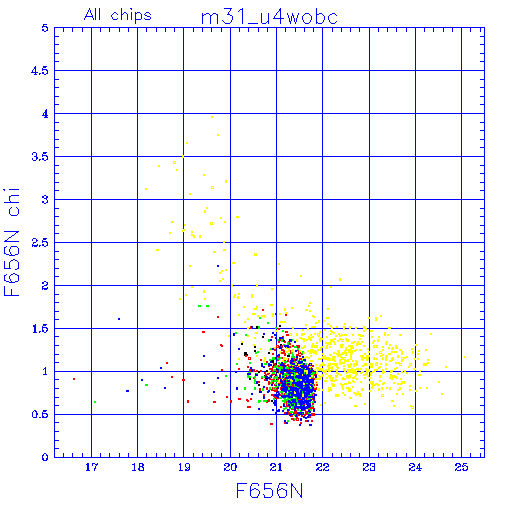

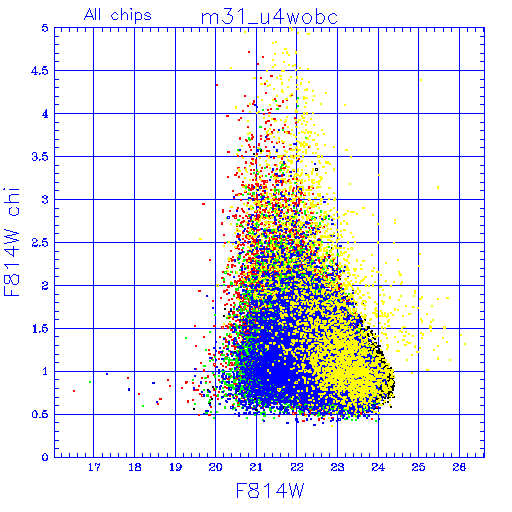

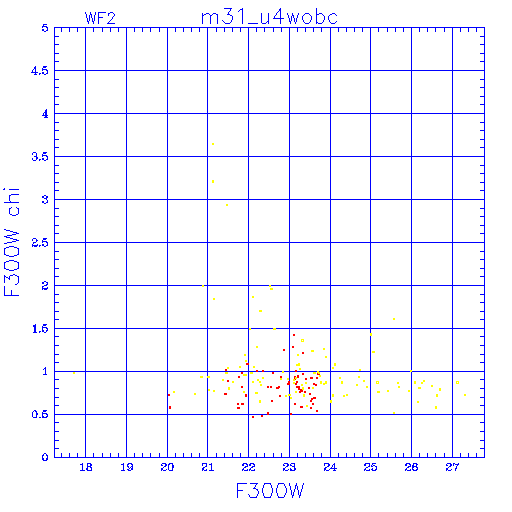

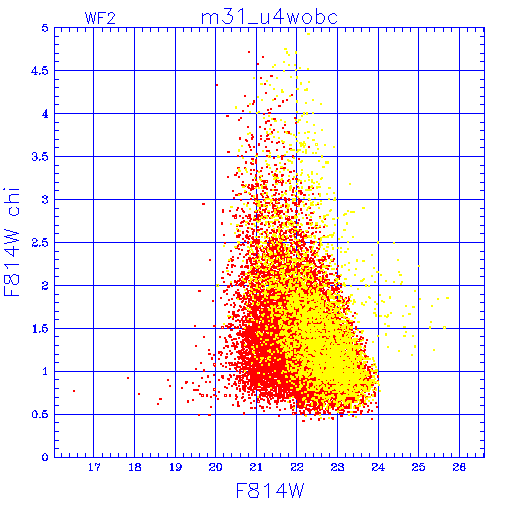

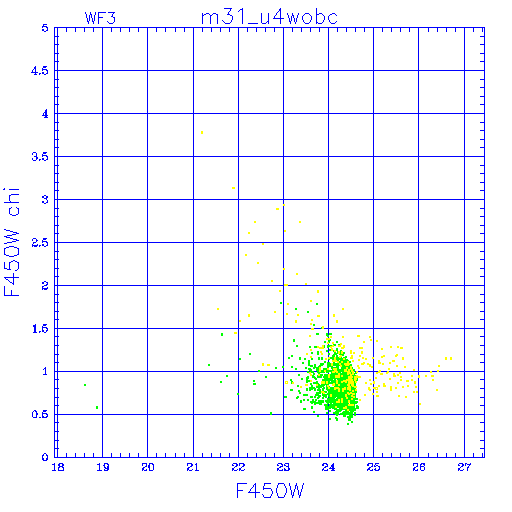

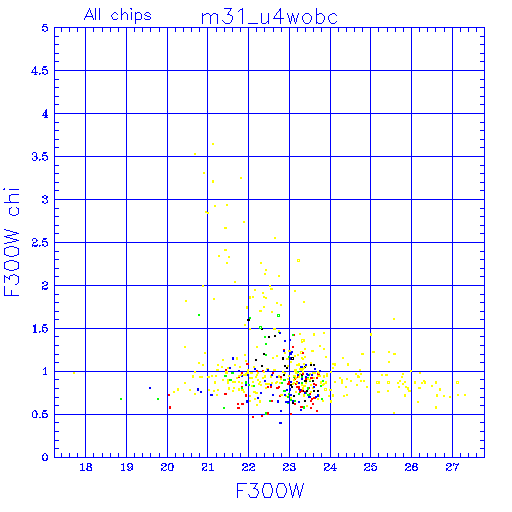

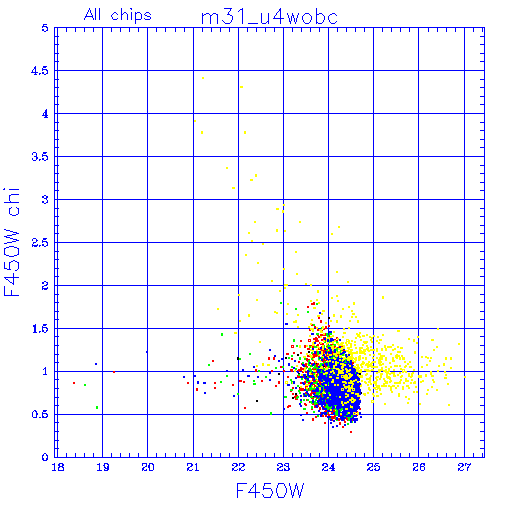

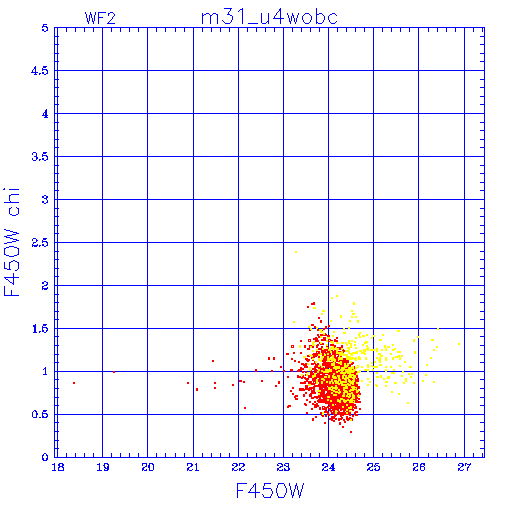

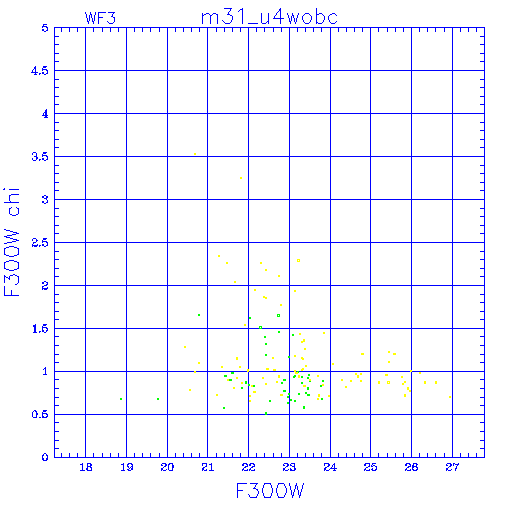

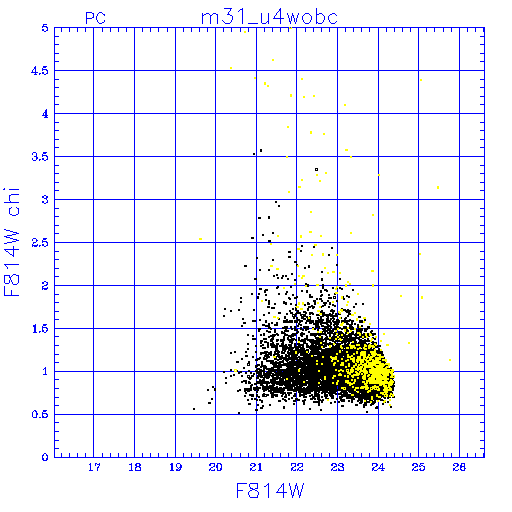

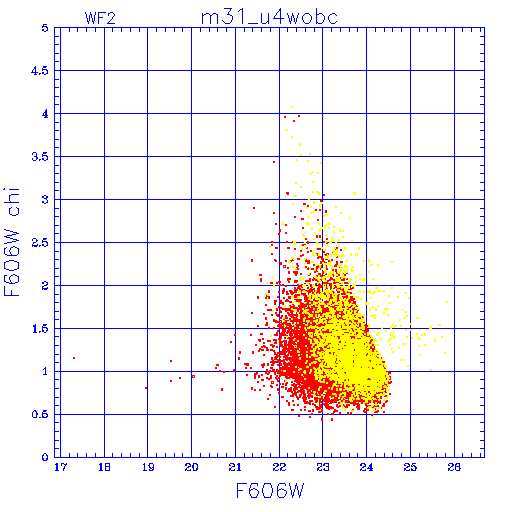

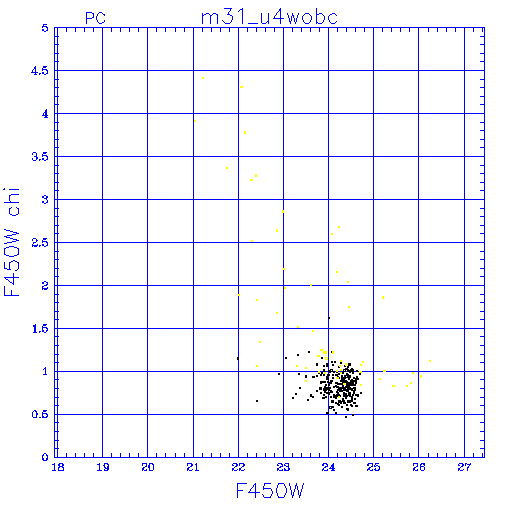

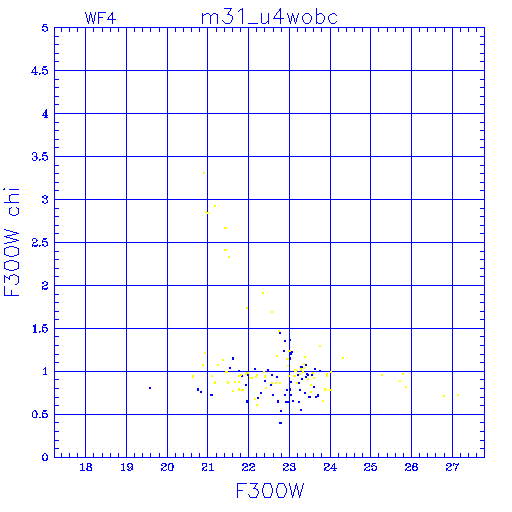

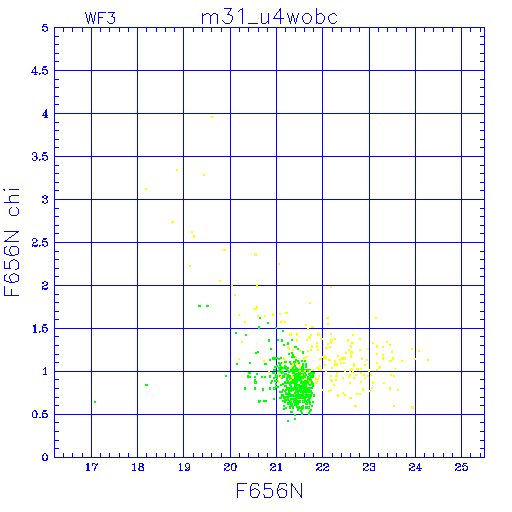

CHI vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f606w
f814w
f300w
f450w
f656n

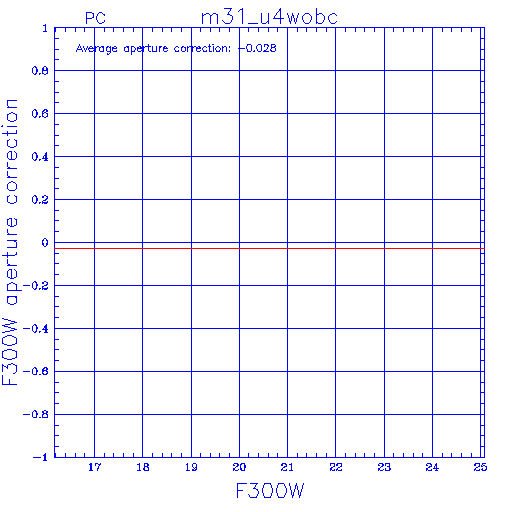

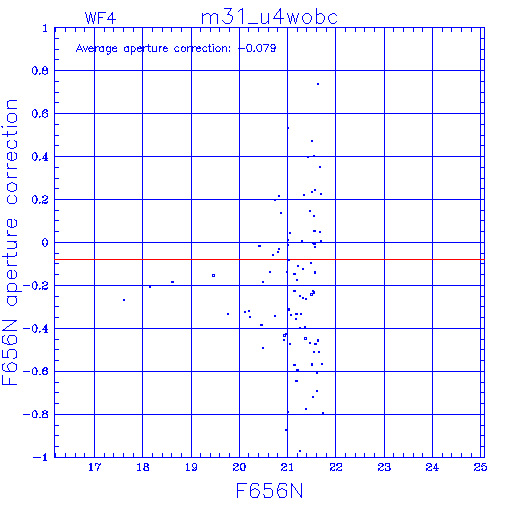

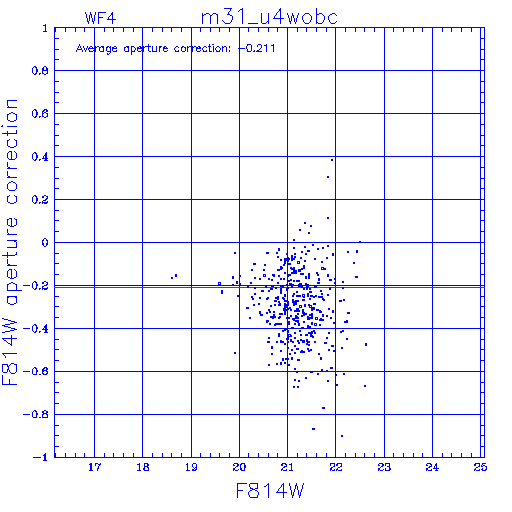

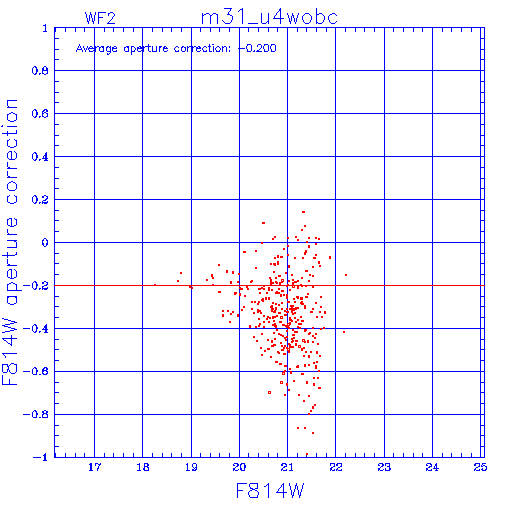

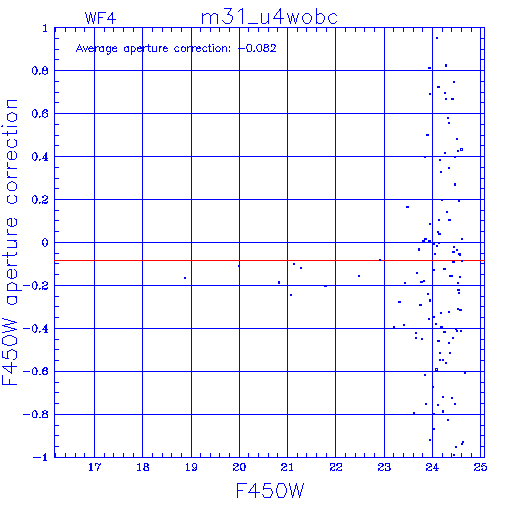

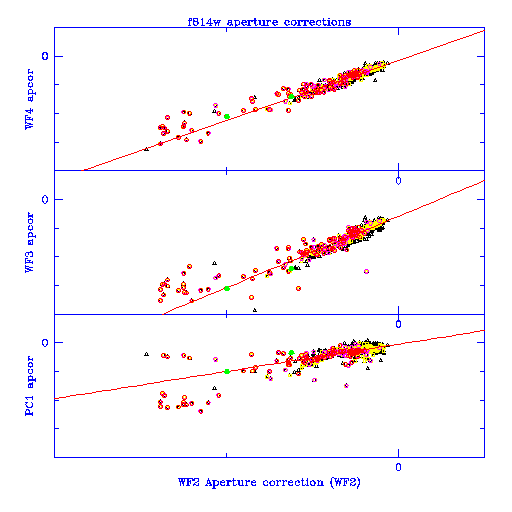

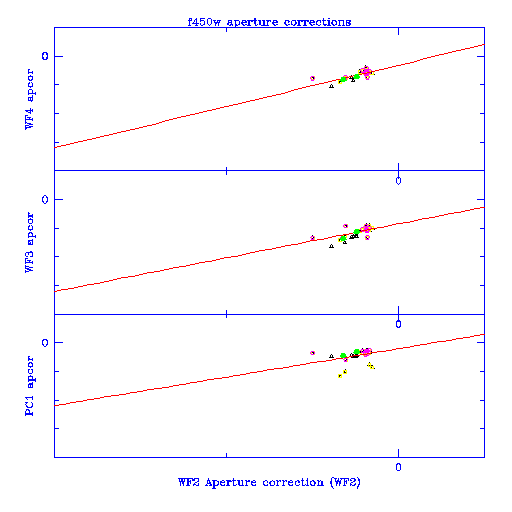

Aperture corrections

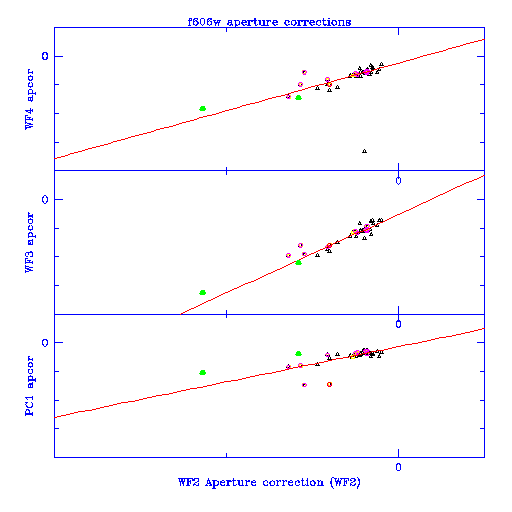

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
F606W F814W F300W F450W F656N

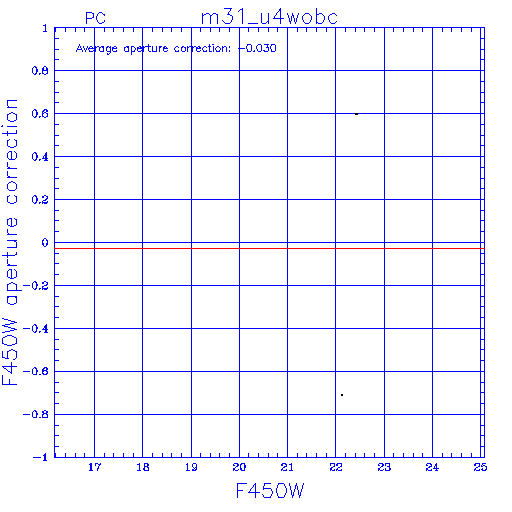

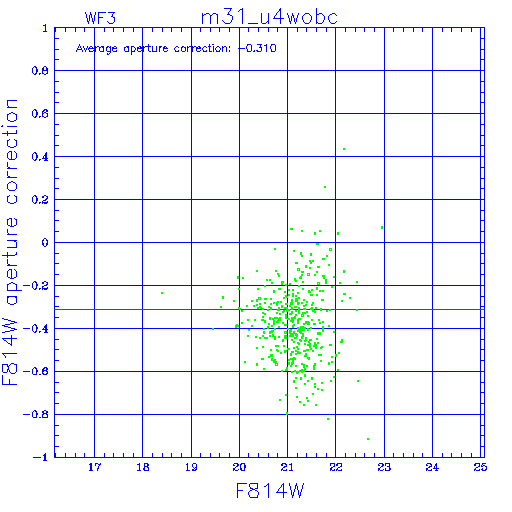

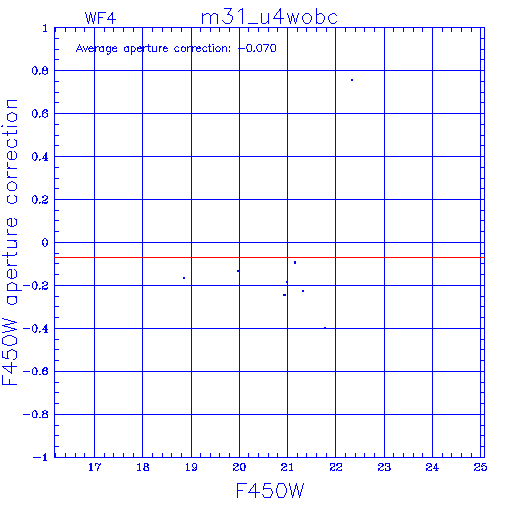

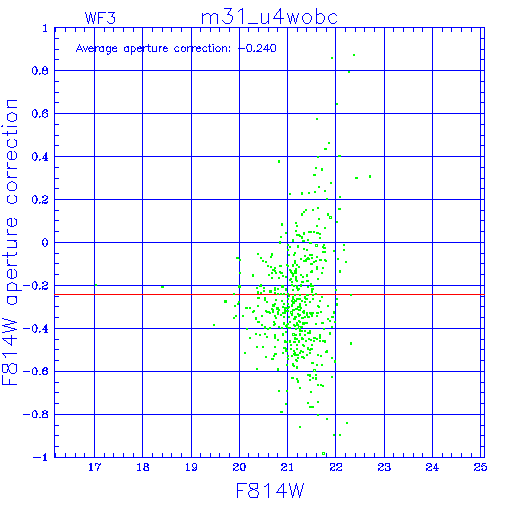

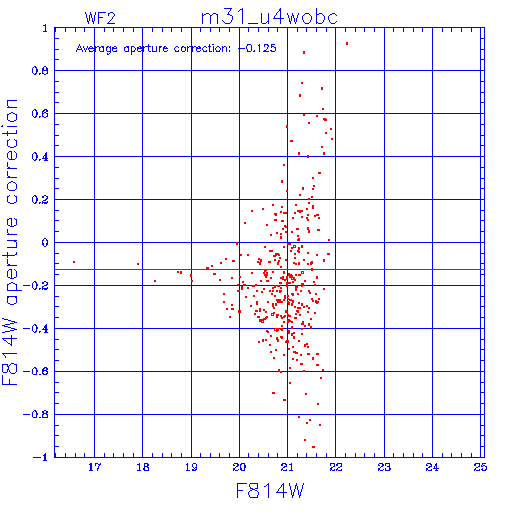

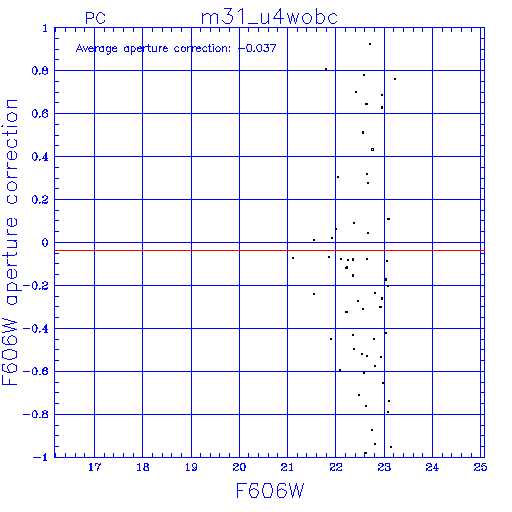

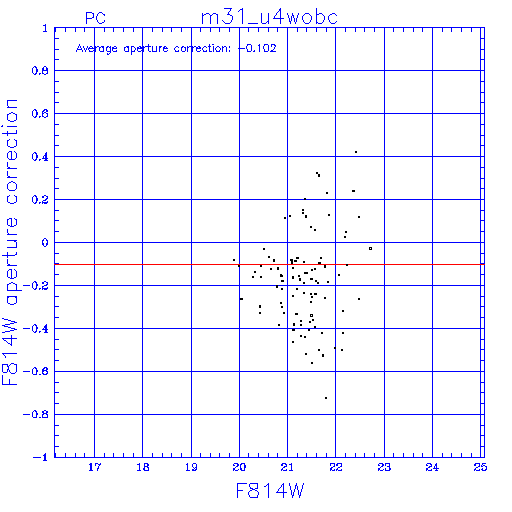

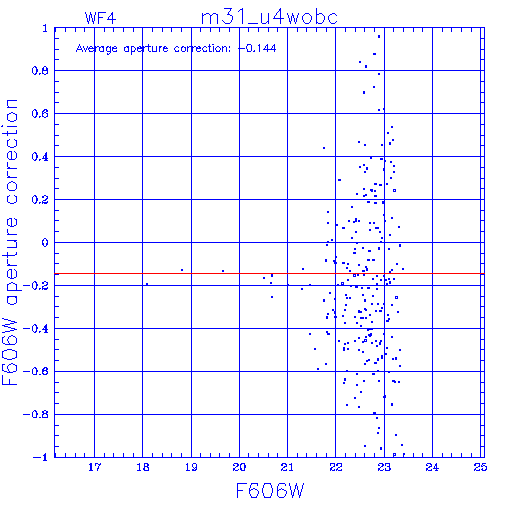

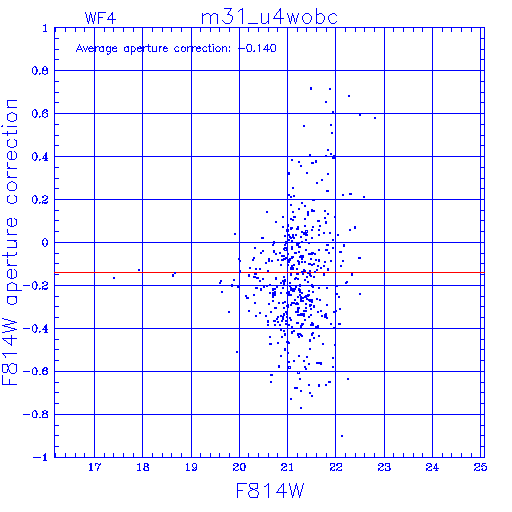

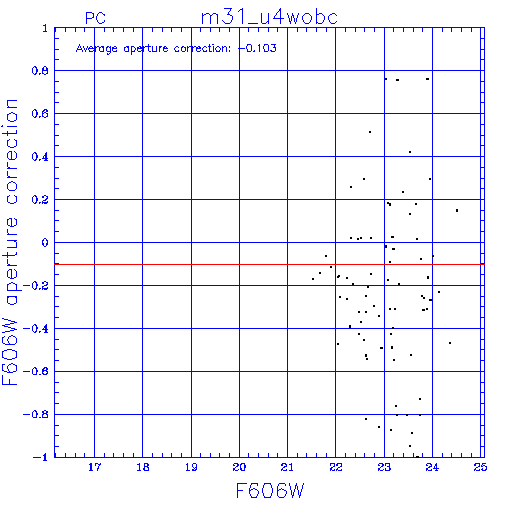

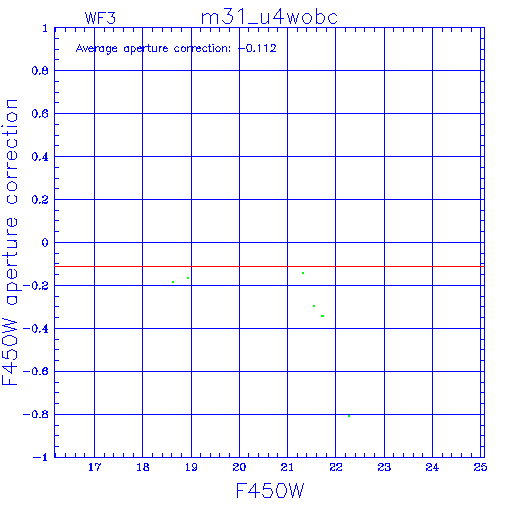

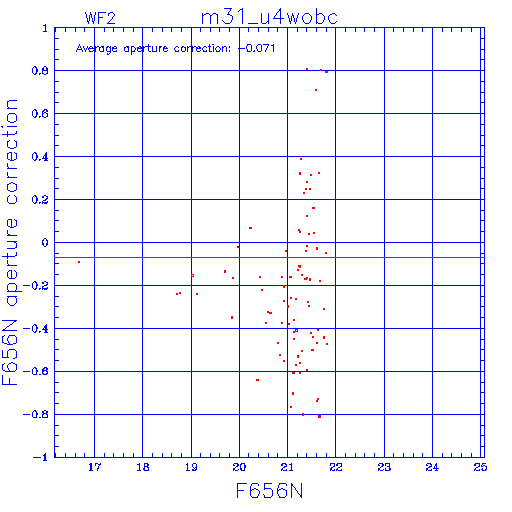

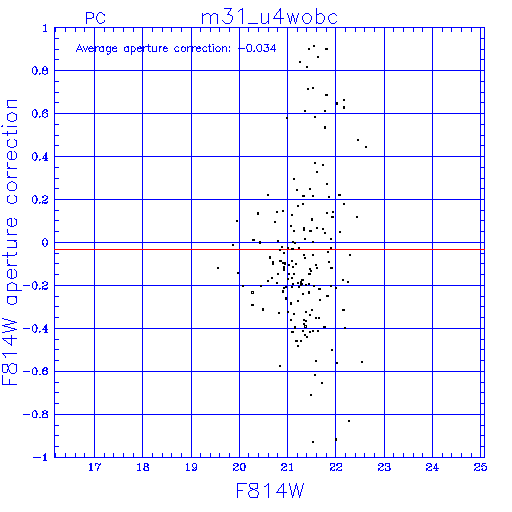

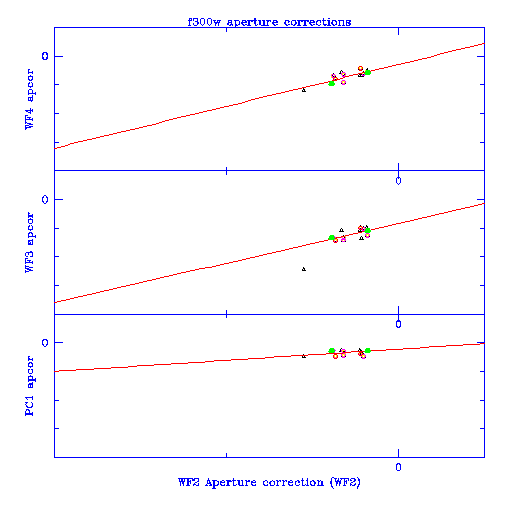

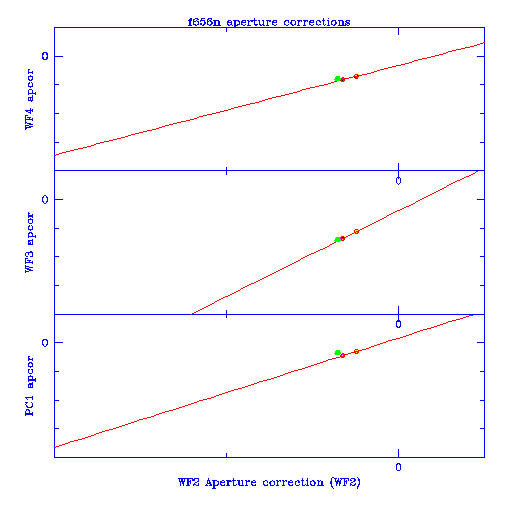

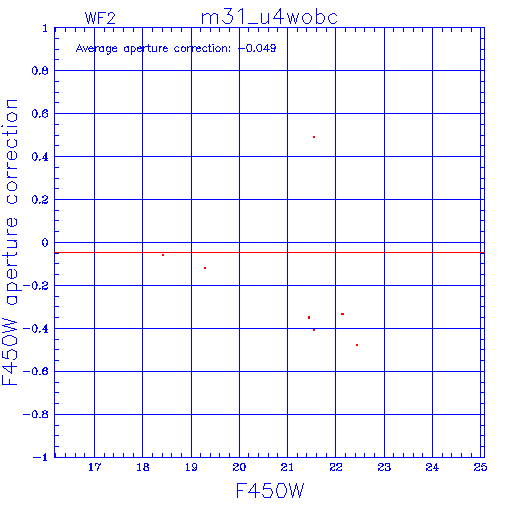

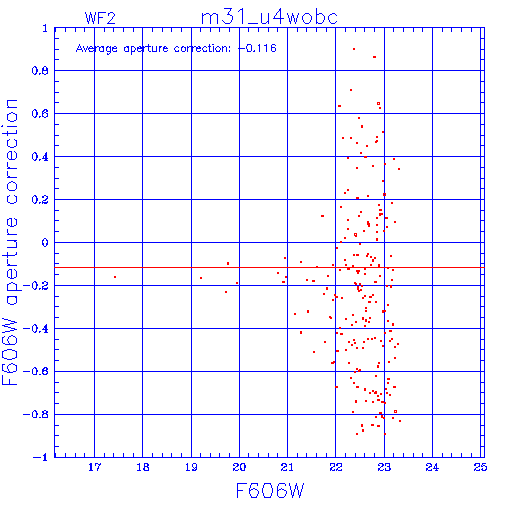

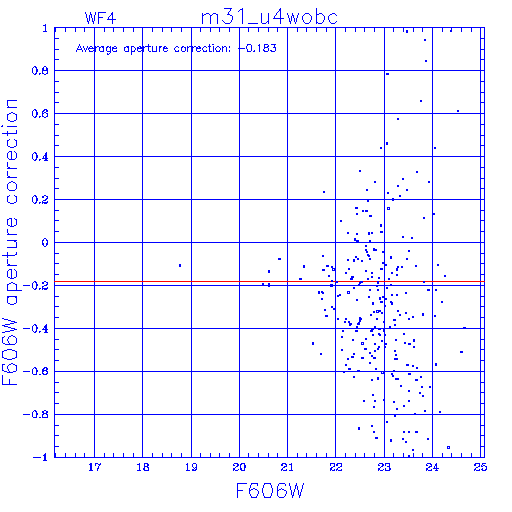

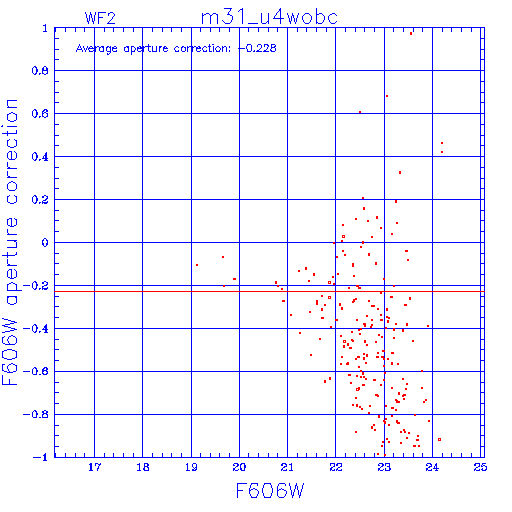

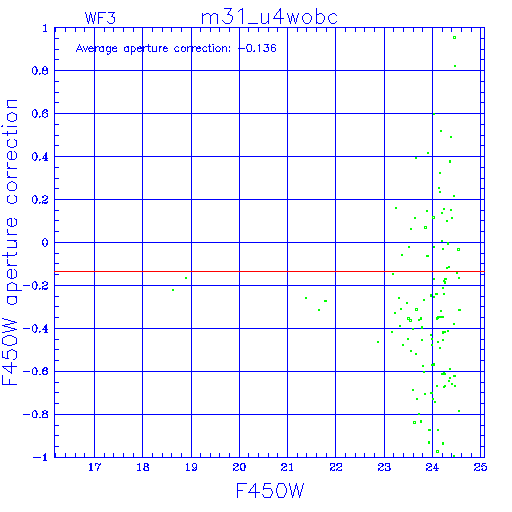

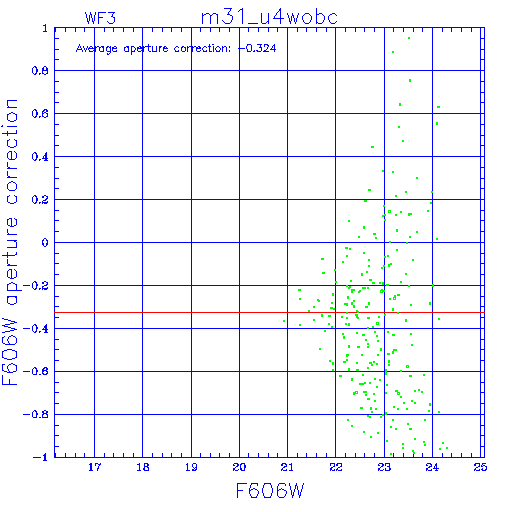

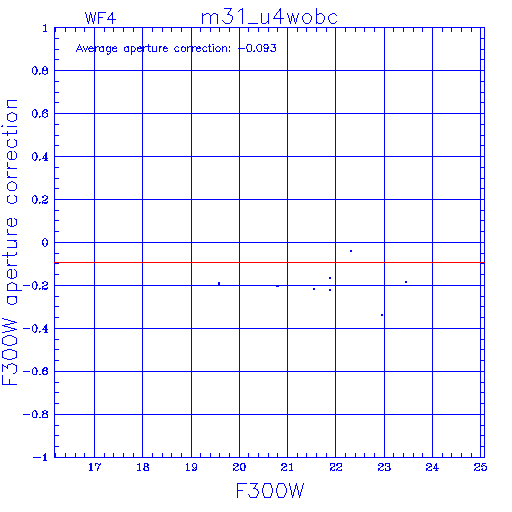

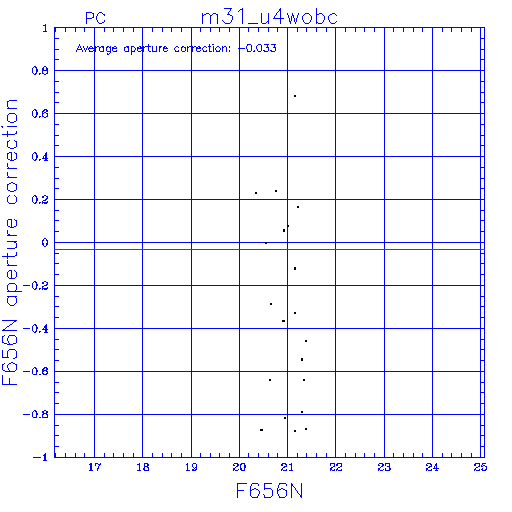

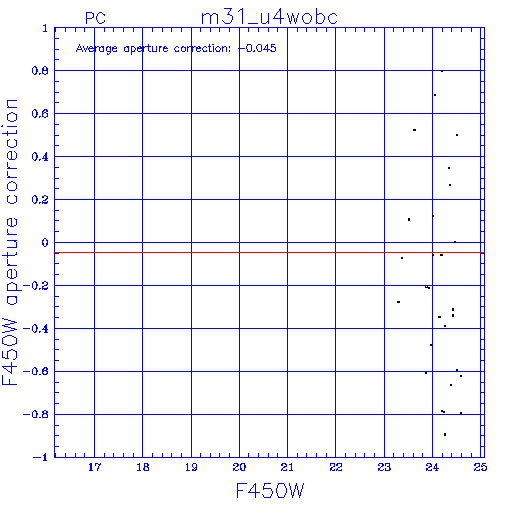

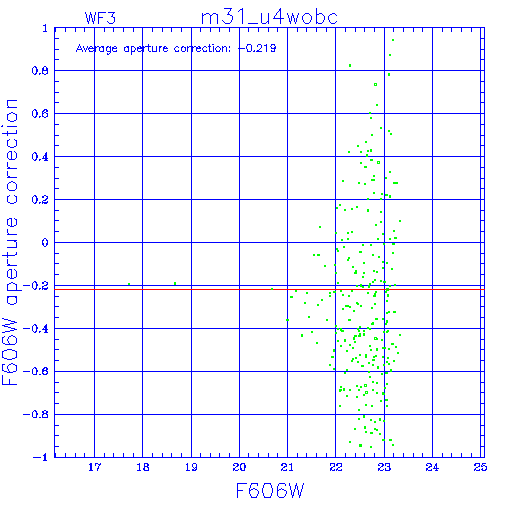

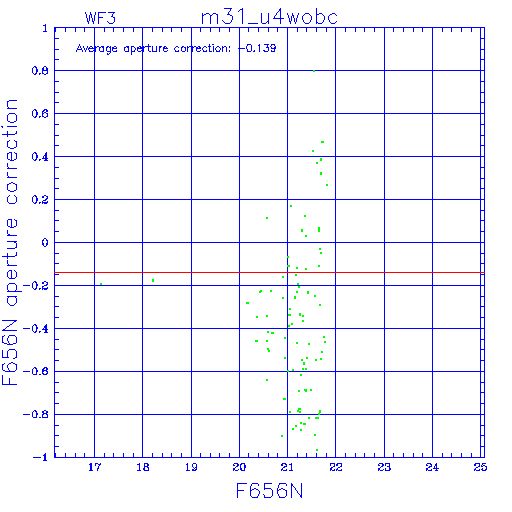

Aperture correction for each frame/chip, showing individual stars
All chips
PC
WF2
WF3
WF4
f606w
f606w
f814w
f814w
f300w
f300w
f450w
f450w
f656n

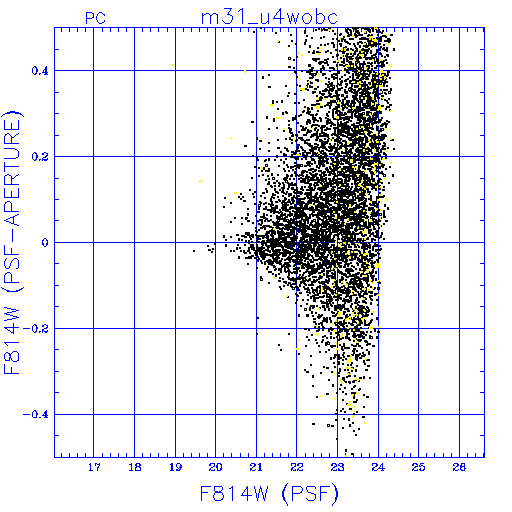

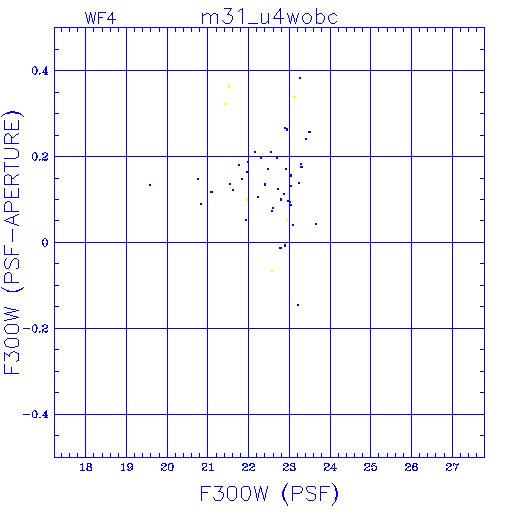

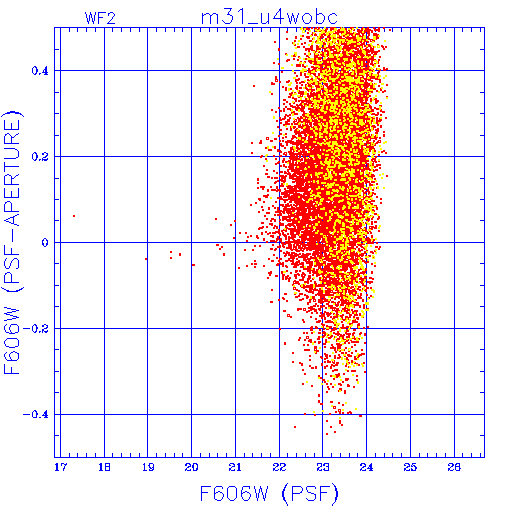

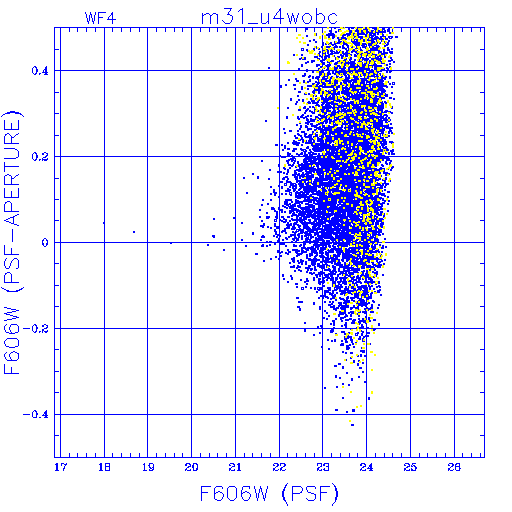

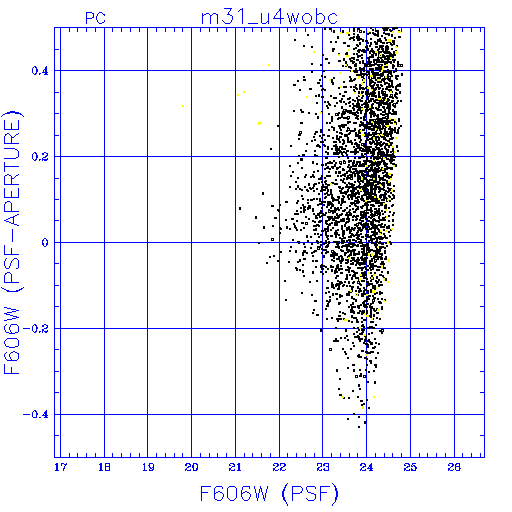

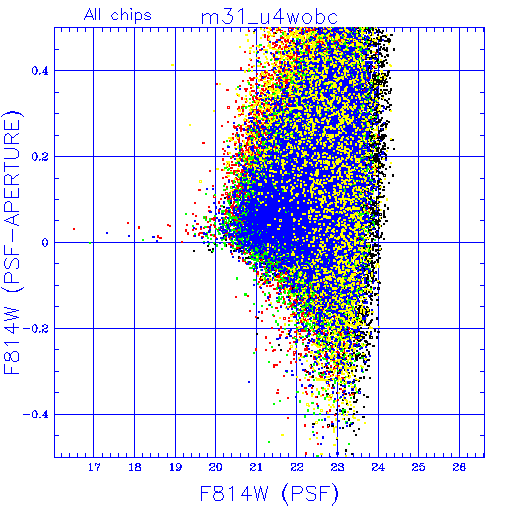

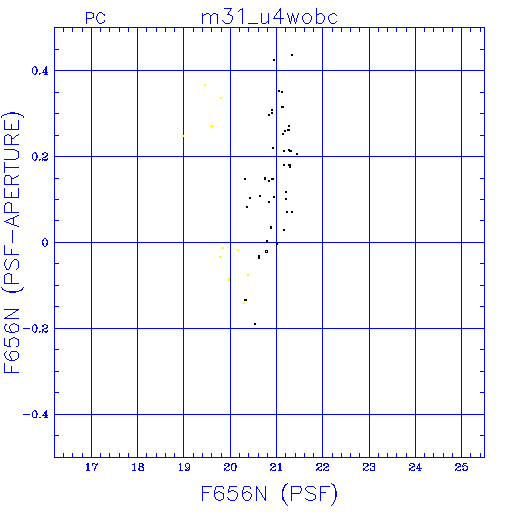

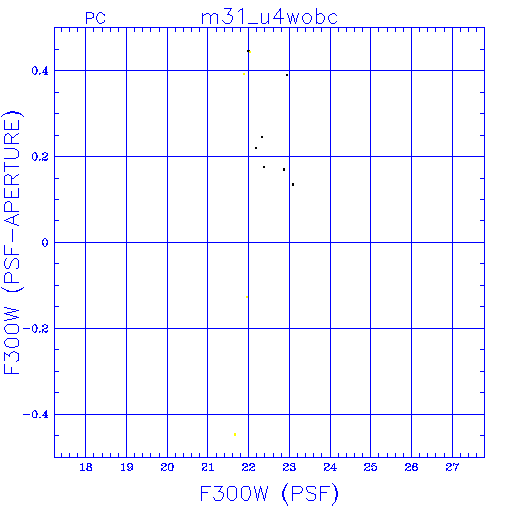

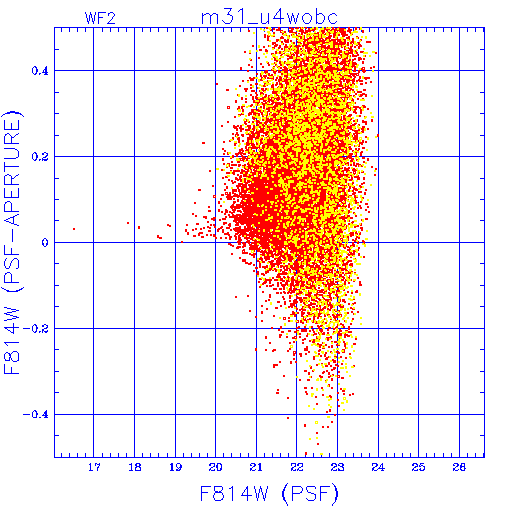

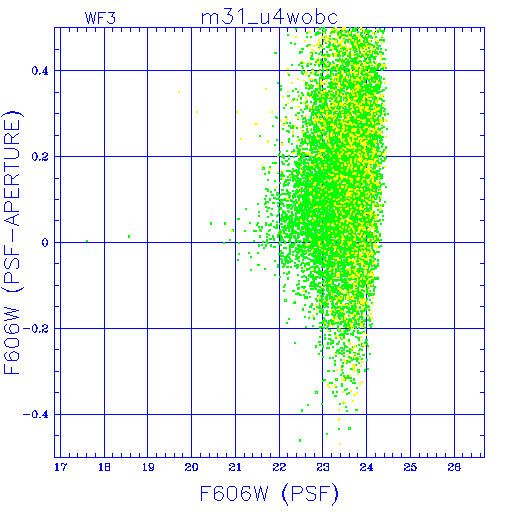

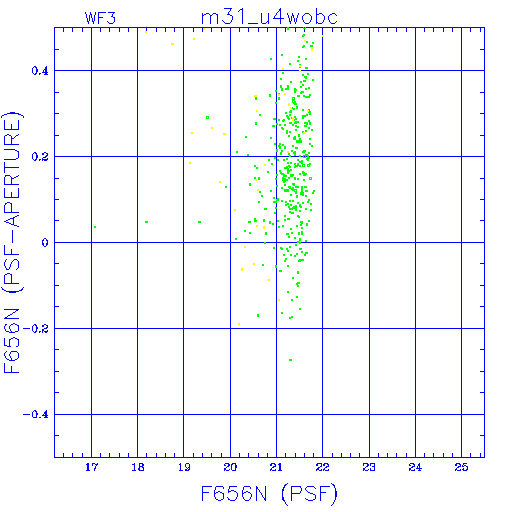

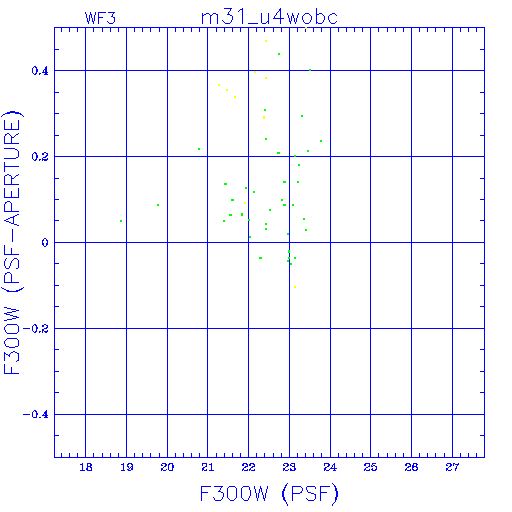

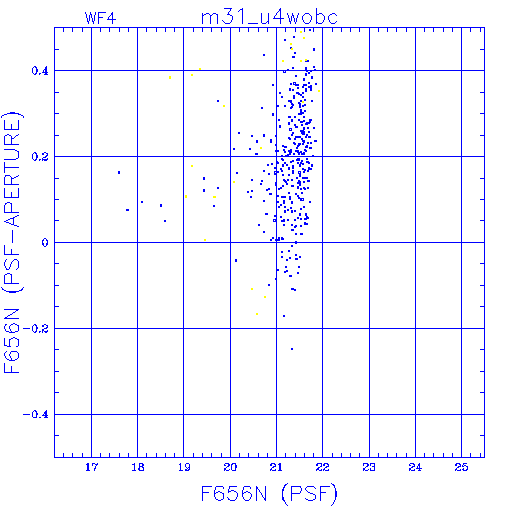

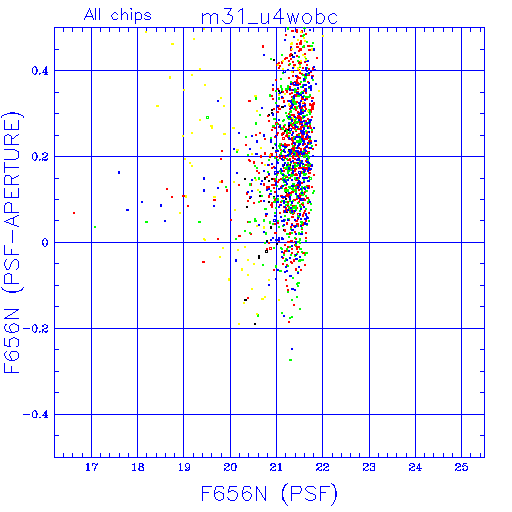

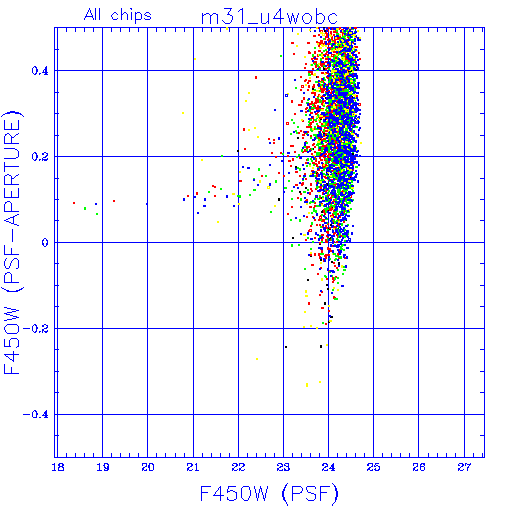

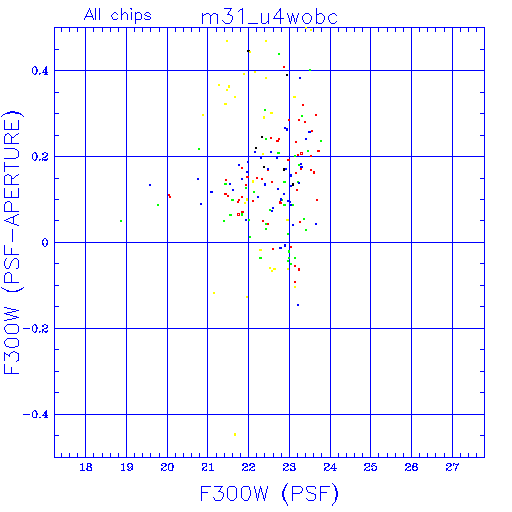

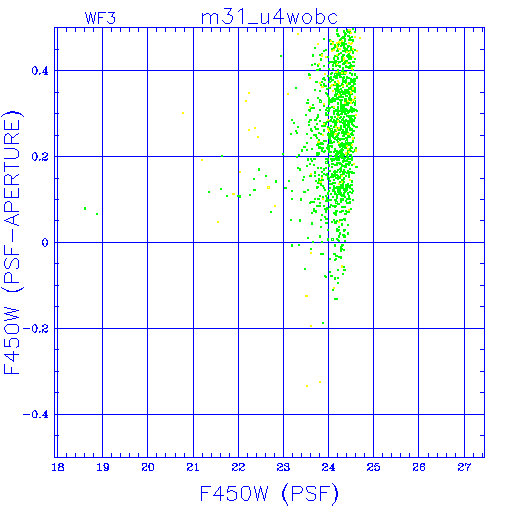

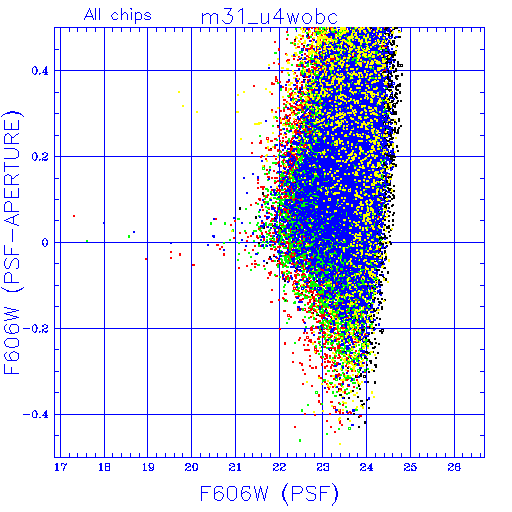

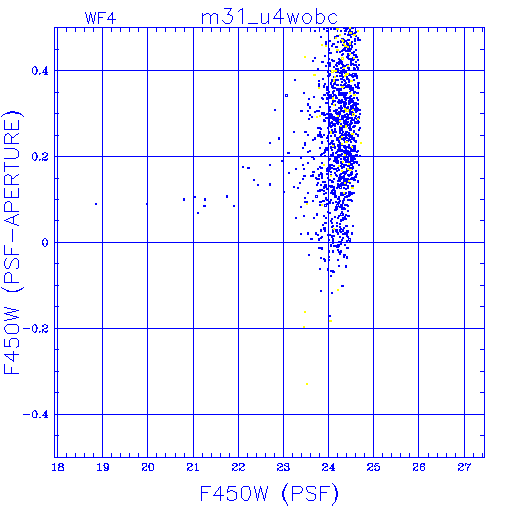

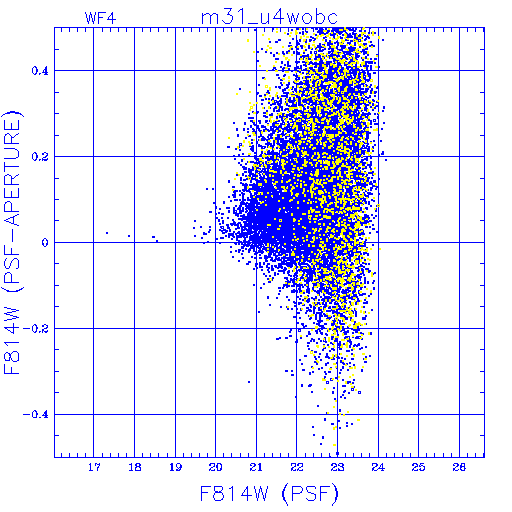

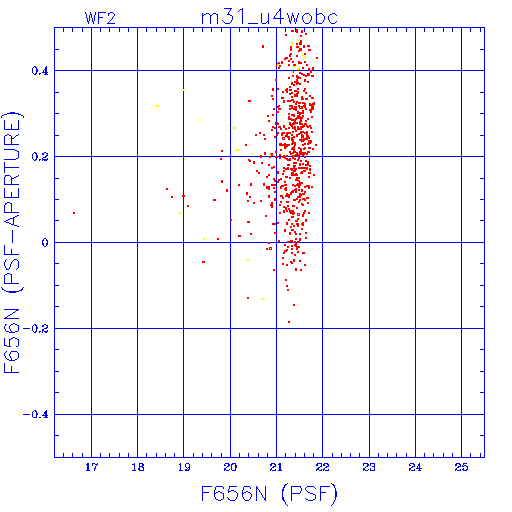

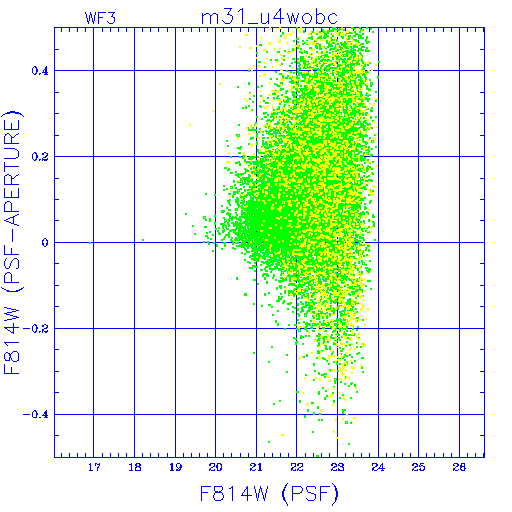

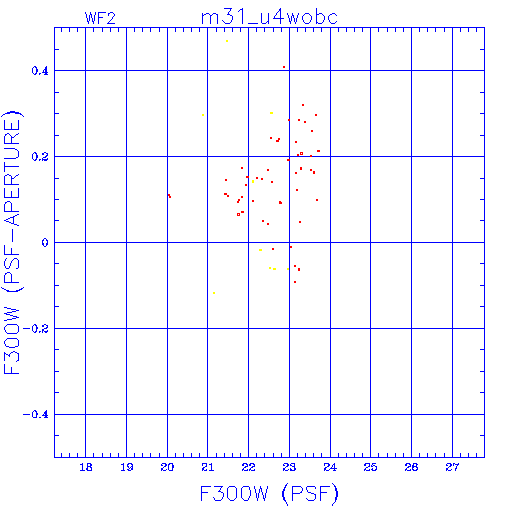

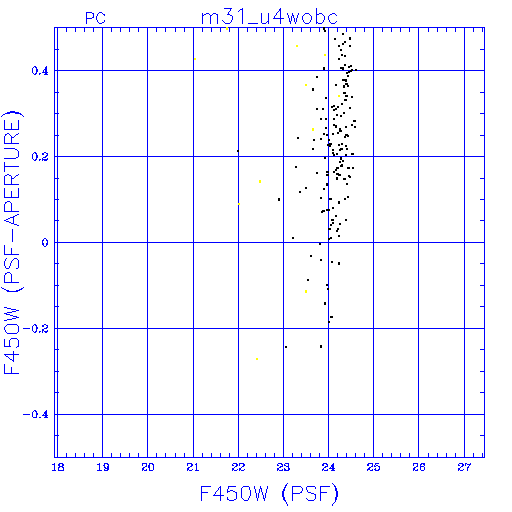

PSF vs. aperture photometry

All chips
PC
WF2
WF3
WF4
f606w
f814w
f300w
f450w
f656n


Artificial star diagrams

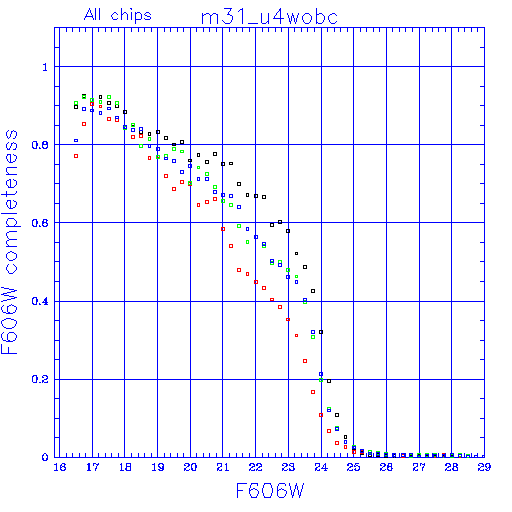

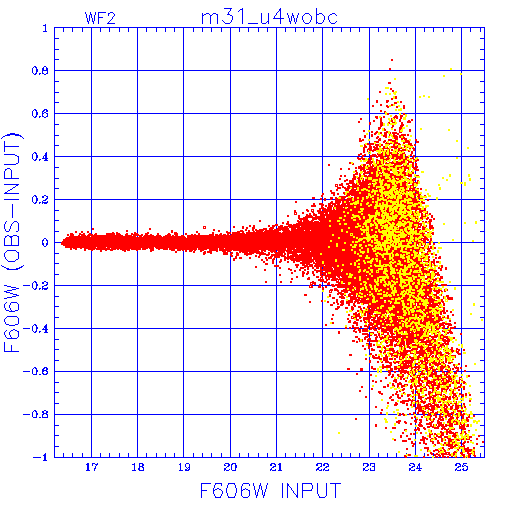

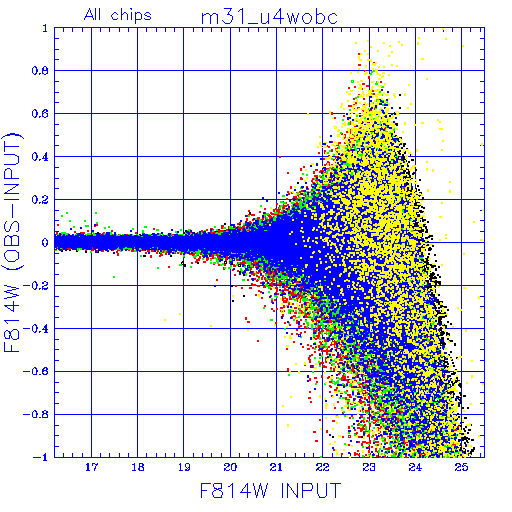

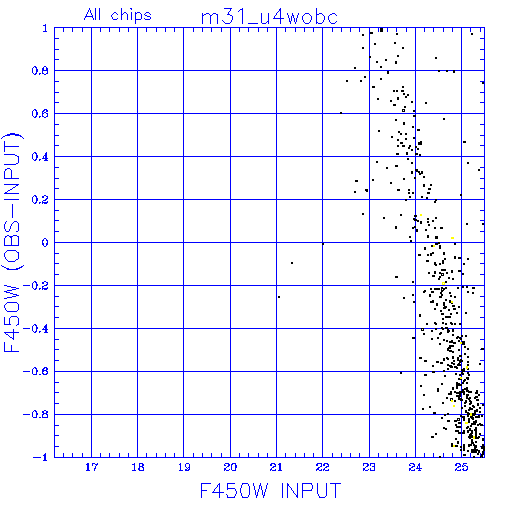

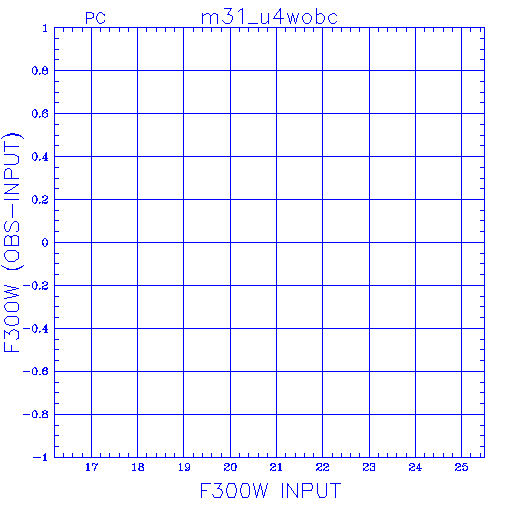

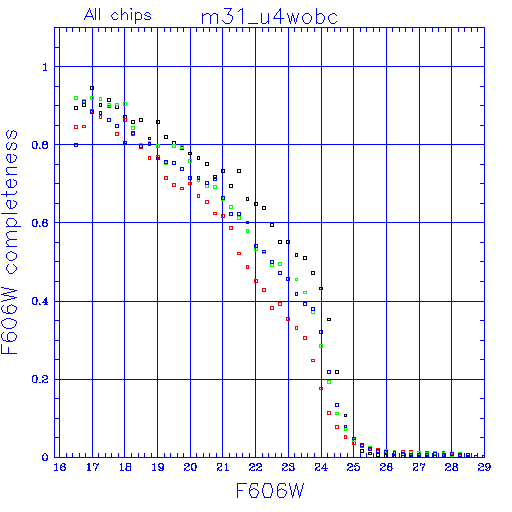

Completeness as a function of input magnitude
PSF photometry Aperture photometry

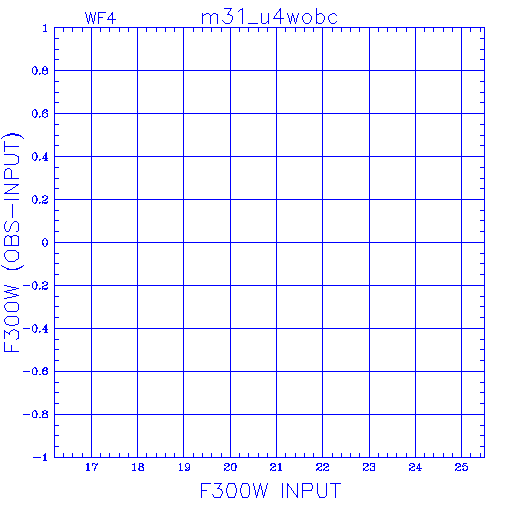

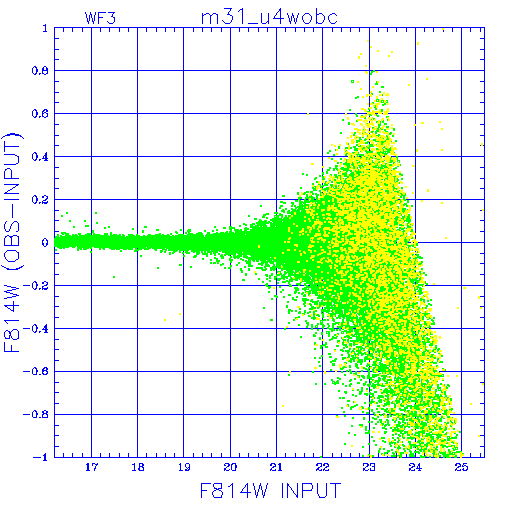

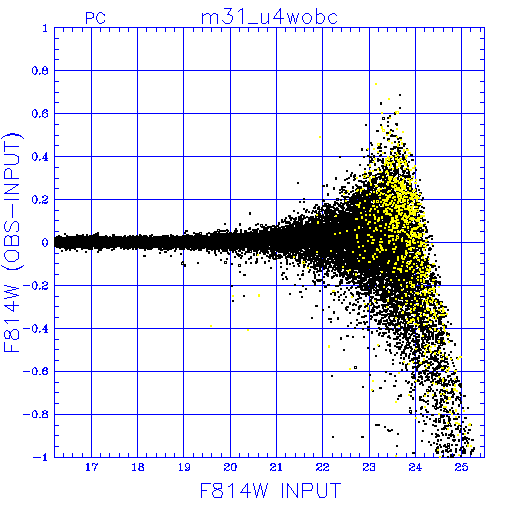

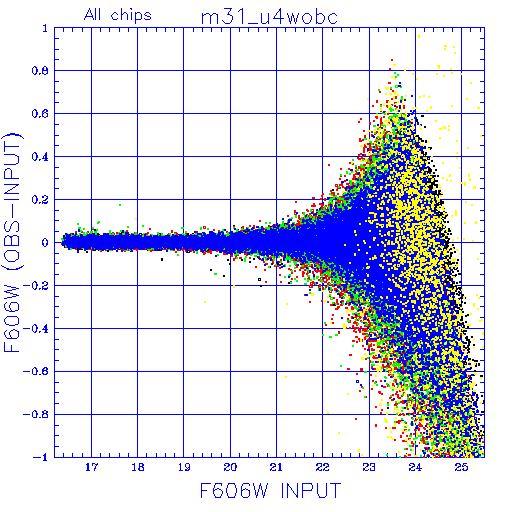

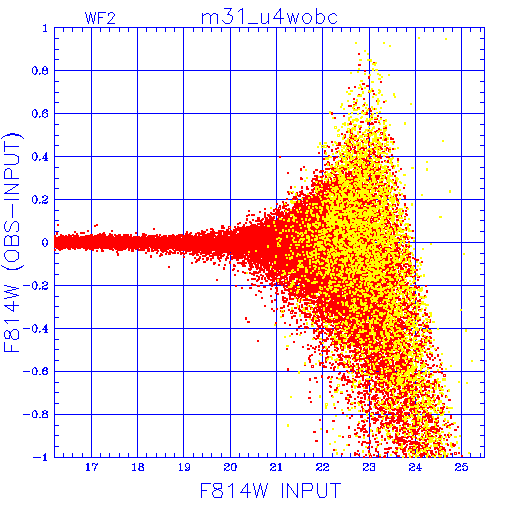

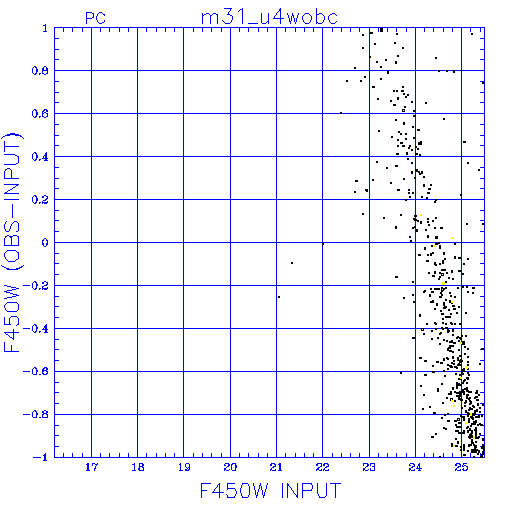

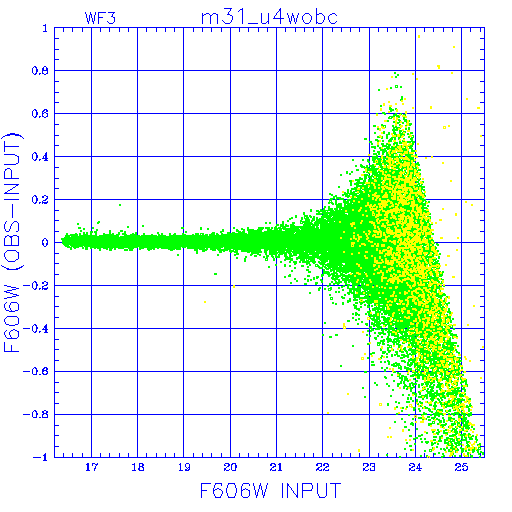

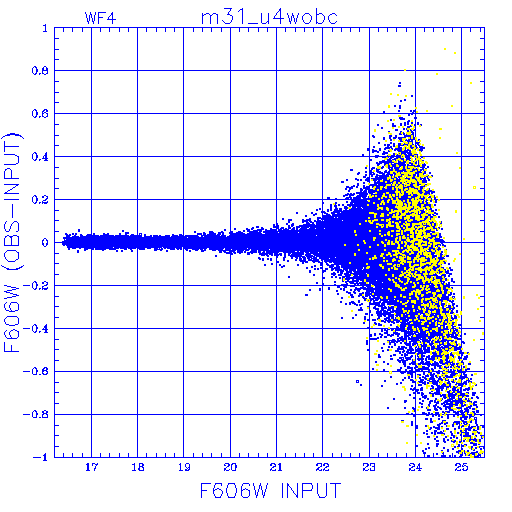

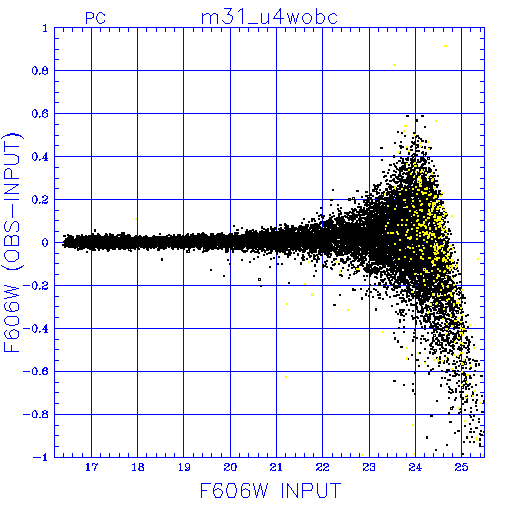

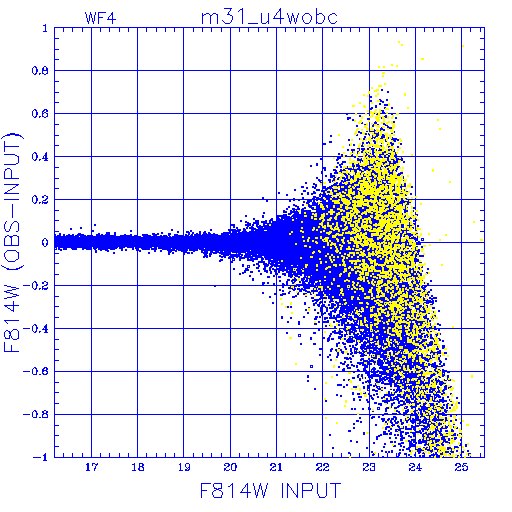

Recovered mag-input mag as a function of input mag (PSF photometry)
All chips
PC
WF2
WF3
WF4
f606w
f814w
f300w
f450w
f656n

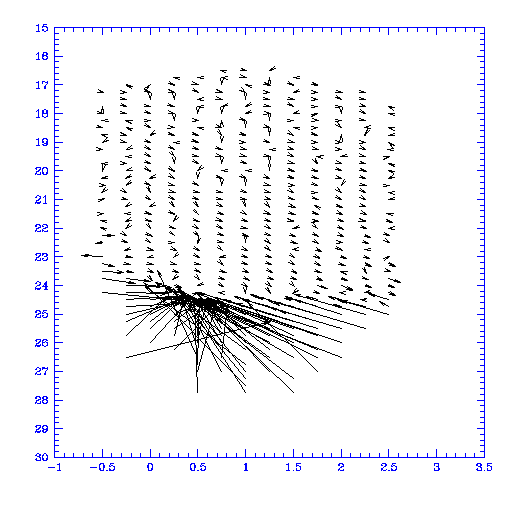

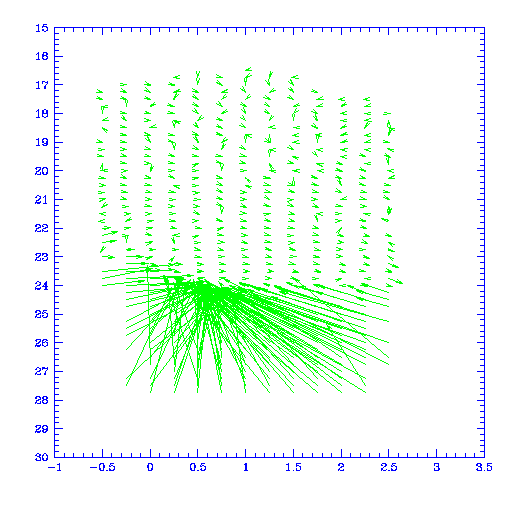

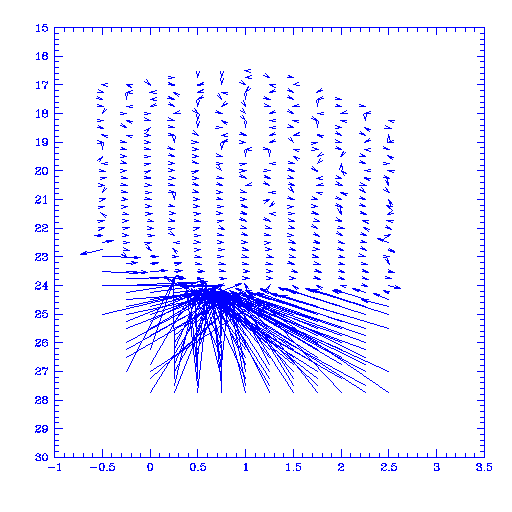

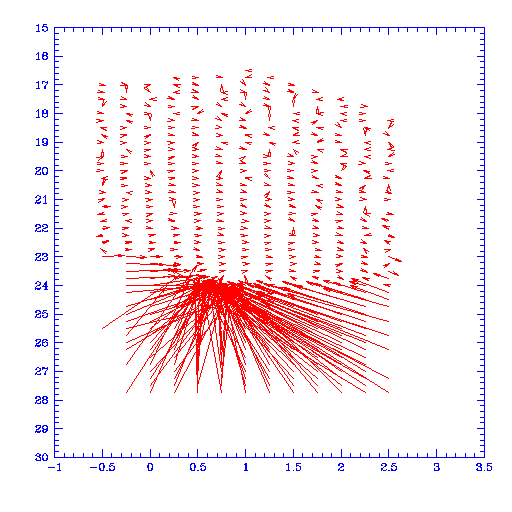

Average recovered magnitude as function of location in CMD (PSF photometry)
All chips
PC
WF2
WF3
WF4
