Photometry Diagnostics for m31_u2y302

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2y30203t	F555W	1300.00	0.00	0.00	0.00	0.00	0.00	0.00
u2y30204t	F555W	1300.00	0.02	-0.03	0.00	0.00	0.02	-0.03
u2y30207t	F555W	1300.00	5.56	-5.63	5.50	-5.50	0.06	-0.13
u2y30208t	F555W	1300.00	5.61	-5.72	5.50	-5.50	0.11	-0.22
u2y3020at	F555W	1300.00	5.58	5.44	5.50	5.50	0.08	-0.06
u2y30201t	F814W	1300.00	0.12	-0.03	0.00	0.00	0.12	-0.03
u2y30202t	F814W	1100.00	0.09	-0.06	0.00	0.00	0.09	-0.06
u2y30205t	F814W	1100.00	5.81	-5.76	5.50	-5.50	0.31	-0.26
u2y30206t	F814W	1300.00	5.73	-5.76	5.50	-5.50	0.23	-0.26
u2y30209t	F814W	1300.00	5.82	5.42	5.50	5.50	0.32	-0.08

Mosaic images

F555W	F814W

HSTPHOT command log

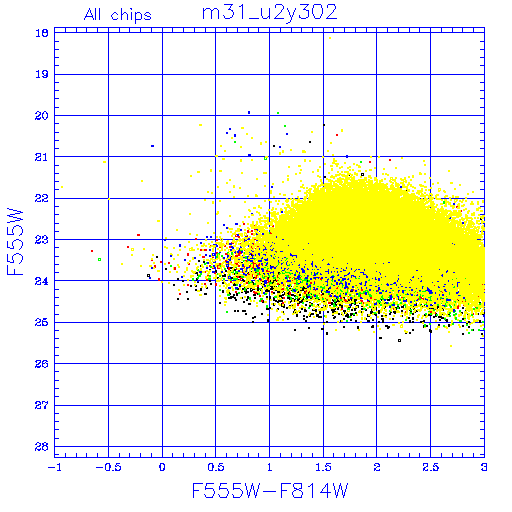

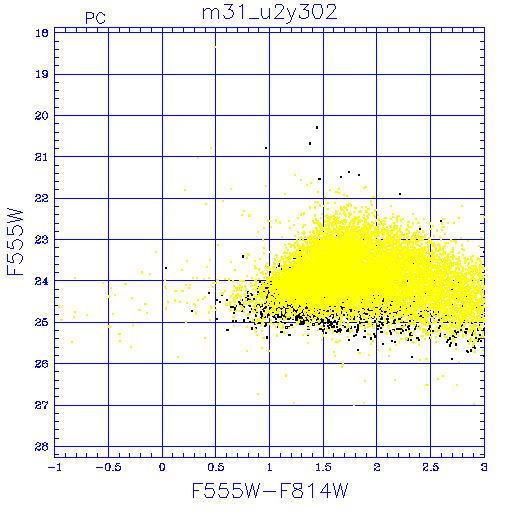

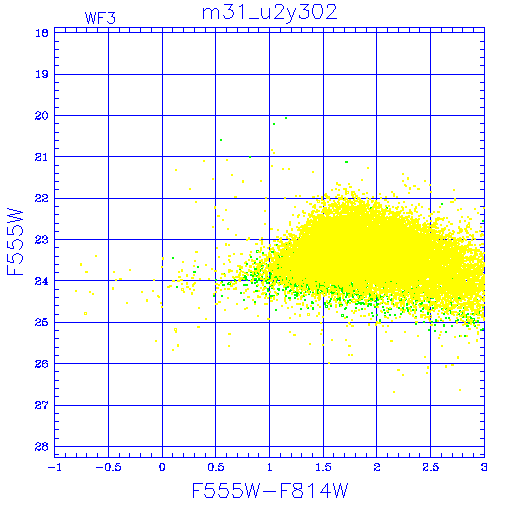

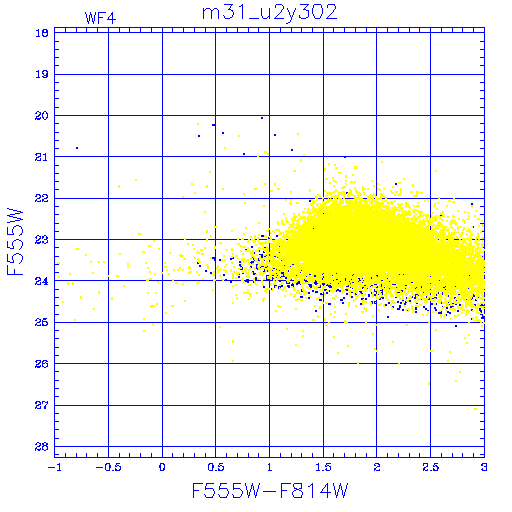

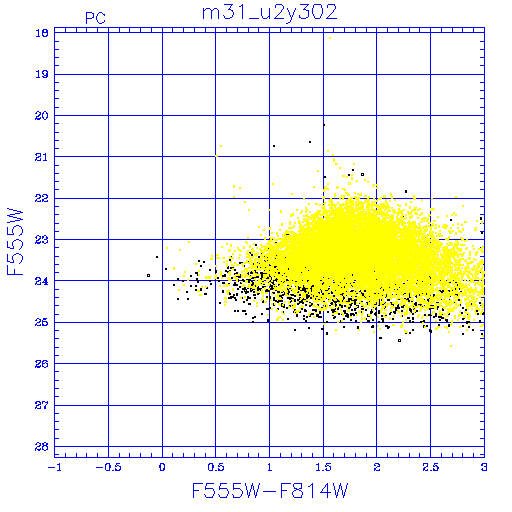

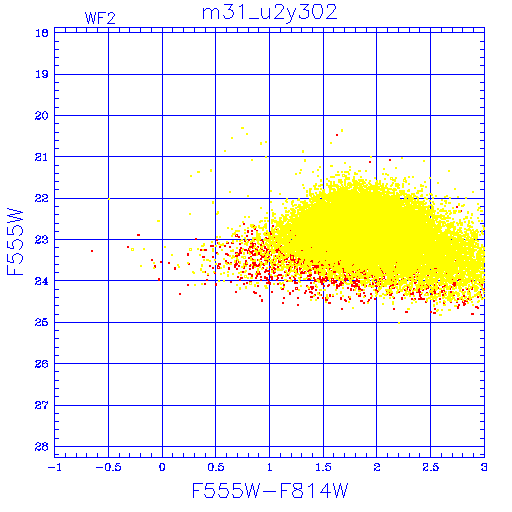

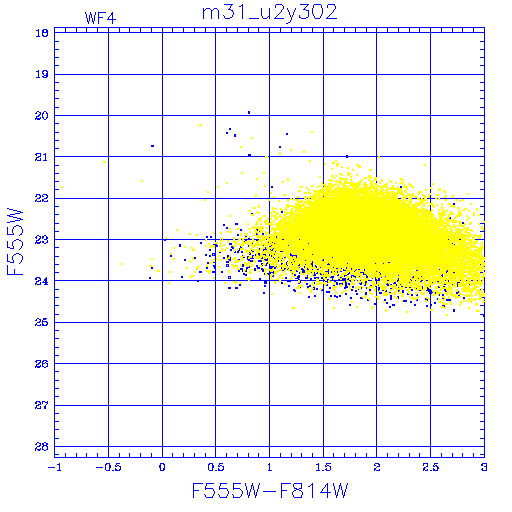

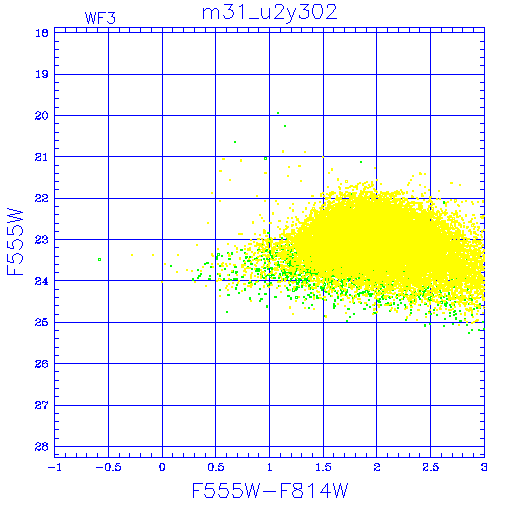

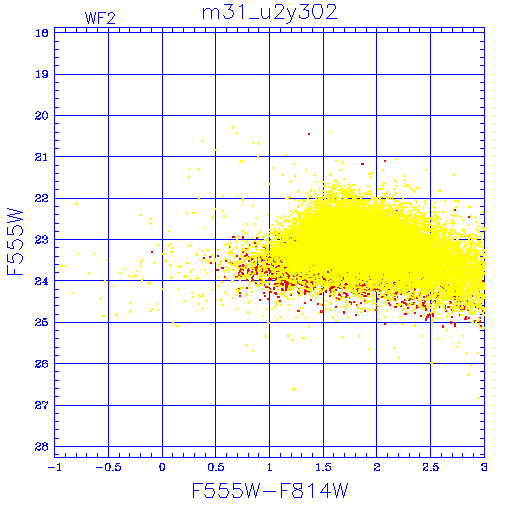

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

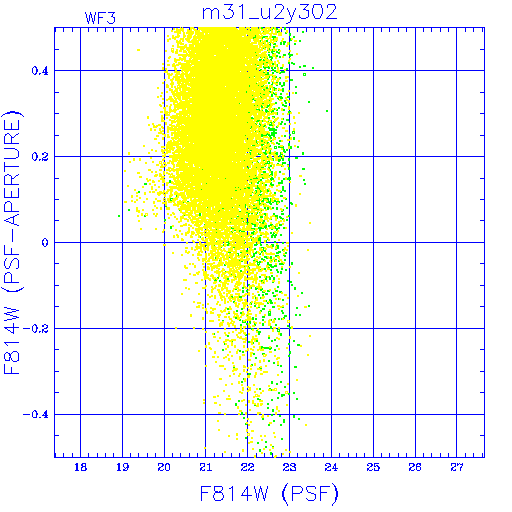

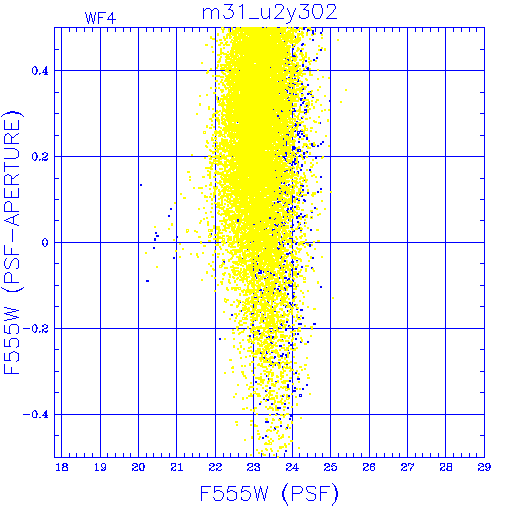

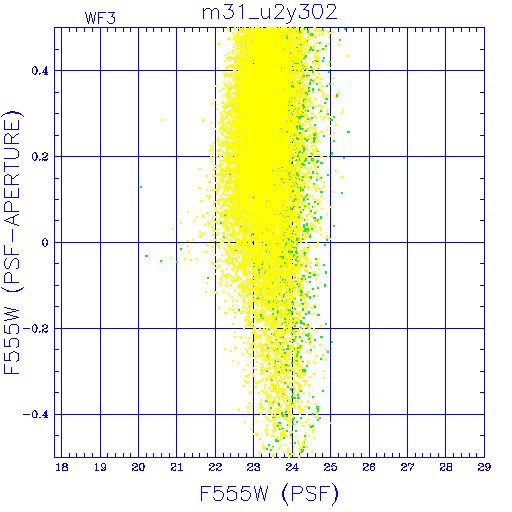

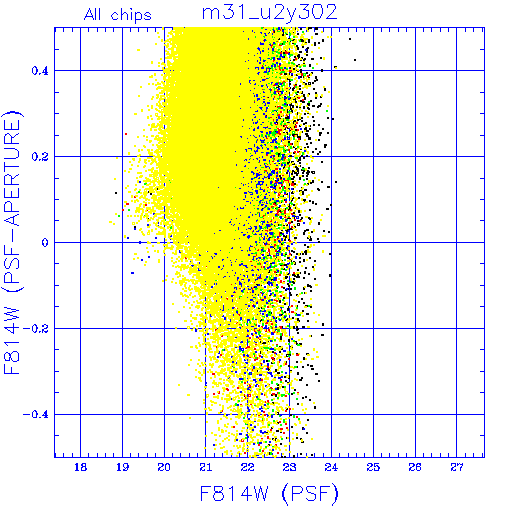

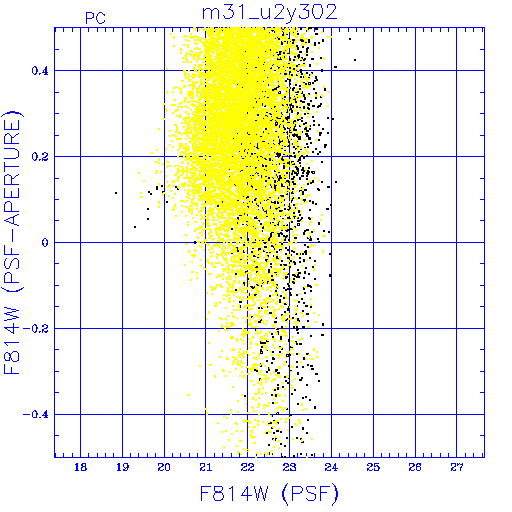

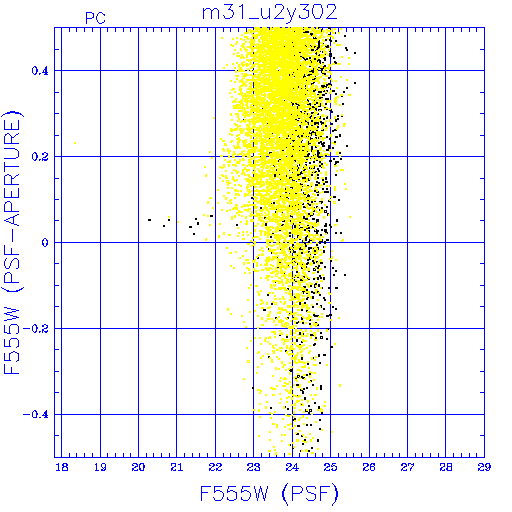

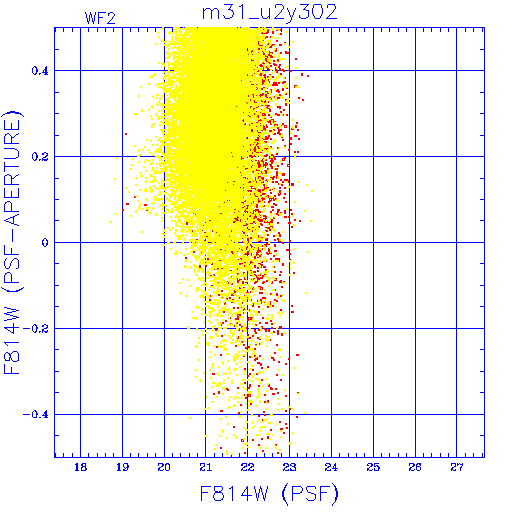

PSF
Aperture

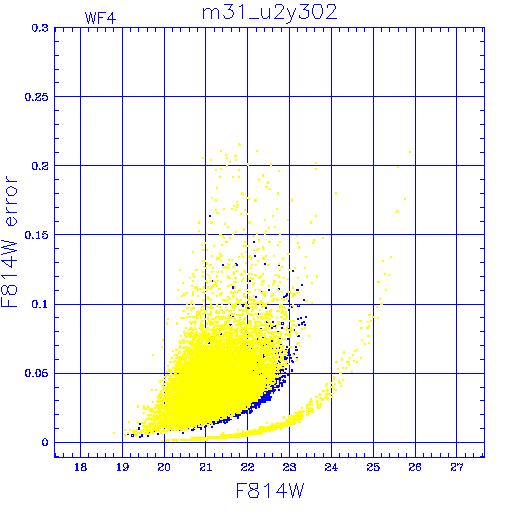

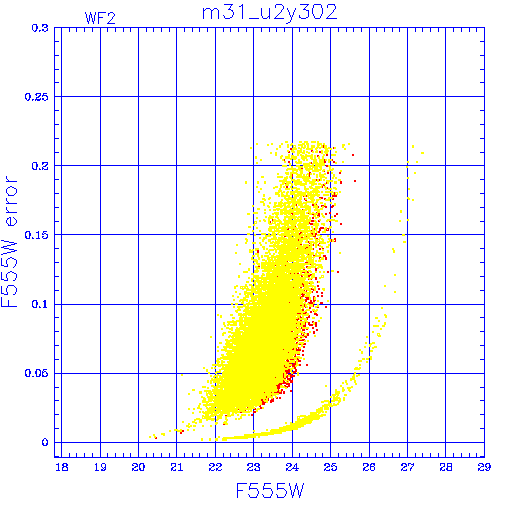

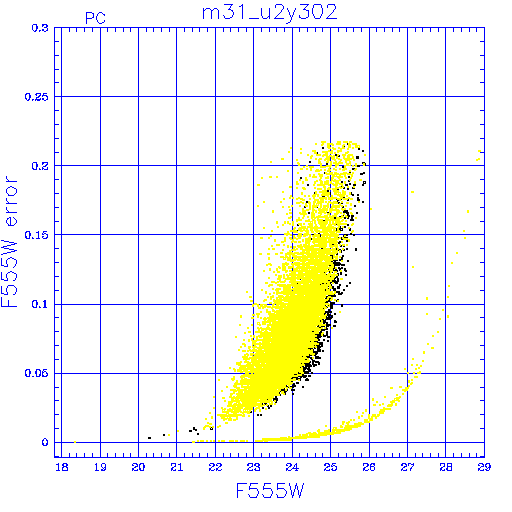

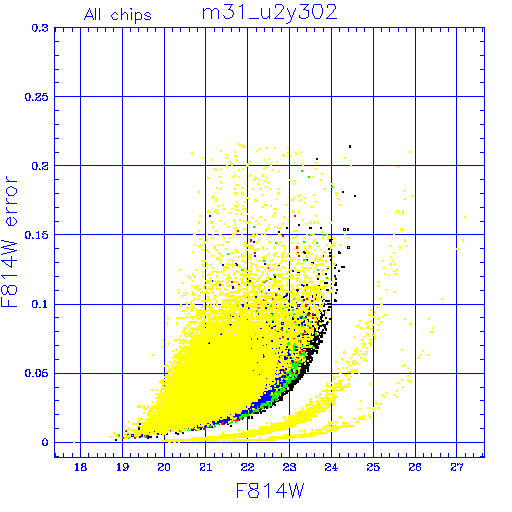

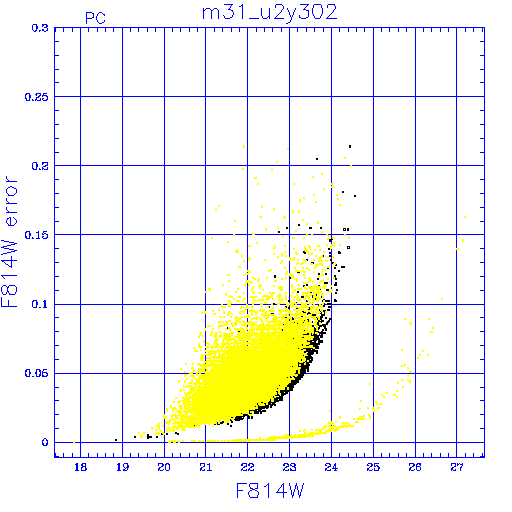

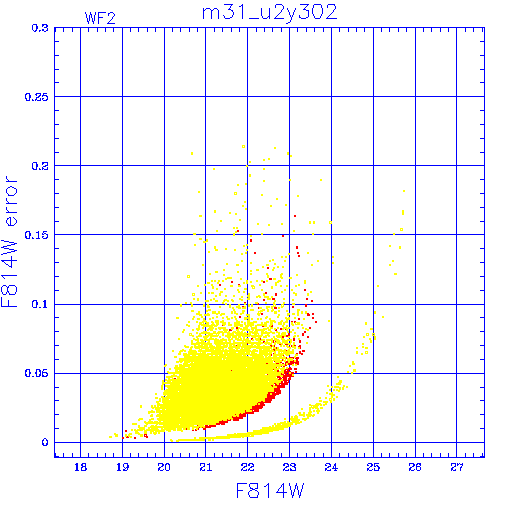

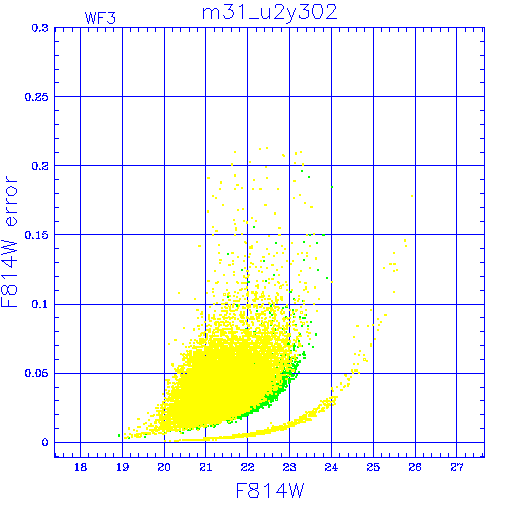

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

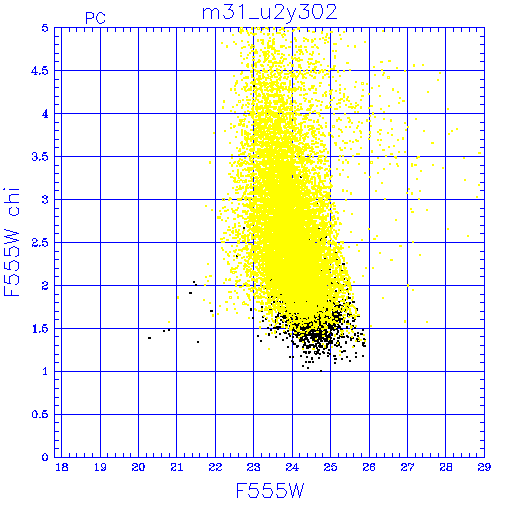

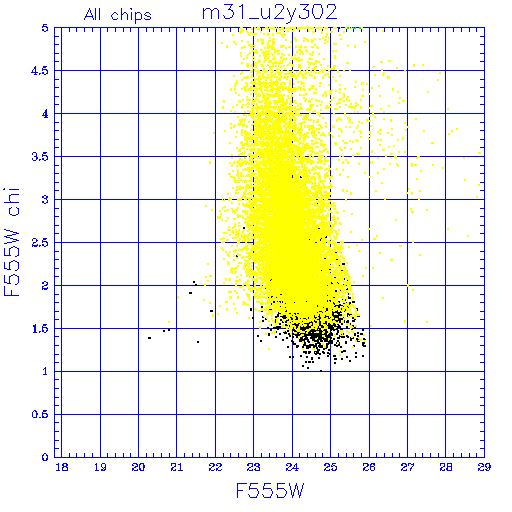

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

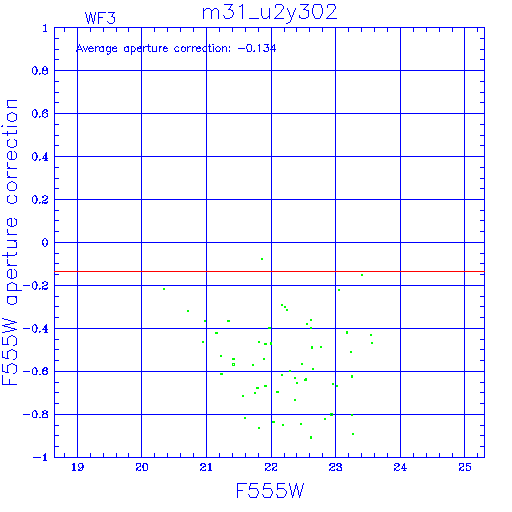

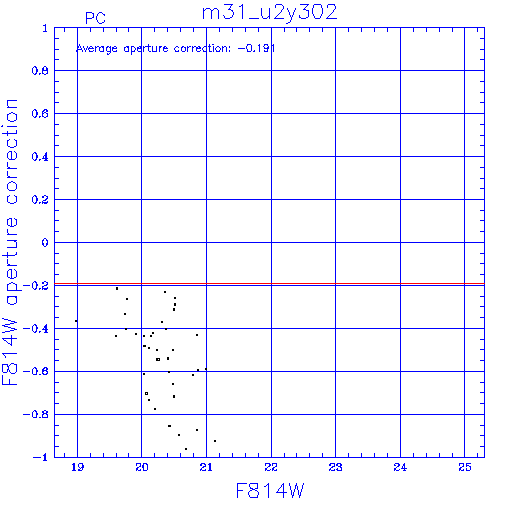

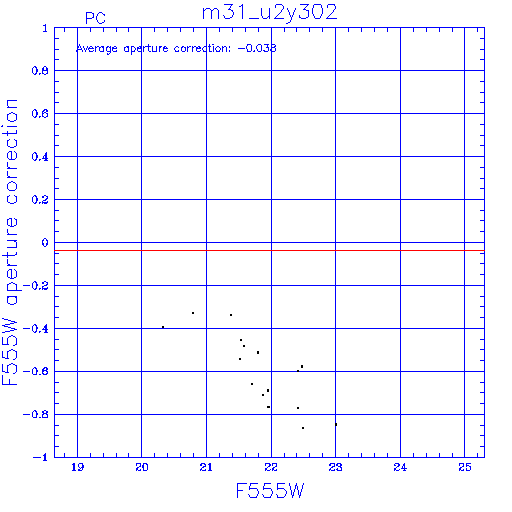

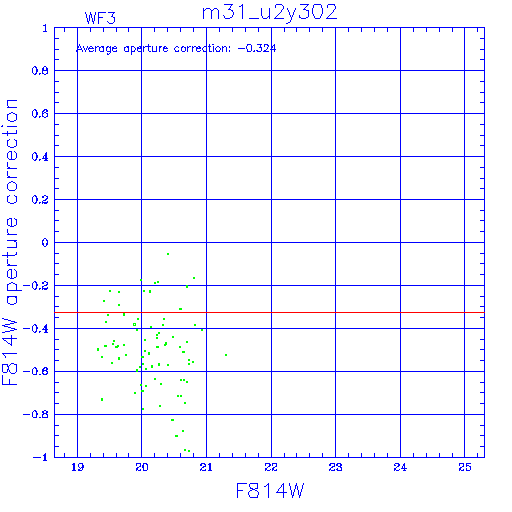

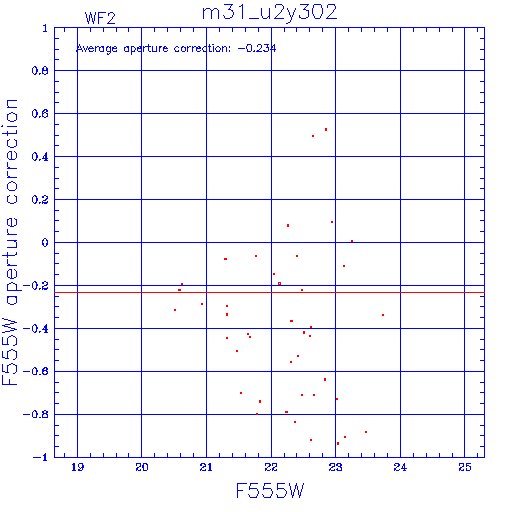

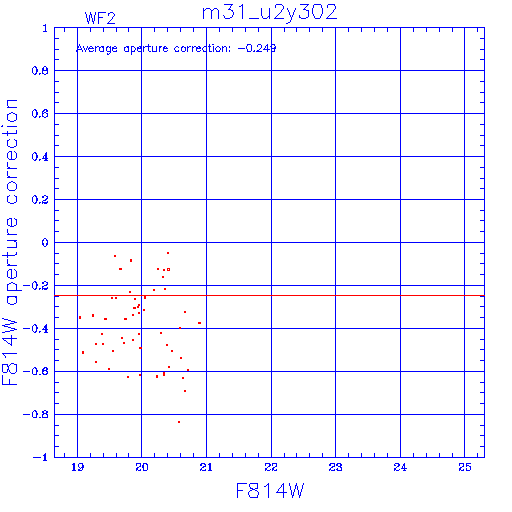

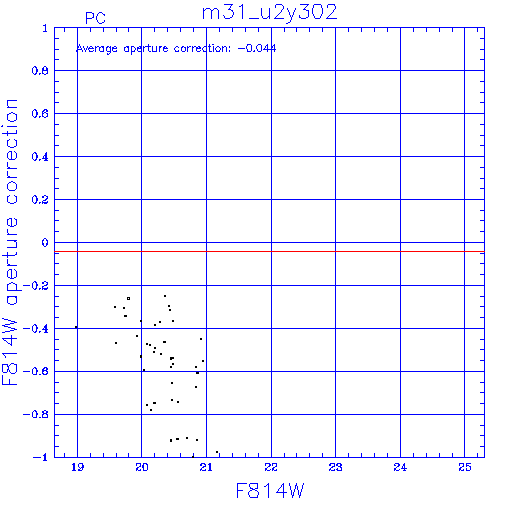

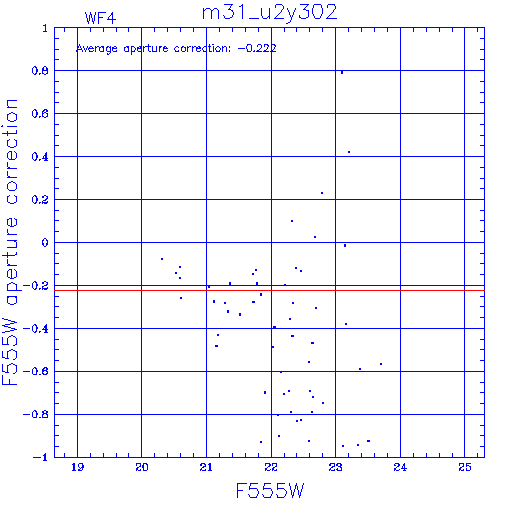

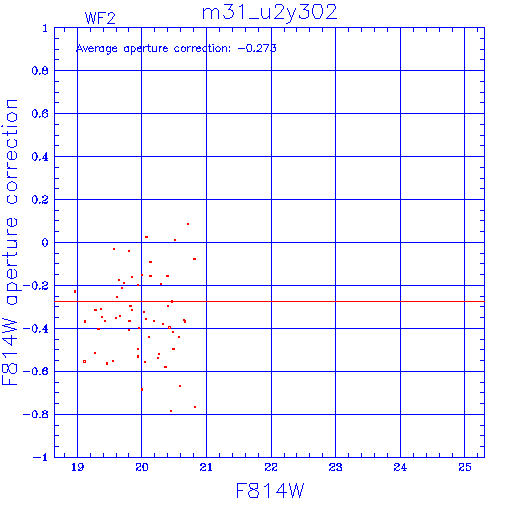

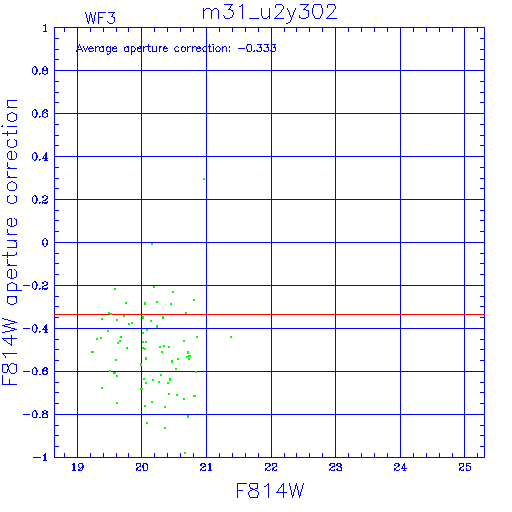

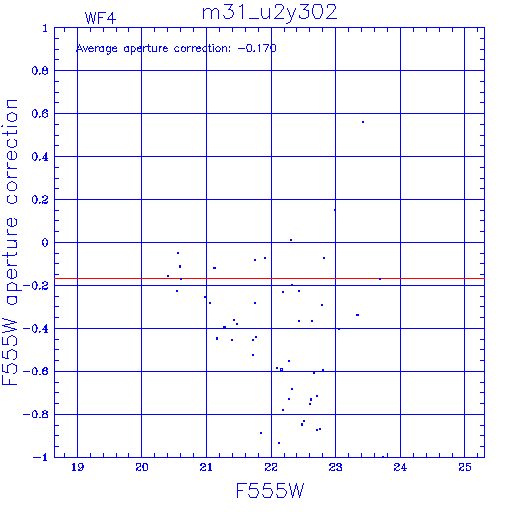

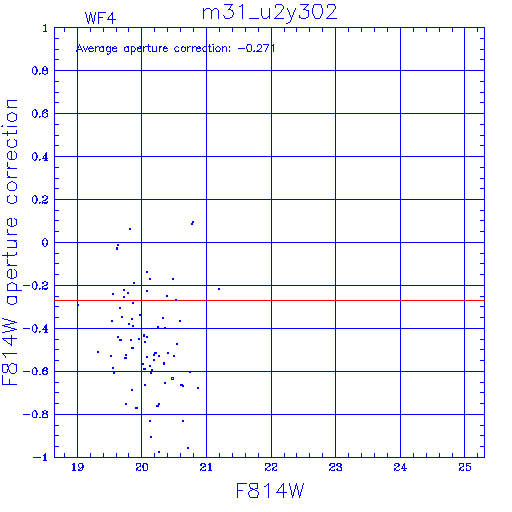

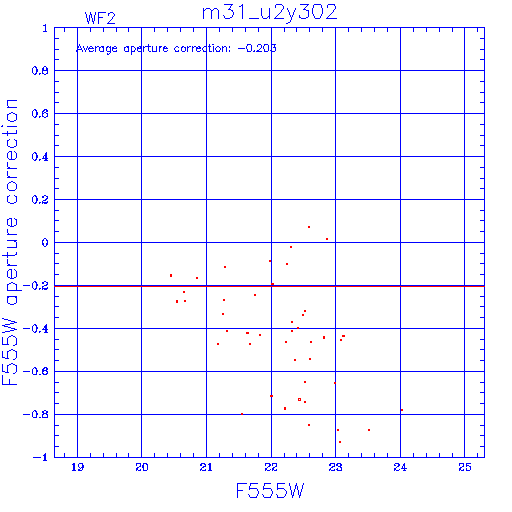

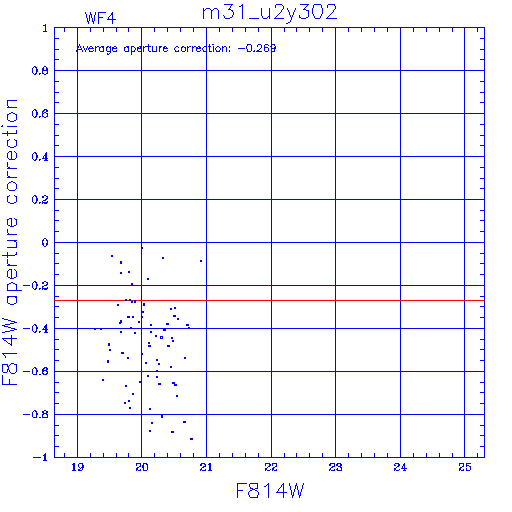

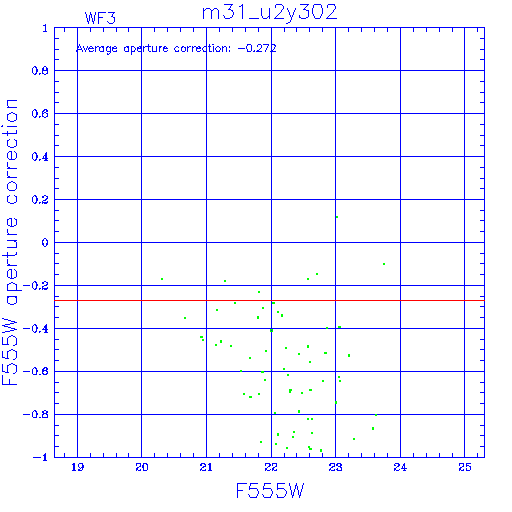

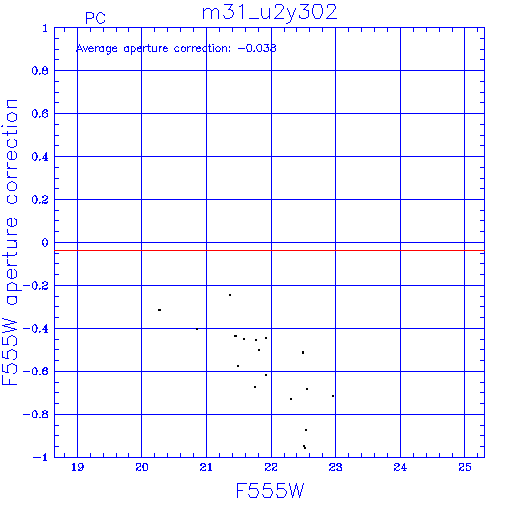

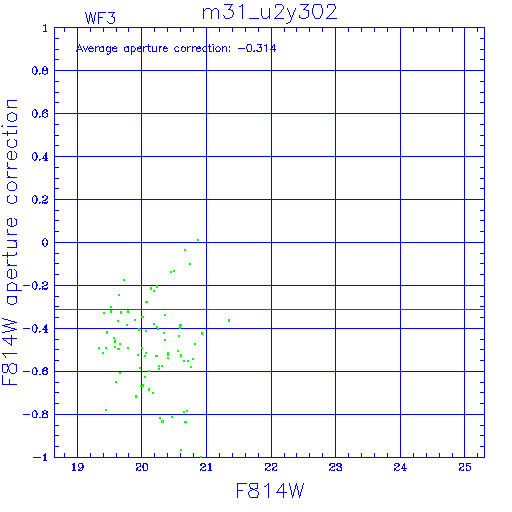

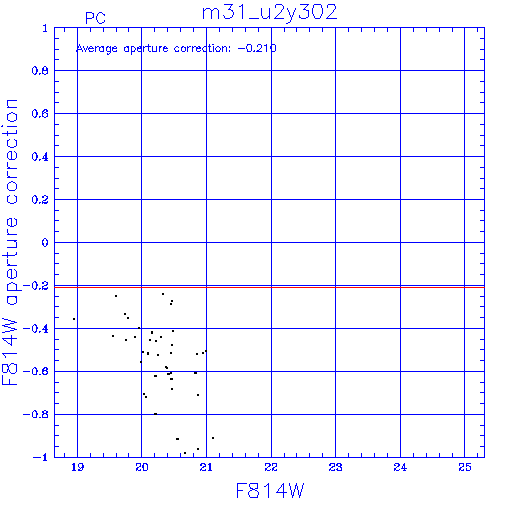

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
