Photometry Diagnostics for m31_u2e201



Frame list, with derived and commanded shifts
dataset filter exptime derived dx derived dy header dx header dy delta dx delta dy
u2e2010bt F555W 40.00 0.00 0.00 0.00 0.00 0.00 0.00
u2e2010ct F555W 400.00 0.06 0.01 0.00 0.00 0.06 0.01
u2e2010dt F555W 400.00 0.12 0.02 0.00 0.00 0.12 0.02
u2e2010et F555W 400.00 0.16 0.01 0.00 0.00 0.16 0.01
u2e2010ft F555W 400.00 0.05 -0.19 0.00 0.00 0.05 -0.19
u2e2010gt F555W 40.00 0.05 -0.20 0.00 0.00 0.05 -0.20
u2e2010ht F814W 40.00 0.08 -0.05 0.00 0.00 0.08 -0.05
u2e2010it F814W 400.00 0.13 -0.01 0.00 0.00 0.13 -0.01
u2e2010jt F814W 400.00 0.16 0.00 0.00 0.00 0.16 0.00
u2e2010kt F814W 400.00 0.09 -0.24 0.00 0.00 0.09 -0.24
u2e2010lt F814W 40.00 0.11 -0.23 0.00 0.00 0.11 -0.23
u2e20101t F1042M 40.00 0.08 -0.96 0.00 0.00 0.08 -0.96
u2e20102t F1042M 500.00 0.11 -0.92 0.00 0.00 0.11 -0.92
u2e20103t F1042M 500.00 0.14 -0.86 0.00 0.00 0.14 -0.86
u2e20104t F1042M 700.00 0.07 -0.99 0.00 0.00 0.07 -0.99
u2e20105t F1042M 300.00 0.03 -0.84 0.00 0.00 0.03 -0.84
u2e20106t F1042M 500.00 0.08 -0.77 0.00 0.00 0.08 -0.77
u2e20107t F1042M 500.00 0.14 -0.80 0.00 0.00 0.14 -0.80
u2e20108t F1042M 700.00 0.07 -0.87 0.00 0.00 0.07 -0.87
u2e20109t F1042M 300.00 0.11 -0.83 0.00 0.00 0.11 -0.83
u2e2010ap F1042M 500.00 0.15 -0.82 0.00 0.00 0.15 -0.82

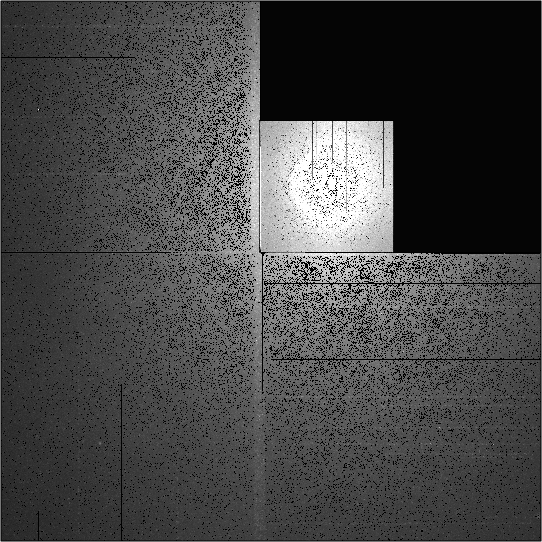

Mosaic images

F555W F814W F1042M


HSTPHOT command log

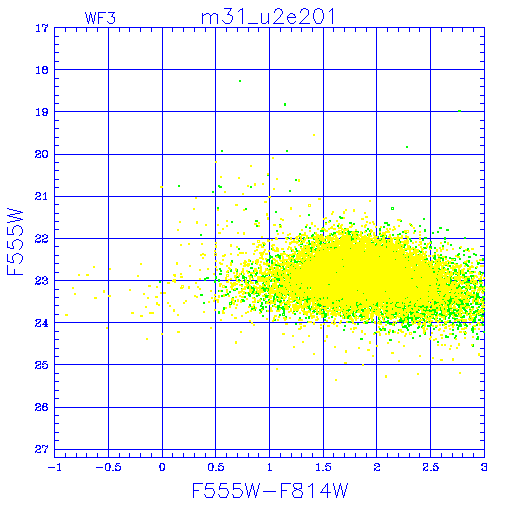

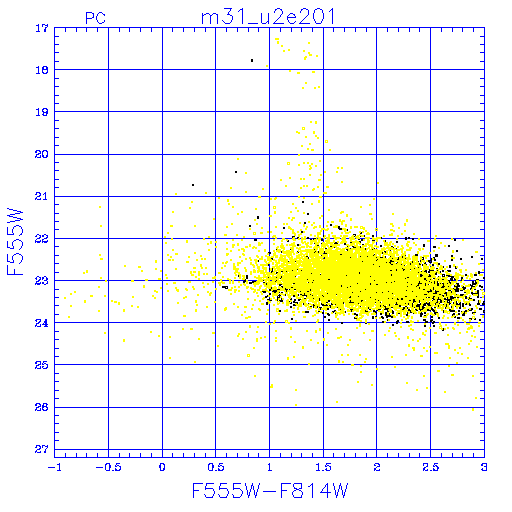

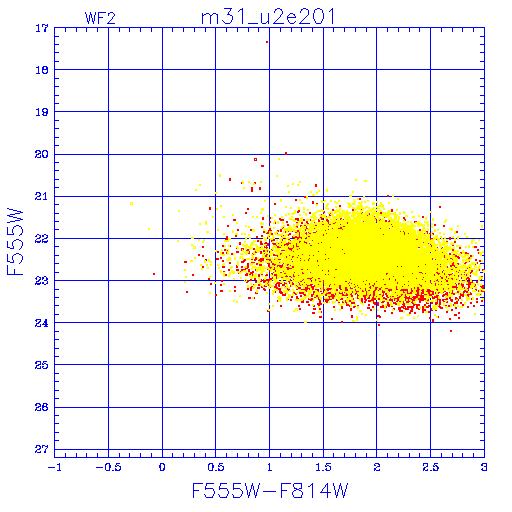

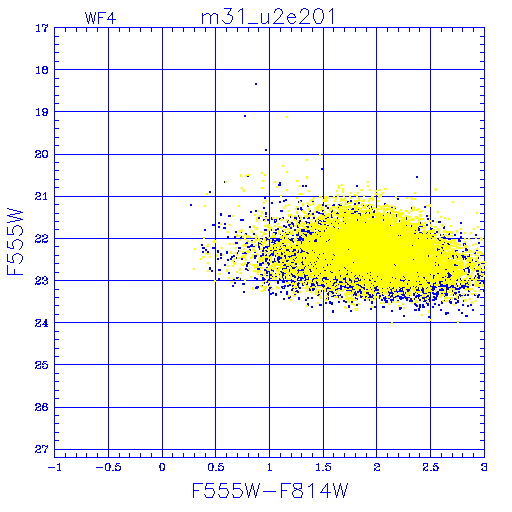

Color magnitude diagrams

All chips
PC
WF2
WF3
WF4
PSF
Aperture

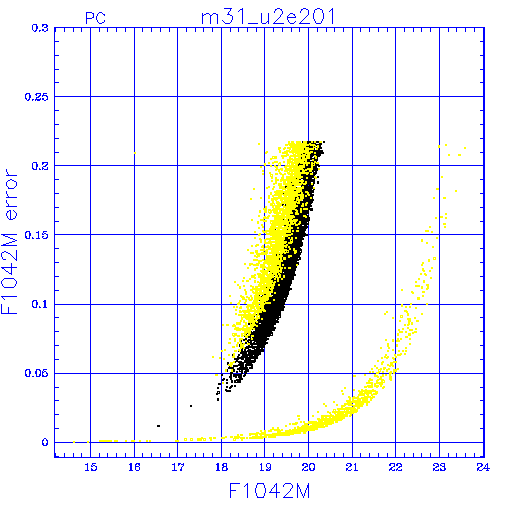

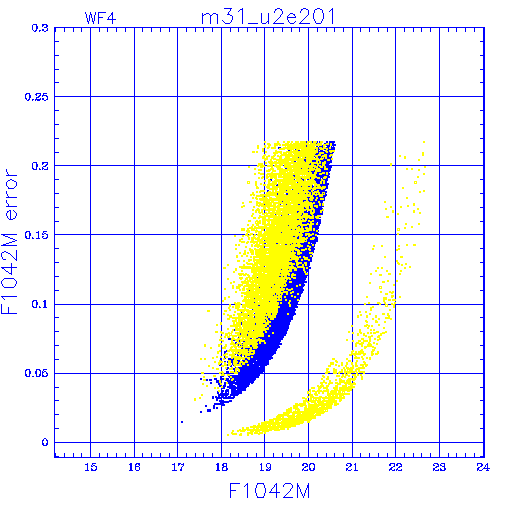

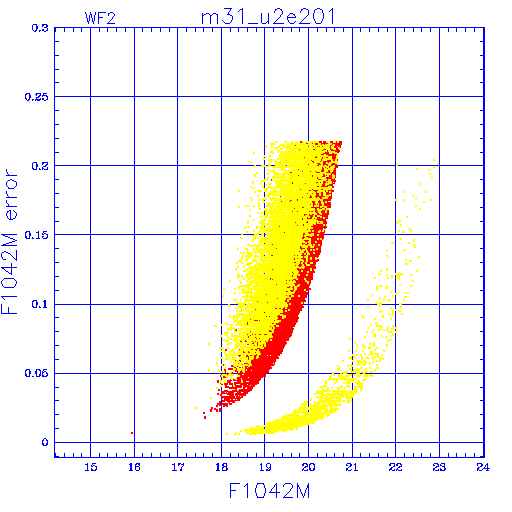

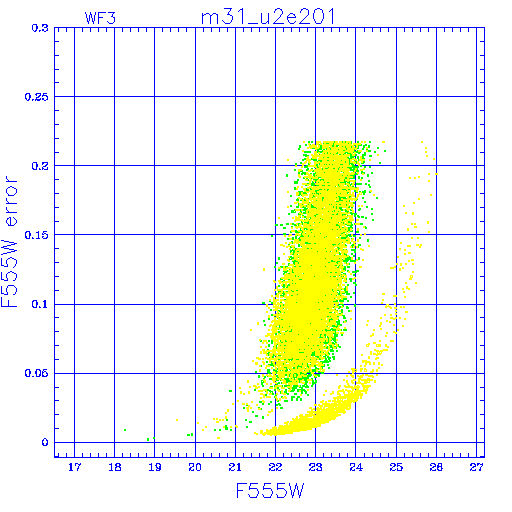

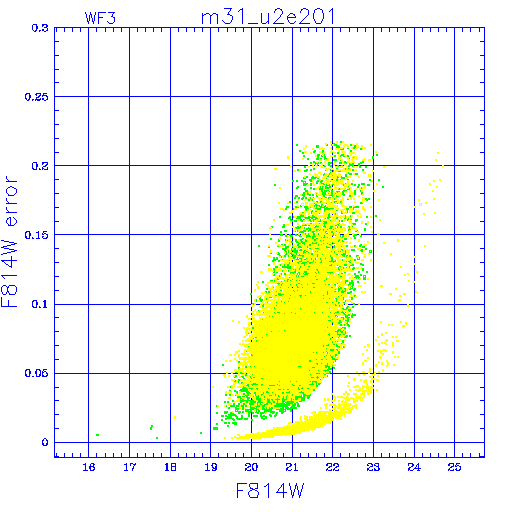

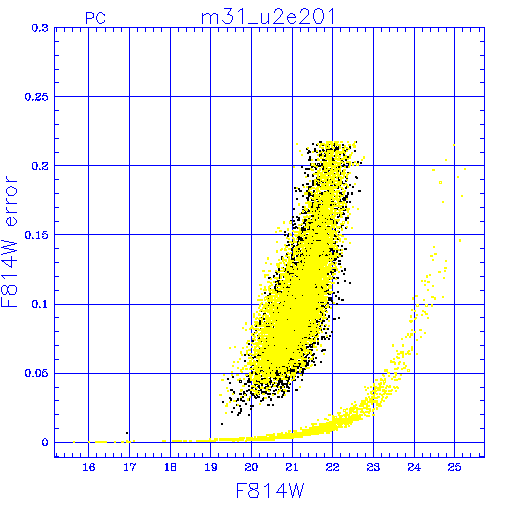

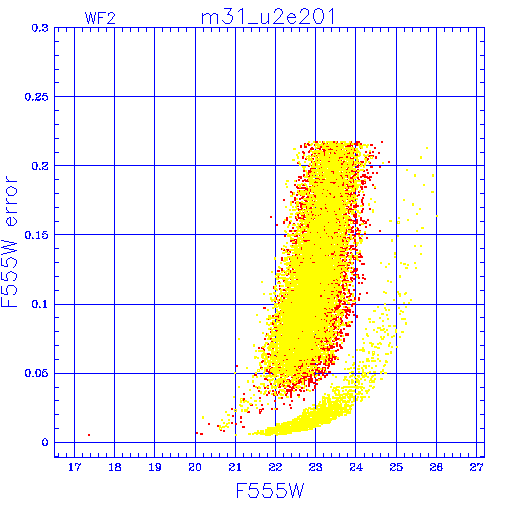

Error vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w
f1042m

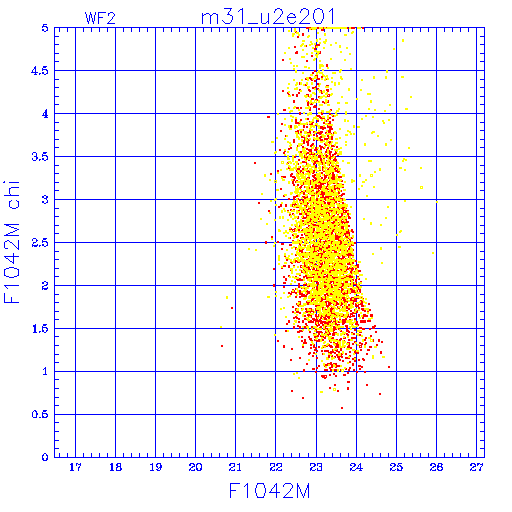

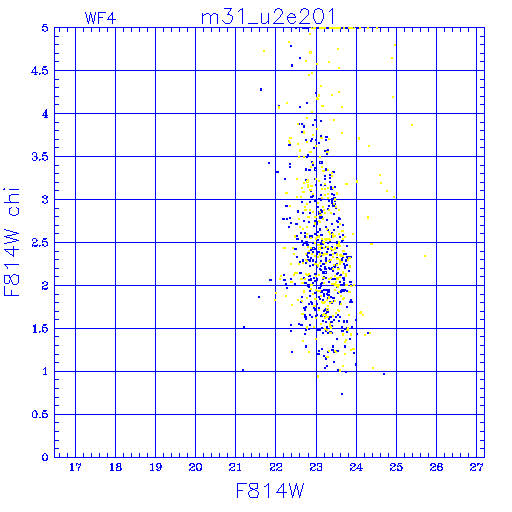

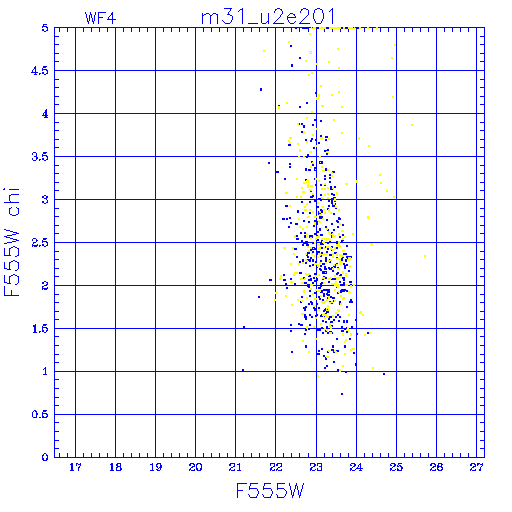

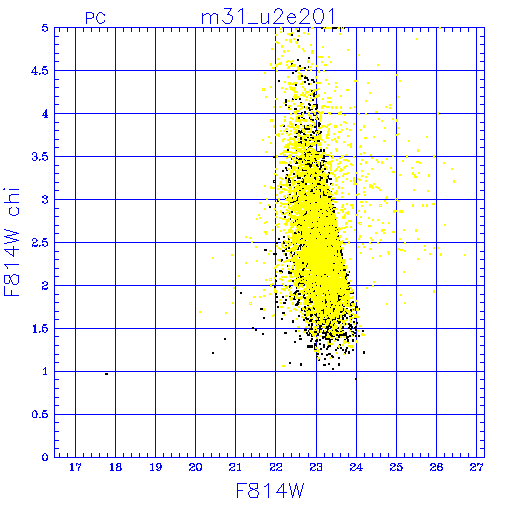

CHI vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w
f1042m


Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
F555W F814W F1042M

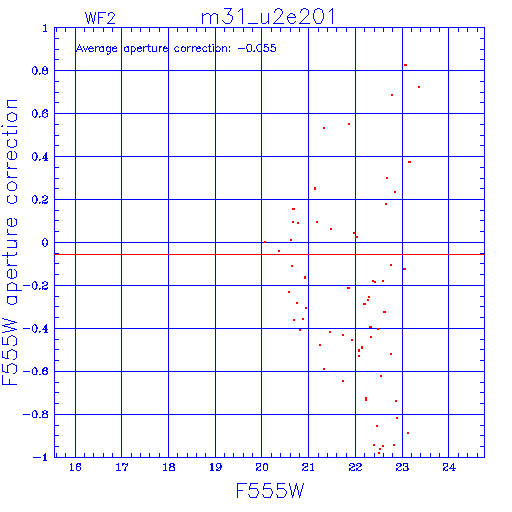

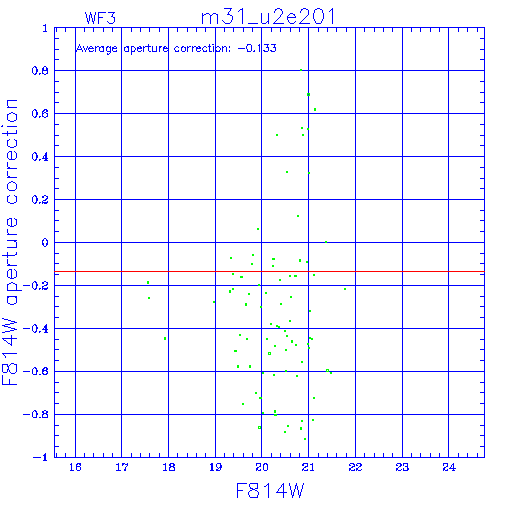

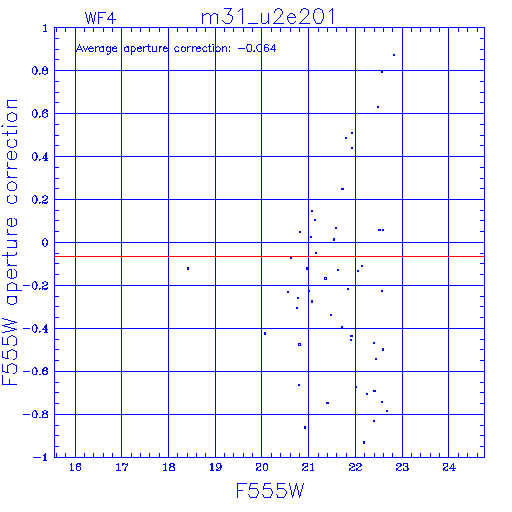

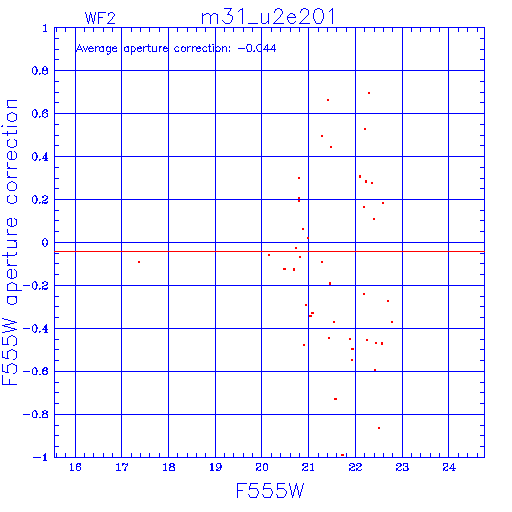

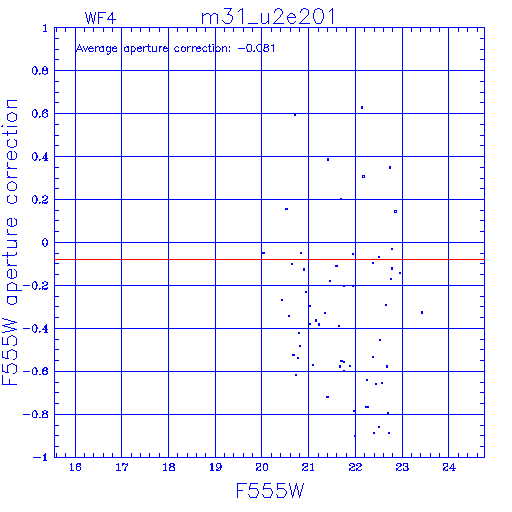

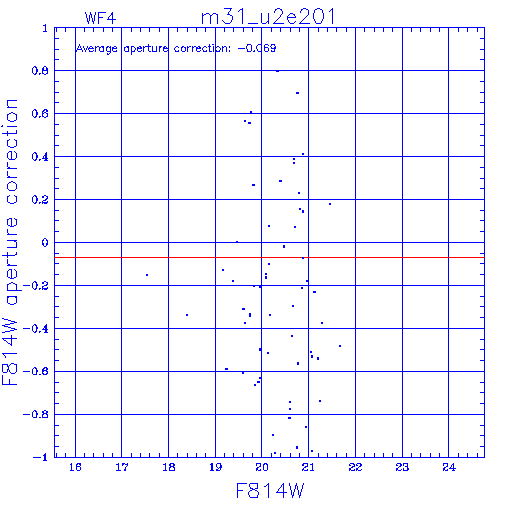

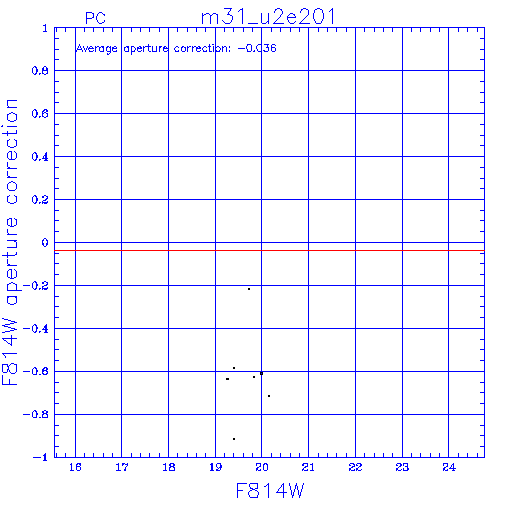

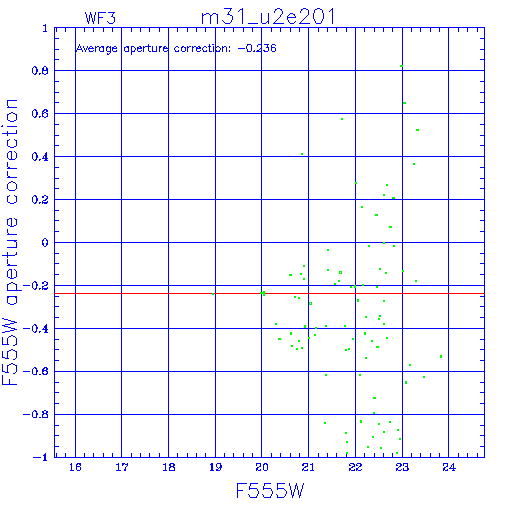

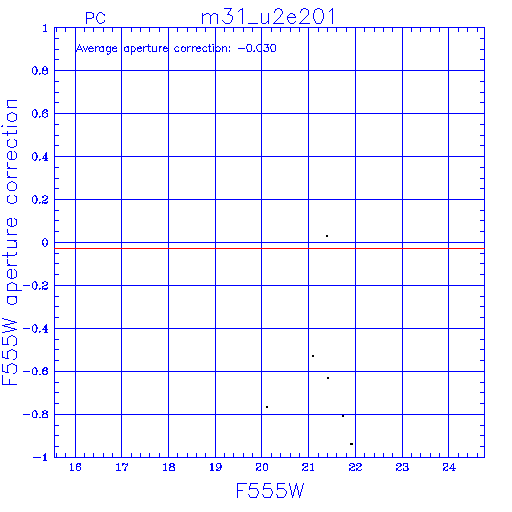

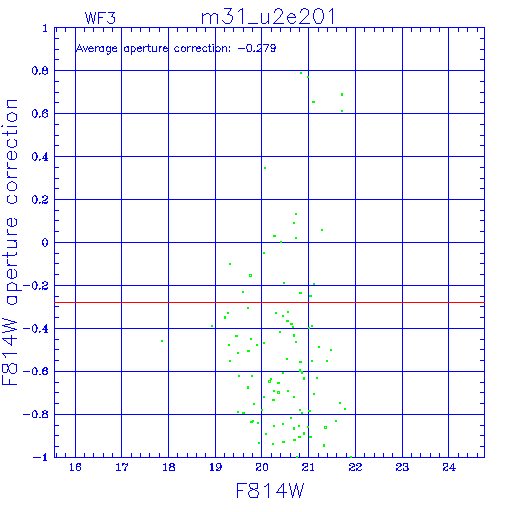

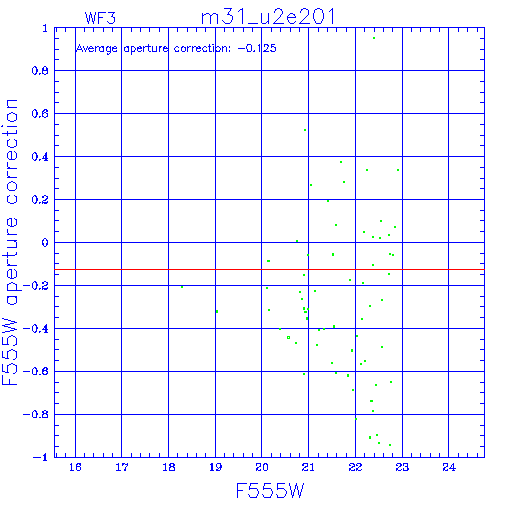

Aperture correction for each frame/chip, showing individual stars
All chips
PC
WF2
WF3
WF4
f555w
f555w
f814w
f814w
f1042m

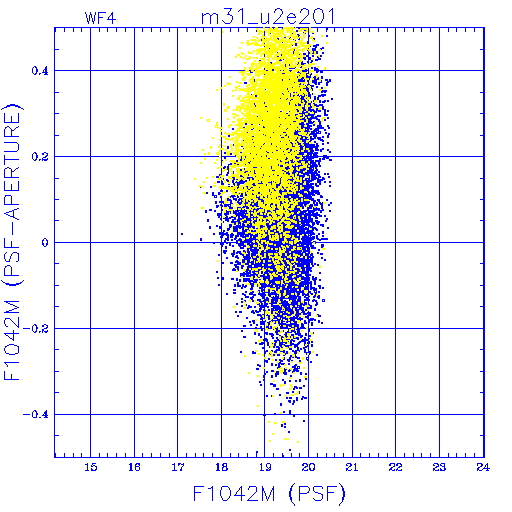

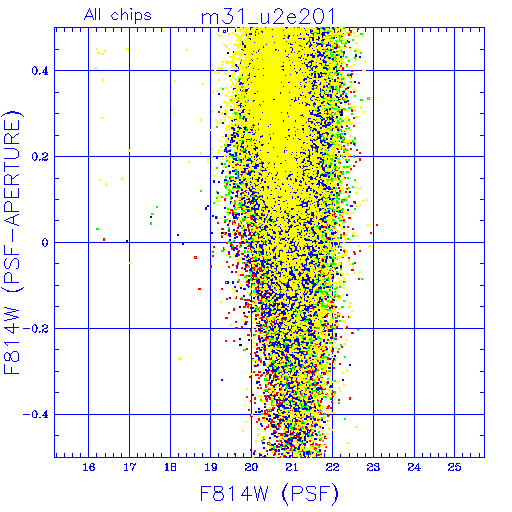

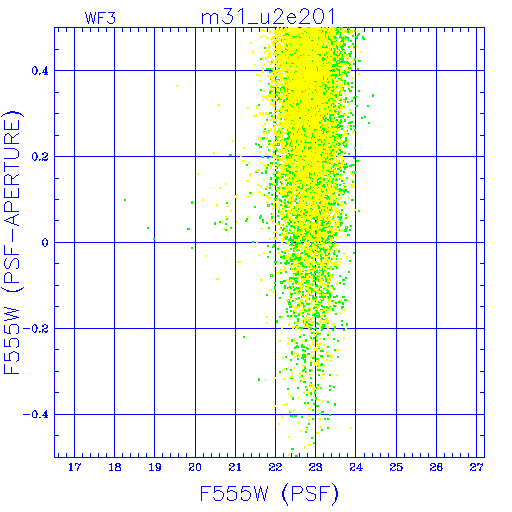

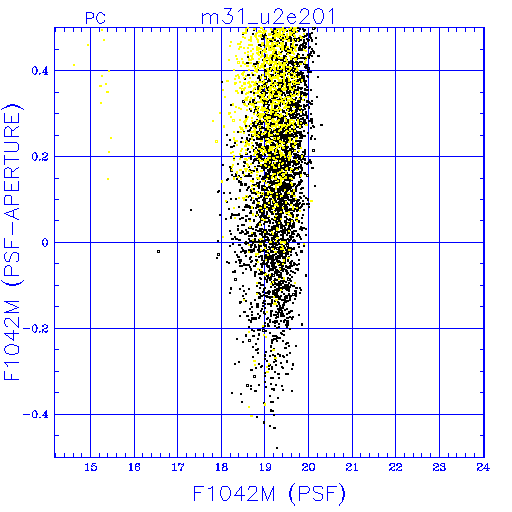

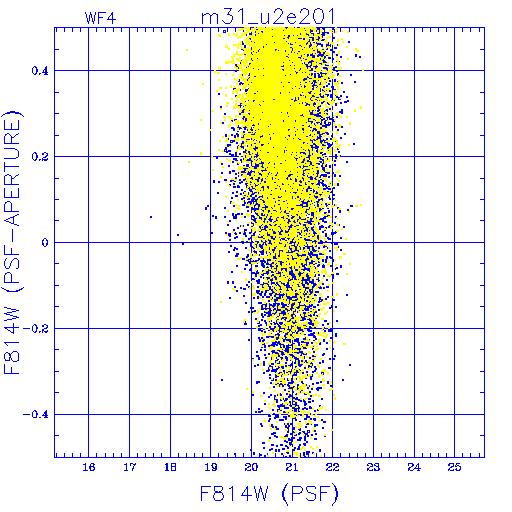

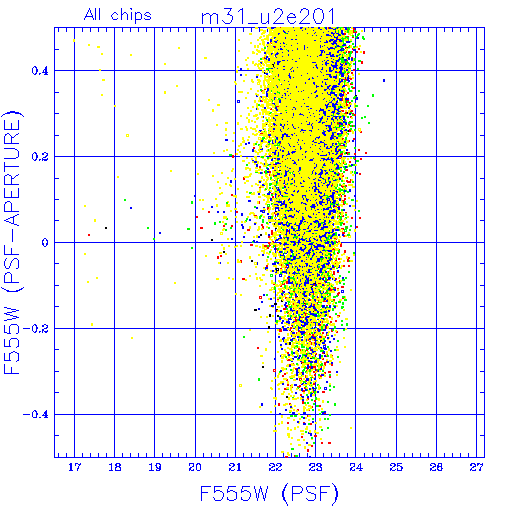

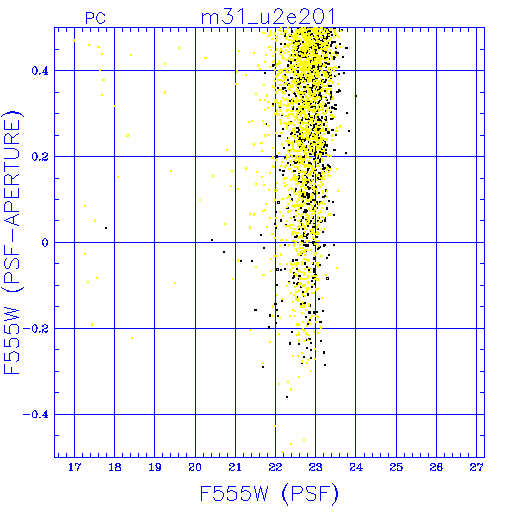

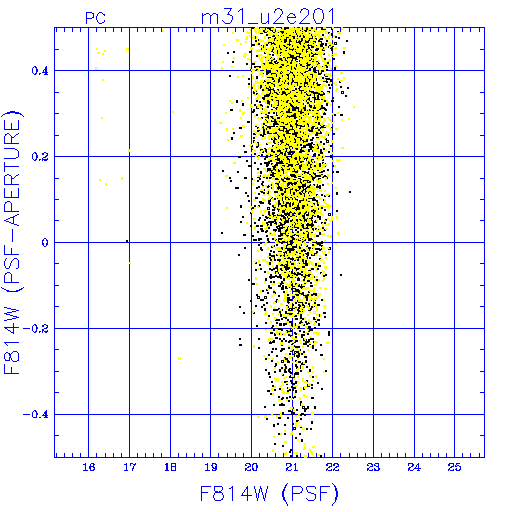

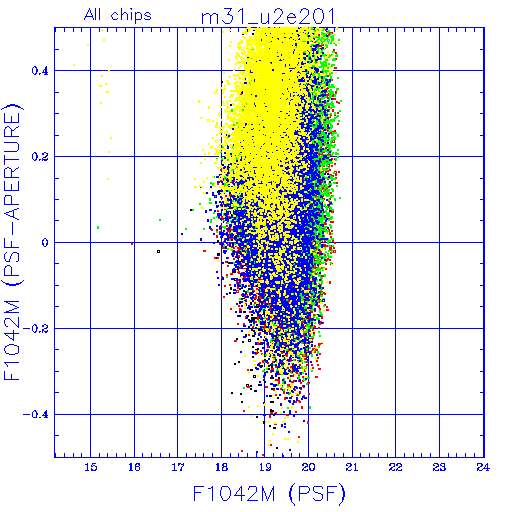

PSF vs. aperture photometry

All chips
PC
WF2
WF3
WF4
f555w
f814w
f1042m


Artificial star diagrams

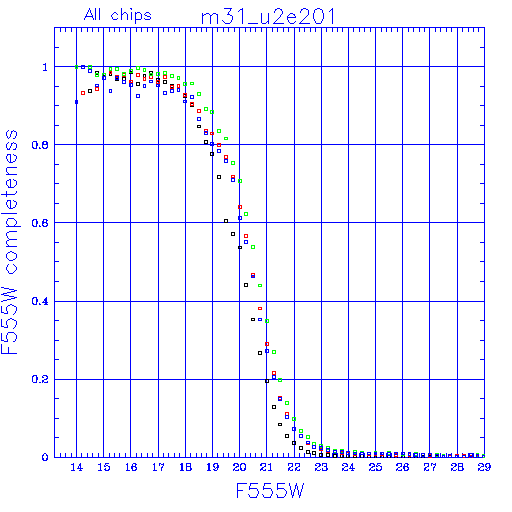

Completeness as a function of input magnitude
PSF photometry Aperture photometry

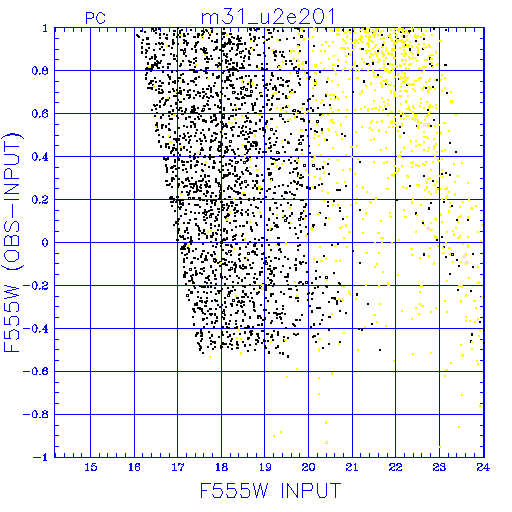

Recovered mag-input mag as a function of input mag (PSF photometry)
All chips
PC
WF2
WF3
WF4
f555w
f814w
f1042m

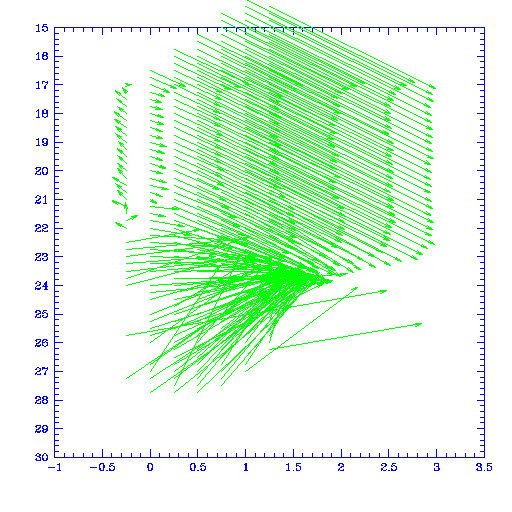

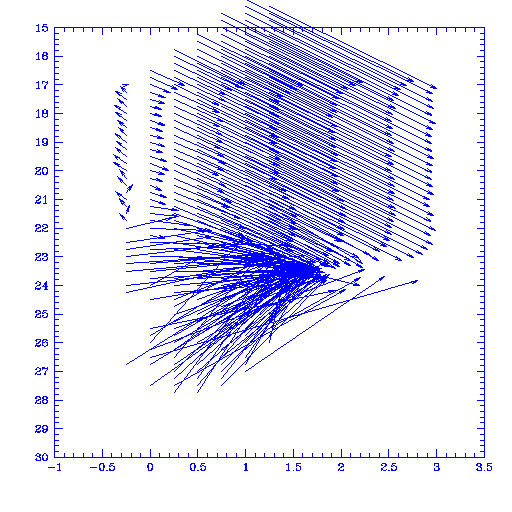

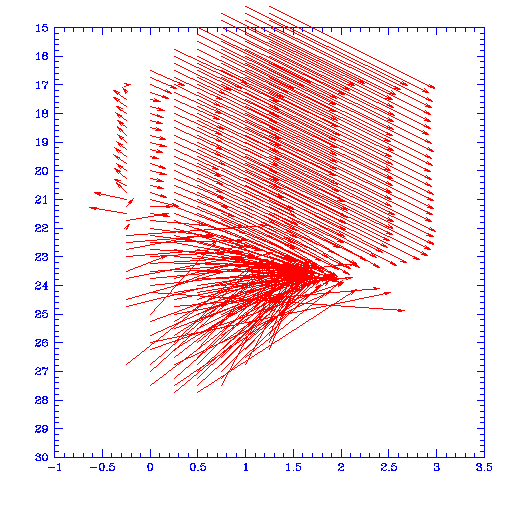

Average recovered magnitude as function of location in CMD (PSF photometry)
All chips
PC
WF2
WF3
WF4
