Photometry Diagnostics for lmc_u6m706

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u6m70601m	F555W	300.00	0.00	0.00	0.00	0.00	0.00	0.00
u6m70602m	F555W	300.00	-0.01	0.04	0.00	0.00	-0.01	0.04
u6m70605m	F814W	300.00	0.03	0.04	0.00	0.00	0.03	0.04
u6m70606m	F814W	300.00	0.02	0.08	0.00	0.00	0.02	0.08
u6m70603m	F675W	300.00	-0.58	1.13	0.00	0.00	-0.58	1.13
u6m70604m	F675W	260.00	-0.50	1.18	0.00	0.00	-0.50	1.18

Mosaic images

F555W	F814W	F675W

HSTPHOT command log

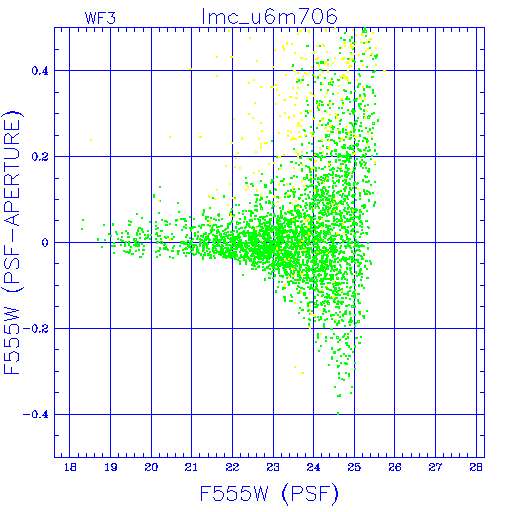

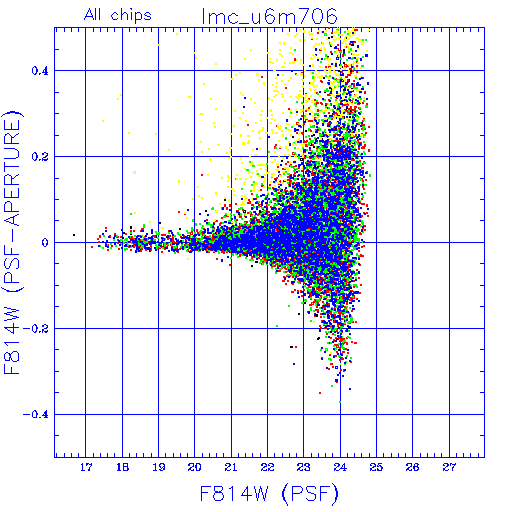

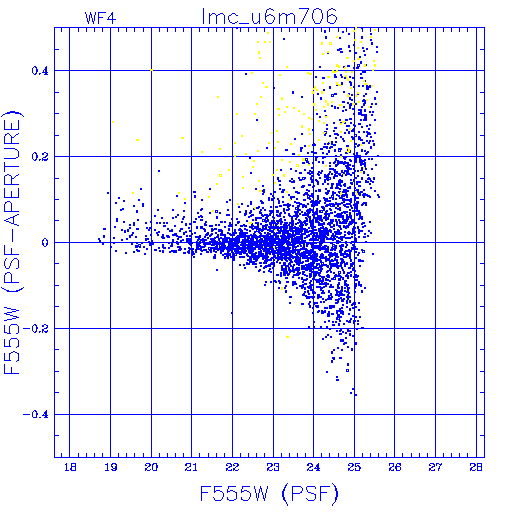

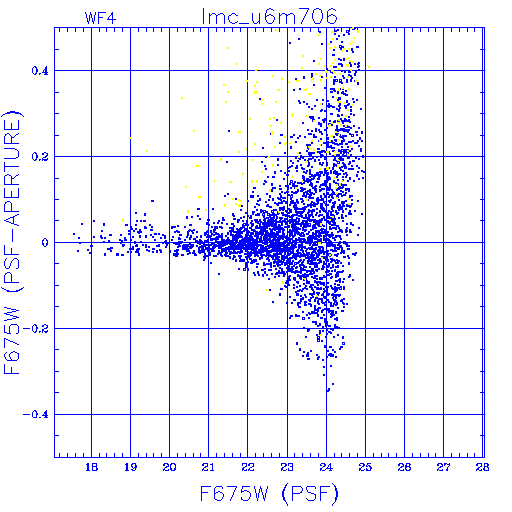

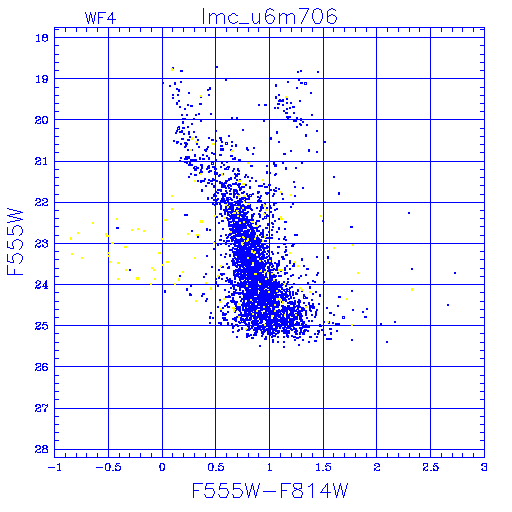

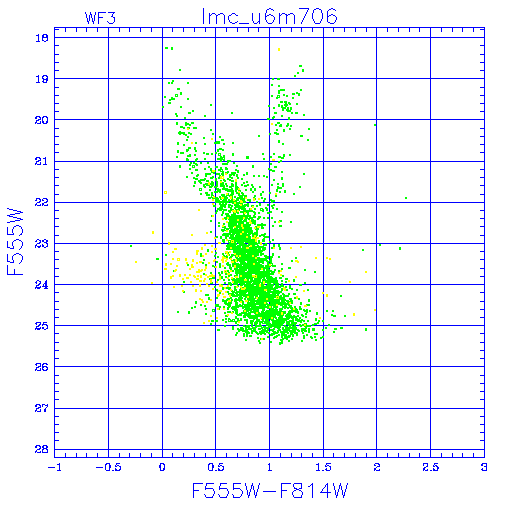

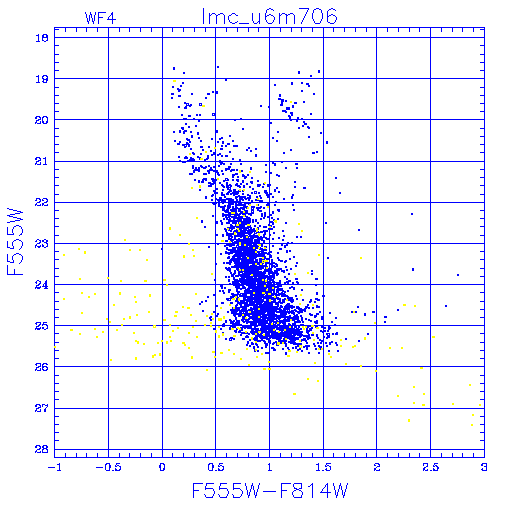

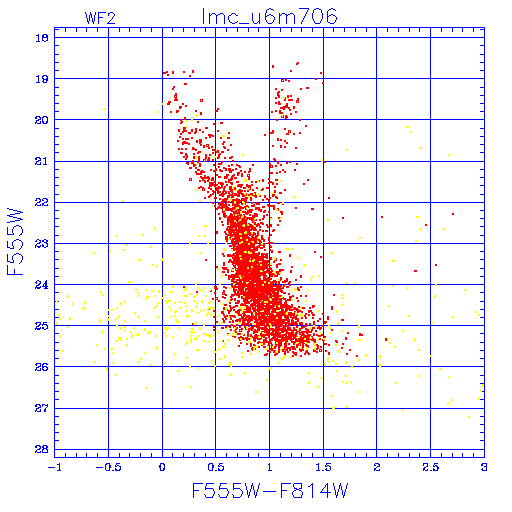

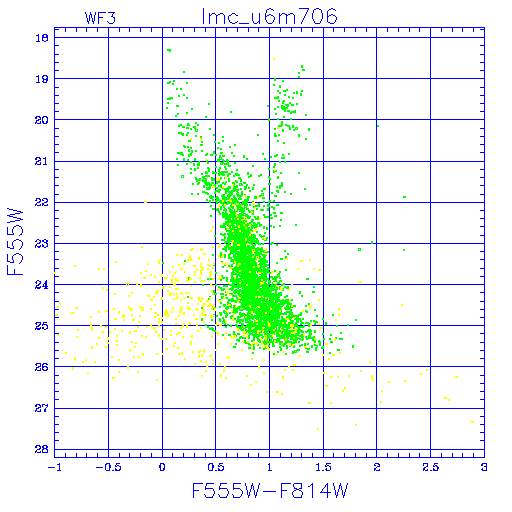

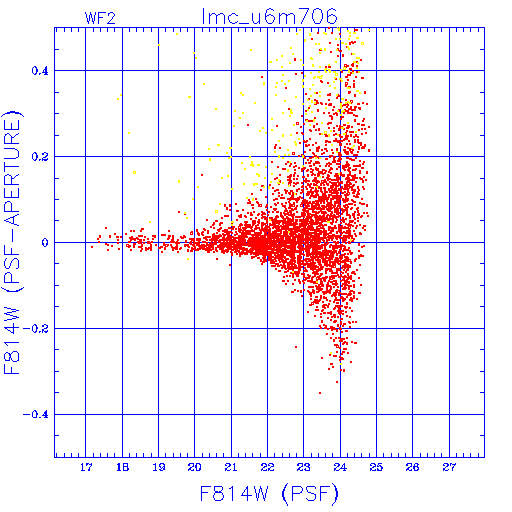

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF

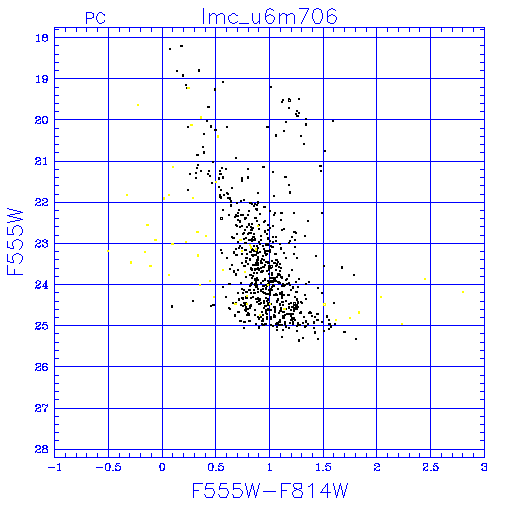

Aperture

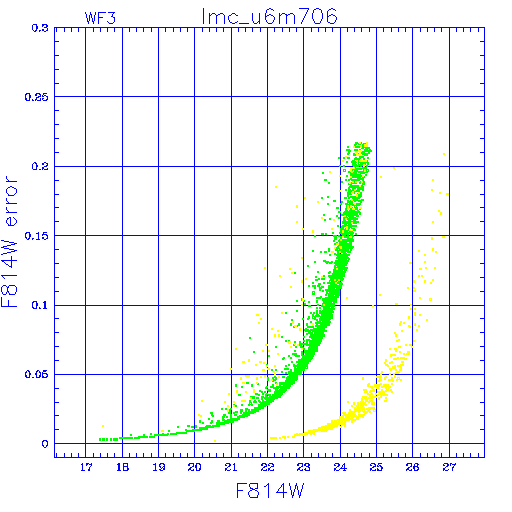

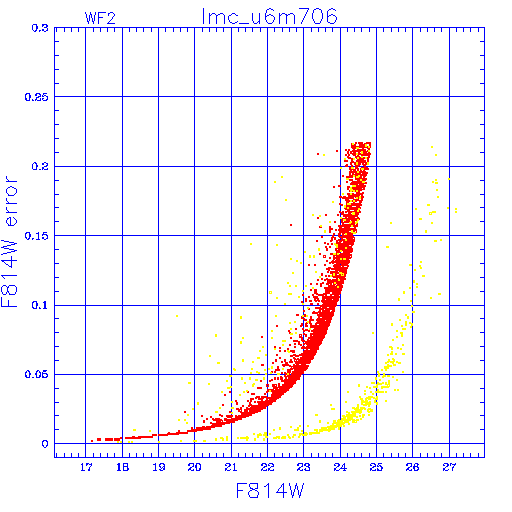

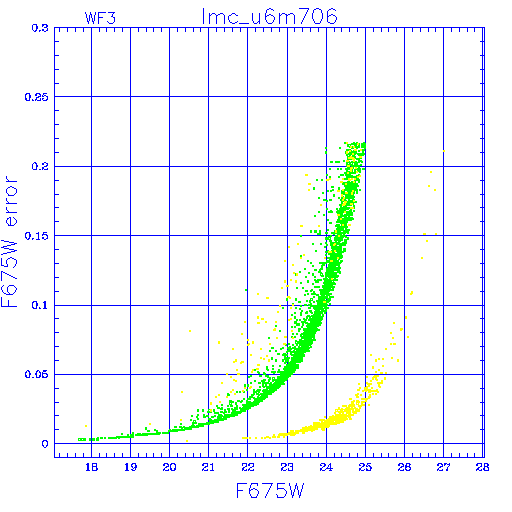

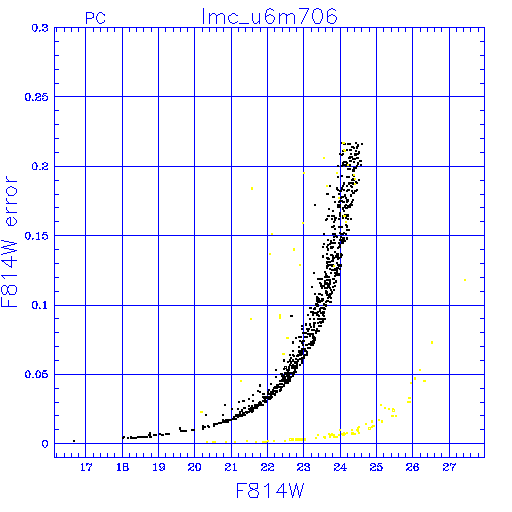

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f675w

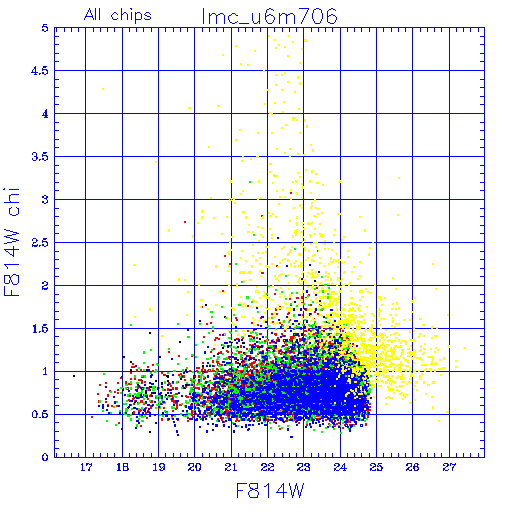

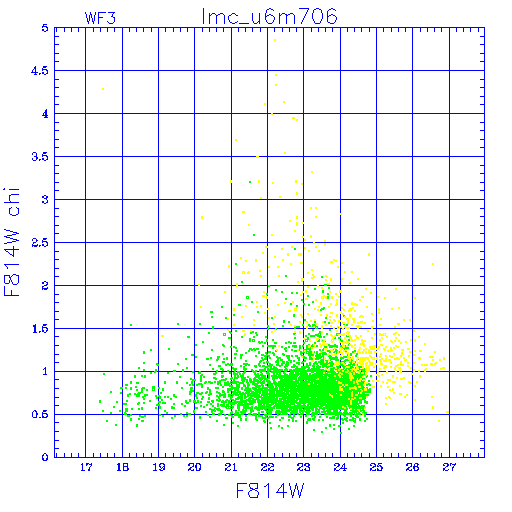

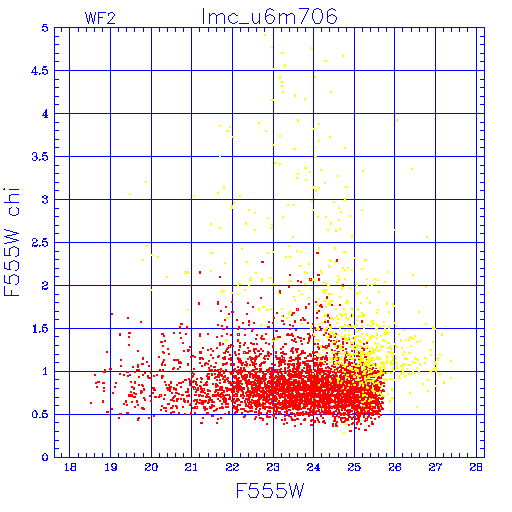

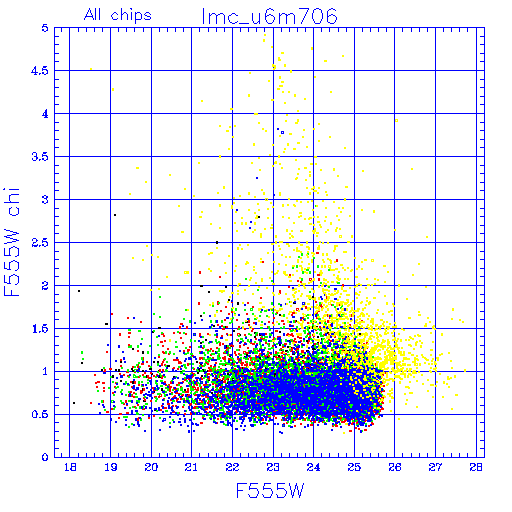

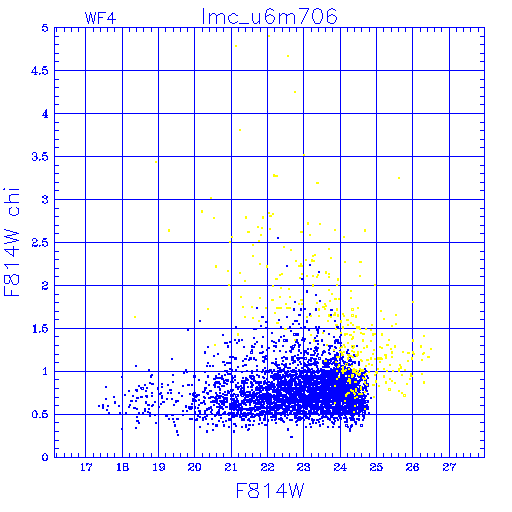

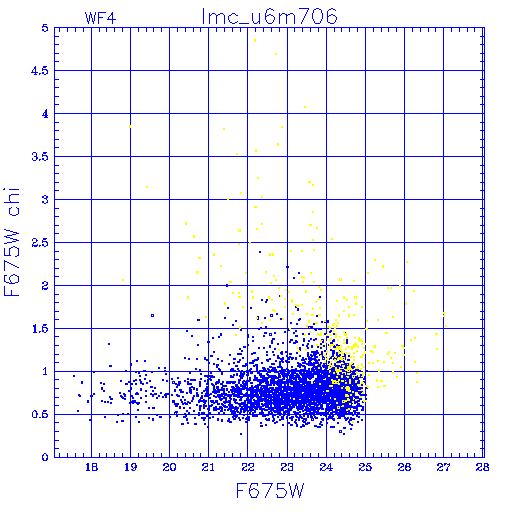

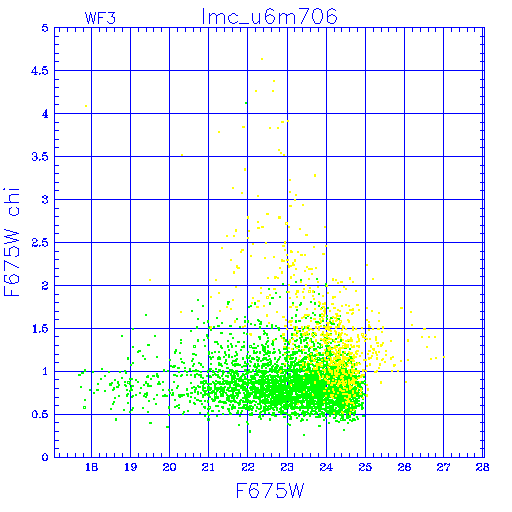

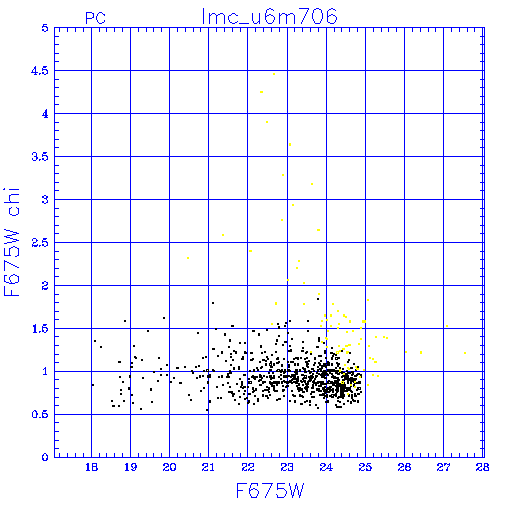

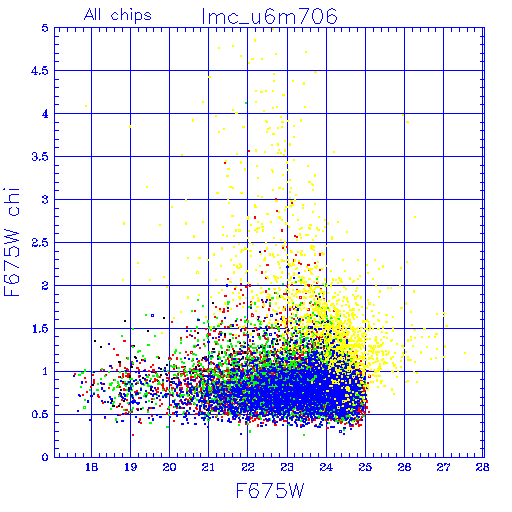

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f675w

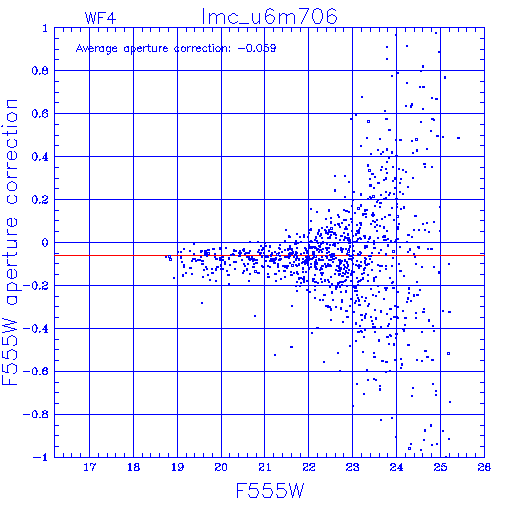

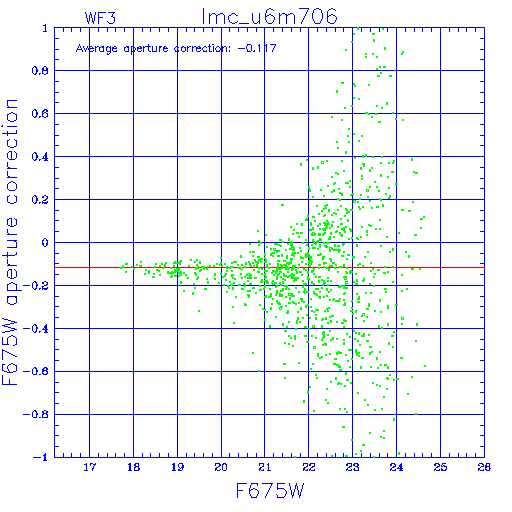

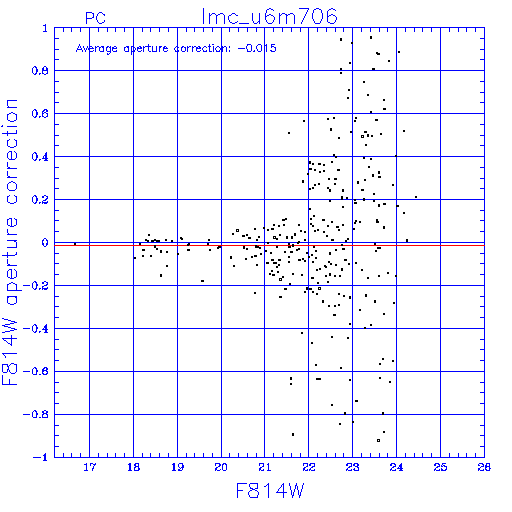

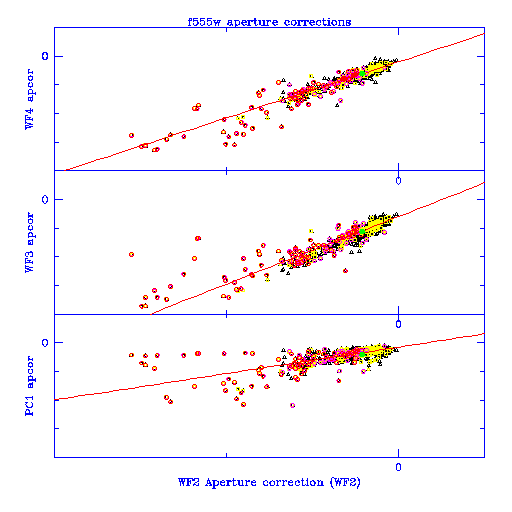

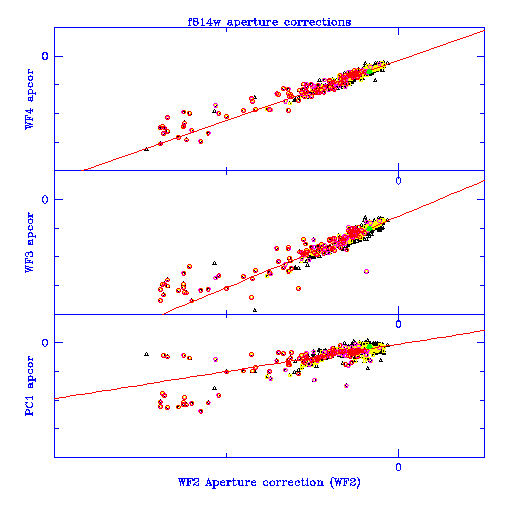

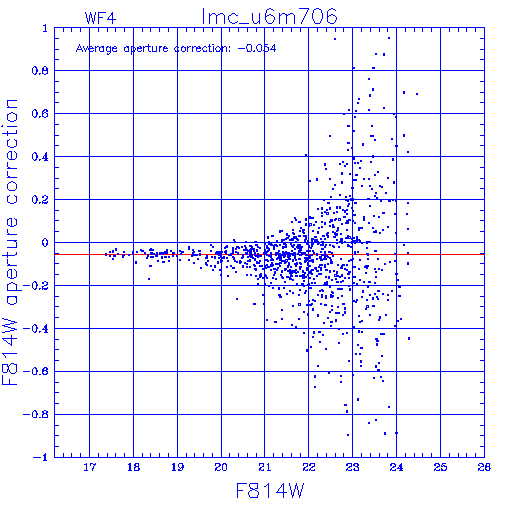

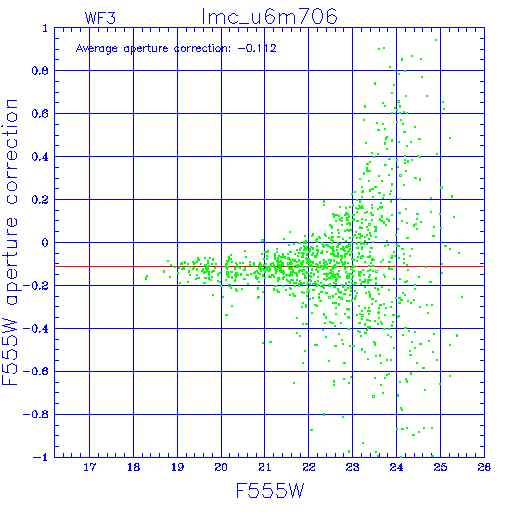

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
