Photometry Diagnostics for lmc_u6e806

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u6e80601m	F555W	300.00	0.00	0.00	0.00	0.00	0.00	0.00
u6e80602m	F555W	300.00	0.00	0.03	0.00	0.00	0.00	0.03
u6e80605m	F814W	300.00	0.13	-0.06	0.00	0.00	0.13	-0.06
u6e80606m	F814W	300.00	0.10	-0.06	0.00	0.00	0.10	-0.06
u6e80603m	F675W	300.00	-0.58	1.04	0.00	0.00	-0.58	1.04
u6e80604m	F675W	260.00	-0.54	0.96	0.00	0.00	-0.54	0.96

Mosaic images

F555W	F814W	F675W

HSTPHOT command log

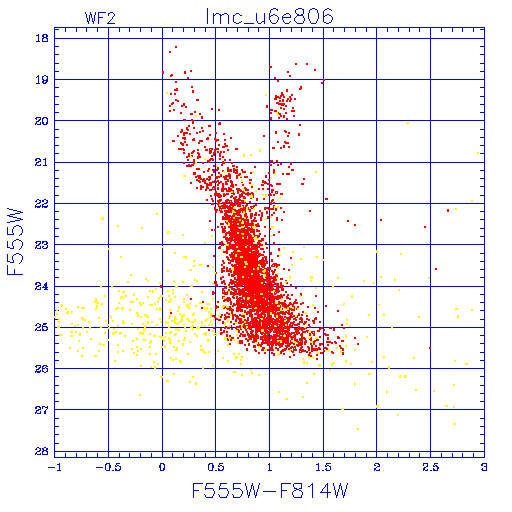

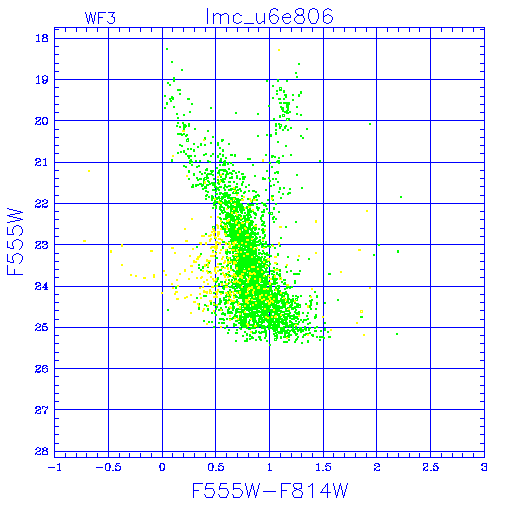

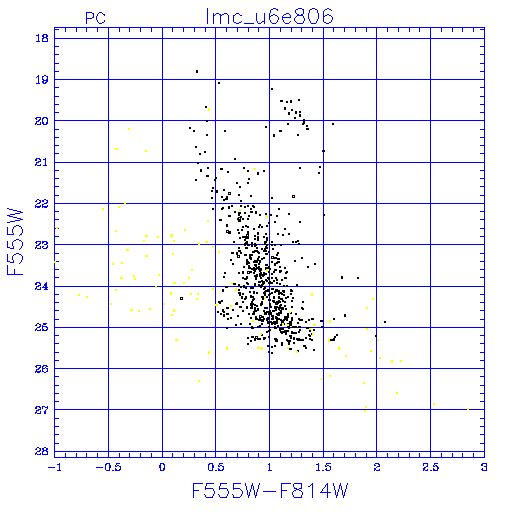

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

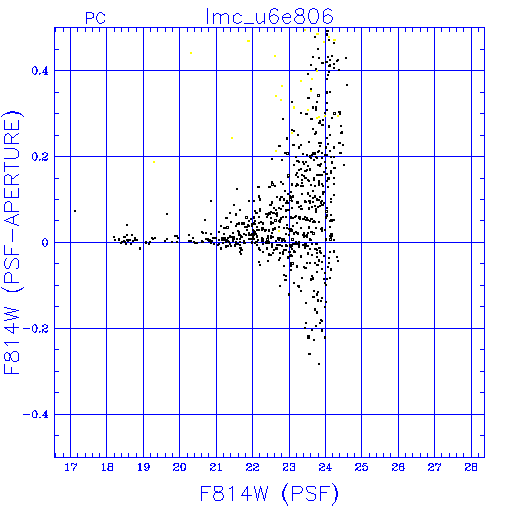

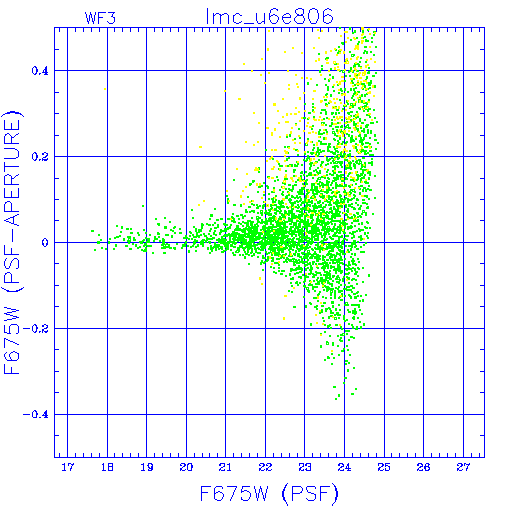

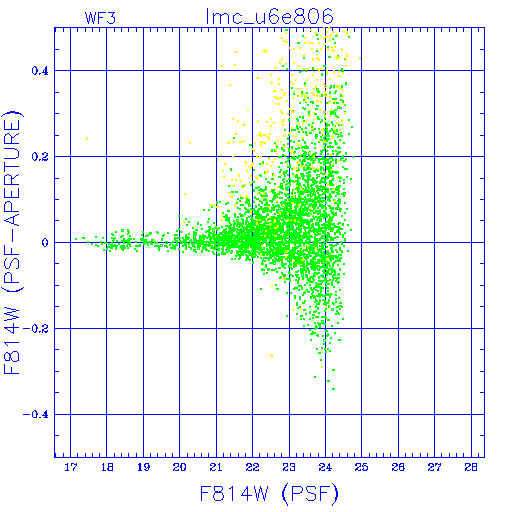

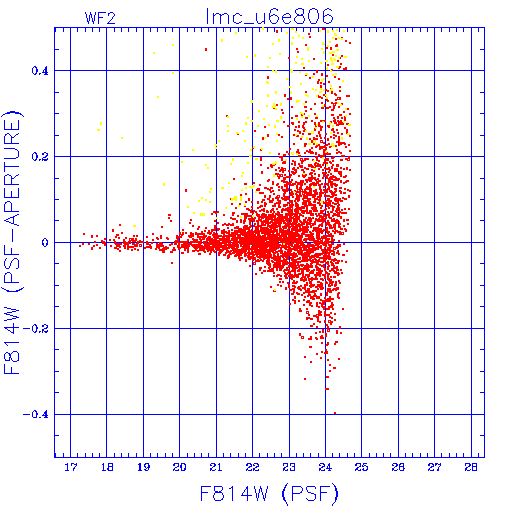

PSF

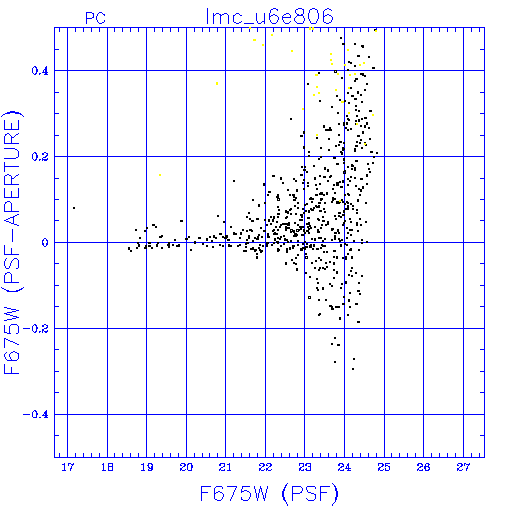

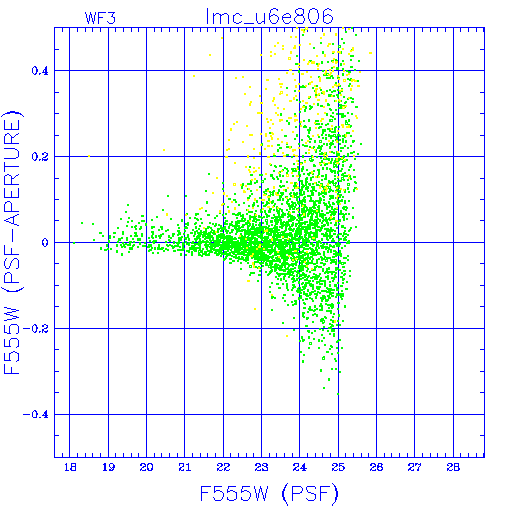

Aperture

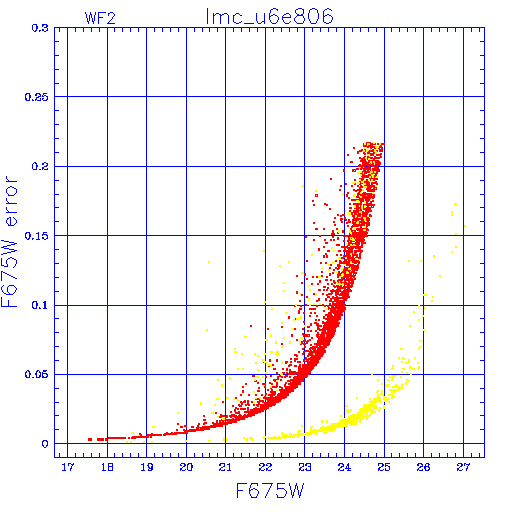

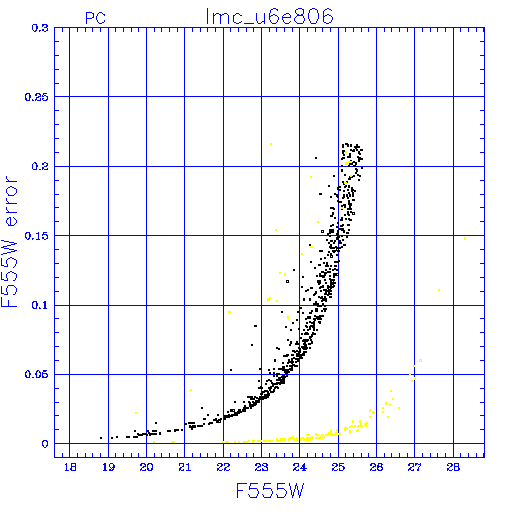

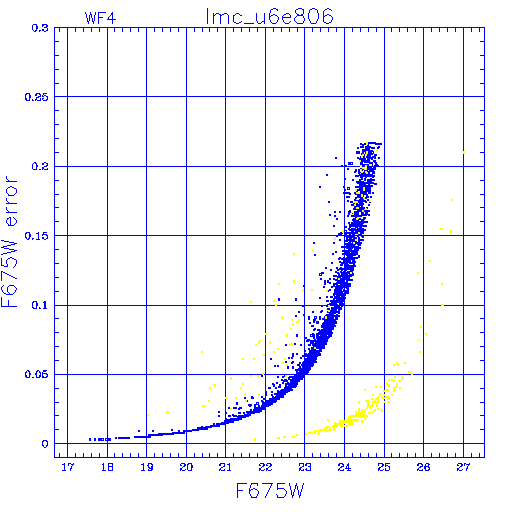

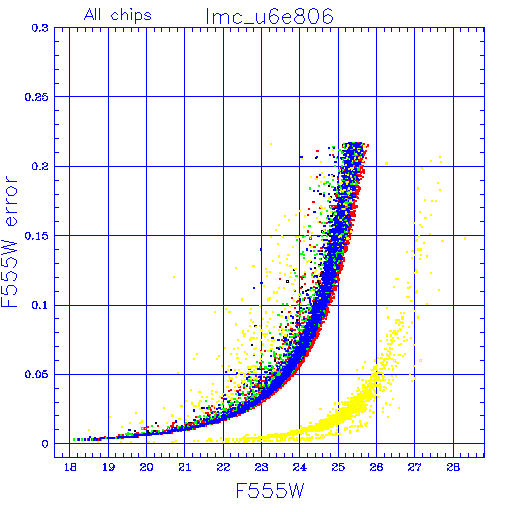

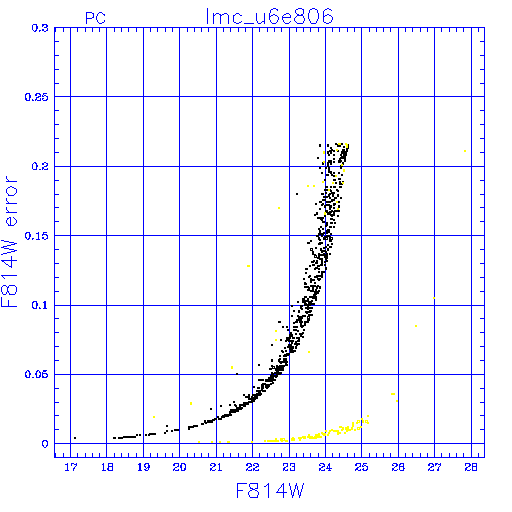

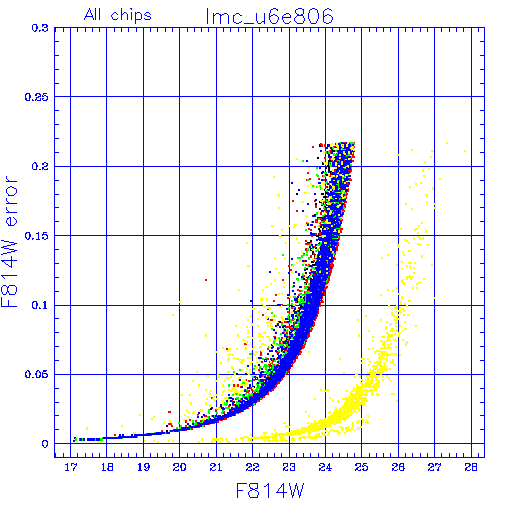

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f675w

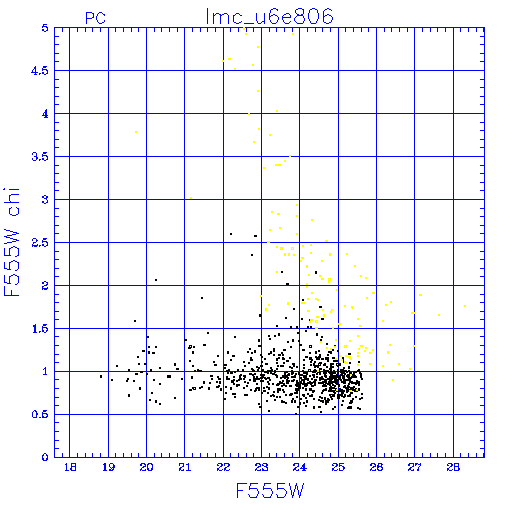

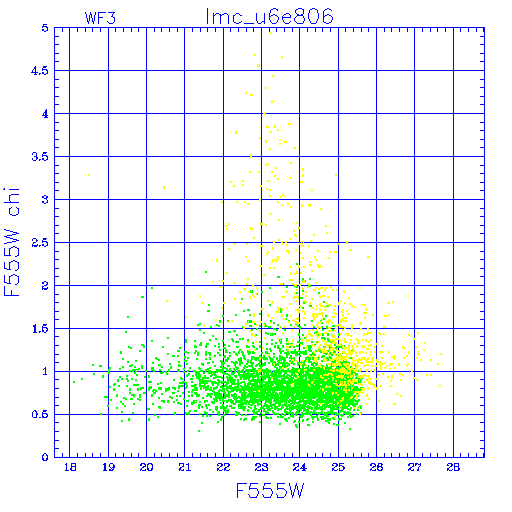

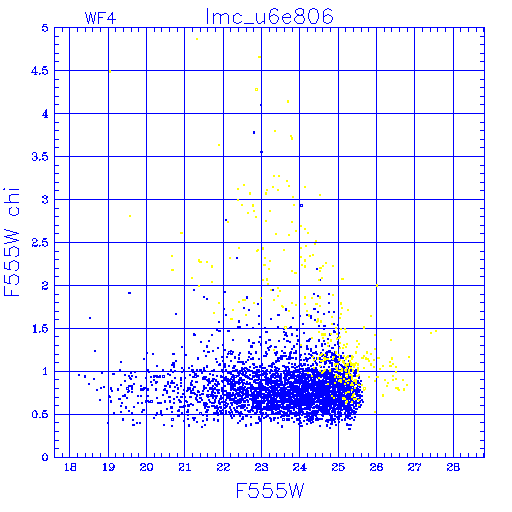

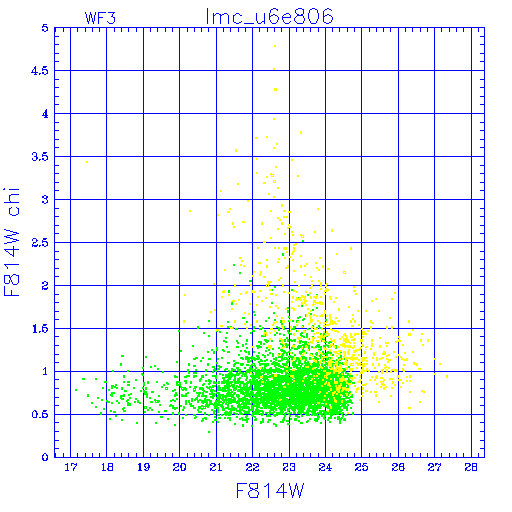

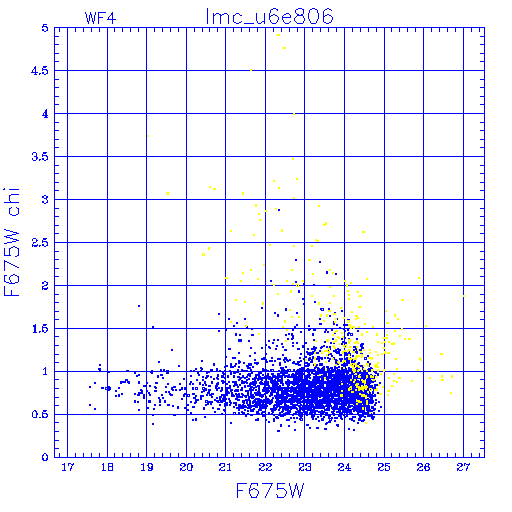

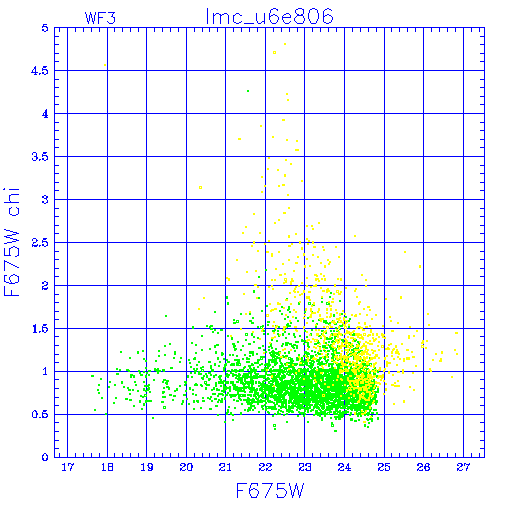

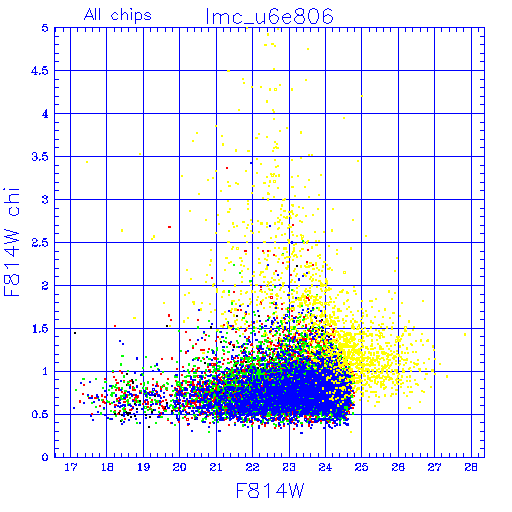

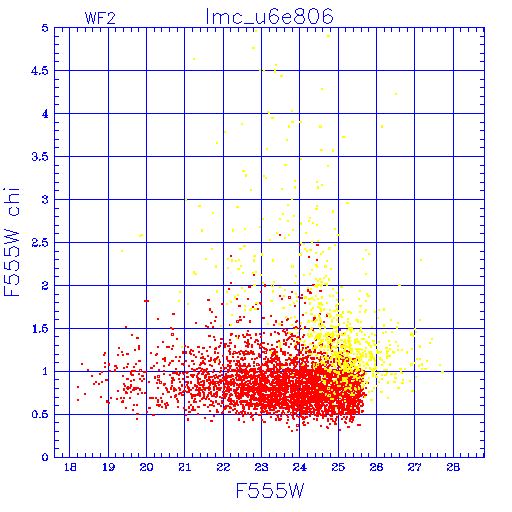

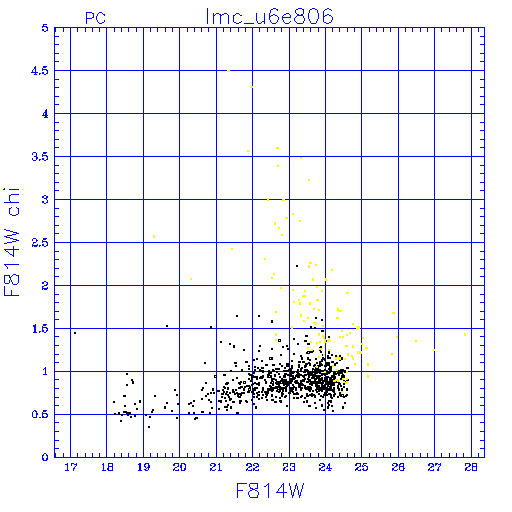

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f675w

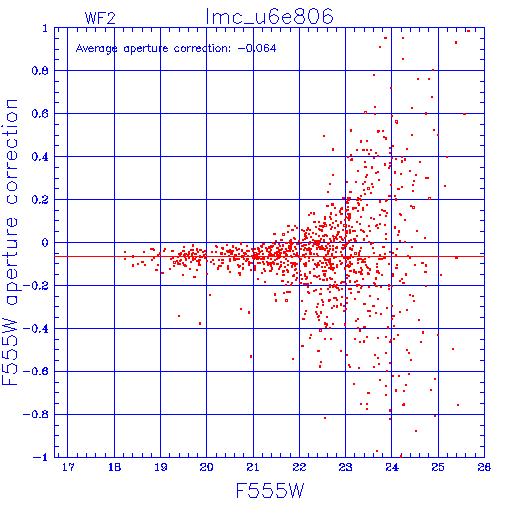

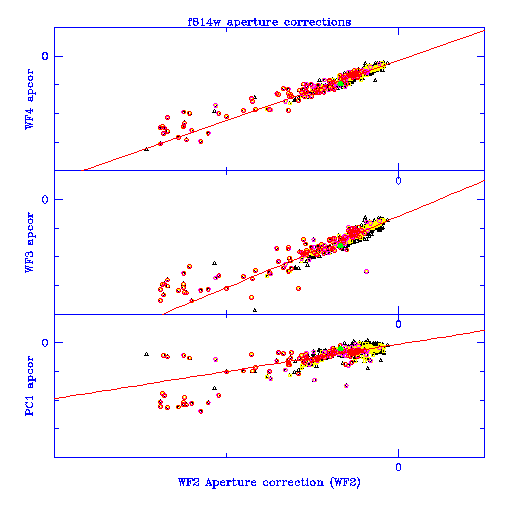

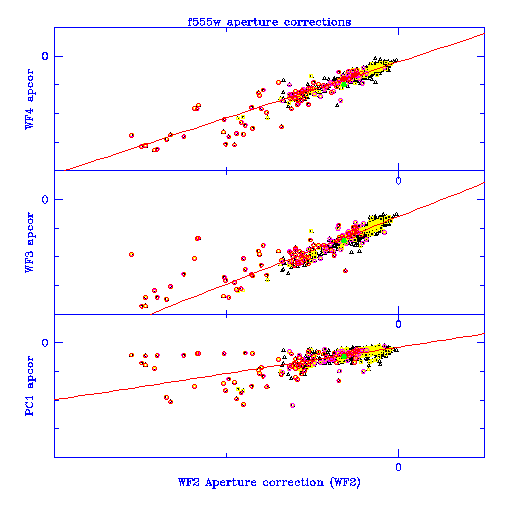

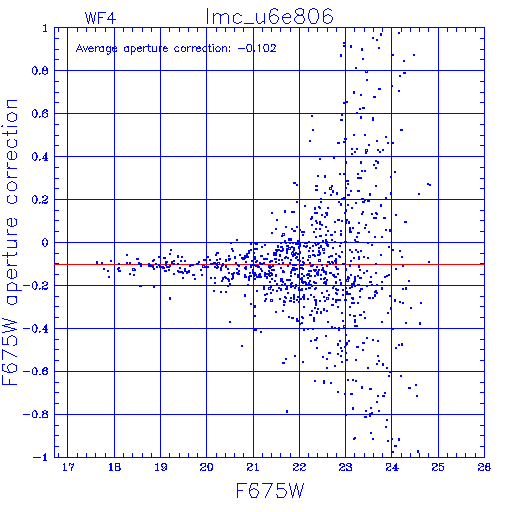

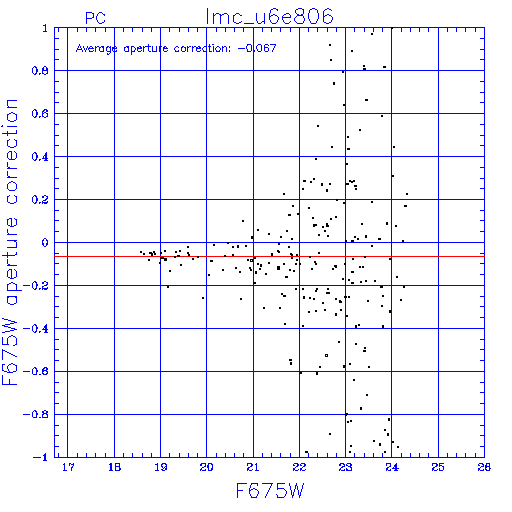

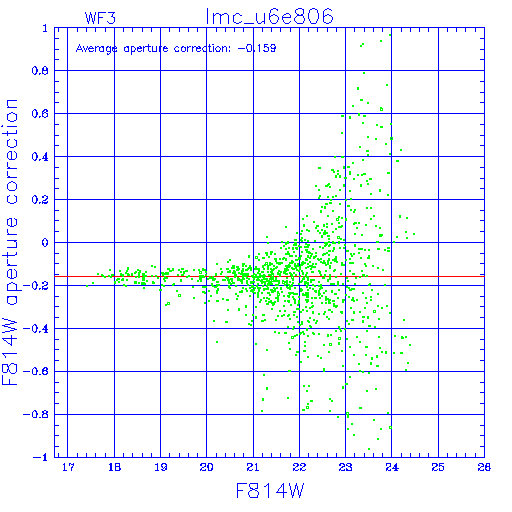

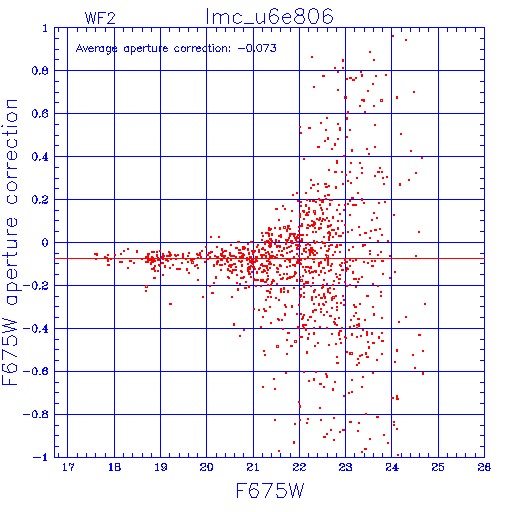

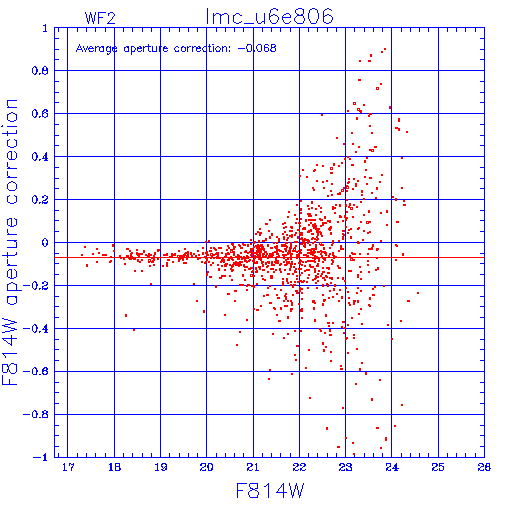

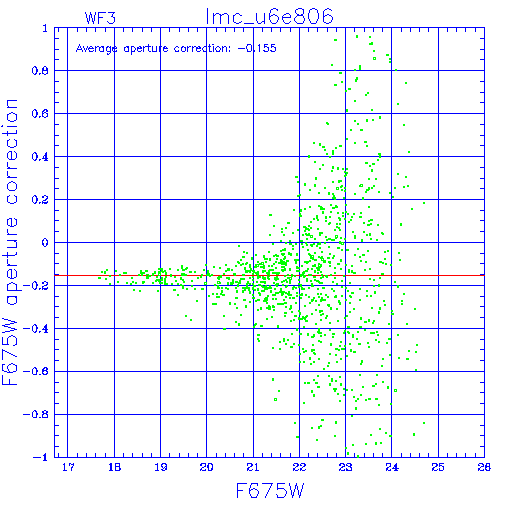

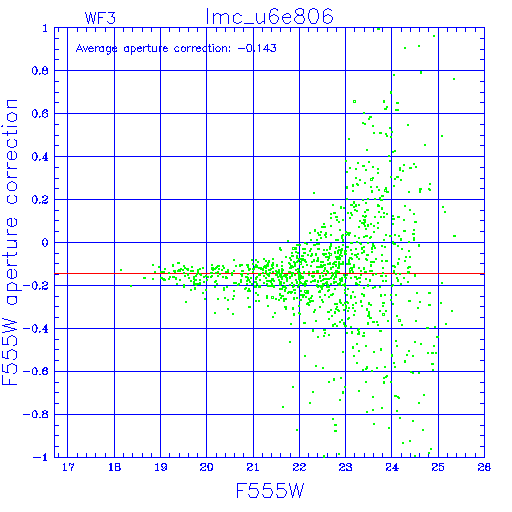

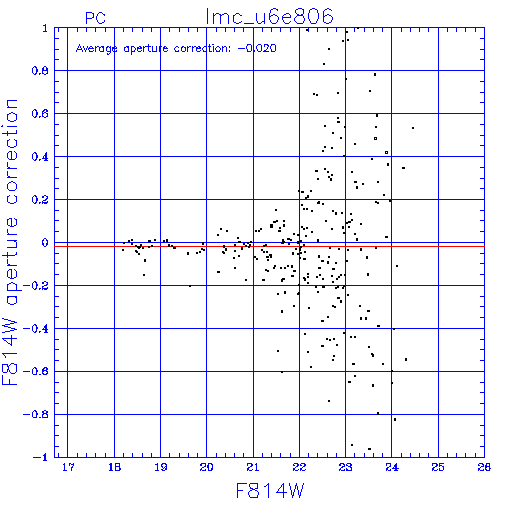

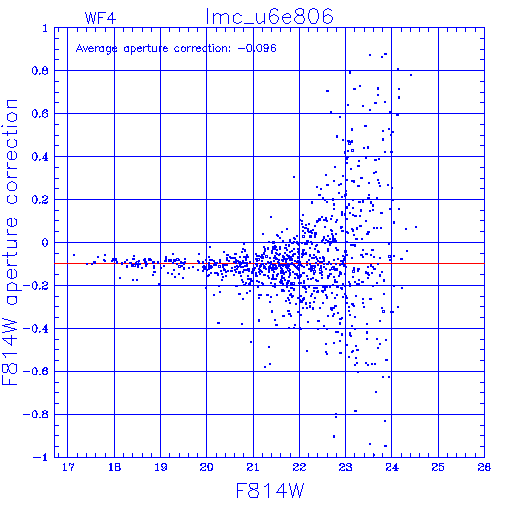

Aperture corrections

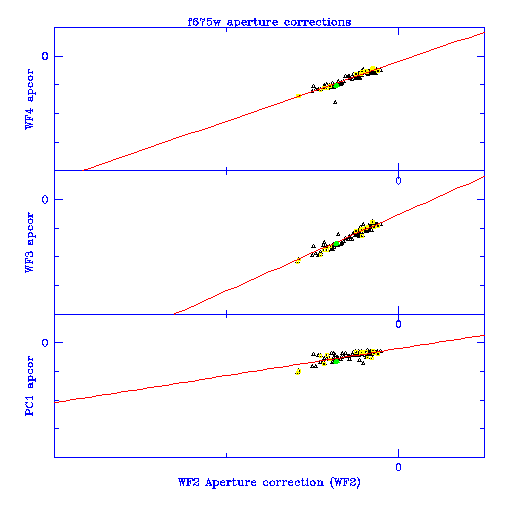

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
