Photometry Diagnostics for lmc_u65007

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u6500701r	F555W	30.00	0.00	0.00	0.00	0.00	0.00	0.00
u6500702r	F555W	500.00	5.83	5.69	5.49	5.49	0.34	0.20
u6500703m	F555W	500.00	11.11	11.00	10.98	10.99	0.13	0.01
u6500704r	F555W	500.00	0.02	-0.07	0.00	0.00	0.02	-0.07
u6500705r	F555W	30.00	5.79	5.54	5.49	5.49	0.30	0.05
u650070br	F814W	30.00	0.11	0.06	0.00	0.00	0.11	0.06
u650070cr	F814W	500.00	5.66	5.94	5.49	5.49	0.17	0.45
u650070dr	F814W	500.00	10.94	11.13	10.98	10.99	-0.04	0.14
u650070er	F814W	500.00	-0.17	0.04	0.00	0.00	-0.17	0.04
u650070fr	F814W	30.00	5.58	5.84	5.49	5.49	0.09	0.35
u6500706r	F675W	30.00	-0.43	0.93	0.00	0.00	-0.43	0.93
u6500707r	F675W	500.00	5.09	6.57	5.49	5.49	-0.40	1.08
u6500708r	F675W	500.00	10.57	11.98	10.98	10.99	-0.41	0.99
u6500709r	F675W	500.00	-0.57	0.91	0.00	0.00	-0.57	0.91
u650070ar	F675W	30.00	4.89	6.64	5.49	5.49	-0.60	1.15

Mosaic images

F555W	F814W	F675W

HSTPHOT command log

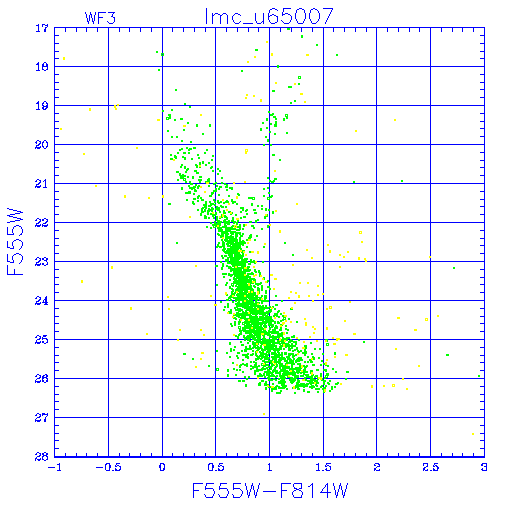

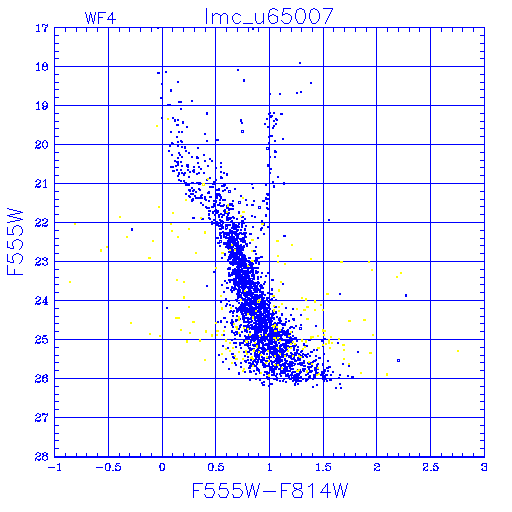

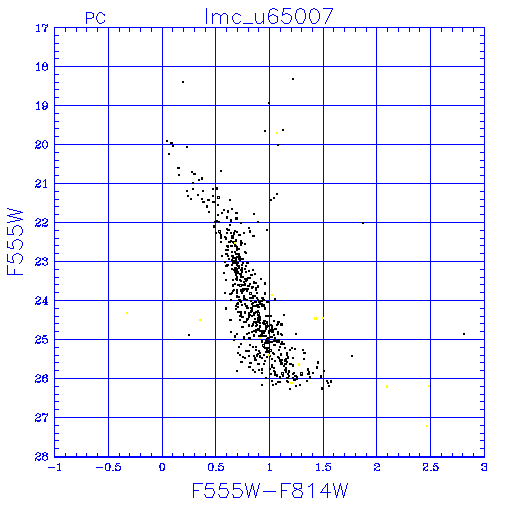

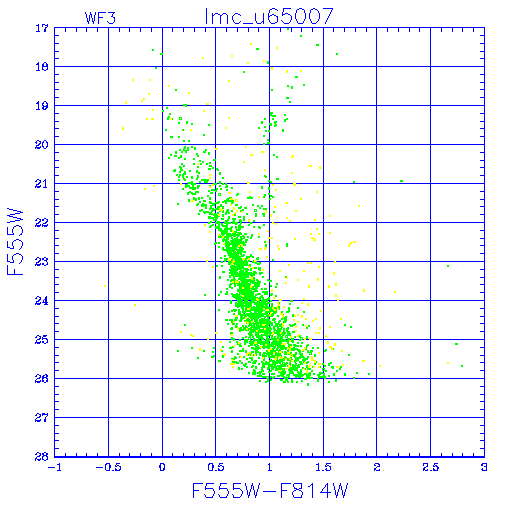

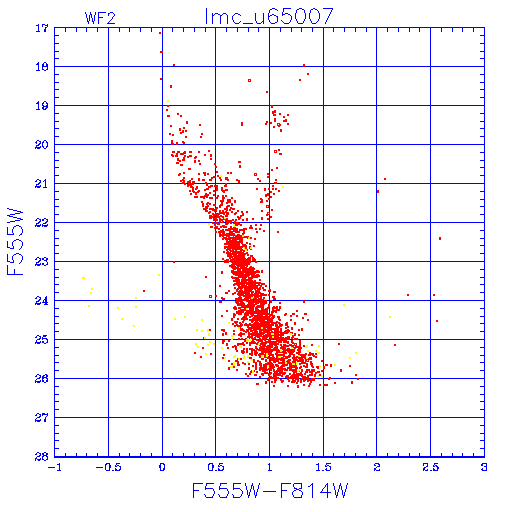

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

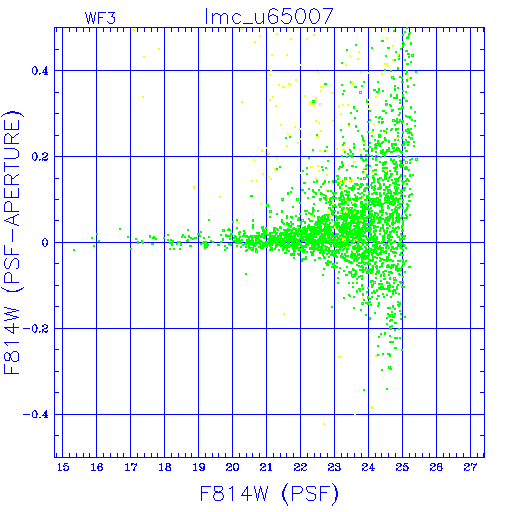

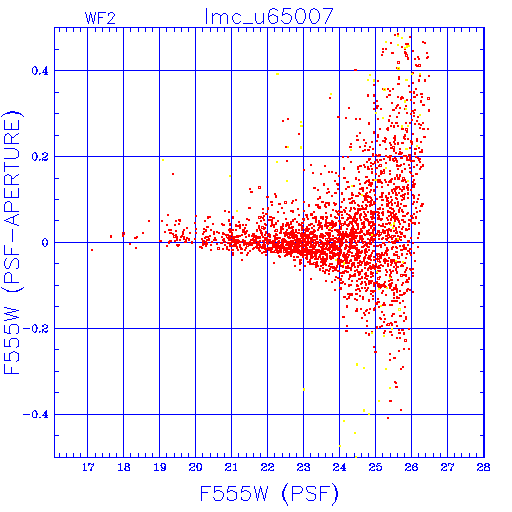

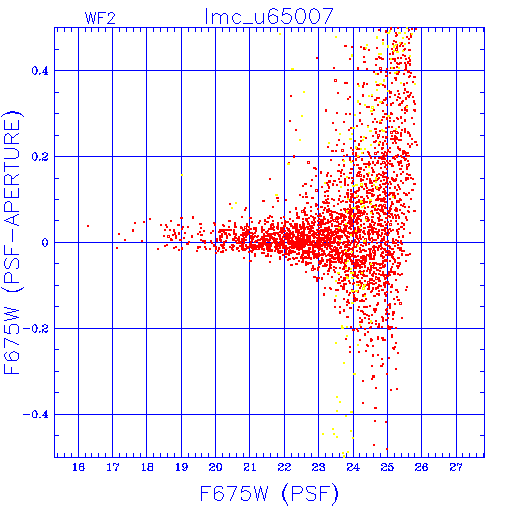

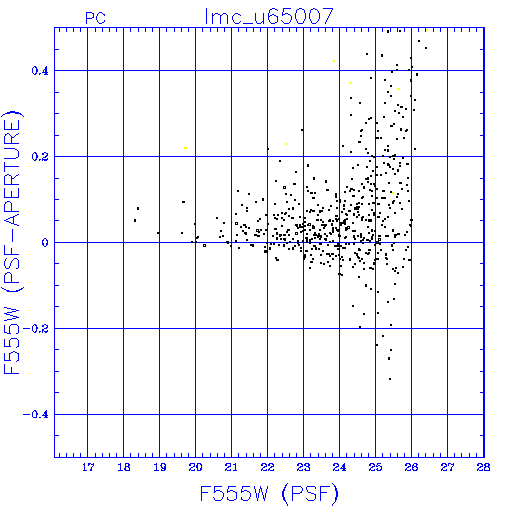

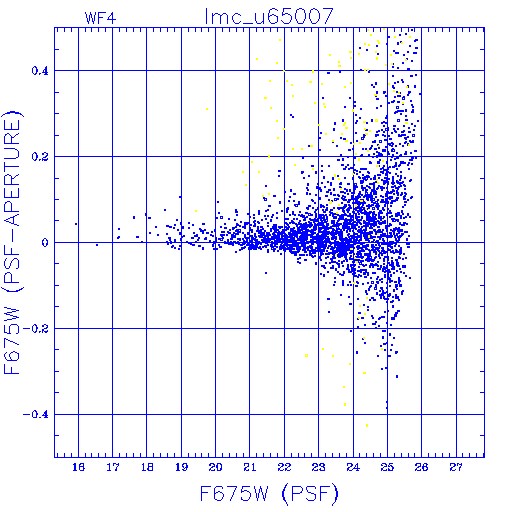

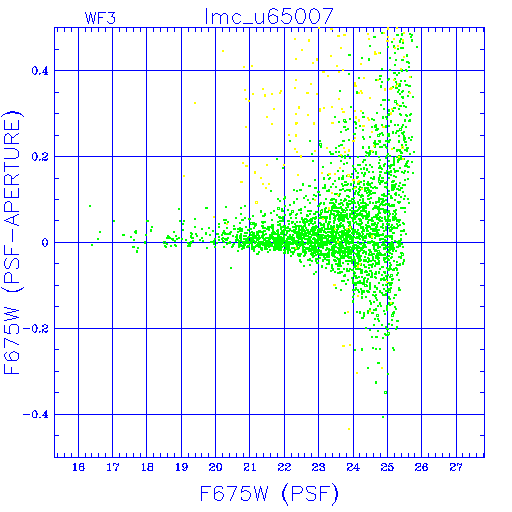

PSF
Aperture

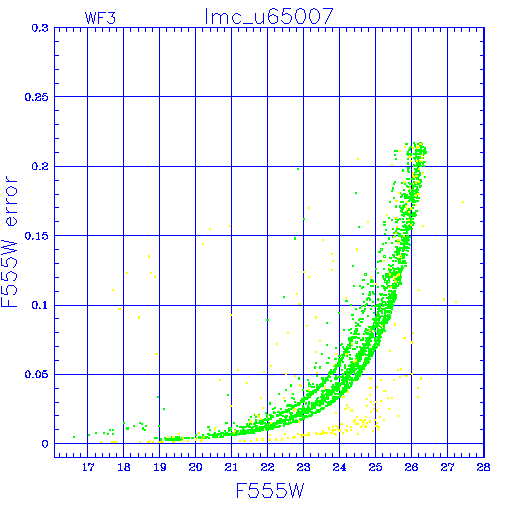

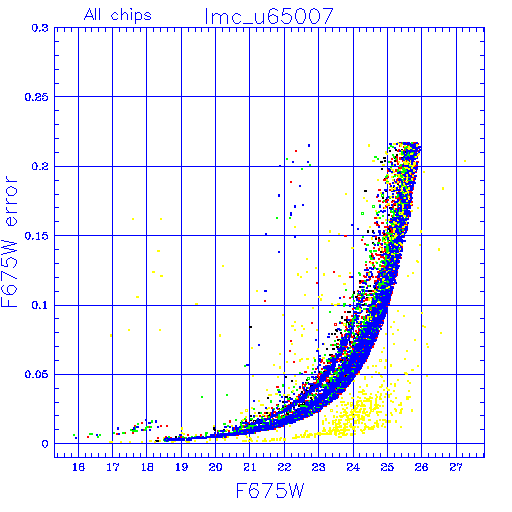

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f675w

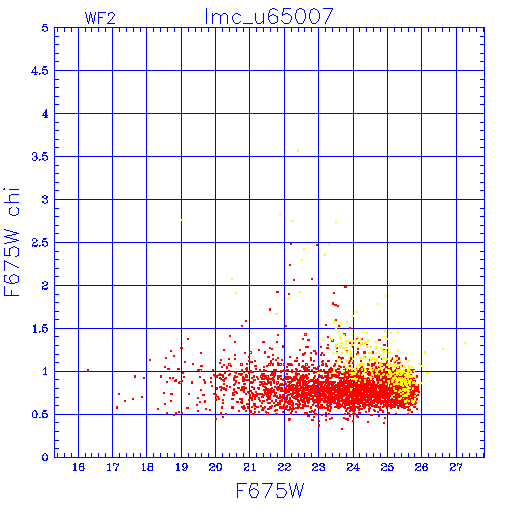

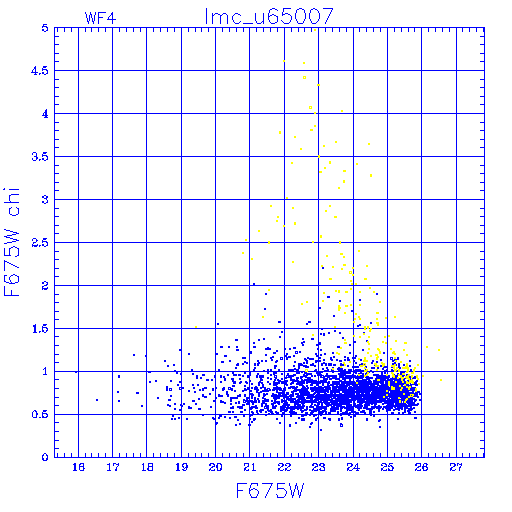

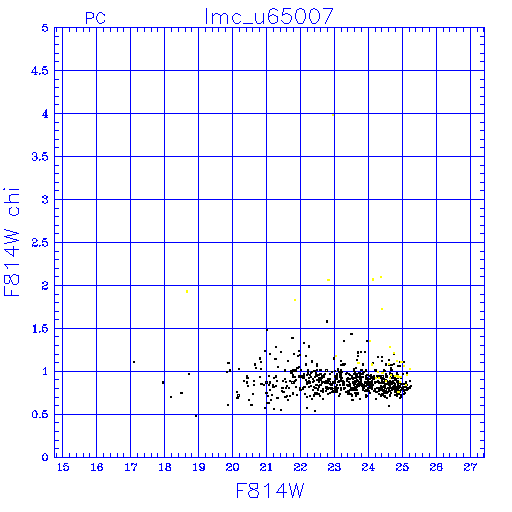

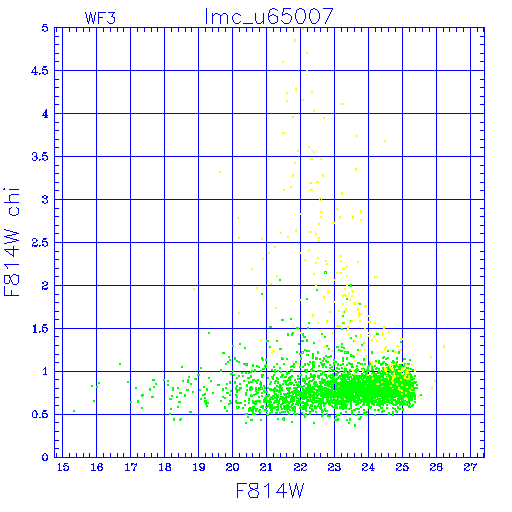

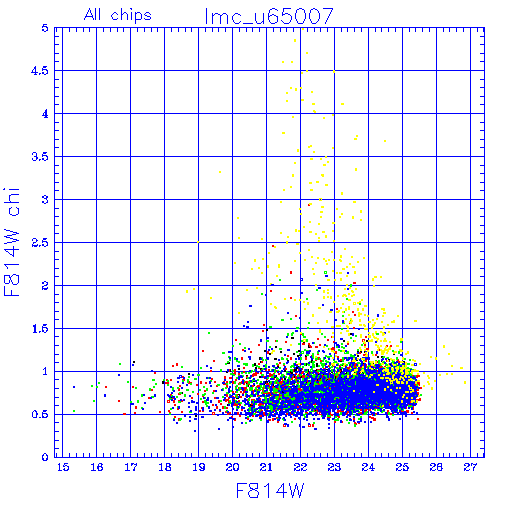

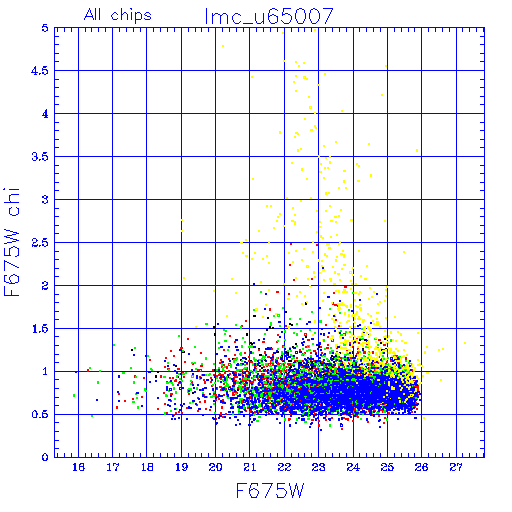

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f675w

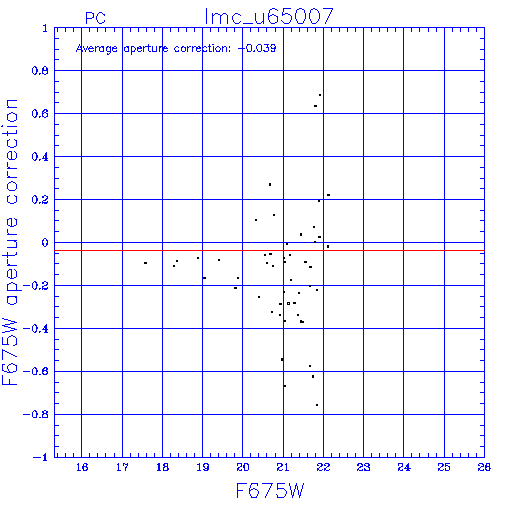

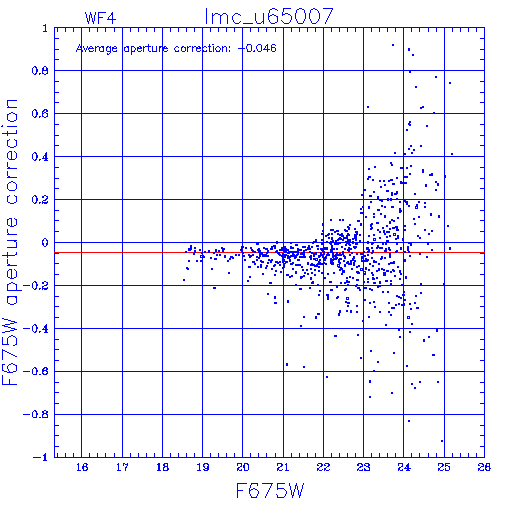

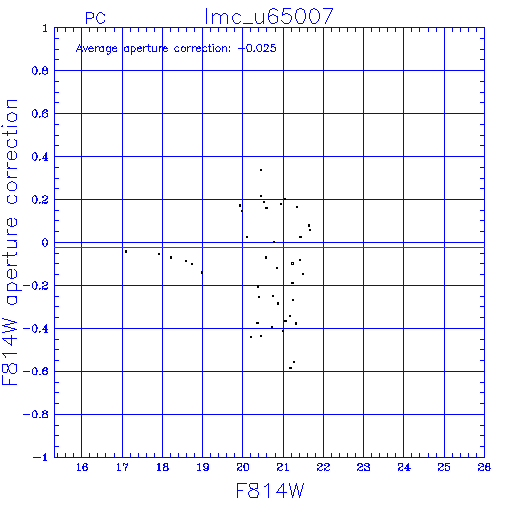

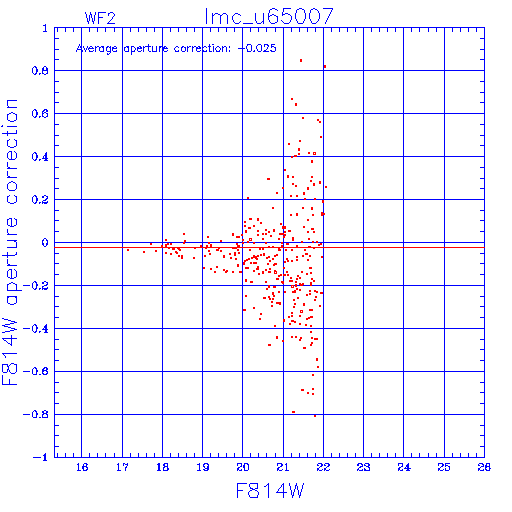

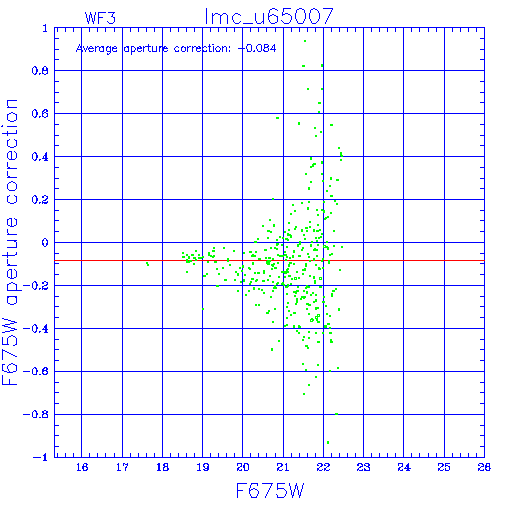

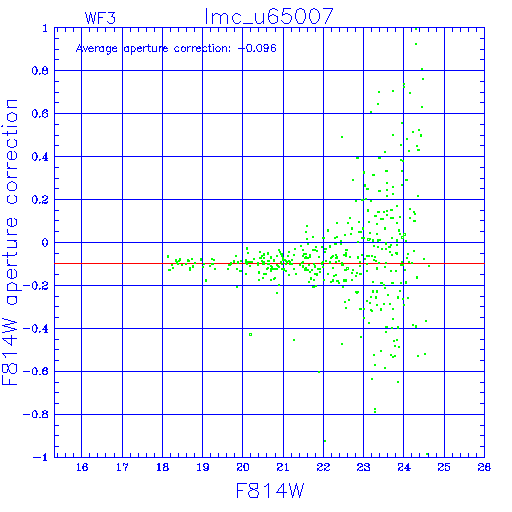

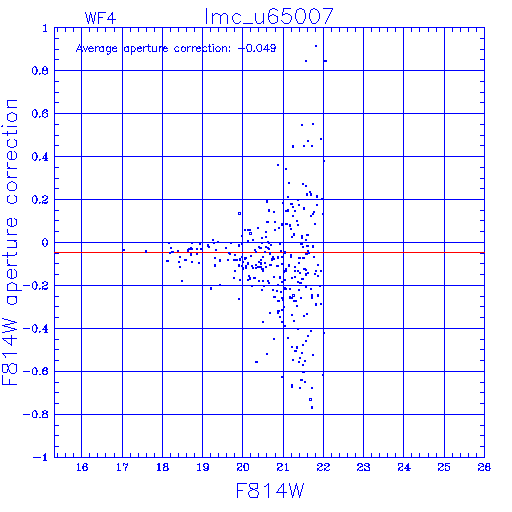

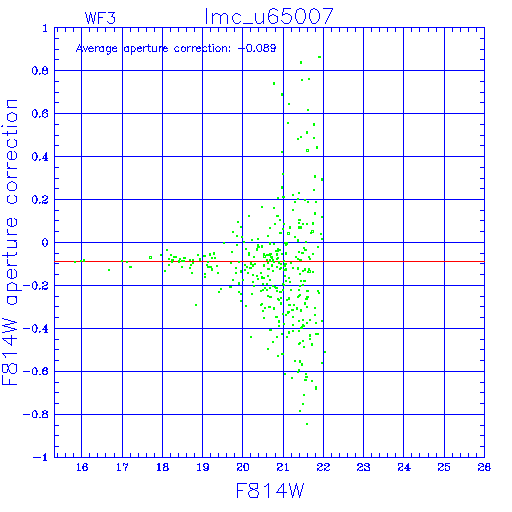

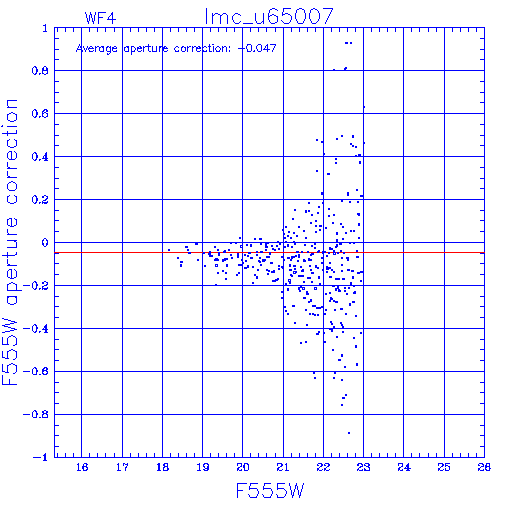

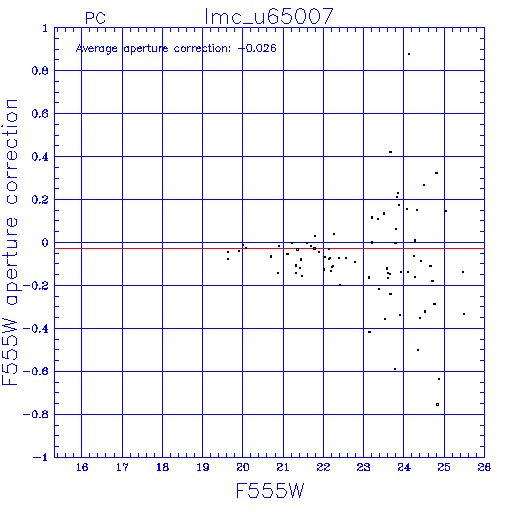

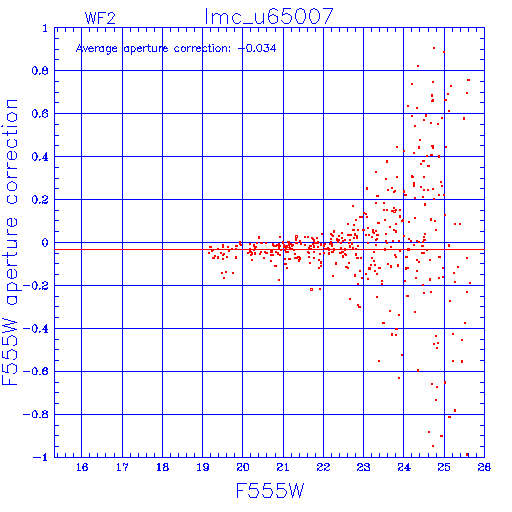

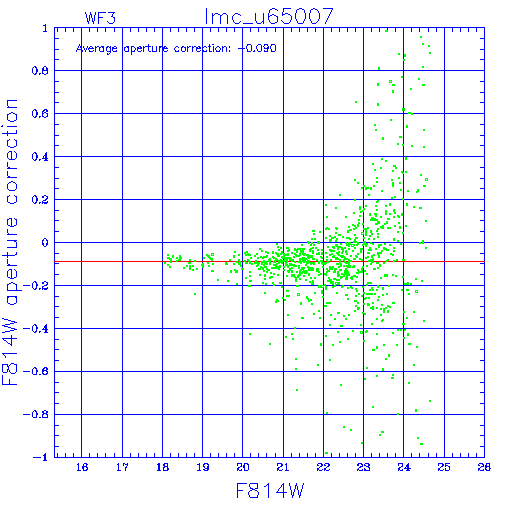

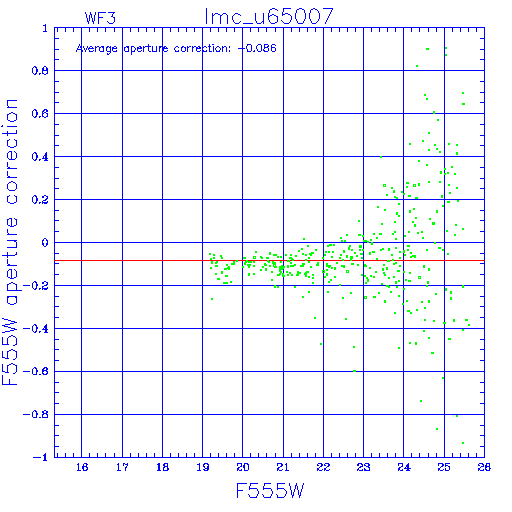

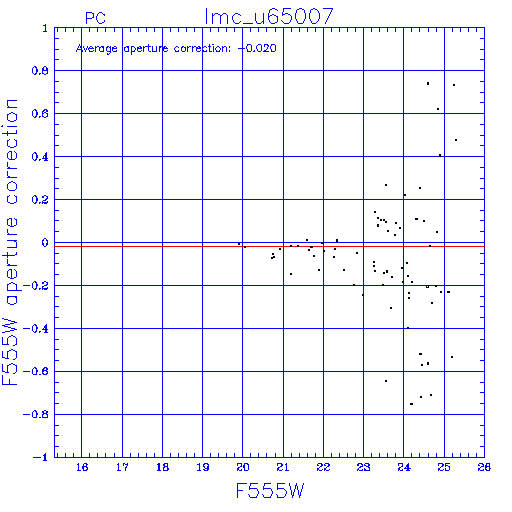

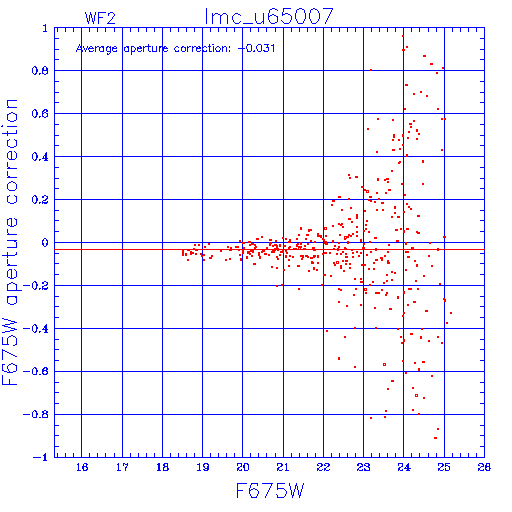

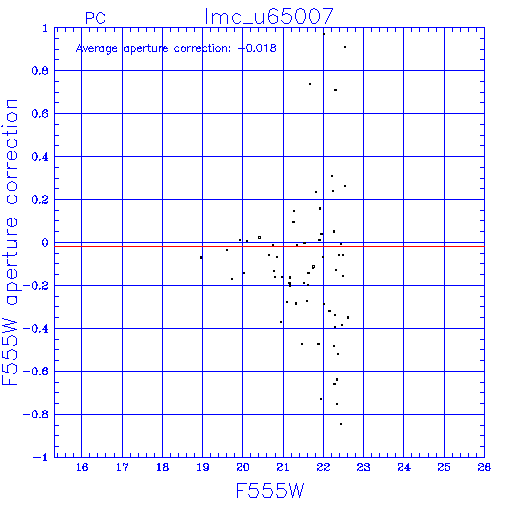

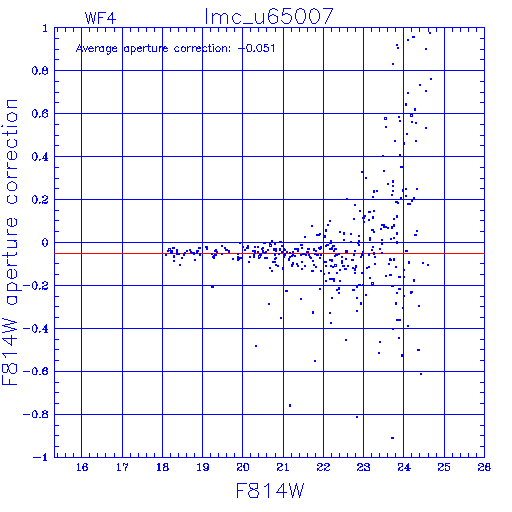

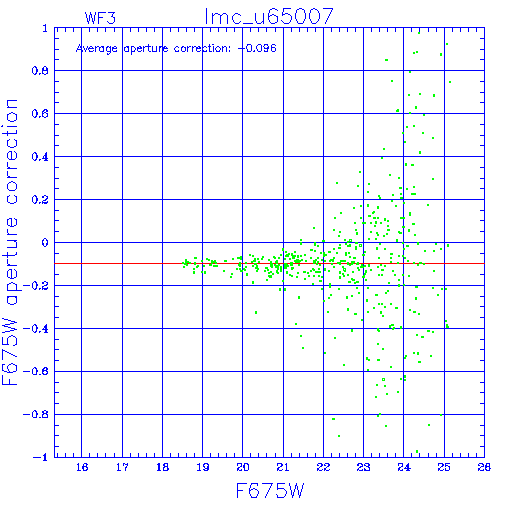

Aperture corrections

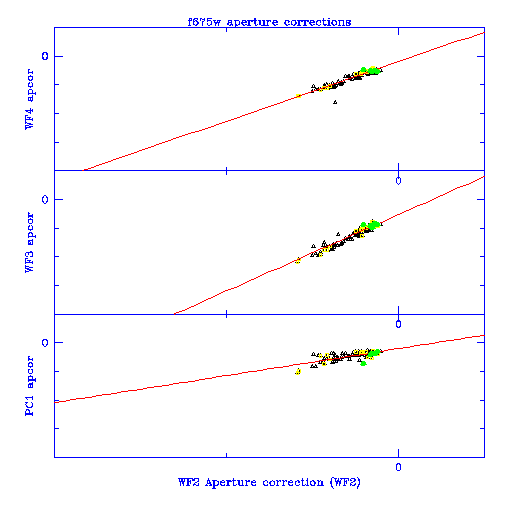

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
