Photometry Diagnostics for lmc_u63s03

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u63s0301r	F555W	700.00	0.00	0.00	0.00	0.00	0.00	0.00
u63s0302r	F555W	500.00	-2.69	5.16	-3.12	5.46	0.43	-0.30
u63s0303r	F555W	500.00	-9.30	5.72	-9.40	5.48	0.10	0.24
u63s0304r	F555W	500.00	-9.24	5.73	-9.40	5.48	0.16	0.25
u63s0305r	F814W	500.00	-12.68	-0.13	-12.56	0.05	-0.12	-0.18
u63s0306r	F814W	700.00	-9.11	-5.39	-9.44	-5.42	0.33	0.03
u63s0307r	F814W	700.00	-2.72	-5.54	-3.16	-5.44	0.44	-0.10

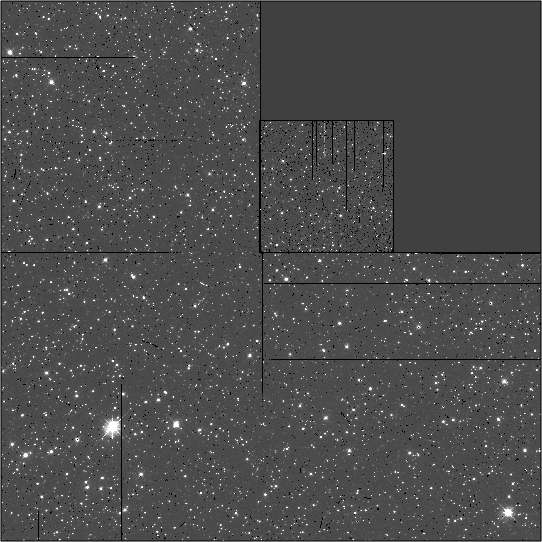

Mosaic images

F555W	F814W

HSTPHOT command log

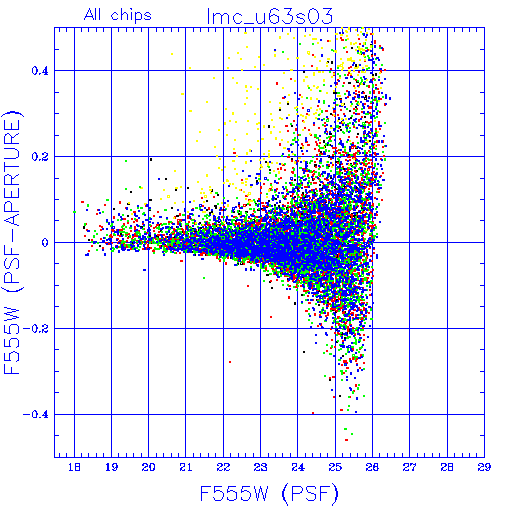

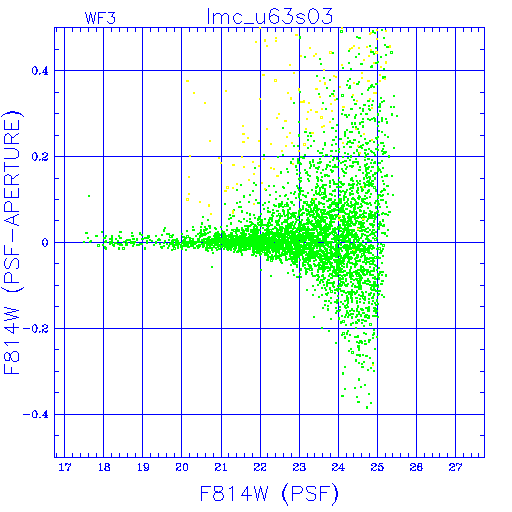

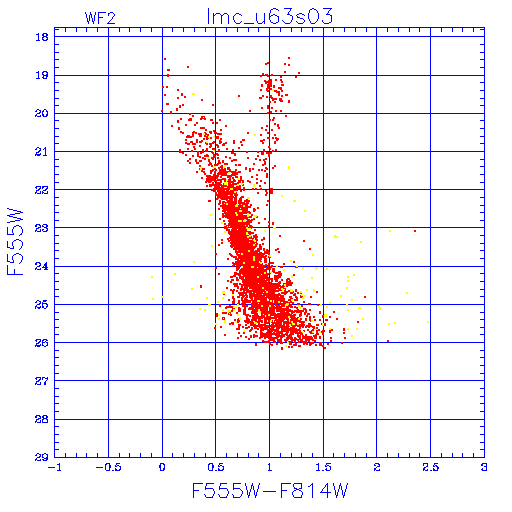

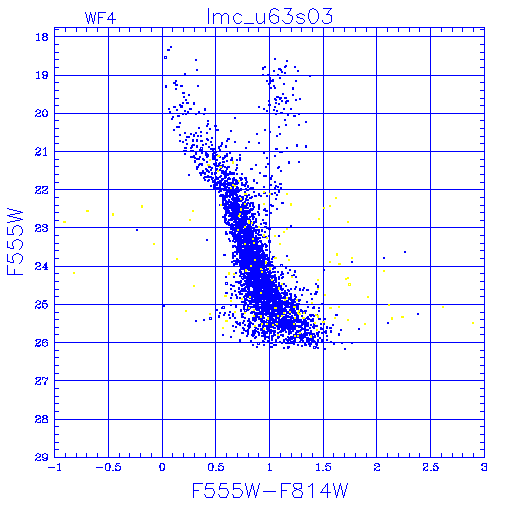

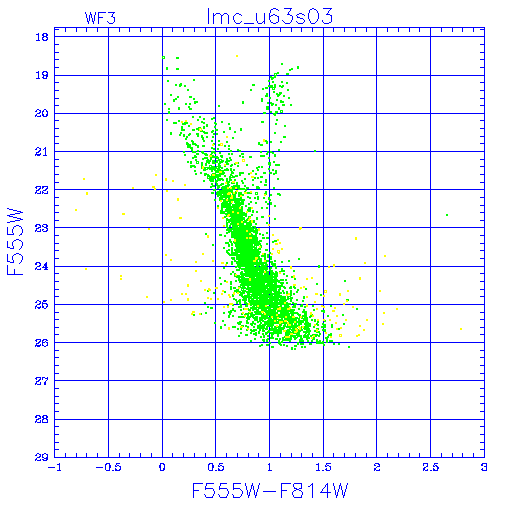

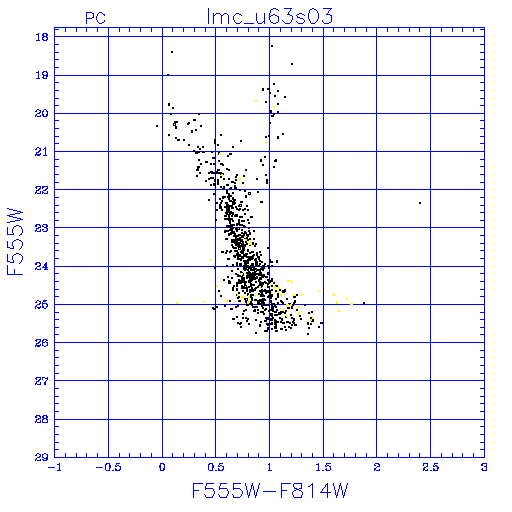

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF

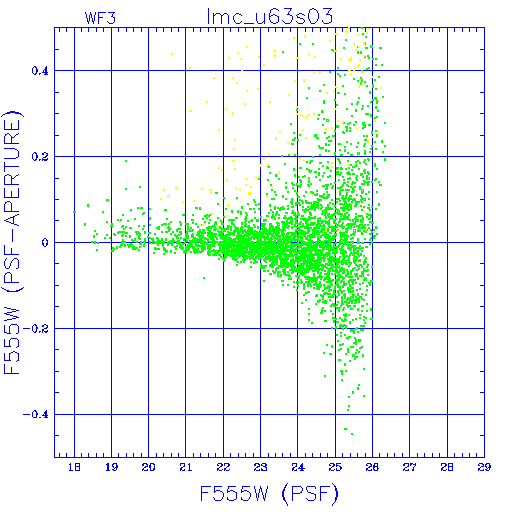

Aperture

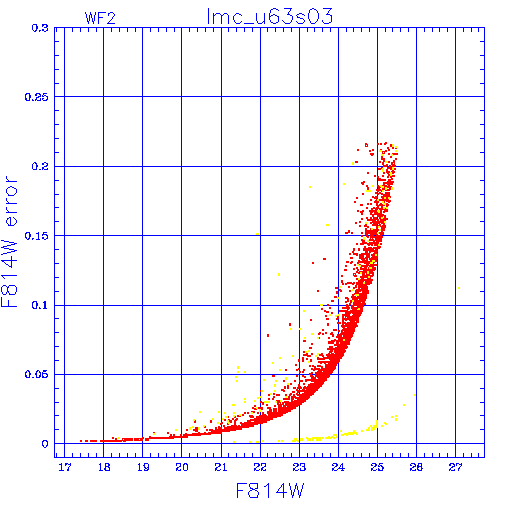

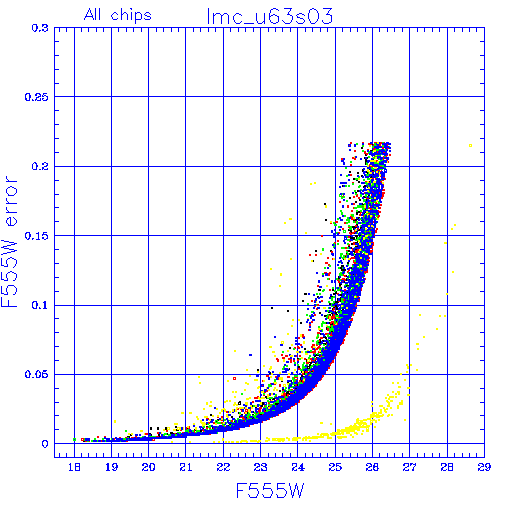

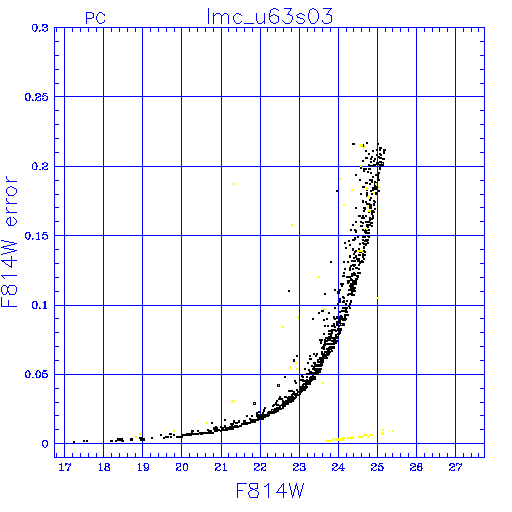

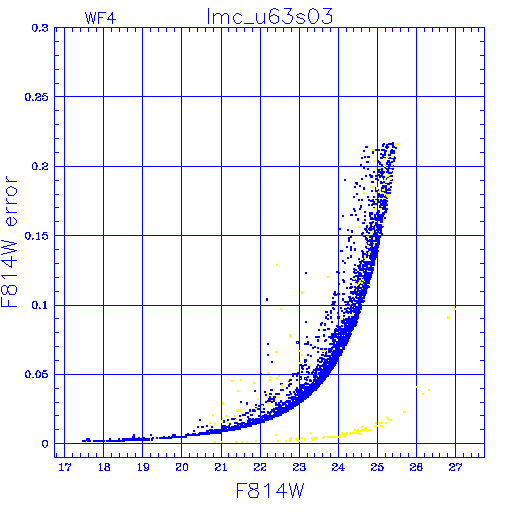

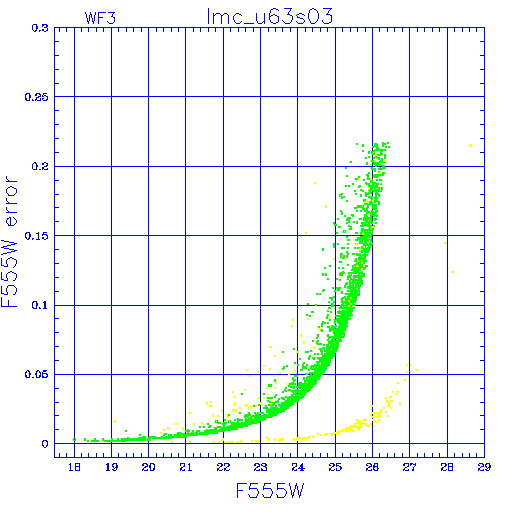

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

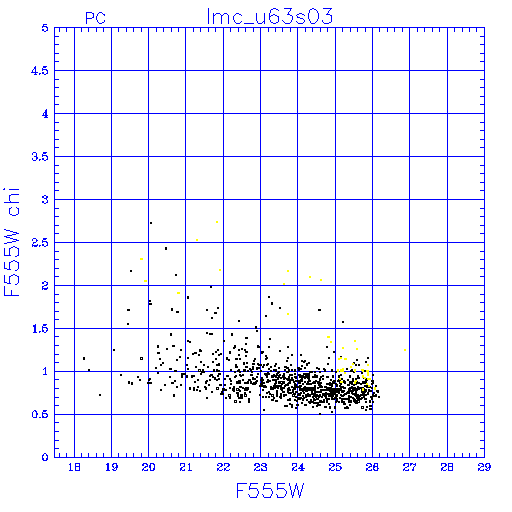

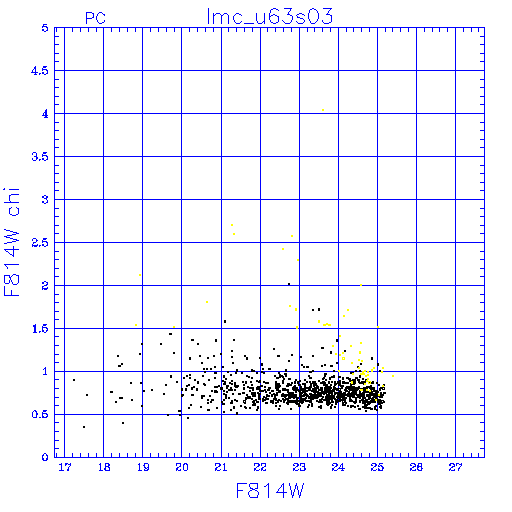

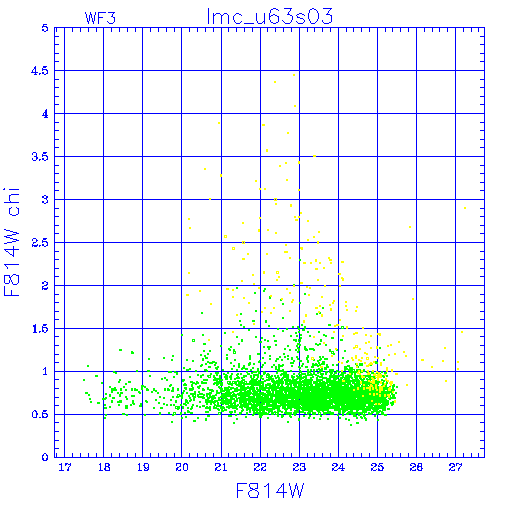

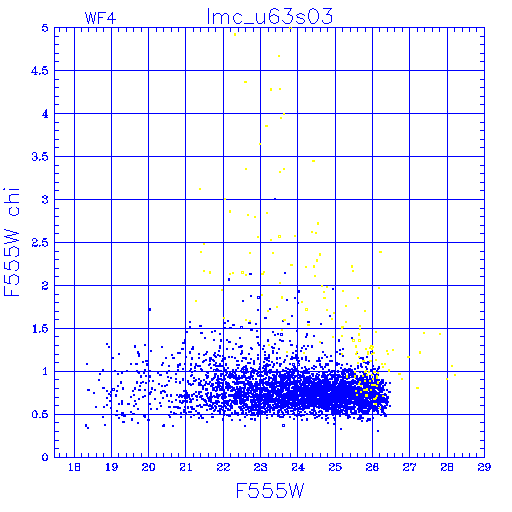

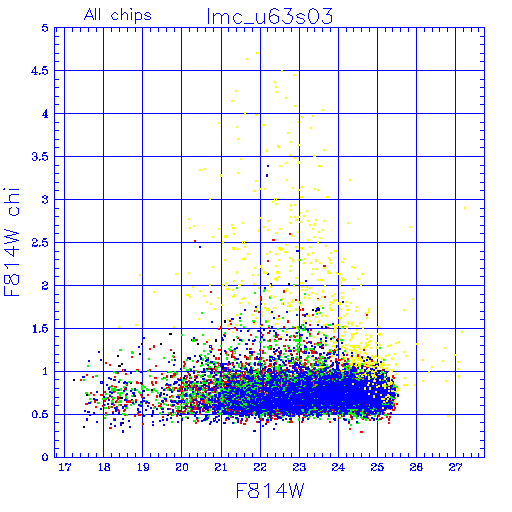

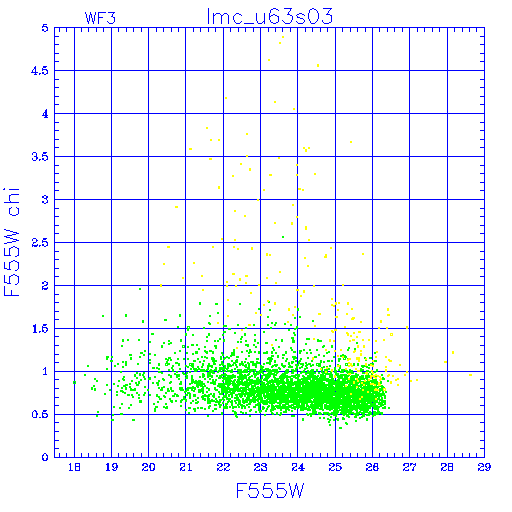

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

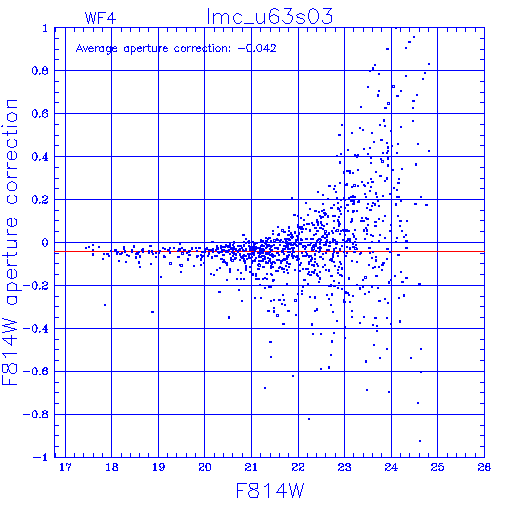

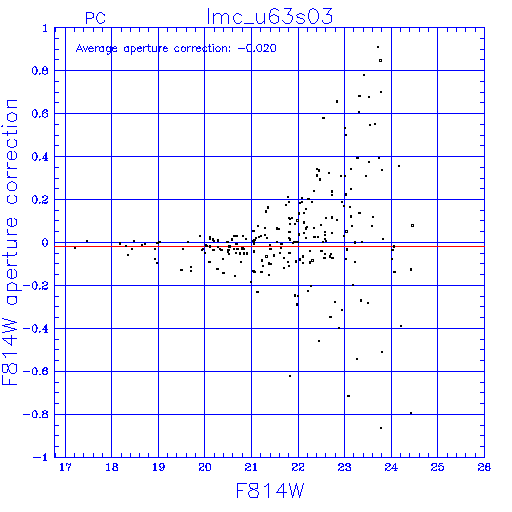

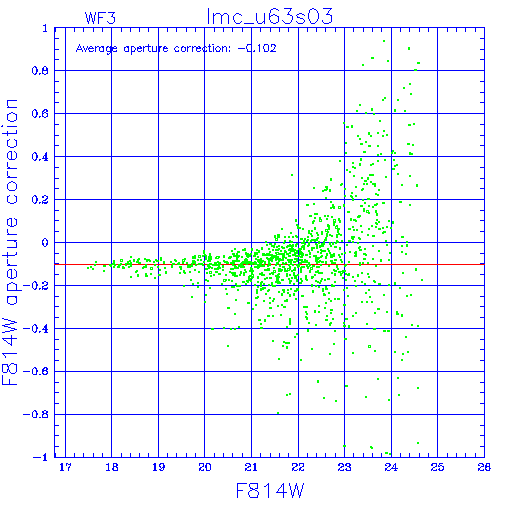

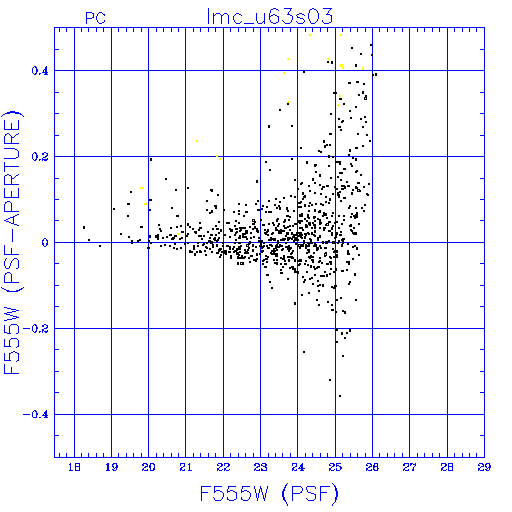

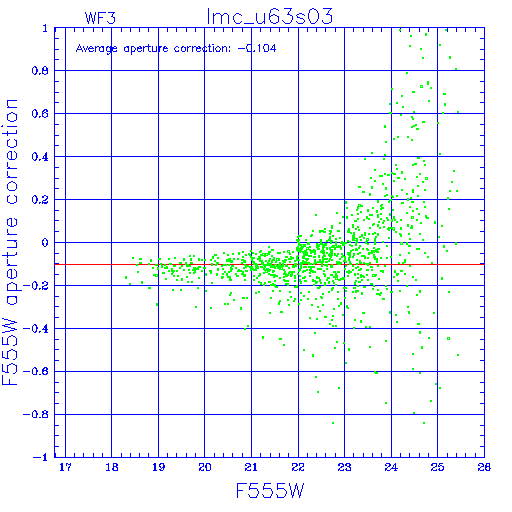

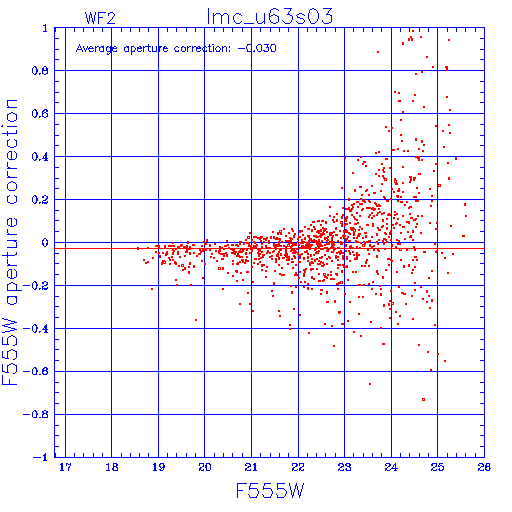

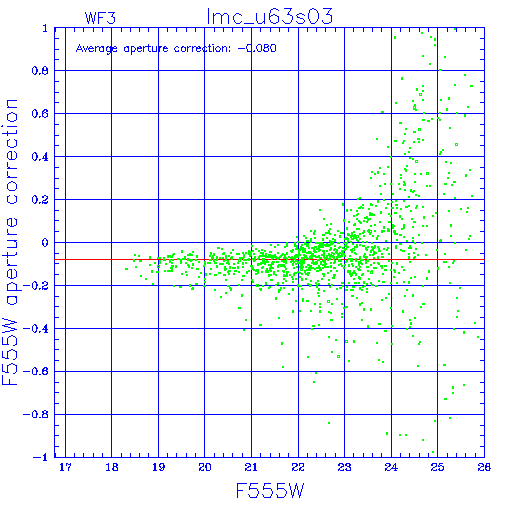

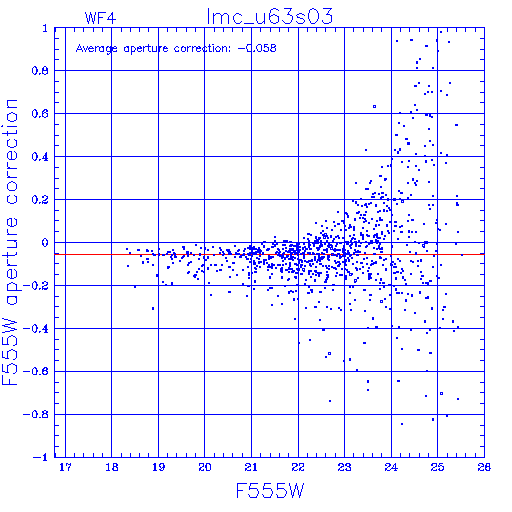

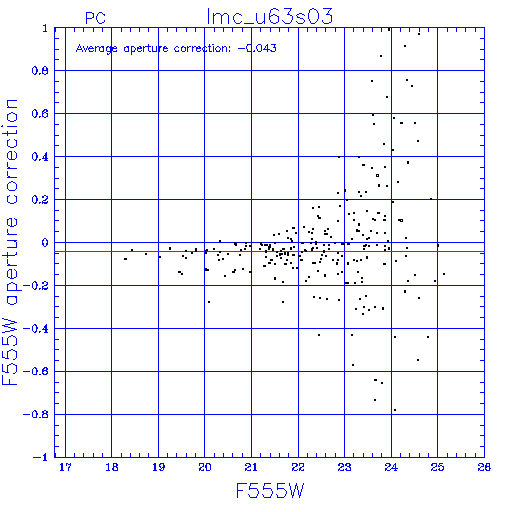

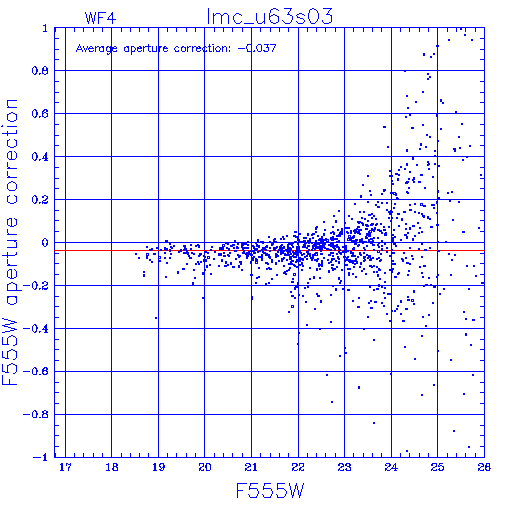

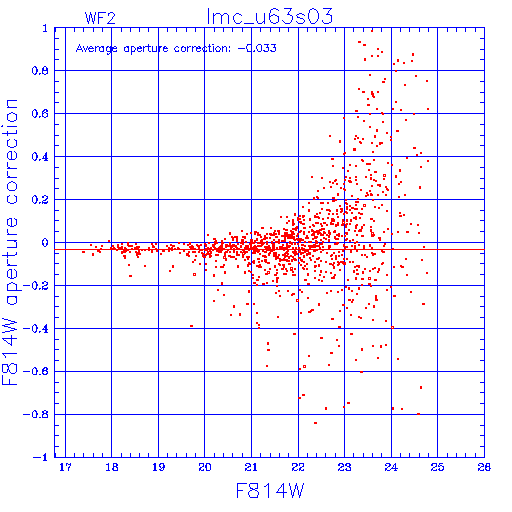

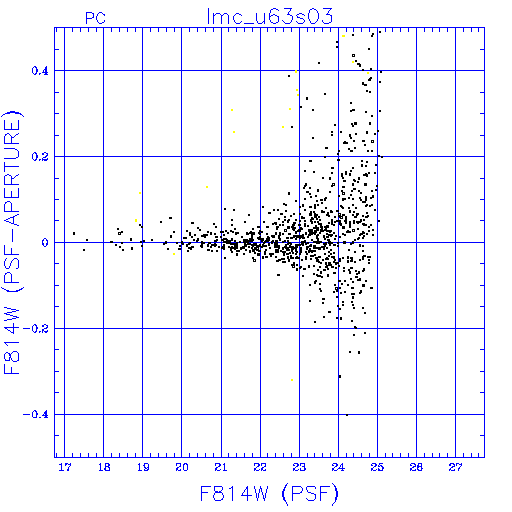

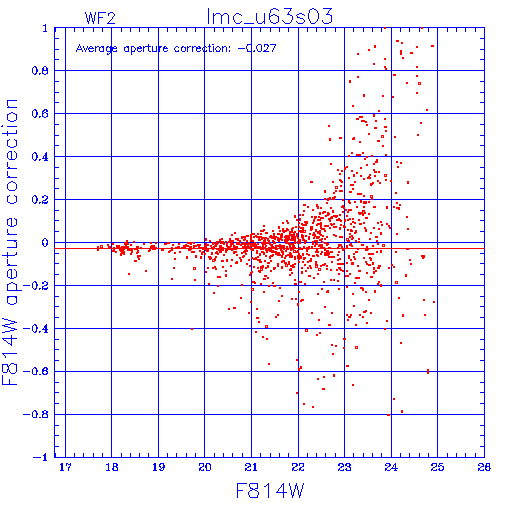

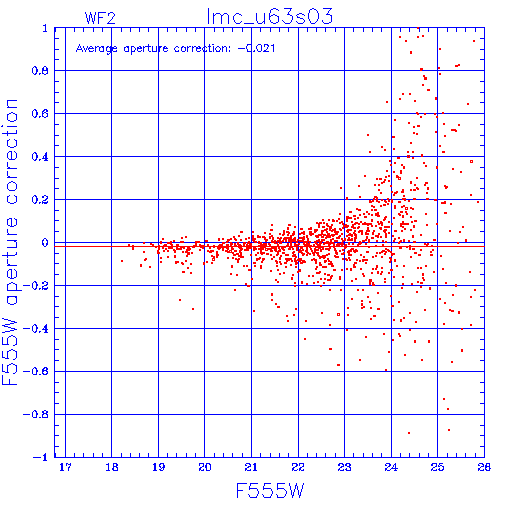

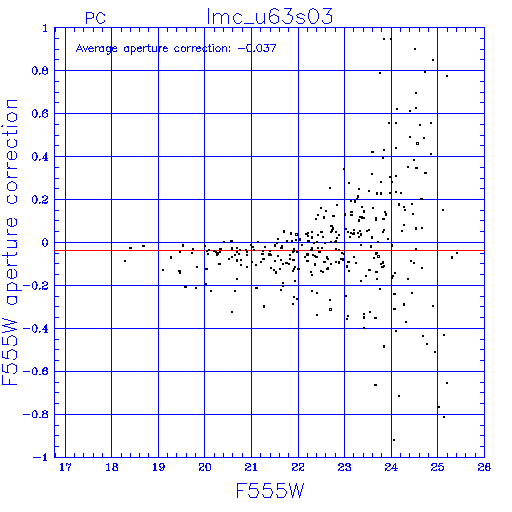

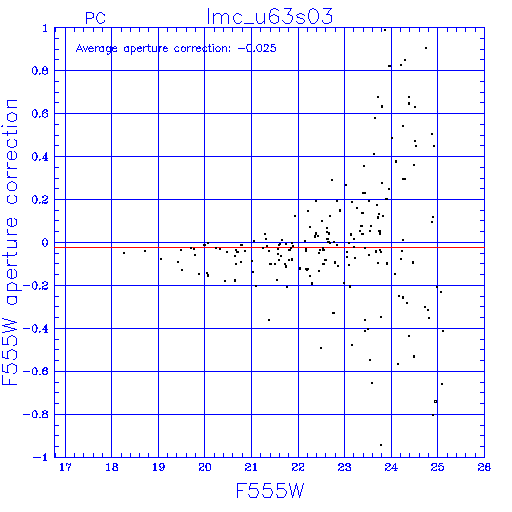

Aperture corrections

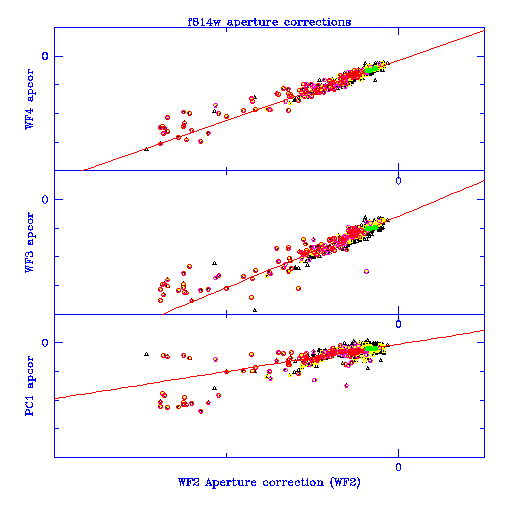

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
