Photometry Diagnostics for lmc_u63s02

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u63s0201r	F555W	700.00	0.00	0.00	0.00	0.00	0.00	0.00
u63s0202r	F555W	500.00	-2.64	5.48	-3.12	5.46	0.48	0.02
u63s0203r	F555W	500.00	-9.21	5.83	-9.40	5.48	0.19	0.35
u63s0204r	F555W	500.00	-9.20	5.88	-9.40	5.48	0.20	0.40
u63s0205r	F814W	500.00	-12.72	0.02	-12.56	0.05	-0.16	-0.03
u63s0206r	F814W	700.00	-9.12	-5.07	-9.44	-5.42	0.32	0.35
u63s0207r	F814W	700.00	-2.77	-5.11	-3.16	-5.44	0.39	0.33

Mosaic images

F555W	F814W

HSTPHOT command log

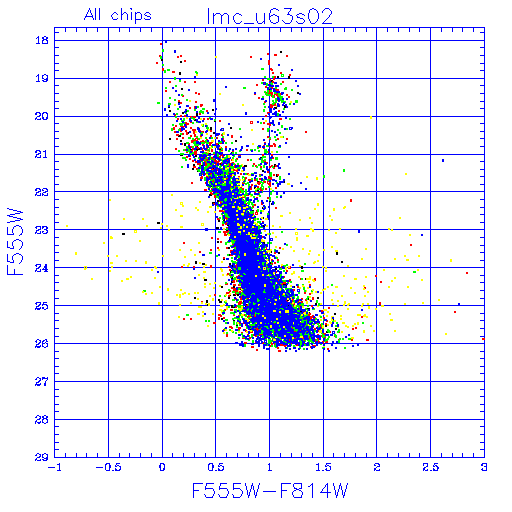

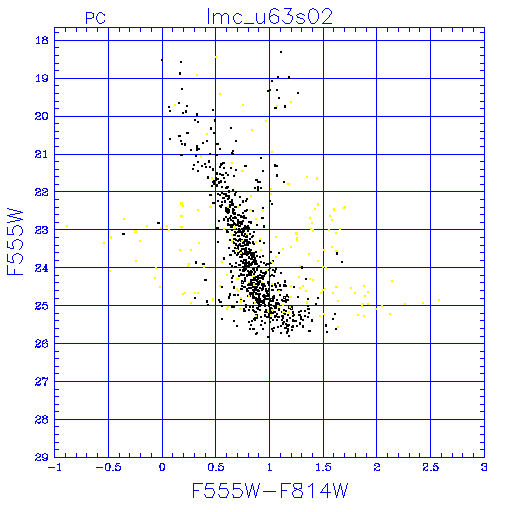

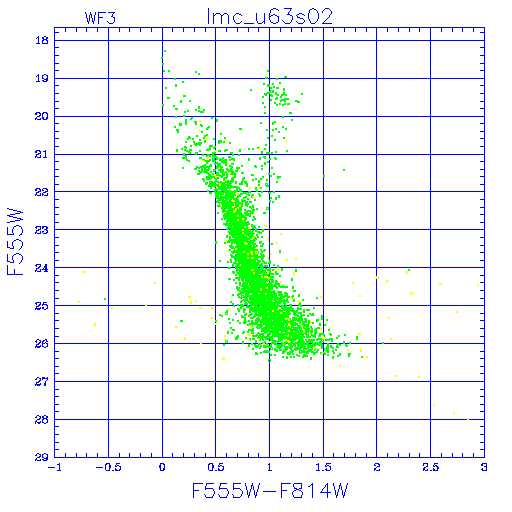

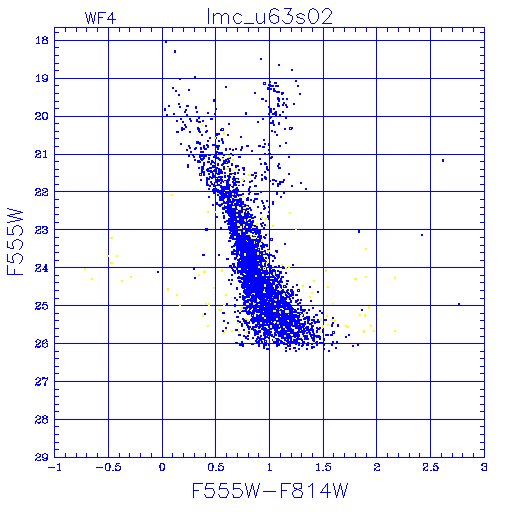

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

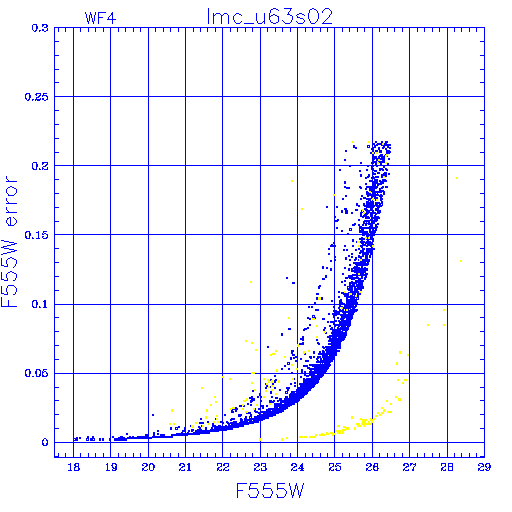

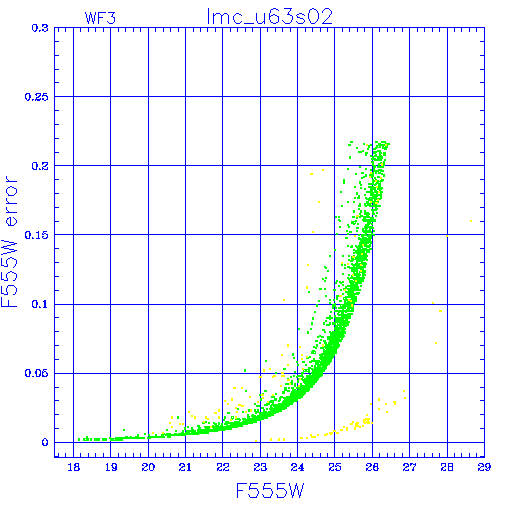

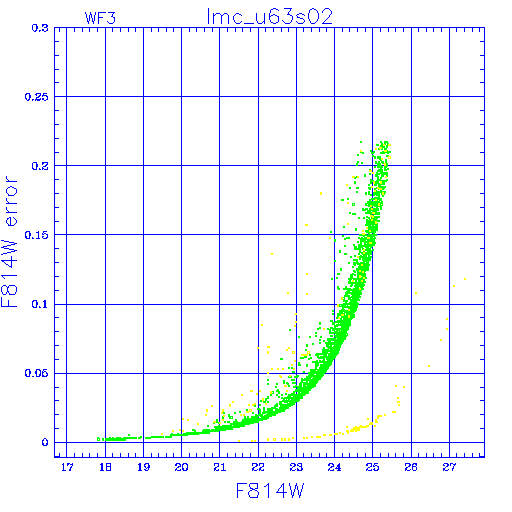

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

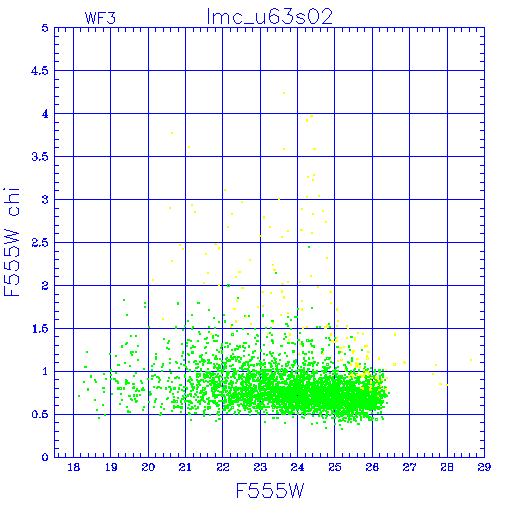

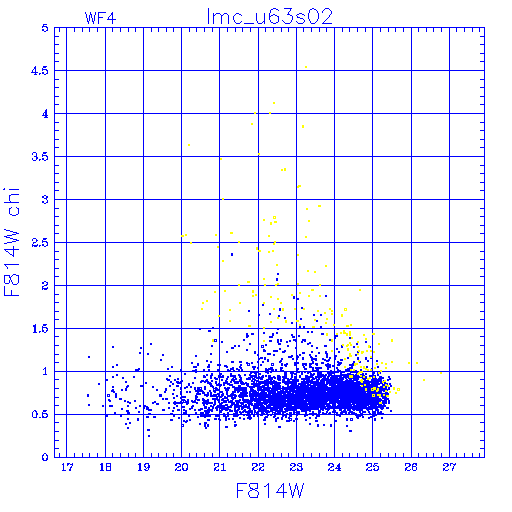

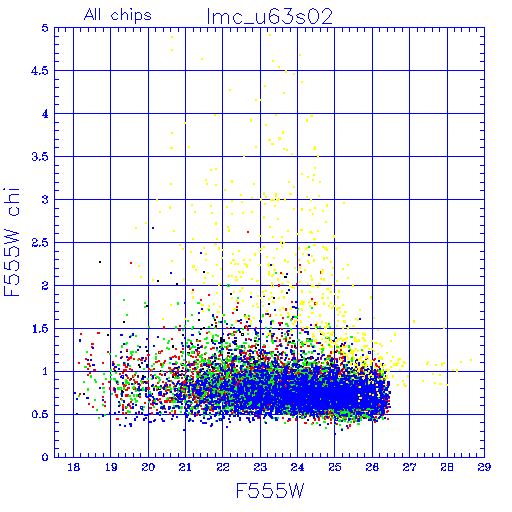

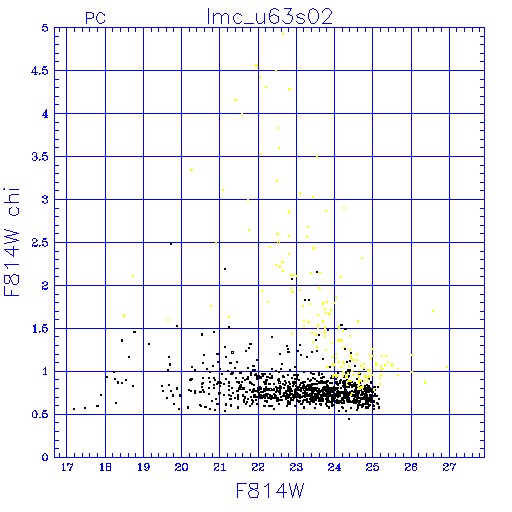

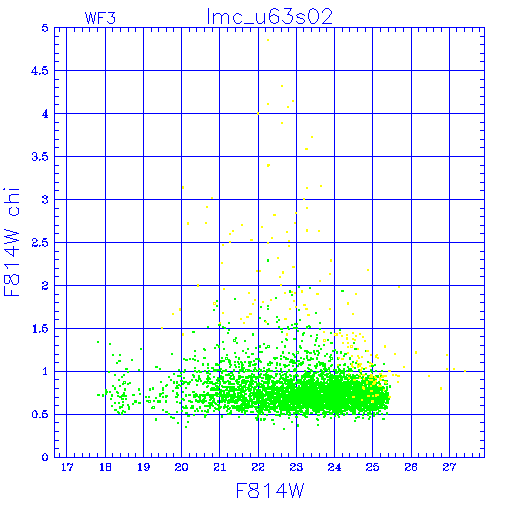

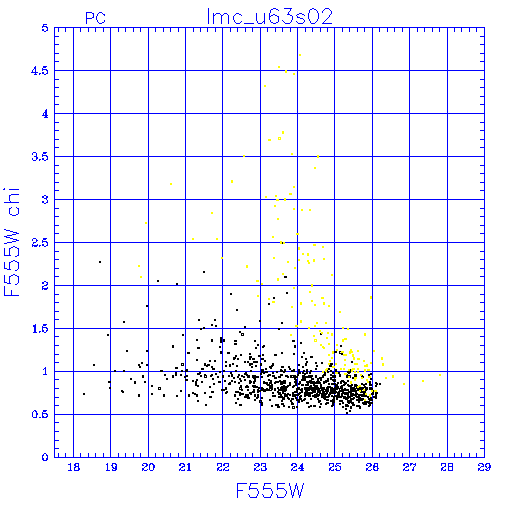

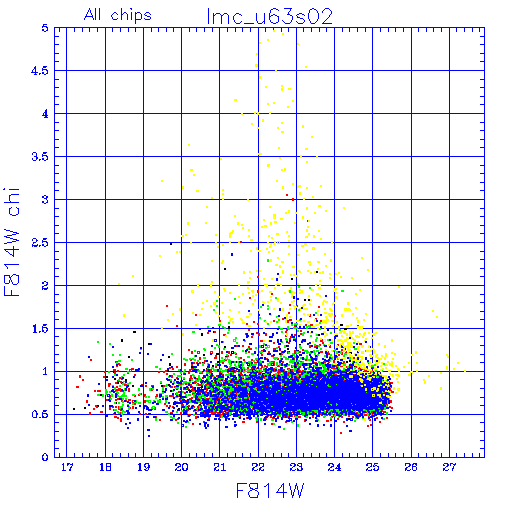

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

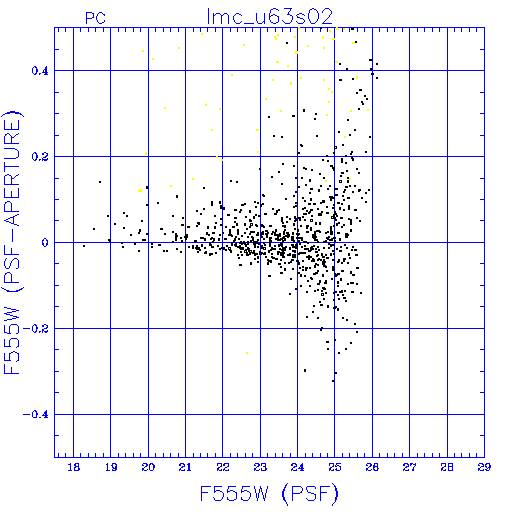

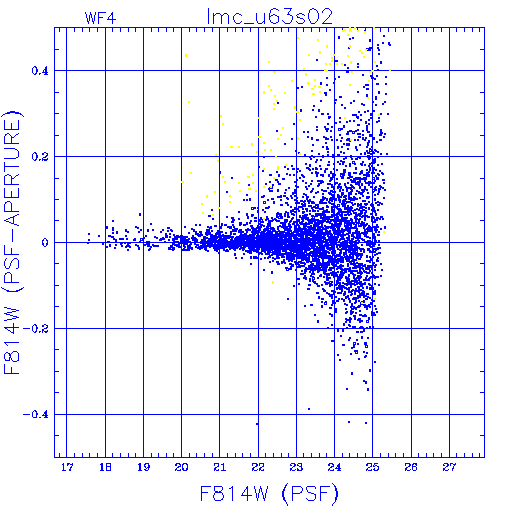

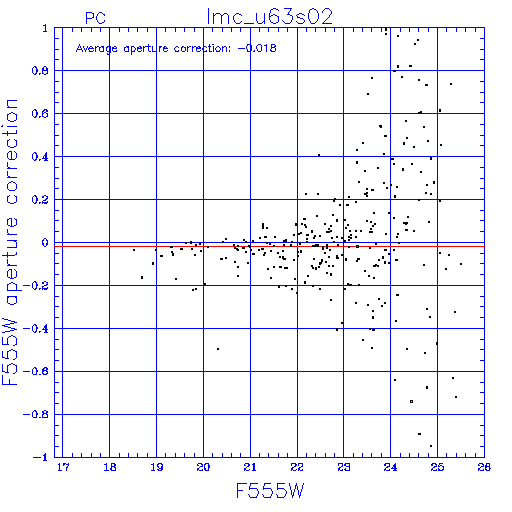

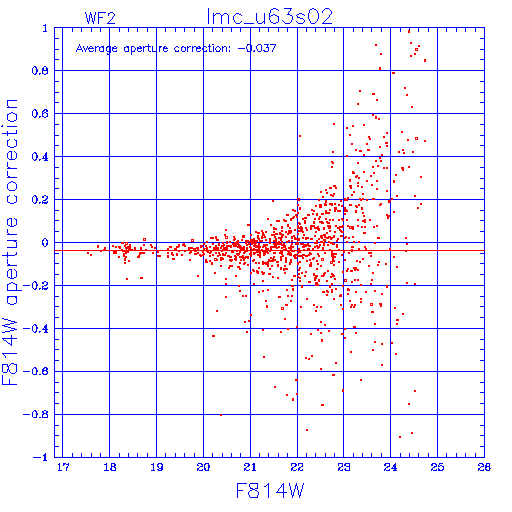

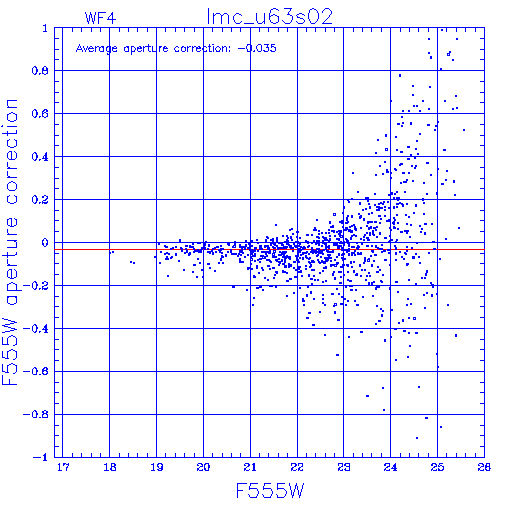

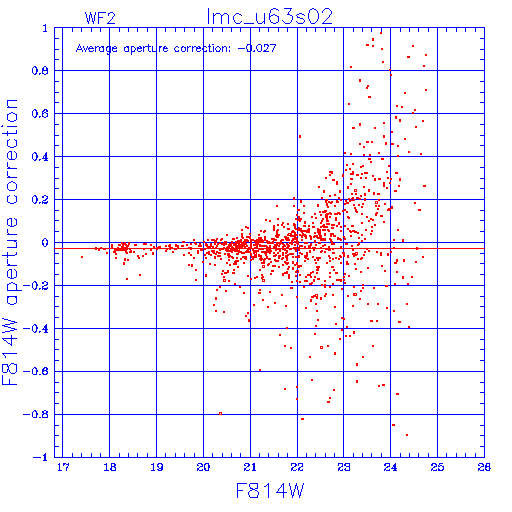

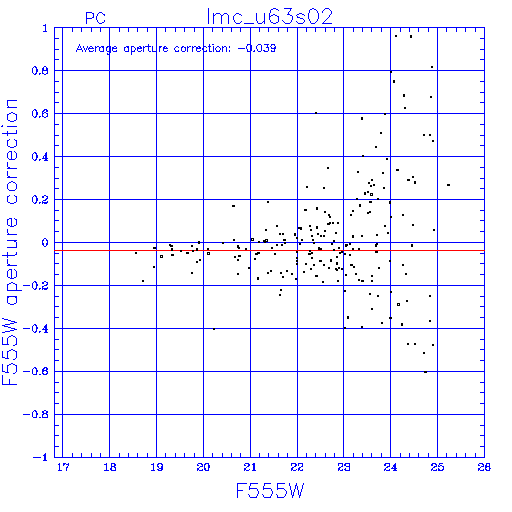

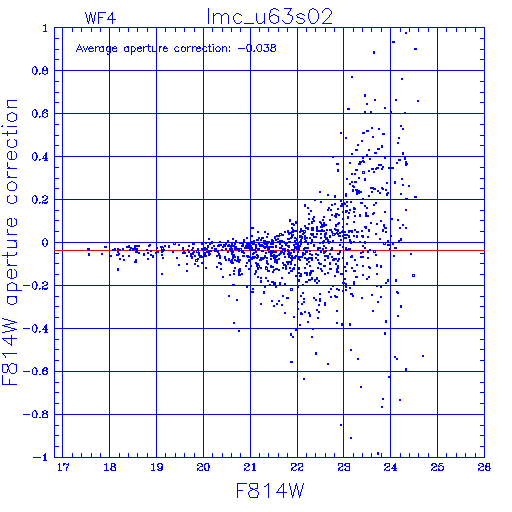

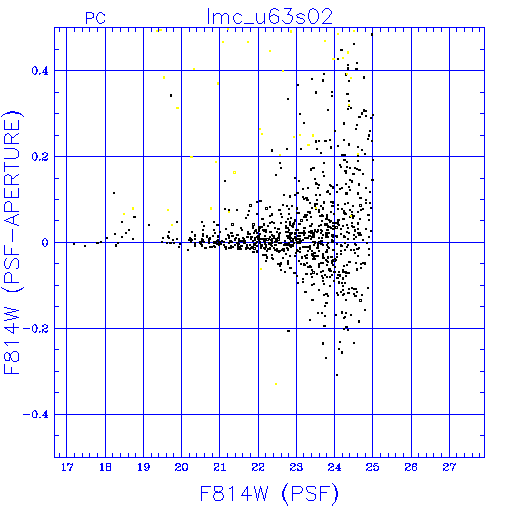

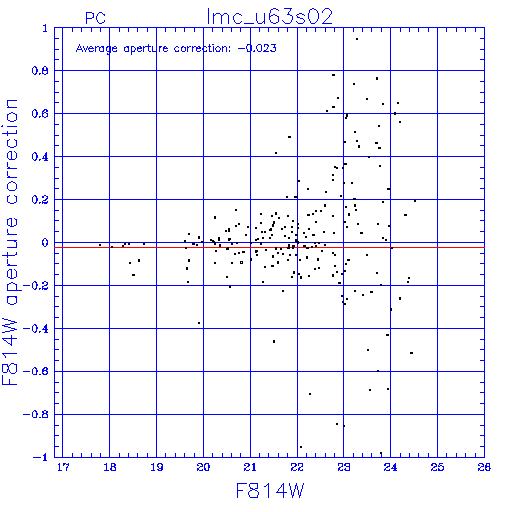

Aperture corrections

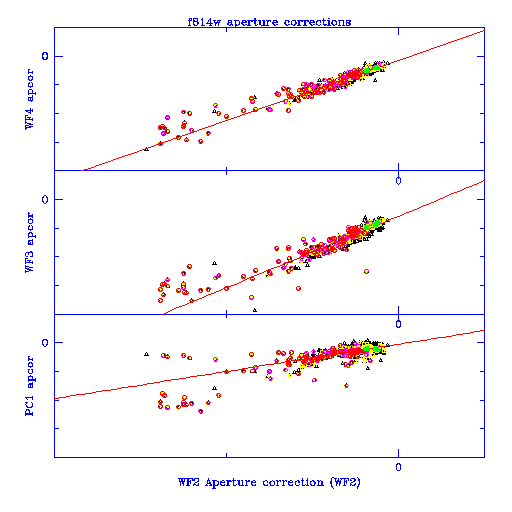

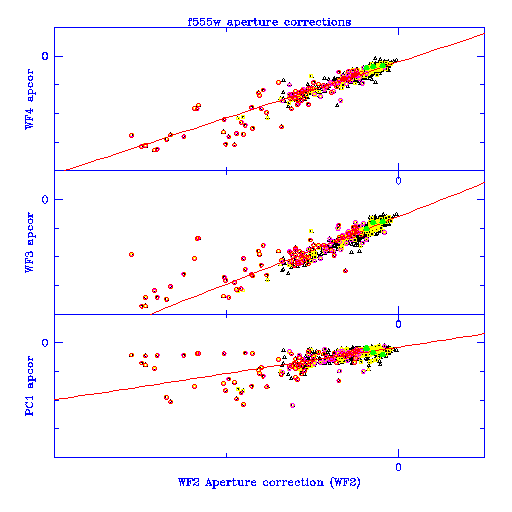

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
