Photometry Diagnostics for lmc_u63s01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u63s0101r	F555W	700.00	0.00	0.00	0.00	0.00	0.00	0.00
u63s0102r	F555W	500.00	-2.74	5.56	-3.12	5.46	0.38	0.10
u63s0103r	F555W	500.00	-9.48	5.89	-9.40	5.48	-0.08	0.41
u63s0104r	F555W	500.00	-9.39	5.95	-9.40	5.48	0.01	0.47
u63s0105r	F814W	500.00	-12.90	0.16	-12.56	0.05	-0.34	0.11
u63s0106r	F814W	700.00	-9.23	-5.15	-9.44	-5.42	0.21	0.27
u63s0107r	F814W	700.00	-3.04	-5.13	-3.16	-5.44	0.12	0.31

Mosaic images

F555W	F814W

HSTPHOT command log

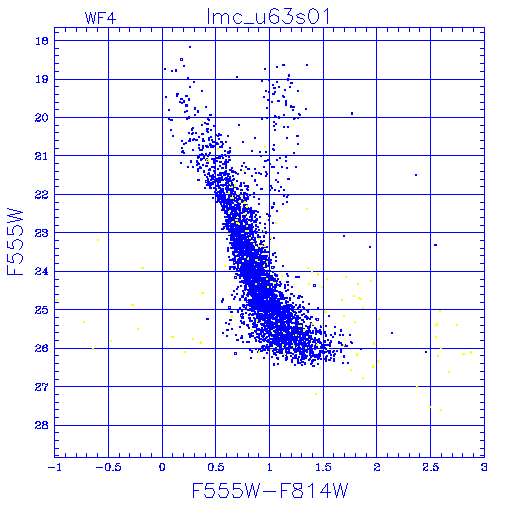

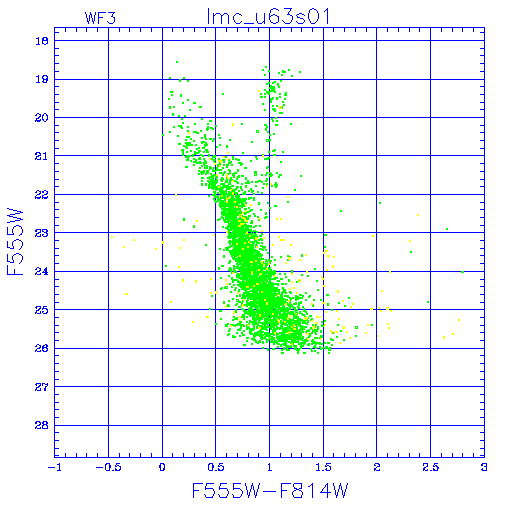

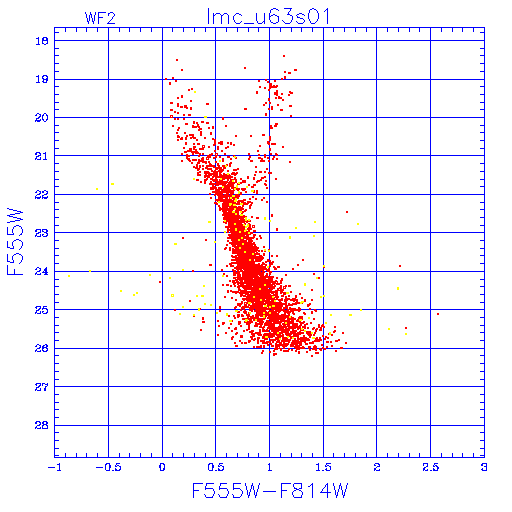

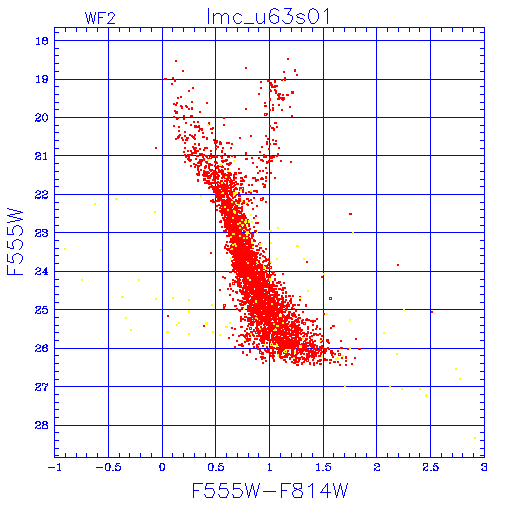

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

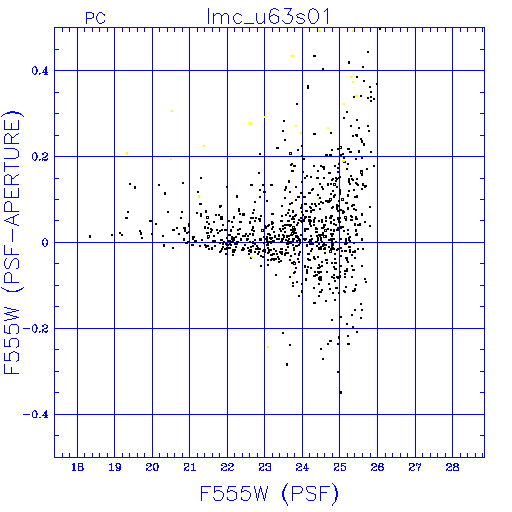

PSF
Aperture

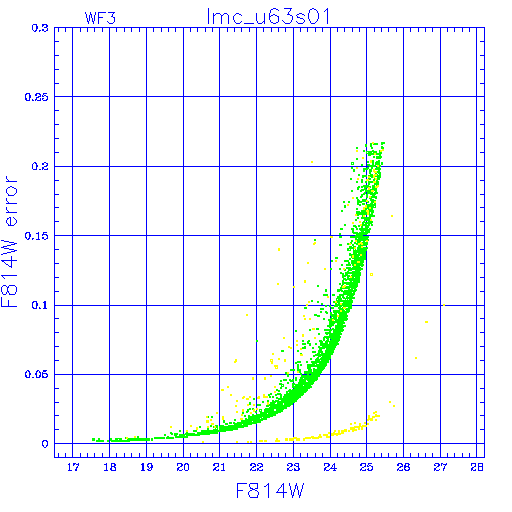

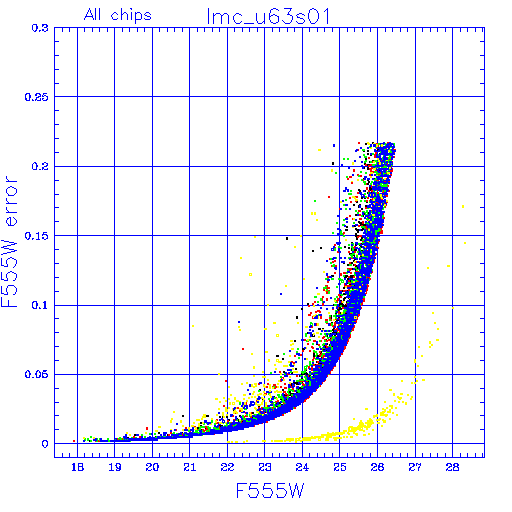

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

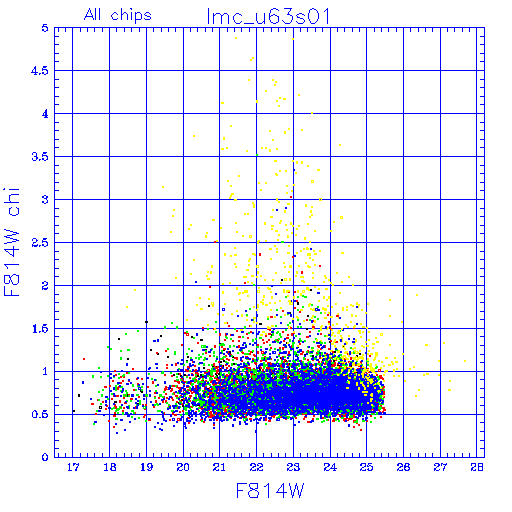

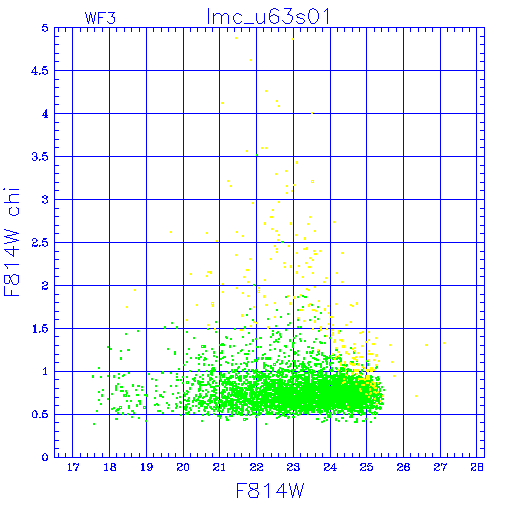

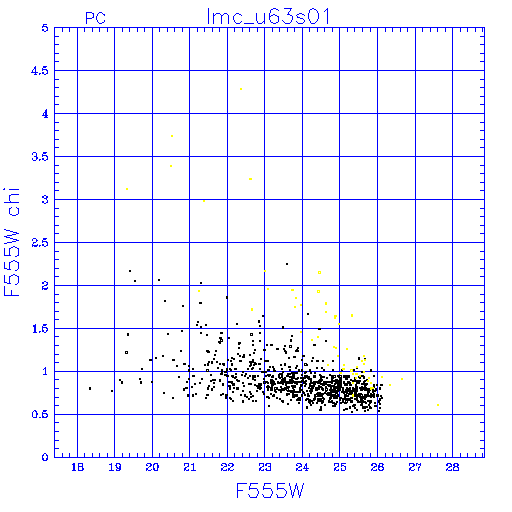

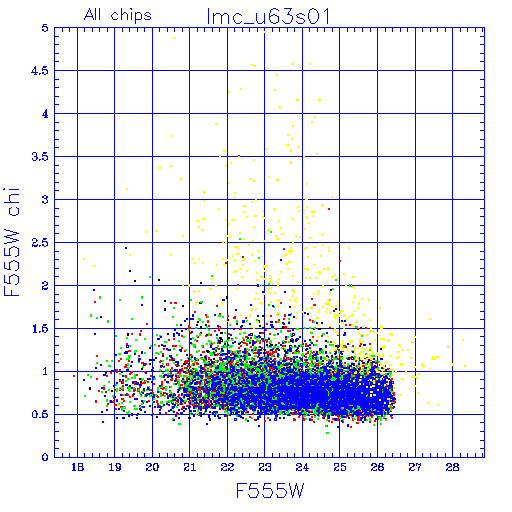

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

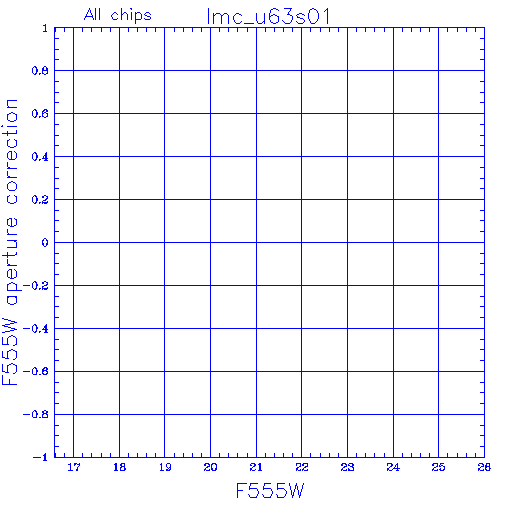

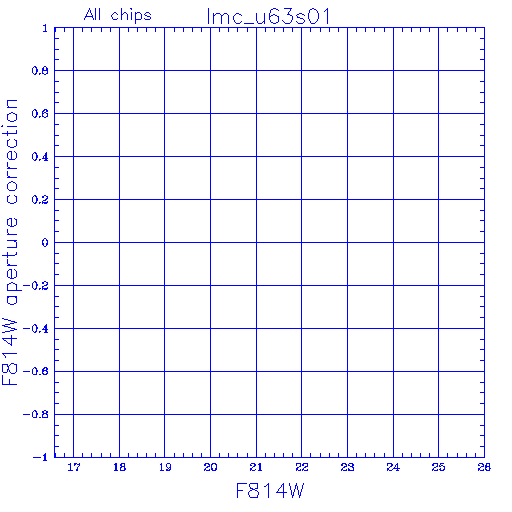

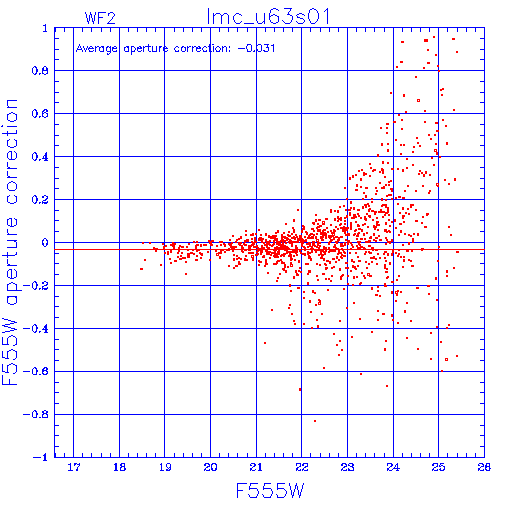

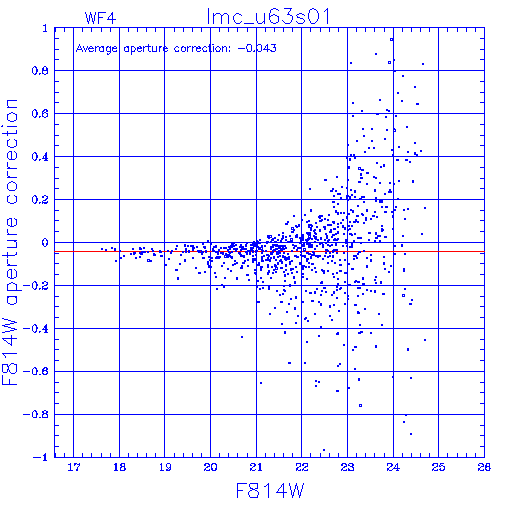

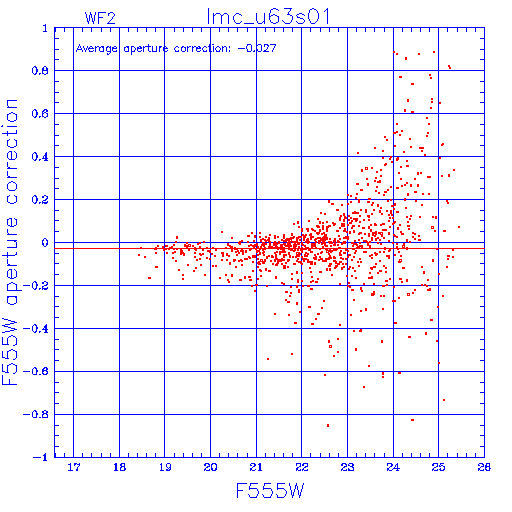

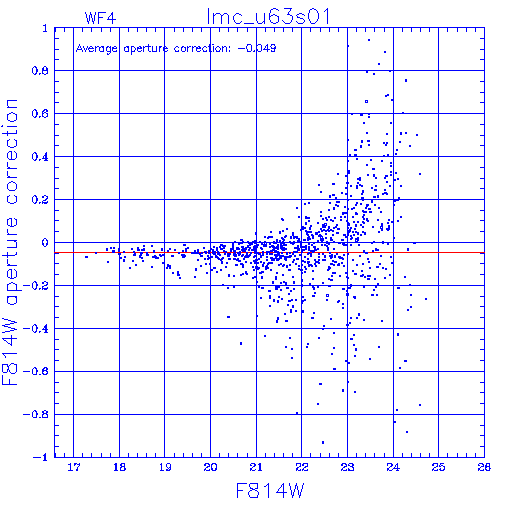

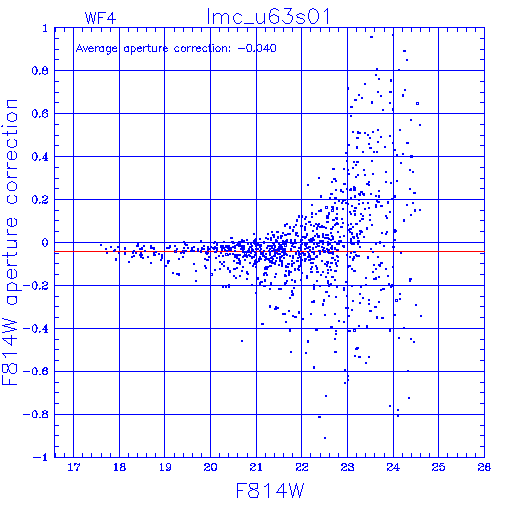

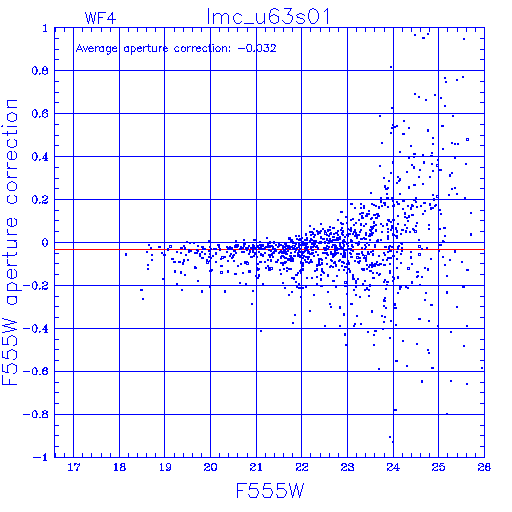

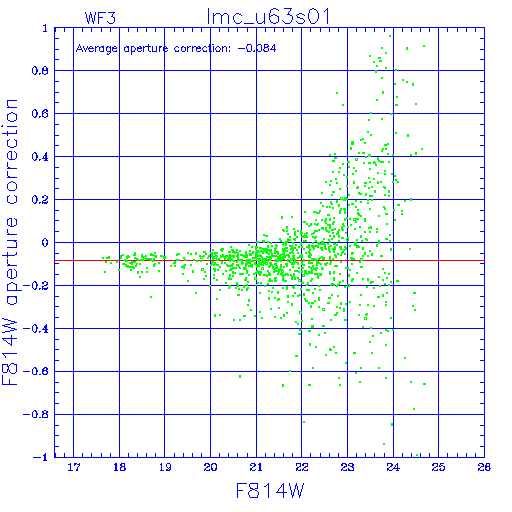

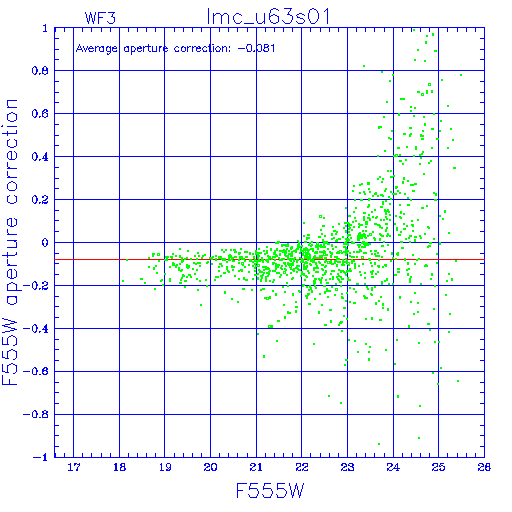

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
