Photometry Diagnostics for lmc_u5dp02

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u5dp0201r	F555W	500.00	0.00	0.00	0.00	0.00	0.00	0.00
u5dp0202r	F555W	8.00	-10.98	-5.52	-11.00	-5.45	0.02	-0.07
u5dp0203r	F555W	8.00	-16.60	-16.70	-16.53	-16.42	-0.07	-0.28
u5dp0204r	F555W	8.00	-5.52	-11.08	-5.53	-10.97	0.01	-0.11
u5dp0205r	F555W	8.00	0.05	0.04	0.00	0.00	0.05	0.04
u5dp0206r	F555W	60.00	0.03	0.05	0.00	0.00	0.03	0.05
u5dp0207r	F555W	60.00	-10.96	-5.38	-11.00	-5.45	0.04	0.07
u5dp0208r	F555W	60.00	-10.97	-5.36	-11.00	-5.45	0.03	0.09
u5dp0209m	F555W	60.00	-16.82	-16.82	-16.53	-16.42	-0.29	-0.40
u5dp020ar	F555W	60.00	-16.77	-16.81	-16.53	-16.42	-0.24	-0.39
u5dp020br	F555W	60.00	-5.51	-11.05	-5.53	-10.97	0.02	-0.08
u5dp020cr	F555W	60.00	-5.51	-11.07	-5.53	-10.97	0.02	-0.10
u5dp020tr	F555W	60.00	0.04	0.08	0.00	0.00	0.04	0.08
u5dp020ur	F555W	500.00	0.09	0.06	0.00	0.00	0.09	0.06
u5dp020vr	F555W	500.00	0.11	0.04	0.00	0.00	0.11	0.04
u5dp020wr	F555W	500.00	0.10	0.05	0.00	0.00	0.10	0.05
u5dp020dr	F814W	500.00	0.19	-0.03	0.00	0.00	0.19	-0.03
u5dp020er	F814W	5.00	-10.82	-5.55	-11.00	-5.45	0.18	-0.10
u5dp020fr	F814W	5.00	-16.49	-16.60	-16.53	-16.42	0.04	-0.18
u5dp020gr	F814W	5.00	-5.32	-11.09	-5.53	-10.97	0.21	-0.12
u5dp020hr	F814W	5.00	0.16	0.11	0.00	0.00	0.16	0.11
u5dp020ir	F814W	50.00	0.15	0.11	0.00	0.00	0.15	0.11
u5dp020jr	F814W	50.00	-10.83	-5.33	-11.00	-5.45	0.17	0.12
u5dp020kr	F814W	50.00	-10.81	-5.35	-11.00	-5.45	0.19	0.10
u5dp020lr	F814W	50.00	-16.63	-16.58	-16.53	-16.42	-0.10	-0.16
u5dp020mr	F814W	50.00	-16.69	-16.57	-16.53	-16.42	-0.16	-0.15
u5dp020nr	F814W	50.00	-5.55	-10.87	-5.53	-10.97	-0.02	0.10
u5dp020or	F814W	50.00	-5.55	-10.88	-5.53	-10.97	-0.02	0.09
u5dp020pr	F814W	50.00	0.13	0.21	0.00	0.00	0.13	0.21
u5dp020qr	F814W	600.00	0.16	0.20	0.00	0.00	0.16	0.20
u5dp020rr	F814W	600.00	0.16	0.21	0.00	0.00	0.16	0.21
u5dp020sr	F814W	500.00	0.14	0.18	0.00	0.00	0.14	0.18

Mosaic images

F555W	F814W

HSTPHOT command log

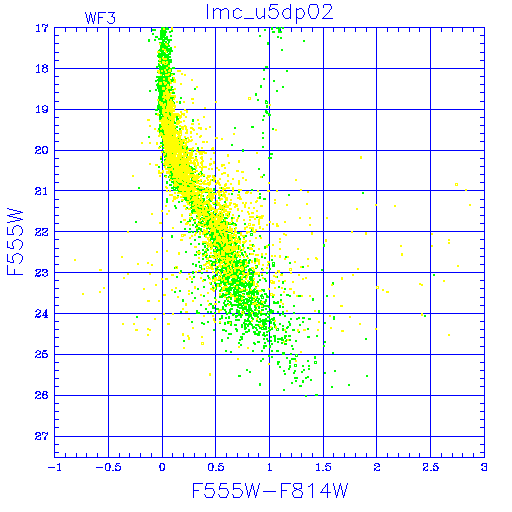

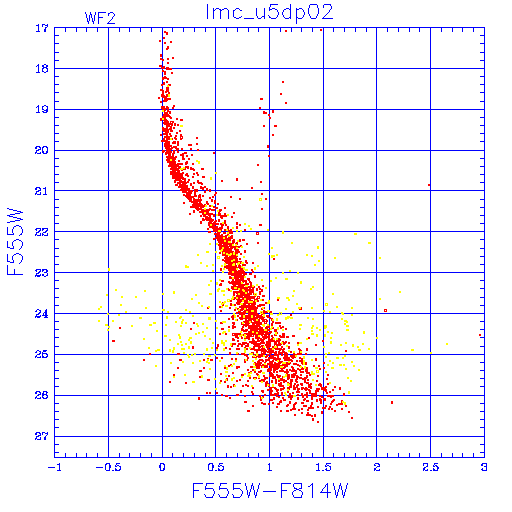

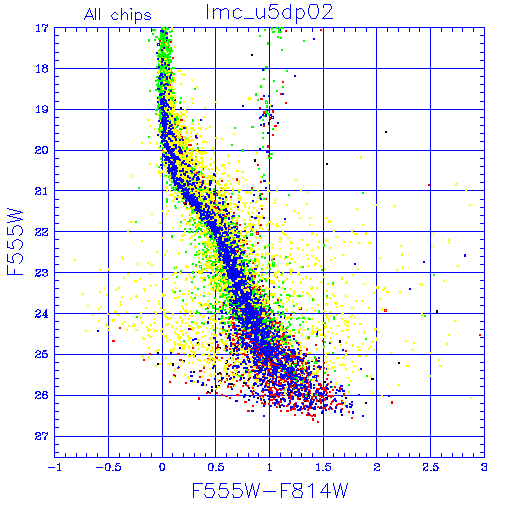

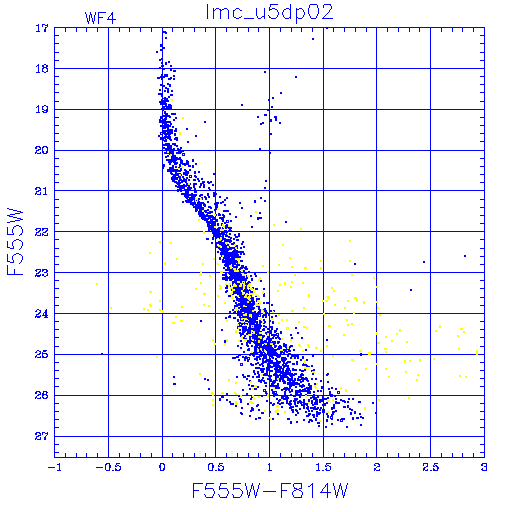

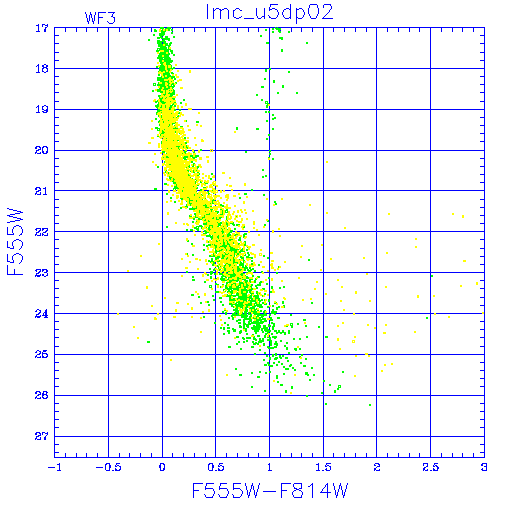

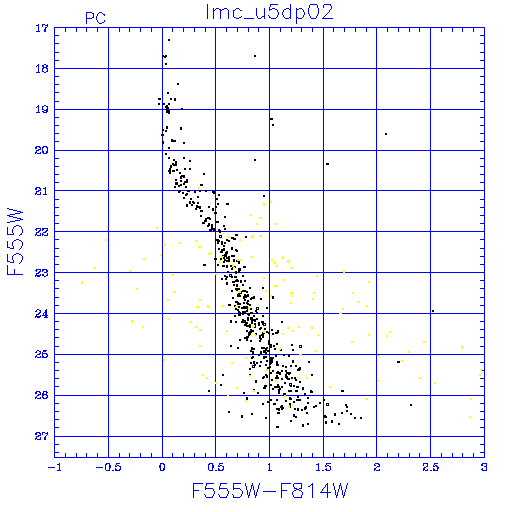

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

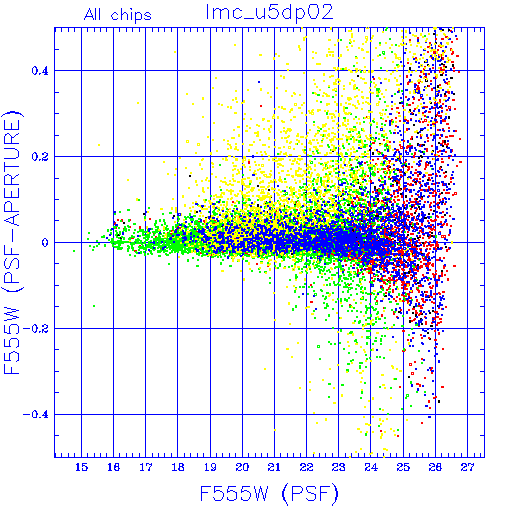

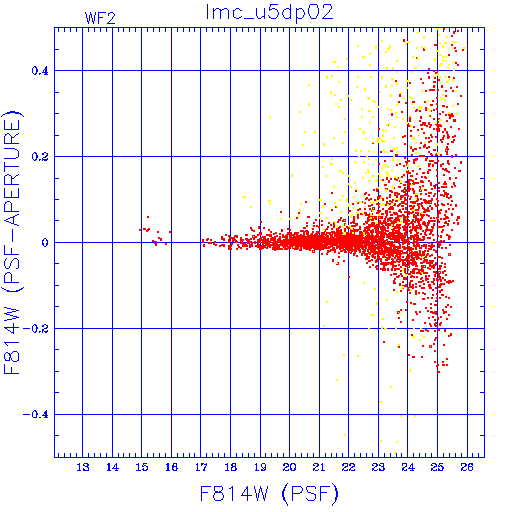

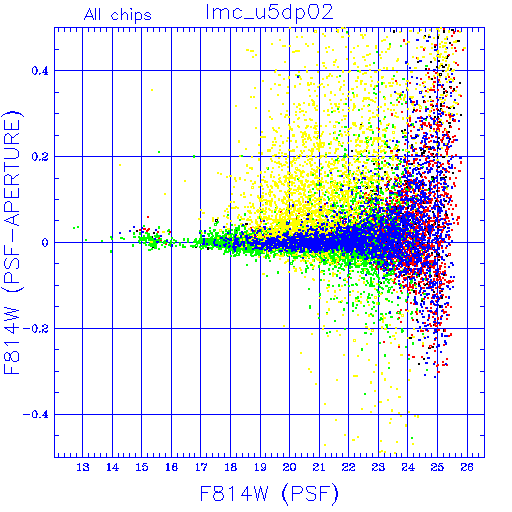

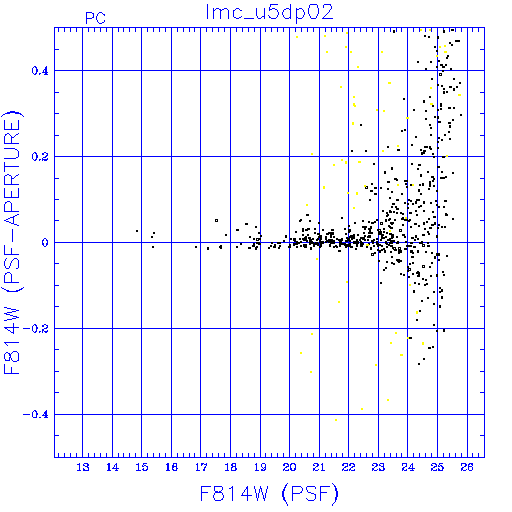

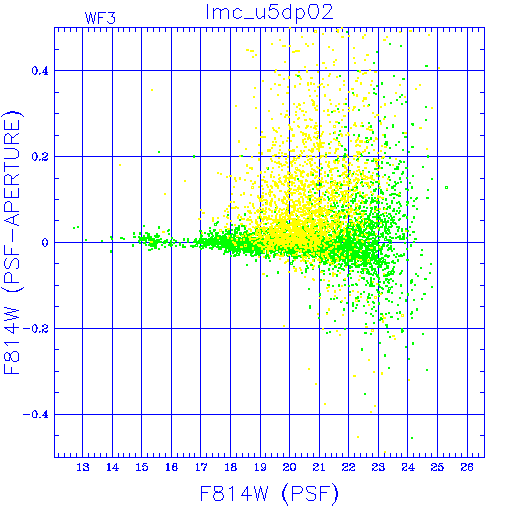

PSF
Aperture

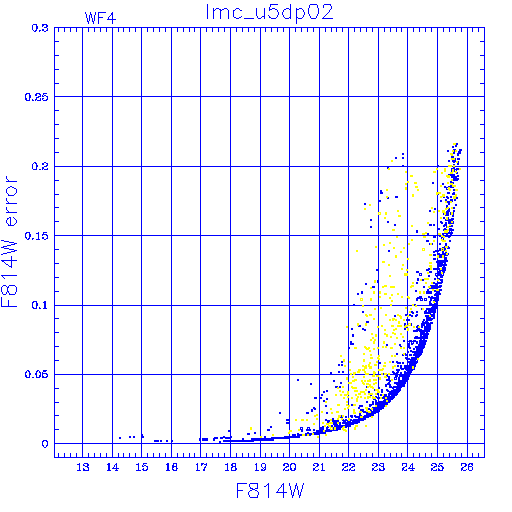

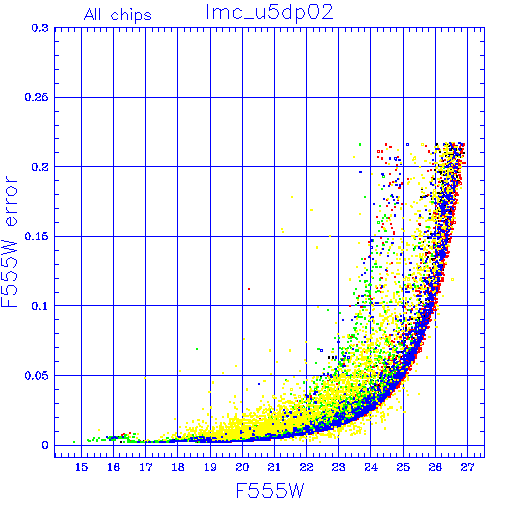

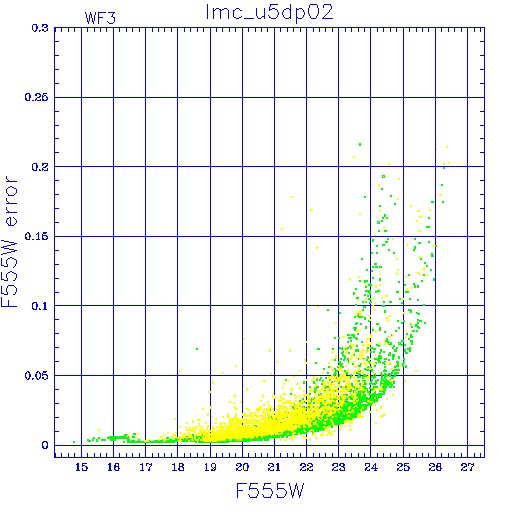

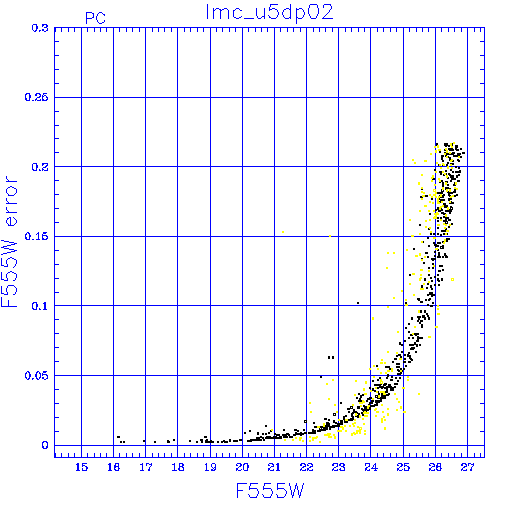

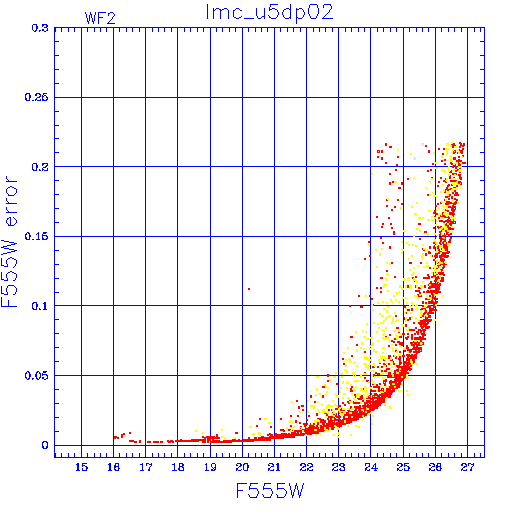

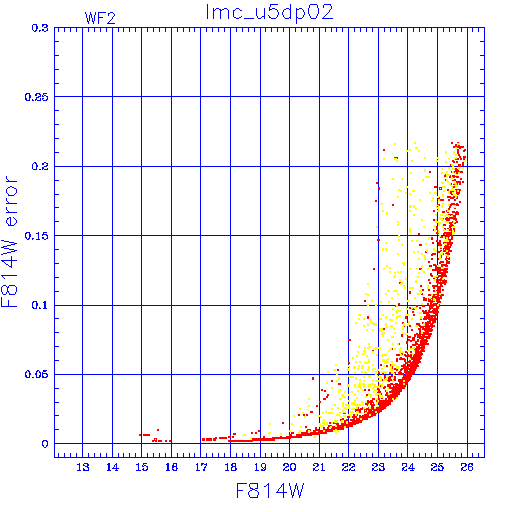

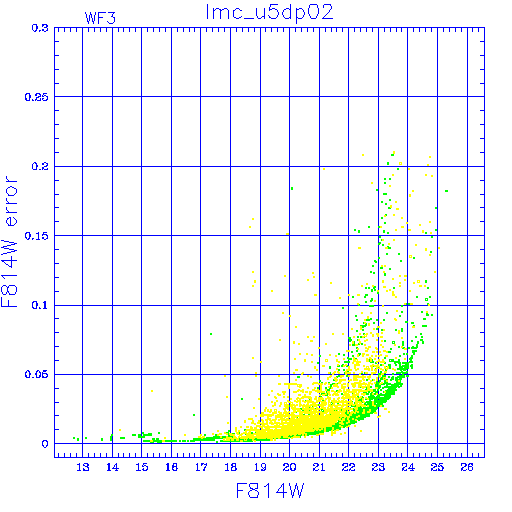

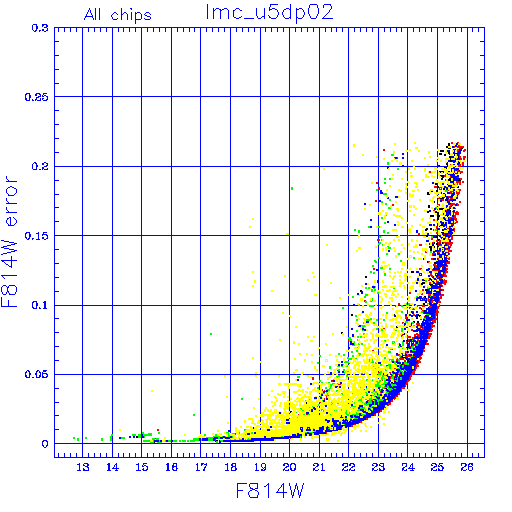

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

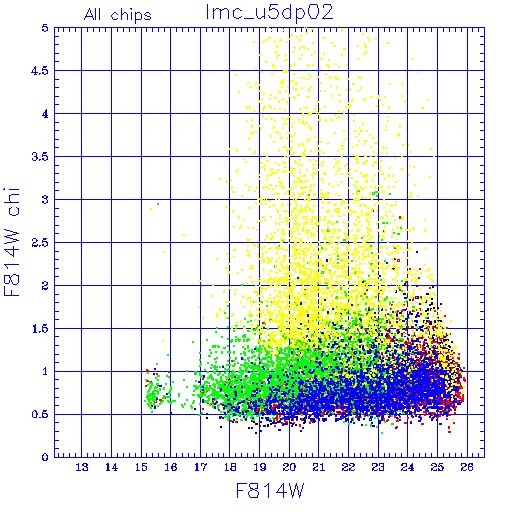

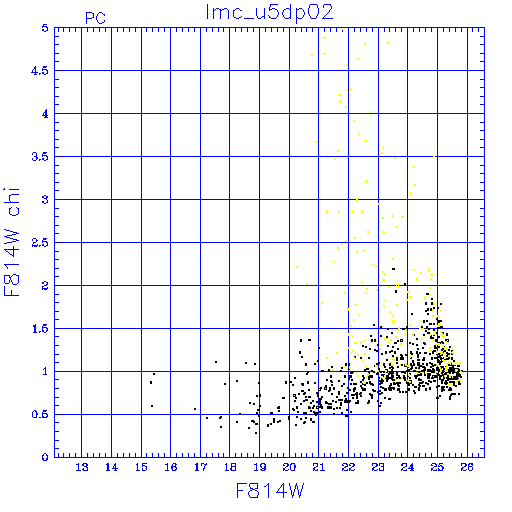

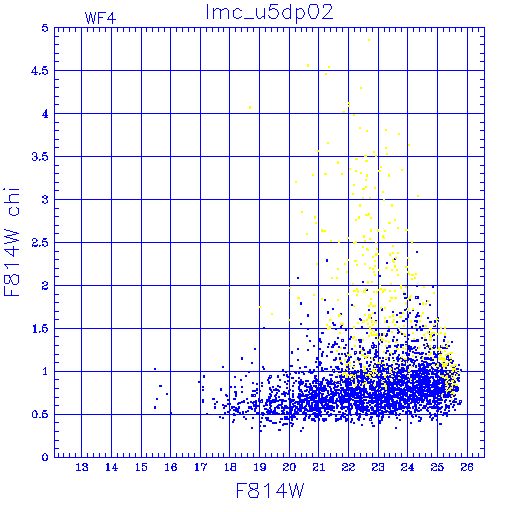

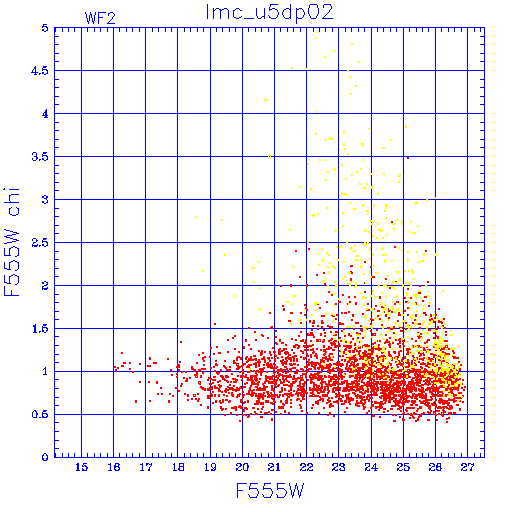

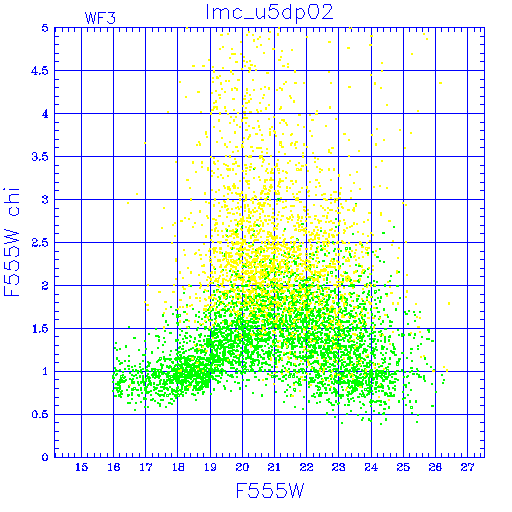

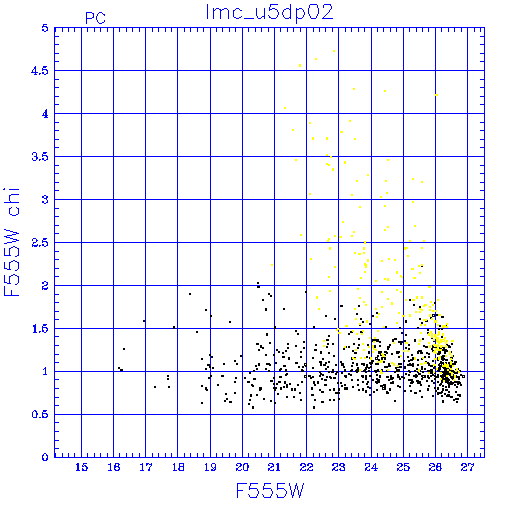

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

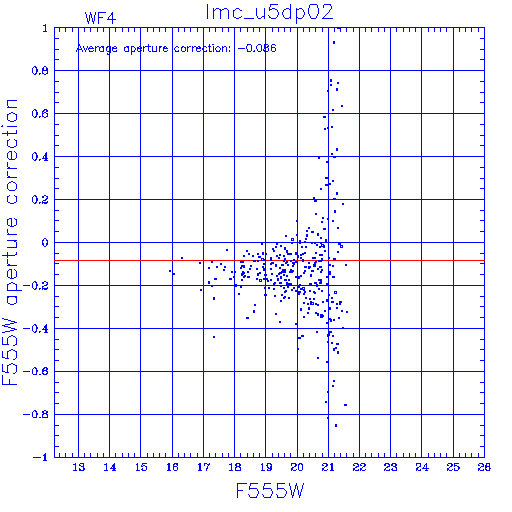

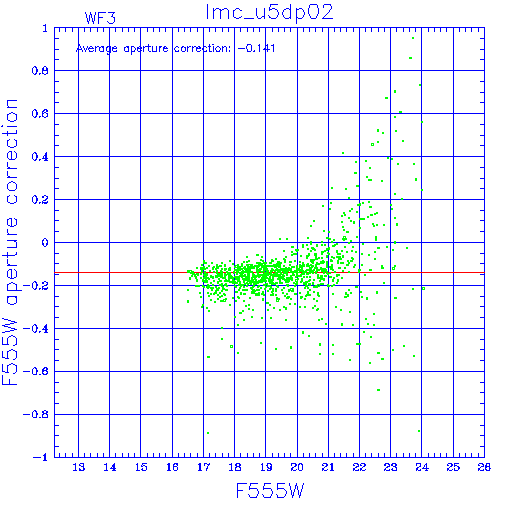

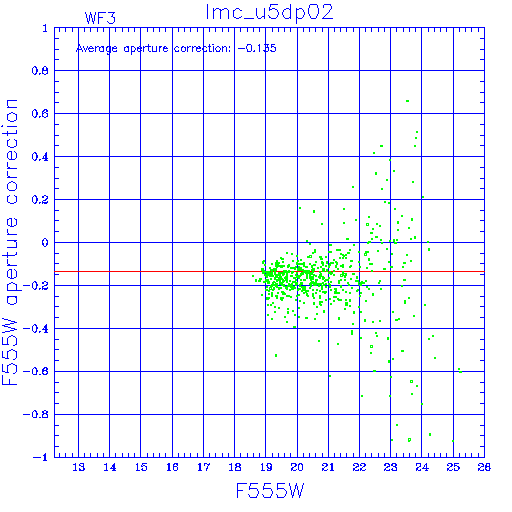

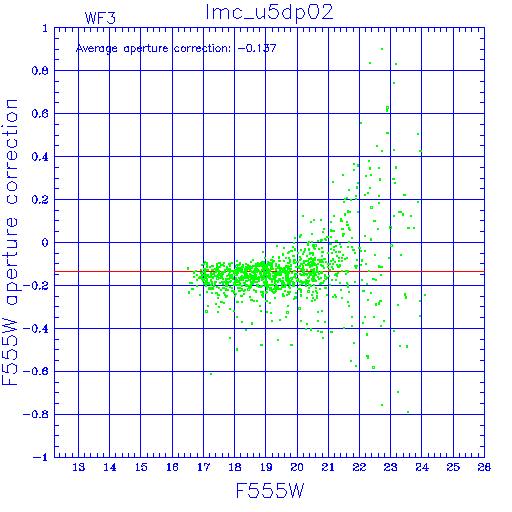

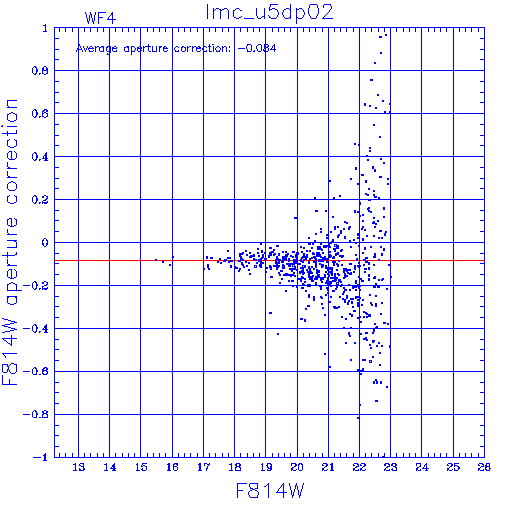

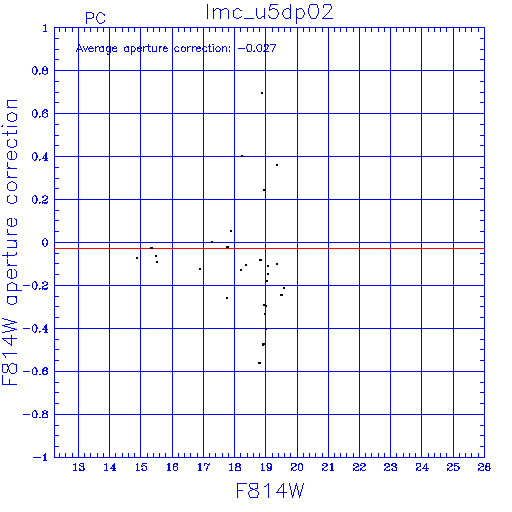

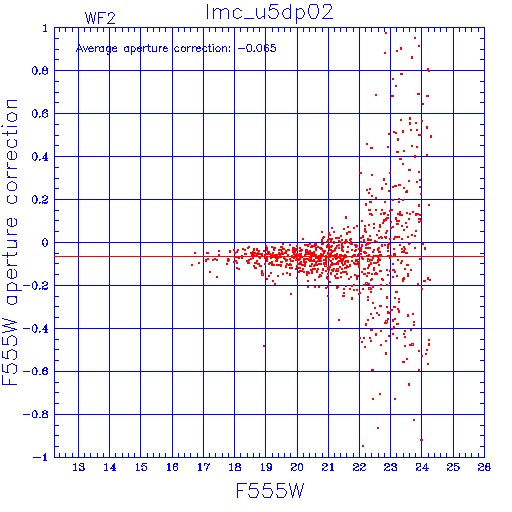

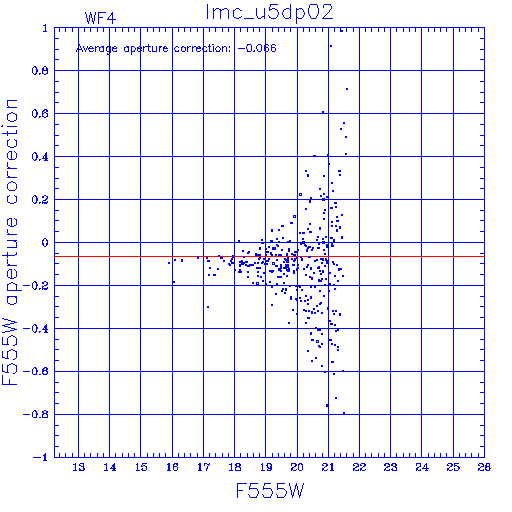

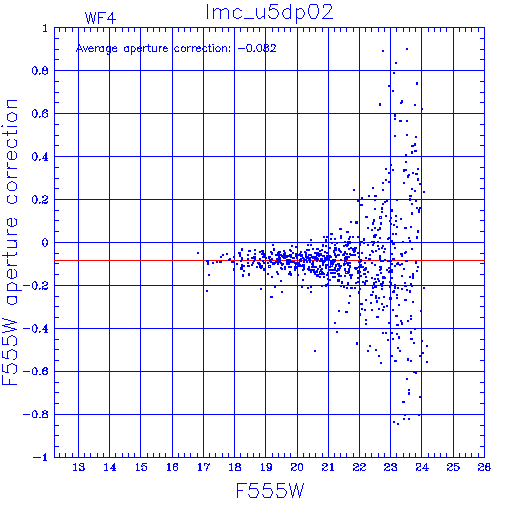

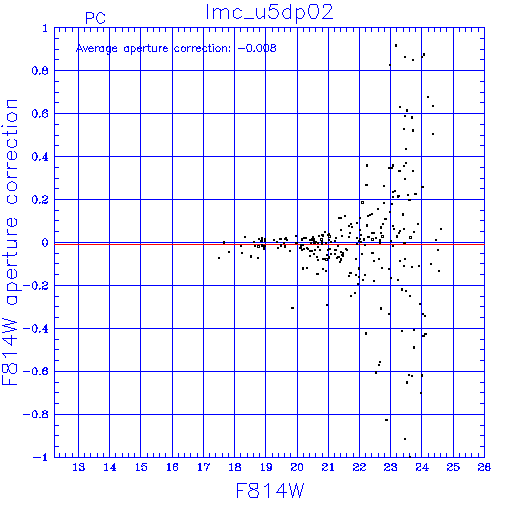

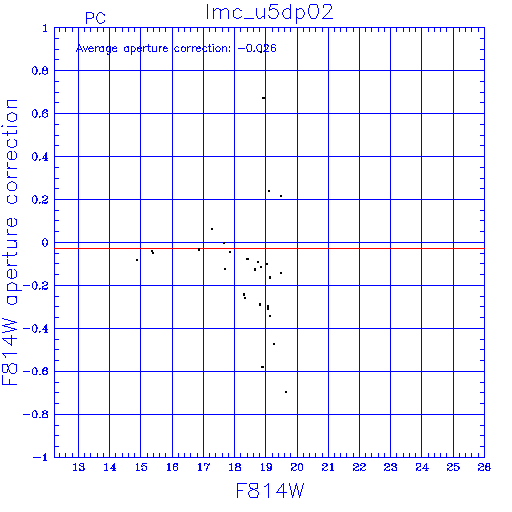

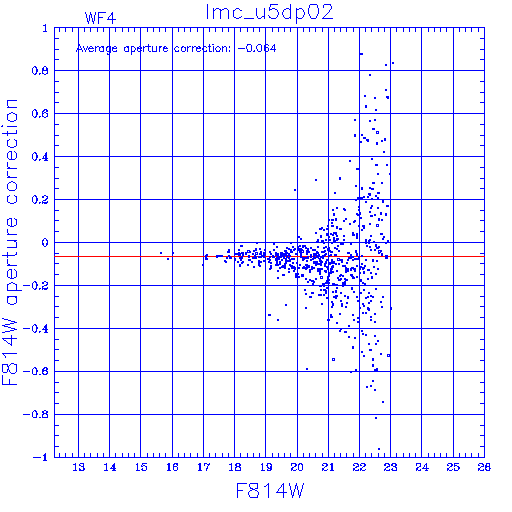

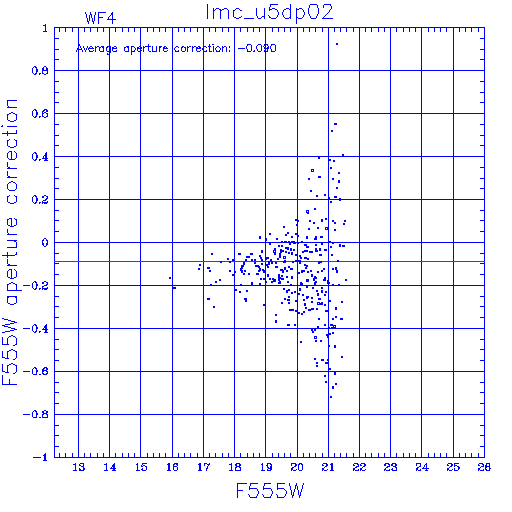

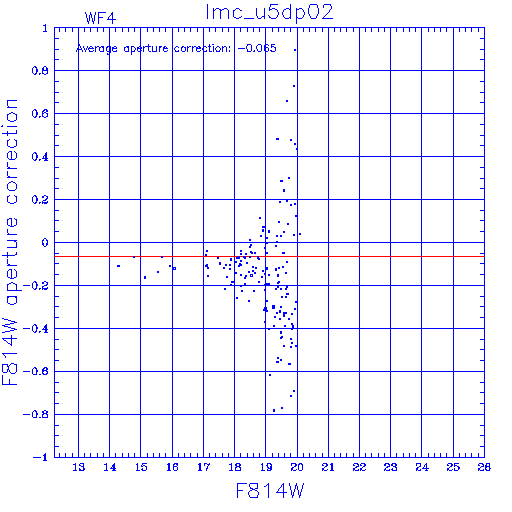

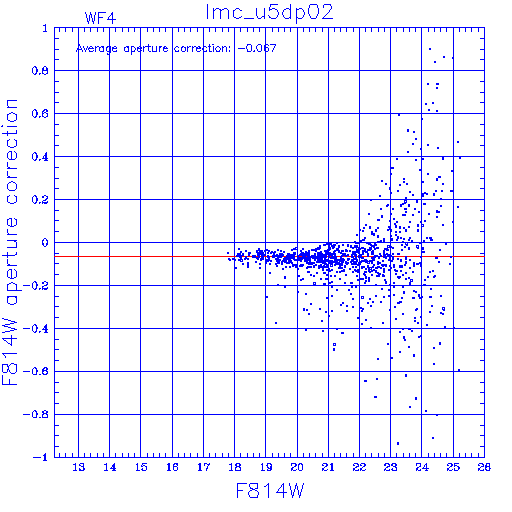

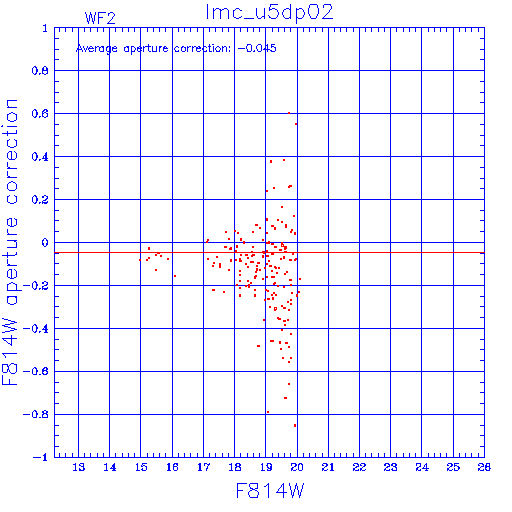

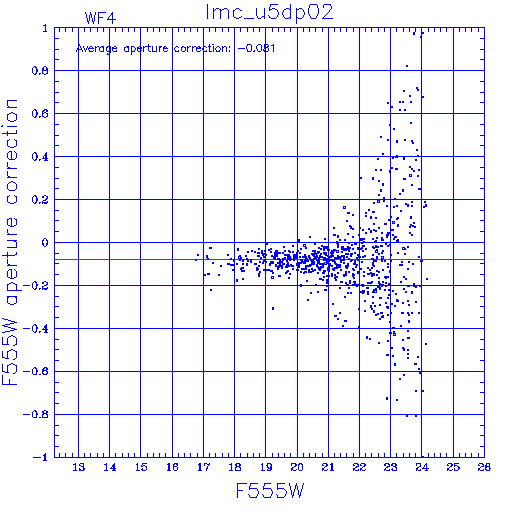

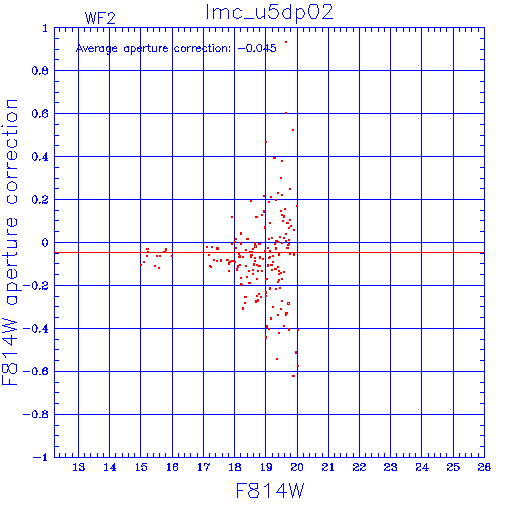

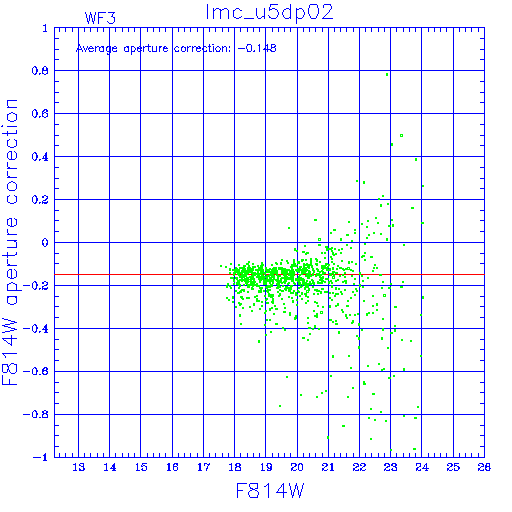

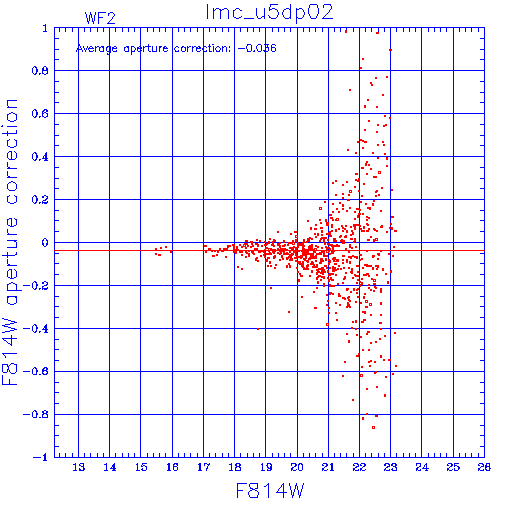

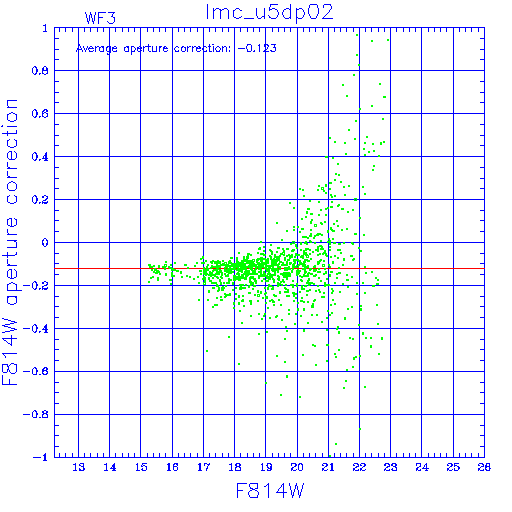

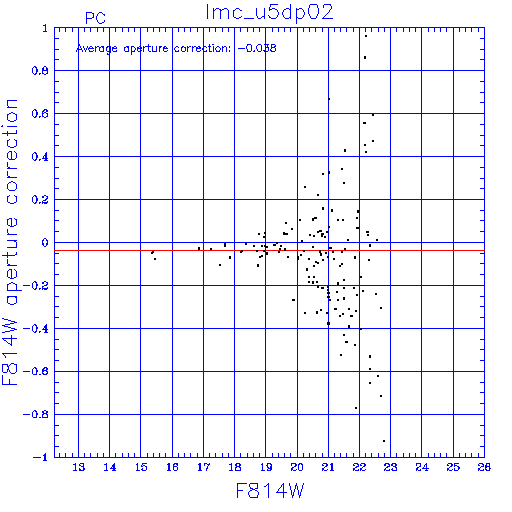

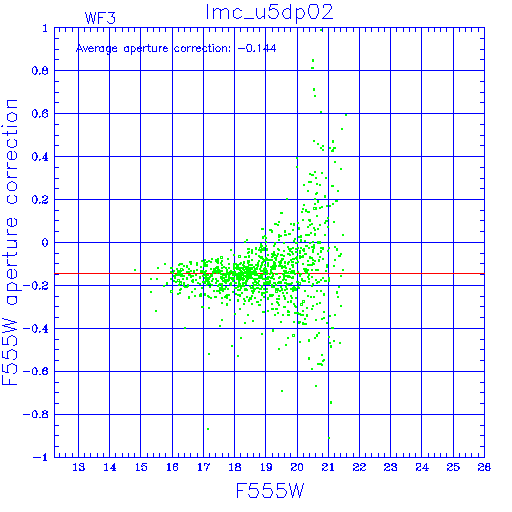

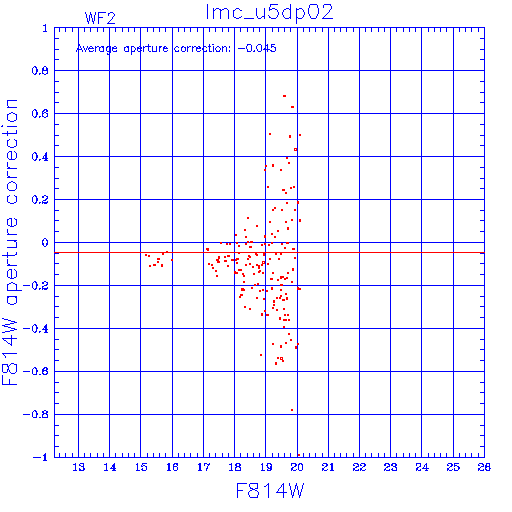

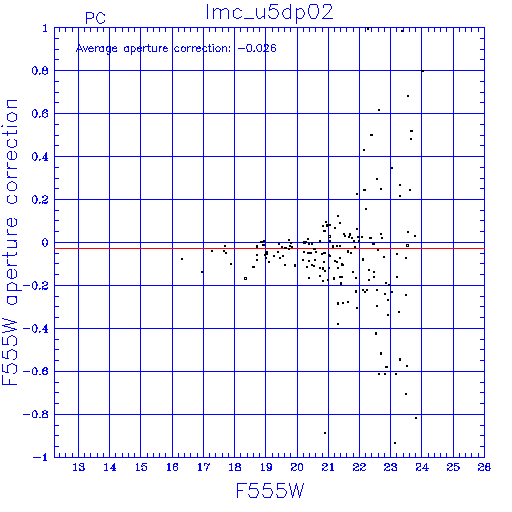

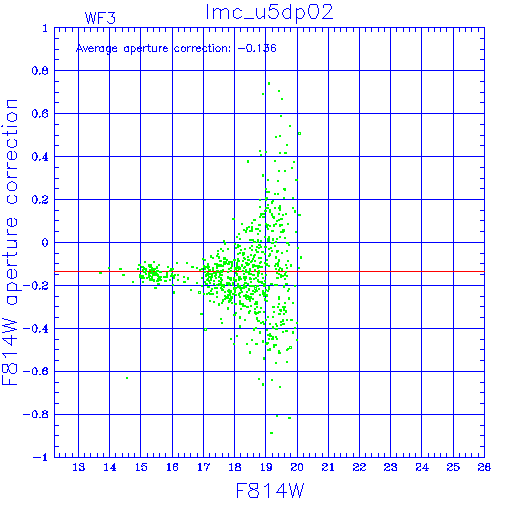

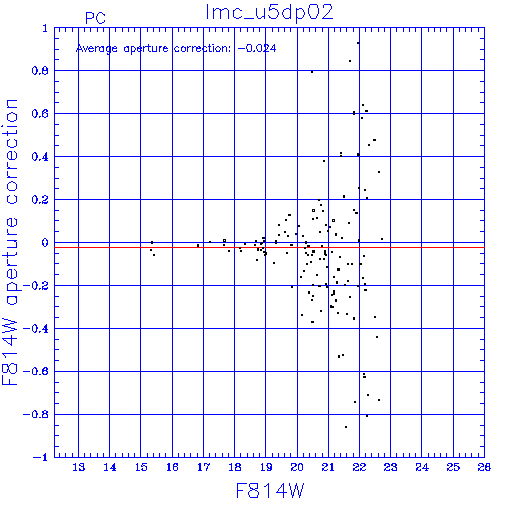

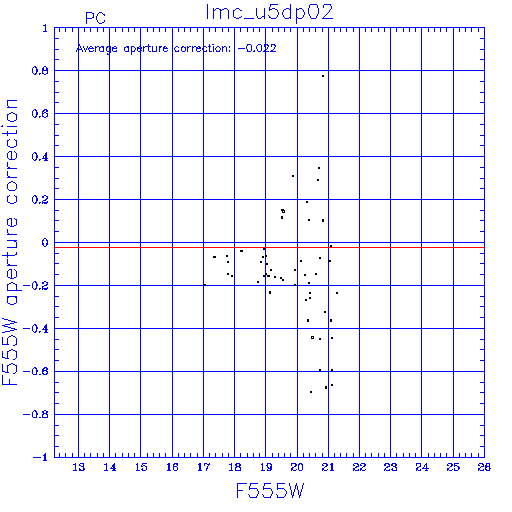

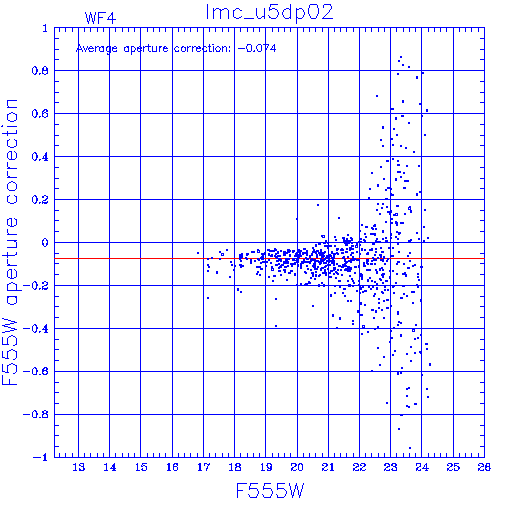

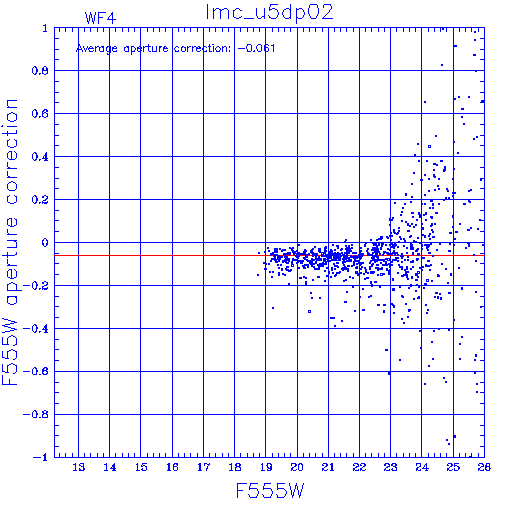

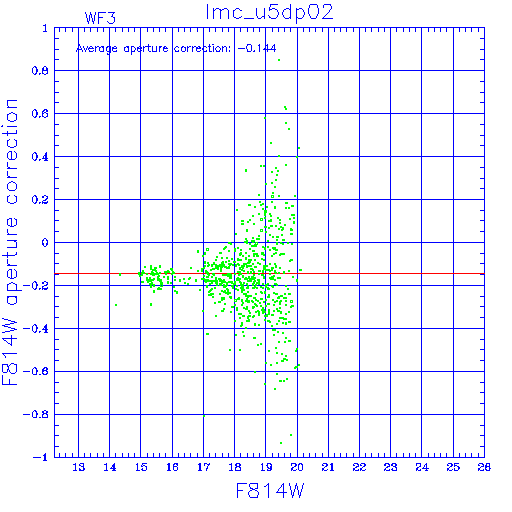

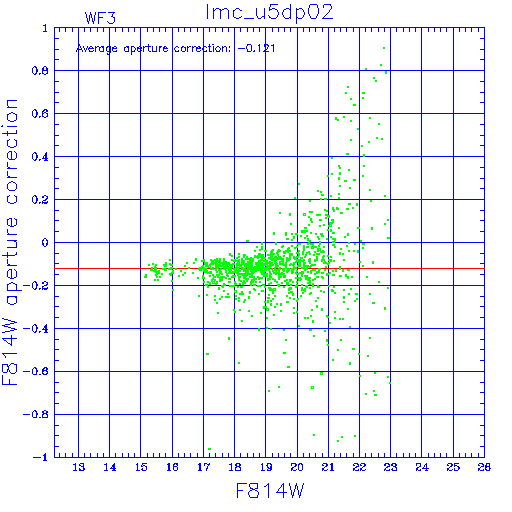

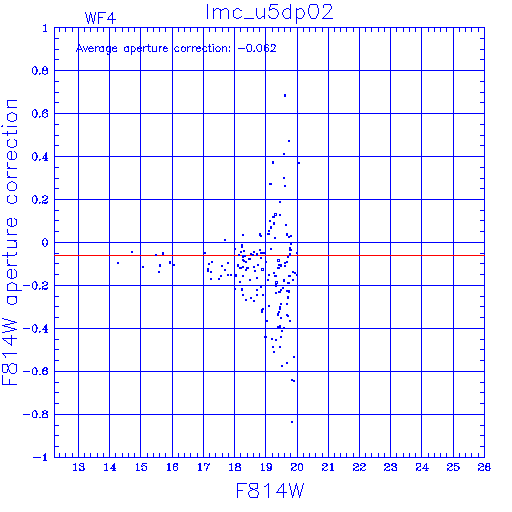

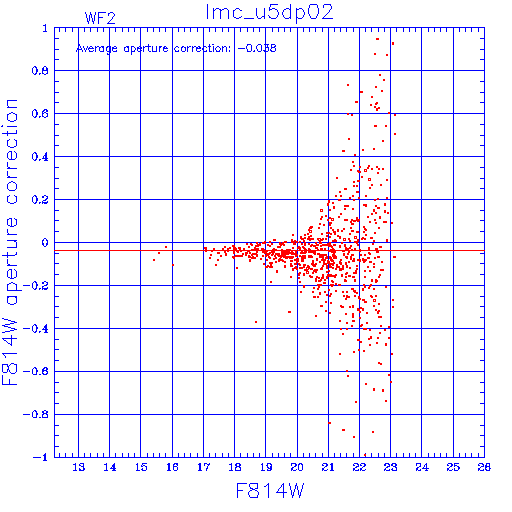

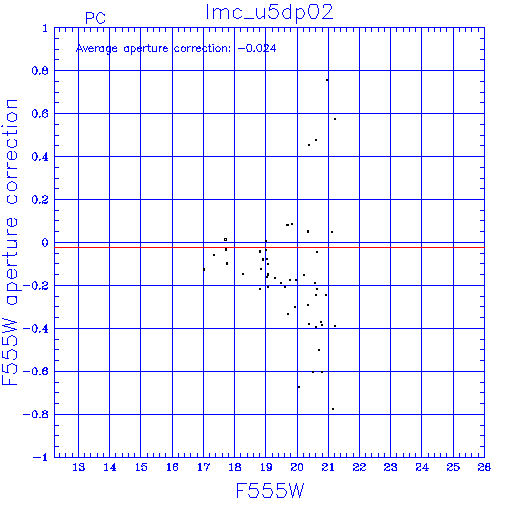

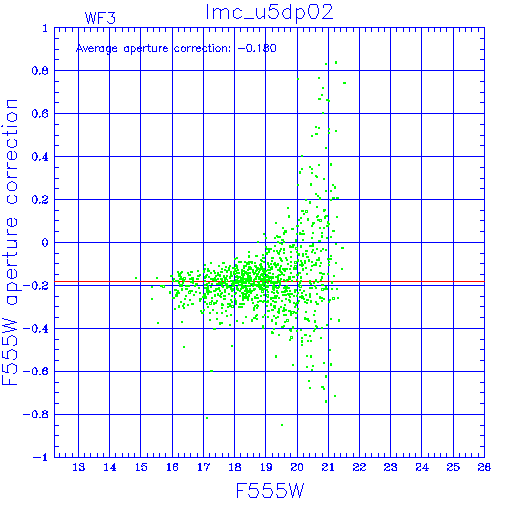

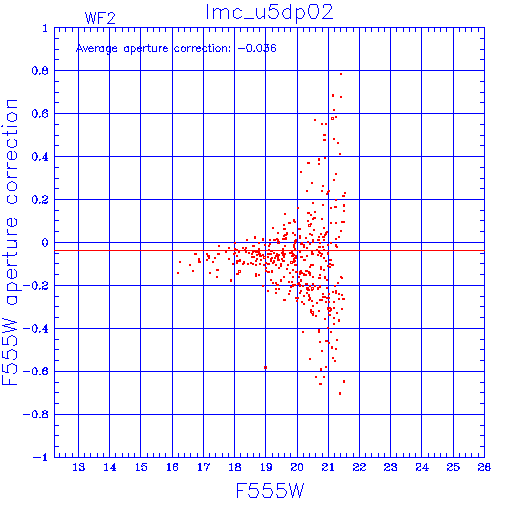

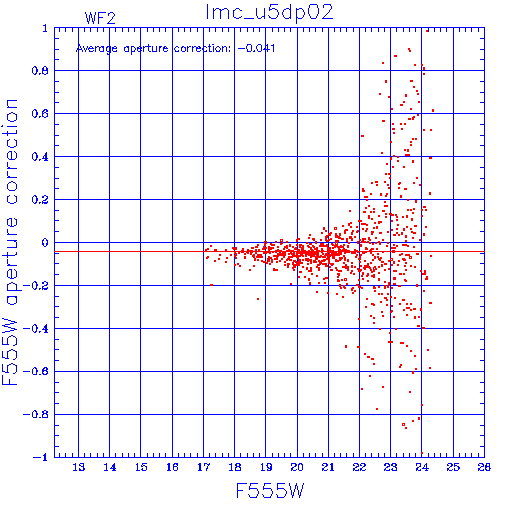

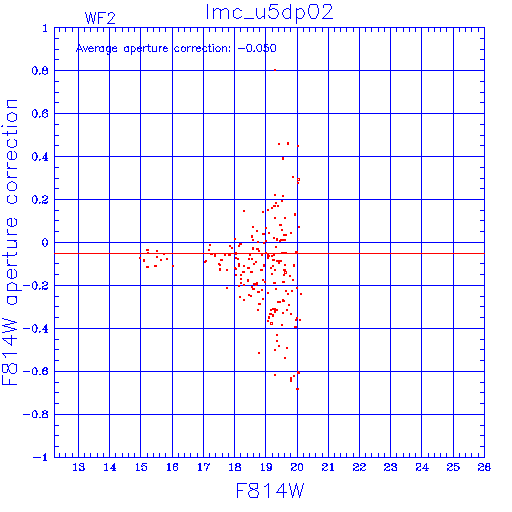

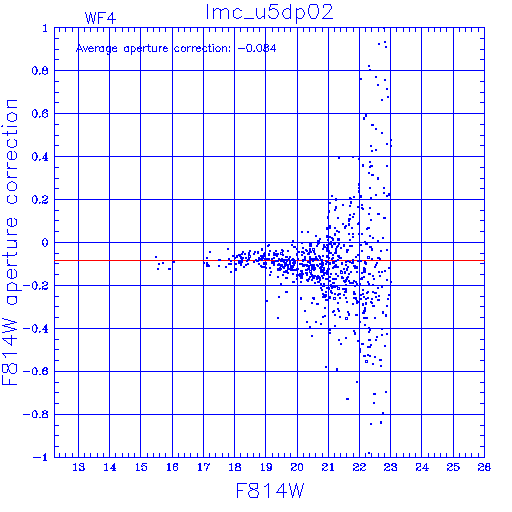

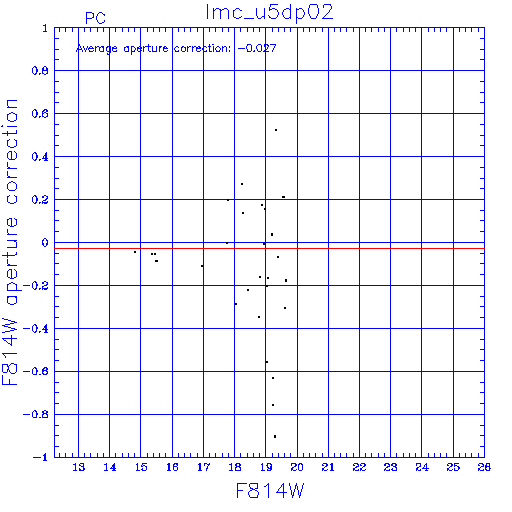

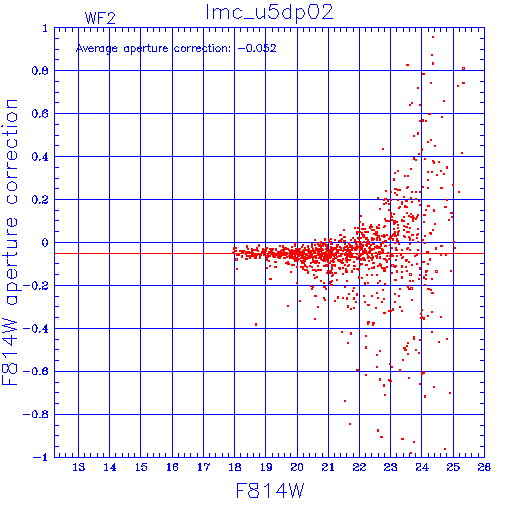

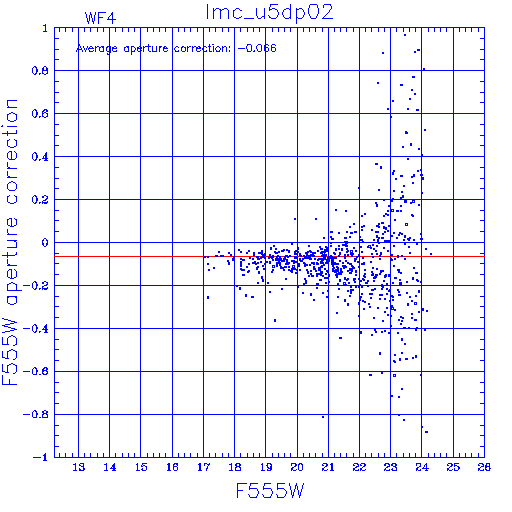

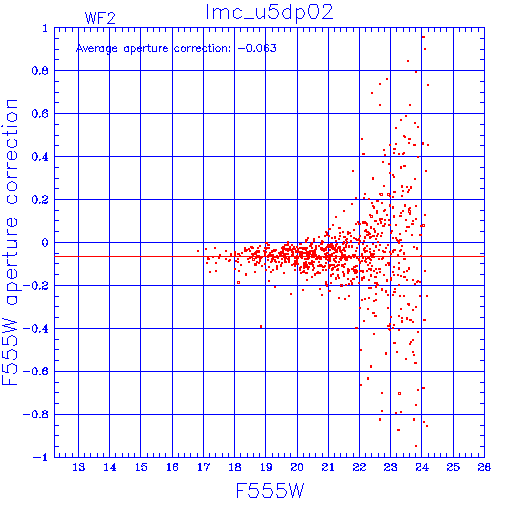

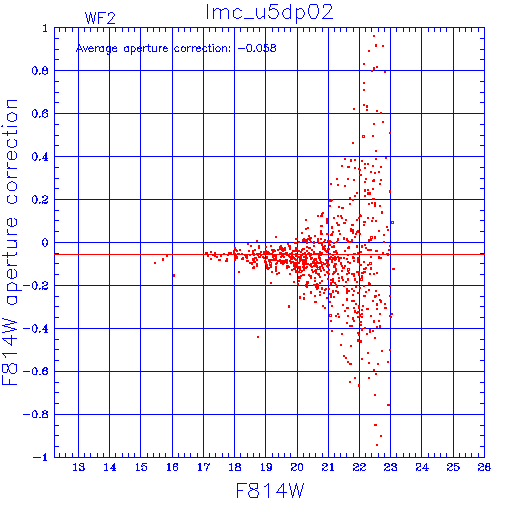

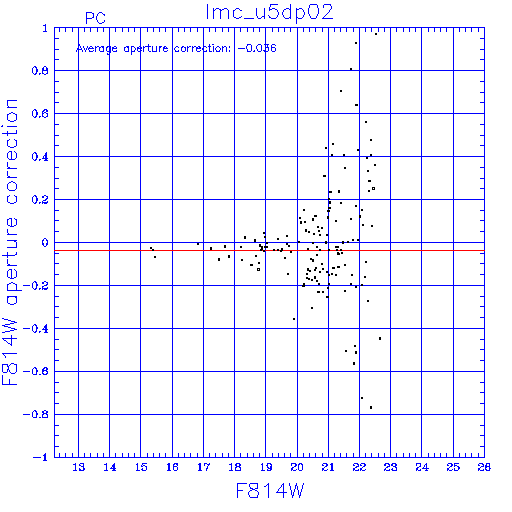

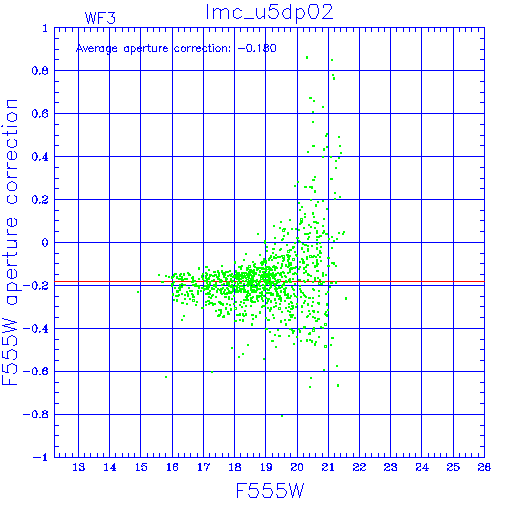

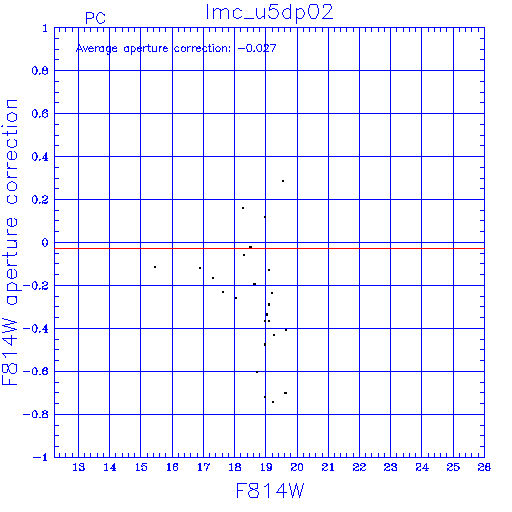

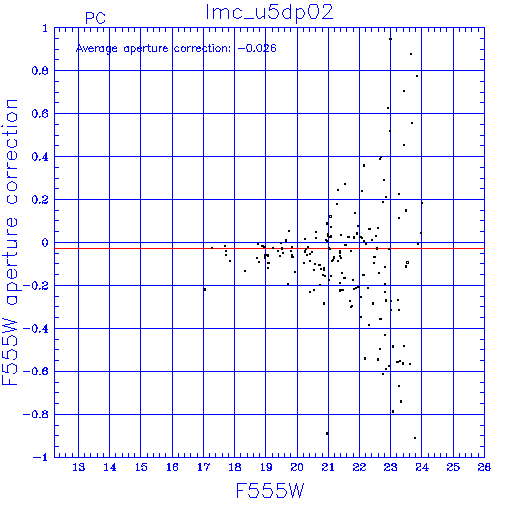

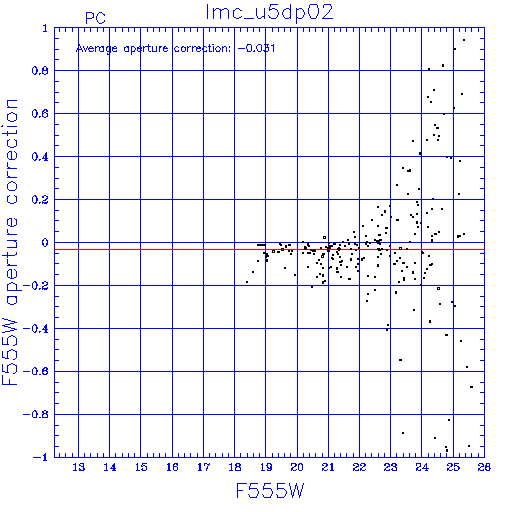

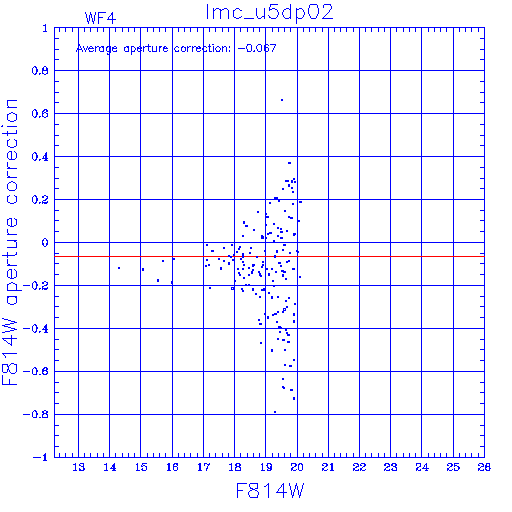

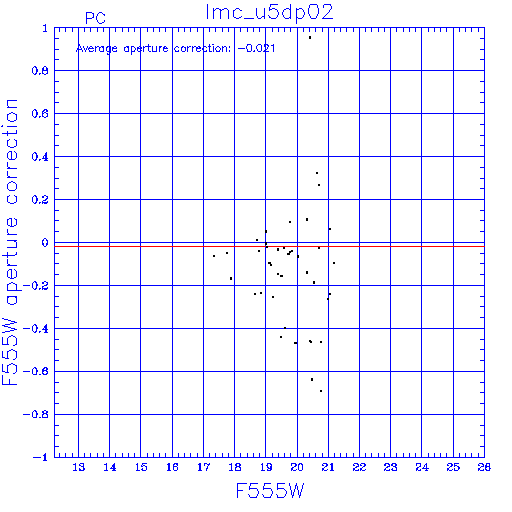

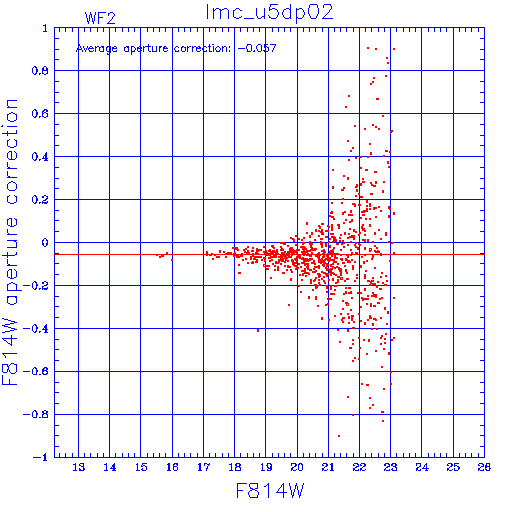

Aperture corrections

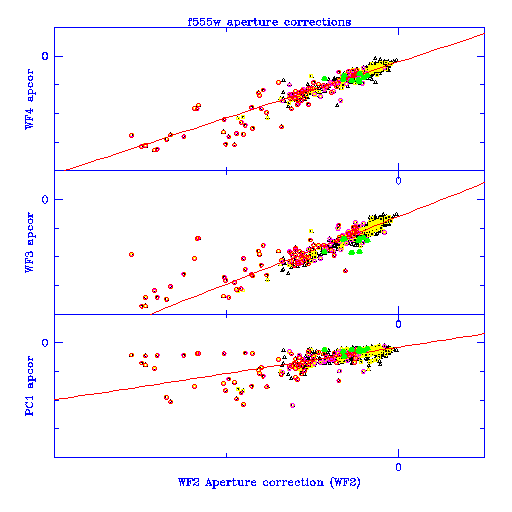

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
