Photometry Diagnostics for lmc_u5dd01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u5dd0106r	F555W	400.00	0.00	0.00	0.00	0.00	0.00	0.00
u5dd0107r	F555W	400.00	-10.99	-5.74	-10.98	-5.49	-0.01	-0.25
u5dd0108r	F555W	400.00	-16.48	-16.70	-16.47	-16.48	-0.01	-0.22
u5dd0109r	F555W	400.00	-5.41	-11.03	-5.49	-10.99	0.08	-0.04
u5dd0101r	F814W	400.00	0.03	-0.02	0.00	0.00	0.03	-0.02
u5dd0102r	F814W	400.00	-10.92	-5.75	-10.98	-5.49	0.06	-0.26
u5dd0103r	F814W	400.00	-16.37	-16.79	-16.47	-16.48	0.10	-0.31
u5dd0104r	F814W	400.00	-5.33	-11.16	-5.49	-10.99	0.16	-0.17
u5dd0105r	F336W	400.00	-0.65	-0.94	0.00	0.00	-0.65	-0.94
u5dd010ar	F336W	400.00	-0.51	-1.10	0.00	0.00	-0.51	-1.10

Mosaic images

F555W	F814W	F336W

HSTPHOT command log

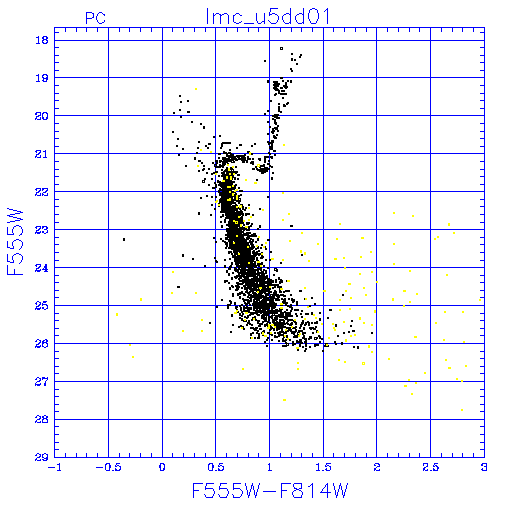

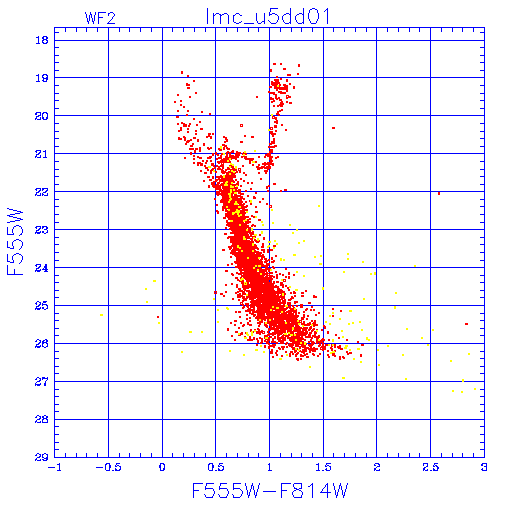

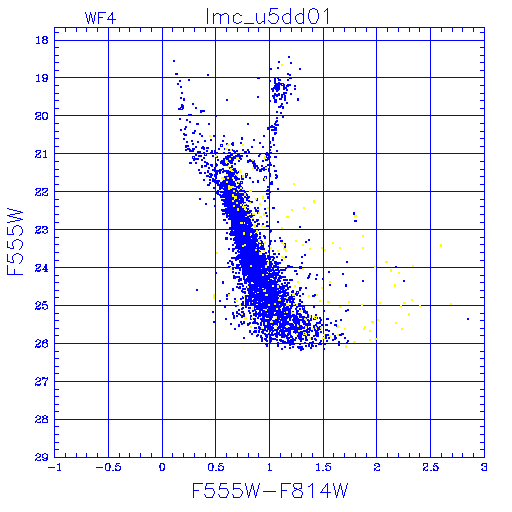

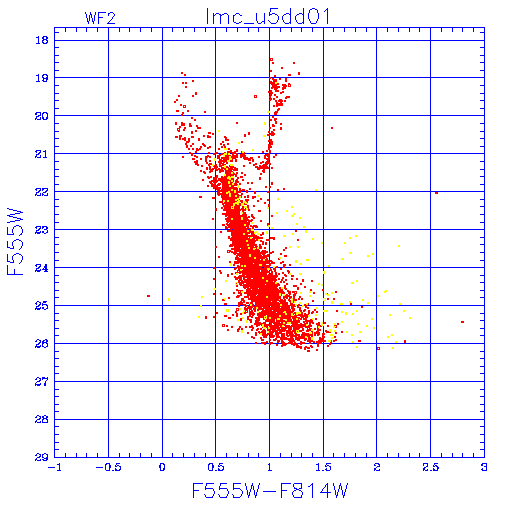

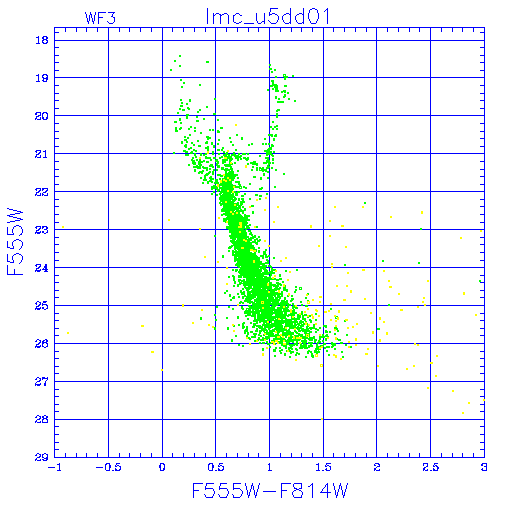

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

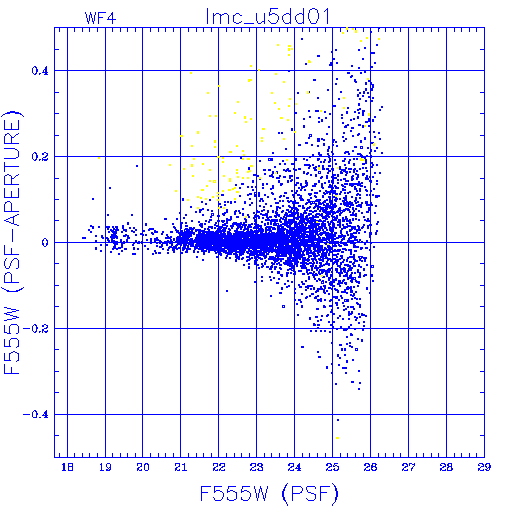

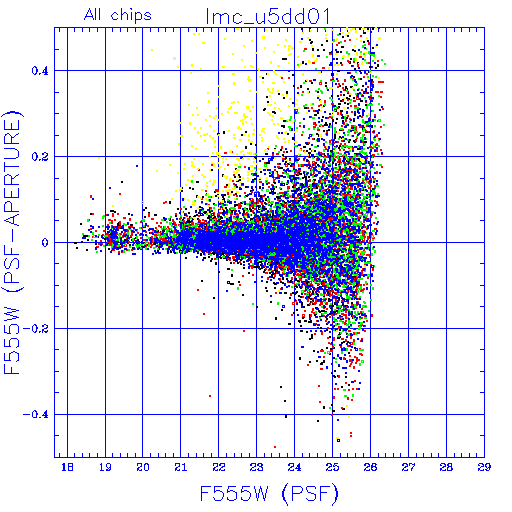

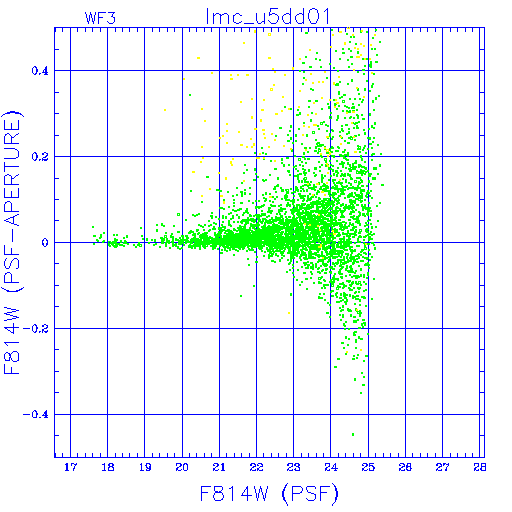

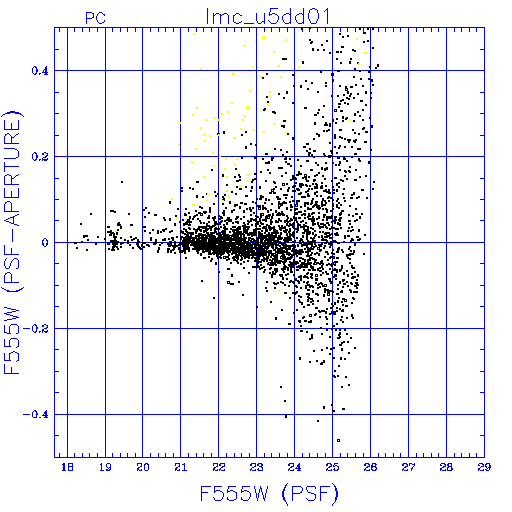

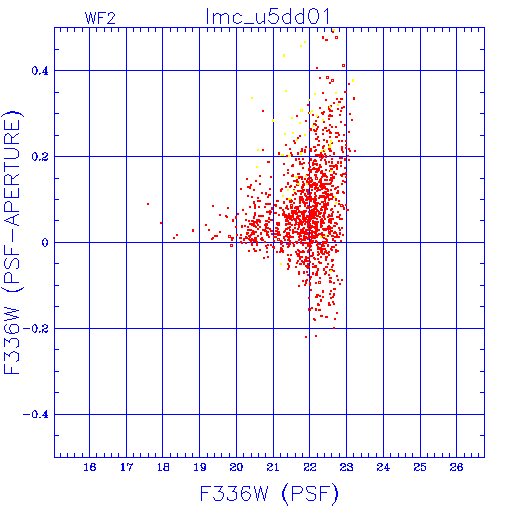

PSF
Aperture

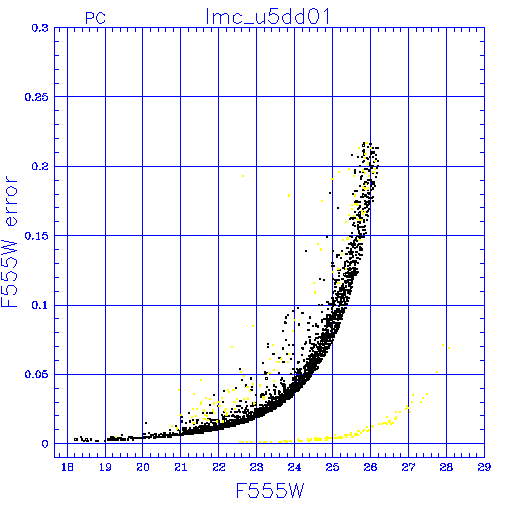

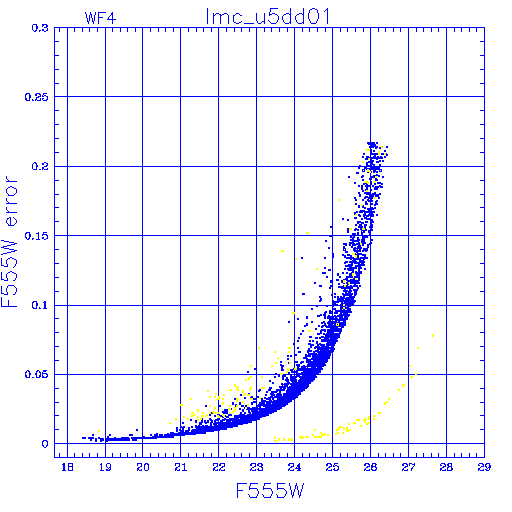

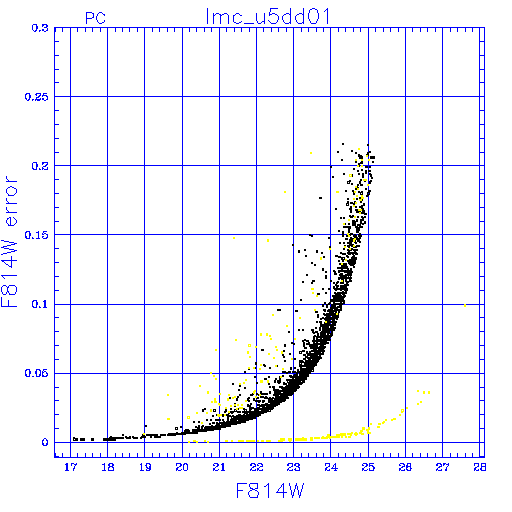

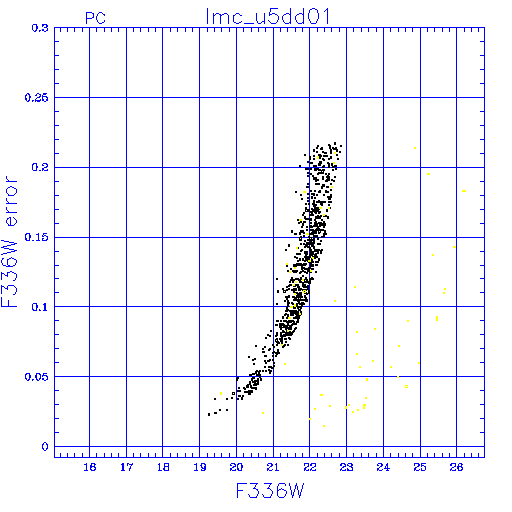

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f336w

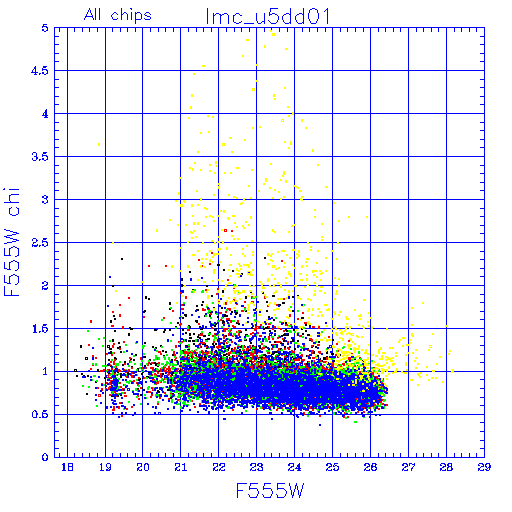

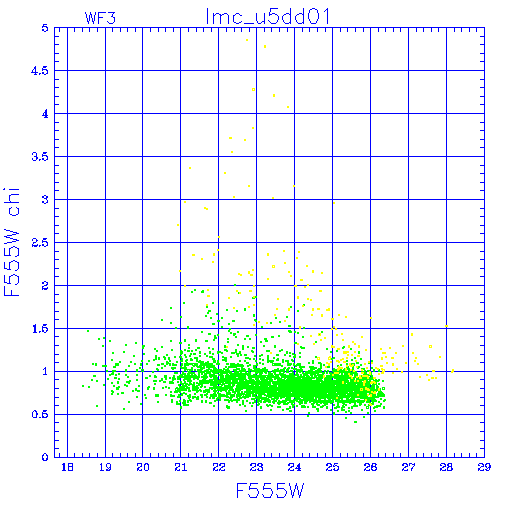

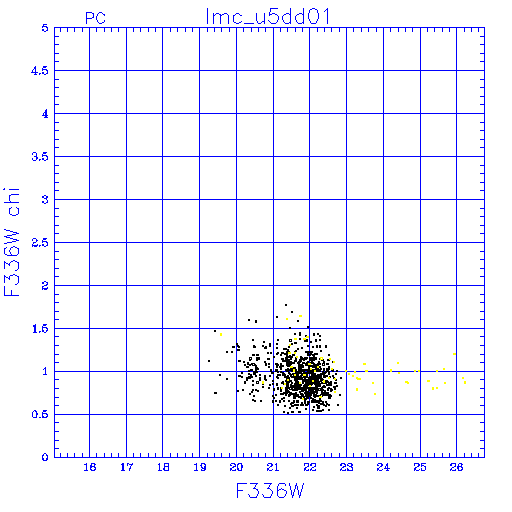

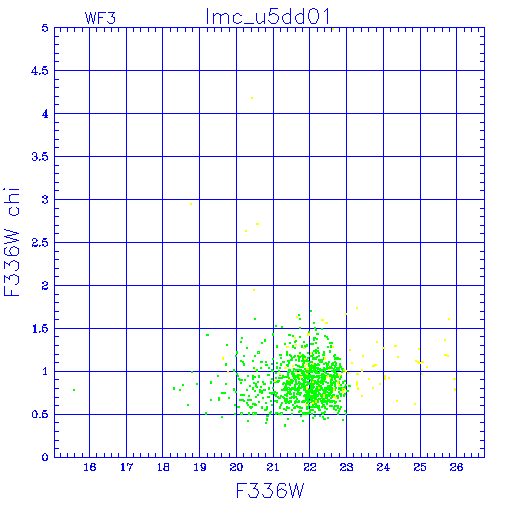

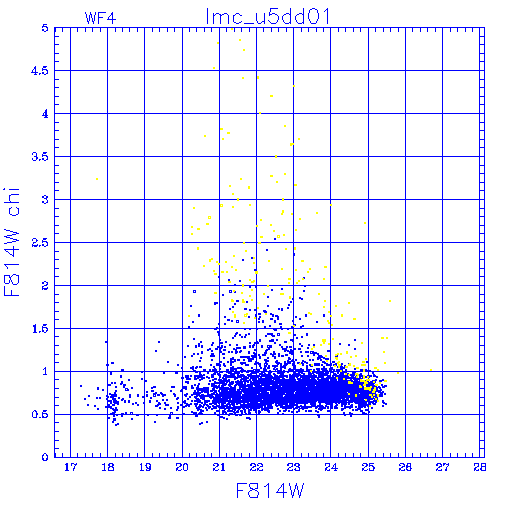

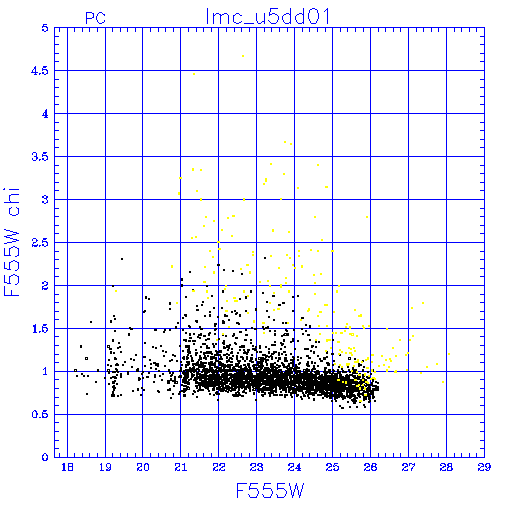

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f336w

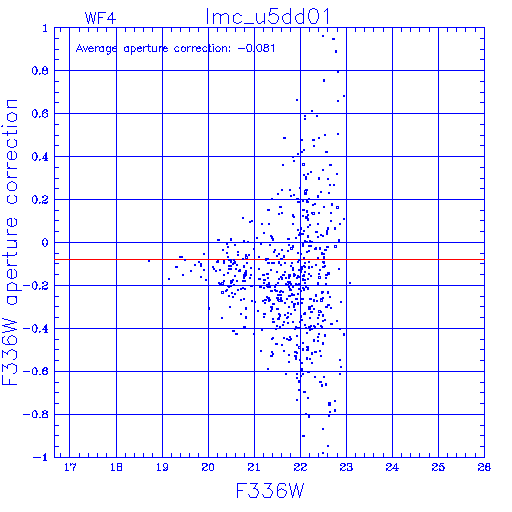

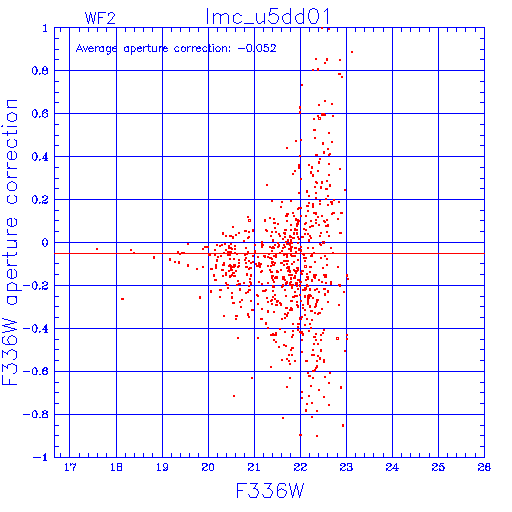

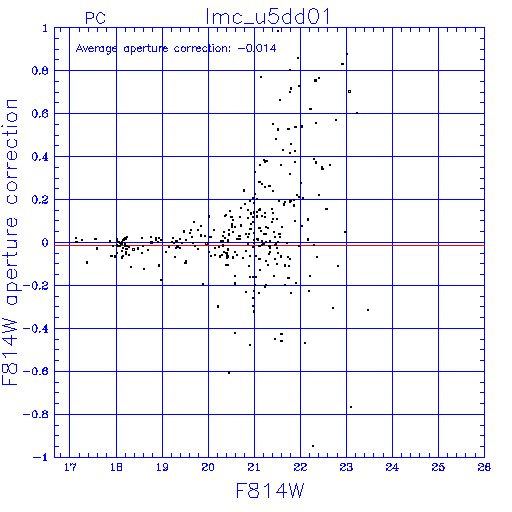

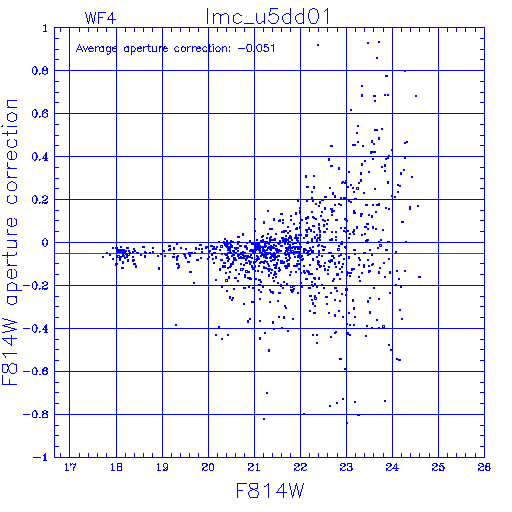

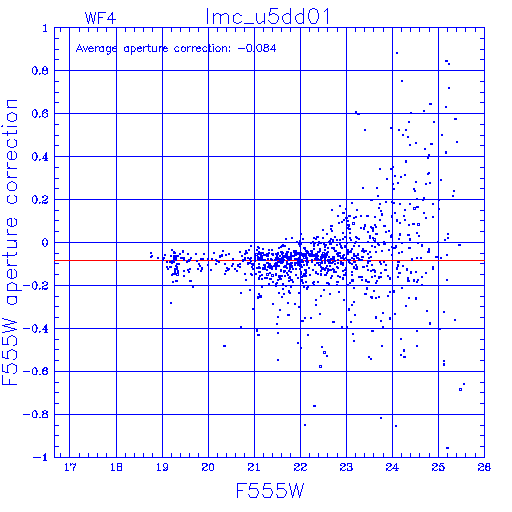

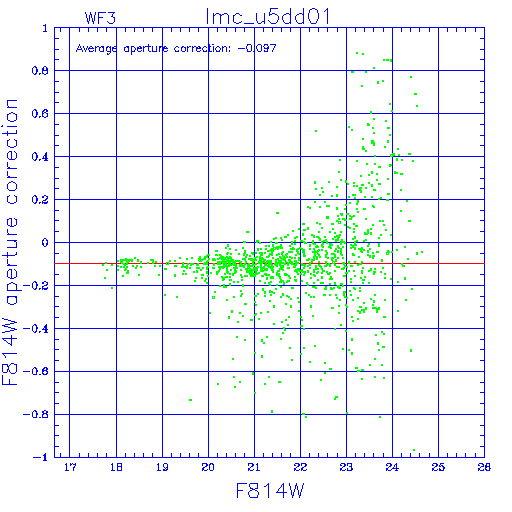

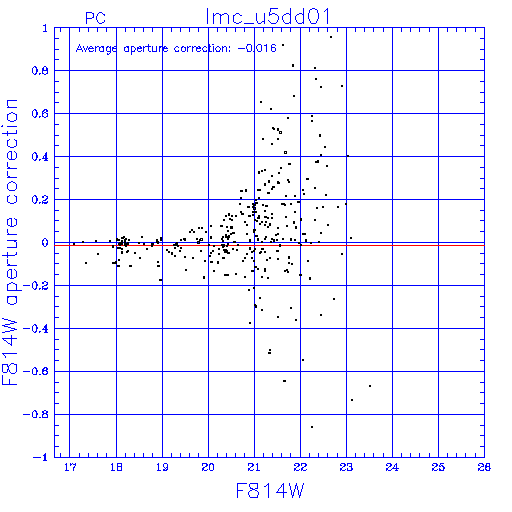

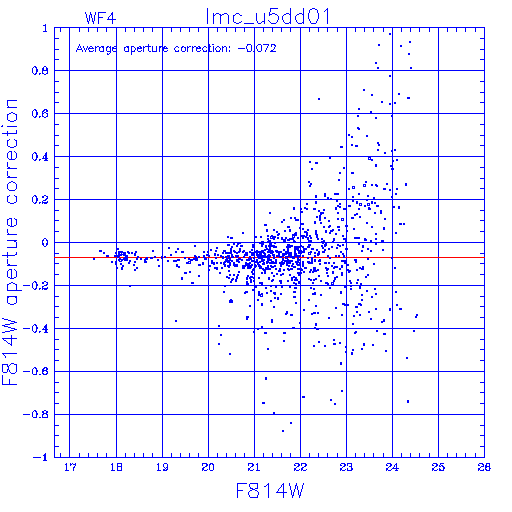

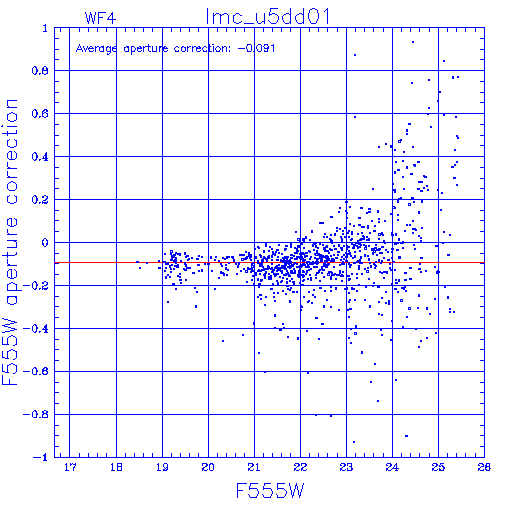

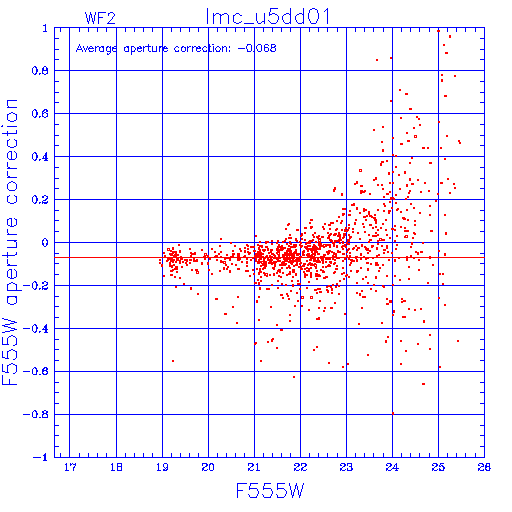

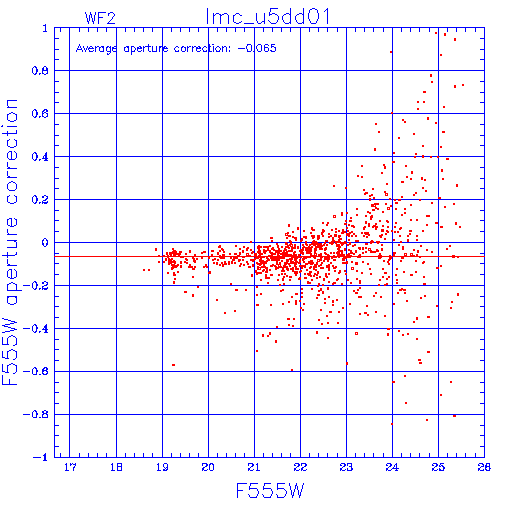

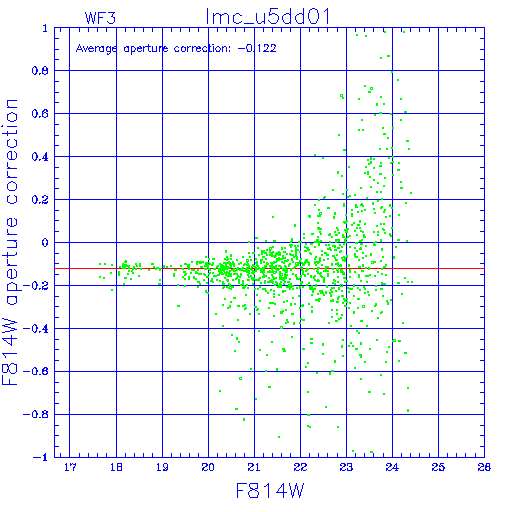

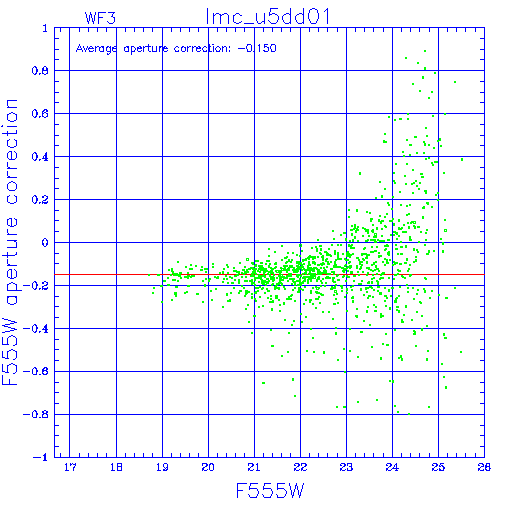

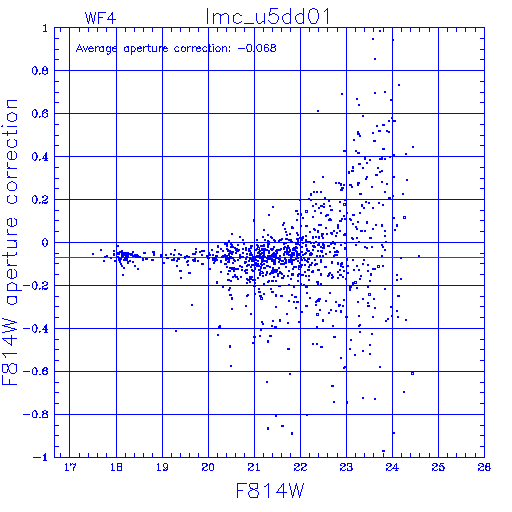

Aperture corrections

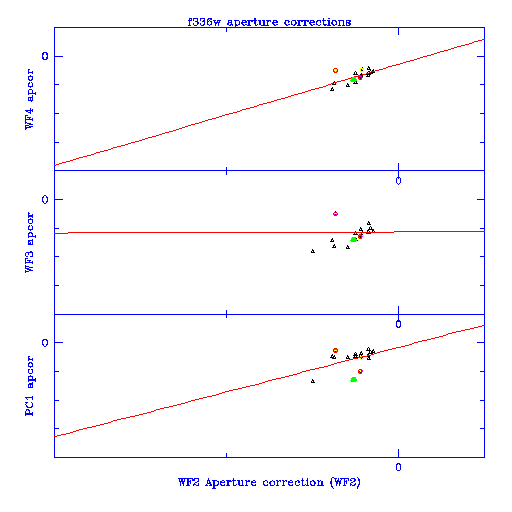

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
