Photometry Diagnostics for lmc_u5ay08

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u5ay0801r	F555W	350.00	0.00	0.00	0.00	0.00	0.00	0.00
u5ay0802r	F555W	350.00	0.01	0.01	0.00	0.00	0.01	0.01
u5ay0803r	F555W	350.00	0.03	0.02	0.00	0.00	0.03	0.02
u5ay0809r	F555W	10.00	5.57	5.45	5.49	5.49	0.08	-0.04
u5ay080ar	F555W	350.00	5.55	5.40	5.49	5.49	0.06	-0.09
u5ay0804r	F814W	350.00	0.08	-0.06	0.00	0.00	0.08	-0.06
u5ay0805r	F814W	350.00	0.07	-0.03	0.00	0.00	0.07	-0.03
u5ay0806r	F814W	350.00	0.06	-0.07	0.00	0.00	0.06	-0.07
u5ay0807r	F814W	10.00	5.60	5.66	5.49	5.49	0.11	0.17
u5ay0808r	F814W	350.00	5.56	5.65	5.49	5.49	0.07	0.16

Mosaic images

F555W	F814W

HSTPHOT command log

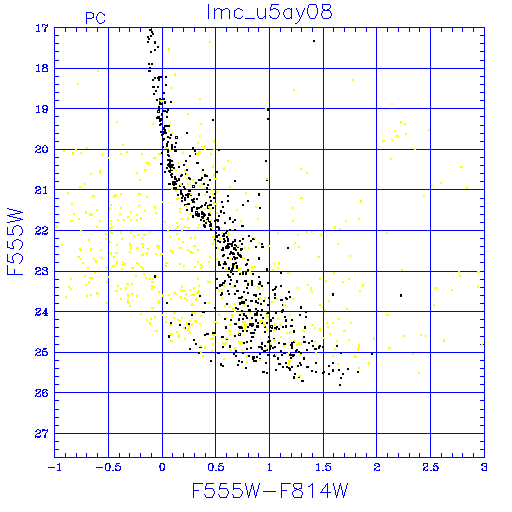

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

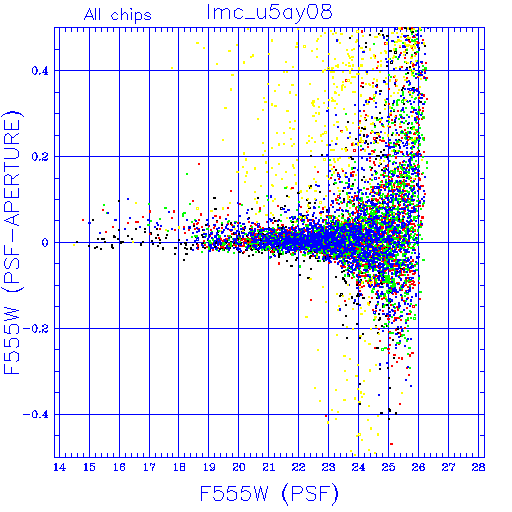

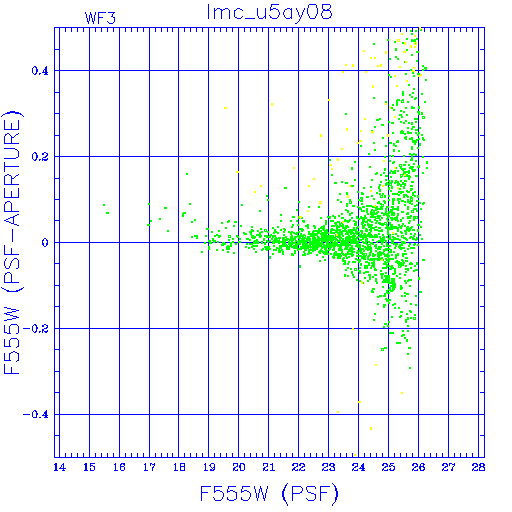

PSF
Aperture

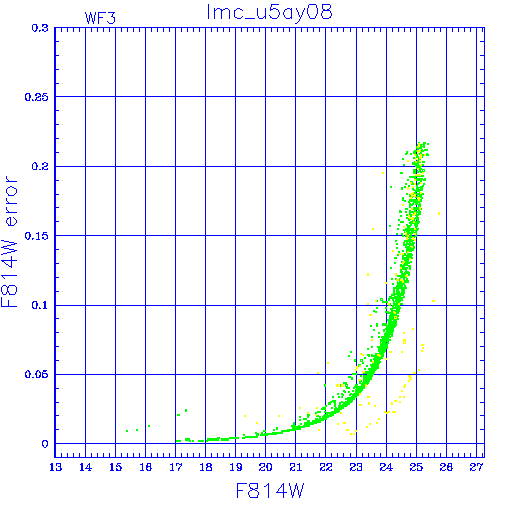

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

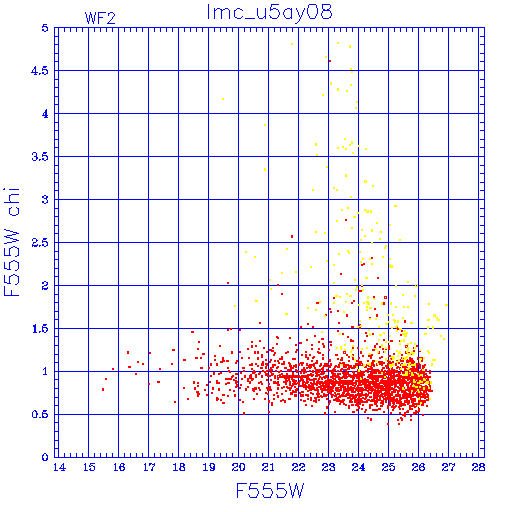

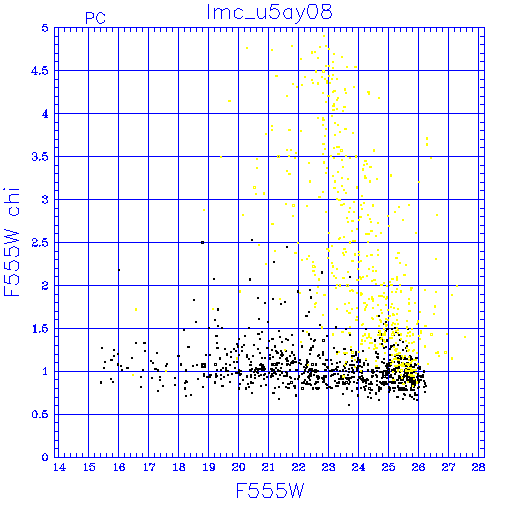

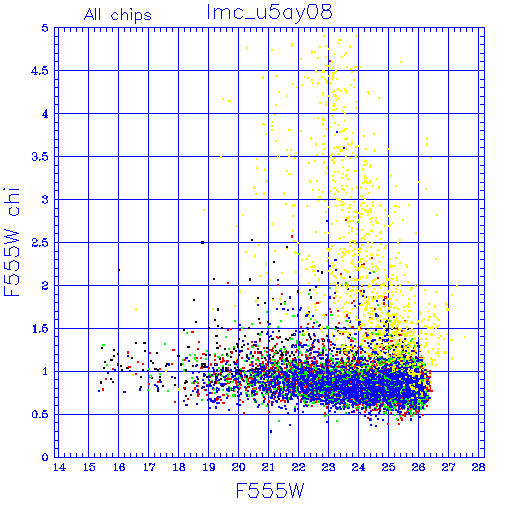

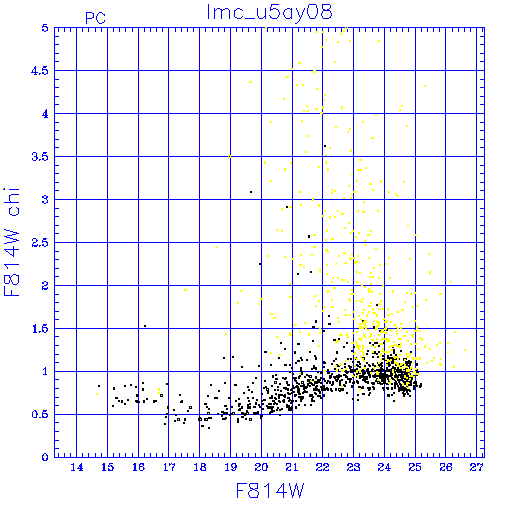

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

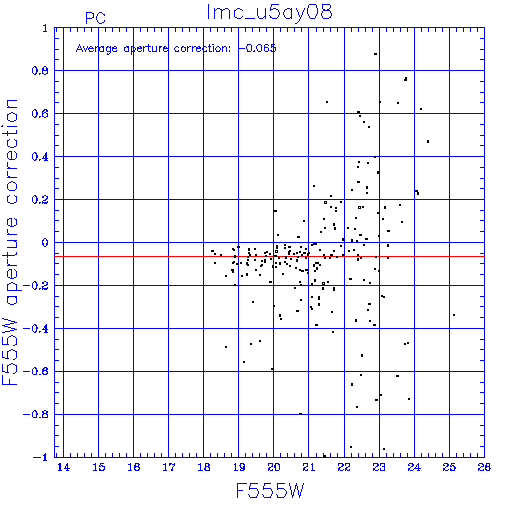

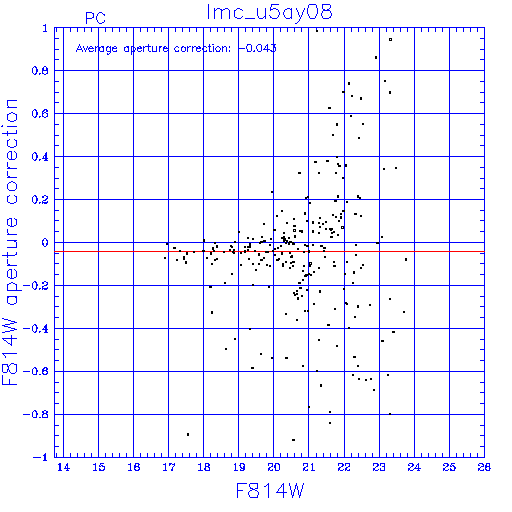

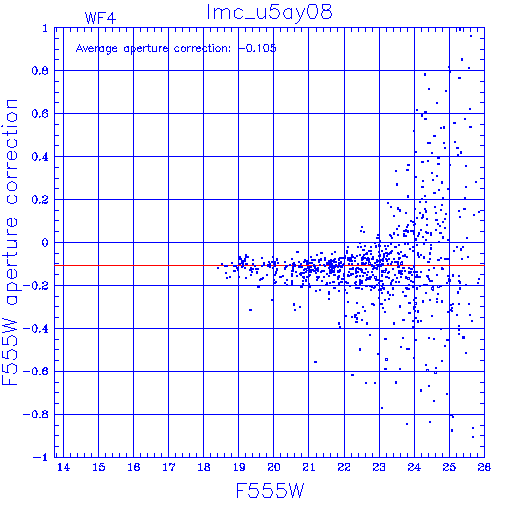

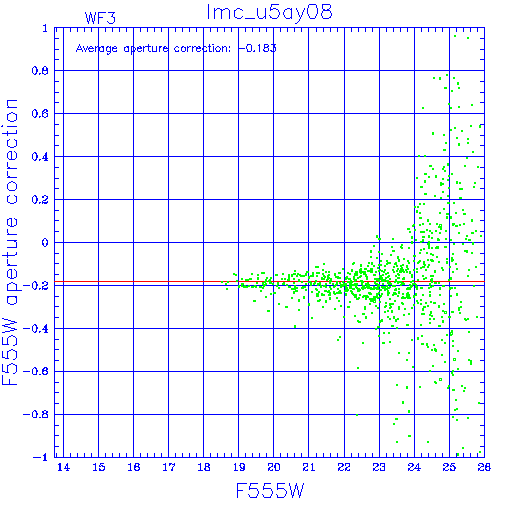

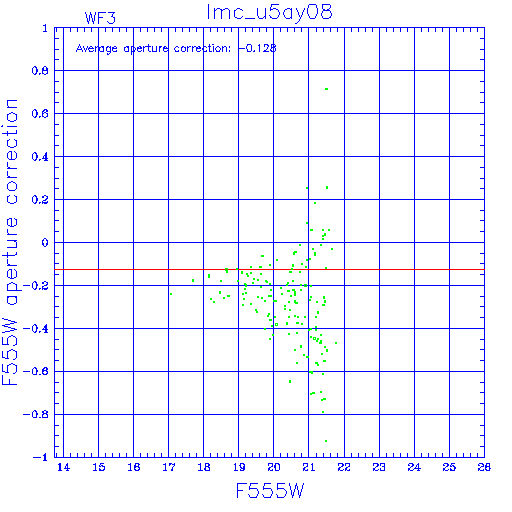

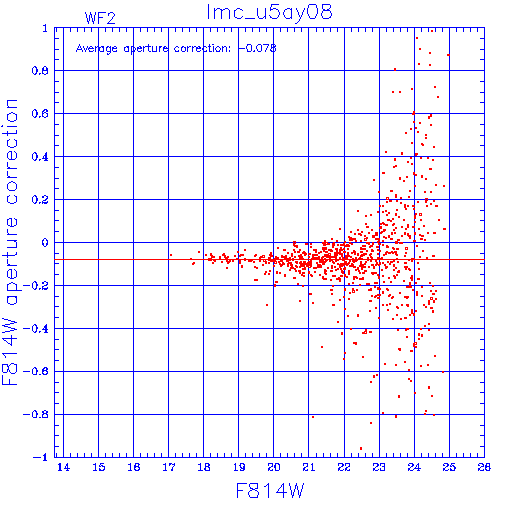

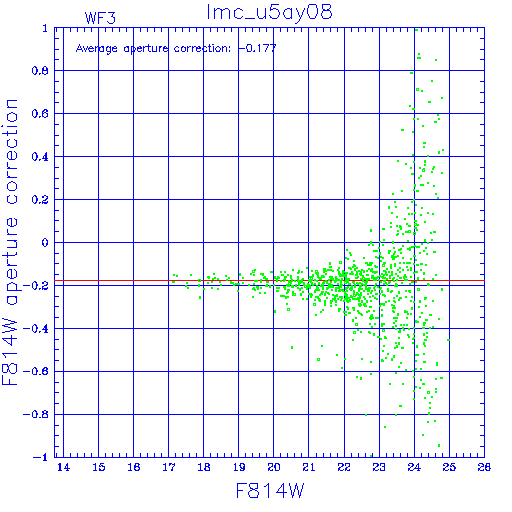

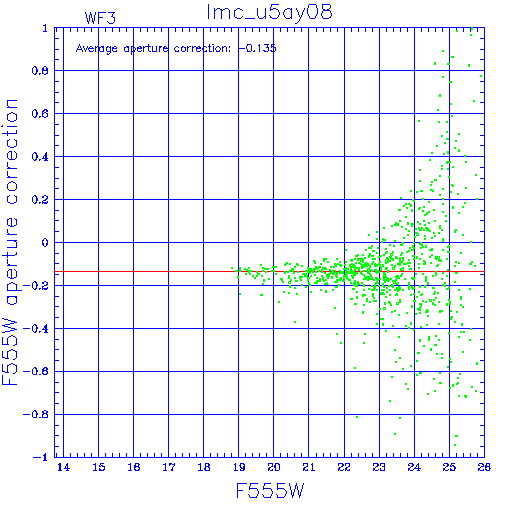

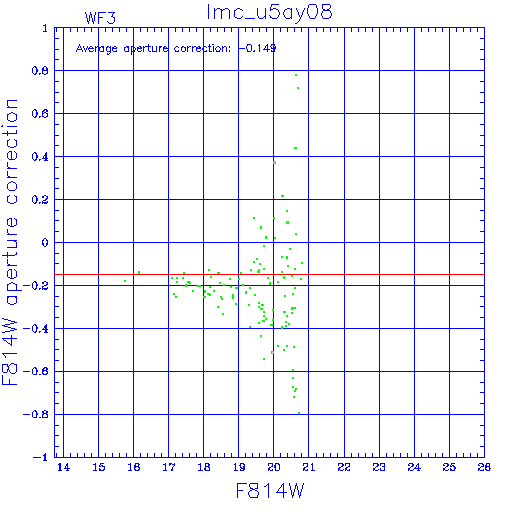

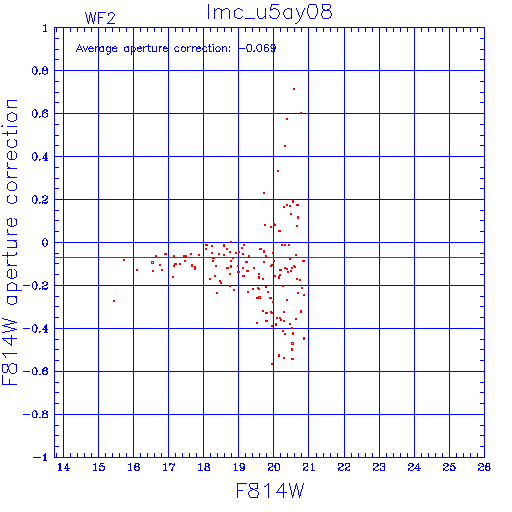

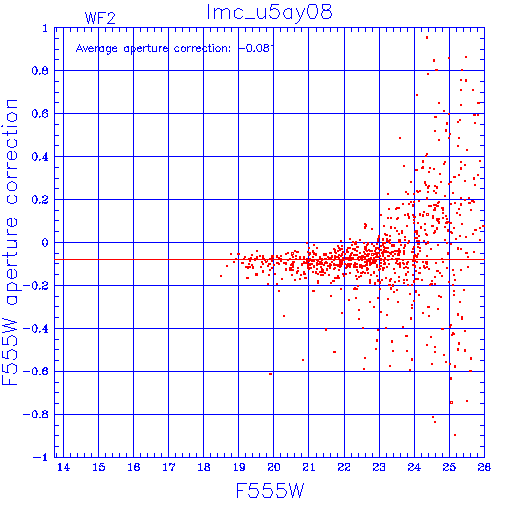

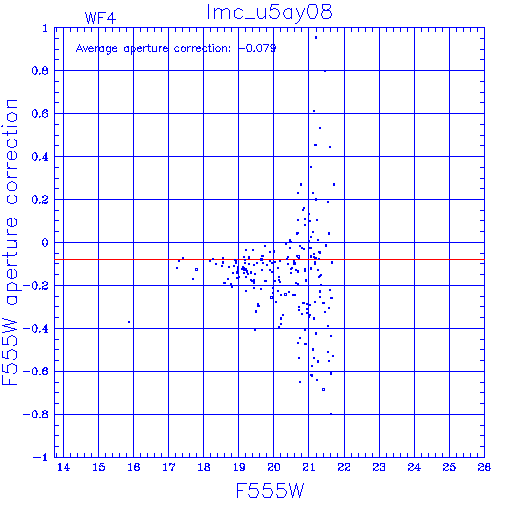

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
