Photometry Diagnostics for lmc_u5ay06

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u5ay0601r	F555W	350.00	0.00	0.00	0.00	0.00	0.00	0.00
u5ay0602r	F555W	350.00	-0.01	0.00	0.00	0.00	-0.01	0.00
u5ay0603r	F555W	350.00	-0.03	0.01	0.00	0.00	-0.03	0.01
u5ay0609r	F555W	10.00	5.45	5.40	5.49	5.49	-0.04	-0.09
u5ay060ar	F555W	350.00	5.42	5.41	5.49	5.49	-0.07	-0.08
u5ay0604r	F814W	350.00	-0.02	-0.13	0.00	0.00	-0.02	-0.13
u5ay0605r	F814W	350.00	-0.06	-0.12	0.00	0.00	-0.06	-0.12
u5ay0606r	F814W	350.00	-0.09	-0.08	0.00	0.00	-0.09	-0.08
u5ay0607r	F814W	10.00	5.41	5.44	5.49	5.49	-0.08	-0.05
u5ay0608r	F814W	350.00	5.41	5.46	5.49	5.49	-0.08	-0.03

Mosaic images

F555W	F814W

HSTPHOT command log

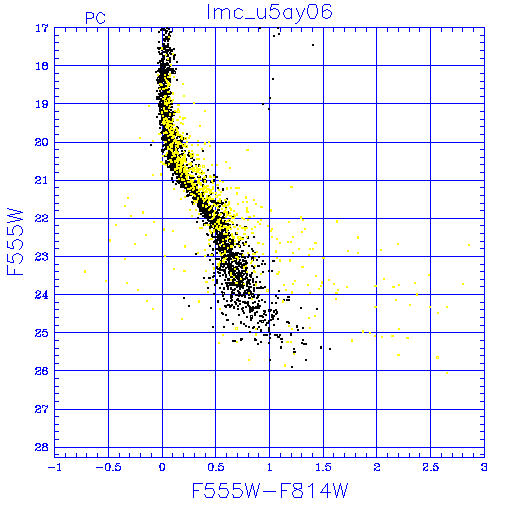

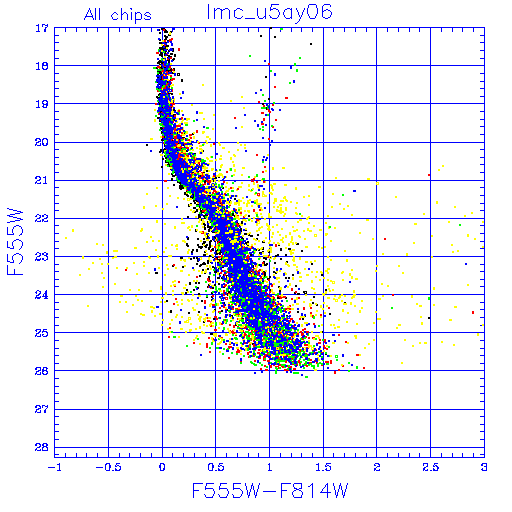

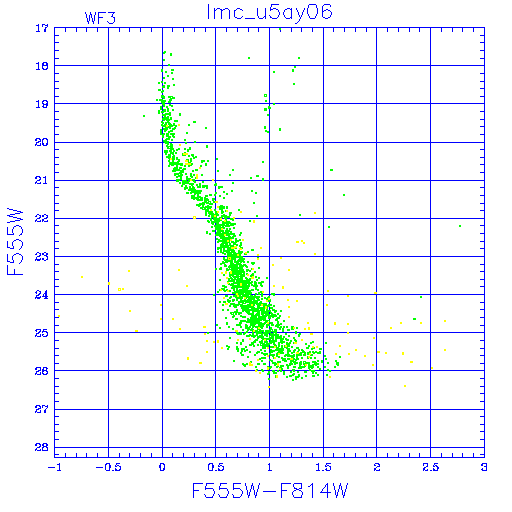

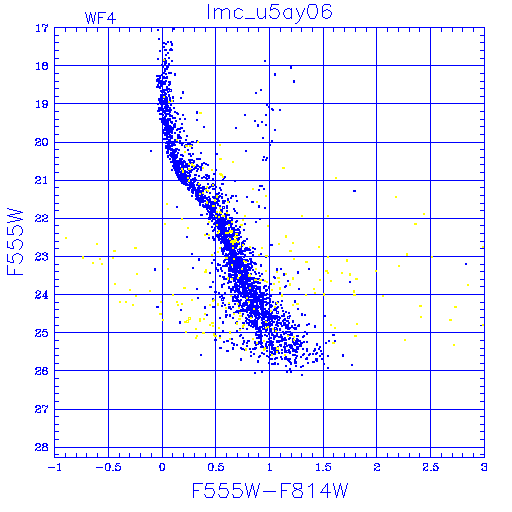

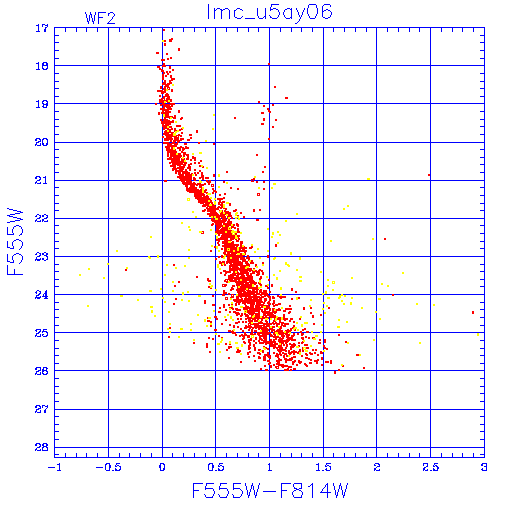

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

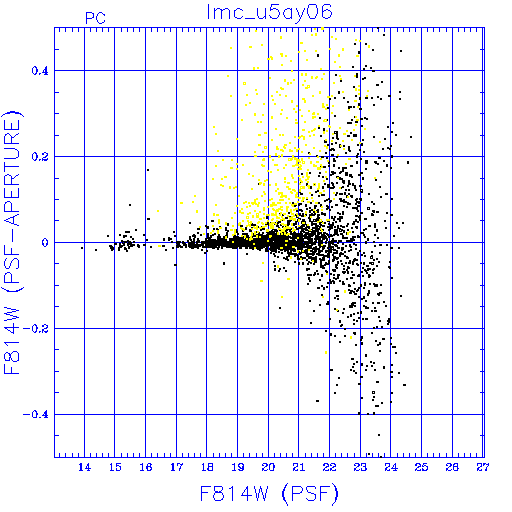

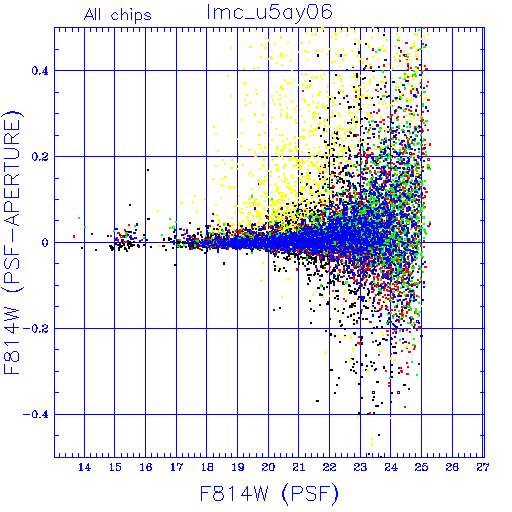

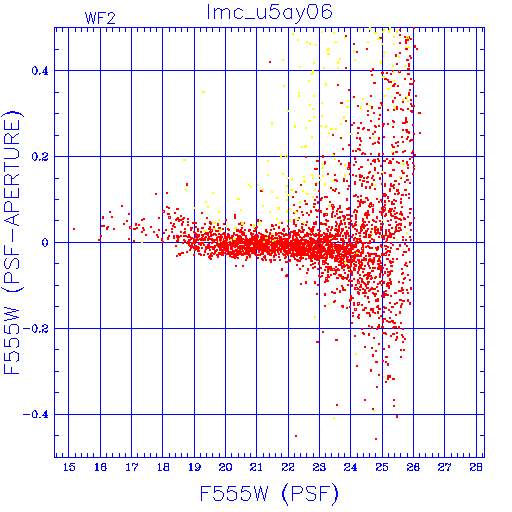

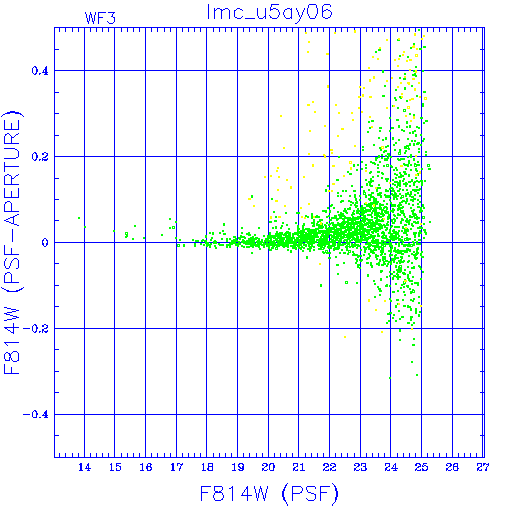

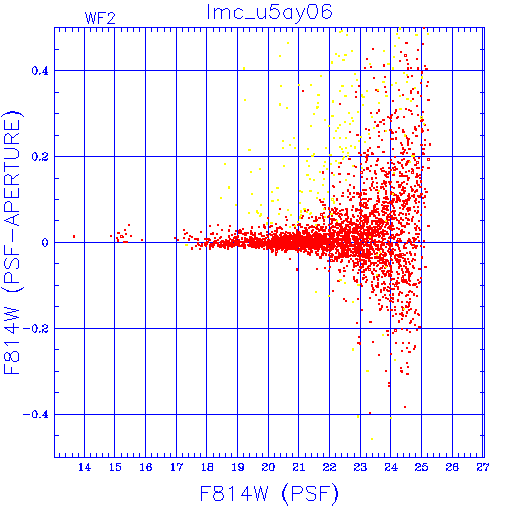

PSF
Aperture

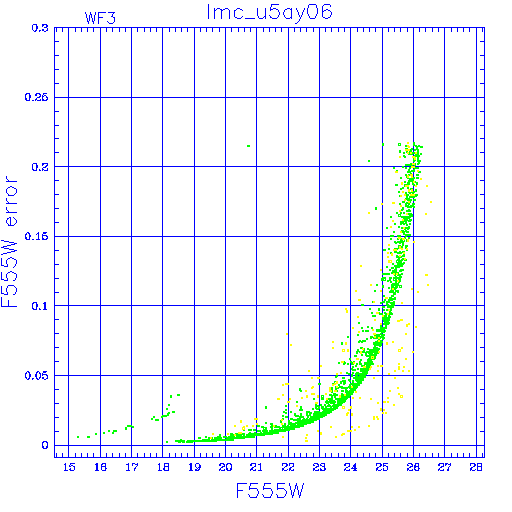

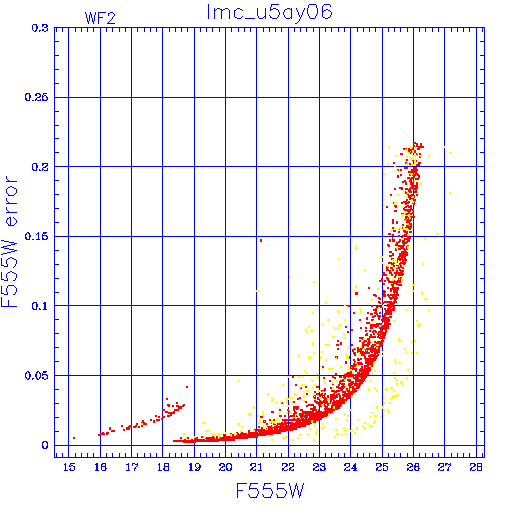

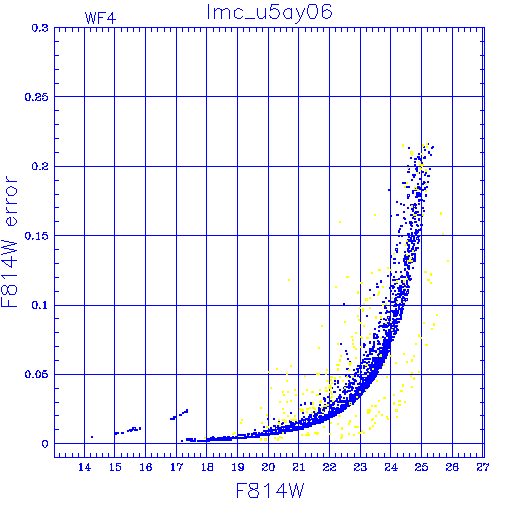

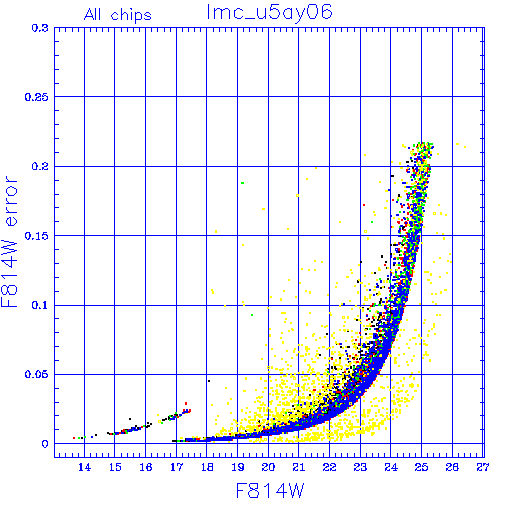

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

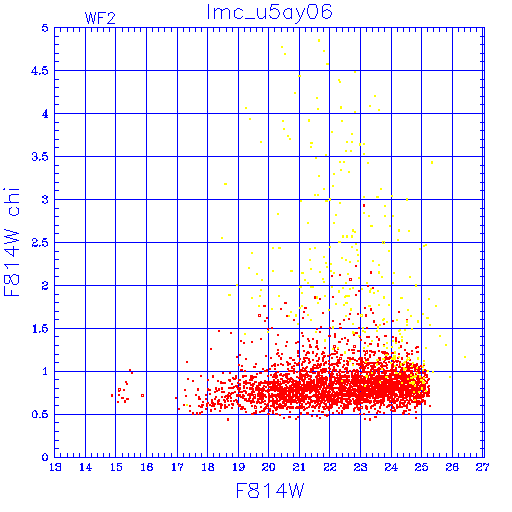

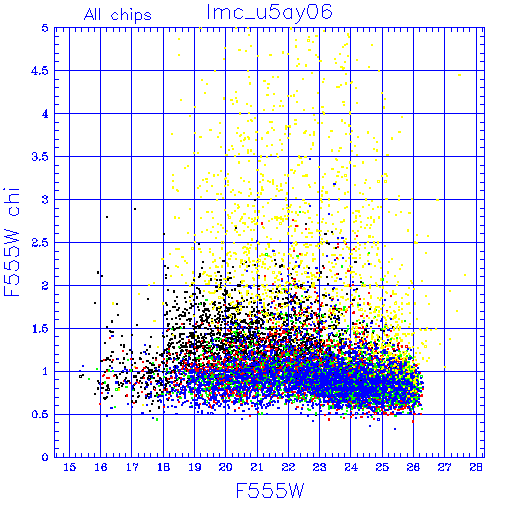

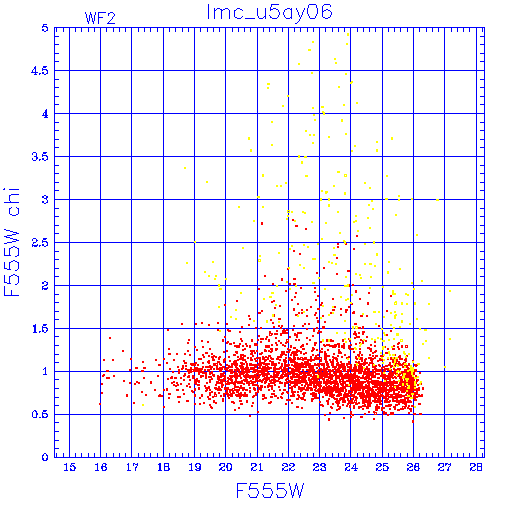

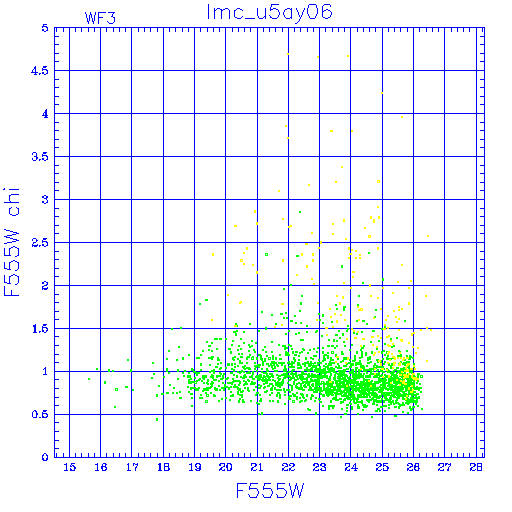

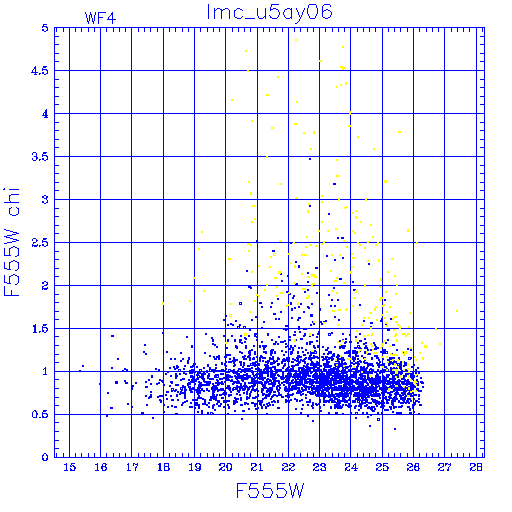

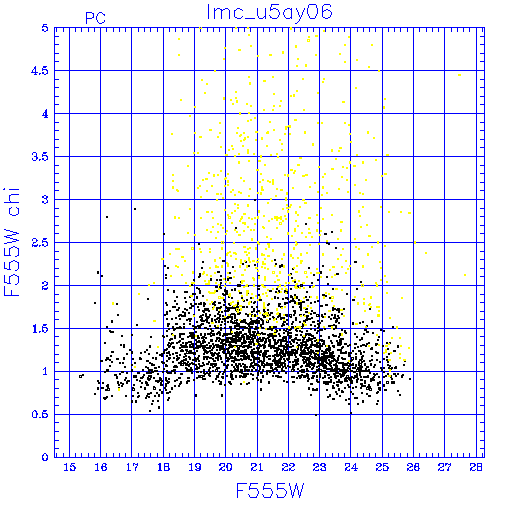

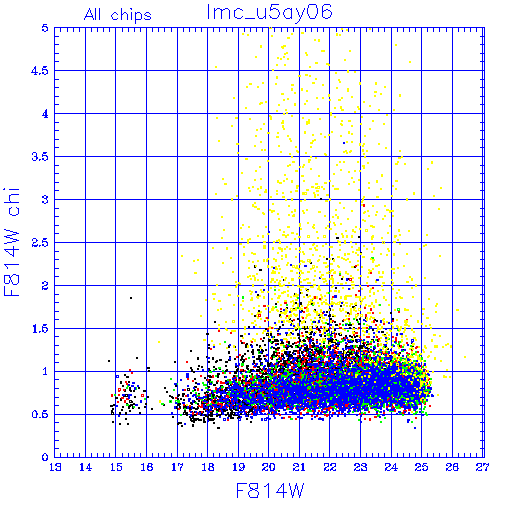

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

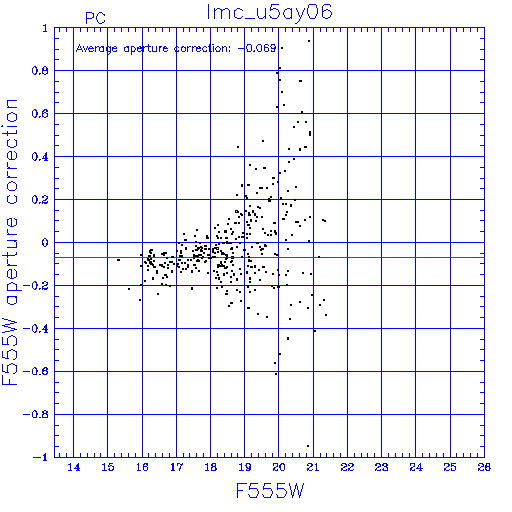

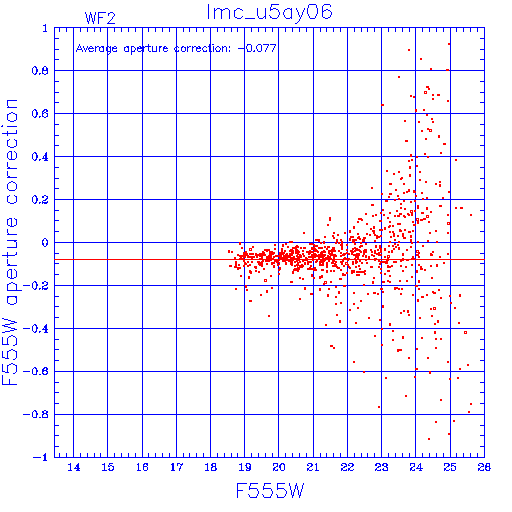

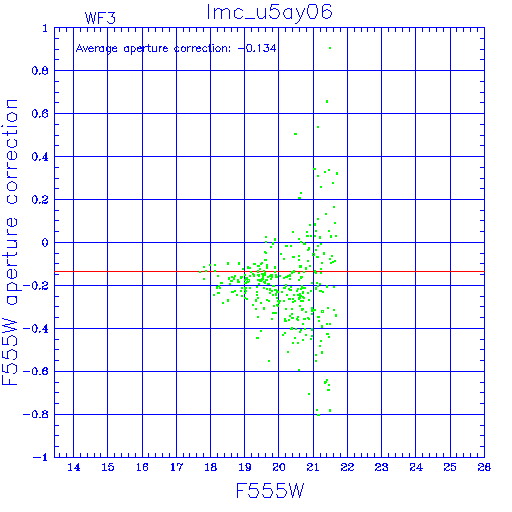

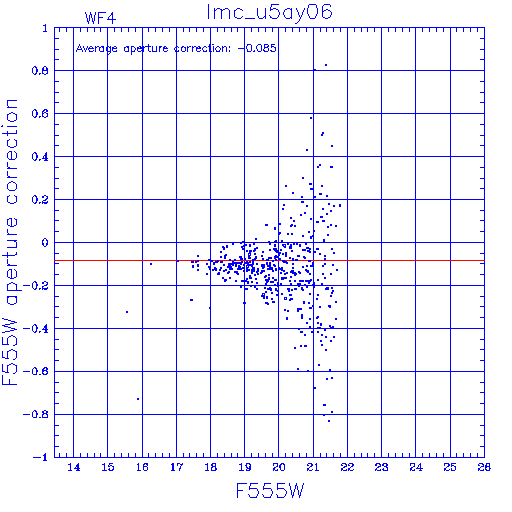

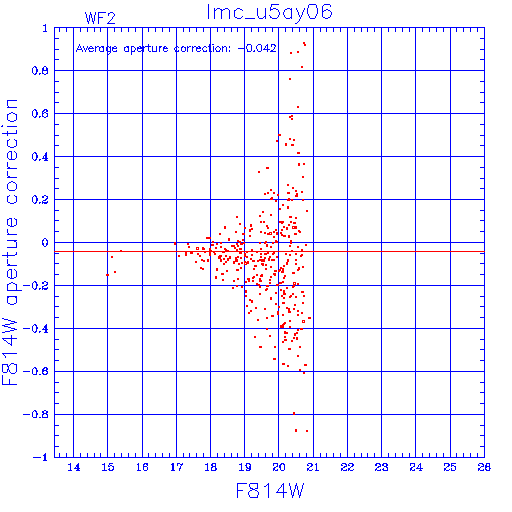

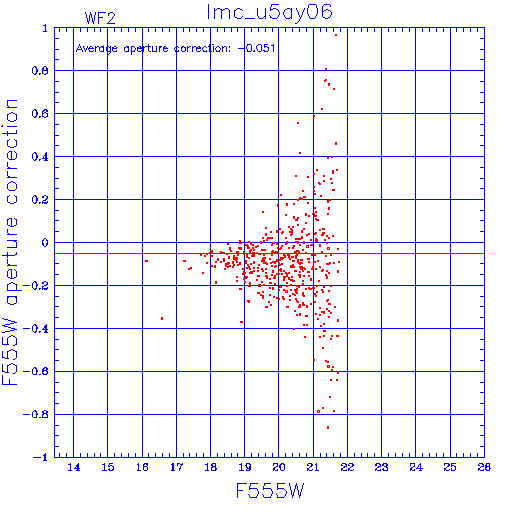

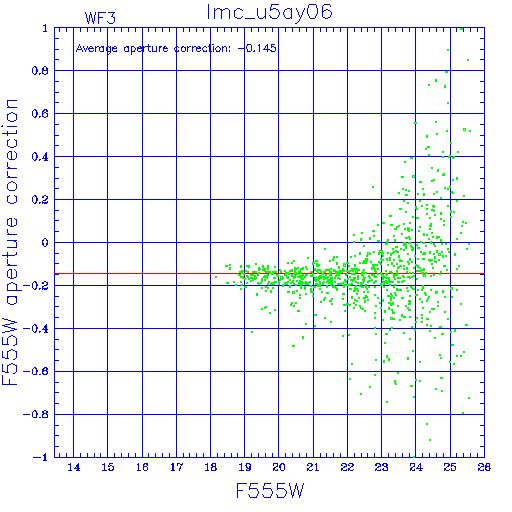

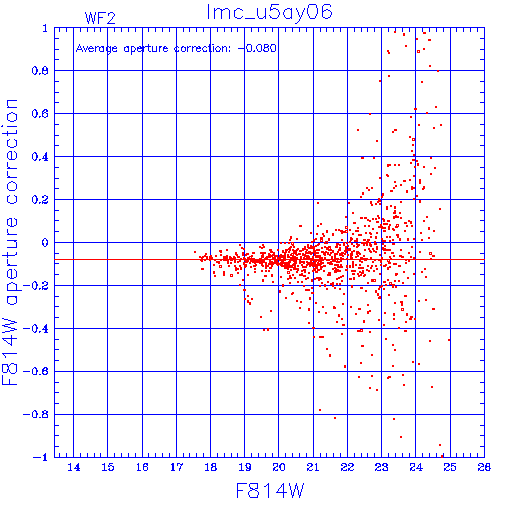

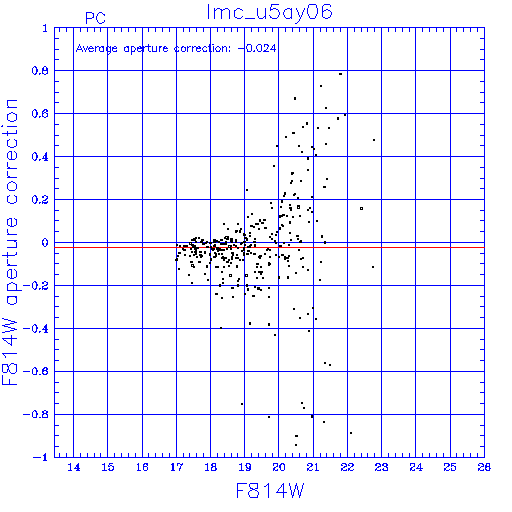

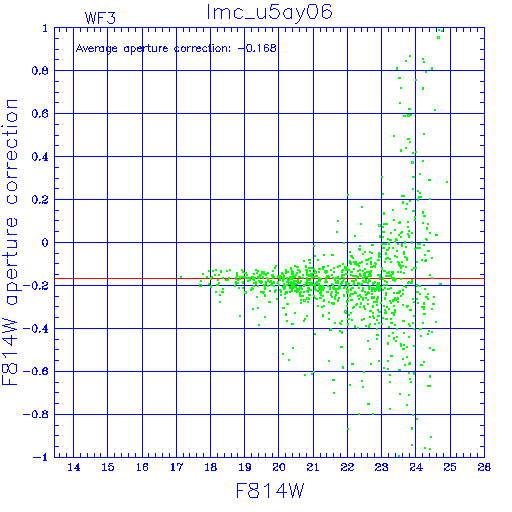

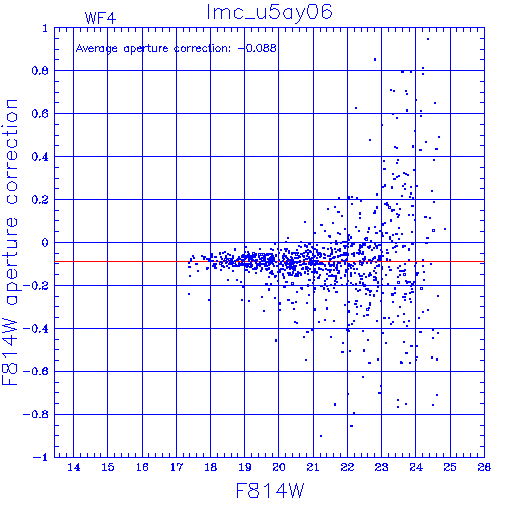

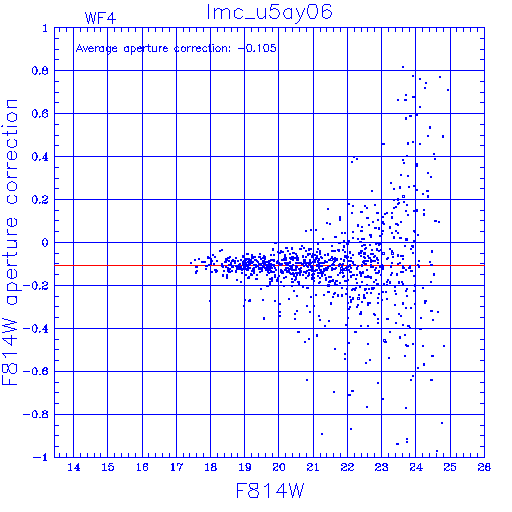

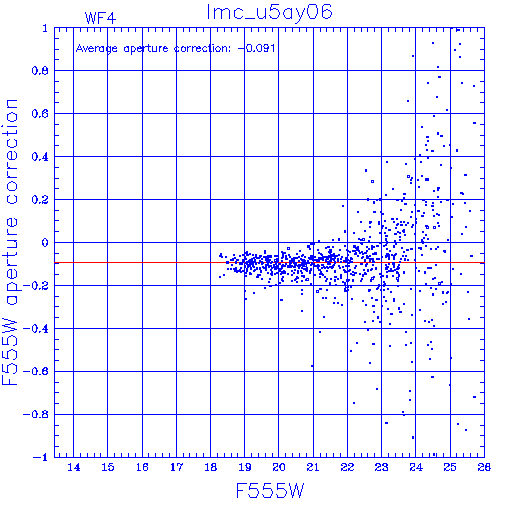

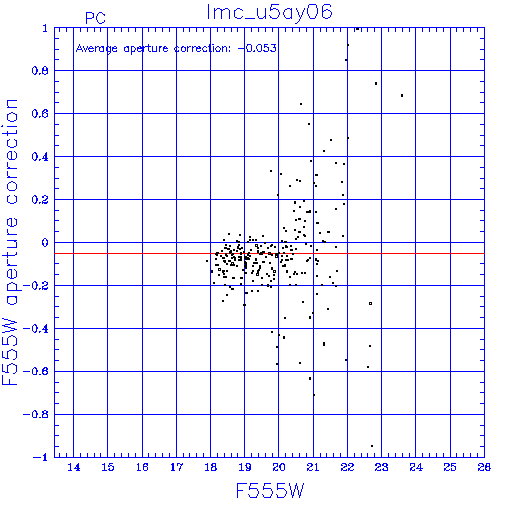

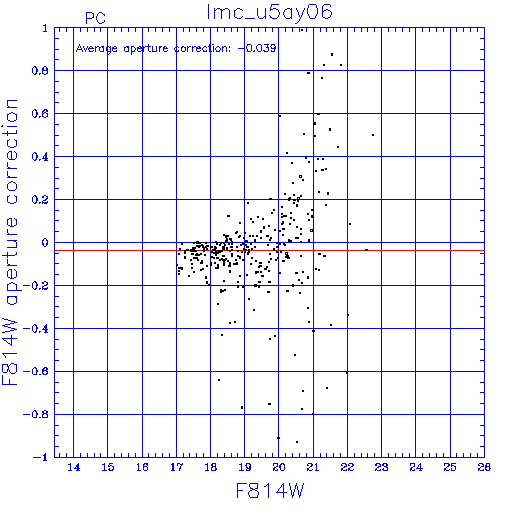

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
