Photometry Diagnostics for lmc_u4zn08

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u4zn080dr	F555W	20.00	0.00	0.00	0.00	0.00	0.00	0.00
u4zn080er	F555W	400.00	-11.06	-5.66	-10.98	-5.49	-0.08	-0.17
u4zn080fr	F555W	400.00	-16.45	-16.56	-16.47	-16.48	0.02	-0.08
u4zn080gr	F555W	400.00	-5.45	-11.06	-5.49	-10.99	0.04	-0.07
u4zn080hr	F555W	400.00	0.05	0.02	0.00	0.00	0.05	0.02
u4zn0809r	F814W	20.00	0.14	0.07	0.00	0.00	0.14	0.07
u4zn080ar	F814W	500.00	-5.71	-5.72	-5.49	-5.49	-0.22	-0.23
u4zn080br	F814W	500.00	0.21	0.01	0.00	0.00	0.21	0.01
u4zn080cr	F814W	20.00	0.20	0.04	0.00	0.00	0.20	0.04
u4zn0801r	F439W	20.00	-0.26	-0.19	0.00	0.00	-0.26	-0.19
u4zn0802r	F439W	400.00	-11.26	-5.95	-10.98	-5.49	-0.28	-0.46
u4zn0803r	F439W	400.00	-16.86	-16.97	-16.47	-16.48	-0.39	-0.49
u4zn0804r	F439W	400.00	-5.89	-11.24	-5.49	-10.99	-0.40	-0.25
u4zn0805r	F439W	400.00	-0.16	-0.23	0.00	0.00	-0.16	-0.23
u4zn0806r	F675W	20.00	-0.33	1.08	0.00	0.00	-0.33	1.08
u4zn0807r	F675W	20.00	-0.41	1.06	0.00	0.00	-0.41	1.06
u4zn0808r	F675W	400.00	-6.35	-4.47	-5.49	-5.49	-0.86	1.02

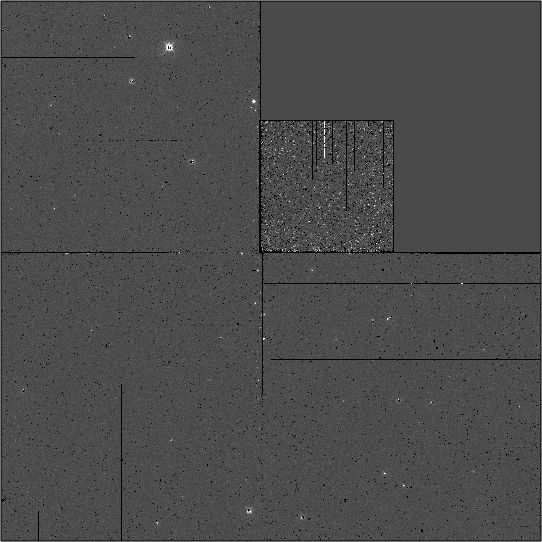

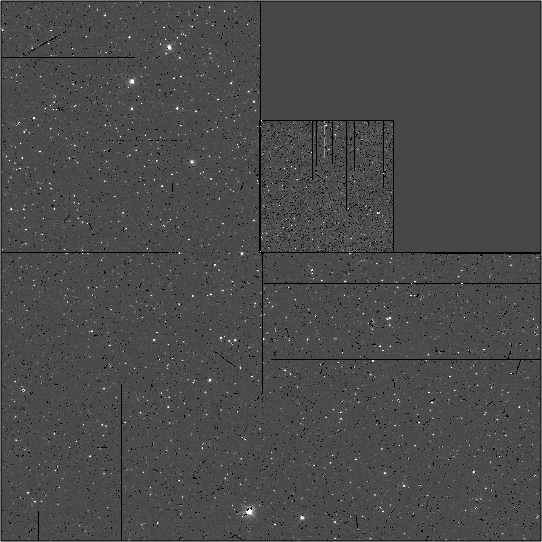

Mosaic images

F555W	F814W	F439W	F675W

HSTPHOT command log

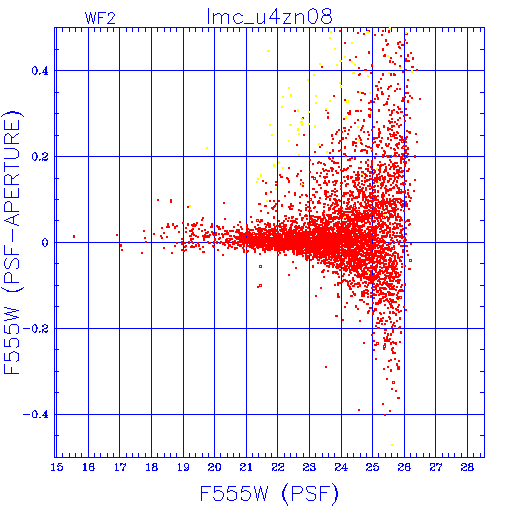

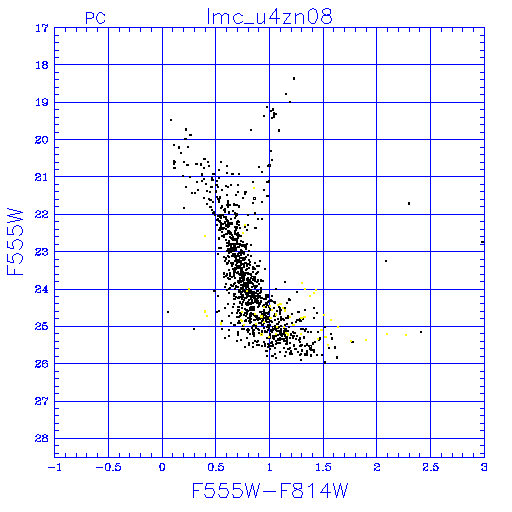

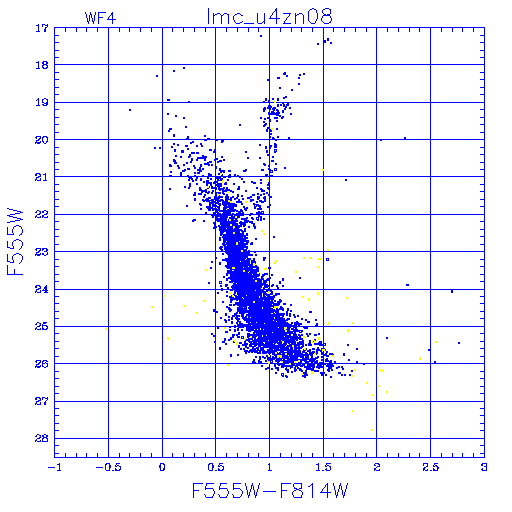

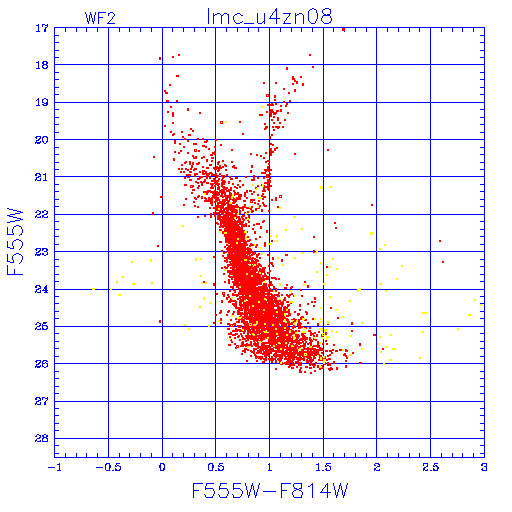

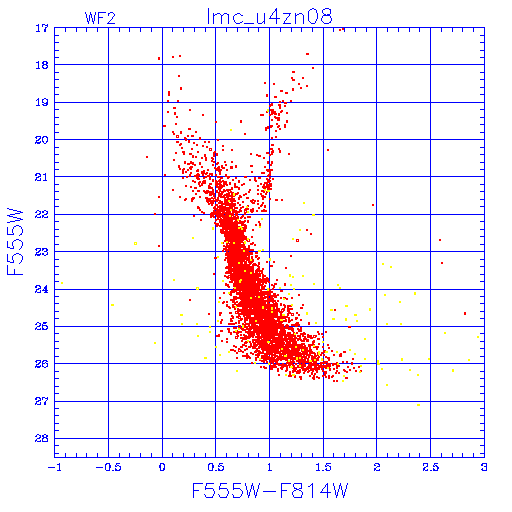

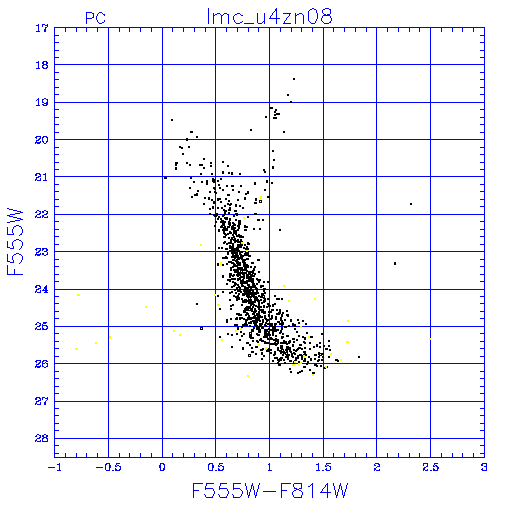

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

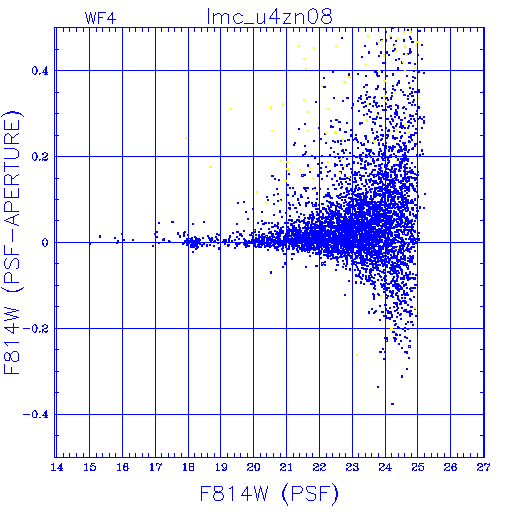

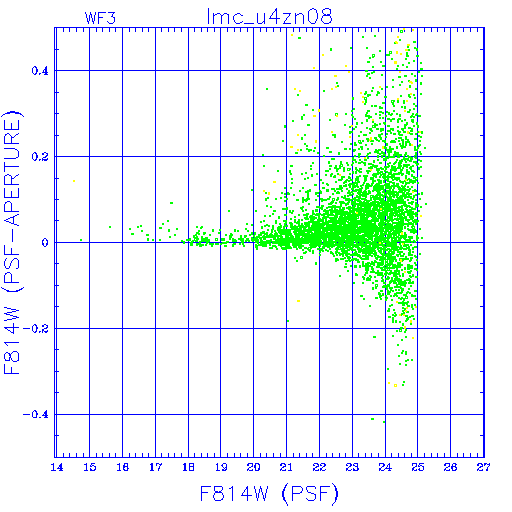

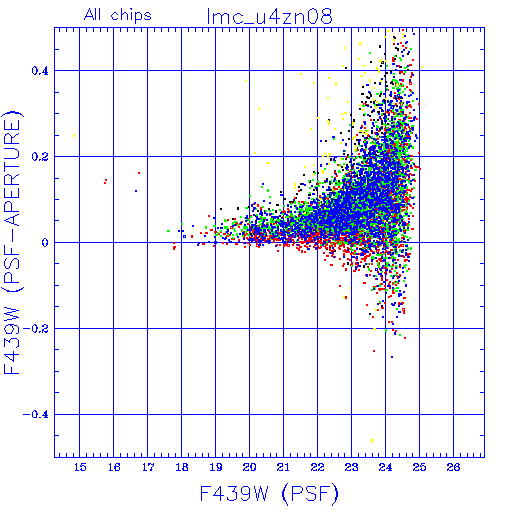

PSF
Aperture

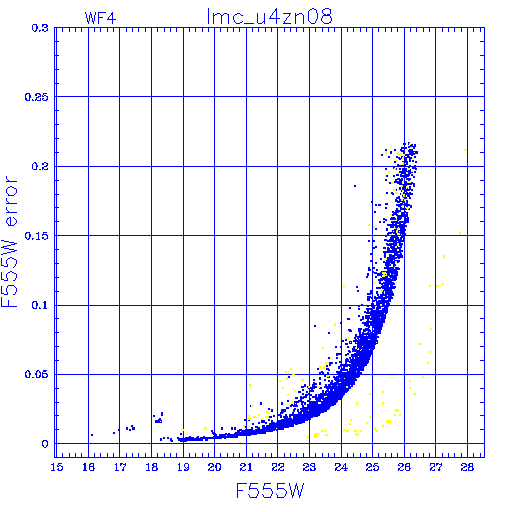

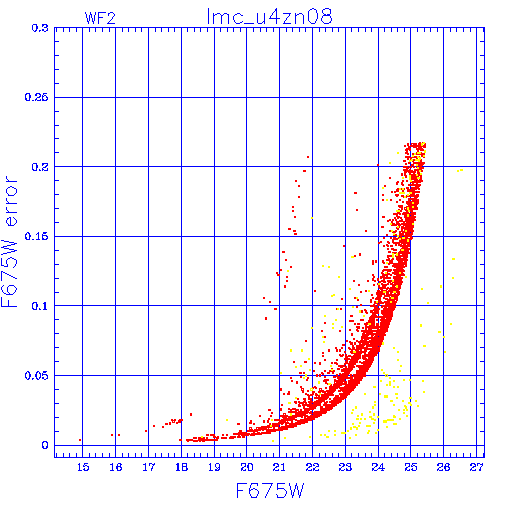

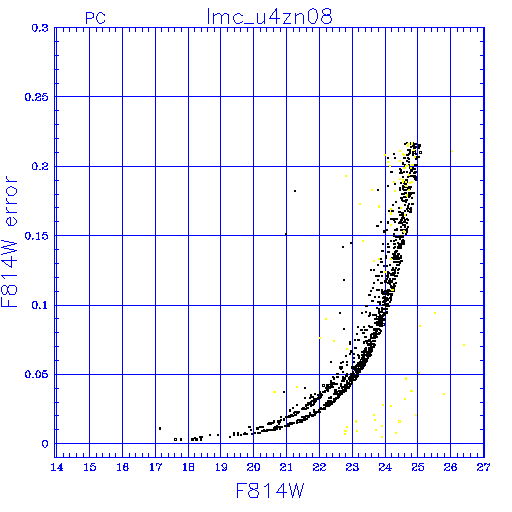

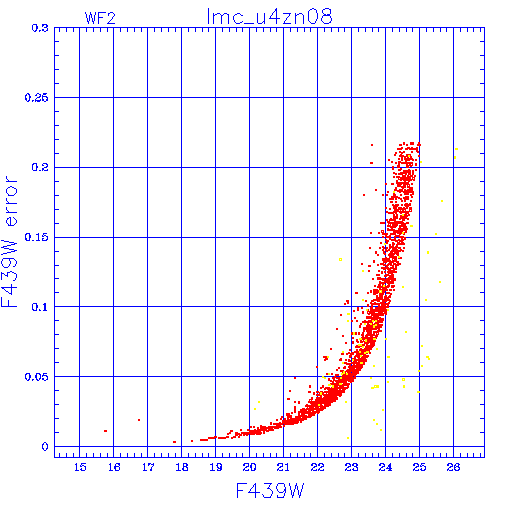

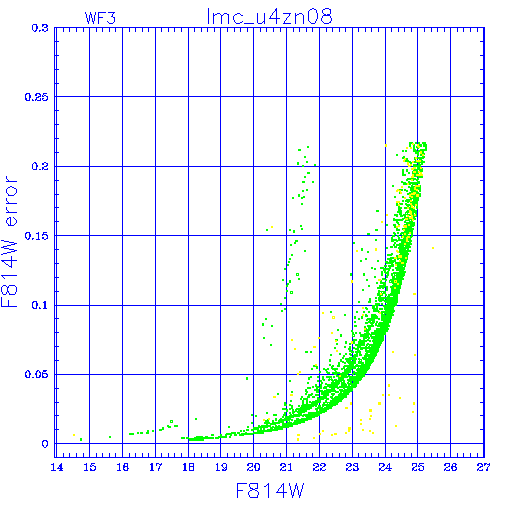

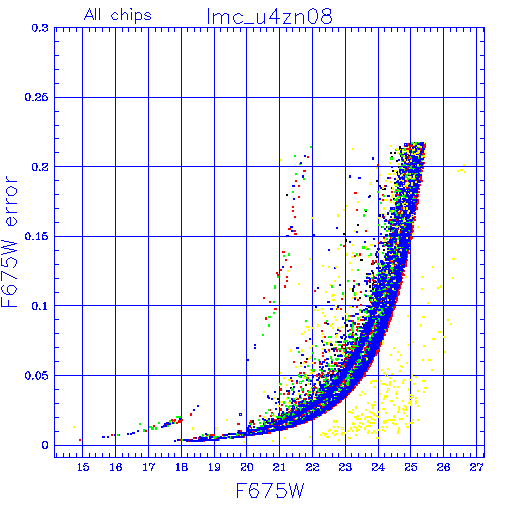

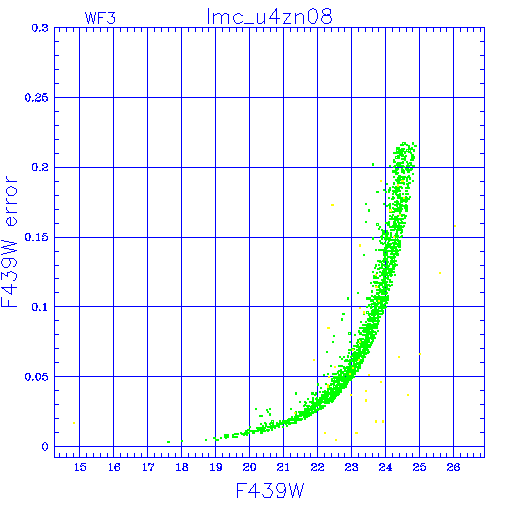

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f439w
f675w

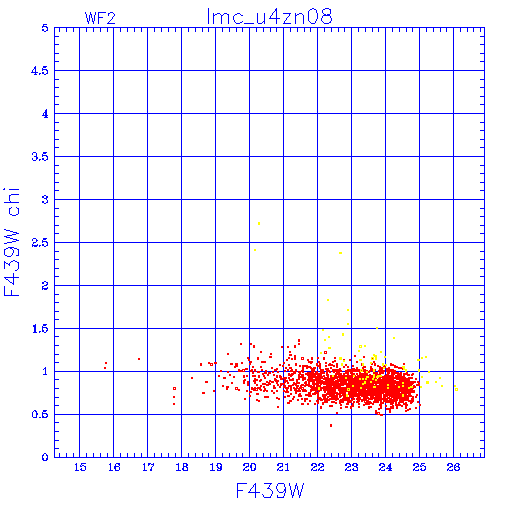

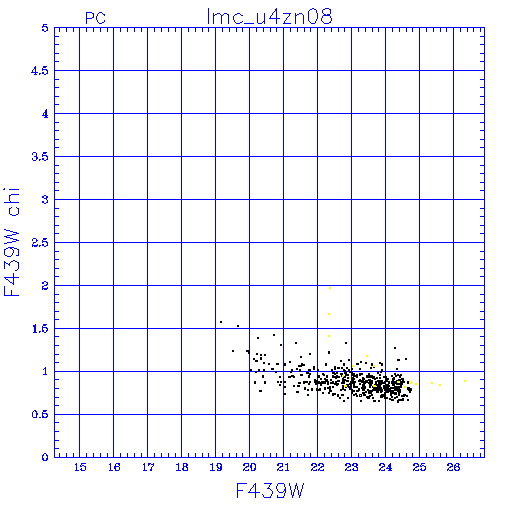

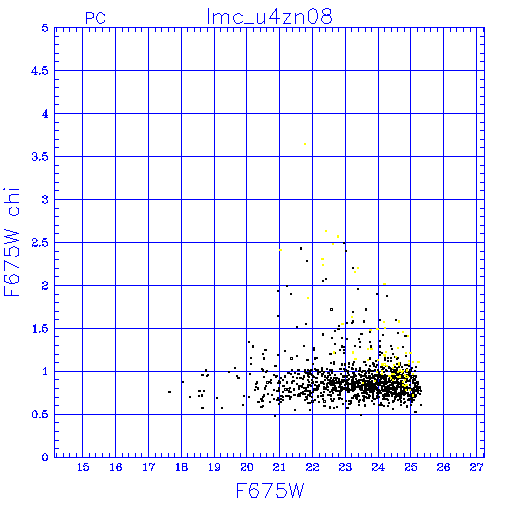

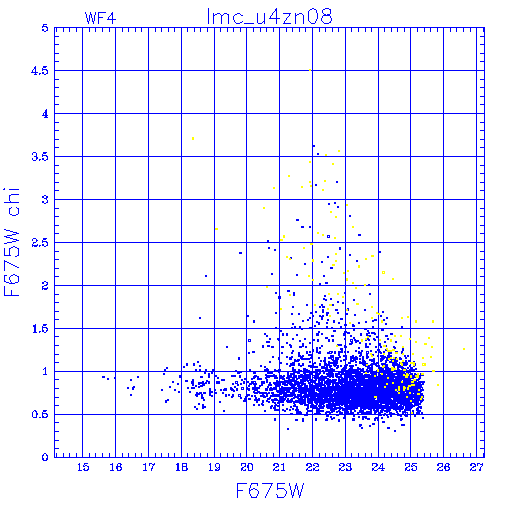

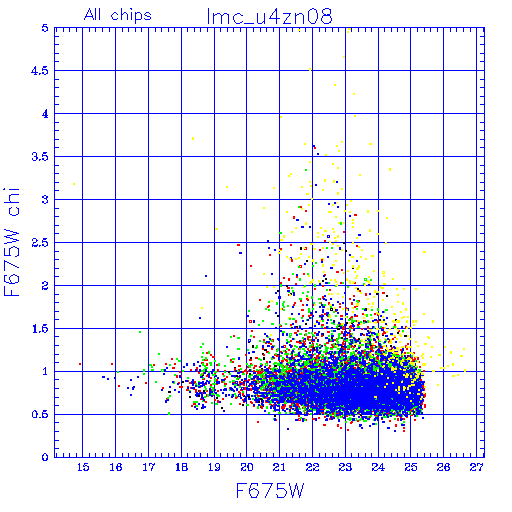

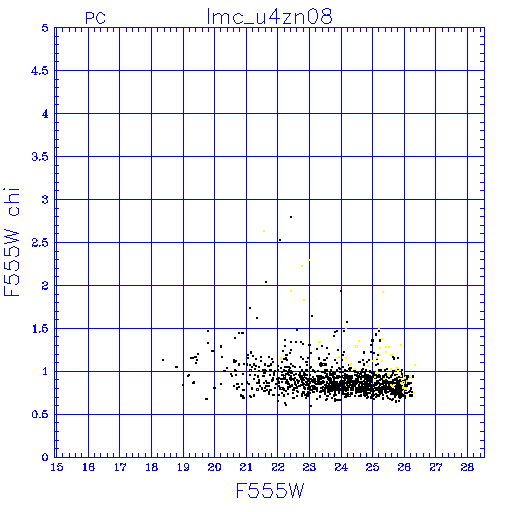

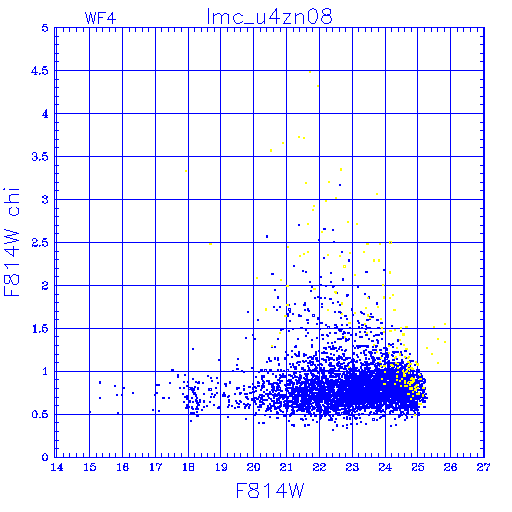

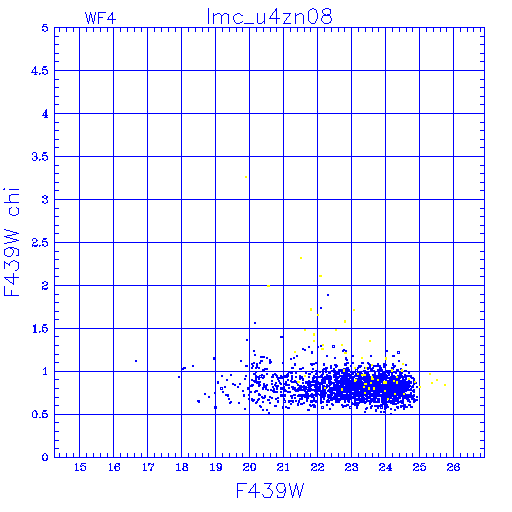

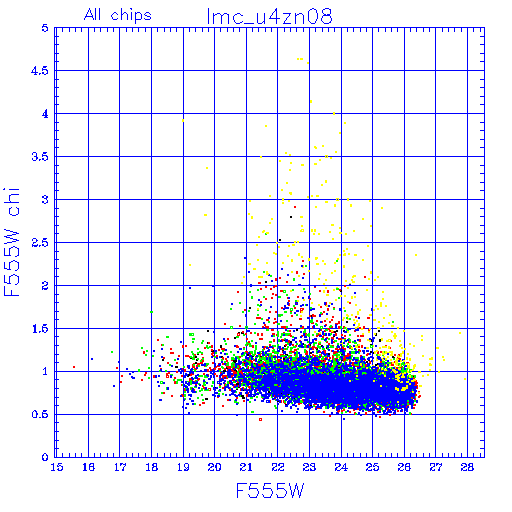

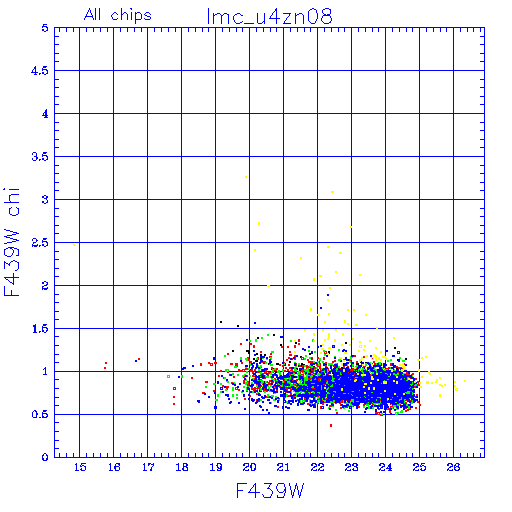

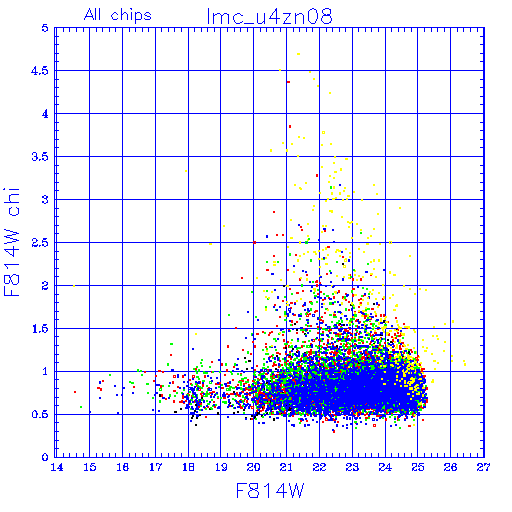

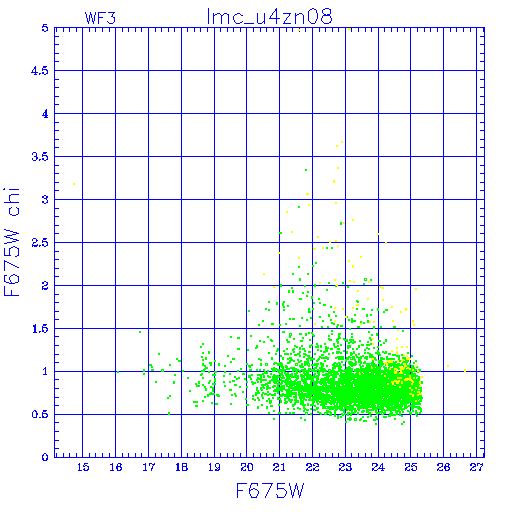

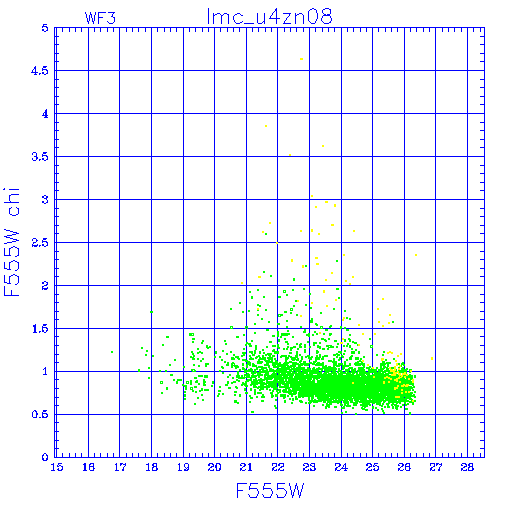

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f439w
f675w

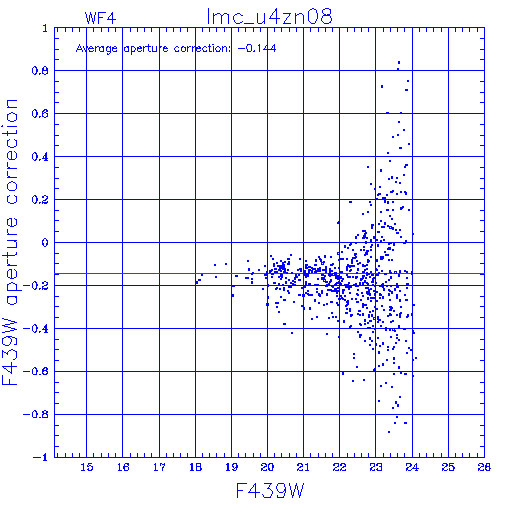

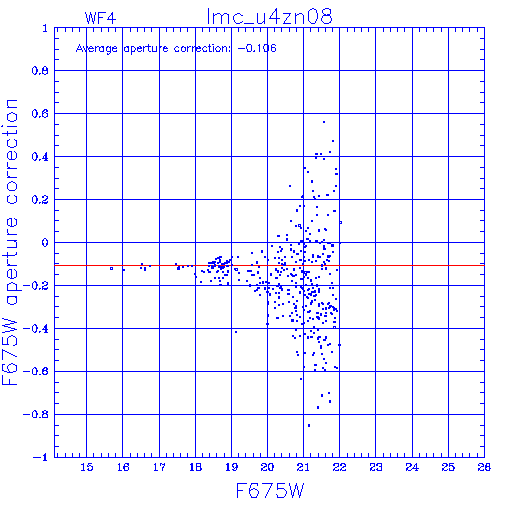

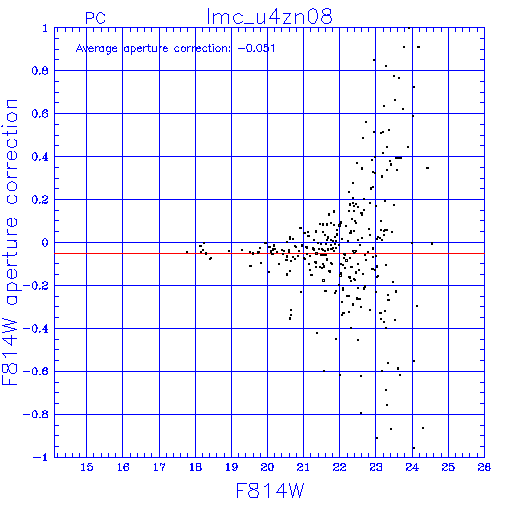

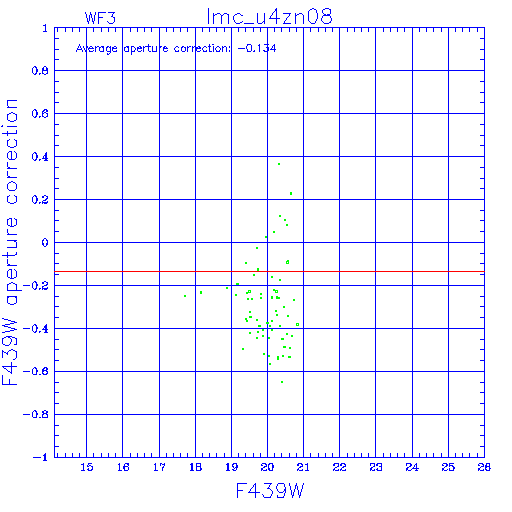

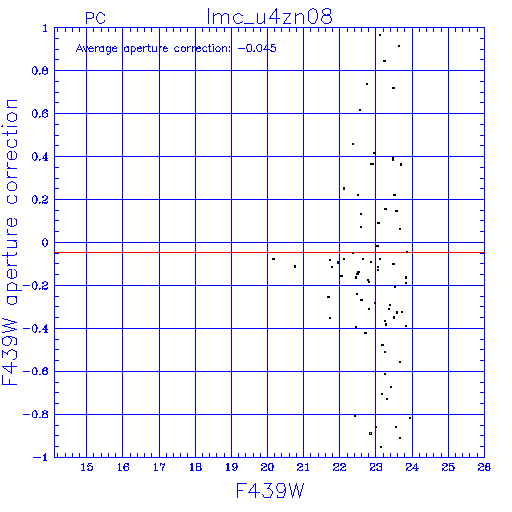

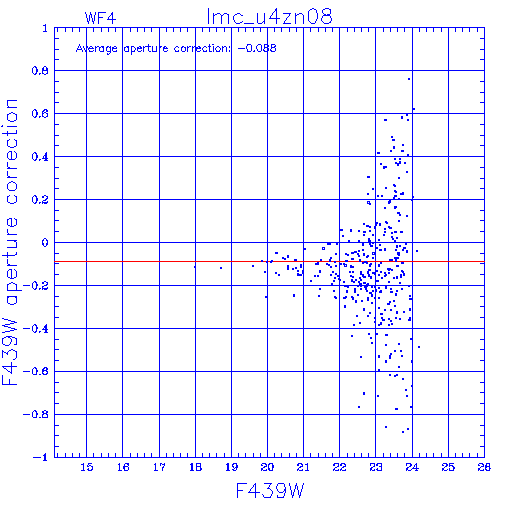

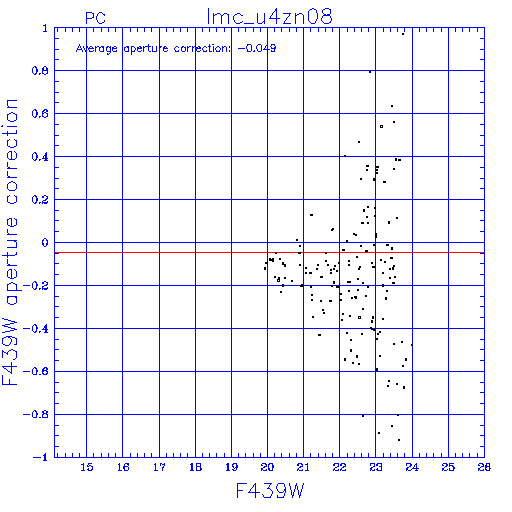

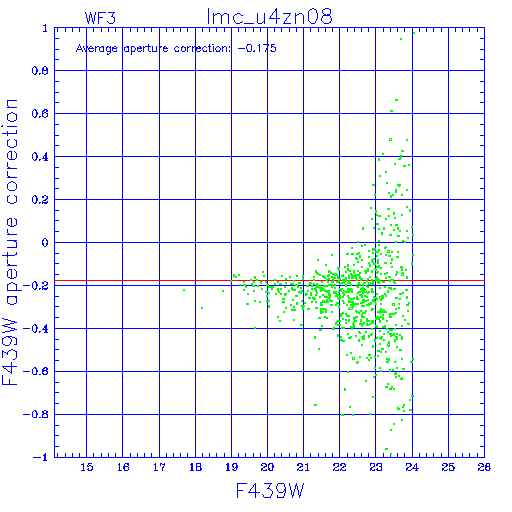

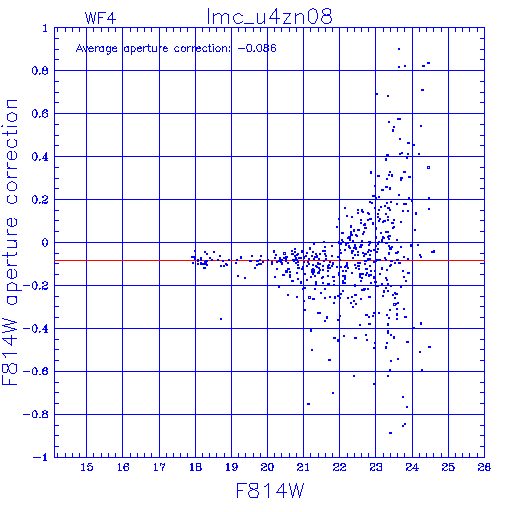

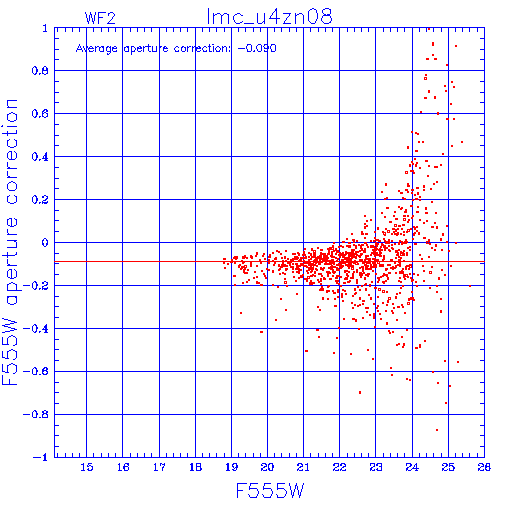

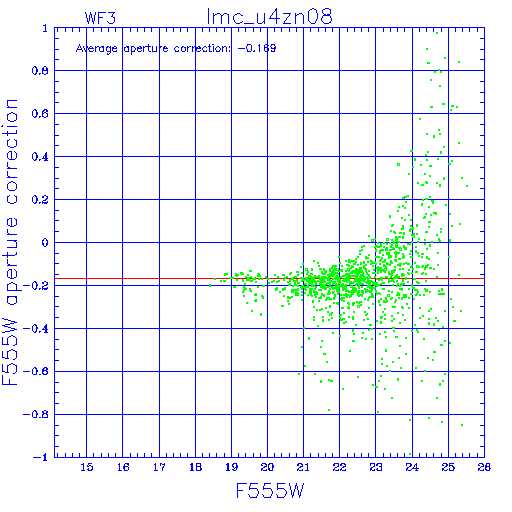

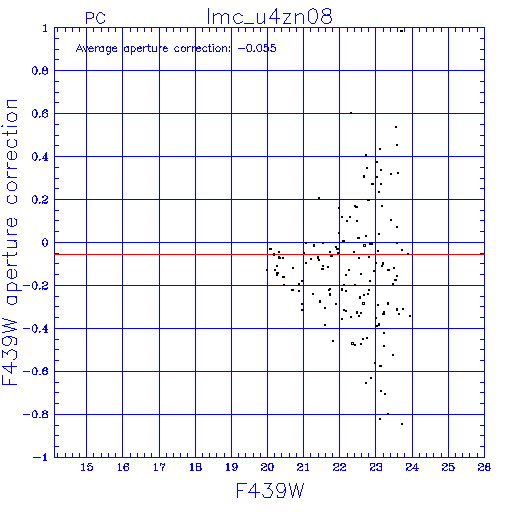

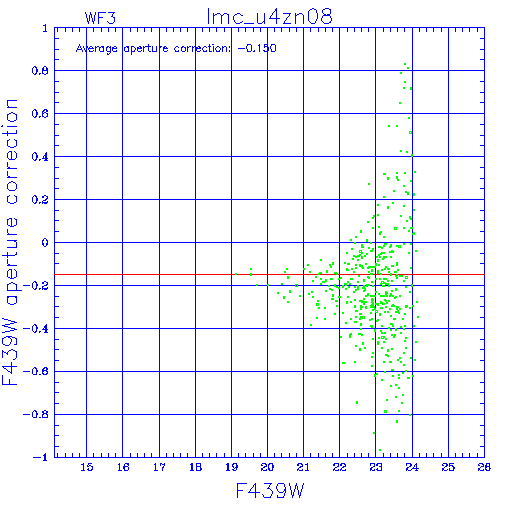

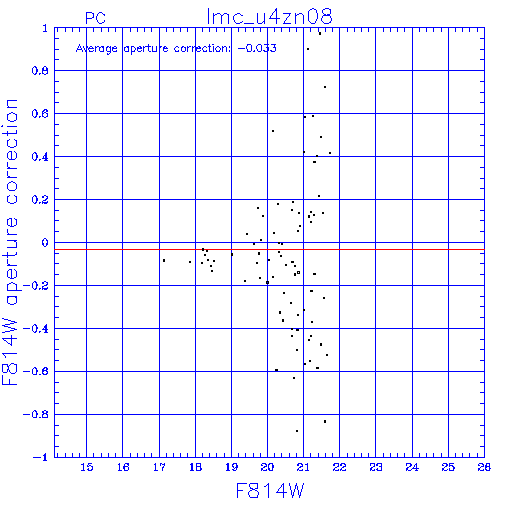

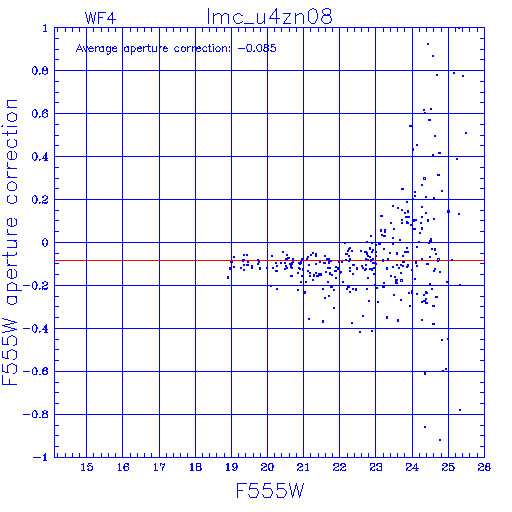

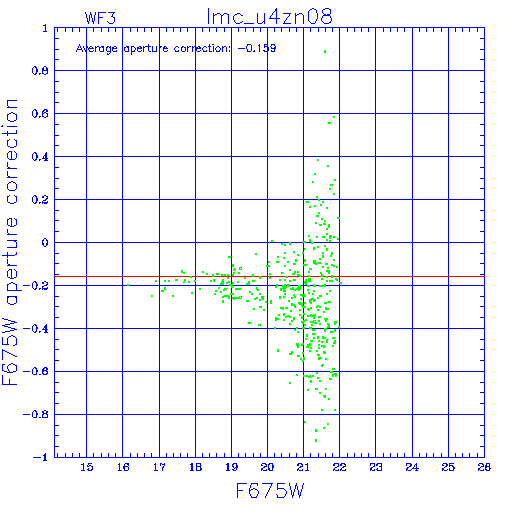

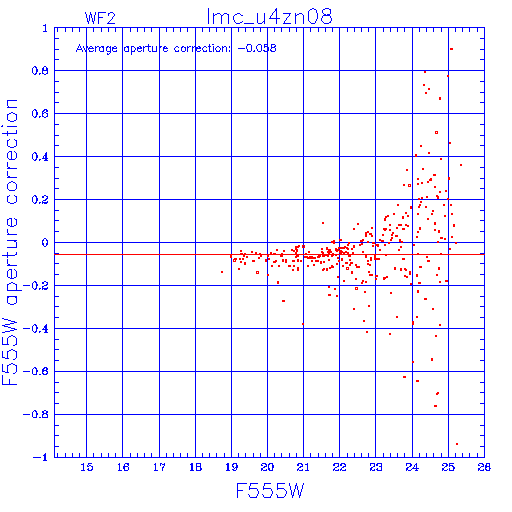

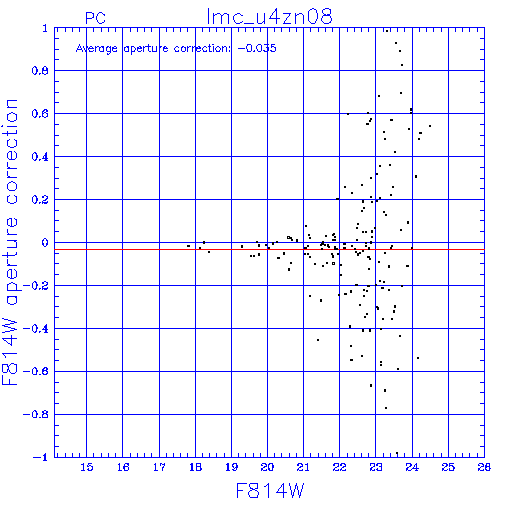

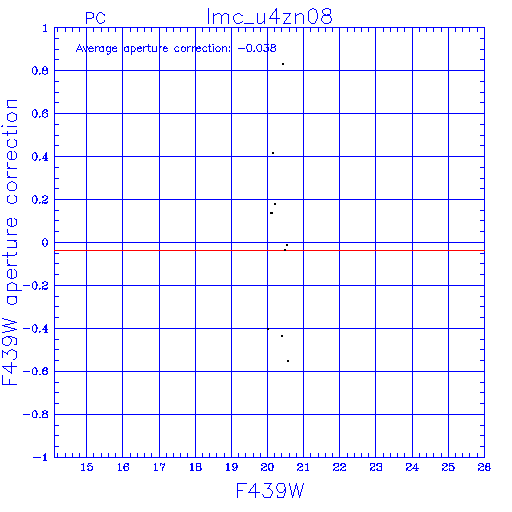

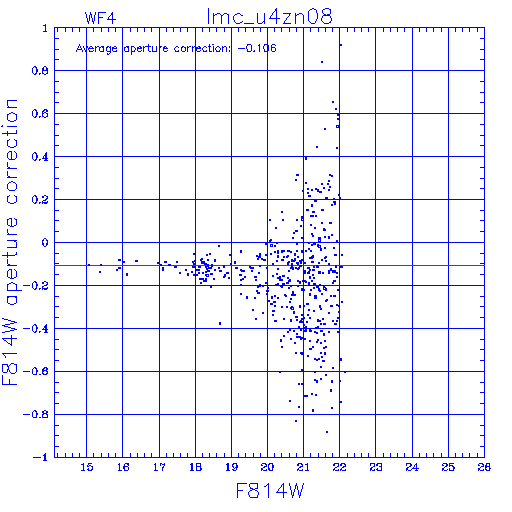

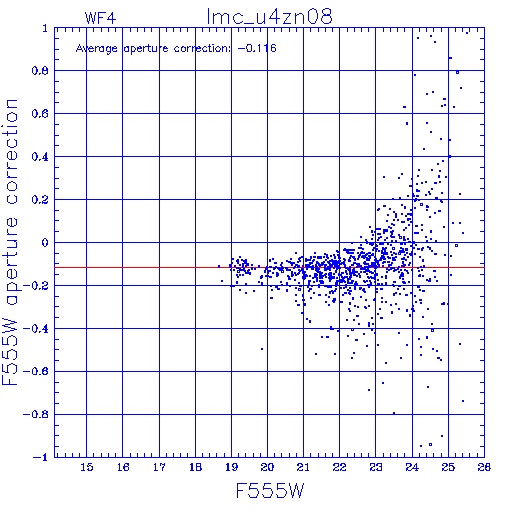

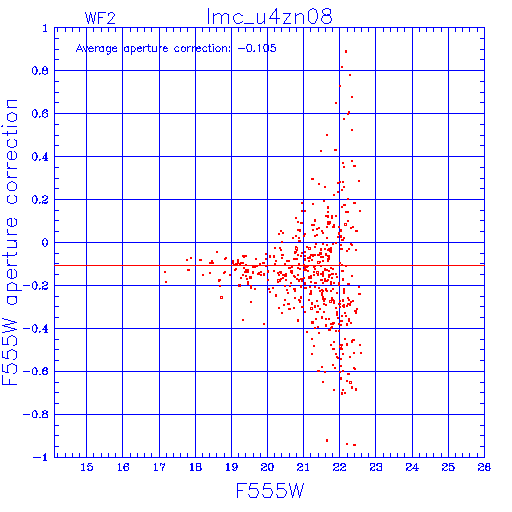

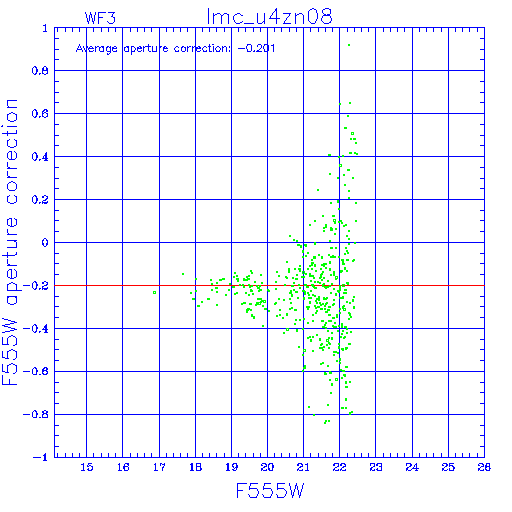

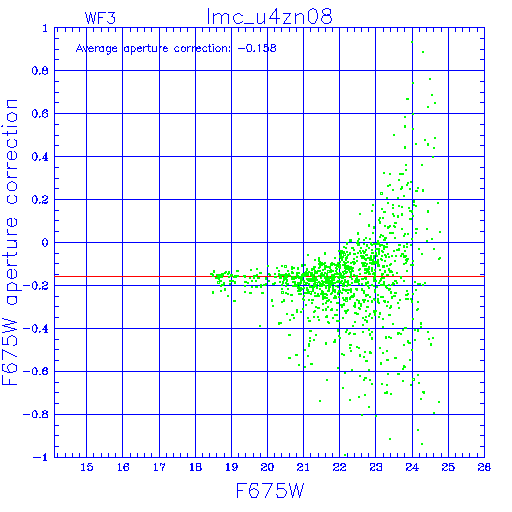

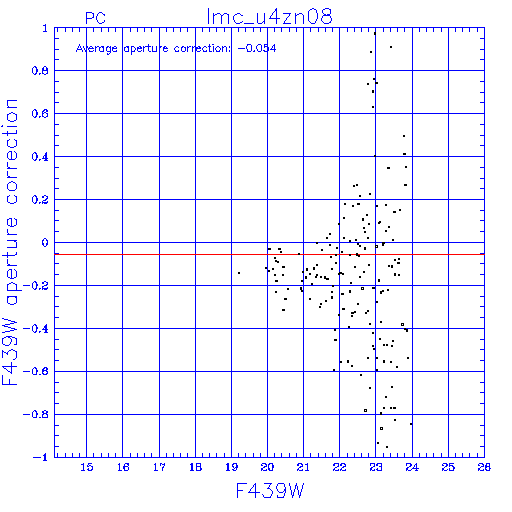

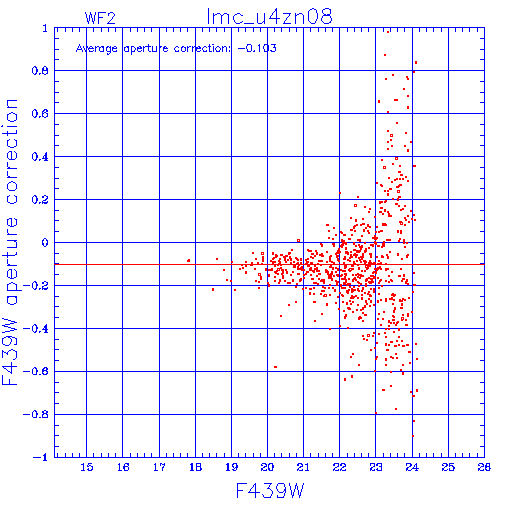

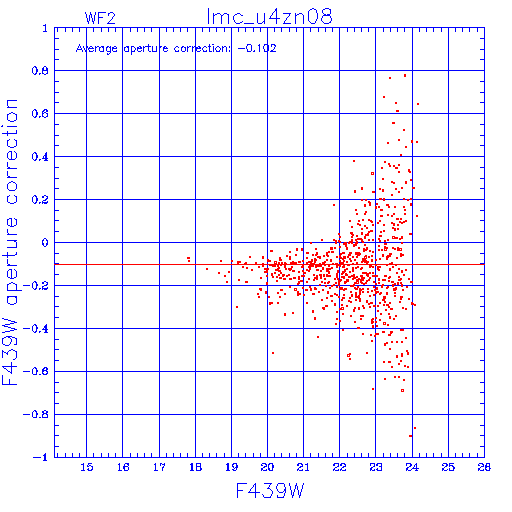

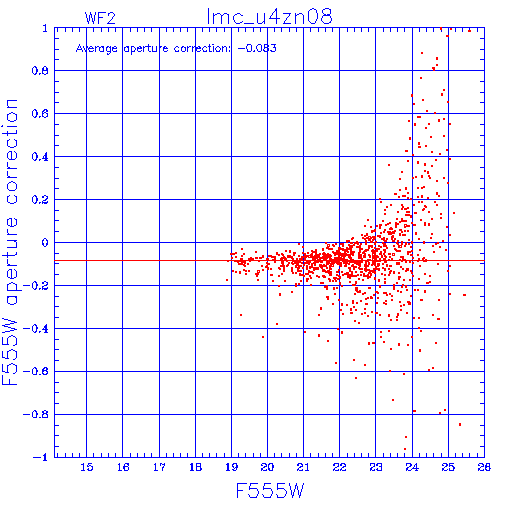

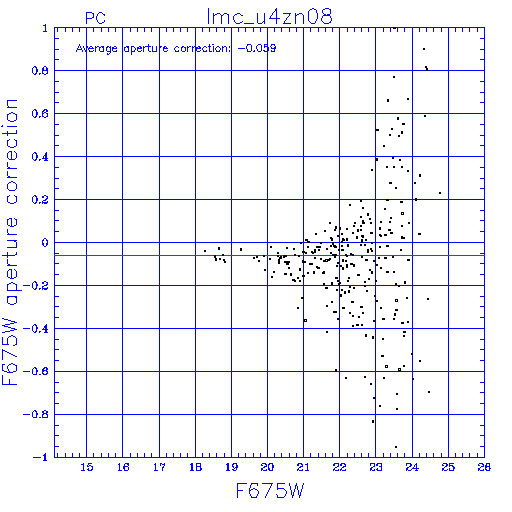

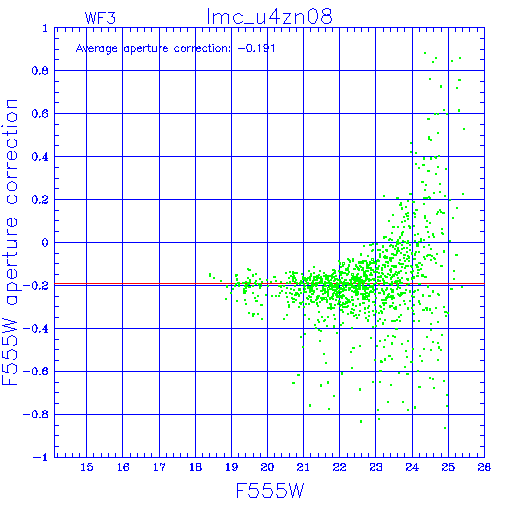

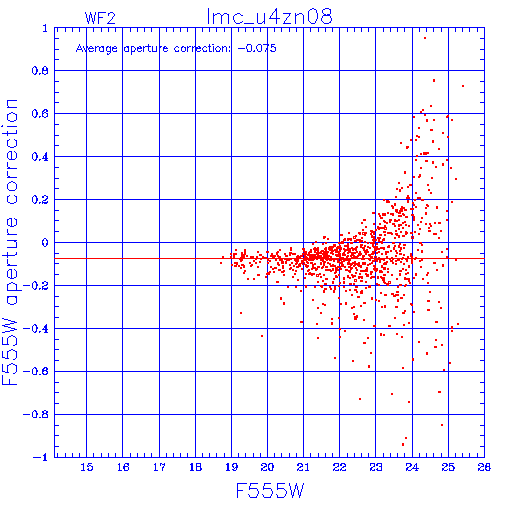

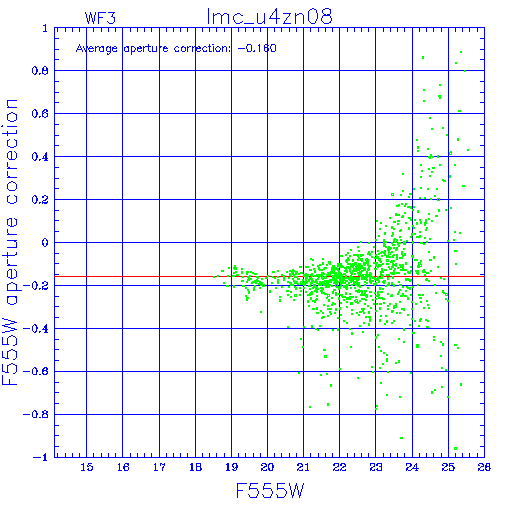

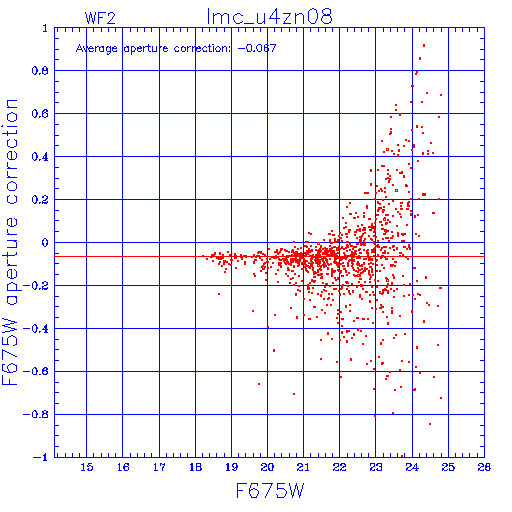

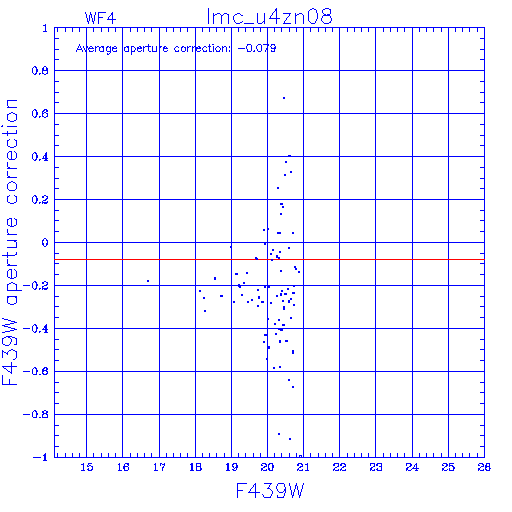

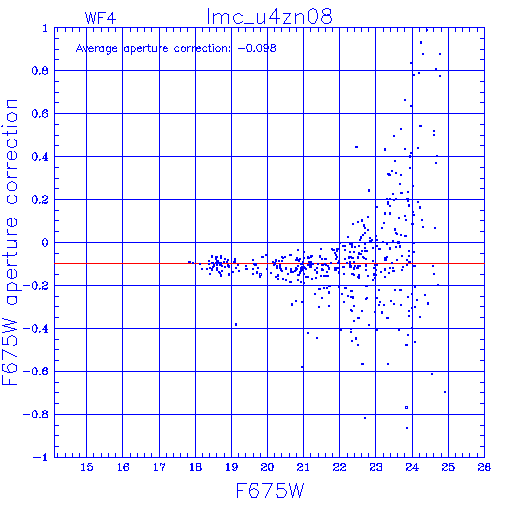

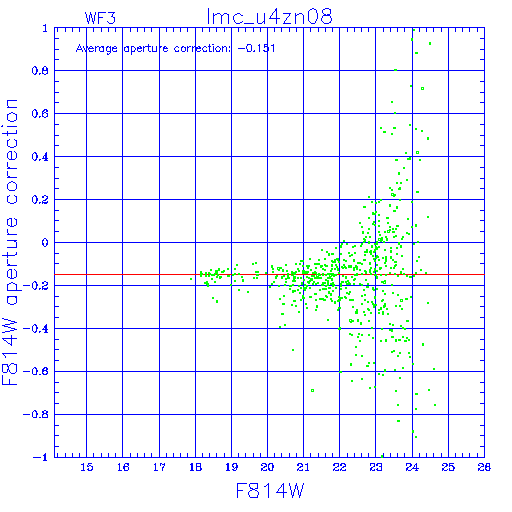

Aperture corrections

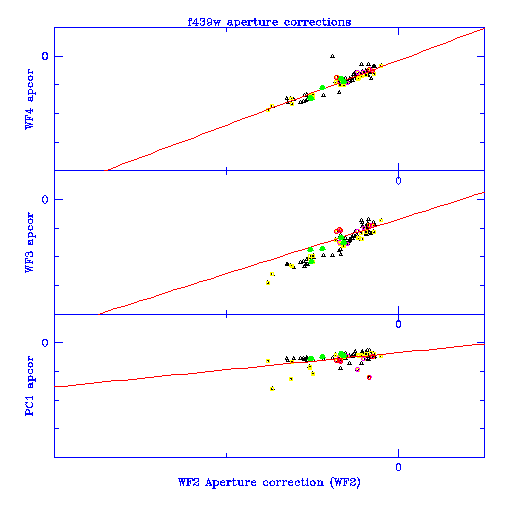

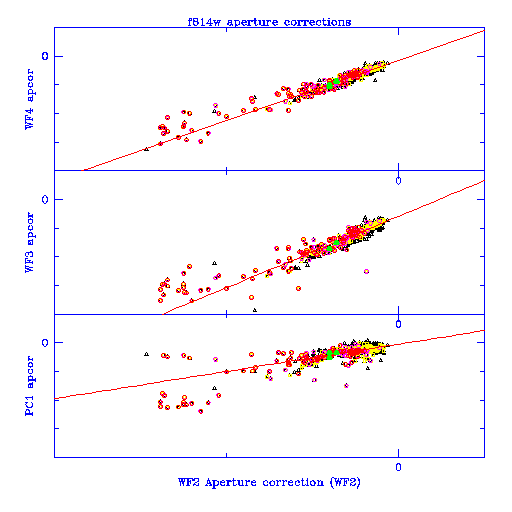

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
