Photometry Diagnostics for lmc_u4zn06

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u4zn060br	F555W	20.00	0.00	0.00	0.00	0.00	0.00	0.00
u4zn060cr	F555W	400.00	-11.06	-5.82	-10.98	-5.49	-0.08	-0.33
u4zn060dr	F555W	400.00	-16.66	-16.79	-16.47	-16.48	-0.19	-0.31
u4zn060er	F555W	400.00	-5.68	-11.24	-5.49	-10.99	-0.19	-0.25
u4zn060fr	F555W	400.00	-0.17	-0.40	0.00	0.00	-0.17	-0.40
u4zn0608r	F814W	20.00	0.18	0.32	0.00	0.00	0.18	0.32
u4zn0609r	F814W	500.00	-5.64	-5.19	-5.49	-5.49	-0.15	0.30
u4zn060ar	F814W	500.00	0.08	0.12	0.00	0.00	0.08	0.12
u4zn0601r	F439W	20.00	0.01	0.37	0.00	0.00	0.01	0.37
u4zn0602r	F439W	400.00	-11.09	-5.15	-10.98	-5.49	-0.11	0.34
u4zn0603r	F439W	400.00	-16.65	-16.17	-16.47	-16.48	-0.18	0.31
u4zn0604r	F439W	400.00	-5.74	-10.72	-5.49	-10.99	-0.25	0.27
u4zn0605r	F675W	400.00	-0.27	1.85	0.00	0.00	-0.27	1.85
u4zn0606r	F675W	20.00	-0.31	1.65	0.00	0.00	-0.31	1.65
u4zn0607r	F675W	400.00	-6.14	-4.23	-5.49	-5.49	-0.65	1.26

Mosaic images

F555W	F814W	F439W	F675W

HSTPHOT command log

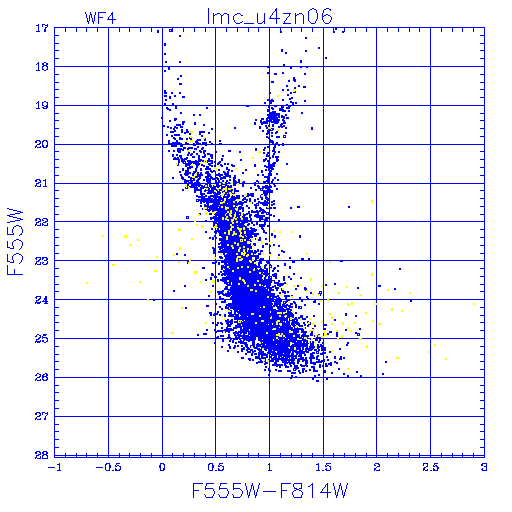

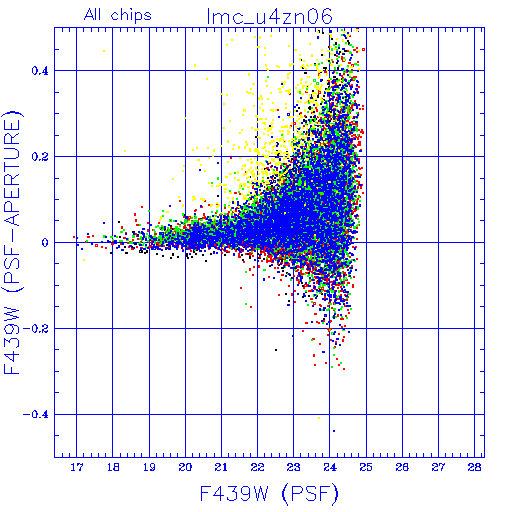

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

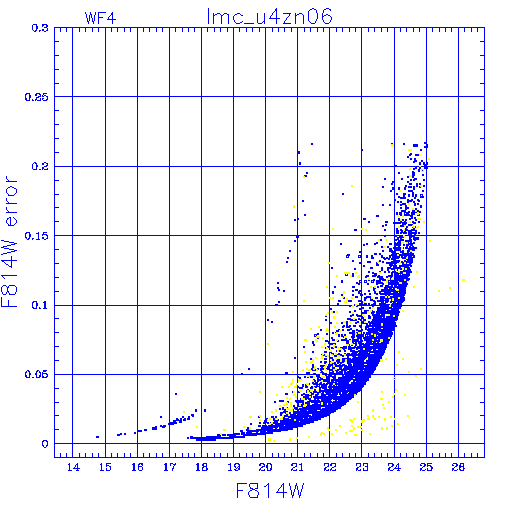

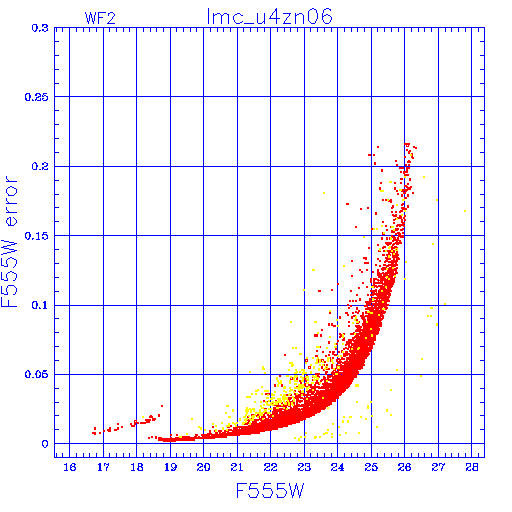

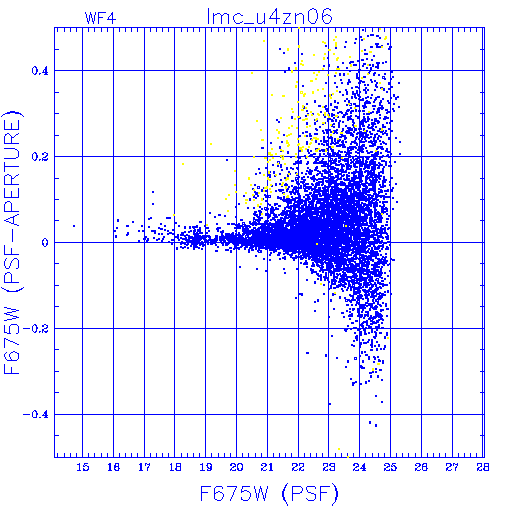

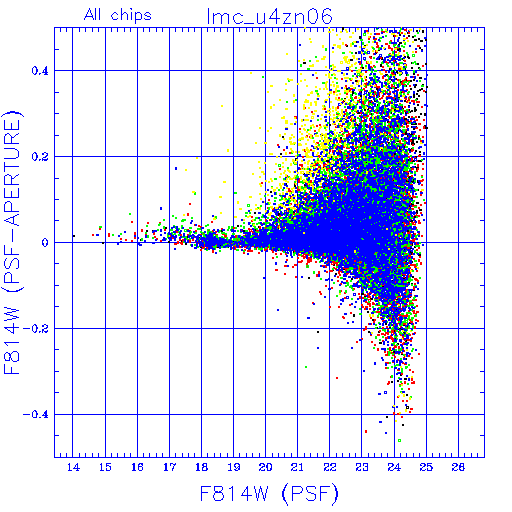

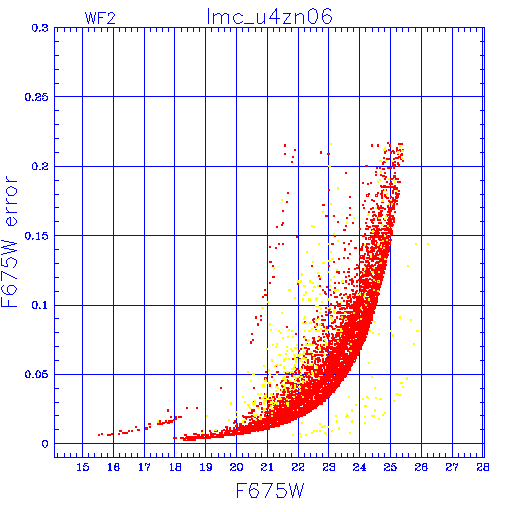

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f439w
f675w

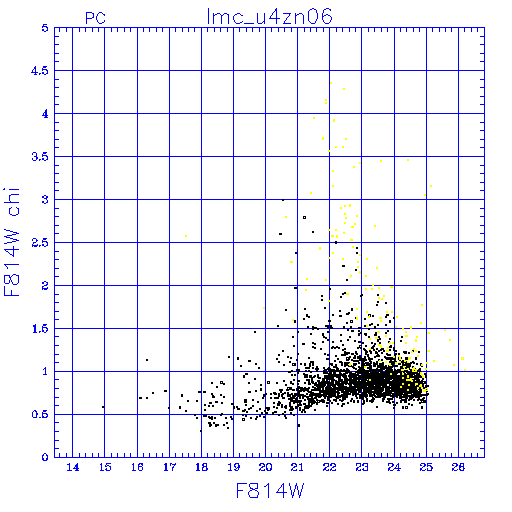

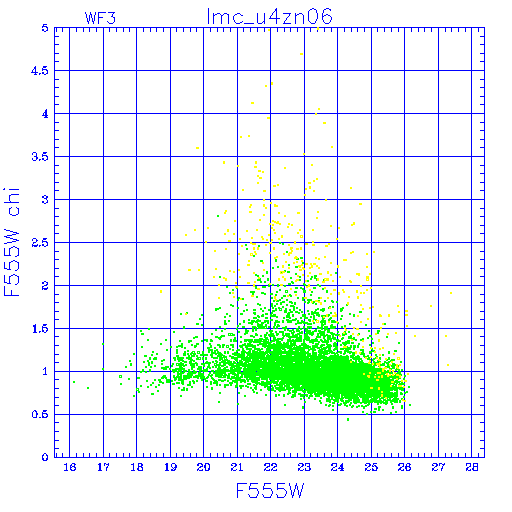

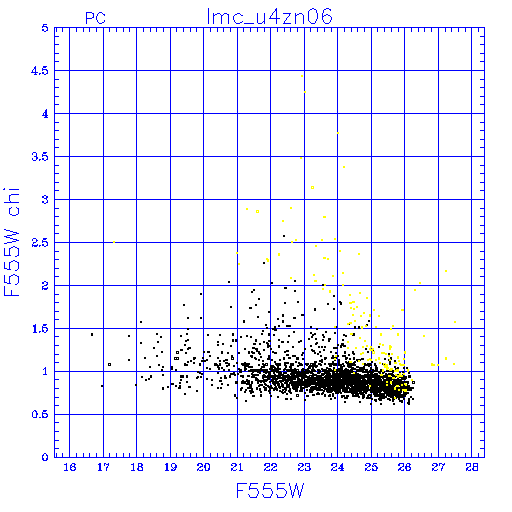

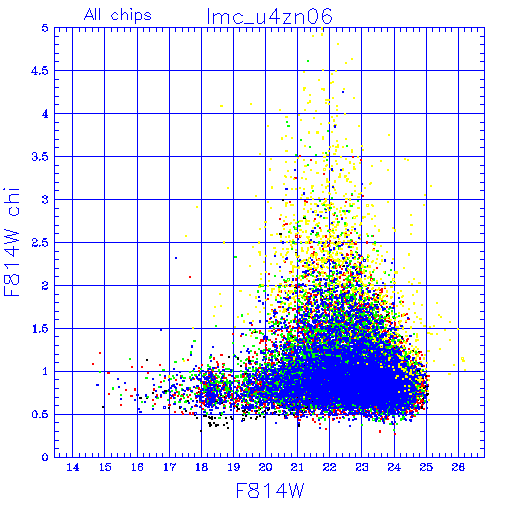

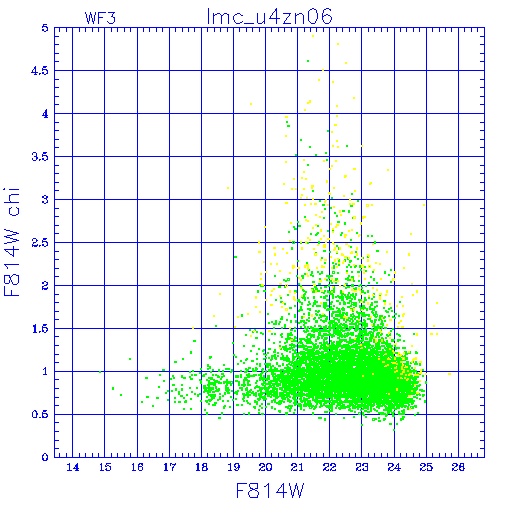

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f439w
f675w

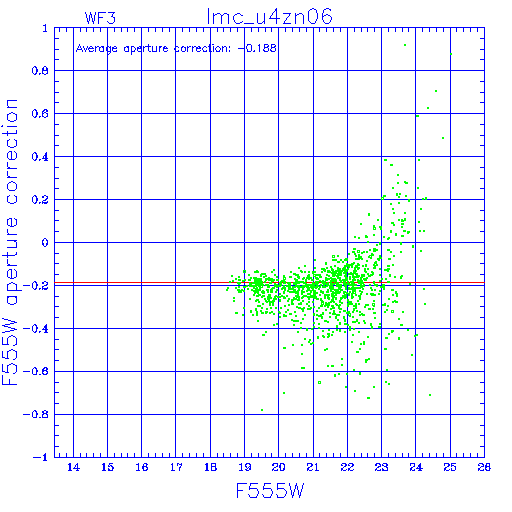

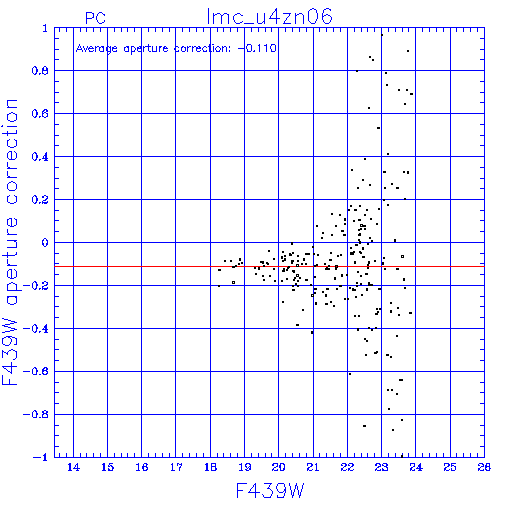

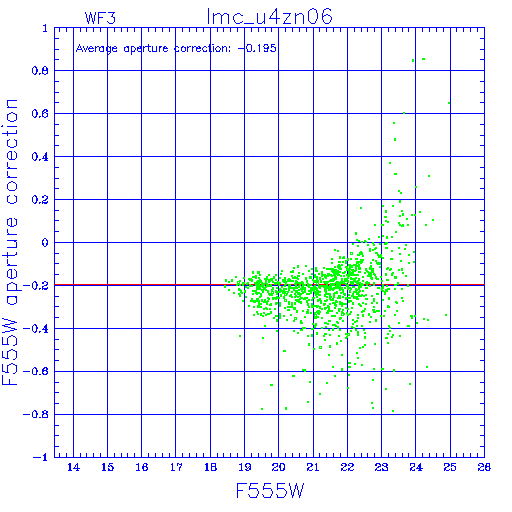

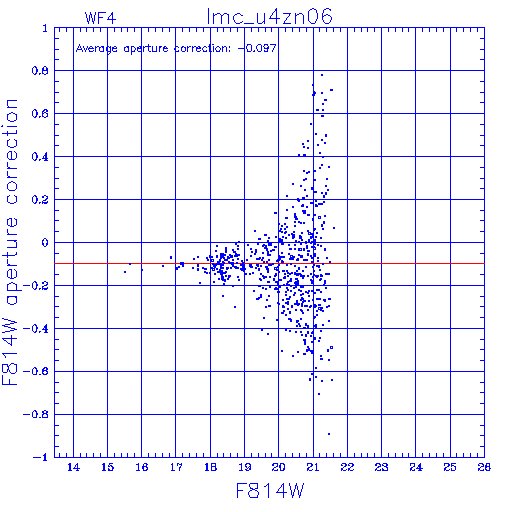

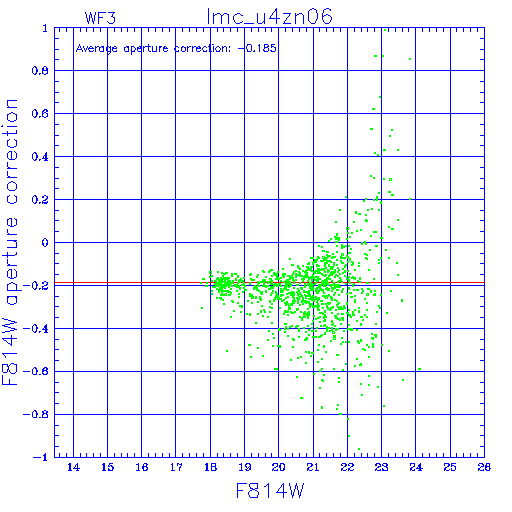

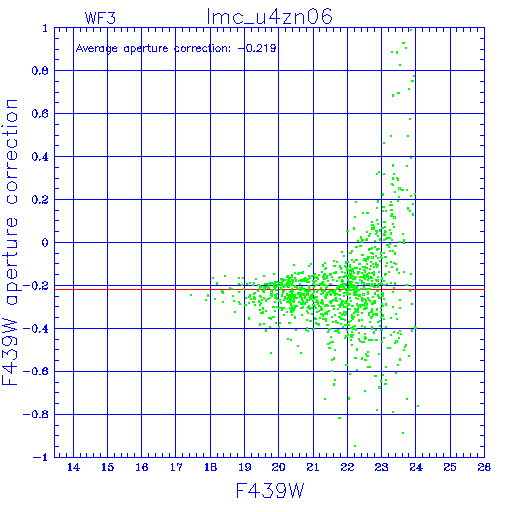

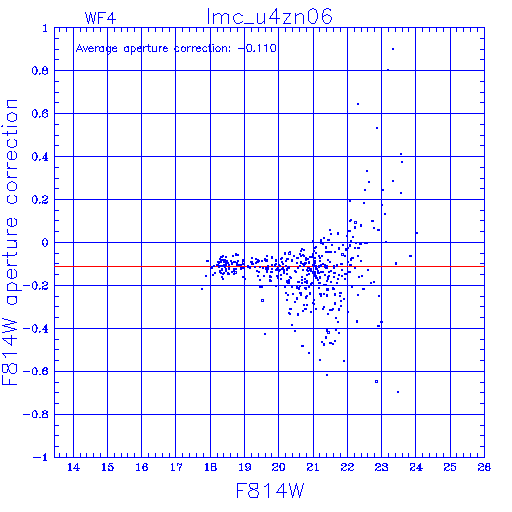

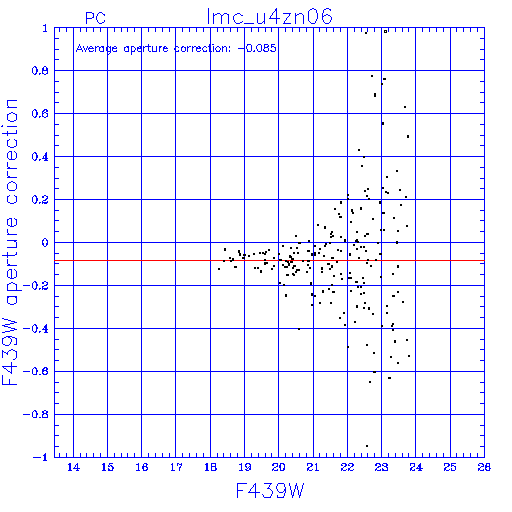

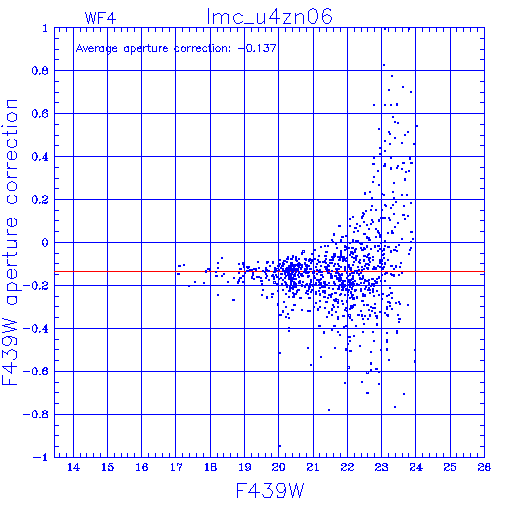

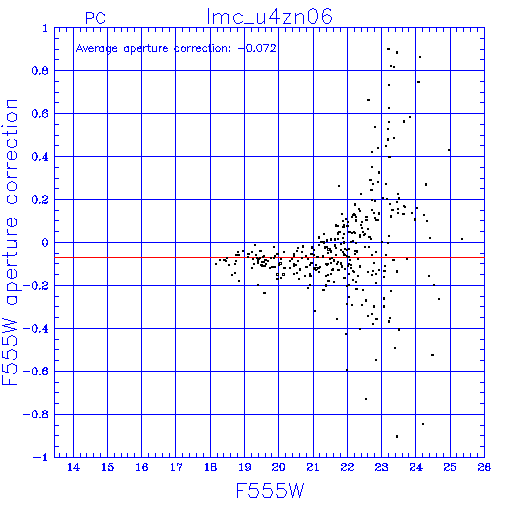

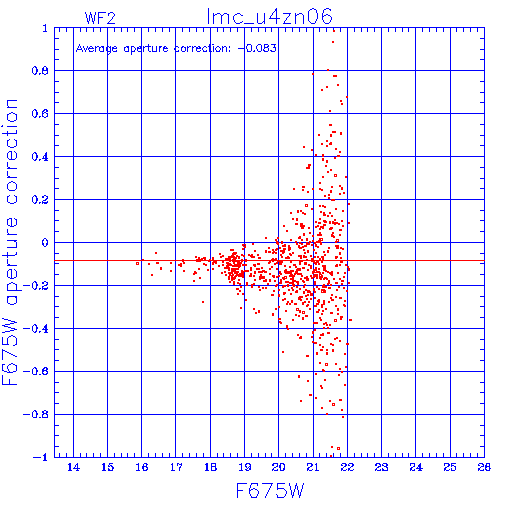

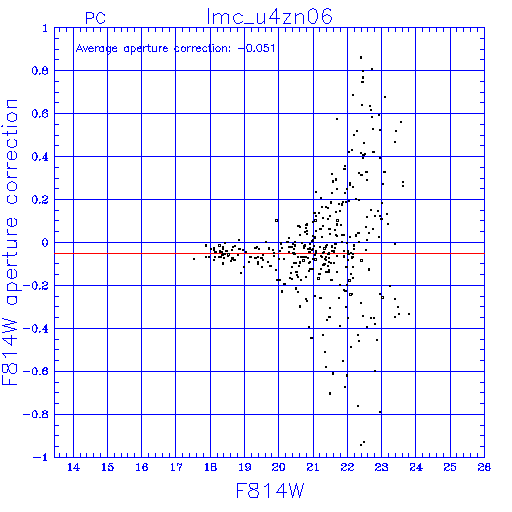

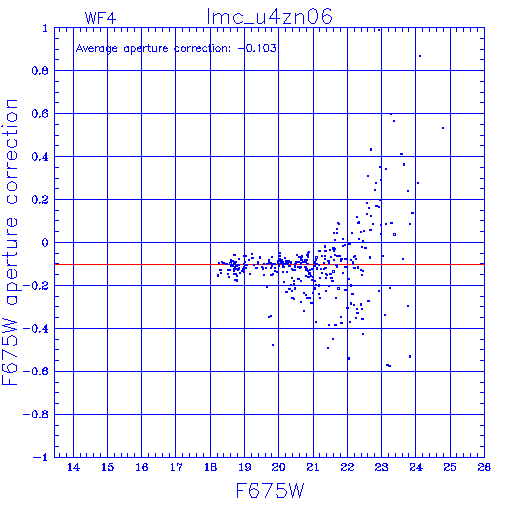

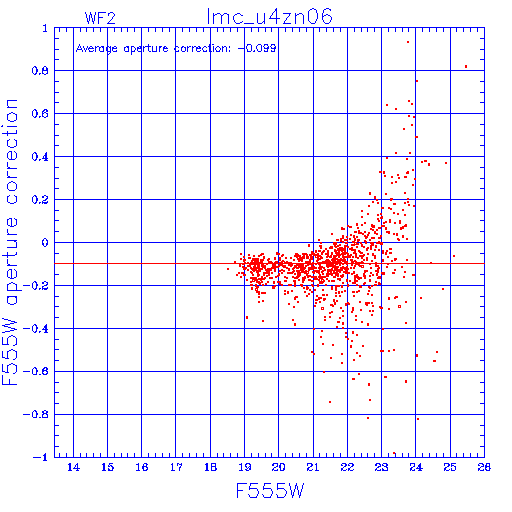

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
