Photometry Diagnostics for lmc_u4b114

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u4b11405r	F555W	500.00	0.00	0.00	0.00	0.00	0.00	0.00
u4b11406r	F555W	500.00	-10.94	-5.27	-11.00	-5.45	0.06	0.18
u4b11407r	F555W	500.00	-16.76	-16.82	-16.53	-16.42	-0.23	-0.40
u4b11408r	F555W	500.00	-5.64	-11.07	-5.53	-10.97	-0.11	-0.10
u4b11401r	F814W	500.00	9.20	20.32	9.41	20.51	-0.21	-0.19
u4b11402r	F814W	700.00	9.21	20.35	9.41	20.51	-0.20	-0.16
u4b11403r	F814W	300.00	21.86	8.45	21.45	8.16	0.41	0.29
u4b11404r	F814W	700.00	21.84	8.51	21.45	8.16	0.39	0.35

Mosaic images

F555W	F814W

HSTPHOT command log

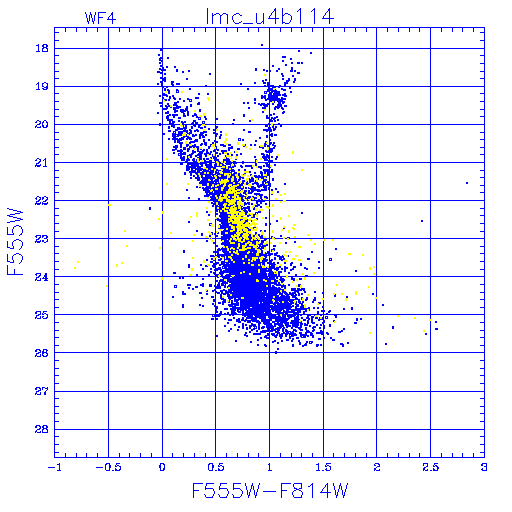

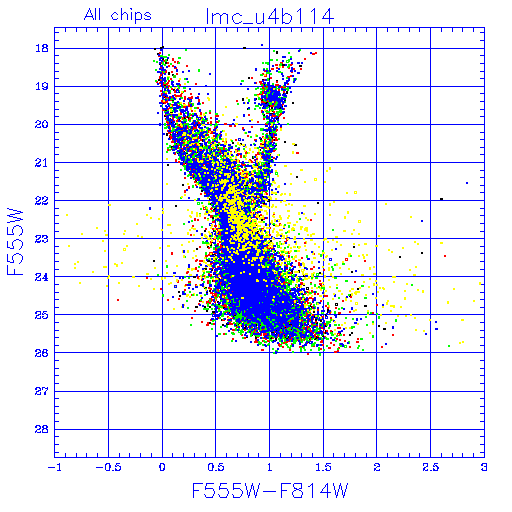

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

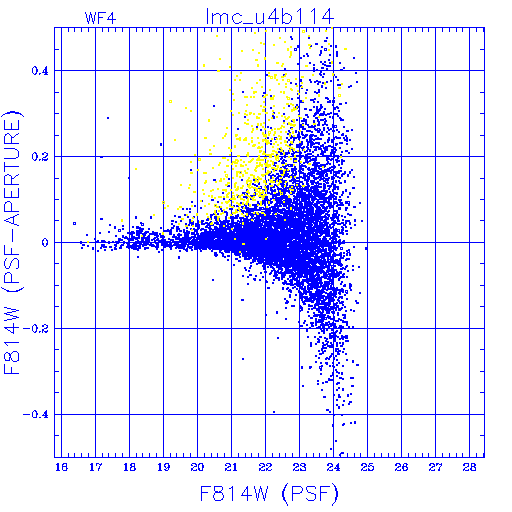

PSF
Aperture

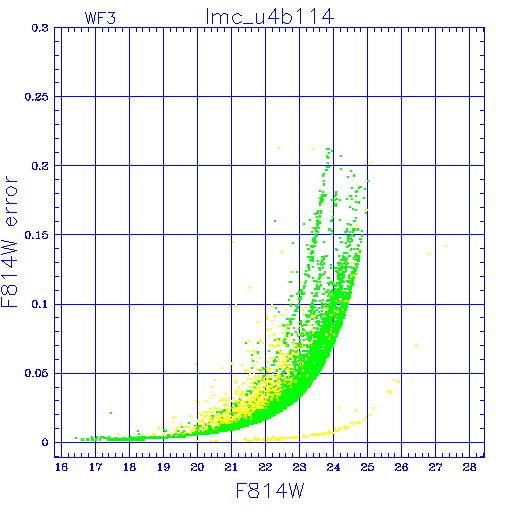

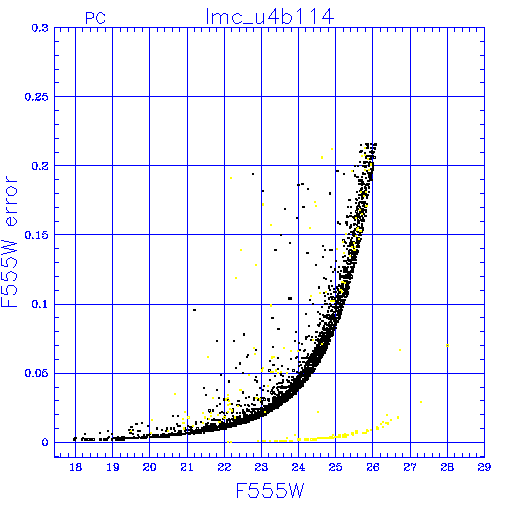

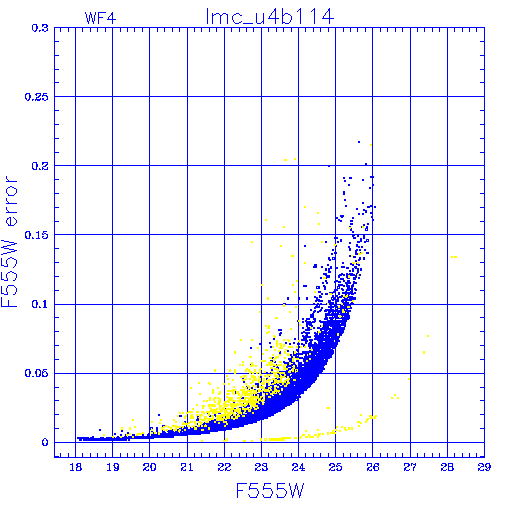

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

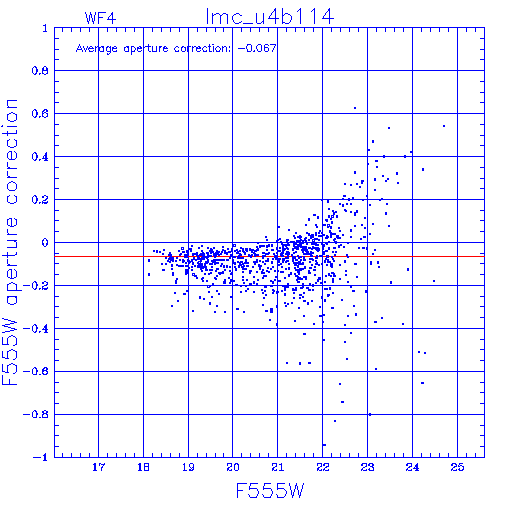

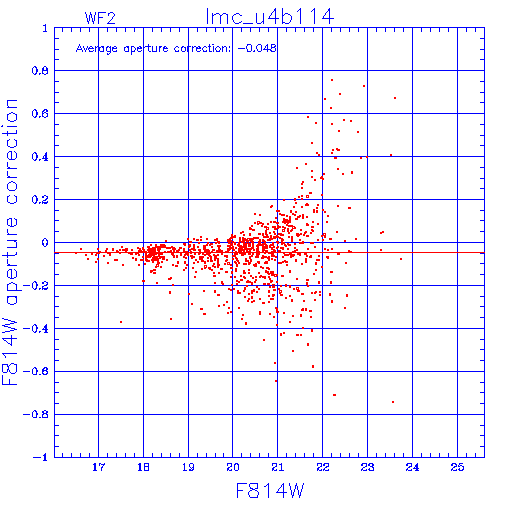

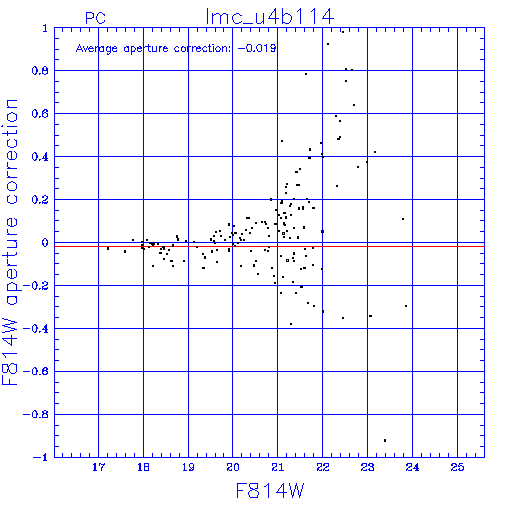

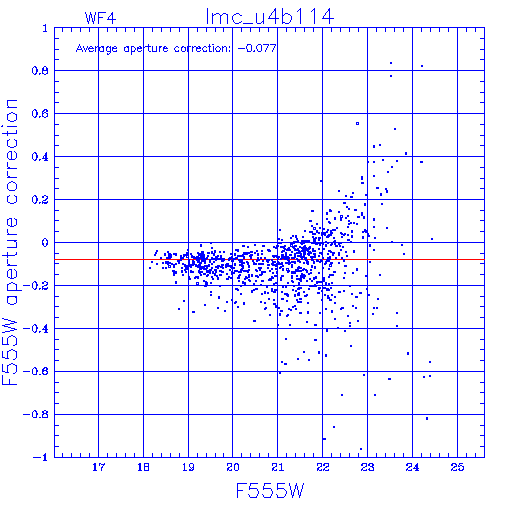

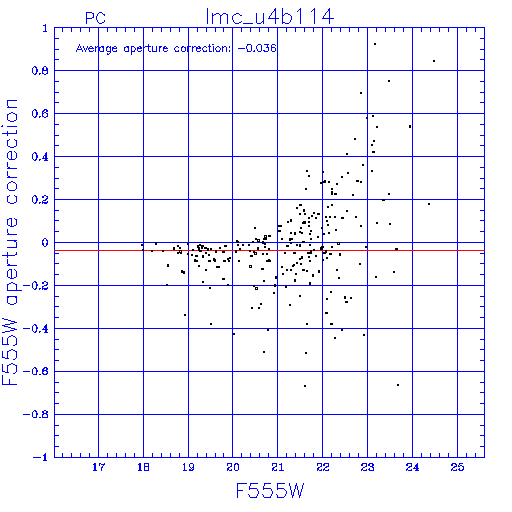

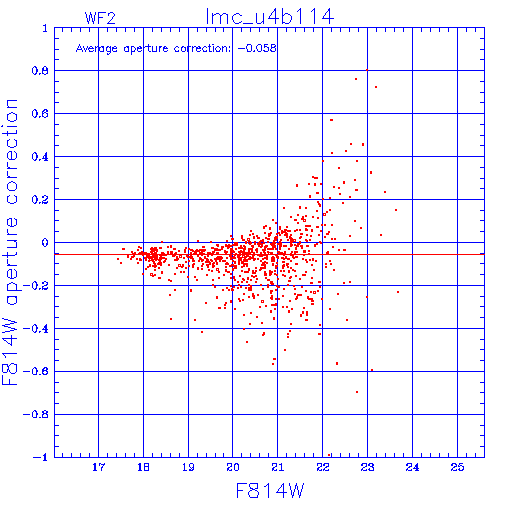

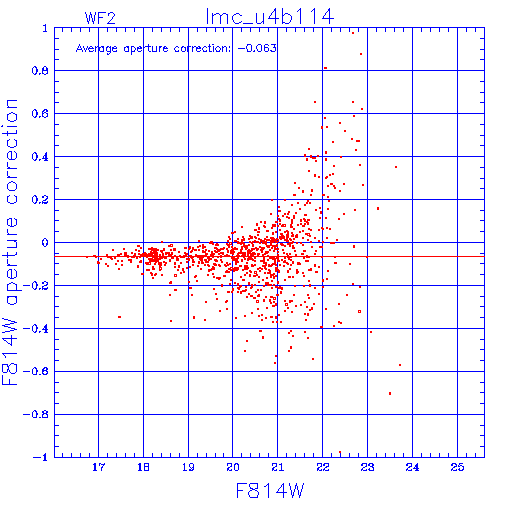

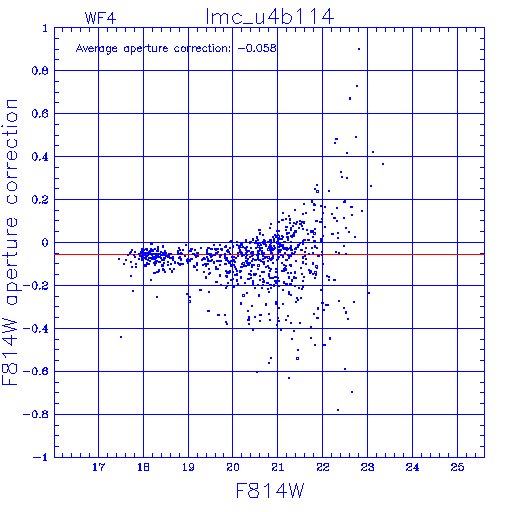

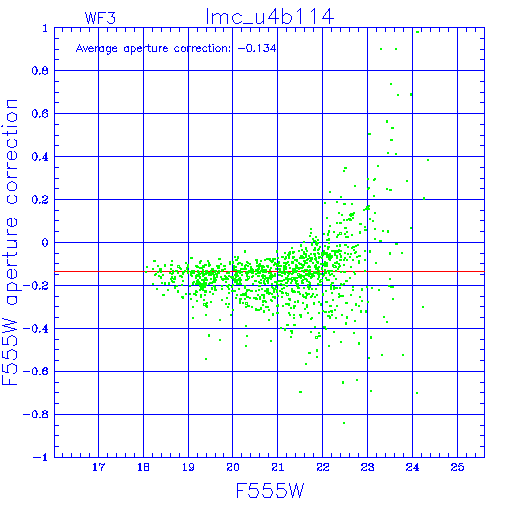

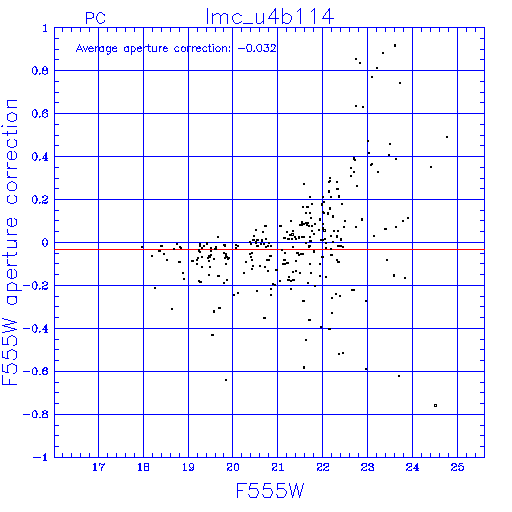

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
