Photometry Diagnostics for lmc_u4b107

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u4b10705r	F555W	500.00	0.00	0.00	0.00	0.00	0.00	0.00
u4b10706r	F555W	500.00	-10.98	-5.34	-11.00	-5.45	0.02	0.11
u4b10707r	F555W	500.00	-16.99	-16.87	-16.53	-16.42	-0.46	-0.45
u4b10708r	F555W	500.00	-6.00	-11.24	-5.53	-10.97	-0.47	-0.27
u4b10701r	F814W	500.00	9.13	20.12	9.40	20.53	-0.27	-0.41
u4b10702m	F814W	700.00	9.01	20.06	9.40	20.53	-0.39	-0.47
u4b10703r	F814W	300.00	21.70	8.29	21.44	8.18	0.26	0.11
u4b10704r	F814W	700.00	21.79	8.30	21.44	8.18	0.35	0.12

Mosaic images

F555W	F814W

HSTPHOT command log

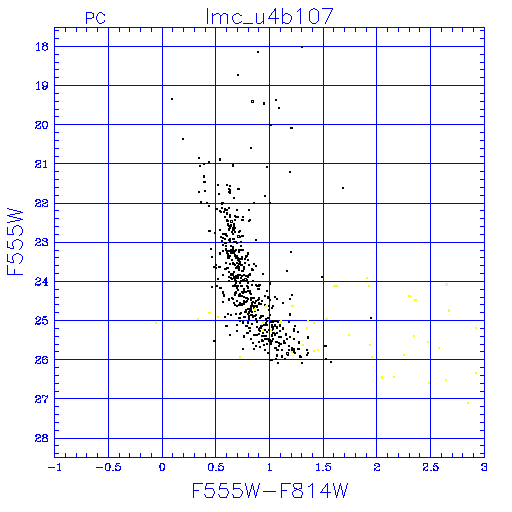

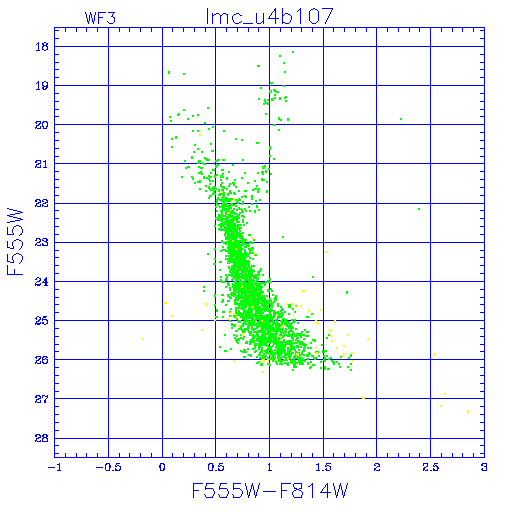

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

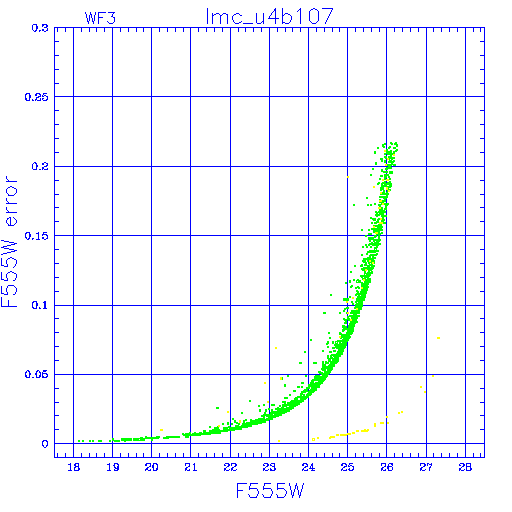

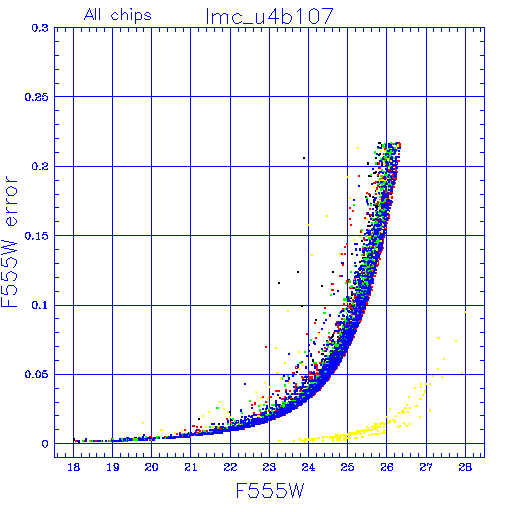

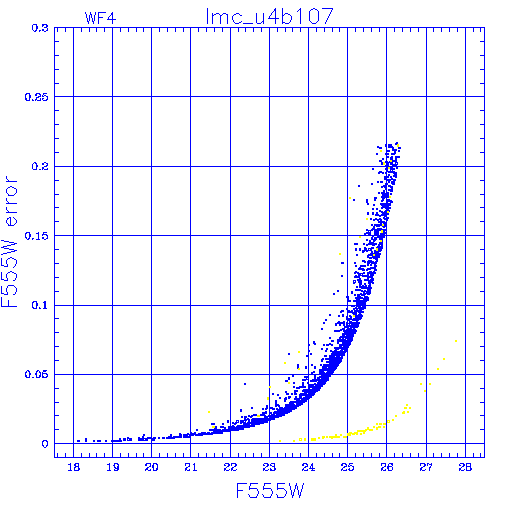

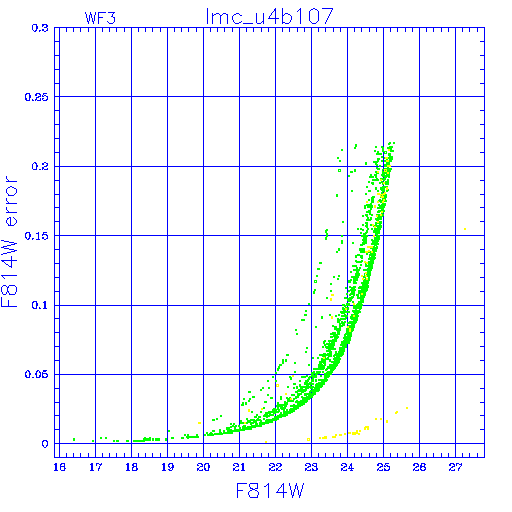

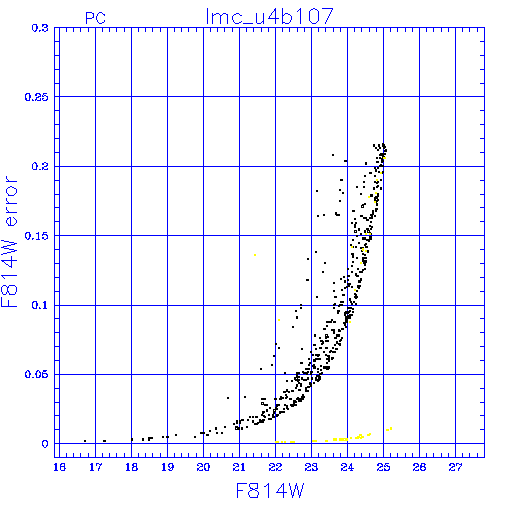

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

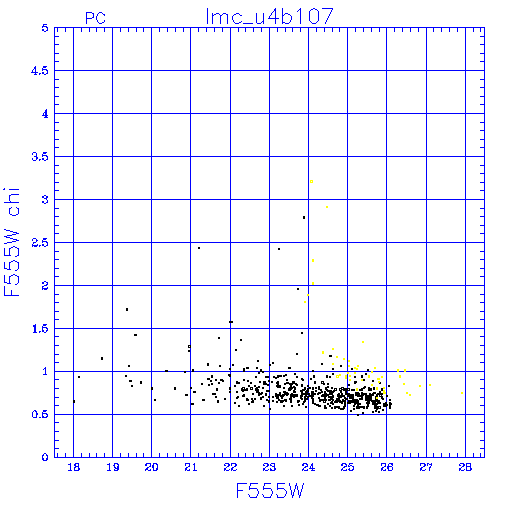

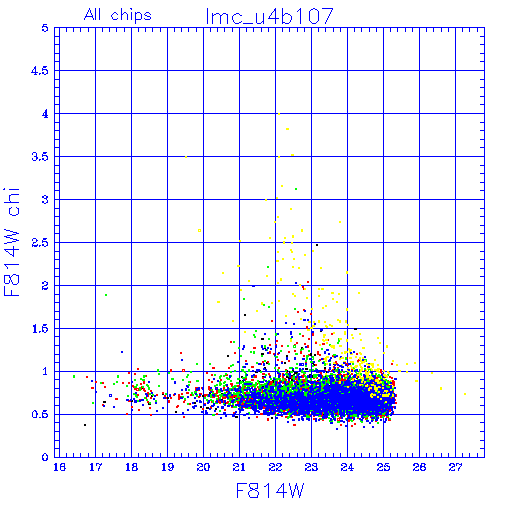

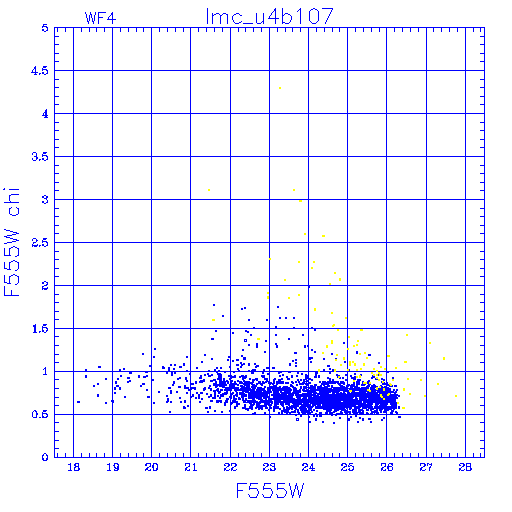

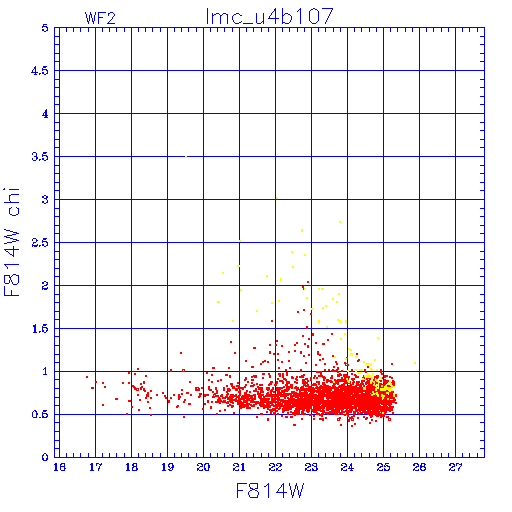

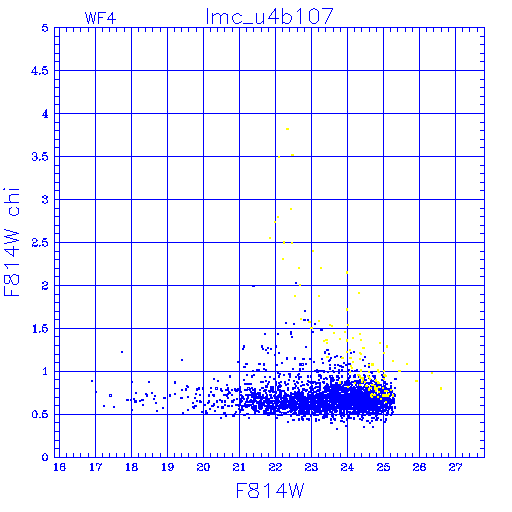

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

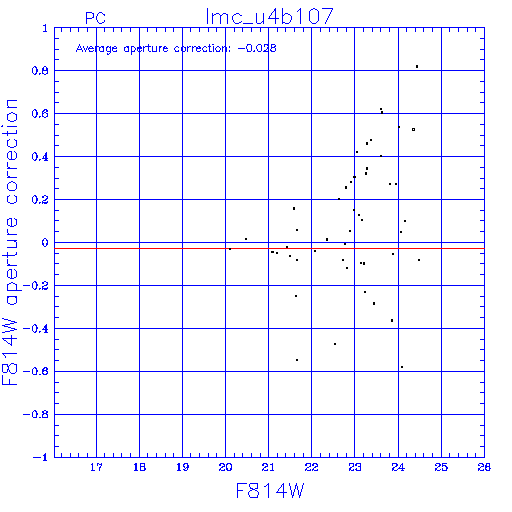

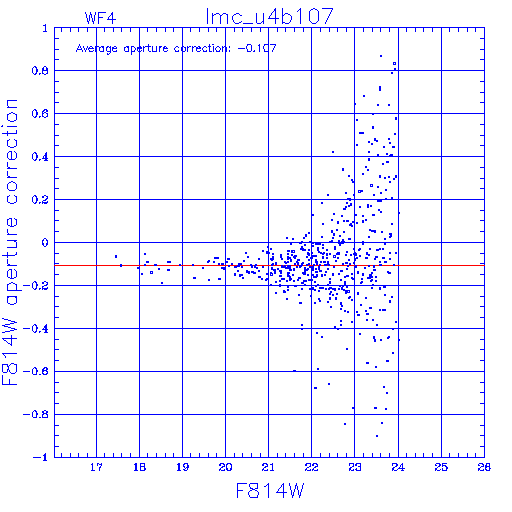

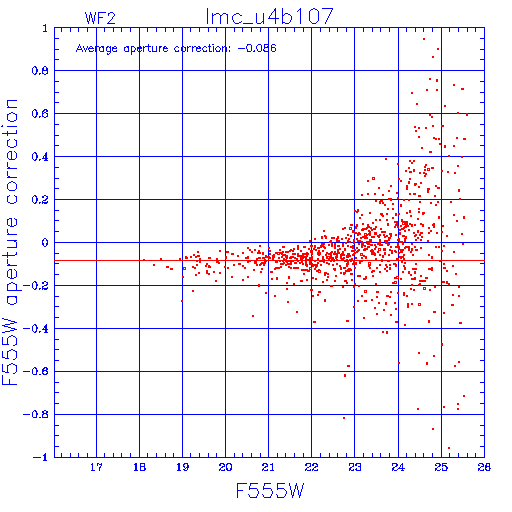

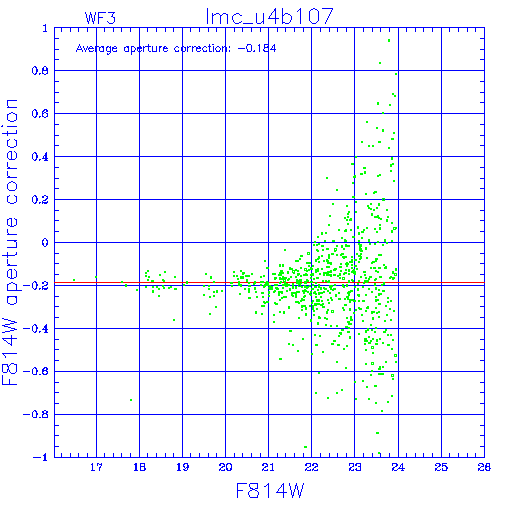

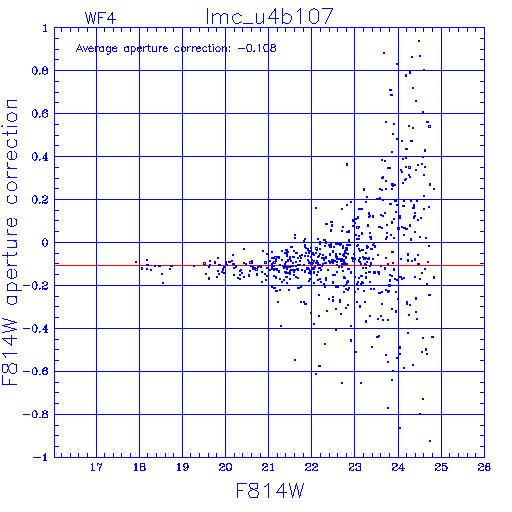

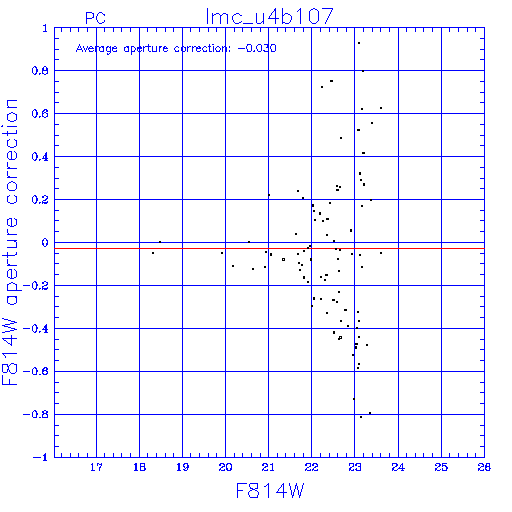

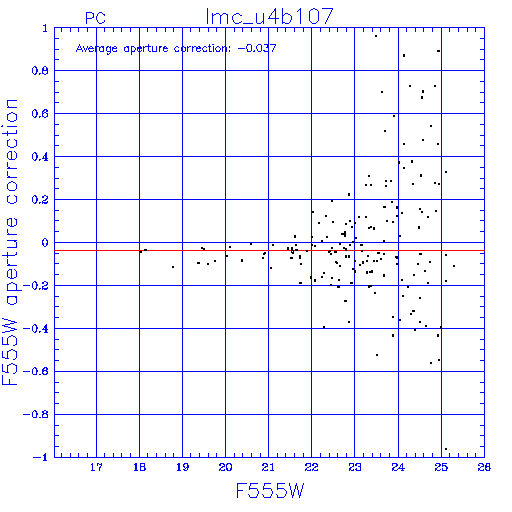

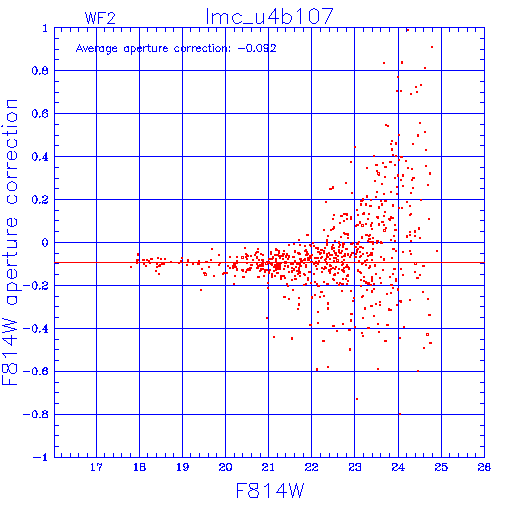

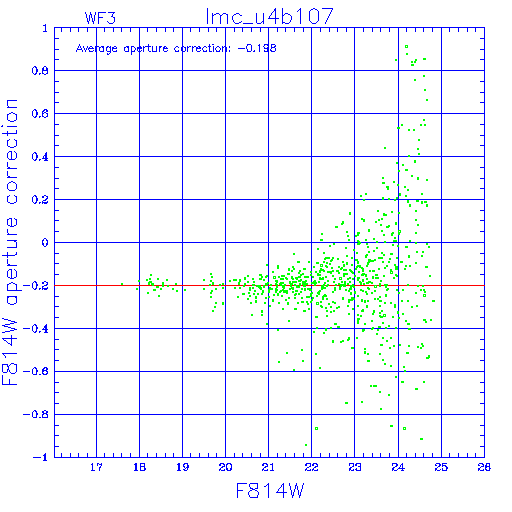

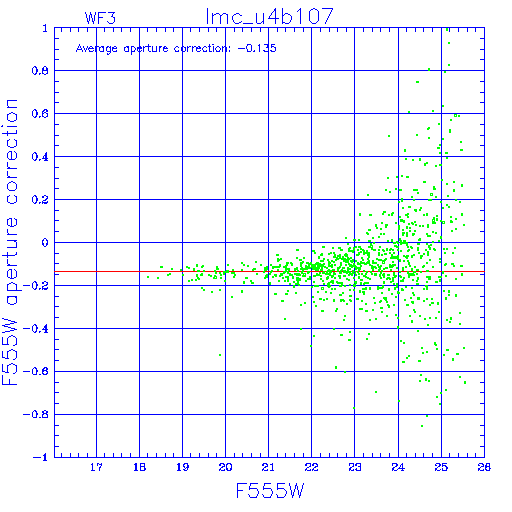

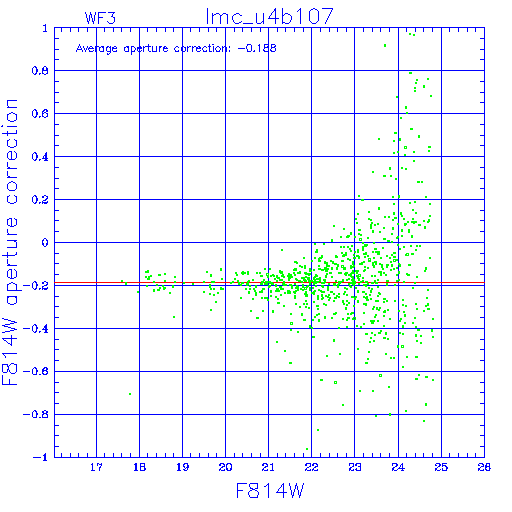

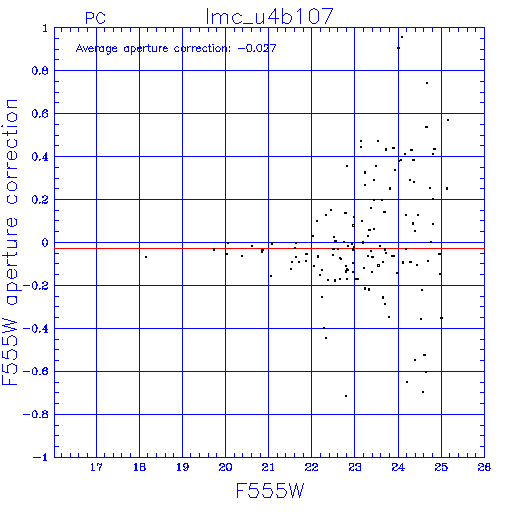

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
