Photometry Diagnostics for lmc_u4ax91


Frame list, with derived and commanded shifts
dataset filter exptime derived dx derived dy header dx header dy delta dx delta dy
u4ax9101r F555W 900.00 0.00 0.00 0.00 0.00 0.00 0.00
u4ax9102r F555W 800.00 -0.05 0.01 0.00 0.00 -0.05 0.01
u4ax9103r F555W 800.00 -0.04 -0.01 0.00 0.00 -0.04 -0.01
u4ax9201r F814W 900.00 0.22 1.77 0.00 0.00 0.22 1.77
u4ax9202r F814W 800.00 0.19 1.74 0.00 0.00 0.19 1.74
u4ax9203r F814W 800.00 0.18 1.70 0.00 0.00 0.18 1.70

Mosaic images

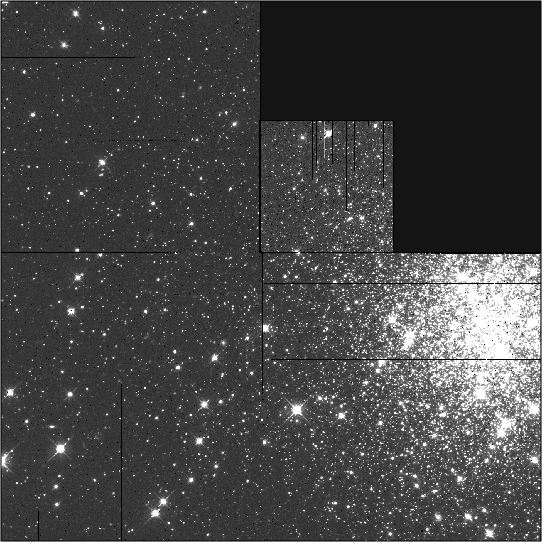

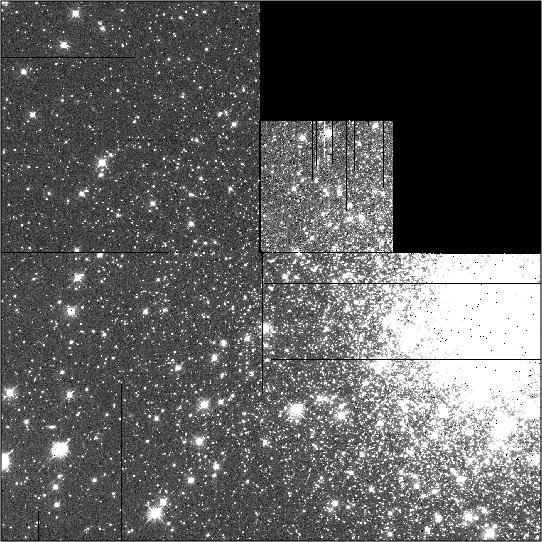

F555W F814W

HSTPHOT command log

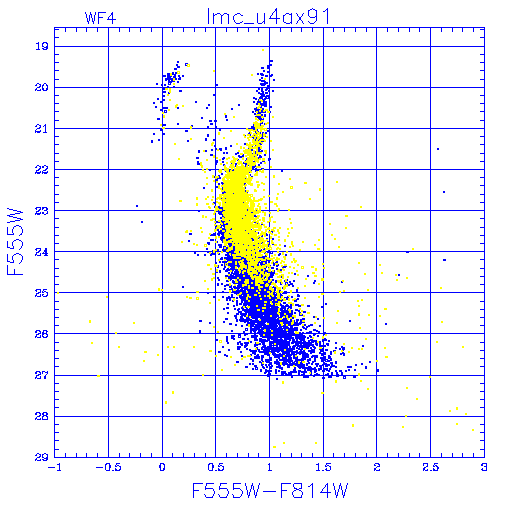

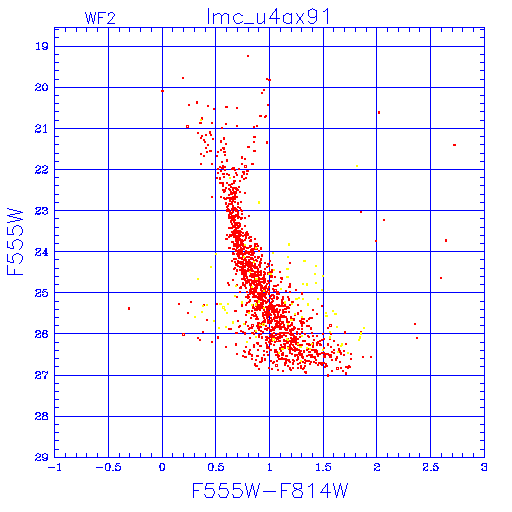

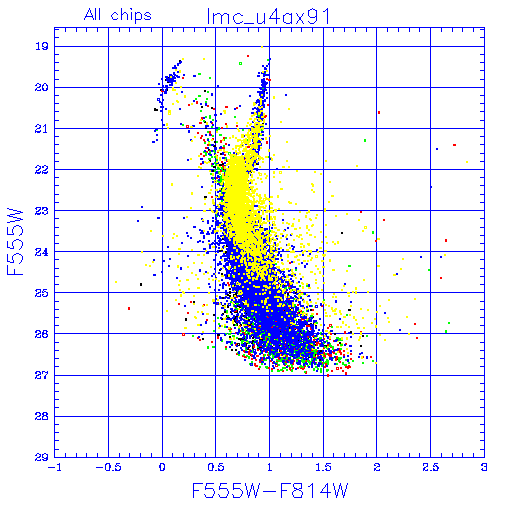

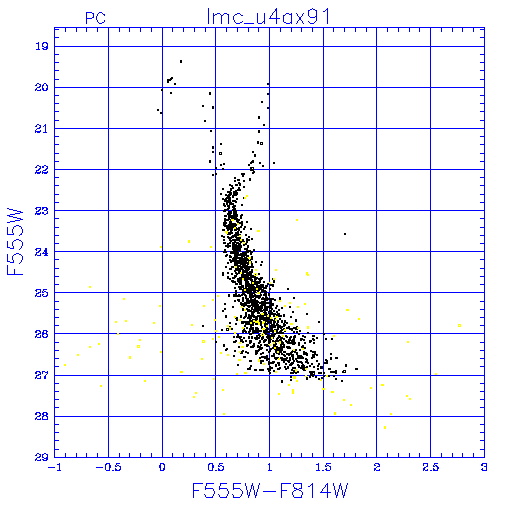

Color magnitude diagrams

All chips

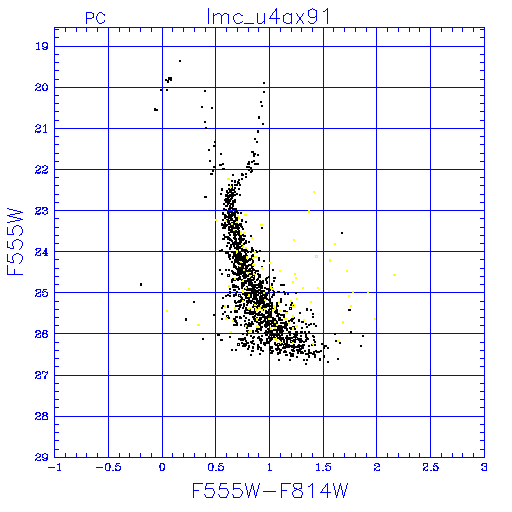

PC

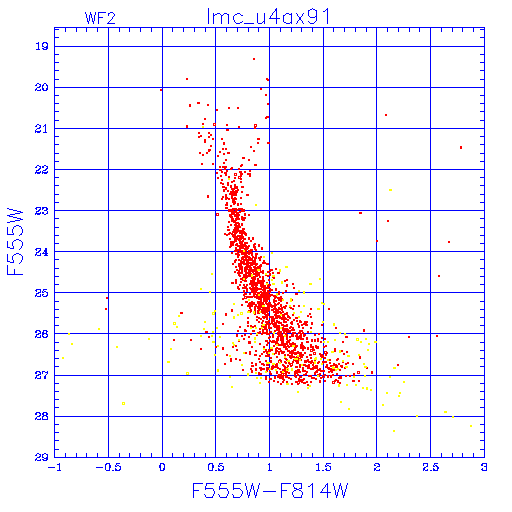

WF2

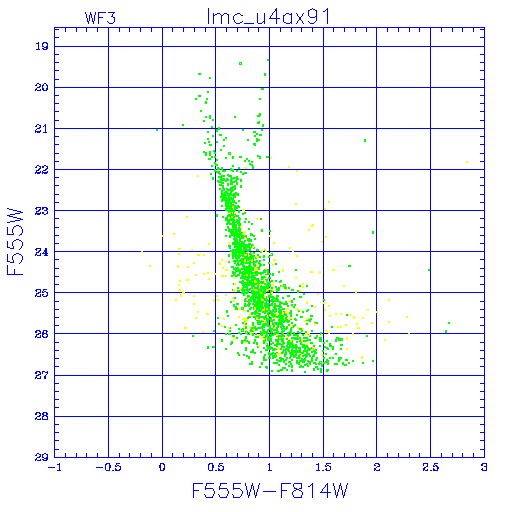

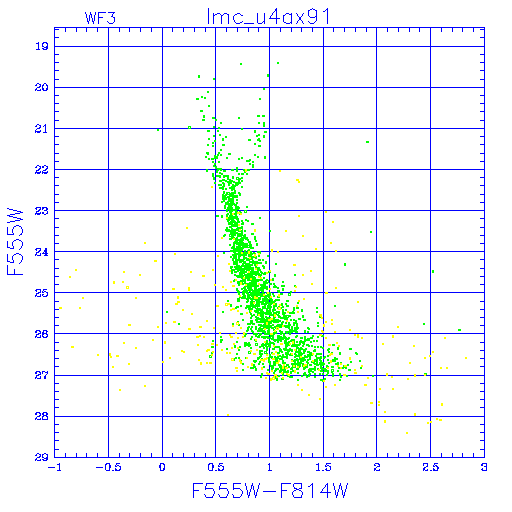

WF3

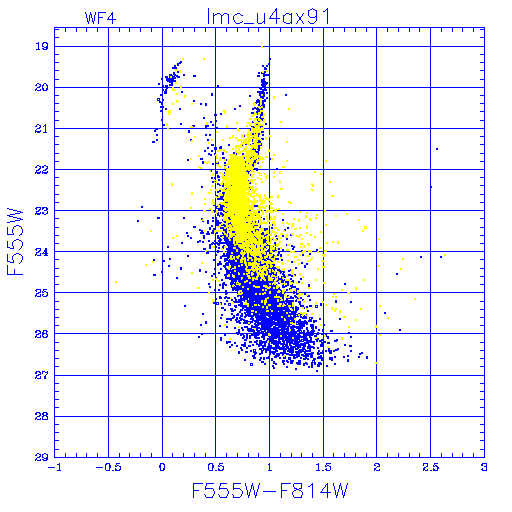

WF4
PSF
Aperture

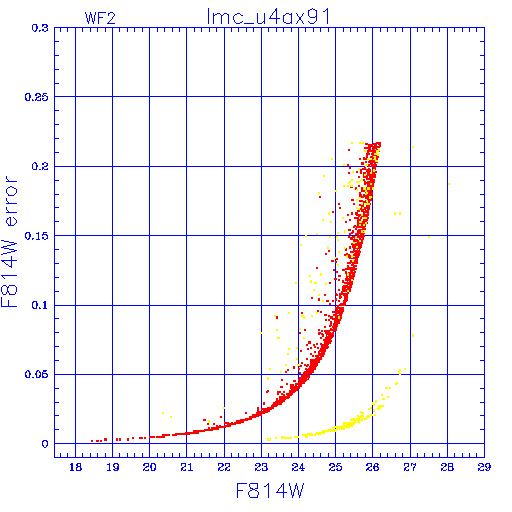

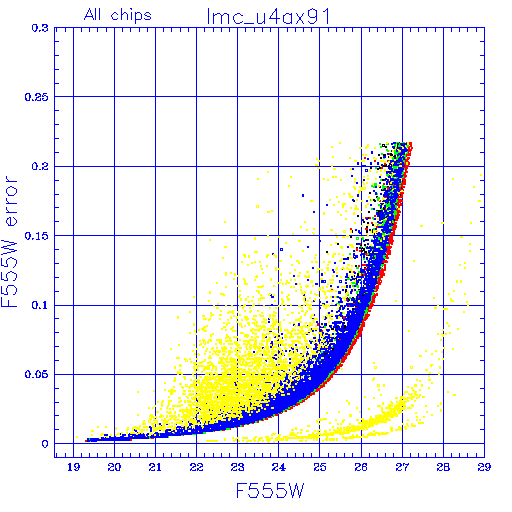

Error vs. magnitude diagrams

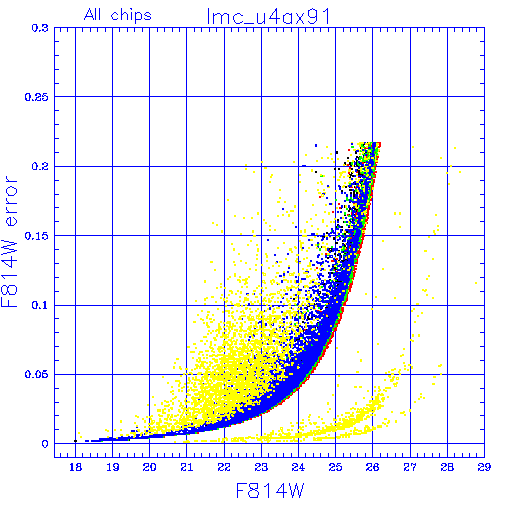

All chips

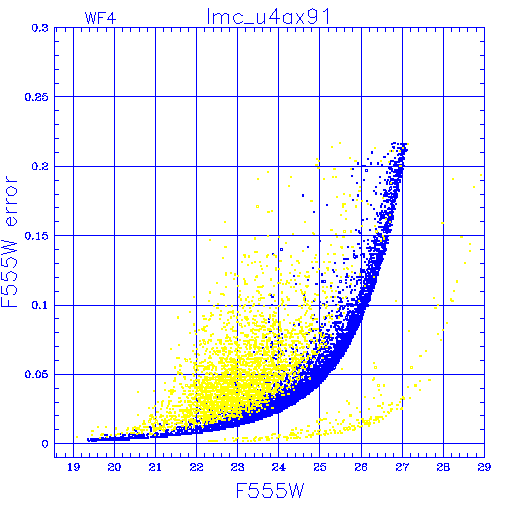

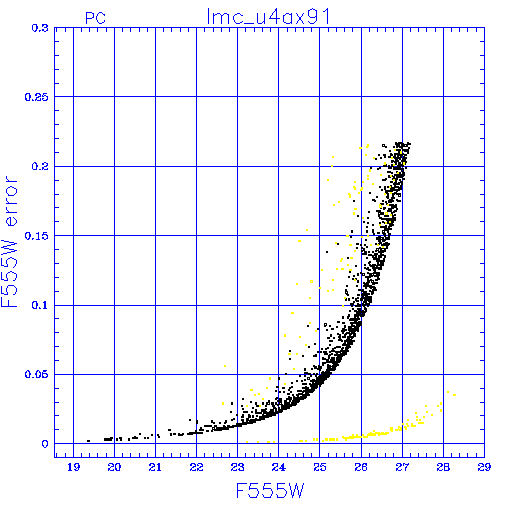

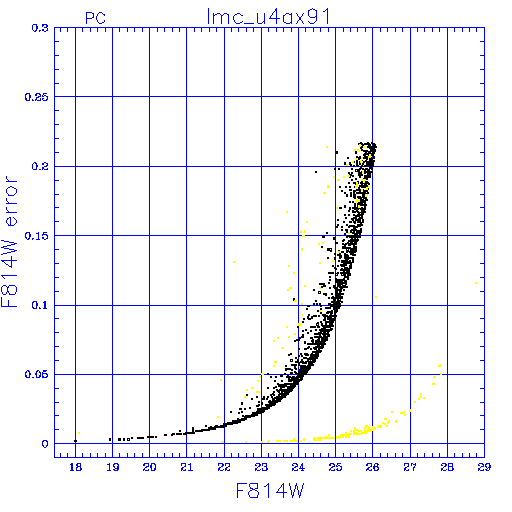

PC

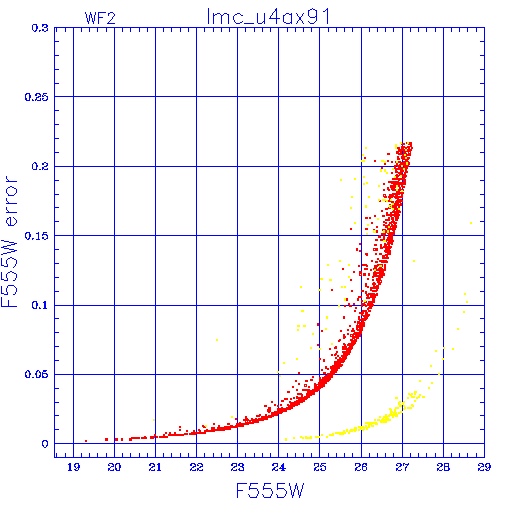

WF2

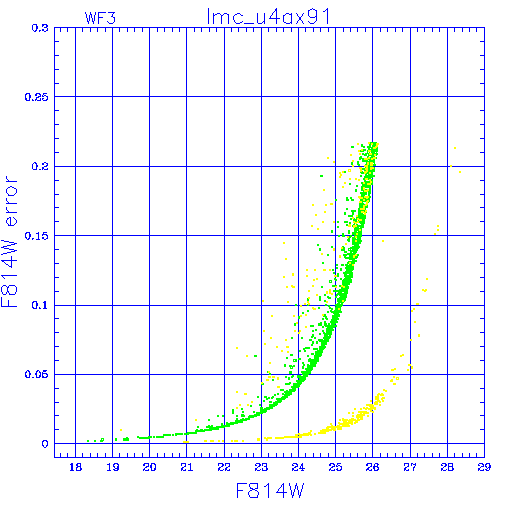

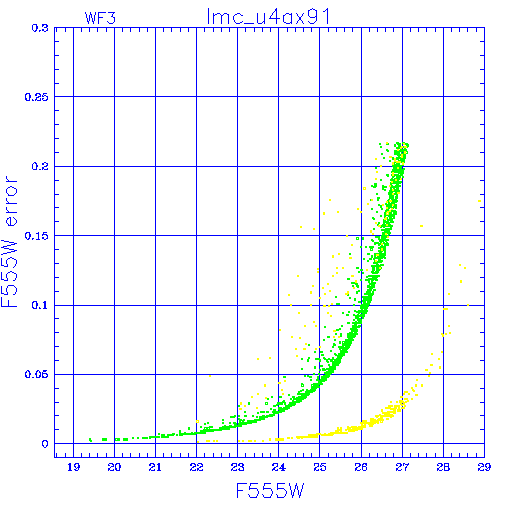

WF3
WF4
f555w

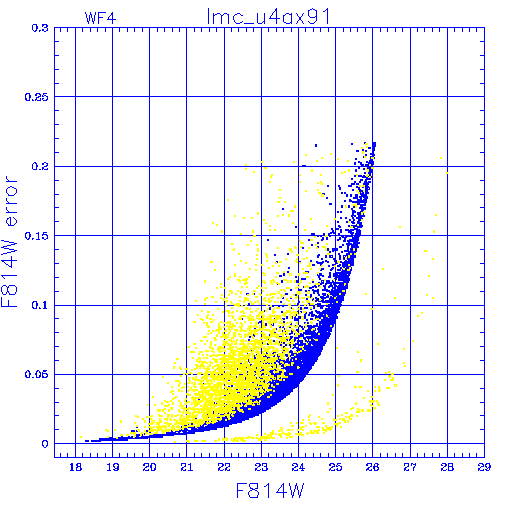

f814w

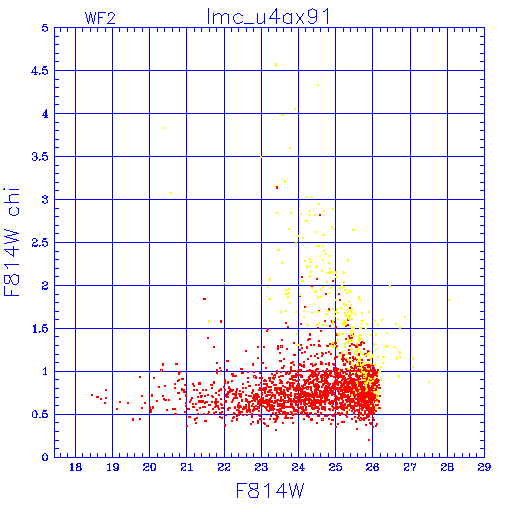

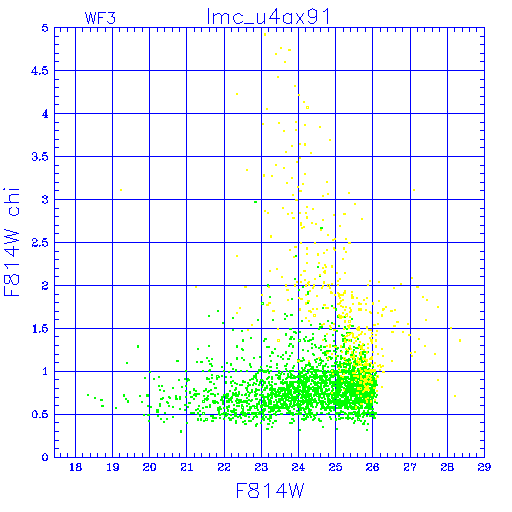

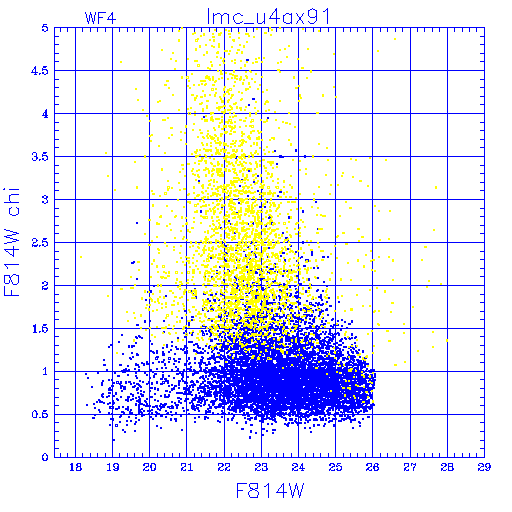

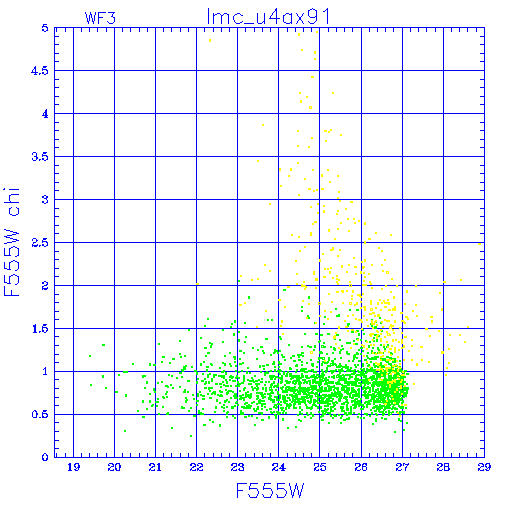

CHI vs. magnitude diagrams

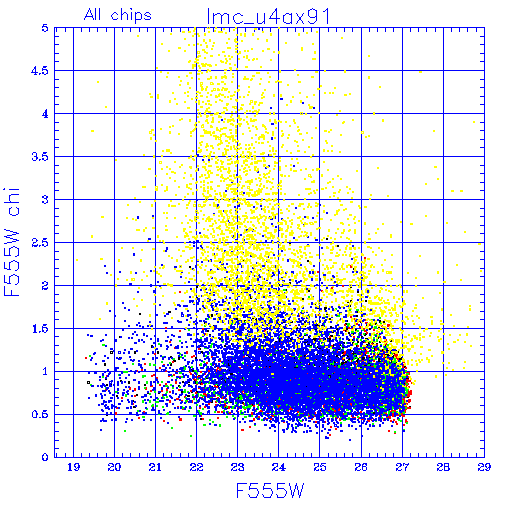

All chips

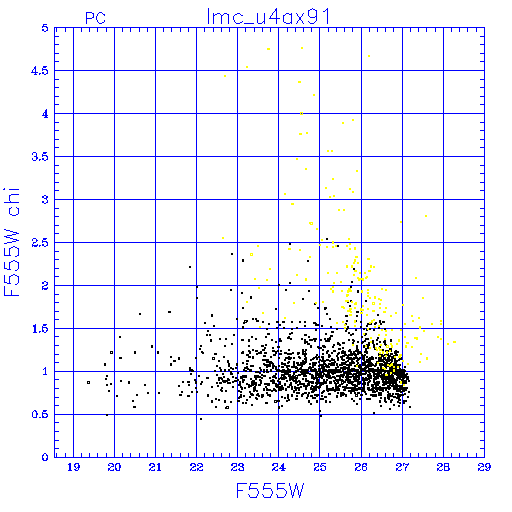

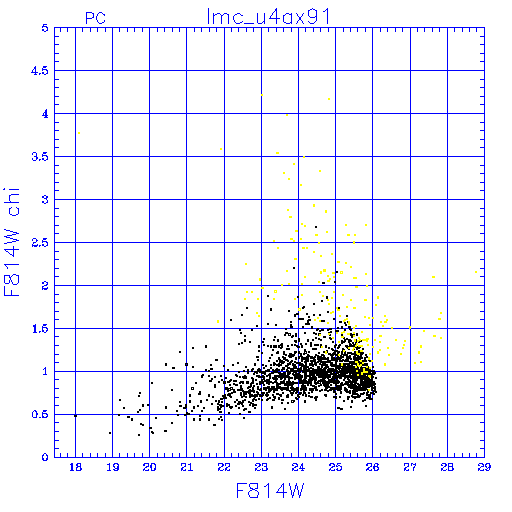

PC

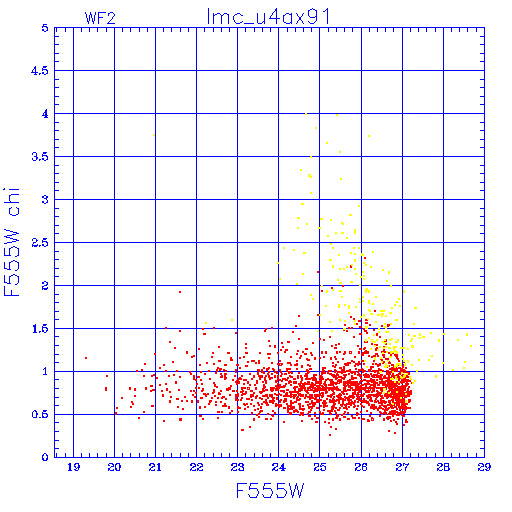

WF2
WF3

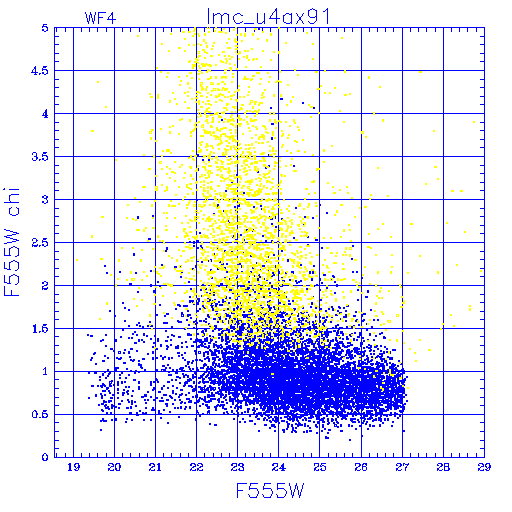

WF4
f555w
f814w

Aperture corrections

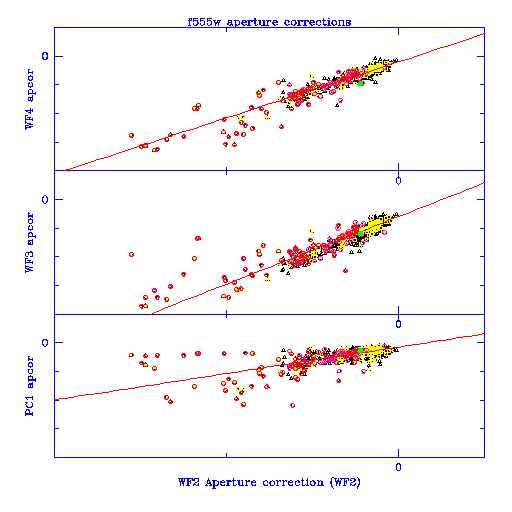

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
F555W F814W

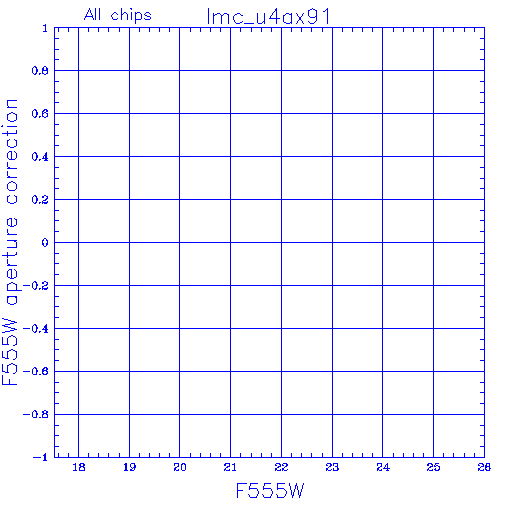

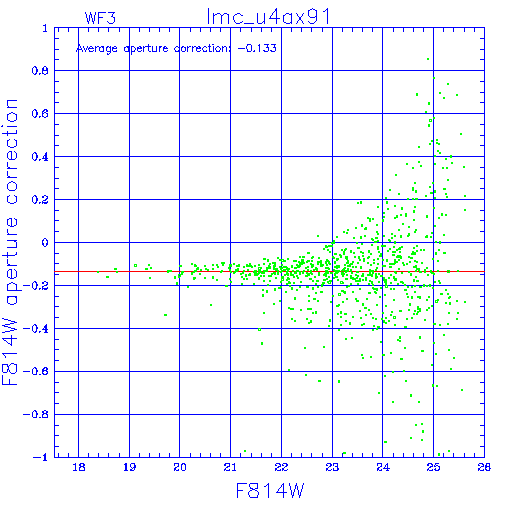

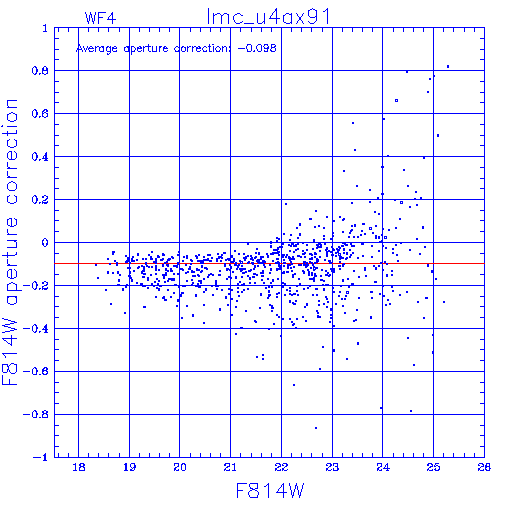

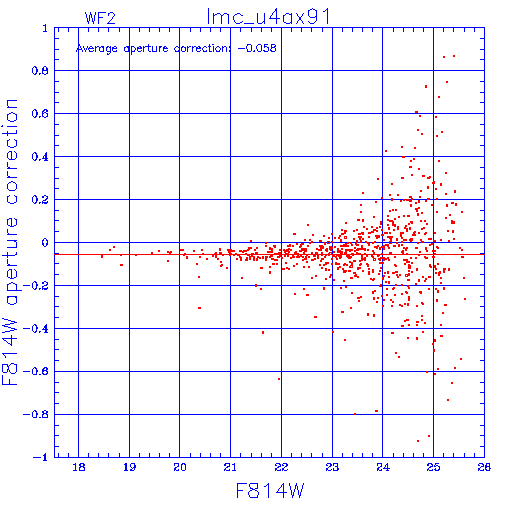

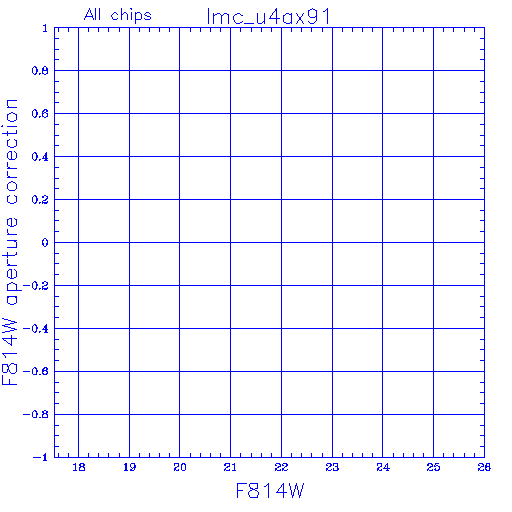

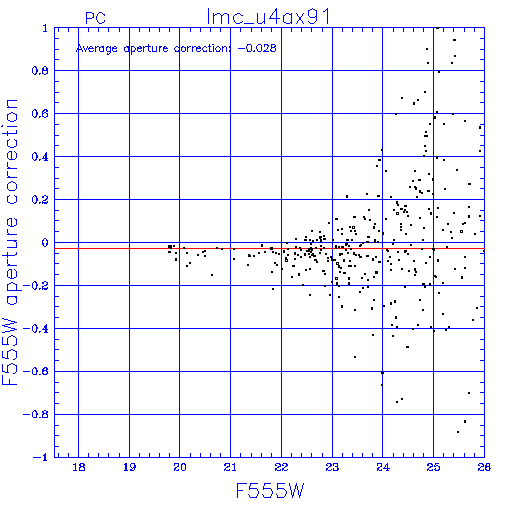

Aperture correction for each frame/chip, showing individual stars
All chips

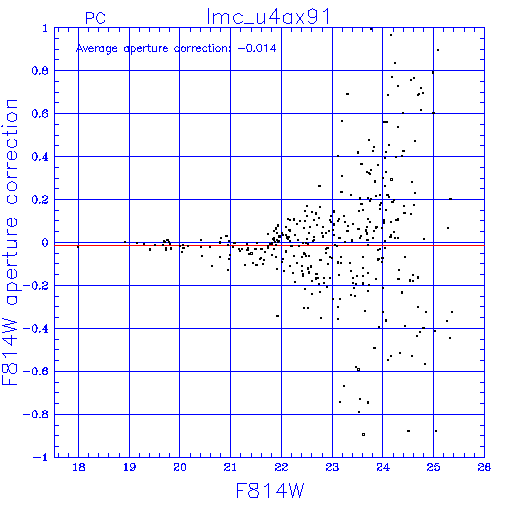

PC

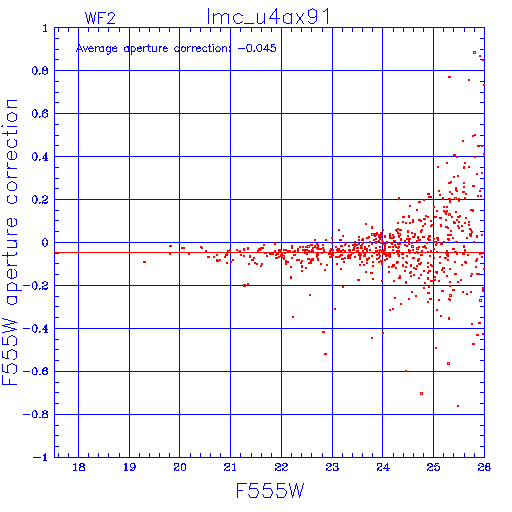

WF2

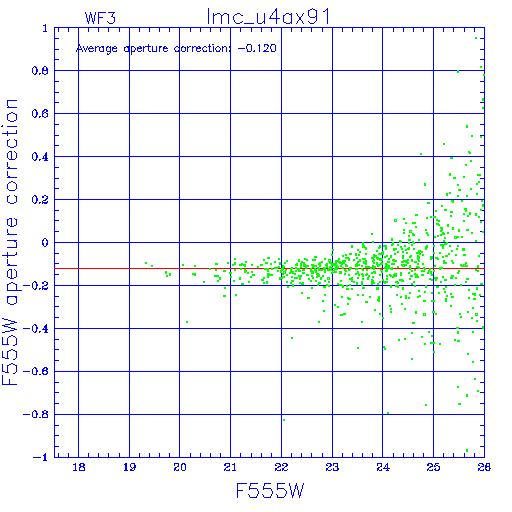

WF3

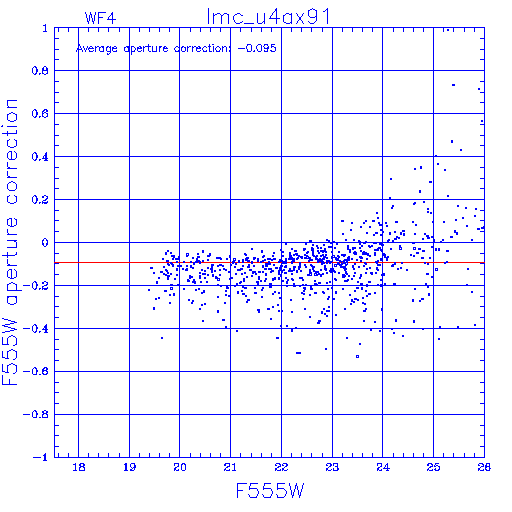

WF4
f555w
f814w

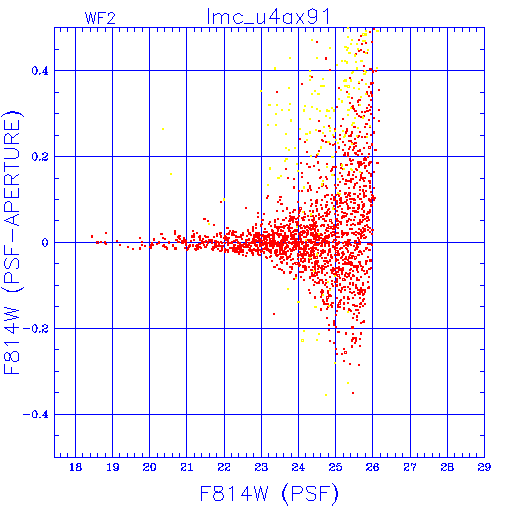

PSF vs. aperture photometry

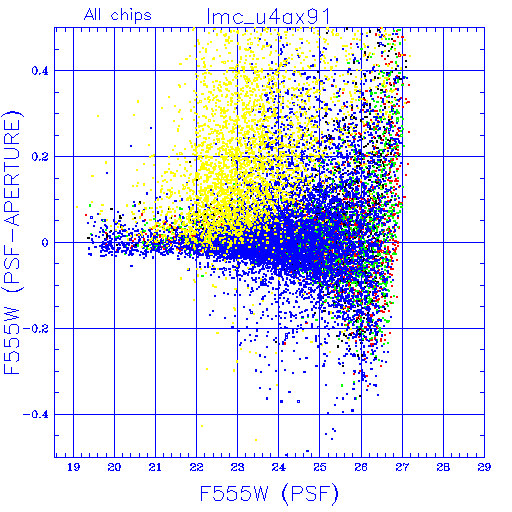

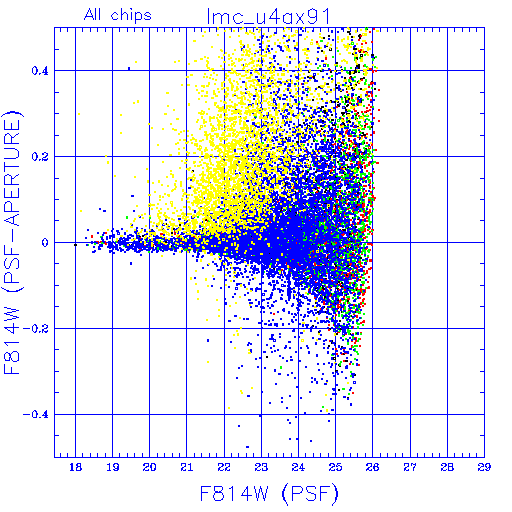

All chips

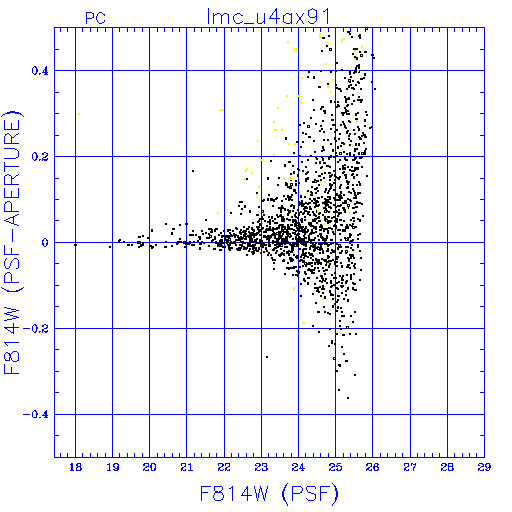

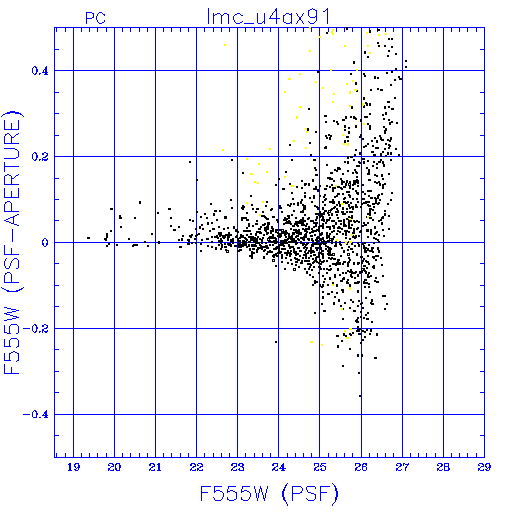

PC

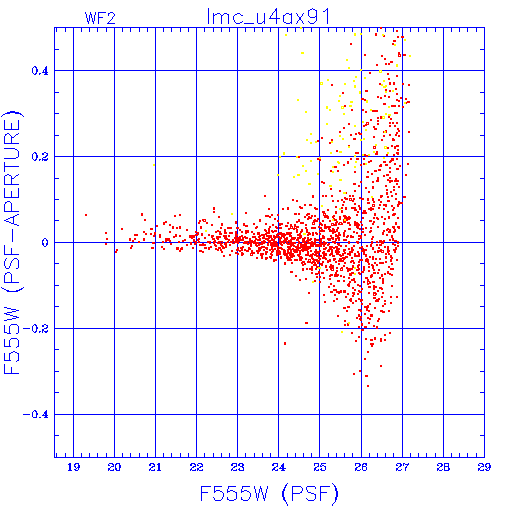

WF2

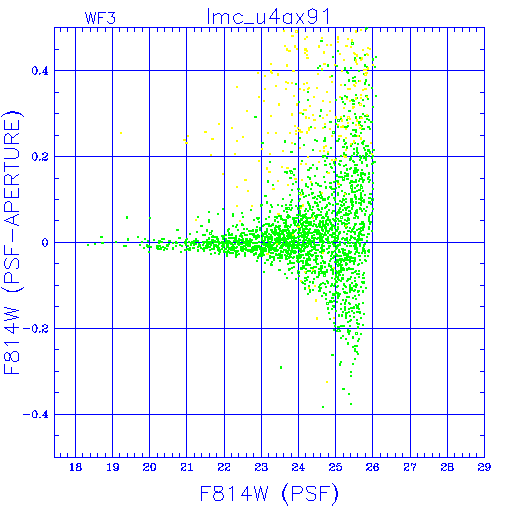

WF3

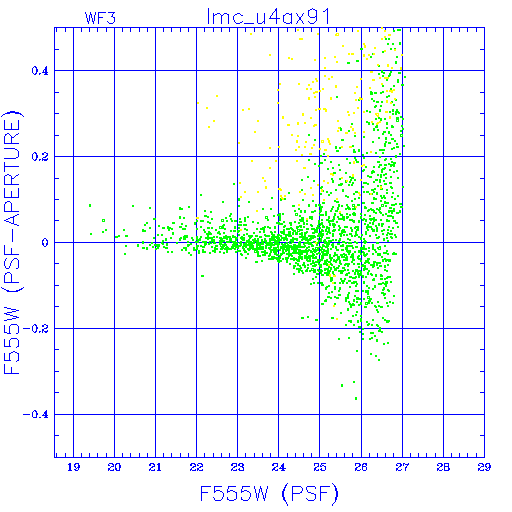

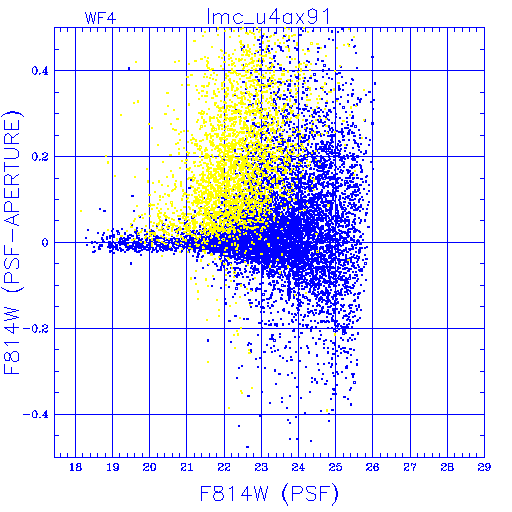

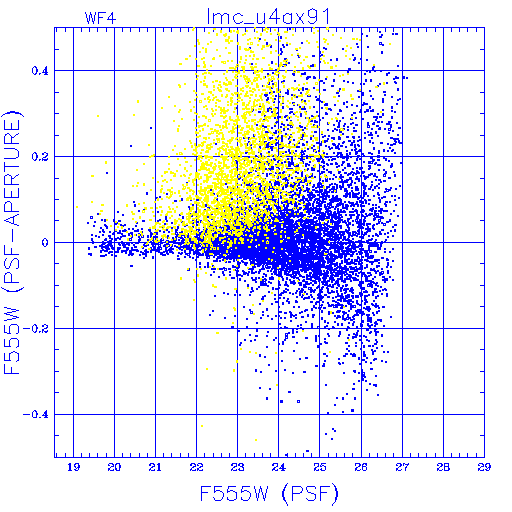

WF4
f555w
f814w

Artificial star diagrams

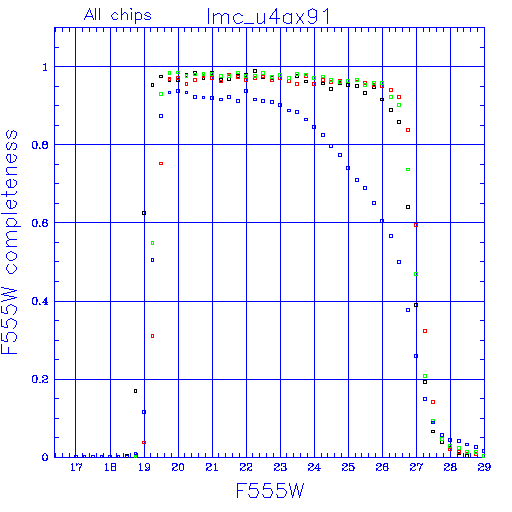

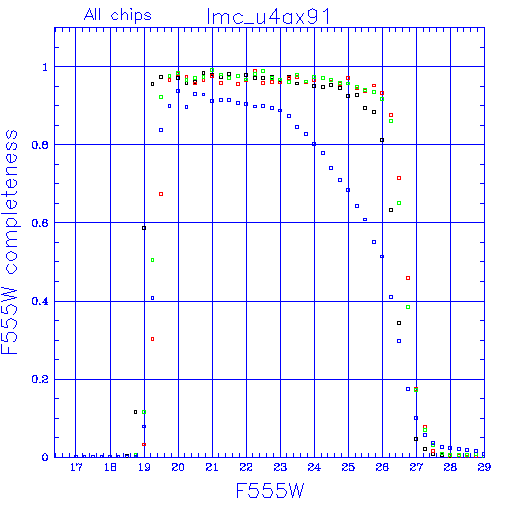

Completeness as a function of input magnitude
PSF photometry Aperture photometry

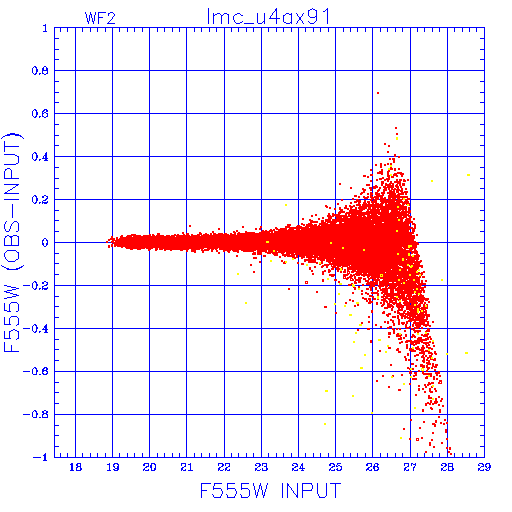

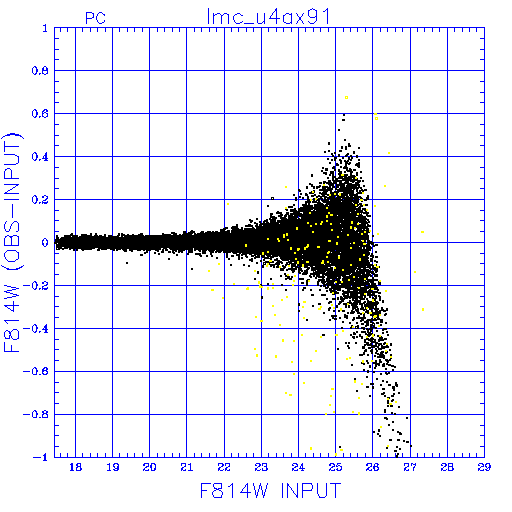

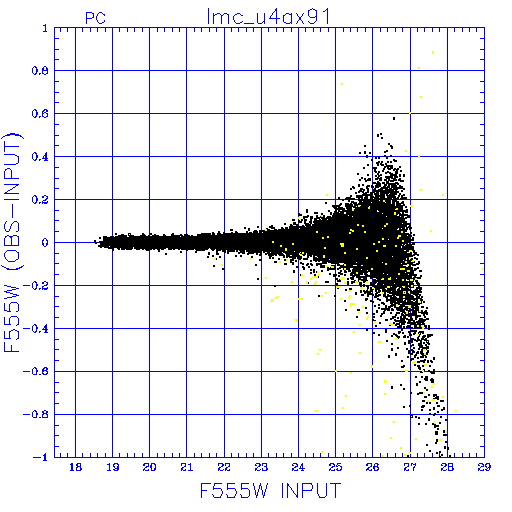

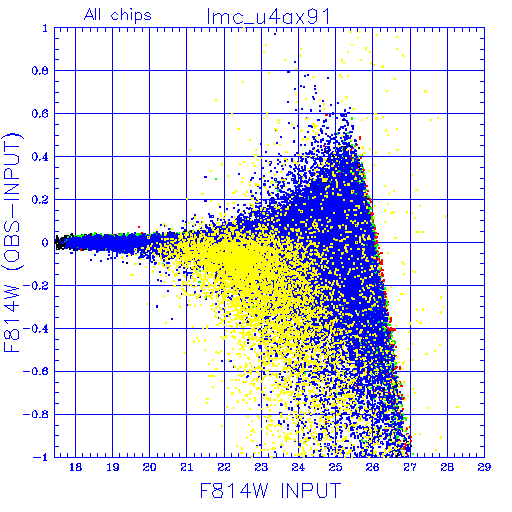

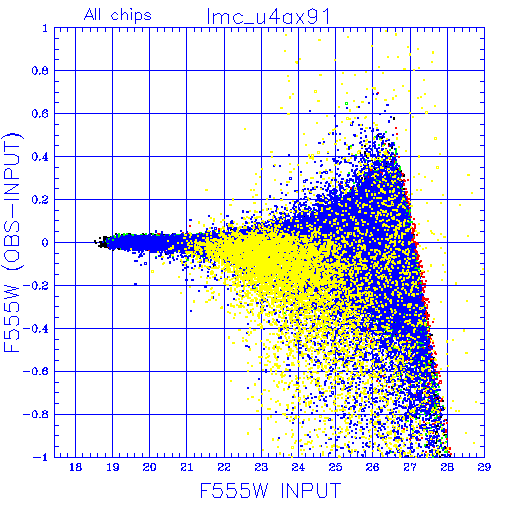

Recovered mag-input mag as a function of input mag (PSF photometry)
All chips
PC

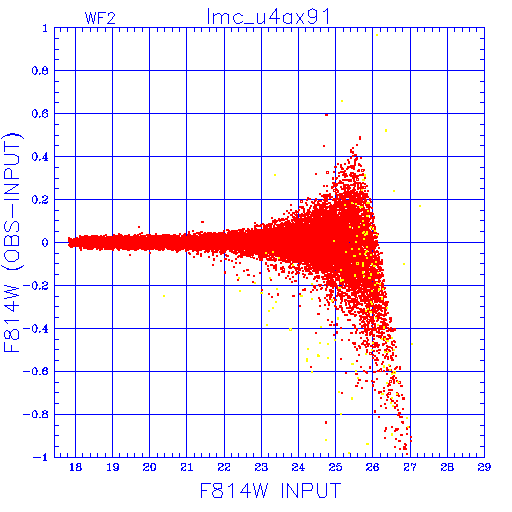

WF2

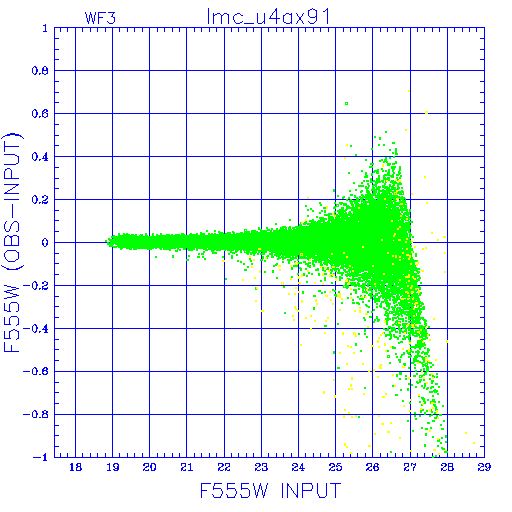

WF3

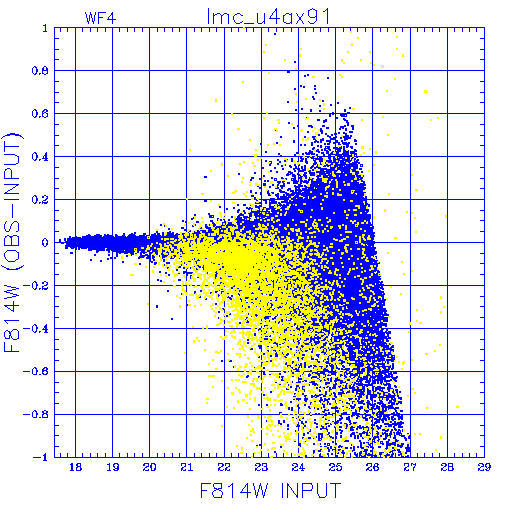

WF4

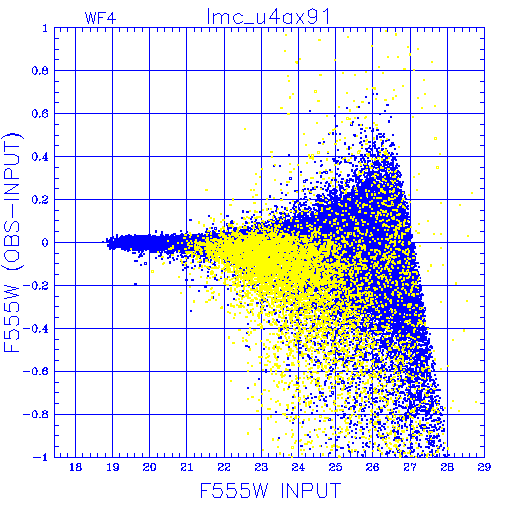

f555w

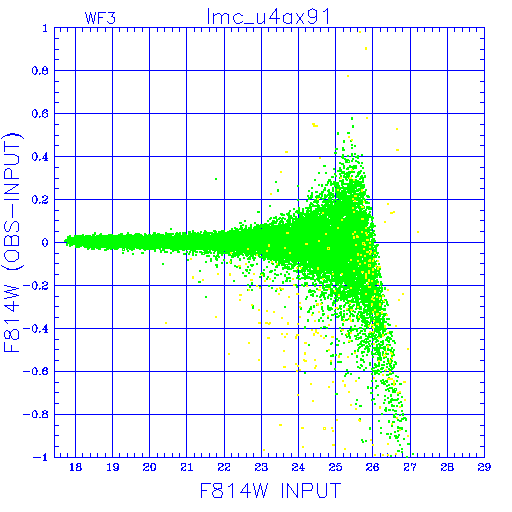

f814w

Average recovered magnitude as function of location in CMD (PSF photometry)
All chips
PC
WF2
WF3
WF4
