Photometry Diagnostics for lmc_u4ax74

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u4ax7401r	F555W	300.00	0.00	0.00	0.00	0.00	0.00	0.00
u4ax7402r	F555W	5.00	0.00	0.01	0.00	0.00	0.00	0.01
u4ax7403r	F555W	5.00	0.02	0.00	0.00	0.00	0.02	0.00
u4ax7404r	F555W	5.00	0.01	-0.02	0.00	0.00	0.01	-0.02
u4ax7405r	F555W	140.00	0.03	-0.01	0.00	0.00	0.03	-0.01
u4ax7406r	F555W	140.00	0.02	0.00	0.00	0.00	0.02	0.00
u4ax7407r	F814W	140.00	0.08	-0.06	0.00	0.00	0.08	-0.06
u4ax7408r	F814W	20.00	0.08	-0.07	0.00	0.00	0.08	-0.07
u4ax7409r	F814W	20.00	0.09	-0.05	0.00	0.00	0.09	-0.05
u4ax740ar	F814W	20.00	0.07	0.04	0.00	0.00	0.07	0.04
u4ax740br	F814W	300.00	0.05	0.03	0.00	0.00	0.05	0.03
u4ax740cr	F814W	300.00	0.07	0.00	0.00	0.00	0.07	0.00

Mosaic images

F555W	F814W

HSTPHOT command log

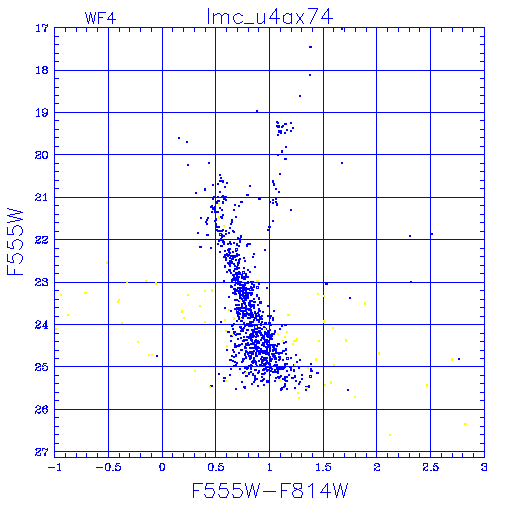

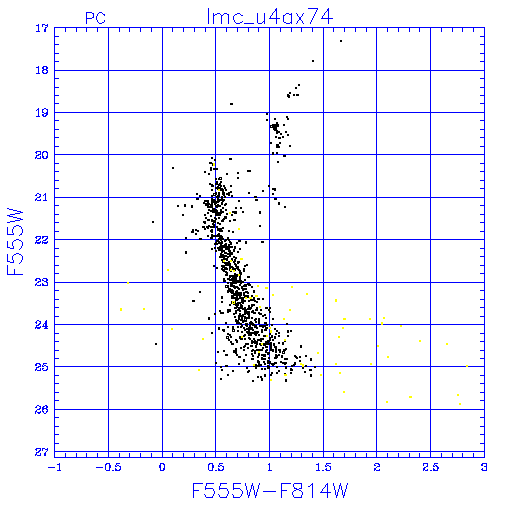

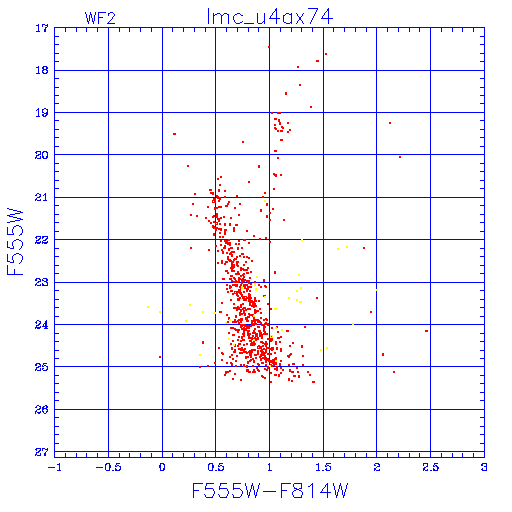

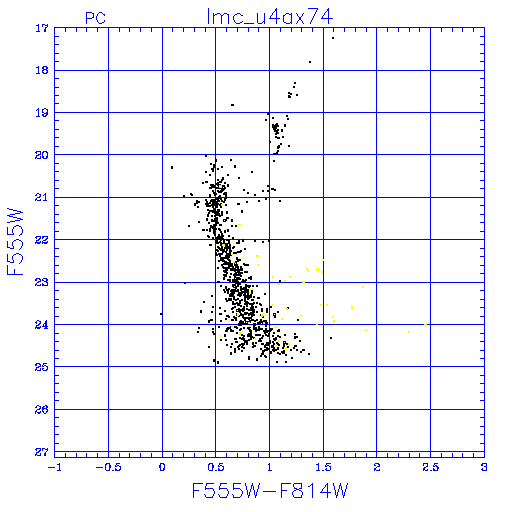

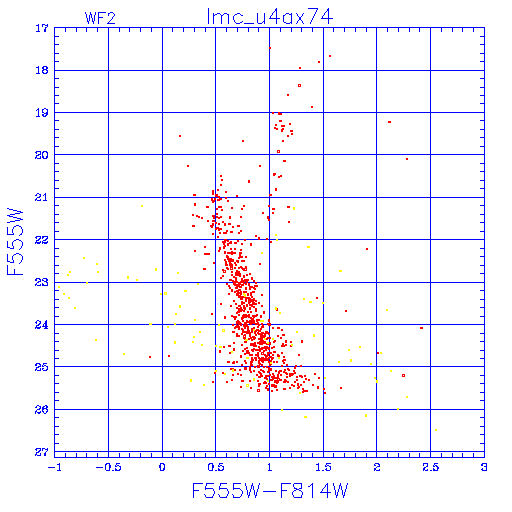

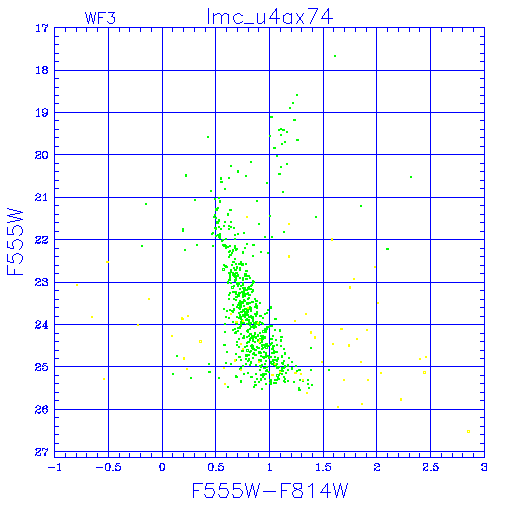

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

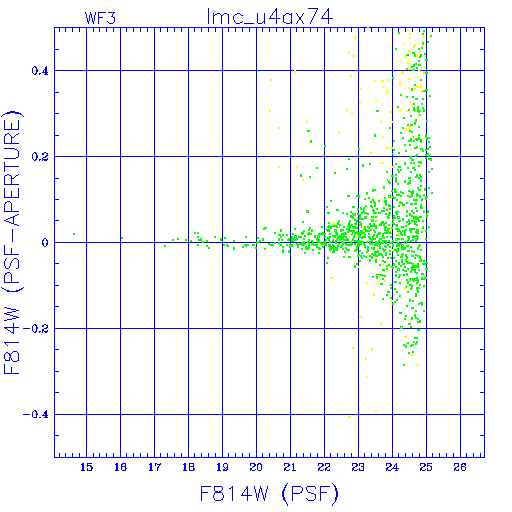

PSF

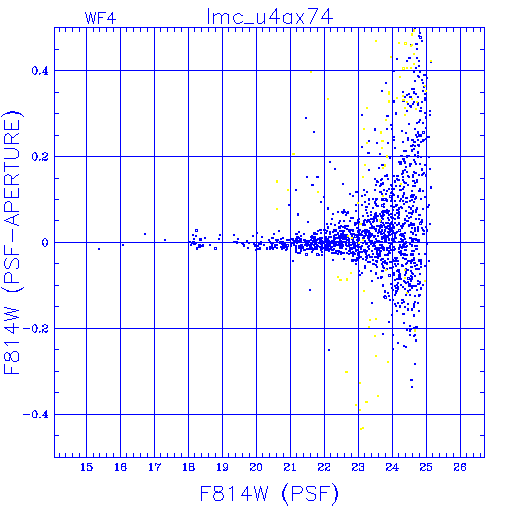

Aperture

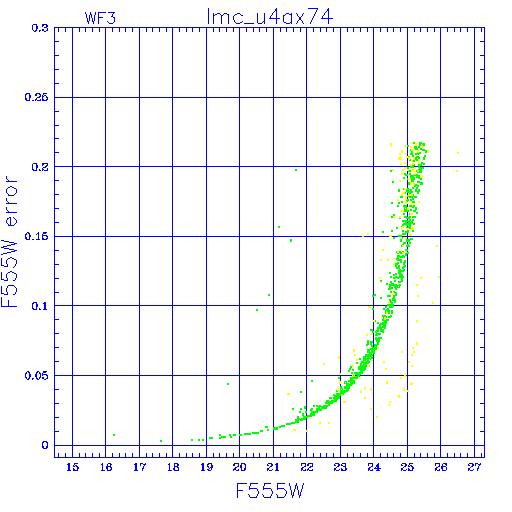

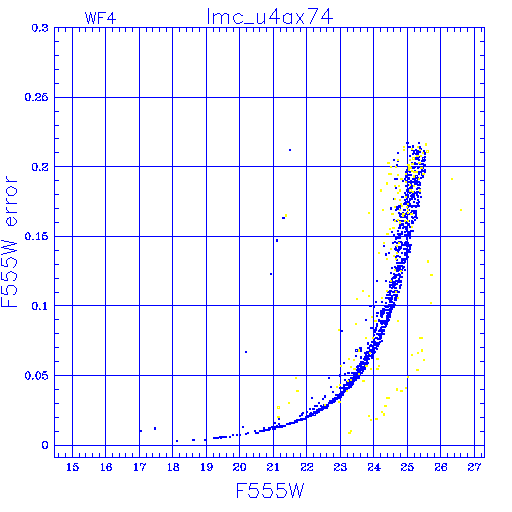

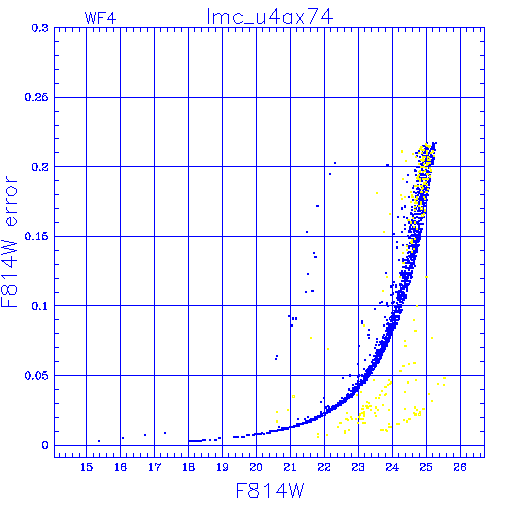

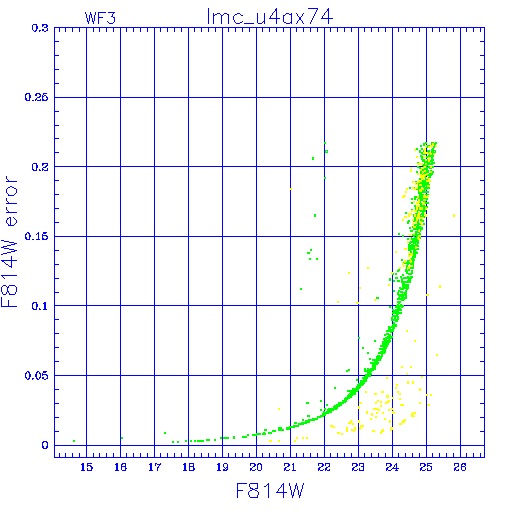

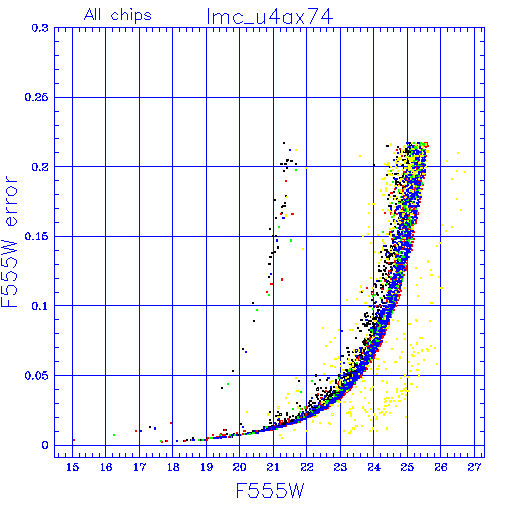

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

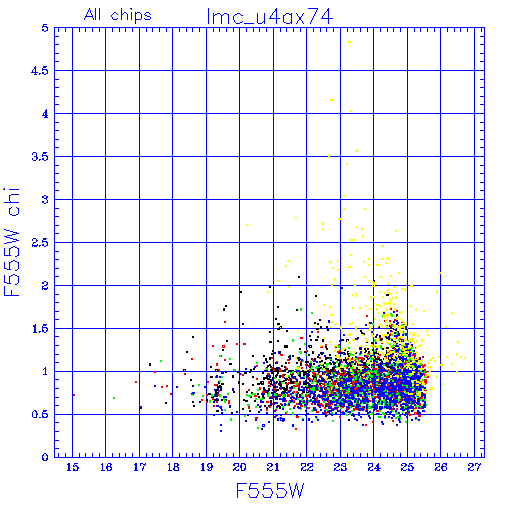

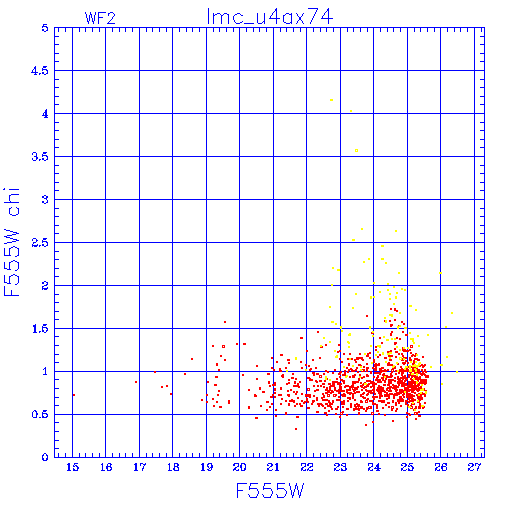

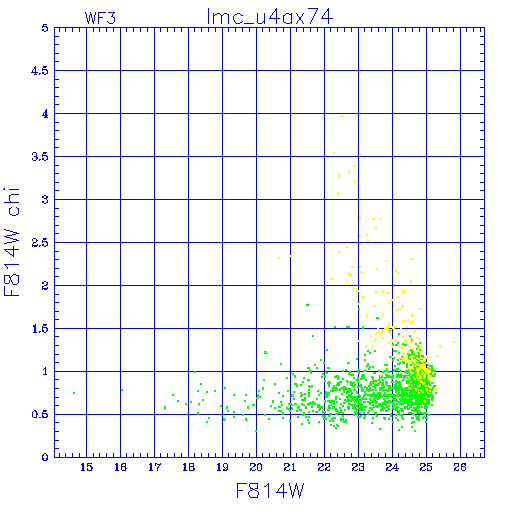

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

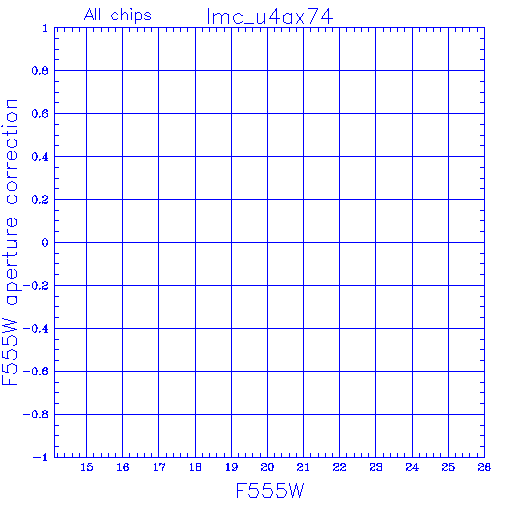

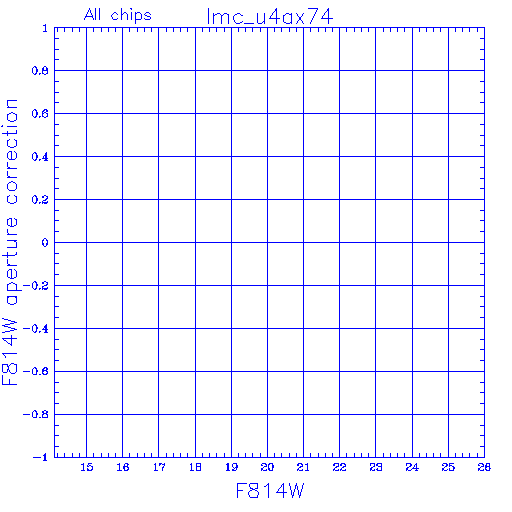

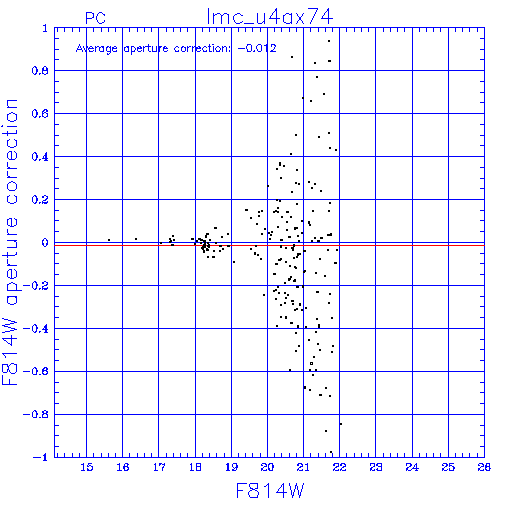

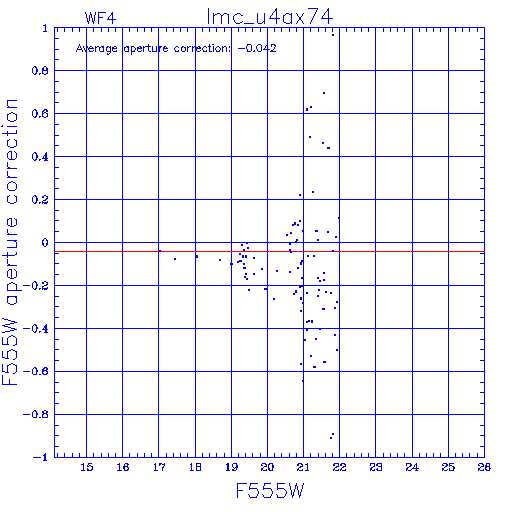

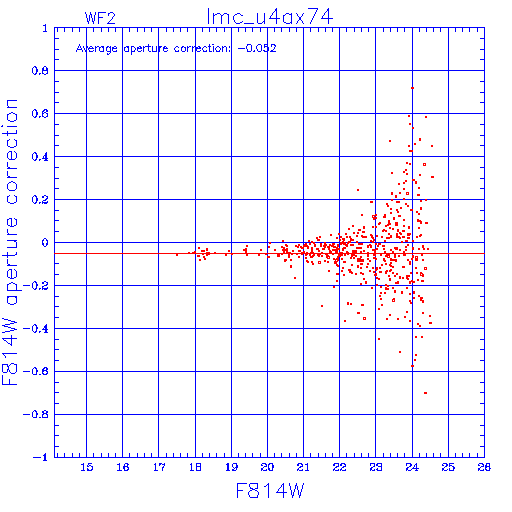

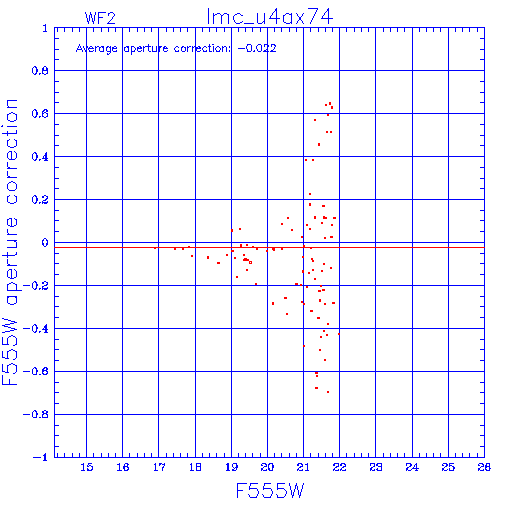

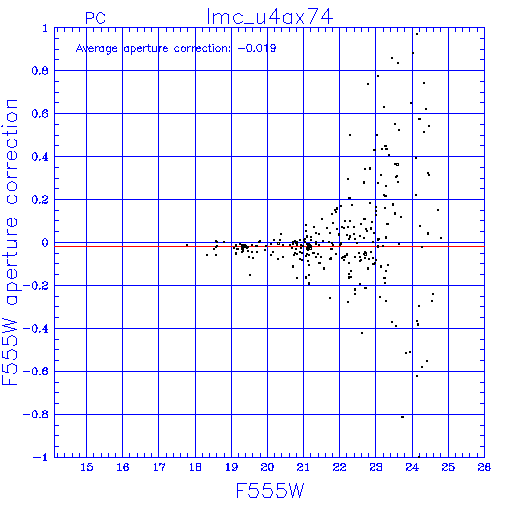

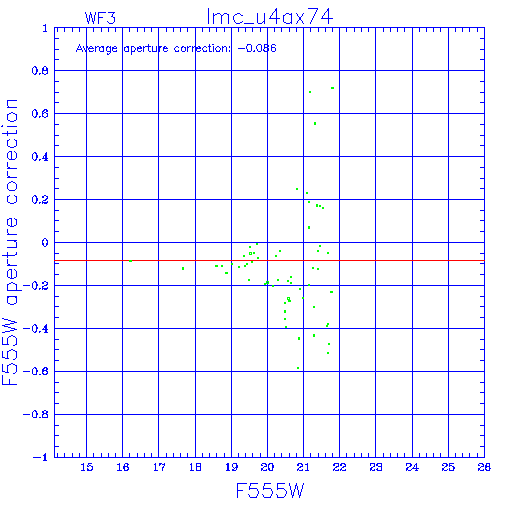

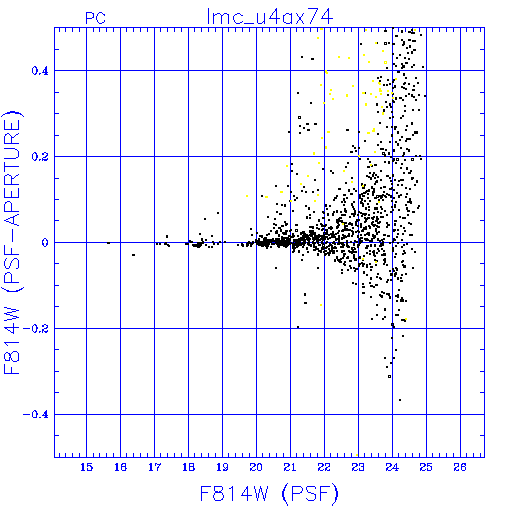

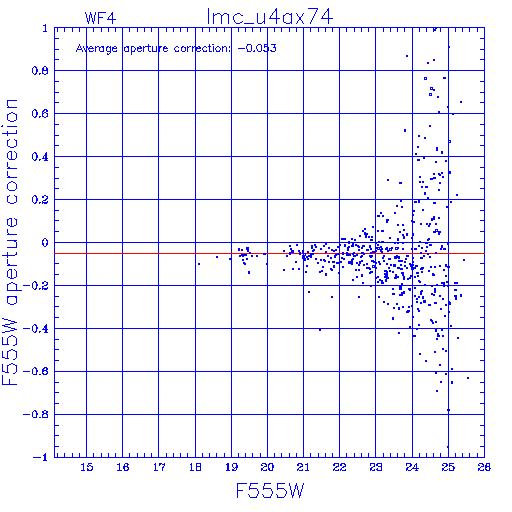

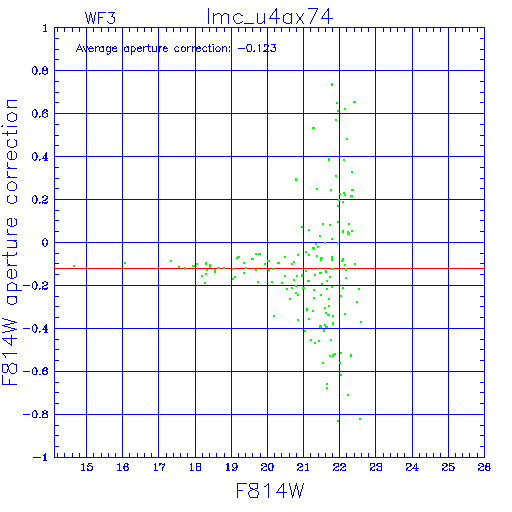

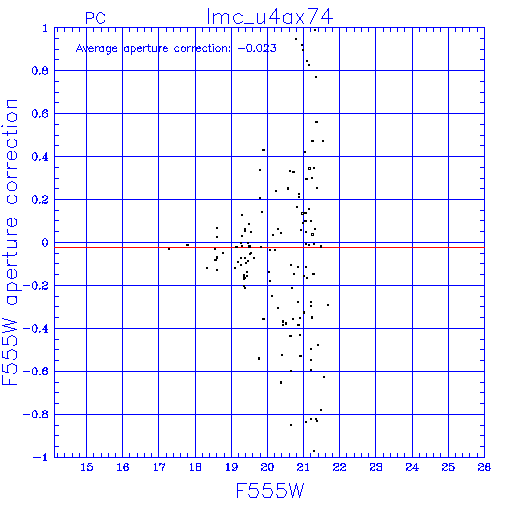

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
