Photometry Diagnostics for lmc_u4ax31

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u4ax3101r	F555W	1200.00	0.00	0.00	0.00	0.00	0.00	0.00
u4ax3102r	F555W	1200.00	-0.09	0.00	0.00	0.00	-0.09	0.00
u4ax3201r	F555W	1200.00	0.20	-0.24	0.00	0.00	0.20	-0.24
u4ax3202r	F555W	1200.00	0.10	-0.24	0.00	0.00	0.10	-0.24
u4ax3301r	F555W	1200.00	0.22	0.07	0.00	0.00	0.22	0.07
u4ax3302r	F555W	1200.00	0.20	-0.04	0.00	0.00	0.20	-0.04
u4ax3401r	F814W	1200.00	0.20	-0.39	0.00	0.00	0.20	-0.39
u4ax3402r	F814W	1200.00	0.14	-0.47	0.00	0.00	0.14	-0.47
u4ax3501r	F814W	1200.00	0.04	-0.19	0.00	0.00	0.04	-0.19
u4ax3502r	F814W	1200.00	-0.03	-0.15	0.00	0.00	-0.03	-0.15

Mosaic images

F555W	F814W

HSTPHOT command log

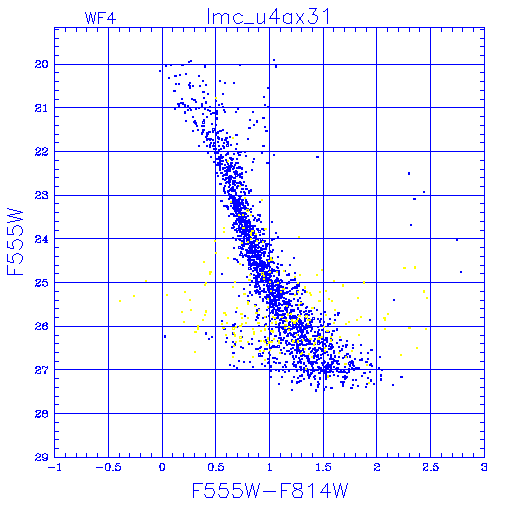

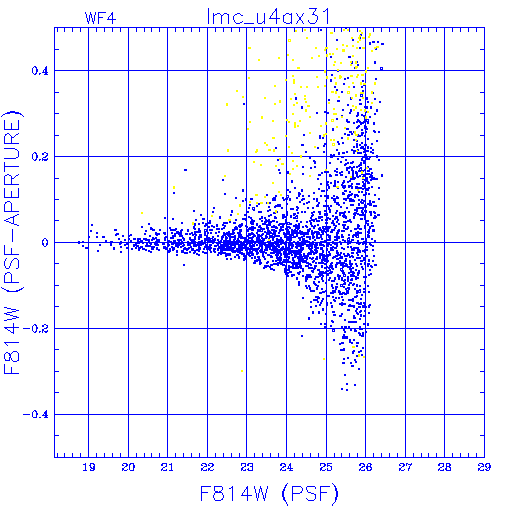

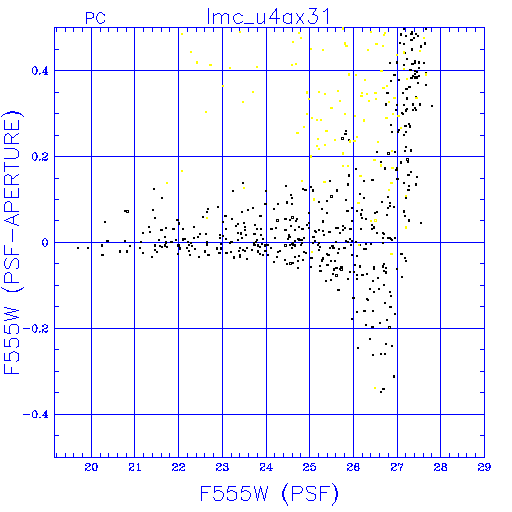

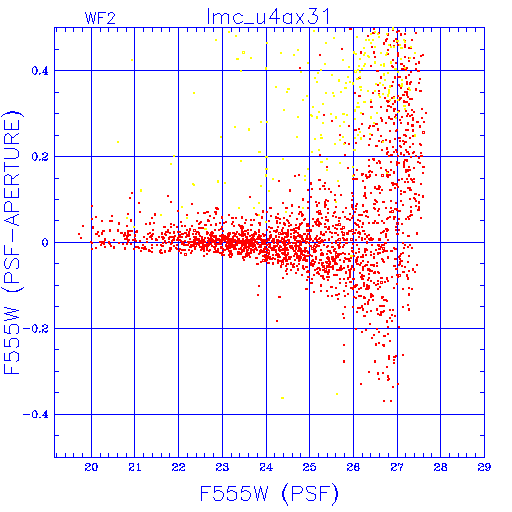

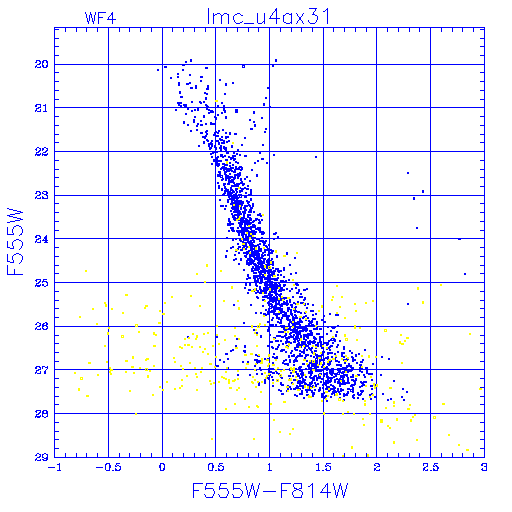

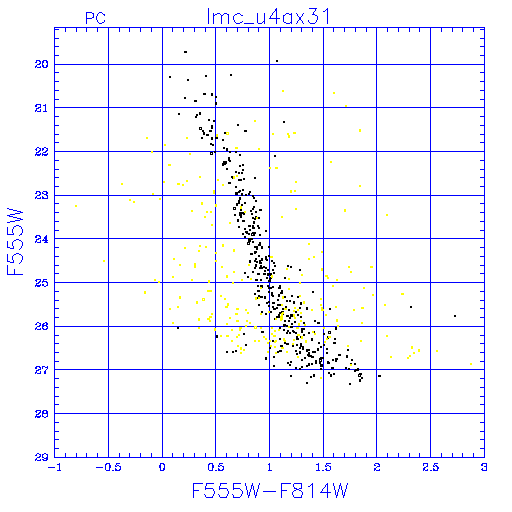

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

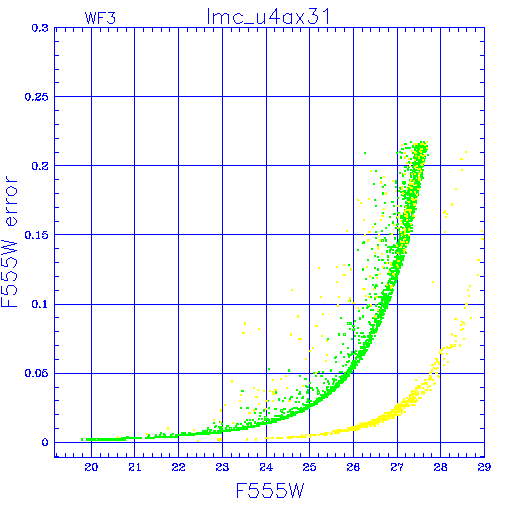

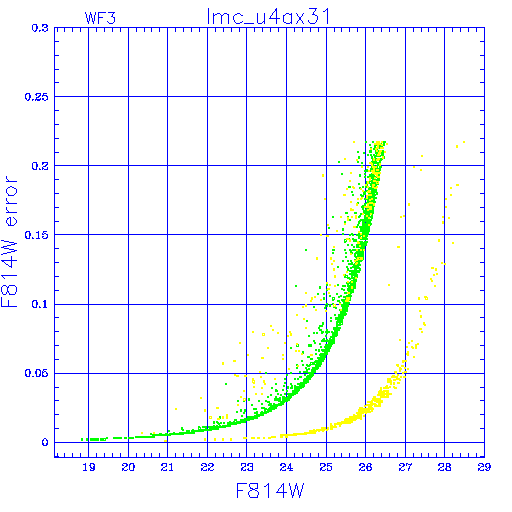

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

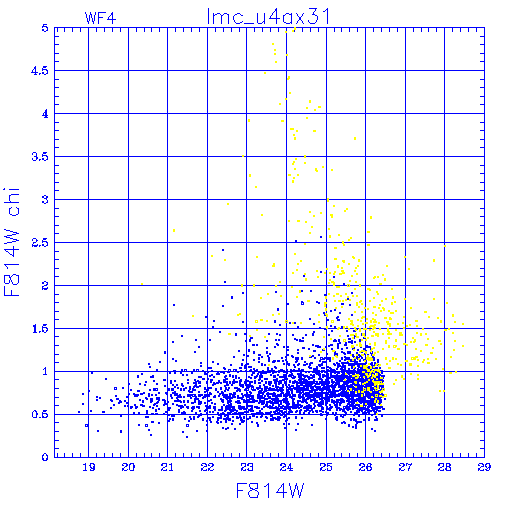

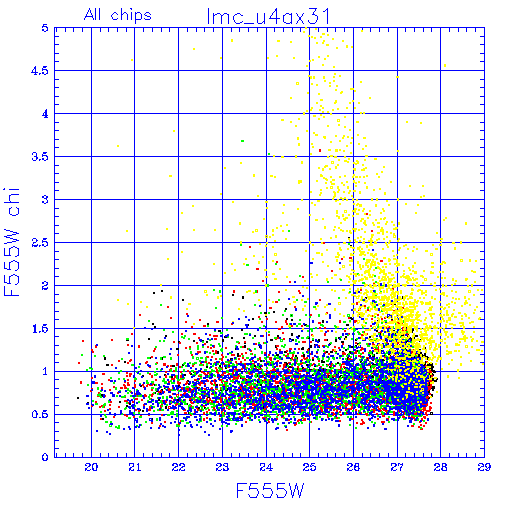

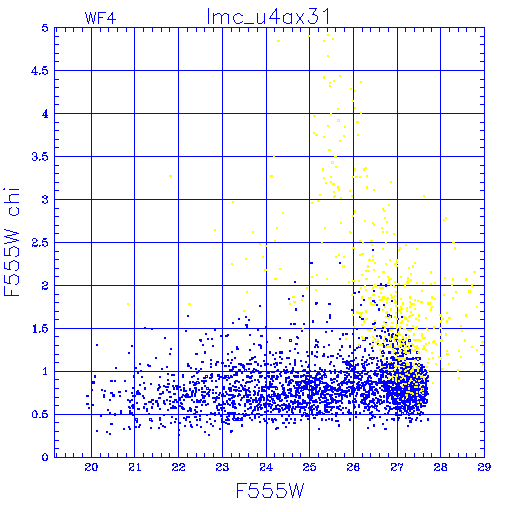

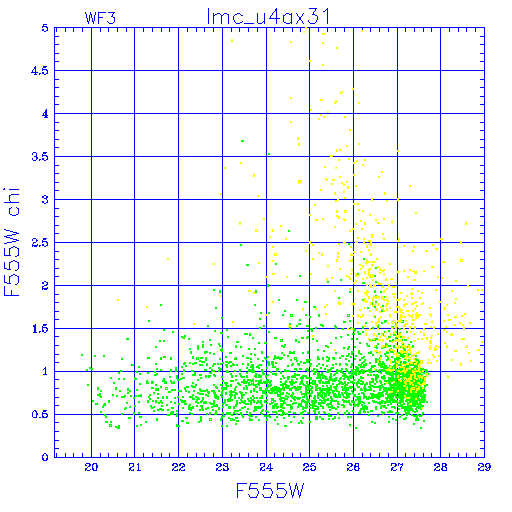

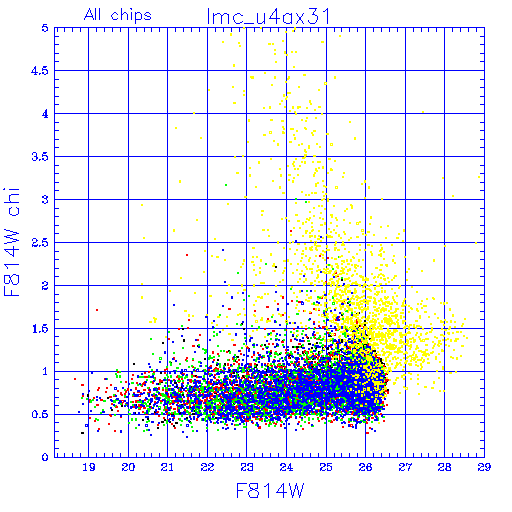

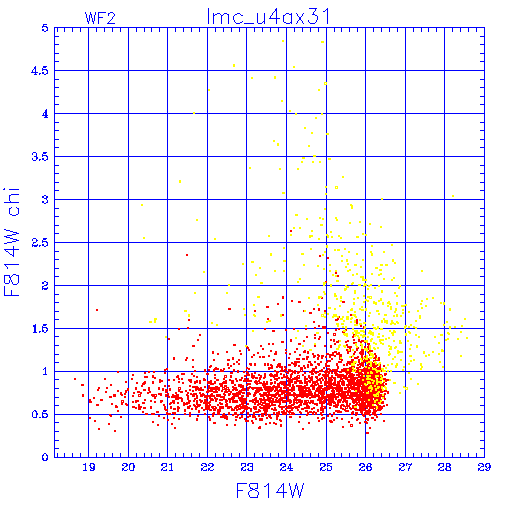

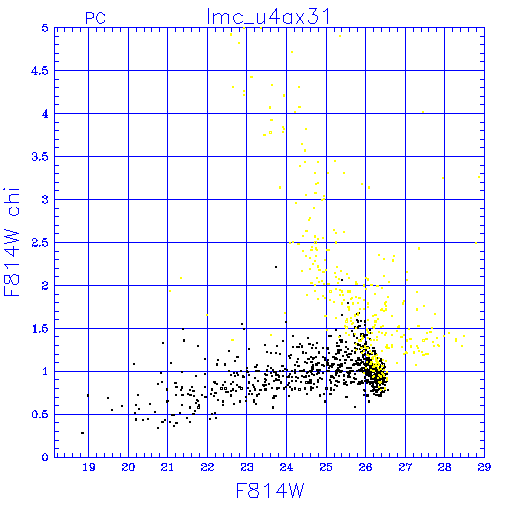

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

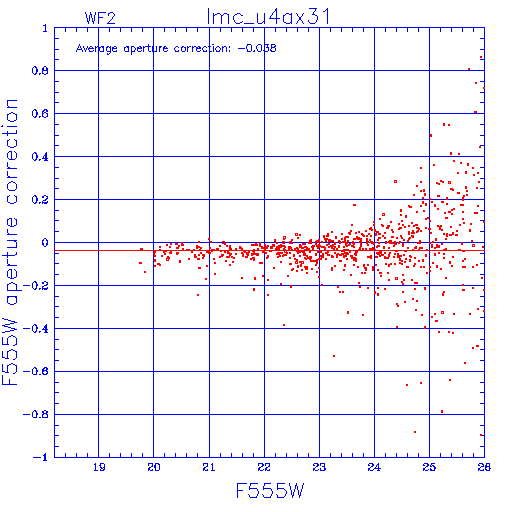

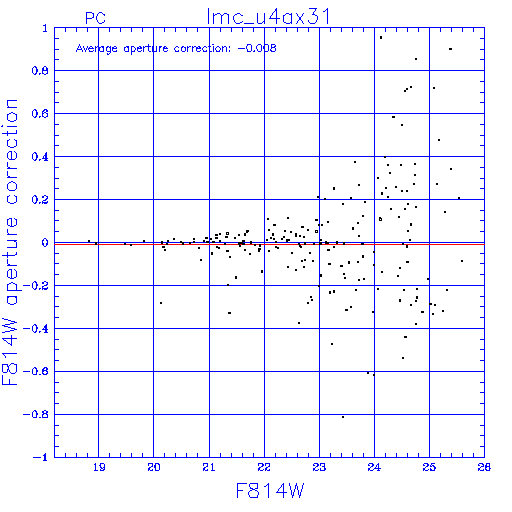

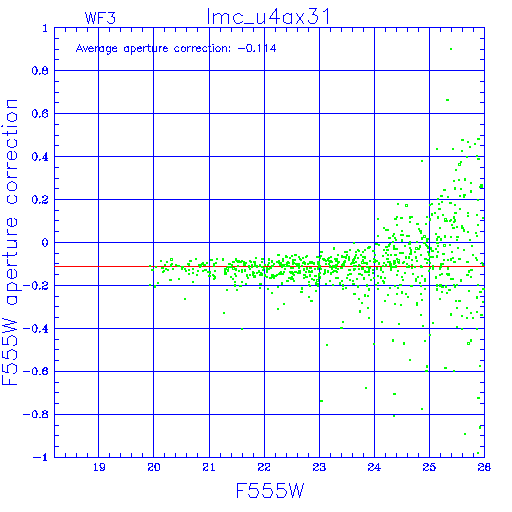

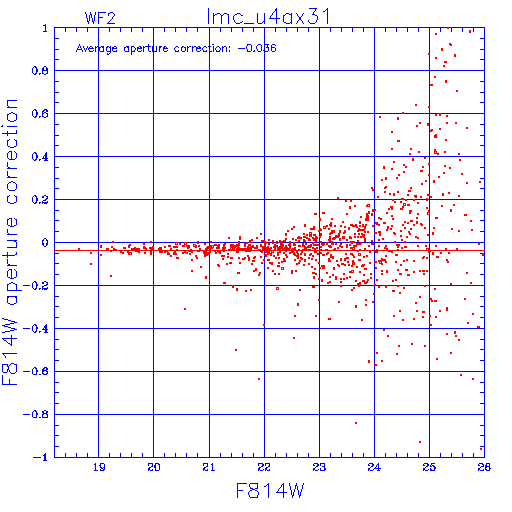

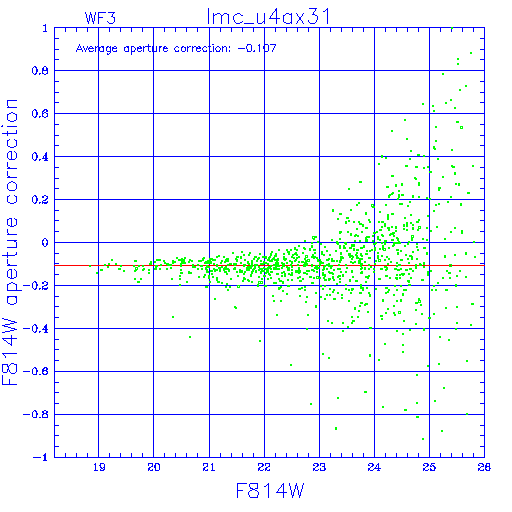

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
