Photometry Diagnostics for lmc_u4ax01


Frame list, with derived and commanded shifts
dataset filter exptime derived dx derived dy header dx header dy delta dx delta dy
u4ax0101r F555W 400.00 0.00 0.00 0.00 0.00 0.00 0.00
u4ax0102r F555W 600.00 -0.03 0.07 0.00 0.00 -0.03 0.07
u4ax0103r F814W 600.00 0.16 0.15 0.00 0.00 0.16 0.15
u4ax0104r F814W 400.00 0.23 0.12 0.00 0.00 0.23 0.12

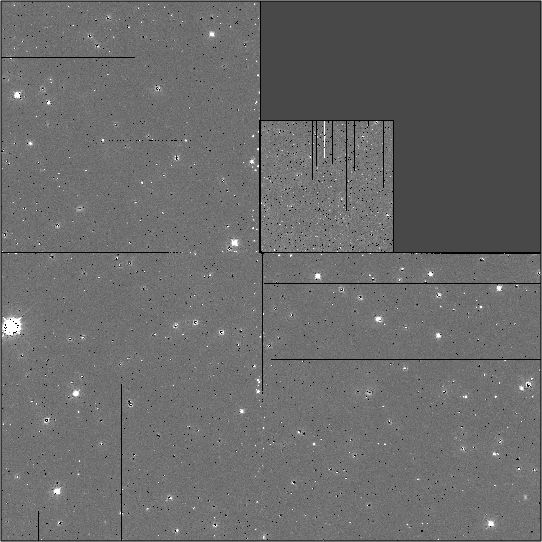

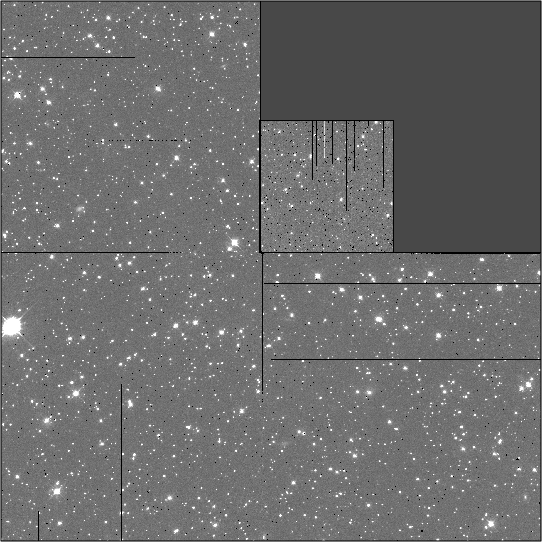

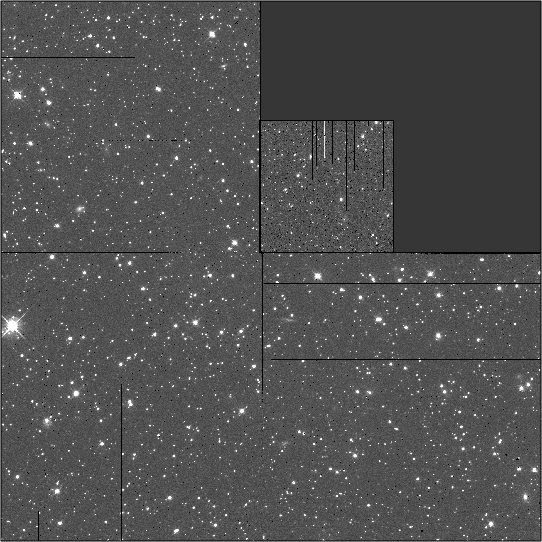

Mosaic images

F555W F814W

HSTPHOT command log

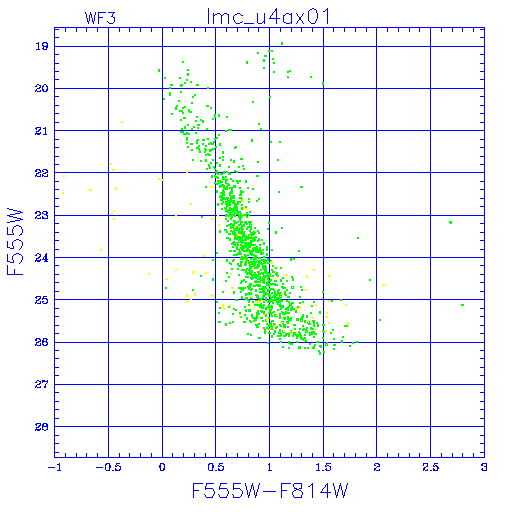

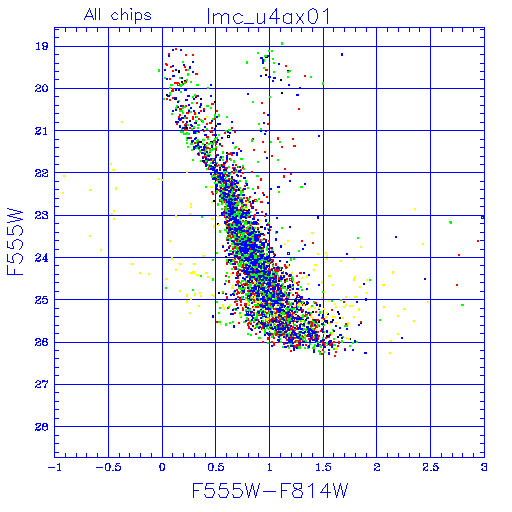

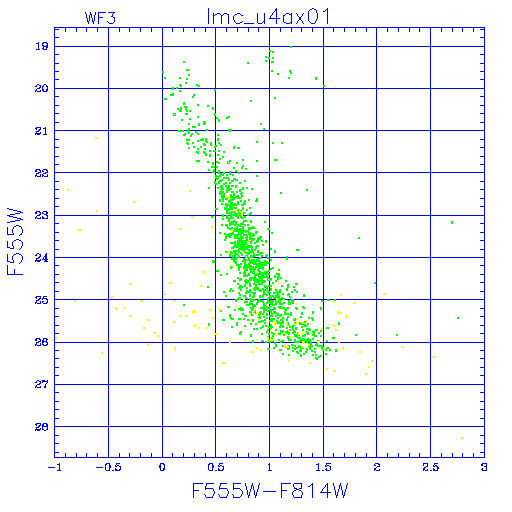

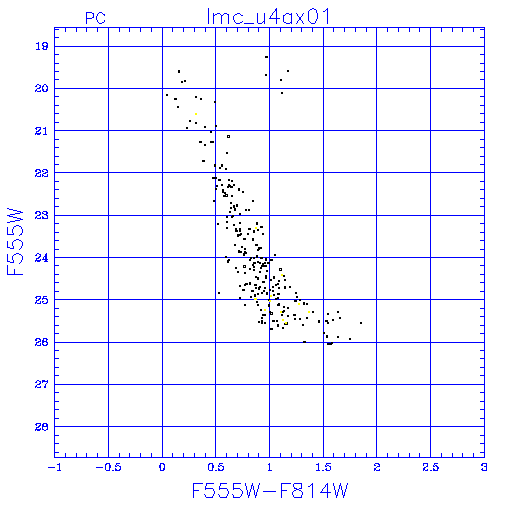

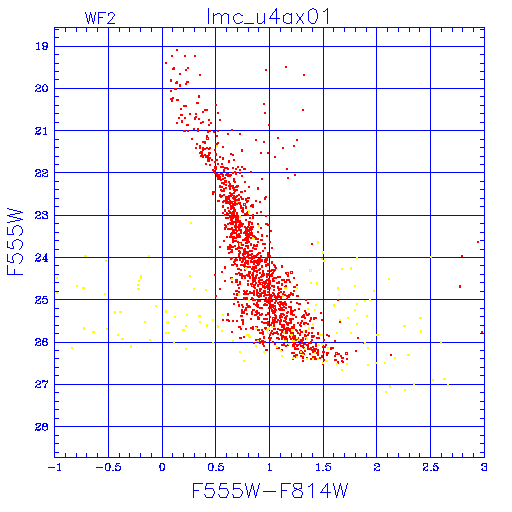

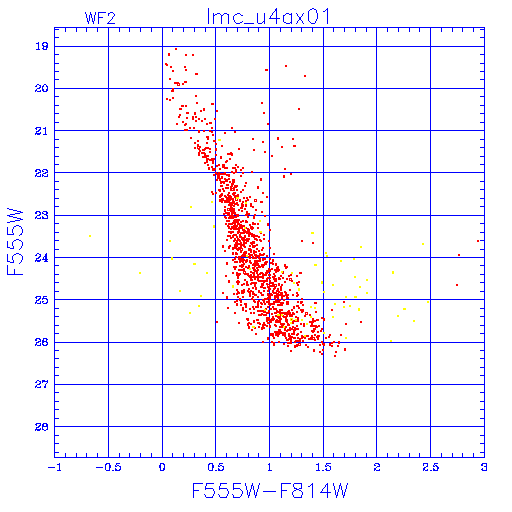

Color magnitude diagrams

All chips

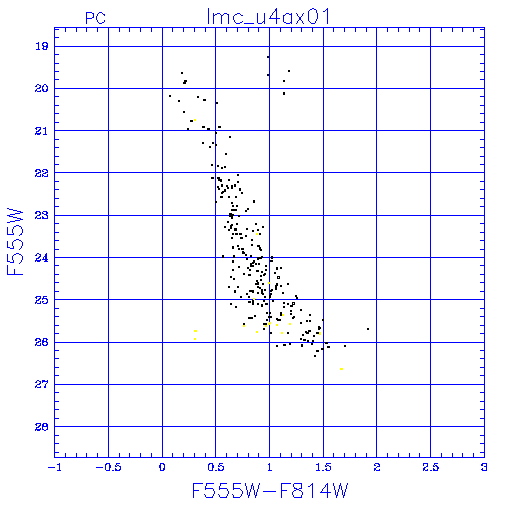

PC
WF2
WF3

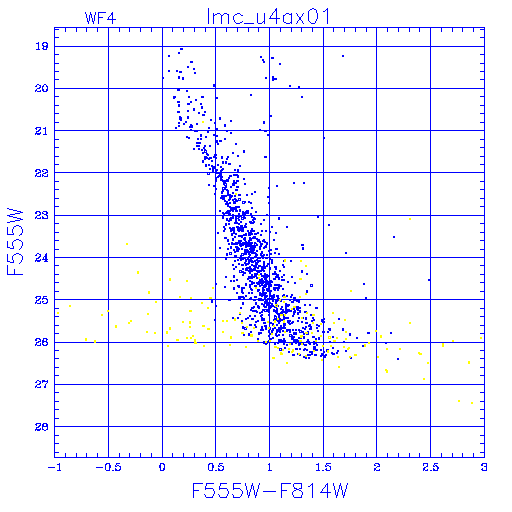

WF4
PSF
Aperture

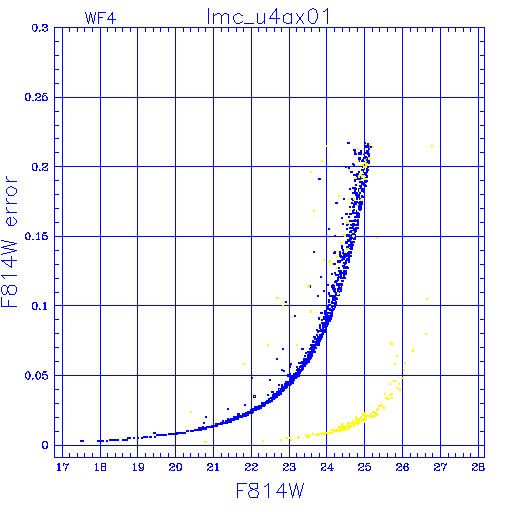

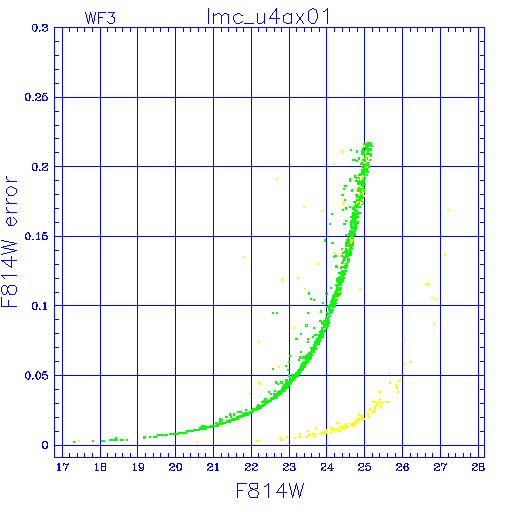

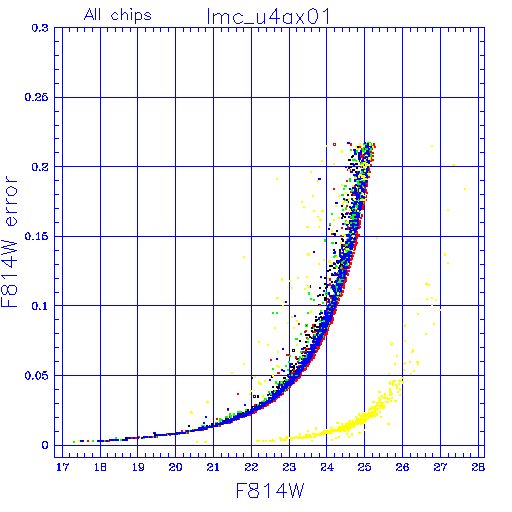

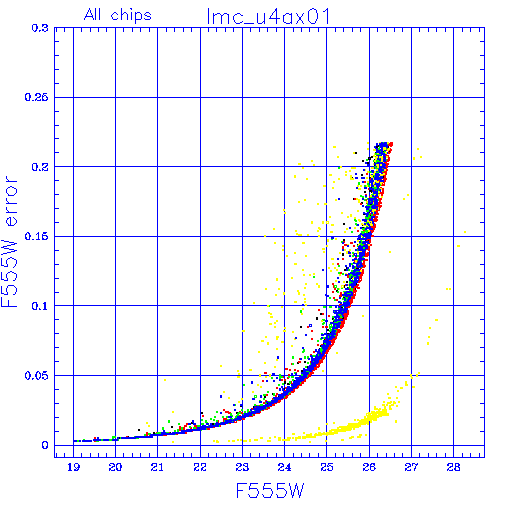

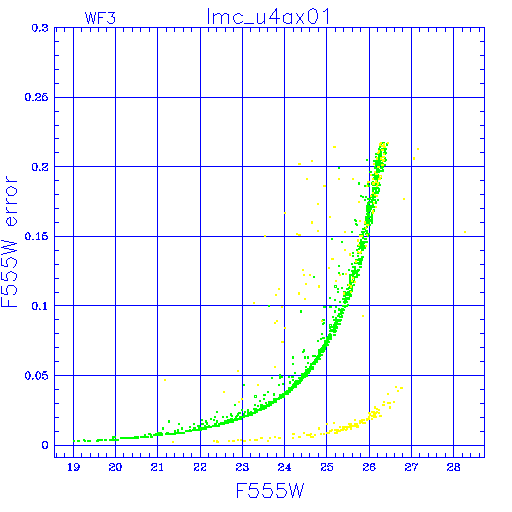

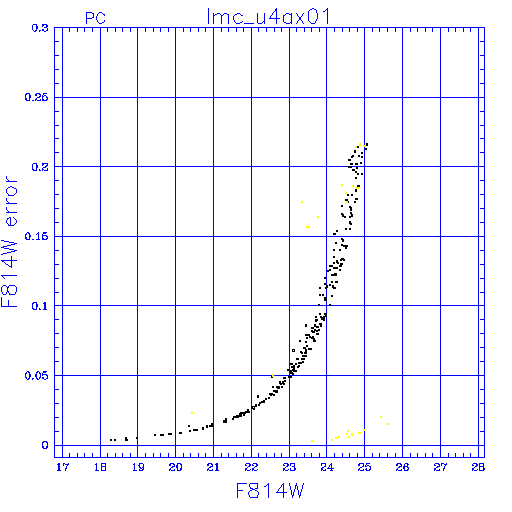

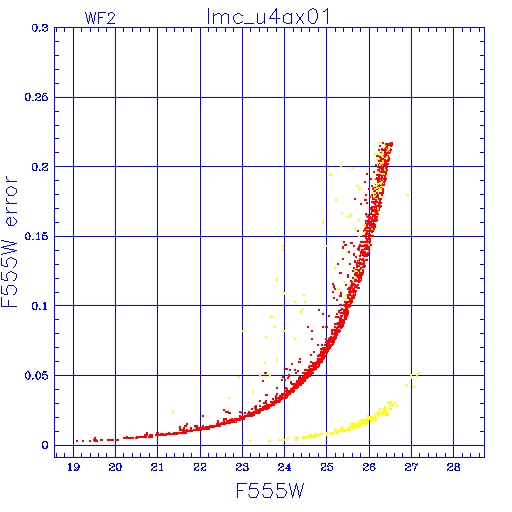

Error vs. magnitude diagrams

All chips

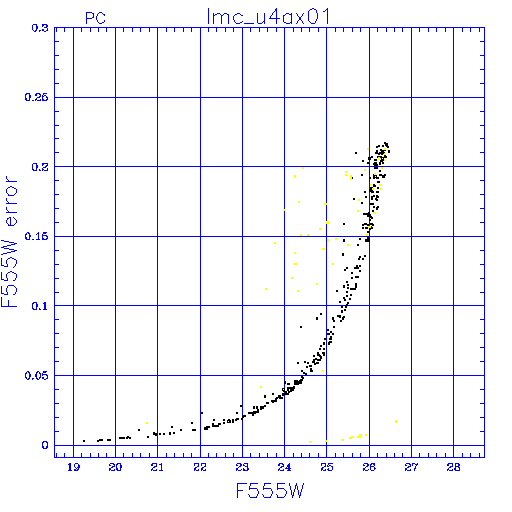

PC
WF2
WF3
WF4
f555w
f814w

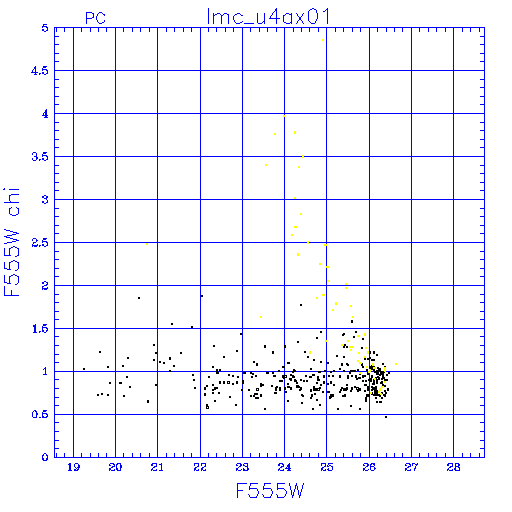

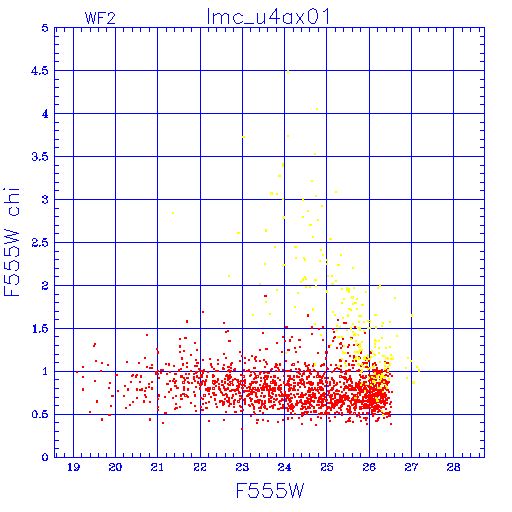

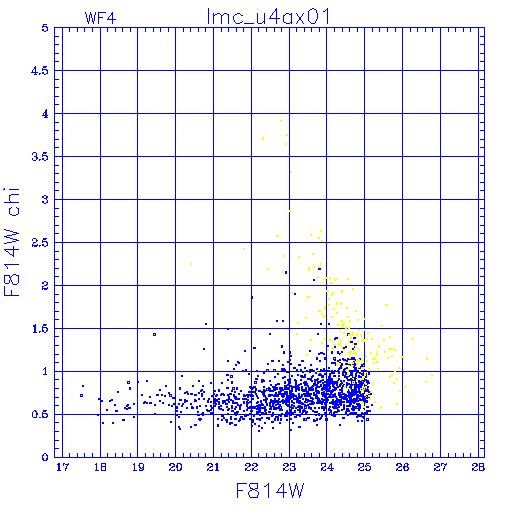

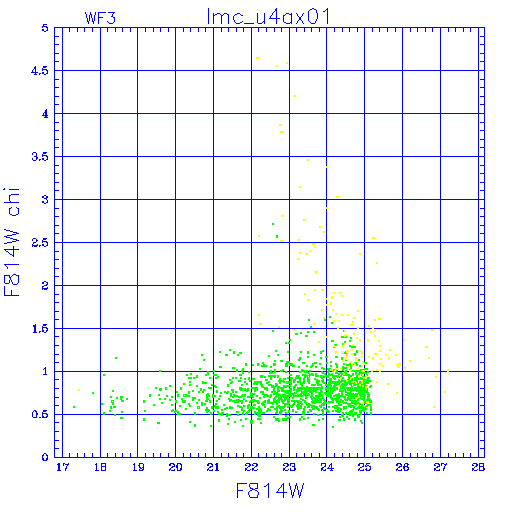

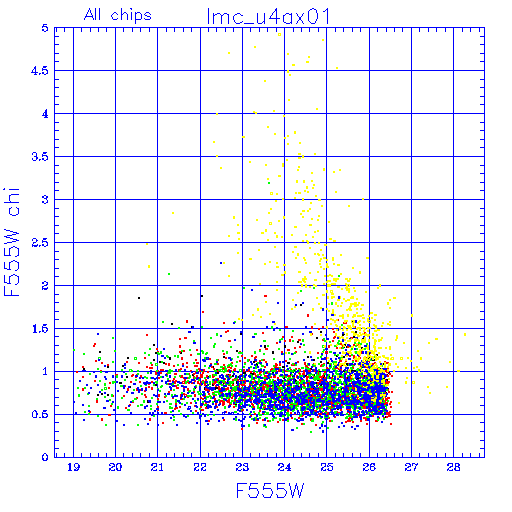

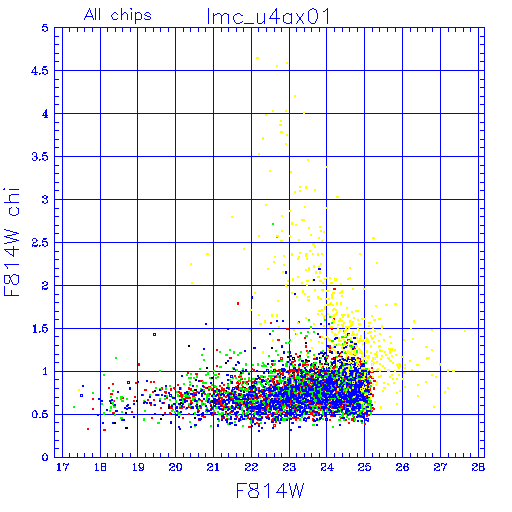

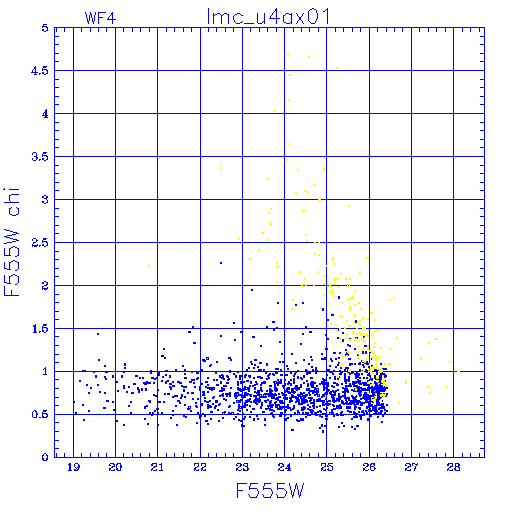

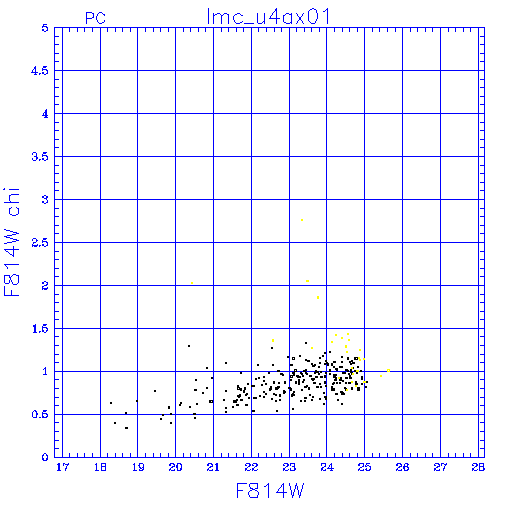

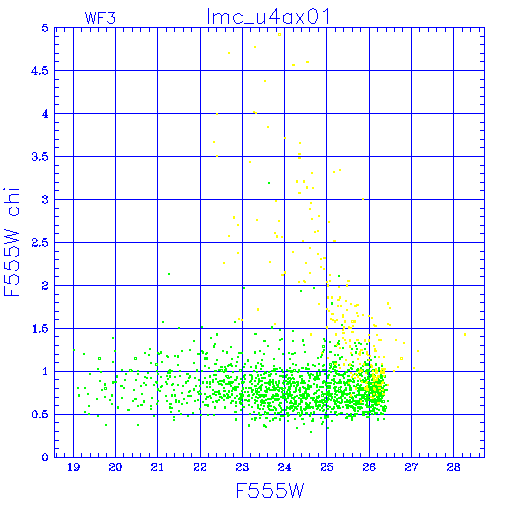

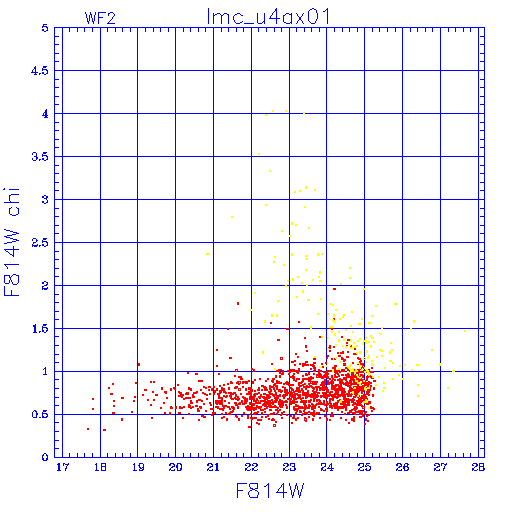

CHI vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w

Aperture corrections

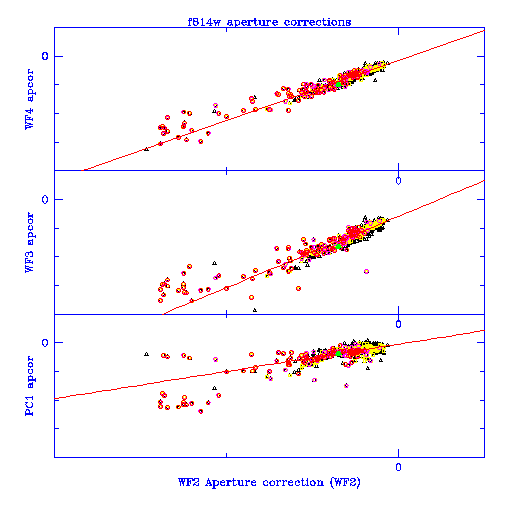

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
F555W F814W

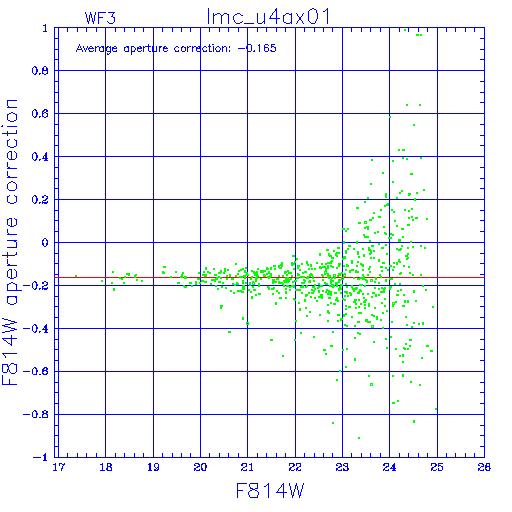

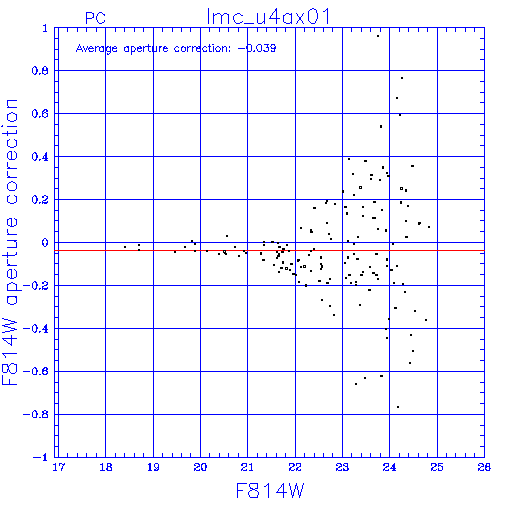

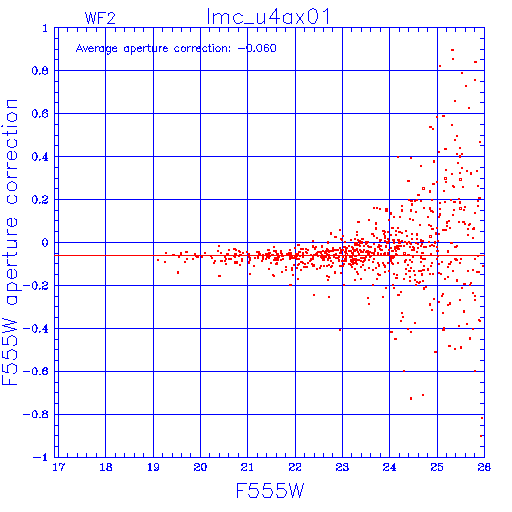

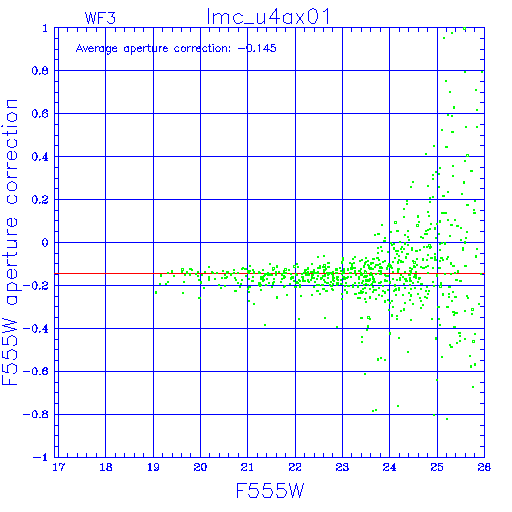

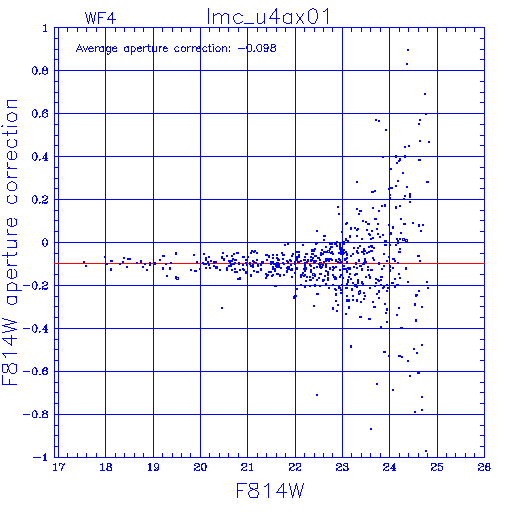

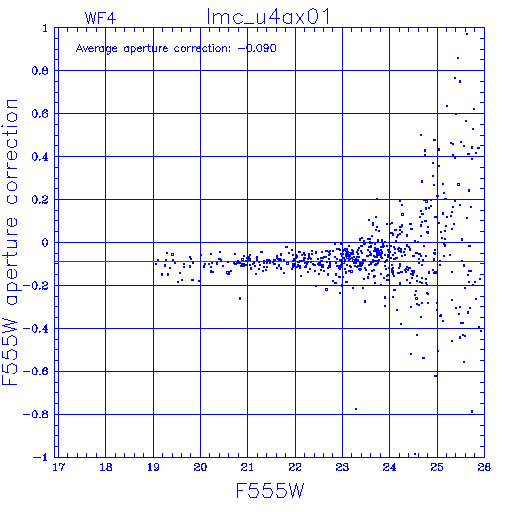

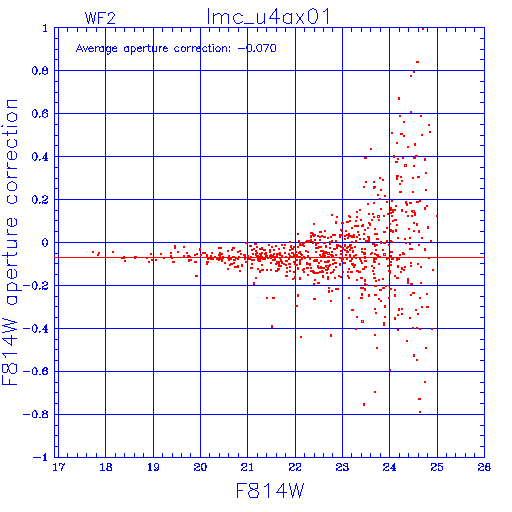

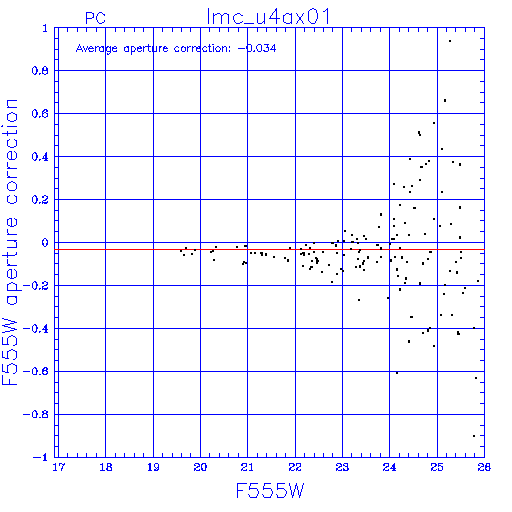

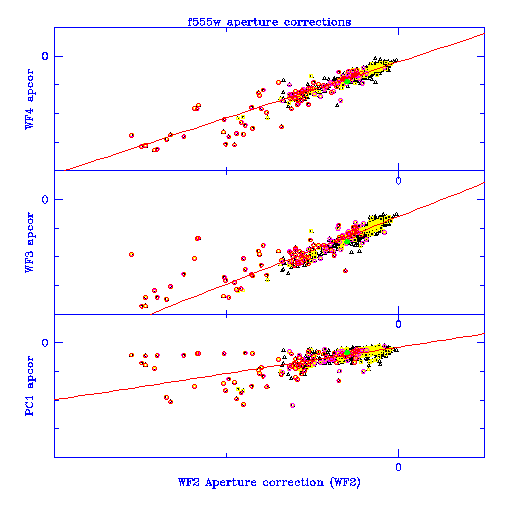

Aperture correction for each frame/chip, showing individual stars
All chips
PC
WF2
WF3
WF4
f555w
f814w

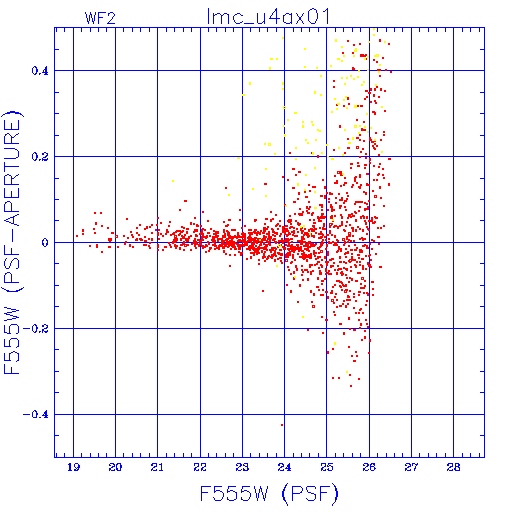

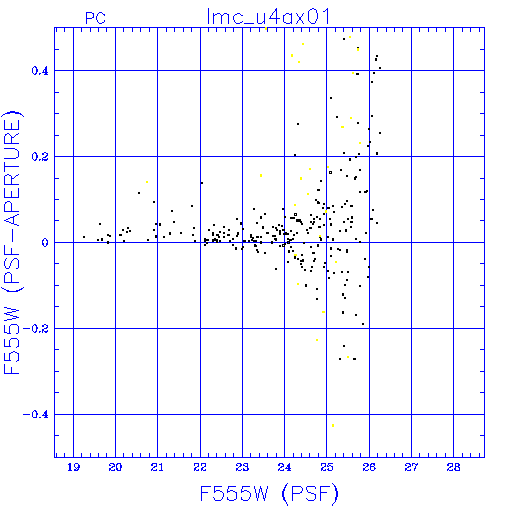

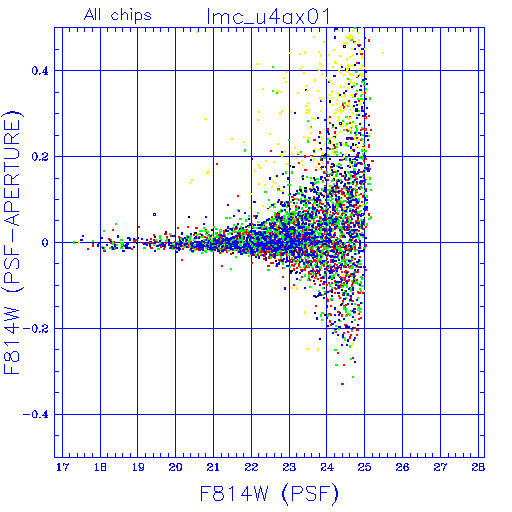

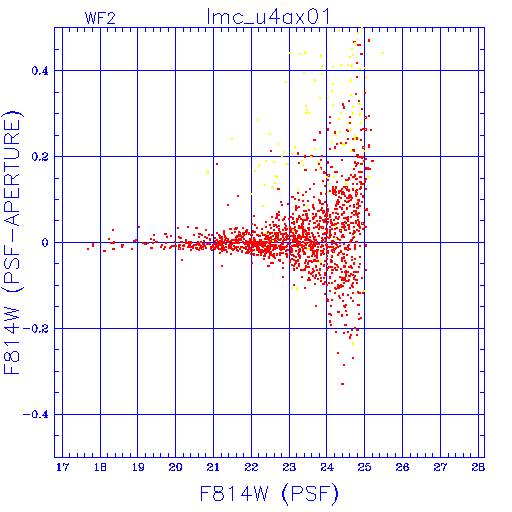

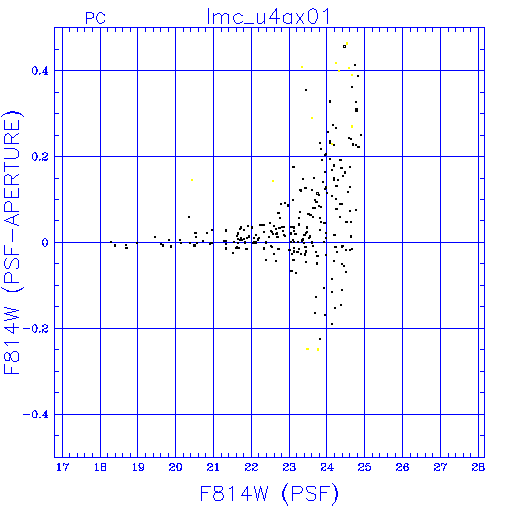

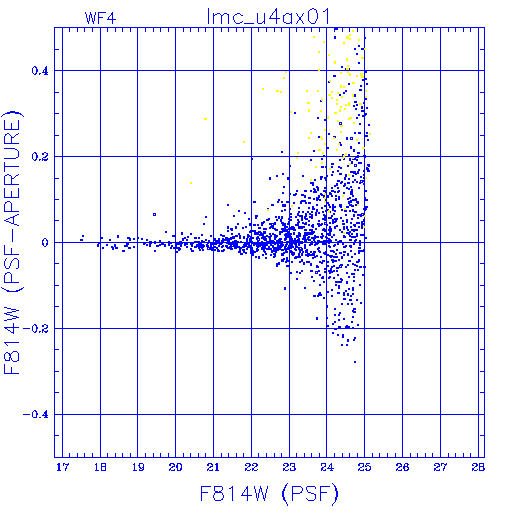

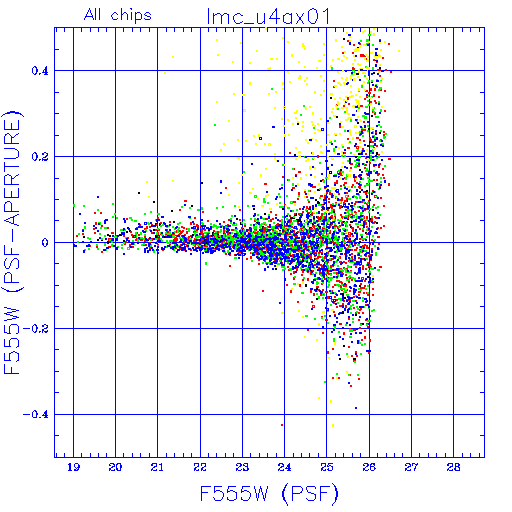

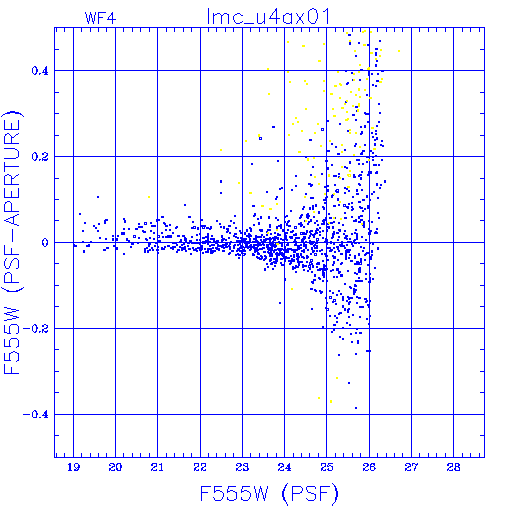

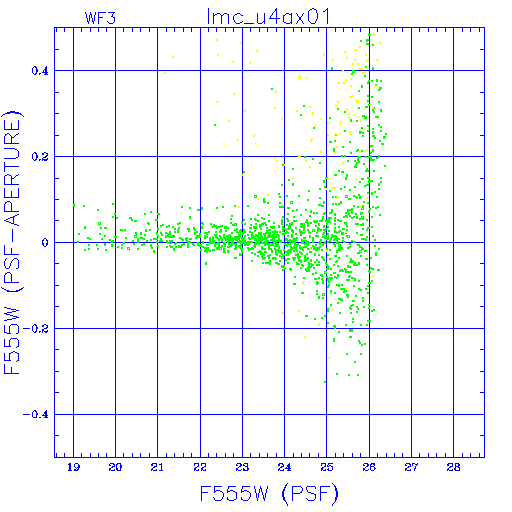

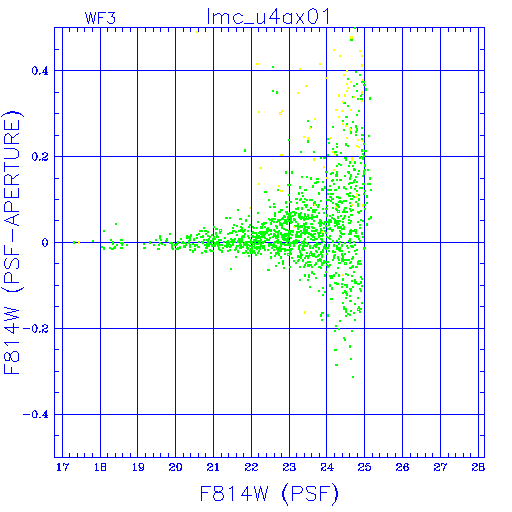

PSF vs. aperture photometry

All chips
PC
WF2
WF3
WF4
f555w
f814w

Artificial star diagrams

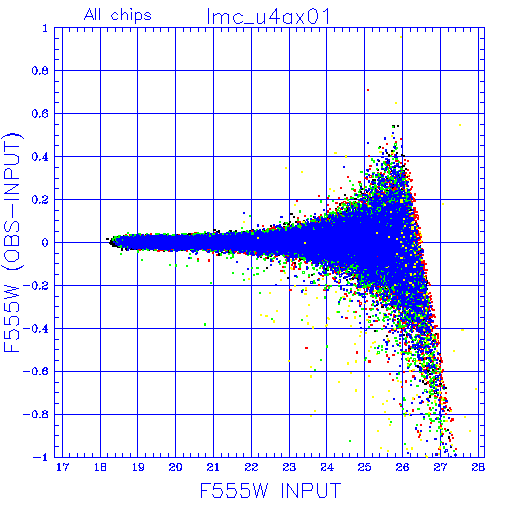

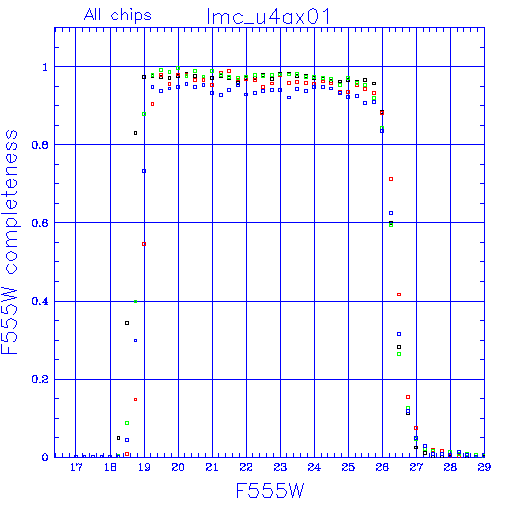

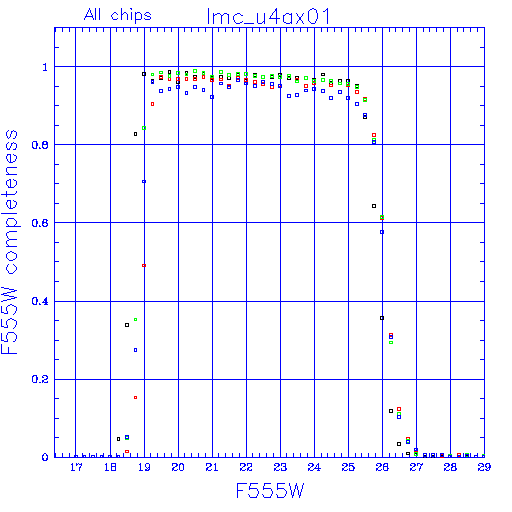

Completeness as a function of input magnitude
PSF photometry Aperture photometry

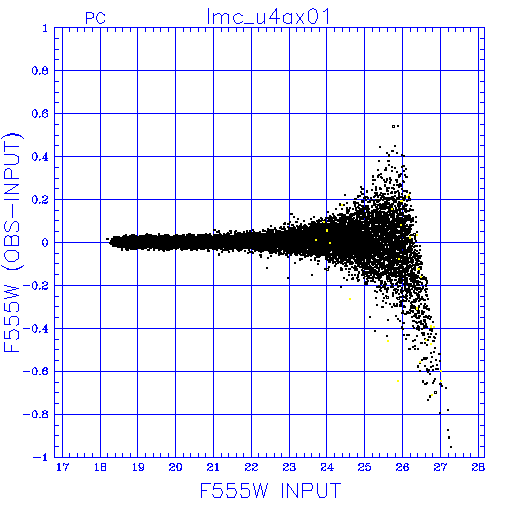

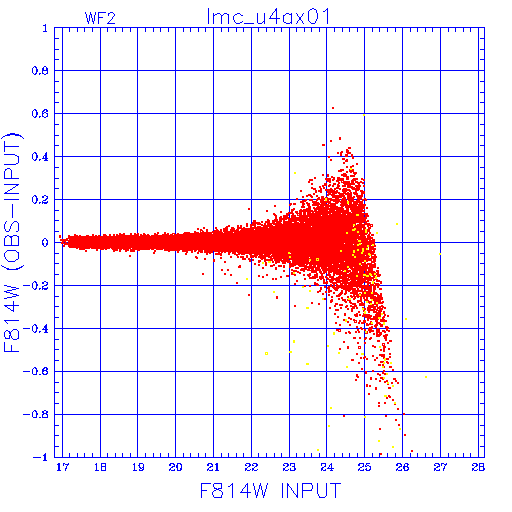

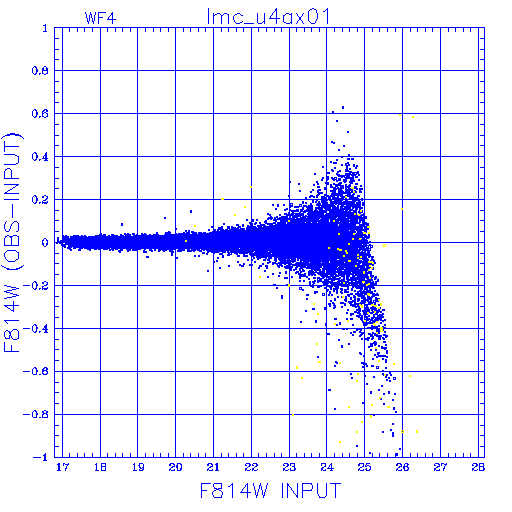

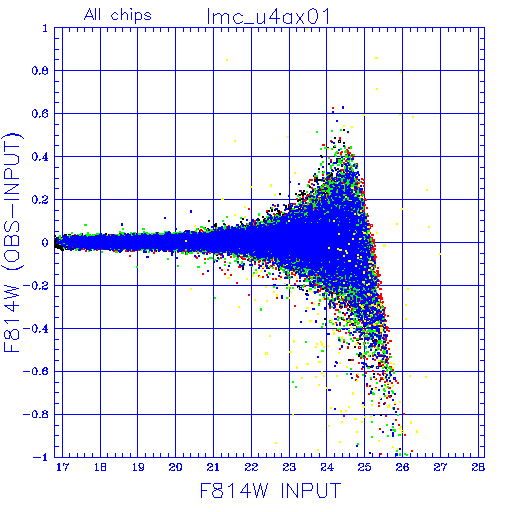

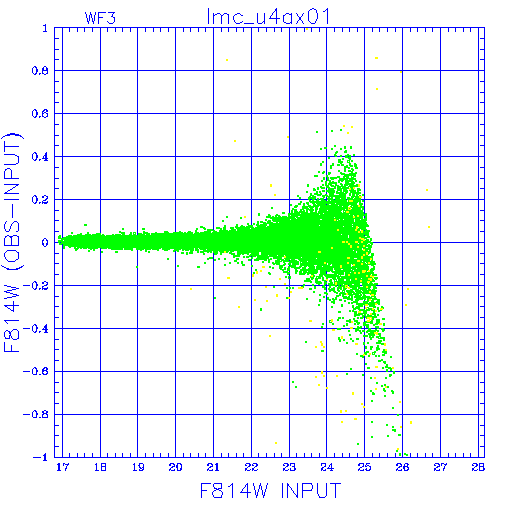

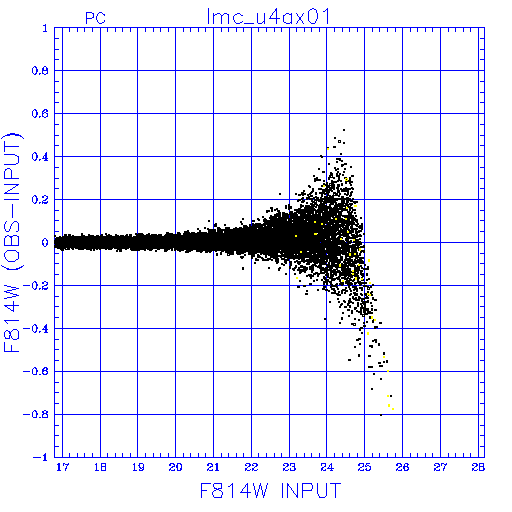

Recovered mag-input mag as a function of input mag (PSF photometry)
All chips
PC
WF2
WF3
WF4
f555w
f814w

Average recovered magnitude as function of location in CMD (PSF photometry)
All chips
PC
WF2
WF3
WF4
