Photometry Diagnostics for lmc_u3y502

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u3y50304r	F555W	30.00	0.00	0.00	0.00	0.00	0.00	0.00
u3y50305m	F555W	500.00	-2.24	-2.38	-2.33	-2.33	0.09	-0.05
u3y50306r	F555W	500.00	-4.58	-4.77	-4.66	-4.66	0.08	-0.11
u3y50307r	F555W	500.00	0.05	-0.07	0.00	0.00	0.05	-0.07
u3y50308r	F555W	30.00	-2.17	-2.40	-2.33	-2.33	0.16	-0.07
u3y50309r	F555W	30.00	-4.52	-4.72	-4.66	-4.66	0.14	-0.06
u3y50201r	F814W	30.00	1.89	-2.40	0.00	0.00	1.89	-2.40
u3y50202r	F814W	500.00	1.91	-2.45	0.00	0.00	1.91	-2.45
u3y50203r	F814W	500.00	2.01	-2.49	0.00	0.00	2.01	-2.49
u3y50204r	F814W	500.00	1.99	-2.50	0.00	0.00	1.99	-2.50
u3y50205r	F814W	500.00	1.86	-2.50	0.00	0.00	1.86	-2.50
u3y50206r	F814W	500.00	1.84	-2.45	0.00	0.00	1.84	-2.45
u3y50207r	F814W	500.00	1.94	-2.44	0.00	0.00	1.94	-2.44
u3y50208r	F814W	500.00	2.00	-2.35	0.00	0.00	2.00	-2.35
u3y50209r	F814W	500.00	1.98	-2.36	0.00	0.00	1.98	-2.36
u3y5020ar	F814W	500.00	2.01	-2.35	0.00	0.00	2.01	-2.35
u3y5020br	F814W	500.00	2.03	-2.44	0.00	0.00	2.03	-2.44
u3y5020cr	F814W	500.00	-0.19	-4.83	-2.33	-2.33	2.14	-2.50
u3y5020dr	F814W	500.00	-0.20	-4.81	-2.33	-2.33	2.13	-2.48
u3y5020er	F814W	500.00	-0.37	-4.84	-2.33	-2.33	1.96	-2.51
u3y5020fr	F814W	500.00	-0.32	-4.73	-2.33	-2.33	2.01	-2.40
u3y5020gr	F814W	500.00	-0.30	-4.74	-2.33	-2.33	2.03	-2.41
u3y5020hr	F814W	500.00	-0.33	-4.72	-2.33	-2.33	2.00	-2.39
u3y5020ir	F814W	500.00	-0.37	-4.71	-2.33	-2.33	1.96	-2.38
u3y5020jr	F814W	500.00	-0.37	-4.75	-2.33	-2.33	1.96	-2.42
u3y5020kr	F814W	500.00	-0.32	-4.75	-2.33	-2.33	2.01	-2.42
u3y5020lr	F814W	500.00	-0.25	-4.79	-2.33	-2.33	2.08	-2.46
u3y5020mr	F814W	500.00	-0.44	-4.84	-2.33	-2.33	1.89	-2.51
u3y5020nr	F814W	500.00	-2.89	-7.19	-4.66	-4.66	1.77	-2.53
u3y5020or	F814W	500.00	-2.66	-7.17	-4.66	-4.66	2.00	-2.51
u3y5020pr	F814W	500.00	-2.74	-7.17	-4.66	-4.66	1.92	-2.51
u3y5020qr	F814W	500.00	-2.78	-7.19	-4.66	-4.66	1.88	-2.53
u3y5020rr	F814W	500.00	-2.85	-7.14	-4.66	-4.66	1.81	-2.48
u3y5020sr	F814W	500.00	-2.80	-7.20	-4.66	-4.66	1.86	-2.54
u3y5020tr	F814W	500.00	-2.63	-7.18	-4.66	-4.66	2.03	-2.52
u3y5020ur	F814W	500.00	-2.60	-7.14	-4.66	-4.66	2.06	-2.48
u3y5020vr	F814W	500.00	-2.71	-7.11	-4.66	-4.66	1.95	-2.45
u3y5020wr	F814W	500.00	-2.78	-7.19	-4.66	-4.66	1.88	-2.53
u3y5020xr	F814W	500.00	-2.59	-7.14	-4.66	-4.66	2.07	-2.48
u3y50301r	F814W	500.00	0.08	-0.03	0.00	0.00	0.08	-0.03
u3y50302r	F814W	30.00	-2.17	-2.40	-2.33	-2.33	0.16	-0.07
u3y50303r	F814W	30.00	-4.53	-4.70	-4.66	-4.66	0.13	-0.04
u3y5030ar	F675W	30.00	-0.30	0.81	0.00	0.00	-0.30	0.81
u3y5030br	F675W	500.00	-2.58	-1.54	-2.33	-2.33	-0.25	0.79
u3y5030cr	F675W	500.00	-4.99	-3.90	-4.66	-4.66	-0.33	0.76
u3y5030dr	F675W	500.00	-0.29	0.65	0.00	0.00	-0.29	0.65
u3y5030er	F675W	30.00	-2.54	-1.72	-2.33	-2.33	-0.21	0.61
u3y5030fr	F675W	30.00	-4.92	-4.07	-4.66	-4.66	-0.26	0.59

Mosaic images

F555W	F814W	F675W

HSTPHOT command log

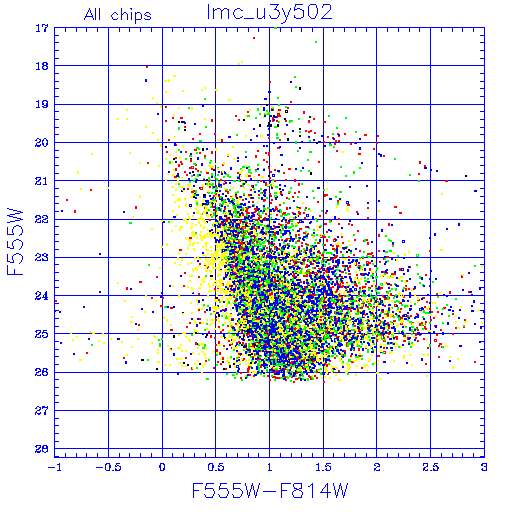

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

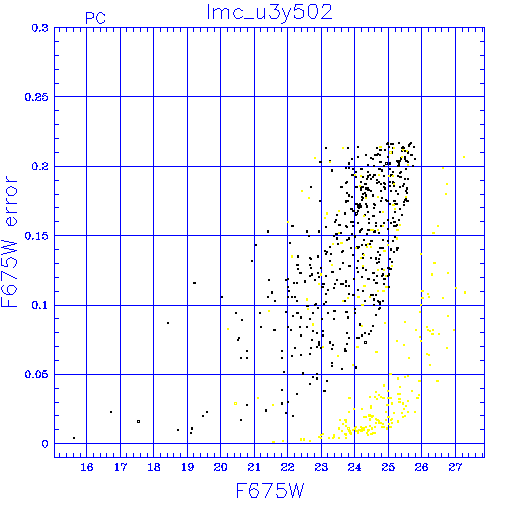

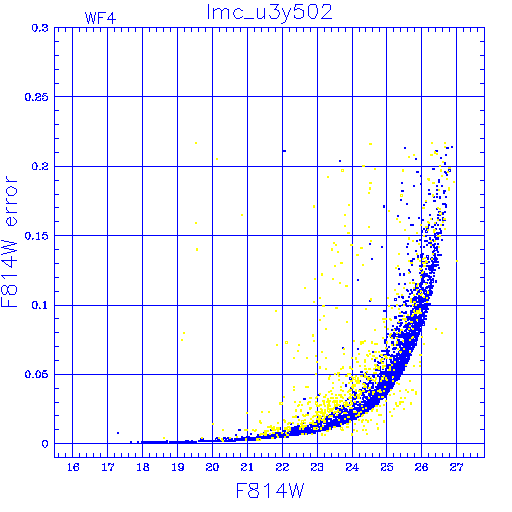

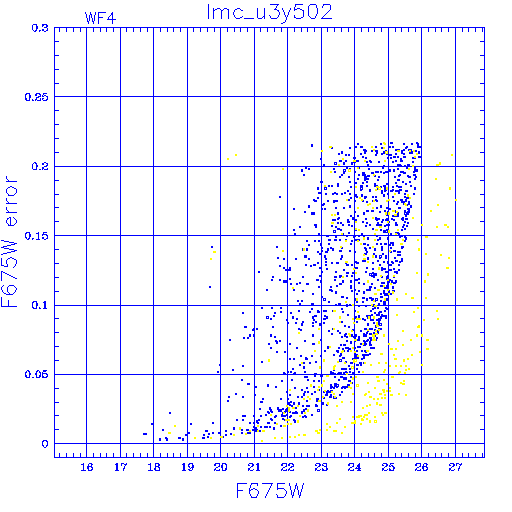

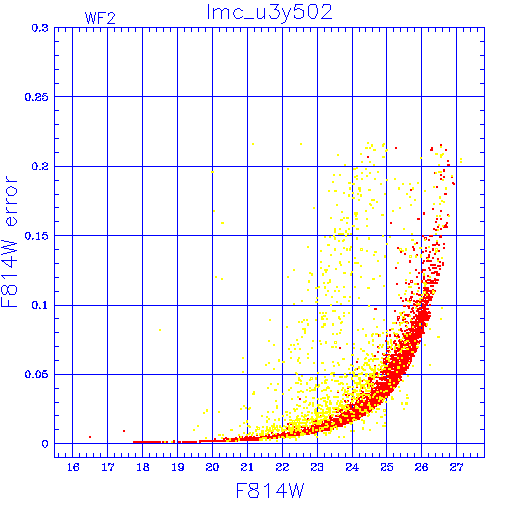

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f675w

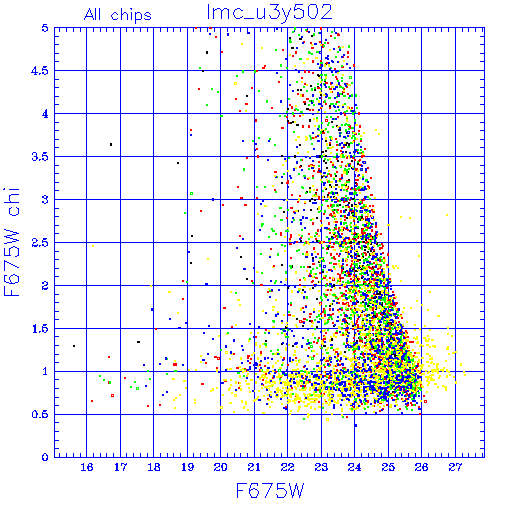

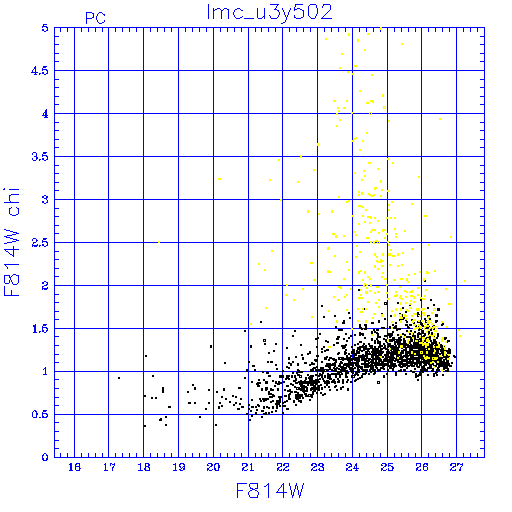

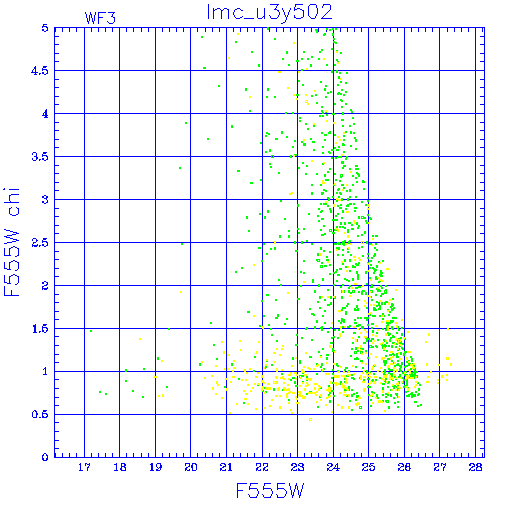

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f675w

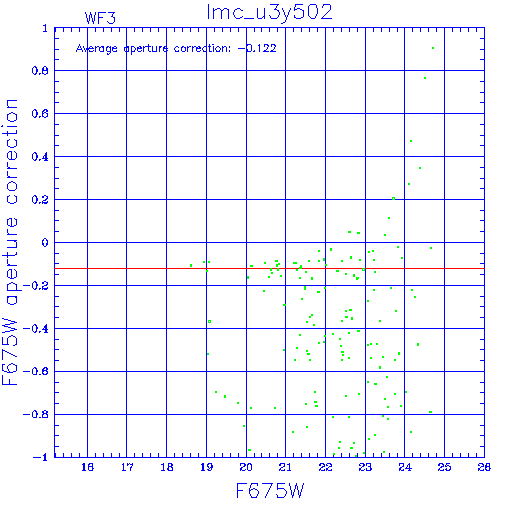

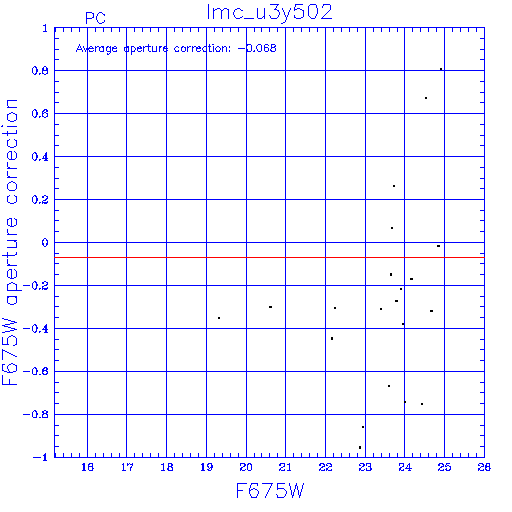

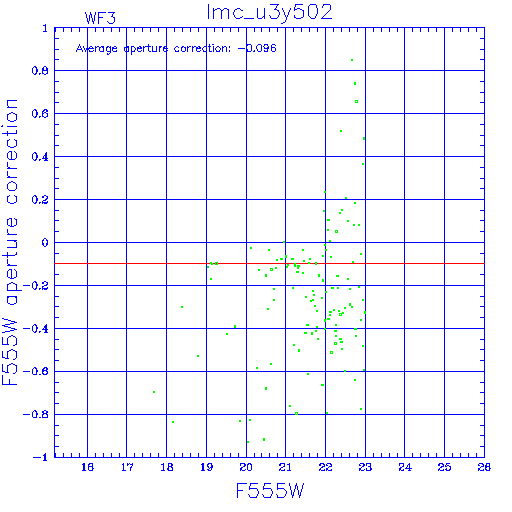

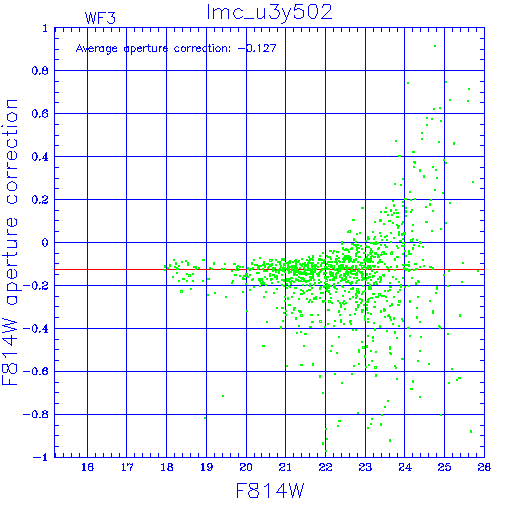

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
