Photometry Diagnostics for lmc_u3gh03

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u3gh0307m	F555W	1400.00	0.00	0.00	0.00	0.00	0.00	0.00
u3gh0308m	F555W	300.00	0.02	-0.03	0.00	0.00	0.02	-0.03
u3gh030bm	F814W	300.00	0.12	0.05	0.00	0.00	0.12	0.05
u3gh030cm	F814W	400.00	0.15	0.07	0.00	0.00	0.15	0.07
u3gh0301m	F255W	400.00	-1.75	-0.07	0.00	0.00	-1.75	-0.07
u3gh0302m	F255W	1300.00	-1.79	-0.02	0.00	0.00	-1.79	-0.02
u3gh0303m	F336W	1300.00	-0.86	-1.18	0.00	0.00	-0.86	-1.18
u3gh0304m	F336W	800.00	-0.87	-1.24	0.00	0.00	-0.87	-1.24
u3gh0305m	F439W	800.00	-0.63	-0.46	0.00	0.00	-0.63	-0.46
u3gh0306m	F439W	400.00	-0.61	-0.42	0.00	0.00	-0.61	-0.42
u3gh0309m	F675W	400.00	-0.50	0.94	0.00	0.00	-0.50	0.94
u3gh030am	F675W	300.00	-0.50	0.93	0.00	0.00	-0.50	0.93
u3gh030dm	F656N	300.00	0.39	0.54	0.00	0.00	0.39	0.54
u3gh030em	F656N	1400.00	0.40	0.70	0.00	0.00	0.40	0.70
u3gh030fm	F656N	1400.00	0.84	0.86	0.00	0.00	0.84	0.86
u3gh030gm	F656N	1400.00	0.92	1.03	0.00	0.00	0.92	1.03

Mosaic images

F555W	F814W	F255W	F336W	F439W	F675W	F656N

HSTPHOT command log

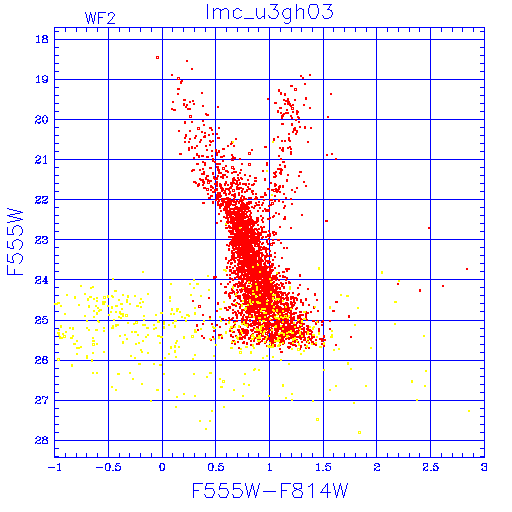

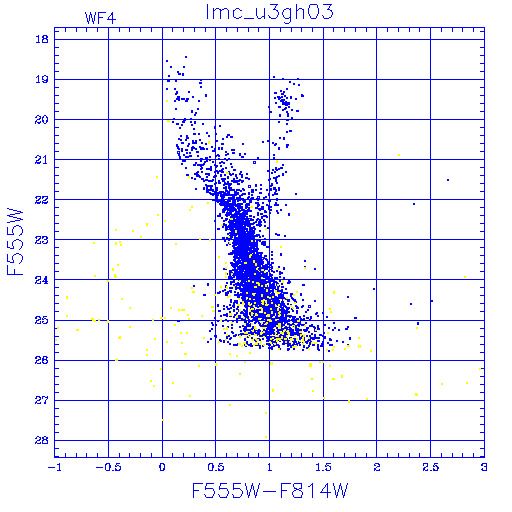

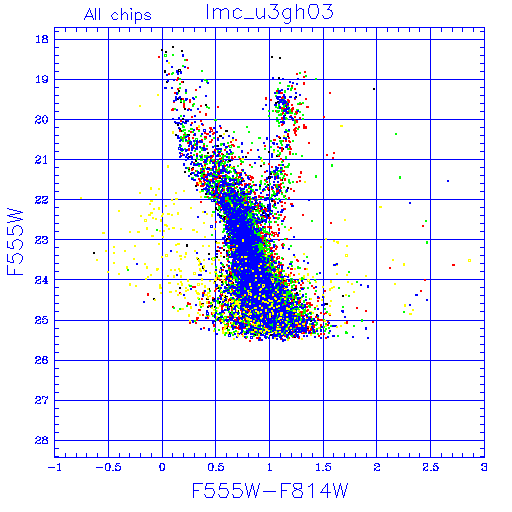

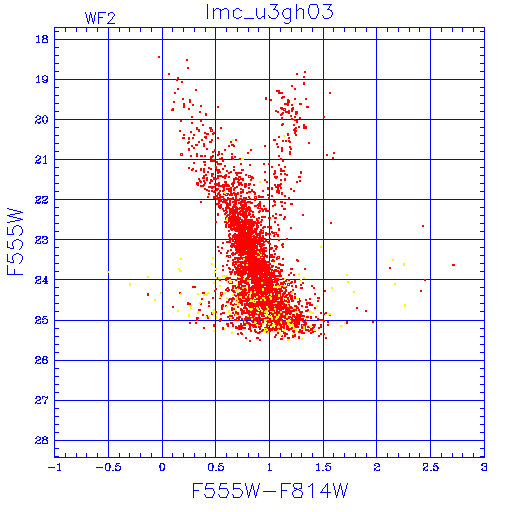

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

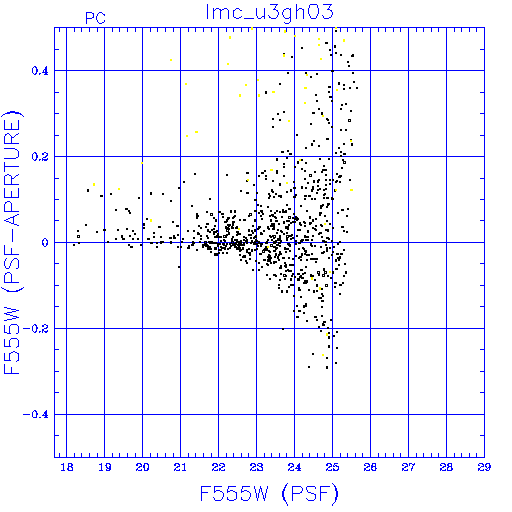

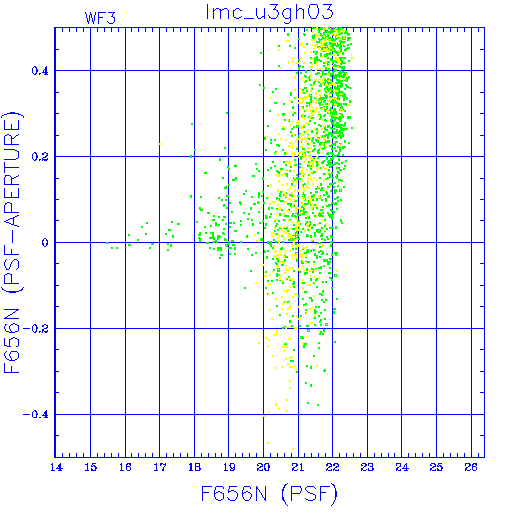

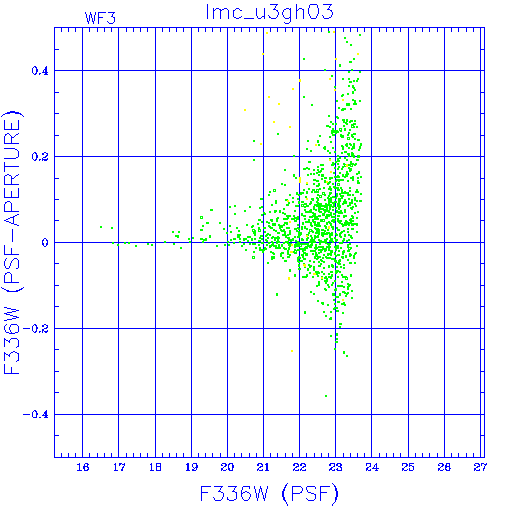

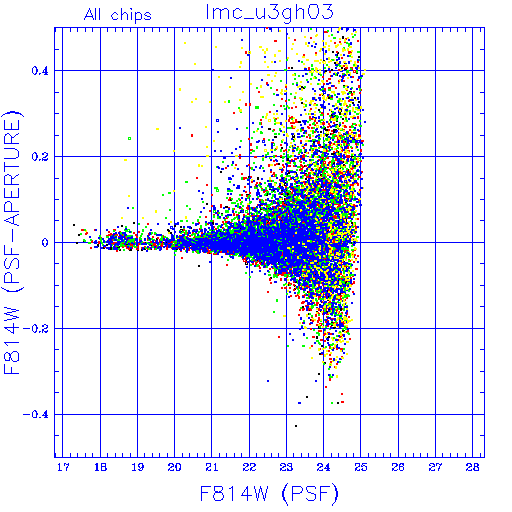

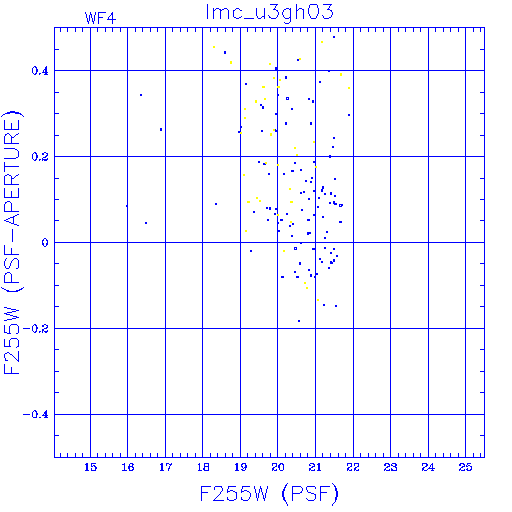

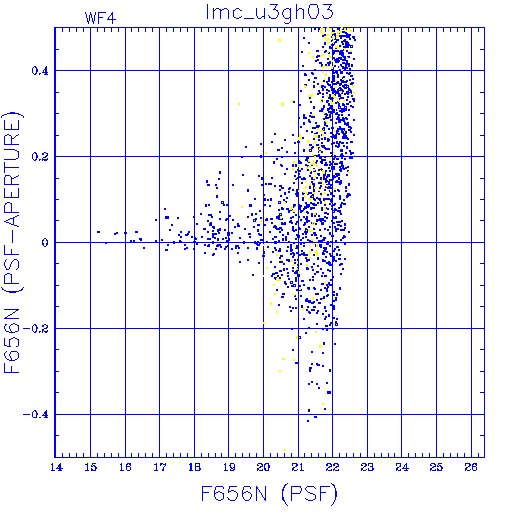

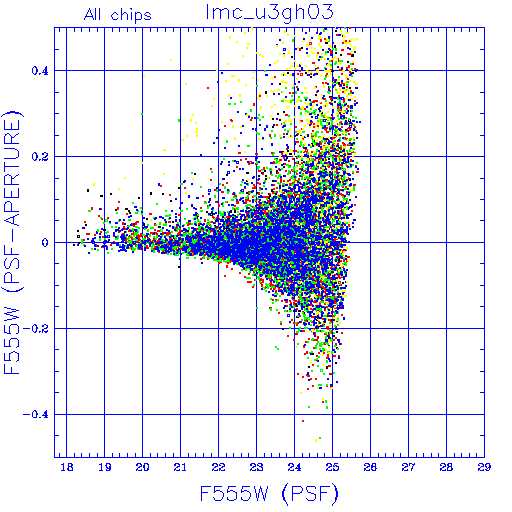

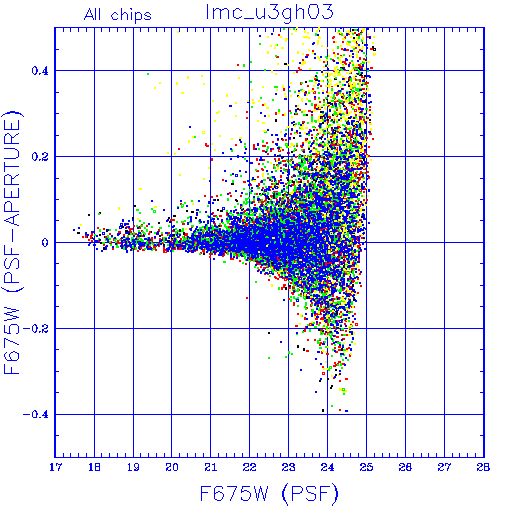

PSF
Aperture

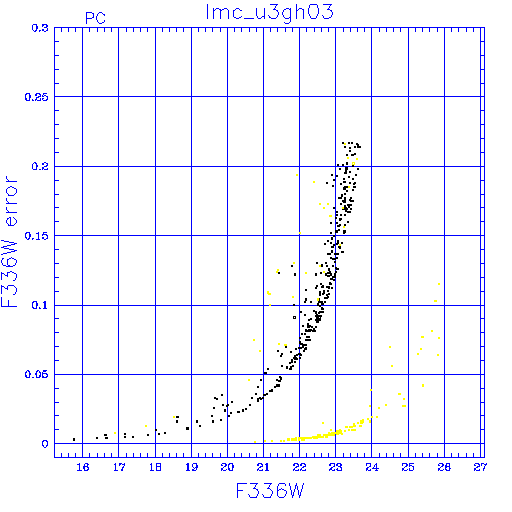

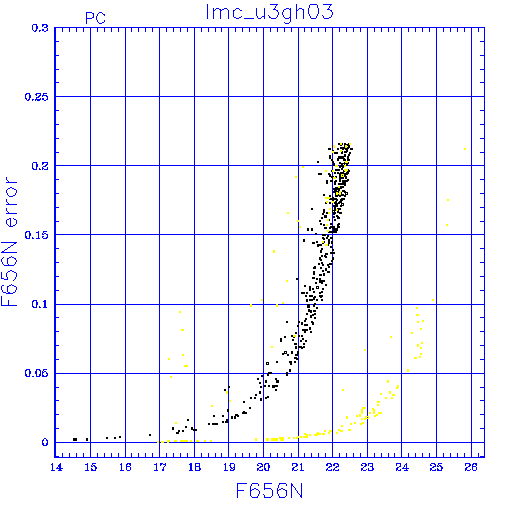

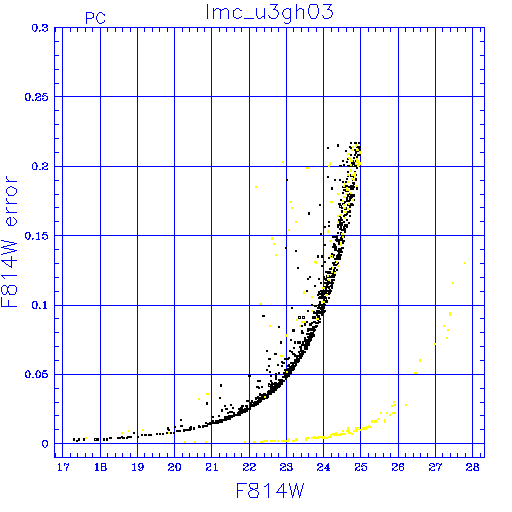

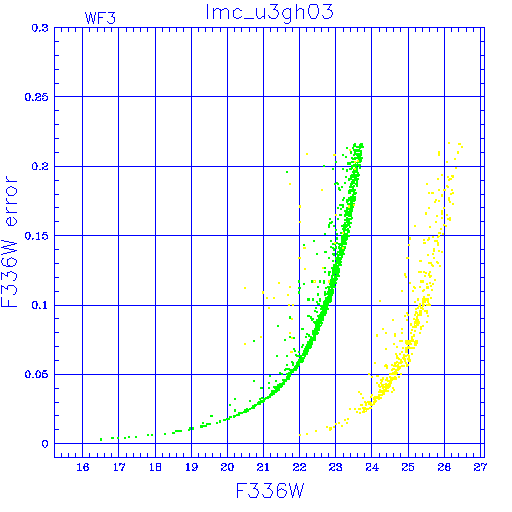

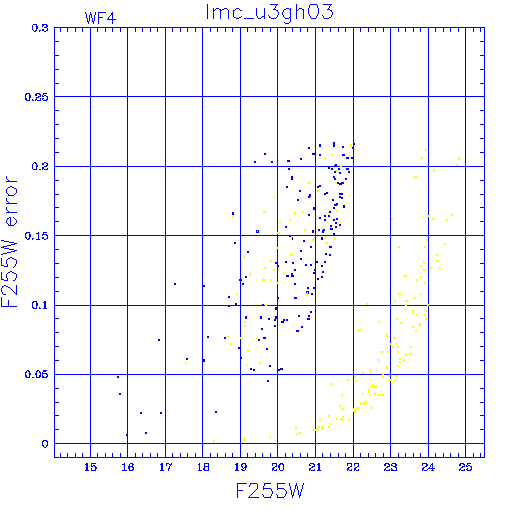

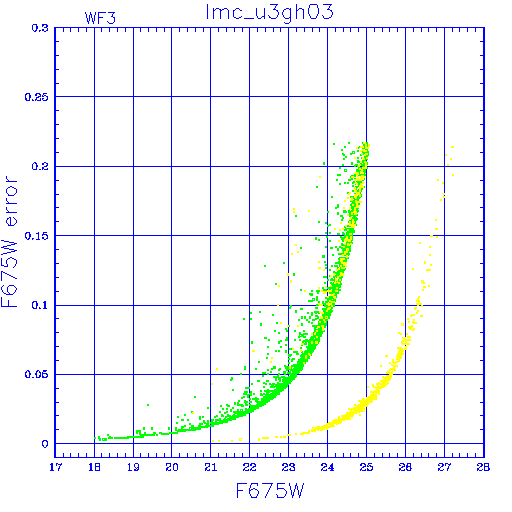

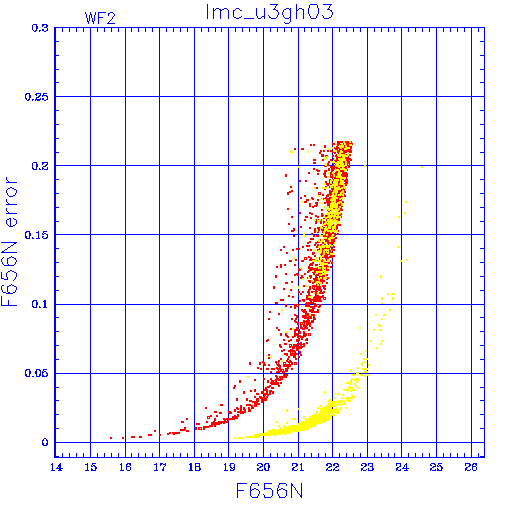

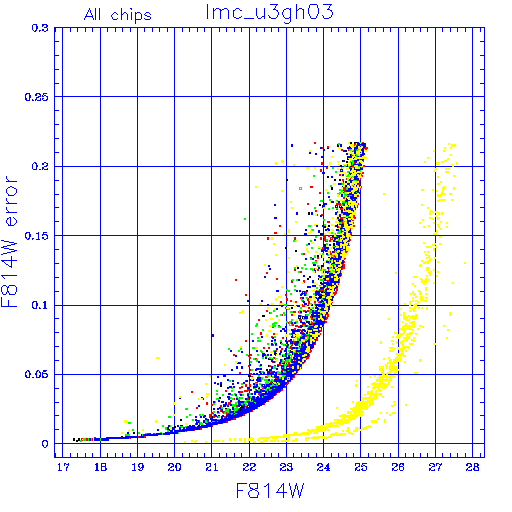

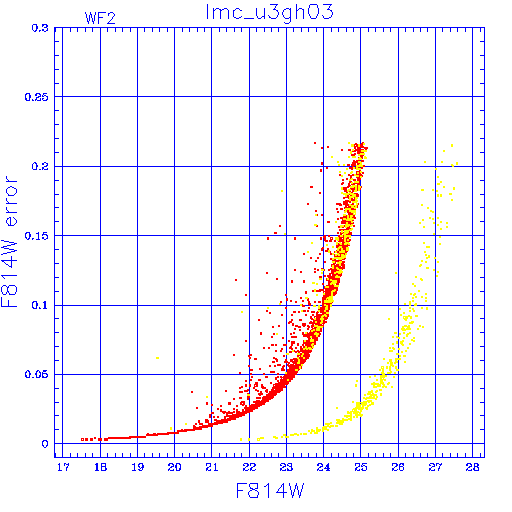

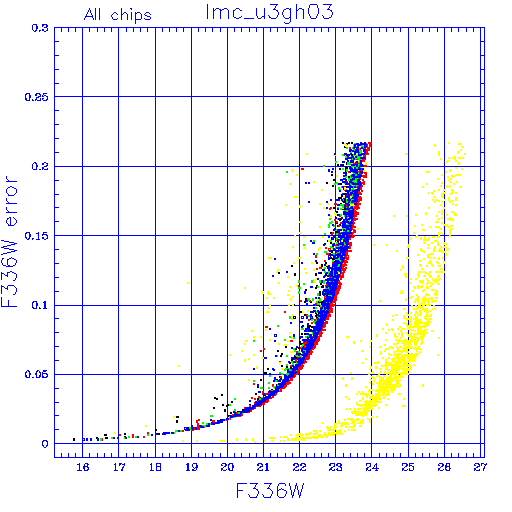

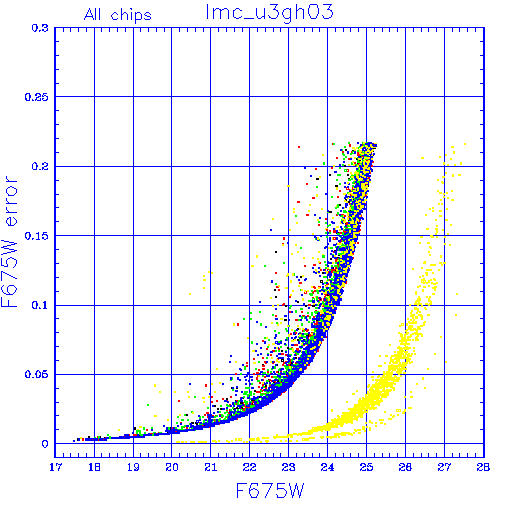

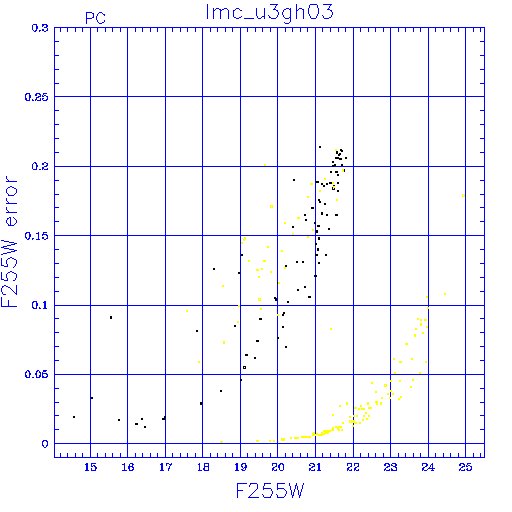

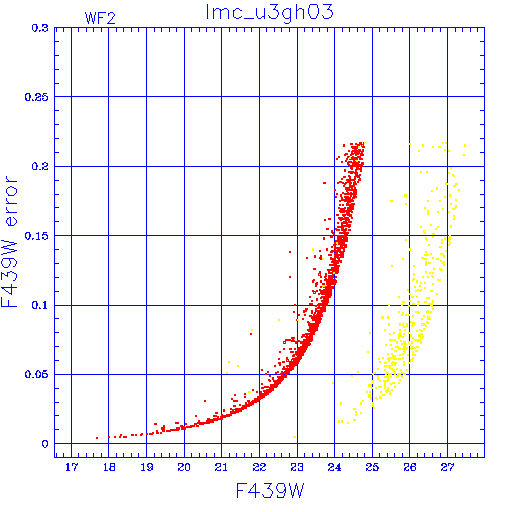

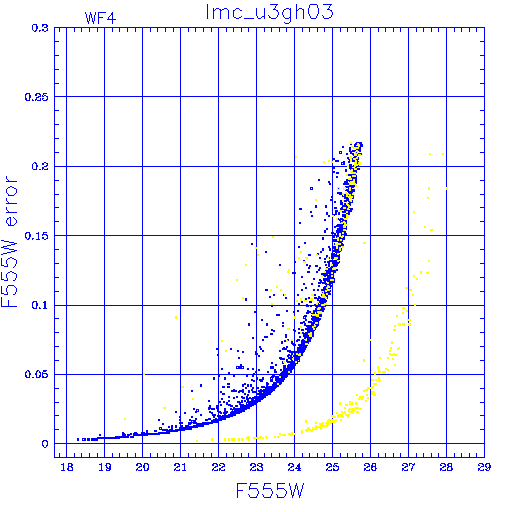

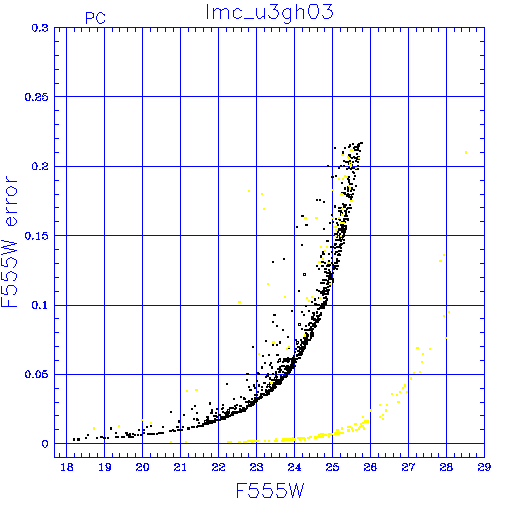

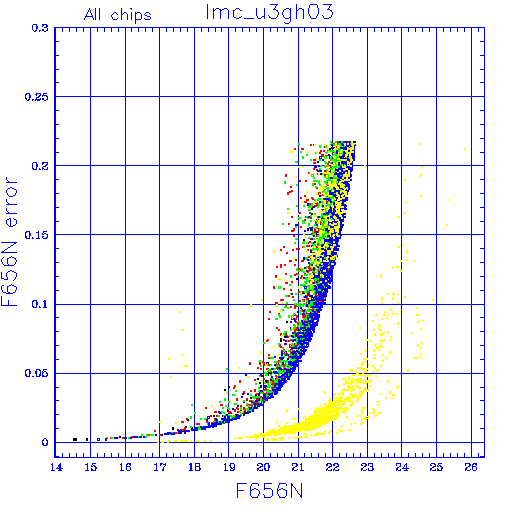

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f255w
f336w
f439w
f675w
f656n

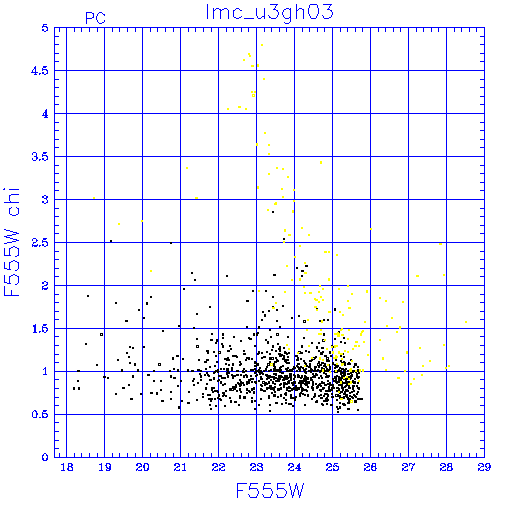

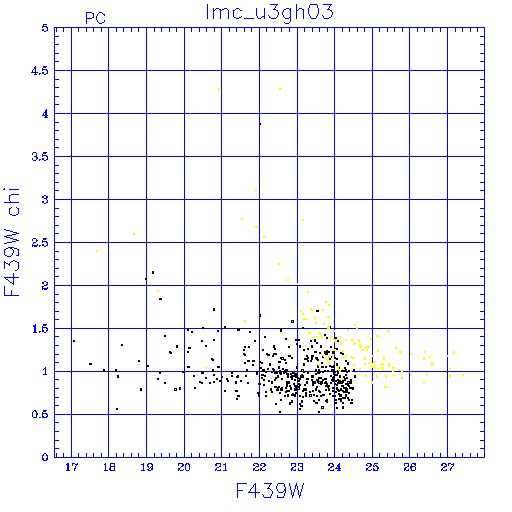

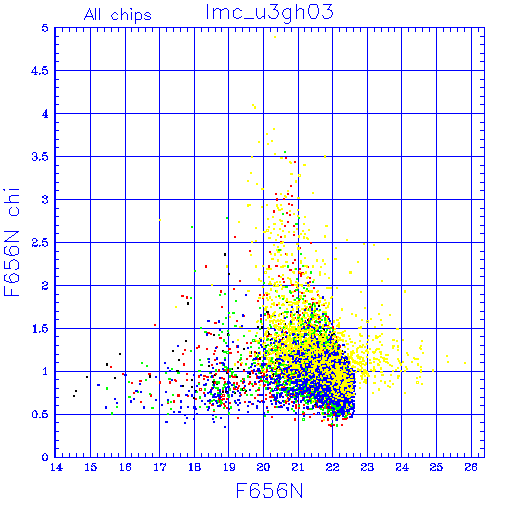

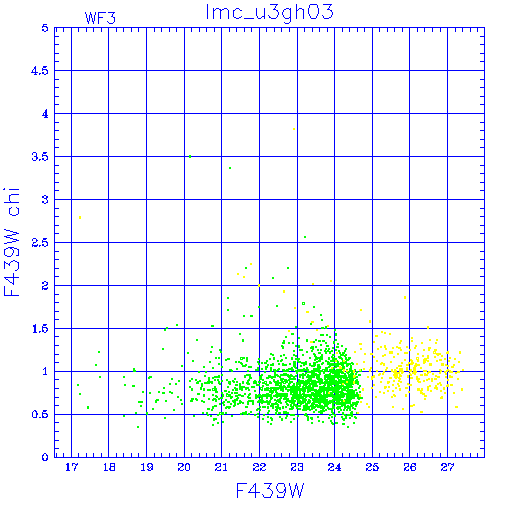

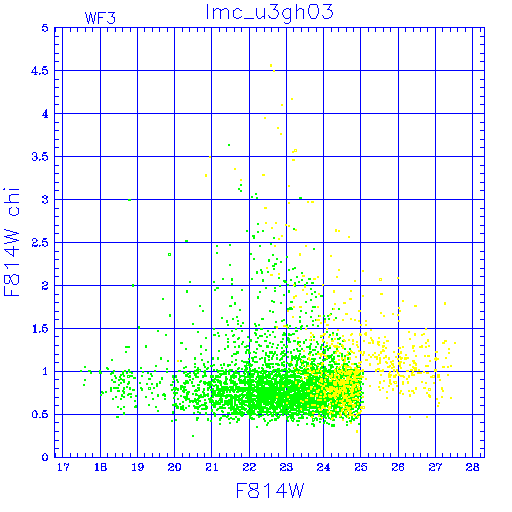

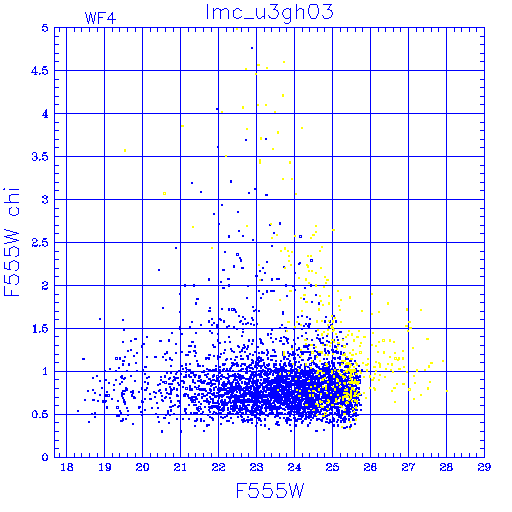

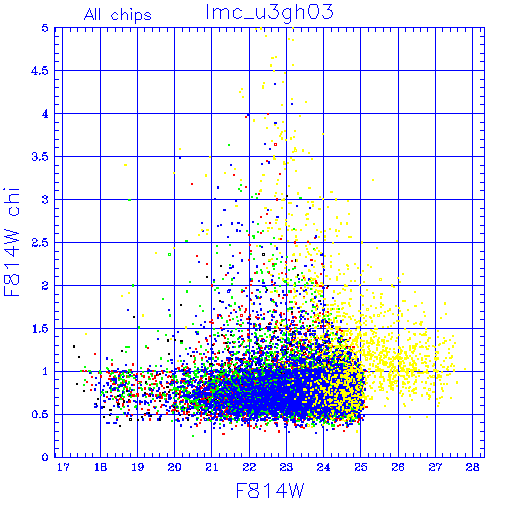

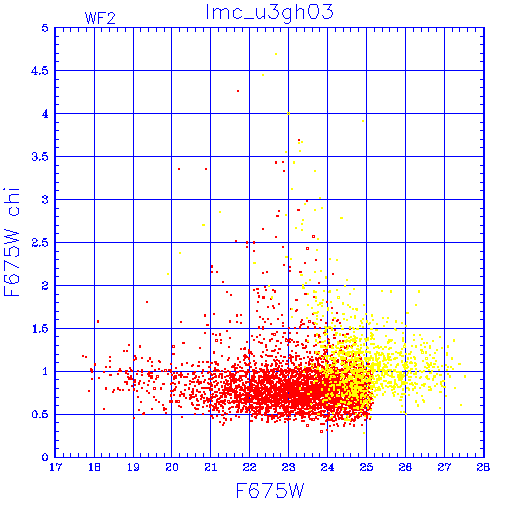

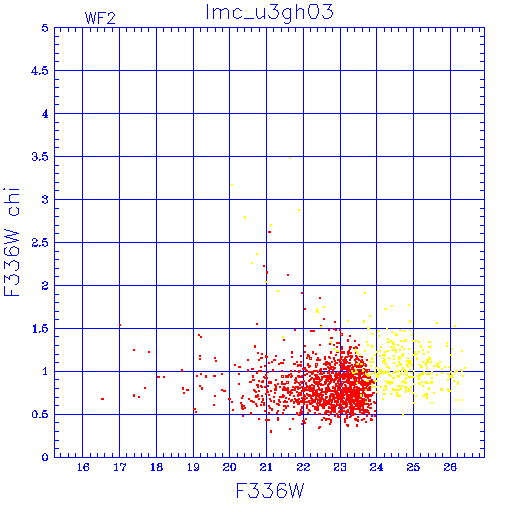

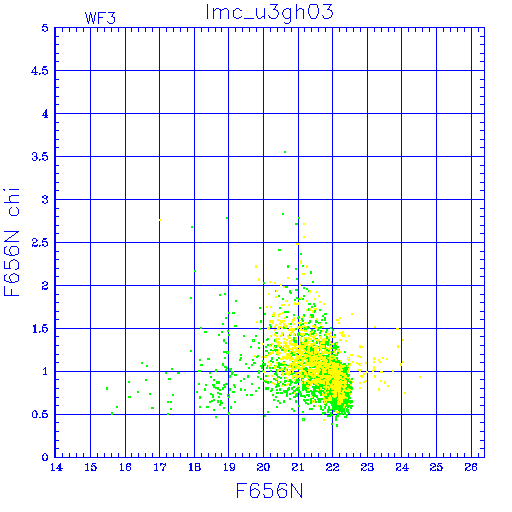

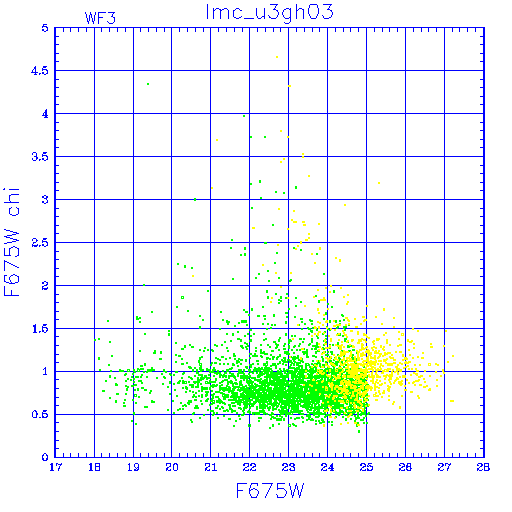

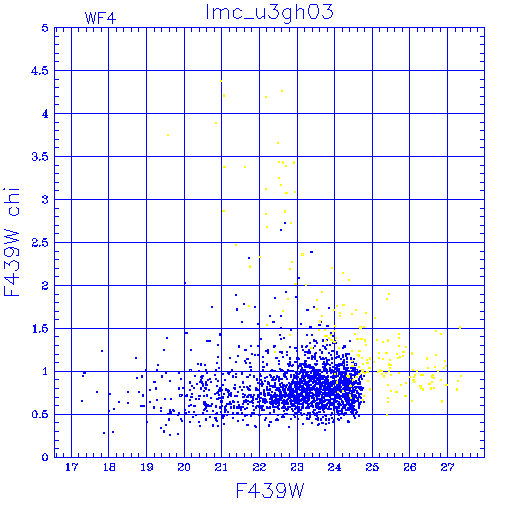

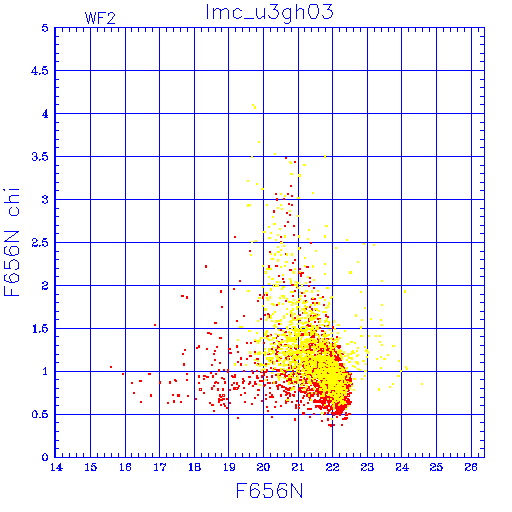

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w
f255w
f336w
f439w
f675w
f656n

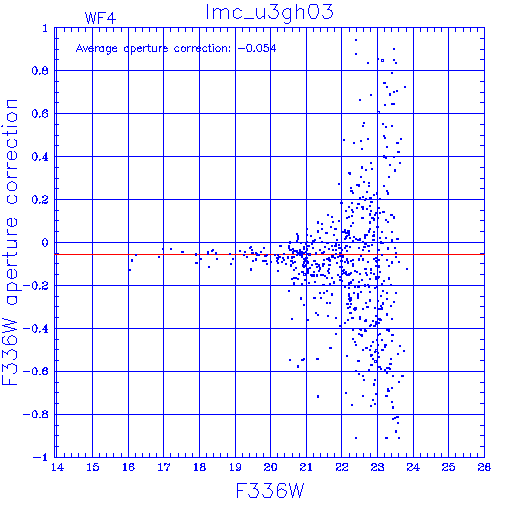

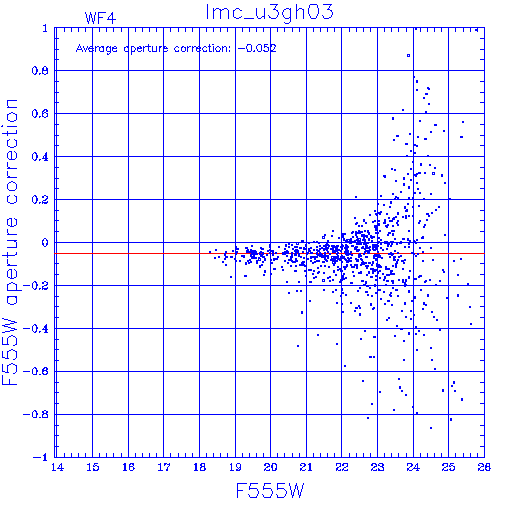

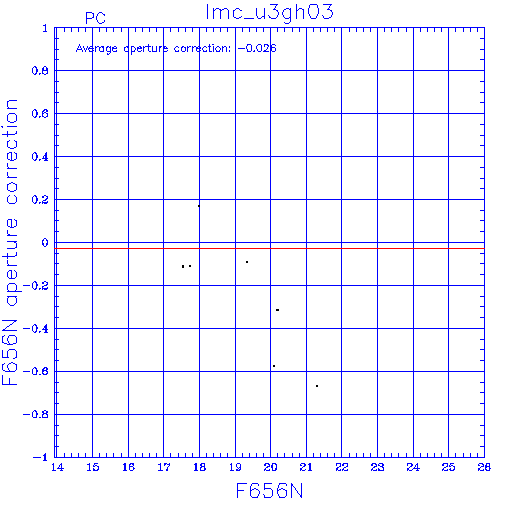

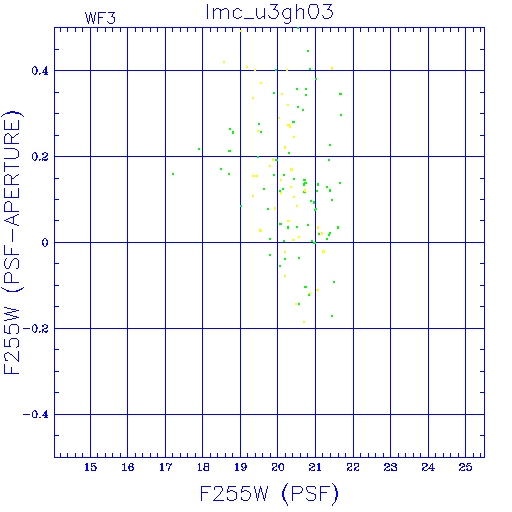

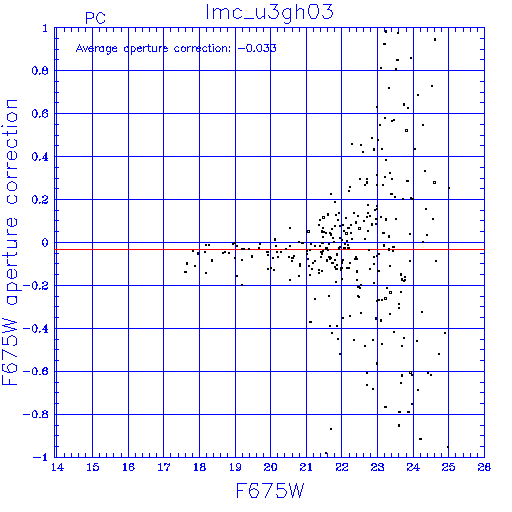

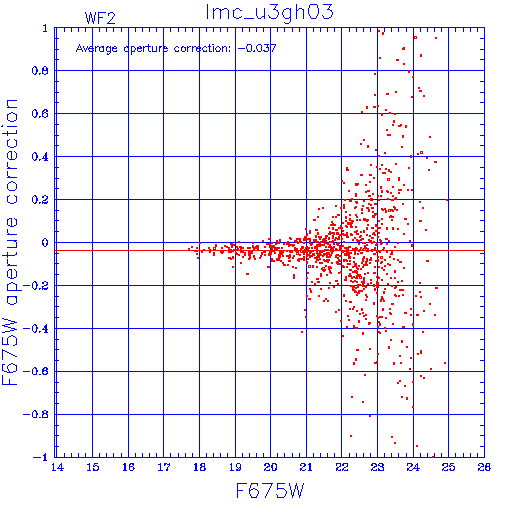

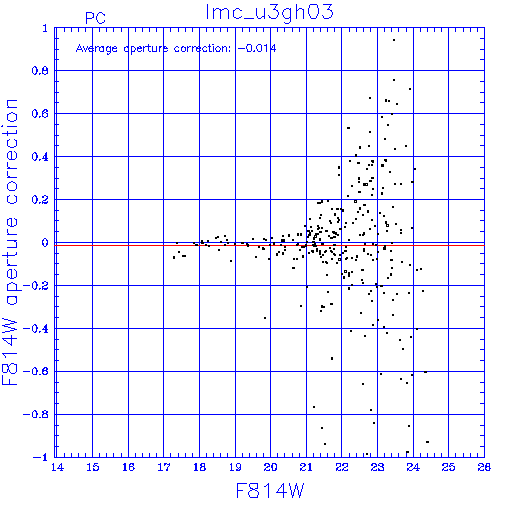

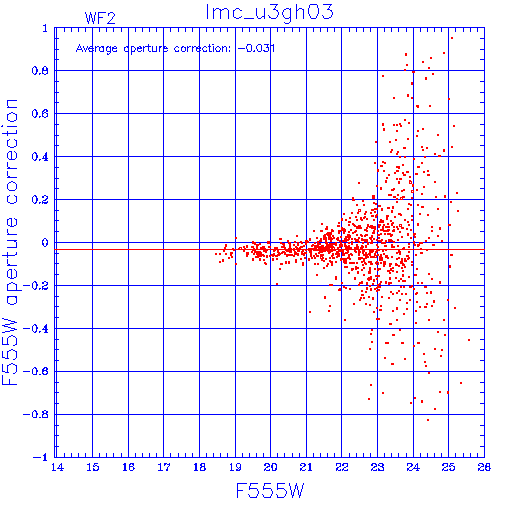

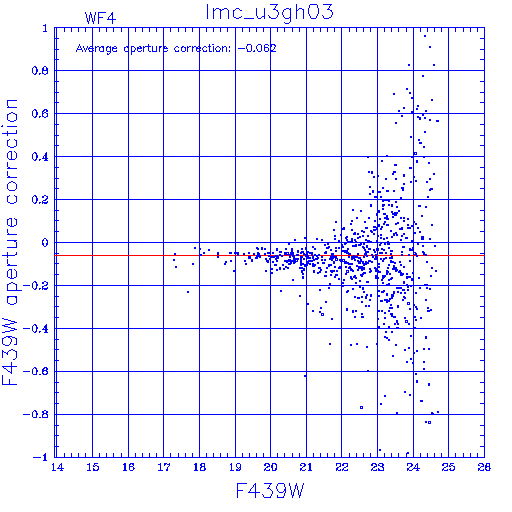

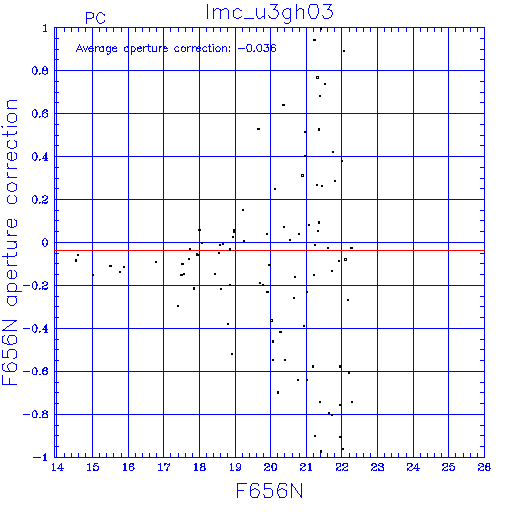

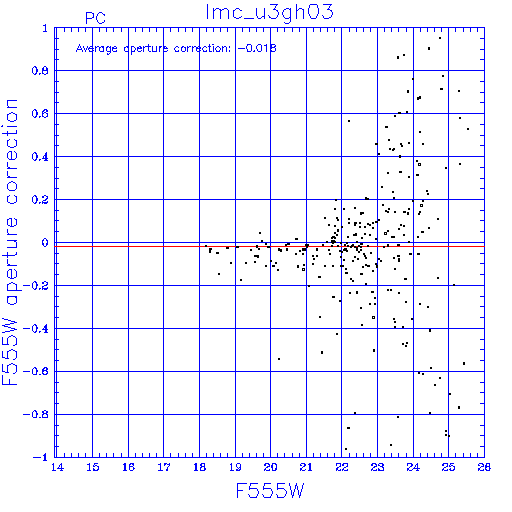

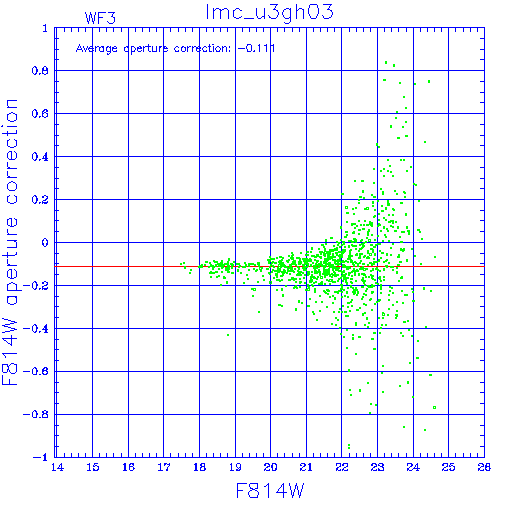

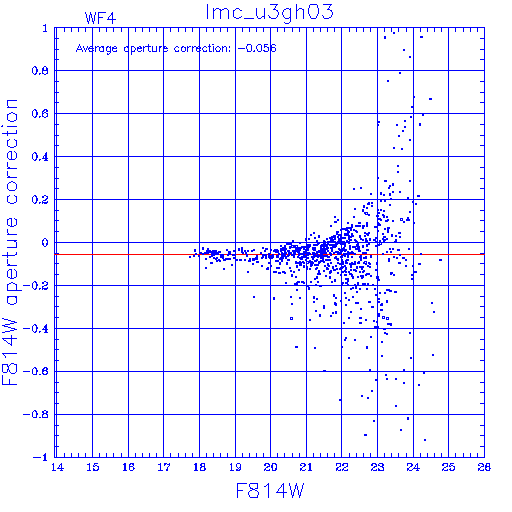

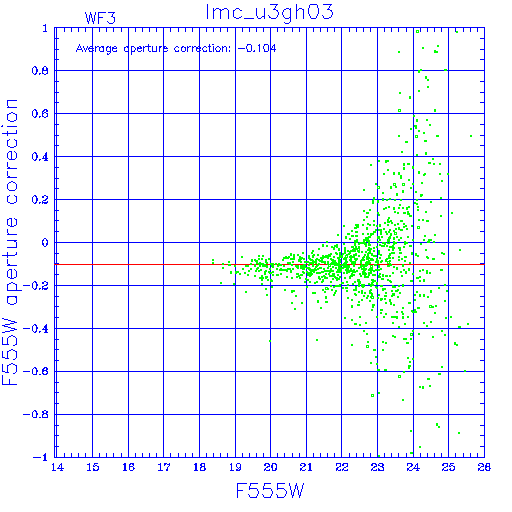

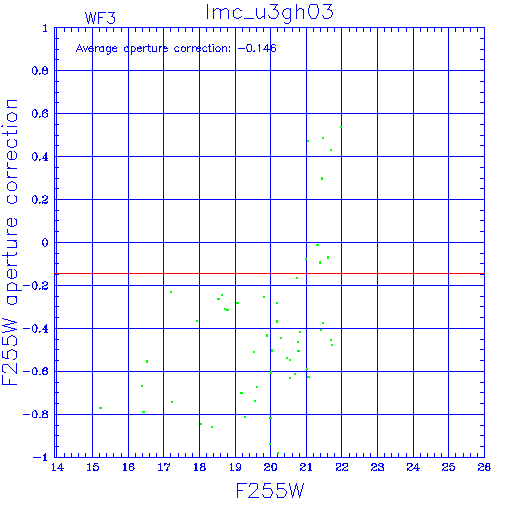

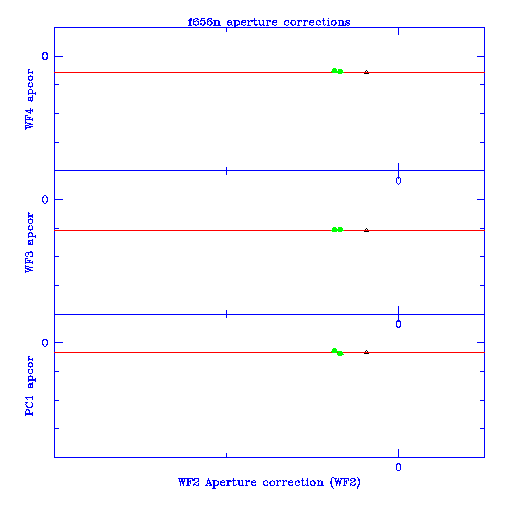

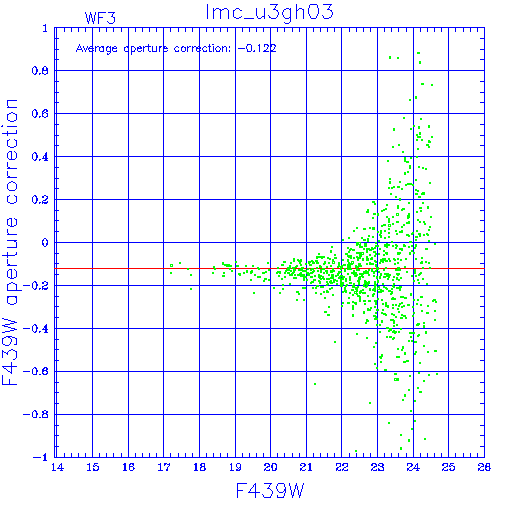

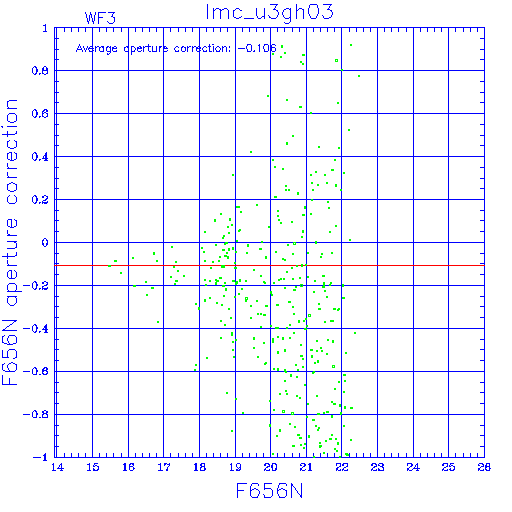

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
