Photometry Diagnostics for lmc_u32h04


Frame list, with derived and commanded shifts
dataset filter exptime derived dx derived dy header dx header dy delta dx delta dy
u32h0407t F555W 1100.00 0.00 0.00 0.00 0.00 0.00 0.00
u32h0408t F555W 300.00 0.01 -0.01 0.00 0.00 0.01 -0.01
u32h040bt F814W 300.00 0.04 -0.01 0.00 0.00 0.04 -0.01
u32h040ct F814W 300.00 0.04 -0.02 0.00 0.00 0.04 -0.02
u32h0401t F255W 300.00 -0.78 0.83 0.00 0.00 -0.78 0.83
u32h0402t F255W 1400.00 -0.83 0.88 0.00 0.00 -0.83 0.88
u32h0403t F336W 1100.00 -0.39 -0.67 0.00 0.00 -0.39 -0.67
u32h0404t F336W 600.00 -0.38 -0.67 0.00 0.00 -0.38 -0.67
u32h0405t F439W 600.00 -0.20 -0.10 0.00 0.00 -0.20 -0.10
u32h0406t F439W 600.00 -0.19 -0.12 0.00 0.00 -0.19 -0.12
u32h0409t F675W 350.00 -0.54 0.99 0.00 0.00 -0.54 0.99
u32h040at F675W 300.00 -0.57 1.02 0.00 0.00 -0.57 1.02
u32h040dt F658N 300.00 -0.33 -0.14 0.00 0.00 -0.33 -0.14
u32h040et F658N 1500.00 -0.38 -0.13 0.00 0.00 -0.38 -0.13
u32h040ft F658N 1100.00 -0.40 -0.25 0.00 0.00 -0.40 -0.25
u32h040gt F658N 1500.00 -0.48 -0.24 0.00 0.00 -0.48 -0.24
u32h040ht F502N 1100.00 -0.85 0.11 0.00 0.00 -0.85 0.11
u32h040it F502N 1500.00 -0.85 0.10 0.00 0.00 -0.85 0.10
u32h040jt F502N 1100.00 -0.77 0.01 0.00 0.00 -0.77 0.01
u32h040kt F502N 1500.00 -0.79 0.01 0.00 0.00 -0.79 0.01
u32h040lt F502N 1100.00 -0.83 0.09 0.00 0.00 -0.83 0.09
u32h040mt F502N 1500.00 -0.79 0.10 0.00 0.00 -0.79 0.10

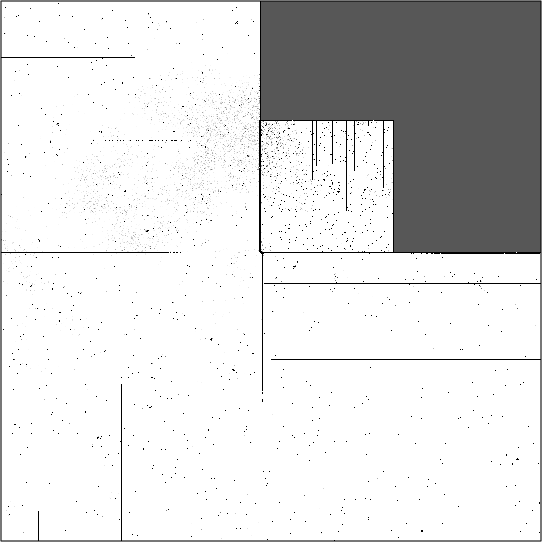

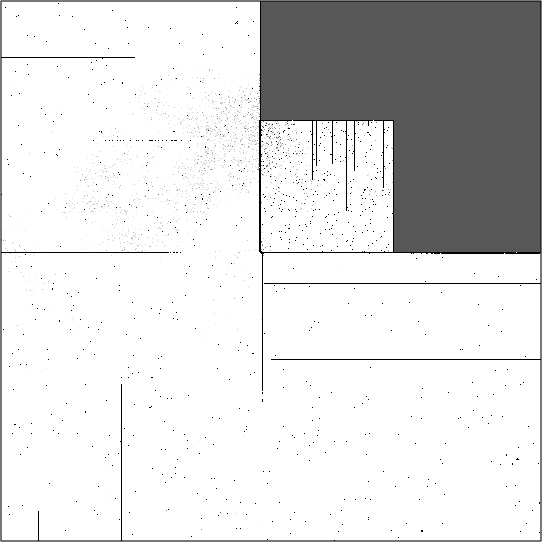

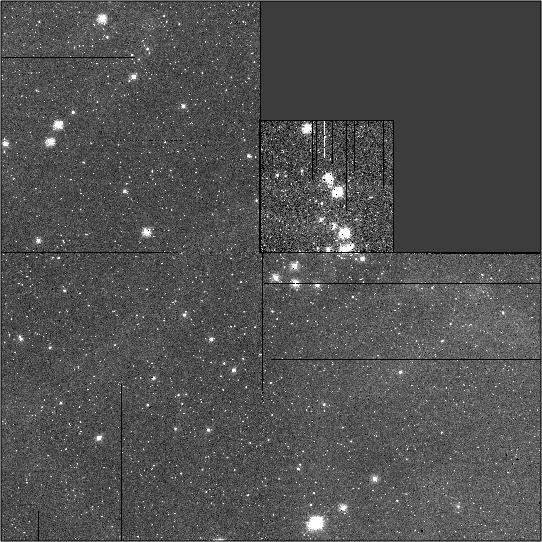

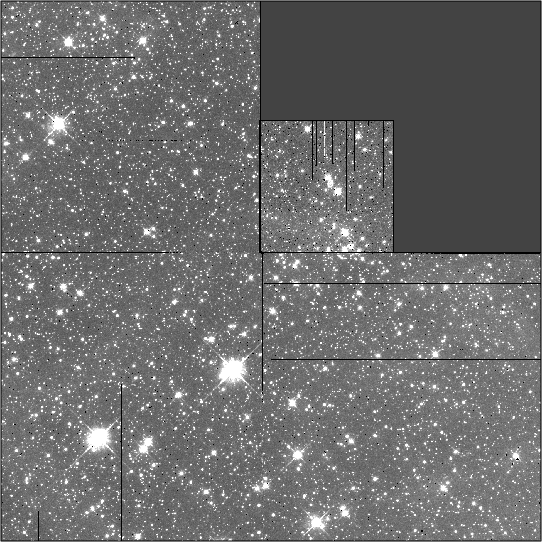

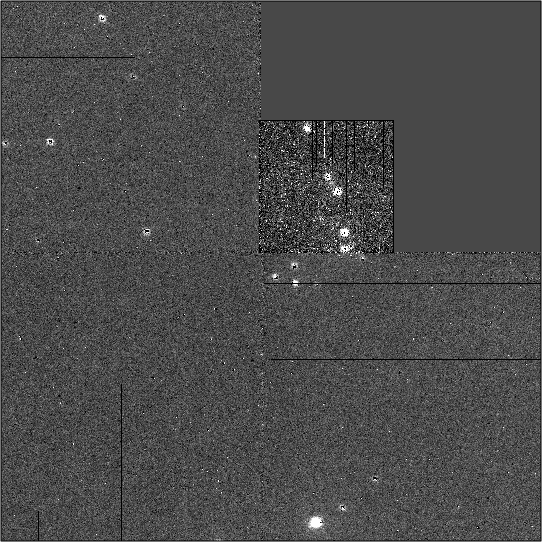

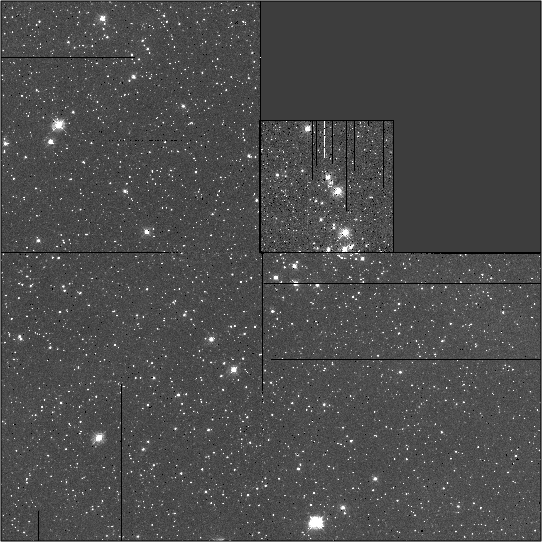

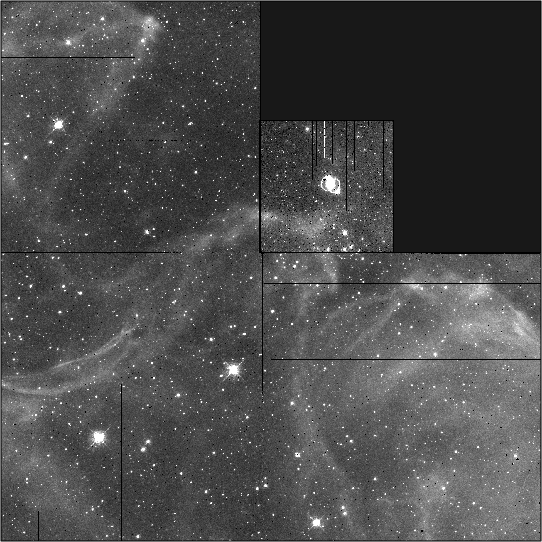

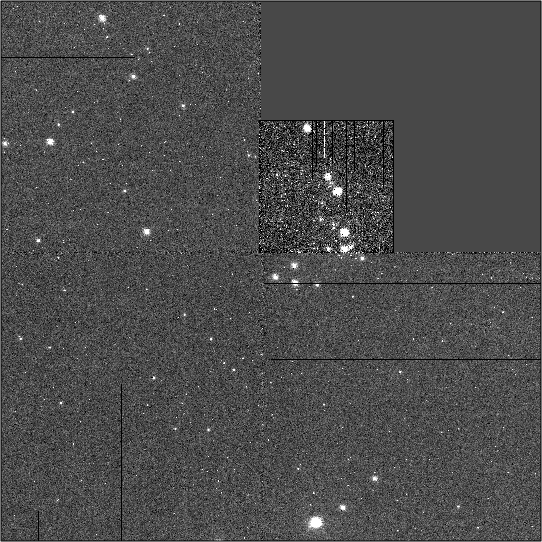

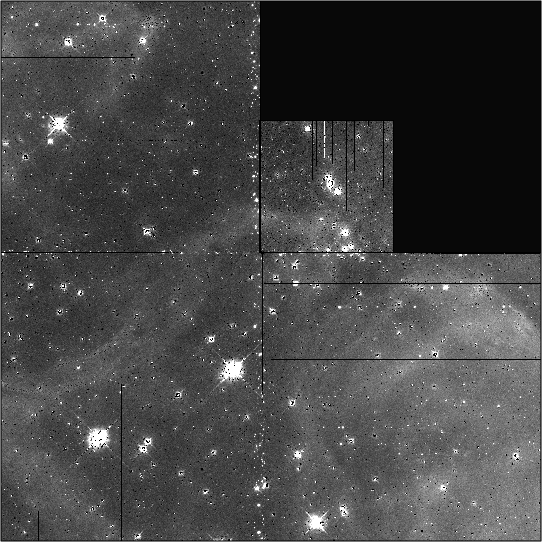

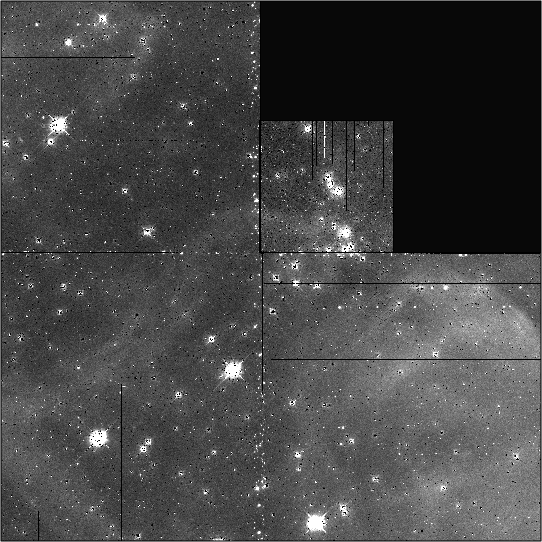

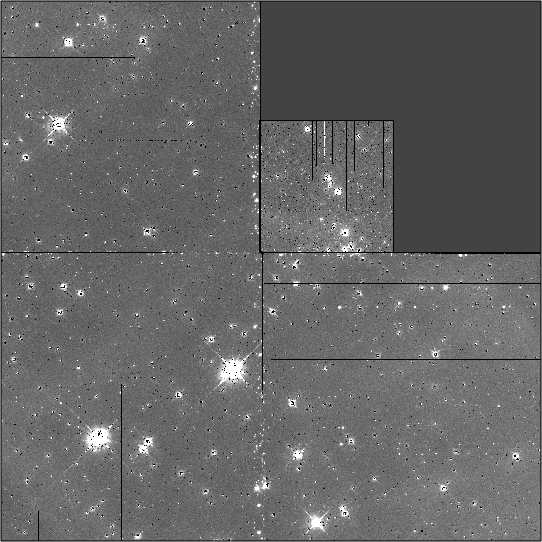

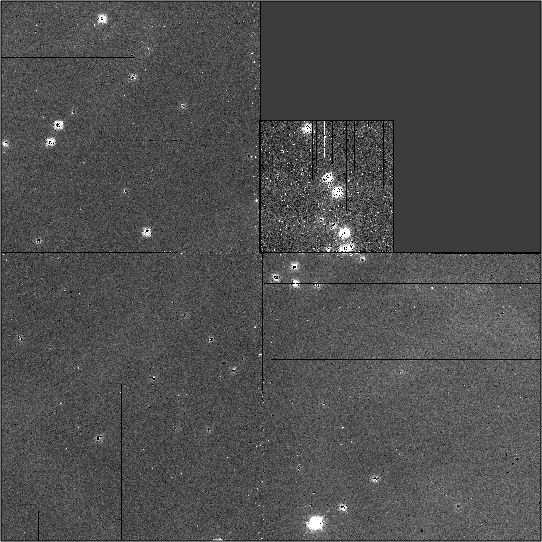

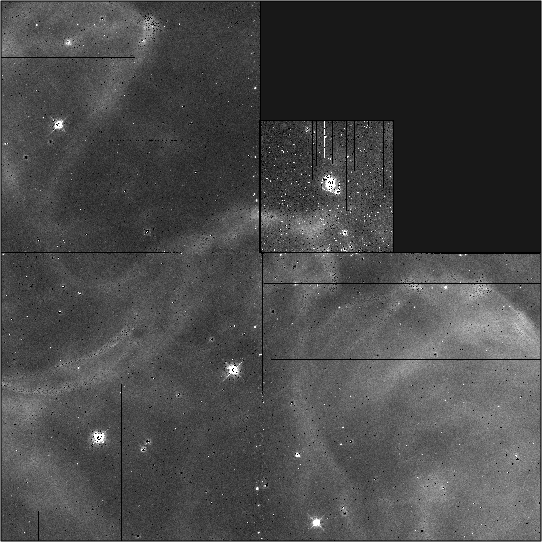

Mosaic images

F555W F814W F255W F336W F439W F675W F658N F502N

HSTPHOT command log

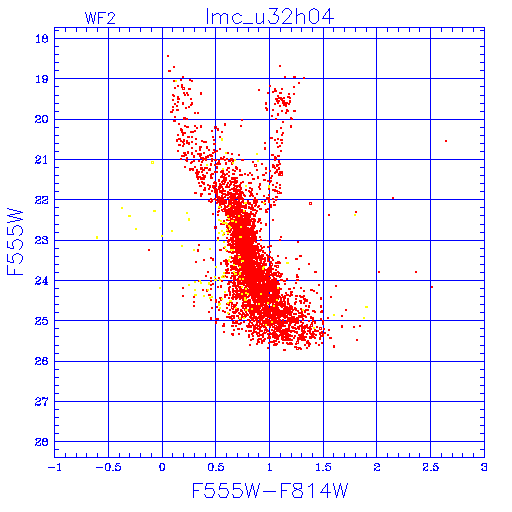

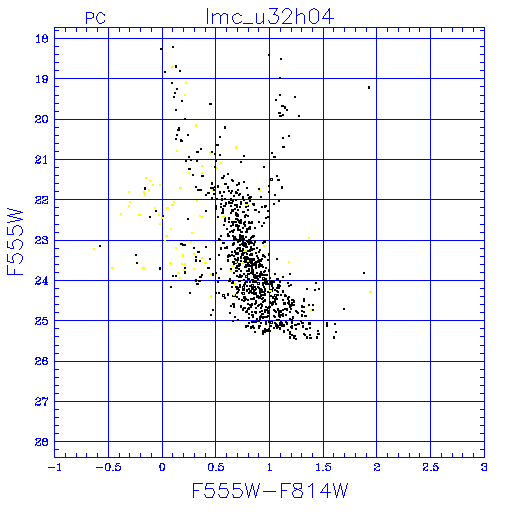

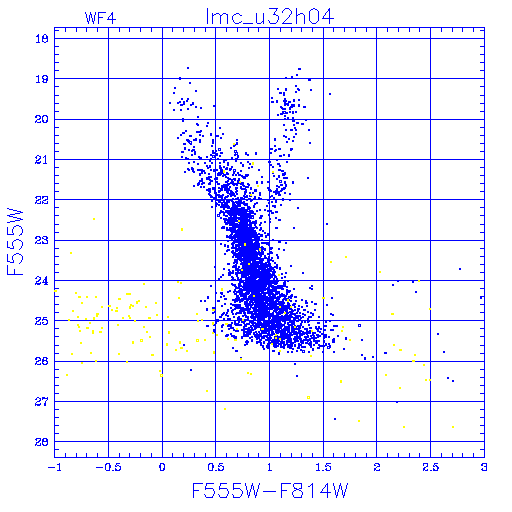

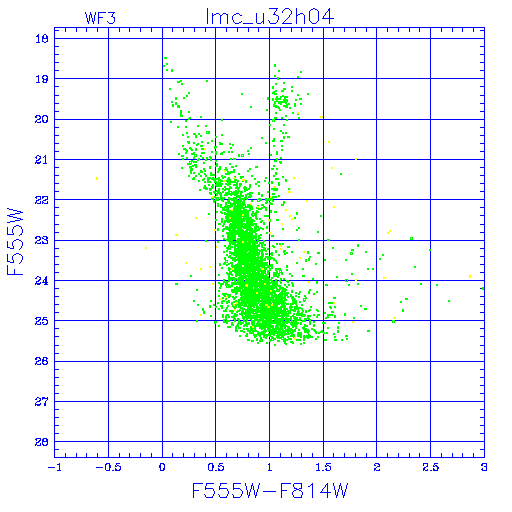

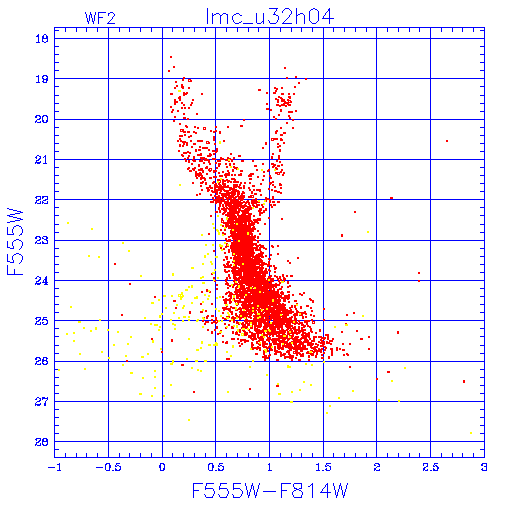

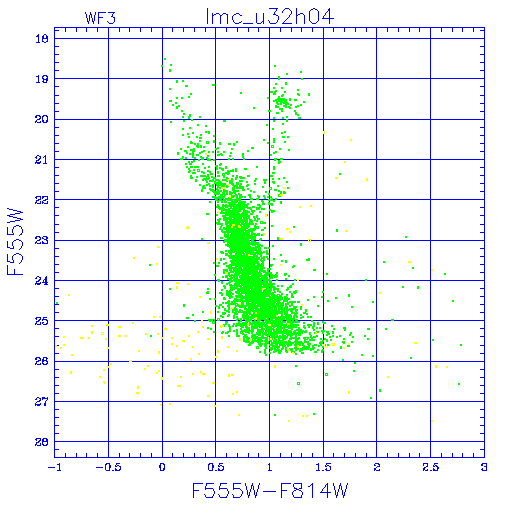

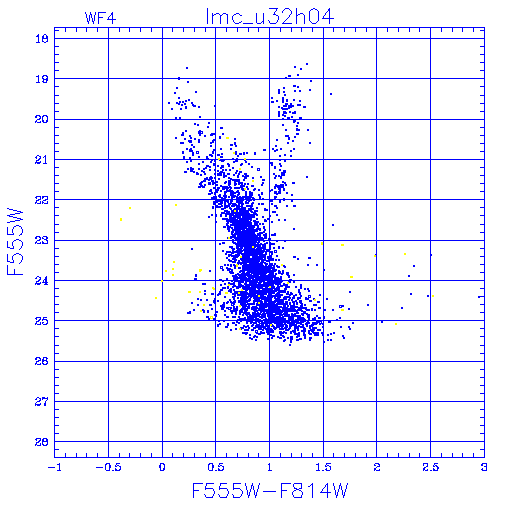

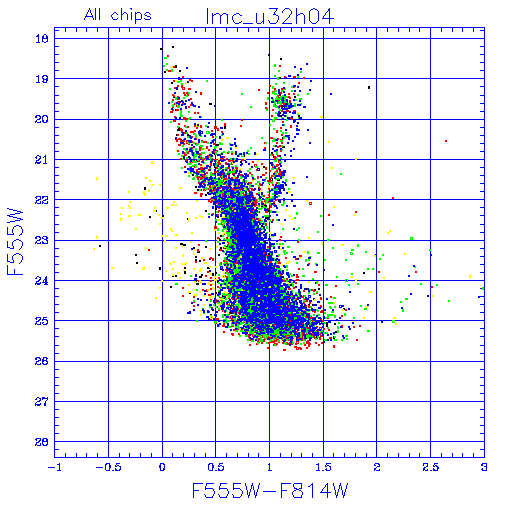

Color magnitude diagrams

All chips
PC
WF2
WF3
WF4
PSF
Aperture

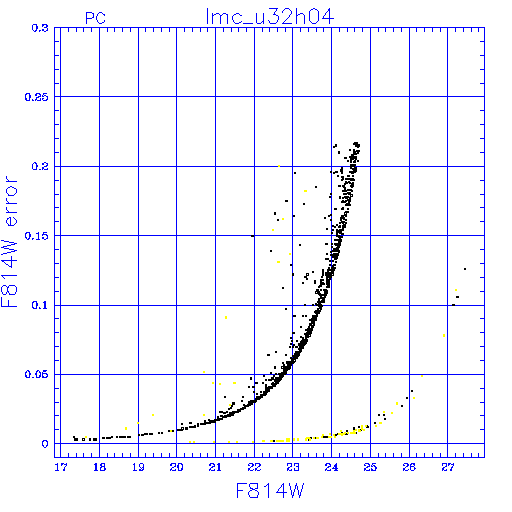

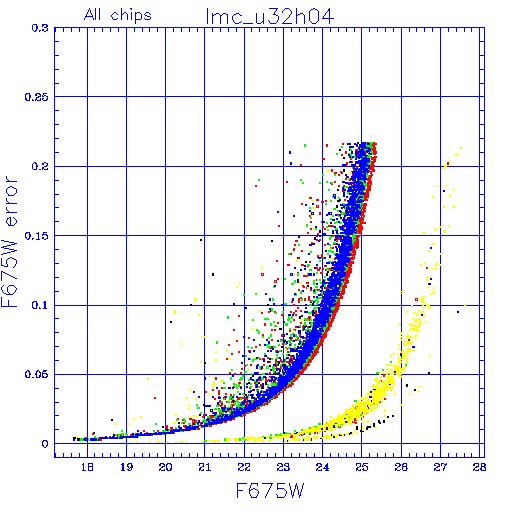

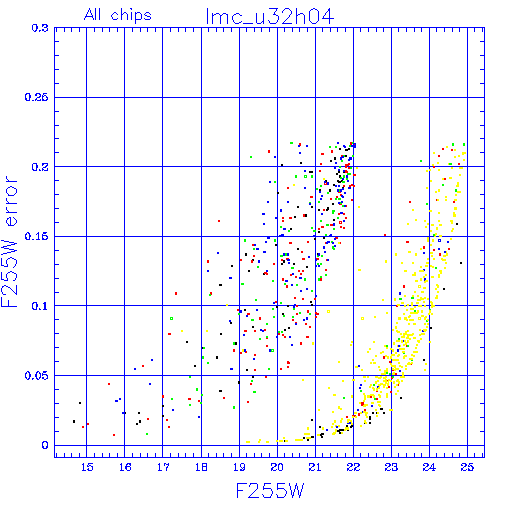

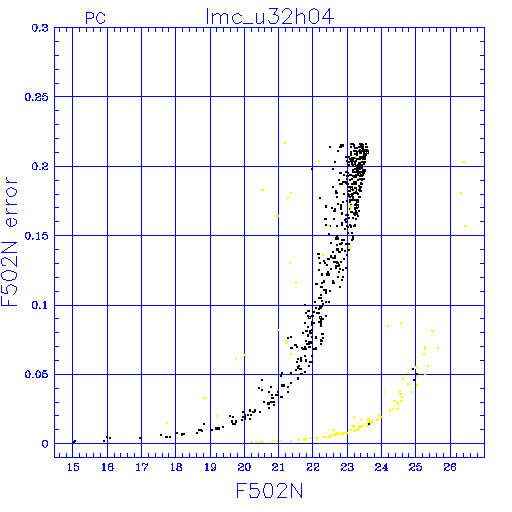

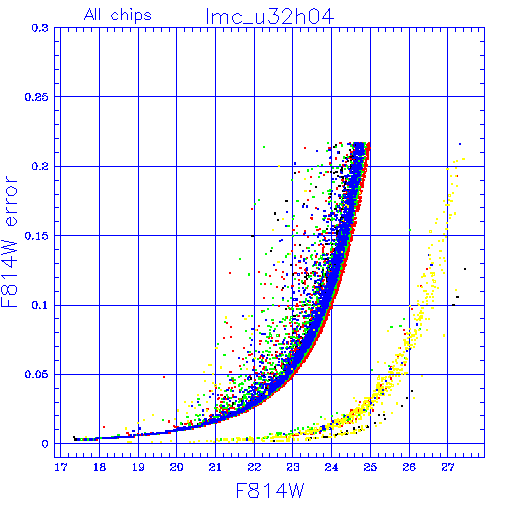

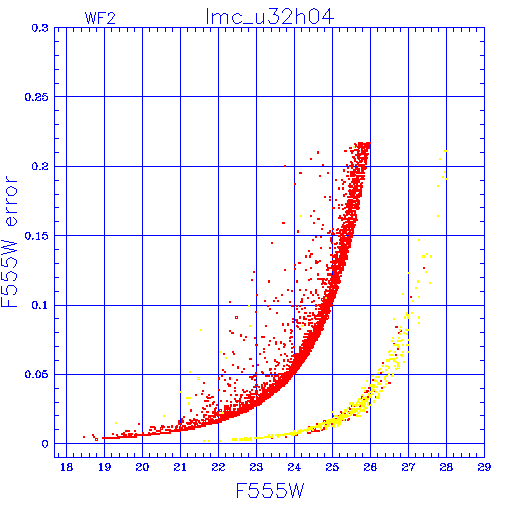

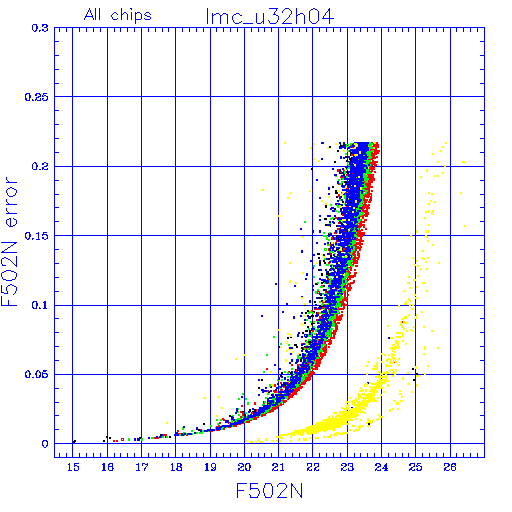

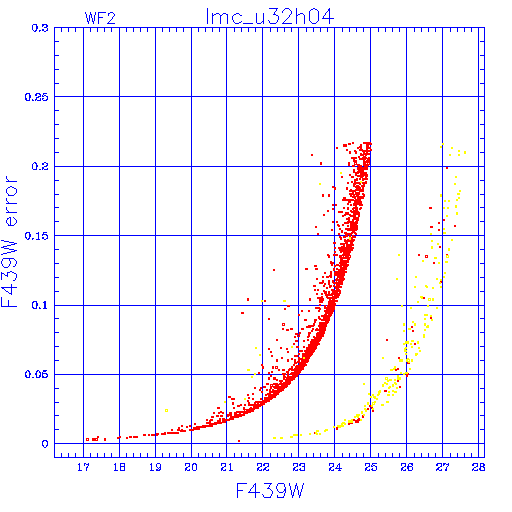

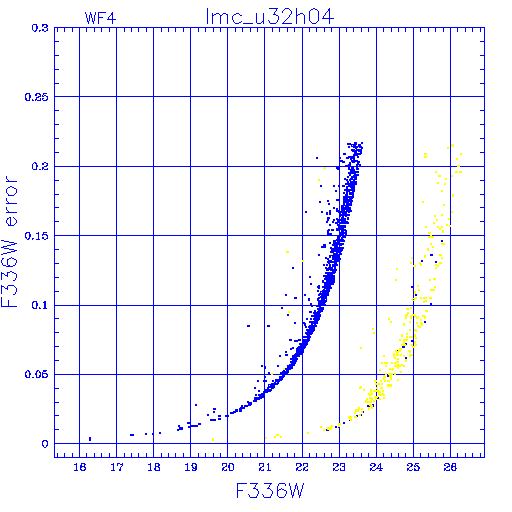

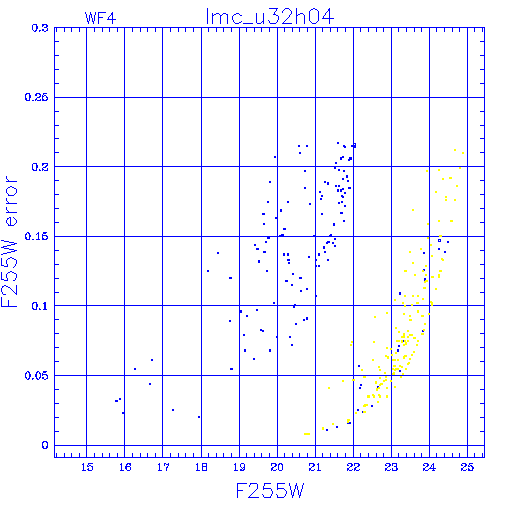

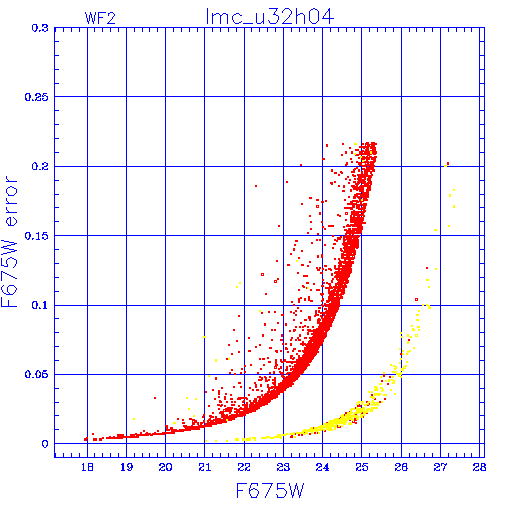

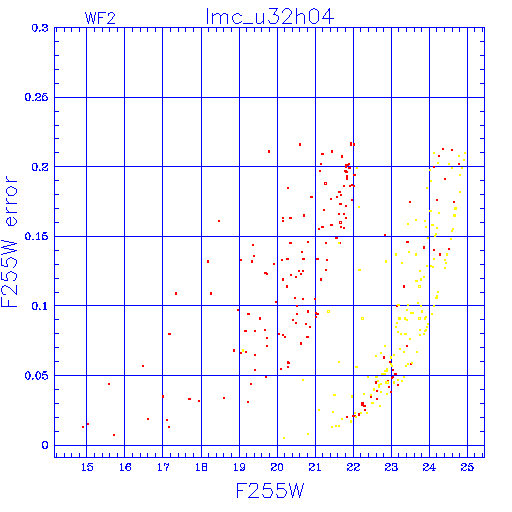

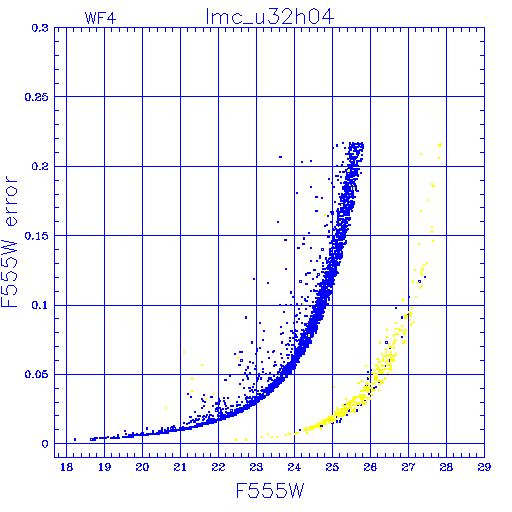

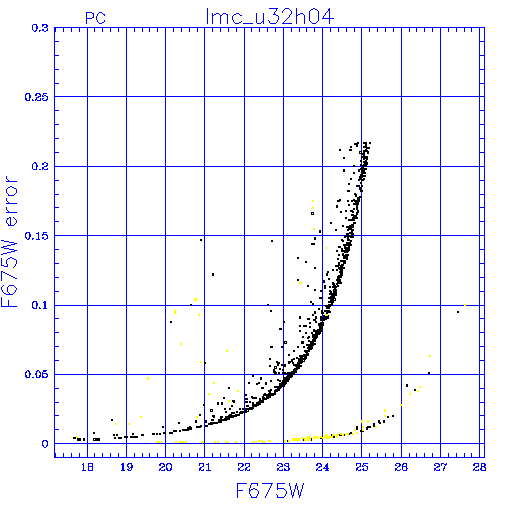

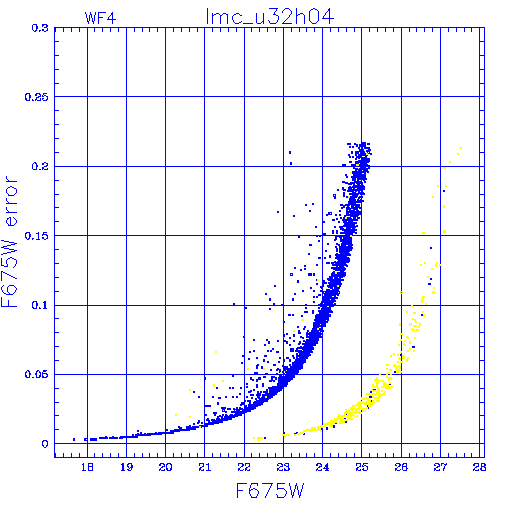

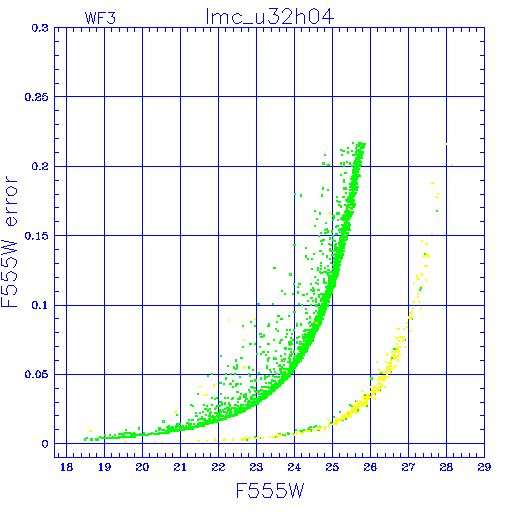

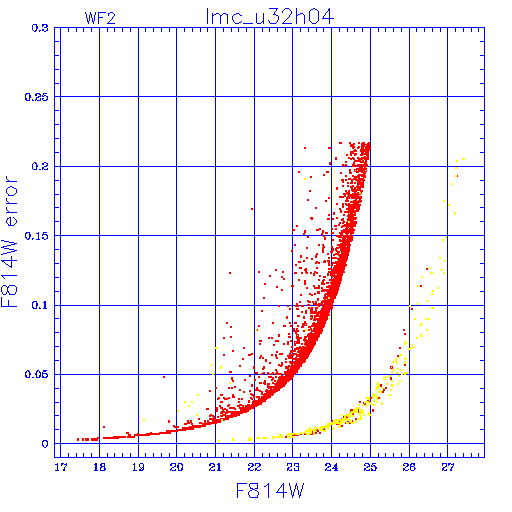

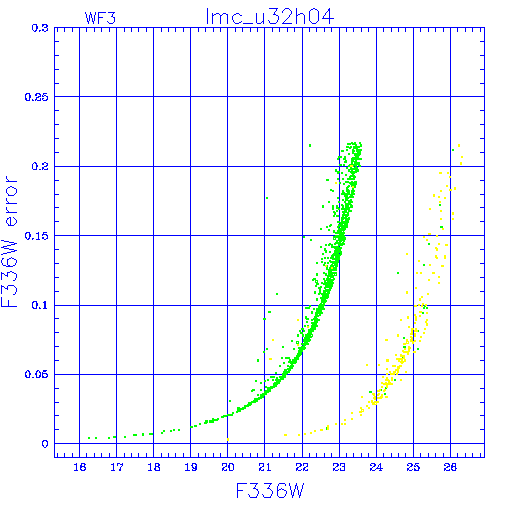

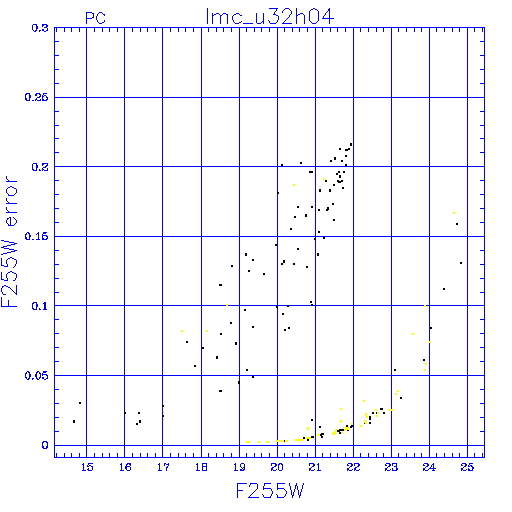

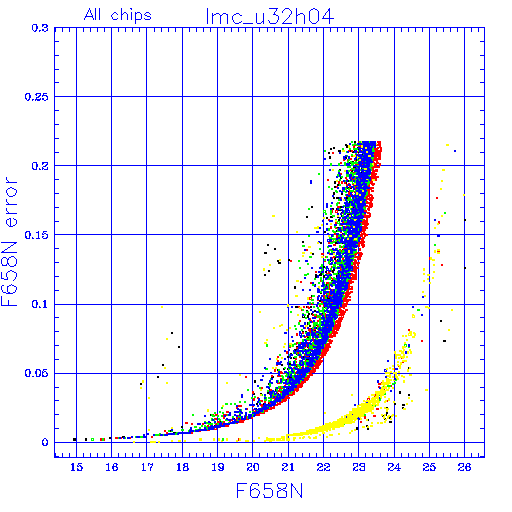

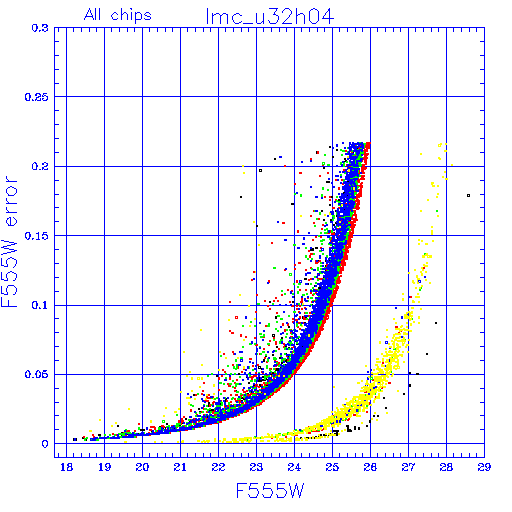

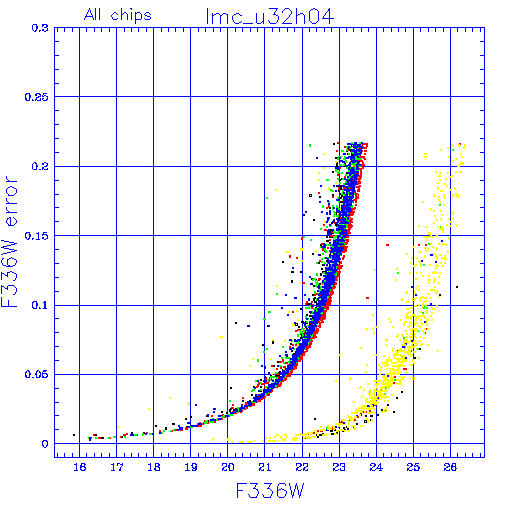

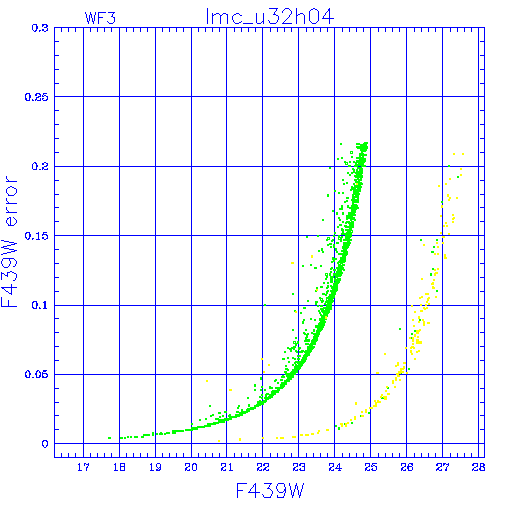

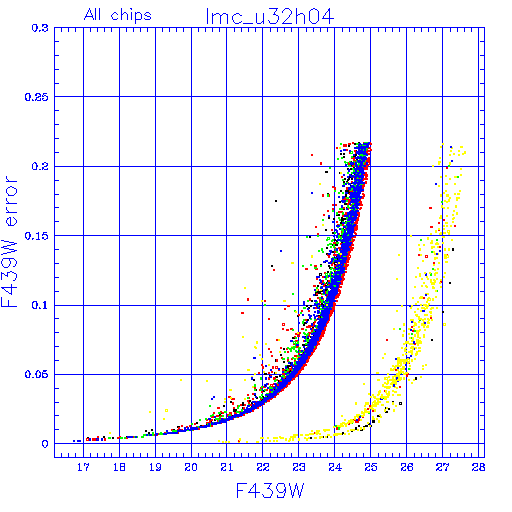

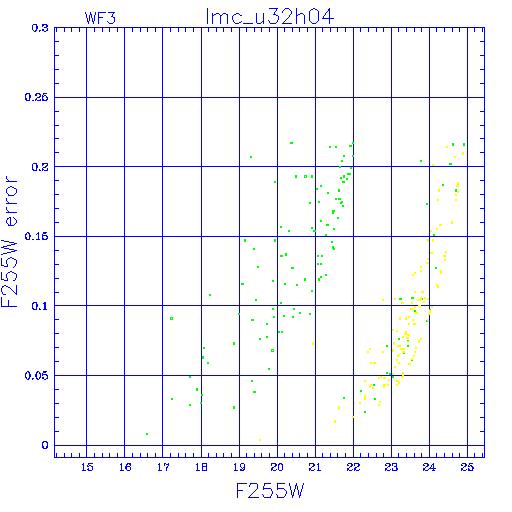

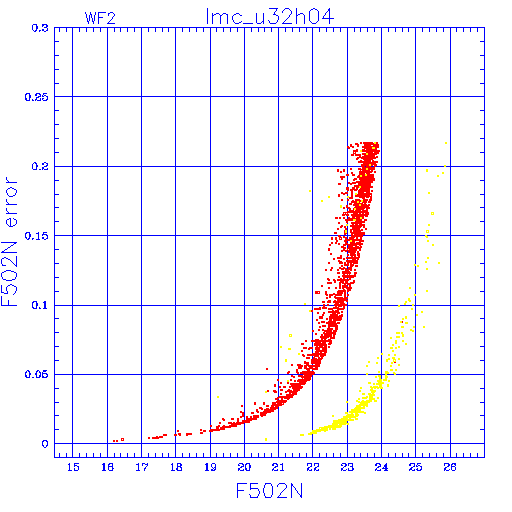

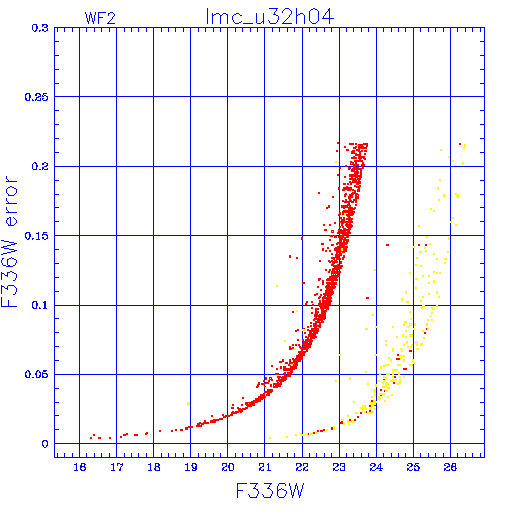

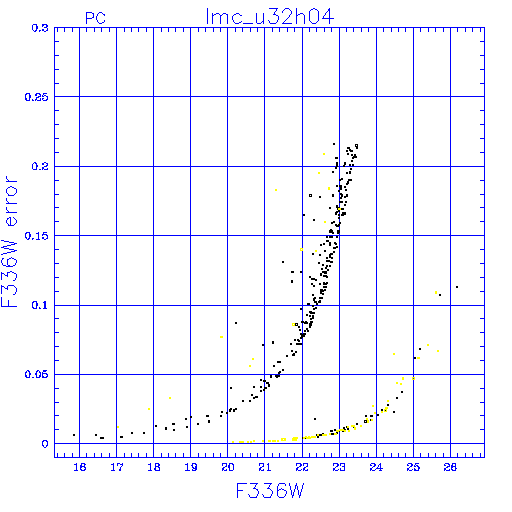

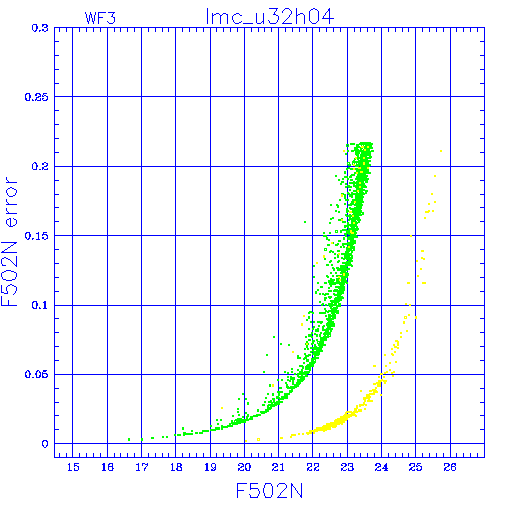

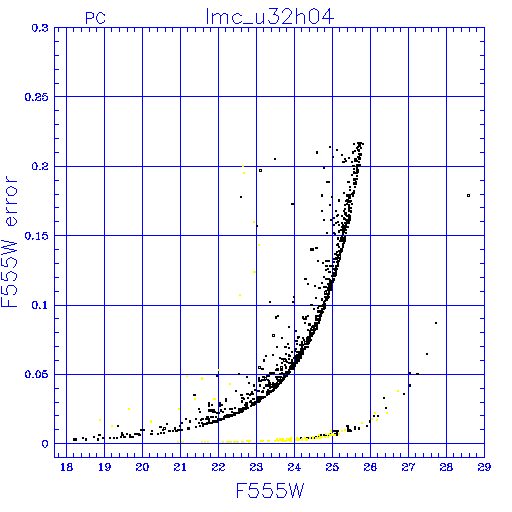

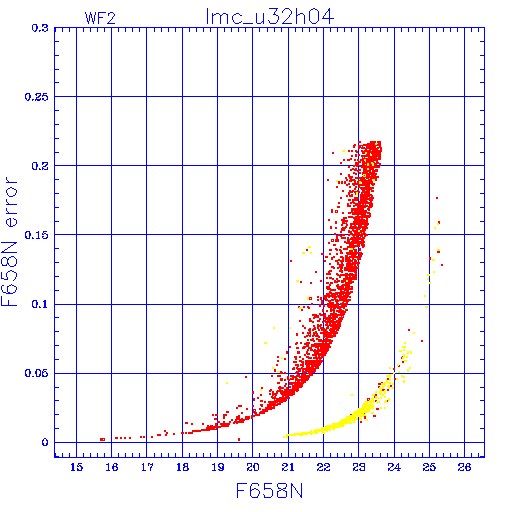

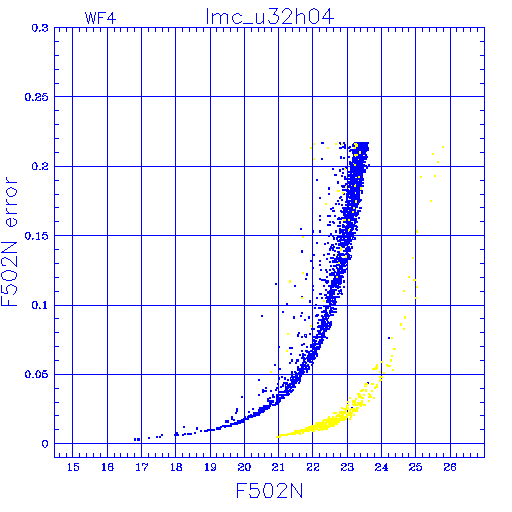

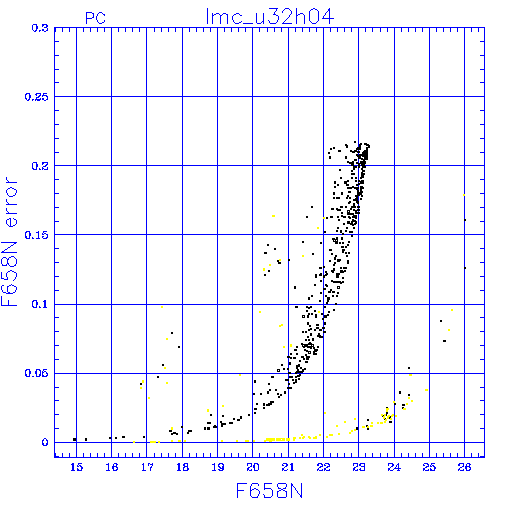

Error vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w
f255w
f336w
f439w
f675w
f658n
f502n

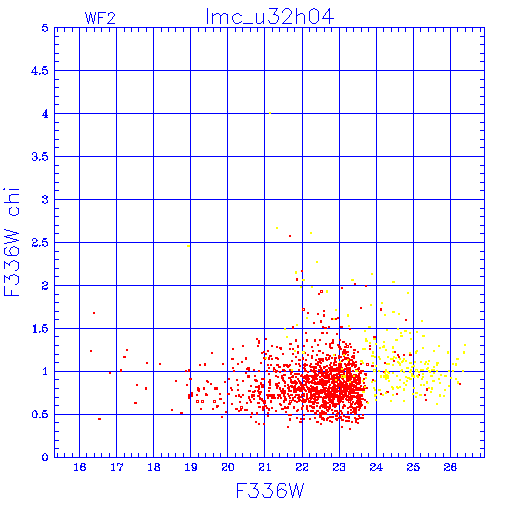

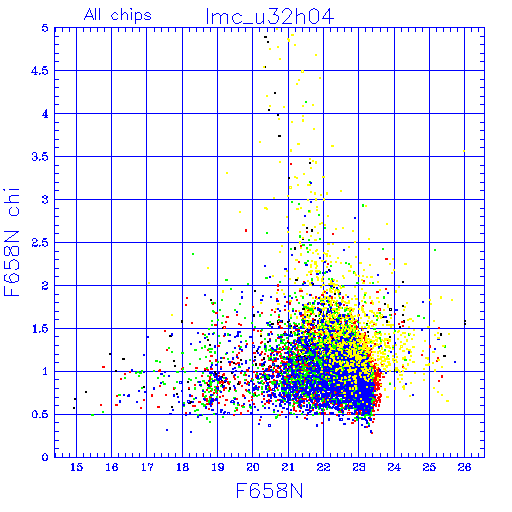

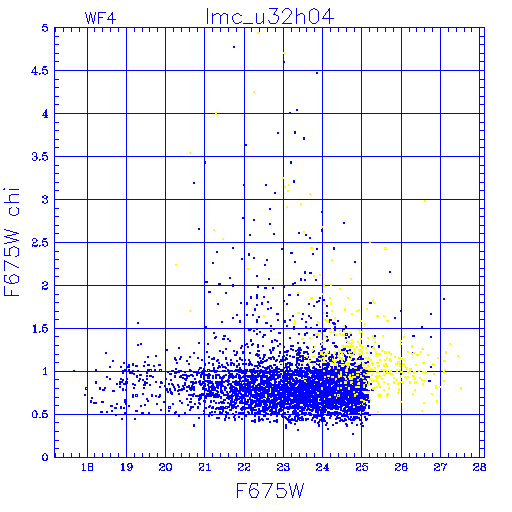

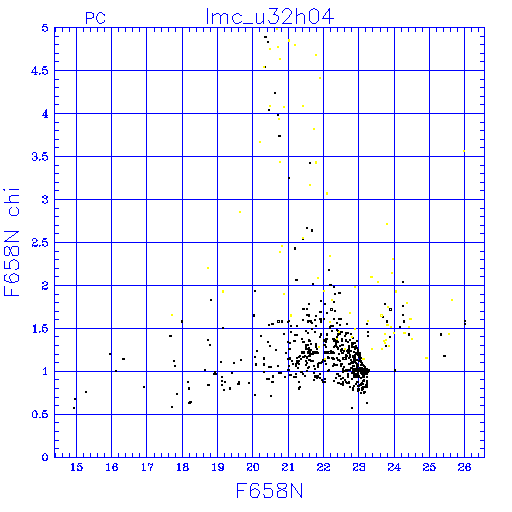

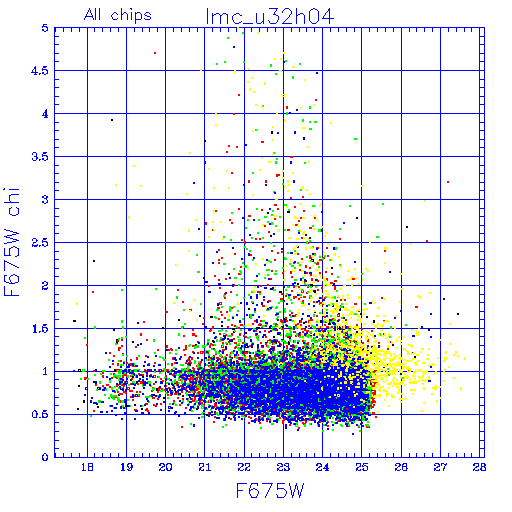

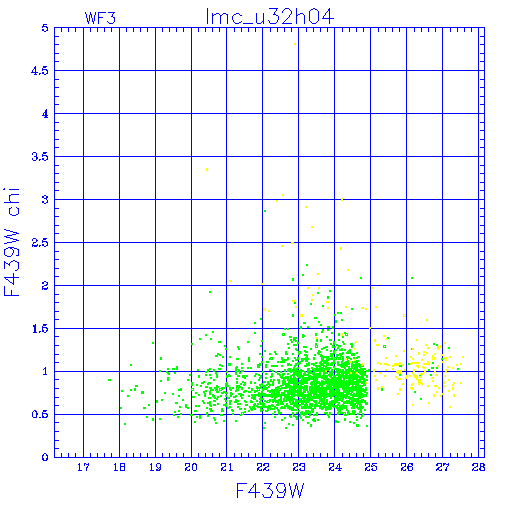

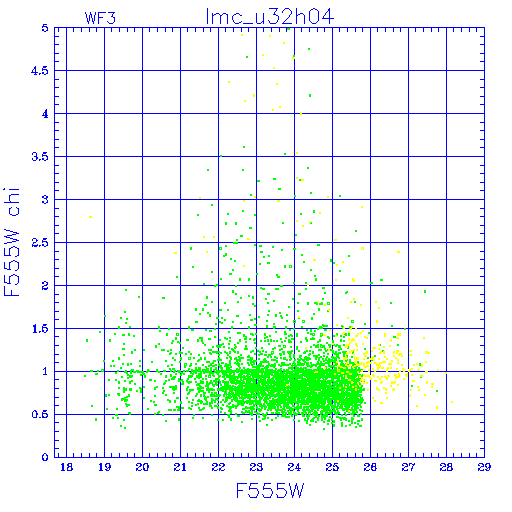

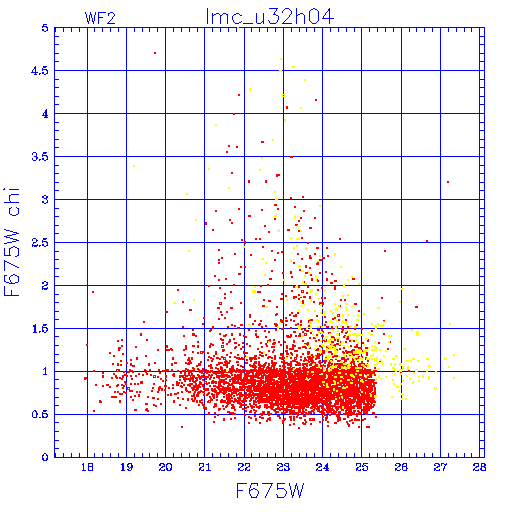

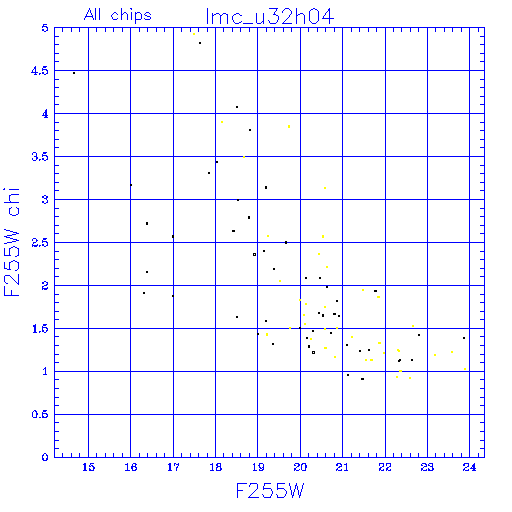

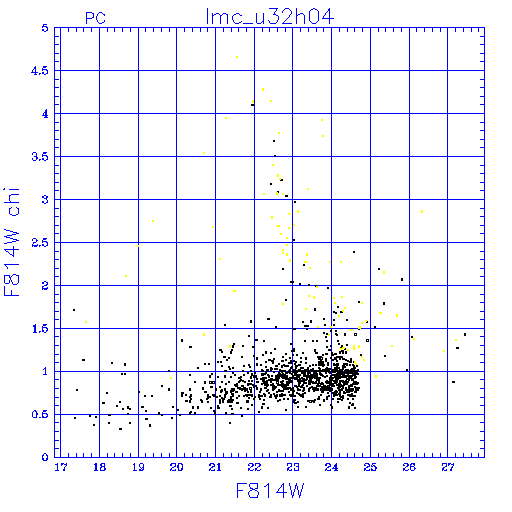

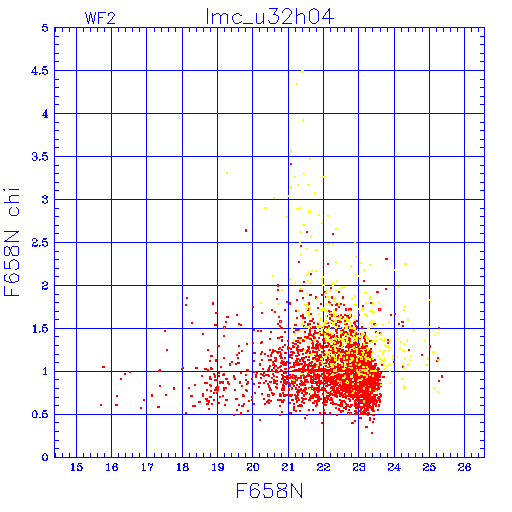

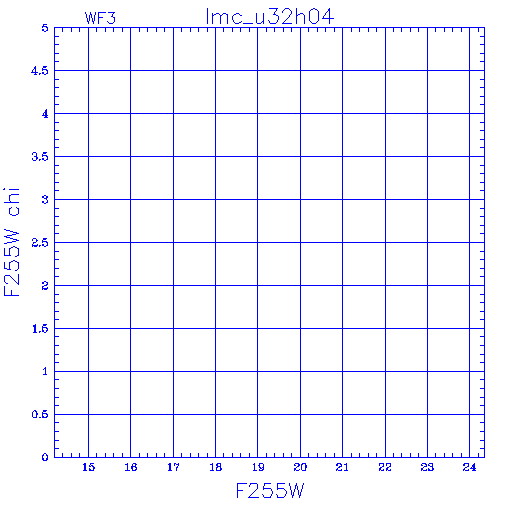

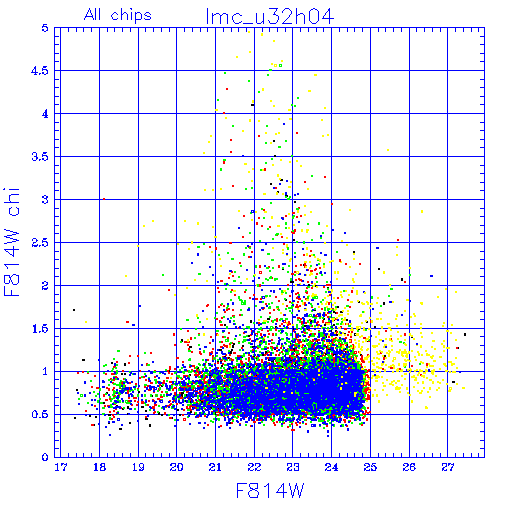

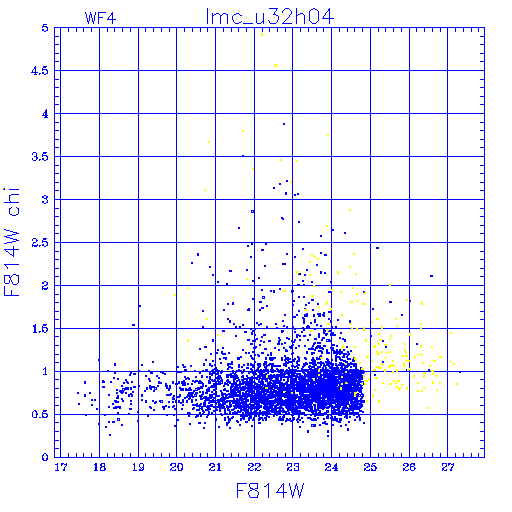

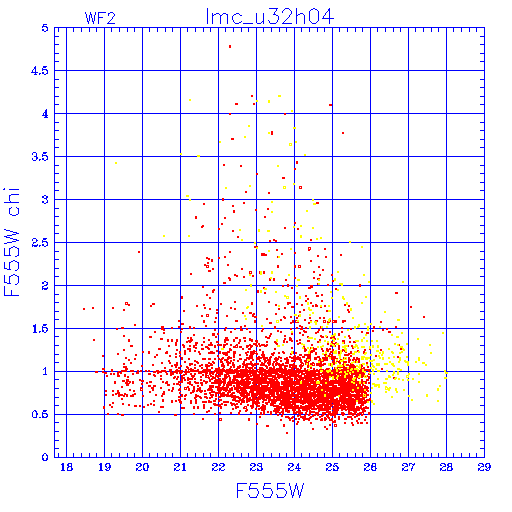

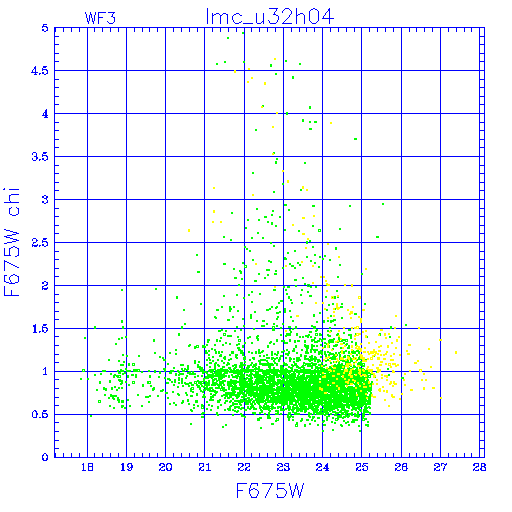

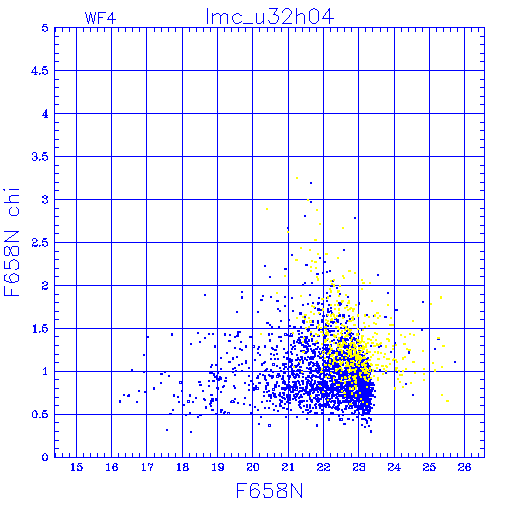

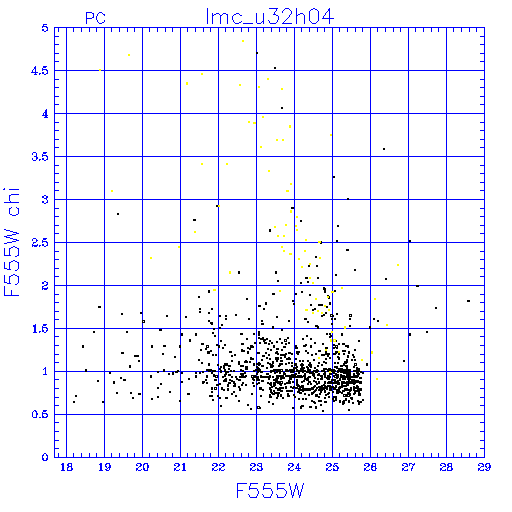

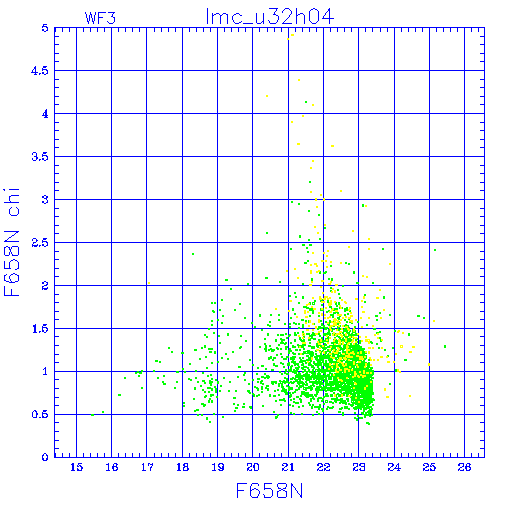

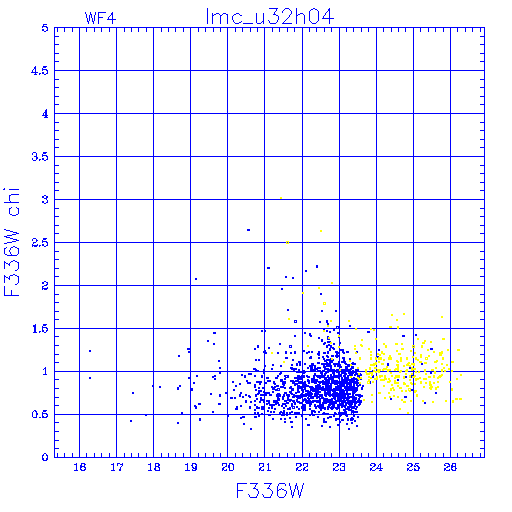

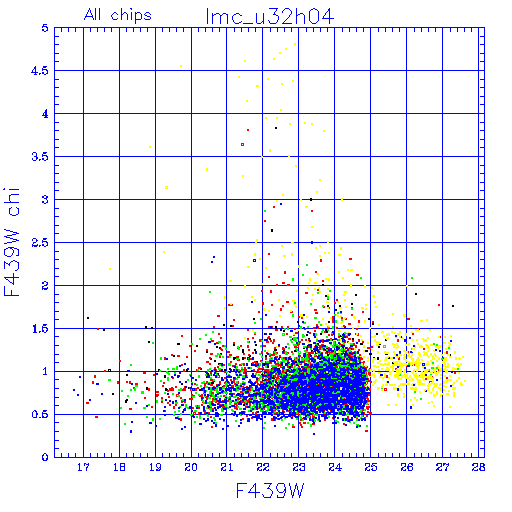

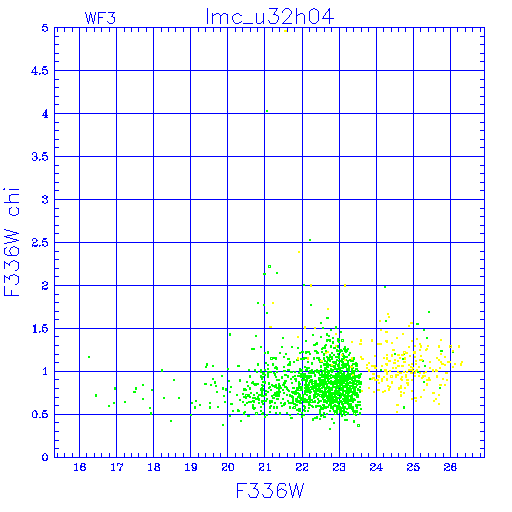

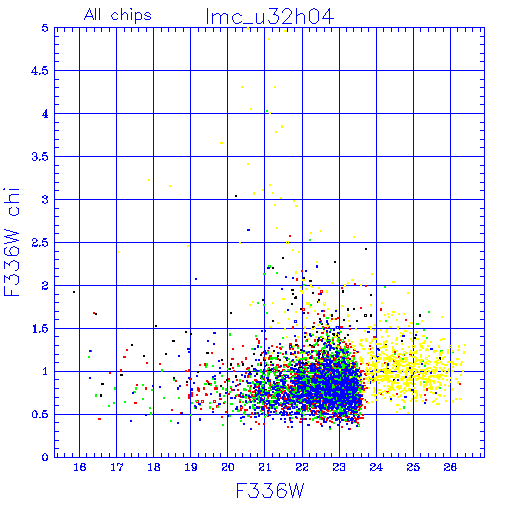

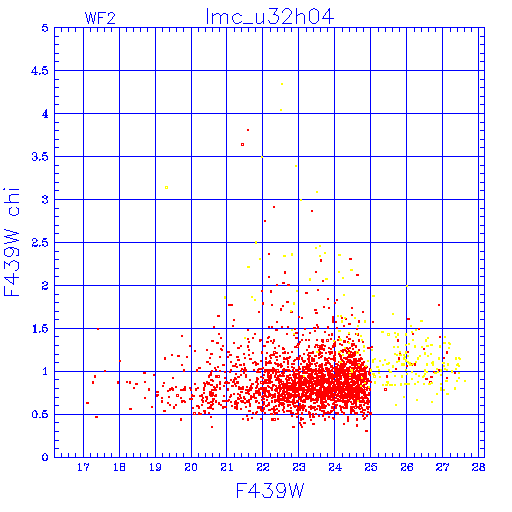

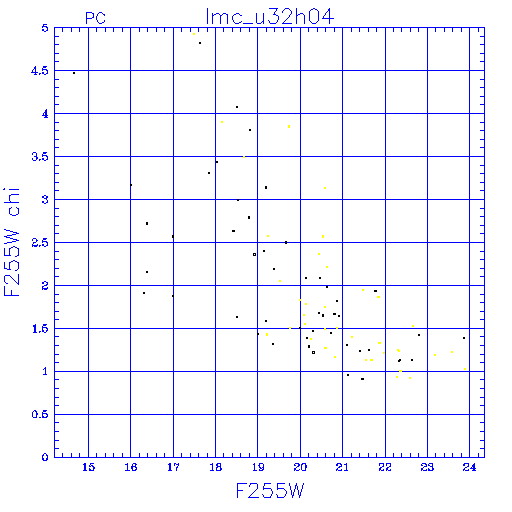

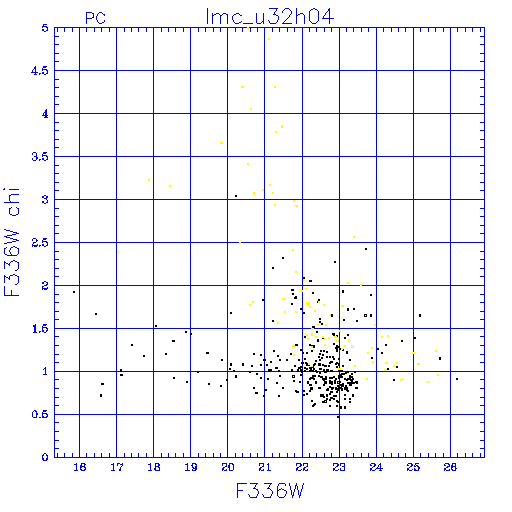

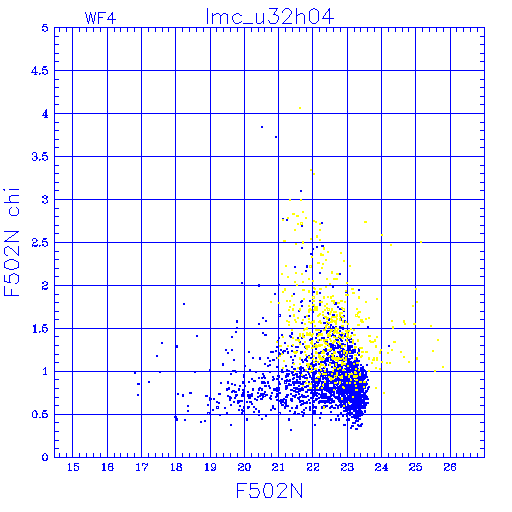

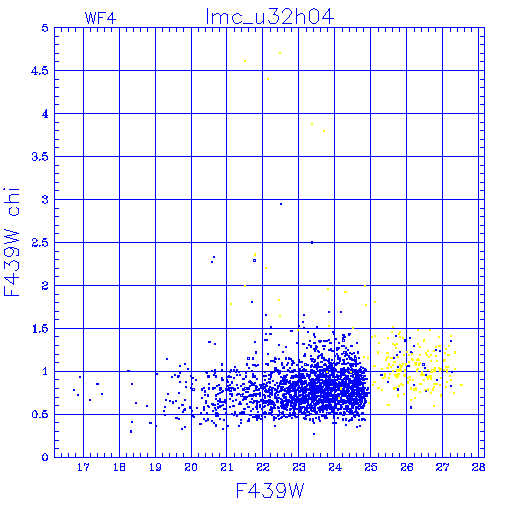

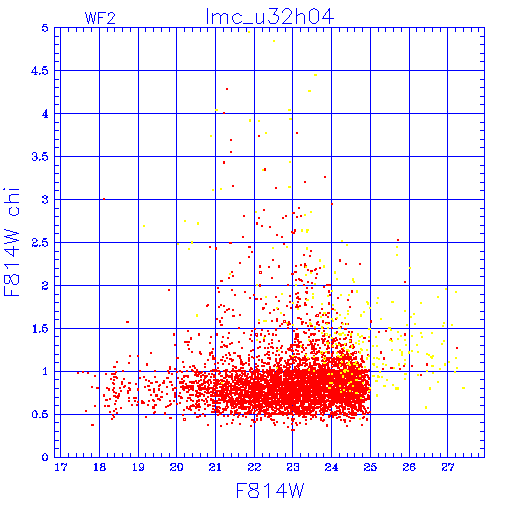

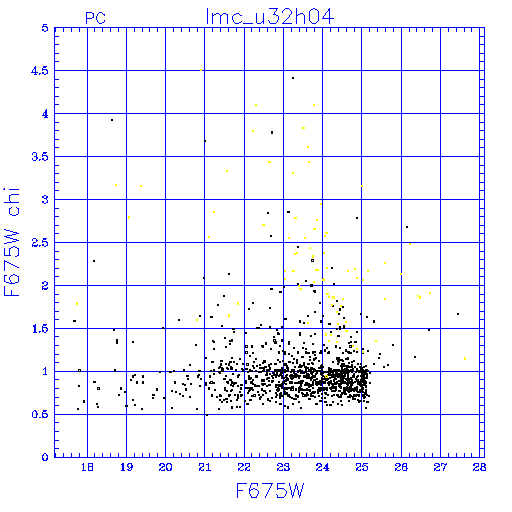

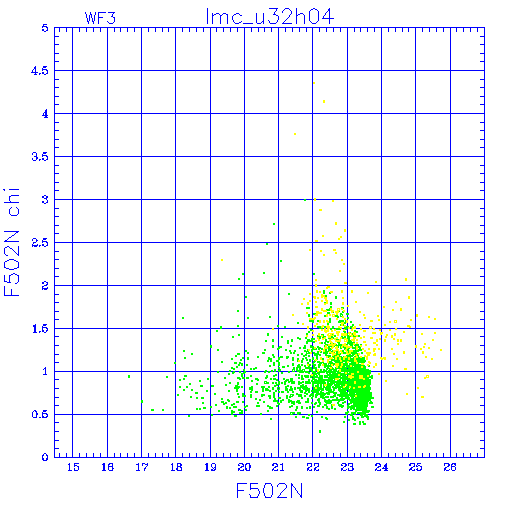

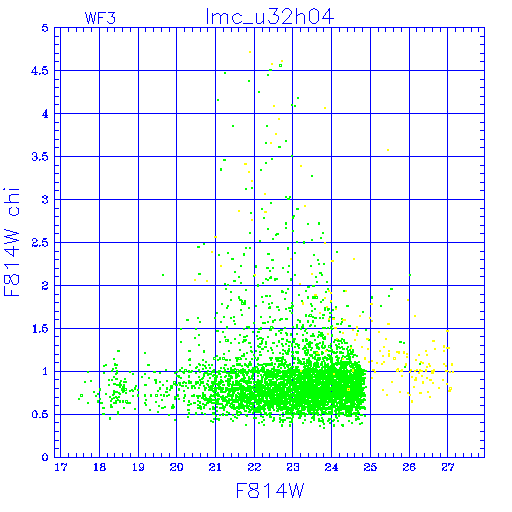

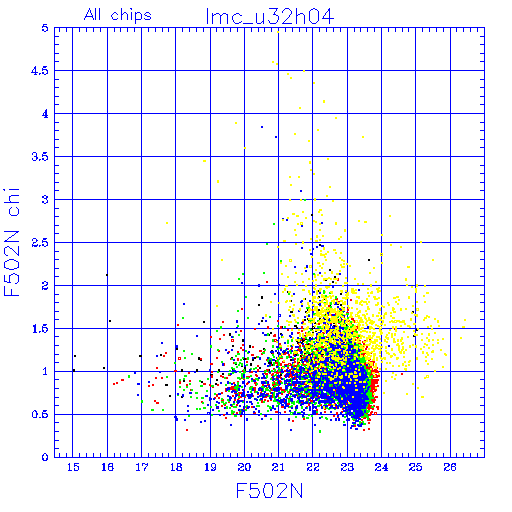

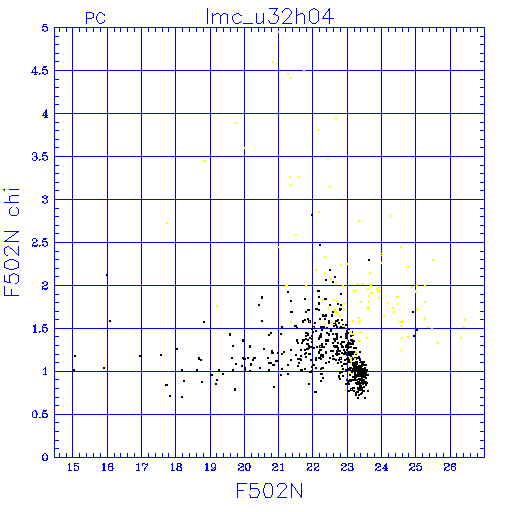

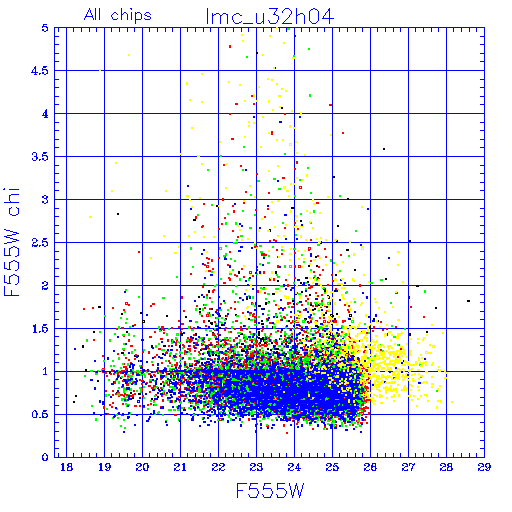

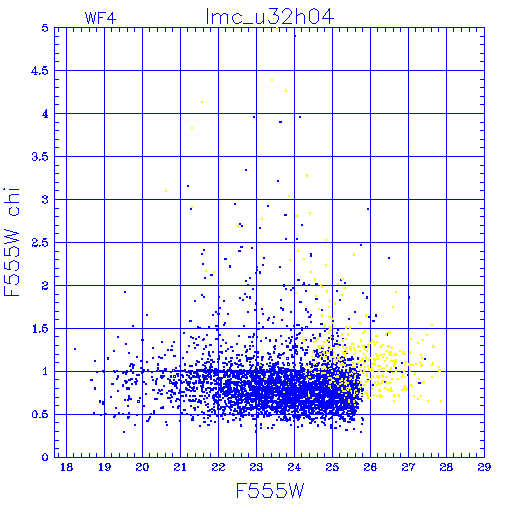

CHI vs. magnitude diagrams

All chips
PC
WF2
WF3
WF4
f555w
f814w
f255w
f336w
f439w
f675w
f658n
f502n

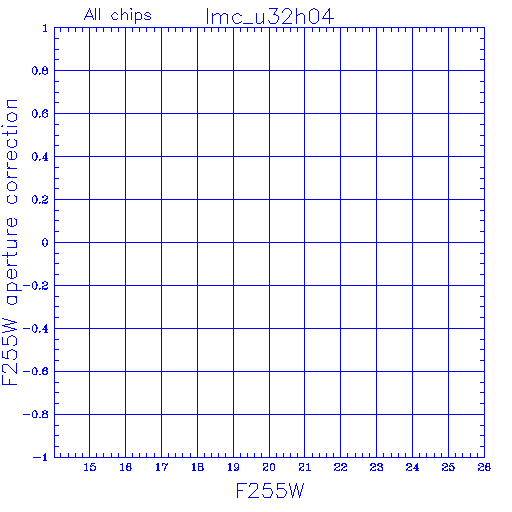

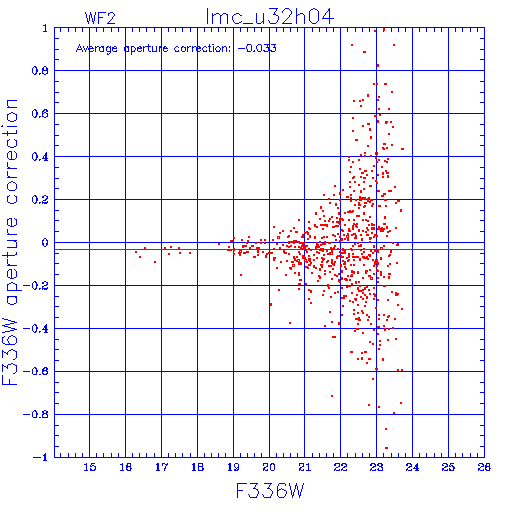

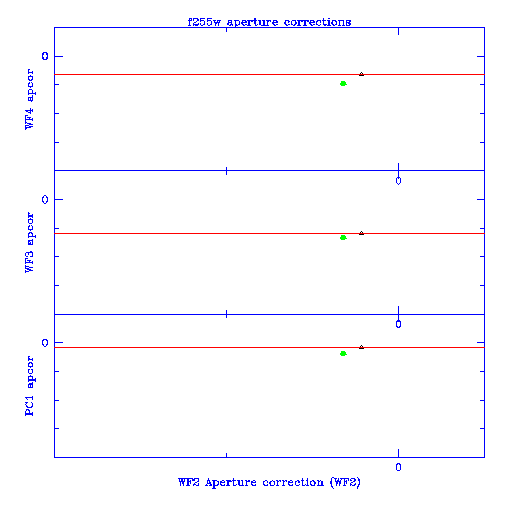

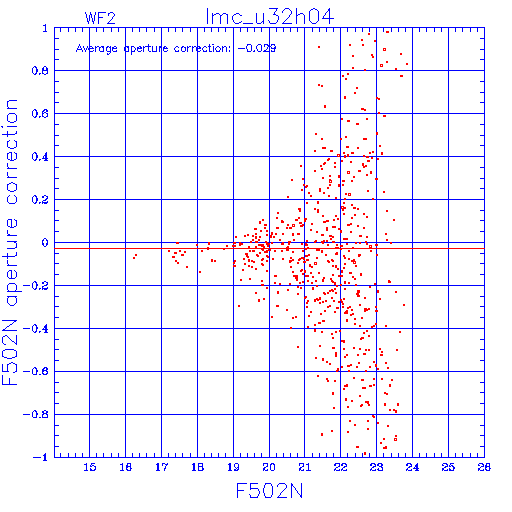

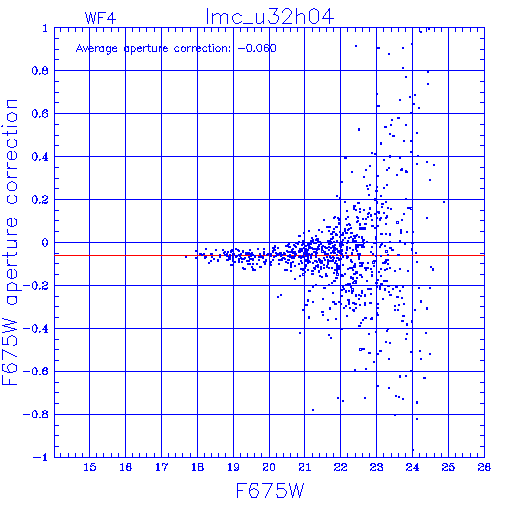

Aperture corrections

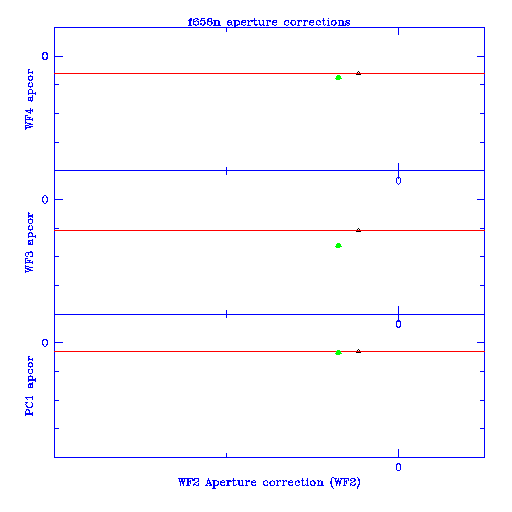

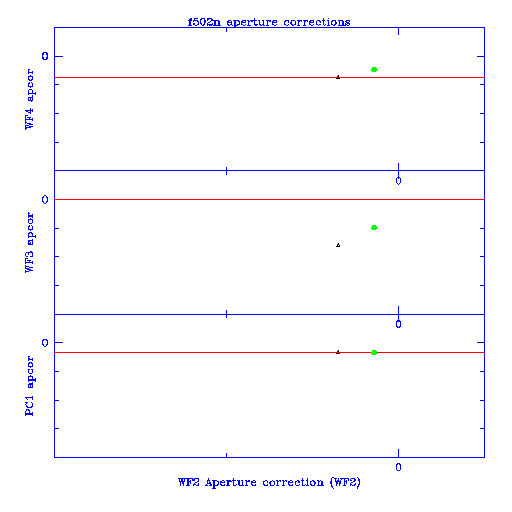

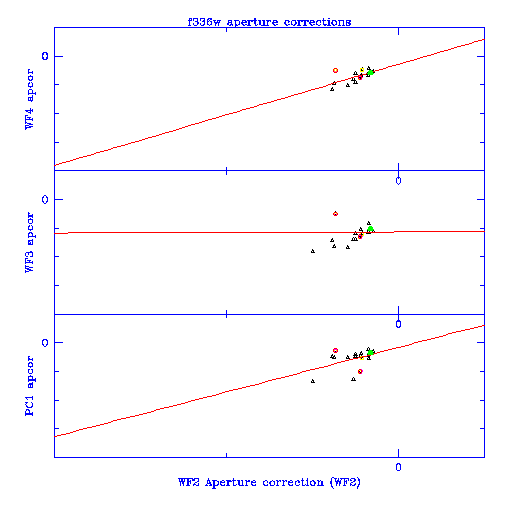

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
F555W F814W F255W F336W F439W F675W F658N F502N

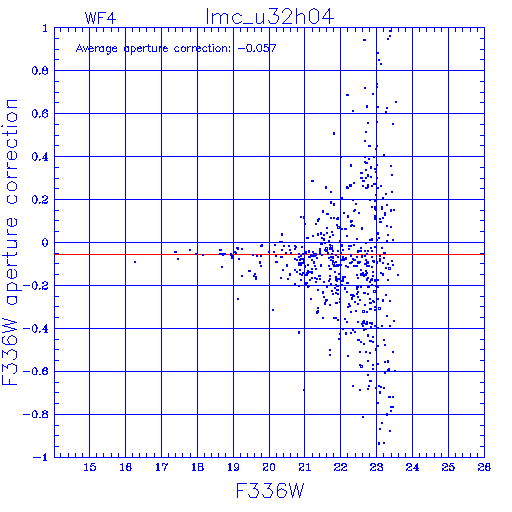

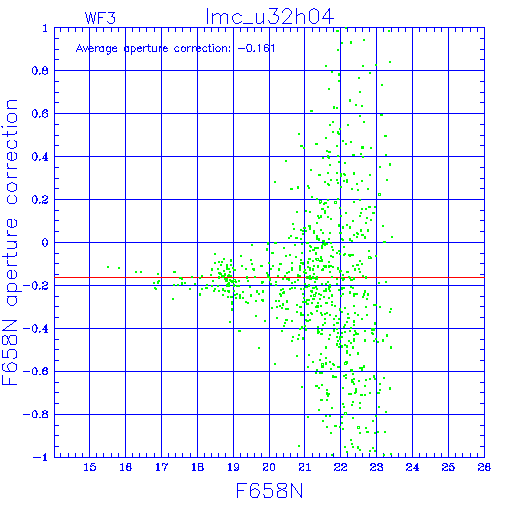

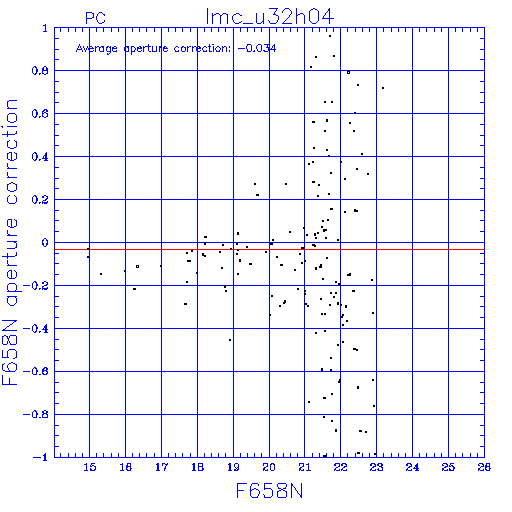

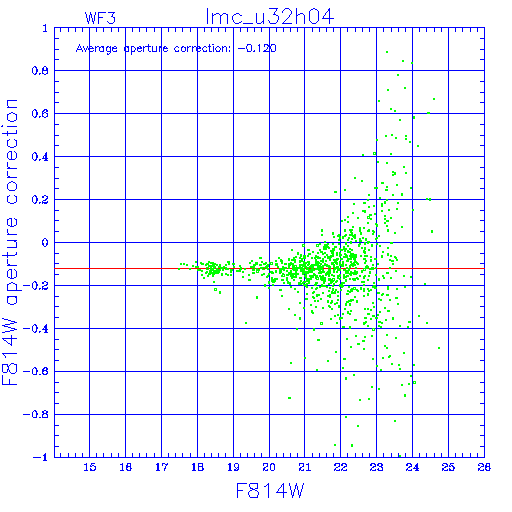

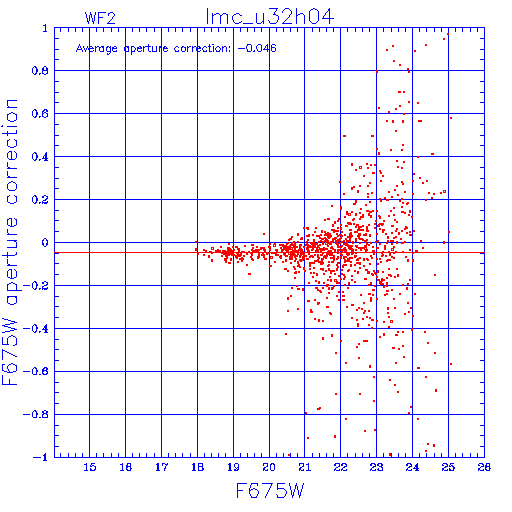

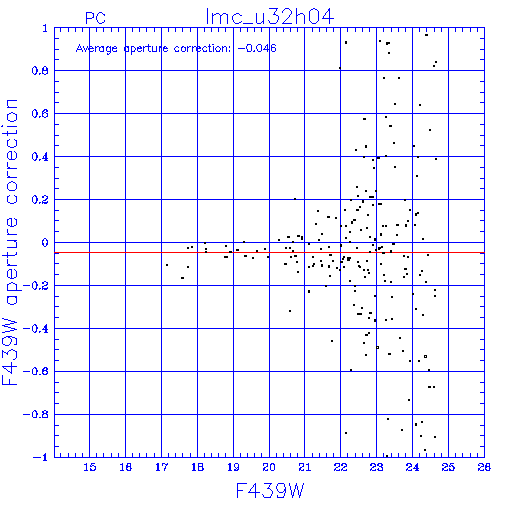

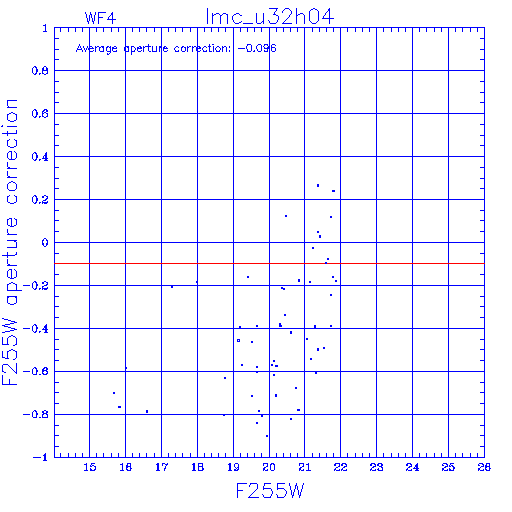

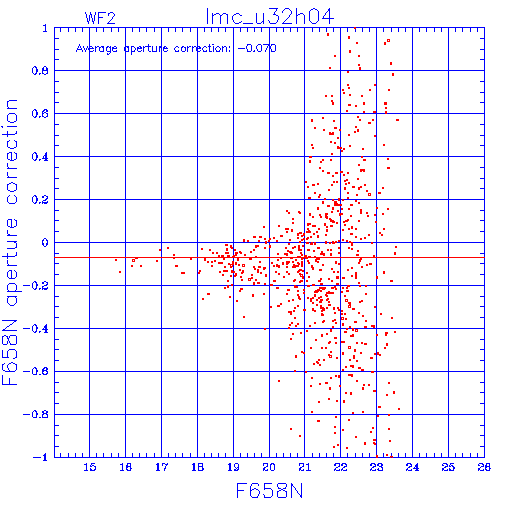

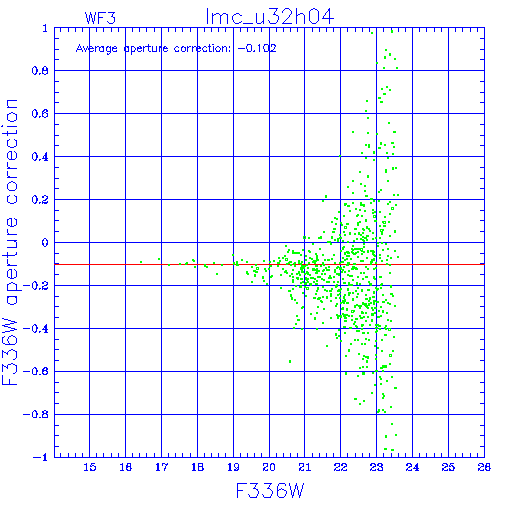

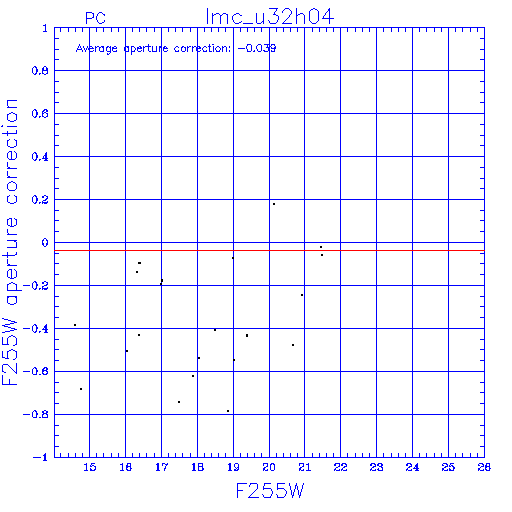

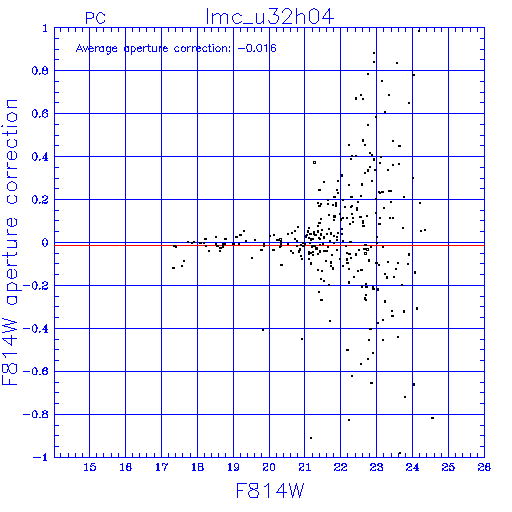

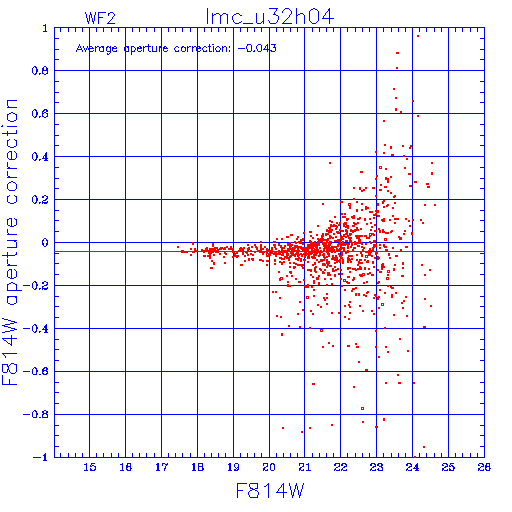

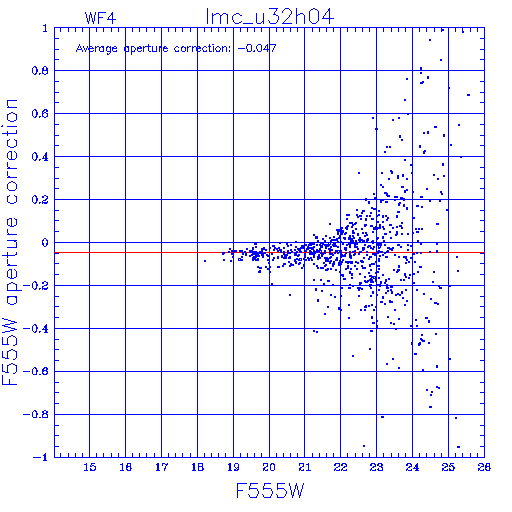

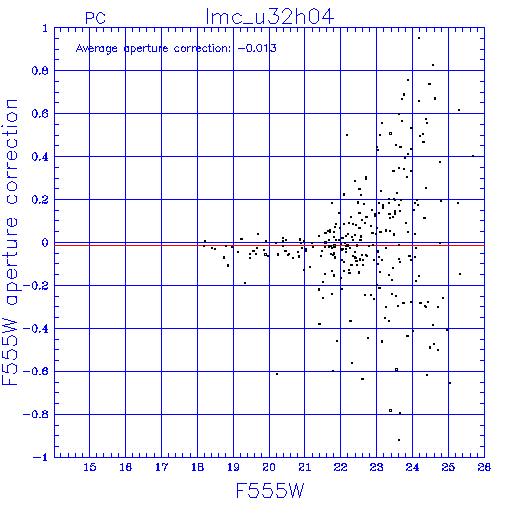

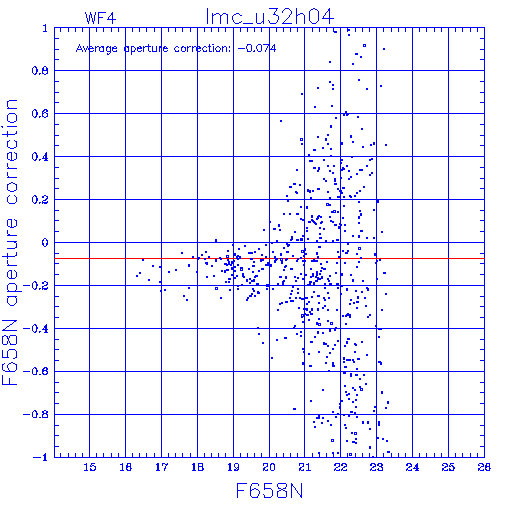

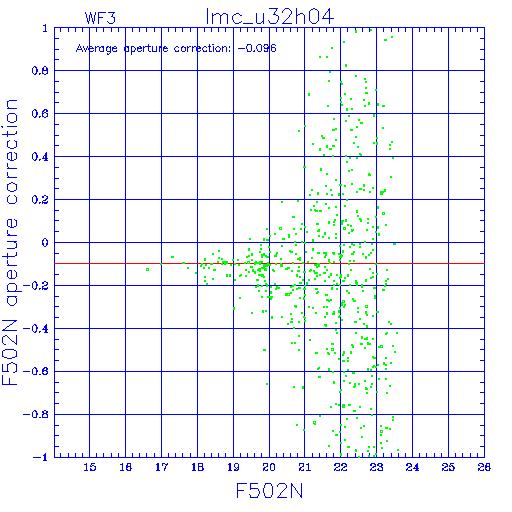

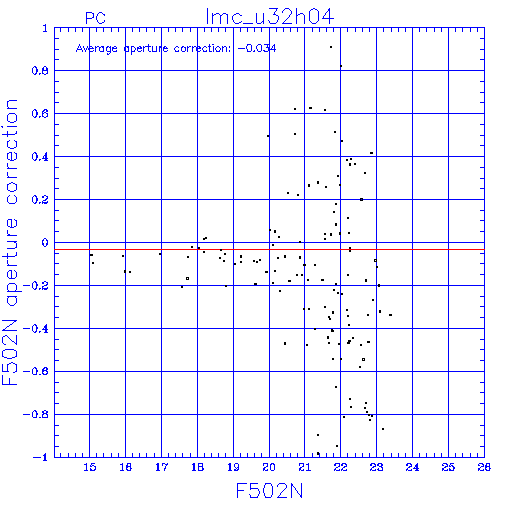

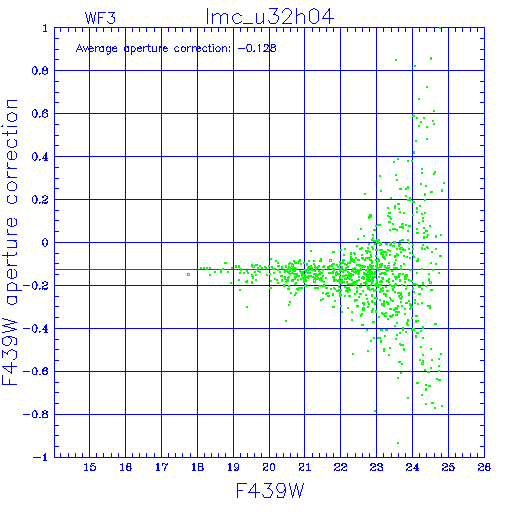

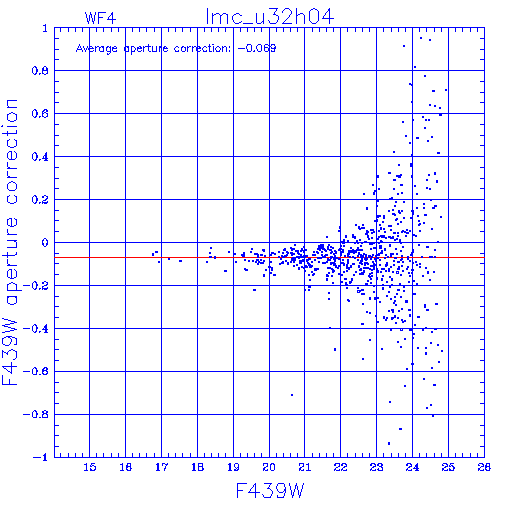

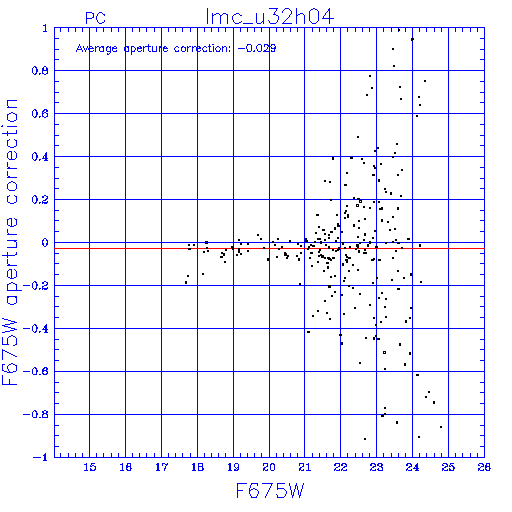

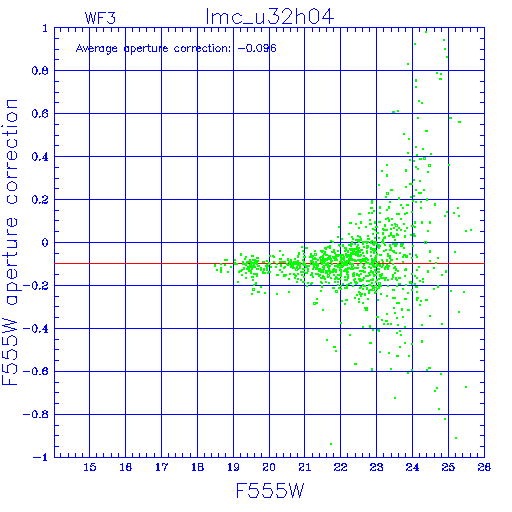

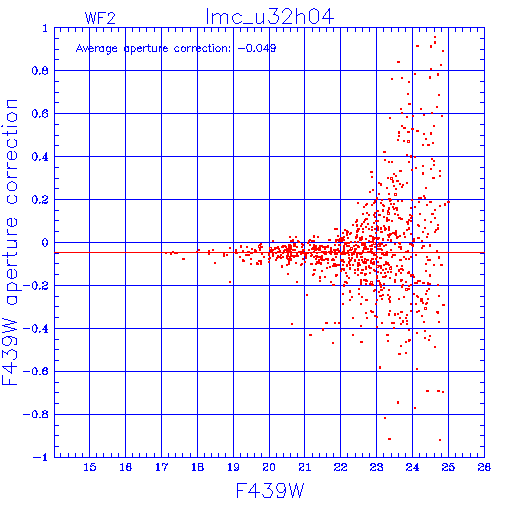

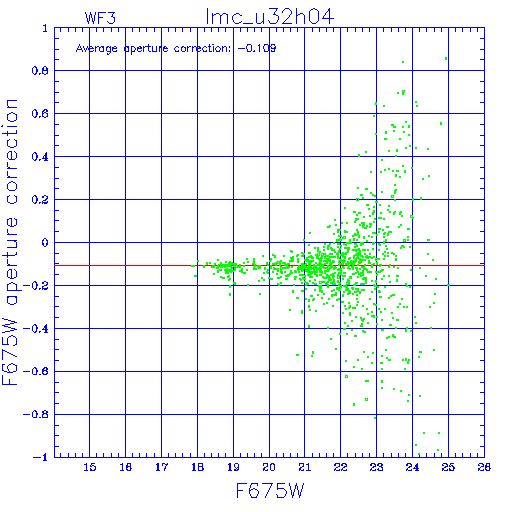

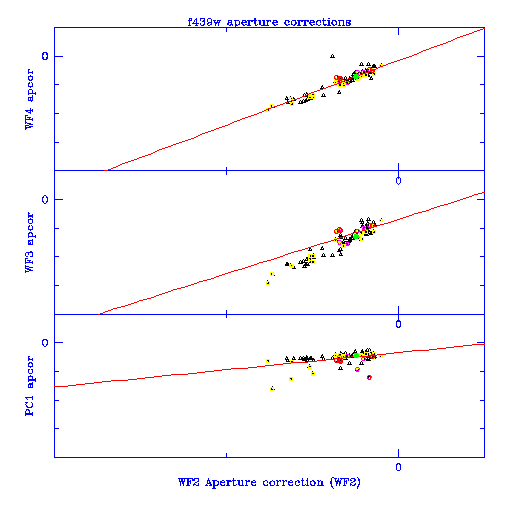

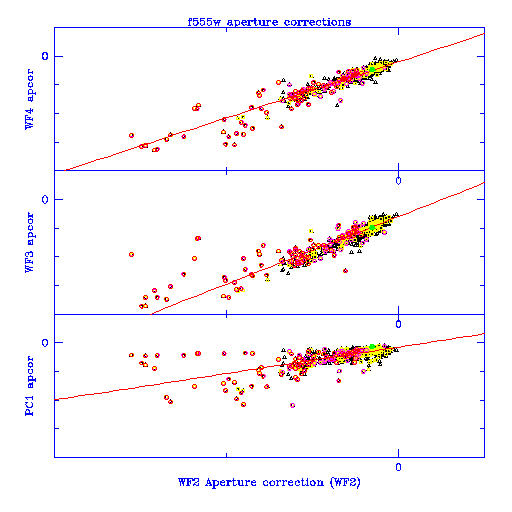

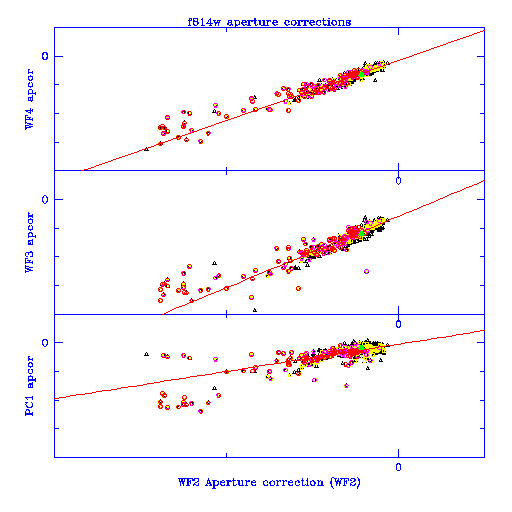

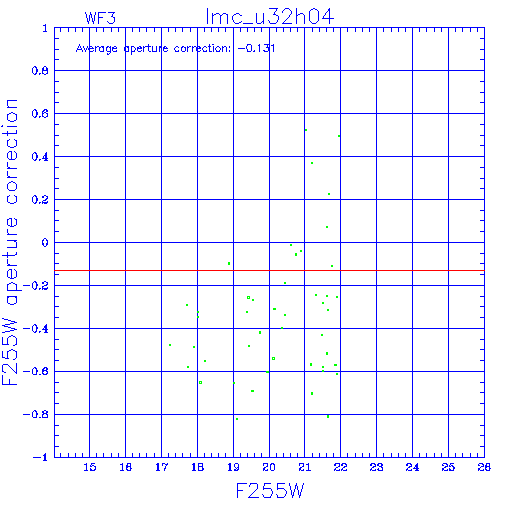

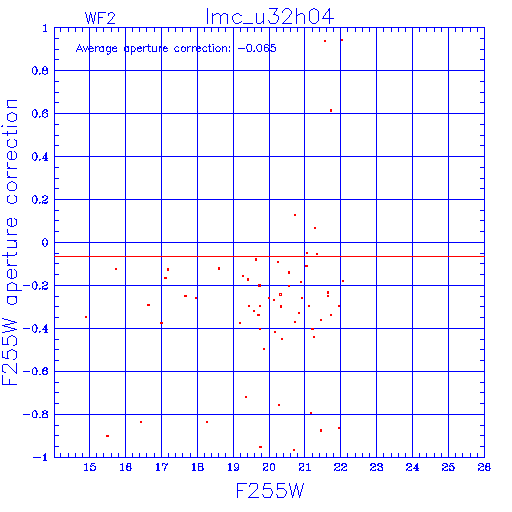

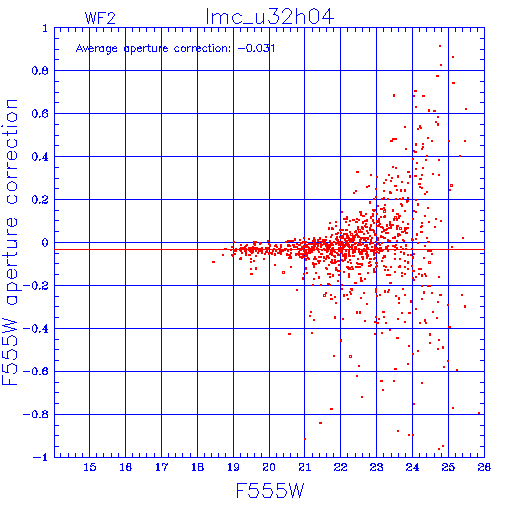

Aperture correction for each frame/chip, showing individual stars
All chips
PC
WF2
WF3
WF4
f555w
f814w
f255w
f336w
f439w
f675w
f658n
f502n

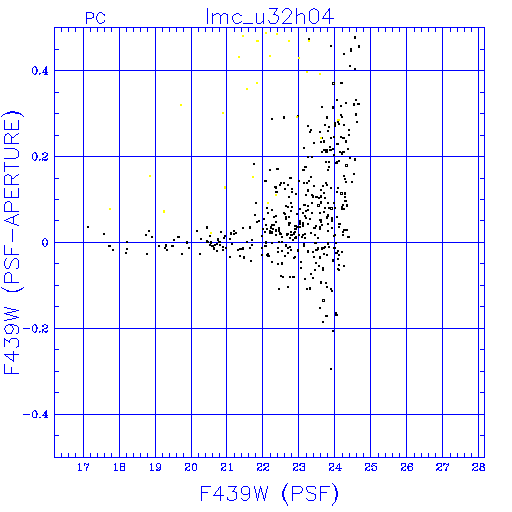

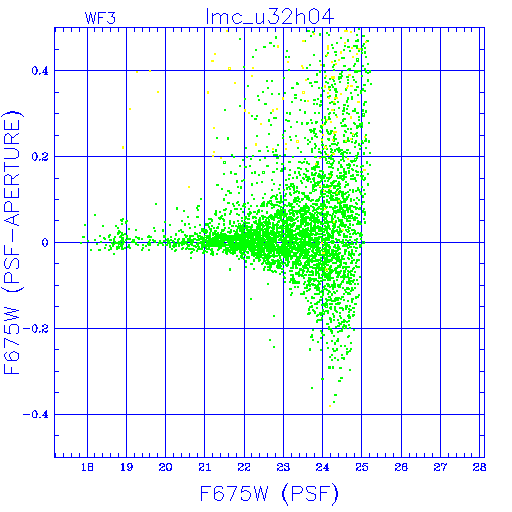

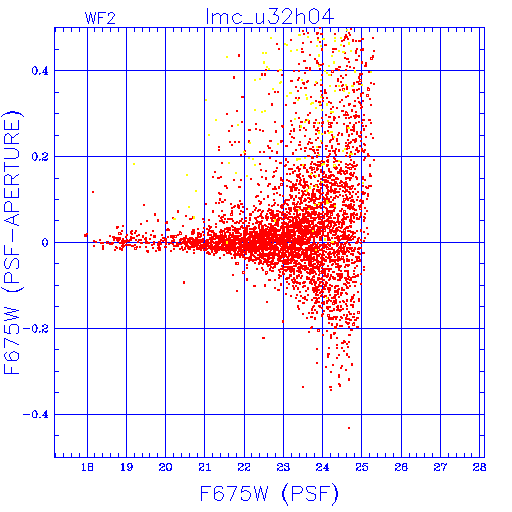

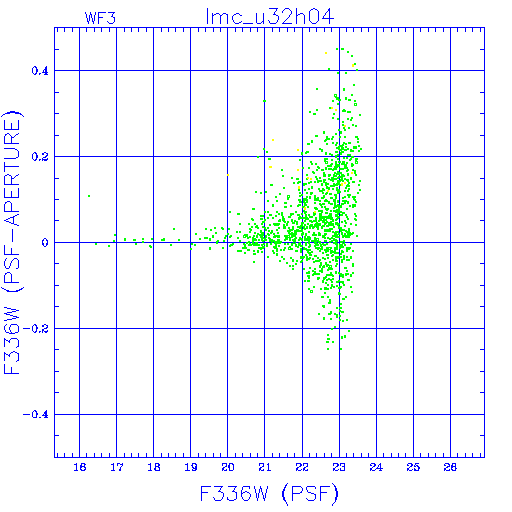

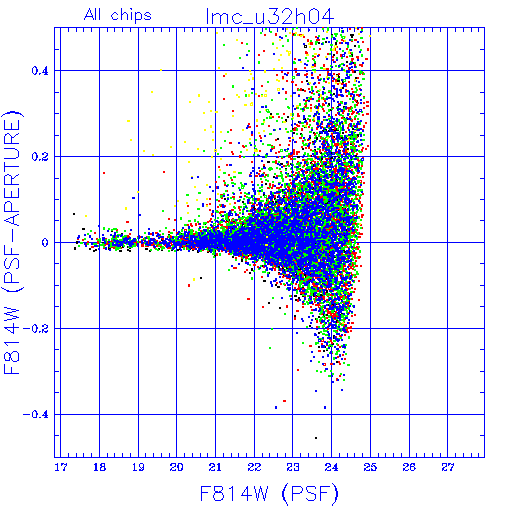

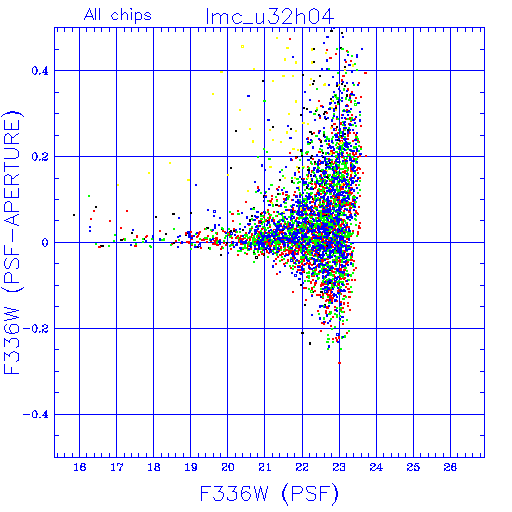

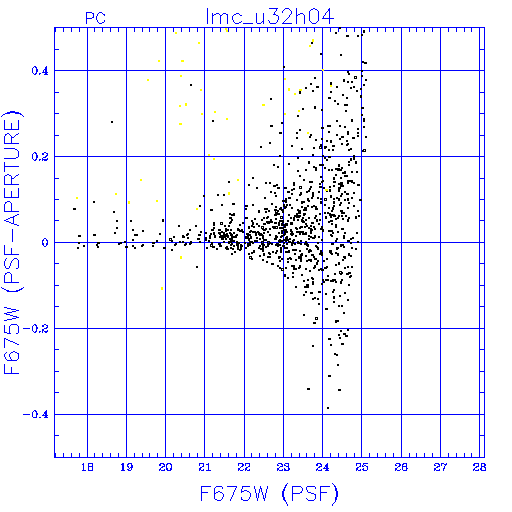

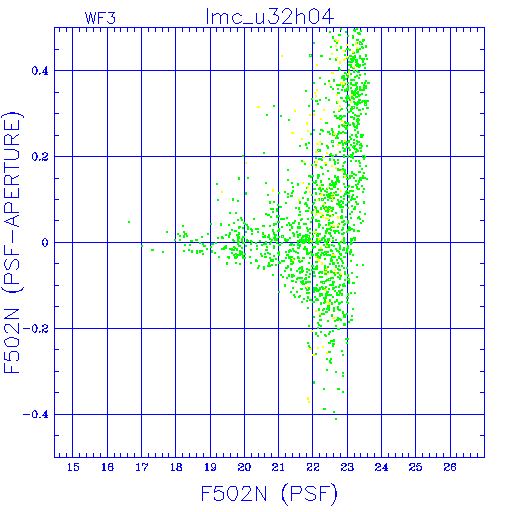

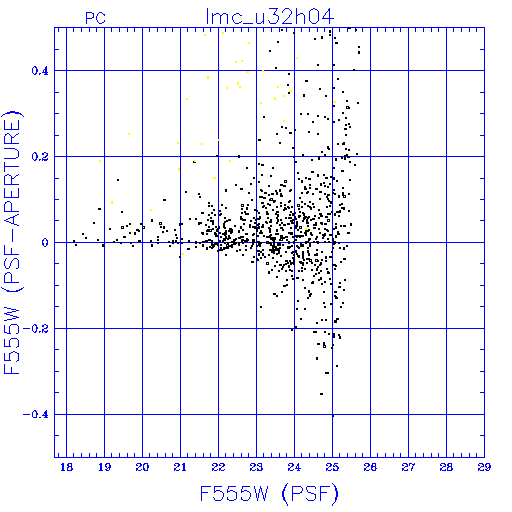

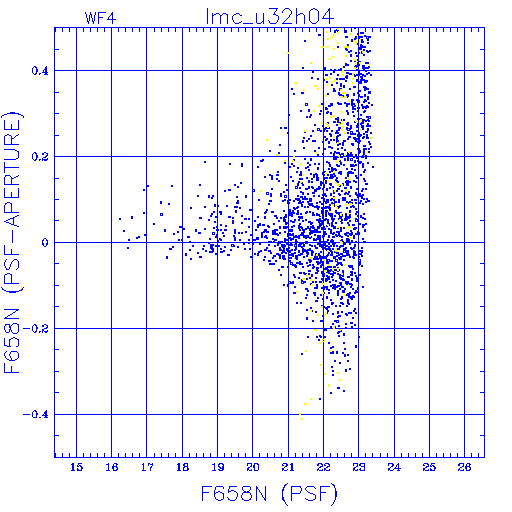

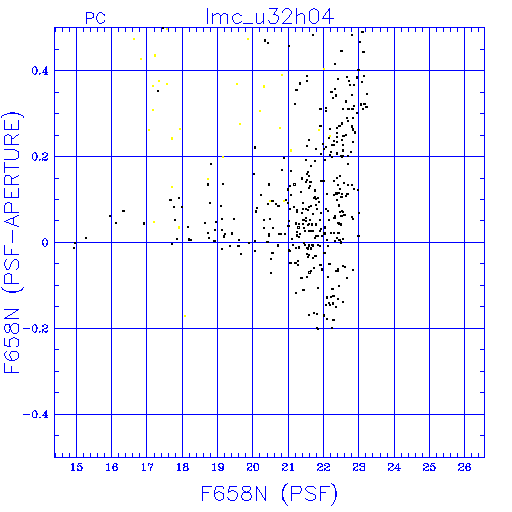

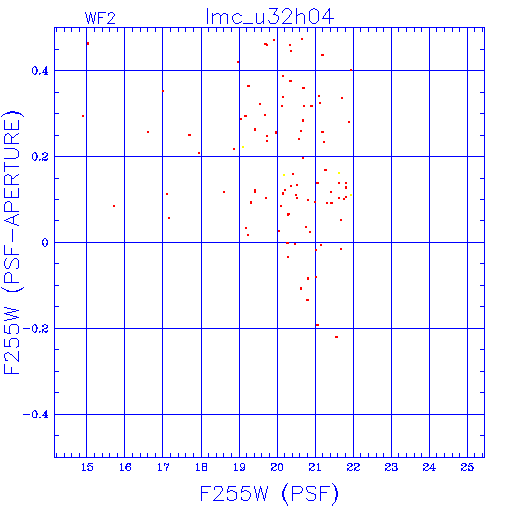

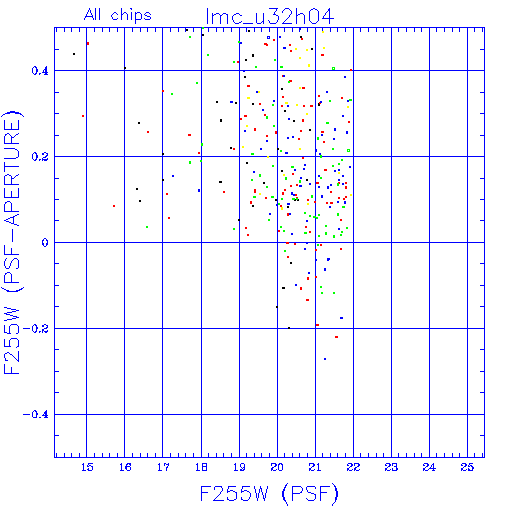

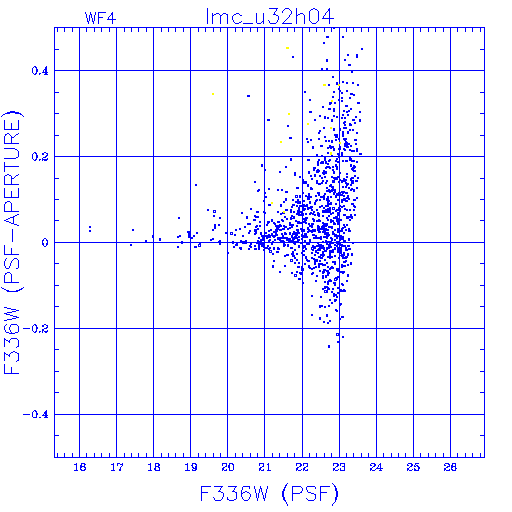

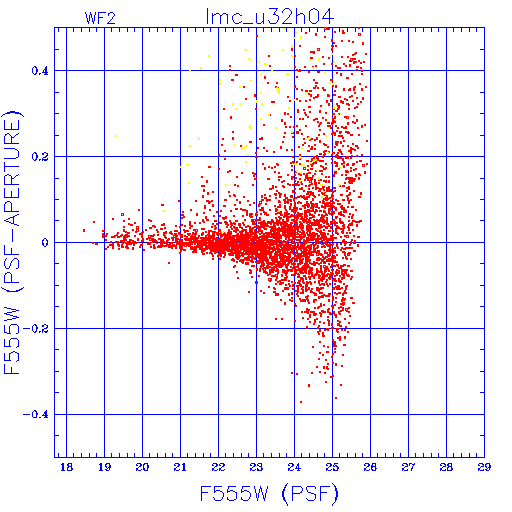

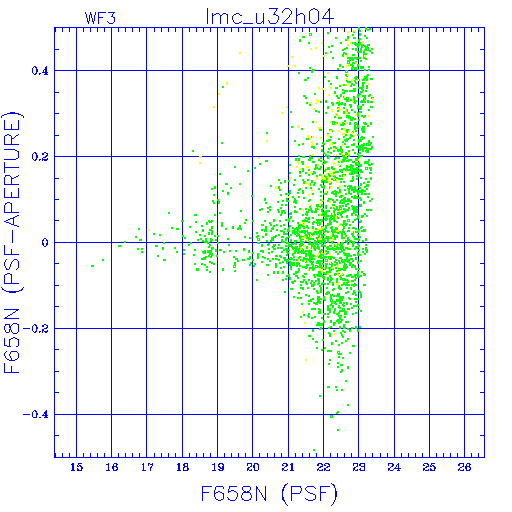

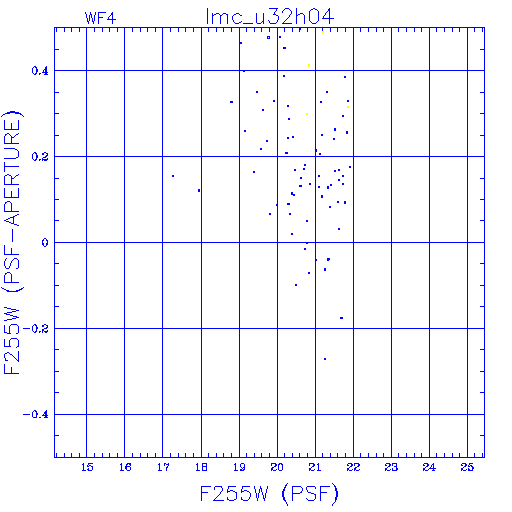

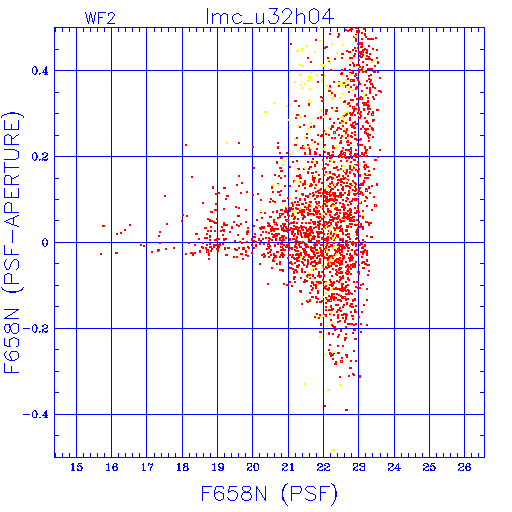

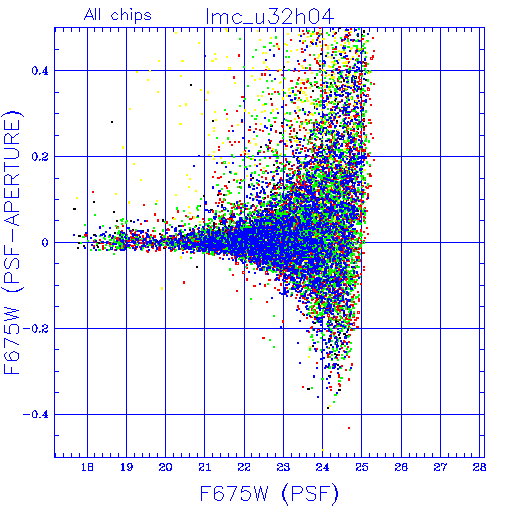

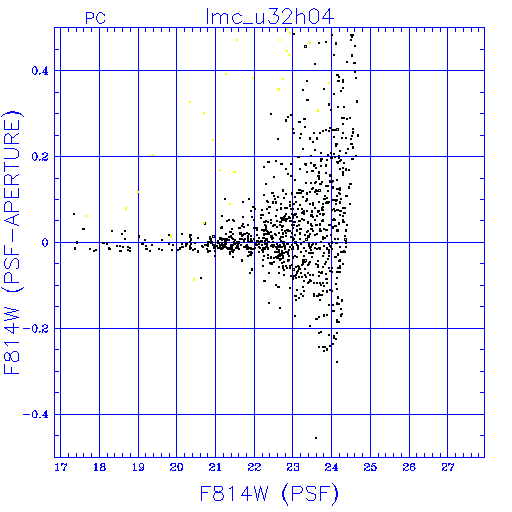

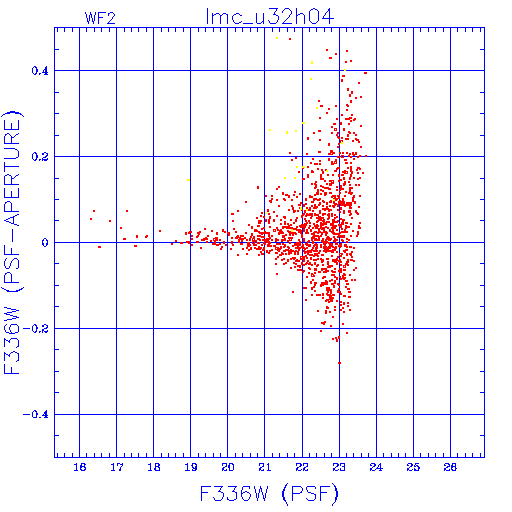

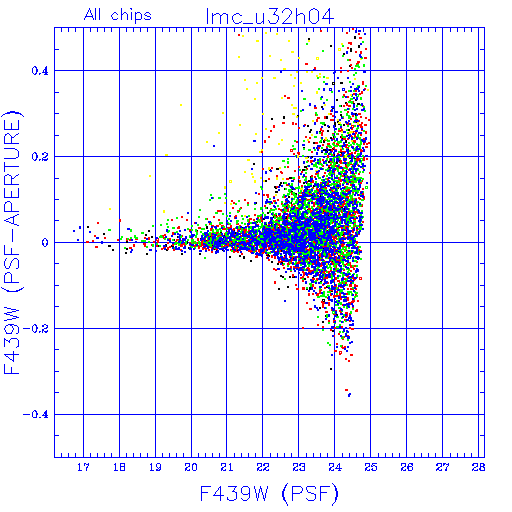

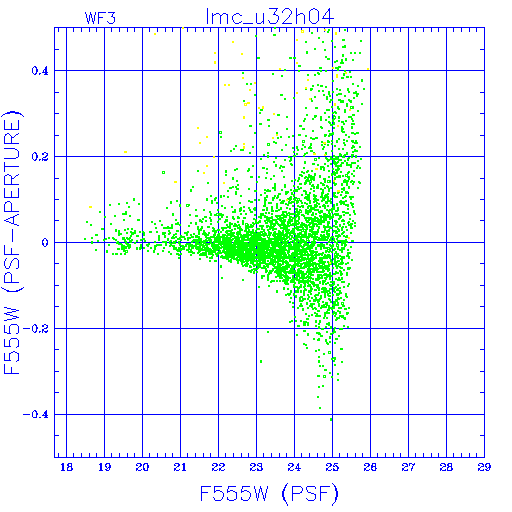

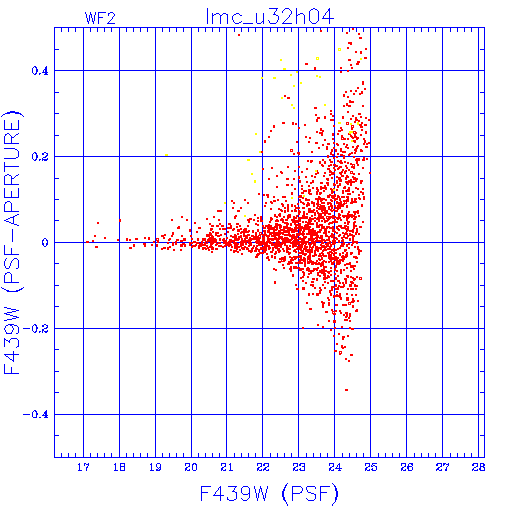

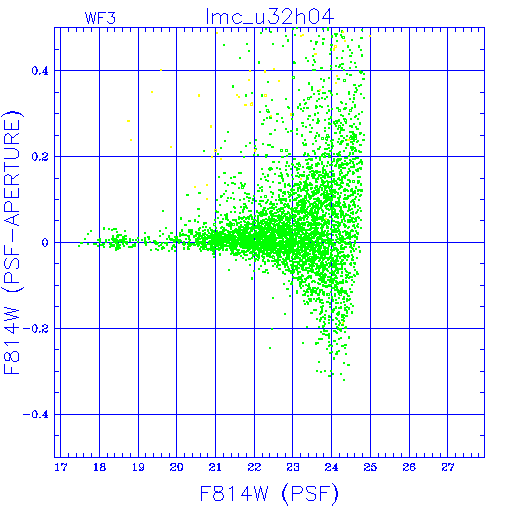

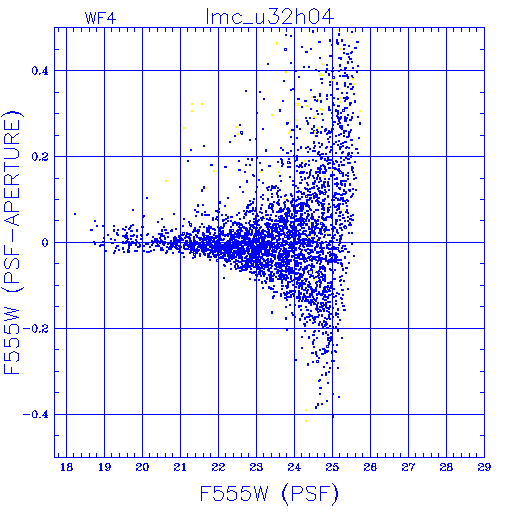

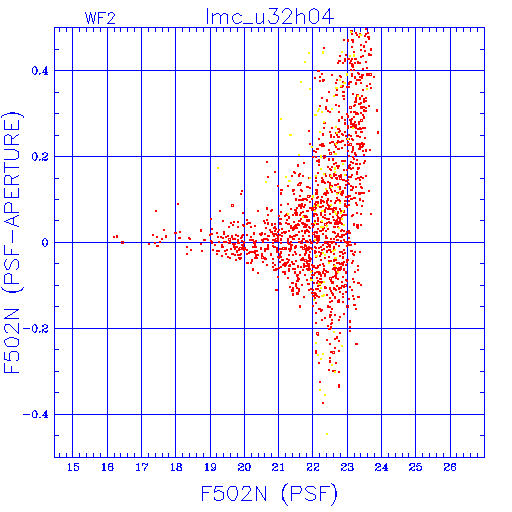

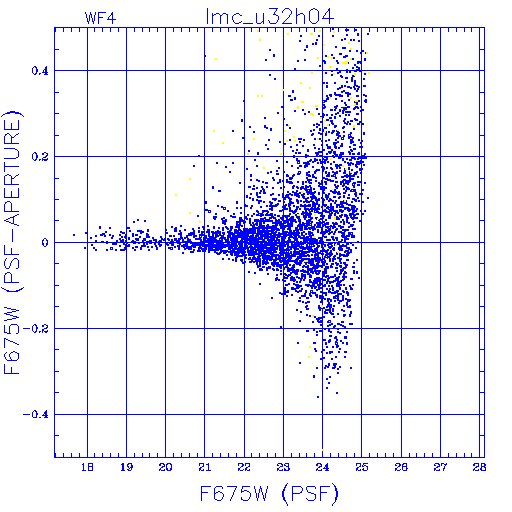

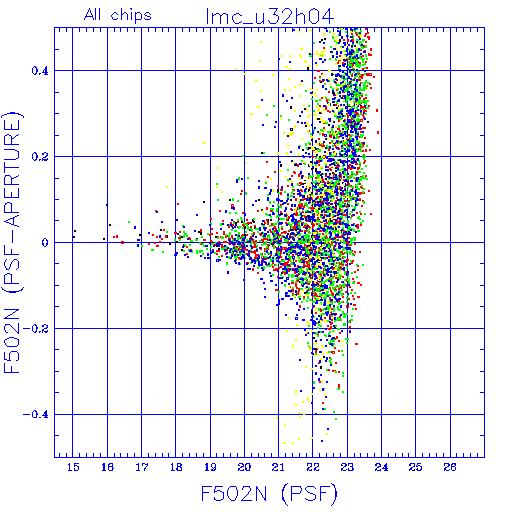

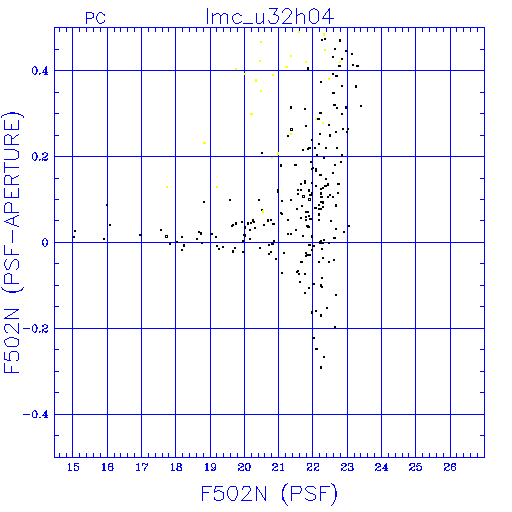

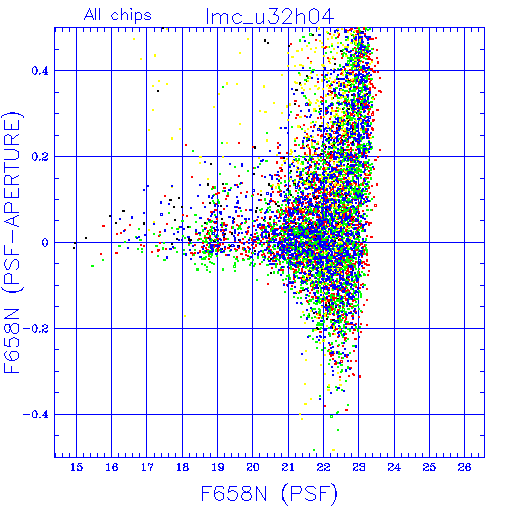

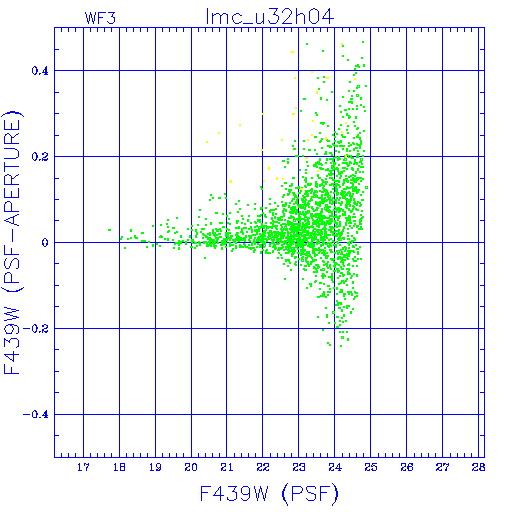

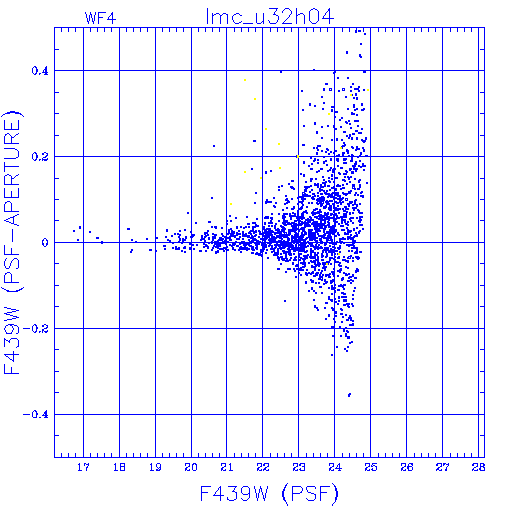

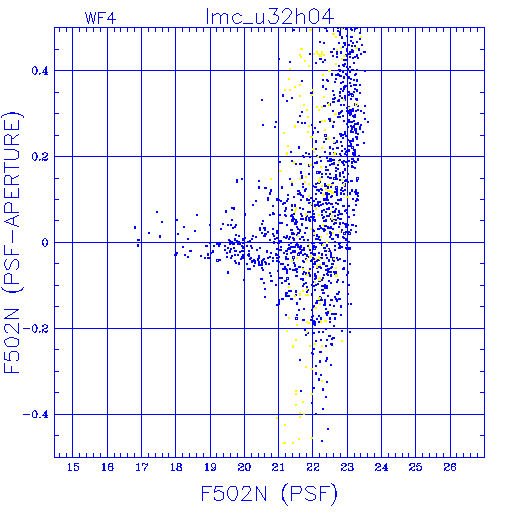

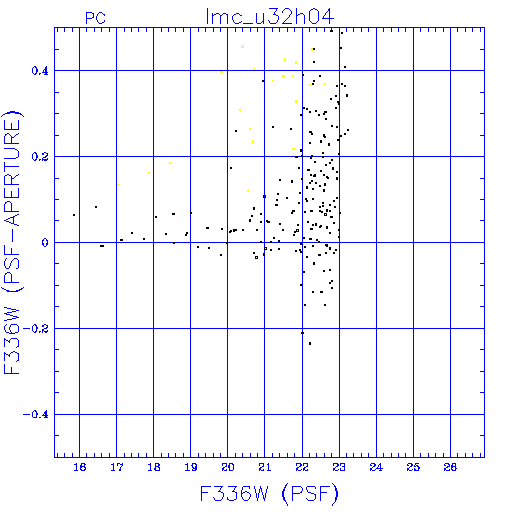

PSF vs. aperture photometry

All chips
PC
WF2
WF3
WF4
f555w
f814w
f255w
f336w
f439w
f675w
f658n
f502n

Artificial star diagrams

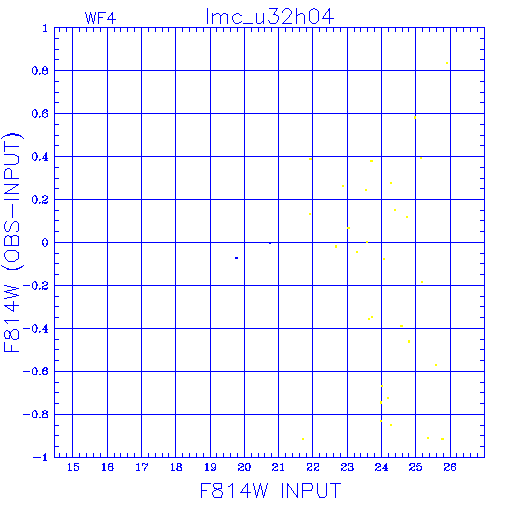

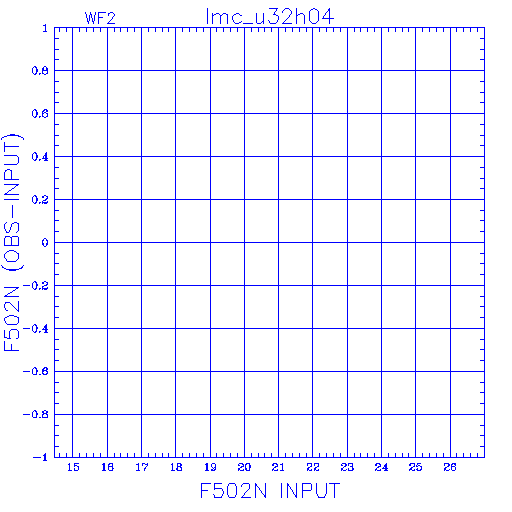

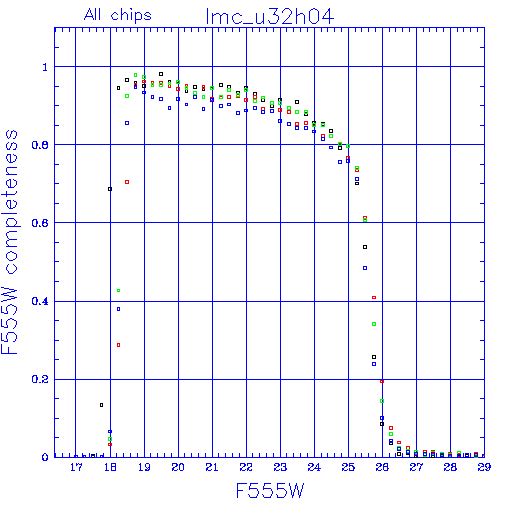

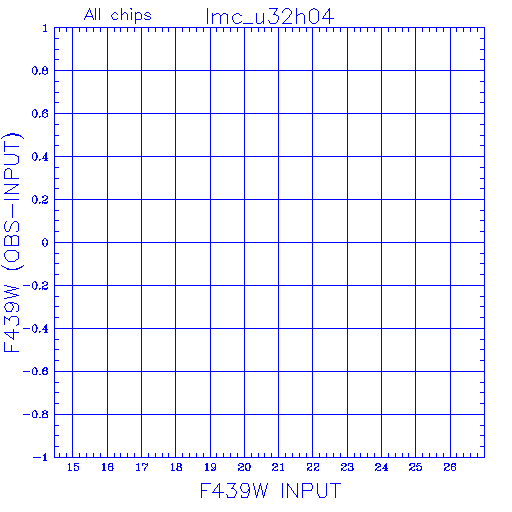

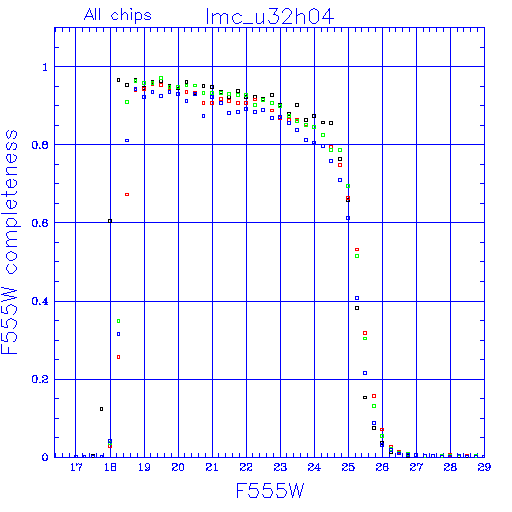

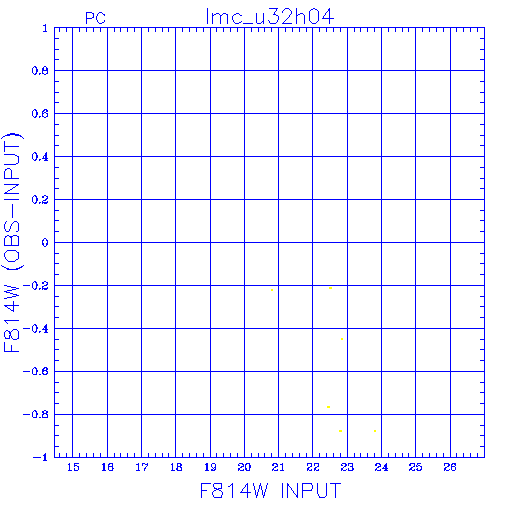

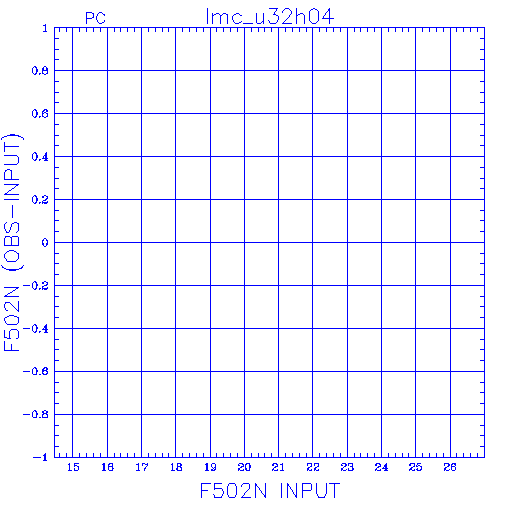

Completeness as a function of input magnitude
PSF photometry Aperture photometry

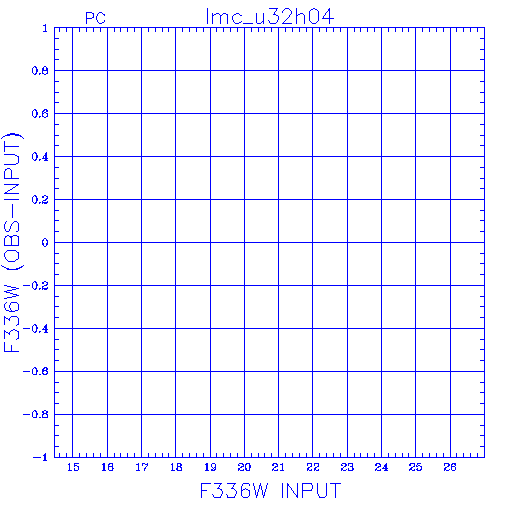

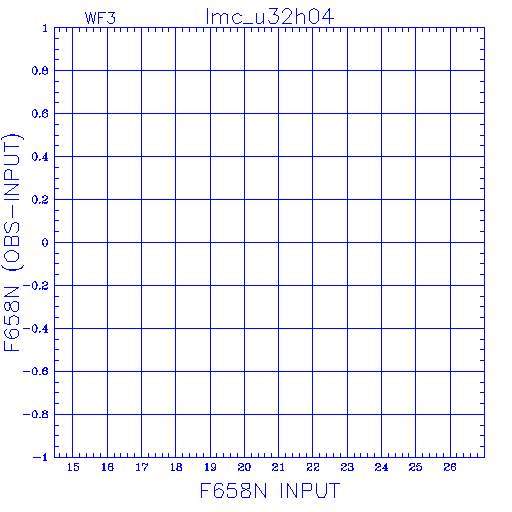

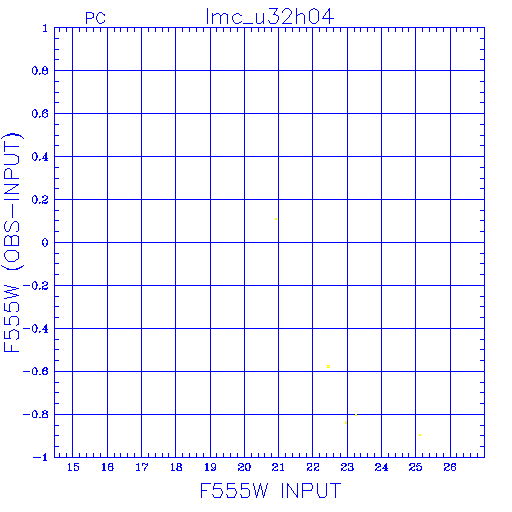

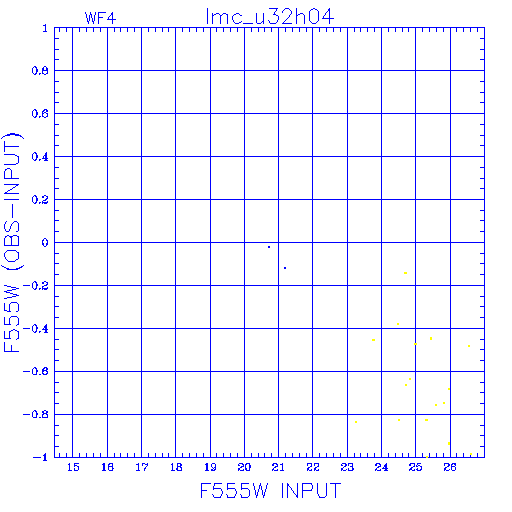

Recovered mag-input mag as a function of input mag (PSF photometry)
