Photometry Diagnostics for lmc_u2xq04

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2xq0401t	F555W	600.00	0.00	0.00	0.00	0.00	0.00	0.00
u2xq0402t	F555W	20.00	0.00	-0.02	0.00	0.00	0.00	-0.02
u2xq0403t	F555W	20.00	0.03	-0.01	0.00	0.00	0.03	-0.01
u2xq0404t	F555W	500.00	0.03	0.01	0.00	0.00	0.03	0.01
u2xq0405t	F555W	500.00	-0.04	0.12	0.00	0.00	-0.04	0.12
u2xq0406t	F814W	500.00	-0.04	0.20	0.00	0.00	-0.04	0.20
u2xq0407t	F814W	20.00	-0.05	0.23	0.00	0.00	-0.05	0.23
u2xq0408t	F814W	20.00	-0.06	0.24	0.00	0.00	-0.06	0.24
u2xq0409t	F814W	20.00	-0.06	0.32	0.00	0.00	-0.06	0.32
u2xq040at	F814W	600.00	-0.05	0.48	0.00	0.00	-0.05	0.48
u2xq040bt	F814W	600.00	-0.13	0.78	0.00	0.00	-0.13	0.78

Mosaic images

F555W	F814W

HSTPHOT command log

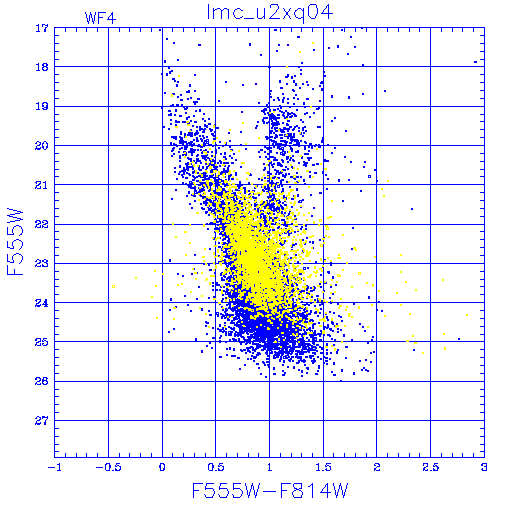

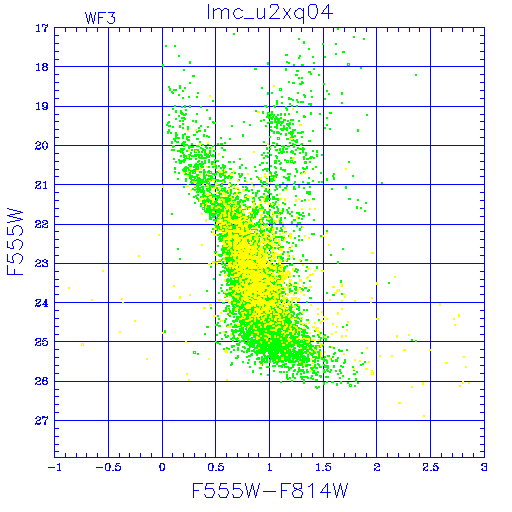

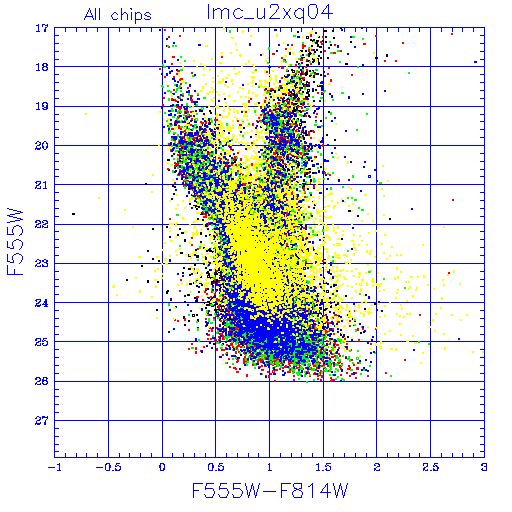

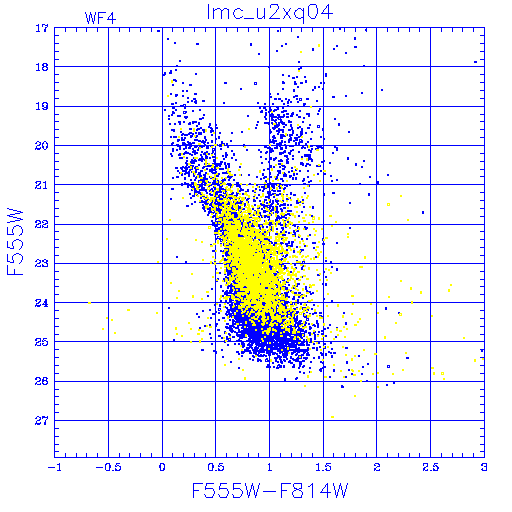

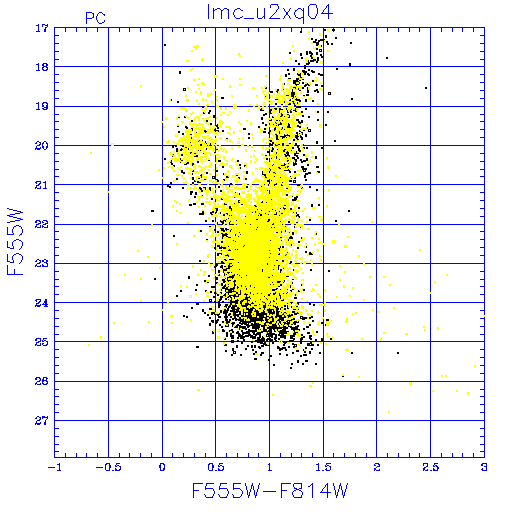

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

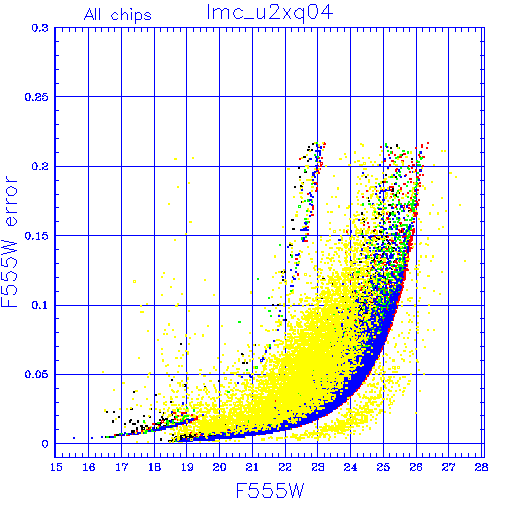

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

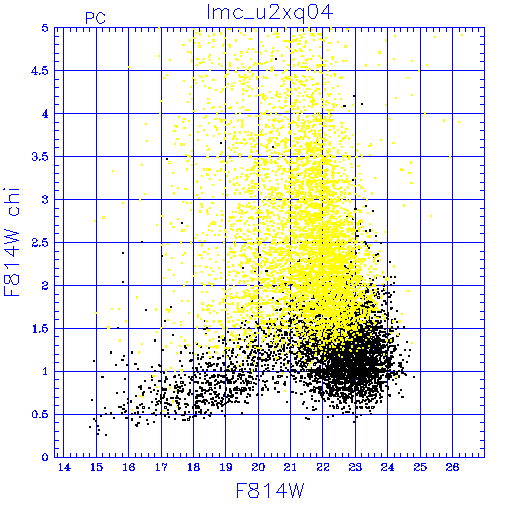

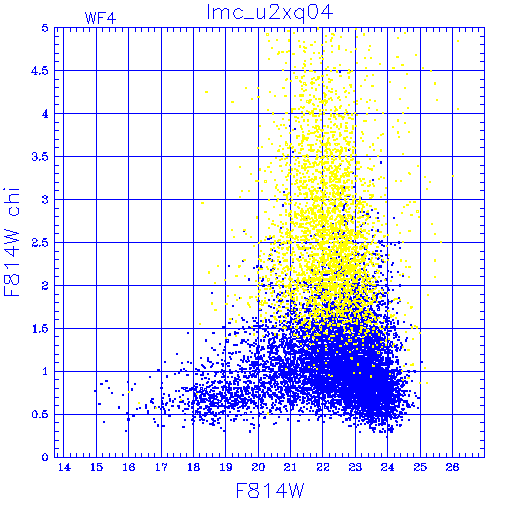

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

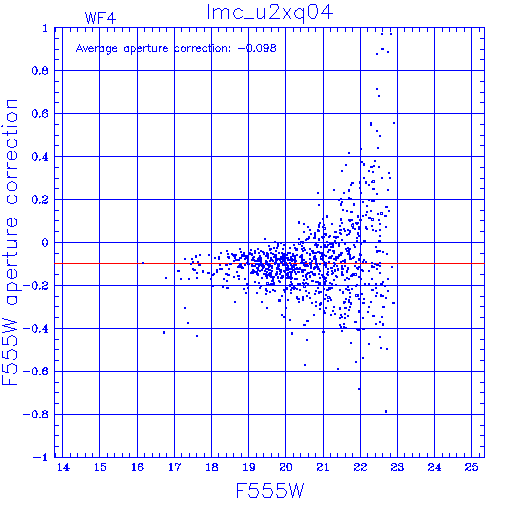

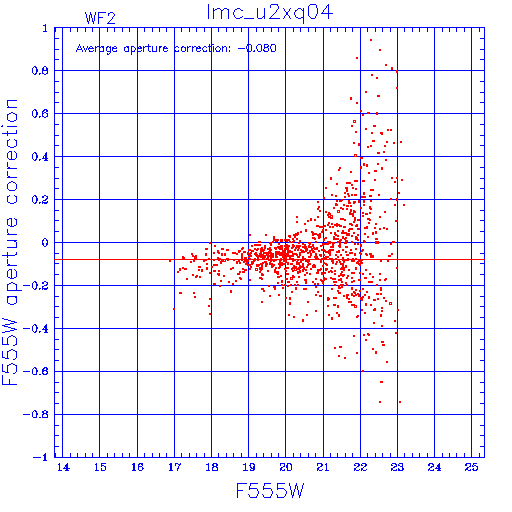

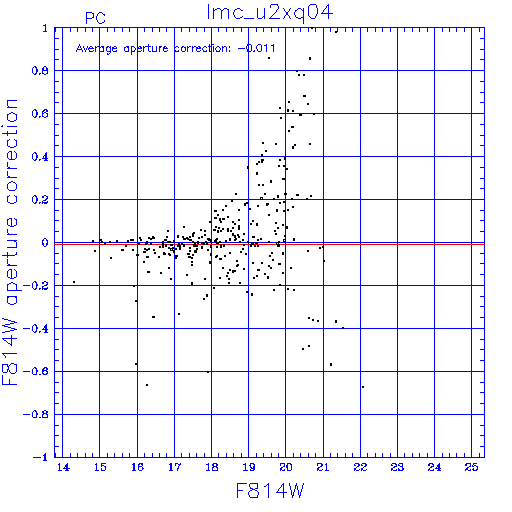

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
