Photometry Diagnostics for lmc_u2xq02

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2xq0201t	F555W	600.00	0.00	0.00	0.00	0.00	0.00	0.00
u2xq0202t	F555W	20.00	0.03	0.06	0.00	0.00	0.03	0.06
u2xq0203t	F555W	20.00	0.04	0.00	0.00	0.00	0.04	0.00
u2xq0204t	F555W	500.00	0.04	-0.02	0.00	0.00	0.04	-0.02
u2xq0205t	F555W	500.00	-0.03	0.00	0.00	0.00	-0.03	0.00
u2xq0206t	F814W	500.00	0.01	-0.01	0.00	0.00	0.01	-0.01
u2xq0207t	F814W	20.00	0.02	-0.03	0.00	0.00	0.02	-0.03
u2xq0208t	F814W	20.00	0.00	-0.02	0.00	0.00	0.00	-0.02
u2xq0209t	F814W	20.00	0.04	0.01	0.00	0.00	0.04	0.01
u2xq020at	F814W	600.00	0.09	0.03	0.00	0.00	0.09	0.03
u2xq020bt	F814W	600.00	0.07	0.10	0.00	0.00	0.07	0.10

Mosaic images

F555W	F814W

HSTPHOT command log

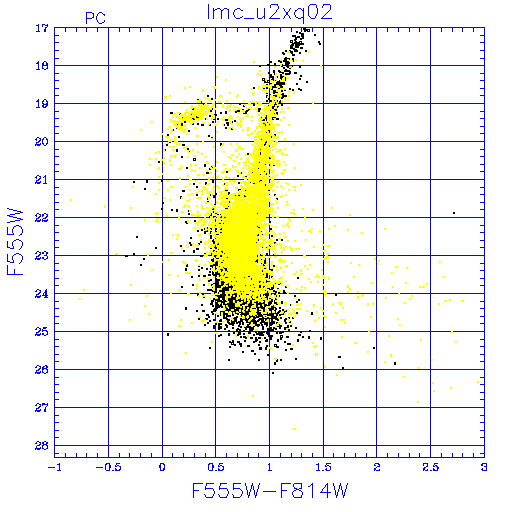

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4
PSF
Aperture

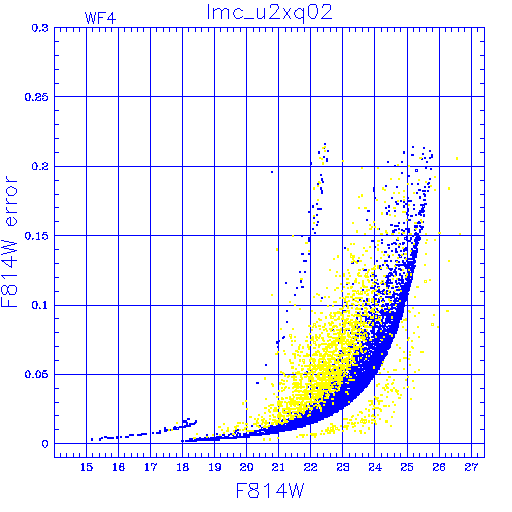

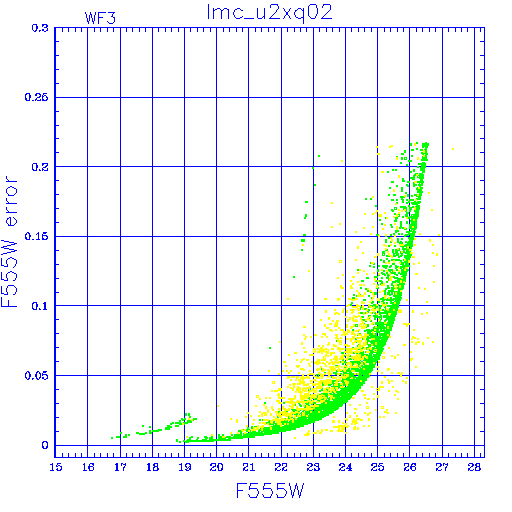

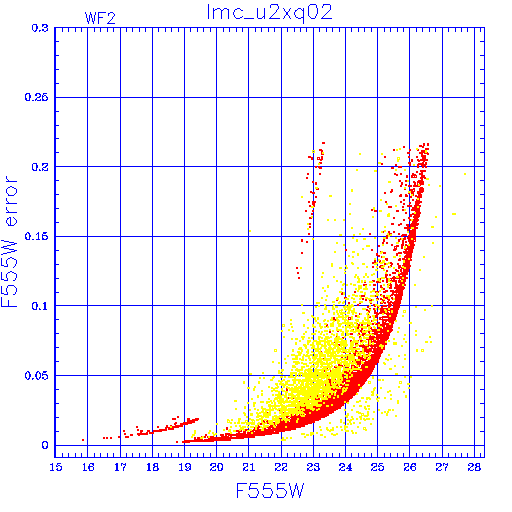

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

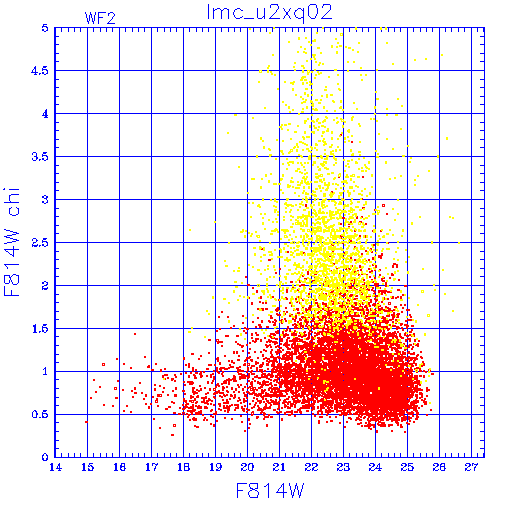

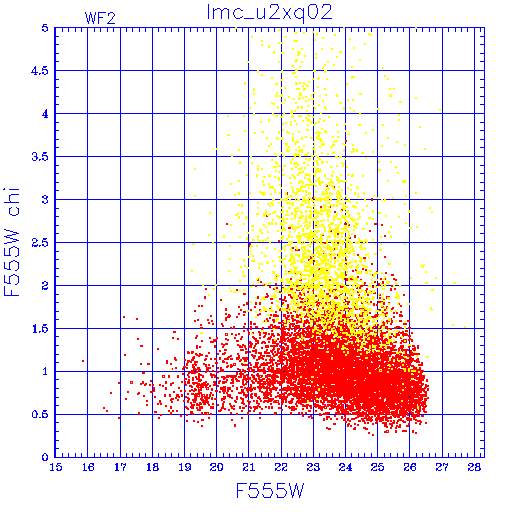

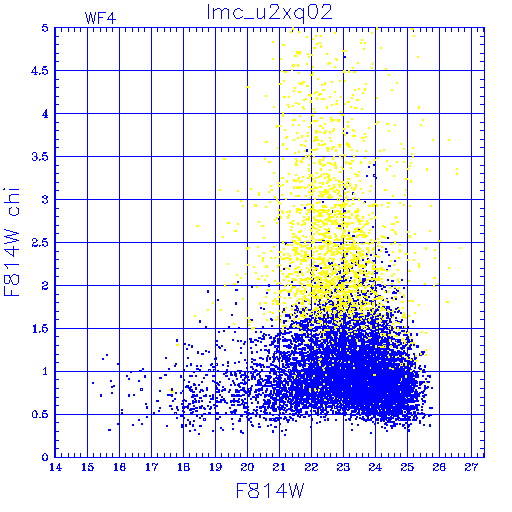

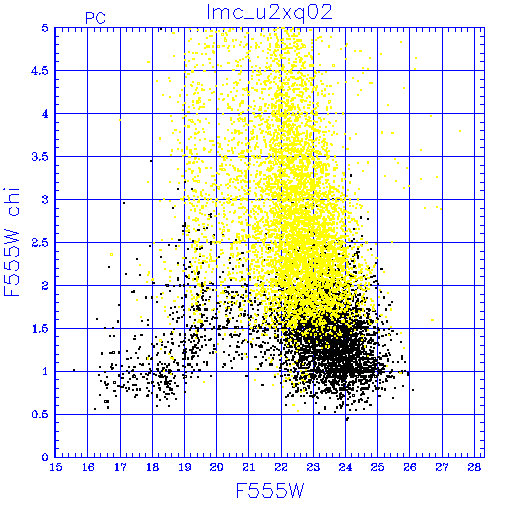

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

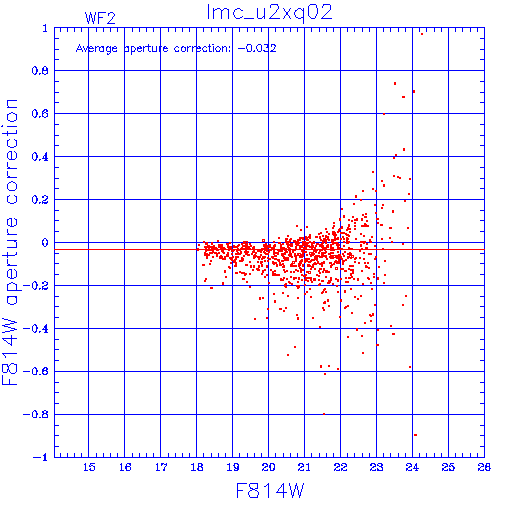

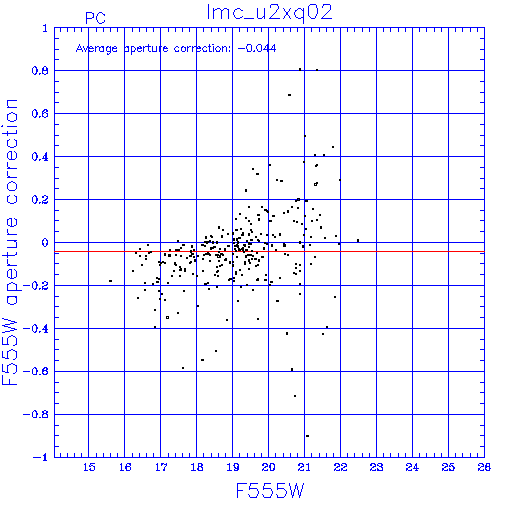

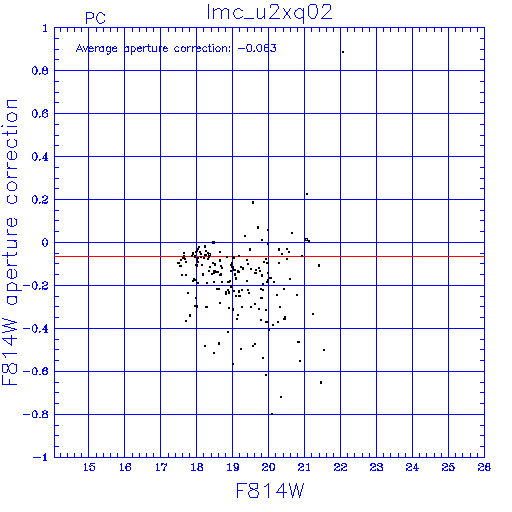

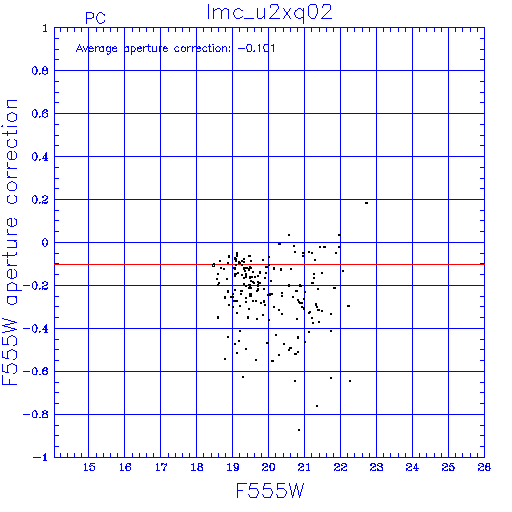

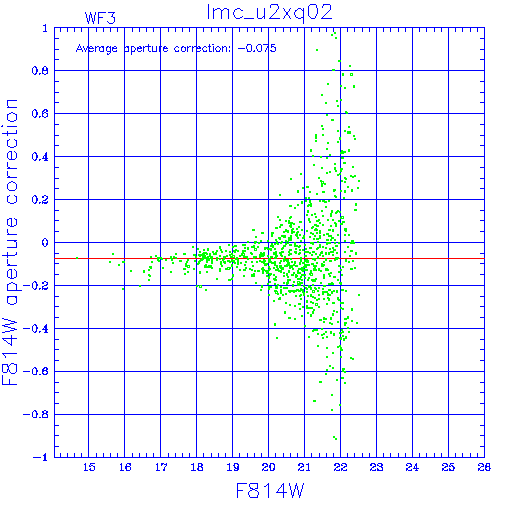

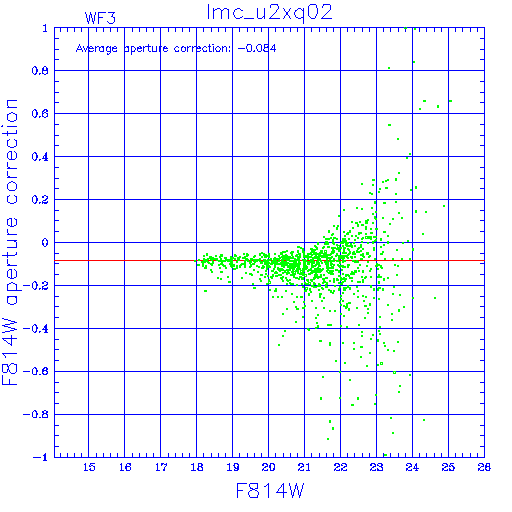

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
