Photometry Diagnostics for lmc_u2xq01

Frame list, with derived and commanded shifts

dataset	filter	exptime	derived dx	derived dy	header dx	header dy	delta dx	delta dy
u2xq0101t	F555W	600.00	0.00	0.00	0.00	0.00	0.00	0.00
u2xq0102t	F555W	20.00	-0.02	0.02	0.00	0.00	-0.02	0.02
u2xq0103t	F555W	20.00	-0.01	0.05	0.00	0.00	-0.01	0.05
u2xq0104t	F555W	500.00	-0.02	0.09	0.00	0.00	-0.02	0.09
u2xq0105t	F555W	500.00	-0.02	0.11	0.00	0.00	-0.02	0.11
u2xq0106t	F814W	500.00	0.03	0.02	0.00	0.00	0.03	0.02
u2xq0107t	F814W	20.00	0.03	0.01	0.00	0.00	0.03	0.01
u2xq0108t	F814W	20.00	0.03	0.00	0.00	0.00	0.03	0.00
u2xq0109t	F814W	20.00	0.07	-0.05	0.00	0.00	0.07	-0.05
u2xq010at	F814W	600.00	0.10	-0.16	0.00	0.00	0.10	-0.16
u2xq010bt	F814W	600.00	0.03	-0.18	0.00	0.00	0.03	-0.18

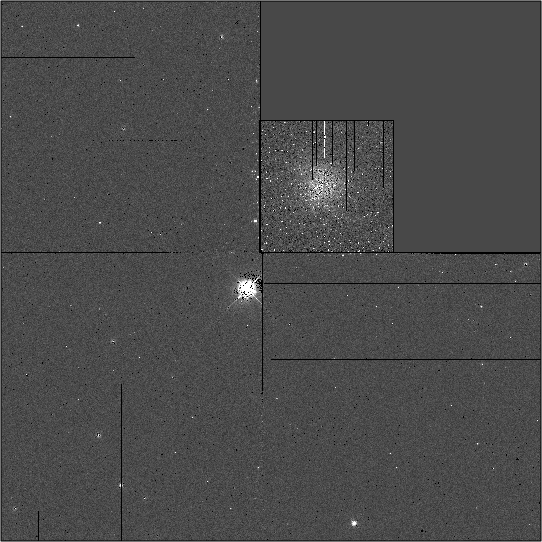

Mosaic images

F555W	F814W

HSTPHOT command log

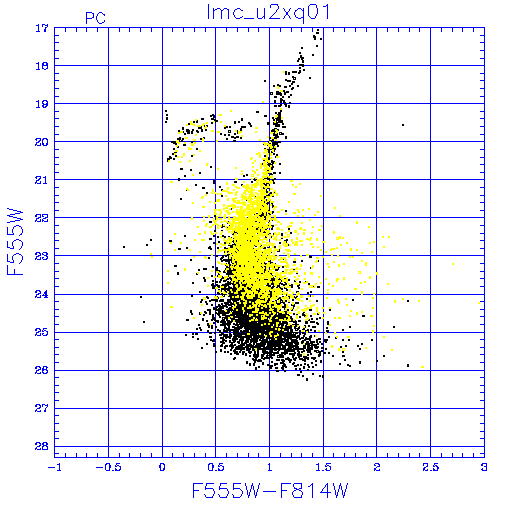

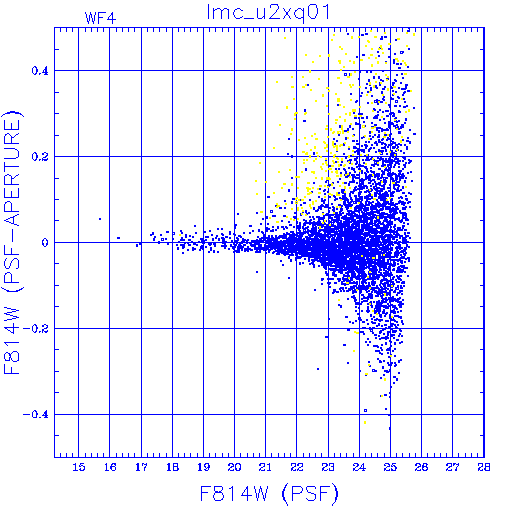

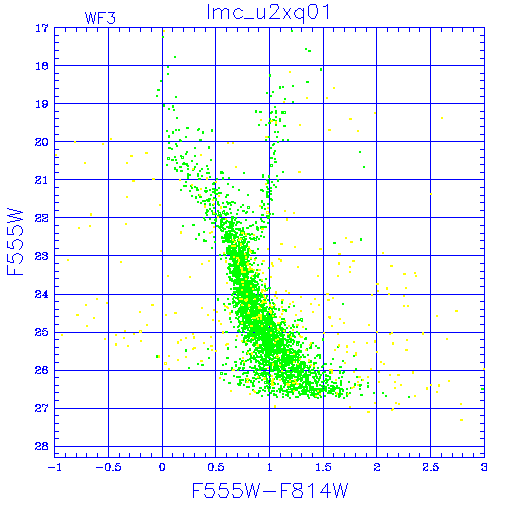

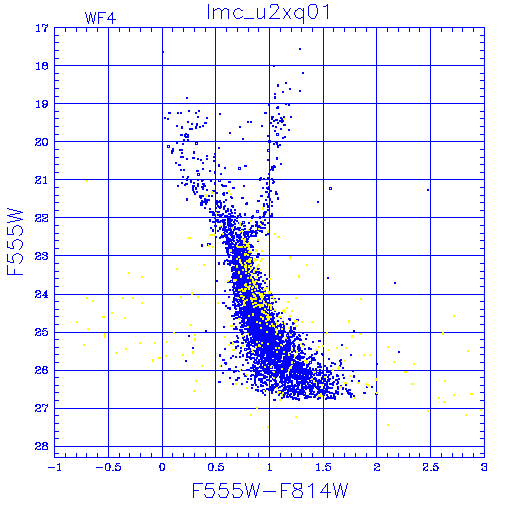

Color magnitude diagrams

	All chips	PC	WF2	WF3	WF4

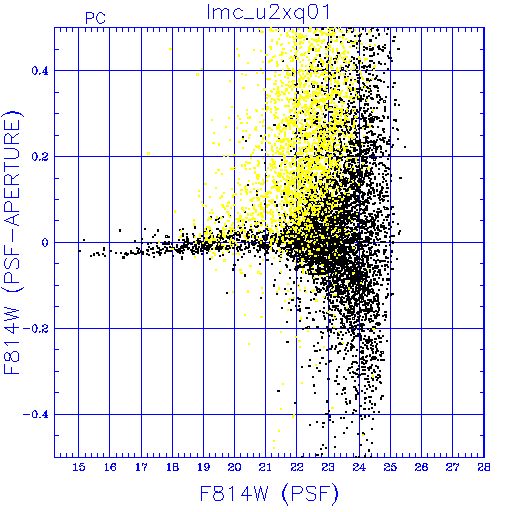

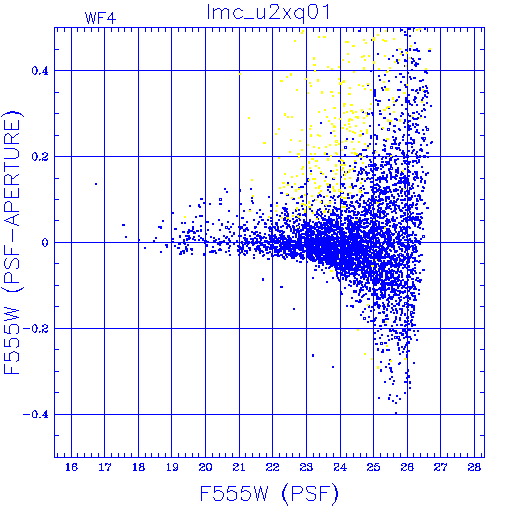

PSF

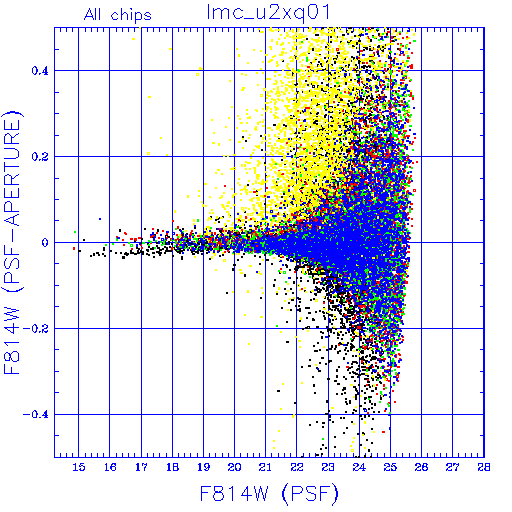

Aperture

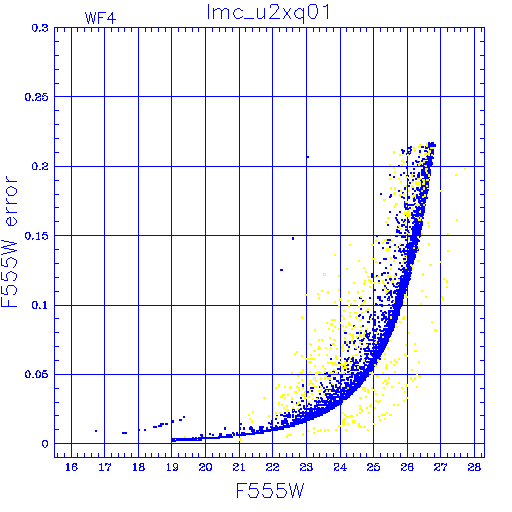

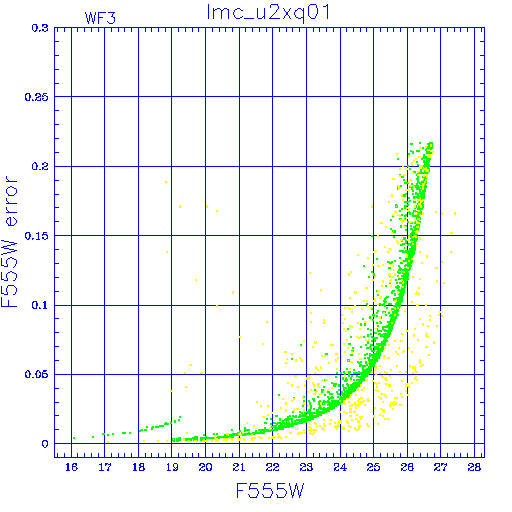

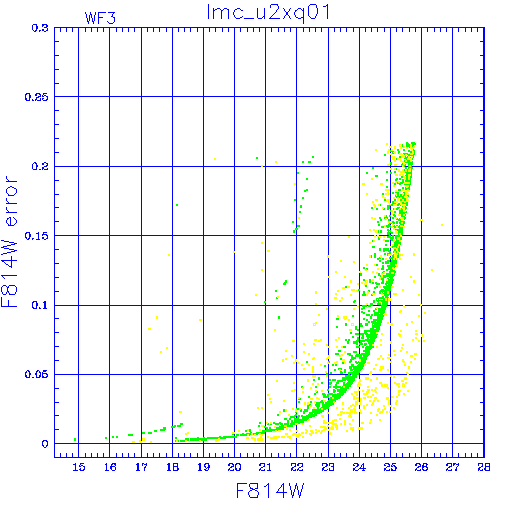

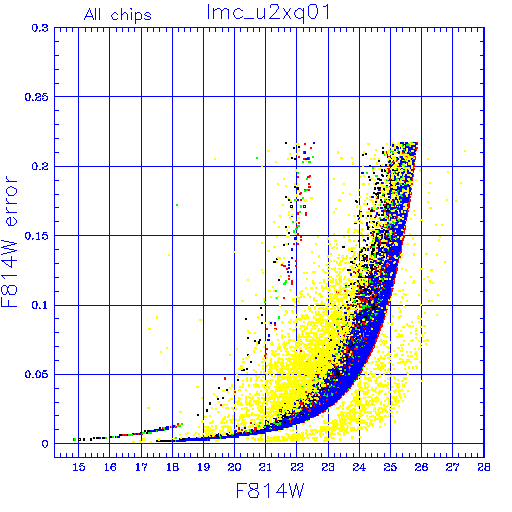

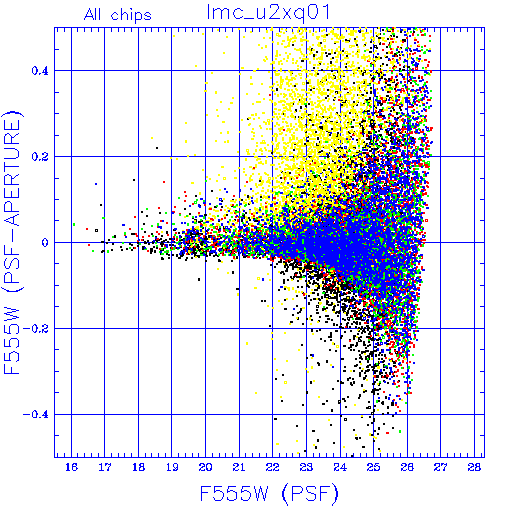

Error vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

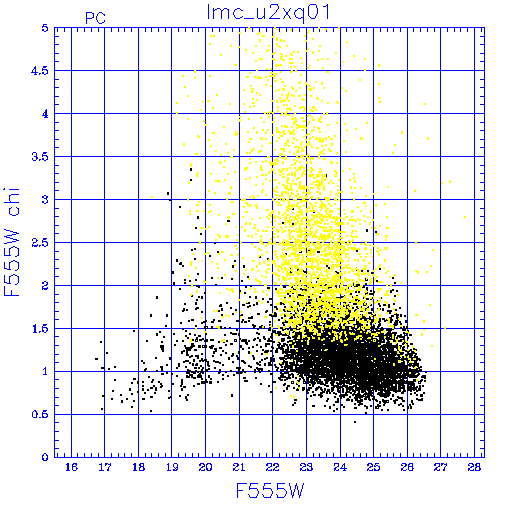

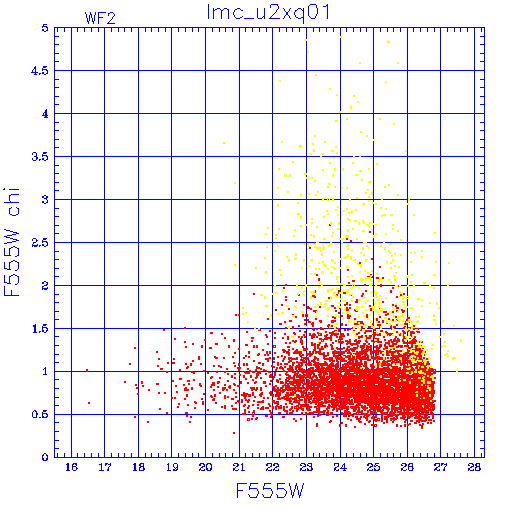

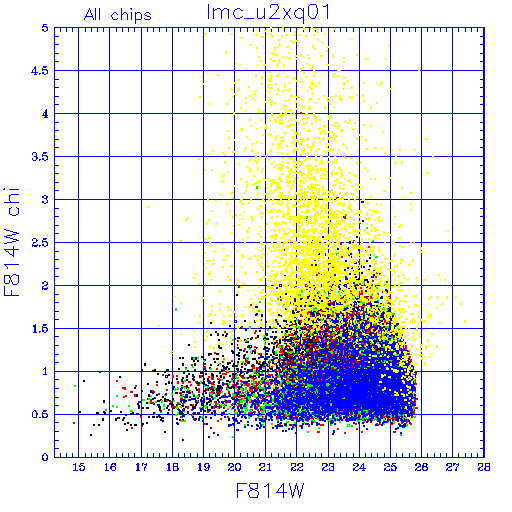

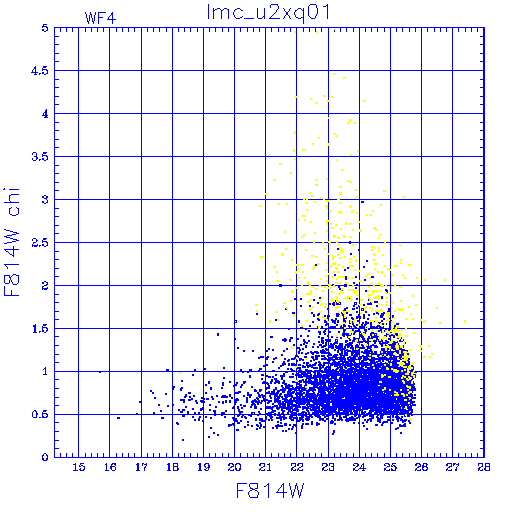

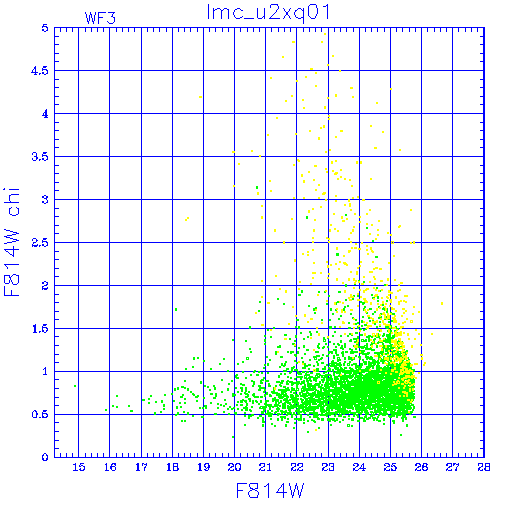

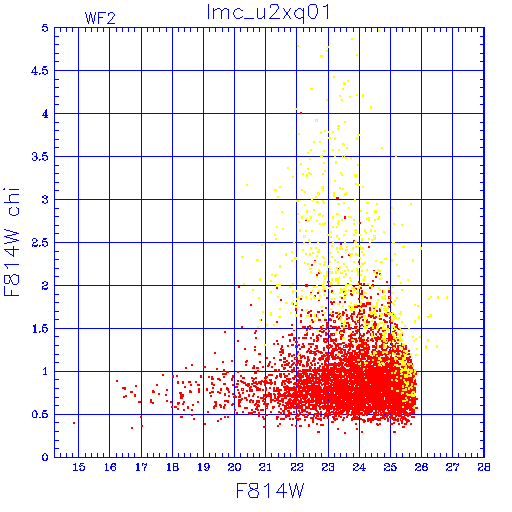

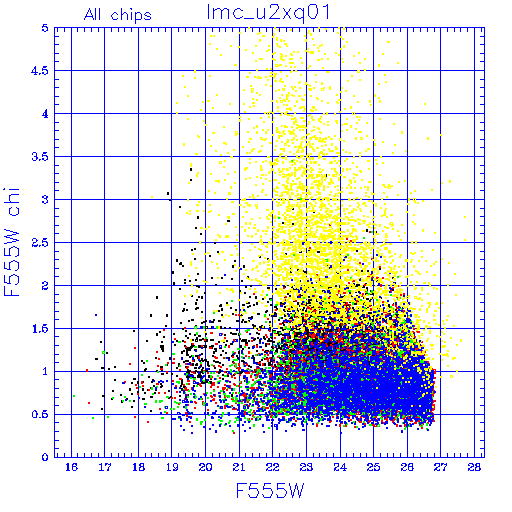

CHI vs. magnitude diagrams

	All chips	PC	WF2	WF3	WF4
f555w
f814w

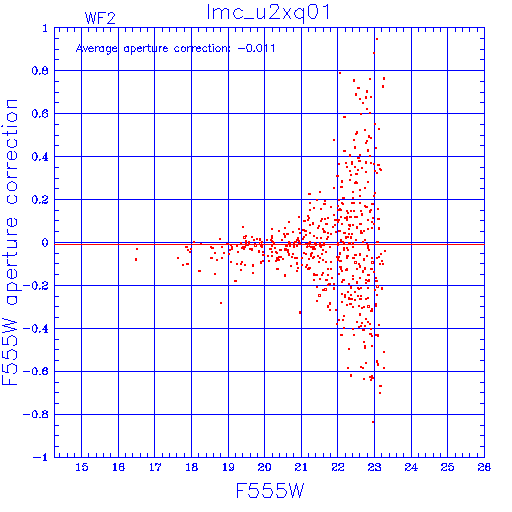

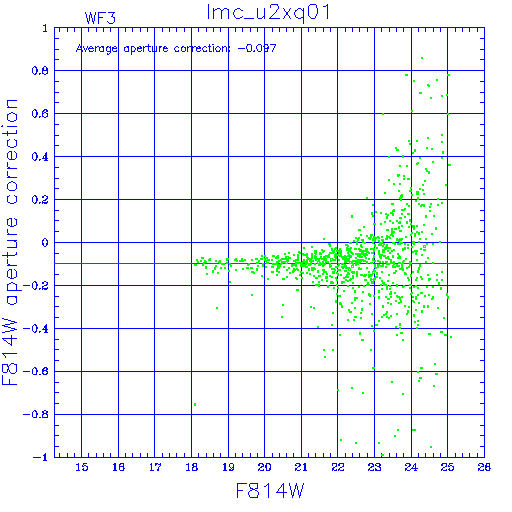

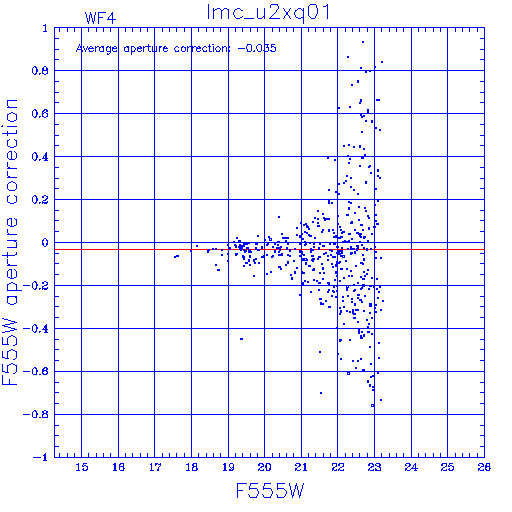

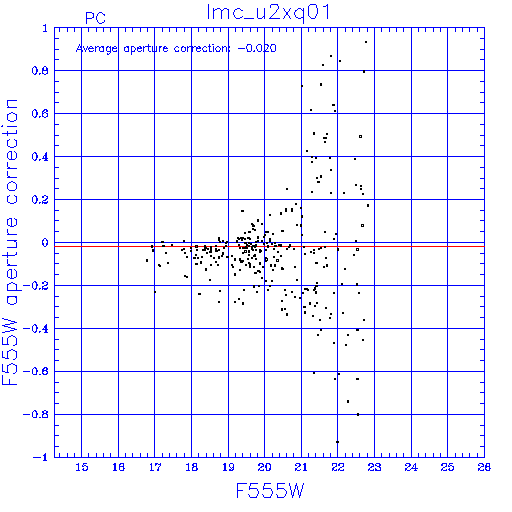

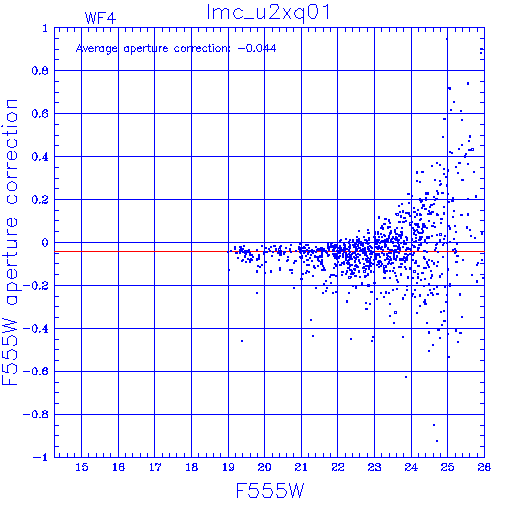

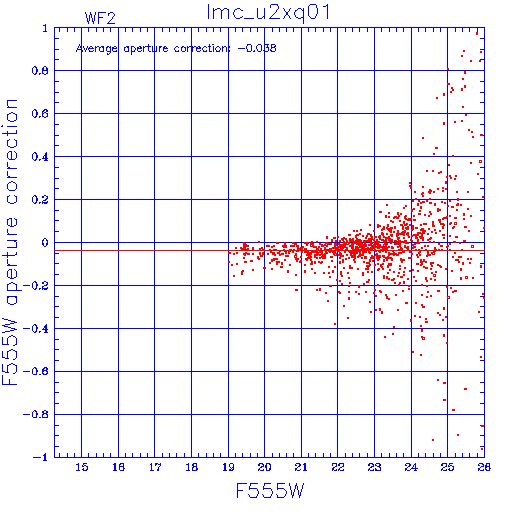

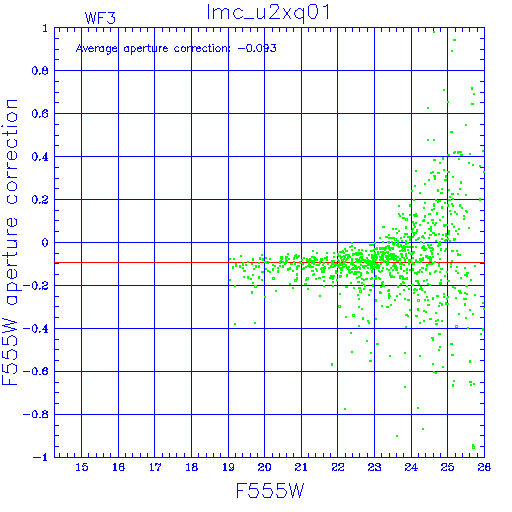

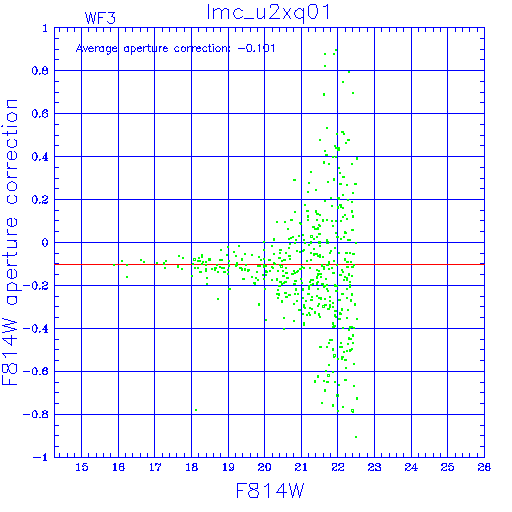

Aperture corrections

Aperture corrections compared with those of entire database (green points are this field)
If aperture corrections appear to be significant outliers in the global trend, you should be cautious about their quality, and consider that the zeropoints of photometry and colors are more suspect
